Oper ator’s manual (EPA)
324L
324LD
Please r ead the operator’s manual carefully and make sure you
understand the instructions before using the machine.
X-series
X-series
EEEEnnnngggglllliiiisssshh
hh
2
W
W
W
KEY T O SYMBOLS
Symbols
ARNING! Clearing saws, brushcutters
and trimmers can be dangerous! Careless
or incorrect use can result in serious or
fatal injury to the operator or others. It is
extremely important that you read and
understand the contents of the operator’s
manual.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the machine.
Always wear:
• A protective helmet where there is a risk
of falling objects
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable CE directives.
Only use non-metallic, flexible cutting
attachments, i.e. trimmer heads with
trimmer cord.
Other symbols/decals on the mac hine refer to special
certification requirements for certain markets.
Switch off the engine by moving the stop
switch to the STOP position before carrying
out any checks or maintenance.
Always wear approved protective gloves.
Regular cleaning is required.
Visual check.
atch out for thrown objects and ricochets.
The oper ator of the machine must
ensure, while working, that no persons or
animals come closer than 15 metres.
Machines fitted with saw blades or grass
blades can be thrown violently to the side
when the blade comes into contact with a
fixed object. This is called blade thrust. The
blade is capable of amputating an arm or
leg. Always keep people and animals at
least 15 metres from the machine.
Arro ws which show limits for handle
positioning.
Alw ays wear approved protective gloves.
Approved eye protection must always be
used.
15 m
5 m
1
50F
50FT
T
ear sturdy, non-slip boots.
–
English
ST
W
T
Y
W
W
W
CONTENTS
Contents
KEY TO SYMBOLS
Symbols ....................................................................... 2
CONTENTS
Contents ...................................................................... 3
Note the following before starting: ................................ 3
INTR ODUCTION
Dear customer! ............................................................ 4
WHA T IS WHAT?
What is what? .............................................................. 5
GENERAL SAFETY PRECA UTIONS
Impor tant ...................................................................... 6
Personal protective equipment ..................................... 6
Machine ′ s safety equipment ........................................ 7
Cutting equipment ........................................................ 9
ASSEMBL Y
Fitting the loop handle ................................................. 10
Assembling and dismantling the two-piece shaft
(324LDx) ...................................................................... 10

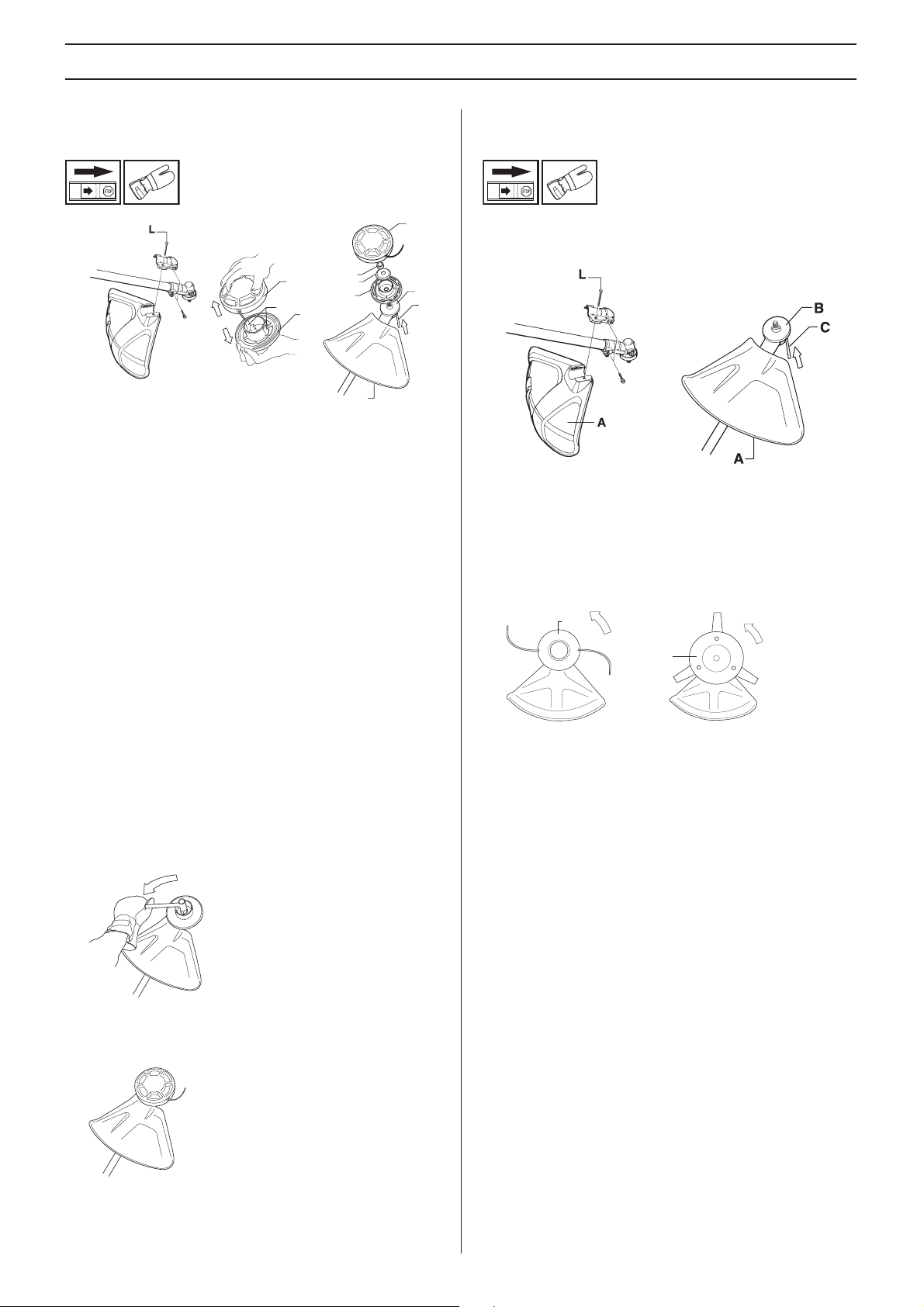

Assembling the cutting equipment ............................... 10
FUEL HANDLING
Fuel handling ............................................................... 12
Fuel .............................................................................. 12
ARTING AND STOPPING
Chec k before starting ................................................... 14
Starting and stopping ................................................... 14
ORKING TECHNIQUES
Gener al working instructions ....................................... 16
MAINTENANCE
Carb uretor .................................................................... 18
Muffler .......................................................................... 18
Cooling system ............................................................ 19
Spark plug .................................................................... 19
Two-piece shaft ........................................................... 19
Air filter ......................................................................... 19
Maintenance schedule ................................................. 21
TECHNICAL D ATA
echnical data .............................................................. 22
FEDERAL AND CALIFORNIA EMISSIONS
CONTROL WARRANTY STATEMENT
OUR WARRANTY RIGHTS AND OBLIGATIONS ..... 24
Note the f ollowing before starting:
Please read the oper ator’s manual carefully.
Maintenance, replacement, or repair of the emission control
devices and system may be performed by any nonroad
engine repair establishment or individual.
ARNING! Long-term exposure to noise can
result in permanent hearing impairment. So
!
always use approved hearing protection.
ARNING! Under no circumstances may the
design of the machine be modified without
!
the permission of the manufacturer. Always
use genuine accessories. Non-authorized
modifications and/or accessories can result
in serious personal injury or the death of the
operator or others.
Your warranty may not cover damage or
liability caused by the use of non-authorized
accessories or replacement parts.
ARNING! A clearing saw, brushcutter or
trimmer can be dangerous if used
!
incorrectly or carelessly, and can cause
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of this
operator’s manual.
This label certifies that the product has been certified in
accordance with American exhaust requirements EPA 2.
This engine label certifies that the product is certified in
accordance with American exhaust emissions requirements
EPA Ph II and Californian exhaust and evaporative emissions
requirements CARB Tier III. The Emissions Compliance
Period referred to on the emissions compliance label
indicates the number of operating hours for which the engine
has shown to meet Federal and Californian emission
requirements.
Category C = 50 hours, B = 125 hours, and A = 300 hours.
English
– 3
4
INTR ODUCTION
Dear customer!
Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the
Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The
location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During over
300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern
kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed
by chain saws in 1959, and it is within this area Husqvarna is working today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority.
We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and
construction industry.
Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who
sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator ′ s
manual as a valuable document. By following its ′ content (using, service, maintenance etc) the life span and the second-hand value
of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator ′ s
manual, so they will also know how to properly maintain and use it.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
For customer assistance, contact us at our website: www.usa.husqvarna.com
–
English
WHA T IS WHA T?
LD
X
1
What is what?
Trimmer head
2 Bevel gear
3 Grease filler cap, bevel gear
4 Cutting attachment guard
5 Shaft
6 Loop handle
7 Stop switch
8 Throttle control
9 Throttle lockout
10 Cylinder cover
11 Starter handle
12 Air purge
13 Fuel tank
14 Choke control
15 Air filter cover
16 Handle adjustment
17 Drive disc
18 Allen key
19 Locking pin
20 Shaft coupling (324LDx)
21 Operator’s manual
English
– 5
6
GENERAL SAFETY PRECA UTIONS
W
W
W
Impor tant
IMPORTANT!
The machine is only designed for trimming grass.
The only accessories you can operate with this engine unit
are the cutting attachments we recommend in the chapter
on Technical data.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect your
vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
Never use a machine that has been modified in any way
from its original specification.
Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures must be
carried out by trained and qualified specialists. See
instructions under the heading Maintenance.
All covers, guards and handles must be fitted before
starting. Ensure that the spark plug cap and ignition lead
are undamaged to avoid the risk of electric shock.
The machine operator must ensure that no people or
animals come closer than 15 metres while working. When
several operators are working in the same area the safety
distance should be at least twice the tree height and no less
than 15 metres.
ARNING! Listen out for warning signals or
shouts when you are wearing hearing
!
protection. Always remove your hearing
protection as soon as the engine stops.
HEARING PR OTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor then
you must also wear approved protective goggles. Approved
protective goggles must comply with standard ANSI Z87.1 in
the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
ARNING! The ignition system of this
machine produces an electromagnetic field
!
during operation. This field may under some
circumstances interfere with pacemakers. To
reduce the risk of serious or fatal injury, we
recommend persons with pacemakers to
consult their physician and the pacemaker
manufacturer before operating this machine.
ARNING! Running an engine in a confined
or badly ventilated area can result in death
!
due to asphyxiation or carbon monoxide
poisoning.
Personal protective equipment
IMPOR TANT!
A clearing saw, brushcutter or trimmer can be dangerous if
used incorrectly or carelessly, and can cause serious or
fatal injury to the operator or others. It is extremely
important that you read and understand the contents of this
operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen. Ask
your dealer for help in choosing the right equipment.
BOOTS
Wear sturdy, non-slip boots.
CLOTHING
Wear clothes made of a strong fabric and avoid loose clothing
that can catch on twigs and branches. Always wear heavy,
long pants. Do not wear jewellery, shorts sandals or go
barefoot. Secure hair so it is above shoulder level.
FIRST AID KIT
Always have a first aid kit nearby.
–
English
GENERAL SAFETY PRECA UTIONS
′
W
W
Mac hine ′′
This section descr ibes the machine ′ s safety equipment, its
purpose, and how checks and maintenance should be carried
out to ensure that it operates correctly. See the ”What is
what?” section to locate where this equipment is positioned
on your machine.
The life span of the machine can be reduced and the risk of
accidents can increase if machine maintenance is not carried
out correctly and if service and/or repairs are not carried out
professionally. If you need further information please contact
your nearest servicing dealer.
IMPORTANT!
All servicing and repair work on the machine requires
special training. This is especially true of the machine
safety equipment. If your machine fails any of the checks
described below you must contact your service agent.
When you buy any of our products we guarantee the
availability of professional repairs and service. If the retailer
who sells your machine is not a servicing dealer, ask him for
the address of your nearest service agent.
!
′′
s safety equipment
s
ARNING! Never use a machine with faulty
safety equipment. The machine’s safety
equipment must be checked and maintained
as described in this section. If your machine
fails any of these checks contact your
service agent to get it repaired.
Check that the throttle control and throttle lockout move freely
and that the return springs work properly.
See instructions under the heading Start. Start the machine
and apply full throttle. Release the throttle and check that the
cutting attachment stops and remains at a standstill. If the
cutting attachment rotates with the throttle in the idle position
then the carburettor idle setting must be checked. See
instructions under the heading Maintenance.
Stop s witch
Use the stop s witch to switch off the engine.
Thr ottle lockout
The throttle loc kout is designed to prevent accidental
operation of the throttle control. When you press the lock (A)
(i.e. when you grasp the handle) it releases the throttle control
(B). When you release the handle the throttle control and the
throttle lockout both move back to their original positions. This
movement is controlled by two independent return springs.
This arrangement means that the throttle control is
automatically locked at the idle setting.
Make sure the throttle control is locked at the idle setting
when the throttle lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
Start the engine and make sure the engine stops when you
move the stop switch to the stop setting.
Cutting attac hment guard
This guard is intended to pre vent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting attachment.
Check that the guard is undamaged and not cracked. Replace
the guard if it has been exposed to impact or is cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
ARNING! Never use a cutting attachment
without an approved guard. See the chapter
!
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
English
– 7
GENERAL SAFETY PRECA UTIONS
8
Vibration damping system
Your machine is equipped with a vibration damping system
that is designed to reduce vibration and make operation
easier.
Use of incorrectly wound cord or an incorrect cutting
attachment increases the level of vibration. See instructions
under the heading Cutting equipment.
The machine′s vibration damping system reduces the transfer
of vibration between the engine unit/cutting equipment and
the machine′s handle unit.
In countries that have a warm and dry climate there is a
significant risk of fire. We therefore fit certain mufflers with a
spark arrestor screen. Check whether the muffler on your
machine is fitted with this kind of screen.
For mufflers it is very important that you follow the instructions
on checking, maintaining and servicing your machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the
machine.
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.
WARNING! Overexposure to vibration can
lead to circulatory damage or nerve damage
!
in people who have impaired circulation.
Contact your doctor if you experience
symptoms of overexposure to vibration.
Such symptoms include numbness, loss of
feeling, tingling, pricking, pain, loss of
strength, changes in skin colour or
condition. These symptoms normally appear
in the fingers, hands or wrists. The risk
increases at low temperatures.
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user. A muffler
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
If the muffler on your machine is fitted with a spark arrestor
screen this must be cleaned regularly. A blocked screen will
cause the engine to overheat and may lead to serious
damage.
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
!
remain so for some time after stopping. This
also applies at idle speed. Contact can result
in burns to the skin. Remember the risk of
fire!
WARNING! The inside of the muffler contain
chemicals that may be carcinogenic. Avoid
!
contact with these elements in the event of a
damaged muffler.
–
English
WARNING! Bear in mind that:
The exhaust fumes from the engine are hot
!
and may contain sparks which can start a
fire. Never start the machine indoors or near
combustible material!
GENERAL SAFETY PRECAUTIONS
Locking nut
A locking nut is used to secure some types of cutting
attachment.
When fitting, tighten the nut in the opposite direction to the
direction of rotation of the cutting attachment. To remove it,
undo the nut in the same direction as the cutting attachment
rotates. (CAUTION! The nut has a left-hand thread.)
When loosening and tightening the saw blade nut, there is a
risk of injury from the teeth of the saw blade. You should
therefore always ensure that your hand is shielded by the
blade guard when doing this. Always use a socket spanner
with a shaft that is long enough to allow this. The arrow in the
diagram shows the area where you should operate the socket
spanner when loosening or tightening the nut.
The nylon lining inside the locking nut must not be so worn
that you can turn it by hand. The lining should offer a
resistance of at least 1.5 Nm. The nut should be replaced
after it has been put on approx. 10 times.
Cutting equipment
Trimmer head
IMPORTANT!
Always ensure the trimmer cord is wound tightly and evenly
around the drum, otherwise the machine will generate
harmful vibration.
• Only use the recommended trimmer heads and trimmer
cords. These have been tested by the manufacturer to suit
a particular engine size. This is especially important when
a fully automatic trimmer head is used. Only use the
recommended cutting attachment. See the chapter on
Technical data.
• Smaller machines generally require small trimmer heads
and vice versa. This is because when clearing using a
cord the engine must throw out the cord radially from the
trimmer head and overcome the resistance of the grass
being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of the
same diameter.
• Make sure that the cutter on the trimmer guard is intact.
This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in water
for a couple of days. This will make the line tougher so that
it lasts longer.
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Refer to the instructions for the cutting attachment to check
the correct way to load the cord and the correct cord
diameter.
WARNING! Always stop the engine before
doing any work on the cutting attachment.
!
This continues to rotate even after the
throttle has been released. Ensure that the
cutting attachment has stopped completely
and disconnect the HT lead from the spark
plug before you start to work on it.
WARNING! A faulty cutting attachment may
increase the risk of accidents.
!
English – 9
ASSEMBLY
Fitting the loop handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, knob and screw. Do not overtighten.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Assembling and dismantling the two-piece shaft (324LDx)
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on the
coupling (B).
Dismantling:
• Loosen the coupling by turning the knob (at least 3 times).
• Push and hold the button (C). While securely holding the
engine end, pull the attachment straight out of the
coupling.
C
Assembling the cutting equipment
WARNING!
When fitting the cutting attachment it is
!
extremely important that the raised section
on the drive disc/support flange engages
correctly in the centre hole of the cutting
attachment. If the cutting attachment is fitted
incorrectly it can result in serious and/or
fatal personal injury.
B
A
• Push the attachment into the coupling until the attachment
snaps into place.
• Before using the unit, tighten the knob securely.
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
!
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
10 – English
ASSEMBLY
Fitting a trimmer guard and Superauto II 1" trimmer head
K
K
J
• Fit the correct trimmer guard (A) for use with the trimmer
head. Hook the guard onto the fitting on the shaft and
secure it with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• To fit the trimmer head, first separate the two halves (see
diagram). Proceed as follows:
• Insert a finger into the centre hole of the cover (I) while
grasping the cover with your other fingers. Using the index
finger and thumb of your other hand, release the two
catches (J) that engage in the cut-outs in the bottom half
(K). Pull apart the trimmer head, grasping the cover firmly.
• Place the cover (I) and the support flange (F) on the
output shaft. Ensure that the drive disc’s guide locates
correctly in the cover’s centre hole.
• Fit the nut (G). The nut must be tightened to a torque of
35-50 Nm (3.5-5 kpm). Use the socket spanner in the tool
kit. Hold the shaft of the spanner as close to the blade
guard as possible. To tighten the nut, turn the spanner in
the opposite direction to the direction of rotation (Caution!
left-hand thread).
G
F
I
I
A
B
C
Fitting other guards and cutting attachments
• Fit the correct trimmer guard (A) for use with the trimmer
head. Hook the trimmer guard/combination guard onto
the fitting on the shaft and secure with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
H
H
• To dismantle, follow the instructions in the reverse order.
• Fit the bottom half of the trimmer head (K) to the cover (I)
by pressing them together, with the cut-outs on the bottom
half aligned with the catches on the cover.
• To dismantle, follow the instructions in the reverse order.
English – 11
FUEL HANDLING
Fuel handling
Never start the machine:
1 If you have spilled fuel on it. Wipe off the spillage and allow
remaining fuel to evaporate.
2 If you have spilled fuel on yourself or your clothes, change
your clothes. Wash any part of your body that has come in
contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for leaks
from the fuel cap and fuel lines.
Transport and storage
• Store and transport the machine and fuel so that there is
no risk of any leakage or fumes coming into contact with
sparks or naked flames, for example, from electrical
machinery, electric motors, electrical relays/switches or
boilers.
• When storing and transporting fuel always use approved
containers intended for this purpose.
• When storing the machine for long periods the fuel tank
must be emptied. Contact your local gas station to find out
where to dispose of excess fuel.
• The transport guard must always be fitted to the cutting
attachment when the machine is being transported or in
storage.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion and
!
inhaling fumes.
Fuel
Gasoline
Always use an unleaded quality petrol of at least 90 octane
(RON).
Use low-emission gasoline, also known as alkylate gasoline,
if it is available.
• The lowest recommended octane grade is 87
((RON+MON)/2). If you run the engine on a lower octane
grade than 87 so-called knocking can occur. This gives
rise to a high engine temperature and increased bearing
load, which can result in serious engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Engine oil
Check the oil level before starting the machine. A too low oil
level can cause serious damage to the engine.
When the machine is new the engine oil should be changed
after the first month or after 10 hours of operation.
• For the best result and function use HUSQVARNA engin
oil.
• When HUSQVARNA engine oil is not available another
high grade engine oil can be used. Contact your dealer
when selecting oil. Engine oil for four-stroke petrol
engines must be used. Quality class at least API SG. In
general viscosity class SAE 10W-40 is recommended.
• Never use oil intended for two-stroke engines.
Oil level
The machine must be switched off and placed on a flat
surface when you check the oil level.
Unscrew the oil cap, clean the dipstick located on the cap and
insert the cap again without screwing it down. Check the oil
level on the dipstick.
CAUTION! The machine is equipped with a four-stroke
engine. Make sure that there is always sufficient oil in the oil
tank.
WARNING! Fuel and fuel fumes are highly
inflammable and can cause serious injury
!
when inhaled or allowed to come in contact
with the skin. For this reason observe
caution when handling fuel and make sure
there is adequate ventilation.
WARNING! The catalytic converter muffler
gets very hot during and after use. This also
!
applies during idling. Be aware of the fire
hazard, especially when working near
flammable substances and/or vapours.
12 – English
When the oil level is low, top up using engine oil to the edge
of the oil refill hole.
Only use recommended engine oil.
FUEL HANDLING
Fueling
WARNING! Taking the following precautions,
will lessen the risk of fire:
!
Do not smoke or place hot objects near fuel.
Always shut off the engine before refuelling.
Always stop the engine and let it cool for a
few minutes before refuelling.
When refuelling, open the fuel cap slowly so
that any excess pressure is released gently.
Tighten the fuel cap carefully after refuelling.
Always move the machine away from the
refuelling area before starting.
Clean around the fuel cap. Clean the fuel and oil tank
regularly. The fuel filter should be changed at least once a
year. Contamination in the tanks causes malfunction.
Always move the machine about 3 metres from the refuelling
position before starting.
English – 13
STARTING AND STOPPING
Check before starting
• Check that the support flange is not cracked due to fatigue
or due to being tightened too much. Discard the support
flange if it is cracked.
• Ensure the locking nut has not lost its captive force. The
nut lock should have a locking force of at least 1.5 Nm.
The tightening torque of the locking nut should be 35-50
Nm.
• Check that the trimmer head and trimmer guard are not
damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or are
cracked.
Starting and stopping
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
!
started, otherwise the clutch can come loose
and cause personal injury.
Always move the machine away from the
refuelling area before starting. Place the
machine on a flat surface. Ensure the cutting
attachment cannot come into contact with
any object.
Make sure no unauthorised persons are in
the working area, otherwise there is a risk of
serious personal injury. The safety distance
is 15 metres.
Cold engine
Ignition: Set the stop switch to the start position.
• Never use the machine without a guard nor with a
defective guard.
• All covers must be correctly fitted and undamaged before
you start the machine.
Choke: Set the choke control in the choke position.
Primer bulb: Press the air purge repeatedly until fuel begins
to fill the bulb. The bulb need not be completely filled.
OIL
14 – English
STARTING AND STOPPING
Warm engine
Ignition: Set the stop switch to the start position.
Choke: Put the choke in working position.
Primer bulb: Press the air purge repeatedly until fuel begins
to fill the bulb. The bulb need not be completely filled.
OIL
Stopping
Stop the engine by switching off the ignition with the stop
button.
WARNING! When the engine is started with
the choke in either the choke or start throttle
!
positions the cutting attachment will start to
rotate immediately.
Starting
Hold the body of the machine on the ground using your left
hand (CAUTION! Not with your foot!). Grip the starter handle,
slowly pull out the cord with your right hand until you feel
some resistance (the starter pawls grip), now quickly and
powerfully pull the cord. Never wrap the starter cord around
your hand
Reset the choke when the engine fires, repeat pulling the cord
until the engine starts.
CAUTION! Do not pull the starter cord all the way out and do
not let go of the starter handle when the cord is fully extended.
This can damage the machine.
English – 15
WORKING TECHNIQUES
General working instructions
IMPORTANT!
This section takes up the basic safety precautions for
working with a trimmer.
If you encounter a situation where you are uncertain how to
proceed you should ask an expert. Contact your dealer or
your service workshop.
Avoid all usage which you consider to be beyond your
capability.
You must understand the difference between forestry
clearing, grass clearing and grass trimming before use.
Basic safety rules
1 Look around you:
• To ensure that people, animals or other things cannot
affect your control of the machine.
• To ensure that people, animals, etc., do not come into
contact with the cutting attachment or loose objects that
are thrown out by the cutting attachment.
• CAUTION! Do not use the machine unless you are able to
call for help in the event of an accident.
2 Inspect the working area. Remove all loose objects, such
as stones, broken glass, nails, steel wire, string, etc. that
could be thrown out or become wrapped around the
cutting attachment.
3 Do not use the machine in bad weather, such as dense
fog, heavy rain, strong wind, intense cold, etc. Working in
bad weather is tiring and often brings added risks, such as
icy ground, unpredictable felling direction, etc.
4 Make sure you can move and stand safely. Check the area
around you for possible obstacles (roots, rocks, branches,
ditches, etc.) in case you have to move suddenly. Take
great care when working on sloping ground.
6 Always hold the machine with both hands. Hold the
machine on the right side of your body.
7 Keep the cutting attachment below waist level.
8 The engine must be switched off before moving.
9 Never put the machine down with the engine running
unless you have it in clear sight.
WARNING! Neither the operator of the
machine nor anyone else may attempt to
!
remove the cut material while the engine is
running or the cutting equipment is rotating,
as this can result in serious injury.
Stop the engine and cutting equipment
before you remove material that has wound
around the blade shaft as otherwise there is
a risk of injury. The bevel gear can get hot
during use and may remain so for a while
afterwards. You could get burnt if you touch
it.
WARNING! Watch out for thrown objects.
Always wear approved eye protection. Never
!
lean over the cutting attachment guard.
Stones, rubbish, etc. can be thrown up into
the eyes causing blindness or serious injury.
Keep unauthorised persons at a distance.
Children, animals, onlookers and helpers
should be kept outside the safety zone of 15
m. Stop the machine immediately if anyone
approaches. Never swing the machine
around without first checking behind you to
make sure no-one is within the safety zone.
5 Keep a good balance and a firm foothold.
16 – English
Basic working techniques
Always slow the engine to idle speed after each working
operation. Long periods at full throttle without any load on the
engine can lead to serious engine damage.
WARNING! Sometimes branches or grass
get caught between the guard and cutting
!
attachment. Always stop the engine before
cleaning.
WORKING TECHNIQUES
Grass trimming with a trimmer head
Trimming
• Hold the trimmer head just above the ground at an angle.
It is the end of the cord that does the work. Let the cord
work at its own pace. Never press the cord into the area
to be cut.
• The cord can easily remove grass and weeds up against
walls, fences, trees and borders, however it can also
damage sensitive bark on trees and bushes, and damage
fence posts.
• Reduce the risk of damaging plants by shortening the
cord to 10-12 cm and reducing the engine speed.
Clearing
• The clearing technique removes all unwanted vegetation.
Keep the trimmer head just above the ground and tilt it. Let
the end of the cord strike the ground around trees, posts,
statues and the like. CAUTION! This technique increases
the wear on the cord.
Sweeping
• The fan effect of the rotating cord can be used for quick
and easy clearing up. Hold the cord parallel to and above
the area to be swept and move the tool to and fro.
• When cutting and sweeping you should use full throttle to
obtain the best results.
• The cord wears quicker and must be fed forward more
often when working against stones, brick, concrete, metal
fences, etc., than when coming into contact with trees and
wooden fences.
• When trimming and clearing you should use less than full
throttle so that the cord lasts longer and to reduce the
wear on the trimmer head.
Cutting
• The trimmer is ideal for cutting grass that is difficult to
reach using a normal lawn mower. Keep the cord parallel
to the ground when cutting. Avoid pressing the trimmer
head against the ground as this can ruin the lawn and
damage the tool.
• Do not allow the trimmer head to constantly come into
contact with the ground during normal cutting. Constant
contact of this type can cause damage and wear to the
trimmer head.
English – 17
MAINTENANCE
Carburetor
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
!
started, otherwise the clutch can come loose
and cause personal injury.
Function
• The carburetor governs the engine’s speed via the throttle
control. Air and fuel are mixed in the carburetor.
• Setting the carburettor involves adapting the engine to suit
local conditions, e.g. climate, altitude and the petrol.
Basic setting
The basic carburetor settings are adjusted during testing at
the factory.
CAUTION! For optimum adjustment of the carburettor,
contact a qualified dealer/service workshop that has a
revolution counter at their disposal.
Adjusting the idle speed (T)
Muffler
CAUTION! Some mufflers are fitted with a catalytic
converter. See chapter on Technical data to see whether your
machine is fitted with a catalytic converter.
The muffler is designed to reduce the noise level and to direct
the exhaust gases away from the operator. The exhaust
gases are hot and can contain sparks, which may cause fire
if directed against dry and combustible material.
The muffler on your machine is equipped with a spark arrestor
screen, this should be cleaned regularly. A blocked screen will
cause the engine to overheat and may lead to serious
damage.
Check that the air filter is clean. When the idle speed is
correct, the cutting attachment should not rotate. If
adjustment is required, close (turn clockwise) the idle
adjustment screw T, with the engine running, until the cutting
attachment starts to rotate. Open (turn anticlockwise) the
screw until the cutting attachment stops. The idle speed is
correctly set when the engine runs smoothly in all positions,
and there is a clear margin to the speed at which the cutting
attachment starts to rotate.
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
!
stops, contact your dealer/service
workshop. Do not use the machine until it
has been correctly adjusted or repaired.
CAUTION! Never use a machine with a defective muffler.
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
!
remain so for some time after stopping. This
also applies at idle speed. Contact can result
in burns to the skin. Remember the risk of
fire!
18 – English
MAINTENANCE
Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Air intake on the starter.
2 Fins on the flywheel.
3 Cooling fins on the cylinder.
4 Cylinder cover (directs cold air over the cylinder).
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.
Spark plug
Two-piece shaft
The drive shaft end in the lower shaft should be lubricated
with grease every 30 hours. There is a risk that the drive shaft
ends (splined coupling) on models with two-piece shafts will
seize if they are not lubricated regularly.
Air filter
The air filter must be regularly cleaned to remove dust and dirt
in order to avoid:
• Carburettor malfunctions
• Starting problems
• Loss of engine power
• Unnecessary wear to engine parts
• Excessive fuel consumption.
Clean the filter every 25 hours, or more regularly if conditions
are exceptionally dusty.
The spark plug condition is influenced by:
• Incorrect carburetor adjustment.
• A dirty air filter.
These factors cause deposits on the spark plug electrodes,
which may result in operating problems and starting
difficulties.
If the machine is low on power, difficult to start or runs poorly
at idle speed: always check the spark plug first before taking
any further action. If the spark plug is dirty, clean it and check
that the electrode gap is 0,6-0,7 mm. The spark plug should
be replaced after about a month in operation or earlier if
necessary.
CAUTION! Always use the recommended spark plug type!
Use of the wrong spark plug can damage the piston/cylinder.
Check that the spark plug is fitted with a suppressor.
Cleaning the air filter
Remove the air filter cover and take out the filter. Wash it
clean in warm, soapy water. Ensure that the filter is dry before
refitting it.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced with
a new one at regular intervals. A damaged air filter must
always be replaced.
If the machine is used in dusty conditions the air filter should
be soaked in oil. See instructions under the heading Oiling the
air filter.
English – 19
MAINTENANCE
Oiling the air filter
Always use HUSQVARNA filter oil, art. no. 531 00 92-48. The
filter oil contains a solvent to make it spread evenly through
the filter. You should therefore avoid skin contact.
Put the filter in a plastic bag and pour the filter oil over it.
Knead the plastic bag to distribute the oil. Squeeze the
excess oil out of the filter inside the plastic bag and pour off
the excess before fitting the filter to the machine. Never use
common engine oil. This would drain through the filter quite
quickly and collect in the bottom.
Bevel gear
The bevel gear is filled with the right quantity of grease at the
factory. However, before using the machine you should check
that the bevel gear is filled three-quarters full with grease. Use
HUSQVARNA special grease.
The grease in the bevel gear does not normally need to be
changed except if repairs are carried out.
IMPORTANT! Use only HUSQVARNA replacement parts.
Use of other brands of replacement parts can cause
damage to your unit or injury to the operator or others. Your
warranty does not cover damage or liability caused by the
use of accessories and/or attachments not specifically
recommended by HUSQVARNA.
20 – English
MAINTENANCE
Maintenance schedule
The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the
Maintenance section. The user must only carry out the maintenance and service work described in this manual. More extensive
work must be carried out by an authorised service workshop.
Maintenance
Clean the outside of the machine. X
Make sure the throttle trigger lock and the throttle function correctly from a
safety point of view.
Check that the stop switch works correctly. X
Check that the handle and handlebar are undamaged and secured
correctly.
Check that the cutting attachment does not rotate at idle. X
Clean the air filter. Replace if necessary. X
Check that the guard is undamaged and not cracked. Replace the guard if
it has been exposed to impact or is cracked.
Check that the trimmer head is undamaged and not cracked. Replace the
trimmer head if necessary.
Check that the locking nut of the cutting equipment is tighten correctly. X
Check that nuts and screws are tight. X
Check that there are no fuel leaks from the engine, tank or fuel lines. X
Check the engine oil level and top up if necessary. X
Check the starter and starter cord. X
Check that the vibration damping elements are not damaged. X
Clean the outside of the spark plug. Remove it and check the electrode
gap. Adjust the gap to 0,6-0,7 mm, or replace the spark plug. Check that
the spark plug is fitted with a suppressor.
Clean the machine’s cooling system. X
Clean or replace the spark arrestor screen on the muffler (only applies to
mufflers without a catalytic converter).
Clean the outside of the carburettor and the space around it. X
Check that the bevel gear is filled three-quarters full with lubricant. Fill if
necessary using special grease.
Check the fuel filter from contamination and the fuel hose from cracks or
other defects. Replace if necessary.
Check all cables and connections. X
Check the clutch, clutch springs and the clutch drum for wear. Replace if
necessary by an autorized service workshop.
Replace the spark plug. Check that the spark plug is fitted with a
suppressor.
Check and clean the spark arrestor screen on the muffler (only applies to
mufflers fitted with a catalytic converter).
Change the engine oil. X
Daily
maintenance
X
X
X
X
Weekly
maintenance
X
X
X
Monthly
maintenance
X
X
X
X
English – 21
TECHNICAL DATA
Technical data
324Lx 324LDx
Engine
Cylinder displacement, cu.in/cm
Cylinder bore, inch/mm 1,38/35 1,38/35
Stroke, inch/mm 1,03/26 1,03/26
Idle speed, rpm 3100 3100
Recommended max. fast idle speed, rpm 11000 11000
Speed of output shaft, rpm 8300 8300
Max. engine output, acc. to ISO 8893, kW/ rpm 0,8 / 7000 0,8 / 7000
Catalytic converter muffler No No
Speed-regulated ignition system No No
Ignition system
Manufacturer/type of ignition system Ikeda Ikeda
Spark plug NGK CMR5H NGK CMR5H
Electrode gap, inch/mm 0,024/0,6 0,024/0,6
Fuel and lubrication system
Manufacturer/type of carburetor Walbro Walbro
Fuel tank capacity, US pint/litre 1,06/0,5 1,06/0,5
Weight
Weight without fuel, cutting attachment and guard, Lbs/kg 5,1 11,9/5,4
Sound levels
(see note 1)
Equivalent sound pressure level at the user′s ear,
measured according to ANSI B175.3-1997, dB(A), min/
max:
Vibration levels
Vibration levels at handles, measured according to ANSI
B175.3-1997, m/s
At idle, left/right handles, min.: 1,9/1,8 1,7/1,6
At idle, left/right handles, max.: 2,2/1,9 2,8/1,8
At max. speed, left/right handles, min.: 5,8/5,5 3,2/4,5
At max. speed, left/right handles, max.: 6,1/5,7 5,8/8,7
2
3
1,53/25,0 1,53/25,0
90/97 90/98
Note 1: Equivalent noise pressure level is calculated as the time-weighted energy total for noise pressure levels under various
working conditions with the following time distribution: 1/2 idle and 1/2 max. speed.
NOTE! Noise pressure at the user’s ear and vibration on the handles are measured with all the machine’s approved cutting
equipment fitted. The table indicates the highest and lowest values.
22 – English
TECHNICAL DATA
The accessories are recommended for use in combination with the specified power heads and have been evaluated to applicable
ISO- and EN safety requirement standards by the Swedish Machinery Testing Institute.
Powerhead model Accessories Art No.
Clean sweep attachment with shaft SR600 537 19 67-01
Hedge trimmer attachment with shaft HA 110 537 19 66-01
324LDx
324Lx Saw attachment without shaft PA 537 18 33-12
The accessories have been developed mainly for the Husqvarna 125LD trimmer, but can also be used in combination with the
specified power heads and have been evaluated to applicable ISO- and EN safety requirement standards by the Swedish
Machinery Testing Institute.
Powerhead model Accessories Art No.
324LDx
Hedge trimmer attachment with shaft HA 850 537 19 66-02
Edger attachment with shaft 537 19 69-01
Saw attachment with shaft PA 1100 537 18 33-17
Edger attachment EAC 952 71 19-08
Pole saw attachment PAC 952 71 19-10
Cultivator attachment CAC 952 71 19-07
Blower attachment BAC 952 71 19-11
Hedge trimmer attachment HAC 952 71 19-21
The accessories used in combination with the specified power heads have been evaluated to ANSI B175.3-2003 Grass Trimmers
and Brushcutters - Safety Requirements. These combinations have been evaluated by Underwriters Laboratories Inc. (UL) and are
consequently UL listed.
Powerhead model Accessories Type
Arbor shaft thread M10
Plastic blades
324Lx, 324LDx
Trimmer head
324LDx Shaft TA 850 537 35 35-01
Tricut Ø 255 mm 503 93 42-02 / 503 97 71-01
Tricut Ø 300 mm 503 93 42-02
Trimmy Fix 503 93 42-02 / 503 97 71-01
Superauto II 1" 503 93 42-02 / 503 97 71-01
S35 503 93 42-02 / 503 97 71-01
T25 503 93 42-02 / 503 97 71-01
T35 503 93 42-02 / 503 97 71-01
Cutting attachment guard,
Art. no.
Art No.
English – 23
FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The EPA (U.S. Environmental Protection Agency), CARB
(California Air Resources Board), Environment Canada and
Husqvarna Forest & Garden are pleased to explain the
emissions control system’s warranty on your 2007 and later
small off-road engine. In U.S. and Canada, new equipment
that use small off-road engines must be designed, built, and
equipped to meet the applicable Federal or Californian
stringent anti-smog standards. Husqvarna Forest & Garden
must warrant the emissions control system on your small offroad engine for the period listed below provided there has
been no abuse, neglect or improper maintenance of your
equipment. Your emissions control system may include parts
such as the carburetor, ignition system, catalytic converter,
fuel tank, filters and other associated components. Also,
included may be hoses, belts, connectors, sensors, and other
emission-related assemblies. Where a warrantable condition
exists, Husqvarna Forest & Garden will repair your small offroad engine at no cost to you including diagnosis, parts and
labor.
MANUFACTURER′′′′S WARRANTY
COVERAGE
The emissions control system is warranted for two years. If
any emissions-related part on your equipment is defective,
the part will be repaired or replaced by Husqvarna Forest &
Garden.
OWNER′′′′S WARRANTY RESPONSIBILITIES
• As the small off-road engine owner, you are responsible
for performance of the required maintenance listed in your
operator’s manual. Husqvarna Forest & Garden
recommends that you retain all receipts covering
maintenance on your small off-road engine, but
Husqvarna Forest & Garden cannot deny warranty solely
for the lack of receipts or your failure to ensure the
performance of all scheduled maintenance.
• As the small off-road engine owner, you should however
be aware that Husqvarna Forest & Garden may deny you
warranty coverage if your small off-road engine or a part
has failed due to abuse, neglect, or improper maintenance
or unapproved modifications.
• You are responsible for presenting your small off-road
engine to a Husqvarna Forest & Garden distribution
center or service center as soon as the problem exists.
The warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days. If you have any
questions regarding your warranty coverage, you should
contact Husqvarna Forest & Garden at 1-800-487-5963.
WARRANTY COMMENCEMENT DATE
The warranty period begins on the date the engine or
equipment is delivered to an ultimate purchaser.
and is free from defects in materials and workmanship that
causes the failure of a warranted part for a period of two
years.
WHAT IS COVERED
REPAIR OR REPLACEMENT OF PARTS Repair or
replacement of any warranted part under the warranty must
be performed at no charge to the owner at a warranty station.
Warranty services or repairs will be provided at all Husqvarna
Forest & Garden distribution centers that are franchised to
service the subject engines. Throughout the emissions
warranty period of two years, Husqvarna Forest & Garden
must maintain a supply of warranted parts sufficient to meet
the expected demand for such parts.
WARRANTY PERIOD Any warranted part that is scheduled
for replacement as required in the maintenance schedule, is
warranted for the period of time prior to the first scheduled
replacement point for that part. If the part fails prior to the first
scheduled replacement, the part will be repaired or replaced
by Husqvarna Forest & Garden at no cost. Any such part
repaired or replaced under warranty is warranted for the
remainder of the period prior to the first scheduled
replacement point for the part. Any warranted part that is not
scheduled for replacement as required in the maintenance
schedule, is warranted for two years. If any such part fails
during the period of warranty coverage, it will be repaired and
replaced by Husqvarna Forest & Garden at no cost. Any such
part repaired or replaced under the warranty is warranted for
the remaining warranty period. Any warranted part that is
scheduled only for regular inspection in the maintenance
schedule will be warranted for a period of two years. A
statement in such written instructions to the effect of ”repair or
replace as necessary” will not reduce the period of warranty
coverage. Any such part repaired or replaced under warranty
will be warranted for the remaining warranty period.
DIAGNOSIS The owner must not be charged for diagnostic
labor that leads to the determination that a warranted part is
in fact defective, provided that such diagnostic work is
performed at a warranty station.
CONSEQUENTIAL DAMAGES Husqvarna Forest & Garden
is liable for damages to other engine components proximately
caused by a failure under warranty of any warranted part.
EMISSION WARRANTY PARTS LIST
1 Carburetor and internal parts
2 Intake pipe, airfilter holder and carburetor bolts.
3 Airfilter and fuelfilter covered up to maintenance schedule.
4 Spark Plug, covered up to maintenance schedule
5 Ignition Module
6 Muffler with catalytic converter
7 Fuel tank
WHAT IS NOT COVERED
LENGTH OF COVERAGE
Husqvarna Forest & Garden warrants to the ultimate
purchaser and each subsequent owner that the engine or
equipment is designed, built, and equipped so as to conform
with all applicable regulations adopted by EPA and CARB,
24 – English
All failures caused by abuse, neglect or improper
maintenance are not covered.
FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT
ADD -ON OR MODIFIED PARTS
Add-on or modified parts that are not exempted by CARB or
EPA may not be used. The use of any non-exempted add-on
or modified parts will be grounds for disallowing a warranty
claim. Husqvarna Forest & Garden will not be liable to warrant
failures of warranted parts caused by the use of a nonexempted add-on or modified part.
HOW TO FILE A CLAIM
If you have any questions regarding your warranty rights and
responsibilities, you should contact your nearest authorized
servicing dealer or call Husqvarna Forest & Garden at 1-800487-5963.
WHERE TO GET WARRANTY SERVICE
Warranty services or repairs are provided through all
Husqvarna Forest & Garden authorized servicing dealers.
MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION-RELATED PARTS
Any replacement part may be used in the performance of any
warranty maintenance or repairs and must be provided
without charge to the owner. Such use will not reduce the
warranty obligations of the manufacturer.
MAINTENANCE STATEMENT
The owner is responsible for the performance of all required
maintenance, as defined in the operator’s manual.
English – 25
Super Auto II
Super Auto II 1
1
3
4,0 m
13'
"
2,4 mm
4
.095"
2
~2,0 m
6,5
5
15 cm
6
'
"
6
9
7
10
15 cm
6
"
8
S35
1
4
2
5
3
8,5 m
28'
4,2 m
14'
2,4-2,7 mm
10 cm
4"
.095-.106"
6
10
7
8
"Clic"
11
15 cm
6"
S35
1
3
2
4
4,25 m
14'
2,4-2,7 mm
.095-.106"
4,25 m
14'
5
A
15 cm
6"
B
15 cm
6"
T35, T35x
1
4
2
5
3
8,5 m
28'
4,3 m
14'
2,4-2,7 mm
10 cm
4"
.095-.106"
6
9
15 cm
6"
7
8
"Clic"
´®z+R:3¶5t¨
´®z+R:3¶5t¨
1150261-95
´®z+R:3¶5t¨
´®z+R:3¶5t¨
2007-01-29
Loading...
