Operator's manual
HUSQVARNA AUTOMOWER
®
310/315/315X
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Page 2
Contents
1 Introduction
1.1 Support.......................................................3
1.2 Product description.....................................3
1.3 Product overview .......................................4
1.4 Symbols on the product..............................5
1.5 Symbols on the display.............................. 6
1.6 Symbols on the battery...............................6
1.7 Menu structure overview - 1....................... 8
1.8 Menu structure overview - 2....................... 9
1.9 Display......................................................10
1.10 Keypad................................................... 10
2 Safety
2.1 Safety definitions...................................... 11
2.2 General safety instructions.......................11
2.3 Safety instructions for operation...............13
3 Installation
3.1 Introduction - Installation.......................... 16
3.2 Before the installation of the wires........... 16
3.3 Before the installation of the product........16
3.4 Installation of the product......................... 21
3.5 To put the wire into position with stakes...22
3.6 To bury the boundary wire or the
guide wire....................................................... 22
3.7 To extend the boundary wire or the
guide wire....................................................... 22
3.8 After the installation of the product...........23
3.9 To do the product settings........................23
4 Operation
4.1 Main switch...............................................34
4.2 Start..........................................................34
4.3 Operating mode - Start.............................34
4.4 Operating mode - Park............................. 35
4.5 To stop the product.................................. 35
4.6 To switch off the product.......................... 35
4.7 Timer and Standby................................... 35
4.8 To charge the battery............................... 36
4.9 Adjust the cutting height........................... 37
5 Maintenance
5.1 Introduction - maintenance.......................38
5.2 Clean the product..................................... 38
5.3 Replace the blades...................................39
5.4 Battery...................................................... 39
5.5 Winter service...........................................40
6 Troubleshooting
6.1 Introduction - troubleshooting...................41
6.2 Fault messages........................................ 41
6.3 Information messages.............................. 46
6.4 Indicator lamp in the charging station.......47
6.5 Symptoms................................................ 48
6.6 Find breaks in the loop wire..................... 49
7 Transportation, storage and disposal
7.1 Transportation.......................................... 52
7.2 Storage.....................................................52
7.3 Disposal....................................................52
8 Technical data
8.1 Technical data.......................................... 53
8.2 Registered trademarks............................. 55
9 Warranty
9.1 Warranty terms.........................................56
10 Applicable to US/CA market
10.1 Supplier's Declaration of Conformity...... 57
10.2 Compliance requirements...................... 57
2 1220 - 001 - 08.07.2019
Page 3
1 Introduction
Serial number:
PIN code:
The serial number is on the product rating plate and on the product carton.
• Use the serial number to register your product on www.husqvarna.com.
1.1 Support
For support about the Husqvarna product, speak
to your servicing dealer.
1.2 Product description
Note: Husqvarna regularly updates the
appearance and function of the products. Refer
to
Support on page 3
.
The product is a robotic lawn mower. The product
has a battery power source and cuts the grass
automatically. Collection of grass is not
necessary.
The operator selects the operation settings with
the keys on the keypad. The display shows the
selected and possible operation settings, and the
operating mode of the product.
The boundary wire and the guide wire controls
the movement of the product within the work
area.
1.2.1 Automower® Connect
Automower® Connect is a mobile application that
makes it possible to select the operation settings
remotely. Refer to
Automower® Connect app on
page 31
.
1220 - 001 - 08.07.2019 Introduction - 3
Page 4
1.3 Product overview
Automower® 310/315 Automower® 315X
1
13
14
15
2
3
4
5
6
10
9
8
12
16
11
1917
18
23
21
20
22
26
27
28
24
29
30
31
32
33
7
25
The numbers in the figure represent:
1. Body
2. Hatch to cutting height adjustment
3. Hatch to display and keypad
4. Stop button
5. Replaceable cover
6. Rear wheels
7. Front wheels
8. Headlights
9. Cutting height adjustment
10. Contact plates
11. LED for operation check of the charging
station and boundary wire
12. Charging station
13. Rating plate (incl. product identification
code)
14. Display
15. Keypad
16. Cutting system
17. Chassis box with electronics, battery and
motors
18. Handle
19. Main switch
20. Blade disc
21. Skid plate
22. Power supply (the appearance of the power
supply may differ depending on market)
4 - Introduction 1220 - 001 - 08.07.2019
Page 5
23. Loop wire for boundary loop and guide wire
1
24. Couplers for loop wire
2
25. Stakes
3
26. Connector for the loop wire
4
27. Screws for securing the charging station
28. Measurement gauge for help when installing
the boundary wire (the measurement gauge
is broken loose from the box)
29. Operator’s Manual and Quick Guide
30. Cable markers
31. Extra blades
32. Low voltage cable
33. Alarm decal
1.4 Symbols on the product
These symbols can be found on the product.
Study them carefully.
WARNING: Read the
user instructions before
operating the product.
WARNING: Operate the
disabling device before
working on or lifting the
machine.
The product can only start
when the main switch is
set to 1 and the correct
PIN code has been entered. Turn the main
switch to
0
before carrying out any inspections
and/or maintenance.
WARNING: Keep a safe
distance from the machine when operating.
Keep your hands and feet
away from the rotating
blades.
WARNING: Do not ride
on the machine. Never
put your hands or feet
close to or under the machine.
Never use a high-pressure washer or even running water to clean the
product.
Use a detachable power
supply as defined on the
rating label next to the
symbol.
This product conforms to the
applicable EC Directives.
Noise emission to surroundings. The
product’s emissions are set out in
Technical data on page 53
and on the
rating plate.
1
Is a part of the Installation kit which is purchased separately.
2
Refer to note 1
3
Refer to note 1
4
Refer to note 1
1220 - 001 - 08.07.2019
Introduction - 5
Page 6
It is not permitted to dispose this
product as normal household waste.
Ensure that the product is recycled in
accordance with local legal
requirements.
The chassis contains components
which are sensitive to electrostatic
discharge (ESD). The chassis must
also be resealed in a professional
manner. For these reasons the chassis
shall only be opened by authorized
service technicians. A broken seal can
result in the entire or parts of the
warranty no longer being valid.
The low voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low
voltage cable. Be careful when
trimming edges where the cables are
placed.
Operate the disabling device before
you use or lift the product.
1.5 Symbols on the display
The timer function controls when the
product cuts the lawn.
The security function lets the operator
select between 3 security levels.
The messages function shows error
messages and possible cause for the
problems.
The weather timer function
automatically adapts the cutting
intervals to the grass growth.
The installation function for manual
settings for the installation.
The settings function is where the
general settings for the products are
set.
The accessories function is where all
settings for the accessories for the
product are set.
The product will not cut the grass do to
the timer function.
The product overrides the Timer
function.
The battery indicator shows the charge
level of the battery. When the product
charges the symbol flashes.
The product is put in the charging
station but do not charge the battery.
The product is set in ECO-mode.
For Automower® Connect and
Connect@Home. Bluetooth® wireless
communication with your mobile
device.
The GPS-supported navigation is
active. Flashes as it collects GPS
information. (Automower® 315X)
The GPS-supported navigation is not
active. (Automower® 315X)
1.6 Symbols on the battery
Read the user instructions.
6 - Introduction
1220 - 001 - 08.07.2019
Page 7
Do not discard the battery into fire and
do not expose the battery to a heat
source.
Do not immerse the battery into water.
1220 - 001 - 08.07.2019
Introduction - 7
Page 8
1.7 Menu structure overview - 1
Security
Low Medium High
Duration
Duration
of alarm
Duration
of time lock
Change
PIN code
New loop
signal
Security level
Fault
messages
Info
messages
Messages
Use weather timer
Low Medium High
Cutting time
Weather timer *
* Automower® 315/315X
Advanced
Timer
Overview/Monday
Period 1 Period 2 Copy
Su Current
day
All weekSaFrThWeTuMoAll
days
Reset
8 - Introduction 1220 - 001 - 08.07.2019
Page 9
1.8 Menu structure overview - 2
Installation
Lawn
coverage
Area 1-3
Find charging station
Guide
Delay
time
Test
guide
Reset Test
left
Test
right
Reset
Disable
More
Disable
More
Boundary
Charger
Charging
station range
How?
How
often?
How
far?
Disable
ResetTest
More
Exit
angles
Corridor
width
Reversing
distance
Drive past
wire
Advanced
Information Mower house
Accessories
Settings
ECO mode
Use
Profiles *
Select Rename
Save
Profile A,
B or C
Time &
date
Set time Set date Time format
Date format
Language Country
Reset all
user setting
About
LowLow-
High High+Mid
Intensity
Spiral cutting General
Use Use Use
Delay
time
GPS Auto***
Slope control
Connect@Home** Headlight***
* Automower® 315/315X
**Automower® 310/315
***Automower® 315X
Automower
Connect
1220 - 001 - 08.07.2019 Introduction - 9
Page 10
1.9 Display
The display on the product shows information
and settings of the product.
To access the display, push the STOP button.
1.10 Keypad
The keypad on the product let the operator
navigate in the menu of the product. To access
the keypad, push the STOP button.
1 5
6
2 4
3
7
1. The START button is used to start the
operation of the product.
2. The BACK button is used when moving back
up in the menu lists.
3. The arrow buttons are used to navigate in
the menu.
4. The OK button is used to confirm the chosen
settings in the menus.
5. The MENU button is used to go to the main
menu.
6. The PARK button sends the product to the
charging station.
7. The number buttons are used to enter digits,
for example, PIN code, time and date.
10
- Introduction
1220 - 001 - 08.07.2019
Page 11
2 Safety
2.1 Safety definitions
Warnings, cautions and notes are used to point
out specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or
bystanders if the instructions in the
manual are not obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials
or the adjacent area if the instructions
in the manual are not obeyed.
Note: Used to give more information that is
necessary in a given situation.
2.2 General safety instructions
The following system is used in the Operator’s
Manual to make it easier to use:
• Text written in
italics
is a text that is shown
on the display of the product or is a
reference to another section in the
Operator’s Manual.
• Text written in bold is one of the buttons on
the keypad of the product.
• Text written in
UPPERCASE
and
italics
refer
to the different operating modes available in
the product.
1220 - 001 - 08.07.2019 Safety - 11
Page 12
2.2.1 IMPORTANT. READ CAREFULLY
BEFORE USE. KEEP FOR FUTURE
REFERENCE
The operator is responsible for accidents or hazards occurring to
other people or property.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that
could affect a safe handling of the product), or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Local regulations may restrict the age of the operator. Cleaning and maintenance shall not be made by children without supervision.
Never connect the power supply to an outlet if the plug or cord is
damaged. Worn or damaged cord increase the risk of electric
shock.
Only charge the battery in the included charging station. Incorrect
use may result in electric shock, overheating or leaking of corrosive liquid from the battery. In the event of leakage of electrolyte,
flush with water/neutralizing agent. Seek medical help if it comes
in contact with the eyes.
Use only original batteries recommended by the manufacturer.
Product safety cannot be guaranteed with other than original batteries. Do not use non-rechargeable batteries.
The appliance must be disconnected from the supply mains when
removing the battery.
12
- Safety
1220 - 001 - 08.07.2019
Page 13
WARNING: The product
can be dangerous if used
incorrectly.
WARNING: Do not use
the product when
persons, especially
children, or animals, are
in the work area.
WARNING: Keep your
hands and feet away
from the rotating blades.
Never put your hands or
feet close to or under the
product when the motor
is running.
2.3 Safety instructions for operation
2.3.1 Use
• The product may only be used with the
equipment recommended by the
manufacturer. All other types of use are
incorrect. The manufacturer’s instructions
with regard to operation/maintenance must
be followed precisely.
• Warning signs shall be placed around the
work area of the product if it is used in public
areas. The signs shall have the following
text: Warning! Automatic lawnmower! Keep
away from the machine! Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
• Use the
PARK function or switch off the
main switch when persons, especially
children or animals, are in the work area. It
is recommended to program the product for
use during hours when the area is free from
activity, e.g. at night. Refer to
To set the
timer on page 24
. Consider that certain
species, e.g. hedgehogs, are active at night.
They can potentially be harmed by the
product.
• The product may only be operated,
maintained and repaired by persons that are
fully conversant with its special
characteristics and safety regulations.
Please read the Operator’s Manual carefully
and make sure you understand the
instructions before using the product.
• It is not permitted to modify the original
design of the product. All modifications are
made at your own risk.
• Check that there are no stones, branches,
tools, toys or other objects on the lawn that
can damage the blades. Objects on the lawn
can also lead to the product getting stuck.
Help may be required to remove the object
before the product can continue mowing.
Always set the main switch in position
0
before clearing a blockage.
1220 - 001 - 08.07.2019
Safety - 13
Page 14
• Start the product according to the
instructions. When the main switch is set to
1; make sure to keep your hands and feet
away from the rotating blades. Never put
your hands and feet under the product.
• Never touch moving hazardous parts, such
as the blade disc, before it has come to a
complete stop.
• Never lift up the product or carry it around
when the main switch is in position 1.
• The product must never be allowed to
collide with persons or other living creatures.
If a person or other living creature comes in
the way of the product, it shall be stopped
immediately. Refer to
To stop the product on
page 35
.
• Do not put anything on top of the product or
its charging station.
• Do not allow the product to be used with a
defective guard, blade disc or body. Neither
should it be used with defective blades,
screws, nuts or cables. Never connect a
damaged cable, or touch a damaged cable
before it is disconnected from the supply.
• Do not use the product if the main switch
does not work.
• Always switch off the product using the main
switch when the product is not in use. The
product can only start when the main switch
is set to 1 and the correct PIN code has
been entered.
• The product must never be used at the
same time as a sprinkler. Use the timer
function so the product and sprinkler never
run simultaneously. Refer to
To set the timer
on page 24
.
• Husqvarna does not guarantee full
compatibility between the product and other
types of wireless systems such as remote
controls, radio transmitters, hearing loops,
underground electric animal fencing or
similar.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Metal objects in the ground (for example
reinforced concrete or anti-mole nets) can
result in a stoppage. The metal objects can
cause interference with the loop signal
which then can lead to a stoppage.
• Operation and storage temperature is 0-50
°C / 32-122 °F. Temperature range for
charging is 0-45 °C / 32-113 °F. Too high
temperatures might cause damage to the
product.
2.3.2 Battery safety
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited, exposed to water, fire,
or high temperatures. Handle carefully,
do not dismantle, open the battery or
use any type of electrical/mechanical
abuse. Avoid storage in direct sunlight.
For more information about the battery, refer to
Battery on page 39
2.3.3 How to lift and move the product
To safely move from or within the work area:
1. Press the STOP button to stop the product.
If security is set to the medium or high level
the PIN code has to be entered. The PIN
code contains four digits and is selected
when you start the product for the first time.
Refer to
To do the basic settings on page
23
.
2. Set the main switch in position 0.
3. Carry the product by the handle under the
product with the blade disc away from the
body.
14
- Safety
1220 - 001 - 08.07.2019
Page 15
CAUTION: Do not lift the product when
it is parked in the charging station. It
can damage the charging station
and/or the product. Press the STOP
button and pull the product out of the
charging station before lifting it.
2.3.4 Maintenance
WARNING: When the product is
turned upside down the main switch
must always be in the 0 position.
The main switch should be set in the
0
position before all work on the chassis
of the product, such as cleaning or
replacing the blades.
CAUTION: Never use a high-pressure
washer or even running water to clean
the product. Never use solvents for
cleaning.
CAUTION: Use the plug to disconnect
the charging station before any
cleaning or maintenance of the
charging station or the loop wire.
Inspect the product each week and replace any
damaged or worn parts. Refer to
Introduction -
maintenance on page 38
.
2.3.5 In the event of a thunderstorm
To reduce the risk of damage to electrical
components in the product and the charging
station, we recommend that all connections to the
charging station are disconnected (power supply,
boundary wire and guide wire) if there is a risk of
a thunderstorm.
1. Mark the wires to simplify reconnecting. The
charging station’s connections are marked
AR, AL and G1.
2. Disconnect all connected wires and the
power supply.
3. Connect all the wires and the power supply
if there is no longer a risk of thunder. It is
important that each wire is connected to the
right place.
1220 - 001 - 08.07.2019
Safety - 15
Page 16
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the
product.
CAUTION: Use original spare parts
and installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
3.2 Before the installation of the wires
You can select to attach the wires with stakes or
bury them. You can use the 2 procedures for the
same work area.
• Bury the boundary wire or the guide wire if
you are going to use a dethatcher on the
work area. If not, attach the boundary wire
or guide wire with stakes.
• Cut the grass before you install the product.
Make sure that the grass is maximum 10
cm / 4 in.
Note: The first weeks after installation the
perceived sound level when cutting the grass
may be higher than expected. When the product
has cut the grass for some time, the perceived
sound level is much lower.
3.3 Before the installation of the
product
• Make a blueprint of the work area and
include all obstacles.
• Make a mark on the blueprint where to put
the charging station, the boundary wire and
the guide wire.
• Make an eyelet on the blueprint where the
guide wire connects to the boundary wire.
Refer to
To install the guide wire on page
22
.
• Fill in holes in the lawn.
Note:
Holes with water in the lawn can
cause damage to the product.
3.3.1 To examine where to put the charging
station
• Keep a minimum 3 m / 10 ft. of free space in
front of the charging station.
• Keep a minimum of 1.5 m / 5 ft. of free
space to the right and to the left of the
charging station.
• Put the charging station near an outdoor
power outlet.
• Put the charging station on a level surface.
max. 5 cm / 2"
max. 5 cm / 2"
• Put the charging station in the lowest
possible section of the work area.
• Put the charging station in an area without
an irrigation system.
• Put the charging station in an area with
protection from the sun.
• If the charging station is installed on an
island, make sure to connect the guide wire
to the island. Refer to
To make an island on
page 18
.
16
- Installation
1220 - 001 - 08.07.2019
Page 17
3.3.2 To examine where to put the power
supply
• Put the power supply in an area with a roof
and protection from the sun and rain.
• Put the power supply in an area with good
airflow.
• Use a residual-current device (RCD) when
you connect the power supply to the power
outlet.
WARNING: Do not change the power
supply. Do not cut or extend the lowvoltage cable. There is a risk of
electrical shock.
Low-voltage cables of different lengths are
available as accessories.
CAUTION: Make sure that the blades
on the product do not cut the lowvoltage cable.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging
station plate. The coil causes
interference with the signal from the
charging station.
3.3.3 To examine where to put the
boundary wire
The boundary wire should be put as a loop
around the work area. Sensors in the product
senses when the product approaches the
boundary wire, and the product selects another
direction.
CAUTION:
If the work area is adjacent
to water bodies, slopes, precipices or a
public road, the boundary wire must
have a protective wall. The wall must
be minimum 15 cm / 6 in. in height.
To make the connection easier between the
guide wire and the boundary wire, it is
recommended to make an eyelet where the guide
wire will be connected. Make the eyelet with
approximately 20 cm / 8 in. of the boundary wire.
Note: Make a blueprint of the work area before
you install the boundary wire and guide wire.
D
E
B
C
F
A
• Put the boundary wire around all of the work
area (A). Adapt the distance between the
boundary wire and obstacles.
• Put the boundary wire 35 cm / 14 in. (B)
from an obstacle that is more than 5 cm / 2
in. high.
1220 - 001 - 08.07.2019
Installation - 17
Page 18
35 cm / 14"
> 5 cm/ >2 "
• Put the boundary wire 30 cm / 12 in. (C)
from an obstacle that is 1-5 cm / 0.4-2 in.
high.
• Put the boundary wire 10 cm / 4 in. (D) from
an obstacle that is less than 1 cm / 0.4 in.
• If you have a paving stone path that is in
level with the lawn, put the boundary wire
below the paving stone.
Note: If the paving stone is minimum 30 cm /
12 in. wide, use the factory setting for the
Drive Past Wire
function to cut all the grass
adjacent to the paving stone.
CAUTION: Do not let the product
operate on gravel.
• If you make an island, put the boundary wire
that runs to and from the island near
together (E). Put the wires in the same
stake.
• Make an eyelet (F) where the guide wire is
to be connected to the boundary wire.
CAUTION:
Do not make sharp
bends when you install the
boundary wire.
CAUTION: For careful operation
without noise, isolate all obstacles
such as trees, roots and stones.
3.3.3.1 To put the boundary wire in a slope
The product can operate in slopes. Slopes that
are too steep must be isolated with the boundary
wire. The gradient (%) is calculated as height per
m. Example: 10 cm / 100 cm = 10%.
0-15%
0-15 cm / 0-6"
100 cm / 40"
• For slopes steeper than 25% inside the work
area, isolate the slope with boundary wire.
• For slopes steeper than 10% along the outer
edge of the lawn, put the boundary wire 20
cm / 8 in. (A) from the edge.
A
>15%
• Slopes adjacent to a public road must be
isolated with boundary wire. Put a fence or a
protective wall along the outer edge of the
slope.
3.3.3.2 Passages
A passage is a section that has boundary wire on
each side and that connects 2 work areas. The
passage must be a minimum of 60 cm / 24 in.
wide.
Note:
If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
3.3.3.3 To make an island
• Put the boundary wire to and around the
obstacle to make an island.
• Put the 2 sections of boundary wire that run
to and from the obstacle together.
• Put the 2 sections of boundary wire in the
same stake.
18
- Installation
1220 - 001 - 08.07.2019
Page 19

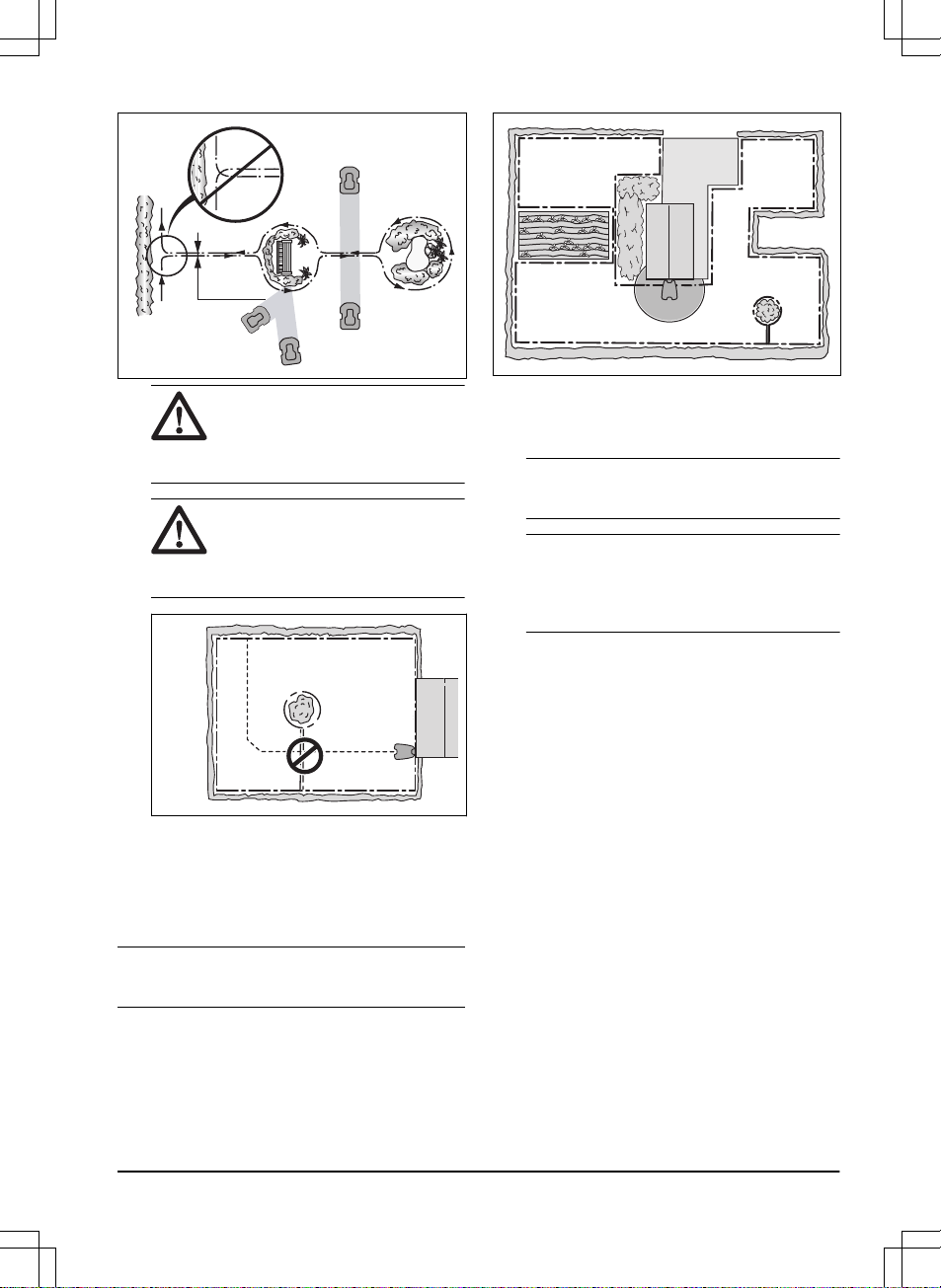

0 cm / 0
"
CAUTION: Do not put a section of
boundary wire across the other.
The sections of boundary wire
must be parallel.
CAUTION: Do not put the guide
wire across the boundary wire, for
example a boundary wire that
goes to an island.
3.3.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2
areas that are not connected with a passage. The
work area with the charging station is the main
area (A).
Note:
The product must be manually moved
between the main area and the secondary area.
B
A
• Put the boundary wire around the secondary
area (B) to make an island. Refer to
To
make an island on page 18
.
Note: The boundary wire must be put as 1
loop around all of the work area (A + B).
Note: When the product cuts grass in the
secondary area, the
Secondary area
mode
must be selected. Refer to
Secondary area
on page 34
.
3.3.3.5 To set the corridor width of the boundary
wire
The boundary wire corridor is the area adjacent
to the boundary wire, which the product uses to
find the charging station. When the product
moves in the direction of the charging station, it
always moves to the left of the boundary wire.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Advanced > Corridor width > Boundary.
3. Use the number buttons to select a corridor
width of 0 to 9.
4. Push the BACK button.
3.3.4 To examine where to put the guide
wire
• Put the guide wire in a line at a minimum of
2 m / 7 ft. in front of the charging station.
• Make sure that the guide wire has as much
free area as possible to the left of the guide
wire when facing the charging station. Refer
1220 - 001 - 08.07.2019
Installation - 19

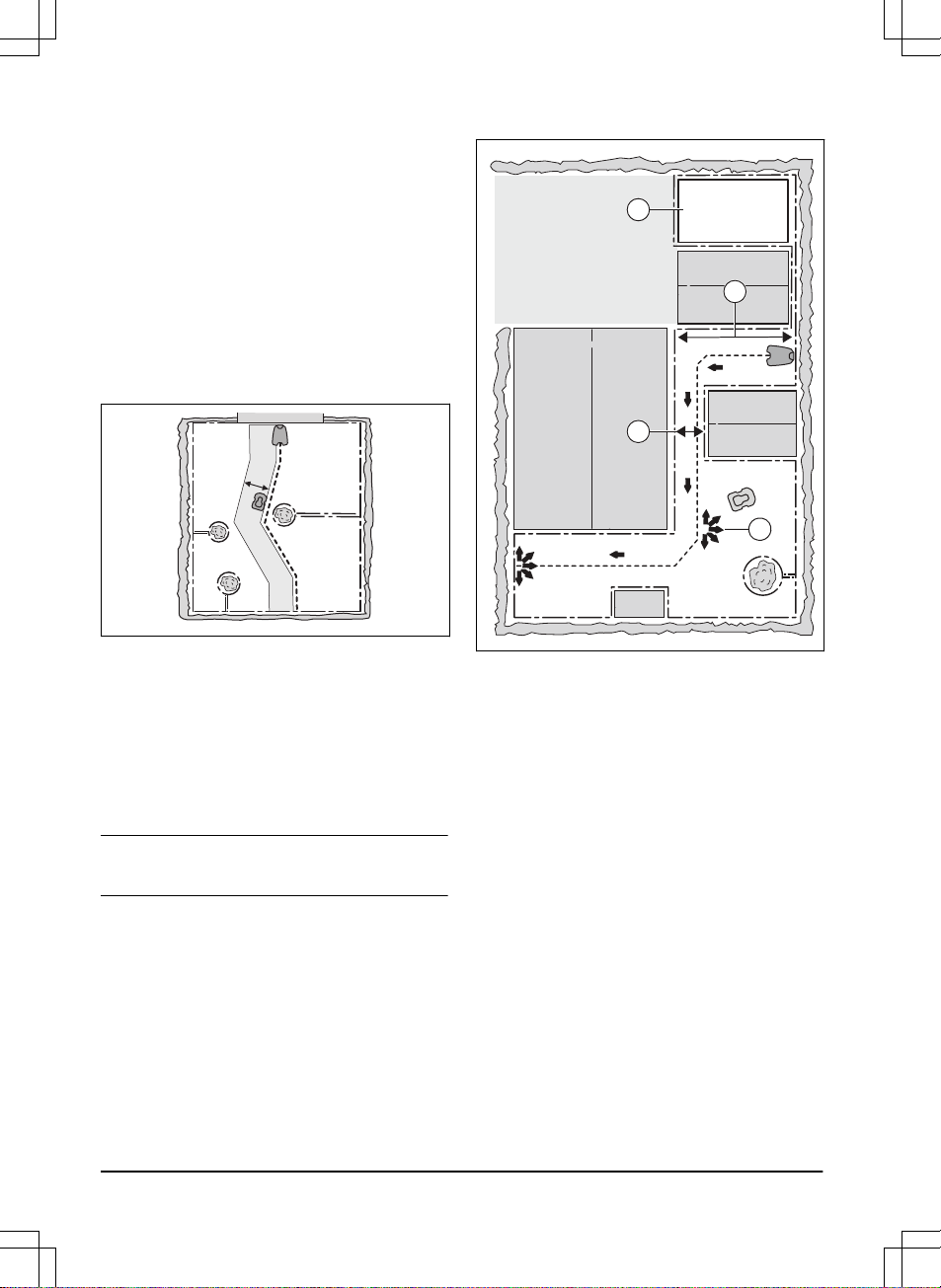

Page 20
to
To set the corridor width of the guide wire
on page 20
.
• Put the guide wire minimum 30 cm / 12 in.
from the boundary wire.
• Do not make sharp bends when you install
the guide wire.
• If the work area has a slope, put the guide
wire diagonally across the slope.
3.3.4.1 To set the corridor width of the guide wire
The guide corridor is the area adjacent to the
guide wire, which the product uses to find the
charging station. When the product moves in the
direction of the charging station, it always moves
to the left of the guide wire.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Advanced > Corridor width > Guide.
3. Use the number buttons to select a corridor
width of 0 to 9.
4. Push the BACK button.
Note:
Make the corridor width as wide as
possible for a minimum risk of lines in the lawn.

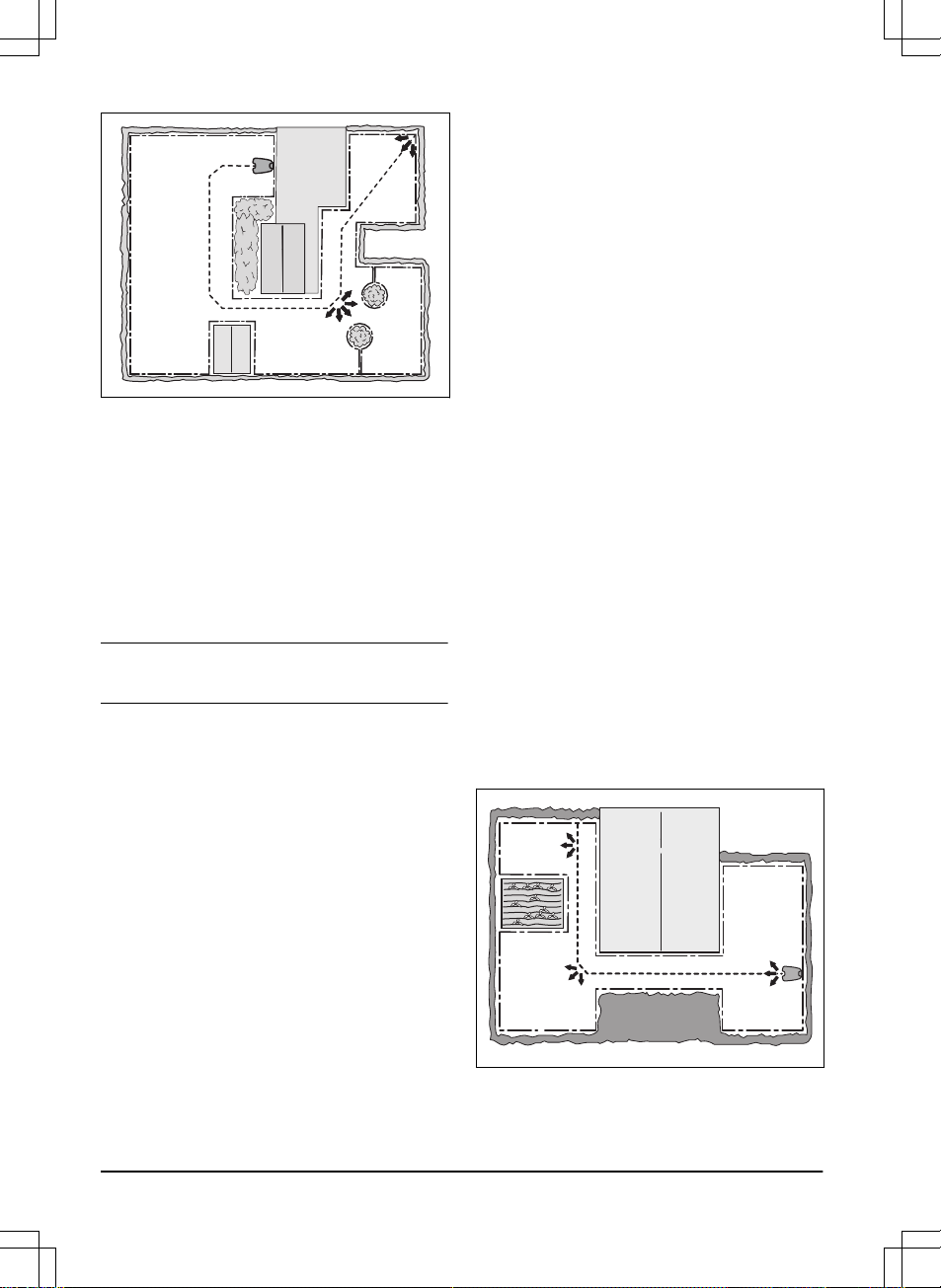

3.3.5 Work area examples
B
D
A
C
• If the charging station is put in a small area
(A), make sure that the distance to the
boundary wire is at a minimum 3 m / 10 ft.
• If the work area has a passage (B), make
sure that the distance to the boundary wire
is at a minimum 2 m / 6.5 ft. If the passage is
smaller than 2 m / 6.5 ft., install a guide wire
through the passage. Minimum passage
between the boundary wire is 60 cm / 24 in.
• If the work area has areas which are
connected by a narrow passage (B), you
can set the product to leave the guide wire
after a certain distance (C). The settings can
be changed in
To set the Lawn coverage
function on page 26
.
• Use the GPS Assisted Navigation. Refer to
To enable the GPS Assisted Navigation on
page 26
.
• If the work area includes a secondary area
(D), refer to
To make a secondary area on
page 19
. Put the product in the secondary
area and select
Secondary area mode
.
Refer to
Secondary area on page 34
.
20
- Installation
1220 - 001 - 08.07.2019
Page 21

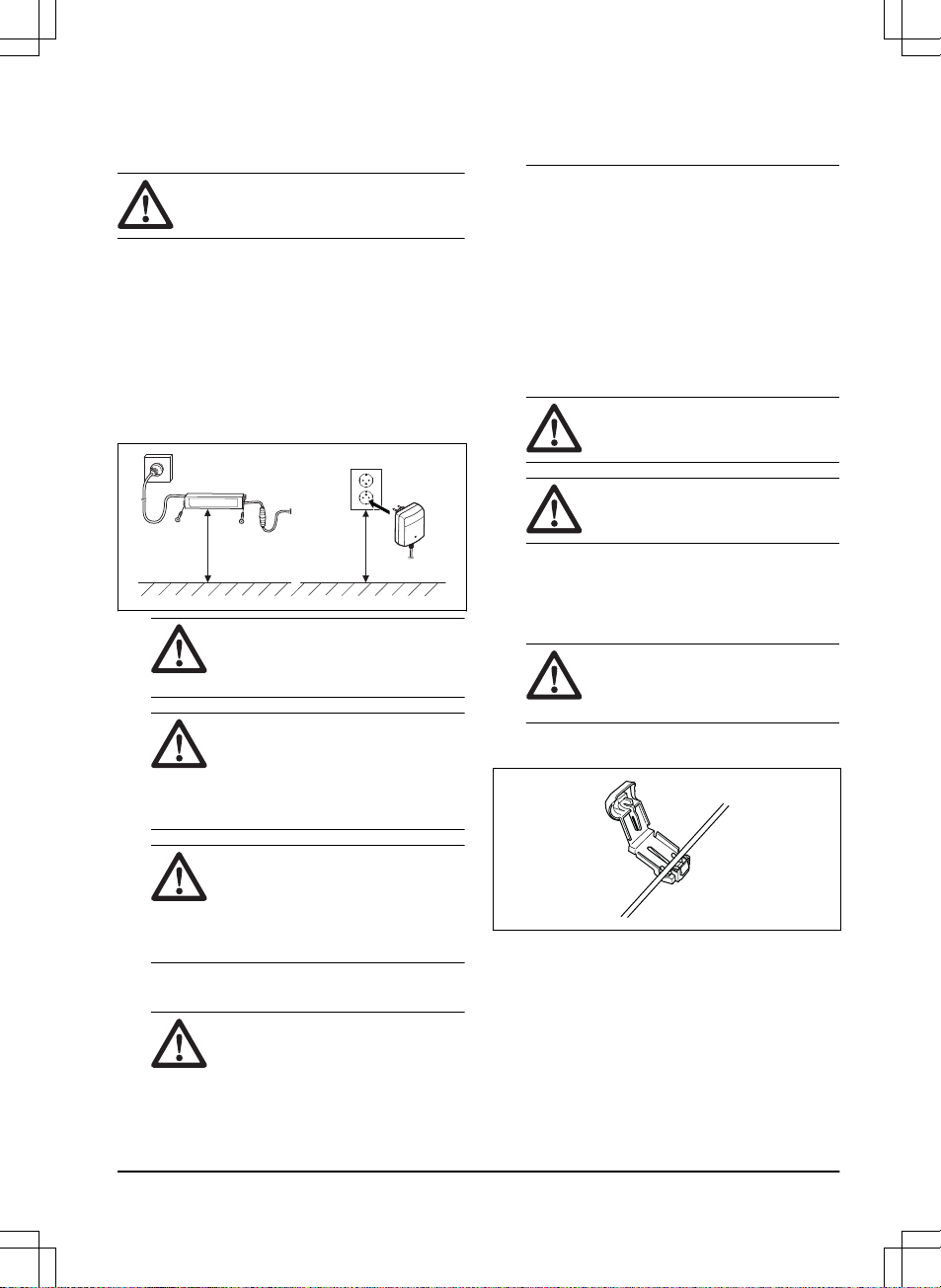

3.4 Installation of the product
3.4.1 To install the charging station
WARNING: Obey national regulations
about electrical safety.
1. Read and understand the instructions about
the charging station. Refer to
To examine
where to put the charging station on page
16
.
2. Put the charging station in the selected area.
3. Connect the low-voltage cable to the
charging station.
4. Put the power supply at a minimum height of
30 cm / 12 in.
min 30 cm / 12”
CAUTION: The product is only to
be used with the power supply
unit supplied by Husqvarna.
WARNING: Do not put the power
supply at a height where there is a
risk it can be put in water. Do not
put the power supply on the
ground.
WARNING: Do not encapsulate
the power supply. Condensed
water can harm the power supply
and increase the risk of electrical
shock.
5. Connect the power supply cable to a
100-240V outdoor power outlet.
WARNING:
Applicable to USA/
Canada. If power supply is
installed outdoors: Risk of Electric
Shock. Install only to a covered
Class A GFCI receptacle (RCD)
that has an enclosure that is
weatherproof with the attachment
plug cap inserted or removed.
6. Put the low-voltage cable in the ground with
stakes or bury the cable. Refer to
To put the
wire into position with stakes on page 22
or
To bury the boundary wire or the guide wire
on page 22
.
7. Connect the wires to the charging station.
Refer to
To install the boundary wire on
page 21
and
To install the guide wire on
page 22
.
8. Attach the charging station to the ground
with the supplied screws.
CAUTION: Do not make new
holes in the charging station plate.
CAUTION: Do not put your feet on
the charging station.

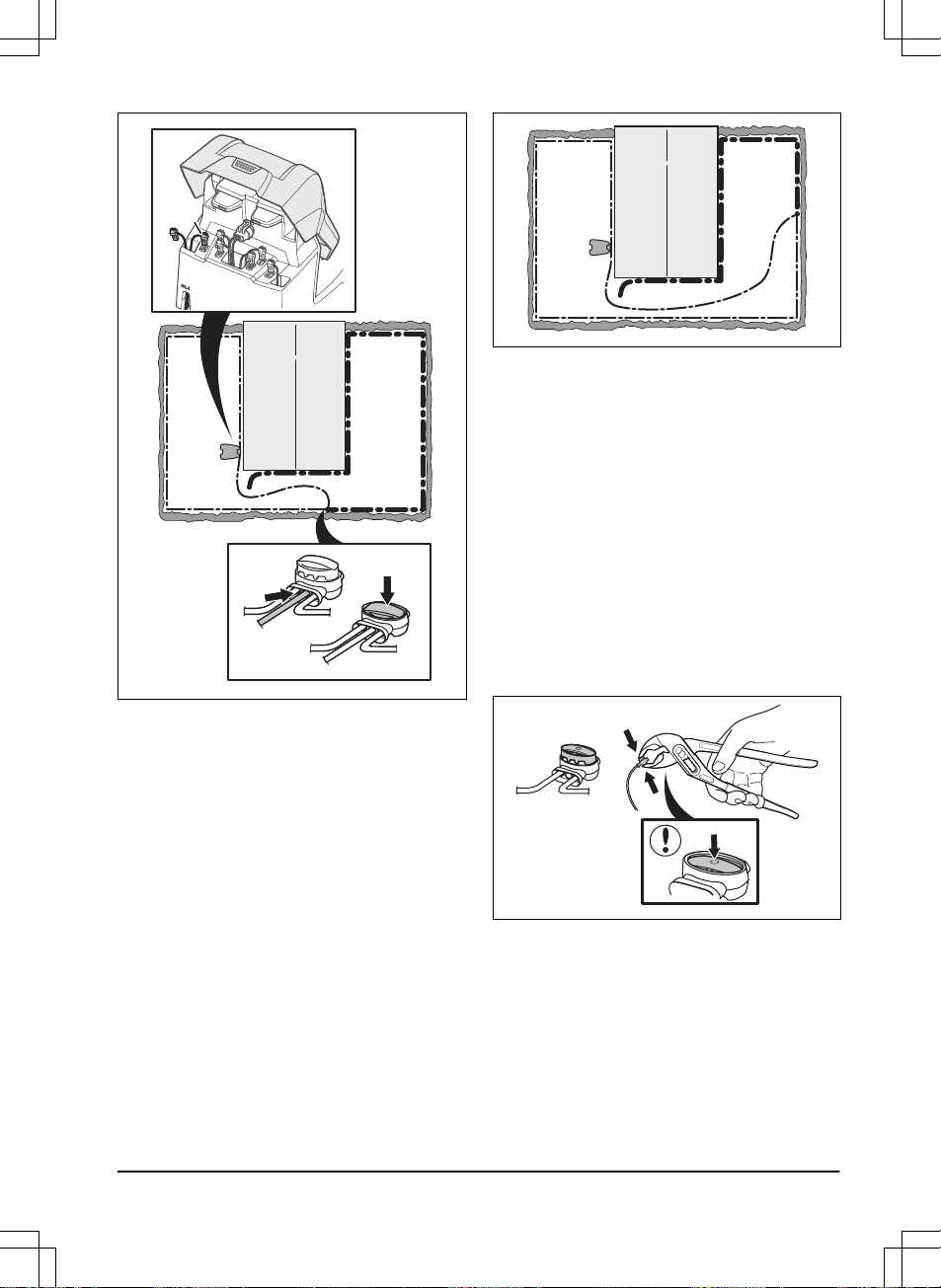

3.4.2 To install the boundary wire
1. Put the boundary wire around all of the work
area. Start and complete the installation
behind the charging station.
CAUTION:
Do not put unwanted
wire in a coil. The coil causes
interference with the product.
2. Open the connector and put the boundary
wire in the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in.
above each connector.
5. Put the right end of boundary wire into the
channel with the mark "AR".
6. Put the left end of boundary wire into the
channel with the mark "AL".
7. Push the right connector onto the metal pin
on the charging station with the mark "AR".
1220 - 001 - 08.07.2019
Installation - 21
Page 22
8. Push the left connector onto the metal pin
on the charging station with the mark "AL".
9. Put the cable mark on the left and right
boundary wire.
3.4.3 To install the guide wire
1. Open the connector and put the wire in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above
each connector.
4. Push the guide wire through the slot in the
charging station plate.
5. Push the connector onto the metal pin on
the charging station with the mark "GUIDE".
6. Put the cable mark on the guide wire.

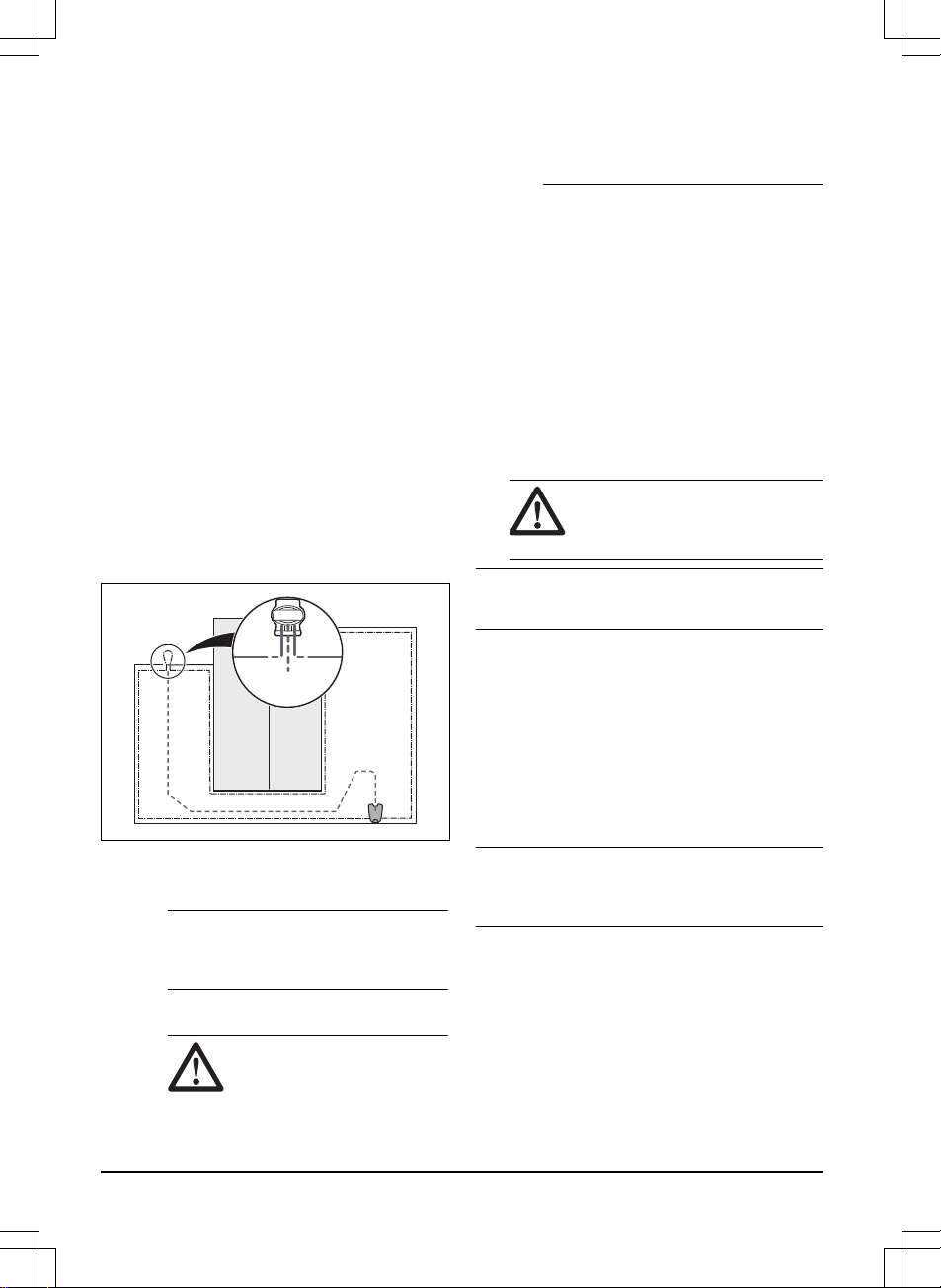

7. Put the end of the guide wire at the eyelet
on the boundary wire.
8. Cut the boundary wire with a pair of wire
cutters.
9. Connect the guide wire to the boundary wire
with a coupler.
a) Put the 2 ends of the boundary wire
and the end of the guide wire into the
coupler.
Note:
Make sure that you can see the
end of the guide wire through the
transparent area of the coupler.

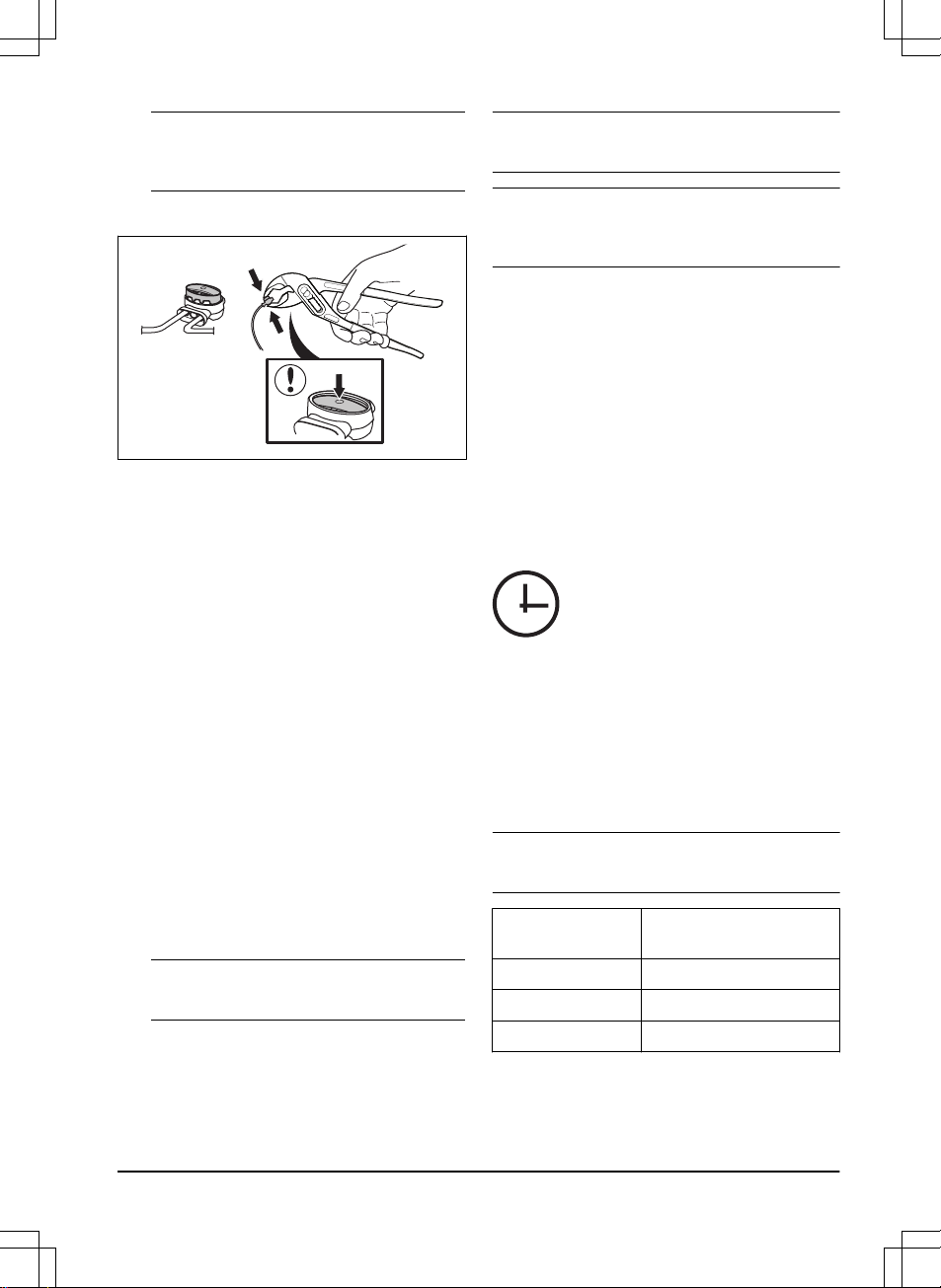

b) Push the button on the coupler with an
adjustable pliers.
CAUTION:
Twinned cables,
or a screw terminal block that
is insulated with insulation
tape are not satisfactory
splices. Soil moisture will
cause the wire to oxidize and
after a time result in a broken
circuit.
10. Attach the guide wire to the ground with
stakes or bury the guide wire in the ground.
Refer to
To put the wire into position with
stakes on page 22
or
To bury the boundary
wire or the guide wire on page 22
.
3.5 To put the wire into position with
stakes
• Put the boundary wire and the guide wire on
the ground.
• Put the stakes at a maximum of 75 cm / 30
in. distance from each other.
• Attach the stakes to the ground with a
hammer or a plastic mallet.
CAUTION: Make sure that the
stakes hold the boundary wire and
the guide wire against the ground.
Note: The wire is overgrown with grass and not
visible after a few weeks.
3.6 To bury the boundary wire or the
guide wire
• Cut a groove in the ground with an edge
cutter or a straight shovel.
• Put the boundary wire or the guide wire 1-20
cm / 0.4-8 in. into the ground.
3.7 To extend the boundary wire or the
guide wire
Note:
Extend the boundary wire or the guide wire
if it is too short for the work area. Use original
spare parts, for example couplers.
1. Cut the boundary wire or the guide wire with
a pair of wire cutters where it is necessary to
install the extension.
2. Add wire where it is necessary to install the
extension.
3. Put the boundary wire or the guide wire into
position.
4. Put the wire ends into a coupler.
22
- Installation
1220 - 001 - 08.07.2019
Page 23
Note: Make sure that you can see the ends
of the boundary wire or the guide wire
through the transparent area of the coupler.
5. Push the button on the coupler with an
adjustable pliers.
6. Put the boundary wire or the guide wire into
position with stakes.
3.8 After the installation of the product
3.8.1 To do a visual check of the charging
station
1. Make sure that the indicator LED lamp on
the charging station has a green light.
2. If the indicator LED lamp does not have a
green light, do a check of the installation.
Refer to
Indicator lamp in the charging
station on page 47
and
To install the
charging station on page 21
.

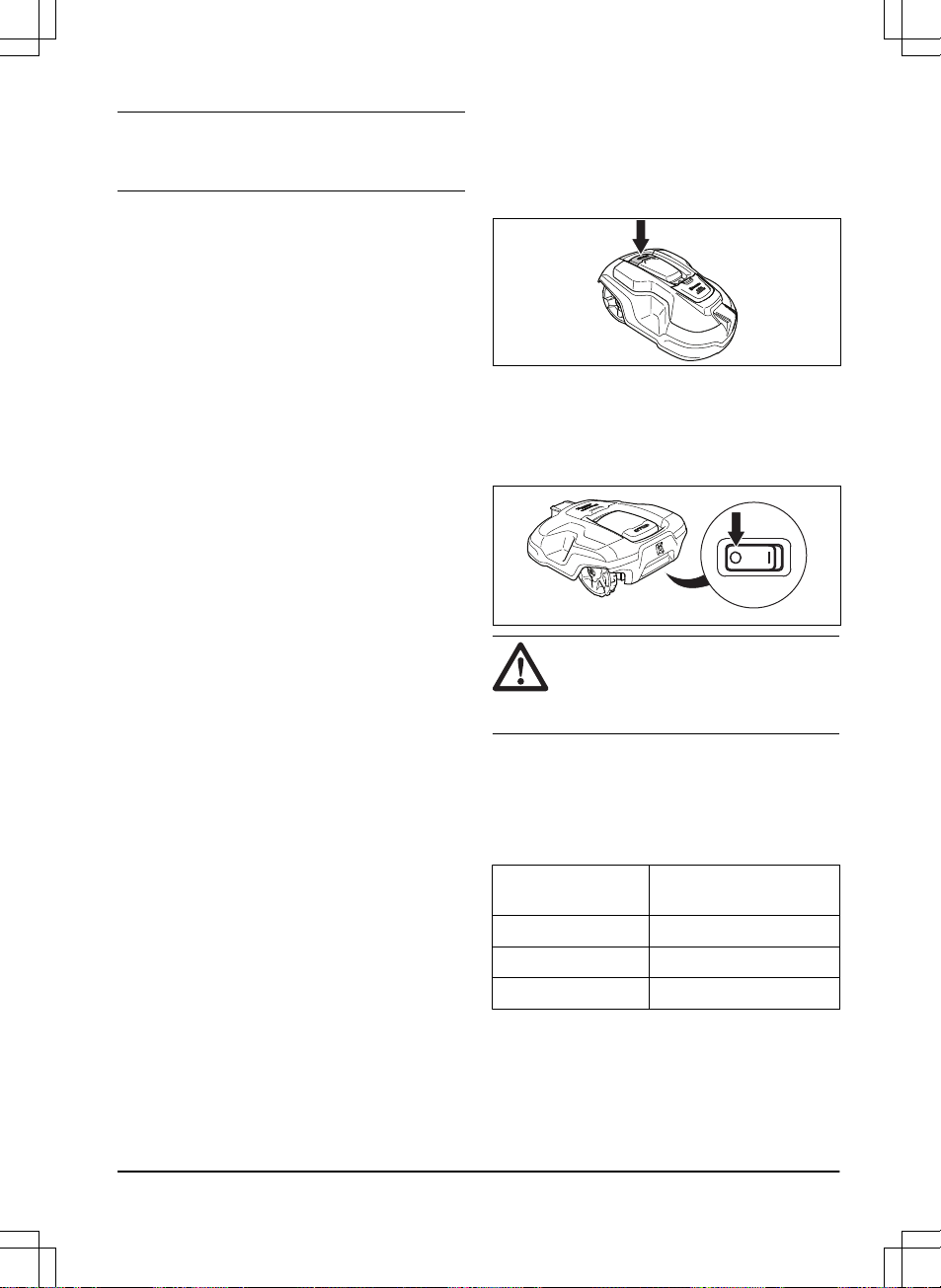

3.8.2 To do the basic settings
Before you start the product for the first time, you
must do the basic settings and calibrate the
product.
1. Push the STOP button.
2. Set the Main switch to 1.
3. Push the arrow buttons and the OK button.
Select
language, country, date, time
and set
a PIN code.
Note:
It is not possible to use 0000 as PIN
code.
4. Put the product in the charging station.
5. Push the START button and close the hatch.
Note:
Some models require a factory PIN code
before the selection of personal PIN code.
Note: Use the MEMO page at the beginning of
the manual to make a note of the PIN code.
Introduction on page 3
.
The product then moves away from the charging
station and stops, while it calibrates some of the
product settings.
3.9 To do the product settings
The product has factory settings but the settings
can be adapted to each work area.
3.9.1 To get access to the menu
1. Push the STOP button.
2. Enter the PIN code on the keypad.
3. Push the MENU button.
3.9.2 To do the timer settings
3.9.2.1 To calculate the timer setting
1. Calculate the dimension of your lawn in m2 /
yd2.
2. Divide the m2 / yd2 of the lawn with the
approximate operation capacity. Refer to
table below.
3. The result is equal to the number of hours
that the product must operate each day.
Note:
The operation capacity is approximate and
timer settings can be adjusted.
Model Approximate operation ca-
pacity, m2/h / yd2 /h
Automower® 310 56 / 0.01
Automower® 315 68 / 0.02
Automower® 315X 73 / 0.02
Example: A lawn of 500 m2 / 600 yd2, cut with a
Automower® 310.
1220 - 001 - 08.07.2019
Installation - 23
Page 24
500 m2 / 56 ≈ 9 h.
600 yd2 / 0.01 ≈ 9 h.
Days /
week
h / day Timer settings
7 9 07:00 - 16:00 / 07:00
am - 4 pm

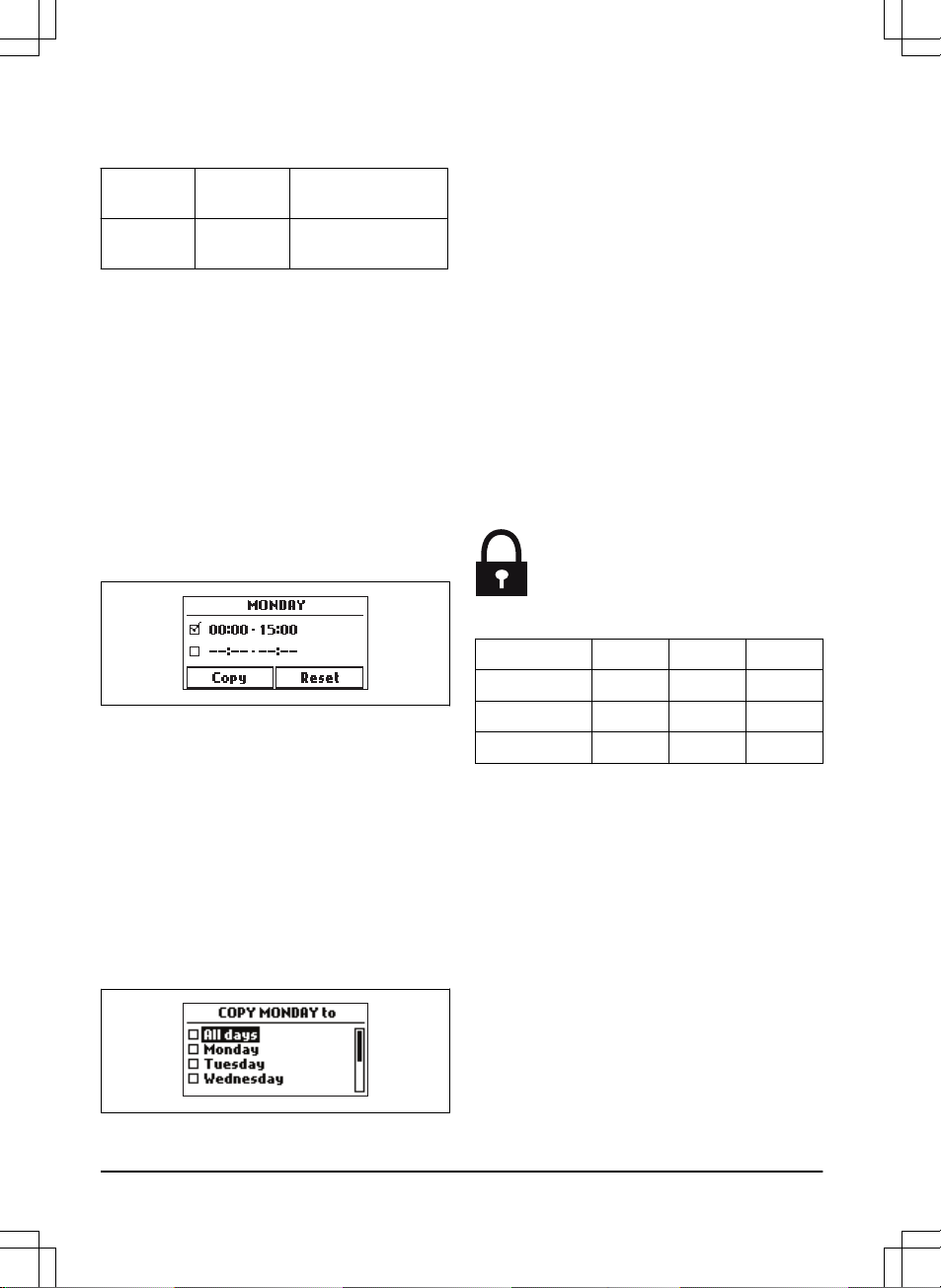

3.9.2.2 To set the timer
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Timer >
Overview Timer settings > Overview
.
3. Use the arrow buttons and the OK button to
select the day.
4. Use the left arrow button to select the time
period.
5. Push the OK button.
6. Enter the time with the number buttons. The
product can cut the grass 1 or 2 periods
each day.
7. If the product must not cut grass on a
specified day, unselect the box adjacent to
the 2 time periods.
3.9.2.3 To copy the timer setting
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Timer >
Overview Timer settings > Overview > Copy
to
.
3. Use the arrow buttons and the OK button to
copy the timer setting. You can copy the
timer settings day to day or for the full week.
3.9.2.4 To reset the timer setting
You can remove all timer settings and use the
factory setting. The factory timer setting lets the
product to operate all hours of each day of the
week. Refer to
Timer and Standby on page 35
.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Timer >
Overview Timer settings > Overview > Reset
timer
.
a) Push the arrow buttons to select
Current day
to only set the current day
to factory settings.
b) Push the arrow buttons to select
All
week
to reset all timer settings to
factory settings.
3. Push the OK button.
3.9.3 Security level
There are 3 security levels for the product.
Function Low Medium High
Alarm X
PIN-code X X
Time lock X X X
• Alarm - An alarm goes off if the PIN-code is
not entered within 10 seconds after the
STOP button is pushed. The alarm also
goes off when the product is lifted. The
alarm stops when the PIN-code is entered.
• PIN-code - The correct PIN-code must be
entered to get access to the Menu structure
of the product. If the incorrect PIN-code is
entered 5 times, the product is locked for a
time. The lock is extended for each new
incorrect try.
• Time lock - The product locks if the PINcode has not been entered in 30 days. Enter
the PIN-code to get access to the product.
3.9.3.1 To set the security level
Select 1 of 3 security levels for your product.
24
- Installation
1220 - 001 - 08.07.2019
Page 25
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
Security > Security level
.
3. Use the arrow buttons and the OK button to
select the level of security.
4. Push the OK button.
3.9.3.2 To change the PIN-code
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
Security > Advanced > Change PIN-code
.
3. Enter the new PIN code.
4. Push the OK button.
5. Enter the new PIN code.
6. Push the OK button.
7. Make a note of the new PIN code. Refer to
Introduction on page 3
.
3.9.3.3 To change the length of the alarm
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Security >
Advanced > Duration > Duration of alarm
.
3. Use the arrow buttons to select a time
interval of 1 to 20 minutes.
4. Push the BACK button.
3.9.3.4 To change the length of the time lock
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Security >
Advanced > Duration > Duration of time
lock
.
3. Use the number buttons to select a time
interval of 1–90 days.
4. Push the BACK button.
3.9.4 Weather timer
The Weather timer automatically adjust the
cutting time to the growth of the grass. The
product is not permitted to operate more than the
timer settings.
The first operation of the day is set by the timer
settings. Then the Weather timer selects if the
product will continue to operate.
Note: The Weather timer is reset if the product
stops to operate for more than 50 hours or if a
Reset of all user setting is done. The Weather
timer is not changed if a Reset of timer settings is
done.
3.9.4.1 To set the Weather timer
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Weather
timer > Use weather timer
.
3. Push the OK button to select the Weather
timer.
4. Push the BACK button.
3.9.4.2 To set the Weather timer frequency
Set how frequently the product must cut the
grass when the Weather timer is in use.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Weather
timer > Cutting time
.
3. Use the arrow buttons to select
Low,
Medium
or
High
frequency.
4. Push the BACK button.
3.9.5 Lawn Coverage
The
Lawn coverage
function is used to guide the
product to remote parts of the work area. If the
work area includes areas that are connected with
narrow passages, the
Lawn coverage
function is
useful to be able to maintain a well-cut lawn in all
parts of the yard. You can divide you lawn into 3
areas. The product begins to mow when it
reaches the
Lawn coverage
point. At all other
times, the product leaves the charging station in
the standard manner and starts to mow.
1220 - 001 - 08.07.2019
Installation - 25
Page 26
For Automower® 315X the GPS Assisted
Navigation helps the product to select the most
optimal operation. However, in more complex
gardens operation can be improved by carrying
out some of the manual settings in the
Lawn
coverage
menu.
3.9.5.1 To disable the GPS Assisted Navigation
Only for Automower® 315X.
Disable the GPS Assisted Navigation to make
manual settings in
Lawn coverage
.
Note: It is recommended to use GPS Assisted
Navigation.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage
.
3. Use the down arrow button to select
Disable
GPS navigation
.
4. Push the OK button.
5. Use the right arrow button to select
Proceed
with disable GPS navigation?
6. Push the OK button.
3.9.5.2 To enable the GPS Assisted Navigation
Only for Automower® 315X.
1. Do steps 1–4 in
To disable the GPS
Assisted Navigation on page 26
.
2. Use the down arrow button to select
Enable
GPS navigation
.
3. Push the OK button.
4. Push the
BACK button.
3.9.5.3 To set the Lawn coverage function
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > How?
3. Use the left arrow button to select the area.
4. Push the OK button.
5. Push the BACK button.
6. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > How far?
7. Measure the distance from the charging
station to the start of the area. Measure
along the guide wire. Refer to
To measure
the distance from the charging station on
page 27
.
8. Push the arrow buttons to select the
distance, measured in m.
9. Push the BACK button.
10. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > How often?
11. Use the arrow buttons to select the % of the
cutting time the product must cut the area.
The % is equal to the % of the area in
relation to the complete work area.
a) Measure the area.
b) Divide the area with the work area.
c) Convert the result to %.
30%
20%
26
- Installation
1220 - 001 - 08.07.2019
Page 27
3.9.5.4 To do a test of the Lawn coverage
function
1. Put the product in the charging station.
2. Do step 1-3 in
To get access to the menu on
page 23
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > More > Test
.
4. Push the OK button.
5. Push the START button.
6. Close the hatch.
7. Make sure the product can find the area.
3.9.5.5 To measure the distance from the
charging station
1. Put the product in the charging station.
2. Do steps 1–3 in
To get access to the menu
on page 23
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > How far?
4. Use the number buttons to set 500 m as a
distance.
5. Push the OK button.
6. Push the BACK button.
7. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > More > Test
.
8. Push the OK button.
9. Push the START button and close the hatch.
10. Push the STOP button when the product is
at the distance you select to measure. The
distance shows in the display.
3.9.5.6 To disable or enable the Lawn coverage
function
Disable the
Lawn coverage
function for each
area.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > Disable
.
3. Use the left arrow button to disable or
enable the
Lawn coverage
function.
4. Push the OK button.
5. Push the BACK button.
3.9.5.7 To reset the Lawn coverage settings
You can reset the
Lawn coverage
settings for
each area and use the factory setting.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Lawn coverage > Area 1-3 > More >
Reset
.
3. Use the arrow buttons to select
Reset
.
4. Push the OK button.
3.9.6 Methods for the product to find the
charging station
The product has 3 search methods to find the
charging station :
• Irregular - The product moves in the work
area until it finds the signal of the charging
station.
• Guide wire - The product moves in the work
area until it finds the guide wire. The product
moves along the guide wire to the charging
station.
• Boundary wire - The product moves in the
work area until it finds the boundary wire.
The product moves along the boundary wire
to the charging station.
The factory setting is set to mix the 3 search
methods. When the battery is low the product
starts to search for the charging station with the
irregular method for 3 min. After 3 min the
product changes search method to the guide wire
method. The product tries to find the guide wire
for 8 min. After 11 min the product changes
search method to the boundary wire method.
You can change the settings for how the product
finds the charging station to adapt to the work
area.
3.9.6.1 To set how the product finds the charging
station
You can make manual settings to make the
product search for the guide wire or the boundary
wire in 0–30 min from when the battery is low.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
1220 - 001 - 08.07.2019
Installation - 27
Page 28
> To find the charging station > Overview of
search methods > Guide
.
3. Push the arrow buttons to select 1 of the
guide wires.
4. Push the number buttons to set the time.
5. Push the OK button.
6. Push the BACK button.
7. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> To find the charging station > Overview of
search methods > Boundary wire
.
8. Push the number buttons to set the time.
9. Push the OK button.
10. Push the START button and close the hatch.
3.9.6.2 To do a test of the guide wire
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Find charging station > Guide > More >
Test guide
.
3. Put the product 3 m / 9 ft. from the boundary
wire.
4. Push the START button and close the hatch.
5. Make sure the product follows the guide wire
to the charging station.
6. Make sure the product docks with the
charging station.
7. If the product does not dock with the
charging station, change the position of the
charging station or the guide wire. Refer to
To examine where to put the charging
station on page 16
and
To examine where to
put the guide wire on page 19
.
3.9.6.3 To do a test of the boundary wire
1. Put the product 3 m / 9 ft. from the boundary
wire, facing the boundary wire.
2. Do steps 1–3 in
To get access to the menu
on page 23
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Find charging station > Overview of
search methods > Boundary > More > Test
right / Test left
.
4. Push the START button and close the hatch.
5. Make sure the product follows the guide wire
to the charging station.
6. Make sure the product docks with the
charging station.
7. Change the position of the charging station
or the guide wire if the product does not
dock with the charging station. Refer to
To
examine where to put the charging station
on page 16
and
To examine where to put
the guide wire on page 19
.
3.9.6.4 To change the signal range of the
charging station
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Find the charging station > Overview of
search methods > Charging station range
.
3. Use the left arrow button to select
MAX,
MID, MIN
.
4. Push the BACK button.
Note: It is usually better to move the charging
station, than to decrease the range of the
charging station signal.

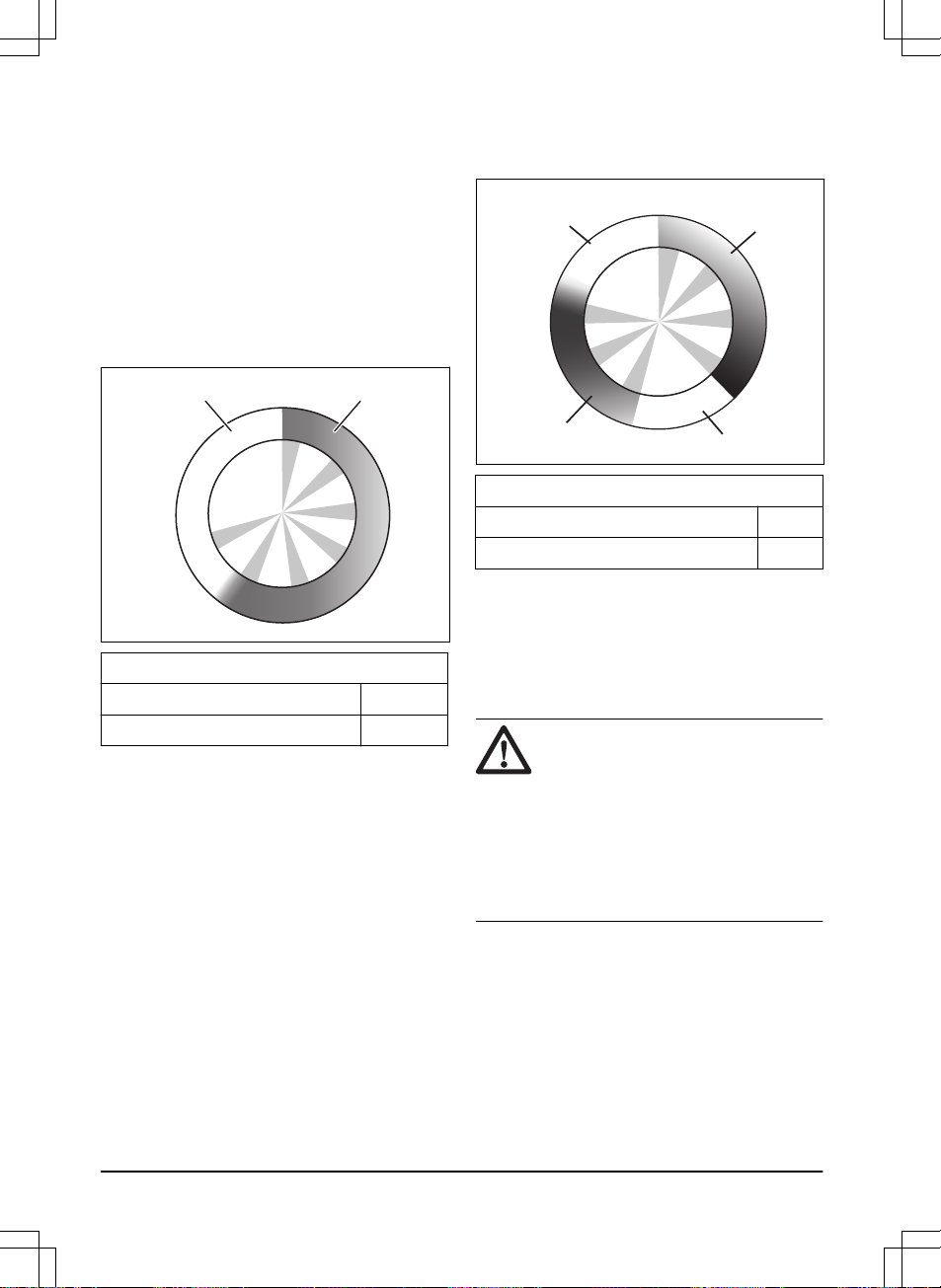

3.9.7 To set the exit angles
The product moves away from the charging
station with an exit angle between 90°–270°. The
exit angles can be set to 1–2 exit sectors.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Installation
> Advanced > Exit angles > Sector 1
or 2.
3. Use the number buttons to set the angles in
degrees.
4. Push the down arrow button.
5. Use the number buttons to select how
frequently the product must use each sector.
Set in %.
6. Push the BACK button.
3.9.8 To set the reversing distance
The reversing distance is how many cm the
product reverses when it leaves the charging
station. The factory setting is 60 cm.
28
- Installation
1220 - 001 - 08.07.2019
Page 29
1. Do steps 1-3 in
To get access to the menu
on page 23
.
2. Use the arrow button and the OK button to
move through the menu structure
Installation
> Advanced > Reversing distance
.
3. Use the number buttons to set the reverse
distance in cm.
4. Push the BACK button.
3.9.9 To set the Drive Past Wire function
The front of the product always moves past the
boundary wire by a specified distance before the
product moves back into the work area. The
factory setting is 31 cm. You can select a
distance of 20-50 cm.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow button and the OK button to
move through the menu structure
Installation
> Advanced > Drive Past Wire
.
3. Use the number buttons to set the distance
in cm.
4. Push the BACK button.
3.9.10 Settings
In settings you can change the general settings
to your product.
3.9.10.1 Profiles
Different sets of product settings can be saved if
the product is used in different work areas with
different charging stations. You can set a
maximum of 3 profiles.
To save settings to a profile
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
Profiles > Use profiles > Profile A, B, C.
3. Use the arrow buttons and the OK button to
select and save the profile.
4. Push the BACK button.
If settings have been changed but not saved, the
symbol * is shown beside the profile name.
To change the name of a profile
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure Settings
>
Profiles > Use profiles > Profile A, B, C. >
Rename.
3. Use the arrow buttons and the OK button to
select letters.
4. Push the BACK button to save the new
profile name.
To use a profile
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
Profiles > Use profiles > Profile A, B, C >
Select.
3. Push the BACK button.
To connect a new charging station to a profile
1. Save the settings in a profile to be used with
the original charging station. Do steps 1–4 in
To save settings to a profile on page 29
.
2. Put the product in the new charging station.
3. Use the arrow buttons and the OK button to
move through the menu structure
Security >
Advanced > New loop signal
.
4. Save a profile for the new charging station,
or select a profile in the list. Do steps 1–4 in
To save settings to a profile on page 29
, or
do steps 1–3 in
To use a profile on page 29
.
3.9.10.2 ECO mode
ECO mode
stops the signal in the boundary loop,
the guide wire and the charging station, when the
product is parked or is charging.
Note:
Use
ECO mode
to save energy and avoid
interference with other equipment, for example
hearing loops or garage doors.
Note: Push the STOP button before you remove
the product from the charging station. If not, the
product can not be started in the work area.
1220 - 001 - 08.07.2019
Installation - 29
Page 30
3.9.10.3 Spiral Cutting
The product cuts the grass in a spiral pattern if
the grass is longer in an area.
Spiral cutting
can
be set in 5 levels:
• Low-
• Low
• Mid
• High
• High+
The level sets how sensitive the product is to
changes in grass height.
Note:
Spiral cutting
is only started in the Main
area mode. Cutting in the
Secondary area
mode
does not let the product to start
Spiral cutting
.
Spiral Cutting
does not start in slopes steeper
than 15%.
To set the level of Spiral Cutting
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
Spiral Cutting > Use Spiral Cutting >
Intensity
.
3. Use the left arrow button to select the level
of the Spiral Cutting.
4. Push the BACK button.
3.9.10.4 Slope control
In order to decrease lawn wear near the
boundary wire in slopes, the product prevents to
move in the opposite direction when the product
operates in a slope.
Slope control
is enabled in
the factory settings.
To disable the Slope control
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
Slope control > Use Slope control
.
3. Push the BACK button.
3.9.10.5 To set the time & date
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the
arrow buttons and the OK button to
move through the menu structure
Settings >
General > Time & Date
.
3. Use the number buttons to set the time and
then push the BACK button.
4. Use the number buttons to set the date and
then push the BACK button.
5. Use the arrow buttons to set the time format
and then push the BACK button.
6. Use the arrow buttons to set the date format
and then push the BACK button.
3.9.10.6 To set the language
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
General > Language.
3. Use the arrow buttons to select language
and then push the BACK button.
3.9.10.7 To set the country
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
General > Country.
3. Use the arrow buttons to select country and
then push the BACK button.
3.9.10.8 To reset all user settings
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings >
General > Reset all user settings
.
3. Use the right arrow button to select
Proceed
with reset of all user settings?
4. Push the OK button to reset all the user
settings.
Note:
Security level, PIN code, Loop signal,
Messages, Date & Time, Language
and
Country
settings
are not reset.
3.9.10.9 The About menu
The
About
menu displays information about the
product, for example serial number and firmware
versions.
30
- Installation
1220 - 001 - 08.07.2019
Page 31
3.9.11 Accessories
Settings for accessories mounted on
the product can be made in this menu.
3.9.11.1 Information
This menu handles accessories mounted on the
product. Contact your local Husqvarna
representative for more information on available
accessories.
3.9.11.2 Automower® Connect app
The app gives two modes of connectivity: Longrange cellular connectivity and Short-range
Bluetooth® connectivity. Automower® 310/315
support only Bluetooth® communication. If they
get Automower® Connect installed as an
accessory, they also support cellular
communication.
The product can connect to mobile devices that
have the Automower® Connect app installed.
Automower® Connect is a free app for your
mobile device. The Automower® Connect app
gives extended functions to your Husqvarna
product. You can:
• See the status of your product.
• Change settings to your product.
• Get extended product information.
• Get an alarm if the product moves out of the
work area.
Note:
All countries do not support Automower
®
Connect because of regional specified cellular
systems. The included Automower® Connect lifetime service only applies if there is a third part
sub-supplier of 2G/3G available in the operational
area.
To install the Automower® Connect app
1. Download the Automower® Connect app on
your mobile device.
2. Sign up for a Husqvarna account in the
Automower® Connect app.
3. Log in to your Husqvarna account in the
Automower® Connect app.
3.9.11.3 Automower® Connect@Home
(Automower® 310/315)
Connect@Home uses a short-range Bluetooth
®
wireless technology. This means that you can
communicate between the mobile device and the
product while you are in communication range.
An icon for Bluetooth® communication will show
in the product display when the product is
connected with your mobile device.
Note: Connect@Home has equivalent but not as
extended functions as Automower® Connect, and
uses the same app.
To pair Connect@Home and the product
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Connect@Home > Pairing >
New pairing
.
3. Follow the instructions in the app.
Note: Automower® Connect is always connected
to your product as long as the mobile device
have connection with the mobile network, the
product is charged and main switch is set in
position
1
.
To remove paired accounts
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Connect@Home > Pairing >
Remove paired accounts
.
3. Push the OK button to select
YES/NO
to
remove all paired accounts.
3.9.11.4 Automower® Connect
Automower® Connect is included in Automower
®
315X and is available as an accessory for
Automower® 310/315.
To pair Automower® Connect and the product
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Automower® Connect >
Pairing > New pairing
.
3. Follow the instructions in the app.
1220 - 001 - 08.07.2019
Installation - 31
Page 32
To enable the GeoFence function
GeoFence is a GPS-based theft protection that
makes a virtual fence for the product. You will get
a message if the product is moved on the other
side of the GeoFence.
1. Put the product in the center of the work
area.
2. Do steps 1–3 in
To get access to the menu
on page 23
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Automower Connect >
GeoFence > Activate GeoFence
.
4. Push the OK button.
5. Select
Activate GeoFence
and push the OK
button.
To set a new center point for the Geofence function
1. Put the product in the center of the work
area.
2. Do steps 1–3 in
To get access to the menu
on page 23
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Automower Connect >
GeoFence > New center point
.
4. Push the OK button.
To set the GeoFence level of sensitivity
The higher level of GeoFence sensitivity, the
easier the alarm starts.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Automower Connect >
GeoFence
.
3. Use the arrow buttons to select level of
GeoFence sensitivity.
4. Push the BACK button.
To use the SMS function
The SMS function sends you an SMS when the
product is moved out of the GeoFence.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Automower Connect >
Communication > Use SMS
.
3. Push the OK button.
4. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Automower Connect >
Communication > SMS phone numbers
.
5. Push the number buttons to enter the
telephone number with country code. For
example (+)46701234567.
6. Push the BACK button.
Note: There is a maximum of 10 SMS each
month from the product.
Network
APN settings
The product must specify APN settings to be able
to use and send data via the mobile net. Settings
for Husqvarna SIM is default.
3.9.11.5 Headlights
To set the schedule for the headlights
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Headlights > Schedule
.
3. Select between
Always ON, Evening only,
Evening & night
or
Always OFF
.
Note:
Evening only
will start the schedule for the
headlights at sunset and stop at midnight.
Evening & night
will start the schedule for the
headlights at sunset and stop at sunrise.
To set the Flashes when fault function
The headlights flashes if the product stops to
operate because of a fault if
Flashes when fault
is
enabled.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Headlights > Flashes when
fault
.
3. Use the OK button to enable or disable the
Flashes when fault
function.
32
- Installation
1220 - 001 - 08.07.2019
Page 33
3.9.11.6 To avoid collisions with the mower
house
The wear on the product and the mower house
decreases when you select
Avoid collisions with
mower
.
1. Do steps 1–3 in
To get access to the menu
on page 23
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories > Mower house > Avoid
collisions with mower
.
Note: If
Avoid collisions with mower
is selected it
can result in grass that is not cut around the
charging station.
3.9.12 Connectivity
Connectivity describes how the product
communicates with other devices and
applications.
The product can connect to mobile devices that
have the Automower® Connect app installed.
Refer to
Automower® Connect app on page 31
.
The product can also connect to mobile devises
in other ways, for example Automower® Direct
and Husqvarna Fleet Services™.
3.9.12.1 Automower® Direct
Automower® Direct uses short-range Bluetooth
®
communication, and is included in Automower
®
310/315/315X.
Husqvarna cannot guarantee the time period or
coverage of the long-range cellular connectivity.
It is possible to communicate with the product
through Bluetooth® if you are in short-range of
the product. You can use Automower® Direct
without a Husqvarna account as long as you
have the product PIN code.
To start to use Automower® Direct
1. Download the Automower® Connect app on
your mobile device.
2. Select Automower® Direct on the start
screen of the Automower® Connect app.
3. Start Bluetooth® on your mobile device.
4. Set the Main switch on the product to
position
0
.
5. Set the Main switch on the product to
position
1
.
Note:
The Bluetooth® in the product will be
active for pairing for 3 minutes.
6. Select the product to pair with in the
Automower® Connect app.
7. Enter the PIN code for the product.
Note: You have access to the menus and
functions while you are in Bluetooth® shortrange.
3.9.12.2 Husqvarna Fleet Services
™
Husqvarna Fleet Services™ is a cloud solution
that gives the commercial fleet manager an
overview of all products. Automower® 315X can
be added to Husqvarna Fleet Services™. If
Automower® 310 and Automower® 315 have
Automower® Connect, they can also be added to
Husqvarna Fleet Services™. For more
information about Husqvarna Fleet Services™,
refer to www.husqvarna.com.
To connect to the product with Husqvarna Fleet Services
1. Download the Husqvarna Fleet Services
™
app and Automower® Connect app to your
mobile device.
2. Log on to the Husqvarna Fleet Services
™
app.
3. Follow the instructions for how to pair with
the product.
1220 - 001 - 08.07.2019
Installation - 33
Page 34

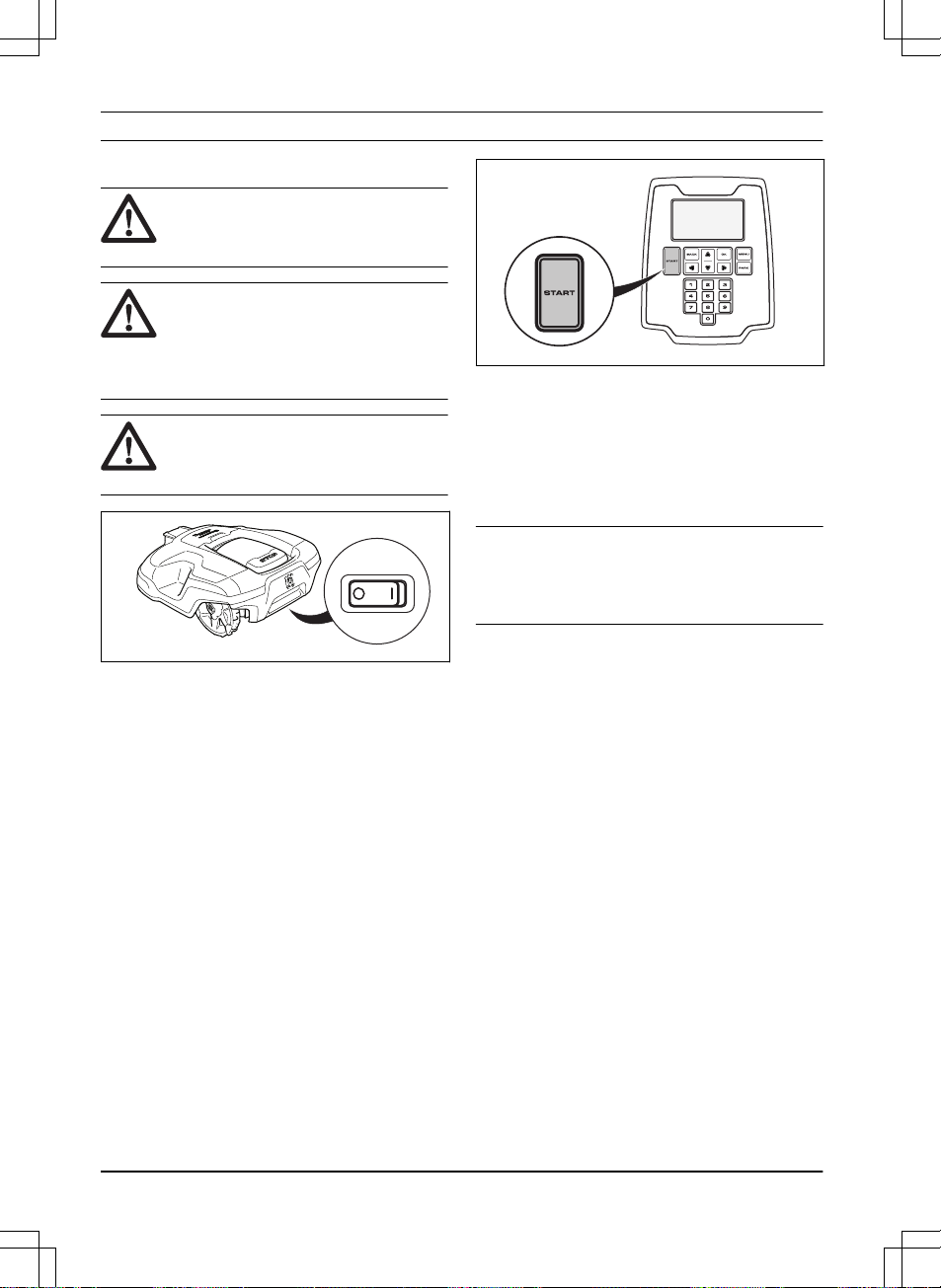

4 Operation
4.1 Main switch
WARNING: Read the safety
instructions carefully before you start
the product.
WARNING: Keep your hands and feet
away from the rotating blades. Never
put your hands or feet close to or
under the product when the motor is
running.
WARNING: Do not use the product
when persons, especially children, or
animals, are in the work area.
• Set the Main switch in the 1 position to start
the product.
• Set the Main switch in the
0
position when
the product is not in use or before any work,
inspection or maintenance is being carried
out.
When the Main switch is set in the
0
position
the motors on the product cannot start.
4.2 Start
1. Press the STOP button to open the hatch.
2. Set the main switch to position
1
.
3. Enter the PIN code.
4. Press the START button.
5. Select the desired operating mode. Refer to
Operating mode - Start on page 34
.
6. Close the hatch within 10 seconds.
If the product is parked in the charging
station, it will only leave the charging station
when the battery is fully charged and if the
timer is set to allow the product to operate.
Note: Always press the START button before
closing the hatch to start the product. If the
START button is not pressed, a message beep is
heard and the product will not start.
4.3 Operating mode - Start
When the START button has been pushed the
following operation selections can be selected.
• Main area
• Secondary area
• Override timer
• Spot cutting
4.3.1 Main area
Main area
is the standard operating mode where
the product mows and charges automatically.
4.3.2 Secondary area
In the
Secondary area
mode, the product
operates until the battery is empty.
When the battery is empty, the product stops and
the message
Needs manual charging
shows in
the product display. Put the product in the
charging station to charge the battery.
If the product charges in the
Secondary area
mode, it will fully charge, move out about 50 cm /
20 in. and then stop. This means that the product
is charged and prepared to start to cut.
34
- Operation
1220 - 001 - 08.07.2019
Page 35
Note: It is recommended to change the operation
selection to
Main area
before you put the product
in the charging station.
4.3.3 Override timer
The timer settings can be temporarily overridden
by selecting
Override timer
. It is possible to
override the timer for 24 h or 3 days h or days.
4.3.4 Spot cutting (Automower® 315/315X)
Spot cutting
is useful for quickly mowing an area
where the grass has been mown less than in
other parts of the garden.
Spot cutting
means that the product mows in a
spiral pattern in order to cut the grass in the area
where it was started. When this is done, the
product automatically switches back to
Main area
or
Secondary area
.
The
Spot cutting
function is activated with the
START button. You can select how the product
should continue to work once mowing is finished
by pressing right arrow button and then selecting
On Main area
or
On Secondary area
.
4.4 Operating mode - Park
When the PARK button is pressed the following
operation selections can be chosen.
• Park until further notice
• Start again in 3 hours
• Start with next timer
4.4.1 Park until further notice
The product stays in the charging station until
another operating mode is selected by pressing
the START button.
4.4.2 Start again in 3 hours
The product stays in the charging station for 3
hours and then automatically goes back to the
usual operation. This operation selection is
applicable when it is necessary to pause
operation.
4.4.3 Start on next timer
The product stays in the charging station until the
next Timer setting permits operation. This
operation selection is suitable if one wishes to
cancel an ongoing mowing cycle and allow the
product to stay in the charging station until the
next day.
4.5 To stop the product
1. Press the STOP button on top of the
product.
The product stops and the blade motor stops.
4.6 To switch off the product
1. Press the STOP button on top of the
product.
2. Set the Main switch to position
0
.
WARNING: Always switch off the
product using the main switch if it
requires maintenance, or if the product
must be moved outside the work area.
4.7 Timer and Standby
The product has an inbuilt standby period
according to the Standby time table. The standby
period provides for instance a good opportunity to
water or play games on the lawn.
Model Standby time, minimum
hours per day
Automower® 310 6
Automower® 315 2
Automower® 315X 2
The factory settings for the timer allow the
product to operate around the clock 7 days a
week. However, the product will not operate
during the built-in standby period.
1220 - 001 - 08.07.2019
Operation - 35
Page 36
4.7.1 Example 1
This example is applicable to products with a
specified work area of 500 m2, but the principle is
the same for the other models.
Timer setting, Period 1: 00:00 - 00:00
Active period (A): 00:00 - 18:00
The timer setting ensures that the product begins
cutting the lawn at 00:00. However the product is
parked in standby mode in the charging station
from 18:00 and rests until it starts cutting again at
00:00.
24 h
A
B
Standby
Mowing
Charging
Opera
tion
Example: A specified work area of 500 m
2
Operation, A = max. hours 18
Charging/Standby, B = min. hours 6
4.7.2 Example 2
This example is applicable to products with a
specified work area of 500 m2, but the principle is
the same for the other models.
The timer settings can be divided into 2 work
periods to prevent mowing when there usually is
other activities ongoing. If the timer setting is
divided into 2 work periods, the minimum standby
period must in total be according to the Standby
time table. Refer to
Timer and Standby on page
35
.
Timer setting Period 1 (A): 00:00
Timer setting Period 2 (C): 20:00
Active period (A): 00:00
Active period (C): 20:00
The product operates between and 16:00. It
starts again at but stops at 22:00 due to standby
mode until it starts again at .
Mowing
Charging
Standby
Standby
Operation
Operation
24 h
A
D
C
B
Example: A specified work area of 500 m
2
Operation, A + C = max. hours 18
Charging/Standby, B + D = min. hours 6
4.8 To charge the battery
When the product is new or has been stored for a
long period, the battery can be empty and needs
to be charged before starting. In the Main area
mode, the product automatically alternates
between mowing and charging.
WARNING:
Only charge the product
using a charging station and a power
supply which is intended for it.
Incorrect use may result in electric
shock, overheating or leakage of
corrosive liquid from the battery.
In the event of leakage of electrolyte
flush with water and seek medical help
if it comes in contact with the eyes etc.
1. Set the Main switch to position 1.
2. Place the product in the charging station.
3. Open the hatch and slide the product in as
far as possible to ensure proper contact
between the product and the charging
station.
4. The display shows a message that charging
is in progress.
36
- Operation
1220 - 001 - 08.07.2019
Page 37

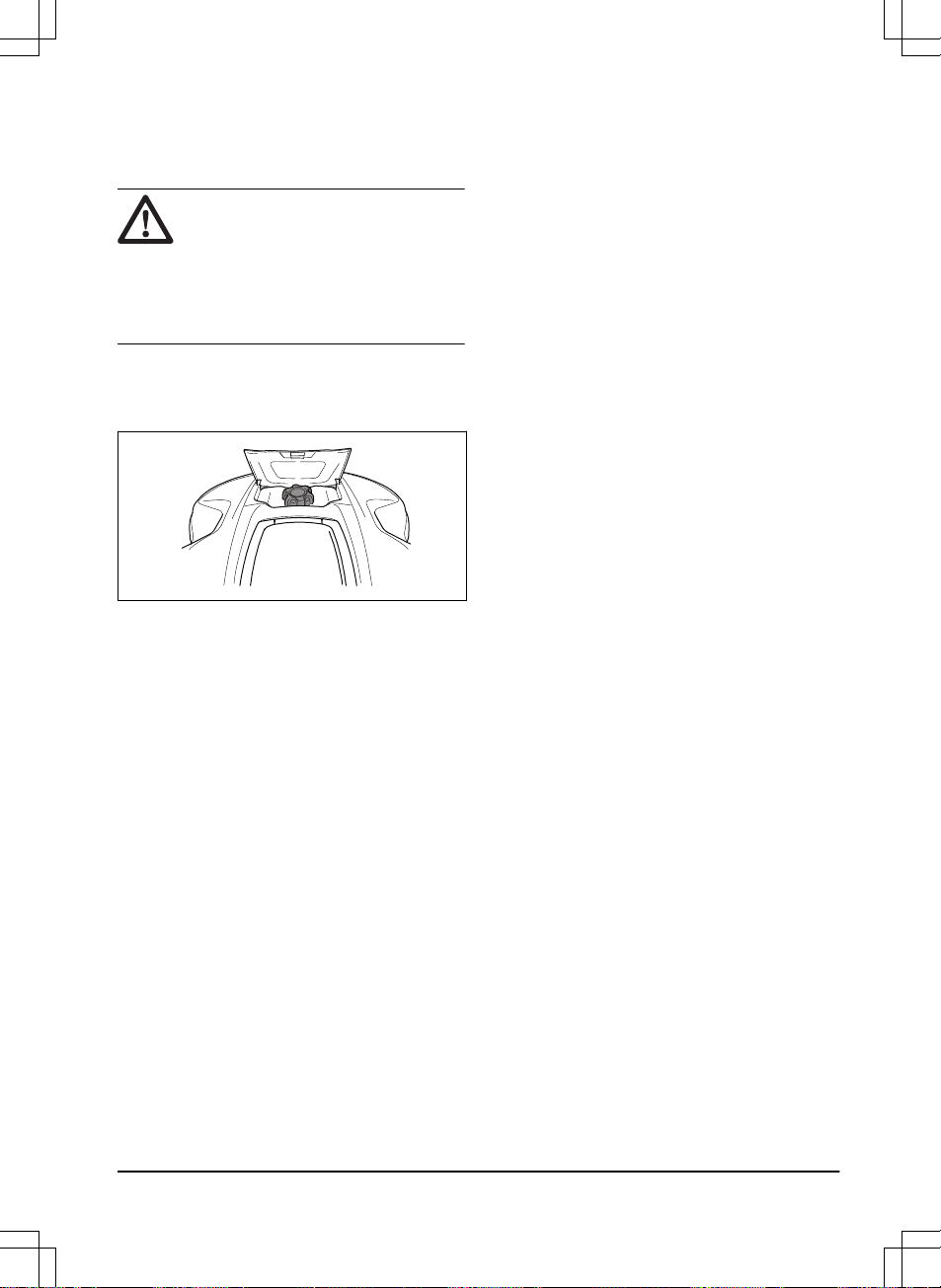

4.9 Adjust the cutting height
The cutting height can be varied from MIN (2 cm /
0.8 in.) to MAX (6 cm / 2.4 in.).
CAUTION: During the first weeks after
a new installation, the cutting height
must be set to MAX to avoid damaging
the loop wire. After this, the cutting
height can be lowered step by step
every week until the desired cutting
height has been reached.
4.9.1 To adjust the cutting height
1. Press the STOP button to stop the product.
2. Open the hatch.
3. Turn the knob to the required position.
• Turn clockwise to increase the cutting
height.
• Turn counter-clockwise to decrease the
cutting height.
4. Close the hatch.
1220 - 001 - 08.07.2019
Operation - 37
Page 38

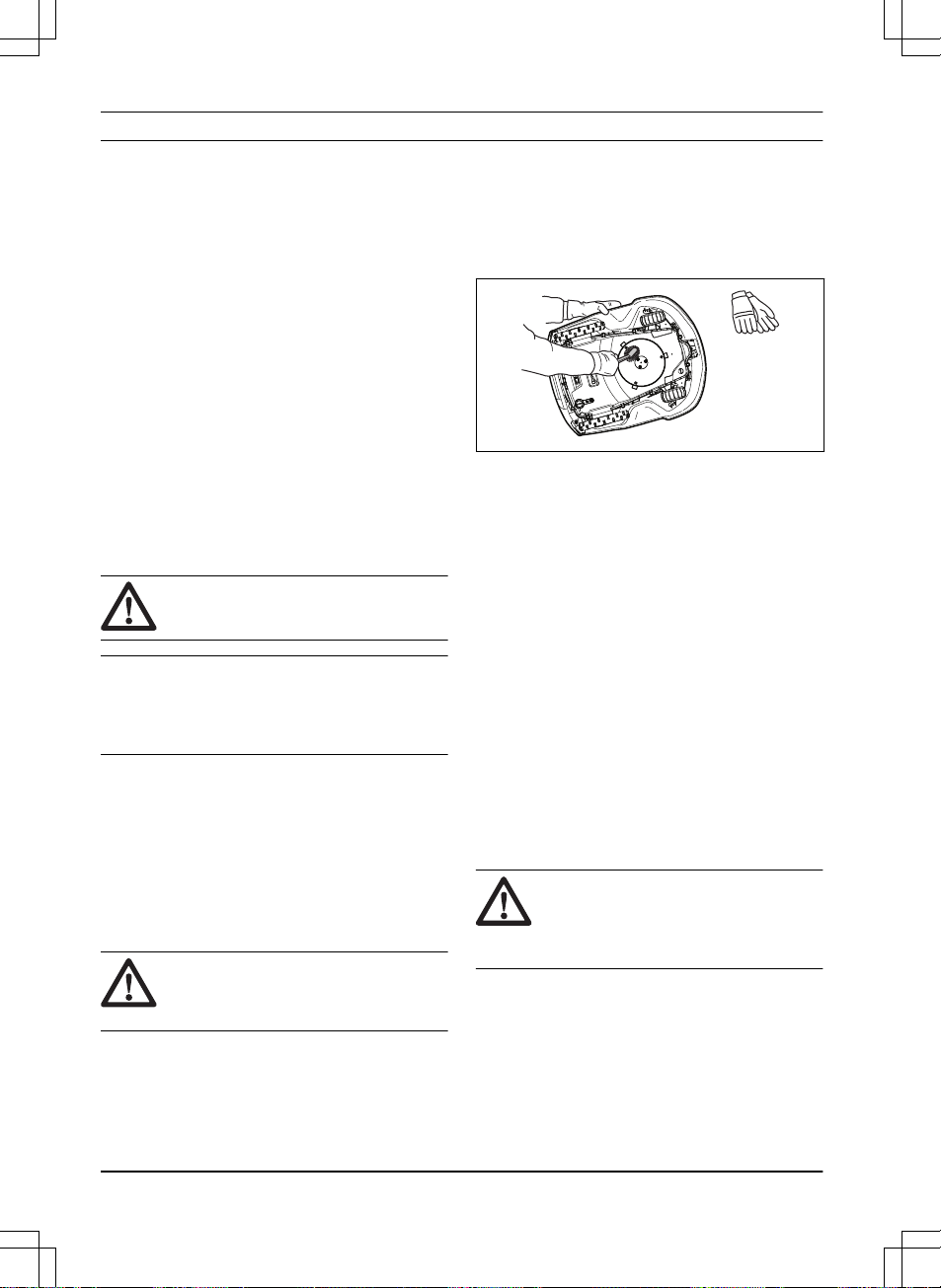

5 Maintenance
5.1 Introduction - maintenance
For better operating reliability and longer service
life: check and clean the product regularly and
replace worn parts if necessary. All maintenance
and servicing must be done according to
Husqvarna's instructions. Refer to
Warranty
terms on page 56
.
It is important that the blade disc rotates easily.
The edges of the blades should not be damaged.
The lifetime of the blades varies immensely and
depends for instance on:
• Operating time and size of the work area.
• Type of grass and seasonal growth.
• Soil, sand and use of fertilizers.
• The presence of objects such as toys, tools,
stones, roots and the like.
The normal life is 3 to 6 weeks when used under
favorable conditions. Refer to
Replace the blades
on page 39
on how to replace the blades.
WARNING: Wear protective gloves.
Note: Working with blunt blades gives a poorer
mowing result. The grass is not cut cleanly and
more energy is needed, resulting in the product
not being able to maintain such a large area.
5.2 Clean the product
It is important to keep the product clean. A
product with large amounts of grass stuck to it
will not cope as well with slopes. It is
recommended to clean using a brush.
Husqvarna offers a special cleaning and
maintenance kit as an accessory. Contact your
Husqvarna central service.
CAUTION:
Never use a high-pressure
washer to clean the product. Never
use solvents for cleaning.
5.2.1 Chassis and blade disc
Inspect the blade disc and blades once a week.
1. Set the Main switch to position 0.
2. Lift the product onto its side.
3. Clean the blade disc and chassis using for
example a dish brush. At the same time,
check that the blade disc rotates freely in
relation to the foot guard. Also, check that
the blades are intact and can pivot freely.
5.2.2 Chassis
Clean the underside of the chassis. Brush or
wipe with a damp cloth.
5.2.3 Wheels
Clean around the front wheels and rear wheel as
well as the rear wheel bracket. Grass on the
wheels can impact on how the product performs
in slopes.
5.2.4 Cover
Use a damp, soft sponge or cloth to clean the
cover. If the cover is very dirty it may be
necessary to use a soap solution or washing-up
liquid.
5.2.5 Charging station
Clean the charging station regularly from grass,
leaves, twigs and other objects that may impede
docking.
WARNING:
Use the plug to disconnect
the charging station before any
maintenance, or cleaning of charging
station or power supply.
38 - Maintenance
1220 - 001 - 08.07.2019
Page 39

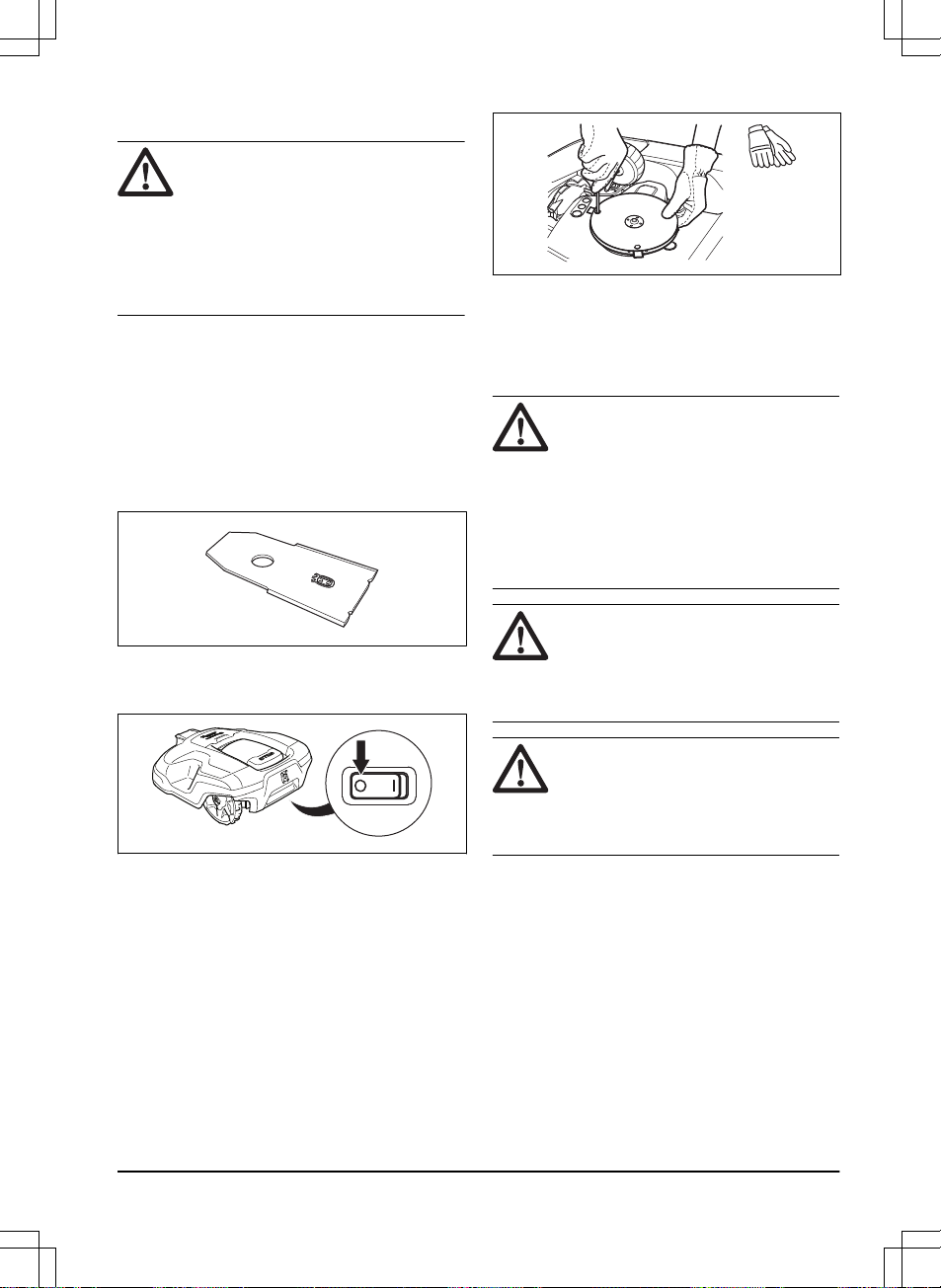

5.3 Replace the blades
WARNING: Use blades and screws of
the right type. Husqvarna can only
guarantee safety when using original
blades. Only replacing the blades and
reusing the screw can result in a screw
wearing during mowing. The blades
can then be propelled from under the
body and cause serious injury.
Replace worn or damaged parts for safety
reasons. Even if the blades are intact, they
should be replaced on a regular basis for the best
mowing result and low energy usage. All 3 blades
and screws must be replaced at the same time to
obtain a balanced cutting system. Use
Husqvarna original blades embossed with the
crowned H-mark logotype, refer to
Warranty
terms on page 56
.
5.3.1 To replace the blades
1. Set the Main switch to position 0.
2. Turn the product upside down. Place the
product on a soft and clean surface to avoid
scratching the body and the hatch.
3. Rotate the skid plate so that its holes align
with the screws for the blade.
4. Remove the 3 screws. Use a manual
straight slot or cross-tip screwdriver.
5. Remove each blade and screw.
6. Fasten new blades and screws.
7. Check that the blades can pivot freely.
5.4 Battery
WARNING: Only charge the product
using a charging station and power
supply which is intended for it.
Incorrect use may result in electric
shock, overheating or leakage of
corrosive liquid from the battery. In the
event of leakage of electrolyte flush
with water and seek medical help if it
comes in contact with the eyes etc.
WARNING: Use only original batteries
recommended by the manufacturer.
Product safety cannot be guaranteed
with other batteries. Do not use nonrechargeable batteries.
CAUTION: The battery must be
charged fully before winter storage. If
the battery is not fully charged it can
be damaged and in certain cases be
rendered useless.
The charging time can vary depending on,
among other factors, the ambient temperature.
Below indicates that the battery is getting old and
eventually needs replacing:
• The operating time for the product is shorter
than normal between charges. This leads to
more charging cycles than normal, which
increases the risk of tracks forming near the
charging station.
• The product is found standing out on the
lawn with
Empty battery
message. This
indicates that the product does not have
1220 - 001 - 08.07.2019
Maintenance - 39
Page 40
battery capacity enough to find the charging
station.
The battery is fine as long as the product
maintains a well-cut lawn.
Note: Battery life is dependent on the length of
the season and how many hours a day the
product is operating. A long season or many
hours of use a day means that the battery must
be replaced more regularly.
Contact your local Husqvarna representative to
replace the battery.
5.5 Winter service
Take your product to your local Husqvarna
representative for service prior to winter storage.
Regular winter service will maintain the product in
good condition and create the best conditions for
a new season without any disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis,
the blade disc and all other moving parts.
• Testing of the products’s function and
components.
• Checking and, if required, replacing wear
items such as blades and bearings.
• Testing the products’s battery capacity as
well as a recommendation to replace battery
if necessary.
• If new firmware is available, the product is
updated.
40
- Maintenance
1220 - 001 - 08.07.2019
Page 41
6 Troubleshooting
6.1 Introduction - troubleshooting
In this chapter, a number of messages are listed which may be shown in the display if there is a
malfunction. There is a proposal as to the cause and steps to take for each message. This chapter also
presents some symptoms that can guide you if the product does not work as expected. More
suggestions for steps to take in the event of malfunction or symptoms can be found on
www.husqvarna.com.
6.2 Fault messages
Below a number of fault messages are listed which may be shown in the product display. Contact your
local Husqvarna representative if the same message appears often.
Message Cause Action
Wheel motor
blocked, left
Grass or other object has wrapped
around the drive wheel.
Check the drive wheel and remove the
grass or other object.
Wheel motor
blocked, right
Grass or other object has wrapped
around the drive wheel.
Check the drive wheel and remove the
grass or other object.
Cutting system
blocked
Grass or other object has wrapped
around the blade disc.
Check the drive wheel and remove the
grass or other object.
The blade disc lies in a pool of water. Move the product and prevent the col-
lection of water in the work area.
No loop signal
The power supply is not connected. Check the wall socket connection and
whether an earth-fault breaker has tripped or not. Check that the low voltage
cable is connected to the charging station.
The low voltage cable is damaged or
not connected.
Check that the low voltage cable is not
damaged. Check that it is also properly
connected to the charging station and
to the power supply.
The boundary wire is not connected to
the charging station.
Check that the boundary wire connectors are fitted properly to the charging
station. Replace connectors if damaged. Refer to
To install the boundary
wire on page 21
.
Boundary wire broken. Find out where the break is. Replace
the damaged section of the loop with a
new loop wire and splice using an original coupler. Refer to
Find breaks in the
loop wire on page 49
.
ECO mode
is activated and the product
has attempted to start outside the
charging station.
Place the product in the charging station, press the START button and close
the hatch. Refer to
ECO mode on page
29
.
1220 - 001 - 08.07.2019
Troubleshooting - 41
Page 42
Message Cause Action
No loop signal
The boundary wire is crossed on its
way to and from an island.
Check that the boundary wire is laid according to instructions, e.g. in the right
direction around the island. Refer to
To
install the boundary wire on page 21
.
The connection between the product
and the charging station has been broken.
Place the product in the charging station and generate a new loop signal.
Disturbances from metal objects (fences, reinforcement steel) or buried cables close by.
Try moving the boundary wire.
Trapped
The product is caught in something. Free the product and rectify the reason
for it becoming trapped.
The product is stuck behind a number
of obstacles.
Check if there are any obstacles which
make it hard for the product to move
away from this location.
Outside work area
The boundary wire connections to the
charging station are crossed.
Check that the boundary wire is connected correctly.
The boundary wire is too close to the
edge of the work area.
Check that the boundary wire has been
laid according to the instructions. Refer
to
To install the boundary wire on page
21
.
The work area slopes too much by the
boundary loop.
The boundary wire is laid in the wrong
direction around an island.
Disturbances from metal objects (fences, reinforcement steel) or buried cables close by.
Try moving the boundary wire.
The product finds it hard to distinguish
the signal from another product installation close by.
Place the product in the charging station and generate a new loop signal.
Empty battery
The product cannot find the charging
station.
Check that the charging station and the
guide wire are installed in accordance
with the instructions. Refer to
Installa-
tion of the product on page 21
.
The guide wire is broken or not connected.
Find out where the break is and rectify
it.
The battery is spent. Replace the battery. Refer to
To re-
move the battery on page 52
.
The charging station’s antenna is defective.
Check if the indicator lamp in the
charging station flashes red. Refer to
Indicator lamp in the charging station
on page 47
.
42 - Troubleshooting
1220 - 001 - 08.07.2019
Page 43
Message Cause Action
Wrong PIN code
Wrong PIN code has been entered.
Five attempts are permitted, and the
keypad is then blocked for five minutes.
Enter the correct PIN code. Contact
your local Husqvarna representative if
you forget the PIN code.
No drive
The product is caught in something. Free the product and rectify the reason
for the lack of drive. If it is due to wet
grass, wait until the lawn has dried before using the product.
The work area includes a steep slope. Maximum guaranteed slope is 40%.
Steeper slopes should be isolated. Refer to
To put the boundary wire in a
slope on page 18
.
The guide wire is not laid at an angle
on a slope.
If the guide wire is laid on a slope, it
must be laid at an angle across the
slope. Refer to
To examine where to
put the guide wire on page 19
.
Wheel motor overloaded, right
The product is caught in something. Free the product and rectify the reason
for the lack of drive. If it is due to wet
grass, wait until the lawn has dried before using the product.
Wheel motor overloaded, left
Charging station
blocked
The contact between the charging
strips and contact strips may be poor
and the product has made a number of
attempts to charge.
Put the product in the charging station
and check that the charging strips and
contact strips make good contact.
An object is obstructing the product. Remove the object.
The charging station is tilted or bent. Confirm that the charging station is
placed on a fully flat and horizontal
ground. The charging station must not
be tilted or bent.
Stuck in charging
station
There is an object in the way of the
product preventing it from leaving the
charging station.
Remove the object.
Upside down
The product is leaning too much or has
turned over.
Turn the product the right way up.
Needs manual
charging
The product is set to the
Secondary
area
operating mode.
Place the product in the charging station. This behavior is normal and no action is required.
1220 - 001 - 08.07.2019
Troubleshooting - 43
Page 44
Message Cause Action
Next start hh:mm
The timer setting prevents the product
from operating.
Change the timer settings. Refer to
To
set the timer on page 24
.
The rest period is in progress. The
product has an inbuilt standby period
according to the Standby time table.
This behavior is normal and no action
is required.
The time on the product is not correct. Set the time. Refer to
To set the time &
date on page 30
.
The day’s mowing
is complete
The rest period is in progress. The
product has an inbuilt standby period
according to the Standby time table.
This behavior is normal and no action
is required.
Lifted
The lift sensor has been activated as
the product has become trapped.
Free the product
Collision sensor
problem, front/rear
The product body can not move freely
around its chassis.
Check that the product body can move
freely around its chassis.
If the problem remains, the message
requires action by authorized service
technician.
Wheel drive problem, right/left
Grass or other object is wrapped
around the drive wheel.
Clean the wheels and around the
wheels.
Alarm! Mower
switched off
The alarm was activated because the
product was switched OFF.
Adjust the security level in the
Security
menu, refer to
To set the security level
on page 24
.
Alarm! Mower
stopped
The alarm was activated because the
product was stopped.
Alarm! Mower lifted
The alarm was activated because the
product was lifted.
Alarm! Mower tilted
The alarm was activated because the
product was tilted.
Electronic problem
Temporary electronic or firmware related issue.
Restart the product.
If the problem remains, the message
requires action by authorized service
technician.
Loop sensor problem, front/rear
Charging system
problem
Tilt sensor problem
Temporary problem
44 - Troubleshooting 1220 - 001 - 08.07.2019
Page 45
Message Cause Action
Temporary battery
problem
Temporary battery or firmware related
issue.
Restart the product.
Disconnect and reconnect the battery.
If the problem remains, the message
requires action by authorized service
technician.
Battery problem
Charging current
too high
Wrong or faulty power supply unit. Restart the product.
If the problem remains, the message
requires action by authorized service
technician.
Connectivity problem
Potential problem on the connectivity
circuit board in the product.
Restart the product.
If the problem remains, the message
requires action by authorized service
technician.
Connectivity settings restored
The connectivity settings was restored
due to a fault.
Please check and change the settings
if needed.
Poor signal quality
The connectivity circuit board in the
product is assembled upside down, or
the product itself is tilted or upside
down.
Verify the product is not upside down or
tilted. If not, the message requires action by authorized service technician.
1220 - 001 - 08.07.2019
Troubleshooting - 45
Page 46
6.3 Information messages
Below a number of information messages are listed which may be shown in the product display.
Contact your local Husqvarna representative if the same message appears often.
Message Cause Action
Low battery
The product cannot find the charging
station.
Check that the charging station and the
guide wire are installed in accordance
with the instructions. Refer to
To install
the guide wire on page 22
.
The guide wire is broken or not connected.
Find out where the break is and rectify
it.
The battery is spent. Replace the battery. Refer to
Battery
on page 39
.
The charging station’s antenna is defective.
Check if the indicator lamp in the
charging station flashes red. Refer to
Indicator lamp in the charging station
on page 47
.
Settings restored
Confirmation that a
Reset all user set-
tings
has been carried out.
This is normal. No action required.
Guide not found
The guide wire is not connected to the
charging station.
Check that the guide wire’s connector
is tightly connected to the charging station. Refer to
To install the guide wire
on page 22
.
Break in the guide wire. Find out where the break is. Replace
the damaged section of the guide wire
with a new loop wire and splice using
an original coupler.
The guide wire is not connected to the
boundary loop.
Check that the guide wire is connected
correctly to the boundary loop. Refer to
To install the guide wire on page 22
.
Guide calibration
failed
The product has failed to calibrate the
guide wire.
Check that the guide wires are installed
according to the instructions. Refer to
To install the guide wire on page 22
.
Guide calibration
accomplished
The product has succeeded to calibrate
the guide wire.
No action required.
Difficult finding
home
The product has been following the
boundary wire several laps without finding the charging station.
The installation has not been done correctly. Refer to
To examine where to
put the boundary wire on page 17
.
Wrong corridor width setting on boundary wire. Refer to
To set the corridor
width of the boundary wire on page 19
.
The product was started on a Secondary area with the Main area setting.
46 - Troubleshooting 1220 - 001 - 08.07.2019
Page 47
6.4 Indicator lamp in the charging
station
For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing
green light. If something else appears, follow the troubleshooting guide below.
There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna
representative.
Light Cause Action
Green solid light
Good signals No action required
Green flashing
light
The signals are good and
ECO mode
is
activated.
No action required.
Blue flashing light
The boundary loop is not connected to
the charging station.
Check that the boundary wire connectors are fitted properly to the charging
station.
Break in the boundary loop. Find out where the break is. Replace
the damaged section of the loop with a
new loop wire, and splice using an original coupler.
Red flashing light
Interruption in the charging station’s antenna.
Contact your local Husqvarna representative.
Red solid light
Fault in the circuit board or incorrect
power supply in the charging station.
The fault should be rectified by an authorized service technician.
Contact your local Husqvarna representative.
1220 - 001 - 08.07.2019 Troubleshooting - 47
Page 48
6.5 Symptoms
If your product does not work as expected, follow the symptoms guide below.
There is a FAQ (Frequently Asked Questions) on www.husqvarna.com which provides more detailed
answers to a number of standard questions. Contact your local Husqvarna representative if you still
cannot find the reason for the fault.
Symptoms Cause Action
The product has
difficulty docking.
The boundary wire is not laid in a long
straight line that is far enough out from
the charging station.
Check that the charging station has
been installed according to the instructions. Refer to
To install the charging
station on page 21
The guide wire is not inserted in the
slot under the charging station.
It is absolutely critical for operation that
the guide wire is perfectly straight and
is in the correct position under the
charging station. Therefore make sure
that the guide wire is always in its slot
in the charging station. Refer to
To in-
stall the guide wire on page 22
.
The charging station is on a slope. Place the charging station on a surface
that is entirely level. Refer to
To examine where to put the charging station on
page 16
.
The product runs
at the wrong time
The clock needs to be set. Set the clock. Refer to
To set the time
& date on page 30
.
The start and stop times for mowing
are incorrect.
Reset the start time and stop time settings for mowing. Refer to
To set the
timer on page 24
.
The product vibrates.
Damaged blades lead to imbalance in
the cutting system.
Inspect the blades and screws and replace them if necessary. Refer to
To re-
place the blades on page 39
.
Too many blades in the same position
lead to imbalance in the cutting system.
Check that only one blade is fitted at
each screw.
Different versions (thickness) of Husqvarna blades are used.
Check if the blades are of different versions.
The product runs,
but the blade disc
does not rotate.
The product searches for the charging
station.
No action. The blade disc does not rotate when the product is searching for
the charging station.
The product mows
for shorter periods
than usual between charges.
Grass or other foreign object blocks the
blade disc.
Remove and clean the blade disc. Refer to
Clean the product on page 38
.
The battery is spent. Replace the battery. Refer to
Battery
on page 39
.
48 - Troubleshooting 1220 - 001 - 08.07.2019
Page 49
Symptoms Cause Action
Both the mowing
and charging times
are shorter than
usual.
The battery is spent. Replace the battery. Refer to
Battery
on page 39
.
The product is
parked for hours in
the charging station.
The product has an inbuilt standby period according to the Standby time table.
Refer to
Timer and Standby on page
35
.
No action.
The hatch has been closed without the
START button first being pressed.
Open the hatch, press the START button and then close the hatch.
The product often
moves in circles or
spirals.
Spiral cutting is a natural part of the
movement pattern.
Adjust how often the Spiral Cutting
function shall be performed. The function can be disabled if necessary. Refer
to
To set the level of Spiral Cutting on
page 30
.
Uneven mowing
results.
The product works too few hours per
day.
Increase the mowing time. Refer to
To
set the timer on page 24
.
The
How often?
setting is incorrect in
relation to the layout of the work area.
Check that the correct
How often?
val-
ue is selected.
The shape of the work area requires
the use of
Area 1-3
for the product to
find its way to all remote areas.
Use
Area 1-3
to steer the product to a
remote area. Refer to
To set the Lawn
coverage function on page 26
.
The work area is too large. Try to limit the work area or extend the
work time. Refer to
To set the timer on
page 24
.
Blunt blades. Replace all the blades. Refer to
To re-
place the blades on page 39
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then
successively lower it.
Accumulation of grass by the blade
disc or around the motor shaft.
Check that the blade disc rotates freely
and easily. If not, screw off the blade
disc and remove grass and foreign objects. Refer to
Clean the product on
page 38
.
6.6 Find breaks in the loop wire
Breaks in the loop wire are usually the result of
unintentional physical damage to the wire such
as when gardening with a shovel. In countries
with ground frost, also sharp stones that move in
the ground can damage the wire. Breaks can
also occur due to the wire being stretched
excessively during installation.
Mowing the grass too low right after the
installation can damage wire insulation. Damage
to the insulation may not cause disruptions until
several weeks or months later. To avoid this,
always select the maximum cutting height the
first weeks after installation and then lower the
height one step at a time every second week until
the desired cutting height has been reached.
A defective splicing of the loop wire can also lead
to disruptions several weeks after the splice was
1220 - 001 - 08.07.2019 Troubleshooting - 49
Page 50
done. A faulty splice can, for example, be the
result of the original coupler not being pressed
together hard enough with a pair of pliers, or that
a coupler of lower quality than the original
coupler has been used. Please first check all
known splices before further troubleshooting is
done.
A wire break can be located by gradually halving
the distance of the loop where the break may
have occurred until there is only a very short
section of the wire left.
The following method does not work if
ECO
mode
is activated. Make sure first that
ECO
mode
is turned off. Refer to
ECO mode on page
29
.
1. Check that the indicator lamp in the charging
station flashes blue, which indicates a break
in the boundary loop. Refer to
Indicator lamp
in the charging station on page 47
.
2. Check that the boundary wire connections to
the charging station are properly connected
and not damaged. Check that the indicator
lamp in the charging station is still flashing
blue.

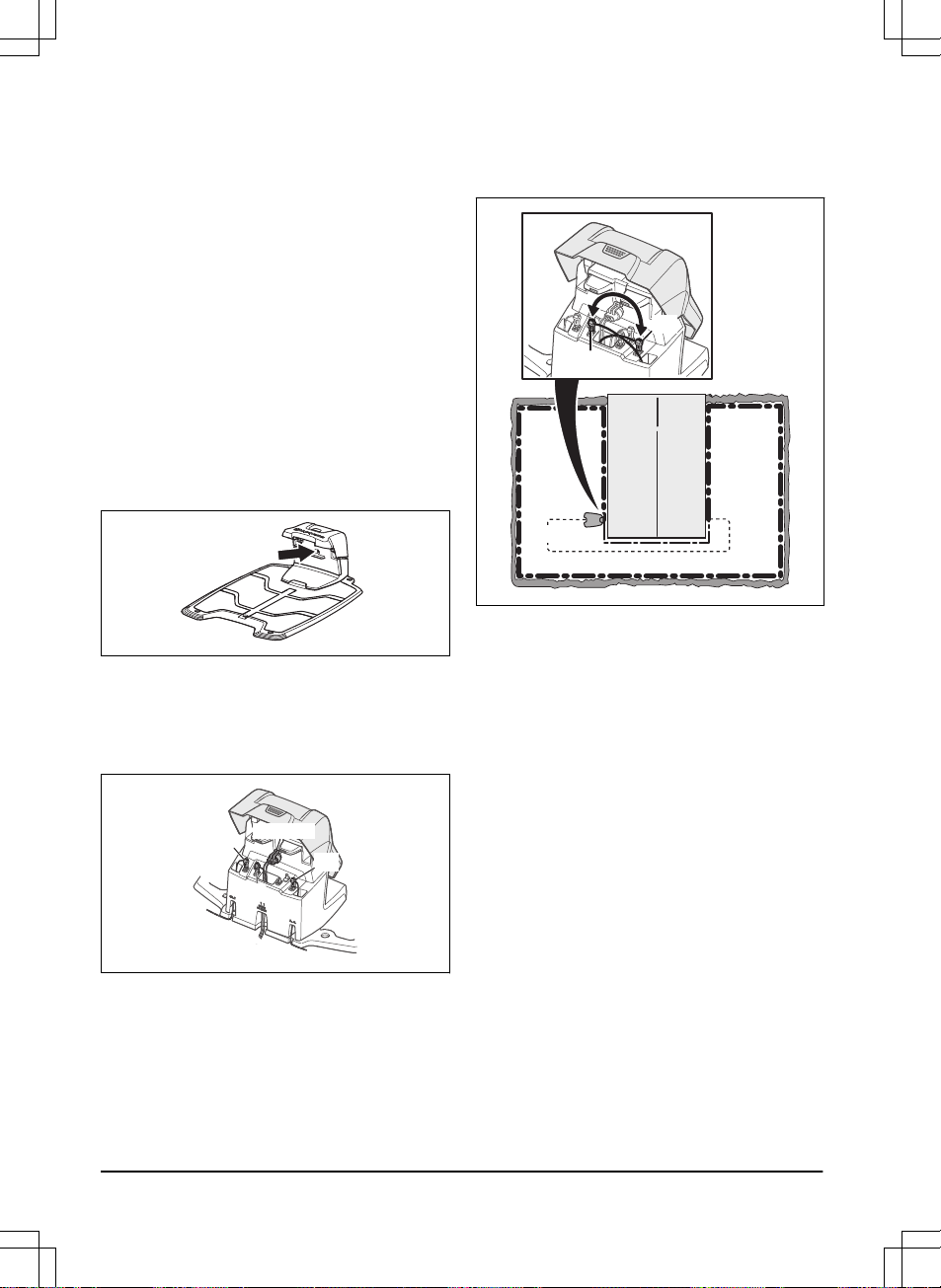

AR
AL
G1
POWER
3. Switch the connections between the guide
wire and the boundary wire in the charging
station.
Start by switching connection AL and G1.
If the indicator lamp is lit with a solid green
light, then the break is somewhere on the
boundary wire between AL and the point
where the guide wire is connected to the
boundary wire (thick black line in the
illustration).
Guide
G1
AL
To rectify the fault you will need boundary
wire, connector(s) and coupler(s):
a) If the suspected boundary wire is short
then it is easiest to exchange all of the
boundary wire between AL and the point
where the guide wire is connected to the
boundary wire (thick black line).
b) If the suspected boundary wire is long
(thick black line) then do as follows: Put AL
and G1 back to their original positions. Then
disconnect AR. Connect a new loop wire to
AR. Connect the other end of this new loop
wire at the middle of the suspected wire
section.
50
- Troubleshooting
1220 - 001 - 08.07.2019
Page 51
AR
If the indicator lamp now is green, then the
break is somewhere in the wire between the
disconnected end to the point where the
new wire is connected (thick black line
below). In that case, move the connection
for the new wire closer to the disconnected
end (roughly at the middle of the suspected
wire section) and check again if the indicator
lamp is green.
Continue until only a very short section of
the wire remains which is the difference
between a solid green light and a flashing
blue light. Then follow instruction in step 5
below.
4. If indicator lamp still flashes blue in step 3
above: Put AL and G1 back in their original
positions. Then switch AR and G1. If
indicator lamp now is lit with a solid green
light then disconnect AL and connect a new
boundary wire to AL. Connect the other end
of this new wire at the middle of the
suspected wire section. Follow the same
approach as in 3a) and 3b) above.
5. When the break is found, the damaged
section must be replaced with a new wire.
Always use original couplers.
1220 - 001 - 08.07.2019
Troubleshooting - 51
Page 52
7 Transportation, storage and disposal
7.1 Transportation
The supplied Li-ion batteries obey the Dangerous
Goods Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package
and labels for commercial transportations,
including by third parties and forwarding
agents.
7.2 Storage
• Fully charge the product. Refer to
To charge
the battery on page 36
.
• Disconnect the product with the main switch.
Refer to
Main switch on page 34
.
• Clean the product. Refer to
Clean the
product on page 38
.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level
ground during storage, or use a Husqvarna
wall hanger.
• If you keep the charging station indoors,
disconnect and remove the power supply
and all the connectors from the charging
station. Put the end of each connector wire
in a container with grease.
Note:
If you keep the charging station outdoors,
do not disconnect the power supply and the
connectors.
7.3 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the
battery, refer to
Battery on page 39
.

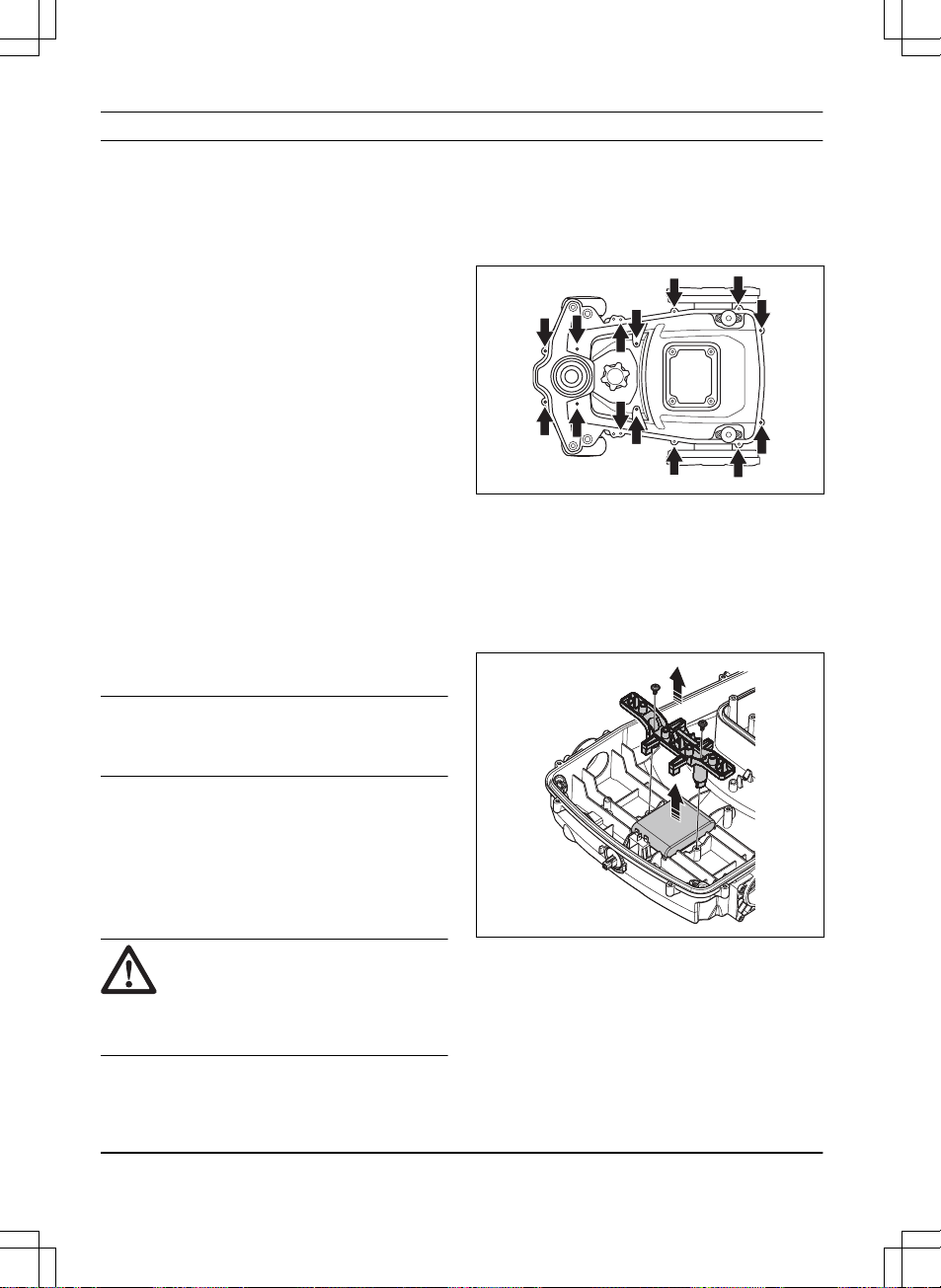

7.3.1 To remove the battery
CAUTION:
Only remove the battery
when you dispose the product. When
you remove the warranty seal, the
Husqvarna warranty is no longer
applicable.
1. Disconnect the product with the Main switch.
Refer to
Main switch on page 34
.
2. Pull out the grommet on the charging cable
at the very front of the product, and carefully
remove the connector.
3. Lift the cover, one corner at a time.
4. Remove the 14 screws with a Torx 20.
5. Lift the rear edge of the top section of the
chassis.
6. Disconnect the cable from the main circuit
board.
7. Remove the top section of the chassis.
8. Remove the 2 screws that holds the battery
with a Torx 20.
9. Disconnect the battery cable from the main
circuit board.
52
- Transportation, storage and
disposal
1220 - 001 - 08.07.2019
Page 53
8 Technical data
8.1 Technical data
Dimensions Automower® 310 Automower® 315 Automower® 315X
Length, cm / in. 63 / 24.8 63 / 24.8 63 / 24.8
Width, cm / in. 51 / 20.1 51 / 20.1 51 / 20.1
Height, cm / in. 25 / 9.8 25 / 9.8 25 / 9.8
Weight, kg / lbs 9.2 / 20 9.2 / 20 10.1 / 22
Electrical system Automower® 310 Automower® 315 Automower® 315X
Battery, Lithium-Ion 18 V/2.1 Ah
Art. No.
584 85 28-01, 584
85 28-02
584 85 28-01, 584
85 28-02
584 85 28-01, 584
85 28-02
Battery, Lithium-Ion 18 V/2.0 Ah
Art. No.
584 85 28-03 584 85 28-03 584 85 28-03
Battery, Lithium-Ion 18.25 V/2.0
Ah Art. No.
584 85 28-04 584 85 28-04 584 85 28-04
Power supply, V/28 V DC 100-240 100-240 100-240
Low voltage cable length, m / ft 10 / 33 10 / 33 10 / 33
Mean energy consumption at
maximum use
8 kWh/month in a
1000 m2 / 1196 yd
2
work area
10 kWh/month in a
1500 m2 / 1794 yd
2
work area
10 kWh/month in a
1600 m2 / 1914 yd
2
work area
Charge current, A DC 1.3 1.3 1.3
Average mowing time, min 70 70 70
Average charging time, min 60 60 60
Boundary wire antenna Automower® 310 Automower® 315 Automower® 315X
Operating Frequency Band, Hz 300-80000 300-80000 300-80000
Maximum Radio-frequency power, mW @60m
5
<25 <25 <25
5
Maximum active output power to antennas in the frequency band in which the radio equipment
operates.
1220 - 001 - 08.07.2019
Technical data - 53
Page 54
Noise emissions measured in
the environment as sound power
6
Automower® 310 Automower® 315 Automower® 315X
Measured sound power noise
level, dB (A)
58 58 58
Guaranteed sound power noise
level, dB (A)
60 60 60
Sound pressure noise level at
the operator’s ear, dB (A)
7
47 47 47
The noise emission declarations conforms to EN 50636-2-107:2015
Mowing Automower® 310 Automower® 315 Automower® 315X
Cutting system 3 pivoted cutting blades
Blade motor speed, rpm 2300 2300 2300
Power consumption during cutting, W +/- 20 %
25 25 25
Cutting height, cm / in. 2-6 / 0.8-2.4 2-6 / 0.8-2.4 2-6 / 0.8-2.4
Cutting width, cm / in. 22 / 8.7 22 / 8.7 22 / 8.7
Narrowest possible passage,
cm / in.
60 / 24 60 / 24 60 / 24
Maximum angle for work area,%40 40 40
Maximum angle for boundary
wire, %
15 15 15
Maximum length boundary wire,
m / ft
800 / 2600 800 / 2600 800 / 2600
Maximum length guide loop, m /ft400 / 1300 400 / 1300 400 / 1300
Working capacity, m2 / yd2, +/20%
1000 / 1196 1500 / 1794 1914 / 0.4
6
Noise emissions in the environment measured as sound power (Lwa) in conformity with EC directive 2000/14/EC and New South Wales legislation (Protection of the Environment Operations
Regulation 2017, Noise Control). The guaranteed sound power level includes variation in production as well as variation from the test code with 1-3 dB(A). Noise emission data can be found
on the rating label and in the Technical data chapter.
7
Sound pressure noise uncertainties KpA, 2-4 dB (A)
54 - Technical data
1220 - 001 - 08.07.2019
Page 55
IP-classification Automower® 310 Automower® 315 Automower® 315X
Robotic lawn mower IPX4 IPX4 IPX4
Charging station IPX1 IPX1 IPX1
Power supply IPX4 IPX4 IPX4
Frequency Band Support
Bluetooth® Frequency range 2400.0-2483.5 MHz
Automower® Connect 3G Band 19 (800 MHz)
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 2 (1900 MHz)
Band 1 (2100 MHz)
Automower® Connect 2G GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
Power Class
Bluetooth® Output power 8 dBM
Automower® Connect 3G Power Class 3 24 dBm
Automower® Connect 2G Power Class 4 (for
GSM/E-GSM)
33 dBm
Power Class 1 (for
DCS/PCS)
30 dBm
Husqvarna AB does not guarantee full compatibility between the product and other types of wireless
systems such as remote controls, radio transmitters, hearing loops, underground electric animal
fencing or similar.
The products are made in England or the Czech Republic. See information on the rating plate. Refer to
Introduction on page 3
.
8.2 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by and any use of such marks
by Husqvarna is under license.
1220 - 001 - 08.07.2019
Technical data - 55
Page 56
9 Warranty
9.1 Warranty terms
Husqvarna® warranty covers this product's
functionality for a period of 2 years from date of
purchase. The warranty covers serious faults
relating to materials or manufacturing faults.
Within the warranty period, we will replace the
product or repair it at no charge if the following
terms are met:
• The product and the charging station may
only be used in compliance with the
instructions in this Operator’s Manual. This
manufacturer's warranty does not affect
warranty entitlements against the dealer/
retailer.
• End-users or non-authorized third parties
must not attempt to repair the product.
Examples of faults which are not included in the
warranty:
• Damage caused by water seepage from
using a high-pressure washer, or from being
submerged under water, for example when
heavy rain forms pools of water.
• Damage caused by lightning.
• Damage caused by improper battery storage
or battery handling.
• Damage caused by using a battery that is
not a Husqvarna original battery.
• Damage caused by not using Husqvarna
original spare parts and accessories, such
as blades and installation material.
• Damage to the loop wire.
• Damage caused by non-authorized
changing or tampering with the product or its
power supply.
The blades and wheels are seen as disposable
and are not covered by the warranty.
If an error occurs with your Husqvarna product,
please contact Husqvarna customer service for
further instructions. Please have the receipt and
the product’s serial number at hand when
contacting Husqvarna customer service.
56
- Warranty
1220 - 001 - 08.07.2019
Page 57
10 Applicable to US/CA market
10.1 Supplier's Declaration of
Conformity
Issuer: Husqvarna AB, Drottninggatan 2, S-561
82 Huskvarna, Sweden.
www.husqvarnagroup.com.
10.2 Compliance requirements
FCC ID: XPY1CGM5NNN (Automower® Connect
module).
FCC ID: ZASHQ-BLE-1A and FCC ID ZASHQBLE-1B (Bluetooth® module).
The Bluetooth module is located on the HMIboard (PCBA) in the upper chassis. It must only
be accessed by an authorized service technician.
The device complies with part 15 of the FCC
Rules. Operation is subjected to the following 2
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
WARNING: To comply with RF
exposure requirements, please
maintain a separation distance of at
least 20 cm/ 7 inches from any part of
the product.

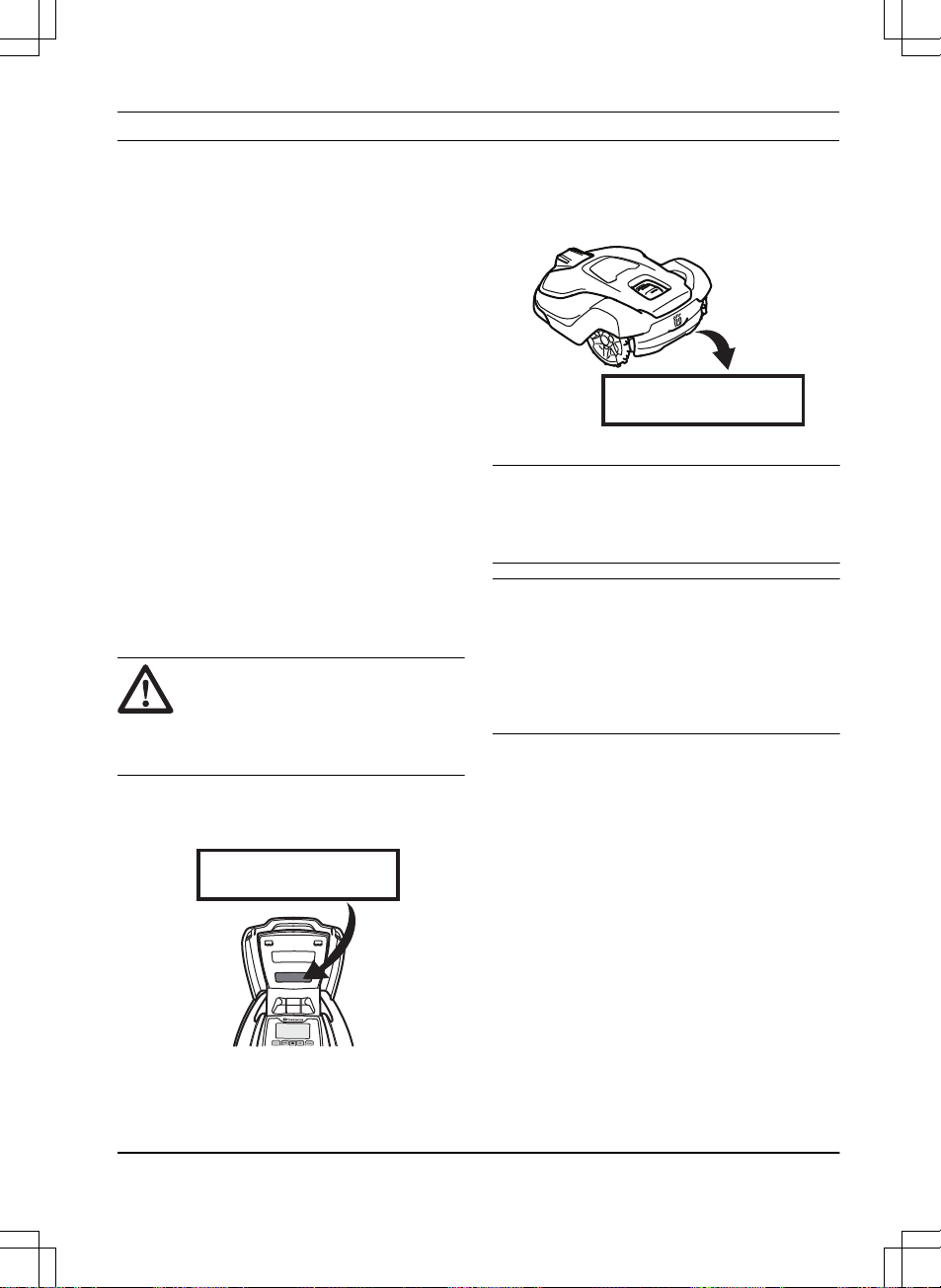

Models with a hatch:
The supplied label shall be
attached to the product according to figure below.
Husqvarna
Automower® Connect
This device contains the module
FCC ID: XPY1CGM5NNN
Models without a hatch:
The supplied label shall
be attached to the product according to figure
below
Husqvarna
Automower® Connect
This device contains the module
FCC ID: XPY1CGM5NNN
Note: Changes or modifications made to this
equipment not expressly approved by Husqvarna
may void the FCC authorization to operate this
equipment.
Note: This device complies with Part 15 of the
FCC Rules [and with Industry Canada licenceexempt RSS standard(s)]. Operation is subject to
the following two conditions: this device may not
cause harmful interference, and this device must
accept any interference received, including
interference that may cause undesired operation.
1220 - 001 - 08.07.2019
Applicable to US/CA market -
57
Page 58
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
WARNING: Cancer and Reproductive
Harm - .
58 - Applicable to US/CA market 1220 - 001 - 08.07.2019
Page 59
1220 - 001 - 08.07.2019 Applicable to US/CA market -
59
Page 60
www.husqvarna.com
AUTOMOWER® is a trademark owned by Husqvarna AB.
Copyright© 2019 HUSQVARNA. All rights reserved.
Original instructions
1141544-95
2019-08-27
Loading...
