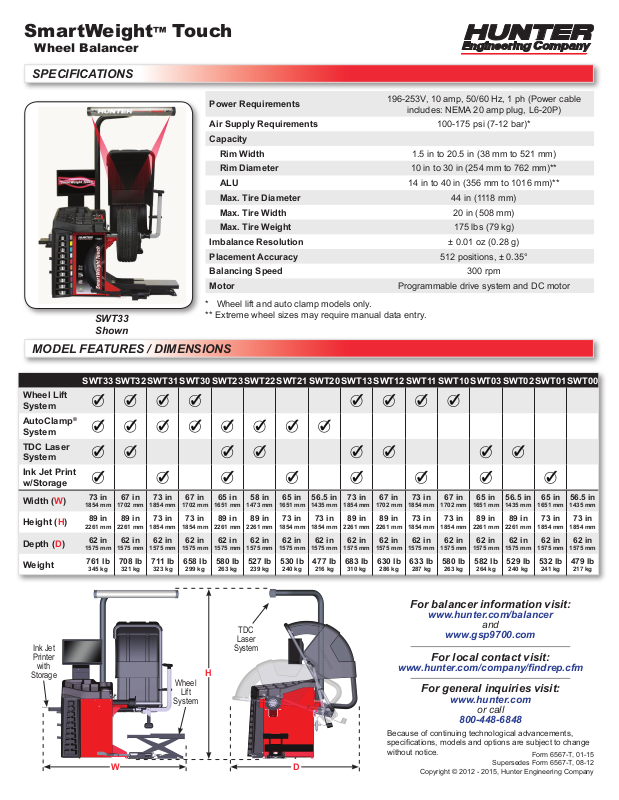

Hunter Engineering SmartWeight Touch Specification Sheet
SmartWeight™ Touch
Wheel Balancer
SPECIFICATIONS
SWT33
Shown
MODEL FEATURES / DIMENSIONS
SWT33 SWT32 SWT31 SWT30 SWT23 SWT22 SWT21 SWT20 SWT13 SWT12 SWT11 SWT10 SWT03 SWT02 SWT01 SWT00
Wheel Lift
System
AutoClamp
System
TDC Laser
System
Ink Jet Print
w/Storage
Width (W)
Height (H)
Depth (D)
Weight
®
73 in
1854 mm
89 in
2261 mm
62 in
1575 mm
761 lb
345 kg
67 in
1702 mm
89 in
2261 mm
62 in
1575 mm
708 lb
321 kg
73 in
1854 mm
73 in
1854 mm
62 in
1575 mm
711 lb
323 kg
67 in
1702 mm
73 in
1854 mm
62 in
1575 mm
658 lb
299 kg
Power Requirements
196-253V, 10 amp, 50/60 Hz, 1 ph (Power cable
includes: NEMA 20 amp plug, L6-20P)
Air Supply Requirements 100-175 psi (7-12 bar)*
Capacity
Rim Width 1.5 in to 20.5 in (38 mm to 521 mm)
Rim Diameter 10 in to 30 in (254 mm to 762 mm)**
ALU 14 in to 40 in (356 mm to 1016 mm)**
Max. Tire Diameter 44 in (1118 mm)
Max. Tire Width 20 in (508 mm)
Max. Tire Weight 175 lbs (79 kg)
Imbalance Resolution ± 0.01 oz (0.28 g)
Placement Accuracy 512 positions, ± 0.35°
Balancing Speed 300 rpm
Motor Programmable drive system and DC motor
* Wheel lift and auto clamp models only.
** Extreme wheel sizes may require manual data entry.
65 in
1651 mm
89 in
2261 mm
62 in
1575 mm
580 lb
263 kg
58 in
1473 mm
89 in
2261 mm
62 in
1575 mm
527 lb
239 kg
65 in
1651 mm
73 in
1854 mm
62 in
1575 mm
530 lb
240 kg
56.5 in
1435 mm
73 in
1854 mm
62 in
1575 mm
477 lb
216 kg
73 in
1854 mm
89 in
2261 mm
62 in
1575 mm
683 lb
310 kg
67 in
1702 mm
89 in
2261 mm
62 in
1575 mm
630 lb
286 kg
73 in
1854 mm
73 in
1854 mm
62 in
1575 mm
633 lb
287 kg
67 in
1702 mm
73 in
1854 mm
62 in
1575 mm
580 lb
263 kg
65 in
1651 mm
89 in
2261 mm
62 in
1575 mm
582 lb
264 kg
56.5 in
1435 mm
89 in
2261 mm
62 in
1575 mm
529 lb
240 kg
65 in
1651 mm
73 in
1854 mm
62 in
1575 mm
532 lb
241 kg
56.5 in
1435 mm
73 in
1854 mm
62 in
1575 mm
479 lb
217 kg
Ink Jet
Printer
with
Storage
TDC
Laser
System
H
Wheel
Lift
System
W D
For balancer information visit:
www.hunter.com/balancer
and
www.gsp9700.com
For local contact visit:
www.hunter.com/company/ndrep.cfm
For general inquiries visit:
www.hunter.com
or call
800-448-6848
Because of continuing technological advancements,
specications, models and options are subject to change
without notice.
Supersedes Form 6567-T, 08-12
Copyright © 2012 - 2015, Hunter Engineering Company
Form 6567-T, 01-15
