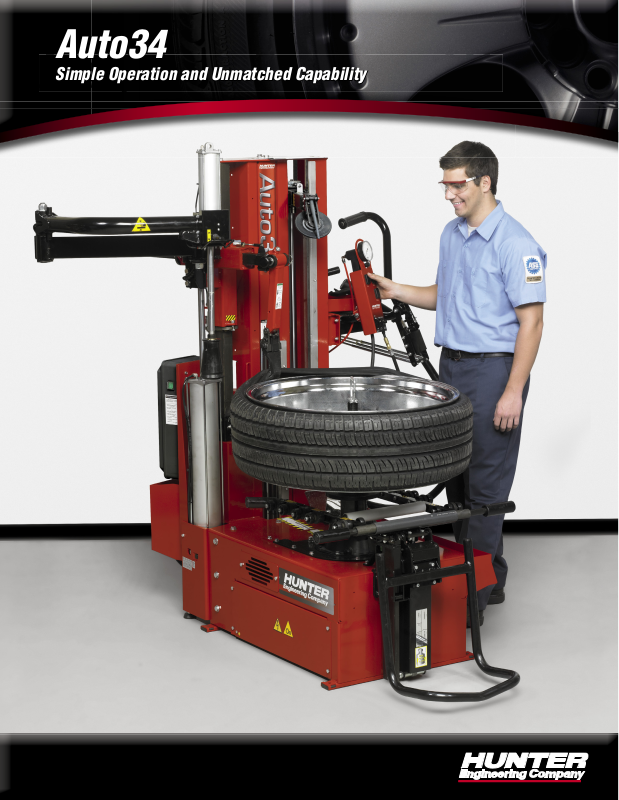

Page 1
Auto34
Simple Operation and Unmatched Capability
L441/ L444 Four-Post Lift
Page 2
Handles the toughest performance tires and rims
Leverless Tool Head
✔ Positions bead without levers
✔ Prevents damage to tire and rim
Push-Button Controls
✔ Simple, three-button control
✔ Easiest operation in its class
Diameter Control
✔ Operates all diameter functions
from a single point
✔ Retains diameter until reset
TCA34W shown
Page 3
2011
NORTH AMERICAN
AUTOMOTIVE TOOL AND EQUIPMENT
TECHNOLOGY INNOVATION AWARD
Wheel Support Plate
✔ Handles wide range of wheels
✔ Provides extra gripping force
✔ Three adjustable work heights
Quick Clamp with Cam Plate
Mount/Demount Rollers
✔ Gently rolls bead from rim
✔ No rim contact
Bead Press Arm
✔ Safely secures wheel
through hub
✔ Speeds clamping process
Electric Motor
✔ Exerts over 850 foot-pounds
of torque
✔ Variable speed
✔ Helps mount diffi cult tires
✔ Holds sidewalls into
drop-center position
Blast Inflator
✔ Directs bursts of air to help
seat bead

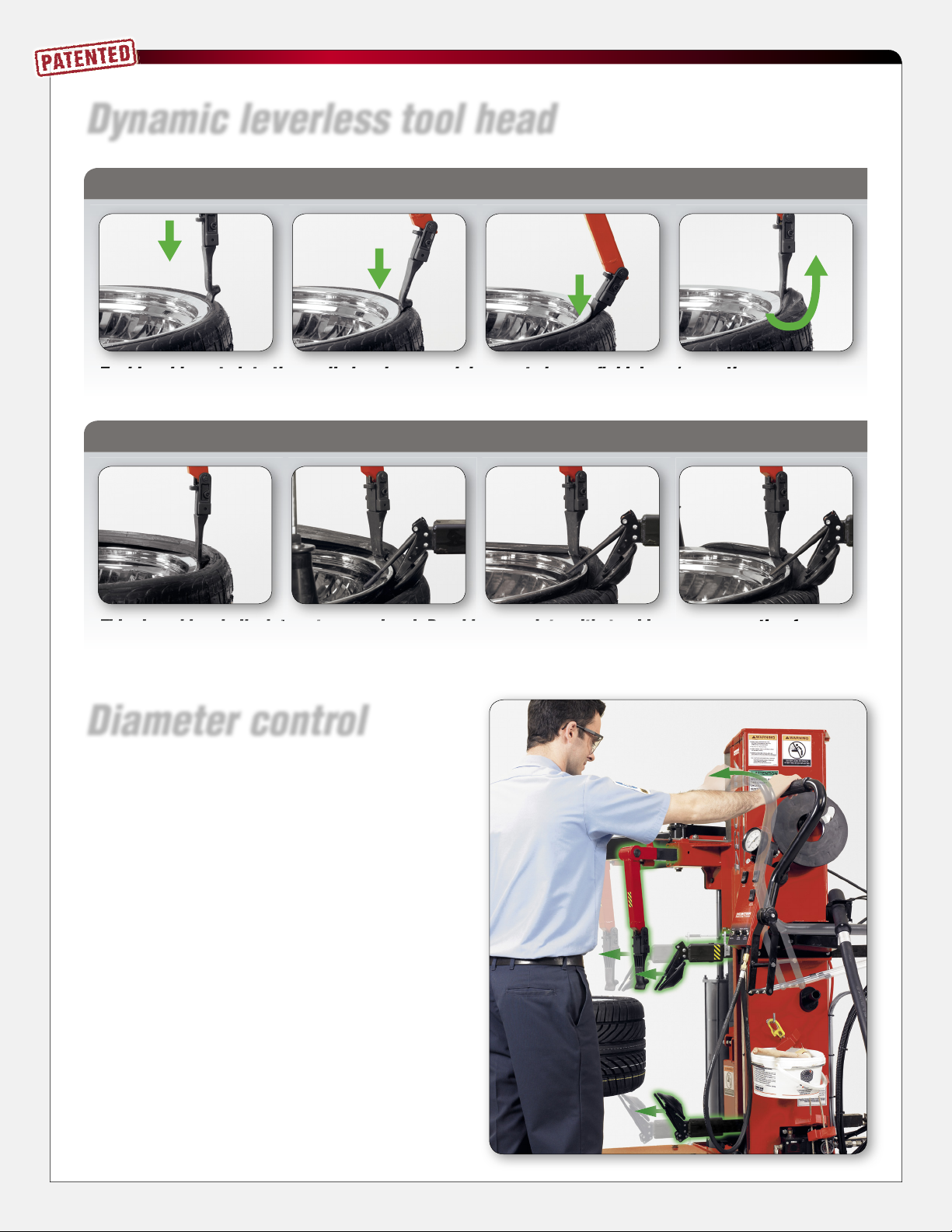

Page 4
Dynamic leverless tool head
Demounting
Tool head inserts into tire, pulls bead over and demounts in one fl uid down/up motion.
Mounting
Thin, broad head alleviates stress on bead. Durable enough to withstand immense mounting forces.
Diameter control
✔ Adjust tool head and rollers to the correct
diameter from a single point
✔ Retains diameter setting until reset, allowing
quick and easy service of all four tires

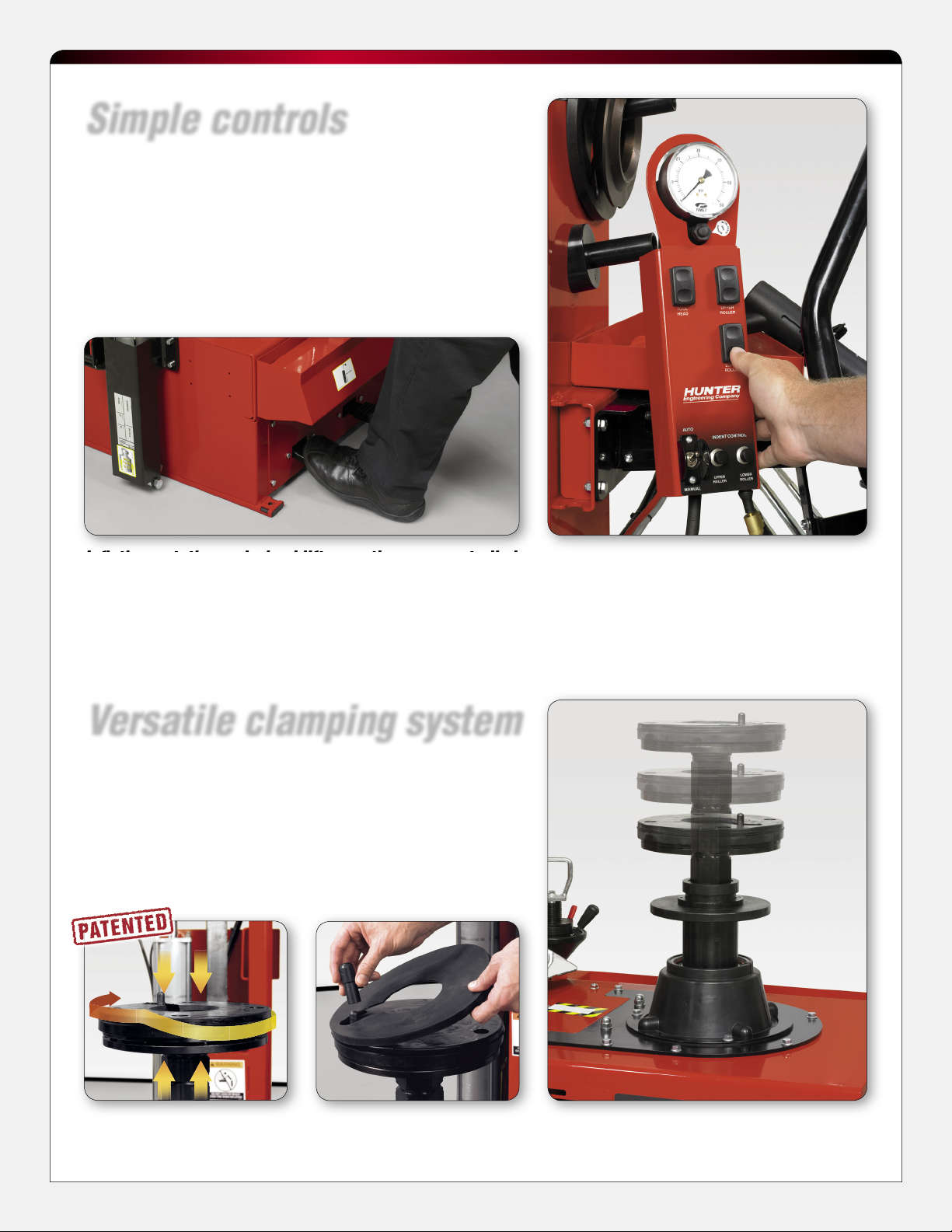

Page 5
Simple controls
✔ Intuitive interface makes the Auto34 the easiest
tire changer to operate
✔ Three switches and one foot pedal control virtually
all tire changing operations
✔ Includes manual controls for advanced or special
techniques (PAX)
Infl ation, rotation and wheel lift operations are controlled
by three foot pedals.
Versatile clamping system
✔ Adjusts to three working heights
✔ Handles wide range of rim diameters
✔ Cam action tightens as wheel turns
✔ Services reverse and standard wheels in same manner
Cam plate rises to exert
additional gripping force.
Rubber insert protects
expensive reverse wheels.
Three easily adjustable clamping heights
provide the versatility you need.

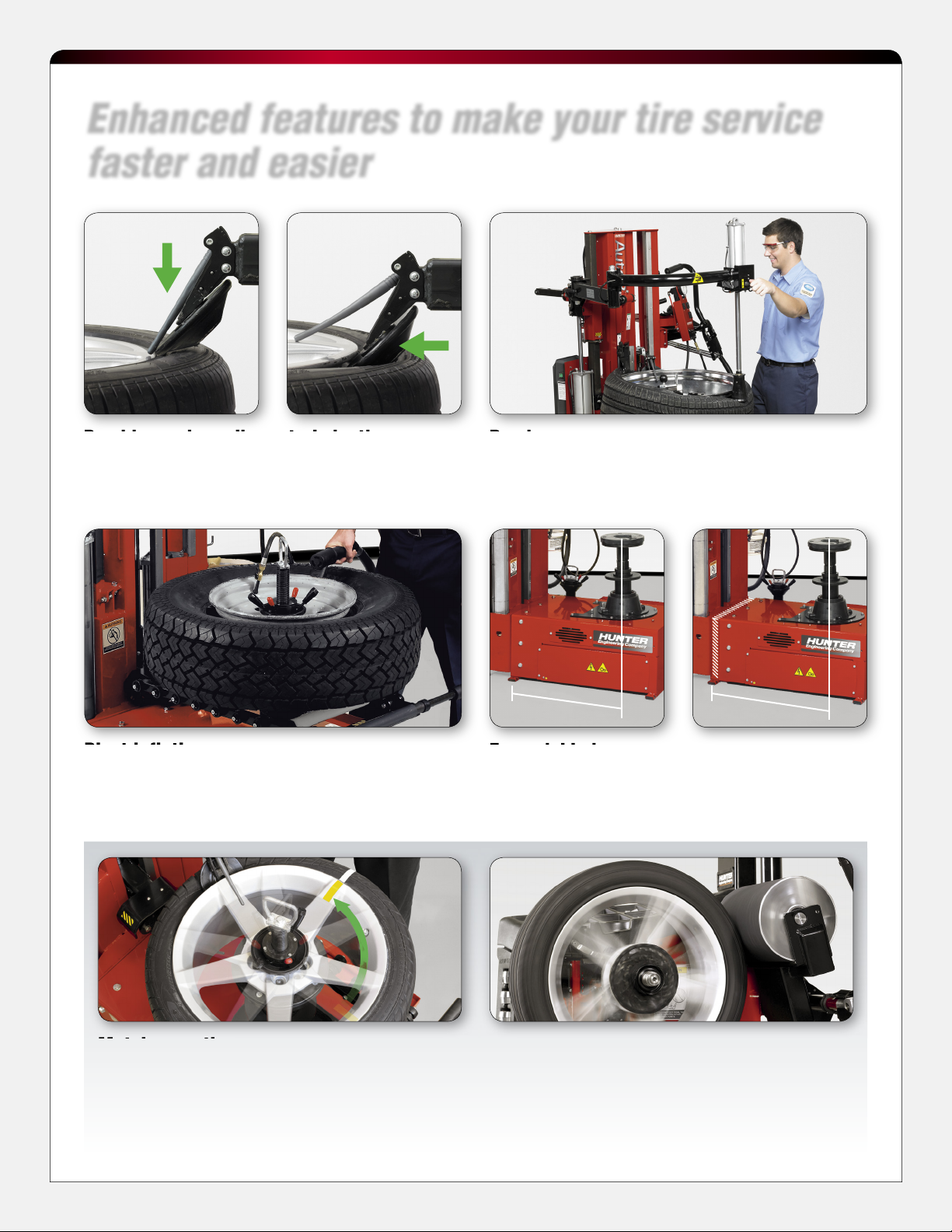

Page 6
Enhanced features to make your tire service
faster and easier
Bead loosening roller auto-indention
Sensor detects when roller is under rim fl ange and
automatically indents bead loosening disc.
Blast inflation
Directs large blast of compressed air exactly where
needed to seat the bead.
Bead press arm
Assists with mounting a diffi cult tire and eases
demounting of a standard tire.
30 in. 34 in.
Expandable base
Three-position base expands up to 34 inches to
accommodate larger assemblies.
Match-mounting
The Auto34’s bead rollers allow spinning of tire
on rim, helping match-mount stiffest point on tire
to low spot on rim.
When used with Hunter’s Road Force Touch
Auto34 quickly and easily helps eliminate vibration
problems balancers alone can’t fi x.
®
, the

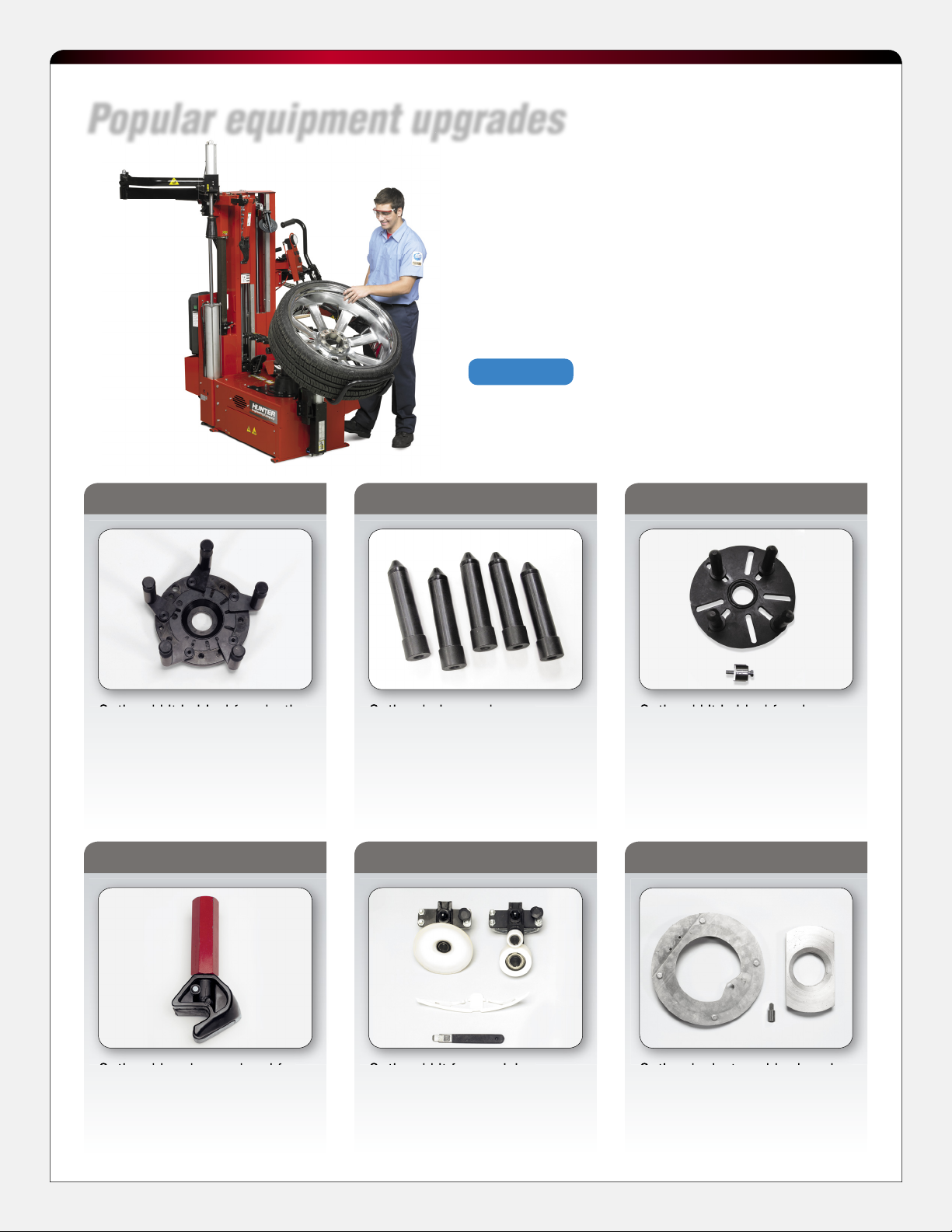

Page 7
Popular equipment upgrades
Wheel lift
✔ Eases servicing of large assemblies
✔ Allows for careful handling of expensive wheels
✔ Reduces operator fatigue
OPTIONAL
Flange Plate Kit
Optional kit is ideal for plasticfaced wheels or reverse wheels
where maximum protection is
needed. (RP6-G1000A87)
Contoured Press Head
Long Pins
Optional pins are longer,
allowing servicing of reverse
wheels with extra deep spokes.
(RP6-G1000A102) For use with
fl ange plate (RP6-G1000A87).
PAX® Tire System Kit
Basic Flange Plate Kit
Optional kit is ideal for shop
that handles plastic-clad
wheels without need of reverse
applications. (RP6-G1000A123)
19.5 Inch Wheel Adaptor
Optional bead press head for
special applications. Required
by BMW. (RP6-G100094)
Optional kit for servicing
Michelin® PAX® systems.
(RP6-G1000A73)
Optional adaptor adds clamping
capability for 19.5 in. wheels with
large center holes. (20-2341-1)

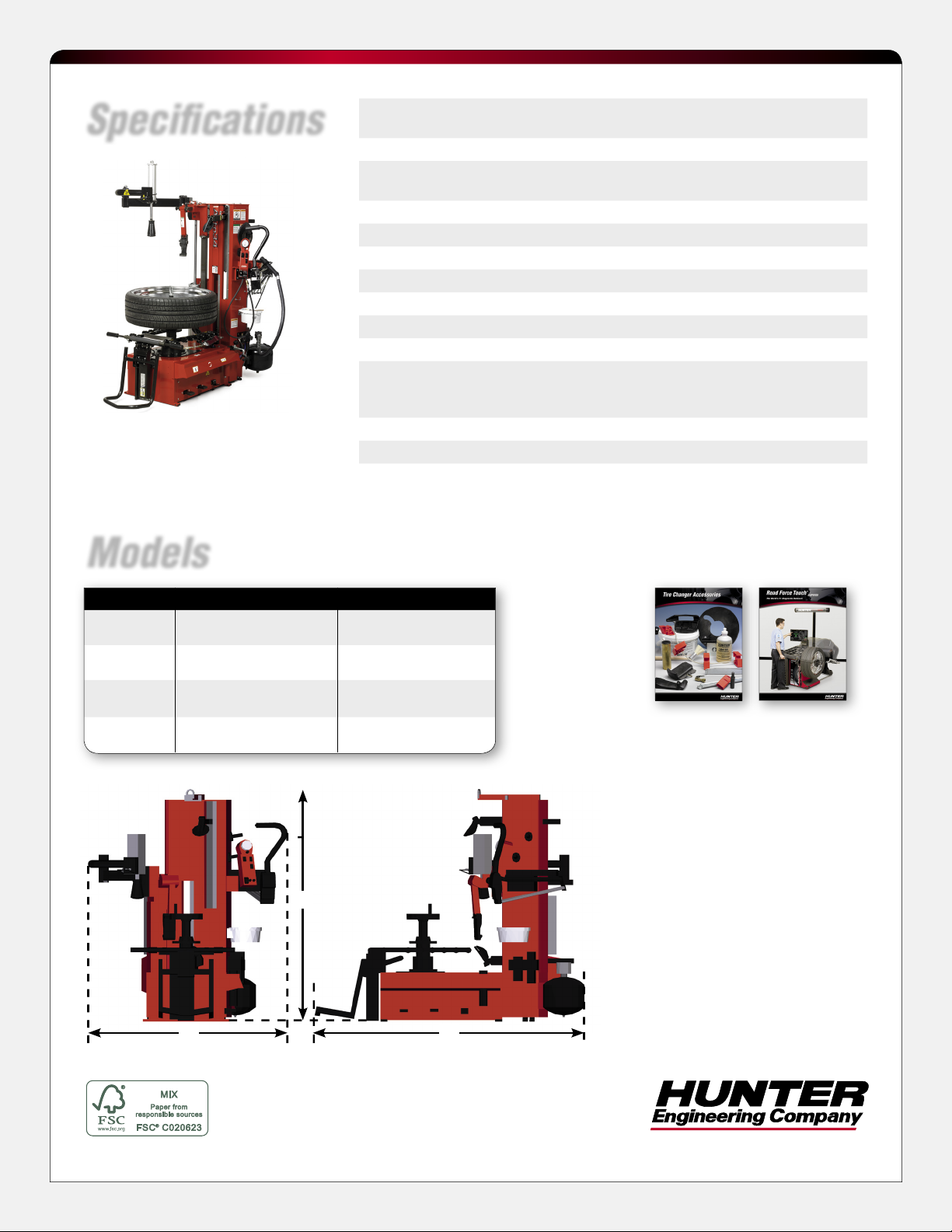

Page 8
Specifi cations
TCA34W shown
Models
Power requirements
Air supply requirements 115-14 5 psi (8-10 bar)
Mount / demount tool
Clamping type Center w/Quick Clamp and cam plate
Bead loosening type Upper / lower roller
Match-mounting capable Yes
Adjustable clamping height Ye s
Rim diameter range 10-30 / 12-32 / 14-34 in.
Maximum tire diameter 50 / 52 / 54 in.
Maximum wheel width 19 in.
Drive
Shipping weight 1,039 lbs. (471 kg)
Shipping weight with wheel lift 1,128 lbs. (511 kg)
208-230V, 15A, 60Hz, 1 ph NEMA
20 amp plug, L6-20P
Self-inserting, polymer
leverless head
Variable up to 14 rpm CW
7 rpm CCW
Torque: 867 ft-lbs (1,175 Nm)
Wheel Lift
Width (W)
Height (H)
Depth (D)
W
TCA34 TCA34W
✔
43 in.
1,09 2 mm
72 in.
1,82 9 mm
60 in.
1,52 4 mm
H
43 in.
1,09 2 mm
72 in.
1,82 9 mm
78 in.
1,981 mm
Be sure to check out other Hunter
literature for more quality products
from Hunter Engineering.
Because of continuing
technological advancements,
specifications, models and
options are subject to change
without notice.
D
1114OAP3M.60
Copyright © 2014, Hunter Engineering Company
www.hunter.com
Form 5783-T, 11/14
Supersedes Form 5783-T, 09/14
