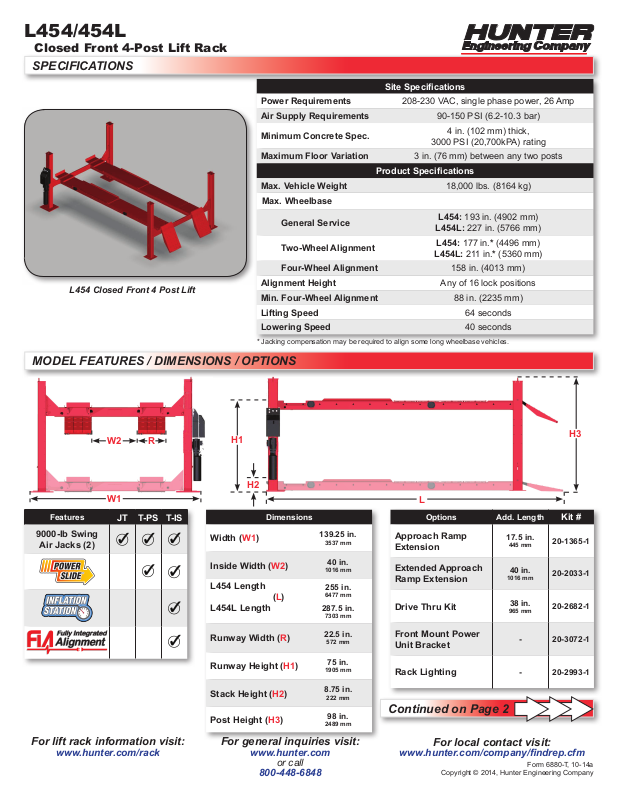

Hunter Engineering Four-Post Lift Family, 6880-T Specification Sheet
L454/454L
Closed Front 4-Post Lift Rack
SPECIFICATIONS
L454 Closed Front 4 Post Lift
Site Specications
Power Requirements 208-230 VAC, single phase power, 26 Amp
Air Supply Requirements 90-150 PSI (6.2-10.3 bar)
Minimum Concrete Spec.
4 in. (102 mm) thick,
3000 PSI (20,700kPA) rating
Maximum Floor Variation 3 in. (76 mm) between any two posts
Product Specications
Max. Vehicle Weight 18,000 lbs. (8164 kg)
Max. Wheelbase
General Service
Two-Wheel Alignment
L454: 193 in. (4902 mm)
L454L: 227 in. (5766 mm)
L454: 177 in.* (4496 mm)
L454L: 211 in.* (5360 mm)
Four-Wheel Alignment 158 in. (4013 mm)
Alignment Height Any of 16 lock positions
Min. Four-Wheel Alignment 88 in. (2235 mm)
Lifting Speed 64 seconds
Lowering Speed 40 seconds
* Jacking compensation may be required to align some long wheelbase vehicles.
MODEL FEATURES / DIMENSIONS / OPTIONS
H1
H2
Dimensions
Width (W1)
Inside Width (W2)
L454 Length
(L)
L454L Length
Runway Width (R)
Features
9000-lb Swing
Air Jacks (2)
W2
R
W1
JT T-PS T-IS
139.25 in.
3537 mm
40 in.
1016 mm
255 in.
6477 mm
287.5 in.
7303 mm
22.5 in.
572 mm
L
Options Add. Length
Approach Ramp
Extension
Extended Approach
Ramp Extension
Drive Thru Kit
Front Mount Power
Unit Bracket
17.5 in.
445 mm
40 in.
1016 mm
38 in.
965 mm
- 20-3072-1
20-1365-1
20-2033-1
20-2682-1
H3
Kit #
For lift rack information visit:
www.hunter.com/rack
Runway Height (H1)
Stack Height (H2)
Post Height (H3)
75 in.
1905 mm
8.75 in.
222 mm
98 in.
2489 mm
For general inquiries visit:
www.hunter.com
or call
800-448-6848
Rack Lighting
- 20-2993-1
Continued on Page 2
For local contact visit:
www.hunter.com/company/ndrep.cfm
Copyright © 2014, Hunter Engineering Company
Form 6880-T, 10-14a
L454/454L
Closed Front 4-Post Lift Rack
SPECIFICATIONS
*If installing over basement or near seams and cracks, refer to Form 4963-T. For exact placement of lag bolts, refer to Form 6530-T.
Copyright © 2014, Hunter Engineering Company
Form 6880-T. 10-14a
