Humax D11 Users Manual

Chapter 1

2 Welcome 4 Making the Right Connections 6 Safety & Care

9 Hardware Reference 12 Getting Familiar 16 Choose Your Setup 26 Guided Setup & Activation 28 Programming Your Remote Control

Getting Started

Welcome

TIP

You can ﬁnd additional information and the latest updates at DIRECT V.com.

With its astounding variety of channels and choices, crispdigital-qualitypictureand sound and one-of-a-kind sports and events… DIRECTV

service offers everything you’d want in your television experience. With the DIRECTV Receiveryoucanexpect more than ever before, with access to over 225 channels, including over 30 premium movie channels, with all the convenience of DIRECTV service. DIRECTV

PayPer View offers a handy choice inrecent hit movies, plus exciting live sports, concerts and specials.There’s exclusive sports subscriptions for every taste and team. Even access to 36 commercial-free music channels!

To deliver this unique programming and enhance your entertainment experience,the DIRECTV

System has been designed to be simple and user-friendly.You’ll ﬁnd that most

features are self-explanatory, with onscreen directions to lead youthrough them.

So, welcome to the family.

Welcome

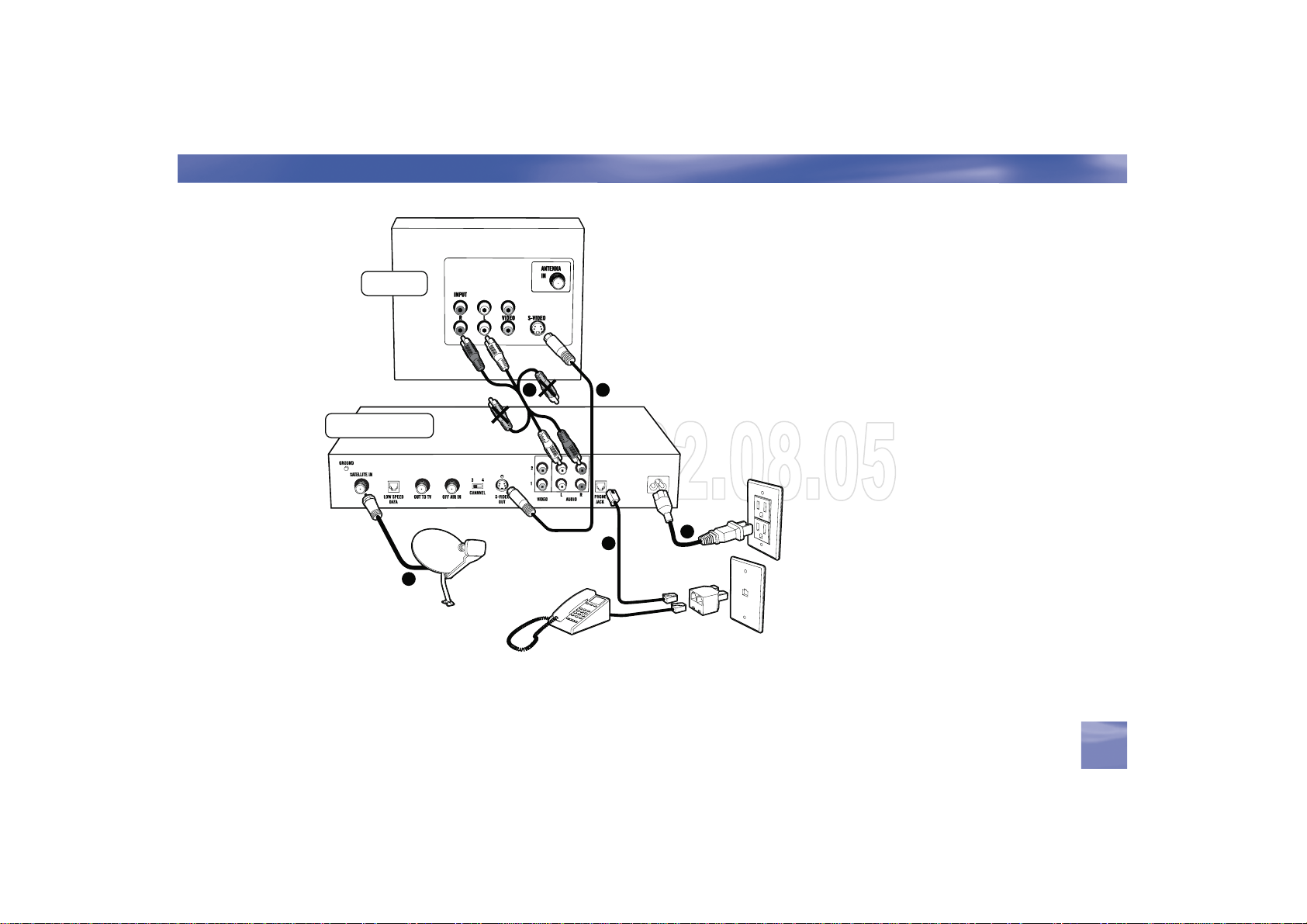

Making the Right Connections

AreyoureadytoconnectyourDIRECTV®Receiver and your other components?

Whet her you’rehav ing your system professionally ins tal led or handlin g it yourself, be sure to read overthefollowingfewpagestofamiliarizeyourselfwithsomeimportanttipsforsafetyandcare.

Before you begin

Yoursatellitedishantennamustbeinstalledbeforeyoucanbeginfollowingtheproceduresinthis User Guide. (Professionalinstallation is h ig h ly recommended.)Your di sh needs to be mounted in apositionwhereithasaccesstothesatellitesignals,andRG-6coaxialcablesmustberunintothe room(s) where your receiver(s) w ill be located. If you choose to install the di s h you rself, see the separateinstructionmanualthatcamewithyoursatellitedishantenna.

Making the Right Connections

Chapter 1

Getting Connected

Package Contents

The following items are included with your DIRECTV Receiver :

A/Vcables(RCAtype)  Access card S-Video cable  User Guide Phone cord  Remote Control & batteries Power cord

Making the Right Connections

Note to Satellite Dish Installer

Important

This reminder is provided to call your attention to articles 810 and 820 of the 2002 National Electrical C ode. Refer to article 810, in particular 810-1 and 810-15, for required grounding of the metal structure of the dish antenna. Refer also to the 810-2 which, by reference to article 820, requires that the satellite dish coa xial cable shield be connected to the grounding system of the building as close to the point of cable entry as practical.

Safety & Care

YourDIRECTVSystemhasbeendesignedandmanufacturedtostringentqualityandsafety standards.Youshould,however,beawareofthefollowingimportantprecautionsforsafeandoptimal use of the equipment.

Be sure to…

• Read and follow all installation and operating instructions.

• Keep instructions for future reference.

• Heed all warnings on the equipment and in the instructions for your protection.

Cautions…

• Avoid moisture to reduce the risk of ﬁ re or electric shock.  e DIRECTV Receiver should not be

used near water (for example, kitchen sink, bathtub, pool, damp basement). Also, never spill liquid

on the receiver, and do not place vases or other vessels containing liquid on top of it.

• CAUTION: Electric Shock — never attempt to disassemble the DIRECTV Receiver yourself;

always take it to a qualiﬁ ed service person when repair is required. Opening or removing covers

may expose dangerous voltage or other risks, and incorrect reassembly can cause shock when

receiver is subsequently used. Attempted self-repair may also void your warranty. Changes or

modiﬁ cations not expressly approved by the party responsible for compliance (by the warranty or

by the manufacturer) could void the user’s authority to operate the equipment.

TIP

We highly recommend

plugging the DIRECTV

Receiver into a surge

protector to prevent

damage from ﬂ uctuations

in your power supply.

Chapter 1

Getting Connected

IMPORTANT: Be sure not

to place your DIRECTV

Receiver near anything

WET or HOT!

'5)$% -%.5 2%# !#4)6% ).&/0/7%2

/0%. /0%.

3%,%#4

• Have your DIRECTV Receiver professionally serviced (do not attempt to service it yourself) if:

 Thepowersupplycordorplugisdamagedorfrayed Liquid has spil le d i nto the product or it has been exposed to water The receiver has be en dropped or damag e d The receiver exhibits a distinct change in perform ance

The receiver does not operate normally when you follow operating instructions as described in this

manual and its T roubleshooting section.

• Protect your components from power surges by connecting all the components before plugging

any power cords into the wall outlet. Use of a surge protector is also recommended.

• Don’t overload power outlets or extension cords, which can result in the risk of ﬁ re or shock.

It’s also important to use only the type of power source indicated on the marking label or in this

manual.

• Always unplug the DIRECTV Receiver, TV and other equipment before you connect or

disconnect any cables.

• Always unplug your DIRECTV Receiver before moving it. Also, unplug it during lightning

storms or when unused for long periods of time.

• Protect power cords by routing them so they will not be walked on or pinched in any way.

• Avoid audio hum or interference by inserting all cable plugs ﬁ rmly into their jacks. Also, place

Audio/Video (A/V) cables to the sides of the TV back panel rather than down the middle once

connected. Try not to coil any twin-lead cables and keep them away from A/V cables as much as

possible.

Safety & Care

• Do not drop your DIRECTV Receiver and always move it with care.

• Place it on a ﬂ at, hard surface — do not operate the DIRECTV Receiver on a carpet or other

padded surface. Ensure that the rack or cabinet the receiver is placed on is stable, and not subject to

being tipped over.

• Ensure proper ventilation — the slots on top of the DIRECTV Receiver must be left uncovered

to allow proper airﬂ ow to the unit. Blocking the airﬂ ow to the unit could impair performance or

damage your receiver and other components.

• Do not stack electronic components or other objects on top of the DIRECTV Receiver. Also, do

not stack the receiver on top of a “hot component ” such as an audio power ampliﬁ er.

• Avoid heat — do not place the DIRECTV Receiver near heat sources such as radiators, heat

registers, stoves or other appliances.

• Never insert objects of any kind into any openings in the DIRECTV Receiver (other than the

DIRECTV

Access Card as detailed in this chapter).

• Clean your receiver with a soft cloth or the dusting attachment of your vacuum cleaner, removing

dust from the ventilation holes on the top and bottom. Avoid alcohol or

oil-based furniture solvents — a non-abrasive, anti-static cleaner/polisher is recommended.

• Use only manufacturer authorized accessories and parts.

Safety & Care

Important

This device incorporates an anticopy process technology thatis protected by U.S. patents and other intellectual property rights. The anticopy process is licensed for non-commercial, home use only. Reverse engineering or disassembly is prohibited. Unauthorized changes or modiﬁcations to this equipment may void the user’sauthorit y to operate it.

Chapter 1

Getting Connected

GUIDE MENU REC ACTIVE INFOPOWER

OPEN OPEN

SELECT

DIRECTV

Hardware Reference

General

Satellite Dish Antenna

This is your “dish” and related hardware, a fﬁxed to your roof or other surface, which picks up the broadcast sig nals from our satellites.

DIRECTV Receiver (or Satellite Receiver)

YourDIREC TV Receiver picks up the signal from your satellite di sh antenna and translates it into viewable TV programming.

Access Card

Contains information about your DIRECTV toworkandtoactivateyourprogramming.

serv ice. It must be properly inserted for your receiver

Hardware Reference

Cables & Connections

Best Video: S-Video Jack and C able

S-videojacksandcablesprovidethebestpicturequality.Youwillstillneedtoconnecttheleftand right audio c ables to the TV, or optical audio cable to your stereo, becaus e the S-Video cable only carriesthepicturesignal,notsound.

Audio/ Video (A/V ) Jack and C able

Audio/V ideo (A/V) cables provide ver y good picture quality and stereo sound, and should be u sed if your TV does not have S-video jacks. The DIRECTV Receiver’s A/V jacks are color coded (yellow for video, red for right audio and wh ite for left audio). If your TV has only one input for audio (mono), connect it to the left (white) audio jack on the DIRECTV Receiver.

RF Jack and Co axial Cable (F-type)

RF jacks and coaxial cables provide good picture and mono sound qua l ity. They should be used ifA/VconnectionsarenotavailableonyourTV.RFjacksareusedtoconnecttoyourTVand satellite dis h, off-air antenna and cable feed connections . The RF jacks on the receiver are labeled SATELLITEIN,OFF-AIRINandOUTTOTV.Note:BesuretouseRG-6coaxialcablewhen connecti ng from the satellite di s h to the DIRECTV Receiver.

Hardware Reference

S-Video Jack

Video

RF Jac

Chapter 1

Getting Connected

Note: Not all cables come with your

digital satellite receiver; you may

need to purchase additional cables

depending on your setup.

Phone

Jack

Helpful Hardware R

Telephone Jack and Cord

The telephone line cord is required to connect your DIRECTV Receiver to a land-based telephone line if you choose to subscribe to DIRECTV programming. The phonel ine connection is use d to periodicallycallDIRECTV.YouwillneedanRJ11-typemodulatorjack(themostcommontype of phonejac k). Note: Do not connect your receiver to a digital PBX phone system — doing so may permanentlydamageyourequipmentandvoidyourwarranty.

Cables & Connections

ference Getting Familiar

Getting Familiar

DIRECTV Receiver Front Panel

1 2 3 4 5 6 7 8 95

1) POWER – Turn s your DIRECTV Receiver on or off. Your DIRECTV Receiver still tunes and receives mes sages when powered off.

2) RE MOTE SENSOR –Theinfraredsensorpicksupcommandsfromtheremotecontrol.

3)GUIDE– Displays the onscreen program guide.

4) MENU –BringsuptheQuickMenutoaccesssettingsandservices.

5) ARROWS–Movetheonscreenhighlightup,down,leftorright.

6) SELECT –Selectstheitemhighlighted.

7) ACTIVE – Displays the DIRECTV Interactive Home Page—localweather and more!

8) INFO– Display s c hannel ba nner or info to a highl ighted program or channel cell.

9) DOOR PANEL –TheaccesscardslotandRESETbuttonarelocatedbehindthedoorpanel.

Chapter 1
