Huffy KD-S33 User Manual

04/05 ID# M611414

Toll-Free Customer Service Number for U.S: 1-800-558-5234,

For Canada: 1-800-284-8339,

For Europe: 00 800 555 85234 (Sweden: 009 555 85234),

For Australia: 1-800-632 7921

Internet Address: http://www.huffysports.com

REQUIRED TOOLS

AND MATERIALS:

Portable System

Owners Manual

Customer Service Center

• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

A DIVISION OF RUSSELL CORPORATION

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT.

FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY.

WARNING!

•2 People

•Wood Board (scrap)

•Sawhorse or Support Table

SAND

(360 lb.)

(163 kg)

Write Model Number

From Box Here:

•Garden Hose or Sand

• (2 each) Wrenches and/or Socket Wrenches and Sockets.

1/2" 3/4"

AND/OR

ID# M611414 04/05

Owner must ensure that all players know and follow these rules

for safe operation of the system.

WARNING

•

DO NOT HANG on the rim or any part of the system including backboard, support braces or net.

•

During play, especially when performing dunk type activities, keep player's face away from the backboard, rim and net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.

•

Do not slide, climb, shake or play on base and/or pole.

•

After assembly is complete, fill system completely with water or sand. Never leave system in an upright position without filling base with weight, as system may tip over causing injuries.

•

When adjusting height or moving system, keep hands and fingers away from moving parts.

•

Do not allow children to move or adjust system.

•

During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net.

•

Surface beneath the base must be smooth and free of gravel or other sharp objects. Punctures cause leakage and could cause system to tip over.

•

Keep organic material away from pole base. Grass, litter, etc. could cause corrosion and/or deterioration.

•

Check pole system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.

•

Check system before each use for proper ballast, loose hardware, excessive wear and signs of corrosion and repair before use.

•

Check system before each use for instability.

•

Do not use system during windy and/or severe weather conditions; system may tip over. Place system in the storage position and/or in an area protected from the wind and free from personal property and/or overhead wires.

•

Never play on damaged equipment.

•

When moving system, use caution to keep mechanism from shifting.

•

Keep pole top covered with cap at all times.

•

Do not allow water in tank to freeze. During sub-freezing weather add 2 gallons of non-toxic antifreeze, sand or empty tank completely and store. (Do not use salt.)

•

While moving system, do not allow anyone to stand or sit on base or have added ballasting on base.

•

Do not leave system unsupervised or play on system when wheels are engaged for moving.

•

Use Caution when moving system across uneven surfaces. System may tip over.

•

Use extreme caution if placing system on sloped surface. System may tip over more easily.

•

See instruction manual for proper installation and maintenance.

Read and understand warnings listed below before using this product.

Failure to follow these warnings may result in serious injury and/or property damage.

ID#: 556790 05/05

In the U.S.: 1-888-713-5488

In the U.S.: 1-800-558-5234

Canada: 1-800-284-8339

In the U.S.: 1-800-334-9111

In the U.S.: 1-800-772-5346

5E2356 05/05

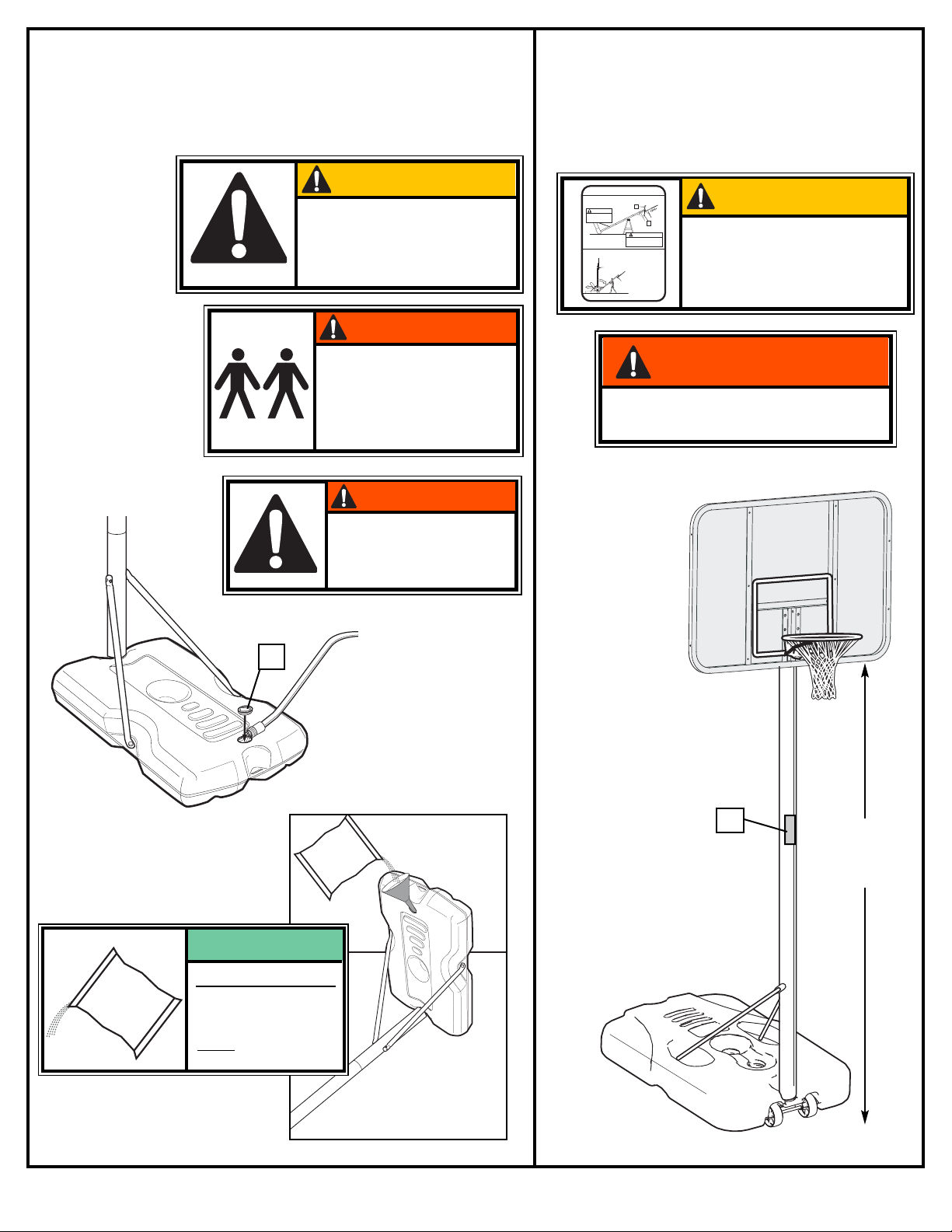

MOVING SYSTEM

1. While holding pole, rotate basketball system forward until wheels engage with ground.

2. Move basketball system to desired location.

3. Carefully rotate basketball system upright.

Check system for stability.

HEIGHT ADJUSTMENT

WARNING

Do not adjust height of system in upright position. System must be in down position to adjust.

Rest unit on support table. Remove adjustment knobs (A) and carriage bolts (B) to extend or retract backboard and rim. Height adjustment from 7-1/2' to 10'.

Backboard

may rotate during

height adjustment.

04/05 ID# M611414

IMPORTANT!

Remove all contents from boxes.

Be sure to check inside pole sections;

hardware and additional parts are packed inside.

NOTICE TO ASSEMBLERS

ALL Huffy Sports basketball systems, including those used for DISPLAYS, MUST be assembled and ballasted with sand or water according to instructions. Failure to follow instructions could

result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR

PROPERTY DAMAGE AND WILL VOID WARRANTY.

Owner must ensure that all players know and follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly, use, and supervision are essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.

• If using a ladder during assembly, use extreme caution.

• Check base regularly for leakage. Slow leaks could cause the system to tip over unexpectedly

• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play and/or during transport of the system.

• Climate, corrosion or misuse could result in system failure.

• If technical assistance is required, contact Huffy Sports.

• Minimum operational height is 6'-6" (1.98m) to the bottom of backboard.

Most injuries are caused by misuse and/or not following instructions.

Use caution when using this unit.

WARRANTY CARD:

Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard or mail-in the enclosed postcard.

ID# M611414 04/05

Get to know the basic parts of your basketball system...

FRONT VIEW

POLE

RIM

BASE

WHEEL

CARRIAGE

ASSEMBLY

BOARD

04/05 ID# M611414

PARTS LIST

Item

Qty. Part No. Description

1 1 206646 Tank (Black) 2 1 200628 Wheel Axle 3 2 226401 Wheel 4 1 908200 Top Pole Section 5 1 908246 Middle Pole Section with Label 6 1 900644 Bottom Pole Section Assembly 7 1 203041 Nut, Hex Flange, 3/8-16 8 1 Net

9 1 201342 Wheel Bracket 10 2 201651 Spacer, Wheel Axle 11 4 203104 Bolt, Hex-Flange 5/16-18 x 2" Long 12 1 206219 Cap 13 1 266001 Bolt, Carriage, 3/8-16 x 1.5 Long 14 1 203617 Tank Cap 15 1 5E2356 Label, Moving System and Height Adjust. 16 2* 203084 Bolt, Carriage, 5/16-18 x 1.75 Long 17 4* 201344 Knob, Plastic, 3-sided 18 1 Rim 19 1 203470 Washer, Flat 5/8 I.D. x 1-1/2 O.D. 20 2 900057 Backboard Mounting Bracket 21 1 203795 Nut, Special 3/8-NC 22 3 203309 Washer, .406 I.D. x 1.0 O.D. 23 2 203053 Bolt, Carriage 5/16-18 x 4 24 2 200837 Board Spacer 25 4* 203100 Nut, Hex Flange, 5/16-18 26 1 900033 Slam Jam Bracket, Black 27 1 203796 Bolt, “Tee” 3/8-NC x 5 Long 28 1 200318 Bracket Reinforcement, Slam Jam 29 1 203472 Spring, Black 30 1 Backboard

* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.

ID# M611414 04/05

PPAARRTTSS IIDDEENNTTIIFFIIEERR

- Actual Size

#18 (1)

#12 (1)

#20 (2)

#9 (1)

#17 (4*)

#14 (1)

#2 (1)

#1 (1)

#3 (2)

#8 (1)

#28 (1)

#7 (1)

#10 (2)

#16 (2*)

#13 (1)

#22 (3)

#25 (4*)

#21 (1)

#11 (4)

#23 (2)

#24 (2)

#26 (1)

#29 (1)

#27 (1)

#19 (1)

PARTS IDENTIFIER- Not Actual Size

#30 (1)

04/05 ID# M611414

Correctly identify each pole section. Poles have an identification sticker

that will be used as a reference point in the next step.

TOP MIDDLE BOTTOM

Reference Stickers

ID# M611414 04/05

IMPORTANT!

ONCE POLE SECTIONS ARE POUNDED TOGETHER- THEY CANNOT BE TAKEN APART

THE IDENTIFICATION STICKER IS LOCATED 3-3/4" FROM THE END OF THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 2-1/2" MINIMUM OVERLAP, LEAVING 11/4" BETWEEN THE OVERLAPPING POLE AND THE IDENTIFICATION STICKER.

CAUTION!

Align poles using alignment marks. First, pound top and middle poles together by bouncing them on a scrap piece of wood on the ground as shown in FIG A. until they no longer move toward pole identification stickers. THEN add bottom pole section and pound together in the same way FIG B.

FIG. A.

FIG. B.

IMPORTANT!

HOLE

DIMPLE

STICKER

1-1/2"

TROUGH

Wood Scrap

(NOT SUPPLIED)

TROUGH GORGE RINNE CANAL

04/05 ID# M611414

Attach wheel carriage assembly to base (1) with bolt (13), washer (22), and nut (7) as shown. FINGER TIGHTEN - NO TOOLS REQUIRED. Assembly will be fully tightened in next step.

THE SPACER (10) WILL FIT LOOSELY UNTIL SECURED INTO THE CAVITY OF THE BASE.

IMPORTANT!:

BE SURE THAT THE SQUARE PORTION

OF THE CARRIAGE BOLT (13) IS PROPERLY SEATED IN THE SQUARE CUT-OUT

THE WHEEL BRACKET.

IMPORTANT!:

Install wheel axle (2) through wheel bracket (9) and install wheels (3) onto wheel axle (2) with spacers (10) as shown.

ID# M611414 04/05

Attach pole assembly to tank assembly as shown. Secure pole assembly to tank and wheel bracket by turning the pole assembly clockwise as shown. Tighten pole completely and further rotate pole until struts are aligned correctly as shown in FIG B.

FIG B

The pole should be turned approximately 7 complete rotations to tighten properly. When properly tightened, the wheel bracket will be tight against the base. An assistant is recommended to hold the base in place during this step.

TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

WARNING!

IMPORTANT!

04/05 ID# M611414

Rotate struts down and bend struts outward to line up with holes on base as shown. Secure free ends of tank struts to tank with carriage bolt (16), washer (22), and knob (17) as shown. Repeat for other side.

KNOBS MUST BE TIGHTENED COMPLETELY AND CHECKED PERIODICALLY FOR TIGHTNESS.

WARNING!
