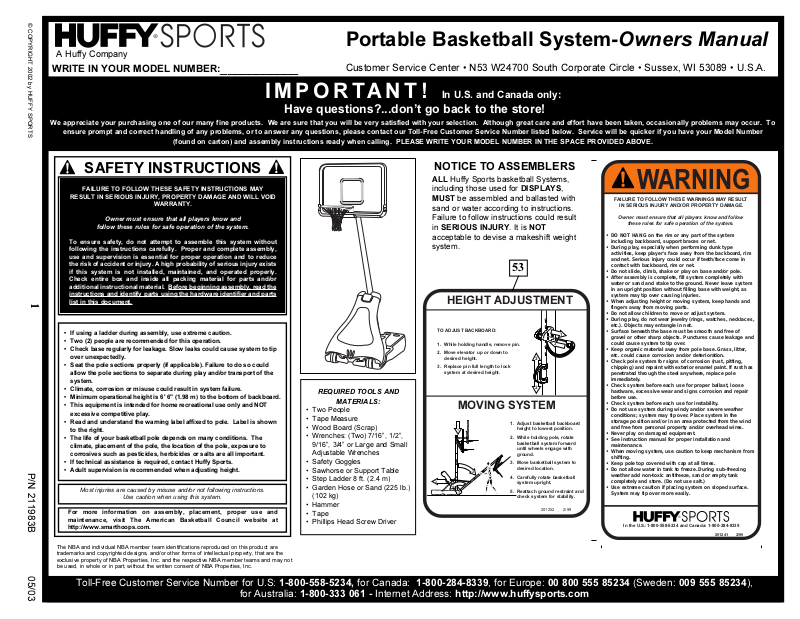

SPORTS HUFFY by 2002 COPYRIGHT ©
1
211983B P/N
05/03
A Huffy Company |
Portable Basketball System-Owners Manual |
|
|
WRITE IN YOUR MODEL NUMBER:___________ |
Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A. |
I M P O R TA N T ! In U.S. and Canada only:
Have questions?...don’t go back to the store!
We appreciate your purchasing one of our many fine products. We are sure that you will be very satisfied with your selection. Although great care and effort have been taken, occasionally problems may occur. To ensure prompt and correct handling of any problems, or to answer any questions, please contact our Toll-Free Customer Service Number listed below. Service will be quicker if you have your Model Number (found on carton) and assembly instructions ready when calling. PLEASE WRITE YOUR MODEL NUMBER IN THE SPACE PROVIDED ABOVE.
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY, PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly. Check entire box and inside all packing material for parts and/or additional instructional material. Before beginning assembly, read the instructions and identify parts using the hardware identifier and parts
list in this document.
•If using a ladder during assembly, use extreme caution.
•Two (2) people are recommended for this operation.
•Check base regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
•Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play and/or transport of the system.
•Climate, corrosion or misuse could result in system failure.
•Minimum operational height is 6' 6" (1.98 m) to the bottom of backboard.
•This equipment is intended for home recreational use only and NOT excessive competitive play.
•Read and understand the warning label affixed to pole. Label is shown to the right.
•The life of your basketball pole depends on many conditions. The climate, placement of the pole, the location of the pole, exposure to corrosives such as pesticides, herbicides or salts are all important.
•If technical assistance is required, contact Huffy Sports.
•Adult supervision is recommended when adjusting height.
Most injuries are caused by misuse and/or not following instructions. Use caution when using this system.
For more information on assembly, placement, proper use and maintenance, visit The American Basketball Council website at http://www.smarthoops.com.
The NBA and individual NBA member team identifications reproduced on this product are trademarks and copyrighted designs, and/or other forms of intellectual property, that are the exclusive property of NBA Properties, Inc. and the respective NBA member teams and may not be used, in whole or in part, without the written consent of NBA Properties, Inc.
REQUIRED TOOLS AND
MATERIALS:
•Two People
•Tape Measure
•Wood Board (Scrap)
•Wrenches: (Two) 7/16”, 1/2”, 9/16”, 3/4” or Large and Small Adjustable Wrenches
•Safety Goggles
•Sawhorse or Support Table
•Step Ladder 8 ft. (2.4 m)
•Garden Hose or Sand (225 lb.) (102 kg)
•Hammer
•Tape
•Phillips Head Screw Driver
NOTICE TO ASSEMBLERS
ALL Huffy Sports basketball Systems, including those used for DISPLAYS, MUST be assembled and ballasted with sand or water according to instructions. Failure to follow instructions could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
53
HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
1
1. While holding handle, remove pin. |
3 |
2. Move elevator up or down to desired height.
3. Replace pin full length to lock system at desired height.
|
2 |
|
MOVING SYSTEM |
|
|
1. |
Adjust basketball backboard |
|
1 |
height to lowest position. |
|
2. |
While holding pole, rotate |
|
|
basketball system forward |
|
|
until wheels engage with |
|
|
ground. |
|
3. |
Move basketball system to |
|
2 |
desired location. |
|
|
|
|
4. |
Carefully rotate basketball |
|
3 |
system upright. |
|
4 |
|
|
|
|
|
5. |
Reattach ground restraint and |
|
|
check system for stability. |
|
|
201252 |
2/99 |
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow these rules for safe operation of the system.
•DO NOT HANG on the rim or any part of the system including backboard, support braces or net.
•During play, especially when performing dunk type activities, keep player's face away from the backboard, rim and net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.
•Do not slide, climb, shake or play on base and/or pole.
•After assembly is complete, fill system completely with water or sand and stake to the ground. Never leave system in an upright position without filling base with weight, as system may tip over causing injuries.
•When adjusting height or moving system, keep hands and fingers away from moving parts.
•Do not allow children to move or adjust system.
•During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net.
•Surface beneath the base must be smooth and free of gravel or other sharp objects. Punctures cause leakage and could cause system to tip over.
•Keep organic material away from pole base. Grass, litter, etc. could cause corrosion and/or deterioration.
•Check pole system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.
•Check system before each use for proper ballast, loose hardware, excessive wear and signs corrosion and repair before use.
•Check system before each use for instability.
•Do not use system during windy and/or severe weather conditions; system may tip over. Place system in the storage position and/or in an area protected from the wind and free from personal property and/or overhead wires.
•Never play on damaged equipment.
•See instruction manual for proper installation and maintenance.
•When moving system, use caution to keep mechanism from shifting.
•Keep pole top covered with cap at all times.
•Do not allow water in tank to freeze. During sub-freezing weather add non-toxic antifreeze, sand or empty tank completely and store. (Do not use salt.)
•Use extreme caution if placing system on sloped surface. System may tip over more easily.
In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339
201241 2/99
Toll-Free Customer Service Number for U.S: 1-800-558-5234, for Canada: 1-800-284-8339, for Europe: 00 800 555 85234 (Sweden: 009 555 85234), for Australia: 1-800-333 061 - Internet Address: http://www.huffysports.com
|
|
BEFORE YOU START! |
To ensure optimal playability of backboard system, a close tolerance fit between the elevator |
||
components and hardware is required. Test fit large bolts into large holes of elevator tubes, |
||
backboard brackets and triangle plates. Carefully rock them in a circular motion to ream out |
||
|
|
any excess paint from holes if necessary. |
|
|
AVANT DE COMMENCER ! |
Pour garantir l'utilisation optimale du panneau, les composants du système élévateur et la visserie doivent être bien |
||
ajustés (serrés). À titre d'essai, insérez les gros boulons dans les gros trous des tubes du système élévateur, des supports |
||
du panneau et des plaques triangulaires. Basculez-les avec précaution en imprimant un mouvement circulaire pour |
||
|
|
éliminer l'excédent de peinture, si nécessaire. |
|
|
¡ANTES DE COMENZAR! |
Para asegurar el óptimo rendimiento del sistema del respaldo en el juego, se requiere un ajuste de tolerancia estrecha |
||
entre los componentes del elevador y el herraje. Pruebe el ajuste de los pernos grandes en los orificios grandes de los |
||
tubos elevadores, soportes del respaldo y placas triangulares. Cuidadosamente muévalos en círculos para eliminar |
||
|
|
cualquier exceso de pintura, si es necesario. |
|
|
VORBEREITENDE MASSNAHMEN |
Um sicherzustellen, dass das Korbwandsystem optimal für den Spielbetrieb geeignet ist, müssen die Komponenten der |
||
Verlängerungsvorrichtung und die verschiedenen Befestigungsteile fest miteinander verschraubt werden. Große Schrauben |
||
zur Probe in die großen Löcher der Verlängerungsrohre, Korbwandklammern und Dreiecksplatte stecken und diese |
||
vorsichtig in einer Kreisbewegung hinund herbewegen, um eventuelle Farbrückstände aus den Bohrungen zu entfernen. |
||
P/N 211983B |
05/03 |
2 |
ENGLISH INSTRUCTIONS
IMPORTANT! WRITE DOWN MODEL NUMBER FROM BOX ON PAGE 1
OF THIS OWNERS MANUAL
1.Insert axle (2) into tank (1) as shown to secure wheel (3) and eyebolt
(55)into position. Repeat procedure for opposite side.
2.Position front cover (47) on top of tank (1) as shown, insert eye bolts
(55)through cover, snapping front cover over axles (2) at the same time. Tighten completely.
3.Mark pole sections with tape as shown.
4.IMPORTANT! Center alignment slot of middle pole section (5) in a lower hole of top pole section (4) as shown. While maintaining alignment, bounce top pole section (4) and middle section (5) together as shown until they no longer move toward taped reference mark. Upright assembly. NOTE: Pole sections should have a 3-1/2” (9 cm) overlap minimum.
5.IMPORTANT! Center alignment slot of lower pole section (6) in a lower hole of middle pole section (5) as in step 4. While maintaining alignment, bounce assembly and lower pole section (6) together as shown until they no longer move toward taped reference mark. NOTE: Pole sections should have a
3-1/2” (9 cm) overlap minimum.
6.Insert bolts (7) into bracket (9) as shown. Install bolt (14) through bracket (9) and bottom pole section (6) and secure with nut (12) as shown.
7.Carefully tip unit forward and secure pole assembly to tank (1) with washers (13) and nuts (16) as shown.
8.Install rod (11) through bottom pole section (6) as shown. Install eye bolts (8) onto rod (11) as shown.
9.Secure cover (47) to rod (11) using washers (54) nuts (10) and bolt covers (15) as shown.
10.Install pole mount bracket (17) and reinforcement bracket (56) with carriage bolts (18) as shown. Tighten flange nuts (16) completely.
11.Attach spacers (22, 23) to pole mount bracket (17) with bolts (21), washers (19), and nuts (20) as shown. IMPORTANT! Tighten just until washers (19) stop moving.
12.Attach covers (24) onto pole mount bracket (17) with carriage bolt (25) and nut (16) as shown. IMPORTANT! Loop end of pin lanyard (27) over carriage bolt (25) during this assembly. NOTE: Assemble lanyard (27) to locking pin (26) as shown.
13.Apply logo and height indicator labels (29) to adjustment rod (28) as shown. Attach handle parts (32, 33) to adjustment rod with screw (31), carriage bolts (30), and flange nuts (16) as shown. IMPORTANT! Indicator labels should be applied as close to holes as possible to prevent labels from being damaged during height adjustment.
14.Insert handle assembly through pole mount assembly as shown. Lock pole assembly in place at the 10’ (3.05 m) mark with pin (26).
15.Attach backboard support brackets (35) to the backboard frame using bolts (21), spacers (36), and nuts (20) as shown.
16.Attach lower elevator tubes (40) and counter balance spring (41) to backboard support brackets (35) using spacers (34), bolt (37), and nut
(39)as shown. NOTE: Rim mounting nuts and bolts supplied with rim hardware. NOTE: DO NOT use washers here on spring return style rims.
17.Attach upper elevator tubes (43) to backboard support brackets (35) using spacers (34), bolt (37), and nut (39) as shown.
18.Support pole on sawhorse. Attach backboard assembly to top pole section (4) as shown. Install pole cap (46).
NOTE: Two people are recommended for this step. Use caution; elevator assembly is heavy.
19.Install upper elevator tubes (43) to triangle plates (45) as shown. Install handle assembly to lower elevator tubes (40) using bolt (37), spacers (44), and nut (39) as shown. NOTE: Before going on to next step, set adjustable system assembly to the 10’ (3.05 m) setting.
WARNING: USE EYE PROTECTION WHEN INSTALLING SPRINGS.
20.Insert bolt (37) through left side upper elevator tube (43), then stretch spring (41) onto bolt (37). Insert bolt (37) through right side upper elevator tube (43) and secure with nut (39).
21.Roll completed assembly to desired position. Fill tank with water (approx. 34 gallons (129 Liters)) or sand (approx. 280 lbs. (128 kg)) and snap cap (49) in place. Secure assembly to ground using rope (51) and tie down stake (52).
IMPORTANT! Add two gallons (7.6 Liters) of non-toxic antifreeze in sub-freezing climates.
WARNING: DO NOT LEAVE ASSEMBLY UNATTENDED WHEN EMPTY, MAY TIP OVER.
22. Apply height adjustment and moving label (54) to front of pole as shown.
WARNING: DO NOT ALLOW CHILDREN TO ADJUST HEIGHT.
23.While holding handle, remove pin (26).
24.Move elevator up or down to desired height.
25.Replace pin (26) full length to lock system at desired height.
3 |
P/N 211983B |
05/03 |
HARDWARE IDENTIFIER - See Hardware Identifier
Item |
Qty. |
Part No. |
Description |
Item |
Qty. |
Part No. |
Description |
1 |
1 |
206620 |
Tank |
32 |
1 |
204855 |
Handle, Left |
2 |
2 |
203451 |
Wheel Axle, 13-5/8 Long |
33 |
1 |
204856 |
Handle, Right |
3 |
2 |
226404 |
Wheel, 6” (Black) |
34 |
4 |
201683 |
Spacer, .530 I.D. x .625 Long |
4 |
1 |
904847 |
Top Pole Section |
35 |
2 |
900103 |
Bracket, Backboard Support |
5 |
1 |
908481 |
Middle Pole Section |
36 |
2 |
200874 |
Spacer, Steel .402 I.D. x .5 O.D. x 1.5 Long |
6 |
1 |
900012 |
Bottom Pole Section |
37 |
6 |
206244 |
Bolt, Hex Head, 1/2-13 x 8 Long |
7 |
4 |
203223 |
Bolt, Carriage 5/16-18 x 1 |
38 |
4 |
201681 |
Spacer, Plastic, .530 I.D. x .875 Long |
8 |
2 |
206934 |
Large Eyebolt, 3/8” |
39 |
7 |
206340 |
Lock Nut, Hex Head, 1/2-13 |
9 |
1 |
201793 |
Pole Mount Bracket |
40 |
2 |
904820 |
Elevator Tube, Lower - Long |
10 |
2 |
203063 |
Nylon Insert Lock Nut, 3/8-16 |
41 |
1 |
204837 |
Spring, Counter Balance |
11 |
1 |
206634 |
Rod, 1/2 x 9-1/2 Long |
42 |
1 |
|
Rim |
12 |
1 |
203099 |
Nut, Ny-lock, 5/16-18 |
43 |
2 |
904808 |
Elevator Tube, Upper - Short |
13 |
6 |
203218 |
Washer, 5/16 Flat |
44 |
2 |
201682 |
Spacer, .530 I.D. x 1.875 |
14 |
1 |
202541 |
Bolt, Hex Head, 5/16-18 x 3-3/4 Long |
45 |
2 |
900867 |
Plate, Triangle, (Black) |
15 |
2 |
200341 |
Bolt Cover |
46 |
1 |
202814 |
Cap, Pole Top |
16 |
15 |
203100 |
Hex Flange Nut 5/16-18 |
47 |
1 |
206001 |
Front Cover |
17 |
1 |
204832 |
Bracket, Pole Mount |
48 |
1 |
204870 |
Bolt, Hex, 1/2-13 x 3-1/2 Long |
18 |
2 |
203231 |
Carriage Bolt, 5/16-18 x 3-1/2 Long |
49 |
1 |
206219 |
Plug, Tank Cap |
19 |
4 |
203232 |
Washer, Metal, 3/4” O.D. |
50 |
1 |
|
Net |
20 |
4 |
201124 |
Lock Nut, 3/8-16 |
51 |
1 |
204444 |
Black Nylon Rope |
21 |
4 |
206360 |
Bolt, Hex Head, 3/8-16 x 2-5/8 Long |
52 |
1 |
203124 |
Stake, Tie Down |
22 |
2 |
204858 |
Spacer, Plastic Biscuit |
53 |
1 |
201252 |
Label, Height Adjustment and Moving |
23 |
2 |
204857 |
Spacer, Metal 1/2” O.D. x 1.44 Long |
54 |
6 |
203309 |
Washer, .406 I.D. x 1 O.D. Flat |
24 |
2 |
204859 |
Cover, Pin Slide |
55 |
2 |
203452 |
Small Eye Bolt, 5/16-18 |
25 |
1 |
203038 |
Carriage Bolt, 5/16-18 x 2-3/4 Long |
56 |
1 |
206990 |
Reinforcement Bracket |
26 |
1 |
204850 |
Pin, Locking |
|
|
|
|
27 |
1 |
204853 |
Lanyard, Black Coil |
|
|
|
|
28 |
1 |
904833 |
Height Adjustment Rod |
|
|
|
|
29 |
1 |
204872 |
Label, Height Indicator |
|
|
|
|
30 |
2 |
203103 |
Carriage Bolt, 5/16-18 x 2 Long |
|
|
|
|
31 |
1 |
204803 |
Screw, Phillips Head |
|
|
|
|
WARRANTY CARD:
Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard
or mail-in the enclosed postcard.
WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC
BACKBOARD, EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY
HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD
COULD RESULT IN SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED
IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL TOLL-FREE
NUMBER FOR FREE REPLACEMENT:
U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
P/N 211983B |
05/03 |
4 |
