WARNING:

Use of this product without
proper installation of net clips, or when all net
clips are not present could result in bodily
harm. Be sure to follow directions carefully.

Install net clips.

CLIP “ARM”

CLIP “BODY”

Insert one “arm” of clip (19) into ram (18) as shown. Twist “body” of clip slightly so that
second “arm” slides over the top of the first “arm” as shown.
Push in direction indicated by arrows.

Push second “arm” back and into ram as shown.

Twist “body” of clip slightly again to spread “arms” of clip.
Clip “arms” must be flat and touching edge to edge as shown, not overlapping.

AA

BB

CC

1.

Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

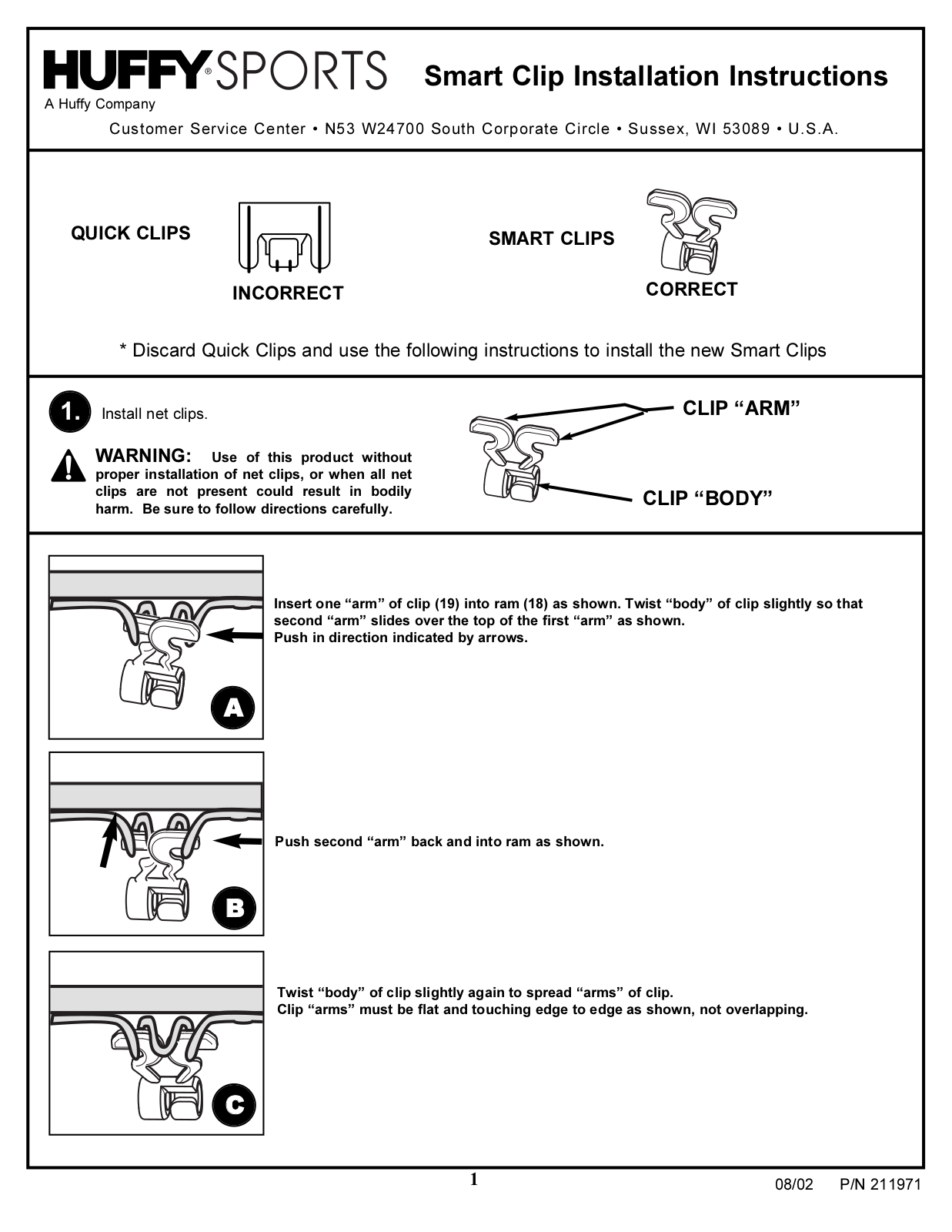

Smart Clip Installation Instructions

A Huffy Company

INCORRECT

CORRECT

* Discard Quick Clips and use the following instructions to install the new Smart Clips

QUICK CLIPS

SMART CLIPS

2

P/N 211971 08/02

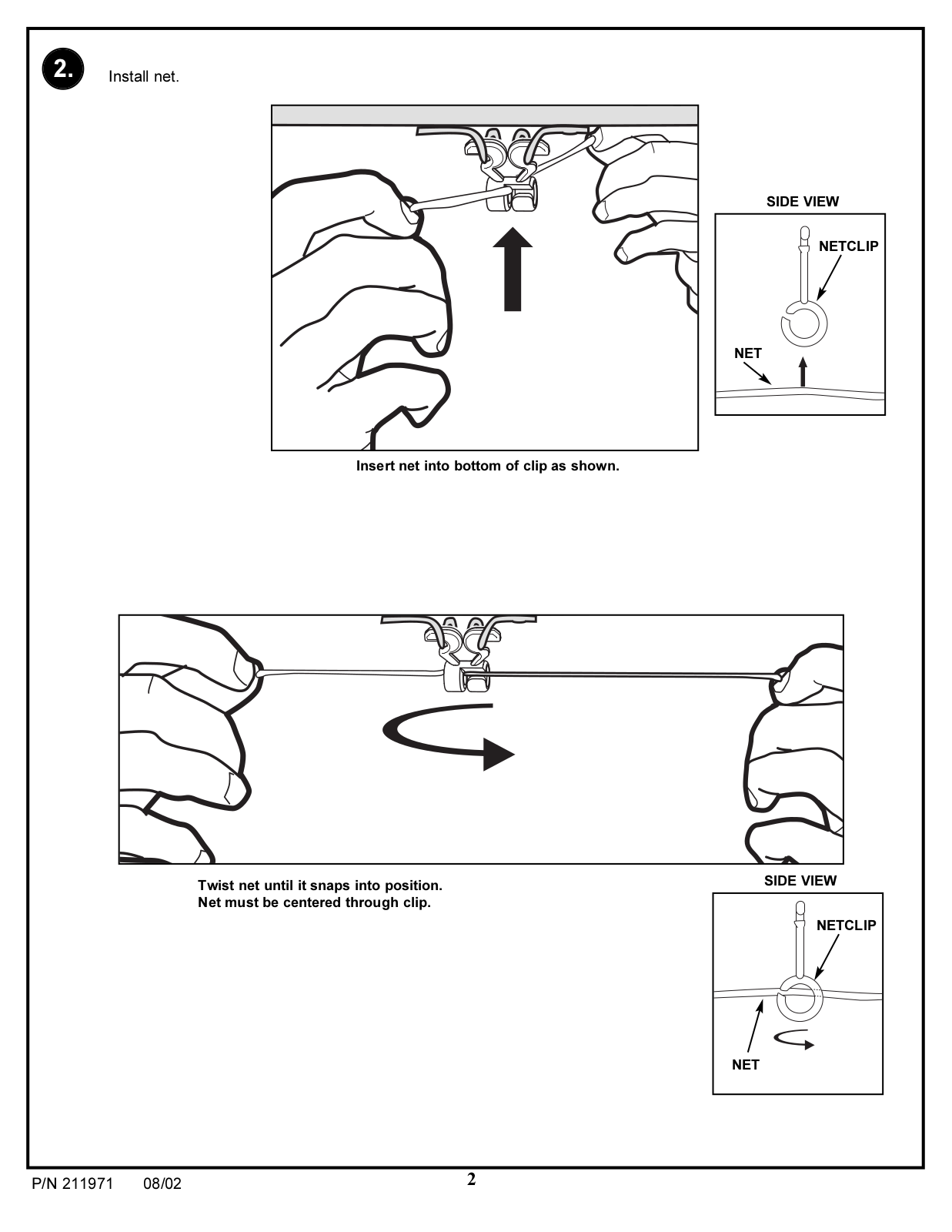

Install net.

Insert net into bottom of clip as shown.

SIDE VIEW

Twist net until it snaps into position.
Net must be centered through clip.

NET

NETCLIP

SIDE VIEW

NET

NETCLIP

2.
