Page 1
Huebsch is the answer.
Vended
25-35 and 55 lb DryStar
Tumble Dryers
TM
Page 2
Huebsch is the answer.
L
i
m
i
t
e
d
W
a
r
r
a
n
t
y
*
Y
e
a
r
Anybody can sell you laundry equipment and discuss the merits of each nut and bolt. However,
at Huebsch, our priority is answering your questions about how working with us will make your
business easier to run and more profitable.
Customers have selected Huebsch products for their ease of use, supreme durability and because
owning a Huebsch product brings a service and support network that’s unmatched within the industry.
For profitability, reliability and ease of use, Huebsch is the answer.
Profit Power
How are
to increasing my laundry’s profitability?
Huebsch DryStarTMtumble dryers the answer
Extra capacity.
This business is all about turns and getting people
in and out fast. Huebsch DryStars
35 and 55 lb models, do just that. Even the 25 lb
model boasts a spacious 7.7 cu. ft. cylinder for
efficient drying of large loads, ultimately offering
great profit potential due to its speed and efficiency.
Working together.
TM
DryStar
ments to Huebsch TwinStar
models, giving your store a greater variety of
drying options than the competition.
tumble dryers are the perfect comple-
TM
, offered in 25, 30,
TM
and LoadStar
Highly efficient.
Huebsch DryStarTMtumble
utilize an axial
dryers
airflow process, which
reduces energy
consumption and
produces some of the
industry’s fastest dry times.
This innovative drying process directs all heated air
through the load at the optimum time in the tumble
process. Faster drying times help your customers
accomplish their No. 1 goal — getting in and out
fast. Satisfied customers become regular customers,
TM
increasing your store’s profitability.
Page 3
Quality You Can Touch
L
i
m
i
t
e
d
W
a
r
r
a
n
t
y
*
Y
e
a
r
I want equipment that helps my store present an
image of quality. How do Huebsch DryStars
accomplish this goal?
TM
help
Activation versatility.
Huebsch gives you control to choose the payment
system that works best for your business. DryStar
models can be configured for coin or card activation.
Low maintenance.
TM
Rugged doors.
TM
DryStar
of stainless steel to resist
chipping and incorporate
durable latches and hinges,
to stand up to years of wear
and stay looking good.
Customers will see, feel and hear the quality when
they open or close the door.
Stainless quality.
Adding optional stainless steel front panels and
cylinders to the TwinStars
classy look that attracts customers and reinforces
that they are using high-quality equipment.
Customers come back when they get quality results
from quality equipment.
Staying in control.
DryStar
configured with a
programmable electronic
control that delivers the
drying options and ease of use customers desire.
These options enable them to achieve the best
possible results no matter the load they are drying.
A large, digital display on the electronic control
yields further customer satisfaction by keeping them
apprised of the time remaining on their cycle.
doors are made
TM
models can be
TM
gives your laundry a
Large lint compart-
ments mean DryStars
don’t have to be
emptied as often
as other models.
In addition, a heavy-duty belt delivers a long life
to reduce maintenance time and costs.
TM
A Unique Product
I love the efficiency of axial airflow tumble dryers, but my
store needs larger capacity. How can Huebsch help?
The answer for extra capacity in a small package.
TM
The newest addition to the DryStar
55 lb capacity, yet is 4" narrower and a foot shorter
than our standard 50 lb model.
The perfect blend of speed and efficiency.
Not only does the 55 lb take up less space than its
50 lb radial airflow counterpart, but it’s extremely
fast and efficient.
line delivers a
Unmatched Durability
What sets Huebsch apart from other brands in terms
of reliability?
Easy To Own
How do DryStarTMmodels make things easier on me as an owner?
Damage resistant.
Drywall screws that fall out of customers’ pockets may
damage other brands of tumble dryers, but NOT
Huebsch. Our patented oblong cylinder perforations
enable the screws to pass harmlessly through without
damaging the tumblers’ sweep sheets. See this industry-
exclusive feature in action at www.huebsch.com.
Not just standing behind our equipment,
but standing beside you and your business.
Our
Made-In-America product
comes with an industry-leading
bond. The entire machine receives
Huebsch’s standard three-year warranty.
In addition, Huebsch has more service representatives
in the field than most brands have in their whole
organization. Huebsch support is further bolstered by
an online component and a help line that
takes 100,000 calls per year.
*Parts only, labor not included. See Huebsch
Warranty Bond for specifics.
Page 4

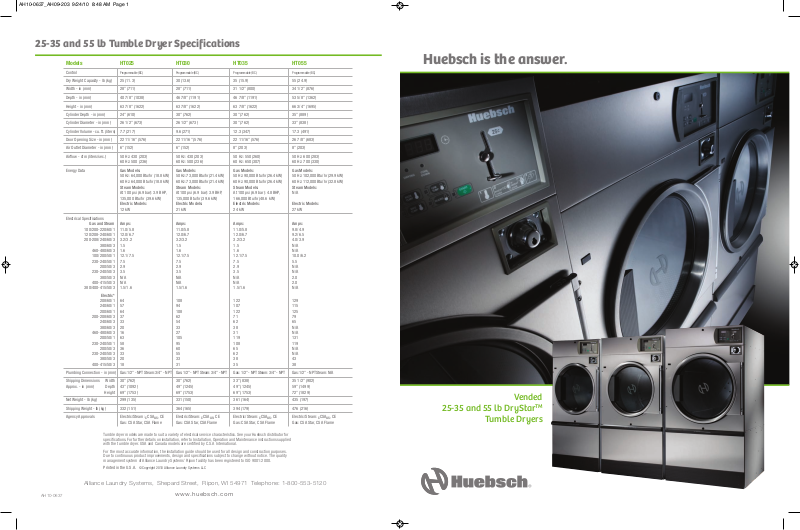

25-35 and 55 lb Tumble Dryer Specifications
Models HT025 HT030 HT035 HT055
Control
Dry Weight Capacity - lb (kg) 25 (11.3) 30 (13.6) 35 (15.9) 55 (24.9)
Width - in (mm) 28" (711) 28" (711) 31 1/2" (800) 34 1/2" (876)
Depth - in (mm) 40 7/8" (1038) 46 7/8" (1191) 46 7/8" (1191) 53 5/8" (1362)
Height - in (mm) 63 7/8" (1622) 63 7/8" (1622) 63 7/8" (1622) 66 3/4" (1695)
Cylinder Depth - in (mm) 24" (610) 30" (762) 30" (762) 35" (889)
Cylinder Diameter - in (mm) 26 1/2" (673) 26 1/2" (673) 30" (762) 33" (838)
Cylinder Volume - cu. ft. (liters) 7.7 (217) 9.6 (271) 12.3 (347) 17.3 (491)
Door Opening Size - in (mm) 22 11/16" (576) 22 11/16" (576) 22 11/16" (576) 26 7/8" (683)
Air Outlet Diameter - in (mm) 6" (152) 6" (152) 8" (203) 8" (203)
Airflow - cfm (liters/sec.) 50 Hz: 430 (203) 50 Hz: 430 (203) 50 Hz: 550 (260) 50 Hz: 600 (283)
Energy Data Gas Models: Gas Models: Gas Models: Gas Models:
Electrical Specifications
Gas and Steam Amps: Amps: Amps: Amps:
100/200-220/60/1 11.0/5.8 11.0/5.8 11.0/5.8 9.8/4.9
120/208-240/60/1 12.0/6.7 12.0/6.7 12.0/6.7 9.2/6.5
200-208/240/60/3 3.2/3.2 3.2/3.2 3.2/3.2 4.0/3.9
380/60/3 1.5 1.5 1.5 N/A
460-480/60/3 1.6 1.6 1.6 N/A
100/200/50/1 12.1/7.5 12.1/7.5 12.1/7.5 10.0/6.2
230-240/50/1 7.5 7.5 7.5 5.5
200/50/3 2.9 2.9 2.9 N/A
230-240/50/3 3.5 3.5 3.5 N/A
380/50/3 N/A N/A N/A 2.0
400-415/50/3 N/A N/A N/A 2.0
380/400-415/50/3 1.5/1.6 1.5/1.6 1.5/1.6 N/A
Electric*
208/60/1 64 108 122 129
240/60/1 57 94 107 115
200/60/1 64 108 122 125
200-208/60/3 37 62 71 79
240/60/3 33 54 62 65
380/60/3 20 33 38 N/A
460-480/60/3 16 27 31 N/A
200/50/1 63 105 119 131
230-240/50/1 58 95 108 119
200/50/3 36 60 65 N/A
230-240/50/3 33 55 62 N/A
380/50/3 20 33 38 43
400-415/50/3 18 31 35 38
Plumbing Connection - in (mm) Gas: 1/2" - NPT Steam: 3/4" - NPT Gas: 1/2" - NPT Steam: 3/4" - NPT Gas: 1/2" - NPT Steam: 3/4" - NPT Gas: 1/2" - NPT Steam: N/A
Shipping Dimensions Width 30" (762) 30" (762) 33" (838) 35 1/2" (902)
Approx. - in (mm) Depth 43" (1092) 49" (1245) 49" (1245) 59" (1499)
Net Weight - lb (kg) 299 (135) 331 (150) 361 (164) 435 (197)
Shipping Weight - lb (kg) 332 (151) 364 (165) 394 (179) 476 (216)
Agency Approvals Electric/Steam: cCSAus, CE Electric/Steam: cCSAus, CE Electric/Steam: cCSAus, CE Electric/Steam: cCSAus, CE
Programmable (BC) Programmable (BC) Programmable (BC) Programmable (BC)
60 Hz: 500 (236) 60 Hz: 500 (236) 60 Hz: 650 (307) 60 Hz: 700 (330)
50 Hz: 64,000 Btu/hr (18.8 kW) 50 Hz: 73,000 Btu/hr (21.4 kW) 50 Hz: 90,000 Btu/hr (26.4 kW) 50 Hz: 102,000 Btu/hr (29.9 kW)
60 Hz: 64,000 Btu/hr (18.8 kW) 60 Hz: 73,000 Btu/hr (21.4 kW) 60 Hz: 90,000 Btu/hr (26.4 kW) 60 Hz: 112,000 Btu/hr (32.8 kW)
Steam Models: Steam Models: Steam Models: Steam Models:
At 100 psi (6.9 bar): 3.9 BHP, At 100 psi (6.9 bar): 3.9 BHP, At 100 psi (6.9 bar): 4.8 BHP, N/A
135,000 Btu/hr (39.6 kW) 135,000 Btu/hr (39.6 kW) 166,000 Btu/hr (48.6 kW)
Electric Models: Electric Models: Electric Models: Electric Models:
12 kW 21 kW 24 kW 27 kW
Height 69" (1753) 69" (1753) 69" (1753) 72" (1829)
Gas: CSA Star, CSA Flame Gas: CSA Star, CSA Flame Gas: CSA Star, CSA Flame Gas: CSA Star, CSA Flame
AH10-0637
Tumble dryer models are made to suit a variety of electrical service characteristics. See your Huebsch distributor for
specifications. For further details on installation, refer to Installation, Operation and Maintenance instructions supplied
with the tumble dryer. USA and Canada models are certified by C.S.A International.
For the most accurate information, the installation guide should be used for all design and construction purposes.
Due to continuous product improvements, design and specifications subject to change without notice. The quality
management system of Alliance Laundry Systems’ Ripon facility has been registered to ISO 9001:2000.
Printed in the U.S.A.
©Copyright 2010 Alliance Laundry Systems LLC
Alliance Laundry Systems, Shepard Street, Ripon, WI 54971 Telephone: 1-800-553-5120
www.huebsch.com
