Huebsch HCN020, HCN030, HCN040, HCN060, HCN080 Specifications

Download

Page 1

OPL

Galaxy 400, 200

Washer-Extractors

Huebsch is the answer.

Page 2

Quality You Can Touch

I need a machine that’s durable and works. What do Huebsch Galaxy 400 and 200 washer-extractors bring to the table?

Heavy-duty design.

The foundation of Huebsch washer-extractors’

durability is the all-welded structural steel frame.

Compared to lighter weight, riveted designs of the

competition, Huebsch frames set the standard for

extreme durability.

Convenient chemical dispensing.

Our ﬁll-and-forget dispenser

lets staff add all chemicals —

four in total — at the start of

the cycle. That means your

laundry workers can be more

productive. Huebsch washer-

extractors also are designed for automatic supply

injection systems for greater convenience.

Open, shut and lock with ease.

Our new ergonomically friendly

door handles close easily and

lock reliably. No more wasted

time due to door lock error

codes. Huebsch keeps your

laundry running at maximum

productivity.

Advanced protection where you need it.

Bearing replacement is one of the most expensive

repairs to your washer-extractor. Huebsch’s triple-lip

seals and stainless steel shaft deliver the strongest

line of defense in protecting bearings from the dam-

aging effects of moisture long after the warranty period.

Huebsch is the answer.

Anybody can sell you laundry equipment and discuss the merits of each nut and bolt. However,

at Huebsch, our priority is answering your questions about how working with us will make your

business easier to run and more proﬁtable.

Customers have selected Huebsch products for their ease of use, supreme durability and because

owning a Huebsch product brings a service and support network that’s unmatched within the industry.

For proﬁtability, reliability and ease of use, Huebsch is the answer.

Page 3

Keeping it Green

What makes this Huebsch machine green to save my operation some green?

Multiple water levels deliver major savings.

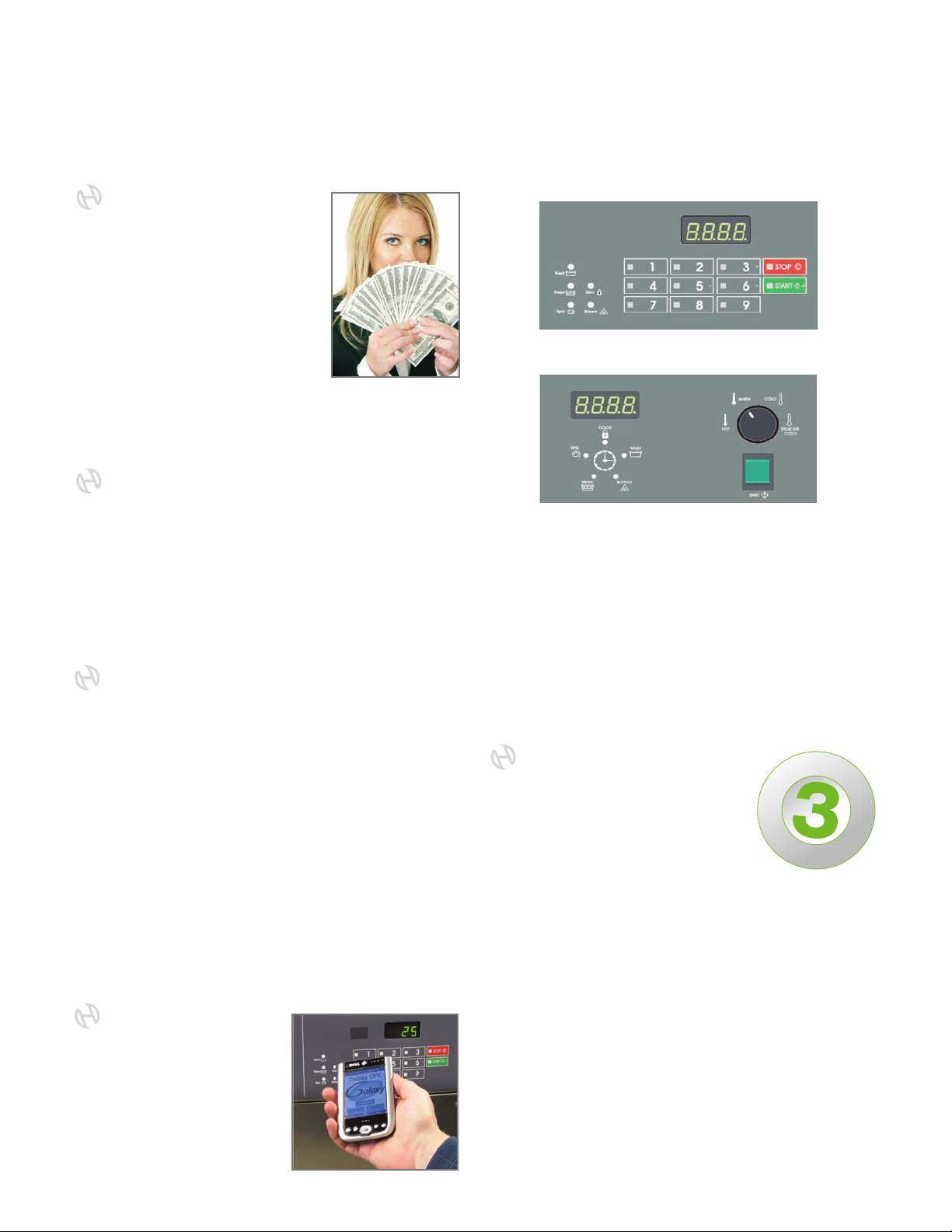

With the Galaxy 400 control,

Huebsch gives you the power to

set water levels to conserve this

precious (and often expensive)

resource. While many competing

models offer just three water

levels to choose from, we give

you 30. Savings can be as great as 55% compared

to older ﬁxed-cycle models. The Galaxy 200 control

offers high and low water selections.

Advanced leak detection eliminates wasted water.

We’ve answered laundry managers’ calls to help

eliminate the issue of stuck drain valves with our

advanced leak detection. Both the Galaxy 400 and

200 models feature a display indicator to let you

know if a valve is stuck. No more wasted resources

… or money.

High-speed extraction reduces drying time.

At 100 G-Force, the Galaxy 400 washer-extractor

removes more water — as much as a ½ gallon in

a 30 lb washer — than many competing models.

That means reduced drying time and lower gas

consumption for your laundry … did we mention

improved throughput? Huebsch Galaxy 200 models

produce extracts of 85 G-Force.

Control Your Costs

How does the Galaxy 400 control increase my proﬁtability?

Infrared communication means fast and easy changes to programs.

Managers with the Galaxy

400 control can easily

program and retrieve

operations data about

their machines through a PDA or laptop PC. Simple

access to data and easy programming helps save time

and ensures proper wash programs are being followed.

Unmatched Durability

Commercial laundry equipment is no small expense; I want peace of mind my equipment will last well into the future. What sets Huebsch apart from other brands in terms of reliability?

Not just standing behind our equipment, but standing beside you and your business.

Our made-in-America product

comes with an industry-leading

bond. We warranty the frame,

cylinder, shaft, bearings and seals for five years. The

entire machine receives Huebsch’s standard three-

year warranty. In addition, Huebsch has more

service representatives in the field than most brands

have in their whole organization. Huebsch support

is further bolstered by an online component and a

help line that takes 10,000 calls per year.

*Parts only, labor not included. See Huebsch Warranty Bond for specifics.

Galaxy 400 (G400)

Galaxy 200 (G200)

Page 4

20%

Cert no. SCS-COC-00648

Alliance Laundry Systems, Shepard Street, Ripon, WI 54971 Telephone: 1-800-553-5120

www.huebsch.com

AH09-221

20-80 lb G400/G200 OPL Washer-Extractor Specifications

Models HCN020 HCN030 HCN040 HCN060 HCN080

Control Options Galaxy 400, Galaxy 200 Galaxy 400, Galaxy 200 Galaxy 400, Galaxy 200 Galaxy 400, Galaxy 200 Galaxy 400, Galaxy 200

Capacity - lb (kg) 20 (9) 30 (13.6) 40 (18) 60 (27) 80 (36)

Overall Width - in (mm) 26" (660) 29" (737) 30 5/8" (778) 34 1/16" (865) 41 1/2" (1054)

*Overall Depth - in (mm) 30 1/4" (767) 34 9/16" (878) 39 3/4" (1009) 42 9/16" (1081) 51 1/2" (1308)

Overall Height - in (mm) 42" (1067) 45" (1142) 47 1/4" (1199) 49 7/8" (1267) 56 3/16" (1426)

Cylinder Diameter - in (mm) 21" (533) 24" (610) 26 1/4" (667) 30" (762) 36" (916)

Cylinder Depth - in (mm) 13 3/4" (349) 16" (406) 20 1/4" (514) 22" (559) 22" (559)

Cylinder Volume - cu. ft. (liters) 2.76 (78.1) 4.19 (118) 6.34 (180) 9.0 (255) 12.4 (354)

Door Opening Size - in (mm) 11 5/8" (295) 14 5/16" (364) 16 1/4" (413) 16 1/4" (413) 18 1/2" (470)

Door Bottom To Floor - in (mm) 14 3/8" (365) 14" (356) 14 1/2" (368) 14 15/16" (379) 17 15/16" (455)

Water Inlet Connection - in (mm) 2 @ 3/4" (19) 2 @ 3/4" (19) 2 @ 3/4" (19) 2 @ 3/4" (19) 2 @ 3/4" (19)

Steam Inlet - in (mm) N/A N/A 1 @ 1/2" (13) 1 @ 1/2" (13) 1 @ 1/2" (13)

Drain Diameter - in (mm) 1 @ 2" (52) 1 @ 2" (52) 1 @ 3" (76) 1 @ 3" (76) 1 @ 3" (76)

Drain Height To Floor - in (mm) 4 1/2" (114) 4 1/2" (114) 4 13/16" (122) 4 11/16" (119) 5 3/4" (145)

2 Speed F Speed 2 Speed F Speed 2 Speed F Speed 2 Speed F Speed F Speed

Motor Size - hp (kw)

Wash .15 (.11) N/A .24 (.18) N/A .4 (.3) N/A .55 (.41) N/A N/A

High Extract .74 (.55) 1 (.75) 1.34 (1) 1 (.75) 1.8 (1.3) 2 (1.7) 2.7 (2.01) 3 (2.2) 5 (3.7)

Total # of Speeds 2 6 2 6 2 6 2 6 6

Gentle N/A 29 (.25) N/A 27 (.25) N/A 26 (.25) N/A 24 (.25) 22 (.25)

Wash 55 (.9) 52 (.8) 49 (.8) 48 (.8) 51 (1) 46 (.8) 47 (.9) 43 (.8) 40 (.8)

Distribution N/A 92 (2.5) N/A 86 (2.5) N/A 82 (2.5) N/A 77 (2.5) 70 (2.5) Cylinder Speeds - Very Low N/A 366 (40) N/A 343 (40) N/A 328 (40) N/A 307 (40) 280 (40) RPM (G Force) Low 519 (80) 518 (80) 468 (75) 485 (80) 486 (88) 464 (80) 450 (86) 434 (80) 396 (80)

Medium N/A 580 (100) N/A 542 (100) N/A 518 (100) N/A 485 (100) 443 (100)

B 120/60/2/1 20-16 N/A N/A N/A N/A N/A N/A N/A N/A ***Voltage/Hz/ C 380-415/50/4/3 15- 4 N/A 15- 4 N/A 15-5 N/A 15 -5 N/A N/A # of Wires/ F 440-480/60/3/3 15-4 N/A 15-4 N/A 15-5 N/A 15-5 N/A N/A Phase/ O 220-240/60/3/3 15 -5 N/A 15-7 N/A 20-7 N/A 20-10 N/A N/A Circuit Breaker Q

200-208/220-240/50/60/3/3

N/A 15-5 N/A 15-5 N/A 15-6 N/A 15-8 15-11

- FLA R

380-415/440-480/50/60/3/3

N/A 15-4 N/A 15-4 N/A 15-5 N /A 15-6 15-8

200-208/220-240/50/60/3/1/3

N/A 15-6 N/A 15-7 N/A 15-10 N/A 15-11 20-16

208/220-240/60/2/3/1

15-8 N/A 20-10 N/A 30-14 N/A N/A N/A N/A Shipping Dimensions Width 29 1/2" (749) 32 1/2" (828) 34 1/4" (867) 38" (965) 48" (1219) Approx. - in (mm) Depth 34 5/8" (879) 39 13/16" (1014) 44 5/8" (1133) 49" (1245) 56" (1422)

Height 51 1/2" (1308) 54 1/2" (1389) 56 3/4" (1441) 59" (1508) 65 3/4" (1670)

Net Weight - lb (kg) 387 (176) 489 (222) 692 (314) 812 (368) 1374 (623)

Shipping Weight - lb (kg) 420 (191) 530 (240) 734 (333) 854 (387) 1461 (663)

Export Shipping Weight - lb (kg) 475 (215) 593 (269) 816 (370) 948 (430) 1573 (714)

****Agency Approvals

ETLus, CE

* Overall depth includes vacuum breaker to door handle.

** High & Very High Spin Speeds are available on the V Speed models only.

*** Circuit breaker and amp draw data shown are for models without electric heat. Consult factory for other configurations. Manufacturer strongly recommends using a circuit breaker instead of fuses. Use

3-pole circuit breakers for 3-phase machines.

****Agency approvals may vary depending on configuration. Consult factory for details. Steam connection requires 1/2" N.P.T.

For the most accurate information, the installation guide should be used for all design and construction purposes. Due to continuous product improvements, design and specifications subject to change without notice. The quality management system of Alliance Laundry Systems' Ripon facility has been registered to ISO 9001:2000.

Printed in the U.S.A.
