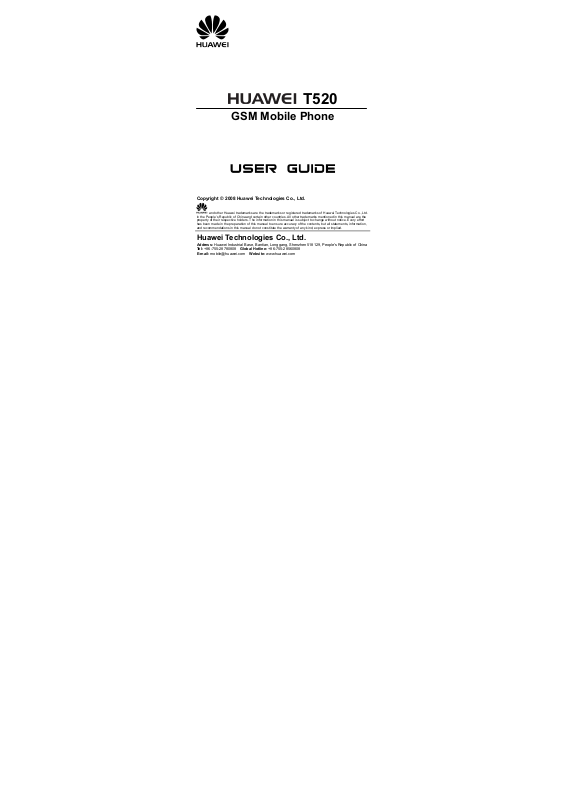

Huawei T520A User Manual
T520
GSM Mobile Phone
Copyright © 2008 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd. in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the property of their respective holders. The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Your Phone
Earpiece
Screen
Navigation Keys
Left Soft Key
Dial/Send Key
Number Keys
Key
Microphone
1
Right Soft Key
End/Power Key
Key
Charger Interface
headset jack
Keys and Functions
Press… |
To… |
|
|
zMake or answer a call.
zView all call records in the standby mode.
zPower on or off the phone (by pressing and holding this key).
z End a call or reject an incoming call. z Return to the standby mode.
Select the option displayed on the lower left corner of the screen.
Select the option displayed on the lower right corner of the screen.
zAccess Profile (
), Inbox (
), the New screen for writing a new message
(
), and Camera (
).
z Increase the volume (
or
) and
decrease the volume (
or
) during a call.
zEnter numbers and characters.
zSpeed dial phone numbers in the standby mode (by pressing and holding the 1-9
–keys).
z Select a submenu item labeled with the corresponding number.
2
Press… |
To… |
|
|
zEnter the * symbol.
zActivate or deactivate the Meeting profile
(by pressing and holding it).
zProvide different functions according to the phone features being used.
zEnter the # symbol.
zLock the keypad in the standby mode (by
pressing and holding it).
zProvide different functions according to the phone features being used.
Screen Icons
Icon |
Description |
Icon |
Description |
|
|
Indicates the |
|
Indicates the battery |
|
|
signal strength. |
|
level. |
|
|
|
|
|
|
|
The headset is |
|
The call is |
|
|
connected. |
|
transferred. |
|
|
|
|
|
|
|
The Silent profile |
|
An alarm clock is set. |
|
|
is activated. |
|
||
|
|
|
|
|
|
|
|
|
|
|
The keypad is |
|
Memory for saving |
|
|
|
messages on the |
||
|
locked. |
|
||
|
|
phone is full. |
||
|
|
|
||
|
|
|
|
|
|
|
3 |
|
|
Icon |
Description |
Icon |
Description |
|
|
The Custom |
|
Memories for saving |
|
|
|
messages on the |
||
|
profile is |
|
||
|
|
phone and SIM card |
||
|
activated. |
|
||
|
|
are full. |
||
|
|
|
||
|
|
|
|
|
|
The Outdoor |
|
Memory for saving |
|
|
profile is |
|
messages on the |
|
|
activated. |
|
SIM card is full. |
|
|
|
|
|
|
|
The Meeting |
|
|
|
|
profile is |
|
|
|
|
activated. |
|
|
|
|
|
|
|
|
4
Menu Tree
|
Call history |
|
Phone book |
|
|
|
Entertainment |
|
1 |
Missed calls |
1 |
Name list |
1 |
Recorder |
|||
2 |
Received calls |
2 |
New |
2 |
Games |
|||
3 |
Dialed calls |
3 |
Group |
3 |
FM radio |
|||
4 |
All |
4 |
Speed dial |
|
|
|||
5 |
Call duration |
5 |
Own number |
|
|
|||
|
|
|
6 Management |
|
|
|||
|
WAP |
|
Messages |
|
|
Camera |
|
|
|
|
|
1 SMS |
|
|
|
|
|
|
|
|
2 MMS |
|
|
|
|
|
|
|
|
3 Voicemail |
|
|
|
|
|
|
|
|
4 Broadcast |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Toolkit |
|
|
My Files |
|
|
Settings |
|
1 |
Alarm |
1 |
My photos |
1 |
Profiles |
|||
2 |
Calendar |
2 |
My picture |
2 |
Phone settings |
|||
3 |
Calculator |
3 |
My ring tones |
3 |
Display |
|||
4 |
Notebook |
4 |
My record |
4 |
Call settings |
|||
5 |
Stopwatch |
5 |
Others |
5 |
Security |
|||
|
|
|
6 |
Memory status |
6 |
Network Access Point |
||
|
|
|
|
|
7 |
Resetore default |
||
|
|
|
|
|
|
|
setting |
|
5
Installing the SIM Card and Battery
Make sure that the golden area on the SIM card is facing downwards and the cut-off edge is correctly aligned with the card holder.
Removing the Battery and SIM Card
Make sure that your phone is powered off.
Charging the Battery
1.Connect the charger to the charger interface at the bottom of your phone.
2.Connect the charger to an AC power socket.
3.During the charging process, the charging icon is in animated status.
6
4.When the charging icon becomes static, the battery is completely charged. Then you can disconnect the charger from the AC power socket.
5.Disconnect the charger from the phone.
Using the Function Menu
1.In the standby mode, press
(Menu) to display the main menu.
2.Press
or
to scroll to a menu item.
3.Press
(OK) or
to display the selected menu.
4.Display the submenu in either of the ways:
zPress
or
to scroll to a submenu and press
(OK) or
to display the selected submenu.
zPress the number key corresponding to the serial number of a submenu to display the submenu.
5.Press
(Back) to return to the previous menu or quit the function menu.
6.Press
to return to the standby mode.
Making a Call
1. In the standby mode, enter a phone number.
zTo make an international call, press
twice to enter the international long distance code of "+". Then, enter the number to be dialed in the "country code + region code + phone number" format.
zTo call a number with an extension, press
three times to insert "P".
