HUAWEI SUN2000-5 Technical Specification
S OL A R . HU A W EI . C OM

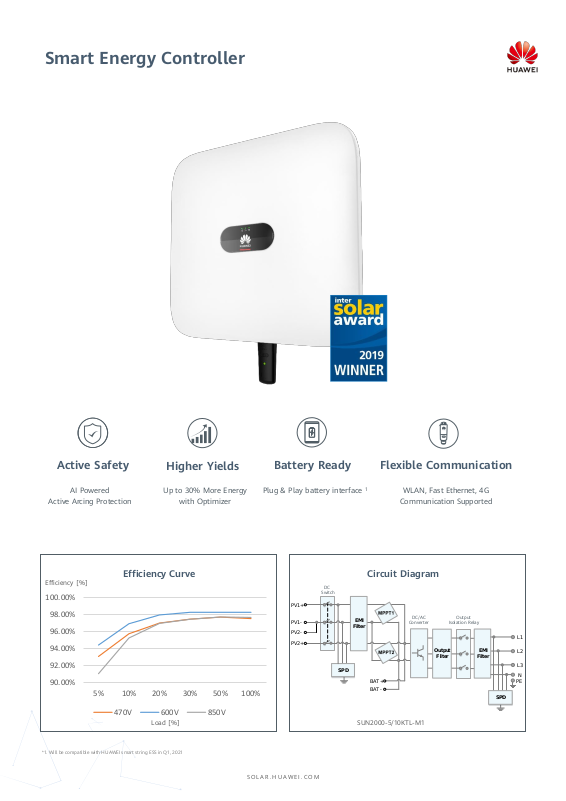

Smart Energy Controller
Efficiency [%]
Efficiency Curve
SUN2000-5/10KTL-M1
Circuit Diagram
Battery Ready
Plug & Play battery interface
1
Load [%]
DC
Switch
DC/AC
Converter
Output
Isolation Relay
SPD
SPD
PV1+
PV1-
PV2+
PV2-
L1
L2
L3
N
PE
BAT-
BAT+
EMI
Filter
Output
Filter
EMI
Filter
AI Powered
Active Arcing Protection
Active Safety
Up to 30% More Energy
with Optimizer
Higher Yields
Flexible Communication
WLAN, Fast Ethernet, 4G
Communication Supported
*1. Will be compatible with HUAWEI smart string ESS in Q1, 2021
90.00%
92.00%
94.00%
96.00%
98.00%
100.00%
5% 10% 20% 30% 50% 100%
470V 600V 850V
S OL A R . HU A W EI . C OMVersion No.:03-(20200409)
Technical Specification
SUN2000-5KTL-M1 SUN2000-10KTL-M1
Efficiency
Max. efficiency
98.4% 98.6%
European weighted efficiency
97.5% 98.1%
Input (PV)
Recommended max. PV power
1
7,500 Wp 15,000 Wp
Max. input voltage
2
1,100 V
Operating voltage range
3
140 V ~ 980 V
Start-up voltage 200 V
Rated input voltage
600 V
Max. input current per MPPT
11 A
Max. short-circuit current
15 A
Number of MPP trackers 2
Max. input number per MPP tracker
1
Input (DC Battery)
Compatible Battery HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range 600 V ~ 980 V
Max operating current 16A
Max charge Power 10,000 W
Max discharge Power 5,500 W 10,000 W
Output (On Grid)
Grid connection
Three-phase
Rated output power
5,000 W 10,000 W
Max. apparent power
5,500 VA 11,000 VA
4
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current
8.5 A 16.9 A
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion ≤ 3 %
Output （Backup Power via Backup Box-B1）
Maximum apparent power 3,300 VA
Rated output voltage 220 V / 230 V
Maximum output current 15 A
Power factor range 0.8 leading ... 0.8 lagging
Features & Protections
Input-side disconnection device Yes
Anti-Islanding protection Yes
DC reverse polarity protection Yes
Insulation monitoring Yes
DC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring Yes
AC overcurrent protection Yes
AC short-circuit protection Yes
AC overvoltage protection Yes
Arc fault protection Yes
Ripple receiver control Yes
Integrated PID recovery
5
Yes
Battery reverse charging from grid Yes
General Data
Operating temperature range -25 ~ + 60 °C (-13 °F ~ 140 °F)
Relative operating humidity 0 %RH～100 %RH
Operating altitude 0 ～ 4,000 m (13,123 ft.) (Derating above 2000 m)
Cooling Natural convection
Display LED Indicators; Integrated WLAN + FusionSolar App
Communication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket)
17 kg (37.5 lb)
Dimension (incl. mounting bracket)
525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch)
Degree of protection IP65
Optimizer Compatibility
DC MBUS compatible optimizer SUN2000-450W-P
Standard Compliance (more available upon request)
Certificate EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Grid connection standards
G98, G99, EN 50438, CEI 0
-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-
1,
IEC61727, IEC62116, DEWA 2.0, IEC60068, IEC61683
SUN2000-5/10KTL-M1
Technical Specification
*1 Inverter max input PV power is 20,000 Wp when long strings are designed and fully connected with SUN2000-450W-P power optimizers.
*2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter.
*3 Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
*4 C10 / 11: 10,000 VA
*5 SUN2000-3~10KTL-M1 raises potential between PV- and ground to above zero through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type (mono, poly).
