The pBTS3701 is a compact integrated indoor BTS. It receives and transmits radio signals to
enable communications between the WiMAX network and the MS/SS.
1-2 Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
Issue ()
1.1 Introduction to the pBTS3701
The pBTS3701 is a compact integrated indoor BTS. It receives and transmits radio signals to
enable communications between the WiMAX network and the MS/SS.
1.1.1 Components of the pBTS3701
This describes the console, GPS antenna, and power adapter of the pBTS3701.
1.1.2 Physical Structure
The pBTS3701 is a compact integrated indoor BTS, and it is small and exquisite.
1.1.3 Cables of the pBTS3701
This describes the cables of the pBTS3701. The pBTS3701 requires two kinds of cables: the
power cable and the Ethernet cable.
1.1.1 Components of the pBTS3701
This describes the console, GPS antenna, and power adapter of the pBTS3701.
The hardware of the pBTS3701 consists of following parts:
1 pBTS3701 User Guide
Console
l Console
l GPS antenna
l Power adapter
Figure 1-1 shows the console of the pBTS3701.
Figure 1-1 Console of the pBTS3701
The console of the pBTS3701 is integrated with the clock module, baseband module, IRF
module, OM module, transmission module, and power module.
GPS Antenna
Figure 1-2 shows the GPS antenna of the pBTS3701.
Issue () Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
1-3
1 pBTS3701 User Guide
Figure 1-2 GPS antenna of the pBTS3701
The GPS antenna of the pBTS3701 is used to receive GPS clock signals, which are used as the
guarantee the synchronization of the pBTS3701.
Power Adapter
Figure 1-3 shows the power adapter of the pBTS3701.
Figure 1-3 Power adapter of the pBTS3701
The power adapter is used to convert 110 or 220 V AC into +12 V DC to supply power to the
pBTS3701.
1.1.2 Physical Structure
The pBTS3701 is a compact integrated indoor BTS, and it is small and exquisite.
Appearance

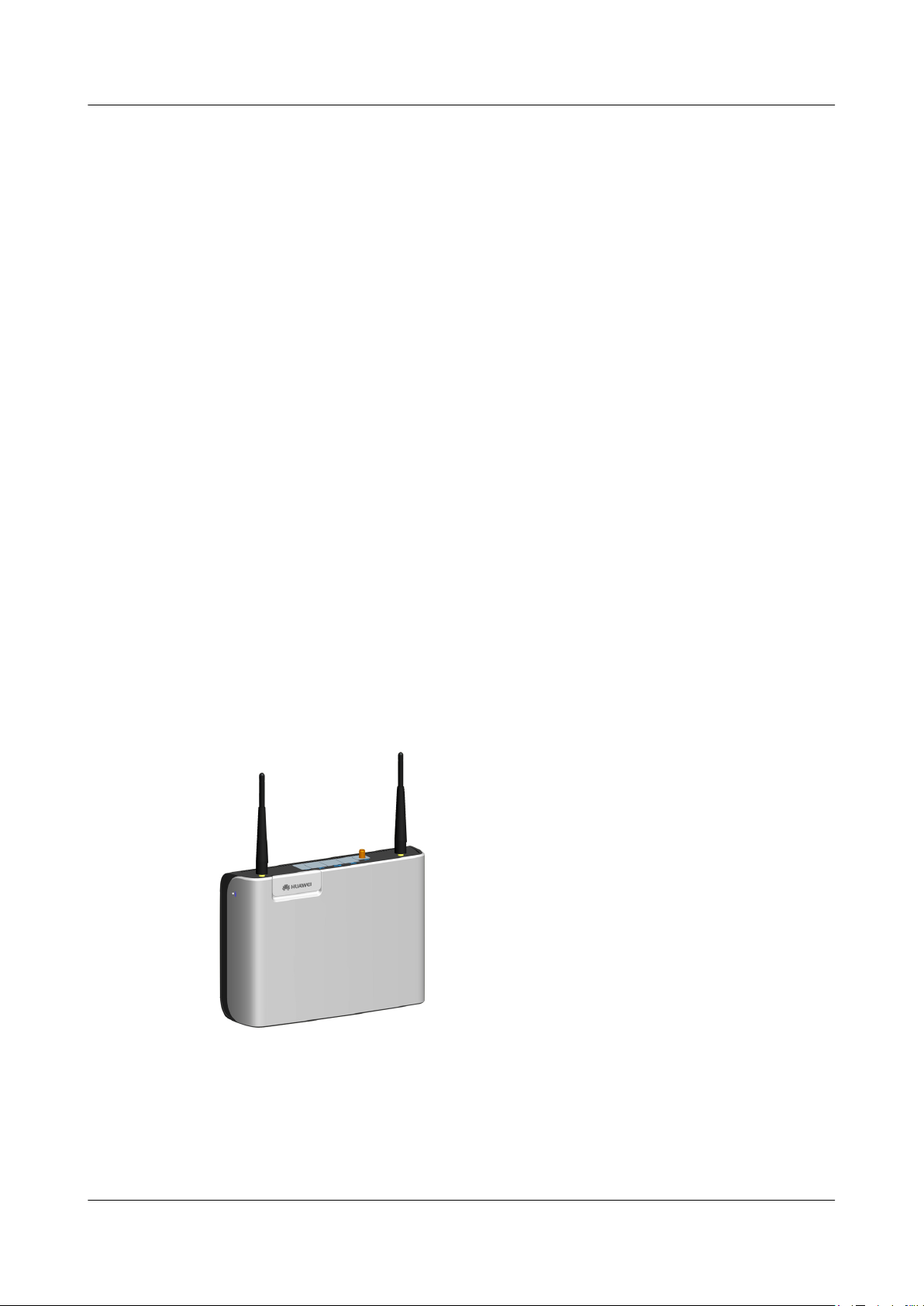

Figure 1-4 shows the appearance of the pBTS3701.
Figure 1-4 Appearance of the pBTS3701
1-4 Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
Issue ()
Button
Ports
1 pBTS3701 User Guide
At the top left of the pBTS3701, there is a RST button used to reset the pBTS3701.

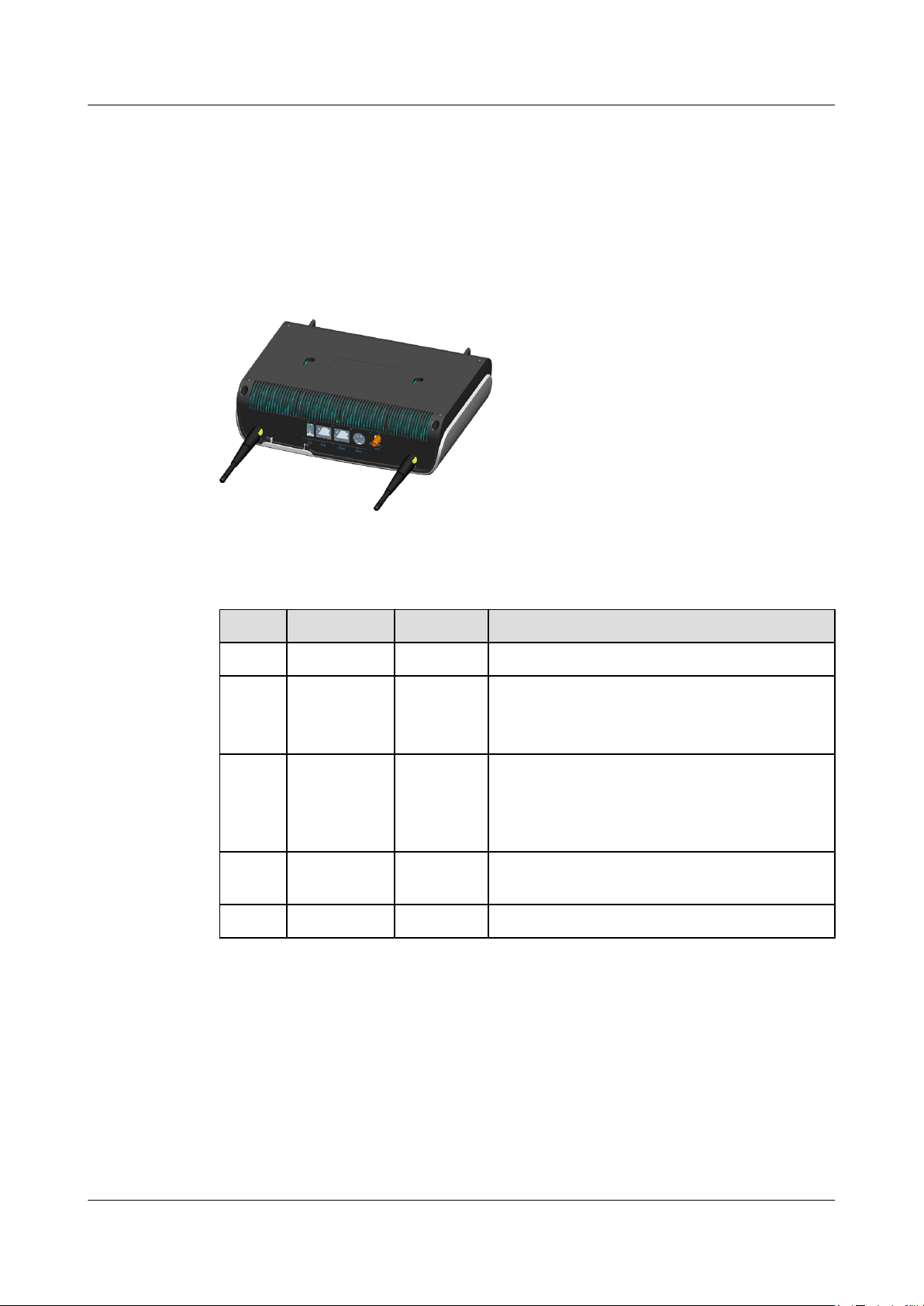

The Figure 1-5 shows the ports of the pBTS3701.
Figure 1-5 Ports of the pBTS3701
Table 1-1 lists the ports of the pBTS3701.
Table 1-1 Ports of the pBTS3701
Label
GPS SMA 1 The GPS port is used to receive GPS signals.
ETH RJ45 1 The ETH port is used for maintenance and
TRAN RJ45 1 The TRAN port is a service port which connects to
PWR 4Pin socket 1 The PWR port is a power input port. It supports a
TST USB 1 Clock test port
Type Number Description
commissioning.
FE: 10 Mbit/s or 100 Mbit/s
connect the transmission equipment or gateway
equipment.
FE/GE: 10 Mbit/s or 100 Mbit/s or 1000 Mbit/s
+12 Vdc power input.
LEDs

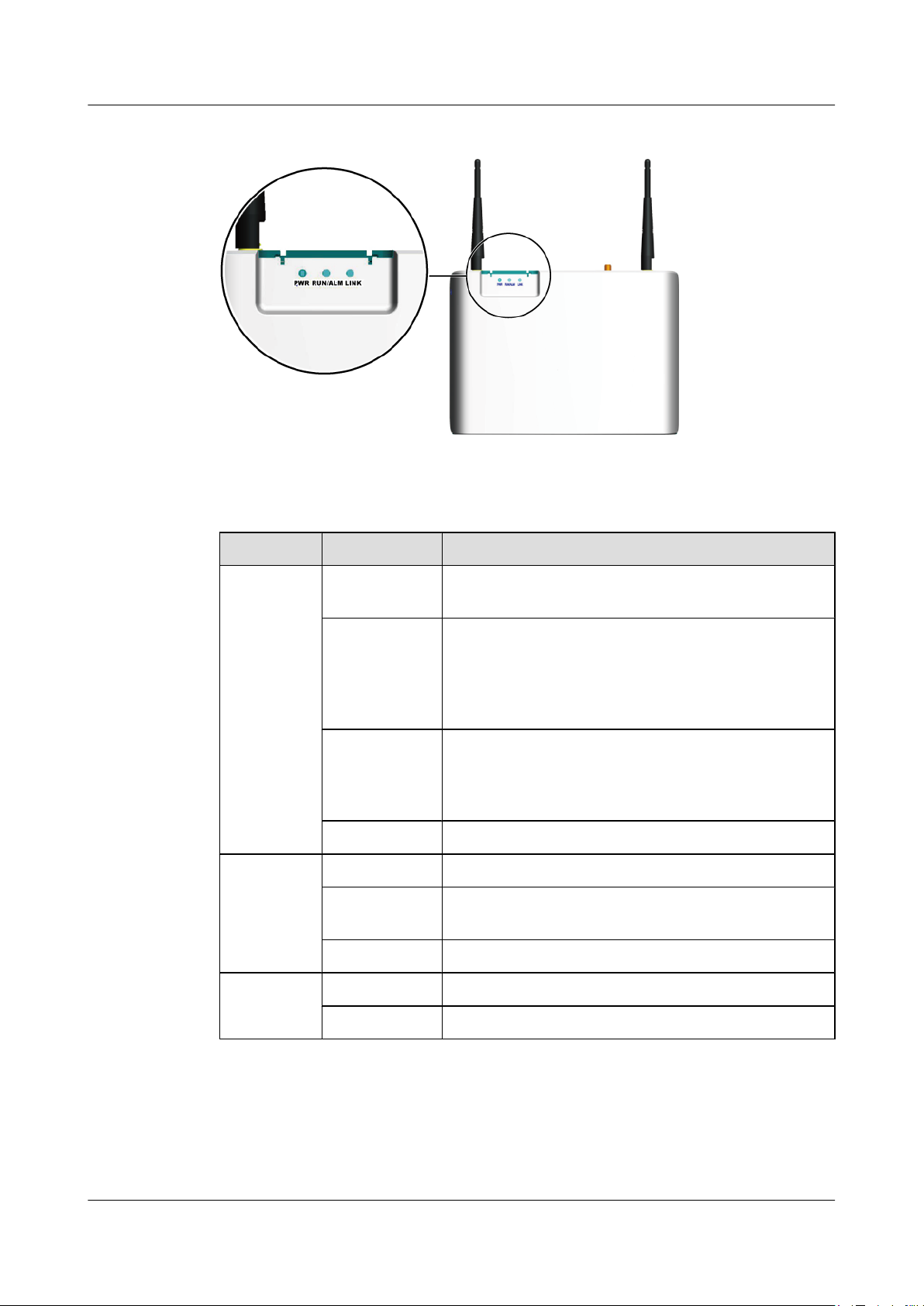

Figure 1-6 shows the LEDs of the pBTS3701.
Issue () Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
1-5
1 pBTS3701 User Guide
Figure 1-6 LEDs of the pBTS3701
Table 1-2 lists the LEDs of the pBTS3701.
Table 1-2 LEDs of the pBTS3701
Label Status Description
RUN/ALM ON (red) An alarm is generated, indicating that the board is running
in the faulty status.
Blinks once
every 0.25
seconds (Green,
ON for 0.125s ,
OFF for 0.125s)
Blinks once
every 2 seconds
(Green, ON for
1s , OFF for 1s)
OFF There is no power input, or the board is faulty.
LINK ON (Green) The pBTS3701 is connected to the network normally.
Blinking
(Green)
OFF The pBTS3701 is not connected to the network.
PWR ON (green) Power supply to the pBTS3701 is functional.
The board is being loaded.
The board is running normally.
The pBTS3701 is in IP packets transmission.
OFF No power is supplied to the pBTS3701.
1.1.3 Cables of the pBTS3701
This describes the cables of the pBTS3701. The pBTS3701 requires two kinds of cables: the
power cable and the Ethernet cable.
1-6 Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
Issue ()
1.1.3.1 Power Cable of the pBTS3701
This describes the power cable of the pBTS3701.
1.1.3.2 Ethernet Cable of the pBTS3701
This describes the Ethernet cable of the pBTS3701. The Ethernet cable is used to connect the
pBTS3701 with a LAN switch, through which the connection with the ASN-GW is realized.
The use of Ethernet cable is optional.
Power Cable of the pBTS3701
This describes the power cable of the pBTS3701.
Appearance

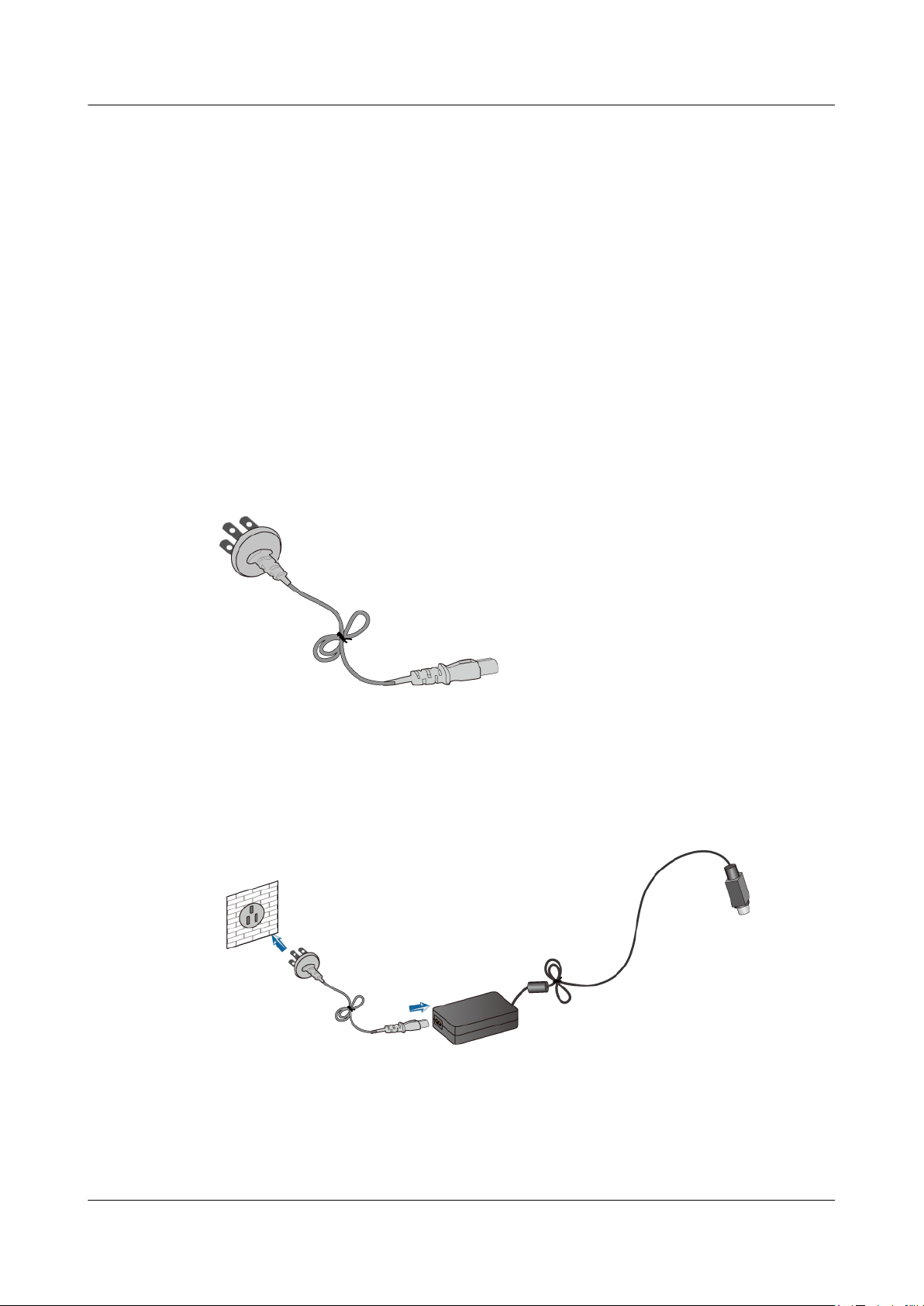

As shown in Figure 1-7, one end of the power cable of the pBTS3701 is a three PIN plug, and
the other end is a three PIN female connector.
Figure 1-7 Power cable
1 pBTS3701 User Guide
Installation Position
The three-PIN plug of the power cable is connected to the socket of mains power supply, and
the other end is connected to the adapter, as shown in Figure 1-8.
Figure 1-8 Connection of the power cable
Ethernet Cable of the pBTS3701
This describes the Ethernet cable of the pBTS3701. The Ethernet cable is used to connect the
pBTS3701 with a LAN switch, through which the connection with the ASN-GW is realized.
The use of Ethernet cable is optional.
Issue () Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
1-7
1 pBTS3701 User Guide
Appearance

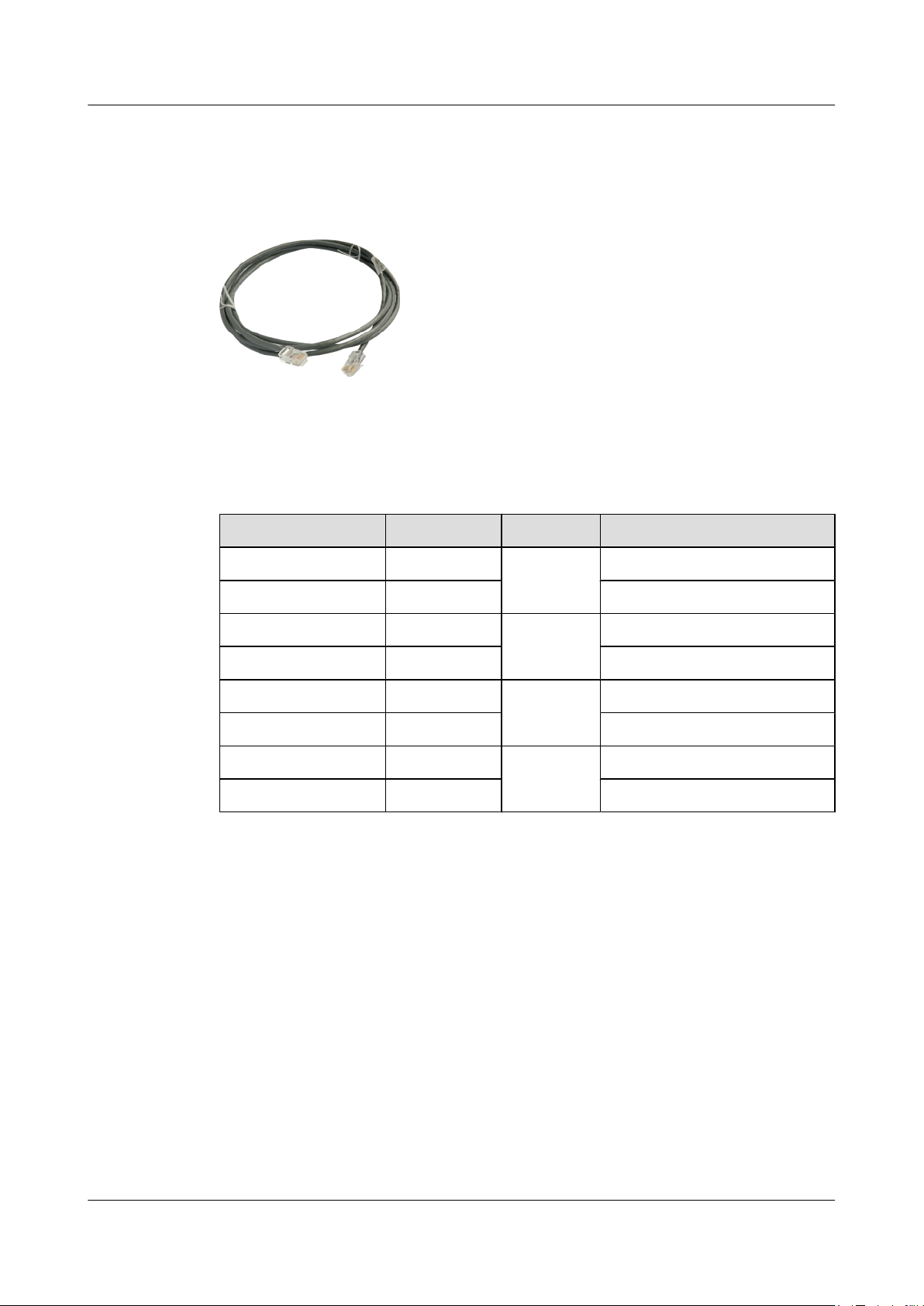

Both ends of the pBTS3701 Ethernet cable are RJ45 connectors, as shown in Figure 1-9.
Figure 1-9 Ethernet cable of the pBTS3701
Pin Assignment
Table 1-3 describes the pin assignment for the wires comprising the pBTS3701 Ethernet cable.
Table 1-3 Pin assignments for the wires of the pBTS3701 Ethernet cable
X1 End Wire Color Wire Type X1 End
X1.2 Orange Twisted pair
X1.1 White/orange X2.1
X1.6 Green Twisted pair
X1.3 White/green X2.3
X1.4 Blue Twisted pair
X1.5 White/blue X2.5
X1.8 Brown Twisted pair
X1.7 White/brown X2.7
Installation Position
For the Ethernet cable used to transmit user traffic, one end is connected to the TRAN port on
the pBTS3701, and the other end to the LAN switch. For the one used to perform local
maintenance is connected to the ETH port, and the other end to the computer for local
maintenance.
X2.2
cable
X2.6
cable
X2.4
cable
X2.8
cable
1-8 Huawei Proprietary
Copyright © Huawei Technologies Co., Ltd.
Issue ()
