Huawei netengine80e, netengine40e Configuration Manual

Download

Page 1

HUAWEI NetEngine80E/40E Router

V600R003C00

Configuration Guide - Basic Configurations

Issue 02

Date 2011-09-10

HUAWEI TECHNOLOGIES CO., LTD.

Page 2

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang Shenzhen 518129 People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 3

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations About This Document

About This Document

Purpose

This part describes the organization of this document, product version, intended audience, conventions, and Change history.

NOTE

l This document takes interface numbers and link types of the NE40E-X8 as an example. In working

situations, the actual interface numbers and link types may be different from those used in this document.

l On NE80E/40E series excluding NE40E-X1 and NE40E-X2, line processing boards are called Line

Processing Units (LPUs) and switching fabric boards are called Switching Fabric Units (SFUs). On the NE40E-X1 and NE40E-X2, there are no LPUs and SFUs, and NPUs implement the same functions of LPUs and SFUs to exchange and forward packets.

Related Versions

The following table lists the product versions related to this document.

Product Name

HUAWEI NetEngine80E/40E Router

Intended Audience

This document is intended for:

l Commissioning Engineer

l Data Configuration Engineer

l Network Monitoring Engineer

l System Maintenance Engineer

Version

V600R003C00

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 4

DANGER

WARNING

CAUTION

TIP

NOTE

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations About This Document

Symbol Description

Alerts you to a high risk hazard that could, if not avoided, result in serious injury or death.

Alerts you to a medium or low risk hazard that could, if not avoided, result in moderate or minor injury.

Alerts you to a potentially hazardous situation that could, if not avoided, result in equipment damage, data loss, performance deterioration, or unanticipated results.

Provides a tip that may help you solve a problem or save time.

Provides additional information to emphasize or supplement important points in the main text.

Command Conventions

The command conventions that may be found in this document are defined as follows.

Convention

Boldface The keywords of a command line are in boldface.

Italic Command arguments are in italics.

[ ] Items (keywords or arguments) in brackets [ ] are optional.

{ x | y | ... } Optional items are grouped in braces and separated by

[ x | y | ... ] Optional items are grouped in brackets and separated by

{ x | y | ... }

[ x | y | ... ]

&<1-n> The parameter before the & sign can be repeated 1 to n times.

Description

vertical bars. One item is selected.

vertical bars. One item is selected or no item is selected.

Optional items are grouped in braces and separated by vertical bars. A minimum of one item or a maximum of all items can be selected.

Optional items are grouped in brackets and separated by vertical bars. Several items or no item can be selected.

# A line starting with the # sign is comments.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

iii

Page 5

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations About This Document

Change History

Changes between document issues are cumulative. The latest document issue contains all the changes made in earlier issues.

Changes in Issue 02 (2011-09-10)

The second commercial release.

l Device Maintenance

10.8 Configuring a Working Mode for an LPUF-40 or LPUF-20/21 is added to describe

the configuration of service mode for an LPUF-20/21 or LPUF-40.

Changes in Issue 01 (2011-06-30)

Initial commercial release.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 6

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

About This Document.....................................................................................................................ii

1 Logging In to the System for the First Time............................................................................1

1.1 Introduction to Log In to the Device for the First Time.....................................................................................2

1.2 Logging In to the Device Through the Console Port..........................................................................................2

1.2.1 Establishing the Configuration Task.........................................................................................................2

1.2.2 Establishing the Physical Connection........................................................................................................3

1.2.3 Logging in to the router.............................................................................................................................3

1.3 Logging In to the router That Supports the Plug-and-Play Function.................................................................5

2 CLI Overview.................................................................................................................................7

2.1 CLI Introduction.................................................................................................................................................8

2.1.1 Command Line Interface...........................................................................................................................8

2.1.2 Command Levels.......................................................................................................................................8

2.1.3 Command Line Views.............................................................................................................................11

2.2 Online Help.......................................................................................................................................................12

2.2.1 Full Help..................................................................................................................................................12

2.2.2 Partial Help..............................................................................................................................................13

2.2.3 Error Messages of the Command Line Interface.....................................................................................13

2.3 CLI Features.....................................................................................................................................................14

2.3.1 Editing.....................................................................................................................................................14

2.3.2 Displaying................................................................................................................................................14

2.3.3 Regular Expressions................................................................................................................................15

2.3.4 Previously-Used Commands...................................................................................................................18

2.3.5 Batch Command Execution.....................................................................................................................19

2.4 Shortcut Keys...................................................................................................................................................20

2.4.1 Classifying Shortcut Keys.......................................................................................................................20

2.4.2 Defining Shortcut Keys...........................................................................................................................22

2.4.3 Use of Shortcut Keys...............................................................................................................................22

2.5 Configuration Examples...................................................................................................................................23

2.5.1 Example for Running Commands in Batches..........................................................................................23

2.5.2 Example for Using Tab............................................................................................................................24

2.5.3 Example for Using Shortcut Keys...........................................................................................................25

2.5.4 Example for Copying Commands Using Shortcut Keys.........................................................................25

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 7

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

3 Basic Configuration.....................................................................................................................27

3.1 Configuring the Basic System Environment....................................................................................................28

3.1.1 Establishing the Configuration Task.......................................................................................................28

3.1.2 Switching the Language Mode................................................................................................................28

3.1.3 Configuring the Equipment Name...........................................................................................................29

3.1.4 Setting the System Clock.........................................................................................................................29

3.1.5 Configuring a Header..............................................................................................................................30

3.1.6 Configuring Command Levels................................................................................................................31

3.1.7 Configuring the Undo Command to Match in the Previous View Automatically..................................32

3.2 Displaying System Status Messages.................................................................................................................33

3.2.1 Displaying System Configuration...........................................................................................................33

3.2.2 Displaying System Status........................................................................................................................34

3.2.3 Collecting System Diagnostic Information.............................................................................................34

4 Configuring User Interface........................................................................................................35

4.1 User Interface Overview...................................................................................................................................36

4.2 Configuring the Console User Interface...........................................................................................................38

4.2.1 Establishing the Configuration Task.......................................................................................................38

4.2.2 Setting Physical Attributes of Console User Interface............................................................................38

4.2.3 Setting Terminal Attributes of Console User Interface...........................................................................40

4.2.4 Configuring User Priority of Console User Interface..............................................................................41

4.2.5 Configuring the User Authentication Mode of the Console User Interface............................................41

4.2.6 Checking the Configuration.....................................................................................................................43

4.3 Configuring the AUX User Interface...............................................................................................................44

4.3.1 Establishing the Configuration Task.......................................................................................................44

4.3.2 Setting Physical Attributes of AUX User Interface.................................................................................44

4.3.3 Setting Terminal Attributes of AUX User Interface................................................................................46

4.3.4 Setting User Priority of AUX User Interface..........................................................................................47

4.3.5 Setting Modem Attributes of AUX User Interface..................................................................................47

4.3.6 (Optional) Configuring Auto-Execute Commands of AUX User Interface............................................48

4.3.7 Setting User Authentication Mode of AUX User Interface.....................................................................49

4.3.8 Checking the Configuration.....................................................................................................................50

4.4 Configuring VTY User Interface......................................................................................................................51

4.4.1 Establishing the Configuration Task.......................................................................................................51

4.4.2 Configuring Maximum VTY User Interfaces.........................................................................................52

4.4.3 (Optional)Setting Limit on Incoming and Outgoing Calls of VTY User Interfaces...............................53

4.4.4 Setting Terminal Attributes of the VTY User Interface..........................................................................53

4.4.5 Setting User Priority of VTY User Interface...........................................................................................54

4.4.6 Setting User Authentication Mode of the VTY User Interface...............................................................55

4.4.7 (Optional) Configuring NMS Users to Log In Through VTY User Interfaces.......................................56

4.4.8 Checking the Configuration.....................................................................................................................58

4.5 Configuration Examples...................................................................................................................................59

4.5.1 Example for Configuring Console User Interface...................................................................................59

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 8

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

4.5.2 Example for Configuring AUX User Interface.......................................................................................61

4.5.3 Example for Configuring VTY User Interface........................................................................................63

5 Configuring User Login.............................................................................................................65

5.1 Overview of User Login...................................................................................................................................67

5.2 Logging in to the Devices Through the Console Port......................................................................................67

5.2.1 Establishing the Configuration Task.......................................................................................................68

5.2.2 Configuring Console User Interface........................................................................................................68

5.2.3 Logging in to the router Through a Console Port....................................................................................68

5.2.4 Checking the Configuration.....................................................................................................................69

5.3 Logging in to the Devices Through the AUX Port...........................................................................................70

5.3.1 Establishing the Configuration Task.......................................................................................................70

5.3.2 Configuring AUX User Interface............................................................................................................71

5.3.3 Logging in to the routerThrough an AUX Port.......................................................................................71

5.3.4 Checking the Configuration.....................................................................................................................74

5.4 Logging in to the Devices by Using Telnet......................................................................................................75

5.4.1 Establishing the Configuration Task.......................................................................................................75

5.4.2 Configuring VTY User Interface.............................................................................................................76

5.4.3 (Optional) Configuring Local Telnet Users.............................................................................................77

5.4.4 Enabling the Telnet Service.....................................................................................................................77

5.4.5 (Optional) Configuring Listening Port Number for Telnet Server..........................................................78

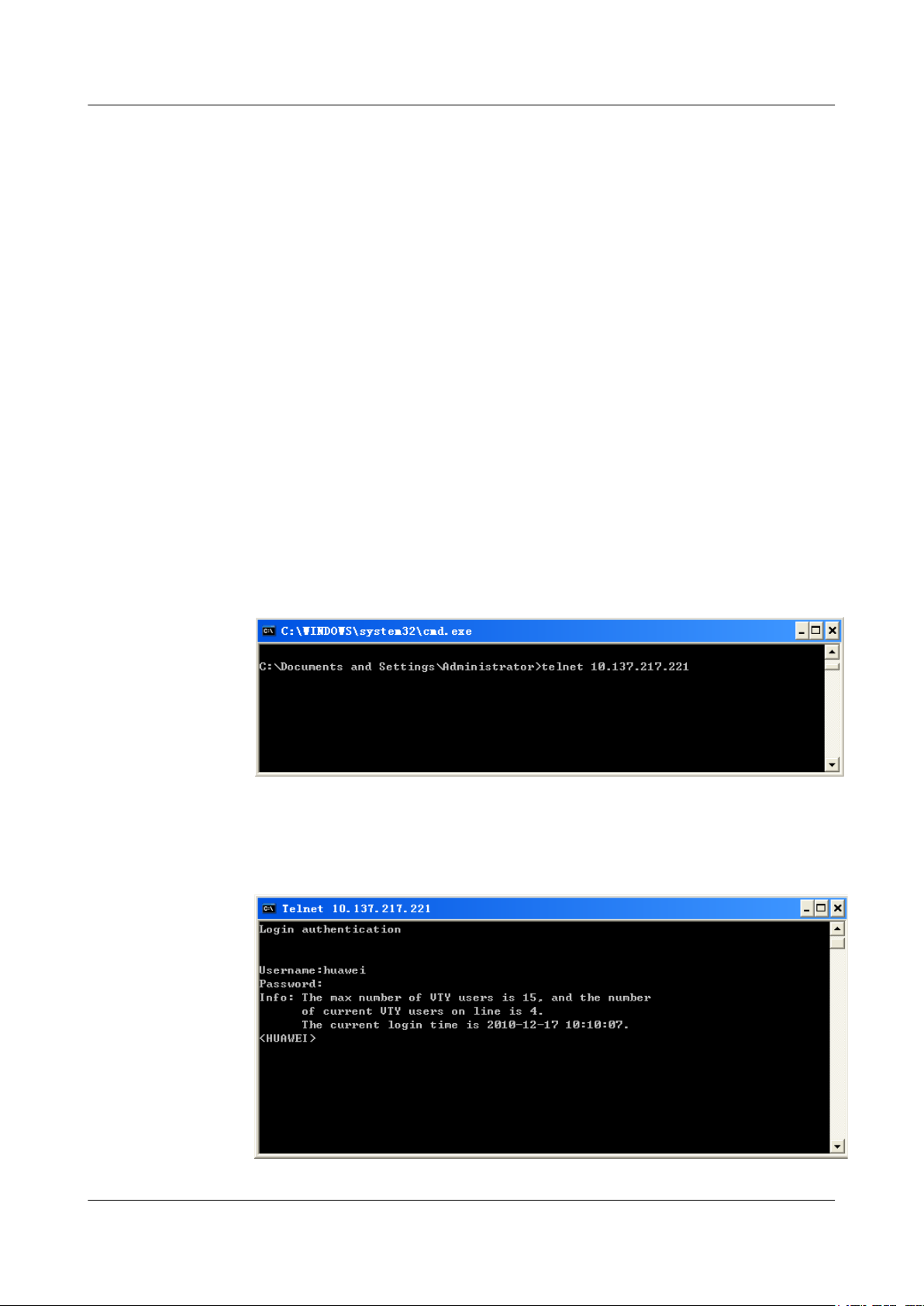

5.4.6 Logging in to the router by Using Telnet................................................................................................79

5.4.7 Checking the Configuration.....................................................................................................................80

5.5 Logging in to the Devices by Using STelnet....................................................................................................81

5.5.1 Establishing the Configuration Task.......................................................................................................81

5.5.2 Configuring VTY User Interface.............................................................................................................82

5.5.3 Configuring SSH for the VTY User Interface.........................................................................................82

5.5.4 Configuring an SSH User and Specifying STelnet as One of Service Types.........................................83

5.5.5 Enabling the STelnet Server Function.....................................................................................................86

5.5.6 (Optional) Configuring the STelnet Server Parameters...........................................................................86

5.5.7 Logging in to the router by Using STelnet..............................................................................................88

5.5.8 Checking the Configuration.....................................................................................................................89

5.6 Common Operations After Login.....................................................................................................................90

5.6.1 Establishing the Configuration Task.......................................................................................................90

5.6.2 Switching User Levels.............................................................................................................................90

5.6.3 Locking User Interfaces...........................................................................................................................91

5.6.4 Sending Messages to Other User Interfaces............................................................................................92

5.6.5 Displaying Logged-in Users....................................................................................................................92

5.6.6 Clearing Logged-in Users........................................................................................................................93

5.6.7 Configuring Configuration Locking........................................................................................................93

5.7 Configuration Examples...................................................................................................................................94

5.7.1 Example for Configuring User Login Through a Console Port..............................................................94

5.7.2 Example for Logging In Through the AUX Port....................................................................................97

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

vii

Page 9

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

5.7.3 Example for Configuring User Login by Using Telnet...........................................................................98

5.7.4 Example for Configuring User Login by Using STelnet.......................................................................101

6 Managing File System..............................................................................................................105

6.1 File System Overview....................................................................................................................................106

6.1.1 File System............................................................................................................................................106

6.1.2 Methods of File Management................................................................................................................106

6.2 Performing File Operations by Means of the File System.............................................................................107

6.2.1 Establishing the Configuration Task.....................................................................................................107

6.2.2 Managing Storage Devices....................................................................................................................108

6.2.3 Managing the Directory.........................................................................................................................108

6.2.4 Managing Files......................................................................................................................................109

6.3 Performing File Operations by Means of FTP...............................................................................................111

6.3.1 Establishing the Configuration Task.....................................................................................................112

6.3.2 Configuring a Local FTP User..............................................................................................................112

6.3.3 (Optional) Specifying a Port Number for the FTP Server.....................................................................113

6.3.4 Enabling the FTP Server........................................................................................................................114

6.3.5 (Optional) Configuring the FTP Server Parameters..............................................................................114

6.3.6 (Optional) Configuring an FTP ACL....................................................................................................115

6.3.7 Accessing the System by Using FTP.....................................................................................................116

6.3.8 Performing File Operations by Using FTP Commands.........................................................................117

6.3.9 Checking the Configuration...................................................................................................................119

6.4 Performing File Operations by Means of SFTP.............................................................................................119

6.4.1 Establishing the Configuration Task.....................................................................................................119

6.4.2 Configuring VTY User Interface...........................................................................................................120

6.4.3 Configuring SSH for the VTY User Interface.......................................................................................120

6.4.4 Configuring an SSH User and Specifying SFTP as One of Service Types...........................................121

6.4.5 Enabling the SFTP Service....................................................................................................................124

6.4.6 (Optional) Configuring the STelnet Server Parameters.........................................................................125

6.4.7 Accessing the System by Using SFTP..................................................................................................126

6.4.8 Performing File Operations by Using SFTP..........................................................................................127

6.4.9 Checking the Configuration...................................................................................................................128

6.5 Performing File Operations by Means of Xmodem.......................................................................................129

6.5.1 Establishing the Configuration Task.....................................................................................................130

6.5.2 Getting a File Through Xmodem...........................................................................................................130

6.6 Configuration Examples.................................................................................................................................131

6.6.1 Example for Performing File Operations by Means of the File System...............................................131

6.6.2 Example for Performing File Operations by Means of FTP.................................................................132

6.6.3 Example for Performing File Operations by Means of SFTP...............................................................135

6.6.4 Example for Performing File Operations by Means of Xmodem..........................................................137

7 Configuring System Startup....................................................................................................140

7.1 System Startup Overview...............................................................................................................................141

7.1.1 System Software....................................................................................................................................141

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

viii

Page 10

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

7.1.2 Configuration Files................................................................................................................................141

7.1.3 Configuration Files and Current Configurations...................................................................................141

7.2 Managing Configuration Files........................................................................................................................142

7.2.1 Establishing the Configuration Task.....................................................................................................142

7.2.2 Saving Configuration Files....................................................................................................................143

7.2.3 Clearing a Configuration File................................................................................................................144

7.2.4 Comparing Configuration Files.............................................................................................................145

7.2.5 Checking the Configuration...................................................................................................................146

7.3 Specifying a File for System Startup..............................................................................................................147

7.3.1 Establishing the Configuration Task.....................................................................................................147

7.3.2 Configuring System Software for a router to Load for the Next Startup..............................................147

7.3.3 Configuring the Configuration File for Router to Load for the Next Startup.......................................148

7.3.4 Checking the Configuration...................................................................................................................148

7.4 Configuration Examples.................................................................................................................................149

7.4.1 Example for Configuring System Startup.............................................................................................149

8 Accessing Another Device.......................................................................................................152

8.1 Accessing Another Device.............................................................................................................................153

8.1.1 Telnet Method........................................................................................................................................153

8.1.2 FTP Method...........................................................................................................................................155

8.1.3 TFTP Method........................................................................................................................................155

8.1.4 SSH Method..........................................................................................................................................156

8.2 Logging in to Other Devices by Using Telnet................................................................................................157

8.2.1 Establishing the Configuration Task.....................................................................................................157

8.2.2 (Optional) Configuring a Source IP Address for an Telnet Client........................................................158

8.2.3 Logging in to Another Device by Using Telnet....................................................................................158

8.2.4 Checking the Configuration...................................................................................................................159

8.3 Connecting to Another Device by Using the Telnet Redirection Function....................................................160

8.3.1 Establishing the Configuration Task.....................................................................................................160

8.3.2 Enabling the Telnet Redirection Function.............................................................................................161

8.3.3 Connecting Another Device by Using the Telnet Redirection Function...............................................162

8.3.4 Checking the Configuration...................................................................................................................162

8.4 Logging in to Another Device by Using STelnet...........................................................................................163

8.4.1 Establishing the Configuration Task.....................................................................................................163

8.4.2 Configuring the First Successful Login to Another Device (Enabling the First-Time Authentication on

the SSH Client)...............................................................................................................................................163

8.4.3 Configuring the First Successful Login to Another Device (Allocating an RSA Public Key to the SSH

Server)............................................................................................................................................................164

8.4.4 Logging in to Another Device by Using STelnet..................................................................................166

8.4.5 Checking the configuration...................................................................................................................166

8.5 Accessing Files on Another Device by Using TFTP......................................................................................167

8.5.1 Establishing the Configuration Task.....................................................................................................167

8.5.2 (Optional) Configuring a Source IP Address for a TFTP Client...........................................................168

8.5.3 (Optional) Configuring TFTP Access Authority...................................................................................168

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 11

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

8.5.4 Downloading Files by Using TFTP.......................................................................................................169

8.5.5 Uploading Files by Using TFTP............................................................................................................169

8.5.6 Checking the Configuration...................................................................................................................170

8.6 Accessing Files on Another Device by Using FTP........................................................................................170

8.6.1 Establishing the Configuration Task.....................................................................................................171

8.6.2 (Optional) Configuring Source IP Address and Interface of the FTP Client........................................171

8.6.3 Connecting to Other Devices by Using FTP Commands......................................................................172

8.6.4 Operating Files by Using FTP Commands............................................................................................173

8.6.5 Changing Login Users...........................................................................................................................175

8.6.6 Disconnecting from the FTP Server......................................................................................................176

8.6.7 Checking the Configuration...................................................................................................................176

8.7 Accessing Files on Another Device by Using SFTP......................................................................................177

8.7.1 Establishing the Configuration Task.....................................................................................................177

8.7.2 (Optional) Configuring a Source IP Address for an SFTP Client.........................................................178

8.7.3 Configuring the First Successful Login to Another Device (Enabling the First-Time Authentication on

the SSH Client)...............................................................................................................................................178

8.7.4 Configuring the First Successful Login to Another Device (Allocating an RSA Public Key to the SSH

Server)............................................................................................................................................................179

8.7.5 Connecting to Other Devices by Using SFTP.......................................................................................180

8.7.6 Operating Files by Using SFTP Commands..........................................................................................181

8.7.7 Checking the Configuration...................................................................................................................183

8.8 Configuration Examples.................................................................................................................................183

8.8.1 Example for Logging in to Another Device by Using Telnet...............................................................183

8.8.2 Example for Logging in to Another Device by Using the Telnet Redirection Function.......................186

8.8.3 Example for Logging in to Another Device by Using Telnet on a VPN...............................................187

8.8.4 Example for Configuring the Device as the STelnet Client to Connect to the SSH Server..................189

8.8.5 Example for Accessing Files on Another Device by Using TFTP........................................................195

8.8.6 Example for Configuring the Access of the TFTP Server on the Public Network When the Management

VPN Instance Is Used.....................................................................................................................................197

8.8.7 Example for Accessing Files on Another Device by Using FTP..........................................................199

8.8.8 Example for Configuring the Access of the FTP Server on the Public Network When the Management

VPN Instance Is Used.....................................................................................................................................201

8.8.9 Example for Accessing Files on Another Device by Using SFTP........................................................202

8.8.10 Example for Configuring the Access of the SFTP Server on the Public Network When the Management

VPN Instance Is Used.....................................................................................................................................208

8.8.11 Example for Accessing the SSH Server Through Other Port Numbers..............................................213

8.8.12 Example for an SSH Client in the Public Network to Access an SSH Server in the Private Network

........................................................................................................................................................................219

9 Clock Synchronization Configuration..................................................................................229

9.1 Introduction of Clock Synchronization Configuration...................................................................................230

9.1.1 Overview of Clock Synchronization Configuration..............................................................................230

9.1.2 Clock Synchronization Supported by the NE80E/40E..........................................................................230

9.2 Setting Basic Configurations for Clock Synchronization...............................................................................230

9.2.1 Establishing the Configuration Task.....................................................................................................231

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 12

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

9.2.2 Setting Basic Configurations for Clock Synchronization......................................................................231

9.2.3 Checking the Configuration...................................................................................................................232

9.3 Configuring an External BITS Clock Source.................................................................................................232

9.3.1 Establishing the Configuration Task.....................................................................................................233

9.3.2 Configuring the Lower Threshold of the Clock Signals Output by the BITS Clock............................233

9.3.3 Configuring an External Clock Source and Its Signal Type on the router............................................233

9.3.4 Checking the Configuration...................................................................................................................234

9.4 Configuring a Clock Reference Source Manually or Forcibly.......................................................................234

9.4.1 Establishing the Configuration Task.....................................................................................................234

9.4.2 Configuring a Clock Reference Source.................................................................................................235

9.4.3 Checking the Configuration...................................................................................................................236

9.5 Configuring Clock Protection Switching Based on SSM Levels...................................................................237

9.5.1 Establishing the Configuration Task.....................................................................................................237

9.5.2 Configuring the Router to Automatically Select Clock Sources...........................................................237

9.5.3 Enabling SSM........................................................................................................................................238

9.5.4 Configuring the SSM Level of the Clock Reference Source.................................................................238

9.5.5 Setting a Timeslot of the 2.048 Mbit/s BITS Clock Signal to Carry SSMs..........................................239

9.5.6 Setting the Modes of Extracting SSM Levels.......................................................................................239

9.5.7 Checking the Configuration...................................................................................................................240

9.6 Configuring Clock Protection Switching Based on Priorities........................................................................241

9.6.1 Establishing the Configuration Task.....................................................................................................241

9.6.2 Configuring the Router to Automatically Select Clock Sources...........................................................241

9.6.3 Disabling SSM.......................................................................................................................................242

9.6.4 Setting Priorities of Clock Reference Sources......................................................................................242

9.6.5 Checking the Configuration...................................................................................................................243

9.7 Configuring Ethernet Clock Synchronization................................................................................................243

9.7.1 Establishing the Configuration Task.....................................................................................................243

9.7.2 Enabling Ethernet Clock Synchronization............................................................................................244

9.7.3 Configuring Ethernet Clock Source......................................................................................................245

9.7.4 Checking the Configuration...................................................................................................................245

9.8 Configuration Examples of Clock Synchronization.......................................................................................246

9.8.1 Example for Configuring Protection Switchover of Clock Sources......................................................246

10 Device Maintenance................................................................................................................254

10.1 Introduction of Device Maintenance............................................................................................................256

10.1.1 Overview of Device Maintenance.......................................................................................................256

10.1.2 Maintenance Features Supported by the NE80E/40E.........................................................................256

10.2 Powering off the MPU..................................................................................................................................256

10.2.1 Establishing the Configuration Task...................................................................................................256

10.2.2 Powering off the Slave MPU...............................................................................................................257

10.2.3 Checking the Configuration.................................................................................................................258

10.3 Powering off the SFU...................................................................................................................................258

10.3.1 Establishing the Configuration Task...................................................................................................259

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 13

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

10.3.2 Powering off the SFU..........................................................................................................................259

10.3.3 Checking the Configuration.................................................................................................................260

10.4 Powering off the NPU..................................................................................................................................260

10.4.1 Establishing the Configuration Task...................................................................................................261

10.4.2 Powering off the NPU.........................................................................................................................261

10.4.3 Checking the Configuration.................................................................................................................262

10.5 Powering off the LPU...................................................................................................................................262

10.5.1 Establishing the Configuration Task...................................................................................................262

10.5.2 Powering off the LPU..........................................................................................................................263

10.5.3 Checking the Configuration.................................................................................................................263

10.6 Restoring the Bandwidth of 10GE LAN/WAN Interfaces on an NPU to 10 Gbit/s....................................264

10.6.1 Establishing the Configuration Task...................................................................................................264

10.6.2 Restoring the bandwidth of 10GE LAN/WAN interfaces on an NPU to 10 Gbit/s............................265

10.6.3 Checking the Configuration.................................................................................................................265

10.7 Switching Between the Operation Modes of the LPUF-10..........................................................................266

10.7.1 Establishing the Configuration Task...................................................................................................266

10.7.2 Switching Between the Operation Modes of the LPUF-10.................................................................267

10.7.3 Checking the Configuration.................................................................................................................267

10.8 Configuring a Working Mode for an LPUF-40 or LPUF-20/21..................................................................268

10.8.1 Establishing the Configuration Task...................................................................................................268

10.8.2 Configuring a Service Mode for an LPUF-20/21 or LPUF-40...........................................................269

10.8.3 Checking the Configuration.................................................................................................................270

10.9 Configuring the CMU...................................................................................................................................271

10.9.1 Establishing the Configuration Task...................................................................................................271

10.9.2 Configuring Monitor Items for a CMU...............................................................................................271

10.10 Configuring a Cleaning Cycle for the Air Filter.........................................................................................272

10.10.1 Establishing the Configuration Task.................................................................................................272

10.10.2 Configuring a Cleaning Cycle for the Air Filter................................................................................272

10.10.3 Remonitoring the Cleaning Cycle of the Air Filter...........................................................................273

10.10.4 Checking the Configuration...............................................................................................................273

10.11 Monitoring the Device Status.....................................................................................................................274

10.11.1 Displaying the System Version Information.....................................................................................274

10.11.2 Displaying Basic Information About the Router...............................................................................274

10.11.3 Displaying the Electronic Label........................................................................................................275

10.11.4 Displaying the Soft Boot Mode.........................................................................................................275

10.11.5 Displaying the Threshold of the Memory Usage...............................................................................276

10.11.6 Displaying the Threshold of CPU Usage..........................................................................................276

10.11.7 Displaying Alarm Information..........................................................................................................276

10.11.8 Displaying the Board Temperature....................................................................................................277

10.11.9 Displaying the Board Voltage...........................................................................................................277

10.11.10 Displaying the Power Supply Status...............................................................................................278

10.11.11 Displaying Current Information About Boards...............................................................................278

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

xii

Page 14

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

10.11.12 Displaying Entironment Information About the Device.................................................................279

10.11.13 Displaying the Fan Status................................................................................................................279

10.11.14 Displaying the Sequence Number of the MPU...............................................................................279

10.11.15 Displaying the Next Start Mode of the Board.................................................................................280

10.11.16 Displaying the Number of the Registered SFUs By Default...........................................................280

10.12 Board Maintence ........................................................................................................................................281

10.12.1 Resetting a Board...............................................................................................................................281

10.12.2 Clearing the Maximum CPU Usage..................................................................................................281

10.13 Configuring NAP-based Remote Deployment...........................................................................................282

10.13.1 Establishing the Configuration Task.................................................................................................282

10.13.2 Configuring and Starting the NAP Master Interface.........................................................................283

10.13.3 Remote Login....................................................................................................................................285

10.13.4 Disabling NAP on the Slave Device..................................................................................................285

10.13.5 Checking the Configuration...............................................................................................................286

10.14 Configuration Examples of the Device Maintenance.................................................................................287

10.14.1 Example for Powering off the MPU..................................................................................................287

10.14.2 Example for Powering off the SFU...................................................................................................289

10.14.3 Example for Powering off the LPU...................................................................................................290

10.14.4 Example for Configuring the Operation Mode of the LPUF-10.......................................................291

10.14.5 Example for Configuring NAP-based Remote Deployment in Automatic Mode.............................292

10.14.6 Example for Configuring NAP-based Remote Deployment in Static Mode.....................................293

11 Device Upgrading....................................................................................................................296

11.1 Overview of Device Upgrade.......................................................................................................................297

11.2 Upgrade Modes Supported by the NE80E/40E............................................................................................297

12 Patch Management..................................................................................................................299

12.1 Introduction of Patch Management..............................................................................................................300

12.1.1 Overview of Patch Management.........................................................................................................300

12.1.2 Patches Supported by the NE80E/40E................................................................................................301

12.2 Checking the Running of Patch in the System.............................................................................................302

12.2.1 Establishing the Configuration Task...................................................................................................302

12.2.2 Checking the Running of Patch in the System....................................................................................303

12.2.3 (Optional) Deleting a Patch.................................................................................................................303

12.3 Loading a Patch............................................................................................................................................304

12.3.1 Establishing the Configuration Task...................................................................................................304

12.3.2 Loading a Patch...................................................................................................................................304

12.3.3 Checking the Configuration.................................................................................................................305

12.4 Installing a Patch..........................................................................................................................................306

12.4.1 Establishing the Configuration Task...................................................................................................306

12.4.2 Loading a Patch...................................................................................................................................307

12.4.3 Activating a Patch................................................................................................................................307

12.4.4 Running a Patch...................................................................................................................................308

12.4.5 (Optional) Synchronizing Patches.......................................................................................................308

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

xiii

Page 15

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations Contents

12.4.6 Checking the Configuration.................................................................................................................309

12.5 (Optional) Unactivating the activating of Patch...........................................................................................313

12.5.1 Establishing the Configuration Task...................................................................................................313

12.5.2 Deactivating a Patch............................................................................................................................313

12.5.3 Checking the Configuration.................................................................................................................313

12.6 Configuration Examples of the Patch Management.....................................................................................314

12.6.1 Example for Installing a Patch.............................................................................................................314

A Glossary......................................................................................................................................317

B Acronyms and Abbreviations.................................................................................................323

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

xiv

Page 16

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 1 Logging In to the System for the First Time

1 Logging In to the System for the First Time

About This Chapter

You can log in to a new router through the console port to configure the router.

1.1 Introduction to Log In to the Device for the First Time

A user can log in to the router that is powered on for the first time through the console port or by the plug-and-play function to configure the router.

1.2 Logging In to the Device Through the Console Port

This section describes how to connect a terminal to a router through the console port to establish the configuration environment.

1.3 Logging In to the router That Supports the Plug-and-Play Function

The plug-and-play function enables the router to automatically access the network and obtains an IP address after the router is powered on. This allows engineers to remotely log in to the router to perform basic configurations.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 17

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 1 Logging In to the System for the First Time

1.1 Introduction to Log In to the Device for the First Time

A user can log in to the router that is powered on for the first time through the console port or by the plug-and-play function to configure the router.

The console port is a linear port on the main control board.

Each main control board provides one console port that conforms to the EIA/TIA-232 standard and whose type is DCE. The serial interface of a terminal can be directly connected to the console port on the router. Users can then configure the router on the terminal.

NOTE

When a device is powered on for the first time, you must log in to the device through the console port. It is a prerequisite for other login modes. For example, the IP address for Telnet login must be configured by logging in to the device through the console port.

NOTE

The plug-and-play function only can be configured on the X1 , X2 and X3 models of the NE80E/40E.

During site deployment, the routers reside far away from the equipment room. Sending software commissioning engineers to deploy the network at the site is quite costly. After the plug-andplay function is enabled, however, the router automatically obtains an IP address. Software commissioning engineers are able to remotely deliver configurations to the router through the NMS after installation personnel finishes hardware installation. This greatly simplifies installation and reduces costs with minimized site visits.

The plug-and-play function is controlled by a PAF file and users do not need to configure it manually. This function is automatically disabled after the router correctly obtains an IP address.

1.2 Logging In to the Device Through the Console Port

This section describes how to connect a terminal to a router through the console port to establish the configuration environment.

1.2.1 Establishing the Configuration Task

Before logging in to the router through the console port, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This will help you complete the configuration task quickly and accurately.

Applicable Environment

When the router is powered on for the first time, you need to use the console port to log in to the router to configure and manage the router.

Pre-configuration Tasks

Before logging in to the router through the console port, complete the following tasks:

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 18

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 1 Logging In to the System for the First Time

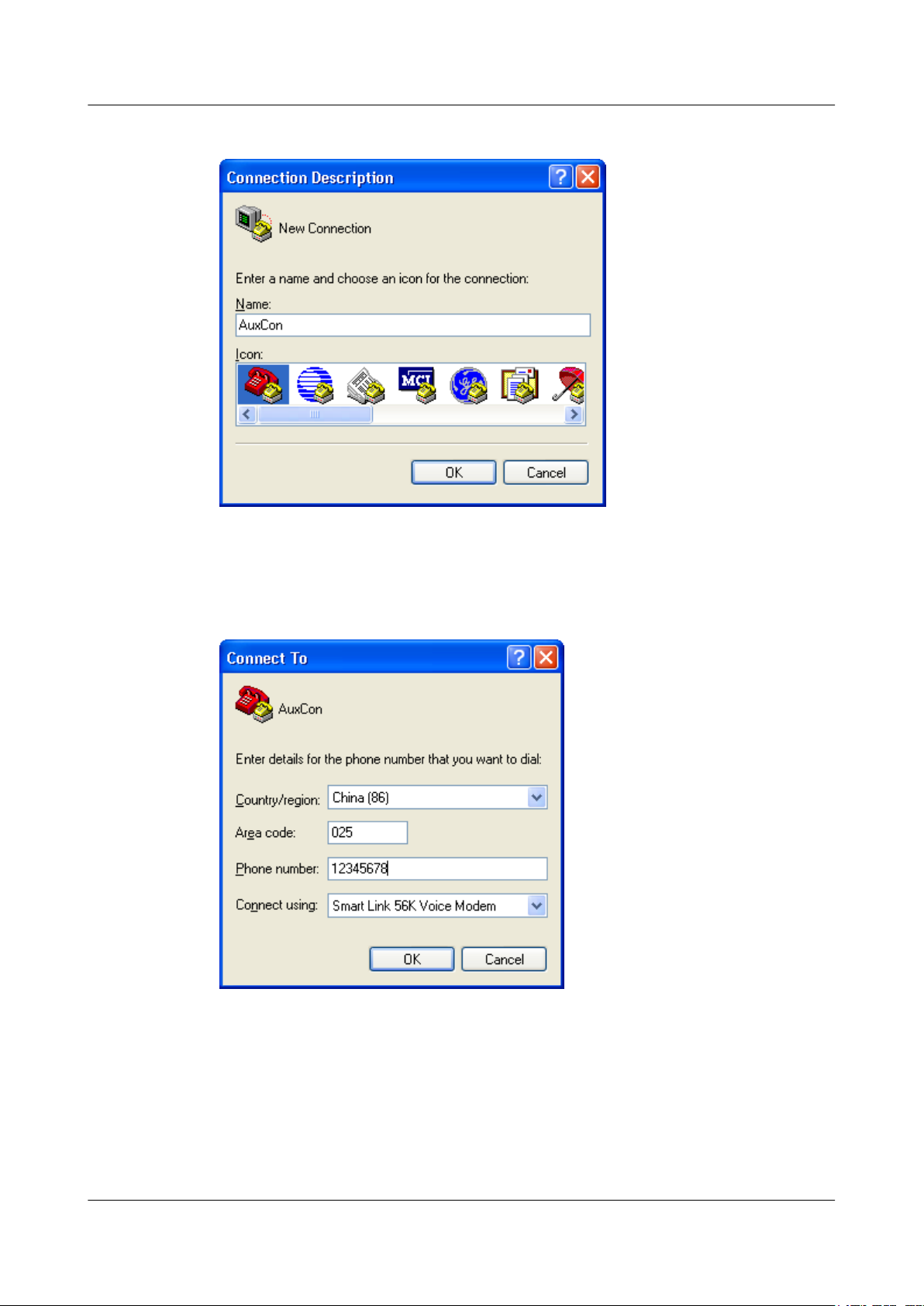

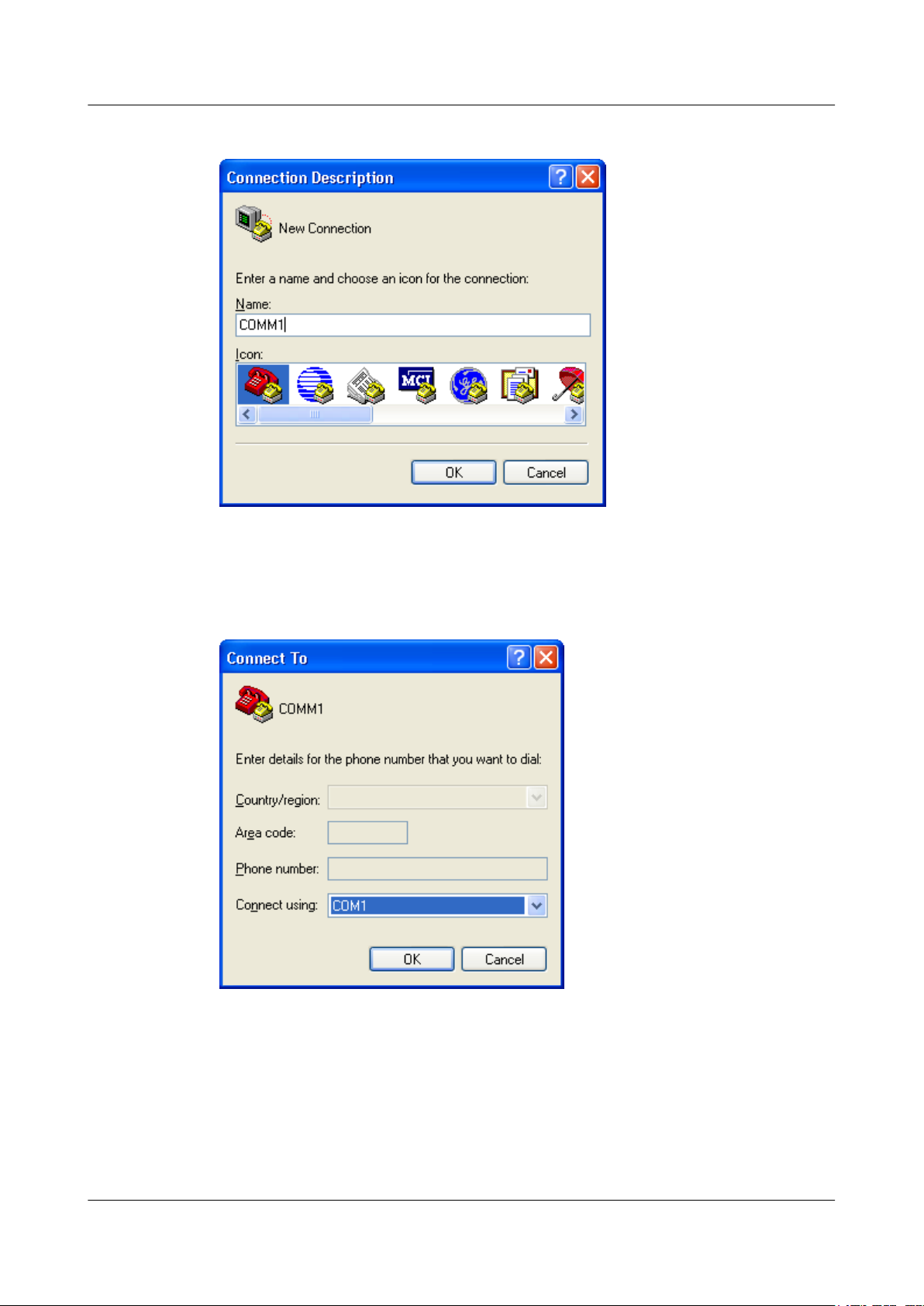

l Installing terminal emulation program on the PC (such as Windows XP HyperTerminal)

l Preparing the RS-232 cable

Data Preparation

To log in to the router through the console port, you need the following data.

No. Data

1 Terminal communication parameters

l Baud rate

l Data bit

l Parity

l Stop bit

l Flow-control mode

NOTE

When the router is logged in for the first time, the system automatically uses default parameter values.

1.2.2 Establishing the Physical Connection

The console port on the router must be connected to the COM port on a terminal by using a console cable.

Procedure

Step 1 Power on all devices to perform a self-check.

Step 2 Connect the COM port on the PC and the console port on the router by a cable.

----End

1.2.3 Logging in to the router

You can log in to the router through the console port to configure and manage the router that is powered on for the first time.

Context

You need to configure terminal attributes for the PC according to the attributes configured for the console port, including the transmission rate, data bit, parity bit, stop bit, and flow control mode. As the router is logged in for the first time, every terminal attribute uses the default value of the router.

Procedure

Step 1 Start a terminal emulator on the PC, and create a new connection, as shown in Figure 1-1.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 19

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 1 Logging In to the System for the First Time

Figure 1-1 Connection creation

Step 2 Set interface,as shown in Figure 1-2.

Figure 1-2 Interface setting

Step 3 Set communication parameter, same as the default of router,as shown in Figure 1-3.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 20

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 1 Logging In to the System for the First Time

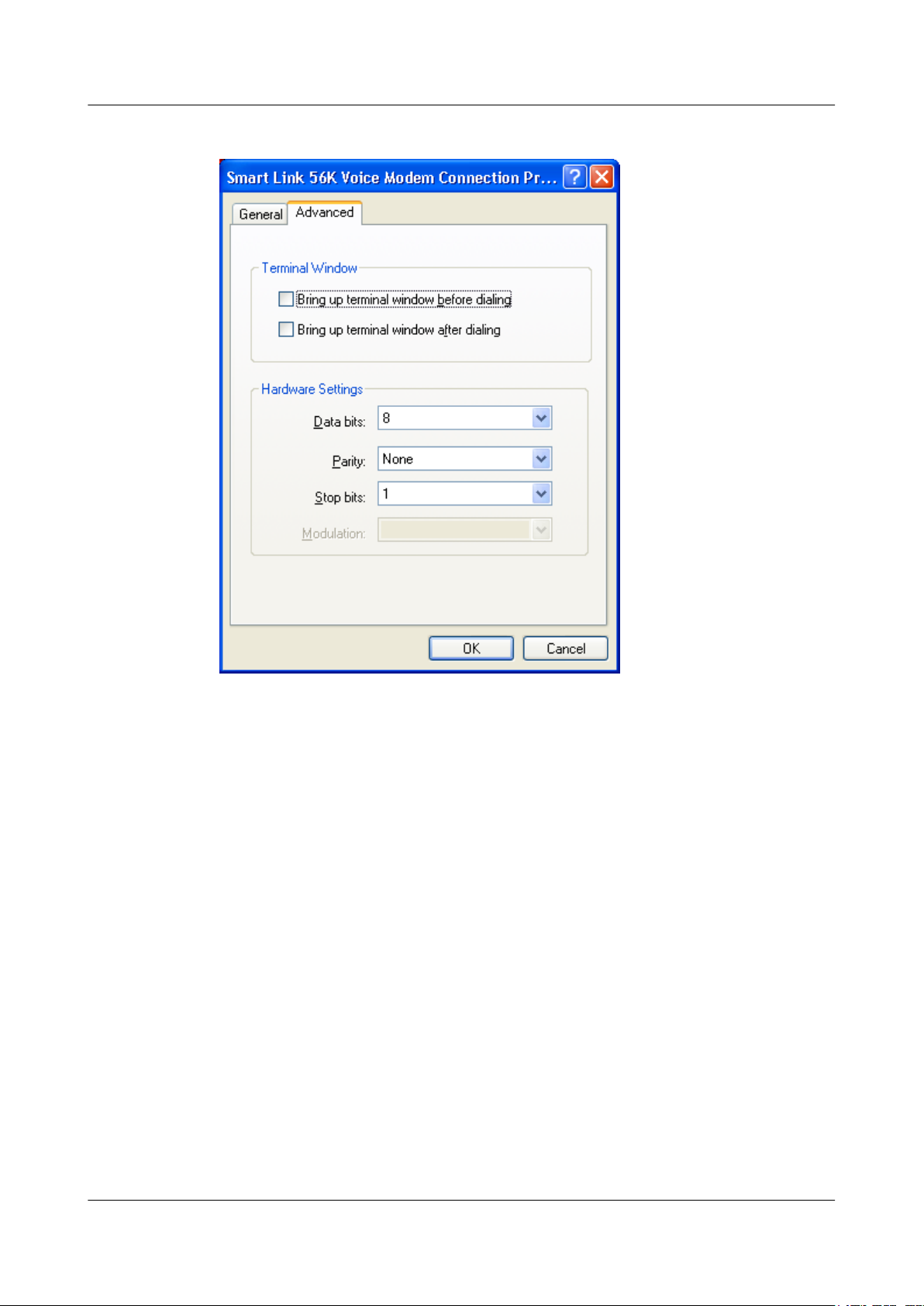

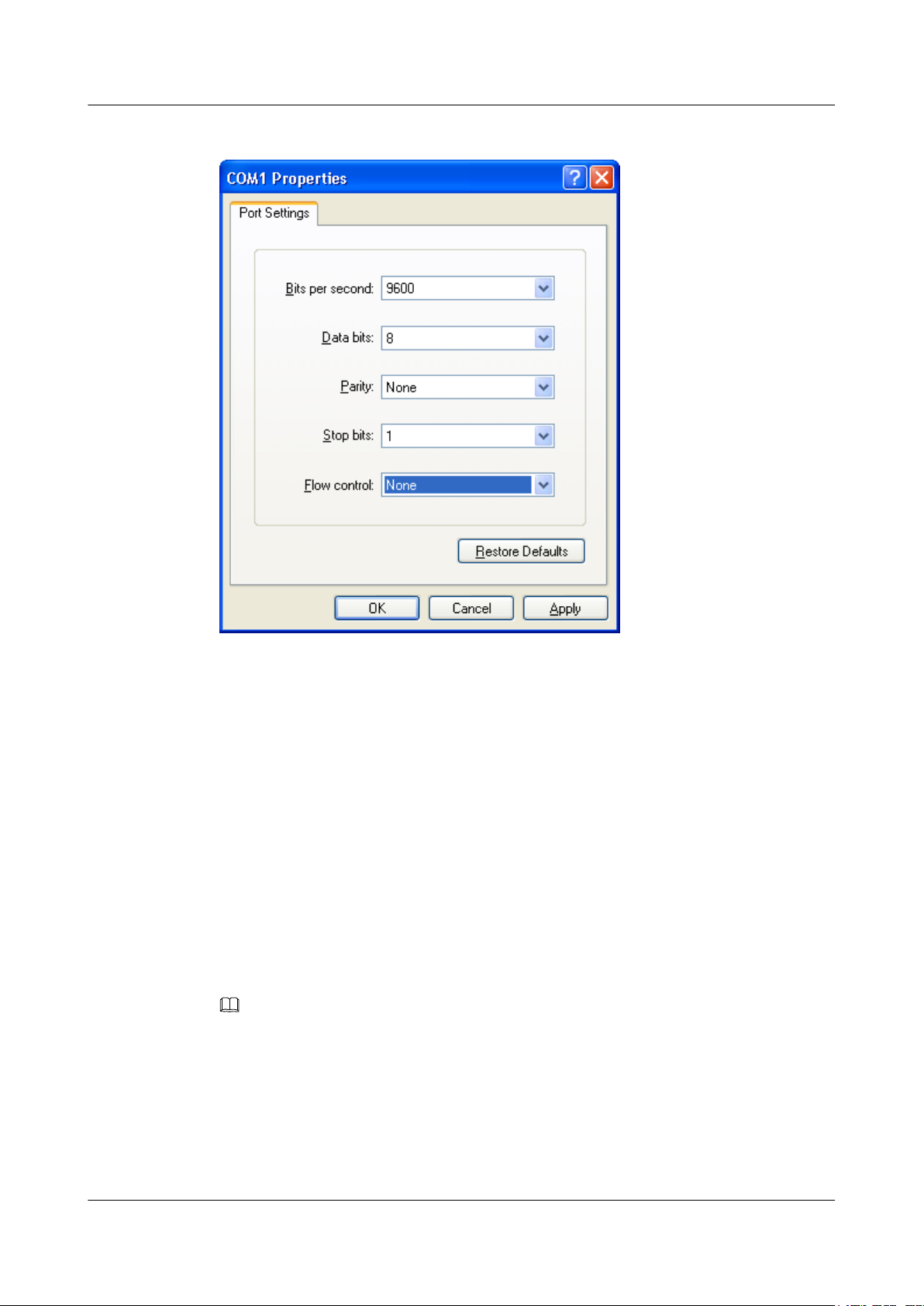

Figure 1-3 Communication parameter setting

Step 4 Press Enter. A command line prompt such as <HUAWEI> appears, and the user view is

displayed for you to configure the router.

----End

1.3 Logging In to the router That Supports the Plug-and-Play Function

Context

NOTE

The plug-and-play function only can be configured on the X1 , X2 and X3 models of the NE80E/40E.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 21

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 1 Logging In to the System for the First Time

by a PAF file and users do not need to configure it manually. This function is automatically disabled after the router correctly obtains an IP address. The process of logging in to the router supporting the plug-and-play function is as follows:

Procedure

Step 1 After planning the network, network planning engineers provide a planning list for software

commissioning engineers.

Step 2 Based on the planning list, software commissioning engineers configure the mappings between

the router locations and IP addresses on the DHCP server, compile configuration scripts, and configure the mappings between the router locations and scripts.

Step 3 Hardware installation personnel installs the router and power them on at the site.

Step 4 The router sends a DHCPREQUEST message to the DHCP server, and then the interface

connecting to the DHCP server obtains an IP address.

Step 5 The NMS delivers configurations to the router.

----End

Follow-up Procedure

If there is no DHCP server on the network or the router cannot obtain an IP address for some reason, the router displays the following information:

PNP State!!!PLEASE UNDO PNP enable for manual Setup! You can undo PNP in system view with "undo pnp enable"

At this time, do as follows to disable the plug-and-play function:

1. Run the system-view command to enter the system view.

2. Run the undo pnp enable command to disable the plug-and-play function.

3. Run the undo pnp default route command to delete the default route generated by the plug-and-play function.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 22

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

2 CLI Overview

About This Chapter

The command line interface (CLI) is used to configure and maintain devices.

2.1 CLI Introduction

After you log in to the router, a prompt is displayed, indicating that you enter the command line interface (CLI). The CLI is used by users to interact with the router.

2.2 Online Help

When inputting command lines or configuring services, you can use the online help function to obtain real-time help.

2.3 CLI Features

The CLI provides the following features to help users flexibly use it.

2.4 Shortcut Keys

Using the system or user-defined shortcut keys makes it easier to enter commands.

2.5 Configuration Examples

This section provides several examples for using command lines.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 23

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

2.1 CLI Introduction

After you log in to the router, a prompt is displayed, indicating that you enter the command line interface (CLI). The CLI is used by users to interact with the router.

2.1.1 Command Line Interface

You can configure and manage the router by using the CLI commands.

The characteristics of CLI are as follows:

l Local or remote configuration through the AUX port.

l Local configuration through console port.

l Local or remote configuration through Telnet or Secure Shell (SSH).

l Remote configuration by logging in to an asynchronous serial interface on the router

through Modem dialup.

l The telnet command for directly logging in to and managing other routers.

l FTP service for file uploading and downloading.

l A user interface view for specific configuration management.

l Hierarchical command protection for users of different levels, that is, running the

commands of the corresponding levels.

l Three authentication modes are supported, namely, none-authentication, password

authentication, and Authentication, Authorization, and Accounting (AAA) authentication. Password and AAA authentication prohibit unauthorized users from logging in to the router, guaranteeing system security.

l Entering "?" for online help at any time.

l A command line interpreter provides intelligent command resolution methods such as key

word fuzzy match and context conjunction. These methods make it easy for users to enter their commands.

l Network testing commands such as tracert and ping for rapidly diagnosing a network.

l Abundant debugging information to help in diagnosing the network.

l Running a command used previously on the device, like DosKey.

NOTE

l The system supports the command with up to 512 characters. The command can be incomplete. This

means that you can input initial characters (one or some) of the command to represent the whole command. The incomplete command, however, must be unqiue in the system. For example, to use the

display current-configuration command, just input d cu, di cu, or dis cu. d c or dis c, however, cannot

be input, becuse they are not unique to represent the display current-configuration command.

l The system saves the incomplete command to the configuration files in the complete form; therefore,

the command may have more than 512 characters. When the system is restarted, however, the incomplete command cannot be restored. Therefore, pay attention to the length of the incomplete command.

2.1.2 Command Levels

The system manages commands in hierarchy for security. The administrator can set user levels corresponding to command levels to implement user-specific access control.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 24

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

The default command levels are as follows:

Table 2-1 Command line levels

Level Name Description

0 Visit level Commands of this level include commands of network

diagnosis tool (such as ping and tracert) and commands that start from the local device and visit external device (such as Telnet client side).

1 Monitoring level Commands of this level, including the display commands,

are used for system maintenance and fault diagnosis.

2 Configuration

level

Commands of this level are service configuration commands that provide direct network service to the user, including routing and network layer commands.

3 Management level Commands of this level are commands that influence the

basic operation of the system and provide support to the service. They include file system commands, FTP commands, TFTP commands, XModem downloading commands, configuration file switching commands, power supply control commands, backup board control commands, user management commands, level setting commands, system internal parameter setting commands, and debugging commands that are used for fault diagnosis.

To implement efficient management, you can increase the command levels to 0-15. For the increase in the command levels, refer to Chapter 4 "Basic Configuration" Configuring

Command Levels in the HUAWEI NetEngine80E/40E Configuration Guide - Basic

Configurations.

NOTE

l The default command level may be higher than the command level defined according to the command

rules in application.

l The level of the command that a user can run is determined by the level of this user.

l Login users have the same 16 levels as the command levels. The login users can use only the command

of the levels that are equal to or lower than their own levels. The user privilege level level command sets the user level.

Searching Commands Based on Command Levels

You can search for all commands of a specific level simultaneously. The procedure is as follows:

1. Open the command reference (.chm.) file.

2. Click the "Search" tab. The search window will be displayed as shown in Figure 2-1.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 25

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

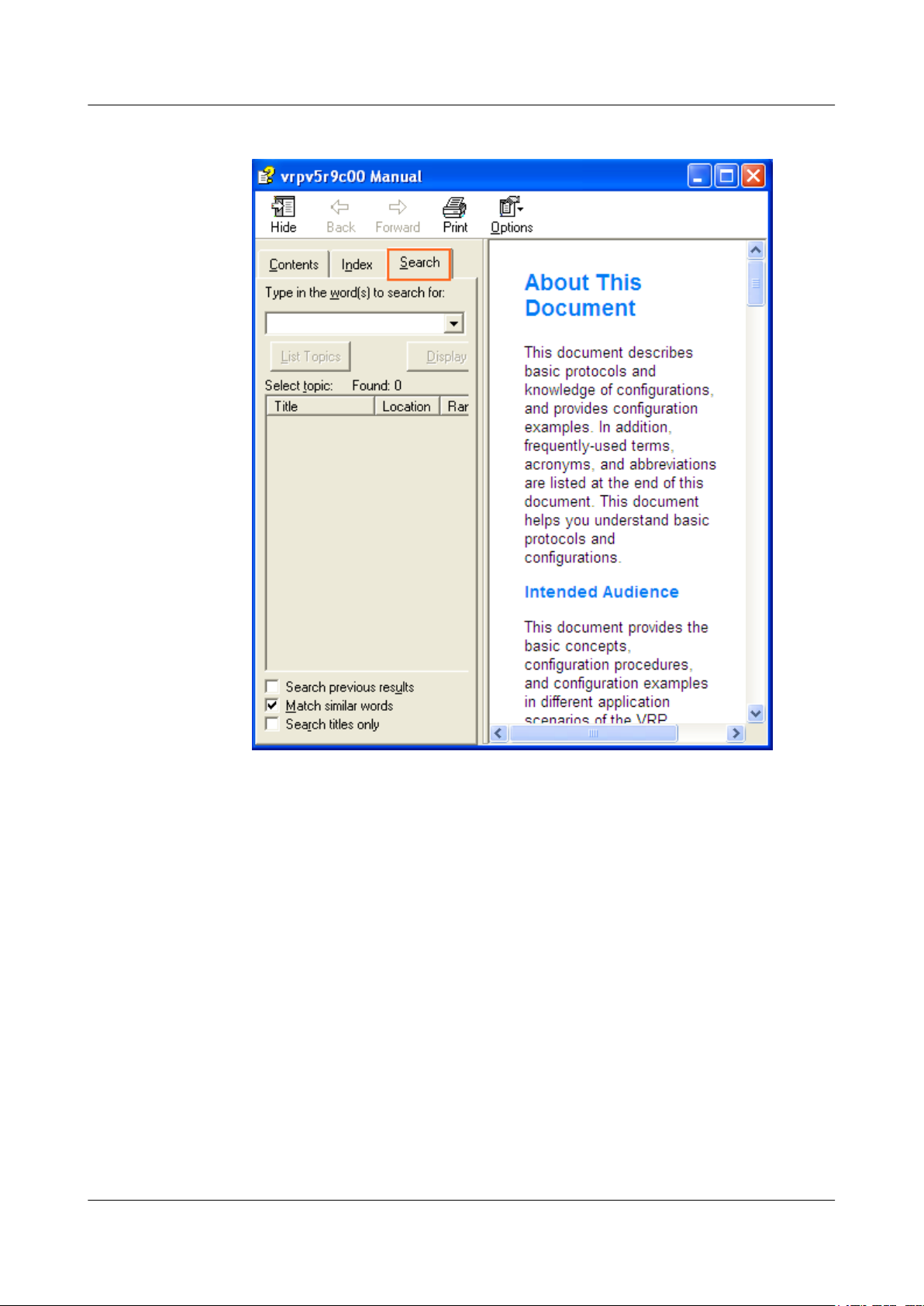

Figure 2-1 Entering the search window

3. Enter a desired command level in the "Type in the word(s) to search for" textbox and click "List Topics". All commands of the specified level will be displayed as shown in Figure

2-2.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 26

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

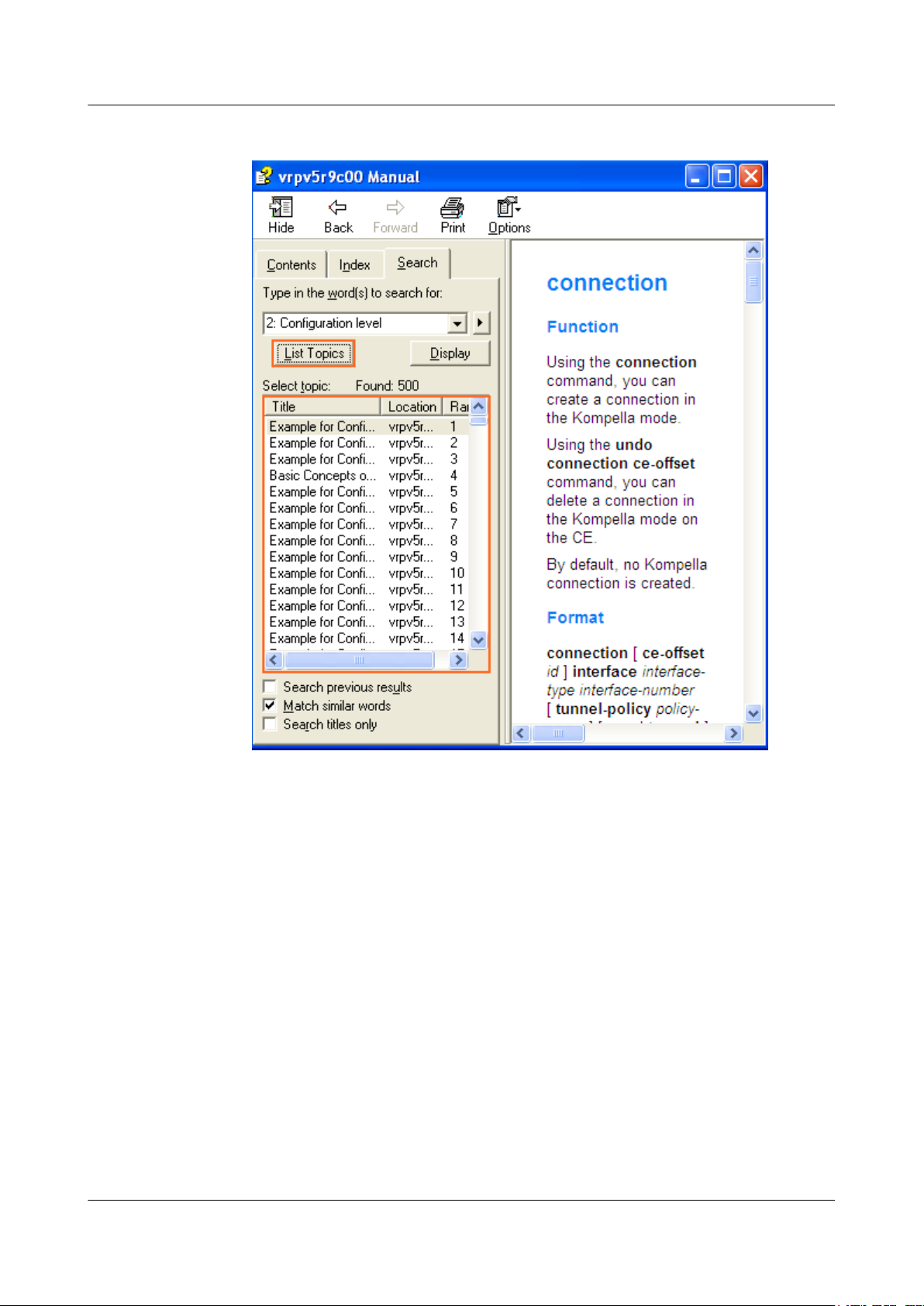

Figure 2-2 Searching commands based on a specific level

2.1.3 Command Line Views

The command line interface has different command views. All the commands are registered in one or more command views. You can run a command only when you enter the corresponding command view.

The following part uses the user, system, and BFD views as an example:

# Establish connection to the router. If the router adopts the default configuration, you can enter the user view with the prompt of <HUAWEI>.

# Run the system-view command to enter the system view.

<HUAWEI> system-view [HUAWEI]

# Run the aaa command in the system view to enter the AAA view.

[HUAWEI] aaa [HUAWEI-aaa]

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 27

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

NOTE

l The command prompt "HUAWEI" is the default host name.

l The prompt indicates a specific view. For example, "<HUAWEI>" indicates the user view, and

"[HUAWEI-ui-console0]" indicates the console user interface view.

Some commands can be used in both system and other views, but have different effects. For example, the mpls command can be run in the system view to enable MPLS globally or in the interface view to enable MPLS only on this interface.

2.2 Online Help

When inputting command lines or configuring services, you can use the online help function to obtain real-time help.

2.2.1 Full Help

When inputting a command, you can use the full help function to obtain all keywords or parameters of this command.

Procedure

l You can obtain the full help of a command line in the following manners.

– Enter a question mark (?) in any command line view to display all the commands and

their simple descriptions.

<HUAWEI> ? User view commands: arp-ping ARP-ping backup Backup information batch-cmd Batch commands board-channel-check Board-Channel-Check enable/disable capture-packet enable capturing packet cd Change current directory ... ...

– Enter a command and a question mark (?) separated by a space. If the key word is at

this position, all key words and their simple descriptions are displayed. For example:

<HUAWEI> language-mode ? Chinese Chinese environment English English environment

Chinese and English are keywords; Chinese environment and English environment describe the keywords respectively.

– Enter a command and a question mark (?) separated by a space, and if a parameter is at

this position, the related parameter names and parameter descriptions are displayed. For example:

[HUAWEI] ftp timeout ? INTEGER<1-35791> The value of FTP timeout (in minutes) [HUAWEI] ftp timeout 35 ? <cr> Please press ENTER to execute command [HUAWEI] ftp timeout 35

In the preceding display, INTEGER<1-35791> describes the parameter value; The value of FTP timeout (in minutes) is a simple description of the parameter usage; <cr> indicates that no parameter is at this position. The command is repeated in the next command line. You can press Enter to run the command.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 28

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

2.2.2 Partial Help

If you enter only the first one or a few characters of a command, you can use the partial help function to obtain all keywords following the character or character string.

Procedure

l You can obtain the partial help of a command line in the following manners.

– Enter a character string with a question mark (?) closely following it to display all

commands that begin with this character string.

<HUAWEI> d? debugging delete dir display

– Enter a command and a character string with a question mark (?) closely following it

to display all the key words that begin with this character string.

<HUAWEI> display b? bas-interface bfd bgp board-current board-power board-type bootmode-current bootmode-next bootrom btv buffer bulk-stat

– Enter the first several letters of a key word in the command and then press Tab to display

the complete key word on the condition that the letters uniquely identify the key word. Otherwise, if you continue to press Tab, different key words are displayed. You can select the needed key word.

----End

2.2.3 Error Messages of the Command Line Interface

If an entered command passes the syntax check, the system executes it. Otherwise, the system prompts an error message.

All the commands entered by the user are run correctly, if the grammar check has been passed. Otherwise, error messages are reported to the user. See Table 2-2 for the common error messages.

Table 2-2 Common error messages of the command line

Error messages

Unrecognized command The command cannot be found

Wrong parameter Parameter type error

Incomplete command Incomplete command entered

Too many parameters Too many parameters entered

Cause of the error

The key word cannot be found

The parameter value exceeds the limit

Ambiguous command Indefinite parameters entered

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 29

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

2.3 CLI Features

The CLI provides the following features to help users flexibly use it.

2.3.1 Editing

The editing function of command lines helps you edit command lines or obtain help by using certain keys.

The command line supports multi-line edition. The maximum length of each command is 512 characters.

Keys for editing that are often used are shown in Table 2-3.

Table 2-3 Keys for editing

Key Function

Common key Inserts a character in the current position of the cursor if the editing

buffer is not full and the cursor moves to the right. Otherwise, an alarm is generated.

Backspace Deletes the character on the left of the cursor that moves to the

left. When the cursor reaches the head of the command, an alarm is generated.

Left cursor key ← or Ctrl_B

Right cursor key → or Ctrl_F

Tab Press Tab after typing the incomplete key word and the system

Moves the cursor to the left by the space of a character. When the cursor reaches the head of the command, an alarm is generated.

Moves the cursor to the right by the space of a character. When the cursor reaches the end of the command, an alarm is generated.

runs the partial help:

l If the matching key word is unique, the system replaces the

typed one with the complete key word and displays it in a new line with the cursor a space behind.

l If there are several matches or no match at all, the system

displays the prefix first. Then you can press Tab to view the matching key word one by one. In this case, the cursor closely follows the end of the word and you can type a space to enter the next word.

l If a wrong key word is entered, press Tab and the word is

displayed in a new line.

2.3.2 Displaying

All command lines have the same displaying feature. You can construct the displaying mode as required.

You can control the display of information on the CLI as follows:

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 30

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

l Prompts and help information can be displayed in both Chinese and English. You can use

the language-mode language-name command to change the language mode.

l If output information cannot be displayed on a full screen, you have three options to view

the information, as shown in Table 2-4.

Table 2-4 Keys for displaying

Key Function

Ctrl_C Stops the display and running of the command.

NOTE

You can also press any of the keys except the spacebar and Enter key to stop the display and running of the command.

Space Allows information to be displayed on the next screen.

Enter Allows information to be displayed on the next line.

2.3.3 Regular Expressions

The regular expression is an expression that describes a set of strings. It consists of common characters (such as letters from "a" to "z") and particular characters (also named metacharacters). The regular expression is a template according to which you can search for the required string. Users can use regular expressions to filter output information to rapidly locate desired information.

A regular expression can provide the following functions:

l Searching for and obtaining a sub-string that matches a rule in the string.

l Substituting a string according to a certain matching rule.

Formal Language Theory of the Regular Expression

The regular expression consists of common characters and particular characters.

l Common characters

Common characters are used to match themselves in a string, including all upper-case and lower-case letters, digits, punctuation, and special symbols. For example, a matches the letter "a" in "abc", 202 matches the digit "202" in "202.113.25.155", and @ matches the symbol "@" in "[email protected]".

l Particular characters

Particular characters are used together with common characters to match the complex or particular string combination. Table 2-5 describes particular characters and their syntax.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 31

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

Table 2-5 Description of particular characters

Particul

Syntax Example ar characte r

\ Defines an escape character, which

is used to mark the next character

(common or particular) as the

common character.

^ Matches the starting position of the

string.

$ Matches the ending position of the

string.

* Matches the preceding element zero

or more times.

+ Matches the preceding element one

or more times

\* matches "*".

^10 matches "10.10.10.1" instead of "20.10.10.1".

1$ matches "10.10.10.1" instead of "10.10.10.2".

10* matches "1", "10", "100", and "1000".

(10)* matches "null", "10", "1010", and "101010".

10+ matches "10", "100", and "1000".

(10)+ matches "10", "1010", and "101010".

? Matches the preceding element zero

or one time.

10? matches "1" and "10".

(10)? matches "null" and "10".

. Matches any single character. 0.0 matches "0x0" and "020".

.oo matches "book", "look", and "tool".

() Defines a subexpression, which can

be null. Both the expression and the

100(200)+ matches "100200" and "100200200".

subexpression should be matched.

x|y Matches x or y. 100|200 matches "100" or "200".

1(2|3)4 matches "124" or "134", instead of "1234", "14", "1224", and "1334".

[xyz] Matches any single character in the

regular expression.

[^xyz] Matches any character that is not

contained within the brackets.

[a-z] Matches any character within the

specified range.

[123] matches the character 2 in "255".

[^123] matches any character except for "1", "2", and "3".

[0-9] matches any character ranging from 0 to 9.

[^a-z] Matches any character beyond the

specified range.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

[^0-9] matches all non-numeric characters.

Page 32

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

Particul

Syntax Example ar characte r

_ Matches a comma "," left brace "{",

right brace "}", left parenthesis "(",

and right parenthesis ")".

Matches the starting position of the

_2008_ matches "2008", "space 2008 space", "space 2008", "2008 space", ",2008,", "{2008}", "(2008)", "{2008", and "(2008}".

input string.

Matches the ending position of the

input string.

Matches a space.

NOTE

Unless otherwise specified, all characters in the preceding table are displayed on the screen.

l Degeneration of particular characters

Certain particular characters, when being placed at the following positions in the regular expression, degenerate to common characters.

– The particular characters following "\" is transferred to match particular characters

themselves.

– The particular characters "*", "+", and "?" placed at the starting position of the regular

expression. For example, +45 matches "+45" and abc(*def) matches "abc*def".

– The particular character "^" placed at any position except for the start of the regular

expression. For example, abc^ matches "abc^".

– The particular character "$" placed at any position except for the end of the regular

expression. For example, 12$2 matches "12$2".

– The right bracket such as ")" or "]" being not paired with its corresponding left bracket

"(" or "[". For example, abc) matches "abc)" and 0-9] matches "0-9]".

NOTE

Unless otherwise specified, degeneration rules are applicable when preceding regular expressions serve as subexpressions within parentheses.

l Combination of common and particular characters

In actual application, a regular expression combines multiple common and particular characters to match certain strings.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 33

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

Specifying a Filtering Mode in Command

CAUTION

The HUAWEI NetEngine80E/40E uses a regular expression to implement the filtering function of the pipe character. A display command supports the pipe character only when there is excessive output information.

When the output information is queried according to the filtering conditions, the first line of the command output starts with the information containing the regular expression.

The command can carry the parameter | count to display the number of matching entries. The parameter | count can be used together with other parameters.

For the commands supporting regular expressions, the three filtering methods are as follows:

l | begin regular-expression: displays the information that begins with the line that matches

regular expression.

l | exclude regular-expression: displays the information that excludes the lines that match

regular expression.

l | include regular-expression: displays the information that includes the lines that match

regular expression.

NOTE

The value of regular-expression is a string of 1 to 255 characters.

Specify a Filtering Mode when Information is Displayed

When a lot of information is displayed, you can specify a filtering mode in the prompt "---- More

----".

l /regular-expression: displays the information that begins with the line that matches regular

expression.

l -regular-expression: displays the information that excludes lines that match regular

expression.

l +regular-expression: displays the information that includes lines that match regular

expression.

2.3.4 Previously-Used Commands

The CLI provides a function similar to DosKey to automatically save commands used previously on the device. If you need to run a command that has been executed, you can call the command from those have been used previously on the device. This facilitates user operation.

By default, the system saves a maximum of 10 previously-used commands for each user. You can run the history-command max-size size-value command in the user view to set the number of previously-used commands saved in the system. A maximum of 256 previously-used commands can be saved in the system.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 34

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

NOTE

Setting the number of saved previously-used commands to a proper value is recommended. If a large number of previously-used commands are saved, it will take a long time to locate a needed previouslyused command, affecting efficiency.

The operations are shown in Table 2-6

Table 2-6 Access the previously-used commands

Action Key or Command Result

Display previously-

display historycommand

Display previously-used commands entered by

users. used commands.

Access the last previouslyused

Up cursor key (↑) or

Ctrl_P

Display the last previously-used command if there

is an earlier previously-used command. Otherwise,

an alarm is generated. command.

Access the next previouslyused

Down cursor key (↓) or Ctrl_N

Display the next previously-used command if there

is a later previously-used command. Otherwise, the

command is cleared and an alarm is generated. command.

NOTE

On the HyperTerminal of Windows 9X, cursor key ↑ is invalid as the HyperTerminals of Windows 9X define the keys differently. In this case, you can replace the cursor key ↑ with Ctrl_P.

When you use previously-used commands, note the following points:

l The saved previously-used commands are the same as that those entered by users. For

example, if the user enters an incomplete command, the saved command also is incomplete.

l If the user runs the same command several times, the earliest command is saved. If the

command is entered in different forms, they are considered as different commands.

For example, if the display ip routing-table command is run several times, only one previously-used command is saved. If the disp ip routing command and the display ip

routing-table command are run, two previously-used commands are saved.

2.3.5 Batch Command Execution

If multiple commands are frequently used consecutively, you can edit these commands to be executed in batches. This simplifies command input and improves efficiency.

Procedure

Step 1 In the user view, run:

batch-cmd edit

Commands are edited to be executed in batches.

The batch-cmd edit command can be used by only one user at a time.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 35

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

The maximum length of a command (including the incomplete command) to be entered is 512 characters.

When editing commands, press Enter to complete the editing of each command.

NOTE

l After the batch-cmd edit command is run successfully to edit the commands to be executed in batches,

the system deletes the original commands to be run in batches.

l The commands that are already edited are saved in memory and are deleted for ever when the system

is restarted.

Step 2 After all commands are edited, you can press the shortcut buttons Ctrl_Z to exit the editing state

and return to the user view.

Step 3 In the user view, run:

batch-cmd execute

The commands are executed in batches.

The batch-cmd execute command can be used by only one user at a time.

The sequence of running commands is the same as the sequence of editing commands. You can view the execution of these commands on the CLI. After the execution is complete, the user view is displayed.

NOTE

If the batch-cmd edit or batch-cmd execute command is among the commands to be executed in batches, the system displays an error when executing the batch-cmd edit or batch-cmd execute command and continues to execute the following commands.

----End

2.4 Shortcut Keys

Using the system or user-defined shortcut keys makes it easier to enter commands.

2.4.1 Classifying Shortcut Keys

There are two types of shortcut keys, namely, system shortcut keys and user-defined shortcut keys. Familiarize yourself with shortcut keys so as to use them accurately.

The shortcut keys in the system are classified into the following types:

l User-defined shortcut keys: CTRL_G, CTRL_L, CTRL_O, and CTRL_U. The user can

correlate these shortcut keys with any commands. When the shortcut keys are pressed, the system automatically runs the corresponding command. For details of defining the shortcut keys, see 2.4.2 Defining Shortcut Keys.

l System-defined shortcut keys: These shortcut keys with fixed functions are defined by the

system. Table 2-7 lists the system-defined shortcut keys.

NOTE

Different terminal software defines these keys differently. Therefore, the shortcut keys on the terminal may be different from those listed in this section.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 36

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

Table 2-7 System-defined shortcut keys

Key Function

CTRL_A The cursor moves to the beginning of the current line.

CTRL_B The cursor moves to the left by the space of a character.

CTRL_C Terminates the running function.

CTRL_D Deletes the character where the cursor lies.

CTRL_E The cursor moves to the end of the current line.

CTRL_F The cursor moves to the right by the space of a character.

CTRL_H Deletes one character on the left of the cursor.

CTRL_K Stops the creation of the outbound connection.

CTRL_N Displays the next command in the previously-used command

buffer.

CTRL_P Displays the previous command in the previously-used

command buffer.

CTRL_R Repeats the display of the information of the current line.

CTRL_T Terminates the outbound connection.

CTRL_V Pastes the contents on the clipboard.

CTRL_W Deletes a character string or character on the left of the cursor.

CTRL_X Deletes all the characters on the left of the cursor.

CTRL_Y Deletes all the characters on the place of the cursor and the right

of the cursor.

CTRL_Z Returns to the user view.

CTRL_] Terminates the inbound or redirection connections.

ESC_B The cursor moves to the left by the space of a word.

ESC_D Deletes a word on the right of the cursor.

ESC_F The cursor moves to the right to the end of next word.

ESC_N The cursor moves downward to the next line.

ESC_P The cursor moves upward to the previous line.

ESC_SHIFT_< Sets the position of the cursor to the beginning of the clipboard.

ESC_SHIFT_> Sets the position of the cursor to the end of the clipboard.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 37

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

2.4.2 Defining Shortcut Keys

If one or multiple commands are frequently used, you can correlate these commands with shortcut keys. This facilitates user operation and improves efficiency. Only management-level users have the rights to define shortcut keys.

Configure as follows in the system view.

Action Command

Define shortcut keys hotkey { CTRL_G | CTRL_L | CTRL_O | CTRL_U }

command-text

NOTE

When defining the shortcut keys, use double quotation marks to define the command if this command contains several commands words, that is, if spaces exist in the command.

By default, CTRL_G, CTRL_L and CTRL_O correspond to the following commands respectively:

l CTRL_G: display current-configuration

l CTRL_L: display ip routing-table

l CTRL_O: undo debugging all

By default, CTRL_U is not correlated with any command.

2.4.3 Use of Shortcut Keys

You can use the shortcut key at any position that allows a command to be entered. The system executes an entered shortcut key and displays the corresponding command on the screen in the same way as you enter a complete command.

l If you have typed part of a command and have not pressed Enter, you can press the shortcut

keys to clear the entered command and display the full corresponding command. This operation has the same effect as that of deleting all commands and then re-entering the complete command.

l The shortcut keys are run as the commands, the syntax is recorded to the command buffer

and log for fault location and querying.

NOTE

The terminal in use may affect the functions of the shortcut keys. For example, if the customized shortcut keys of the terminal conflict with those of the router, the input shortcut keys are captured by the terminal program and hence the shortcut keys do not function.

Run the following command in any view to display the use of shortcut keys.

Action

Command

Check the usage of shortcut keys. display hotkey

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 38

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

2.5 Configuration Examples

This section provides several examples for using command lines.

2.5.1 Example for Running Commands in Batches

This part provides an example for running commands in batches. In this example, by editing the commands to be run in batches, you can configure the system to automatically run the commands in batches.

Context

If commands are frequently used consecutively, especially a large number of commands, you can run the commands in batches to improve efficiency.

For example, during the preventive maintenance inspection (PMI), you can run commands in batches. That is, enter all PMI commands once and then send all the command output information to the PMI tool, which can improve the PMI efficiency.

Procedure

Step 1 Edit the display users, display startup, and display clock commands to be run in batches.

Step 2 Run the commands in batches.

<HUAWEI> batch-cmd edit Info: Begin editing batch commands. Press "Ctrl+Z" to abort this session.

display users display startup display clock

<HUAWEI> batch-cmd execute <HUAWEI>batch-cmd execute command: display users

User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag 35 VTY 1 00:00:00 TEL 190.120.2.19 no Username : Unspecified <HUAWEI>batch-cmd execute command: display startup

MainBoard: Configured startup system software: cfcard:/V600R003C00SPC300.cc Startup system software: cfcard:/V600R003C00SPC300.cc Next startup system software: cfcard:/V600R003C00SPC300.cc Startup saved-configuration file: cfcard:/vrp.cfg Next startup saved-configuration file: cfcard:/vrp.cfg Startup paf file: default Next startup paf file: default Startup license file: default Next startup license file: default Startup patch package: NULL Next startup patch package: NULL <HUAWEI>

batch-cmd execute command: display clock

2011-01-27 01:25:24 Thursday Time Zone(DefaultZoneName) : UTC

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 39

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

<HUAWEI> batch-cmd execute finished.

----End

2.5.2 Example for Using Tab

This example shows how to use the Tab key. After inputting an incomplete keyword, you can press Tab and obtain all related keywords or verify the correctness of the input keyword.

Context

Usually, you do not need to input complete keywords. Instead, you can just input one or a few beginning characters of a keyword and press Tab to complete the keyword. The Tab key helps search for and use commands.

Procedure

l Tab can be used in three ways as shown in the following example.

– The matching key word is unique after the incomplete key word is input.

1. Input the incomplete key word.

[HUAWEI] info-

2. Press Tab.

The system replaces the input one with the complete key word and displays it in a new line with the cursor leaving a space behind.

[HUAWEI] info-center

– There are several matches or no match after the incomplete key word is input.

# info-center can be followed by three key words.

[HUAWEI] info-center log? logbuffer logfile loghost

1. Input the incomplete key word.

[HUAWEI] info-center l

2. Press Tab.

The system displays the prefix first. The prefix in this example is "log".

[HUAWEI] info-center log

Continue to press Tab. The cursor is closely following the end of the word.

[HUAWEI] info-center loghost [HUAWEI] info-center logbuffer [HUAWEI] info-center logfile

Stop pressing Tab after the key word logfile that you need is displayed.

3. Input a space to enter the next word channel.

[HUAWEI] info-center logfile channel

– Input an incorrect keyword and press Tab to check the correctness of the keyword.

1. Input a wrong keyword loglog.

[HUAWEI] info-center loglog

2. Press Tab.

[HUAWEI] info-center loglog

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 40

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

The system displays information in a new line, but the keyword loglog remains unchanged and there is no space between the cursor and the keyword, indicating that this keyword is inexistent.

----End

2.5.3 Example for Using Shortcut Keys

This example shows how to use shortcut keys. In this example, frequently-used commands are correlated with shortcut keys. You can press the shortcut keys instead of inputting the commands. This facilitates user operation and improves efficiency.

Context

If the login router is defined with shortcut keys, the shortcut keys can be used by any user regardless of the user level.

Procedure

Step 1 Correlate Ctrl_U with the display ip routing-table command and run the shortcut keys.

<HUAWEI> system-view [HUAWEI] hotkey ctrl_u "display ip routing-table"

NOTE

When defining shortcut keys for a command, use double quotation marks to quote the command if the command consisting of multiple words, which are separated by spaces. No double quotation marks are required for single-word commands.

Step 2 Press Ctrl_U when the prompt [HUAWEI] appears.

[HUAWEI] display ip routing-table Route Flags: R - relay, D - download to fib

-----------------------------------------------------------------------------Routing Tables: Public Destinations : 8 Routes : 8 Destination/Mask Proto Pre Cost Flags NextHop Interface

51.51.51.9/32 Direct 0 0 D 127.0.0.1 InLoopBack0

100.2.0.0/16 Direct 0 0 D 100.2.150.51 GigabitEthernet0/ 0/0

100.2.150.51/32 Direct 0 0 D 127.0.0.1 InLoopBack0

100.2.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0

127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0

127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0

127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0

255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0

---------------------------------------------------------------------

----End

2.5.4 Example for Copying Commands Using Shortcut Keys

This example shows how to copy commands by using shortcut keys. In this example, after a specified command is copied by using shortcut keys, you can use the shortcut keys Ctrl_Shift_V to paste the command.

Context

If you need to repeatedly run a command, you can use shortcut keys to copy the command.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 41

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 2 CLI Overview

The copied command is saved on the clipboard and is available for only the current logged-in user. After the user logs out of the router, the clipboard is cleared.

You can use shortcut keys to copy a command in any view.

Procedure

Step 1 Move the cursor to the beginning of the command and press Esc_Shift_<. Move the cursor to

the end and press Esc_Shift_>.

<HUAWEI> display ip routing-table

Step 2 Run the display clipboard command to view the contents on the clipboard.

<HUAWEI> display clipboard

---------------- CLIPBOARD----------------display ip routing-table

Step 3 Enter the command in any view, and press Ctrl_Shift_V to paste the contents of clipboard.

<HUAWEI> display ip routing-table

NOTE

If you press shortcut keys to copy a new command, you can paste only the new command by using shortcut keys.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 42

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

3 Basic Configuration

About This Chapter

This chapter describes how to configure the router to follow your using habits and the actual environment requirements after logging in to the router.

3.1 Configuring the Basic System Environment

This section describes how to configure the basic system environment.

3.2 Displaying System Status Messages

This section describes how to use display commands to check basic configurations of the current system.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 43

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

3.1 Configuring the Basic System Environment

This section describes how to configure the basic system environment.

3.1.1 Establishing the Configuration Task

Before configuring the basic system environment, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This can help you complete the configuration task quickly and accurately.

Applicable Environment

Before configuring services, you need to configure the basic system environment (such as the language mode, time, device name, login information, and command level) to meet the environment requirement.

Pre-configuration Tasks

Before configuring the basic system environment, complete the following task:

l Powering on the router

Data Preparation

To configure the basic system environment, you need the following data.

No.

1 Language mode

2 System time

3 Host name

4 Login information

5 Command level

Data

3.1.2 Switching the Language Mode

You can switch between the Chinese mode and the English mode as needed.

Context

After the language mode is switched, the system displays prompts and outputs of command lines in the specified language.

Language information (Chinese and English) has been stored in the system software and does not need to be loaded.

Do as follows in the user view:

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 44

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

Procedure

l Run:

language-mode { chinese | english }

The language mode is switched.

By default, the English mode is used.

The help information on the router can be in English or in Chinese. The language mode is stored in the system software and does not need to be loaded.

----End

3.1.3 Configuring the Equipment Name

When multiple devices on the network need to be managed, you can identify them by setting an equipment name for each device.

Context

The new equipment name takes effect immediately.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

sysname host-name

The equipment name is set.

By default, the equipment name of the router is HUAWEI.

You can change the name of the router that appears in the command prompt.

----End

3.1.4 Setting the System Clock

You need to set the system time properly to ensure the cooperation between the NE80E/40E and other devices.

Context

The system clock displays the current time and date of the system, time zone to which the system belongs, and daylight saving time. The NE80E/40E supports the configurations of the time zone and the daylight saving time.

Do as follows in the user view:

Procedure

Step 1 Run:

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 45

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

clock datetime [ utc ] HH:MM:SS YYYY-MM-DD

The current date and time is set.

Step 2 Run:

clock timezone time-zone-name { add | minus } offset

The time zone is set.

l If add is configured, the current time is the UTC time plus the time offset. That is, the default

UTC time plus offset is equal to the time of time-zone-name.

l If minus is configured, the current time is the UTC time minus the time offset. That is, the

default UTC time minus offset is equal to the time of time-zone-name.

NOTE

UTC stands for the Universal Time Coordinated.

Step 3 Run:

clock daylight-saving-time time-zone-name one-year start-time start-date end-time

end-date offset

clock daylight-saving-time time-zone-name repeating start-time { { first | second

| third | fourth | last } weekday month | start-date } end-time { { first | second | third | fourth | last } weekday month | end-date } offset [ start-year

[ end-year ] ]

The daylight saving time is set.

By default, the daylight saving time is not set.

During the configuration of the daylight saving time, you can configure the starting time and ending time in one of the following modes: date+date, week+week, date+week, and week+date. For details, see clock daylight-saving-time.

CAUTION

When the device is upgraded from an earlier version to the V600R003C00 version, the configured daylight saving time does not take effect and needs to be reconfigured.

----End

3.1.5 Configuring a Header

If you need to provide information for users logging in, you can configure a header that the system displays during or after login.

Context

A header text is a message displayed by the system when and after a user is logging in to the router.

If you need to provide information for login users, you can configure a header that the system displays during login or after login.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 46

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

header login { information text | file file-name }

The header displayed during login is set.

Step 3 Run:

header shell { information text | file file-name }

The header displayed after login is set.

To display the header when the terminal connection has been activated but the user is not being authenticated, configure the parameter login.

To display the header after the user logs in successfully, configure the parameter shell.

If the user can log in to the router without authentication, the system directly displays the header after the login.

CAUTION

l The header text starts and ends with the same character. After a character is input and

Enter is pressed, an interactive interface is displayed. You can input the required information ended with the first character. The system then exits from the interactive interface.

l If a user logs in to the router by using SSH1.X, the login header is not displayed during login,

but the shell header is displayed after login.

l If a user logs in to the router by using SSH2.0, both login and shell headers are displayed.

----End

3.1.6 Configuring Command Levels

This section describes how to configure command levels to ensure device security or allow lowlevel users to run high-level commands. By default, commands are registered in the sequence of Level 0 to Level 3. If refined rights management is required, you can divide commands in to 16 levels, that is, from Level 0 to Level 15.

Context

If the user does not adjust a command level separately, after the command level is updated, all originally-registered command lines adjust automatically according to the following rules:

l The commands of Level 0 and Level 1 remain unchanged.

l The commands of Level 2 are updated to Level 10 and the commands of Level 3 are updated

to Level 15.

l No command lines exist in Level 2 to Level 9 and Level 11 to Level 14. The user can adjust

the command lines to these levels separately to refine the management of privilege.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 47

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

CAUTION

Changing the default level of a command is not recommended. If the default level of a command is changed, some users may be unable to use the command any longer.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

command-privilege level rearrange

Update the command level in batches.

When no password is configured for a Level 15 user, the system prompts the user to set a superpassword for the level 15 user. At the same time, the system asks if the user wants to continue with the update of command line level. Then, just select "N" to set a password. If you select "Y", the command level can be updated in batches directly. This results in the user not logging in through the Console port and failing to update the level.

Step 3 Run:

command-privilege level level view view-name command-key

The command level is configured. With the command, you can specify the level and view multiple commands at one time (command-key).

All commands have default command views and levels. You do not need to reconfigure them.

----End

3.1.7 Configuring the Undo Command to Match in the Previous View Automatically

You can run the undo command in the current view and thus the system automatically matches the previous view.

Context

If the user allows the undo command to automatically match the previous view and the user runs the undo command that is not registered in the current view, the system searches the undo command in the previous view.

CAUTION

The undo command has disadvantages due to automatically matching. For example, when the user runs the undo ospf command in the interface view where the command is not registered, the system searches in system view automatically. This may lead to global deletion of the OSPF feature.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 48

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

matched upper-view

The undo command is configured to match the upper level view.

By default, the undo command does not match the previous view automatically.

NOTE

l The matched upper-view command is valid for current login users who run this command.

l It is not recommended that you configure the undo command to automatically match the upper level

view, unless necessary.

----End

3.2 Displaying System Status Messages

This section describes how to use display commands to check basic configurations of the current system.

Context

You can use the display commands to collect information about the system status. The display commands are classified according to the following functions:

l Displays system configurations.

l Displays the running status of the system.

l Displays the diagnostic information about a system.

l Displays the restart information about the main control board.

See the related sections for display commands for protocols and interfaces. The following part only shows the system-level display commands.

Run the following commands in any view.

3.2.1 Displaying System Configuration

This section describes how to check the system version, system time, original configuration, and current configuration by using command lines.

Prerequisite

Basic configuration are complete.

Procedure

l Run the display version command to display the system version.

l Run the display clock [ utc ] command to display the system time.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 49

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 3 Basic Configuration

l Run the display calendar command to display system calendar.

l Run the display saved-configuration command to display the original configuration.

l Run the display current-configuration command to display the current configuration.

NOTE

l The display version command can be used to display the software version of the system, the

chassis type, and the information about the main control board and interface board.

l The original configuration refers to information about configuration files used by the device when

the device has been powered on and is being initialized. The current configuration refers to the configuration files taking effect during the device operation. For details, see the chapter "Configuring System Startup" in the NE80E/40E Basic-Configuration.

----End

3.2.2 Displaying System Status

This section describes how to check the system operating status (the configuration of the current view) by using command lines.

Prerequisite

Basic configurations are complete.

Procedure

l Run the display this command to display the configuration of the current view.

----End

3.2.3 Collecting System Diagnostic Information

This section describes how to collect information about all modules in the system.

Context

When the system fails to perform routine maintenance, you need to collect a lot of information to locate faults. Then, you have to run different display commands to collect all information. In this case, you can use the display diagnostic-information command to collect all information about the current running modules in the system.

Procedure

l Run:

display diagnostic-information [ file-name ]

The system diagnosis information is displayed.

The display diagnostic-information command collects all information collected by running the following commands, including display clock, display version, display cpu-

usage, display interface, display current-configuration, display saved-configuration, display history-command, and so on.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 50

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4 Configuring User Interface

About This Chapter

A user can log in to the router by using a console port or an AUX port, or by means of Telnet or SSH (STelnet). For users logging in to router in different modes, the system uses different user interfaces to manage the sessions between the router and the users.

4.1 User Interface Overview

The system supports console, AUX, and VTY user interfaces.

4.2 Configuring the Console User Interface

When a user logs in to the router by using a console port for local maintenance, you can configure attributes for the corresponding console user interface are needed.

4.3 Configuring the AUX User Interface

When a user logs in to the router for local or remote configuration by using an AUX port, configuring attributes in the corresponding AUX user interface is needed.

4.4 Configuring VTY User Interface

If you need to log in to the router for local or remote maintenance by using Telnet or SSH, you can configure the corresponding VTY user interface as needed.

4.5 Configuration Examples

This section provides examples for configuring console, AUX, and VTY user interfaces. These configuration examples explain networking requirements, configuration roadmap, and configuration notes.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 51

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.1 User Interface Overview

The system supports console, AUX, and VTY user interfaces.

Each user interface has a corresponding user interface view. A user interface view is a command line view provided by the system. It is used to configure and manage all the physical and logical interfaces in asynchronous mode.

User Interfaces Supported by the System

l Console port (CON)

The console port is a serial port provided by the main control board of the router.

The main control board provides one EIA/TIA-232 DCE console port for local configuration by directly connecting a terminal to a router.

l Auxiliary port (AUX)

It is a linear port provided by the main control board of the router and supports the dialup by using a modem.

Each main control board provides one AUX port with the type of EIA/TIA-232 DTE. A terminal can remotely access the router through the modem on the AUX port.

l Virtual type terminal (VTY)

It is a logical terminal line. A VTY connection is set up when a router connects to a terminal by means of Telnet. It is used for local or remote access to a router. A maximum of 16 users can log in to the router by using the VTY user interface.

Numbering of a User Interface

After a user logs in to the router, the system assigns an idle user interface of the smallest number to the user according to the user's login mode. You can number a user interface in the following manners:

l Relative numbering

The relative numbering is in the format of user interface type + number.

The relative numbering is available for interfaces of a specific type. It is used only to specify one or a group of user interfaces of a specified type. Relative numbering must comply with the following rules:

– Number of the console port: CON 0

– Number of the auxiliary port: AUX 0

– Number of the VTY: VTY 0 for the first line, VTY 1 for the second line, and so on

l Absolute numbering

The absolute numbering is used to uniquely specify a user interface or a group of user interfaces.

The number starts with 0. The ports are numbered in the sequence of CON → AUX → VTY. There is only one console port and one AUX port and 0-15 VTY interfaces. You can use the user-interface maximum-vty command to set the maximum number of user interfaces. The default number is five.

By default, the system supports three types of user interfaces: CON, AUX, and VTY.

Table 4-1 shows the absolute numbers of the user interfaces in this system.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 52

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Table 4-1 Example for the absolute numbering

Absolute number User-interface

0 CON0

33 AUX0

34 The first virtual interface (VTY0)

35 The second virtual interface (VTY1)

36 The third virtual interface (VTY2)

37 The fourth virtual interface (VTY3)

38 The fifth virtual interface (VTY4)

NOTE

The absolute numbers allocated for AUX and VTY interfaces are device-specific.

The numbers from 1 to 32 are reserved for the TTY user interfaces.

Run the display user-interface command to view the absolute number of user interfaces.

Authentication of a User Interface

After a user is configured, the system authenticates the user during user login.

There are three user authentication modes: non-authentication, password authentication, and AAA.

l Non-authentication: In this mode, users can log in to the router without entering usernames

or passwords. For security, this mode is not recommended.

l Password authentication: In this mode, users need to enter passwords, not usernames,

during the login process.

l AAA authentication: In this mode, users need to enter passwords and usernames during the

Priority of a User Interface

Users that log in to the router are managed according to their levels.

Similar to command levels, users are classified into 16 levels numbered 0 to 15. The greater the number, the higher the user level.

The level of the command that a user can run is determined by the level of this user.

l In the case of non-authentication or password authentication, the level of the command that

the user can run is determined by the level of the user interface.

l In the case of AAA authentication, the command that the user can run is determined by the

level of the local user specified in the AAA configuration.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 53

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.2 Configuring the Console User Interface

When a user logs in to the router by using a console port for local maintenance, you can configure attributes for the corresponding console user interface are needed.

4.2.1 Establishing the Configuration Task

Before configuring the console user interface, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This can help you complete the configuration task quickly and accurately.

Applicable Environment

If you need to log in to the router for local maintenance by using a console port, you can configure the corresponding console user interface, including the physical attributes, terminal attributes, user priority, and user authentication mode. The preceding parameters have default values on the router and additional configuration is not needed. You can configure these parameters as needed.

Pre-configuration Tasks

Before configuring a console user interface, complete the following tasks:

l Logging in to the router by using a terminal

Data Preparation

To configure a console user interface, you need the following data.

No.

1 Baud rate, flow-control mode, parity, stop bit, and data bit

2 Idle timeout period, number of lines displayed in a terminal screen, and the size of

3 User priority

4 User authentication method, user name, and password

Data

history command buffer

NOTE

All the default values (excluding the password and username) are stored on the router and do not need additional configuration.

4.2.2 Setting Physical Attributes of Console User Interface

You can configure the rate, flow control mode, parity mode, stop bit, and data bit for the console port.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 54

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Context

Physical attributes of a console port have default values on the router and no additional configuration is needed.

NOTE

When a user logs in to a router through a console port, the physical attributes set for the console port on the HyperTerminal should be consistent with the attributes of the console user interface on the router. Otherwise, the user cannot log in to the router.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface console interface-number

The console user interface view is displayed.

Step 3 Run:

speed speed-value

The baud rate is set.

By default, the baud rate is 9600 bit/s.

Step 4 Run:

flow-control { hardware | none | software }

The flow control mode is set. By default, the flow-control mode is none.

Step 5 Run:

parity { even | mark | none | odd | space }

The parity mode is set.

By default, the value is none.

Step 6 Run:

stopbits { 1.5 | 1 | 2 }

The stop bit is set.

By default, the value is 1 bit.

Step 7 Run:

databits { 5 | 6 | 7 | 8 }

The data bit is set.

By default, the data bit is 8.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 55

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.2.3 Setting Terminal Attributes of Console User Interface

This section describes how to set terminal attributes of the console user interface, including the user timeout disconnection function, number of lines displayed in a terminal screen, and size of the history command buffer.

Context

Terminal attributes of the console user interface have default values on the router and you can set them as needed.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface console interface-number

The console user interface view is displayed.

Step 3 Run:

shell

The terminal service is started.

Step 4 Run:

idle-timeout minutes [ seconds ]

The idle timeout period is set.

If the connection keeps idle within the timeout period, the system automatically terminates the connection.

By default, the idle timeout period on the user interface is 10 minutes.

Step 5 Run:

screen-length screen-length [temporary]

The length of a terminal screen is set.

The parameter temporary is used to display the number of lines to be temporarily displayed on a terminal screen.

By default, the length of a terminal screen is 24 lines.

Step 6 Run:

history-command max-size size-value

The history command buffer is set.

By default, the size of history command buffer on a user interface is 10 entries.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 56

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.2.4 Configuring User Priority of Console User Interface

This section describes how to control users' authority of logging in to the router and improve the security of managing the router by configuring the user priority.

Context

l Similar to command levels, users are classified into 16 levels numbered 0 to 15. The greater

the number, the higher the user level.

l This process is to set the priority for a user who logs in through the console port. A user

can only use the commands with the level corresponding to the user level.

For details about command levels, see "Command Level" in the chapter "CLI Overview" of the Configuration Guide - Basic Configuration.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface console interface-number

The console user interface view is displayed.

Step 3 Run:

user privilege level level

The priority of the user is set.

NOTE

l By default, users logging in through the console user interface can use commands at level 3, and users

logging in through other user interfaces can use commands at level 0.

l If the command level is inconsistent with the user level, the user level takes precedence.

----End

4.2.5 Configuring the User Authentication Mode of the Console User Interface

The system provides three authentication modes: AAA, password authentication, and nonauthentication. Configuring the user authentication mode can improve the security of the router.

Context

By default, the user authentication mode of the console user interface is non-authentication.

Procedure

l Configuring AAA Authentication

1. Run:

system-view

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 57

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

The system view is displayed.

2. Run:

user-interface console interface-number

The console user interface view is displayed.

3. Run:

authentication-mode aaa

The authentication mode is set to AAA.

4. Run:

quit

Exit from the console user interface view.

5. Run:

aaa

The AAA view is displayed.

6. Run:

local-user user-name password { simple | cipher } password

Name and password of the local user are created.

l Configuring Password Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface console interface-number

The console user interface view is displayed.

3. Run:

authentication-mode password

You can set the authentication mode as password authentication.

4. Run:

set authentication password { cipher | simple } password

A password for authentication is set.

l Configuring Non-Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface console interface-number

The console user interface view is displayed.

3. Run:

authentication-mode none

The authentication mode is set to non-authentication.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 58

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.2.6 Checking the Configuration

After configuring the console user interface, you can view information about the user interface, physical attributes and configurations of the user interface, local user list, and online users.

Prerequisite

The configurations of the user management function are complete.

Procedure

l Run the display users [ all ] command to check information about the user interface.

l Run the display user-interface console ui-number1 [ summary ] command to check

physical attributes and configurations of the user interface.

l Run the display local-user command to check the local user list.

l Run the display access-user command to check the local user list.

----End

Example

Run the display users command, and you can view information about the current user interface.

<HUAWEI> display users User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag 0 CON 0 00:00:44 pass no Username : Unspecified

Run the display user-interface console ui-number1 [ summary ] command, and you can view the physical attributes and configurations of the user interface.

<HUAWEI> display user-interface console 0 Idx Type Tx/Rx Modem Privi ActualPrivi Auth Int 0 CON 0 9600 - 3 - N - + : Current UI is active. F : Current UI is active and work in async mode. Idx : Absolute index of UIs. Type : Type and relative index of UIs. Privi: The privilege of UIs. ActualPrivi: The actual privilege of user-interface. Auth : The authentication mode of UIs. A: Authenticate use AAA. N: Current UI need not authentication. P: Authenticate use current UI's password. Int : The physical location of UIs.

Run the display local-user command, and you can view the local user list.

<HUAWEI> display local-user

--------------------------------------------------------------------------- Username State Type CAR Access-limit Online

--------------------------------------------------------------------------- user123 Active All Dft No 0 ll Active F Dft No 0 user1 Active F Dft No 0

--------------------------------------------------------------------------- Total 3,3 printed

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 59

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.3 Configuring the AUX User Interface

When a user logs in to the router for local or remote configuration by using an AUX port, configuring attributes in the corresponding AUX user interface is needed.

4.3.1 Establishing the Configuration Task

Before configuring the AUX user interface, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This can help you complete the configuration task quickly and accurately.

Applicable Environment

If you need to log in to the router for remote maintenance by using an AUX port, you can configure the corresponding AUX user interface as needed by setting the physical attributes, terminal attributes, user priority, and user authentication mode. The preceding parameters have default values on the router and additional configuration is not needed.

Pre-configuration Tasks

Before configuring an AUX user interface, complete the following tasks:

l Logging in to the router by using a terminal

Data Preparation

Before configuring an AUX user interface, you need the following data.

No.

1 Baud rate, flow-control mode, parity, stop bit, and data bit

2 Idle timeout period, number of lines displayed in a terminal screen, and the size of

3 User priority

4 Modem attributes

5 (Optional) Auto-execute commands

6 User authentication method, user name, and password

Data

history command buffer

NOTE

All the default values (excluding the auto-run commands, password, and username) are stored on the router and do not need additional configuration.

4.3.2 Setting Physical Attributes of AUX User Interface

Physical attributes of the AUX user interface include the transmission rate, flow control mode, parity mode, stop bit, and data bit of the AUX port.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 60

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Context

Physical attributes of the AUX user interface have default values on the router and no additional configuration is needed.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface aux interface-number

The AUX user interface view is displayed.

Step 3 Run:

speed speed-value

The transmission rate is set.

By default, the baud rate is 9600 bit/s.

Step 4 Run:

flow-control { hardware | none | software }

The flow control mode is set.

By default, the flow-control mode is none.

Step 5 Run:

parity { even | mark | none | odd | space }

The parity mode is set.

By default, the value is none.

Step 6 Run:

stopbits { 1.5 | 1 | 2 }

The stop bit is set.

By default, the value is 1 bit.

Step 7 Run:

databits { 5 | 6 | 7 | 8 }

The data bit is set.

By default, the value is 8.

NOTE

When the user logs in to a router through an AUX port, the configured attributes for the console port on the HyperTerminal should be in accordance with the attributes of the AUX user interface on the router. Otherwise, the user cannot log in to the router.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 61

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.3.3 Setting Terminal Attributes of AUX User Interface

This section describes how to configure terminal attributes of the AUX user interface, including the user idle timeout, number of lines displayed in a terminal screen, and size of the history command buffer.

Context

Terminal attributes of the AUX user interface have default values on the router and you can configure them as needed.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface aux interface-number

The AUX user interface view is displayed.

Step 3 Run:

shell

AUX terminal service is enabled.

Step 4 Run:

idle-timeout minutes [ seconds ]

User idle timeout is enabled.

If the connection keeps idle within the timeout period, the system automatically terminates the connection.

By default, idle timeout period on the interface is 10 minutes.

Step 5 Run:

screen-length screen-length [temporary]

The length of a terminal screen is set.

The parameter temporary is used to display the number of lines to be temporarily displayed on a terminal screen.

By default, the length of a terminal screen is 24 lines.

Step 6 Run:

history-command max-size size-value

The size of the history command buffer is configured.

By default, the size of history command buffer on user interface is 10 entries.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 62

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

4.3.4 Setting User Priority of AUX User Interface

This section describes how to control users' authority of logging in to the router and improve the security of managing the router by configuring the user priority.

Context

l Similar to command levels, users are classified into 16 levels numbered 0 to 15. The greater

the number, the higher the user level.

l This process is to set the priority for a user who logs in through the console port. A user

can only use the commands with the level corresponding to the user level.

For details about command levels, see "Command Level" in the chapter "CLI Overview" of the Configuration Guide - Basic Configuration.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface aux interface-number

The AUX user interface view is displayed.

Step 3 Run:

user privilege level level

The user priority is set.

NOTE

l By default, users logging in by using the AUX user interface can use commands at level 0.

l If the authority to use commands is inconsistent with the user level, the user level takes precedence.

----End

4.3.5 Setting Modem Attributes of AUX User Interface

You can set the time period from picking up the signal to detecting the carrier when a call is established, modem for only incoming calls or for both incoming and outgoing calls, and automatic answer.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface aux interface-number

The AUX user interface view is displayed.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 63

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Step 3 Run:

modem timer answer seconds

The period between the system receiving the ring signal and the system waiting for the CD_UP is set. That is the time that elapses between picking up the signal to detecting the carrier, since the call is established.

By default, the waiting time is 30 seconds.

Step 4 Run:

modem [ both | call-in ]

The switch of incoming call or outgoing call is set.

By default, incoming and outgoing calls are prohibited.

Step 5 Run:

modem auto-answer

Automatic answer is enabled.

By default, manual answering is enabled.

----End

4.3.6 (Optional) Configuring Auto-Execute Commands of AUX User Interface

You can set a command to be an auto-executed command.

Context

CAUTION

After the auto-execute command command is run, you cannot perform general configuration in the system through a terminal.

Before configuring the auto-execute command command and the save command to save the existing configurations, ensure that you can log in to the system using other methods to delete the configurations.

Do as follows on the router that the user logs in to:

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface aux 0

The AUX user interface view is displayed.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 64

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Step 3 Run:

auto-execute command command

A command is specified as an auto-execute command.

Generally, the auto-execute command command is run to configure Telnet on a terminal. After the configuration, the user can automatically connect to a designated host.

----End

4.3.7 Setting User Authentication Mode of AUX User Interface

The system provides three authentication modes: AAA, password authentication, and nonauthentication. Configuring the user authentication mode can improve the security of the router.

Context

By default, the user authentication mode of the AUX user interface is non-authentication.

Procedure

l Configuring AAA Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface aux interface-number

The AUX user interface view is displayed.

3. Run:

authentication-mode aaa

The authentication mode is set to AAA.

4. Run:

quit

Exit from the AUX user interface view.

5. Run:

aaa

The AAA view is displayed.

6. Run:

local-user user-name password { simple | cipher } password

Local user and password are configured.

l Configuring Password Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface aux interface-number

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 65

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

The AUX user interface view is displayed.

3. Run:

authentication-mode password

The authentication mode is set to password.

4. Run:

set authentication password { cipher | simple } password

A password is set.

l Configuring Non-Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface aux interface-number

The AUX user interface view is displayed.

3. Run:

authentication-mode none

The authentication mode is set to non-authentication.

----End

4.3.8 Checking the Configuration

After configuring the AUX user interface, you can view the usage information of the user interface, physical attributes and configurations of the user interface, local user list, and online users.

Prerequisite

Configurations of the AUX user interface are complete.

Procedure

l Run the display users [ all ] command to check usage information about the AUX user

interface.

l Run the display user-interface aux interface-number [ summary ] command to check

physical attributes and configurations of the user interface.

l Run the display local-user command to check the local user list.

l Run the display access-user command to check the local user list.

----End

Example

Run the display users command, and you can view information about the current user interface.

<HUAWEI> display users User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag 33 AUX 0 00:00:44 pass no Username : Unspecified

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 66

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Run the display user-interface aux ui-number1 [ summary ] command, and you can view the physical attributes and configurations of the user interface.

<HUAWEI> display user-interface aux 0 Idx Type Tx/Rx Modem Privi ActualPrivi Auth Int 33 AUX 0 9600 - 0 - N - + : Current UI is active. F : Current UI is active and work in async mode. Idx : Absolute index of UIs. Type : Type and relative index of UIs. Privi: The privilege of UIs. ActualPrivi: The actual privilege of user-interface. Auth : The authentication mode of UIs. A: Authenticate use AAA. N: Current UI need not authentication. P: Authenticate use current UI's password. Int : The physical location of UIs.

Run the display local-user command, and you can view the local user list.

<HUAWEI> display local-user

--------------------------------------------------------------------------- Username State Type CAR Access-limit Online

--------------------------------------------------------------------------- user123 Active All Dft No 0 ll Active F Dft No 0 user1 Active F Dft No 0

--------------------------------------------------------------------------- Total 3,3 printed

4.4 Configuring VTY User Interface

If you need to log in to the router for local or remote maintenance by using Telnet or SSH, you can configure the corresponding VTY user interface as needed.

4.4.1 Establishing the Configuration Task

Before configuring the VTY user interface, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This can help you complete the configuration task quickly and accurately.

Applicable Environment

If you need to log in to the router for local or remote maintenance by using Telnet or SSH, you can configure the corresponding VTY user interface, including the maximum number of VTY user interfaces, limit of incoming and outgoing calls, user priority, and user authentication mode. The preceding parameters have default values on the router. You can also set these parameters as needed.

Pre-configuration Tasks

Before configuring VTY user interface, complete the following tasks:

l Logging in to the router by using a terminal

Data Preparation

To configure a VTY user interface, you need the following data.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 67

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

No. Data

1 Maximum VTY user interfaces

2 (Optional) ACL code to limit VTY user interface to call in and out

3 Idle timeout period, number of characters in each line displayed in a terminal screen

4 User priority

5 User authentication method, user name, and password

NOTE

All the preceding parameters (excluding the ACL for limiting incoming and outgoing calls in VTY user interfaces, password, and user name) have default values on the router, and no additional configuration is needed.

4.4.2 Configuring Maximum VTY User Interfaces

Context

Procedure

Step 1 Run:

Step 2 Run:

This section describes how to limit the number of users logging in to the router by configuring the maximum number of VTY user interfaces.

The maximum number of VTY user interfaces is the total number of users logging in to the router by using Telnet and SSH.

system-view

The system view is displayed.

user-interface maximum-vty number

The maximum VTY user interfaces that can log in to the router is set.

NOTE

When the maximum number of VTY user interfaces is set to zero, any user (including the NMS user) cannot log in to the router by using a VTY user interface.

If the maximum number of VTY user interfaces to be configured is smaller than the maximum number of current interfaces, current online users will not be affected and no addition configuration is needed.

If the maximum number of VTY user interfaces to be configured is larger than the maximum number of current interfaces, the authentication mode and password need to be configured for newly added user interfaces.

For newly added user interfaces, the system defaults to password authentication.

For example, a maximum of five users are allowed online. To allow 15 VTY users online at the same time, you need to run the authentication-mode command and the set authentication

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 68

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

password command to configure authentication modes and passwords for user interfaces from

VTY 5 to VTY 14. The command is run as follows:

<HUAWEI> system-view [HUAWEI] user-interface maximum-vty 15 [HUAWEI] user-interface vty 5 14 [HUAWEI-ui-vty5-14] authentication-mode password [HUAWEI-ui-vty5-14] set authentication password cipher huawei

----End

4.4.3 (Optional)Setting Limit on Incoming and Outgoing Calls of VTY User Interfaces

This section describes how to configure an ACL to limit incoming and outgoing calls of the VTY user interface.

Context

Before setting the limit on incoming and outgoing calls of the VTY user interface, run the acl command in the system view to create an ACL and enter the ACL view. Then, run the rule command to add rules to the ACL.

Procedure

Step 1 Run:

Step 2 Run:

Step 3 Run:

NOTE

The user interface supports the basic ACL ranging from 2000 to 2999 and the advanced ACL ranging from 3000 to 3999.

system-view

The system view is displayed.

user-interface vty first-ui-number [ last-ui-number ]

The VTY user interface view is displayed.

acl acl-number { inbound | outbound }

The limits to calling in/out of VTY are configured.

l When you need to prevent a user of certain address or segment address from logging in to

the router, use the inbound command.

l When you need to prevent a user who logs in to a router from accessing other routers, use

the outbound command.

----End

4.4.4 Setting Terminal Attributes of the VTY User Interface

This section describes how to configure terminal attributes of the VTY user interface, including user idle timeout, number of lines displayed in a terminal screen, and size of the history command buffer.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 69

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Context

Terminal attributes of the VTY user interface have default values on the router and you can set them as needed.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface vty number1 [ number2 ]

The VTY user interface view is displayed.

Step 3 Run:

shell

VTY terminal service is enabled.

Step 4 Run:

idle-timeout minutes [ seconds ]

User idle timeout is enabled.

If the connection keeps idle within the timeout period, the system automatically terminates the connection.

By default, the timeout period is 10 minutes.

Step 5 Run:

screen-length screen-length [temporary]

The length of a terminal screen is set.

The parameter temporary is used to display the number of lines to be temporarily displayed on a terminal screen.

By default, the length of a terminal screen is 24 lines.

Step 6 Run:

history-command max-size size-value

Set the size of the history command buffer.

By default, a maximum number of 10 commands can be cached in the history command buffer.

----End

4.4.5 Setting User Priority of VTY User Interface

This section describes how to control users' authority of logging in to the router and improve the security of managing the router by configuring the user priority.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 70

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Context

l Similar to command levels, users are classified into 16 levels numbered 0 to 15. The greater

the number, the higher the user level.

l This process is to set the priority for a user who logs in through the console port. A user

can only use the commands with the level corresponding to the user level.

For details about command levels, see "Command Level" in the chapter "CLI Overview" of the Configuration Guide - Basic Configuration.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface vty interface-number

The VTY user interface view is displayed.

Step 3 Run:

user privilege level level

The user priority is set.

By default, users logging in through the VTY user interface can use commands at level 0.

NOTE

If the command level configured in the VTY user interface view is inconsistent with the user priority, the user priority takes effect.

----End

4.4.6 Setting User Authentication Mode of the VTY User Interface

The system provides three authentication modes: AAA, password authentication, and nonauthentication. Configuring the user authentication mode can improve the security of the router.

Context

By default, the user authentication mode of the VTY user interface is password authentication.

Procedure

l Configuring AAA Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface vty number1 [ number2 ]

The VTY user interface view is displayed.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 71

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

3. Run:

authentication-mode aaa

The authentication mode is set to AAA.

4. Run:

quit

Exit from the VTY user interface view.

5. Run:

aaa

The AAA view is displayed.

6. Run:

local-user user-name password { simple | cipher } password

Name and password of the local user are created.

l Configuring Password Authentication

1. Run:

system-view

The system view is displayed.

2. Run:

user-interface vty number1 [ number2 ]

The VTY user interface view is displayed.

3. Run:

authentication-mode password

Set the authentication mode as password.

4. Run:

set authentication password { cipher | simple } password

A password for this authentication mode is set.

l Configuring Non-Authentication

1. Do as follows on the router, run:

system-view

The system view is displayed.

2. Run:

user-interface vty number1 [ number2 ]

The VTY user interface view is displayed.

3. Run:

authentication-mode none

The authentication mode is set to none.

----End

4.4.7 (Optional) Configuring NMS Users to Log In Through VTY User Interfaces

Network Management System (NMS) users can log in to a device through VTY user interfaces to set parameters about the device.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 72

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Context

NMS users can log in to the router through VTY user interfaces to set parameters about the router.

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

aaa

The AAA view is displayed.

Step 3 Run:

local-user user-name password { simple | cipher } password

A local user is created.

Step 4 Run:

local-user user-name user-type netmanager

The local user is set as an NM user.

Step 5 Run:

quit

The system view is displayed.

Step 6 Run:

user-interface vty first-ui-number [ last-ui-number ]

The user interface view is displayed.

Step 7 Run:

authentication-mode aaa

An authentication mode used to log in to the user interface is configured.

NOTE

The system reserves five VTYs (VTY 16-VTY 20) for an NMS user. The five VTYs are used as special channels of the network management. The channels do not support the RSA authentication mode but support the password authentication.

Step 8 Run:

quit

The system view is displayed.

Step 9 Run:

mmi-mode enable

The system is switched to the machine-to-machine mode.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 73

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

NOTE

l This command is invisible to terminals and cannot be obtained by using the online help. In man-to-

machine mode, exercise caution when using this command.

l In the VTY machine-to-machine mode, the system reserves five user interfaces to which an NMS user

can log in through VTYs. A common user cannot log in through Telnet but can log in by using the five reserved user interfaces.

l In the machine-to-machine mode, the system does not output logs, alarms, and debugging information

to the screen.

l In the machine-to-machine mode, the save and reboot commands can be used directly.

l In the machine-to-machine mode, a maximum of 512 lines are displayed by default. The value can be

adjusted by using the screen-length command. In addition, you can run the screen-length

temporary command to adjust the number of lines temporarily displayed on the screen.

----End

4.4.8 Checking the Configuration

After configuring the VTY user interface, you can view information about user interfaces, the maximum number of VTY user interfaces, and physical attributes and configurations of user interfaces.

Prerequisite

Procedure

Example

The configurations of the VTY user interface are complete.

l Run the display users [ all ] command to check information about user interfaces.

l Run the display user-interface maximum-vty command to check the maximum number

of VTY user interfaces.

l Run the display user-interface [ [ ui-type ] ui-number1 | ui-number ] [ summary ]

command to check the physical attributes and configurations of user interfaces.

l Run the display local-user command to check the local user list.

l Run the display vty mode command to check the VTY mode.

----End

Run the display users command, and you can view information about the current user interfaces.

<HUAWEI> display users User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag 34 VTY 0 00:00:12 TEL 10.138.77.38 no Username : Unspecified + 35 VTY 1 00:00:00 TEL 10.138.77.57 no Username : Unspecified

Run the display user-interface maximum-vty command, and you can view the maximum number of VTY user interfaces.

<HUAWEI> display user-interface maximum-vty Maximum of VTY user:15

Run the display user-interface vty [ ui-number1 | ui-number ] [ summary ] command to check the physical attributes and configurations of user interfaces.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 74

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

<HUAWEI> display user-interface vty 0 Idx Type Tx/Rx Modem Privi ActualPrivi Auth Int + 34 VTY 0 - 14 14 N + : Current UI is active. F : Current UI is active and work in async mode. Idx : Absolute index of UIs. Type : Type and relative index of UIs. Privi: The privilege of UIs. ActualPrivi: The actual privilege of user-interface. Auth : The authentication mode of UIs. A: Authenticate use AAA. N: Current UI need not authentication. P: Authenticate use current UI's password. Int : The physical location of UIs.

Run the display local-user command, and you can view the local user list.

<HUAWEI> display local-user

--------------------------------------------------------------------------- Username State Type CAR Access-limit Online

--------------------------------------------------------------------------- user123 Active All Dft No 0 ll Active F Dft No 0 user1 Active F Dft No 0

--------------------------------------------------------------------------- Total 3,3 printed

Run the display vty mode command, and you can view the prompt message indicating that the machine-to-machine interface is enabled. For example:

<HUAWEI> display vty mode current VTY mode is Machine-Machine interface

4.5 Configuration Examples

This section provides examples for configuring console, AUX, and VTY user interfaces. These configuration examples explain networking requirements, configuration roadmap, and configuration notes.

4.5.1 Example for Configuring Console User Interface

This part provides an example describing how to configure the console user interface. In this configuration example, to allow a user in password authentication mode to log in to the router by using a console user interface, multiple attributes of the console user interface are set, including physical attributes, terminal attributes, user priority, user authentication mode, and password.

Networking Requirements

To initialize configurations of the router or locally maintain the router, a user can log in to the router through a console user interface. To allow the user to log in, you can set attributes of the console user interface as needed (for security reasons, for example).

In the console user interface view, the user priority is set to 15, and the password authentication mode is set (the password is huawei).

After a user logs in, if the user takes no action on the router for more than 30 minutes, the connection between the user and the router is torn down.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 75

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Configuration Roadmap

The configuration roadmap is as follows:

1. Enter the interface view and set physical attributes of the console user interface.

2. Set terminal attributes of the console user interface.

3. Set the user priority of the console user interface.

4. Set the user authentication mode and password of the console user interface.

Data Preparation

To complete the configuration, you need the following data:

l Transmission rate of the console user interface: 4800 bit/s

l Flow control mode of the console user interface: None

l Parity of the console user interface: even

l Stop bit of the console user interface: 2

l Data bit of the console user interface: 6

l Timeout period for disconnecting from the console user interface: 30 minutes

l Number of lines that a terminal screen displays: 30

l Size of the history command buffer: 20

l User priority: 15

l User authentication mode: password (password: huawei)

Procedure

Step 1 Set physical attributes of the console user interface.

Step 2 Set terminal attributes of the console user interface.

Step 3 Set the user priority of the console user interface.

Step 4 Set the user authentication mode in the console user interface to password.

<HUAWEI> system-view [HUAWEI] user-interface console 0 [HUAWEI-ui-console0] speed 4800 [HUAWEI-ui-console0] flow-control none [HUAWEI-ui-console0] parity even [HUAWEI-ui-console0] stopbits 2 [HUAWEI-ui-console0] databits 6

[HUAWEI-ui-console0] shell [HUAWEI-ui-console0] idle-timeout 30 [HUAWEI-ui-console0] screen-length 30 [HUAWEI-ui-console0] history-command max-size 20

[HUAWEI-ui-console0] user privilege level 15

[HUAWEI-ui-console0] authentication-mode password [HUAWEI-ui-console0] set authentication password simple huawei [HUAWEI-ui-console0] quit

After the console user interface is configured, a user in password authentication mode can log in to the router through a console port, implementing local maintenance of the router. For details on how a user logs in to the router, see the 5 Configuring User Login.

----End

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 76

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

Configuration Files

# sysname HUAWEI # user-interface con 0 authentication-mode password user privilege level 15 set authentication password simple huawei history-command max-size 20 idle-timeout 30 0 screen-length 30 databits 6 parity even stopbits 2 speed 4800 screen-length 30 # return

4.5.2 Example for Configuring AUX User Interface

This part provides an example describing how to configure the AUX user interface. In the configuration example, to allow a user in AAA authentication mode to log in to the router by using an AUX user interface, multiple attributes of the console user interface are set, including physical attributes, terminal attributes, user priority, user authentication mode, and password.

Networking Requirements

To maintain the router locally or remotely, a user can log in to the router through an AUX user interface.

To allow the user login, an operator can set attributes of the AUX user interface as needed (for security reasons, for example).

In the AUX user interface, the user priority is set to 15, and the authentication mode is set to AAA, with the user name of user123 and the password of huawei.

After a user logs in, if the user takes no action on the router for more than 30 minutes, the connection between the user and the router is torn down.

Configuration Roadmap

The configuration roadmap is as follows:

1. Enter the interface view and set physical attributes of the AUX user interface.

2. Set terminal attributes of the AUX user interface.

3. Set the user priority of the AUX user interface.

4. Set modem attributes of the AUX user interface.

5. Set the authentication mode and password in the AUX user interface.

Data Preparation

To complete the configuration, you need the following data:

l Transmission rate of the AUX user interface: 9600 bit/s

l Flow control mode of the AUX user interface: None

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 77

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

l Parity of the AUX user interface: None

l Stop bit of the AUX user interface: 1

l Data bit of the AUX user interface: 8

l Timeout period for disconnecting from the AUX user interface: 30 minutes

l Number of lines that a terminal screen displays: 30

l Size of the history command buffer: 20

l User priority: 15

l Modem attributes: idle timeout from off-hook to carrier detection (45 seconds), call-in

permission, and automatic response

l User authentication mode and password in the AUX user interface

Procedure

Step 1 Set physical attributes of the AUX user interface.

<HUAWEI> system-view [HUAWEI] user-interface aux 0 [HUAWEI-ui-aux0] speed 9600 [HUAWEI-ui-aux0] flow-control none [HUAWEI-ui-aux0] parity none [HUAWEI-ui-aux0] stopbits 1 [HUAWEI-ui-aux0] databits 8

All the preceding physical attributes of the AUX user interface are set with default values. In fact, if a user chooses to use the default values, the user does not need to set them. The preceding settings only mean to provide the configuration method.

Step 2 Set terminal attributes of the AUX user interface.

[HUAWEI-ui-aux0] shell [HUAWEI-ui-aux0] idle-timeout 30 [HUAWEI-ui-aux0] screen-length 30 [HUAWEI-ui-aux0] history-command max-size 20

Step 3 Set the user priority of the AUX user interface.

[HUAWEI-ui-aux0] user privilege level 15

Step 4 Set modem attributes of the AUX user interface.

[HUAWEI-ui-aux0] modem timer answer 45 [HUAWEI-ui-aux0] modem call-in [HUAWEI-ui-aux0] modem auto-answer

Step 5 Set the authentication mode of the AUX user interface to AAA.

[HUAWEI-ui-aux0] authentication-mode aaa [HUAWEI-ui-aux0] quit [HUAWEI] aaa [HUAWEI-aaa] local-user user123 password simple huawei [HUAWEI-aaa] quit

After the AUX user interface is configured, a user in AAA authentication mode can log in to the router through an AUX port, implementing maintenance of the router. For details on how a user logs in to the router, refer to the 5 Configuring User Login.

----End

Configuration Files

# sysname HUAWEI

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 78

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

# user-interface aux 0 authentication-mode aaa user privilege level 15 history-command max-size 20 idle-timeout 30 0 modem call-in modem auto-answer modem timer answer 45 screen-length 30 # return

4.5.3 Example for Configuring VTY User Interface

This part provides an example describing how to configure the VTY user interface. In this configuration example, to allow a user in password authentication mode to log in to the router by using Telnet or SSH (Stelnet), multiple attributes of the VTY user interface are set, including the maximum number of VTY user interfaces, call-in and call-out limit, terminal attributes, authentication mode, and password.

Networking Requirements

A user logs in to the router through a VTY channel by using Telnet or SSH. To allow the user login, an operator can set attributes of the VTY user interface as needed (for security reasons, for example).

In the VTY user interface, the user priority is set to 15, the authentication mode is set to password, with the password of "huawei", and the user with the IP address of 10.1.1.1 is prohibitted from logging in to the router.

After logging in, if the user takes no action on the router for more than 30 minutes, the connection between the user and the router is torn down.

Configuration Roadmap

The configuration roadmap is as follows:

1. Enter the interface view and set the maximum number of VTY user interfaces to 15.

2. Set the call-in and call-out limit of the VTY user interface, limiting the access of an IP address or an IP address segment to the router.

3. Set terminal attributes of the VTY user interface.

4. Set the user priority in the VTY user interface.

5. Set the authentication mode and password in the VTY user interface.

Data Preparation

To complete the configuration, you need the following data:

l Maximum number of VTY user interfaces: 15

l ACL applied to limit call-in in the VTY user interface: 2000

l Timeout period for disconnecting from the VTY user interface: 30 minutes

l Number of lines that a terminal screen displays: 30

l Size of the history command buffer: 20

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 79

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 4 Configuring User Interface

l User priority: 15

l User authentication mode: password, password: huawei

Procedure

Step 1 Set the maximum number of VTY user interfaces.

<HUAWEI> system-view [HUAWEI] user-interface maximum-vty 15

Step 2 Set the limit on call-in and call-out in the VTY user interface.

[HUAWEI] acl 2000 [HUAWEI-acl-basic-2000] rule deny source 10.1.1.1 0 [HUAWEI-acl-basic-2000] quit [HUAWEI] user-interface vty 0 14 [HUAWEI-ui-vty0-14] acl 2000 inbound

Step 3 Set terminal attributes of the VTY user interface.

[HUAWEI-ui-vty0-14] shell [HUAWEI-ui-vty0-14] idle-timeout 30 [HUAWEI-ui-vty0-14] screen-length 30 [HUAWEI-ui-vty0-14] history-command max-size 20

Step 4 Set the user priority in the VTY user interface.

[HUAWEI-ui-vty0-14] user privilege level 15

Step 5 Set the authentication mode and password in the VTY user interface.

[HUAWEI-ui-vty0-14] authentication-mode password [HUAWEI-ui-vty0-14] set authentication password simple huawei [HUAWEI-ui-vty0-14] quit

After the VTY user interface is configured, a user authenticated in password mode can log in to the router by using Telnet or SSH (Stelnet), implementing local or remote maintenance of the router. For details on how a user logs in to the router, see the 5 Configuring User Login.

----End

Configuration Files

# sysname HUAWEI # acl number 2000 rule 5 deny source 10.1.1.1 0 rule permit source any # user-interface maximum-vty 15 user-interface vty 0 14 acl 2000 inbound user privilege level 15 set authentication password simple huawei history-command max-size 20 idle-timeout 30 0 screen-length 30 # return

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 80

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

5 Configuring User Login

About This Chapter

A user can log in to the router through a console port, an AUX port, or by using Telnet or SSH (STelnet). After the login, the user can maintain the router locally or remotely.

5.1 Overview of User Login

Users can manage and maintain the router only after logging in to the router. Users can log in to the router by using the AUX port, console port, Telnet, or STelnet (SSH Telnet).

5.2 Logging in to the Devices Through the Console Port

When a user needs to configure the router that is powered on for the first time or locally maintain the router, the user can log in to the router through a console port.

5.3 Logging in to the Devices Through the AUX Port

When a user terminal and the router have no reachable route between each other, the user can remotely configure and manage or locally maintain the router by logging in to the router through an AUX port.

5.4 Logging in to the Devices by Using Telnet

If multiple routers need to be configured and managed, you do not need to connect the routers and maintain them locally one by one. Instead, you can log in to the routers from a terminal by using Telnet. This implements remote maintenance of the router and greatly facilitates device management.

5.5 Logging in to the Devices by Using STelnet

STelnet provides secured remote access over an insecure network. After the client/server negotiation is complete and a secured connection is established, a user can log in to the router in a similar way as Telnet.

5.6 Common Operations After Login

After logging in to the router, you can perform following operations as needed, such as user priority switching and terminal window locking.

5.7 Configuration Examples

This section provides several examples describing how to configure user login by using a console port, Telnet, or STelnet. You can understand the configuration procedures by referring to the

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 81

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

configuration flowchart. The configuration examples provide information about the networking requirements, configuration notes, and configuration roadmap.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 82

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

5.1 Overview of User Login

Users can manage and maintain the router only after logging in to the router. Users can log in to the router by using the AUX port, console port, Telnet, or STelnet (SSH Telnet).

To configure, monitor, and maintain the local or remote network devices running NE80E/40E, you need to configure the user interface, the user management, and the terminal service.

The user interface provides a login plane. The user management guarantees the login security and the terminal service provides related processes of login protocol.

The NE80E/40E supports the following login methods:

l Login through the console port

l Local or remote login through the AUX port

l Local or remote login through Telnet or STelnet

Table 5-1 User login modes

Console port Users log in to the router through the console port to configure the router

locally. Login through the console port is required when the router is powered on for the first time.

Telnet Users log in to the router by using Telnet for local and remote maintenance.

Telnet helps users maintain remote devices but brings security threats.

AUX port Users log in to the router through the AUX port to maintain the router locally

when there is no available route and Telnet is unsuitable.

SSH (STelnet) SSH (STelnet) provides security protection for users logging in to the

router to maintain the router locally or remotely.

NOTE

Logins by using Telnet bring security risks because no secure authentication mechanism is available and data is transmitted by using TCP in plain text mode. Unlike Telnet, SSH guarantees secure data transmission on a conventional insecure network by authenticating the client and encrypting data in both directions. SSH supports security Telnet (STelnet).

For detailed information about SSH, see the NE80E/40E Feature Description - Basic Configurations.

5.2 Logging in to the Devices Through the Console Port

When a user needs to configure the router that is powered on for the first time or locally maintain the router, the user can log in to the router through a console port.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 83

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

5.2.1 Establishing the Configuration Task

Before configuring user login through a console port, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This will help you complete the configuration task quickly and accurately.

Applicable Environment

A user can log in to the router locally through a console port. If the router is powered on for the first time, the user has to log in through a console port.

Pre-configuration Tasks

Before configuring user login through a console port, complete the following tasks:

l Configuring the PC/terminal (including the serial port and RS-232 cable)

l Installing the terminal emulator (such as HyperTerminal of Windows XP) to the PC

Data Preparation

To configure user login through a console port, you need the following data.

No. Data

l Transmission rate, flow control mode, parity mode, stop bit, data bit

l Number of lines displayed in a terminal screen, size of the history command buffer

l User priority

l User authentication mode, user name, and password

5.2.2 Configuring Console User Interface

To allow users to log in to the router through a console port, configure attributes of the console user interface.

Context

Attributes of an console user interface have default values on the router, and generally need no additional settings. To meet specific application requirements or ensure network security, you can set attributes of the console user interface, such as terminal attributes and user authentication mode.

For detailed settings, see Configuring Console User Interface.

5.2.3 Logging in to the router Through a Console Port

A user can log in to the router by connecting a terminal with the router through a console port.

Context

For details, see Login Through the Console Portrouter.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 84

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

NOTE

l Communication parameters of the user terminal must be consistent with the physical attribute

parameters of the console user interface on the router.

l If a user authentication mode is specified in the console user interface, a user can log in to the router

only after passing the authentication. This enhances network security.

5.2.4 Checking the Configuration

After a user logs in through a console port, the user can view information on the console user interface, such as use information, physical attributes and configurations, local user list, and online users.

Prerequisite

Configurations of user login through a console port are complete.

Procedure

l Run the display users [ all ] command to check information about the user interface.

l Run the display user-interface console ui-number1 [ summary ] command to check

physical attributes and configurations of the user interface.

l Run the display local-user command to check the local user list.

l Run the display access-user command to check the local user list.

Example

----End

Run the display users command, and you can view information about the current user interface.

<HUAWEI> display users User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag 0 CON 0 00:00:44 pass no Username : Unspecified

Run the display user-interface console ui-number1 [ summary ] command, and you can view the physical attributes and configurations of the user interface.

Run the display local-user command, and you can view the local user list.

<HUAWEI> display local-user

----------------------------------------------------------------------------

Username State Type CAR Access-limit Online

----------------------------------------------------------------------------

user123 Active All Dft No 0

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 85

PSTN

PC RouterModem Modem

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

ll Active F Dft No 0 user1 Active F Dft No 0

----------------------------------------------------------------------------

Total 3,3 printed

5.3 Logging in to the Devices Through the AUX Port

5.3.1 Establishing the Configuration Task

Before configuring user login through an AUX port, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This will help you complete the configuration task quickly and accurately.

Applicable Environment

You can configure and maintain the router locally or remotely through an AUX port.

In local configuration of the router, the AUX login method is similar to the console login method. The only difference between the two login methods lies in the default user priority: The default user priority of the console user interface is 3, whereas that of the AUX user interface is 0. Therefore, Logging in by using the console login method is recommended in the local configuration. The following part mainly describes remote login of the router through an AUX port.

NOTE

To manage and maintain the router through an AUX port, firstly modify the user priority of the AUX user interface.

When there is no reachable route between a PC and the router, you can connect the serial port of the PC to the AUX port of the router by using a modem. In this manner, you can use the PSTN to configure and maintain the router remotely.

As shown in Figure 5-1, The COM interface of the PC is connected to the modem that is connected to the PSTN. The AUX port of the router is connected to another modem that is connected to the PSTN.

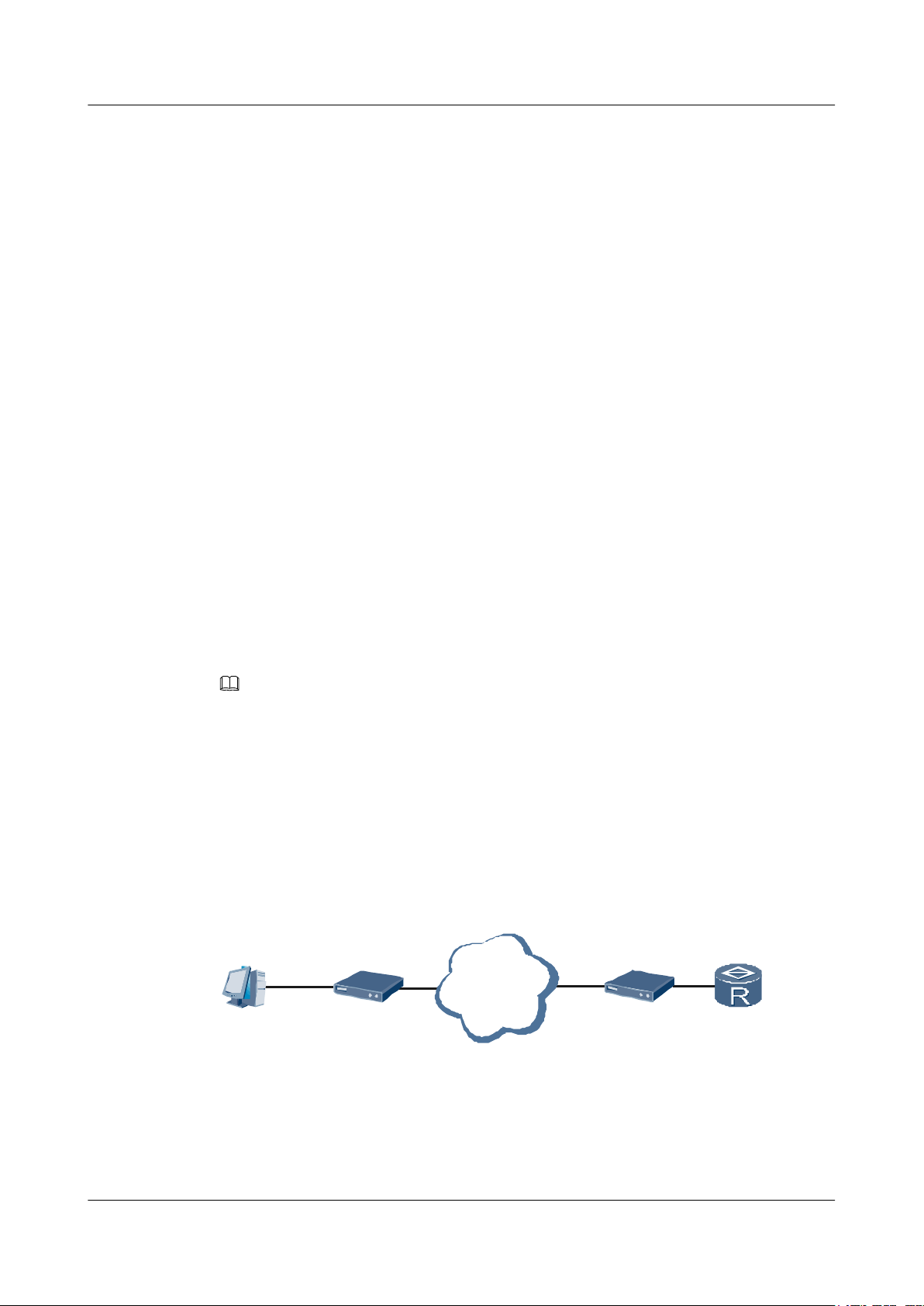

Figure 5-1 Networking diagram of remote login through an AUX port

Pre-configuration Tasks

Before configuring user login through an AUX port, complete the following tasks:

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 86

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

l Connecting the PC to the router through modems

l Configuring the modem

l Installing a terminal emulator (such as HyperTerminal of Windows XP) in the PC

Data Preparation

To configure user login through an AUX port, you need the following data.

No. Data

l Transmission rate, flow control mode, parity, stop bit, data bit

l Number of lines displayed in a terminal screen, size of the history command buffer

l user priority

l modem attributes

l (Optional) Auto-run commands

l User authentication mode, user name, password

Telephone number of the modem at the remote router side.

5.3.2 Configuring AUX User Interface

To allow users to log in to the router through an AUX port, configure attributes of the AUX user interface.

Context

Attributes of an AUX user interface have default values on the router, and generally need no additional settings. To meet specific application requirements or ensure network security, you can also set attributes of the AUX user interface, such as terminal attributes and user authentication mode.

For detailed settings, see Configuring AUX User Interface.

5.3.3 Logging in to the routerThrough an AUX Port

You can establish a connection between a terminal and the router through an AUX port.

Procedure

Step 1 Start a terminal emulator (such as HyperTerminal of Windows XP) in the PC to establish a

connection with the router, as shown in Figure 5-2.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 87

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

Figure 5-2 Connection creating

Step 2 Set dialing information, as shown in Figure 5-3.

Figure 5-3 Dialing information setting

Step 3 Establish a connection with the router, as shown in Figure 5-4.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 88

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

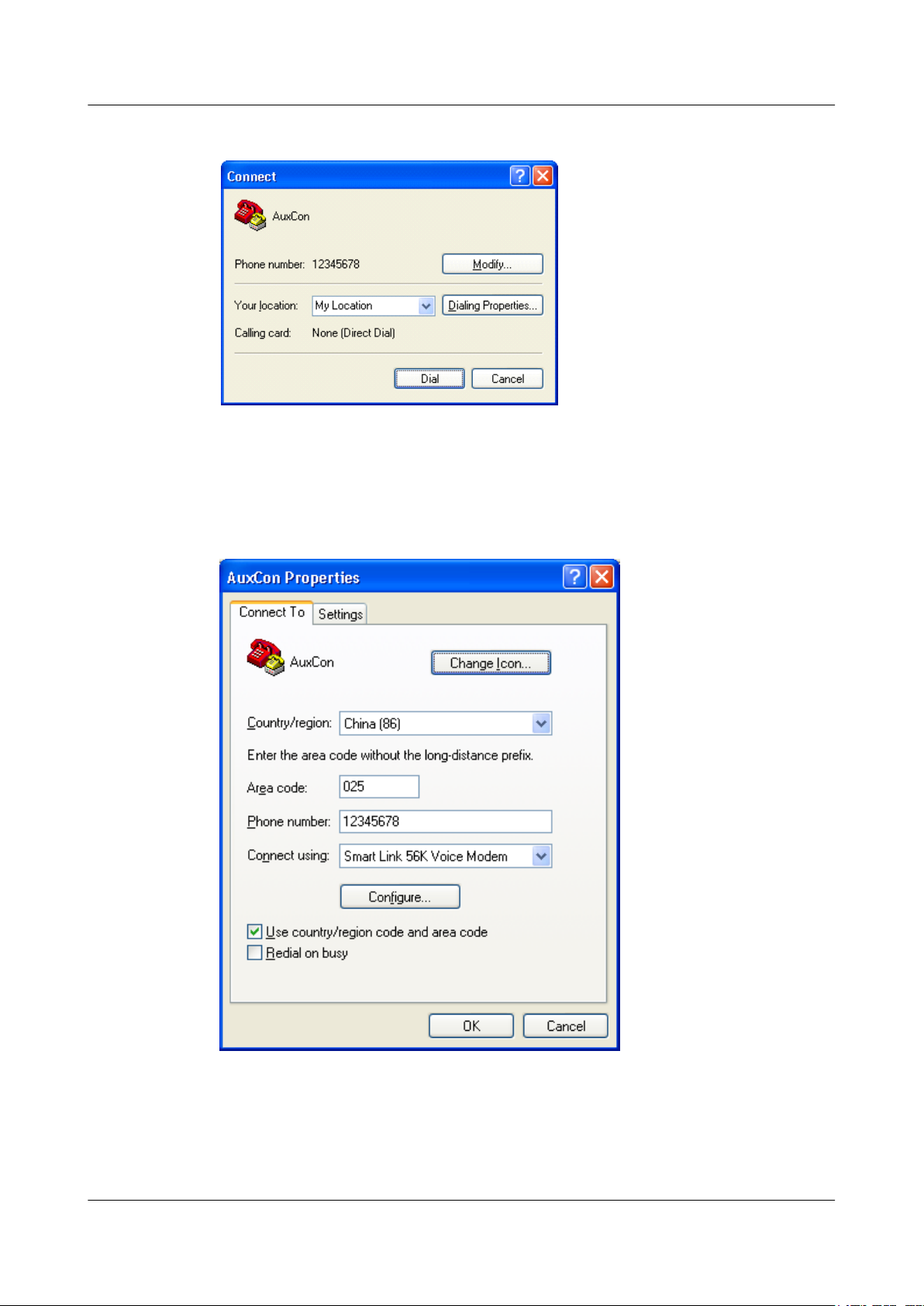

Figure 5-4 Remote connection with the router

If certain communication parameters need to be modified, press Modify in the Figure 5-4, as shown in Figure 5-5, and then press Set, as shown in Figure 5-6.

Figure 5-5 Connection attribute modification

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 89

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

Figure 5-6 Communications parameters setting

Step 4 Press Dialing. If user authentication is needed, input the corresponding authentication

information, and wait till the command line prompt of the user view appears, such as <HUAWEI>. This indicates that the user view is entered and relevant configurations can be input.

----End

5.3.4 Checking the Configuration

After a user log in through an AUX port, the user can view information on the console user interface, such as use information, physical attributes and configurations, local user list, and online users.

Prerequisite

Configurations of user login through the AUX port are complete.

Procedure

l Run the display users [ all ] command to check usage information about the AUX user

interface.

l Run the display user-interface aux interface-number [ summary ] command to check

physical attributes and configurations of the user interface.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 90

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

l Run the display local-user command to check the local user list.

l Run the display access-user command to check the local user list.

----End

Example

Run the display users command, and you can view information about the current user interface.

<HUAWEI> display users User-Intf Delay Type Network Address AuthenStatus AuthorcmdFlag 33 AUX 0 00:00:44 pass no Username : Unspecified

Run the display user-interface aux ui-number1 [ summary ] command, and you can view the physical attributes and configurations of the user interface.

Run the display local-user command, and you can view the local user list.

<HUAWEI> display local-user

----------------------------------------------------------------------------

Username State Type CAR Access-limit Online

----------------------------------------------------------------------------

user123 Active All Dft No 0 ll Active F Dft No 0 user1 Active F Dft No 0

----------------------------------------------------------------------------

Total 3,3 printed

5.4 Logging in to the Devices by Using Telnet

5.4.1 Establishing the Configuration Task

Before configuring user login by using Telnet, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This will help you complete the configuration task quickly and accurately.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 91

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

Applicable Environment

If you have known the IP address of the router to be accessed, you can log in to the router from a terminal by using Telnet, and remotely maintain the device. This allows you to maintain multiple routers on the same terminal, greatly facilitating device management.

Note that IP addresses of the routers need to be preset through console ports.

Pre-configuration Tasks

Before configuring user login in Telnet mode, complete the following tasks:

l Configuring reachable routes between the terminal and the device

Data Preparation

Before configuring user login in Telnet mode, you need the following data.

No. Data

3 IPv4/IPv6 address or host name of the router

l Maximum number of VTY user interfaces

l (Optional) ACL for limiting call-in and call-out in VTY user interfaces

l Connection timeout period of terminal users, number of lines displayed in a

terminal screen, size of the history command buffer

l User priority

l User authentication mode, user name, password

TCP port number for the remote router to provide Telnet services, VPN instance name

5.4.2 Configuring VTY User Interface

To log in to the router by using Telnet, configure attributes of the VTY user interface.

Context

By default, the user authentication mode in the VTY user interface is password. Therefore, before a user logs in to the router by using Telnet, the user authentication mode in the VTY user interface must be set. Otherwise, the user cannot log in to the router.

You can log in to the router through a console port to set the user authentication mode in the VTY user interface.

Other attributes of the VTY user interface in the router, such as terminal attributes and user priorities, can also be set as needed. These attributes, however, generally do not need to be set because they have default values.

For detailed settings, see Configuring VTY User Interface.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 92

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

5.4.3 (Optional) Configuring Local Telnet Users

If the user authentication mode is AAA in the VTY user interface, the access type of local users needs to be specified. Local users with the access type of Telnet are Telnet users.

Context

If the user authentication mode of the VTY user interface is non-authentication or password authentication, the following configurations are not needed.

By default, a local user can apply for any access type. You can specify an access type to allow only users configured with the specified access type to log in to the router.

Do as follows on the router that functions as a Telnet server:

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

aaa

The AAA view is displayed.

Step 3 Run:

local-user user-name password { simple | cipher } password

The local user name and password are set.

Step 4 Run:

local-user user-name service-type telnet

The access type of the local user is set to Telnet.

----End

5.4.4 Enabling the Telnet Service

Before a terminal establishes a Telnet connection with the router, enable the Telnet server function on the router.

Context

By default, the function of the Telnet server is enabled.

Do as follows on the router that serves as an Telnet server.

Select and perform one of the following two steps for IPv4 or IPv6.

Procedure

l For the IPv4 network

1. Run:

system-view

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 93

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

The system view is displayed.

2. Run:

telnet server enable

The Telnet service is enabled.

l For the IPv6 network

1. Run:

system-view

The system view is displayed.

2. Run:

telnet ipv6 server enable

The Telnet service is enabled.

NOTE

l If the undo telnet [ipv6] server enable command is run when a user logs in by using

Telnet, the command does not take effect.

l After the Telnet server function is disabled, you can log in to the device only using SSH

or an asynchronous serial port rather than using Telnet.

----End

5.4.5 (Optional) Configuring Listening Port Number for Telnet Server

A user can configure or change the listening port number of a Telnet server. Changing the listening port number ensures network security, because only the user that knows the current listening port number can log in to the router.

Context

By default, the listening port number of a Telnet server is 23. Users can directly log in to the router using the default listening port number. Attackers may access the default listening port, consuming bandwidth, deteriorating server performance, and causing authorized users unable to access the server. After the listening port number of the Telnet server is changed, attackers do not know the new listening port number. This effectively prevents attackers from accessing the listening port.

Do as follows on the router that functions as a Telnet server:

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

telnet server port port-number

The listening port number of the Telnet server is set.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 94

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

If a new listening port number is set, the Telnet server terminates all established Telnet connections, and then uses the new port number to listen to new requests for Telnet connections.

----End

5.4.6 Logging in to the router by Using Telnet

After the router is configured, you can log in to the router from a terminal by using Telnet, implementing remote maintenance of the router.

Context

If you need to log in to the router by using Telnet, you can use either windows command lines or a third-party software in the terminal. In this part, the windows command line prompt is used.

Do as follows on the user terminal:

Procedure

Step 1 Use the windows command line.

Step 2 Run the telnet ip-address command to telnet the router.

1. Input the IP address of the Telnet server.

2. Press "Enter" to display the command line prompt of the system view, such as <HUAWEI>. This indicates that you have accessed the Telnet server.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 95

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

----End

5.4.7 Checking the Configuration

After users log in to the system by using Telnet, you can view the connection status of the current user interface, connection status of each user interface, and status of all established TCP connections.

Prerequisite

Configurations of logins by using Telnet are complete.

Procedure

l Run the display users [ all ] command to check information about logged-in users on user

interfaces.

l Run the display tcp status command to check TCP connections.

Example

l Run the display telnet server status command to check the configuration and status of the

Telnet server.

----End

Run the display users command to view information about the currently-used user interface.

Run the display tcp status command to view TCP connections. In the command output, Established indicates that a TCP connection has been established.

<HUAWEI> display tcp status TCPCB Tid/Soid Local Add:port Foreign Add:port VPNID State 39952df8 36 /1509 0.0.0.0:0 0.0.0.0:0 0 Closed 32af9074 59 /1 0.0.0.0:21 0.0.0.0:0 14849 Listening 34042c80 73 /17 10.164.39.99:23 10.164.6.13:1147 0

Established

Run the display telnet server status command to view the configuration and status of the Telnet server.

<HUAWEI> display telnet server status Telnet IPV4 server :Enable Telnet IPV6 server :Enable Telnet server port :23

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 96

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

5.5 Logging in to the Devices by Using STelnet

5.5.1 Establishing the Configuration Task

Before configuring users to log in by using STelnet, familiarize yourself with the applicable environment, complete the pre-configuration tasks, and obtain the required data. This will help you complete the configuration task quickly and accurately.

Applicable Environment

STelnet is a secure Telnet protocol. The SSH user can use the STelnet service in the same manner as using the Telnet service.

Pre-configuration Tasks

Before configuring users to log in by using STelnet, complete the following task:

l Configuring reachable routes between the terminal and the device

Data Preparation

To configure users to log in by using STelnet, you need the following data:

No.

1 Maximum number of VTY user interfaces, (optional) ACL for limiting call-in and

2 User name, password, authentication mode, and service type of an SSH user and

3 (Optional) Name of an SSH server, number of the port monitored by the SSH server,

Data

call-out in VTY user interfaces, connection timeout period of terminal users, number of rows displayed in a terminal screen, size of the history command buffer, user authentication mode, user name, and password

remote public RSA key pair allocated to the SSH user

preferred encryption algorithm from the STelnet client to the SSH server, preferred encrypted algorithm from the SSH server to the STelnet client, preferred HMAC algorithm from the STelnet client to the SSH server, preferred HMAC algorithm from the SSH server to the STelnet client, preferred algorithm of key exchange, name of the outgoing interface, and source address

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 97

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

5.5.2 Configuring VTY User Interface

To allow a user to log in to the router by using STelnet, configure attributes of the VTY user interface.

Context

By default, the user authentication mode in the VTY user interface is password. Therefore, before a user logs in to the router by using STelnet, the user authentication mode in the VTY user interface must be set. Otherwise, the user cannot log in to the router.

You can log in to the router through a console port to set the user authentication mode in the VTY user interface.

For detailed settings, see Configuring VTY User Interface.

5.5.3 Configuring SSH for the VTY User Interface

To allow users to log in to the router by using STelnet, you need to configure VTY user interfaces to support SSH.

Context

By default, user interfaces support Telnet. If no user interface is configured to support SSH, users cannot log in to the router by using STelnet.

Do as follows on the router that serves as an SSH server:

Procedure

Step 1 Run:

system-view

The system view is displayed.

Step 2 Run:

user-interface [ vty ] first-ui-number [ last-ui-number ]

The VTY user interface is displayed.

Step 3 Run:

authentication-mode aaa

The AAA authentication mode is configured.

Step 4 Run:

protocol inbound ssh

The VTY user interface is configured to support SSH.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 98

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

NOTE

If a VTY user interface is configured to support SSH, the VTY user interface must be configured with AAA authentication. Otherwise, the protocol inbound ssh command cannot be configured.

----End

5.5.4 Configuring an SSH User and Specifying STelnet as One of Service Types

To allow a user to log in to the router by using STelnet, you must configure an SSH user, configure the router to generate a local RSA key pair, configure a user authentication mode, and specify a service type for the SSH user.

Context

l SSH users can be authenticated in four modes: RSA, password, password-RSA, and all.

Password authentication depends on Authentication, Authorization and Accounting (AAA). Before a user logs in to the router in password or password-RSA authentication mode, you must create a local user with the specified user name in the AAA view.

Procedure

Step 1 Run:

Step 2 Run:

l Configuring the router to generate a local RSA key pair is a key step for SSH login. If an

SSH user logs in to an SSH server in password authentication mode, configure the server to generate a local RSA key pair. If an SSH user logs in to an SSH server in RSA authentication mode, configure both the server and the client to generate local RSA key pairs.

NOTE

Password-RSA authentication requires success of both password authentication and RSA authentication. The all authentication mode requires success of either password authentication or RSA authentication.

Do as follows on the router that functions as an SSH server:

system-view

The system view is displayed.

ssh user user-name

1. Run:

aaa

The AAA view is displayed.

2. Run:

local-user user-name password { simple | cipher } password

Name and password of the local user are created.

Step 3 Run:

rsa local-key-pair create

A local RSA key pair is generated.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 99

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

NOTE

l Before performing the other SSH configurations, you must configure the rsa local-key-pair create

command to generate a local key pair.

l After generating the local key pair,you can perform the display rsa local-key-pair public command

to view the public key in the local key pair.

Step 4 Run:

ssh user user-name authentication-type { password | rsa | password-rsa | all }

The authentication mode for SSH users is configured.

Perform the following as required:

l Authenticate the SSH user through the password.

– Run:

ssh user user-name authentication-type password

The password authentication is configured for the SSH user.

– Run:

ssh authentication-type default password

The default password authentication is configured for the SSH user.

For the local authentication or HWTACACS authentication, if the number of SSH users is small, you can adopt the former command; if the number of SSH users is large, adopt the later command to simplify the configuration.

l Authenticate the SSH user through RSA.

1. Run:

ssh user user-name authentication-type rsa

The RSA authentication is configured for the SSH user.

2. Run:

rsa peer-public-key key-name

The public key view is displayed.

3. Run:

public-key-code begin

The public key editing view is displayed.

4. Run:

hex-data

The public key is edited.

NOTE

l In the public key view, only hexadecimal strings complying with the public key format can be

typed in. Each string is randomly generated on an SSH client. For detailed operations, see manuals for SSH client software.

l After the public key editing view is displayed, the RSA public key generated on the client can

be sent to the server. Copy the RSA public key to the router that serves as the SSH server.

5. Run:

public-key-code end

Quit the public key editing view.

Issue 02 (2011-09-10) Huawei Proprietary and Confidential

Page 100

HUAWEI NetEngine80E/40E Router Configuration Guide - Basic Configurations 5 Configuring User Login

l If the specified hex-data is invalid, the public key cannot be generated after the peer-

public-key end command is run.

l If the specified key-name is deleted in other views, the system prompts that the key does

not exist after the peer-public-key end command is run and the system view is displayed.

6. Run:

peer-public-key end

Return to the system view from the public key view.

7. Run:

ssh user user-name assign rsa-key key-name

The public key is assigned to the SSH user.

Step 5 (Optional) Configuring the Basic Authentication Information for SSH Users

1. Run:

ssh server rekey-interval interval

The interval for updating the server key pair is configured.

By default, the interval for updating the key pair of the SSH server is 0 that indicates no updating.

2. Run:

ssh server timeout seconds

The timeout period of the SSH authentication is set.

By default, the timeout period is 60 seconds.

3. Run:

ssh server authentication-retries times

The number of retry times of the SSH authentication is set.

By default, the retry times is 3.

Step 6 (Optional) Authorizing SSH Users Through the Command Line

SSH users can be authenticated in four modes: password, RSA, password-RSA, and all. In RSA authentication mode, you can configure SSH users to be authorized based on command levels.

Run:

ssh user user-name authorization-cmd aaa

The command line authorization is configured for the specified SSH user.

After configuring the authorization through command lines for the SSH user to perform RSA authentication, you have to configure the AAA authorization. Otherwise, the command line authorization for the SSH user does not take effect.

Step 7 Run:

ssh user username service-type { stelnet | all }

The service type for the SSH user is configured.

By default, the service type of the SSH user is not configured.

----End
