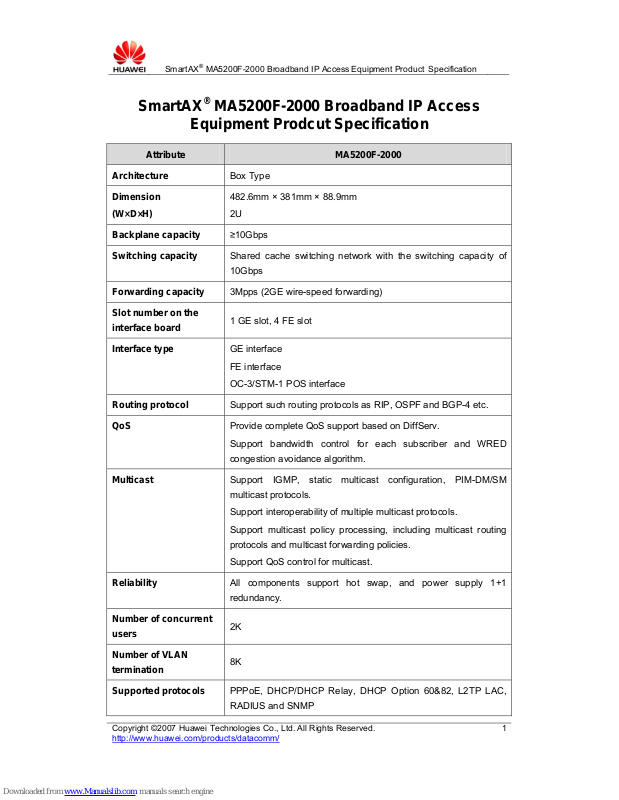

Page 1
SmartAX
®
MA5200F-2000 Broadband IP Access Equipment Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
1
SmartAX® MA5200F-2000 Broadband IP Access
Equipment Prodcut Specification
Attribute MA5200F-2000
Architecture
Box Type
Dimension
(W×D×H)
482.6mm × 381mm × 88.9mm
2U
Backplane capacity
≥10Gbps
Switching capacity
Shared cache switching network with the switching capacity of
10Gbps
Forwarding capacity
3Mpps (2GE wire-speed forwarding)
Slot number on the
interface board
1 GE slot, 4 FE slot
Interface type
GE interface
FE interface
OC-3/STM-1 POS interface
Routing protocol
Support such routing protocols as RIP, OSPF and BGP-4 etc.
QoS
Provide complete QoS support based on DiffServ.
Support bandwidth control for each subscriber and WRED
congestion avoidance algorithm.
Multicast
Support IGMP, static multicast configuration, PIM-DM/SM
multicast protocols.
Support interoperability of multiple multicast protocols.
Support multicast policy processing, including multicast routing
protocols and multicast forwarding policies.
Support QoS control for multicast.
Reliability
All components support hot swap, and power supply 1+1
redundancy.
Number of concurrent
users
2K
Number of VLAN
termination
8K
Supported protocols
PPPoE, DHCP/DHCP Relay, DHCP Option 60&82, L2TP LAC,
RADIUS and SNMP
Page 2
SmartAX
®
MA5200F-2000 Broadband IP Access Equipment Product Specification
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
2
Attribute MA5200F-2000
Security
Provide authentication, resource protection, attack shielding and
address anti-counterfeit functions.
IP+MAC+VLAN ID binding, protect the customers against IP
spoofing attack.
Starting from 64K, limit user’s bandwidth by CAR with the step of
8K.
NM
Adopt Huawei iManager and Quidview NM platforms as the
framework. Support SNMP and the Client/Server architecture.
Run independently on UNIX (SUN, HP) or ORACLE/SYBASE, or
be nested into the existing NM platform such as HP OpenView.
Provide dynamic topology management, fault management,
performance management, configuration tools, log management,
operation monitoring, security and user management.
Provide VPN management, QoS policy management and other
service management functions.
Provide an optional offline flow engineering tool.
Support multiple languages.
North-bound Interface for 3rd-party APP and Service Provisioning
system
Input power supply
DC: -36V to -72V / AC (110V/220V): 90V to 264V
Full-load power
consumption
Below 60W
Full-configuration
weight
Below 10kg
Mean Time Between
Failures (MTBF)
=15 years
Environmental
requirement
Long-term working temperature: 0 to 45°C
Short-term working temperature: -5to 55°C
Storage temperature: -30 °C to 60 °C
Relative humidity: 10% to 90%
Altitude: below 4000m
