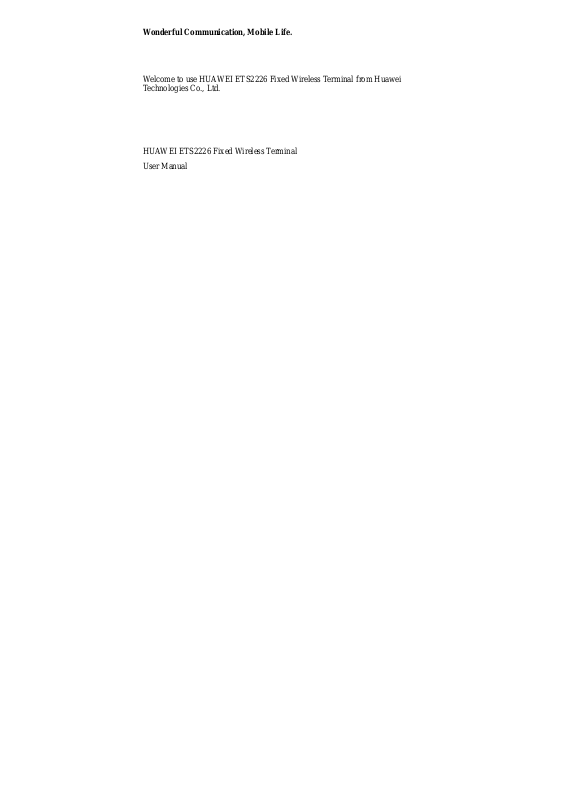

Wonderful Communication, Mobile Life.
Welcome to use HUAWEI ETS2226 Fixed Wireless Terminal from Huawei Technologies Co., Ltd.
HUAWEI ETS2226 Fixed Wireless Terminal
User Manual
Copyright © 2006 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks
and HUAWEI are trademarks of Huawei Technologies Co., Ltd.All other trademarks mentioned in this manual are the property of their respective holders.
Notice
The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, expressed or implied.
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons
|
Contents |
|
1 Warnings and Precautions................................................................................... |
1 |
|
|
Battery.......................................................................................................... |
3 |
2 |
Introduction ........................................................................................................ |
5 |
|
Packing List.................................................................................................. |
5 |
|
Antenna and Feeder (Optional) .................................................................... |
5 |
|
Product Features........................................................................................... |
6 |
3 |
Function Description .......................................................................................... |
9 |
|
Display and Operating Elements.................................................................. |
9 |
|
Display Screen Description........................................................................ |
14 |
4 |
Installation Description .................................................................................... |
19 |
|
External Power Adapter Installation........................................................... |
19 |
|
Spare Battery Detachment/Installation....................................................... |
19 |
|

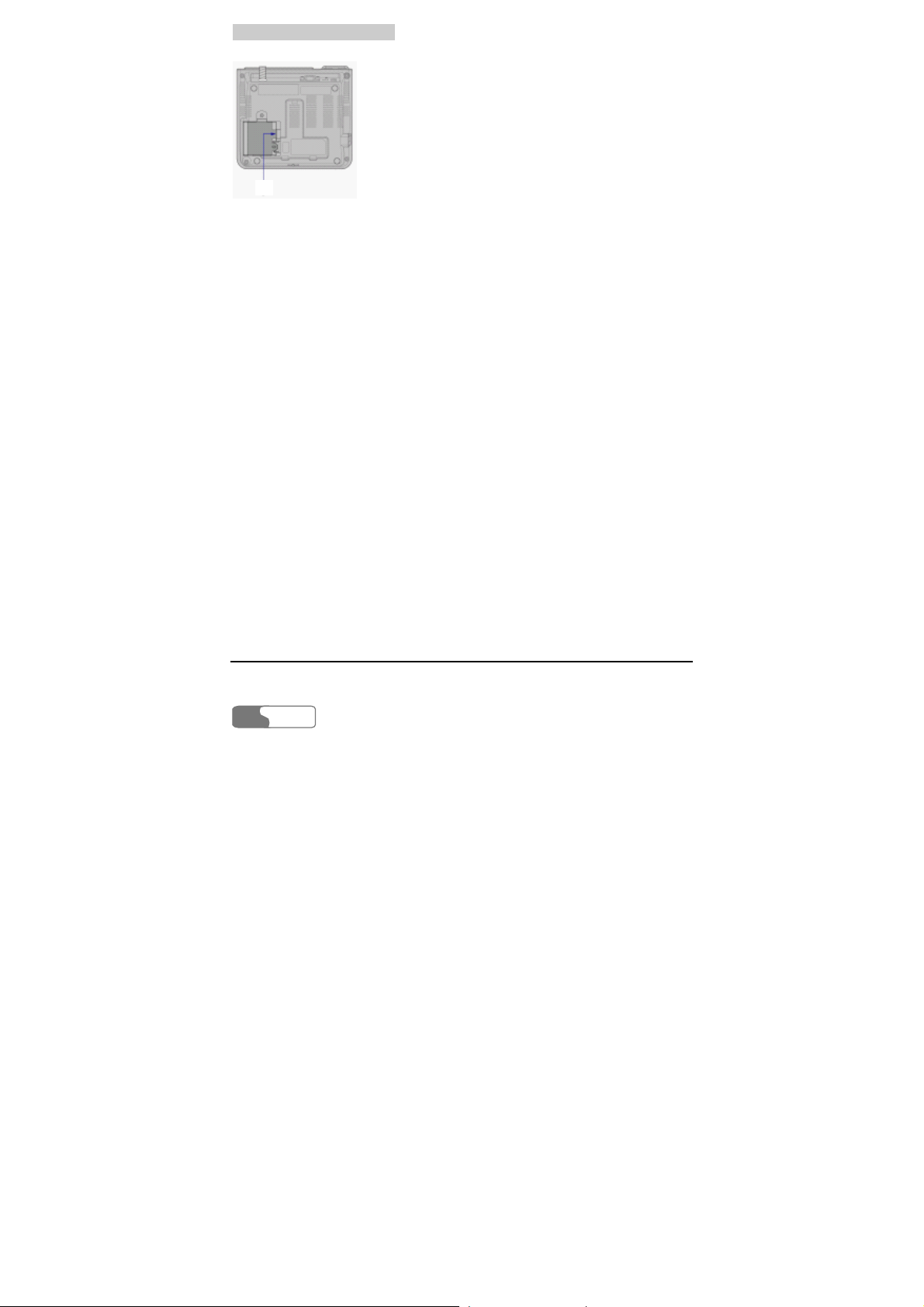

R-UIM Card Installation (Optional)........................................................... |
20 |
|
Installing Antenna (Optional)..................................................................... |
21 |
|
Mounting Mode.......................................................................................... |
22 |
5 |
Quick Start........................................................................................................ |
25 |
6 |
Basic Operations............................................................................................... |
27 |
|
Preparation ................................................................................................. |
27 |
|
Turning On................................................................................................. |
27 |
|
Using R-UIM Card (Optional) ................................................................... |
27 |
|
Making a Call............................................................................................. |
28 |
|
HUAWEI |
i |
Contents |
|
|
|
Answering a Call........................................................................................ |
31 |
|
Hands-free Mode Switchover..................................................................... |
31 |
|
Supplementary Services ............................................................................. |
32 |
|
Voice Volume Tuning ................................................................................. |
33 |
|
Turning Off ................................................................................................ |
34 |
7 Phone Book ...................................................................................................... |
35 |
|
|
Entering the "Phone Book" Interface ......................................................... |
35 |
|
Selecting Memory ...................................................................................... |
35 |
|
Saving a Number to Phone Book ............................................................... |
36 |
|
Browsing Phone Book................................................................................ |
36 |
|
Modifying Contact Entry ........................................................................... |
36 |
|
Deleting Contact Entry............................................................................... |
37 |
|
Copying Contact Entry............................................................................... |
37 |
|
Groups........................................................................................................ |
38 |
8 Call Record....................................................................................................... |
41 |
|
|
Entering the "Records" Interface................................................................ |
41 |
|
Received Calls............................................................................................ |
41 |
|
Missed Calls............................................................................................... |
42 |
|
Dialed Calls................................................................................................ |
42 |
9 Message............................................................................................................ |
43 |
|
|
Entering the "Messages" Interface ............................................................. |
43 |
|
Browsing Messages.................................................................................... |
43 |
|
Writing a Message...................................................................................... |
44 |
|
Voice Mailbox ............................................................................................ |
44 |
|
Outbox........................................................................................................ |
45 |
ii |
HUAWEI |
|
|
|
Contents |
|
Settings....................................................................................................... |
45 |
10 |
FWT Settings.................................................................................................. |
47 |
|
Entering the "Settings" Interface ................................................................ |
47 |
|
Common Setting ........................................................................................ |
47 |
|
Personal Setting.......................................................................................... |
50 |
|
Advanced Setting ....................................................................................... |
52 |
11 |
Introduction to Text Entry .............................................................................. |
53 |
|
Text Entry Supported ................................................................................. |
53 |
|
When to Use Text Entry ............................................................................. |
53 |
|
How to Use Text Entry............................................................................... |
53 |
|
ABC (abc) Input......................................................................................... |
55 |
|
ENG (eng) Input......................................................................................... |
55 |
|
123 Input .................................................................................................... |
56 |
12 Maintenance ................................................................................................... |
57 |
|
13 |
Troubleshooting.............................................................................................. |
59 |
14 |
Technical Specification................................................................................... |
61 |
15 |
Product Series................................................................................................. |
63 |
16 Abbreviation ................................................................................................... |
65 |
HUAWEI iii
1 Warnings and Precautions
To use the HUAWEI ETS2226 Fixed Wireless Terminal (hereinafter referred to as the FWT) accurately, efficiently and securely, you should notice the following cautions.
Basic Cautions
zCheck fittings based on the packing list to make sure they are complete and undamaged.
zRead this manual carefully before installing and using the FWT.
Electronic Device
Switch your FWT off near high-precision electronic devices. The FWT may affect the performance of these devices.
Such devices include hearing aids, pacemakers, fire alarm systems, automatic gates, and other automatic-control devices. If you are using an electronic medical device, consult the device manufacturer and confirm whether the radio wave affects the operation of this electronic device.
Hospital
Pay attention to the following points in hospitals or health care facilities:
zDo not take your FWT into the operating room (OR), intensive care unit (ICU), or coronary care unit (CCU).
zSwitch your FWT off near medial devices.
zObserve any instructions wherever the use of wireless device is prohibited.
Traffic Safety
zDo not use your FWT while driving. Secure the FWT on its holder. Do not place the FWT on the seat or other places where it can get loose in a sudden stop or collision.
zObserve the rules and regulations of airline companies. Switch your FWT off before boarding an aircraft.
HUAWEI 1
1 Warnings and Precautions
Operating Environment
zDo not place magnetic storage media such as magnetic cards and floppy disks near the FWT. Radiation from the FWT may erase the information stored on them.
zDo not put your FWT, battery, or other accessories in containers with strong magnetic field, such as the induction cooker and microwave oven. Otherwise, circuit failure, fire, or explosion may result.
zDo not leave your FWT, battery, or power adapter in a high-temperature place or use them in a place with flammable gas. Otherwise, malfunction of the products, fire, or explosion may result.
zBecause FWT needs to eliminate heat during working, put the FWT and the power supply in a ventilated and shadowy place. Never airproof the FWT or put something on it or place it near water, fire as well as inflammable and explosive materials.
zBecause FWT contains precision devices, you should put it in a dry place and away from moist materials.
zBefore cleaning FWT, please turn off the FWT, and then disconnect the power supply and take out the battery. Before moving FWT, please disconnect the external power supply.
zDo not subject your FWT, battery, and power adapter to serious collision or shock. Otherwise, battery leakage, FWT malfunction, overheat, fire, or explosion may result.
zDo not place sharp metal objects such as pins near the earpiece. The earpiece may attract these objects and hurt you when you are using the FWT.
zDo not place the FWT in the area over the air bag or in the air bag deployment area. Otherwise, the FWT may hurt you owing to the strong force when the air bag inflates.
zWhen lightning, if you use the power adapter, please turn off the FWT and disconnect the power adapter from external power supply.
zPut your FWT, battery, and power adapter in places beyond the reach of children. Do not allow children to use the FWT, battery, or power adapter without guidance.
zDo not touch the antenna when a call is going on. Touching the antenna may affect call quality and cause the FWT to operate at a power level higher than needed.
zThe network signal condition will directly affect the quality and stability of the call. Consequently, you should place FWT in a place where it can receive
2 HUAWEI
1 Warnings and Precautions
network signal well. Do not put FWT in a building with an iron or metal roof. The distance between FWT and other metal materials (such as metal brackets or metal doors and windows) should be greater than 25cm and the distance between FWTs should be greater than 30cm.
zDo not open the chassis in any case and the device should be maintained by a qualified maintenance department.
zWithout permission, you are not allowed to modify the architecture and security design of FWT. You must bear any consequence resulted from the operation without permission.
zYour FWT is designed to conform to the authoritative international radio frequency (RF) specifications. Use FWT accessories approved by Huawei only.
Emergency Call
You can use your FWT for emergency calls. However, connections in all conditions cannot be guaranteed. You should never rely solely on the FWT for essential communications.
Battery
zIf the battery fluid gets into eyes, do not rub them. Wash with clean water and seek medical assistance immediately.
zIf the battery fluid contacts skin or cloth, wash with clean water immediately to avoid irritation to the skin.
zDo not dispose of the battery in fire. Otherwise, the battery may ignite or explode.
zWhen installing the battery on your FWT, do not push the battery by force lest battery fluid leak out or the battery crack.
zDo not connect two poles of the battery with metallic materials such as cables.
zDo not disassemble the battery or solder the battery poles. Otherwise fluid leakage, overheat, fire, or explosion may result.
zIf there is battery leakage, smoke, or strange smell, stop using the battery and keep it away from open flame to avoid fire or explosion.
zDisconnect the power adapter and take out the spare battery when FWT is not used for a long time.
HUAWEI 3
1 Warnings and Precautions
zDo select its self-contained complete battery and power adapter, otherwise, FWT may be spoiled. Dispose of used batteries according to the instructions
zDispose of the battery according to local laws or regulations.
Power Adapter
zUse AC power as specified for the power adapter. Any violation of this rule may result in fire or malfunction of the power adapter.
zDo not short-circuit the power adapter. Short-circuiting the power adapter may cause fire or malfunction of the power adapter.
zRemove the dust on the power plug regularly.
zDo not use worn-out power cords. Otherwise, electric shock, short-circuiting of the power adapter, or fire may result.
zDo not put the power adapter near the container filled with liquid such as water. If the liquid comes into the power adapter, electrical leakage or other faults may result.
zIf the liquid such as water comes into the power adapter accidentally, remove the plug of the power adapter from the socket immediately.
zDisconnect the power adapter from the socket before cleaning or maintaining it. Otherwise, electric shock or short-circuiting of the battery or power adapter may result.
zEnsure the plug of the power adapter is properly inserted into the power socket when charging the battery. Improper insertion may result in electric shock, fire, or explosion.
zDo not place any heavy object on the power cord of the power adapter. Do not damage, change, or pluck the power cord.
Environmental Protection
Please abide by the local laws in proposing of the package materials of your handset, consumed batteries and used handsets, and try to recycle them.
4 HUAWEI
2 Introduction
Packing List
The whole FWT fittings are listed in table below. Check the fittings packed in the box according to the table to make sure they are complete and undamaged. Otherwise, contact the local vendor immediately.
Name |
Quantity |
Unit |
Main unit, handset, spiral cord |
1 |
Set |
Power adapter |
1 |
Unit |
|
|
|
Spare battery (rechargeable) (optional) |
1 |
Pile |
|
|
|
User Manual |
1 |
Volume |
|
|
|
Tapping screw |
1 |
Piece |
|
|
|
Wall-mounting bracket |
1 |
Piece |
|
|
|
Certificate of Quality |
1 |
Piece |
|
|
|
Note:
zSpare battery is optional. You can purchase an FWT with spare battery or purchase them independently.
Antenna and Feeder (Optional)
If you select an FWT that can be installed with indoor antenna, please read the following to learn the information.
Indoor Omni Antenna
Figure 2-1 illustrates an indoor omni antenna for the FWT:
HUAWEI 5
2 Introduction
Figure 2-1 Indoor omni antenna for the FWT
Product Features
|
|
Function |
Description |
|
Phone book |
300 groups of contact entries (if an R-UIM card is used for |
|
|
|
|
storage, the number of contact entries depends on the |
|
|
|
card). |
|
Call Records |
20 groups of received (missed) telephone information |
|
|
|
|
query. |
|
|
|
100 groups of dialed telephone information query. |
|
|
|
|
|
Message |
Message sending and receiving. |
|
|
sending and |
|
|
|
22 pieces of messages can be saved in the inbox. |
||
|
receiving |
||
|
|
||
|
40 pieces of messages can be saved in the outbox. |
||
|
|
|
|
|
|
|
|
|
|
|
Retry after message delivery failure. |
|
|
|
|
|
Dialing Feature |
9 groups of speed dials. |
|
|
|
|
|
|
|
|
Support to dial telephone numbers in call records. |
|
|
|
|
|
|
|
Support to dial telephone numbers in phone book. |
|
|
|
|
|
|
|
Support to dial back the number for received short |
|
|
|
message. |
|
IP telephone |
Support to set and call an IP card number. |
|
|
|
|
|
|
Support many |
Support many supplementary services, such as three-way |
|
|
supplementary |
calling, call transfer and emergency call. |
|
|
services |
|
|
|
Hands-free |
Provide hands-free function. |
|
|
|
|
|
6 |
HUAWEI |
|
|
|
2 Introduction |
|
|
|
|
|
Function |
Description |
|
|
Ringing type |
Support 11 ringing types. |
|
|
customization |
|
|
|
Ringing volume |
Tune the volume of ringing tone through the menu. |
|
|
tuning |
|
|
|
Voice volume |
Tune voice volume through keys (UP/DOWN key) during |
|
|
tuning |
conversation. |
|
|
Message volume |
Up to 4 levels of message volume for choice. |
|
|
tuning |
|
|
|
Long-distance |
Provide password locking function for long-distance call. |
|
|
call locking |
|
|
|
Voice Privacy |
Support voice privacy during a conversation. |
|
|
|
|
|
|
Mute mode |
Support mute mode during ongoing call. |
|
|
|
|
|
|
Hotline |
Support the settings of hotline function. |
|
|
|
|
|
|
Note:
For the details about supplementary services offered by FWT, inquire to the carrier.
HUAWEI 7
3 Function Description
Display and Operating Elements
FWT Front View and Description
1) Antenna |
2) Display screen |
3) UP key |
4) OK key |
5) MENU key |
6) END key |
7) DOWN key |
8) R key |
9) CANCEL key |
10) IP key |
11) PAUSE key |
12) IN-USE indicator |
13) CALL/REDIAL key |
14) HANDFREE key |
15) Alphanumeric keys |
16) Handset Retaining Clip |
|
17) Heaver |
Figure 3-1 FWT front view |
|
|
<IN-USE> indicator
Red indicator means the handset of the FWT is picked up or the FWT is in
HUAWEI 9
3 Function Description
hands-free state.
<MENU> key
In the standby state, press this key to enter the menu options.
<UP/DOWN> key
There are two keys and
.
zAfter entering the menu options, press these keys to browse the menu options;
zWhile using the text entry, press these keys to move the cursor to the left or
right, to turn page up or down. For details, refer to the “11 Introduction to Text Entry”;
z During the conversation, press these keys to tune the volume.
<OK> key
While browsing the menu options, press this key to select and enter the menu option, or save your settings.
<CANCEL> key
This key is used to delete the current input.
zPress this key to delete one character;
zPress and hold this key to delete all.
<END> key
Pressing this key during the conversation, you can end a call, which is equal to the hang-up operation. In the event of receiving a call, press this key to stop the ringing and hang up the call. Moreover, it can also be used to quit from the current menu operation.
<PAUSE> key
There are two functions for this key:
zIt is used as a sign of time interval when you set IP card number. For more information, refer to the “IP Card Calling”;
zIt is also used as a sign of the mute. During a conversation, press this key for a while you can see on the screen.
indicates the phone is in mute mode. That is, if calling presses and holds this key for a while (then releases it), called hears nothing, but the calling can here what called say (Vice versa). When
10 HUAWEI
3 Function Description
caller presses and holds this key for a while again, both parties can make conversation.
<CALL/REDIAL> key
When the FWT is in standby state, if no telephone number is displayed on the screen, pressing <CALL/REDIAL>, you can view the last dialed number and the FWT will redial the number; if there is a number displayed on the screen, the FWT will call back the number after you press the key.
After a speed dialing is setting, you only need to press correspond key (from 1 to 9) and then press the <CALL/REDIAL> key, the set number is dialed.
Pressing this key, you can answer the call in hand-free mode.
<HANDFREE> key
In the standby state, pressing this key, you can directly answer a call or hear the dialing tone, which means you can make a call, without picking up the handset.
<R> key
This key is used in supplementary services to control the call transfer and three-way calling. Its performance is similar to pressing <CALL/REDIAL> or quickly flapping the heaver. For the details, refer to the "Supplementary Services".
<IP> key
Using this key, you can dial the configured IP card number. For more information, refer to the "IP Card Calling".
Alphanumeric keys
Pressing these keys, you can input the corresponding alphanumeric symbols.
FWT Back View and Description
Figure 3-2 shows the FWT type that is fixedly installed with the indoor antenna.
HUAWEI 11
3 Function Description
|
|
|
|
|
(2) |
|
|
||
(4) |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
(3) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
(5) |
|
|
|
|
|
|
|||
|
1) Hole of hook |
2) Wall-mounting bracket |
3) Spare battery case |
4) Tapping screw installation hole 5) Wall-mounting bracket installation area

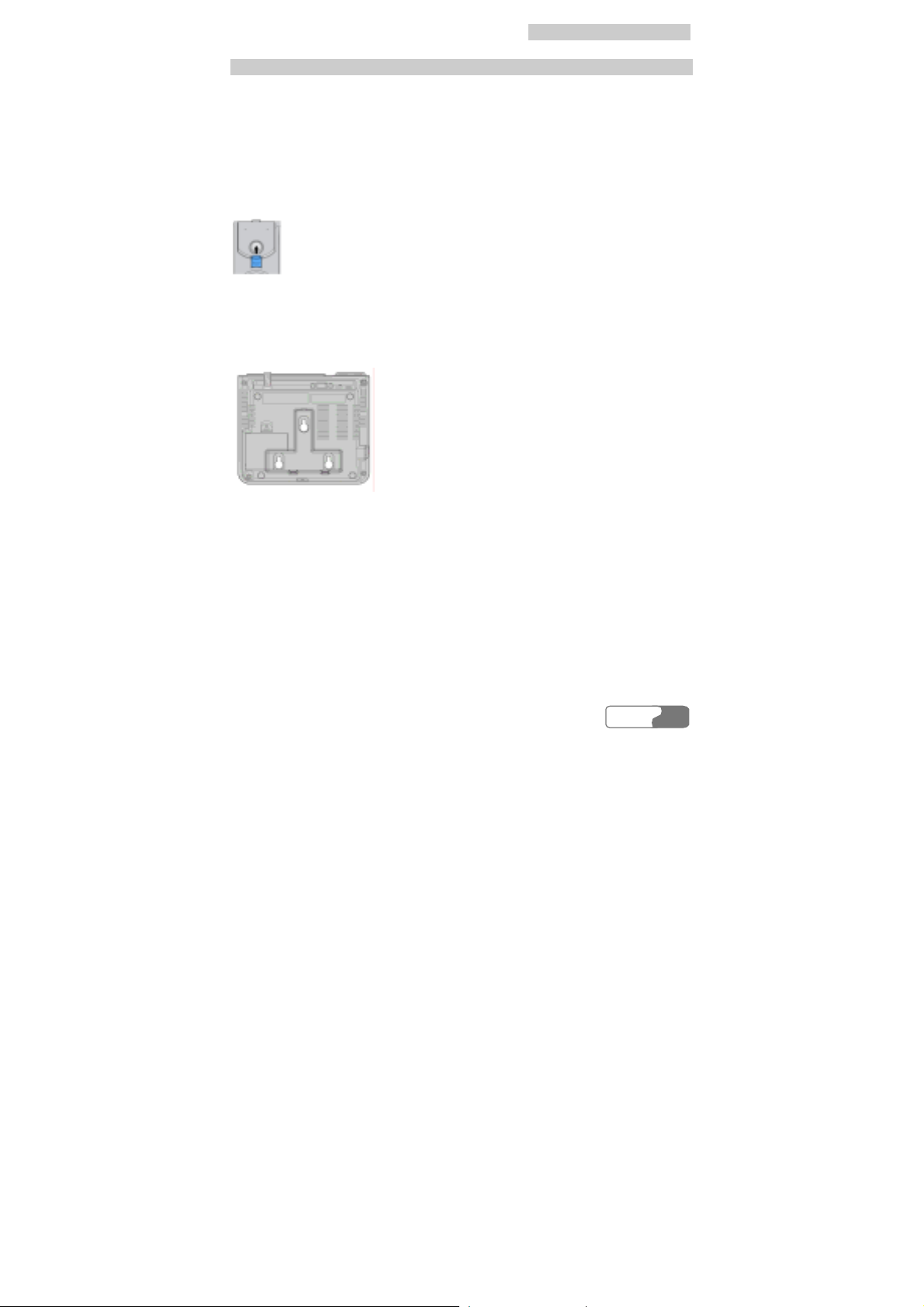

Figure 3-2 FWT back view (1)
(1)
1) Installation interface to indoor antenna
Figure 3-3 FWT back view (2)
Hole of Hook
It is used when the FWT is installed vertically.
Wall-mounting bracket
If you want to install the FWT vertically, you should install the wall-mounting bracket in the corresponding installation area. For the details, refer to the "Wall Mounting Mode".
Spare battery case
Spare battery should be placed in it.
12 HUAWEI
3 Function Description
Tapping screw installation hole
You are recommended to fix the tapping screw to place 4) in Figure 3-2 in case children were hurt by touching the battery.
Installation interface to indoor antenna
For the FWT type that can be installed with indoor antenna, you need this interface.
FWT Side View and Description
|
(4) |
|
|
(1) |
|
|
|
|
(3) |
|
|
(2) |
(5) |
(6)(7) |
|
|
|
|
|
1) |
Main unit spiral cord jack |
2) |
Handset spiral cord jack |
3) |
Spiral cord |
4) |
Handset |
5) |
Power jack |
6) FWT switch |
|
7) |
DB9 serial port |
|
|
Figure 3-4 FWT side view (1)
(1)
1) Installation interface to indoor antenna
Figure 3-5 FWT side view (2)
Main unit and handset spiral cord jacks
They are used to install the FWT spiral cord.
HUAWEI 13
3 Function Description
Power jack
It is a DC-input power port, used to connect the FWT with the power adapter.
FWT switch
It is used to turn on/off the FWT.
DB9 serial port
You can maintain the FWT through this port.
Display Screen Description
Icons Description
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
Figure 3-6 Icons on the screen
: Signal strength. The strength of received signal is displayed from weaker to stronger in four levels from 1 through 4.
: Unread voice messages. This icon disappears when all messages have been read.
: Unread text messages. This icon disappears when all messages have been read. The inbox can only hold at most 22 text messages.
: Call privacy mode. This mode can improve the security and privacy of a call.
: Hand-free.
: In mute mode.
: Network not available.
: In power supply mode.
: In alarm mode. The icon is located at the left corner.
14 HUAWEI
