HUAWEI EC152 User Guide
HUAWEI EC152
User Guide
|
Table of Contents |
|
1. |
Introduction................................................................................................................ |
1 |
2. System Requirements ................................................................................................. |
1 |
|
3. EC152 Appearance...................................................................................................... |
2 |
|
4. |
Technical Specifications .............................................................................................. |
3 |
5. |
Inserting a microSD Card ............................................................................................ |
4 |
6. |
Using the device.......................................................................................................... |
5 |
|
Installation Procedure for Windows XP ..................................................................... |
5 |
|
Installation Procedure for Mac OS ........................................................................... |
15 |

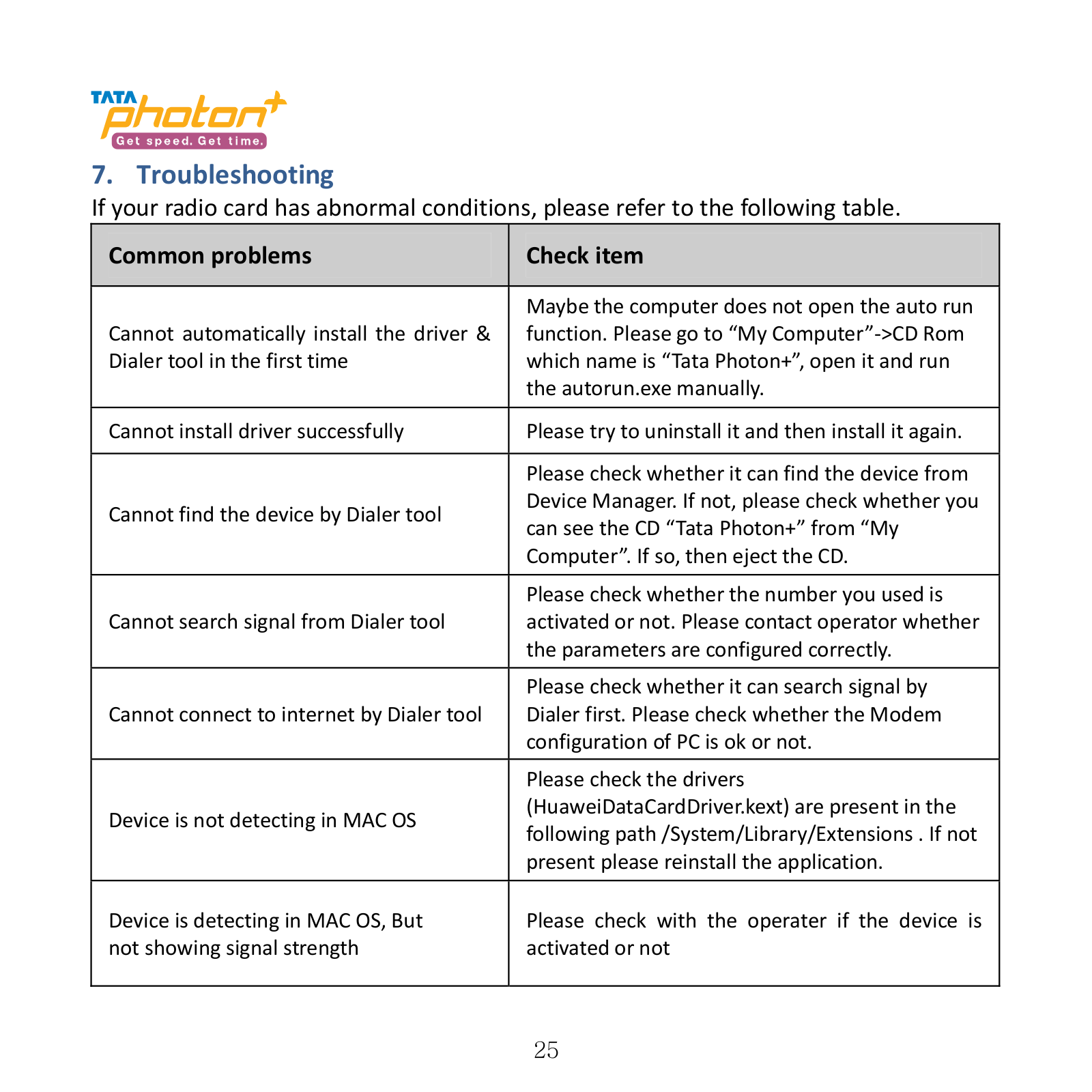

7. |
Troubleshooting........................................................................................................ |
25 |

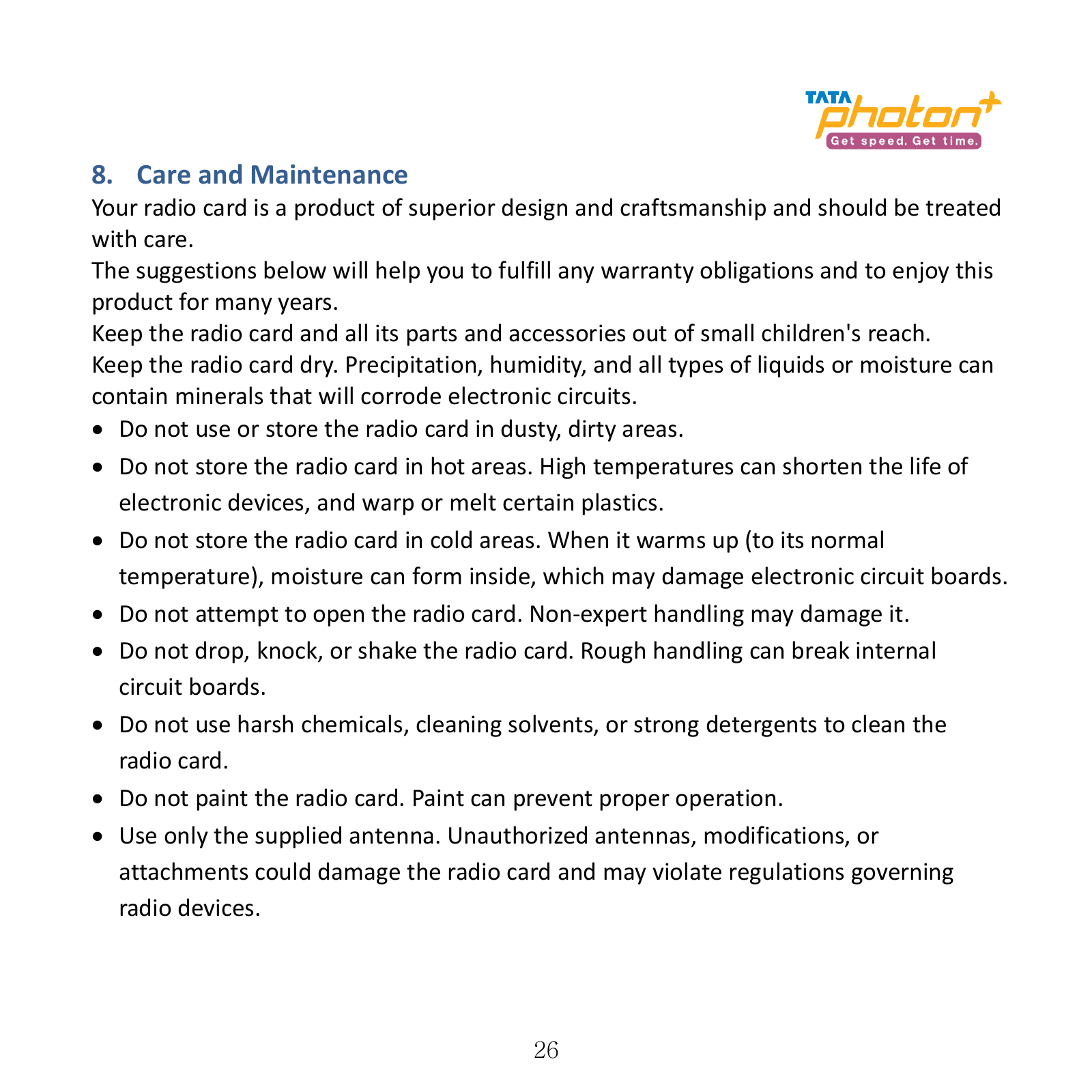

8. Care and Maintenance.............................................................................................. |
26 |
|

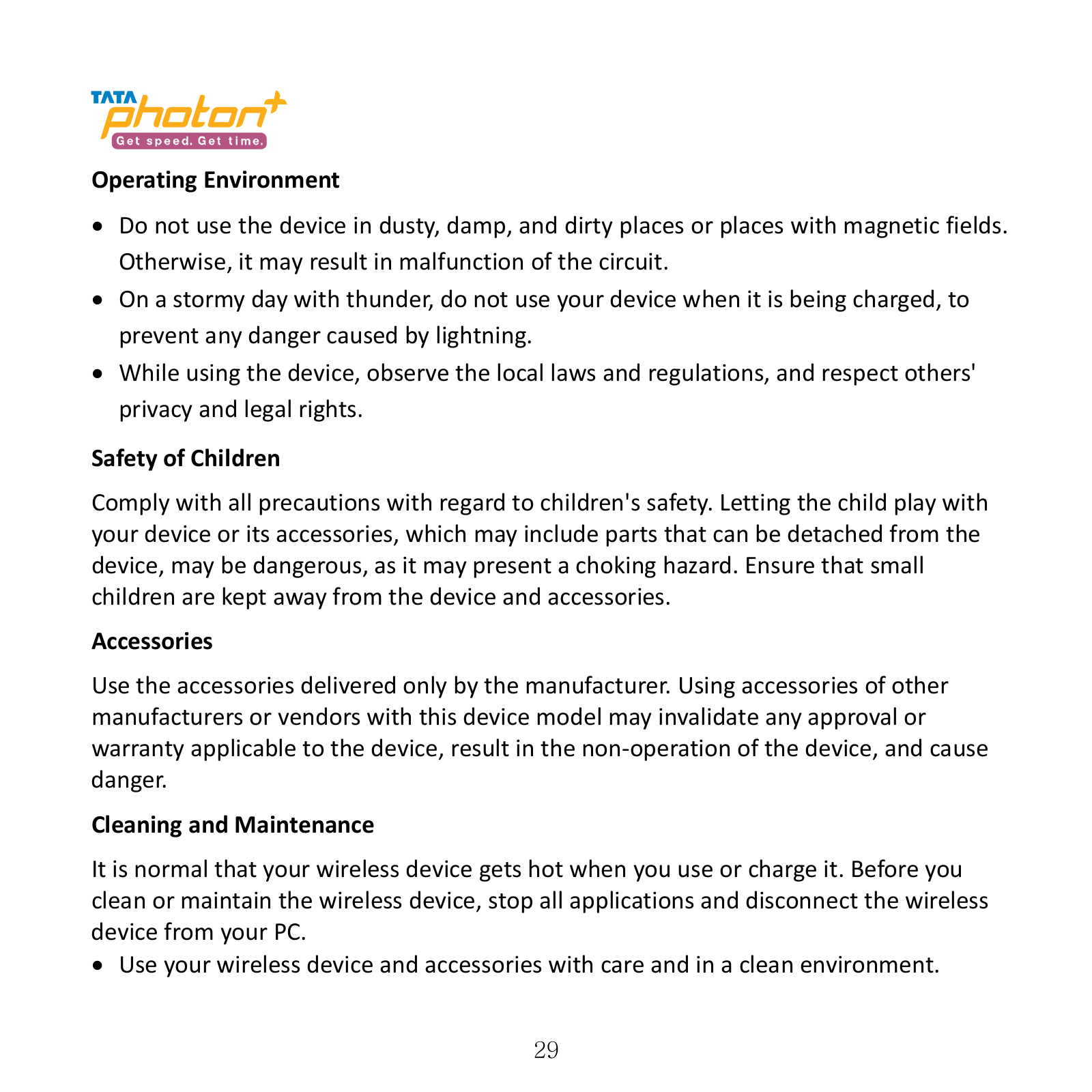

9. Warnings and Precautions ........................................................................................ |
27 |
|
i
1. Introduction
Congratulations on your purchase of Huawei EC152 TATA Photon Plus USB Data Modem Device.
The User Guide contains important information on the proper use and correct operation of Huawei EC152 TATA Photon Plus USB Data Modem Device. We recommend that you read this manual carefully to ensure optimal performance.
2. System Requirements
• |
PC with USB Port |
• |
Windows 2000 SP4 , Windows XP SP2 / SP3, Windows Vista SP1 / SP2, Windows7 |
Mac OS X 10.4 , 10.5 and 10.6 with latest upgrades
•Hardware configuration should satisfy the demand of the operating system.
•Display Resolution Above 800x600
Note:
If your PC has lower configuration the performance of EC152 may be lower.
1
3. EC152 Appearance
1
3
2
Please find below the description that you need to know to start using your device.
Name |
Description |
1.USB Plug |
It connects EC152 to a PC. |
2.Indicator light |
• Solid: EC152 is powered on. |
|
• Blinking once every 2 seconds: EC152 is searching for |
|
a network or no network is found. |
|
• Blinking twice every 2 seconds: EC152 finds a |
|
network. |
|
• Blinking once every 0.2 second: EC152 is |
|
transmitting data. |
3. microSD card Slot |
Installing microSD card |
|
|
|
2 |
4. Technical Specifications
|
Modem Type |
USB Dongle NON RIUM |
|
|
|
|
|
|
Mode |
EVDO REV A |
|
|
|
|
|
|
Frequency (Band ) |
|
800 MHz |
|
|
||
|
|
|
|
|
Antenna Type |
Internal |
|
|
|
|
|
|
Dimension |
83.0mm×26.6mm×11.5mm |
|
|
|
|
|
|
Memory Card Slot Support |
|
microSD card |
|
|
||
|
|
|
|
|
External Memory Support |
Up to 4GB |
|
|
|
|
|
3
5. Inserting a microSD Card
1.Slide the back cover to remove it from EC152.
2.Insert the microSD card into the corresponding card slot, as shown in the following figure.
3.Replace the back cover and slide it into place.
4
6. Using the device
For different operating system, the installation process is different. Please note the process for the following Operating Systems
Installation Procedure for Windows XP
1 Connect EC152 with PC
Connect EC152 with PC via USB port.
5
2 Install EC152 Dialer & Driver
If PC opens the auto run function, it will pop up an installation interface. If not, please go to CD as shown in the figure below and open it and double click the “AutoRun.exe” file or right click and click on Auto play.
Please refer to the following screenshots for the further steps of installation
6
Click “Next “and then to agree with the license agreement click “I Agree”.
Click “Next “and then choose a location path for installation and click install. In case you do not have any specific location preference you may choose to continue with the default location and click “Install”.
7
8
