About This Document
Summary
This document provides information about the major functions, supported services,
system architecture, and technical references of HUAWEI E8231 HSPA+ Wingle
(hereinafter referred to as the E8231).
The following table lists the contents of this document.
Chapter
Describes
1 Overview
The supported network modes, basic services and functions,
and the appearance of the E8231.
2 Features
The supported features and technical specifications of the
E8231.
3 Services and Applications
The services and applications of the E8231.
4 System Architecture
The architecture of the E8231.
5 Technical Reference
The technical references of the E8231.
6 Packing List
The items contained in the package of the E8231.
A Acronyms and Abbreviations
The acronyms and abbreviations mentioned in this document.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 3 of 24
History
Issue
Details
Date
Author
Approved by
01
Initial draft completed.
2013-08-05
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 4 of 24
Contents
1 Overview .......................................................................................................................... 5
2 Features ........................................................................................................................... 7
2.1 Main Features .................................................................................................................................. 7
2.2 Technical Specifications ................................................................................................................... 8
2.2.1 Hardware ................................................................................................................................. 8
2.2.2 Software Specifications ........................................................................................................... 9
3 Services and Applications ........................................................................................... 11
3.1 Packet Data Service ........................................................................................................................ 11
3.1.1 USB Modem ........................................................................................................................... 11
3.1.2 Wireless Modem ..................................................................................................................... 11
3.2 SMS ................................................................................................................................................ 13
4 System Architecture ..................................................................................................... 14
4.1 System Architecture ....................................................................................................................... 14
4.2 Functional Modules ........................................................................................................................ 15
5 Technical Reference ..................................................................................................... 17
5.1 Standards/Protocols for Data product ............................................................................................ 17
5.2 Standards/Protocols for wireless Um interface .............................................................................. 17
6 Packing List ................................................................................................................... 21
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 5 of 24
1 Overview
The E8231 supports the following standards:
High Speed Packet Access Plus (HSPA+)
High Speed Uplink Packet Access (HSUPA)
High Speed Downlink Packet Access (HSDPA)
Universal Mobile Telecommunications System (UMTS)
Enhanced Data Rates for Global Evolution (EDGE)
General Packet Radio Service (GPRS)
Global System for Mobile Communications (GSM)
Wireless local area network as WiFi AP(WLAN)
The E8231 provides the following services:
HSPA+ packet data service，the maximum rate up to 21.6Mbit/s;
HSPA (HSUPA/HSDPA)/UMTS packet data service, the maximum rate up to
14.4Mbit/s;
EDGE/GPRS packet data service, the maximum rate up to 236.8Kbit/s;
UMTS/GSM Short Message Service (SMS)
You can connect the E8231 with the USB interface of a computer, or with the power
adapter/in car also by USB interface.
In the service area of the HSPA+/HSPA/UMTS/EDGE/GPRS/GSM network, you can
surf the Internet and send/receive messages/emails cordlessly. The E8231 is fast,
reliable, and easy to operate. Thus, mobile users can experience many new features
and services with the E8231. These features and services will enable a large number
of users to use the E8231 and the average revenue per user (ARPU) of operators will
increase substantially.
Figure 1-1 shows the profile of the E8231.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 6 of 24
Figure 1-1 E8231 profile
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 7 of 24
2 Features
2.1 Main Features
The E8231 mainly supports the following features:
HSPA+/HSPA/UMTS 2100MHz (E8231s-1)、2100/900MHz(E8231s-2),
EDGE/GPRS/GSM 1900MHz/1800MHz/900MHz/850MHz
Equalizer
Receive diversity
HSPA+ downlink data service of up to 21.6Mbps
HSDPA data service of up to 14.4Mbps
HSUPA data service of up to 5.76Mbps
UMTS PS domain data service of up to 384 kbps
EDGE packet data service of up to 236.8 kbps
GPRS packet data service of up to 85.6 kbps
SMS based on CS/PS domain of GSM and UMTS
Wi-Fi AP and WPS
Inner DHCP server, DNS RELAY and NAT
Plug and Play
Standard USB interface
UMTS and WLAN inner antenna
Wi-Fi AP, supports up to 10 users
Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8(Does not
support Windows RT), Mac OS X 10.6, 10.7 and 10.8 with latest upgrades
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 8 of 24
2.2 Technical Specifications
2.2.1 Hardware
Table 2-1 lists the hardware specifications.
Table 2-1 Hardware specifications
Item
Specifications
Technical standard
GSM/GPRS/EGPRS R99
WCDMA/HSDPA R5, HSUPA R6, HSPA+ R7
WLAN: IEEE 802.11b/g/n
Operating frequency
HSPA+/HSPA/UMTS
2100MHz (E8231s-1),
2100/900MHz(E8231s-2)
EDGE/GPRS/GSM: 1900MHz/1800MHz/900MHz/850MHz
WLAN：2412MHz～2472MHz
Maximum
transmitter power
WCDMA/HSPA+：+24dBm (Power Class 3)
GSM/GPRS 850M/900MHz： +33dBm (Power Class 4)
GSM/GPRS 1800MHz/1900MHz： +30dBm (Power Class 1)
EDGE 850M/900MHz： +27dBm (Power Class E2)
EDGE 1800MHz/1900MHz： +26dBm (Power Class E2)
WLAN:
802.11b：13（＋/-3）dBm
802.11g：11（＋/-3）dBm
802.11n：11（＋/-3）dBm
Static receiver
sensitivity
WCDMA/HSPA/HSPA+: Compliant with 3GPP TS
25.101(R7)
GSM/GPRS/EDGE: Compliant with 3GPP TS 05.05 (R99)
WLAN：
802.11b：-85（＋/-3）dBm
802.11g：-71（＋/-3）dBm
802.11n：-70（＋/-3）dBm
WLAN speed
802.11b: up to 11Mbit/s
802.11g: up to 54Mbit/s
802.11n: supporting MCS0～MCS7, up to 72.2Mbit/s
Maximum power
consumption
3W
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 9 of 24
Item
Specifications
Power supply
DC: 5V/1A
External interfaces
USB 2.0 High Speed
SIM card: standard 6-pin SIM card interface
Key
Reset key
Antenna
Inner GSM/UMTS main antenna
Inner UMTS diversity antenna
Inner WLAN antenna
Size
88×27×11.5 mm
Weight
<30g
Temperature
Operating: –10℃ to +45℃
Storage: –20℃ to +70℃
Humidity
5% to 95%
Notes:
EGPRS = enhanced GPRS
SIM = subscriber identity module
USIM = UMTS subscriber identity module
2.2.2 Software Specifications
Table 2-2 lists the dashboard specifications.
Table 2-2 Software specifications
Item
Description
SMS Writing/Sending/Receiving
Sending/Receiving long messages
Group sending
Storage: The messages are saved up to 500 items.
Sorting
New message prompt
Network connection
setup
APN management
Set up network connection
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 10 of 24
Item
Description
WLAN setup
SSID broadcast and conceal
Certification of Open System, Shared Key
Input way for ASCII, HEX of password
64/128bits WEP Encrypt
256bits WPA-PSK、WPA2-PSK encrypt
TKIP, AES Encrypt arithmetic
TKIP and AES mixed encrypt arithmetic
auto speed and manual adjustment
STA management
Firewall setup
supporting firewall activation and deactivation
supporting LAN IP filtering
supporting virtual server
supporting DMZ
supporting UPnP
supporting WAN Ping block
DHCP setup
supporting DHCP Server deactivation and activation
supporting DHCP Server address configuration
supporting DHCP lease configuration
Software installation
Automatic installation for Plug and Play
Other
Network connection settings:
Automatic network selection and registration
Manual network selection and registration
Network status display: signal, operator name, system
mode, and so on.
Selection of network connection types(For example:
Auto，3G only and 2G only).
PIN/PUK: activate/deactivate PIN, changing PIN,
unblocking by using the PUK.
System requirement
Windows XP SP3, Windows Vista SP1/SP2, Windows
7, Windows 8(Does not support Windows RT), Mac OS
X 10.6, 10.7 and 10.8 with latest upgrades
Yourcomputer’shardwaresystemshouldmeetor
exceed the recommended system requirements for the
installed version of OS
Display resolution: 800 × 600 or above
Notes:
PIN = personal identification number
PUK = PIN unblocking key
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 11 of 24
3 Services and Applications
3.1 Packet Data Service
3.1.1 USB Modem
After you connect the E8231 to a PC with the USB interface, you can send or receive
E-mail, access the network through wireless connection, and download files through
wireless data channels.

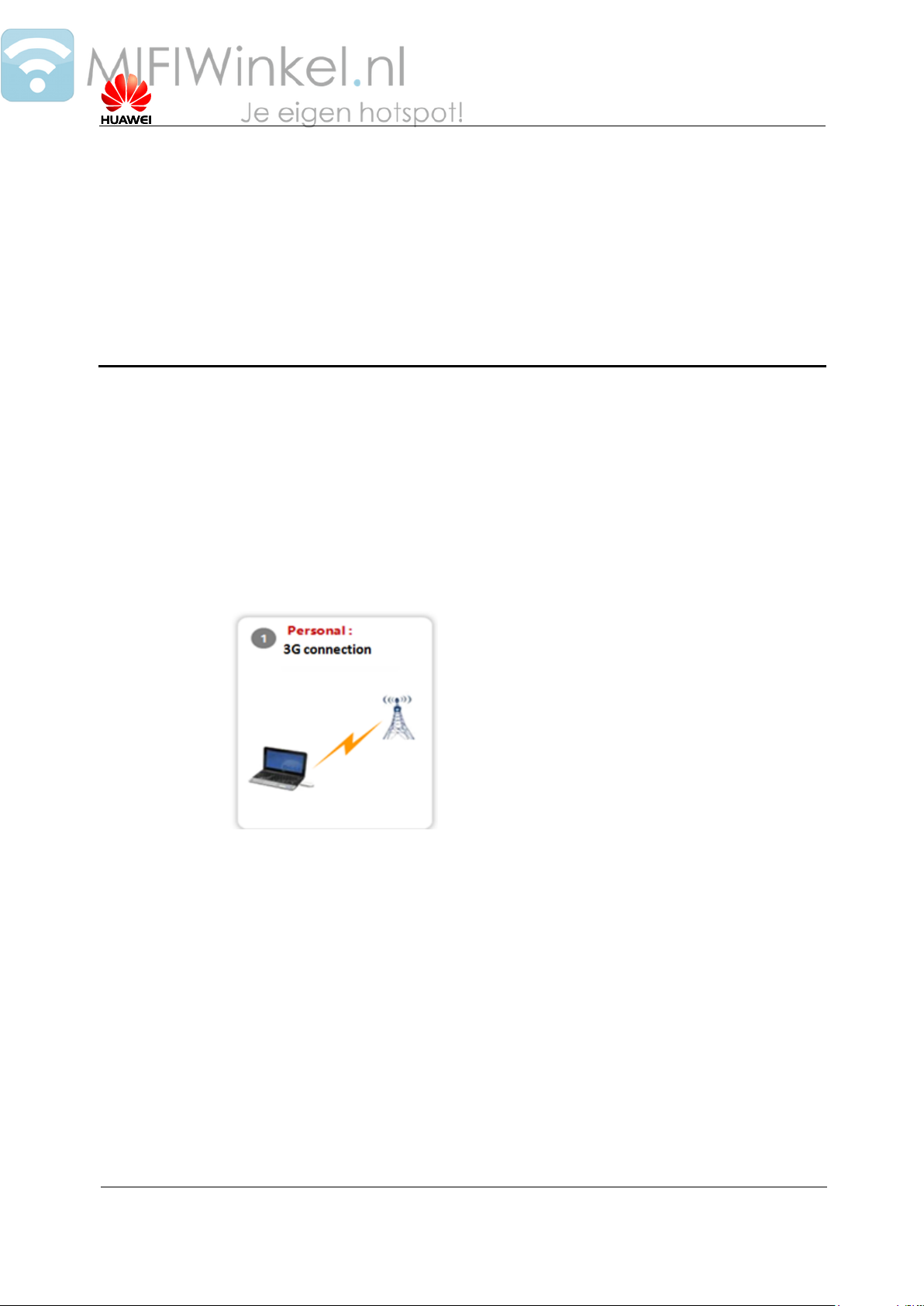

Figure 1-1 shows the device connecting to the network by USB.
3.1.2 Wireless Router (Wi-Fi AP)
As Wi-Fi AP, after the device accesses the 3G network, user can enjoy the
wireless network through the connection between Wi-Fi and E8231.
E8231 supports up to 10 users to connect to the wireless network at the same time so
as to achieve the wireless LAN establishment.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 12 of 24

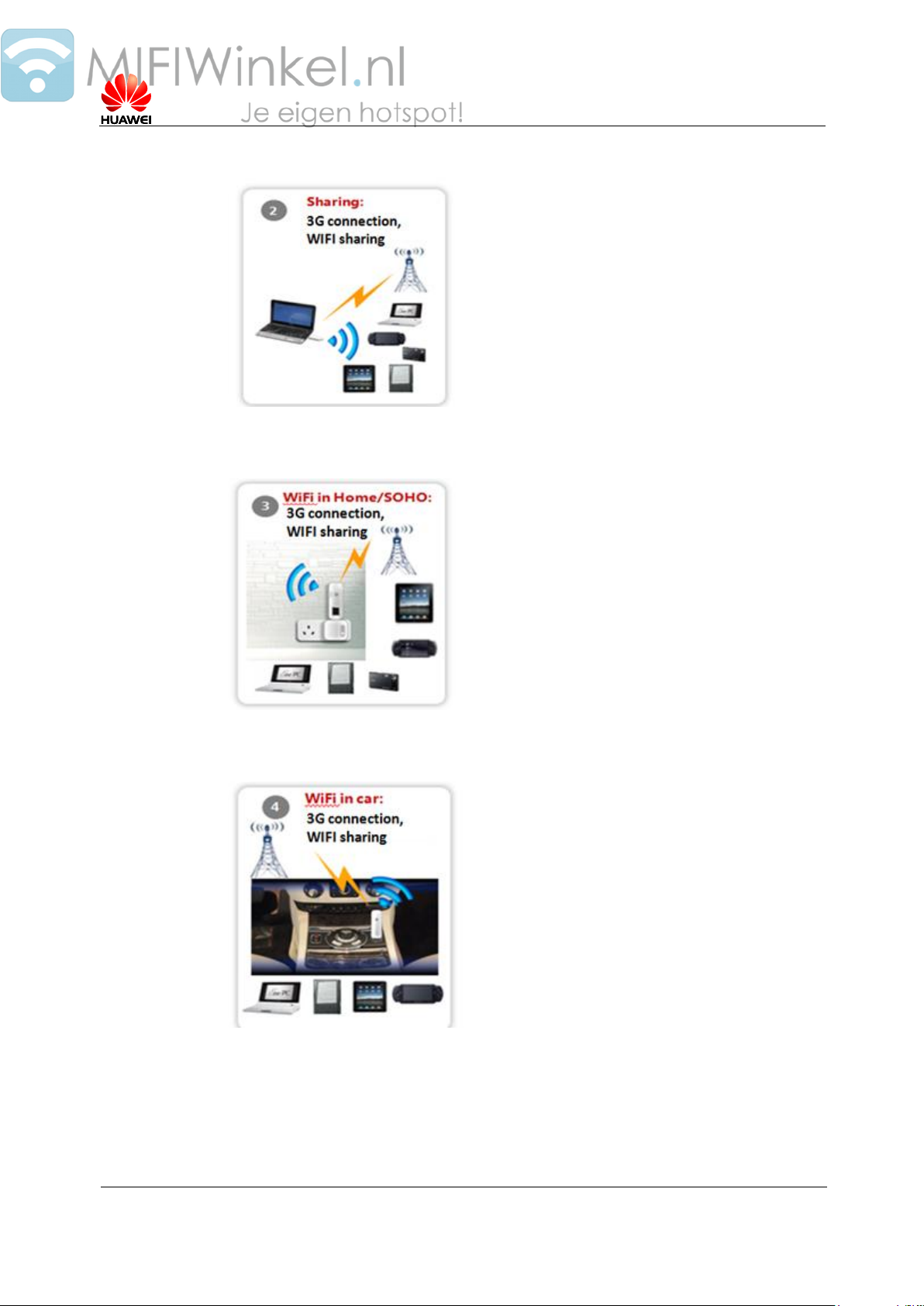

Figure 1-1 shows multi-devices access the wireless work through Wi-Fi and USB.
Figure 1-1 shows multi-devices access the wireless work through adapter
Figure 1-1 shows multi-devices access the wireless work through the car
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 13 of 24
3.2 SMS
The E8231 supports message writing/sending/receiving. Web page provides strong
message management, including outbox, inbox, draft box, and so on; supports sorting
by time.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 14 of 24
4 System Architecture
4.1 System Architecture
Figure 4-1 shows the system architecture.
Figure 4-1 System architecture
Bottom layer driver
(including USB driver)
Protocol
stack
processing
Application
system
BB module
RF module
Wi-Fi module
SDIO
Platform service subsystem
USB driver
Web application
management
PC/Laptop
USB
User interface
Web server
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 15 of 24
4.2 Functional Modules
Radio Frequency Module
It sends/receives radio signals and modulates/demodulates the radio frequency (RF)
signals and baseband signals.
Baseband Signal Processing
It processes HSPA+/HSPA/UMTS/EDGE/GPRS/GSM baseband digital signals,
including:
Modulating/Demodulating HSPA+/HSPA/UMTS baseband signals
Modulating/Demodulating EDGE/GPRS/GSM baseband signals
Encoding/Decoding HSPA+/HSPA/UMTS channel
Encoding/Decoding EDGE/GPRS/GSM channel
Wi-Fi module
It realizes the Wi-Fi AP function.
Bottom Layer Driver
It drives peripherals, including USB and SIM/USIM.
Protocol Stack System
It processes protocols of HSPA+/HSPA/UMTS/EDGE/GPRS/GSM.
Application System
It sends laptop commands to the bottom layer protocol for processing and returns the
value to the laptop.
Existing applications include the following:
Message management
CS/PS domain service management
Web server
It provides server application for Web client.
User Interface
It provides interfaces to connect peripherals. Interfaces are for SIM/USIM.
Platform Service Subsystem
It initializes programs, diagnoses the running of the system, downloads data and
serves as a watchdog.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 16 of 24
Web Application Management
Through the application window, you can set the parameters of the E8231 and
operate the E8231.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 17 of 24
5 Technical Reference
5.1 Standards/Protocols for Data product
Table 5-1 Standards/Protocols for Data product
Items
Description
Physical
Layer
RFC894
ARP
RFC826
IP
RFC791、RFC1122、RFC1071、RFC1141、RFC1624、RFC792、
RFC950、RFC1256
ICMP
RFC792、RFC950、RFC1256
TCP
RFC793
UDP
RFC768
DHCP
RFC1531、1533
NAT
RFC1631
5.2 Standards/Protocols for wireless Um interface
Wireless Um interface compliant with the standards/protocols of UMTS R99, R4, R5,
R6, R7.
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 18 of 24
Table 5-2 Standards/Protocols for wireless Um interface
Items
Description
Layer1
Specifications
(Physical)
Examples of Channel Coding and Multiplexing TR 25.944
(V3.3.0)
Physical Layer – General Description TS 25.201 (V3.1.0)
Physical Channels and Mapping of Transport Channels onto
Physical Channels (FDD) TS 25.211 (V3.5.0)
Multiplexing and Channel Coding (FDD) TS 25.212 (V3.5.0)
Spreading and Modulation (FDD) TS 25.213 (V3.4.0)
Physical Layer – Procedures (FDD) TS 25.214 (V3.5.0)
Physical Layer – Measurements (FDD) TS 25.215 (V3.5.0)
Layer 2
Specifications
(MAC/RLC)
MAC Protocol Specification TS 25.321 (V3.6.0)
RLC Protocol Specification TS 25.322 (V3.5.0)
Layer 3
Specifications
(RRC)
UE Interlayer Procedures in Connected Mode TS 25.303
(V3.6.0)
UE Procedures in Idle Mode TS 25.304 (V3.5.0)
RRC Protocol Specification TS 25.331 (V3.5.0)
Layer 3
NAS/Core
Network (MCM)
Architectural Requirements for Release 1999 TS 23.121
(V3.5.1)
NAS Functions Related to Mobile Station (MS) in Idle Mode TS
23.122 (V3.5.0)
Mobile Radio Interface Signaling Layer 3 – General Aspects TS
24.007 (V3.6.0)
Mobile Radio Interface Layer 3 Specification – Core Network
TS 24.008 (V3.6.0)
PP SMS Support on Mobile Radio Interface TS24.011 (V3.5.0)
GSM Protocol
Specifications
Mobile Radio Interface Layer 3 Specification, Radio Resource
Control Protocol TS 04.18 (V8.10.0)
Mobile Station - Base Station System (MS - BSS) interface;
Data Link (DL) Layer Specification TS 04.06 (V8.11.0)
Digital Cellular Telecommunications System (Phase 2+);
Multiplexing and Multiple Access on the Radio Path TS 05.02
(V8.9.0)
Technical Specification Group GERAN; Channel coding TS
05.03 (V8.6.1)
Digital Cellular Telecommunications System (Phase 2+); Radio
Subsystem Link Control TS 05.08 (V8.a.0)
Digital Cellular Telecommunications System (Phase 2+); Radio
Subsystem Synchronization TS 05.10 (V8.8.0)
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 19 of 24
Items
Description
GPRS Protocol
Specifications
Overall Description of the GPRS Radio Interface; stage 2 TS
3.64 (V8.8.0)
Mobile Radio Interface Layer 3 Specification TS 04.08 (V8.0.0)
Mobile Radio Interface Layer 3 Specification: Radio Resource
Control Protocol TS 04.18 (V8.10.0)
General Packet Radio Service (GPRS): Mobile Station (MS) –
Base Station System (BSS) interface; Radio Link Control /
Medium Access Control (RLC/MAC) protocol TS 04.60
(V8.10.0)
Mobile Station - Serving GPRS Support Node (MS-SGSN)
Logical Link Control (LLC) Layer Specification TS 04.64
(V8.6.0)
Mobile Station - Serving GPRS Support Node (MS-SGSN);
Subnetwork Dependent Convergence Protocol (SNDCP) TS
04.65 (V8.1.0)
Multiplexing and Multiple Access on the Radio Path TS 05.02
(V8.9.0)
Channel Coding TS 05.03 (V8.6.1)
Modulation TS 05.04 (V8.3.0)
Radio Transmission and Reception TS 05.05 (V8.10.0)
General Packet Radio Service (GPRS); Stage 1 TS 22.060
(V3.5.0)
Mobile Execution Environment (MexE) TS 23.057 (V3.4.0)
General Packet Radio Service (GPRS) Service description;
stage 2 TS 23.060 (V8.8.0)
General
Specifications
UE Capability Requirements TR 21.904 (V3.3.0)
UE Radio Access Capabilities TR 25.926 (V3.2.0)
Vocabulary TR 25.990 (V3.0.0)
Radio Interface Protocol Architecture TS 25.301 (V3.6.0)
Services Provided by the Physical Layer TS 25.302 (V3.7.0)
Synchronization in UTRAN Stage 2 TS 25.402 (V3.4.0
Performance/Test
Specifications
UE Radio Transmission and Reception (FDD) TS 25.101
(V3.5.0)
Common Test Environments for User Equipment (UE) TS
34.108 (V3.2.0)
Special Conformance Testing Functions TS 34.109 (V3.2.0)
Terminal Conformance Specification TS 34.121 (V3.3.0)
User Equipment (UE) Conformance Specification; Part 1:
Protocol Conformance TS 34.123-1 (V3.2.0)
User Equipment (UE) Conformance Specification; Part 2:
Protocol Conformance TS 34.123-2 (V3.2.0)
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 20 of 24
Items
Description
Performance/Test
Specifications
Terminal Conformance Specification, Radio Transmission and
Reception (FDD) TS 34.121 (V3.3.0)
User Equipment (UE) Conformance Specification; Part 1:
Protocol Conformance TS 34.123-1 (V3.2.0)
S48 User Equipment (UE) Conformance Specification; Part 2:
Implementation Conformance Statement (ICS) Specification
TS 34.123-2 (V3.2.0)
USIM
Specifications
SIM and IC Card Requirements TS 21.111 (V3.3.0)
3rd Gen. Partnership Proj Tech. Spec. Group Terminals; SIM
App. Toolkit (USAT) TS 31.111 (V3.3.0)
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 21 of 24
6 Packing List
This chapter describes the items contained in the package of the E8231.
Table 6-1 lists the items contained in the package of the E8231.
Table 6-1 Packing list of the E8231
Item
Quantity
Remarks
HUAWEI E8231 HSPA+ Wingle
1
Standard
Adapter
1
Optional
Quick start
1
Standard
Safety Information
1
Standard
USB external cable
1
Optional
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 22 of 24
A Acronyms and Abbreviations
3G
The Third Generation
3GPP
3rd Generation Partnership Project
APN
Access Point Name
ARPU
Average Revenue Per User
BSS
Base Station Subsystem
CM
Connection Management
CS domain
Circuit Switched domain
EDGE
Enhanced Data Rates for GSM Evolution
EGPRS
Enhanced GPRS
FDD
Frequency Division Duplex
GERAN
GSM/EDGE Radio Access Network
GPRS
General Packet Radio Service
GSM
Global System for Mobile Communications
HSPA+
High-Speed Packet Access Plus
HSUPA
High-Speed Uplink Packet Access
HSDPA
High-Speed Downlink Packet Access
IC
Integrated Circuit
LED
Light Emitting Diode
MAC
Medium Access Control
MexE
Mobile Execution Environment
MM
Mobility Management
Modem
Modulator Demodulator
MS
Mobile Station
HUAWEI E8231 HSPA+ Wingle V100R001
Product Description
Issue 03(2013-08-05)
Commercial in Confidence
Page 23 of 24
MSC
Mobile Switching Center
NAS
Non-Access Stratum
OS
Operating System
PC/SC
Personal Computer/Smart Card
PIN
Personal Identification Number
PnP
Plug and Play
PP
Point-to-Point
PS domain
Packet Switched domain
PUK
PIN Unblocking Key
RF
Radio Frequency
RLC
Radio Link Control
RRC
Radio Resource Control
SGSN
Serving GPRS Support Node
SIM
Subscriber Identity Module
SMS
Short Messaging Service
SNDCP
Subnetwork Dependent Convergence Protocol
SOHO
Small Office and Home Office
TR
Technical Report
TS
Technical Specification
UE
User Equipment
UMTS
Universal Mobile Telecommunications System
USAT
USIM Application Toolkit
USB
Universal Serial Bus
USIM
UMTS Subscriber Identity Module
USSD
Unstructured Supplementary Service Data
UTRAN
UMTS Terrestrial Radio Access Network
WCDMA
Wideband Code Division Multiple Access
Loading...
