Huawei E589U-512 User Manual
Thank you for purchasing the Mobile WiFi. This Mobile
WiFi brings you a high speed wireless network connection.
This document will help you understand your Mobile WiFi so you can start using it right away.
Please read this document carefully before using your Mobile WiFi.
For detailed information about the functions and configurations of the Mobile WiFi, refer to
the online help on the web management page that comes with the Mobile WiFi.
For detailed instructions for logging in to the web management page, refer to "Logging In to
the Web Management Page" on page 14.
1
Getting to Know Your Mobile WiFi
Note:
The Mobile WiFi function descriptions and illustrations in this document are for your
reference only. The product you have purchased may vary.
Application Scenario

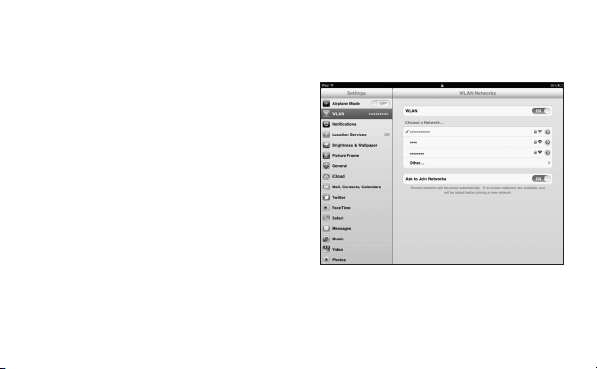

Wi-Fi devices (such as smartphones, tablet
computers, and game consoles) can all access
the Internet through Mobile WiFi. The specific
connection procedure depends on the operating
system of the Wi-Fi device. Establish a
connection according to your device's specific
instructions.
2
Appearance
6
7
8
2
3
4
5
1
Screen Lanyard hole
WPS button USB port (micro B USB)
Power/Wi-Fi button Reset button
SIM card slot microSD card slot
3
Screen
1
5
6
7
8
4
2
3
4G
R
B
A
000:00
9
Signal strength
: The signal strength from weak to strong.
Network type
4G/3G/2G: Accessing to the 4G/3G/2G network.
Wi-Fi
Wi-Fi turned on.
4
Number of connected Wi-Fi devices.
Internet connection mode
A: Automatic mode.
M: Manual mode.
Battery
: The battery level from weak to strong.
SMS
New messages.
Number of new messages.
Network connection status
Internet connection is set up.
Roaming status
Roaming on.
5
Traffic Statistics
Data traffic information.
Connection time.
Note:
Data traffic information is for your reference only. For more accurate data traffic
information, please consult your service provider.
SSID and Wireless Network Encryption Key
When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may
need to enter the default Service Set Identifier
(SSID) and wireless network encryption key.
These can be found in the gift box.
In addition, press the
the current SSID and wireless network
encryption key on the screen.
button twice to view
6
Getting Started
Installing a SIM Card
Caution:
Use a standard SIM card compatible with the Mobile WiFi,
otherwise you will damage your Mobile WiFi.
Install the SIM card according to the illustration.
Note:
When removing the SIM card, open the tab and gently press the SIM card in, then
7
