Page 1
C2830
CDMA1XMobile Phon e
USER GUIDE
Page 2
Copyright © Huawei Technologies Co., Ltd. 2010. All
rights reserved.
No part of this document may be reproduced or transmitted in any
form or by any means without prior written consent of Huawei
Technologies Co., Ltd.
The product described in this manual may include copyrighted
software of Huawei Technologies Co., Ltd and possible licensors.
Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease,
assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by
respective copyright holders under licenses.
Trademarks and Permissions
, HUAWEI, and
trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned
are the property of their respective owners.
are trademarks or registered
Notice
Some features of the product and its accessories described herein rely
on the software installed, capacities and settings of local network,
and may not be activated or may be limited by local network
operators or network service providers, thus the descriptions herein
may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify
any information or specifications contained in this manual without
prior notice or obligation.
Page 3
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS".
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD
BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,
REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and will obtain all necessary governmental permits and
licenses in order to export, re-export or import the product mentioned
in this manual including the software and technical data therein.
Page 4
Table of Contents
1 Your Phone.....................................................................................1
2 Keys and Functions........................................................................2
3 Screen Icons.................................................................................... 4
4 Menu Tree ......................................................................................5
5 Installing the UIM Card and Battery ..........................................6
6 Charging the Battery.....................................................................6
7 Using the Function Menu..............................................................7
8 Making a Call.................................................................................8
9 Answering a Call............................................................................8
10 Phone Lock...................................................................................9
11 PIN and PUK ...............................................................................9
12 Locking the Keypad.....................................................................9
13 Changing the Text Input Modes ..............................................10
14 Entering English (En)................................................................10
15 Entering Indonesian (In)........................................................... 11
16 Entering English (Abc)..............................................................11
17 Entering Numbers .....................................................................11
18 Entering Symbols.......................................................................11
19 Prepaid Registration..................................错误！未定义书签。
20 Customer Service.......................................错误！未定义书签。
21 Voice Mail...................................................错误！未定义书签。
22 Info Tagihan...............................................错误！未定义书签。
23 Info TalkTime ............................................错误！未定义书签。
24 Warnings and Precautions........................................................13
i
Page 5
1 Your Phone
2345678
9
1. Starp hole
1
2. Earpiece
3. Screen
4. OK Key
5. Right Soft Key
6. End/Power Key
7. Number Key
14
13
12
11
10
The following figure is provided only for your reference.
Note
The appearance of the actual product may differ.
8. Charger Interface
9. # Key
10. Microphone
11. * Key
12. Dial/Send Key
13. Left Soft Key
14. Navigation Keys
1
Page 6
2 Keys and Functions
Press… To…
z
View the dialed calls in the standby mode.
z
Make or answer a call.
z
Power on or off the phone (by pressing and holding
it).
z
End a call or reject an incoming call.
z
Return to the standby mode.
Select the option displayed on the lower left corner of
Left soft key
Right soft key
the screen.
Select the option displayed on the lower right corner
of the screen.
Confirm a selection.
OK Key
z
Enter the corresponding shortcut menu.
z
Increase the volume (
decrease the volume (
call.
2
or
) or
or
) during a
Page 7
Press… To…
z
Enter numbers and characters.
z
Access the voice mailbox in the standby mode (by
pressing and holding the 1 key).
–
z
Speed-dial phone numbers in the standby mode (by
pressing and holding the 2-9 keys).
z
Select a submenu item labeled the corresponding
number.
z
Enter the * symbol.
z
Enable or disable the Meeting profile in the
standby mode (by pressing and holding it).
z
Provide different functions according to the phone
features being used.
z
Enter the # symbol.
z
Lock the keypad in the standby mode (by pressing
and holding it).
z
Provide different functions according to the phone
features being used.
3
Page 8
3 Screen Icons
Icon Description Icon Description
Network signal strength Battery power level
No network signal
CDMA 1X network
Domestic roaming
Overseas roaming
Memory for messages full
(orange)
Message received (yellow)
Voice mail received
Urgent message received
4
Calling
Alarm clock on
General
Silence
Meeting profile
Outdoor
My Profile
Keypad locked
profile
profile
profile
Page 9
4 Menu Tree
Messages
1CreateMessage
2 Inbox
3 Outbox
4Drafts
5VoiceMail
6 Quick Text
7Settings
8DeleteAll
Call History
1All Calls
2MissedCalls
3 Received Calls
4 Dia lled Call s
5 Call Memo
6 Call Duration
Profiles
1 General
2Silence
3Meeting
4 Outdoor
5MyProfile1
6MyProfile2
Tools
1MyFiles
2 Recorder
3Alarms
4Scheduler
5Calculator
6Stopwatch
7 World Clock
Settings
1DisplaySettings
2Date&Time
3 Call Settings
4 PhoneSettings
5 Security Settings
6 Restore Factory
Settings
PhoneBook
1Search
2AddNew
3 Groups
4 SpeedDial
5MyNumber
6 Management
5
Page 10

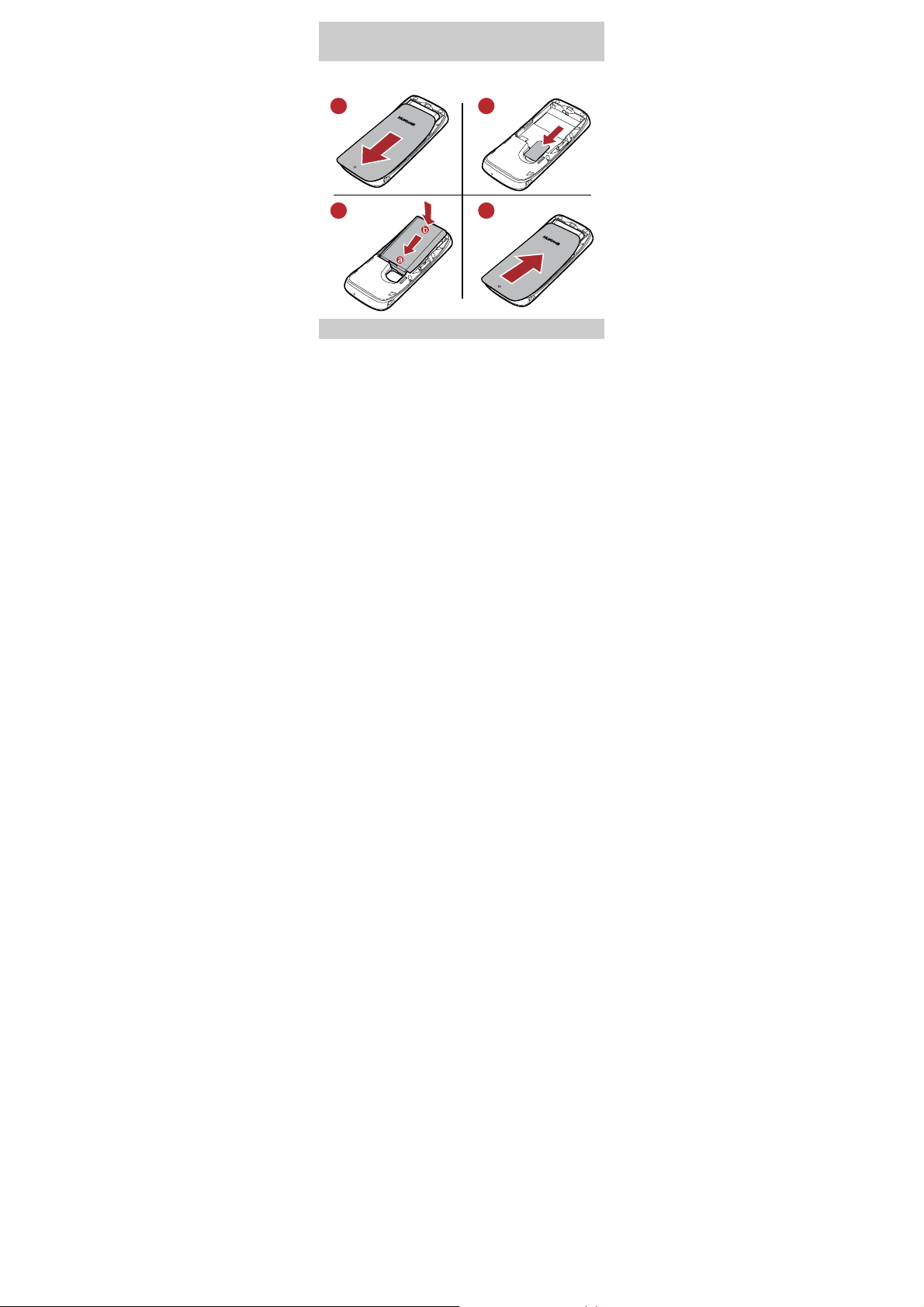

5 Installing the UIM Card and
Battery
Make sure that the golden area on the UIM card is facing downwards
and the cut-off edge is correctly aligned with the card holder.
12
34
6 Charging the Battery
1. Connect the charger to the charger interface at the bottom of your
phone.
6
Page 11
2. Connect the charger to an AC power socket.
3. During the charging, the charging icon is displaying in animation.
4. When the charging icon becomes static, the battery is fully
charged. Disconnect the charger from the AC power socket.
5. Disconnect the charger from the phone.
7 Using the Function Menu
1. In the standby mode, press (Menu) to display the Menu
interface.
2. Press
3. Press (Select) or to display the menu.
4. Display the submenu in either of the ways:
z
Press to scroll to a submenu item and press
(Select) or
z
Press the number key corresponding to the number of a submenu
to display it.
5. Press
function menu.
Press
to scroll to a menu item.
to display the submenu.
(Back) to return to the previous menu or quit the
to return to the standby mode.
7
Page 12
8 Making a Call
1. In the standby mode, enter a phone number.
Press
enter "P"; press
2. Press to dial the number.
3. Press
Note
twice to enter "+"; press three times to
four times to enter "T".
to end the call.
z When the phone is locked, enter the lock code to unlock
the phone first; otherwise, you can make emergency calls
or answer calls only.
z In the standby mode, press to view the dialed
calls. Select a record and press
z Select a contact from the phonebook and press to
to dial.
dial.
z Select a message in the inbox and press to dial.
9 Answering a Call
When there is an incoming call, you can press ,
(Answer) or
z
When there is an incoming call, you can press (Silence)
to mute the speaker and then press
it. If the phone is in the Silence mode, you can just press
(End) to reject it.
z
If the any-key answer function is enabled, you can press any key
except
to answer it or press
to reject it.
(End) again to reject
and to answer an incoming call.
8
Page 13
10 Phone Lock
The phone lock function protects your phone from unauthorized use.
The default phone lock code is 0000. You can change it into any
numeric string of 4 to 8 digits.
If the phone lock function is enabled, you need to enter the correct
phone lock code when the phone is powered on or in the standby
mode.
11 PIN and PUK
The personal identity number (PIN) protects your UIM card from
unauthorized use. The PIN unlocking key (PUK) can unblock the
blocked PIN. Both PIN and PUK are delivered with the UIM card.
For details, consult your service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK code.
If you enter wrong PUKs for a specified number of times
consecutively, the UIM card is invalidated permanently. Contact your
service provider for a new card.
12 Locking the Keypad
In the standby mode, press and hold
When the keypad is locked, you can still answer an incoming call or
make emergency calls by pressing
You can press
When the Auto Keyguard function is enabled, if there is no
operation on the phone for a preset period in the standby mode, the
keypad is locked automatically.
and to unlock the keypad.
9
to lock the keypad.
.
Page 14
13 Changing the Text Input Modes
The indicator of the current text input mode is displayed on the
screen. In the editing mode, press
z In the editing mode, press (Clear) once to delete
Note
the letter on the left of the cursor. Press and hold
(Clear) to delete all the letters at a time.
z In the "En" input mode, press to enter a space. In
the "Abc" input mode, press
space, twice to enter "0", and three times to move the
cursor to the next line.
z In the "Abc" input mode, press repeatedly to
enter the commonly used punctuations. In the "En" input
mode, press
to change the input mode.
once to enter a
to enter a full stop.
14 Entering English (En)
In the "En" input mode, do the following to enter English letters:
1. Press each key only once according to the spelling sequence of
the desired word. Then the phone displays the commonly used
words according to the numeric sequence of key presses.
2. Press
3. Press
case and lower case.
4. Press
Press
to scroll to the desired word.
to switch the selected characters between upper
to enter the word.
to enter the word and a space.
10
Page 15
15 Entering Indonesian (In)
You can enter Indonesian words in Indonesian text input mode.
Indonesian text input mode is similar to English text input mode. For
details, see "Entering English (En)".
16 Entering English (Abc)
In the "Abc" input mode, you can press a key labeled the desired
letters once to enter the first letter on the key, twice to enter the
second letter on the key, and so on.
If the letter you want to enter is on the same key as the
Note
previous one, you can enter the latter only after the cursor
appears again or after you press
cursor to the next space.
to move the
17 Entering Numbers
z
In the "123" input mode, press a key labeled the desired number.
z
In the "Abc" input mode, press a numeric key repeatedly or press
and hold it until the desired number appears on the screen.
z
In the "En" input mode, press a numeric key and then press
until the desired number appears on the screen.
18 Entering Symbols
1. In any input mode, press to display a symbol list.
11
Page 16
2. Press to scroll to the desired symbol.
3. Press the number key to enter the symbol.
12
Page 17
19 Warnings and Precautions
This section contains important information pertaining to the
operating instructions of your device. It also contains information
about how to use the device safely. Read this information carefully
before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not use
the device when using the device causes danger or interference with
electronic devices.
Medical Device
z
Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device when using the device is
prohibited.
z
Pacemaker manufacturers recommend that a minimum distance of
15 cm be maintained between a device and a pacemaker to
prevent potential interference with the pacemaker. If you are using
a pacemaker, use the device on the opposite side of the pacemaker
and do not carry the device in your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive
atmosphere, and comply with all signs and instructions. Areas that
may have potentially explosive atmospheres include the areas where
you would normally be advised to turn off your vehicle engine.
Triggering of sparks in such areas could cause an explosion or a fire,
resulting in bodily injuries or even deaths. Do not power on your
device at refueling points such as service stations. Comply with
restrictions on the use of radio equipment in fuel depots, storage, and
distribution areas, and chemical plants. In addition, adhere to
restrictions in areas where blasting operations are in progress. Before
13
Page 18
using the device, watch out for areas that have potentially explosive
atmospheres that are often, but not always, clearly marked. Such
locations include areas below the deck on boats, chemical transfer or
storage facilities, and areas where the air contains chemicals or
particles such as grain, dust, or metal powders. Ask the
manufacturers of vehicles using liquefied petroleum gas (such as
propane or butane) whether this device can be safely used in their
vicinity.
Traffic Security
Observe local laws and regulations while using the device. In
addition, if using the device while driving a vehicle, comply with the
following guidelines:
z
Concentrate on driving. Your first responsibility is to drive safely.
z
Do not talk on the device while driving. Use hands-free
accessories.
z
When you have to make or answer a call, park the vehicle at the
road side before using your device.
z
RF signals may affect electronic systems of motor vehicles. For
more information, consult the vehicle manufacturer.
z
In a motor vehicle, do not place the device over the air bag or in
the air bag deployment area. Otherwise, the device may hurt you
owing to the strong force when the air bag inflates.
z
Do not use your device while flying in an aircraft. Power off your
device before boarding an aircraft. Using wireless devices in an
aircraft may cause danger to the operation of the aircraft and
disrupt the wireless telephone network. It may also be considered
illegal.
Operating Environment
z
Do not use or charge the device in dusty, damp, and dirty places
or places with magnetic fields. Otherwise, it may result in a
malfunction of the circuit.
14
Page 19
z
The device complies with the RF specifications when the device
is used near your ear or at a distance of 1.5 cm from your body.
Ensure that the device accessories such as a device case and a
device holster are not composed of metal components. Keep your
device 1.5 cm away from your body to meet the requirement
earlier mentioned.
z
On a stormy day with thunder, do not use your device when it is
being charged, to prevent any danger caused by lightning.
z
When you are on a call, do not touch the antenna. Touching the
antenna affects the call quality and results in increase in power
consumption. As a result, the talk time and the standby time are
reduced.
z
While using the device, observe the local laws and regulations,
and respect others' privacy and legal rights.
z
Keep the ambient temperature between 0°C and 45°C while the
device is being charged. Keep the ambient temperature between
0°C to 55°C for using the device powered by a battery.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To reduce
the risk of damage to hearing, lower the headset volume to a safe and
comfortable level.
Safety of Children
Comply with all precautions with regard to children's safety. Letting
the child play with your device or its accessories, which may include
parts that can be detached from the device, may be dangerous, as it
may present a choking hazard. Ensure that small children are kept
away from the device and accessories.
Accessories
Use the accessories delivered only by the manufacturer. Using
accessories of other manufacturers or vendors with this device model
15
Page 20
may invalidate any approval or warranty applicable to the device,
result in the non-operation of the device, and cause danger.
Battery and Charger
z
Unplug the charger from the electrical plug and the device when
not in use.
z
The battery can be charged and discharged hundreds of times
before it eventually wears out. When the standby time and the talk
time are shorter than the normal time, replace the battery.
z
Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause a fire or a
malfunction of the charger.
z
Do not connect two poles of the battery with conductors, such as
metal materials, keys, or jewelries. Otherwise, the battery may be
short-circuited and may cause injuries and burns on your body.
z
Do not disassemble the battery or solder the battery poles.
Otherwise, it may lead to electrolyte leakage, overheating, fire, or
explosion.
z
If battery electrolyte leaks out, ensure that the electrolyte does not
touch your skin and eyes. When the electrolyte touches your skin
or splashes into your eyes, wash your eyes with clean water
immediately and consult a doctor.
z
If there is a case of battery deformation, color change, or
abnormal heating while you charge or store the battery, remove
the battery immediately and stop using it. Otherwise, it may lead
to battery leakage, overheating, explosion, or fire.
z
If the power cable is damaged (for example, the cord is exposed
or broken), or the plug loosens, stop using the cable at once.
Otherwise, it may lead to an electric shock, a short circuit of the
charger, or a fire.
z
Do not dispose of batteries in fire as they may explode. Batteries
may also explode if damaged.
16
Page 21
Cleaning and Maintenance
z
The device, battery, and charger are not water-resistant. Keep
them dry. Protect the device, battery, and charger from water or
vapor. Do not touch the device or the charger with a wet hand.
Otherwise, it may lead to a short circuit, a malfunction of the
device, and an electric shock to the user.
z
Do not place your device, battery, and charger in places where
they can get damaged because of collision. Otherwise, it may lead
to battery leakage, device malfunction, overheating, fire, or
explosion.
z
Do not place magnetic storage media such as magnetic cards and
floppy disks near the device. Radiation from the device may erase
the information stored on them.
z
Do not leave your device, battery, and charger in a place with an
extreme high or low temperature. Otherwise, they may not
function properly and may lead to a fire or an explosion. When
the temperature is lower than 0°C, performance of the battery is
affected.
z
Do not place sharp metal objects such as pins near the earpiece.
The earpiece may attract these objects and hurt you when you are
using the device.
z
Before you clean or maintain the device, power off the device and
disconnect it from the charger.
z
Do not use any chemical detergent, powder, or other chemical
agents (such as alcohol and benzene) to clean the device and the
charger. Otherwise, parts of the device may be damaged or a fire
can be caused. You can clean the device and the charger with a
piece of damp and soft antistatic cloth.
z
Do not dismantle the device or accessories. Otherwise, the
warranty on the device and accessories is invalid and the
manufacturer is not liable to pay for the damage.
17
Page 22
Emergency Call
You can use your device for emergency calls in the service area. The
connection, however, cannot be guaranteed in all conditions. You
should not rely solely on the device for essential communications.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by international guidelines, the device is designed not
to exceed the limits for exposure to radio waves. These guidelines
were developed by the independent scientific organization
International Commission on Non-Ionizing Radiation Protection
(ICNIRP) and include safety measures designed to ensure safety for
all users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for
the amount of radio frequency energy absorbed by the body when
using a device. The SAR value is determined at the highest certified
power level in laboratory conditions, but the actual SAR level of the
device when being operated can be well below the value. This is
because the device is designed to use the minimum power required to
reach the network.
The SAR limit adopted by USA and Canada is 1.6 watts/kilogram
(W/kg) averaged over one gram of tissue. The highest SAR value
reported to the FCC and IC for this device type when tested for use at
the ear is 0.832W/kg, and when properly worn on the body is 0.942
W/kg.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
18
Page 23
Warning: Changes or modifications made to this device not
expressly approved by Huawei Technologies Co., Ltd. may void the
FCC authorization to operate this device.
Version: V100R001CXX_01 Part Number: 3101XXXX
19
Loading...
