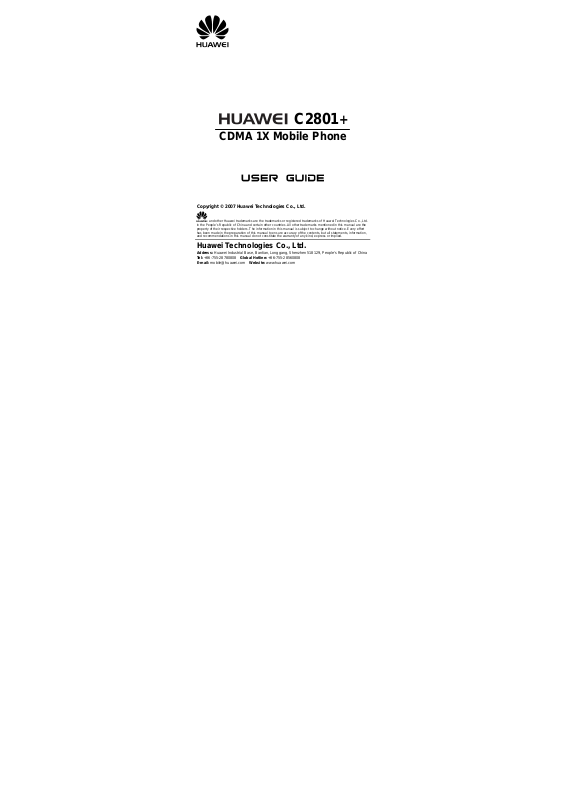

Huawei C2801P Users Manual
C2801+
CDMA 1X Mobile Phone
Copyright © 2007 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Your Phone
Headset Jack
Screen
NavigationKeys
Left SoftKey
Dial/SendKey
Number Keys
Key
Charger Interfac e
Earpiece
Right Soft Key
End/Power Key
Key
Microphone
1
Keys and Functions
Press… To…
z
View the dialled calls in the standby mode.
z
Make or answer a call.
z
Power on or off the phone (by pressing and holding
it).
z
End a call or reject an incoming call.
z
Return to the home screen.
Select the option displayed on the lower left corner of
the screen.
Select the option displayed on the lower right corner
of the screen.
z
Display the Profiles interface ( ), the Messages
interface (
the Alarm interface (
z
Increase the volume ( or ) or decrease the
volume (
z
Enter numbers and characters.
z
Speed-dial phone numbers in the standby mode (by
pressing and holding the 1-9 keys).
–
z
Select a submenu item labeled with the
corresponding number.
), the Scheduler interface ( ), and
or ) during a call.
2
) in the standby mode.
Press… To…
z
Enter the * symbol.
z
Enable or disable the Meeting profile (by pressing
and holding it).
z
Provide different functions according to the phone
features being used.
z
Enter the # symbol.
z
Lock the keypad in the standby mode (by pressing
and holding it).
z
Provide different functions according to the phone
features being used.
Screen Icons
Icon Description Icon Description
Network signal strength Battery power level
Calling…
Voice Privacy
CDMA 1X network
3G network
Data service
Roaming…
Message received Voice message received
Emergency message
received
3
profile
General
profile
Meeting
profile
Silent
profile
Outdoor
Keypad locked
Alarm clock on
Memory for messages
full
Menu Tree
Messages
1Write Message
2Inbox
3Outbox
4Draft
5VoiceMail
6 Templates
7MessageSettings
8DeleteAll
Phone Book
1Search
2AddNew
3Groups
4SpeedDial
5CopyAll
6DeleteAll
7MyPhoneNo.
8 Memory Status
Call History
1MissedCalls
2ReceivedCalls
3 DialledCalls
4 Call Duration
5InCallMemo
6DeleteAll
Copy All (*)
If the UIM card is available, the Copy All submenu
item is displayed under the Phone Book item.
Fun& Utility
1Alarm
2Scheduler
3Calculator
4Gallery
5Game
Profiles
1 General
2VibrateOnly
3Silent
4 Outdoor
Settings
1Display
2 Call Settings
3PhoneSettings
4Security
FM Radio
1Switch Off
2 Speaker On/Off
3 Auto Tuning
4Manual Tuning
5Fine Tuning
6Set Frequency
7 Save Channel
8Delete Channel
4
Installing the UIM Card and Battery
Consult the network operator whether a UIM card is needed.
Make sure that the golden area on the UIM card is facing downwards
and the cut-off edge is correctly aligned with the card holder.
Removing the Battery and UIM Card
Make sure that your phone is powered off.
Charging the Battery
1. Connect the charger to the charger interface at the bottom of your
phone.
2. Connect the charger to an AC power socket.
3. During the charging, the charging icon is displaying in animation.
4. When the charging icon becomes static, the battery is fully
charged. Disconnect the charger from the AC power socket.
5. Disconnect the charger from the phone.
5
