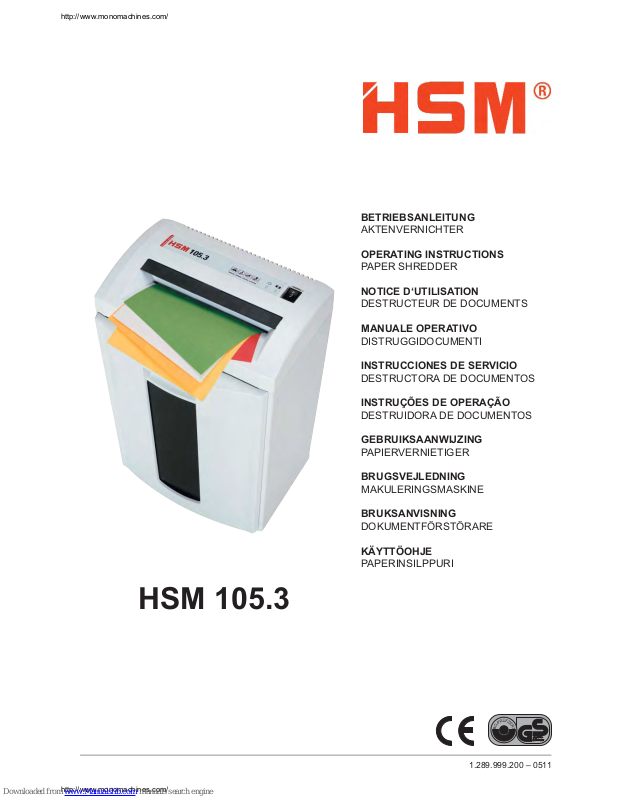

HSM 105.3 Operating Instructions Manual

HSM 105.3

BETRIEBSANLEITUNG

AKTENVERNICHTER

OPERATING INSTRUCTIONS

PAPER SHREDDER

NOTICE D‘UTILISATION

DESTRUCTEUR DE DOCUMENTS

MANUALE OPERATIVO

DISTRUGGIDOCUMENTI

INSTRUCCIONES DE SERVICIO

DESTRUCTORA DE DOCUMENTOS

INSTRUÇÕES DE OPERAÇÃO

DESTRUIDORA DE DOCUMENTOS

GEBRUIKSAANWIJZING

PAPIERVERNIETIGER

BRUGSVEJLEDNING

MAKULERINGSMASKINE

BRUKSANVISNING

DOKUMENTFÖRSTÖRARE

KÄYTTÖOHJE

PAPERINSILPPURI

1.289.999.200 – 0511

http://www.monomachines.com/

http://www.monomachines.com/

Aktenvernichter

deutsch

HSM 105.3

deutsch: Aktenvernichter HSM 105.3 ........................................................................ 3 – 6

english: Paper shredder HSM 105.3 ...................................................................... 7 – 10

français: Destructeur de documents HSM 105.3 ................................................... 11 – 14

italiano: Distruggidocumenti HSM 105.3 .............................................................. 15 – 18

español: Destructora de documentos HSM 105.3 ................................................. 19 – 22

português: Destruidora de documentos HSM 105.3 ................................................. 23 – 26

nederlands: Papiervernietiger HSM 105.3 ................................................................. 27 – 30

dansk: Makuleringsmaskine HSM 105.3 ............................................................ 31 – 34

svenska: Dokumentförstörare HSM 105.3 ............................................................. 35 – 38

suomi: Paperinsilppuri HSM 105.3 ..................................................................... 39 – 42

Pressen GmbH + Co. KG

Bahnhofstraße 115
D-88682 Salem
Germany West Chester, PA 19380

Tel.: [phone] / 822-0 Phone: [phone]

4899
E-Mail: [e-mail]
www.hsm-online.de

Fax.: [phone] / 822-160 Fax: [phone]

HSM of America LLC

1075 Andrew Drive
Suite C

USA

E-mail: [e-mail]
www.hsmofamerica.com

2 0511

http://www.monomachines.com/

http://www.monomachines.com/

Paper shredder HSM 105.3

1. Proper use, warranty

The shredder is designed exclusively for
destroying paper.
Depending on the cutting type, it can also
handle small quantities of the following mate­rials:
Credit and charge cards:

1.9 / 3.9 / 5.8 / 3.9 x 30 mm only
Thermotransfer films: 3.9 x 30 mm only

Its sturdy drive mechanism is not damaged
by paper clips and staples.

We provide a warranty for the device in ac­cordance with our general sales and delivery
terms. This warranty excludes wear, damage
due to improper handling, natural deprecia­tion, and actions taken by third parties.

2. Machine components

4

9

3

1

5

6

8

7

2

1
2
3
4
5
6
7
8
9

Warning advice
LEDs
Rocker switch
Cover
Name plate
Caution label
Bottom frame
Shredded material container
Paper feed opening

0511 english 7

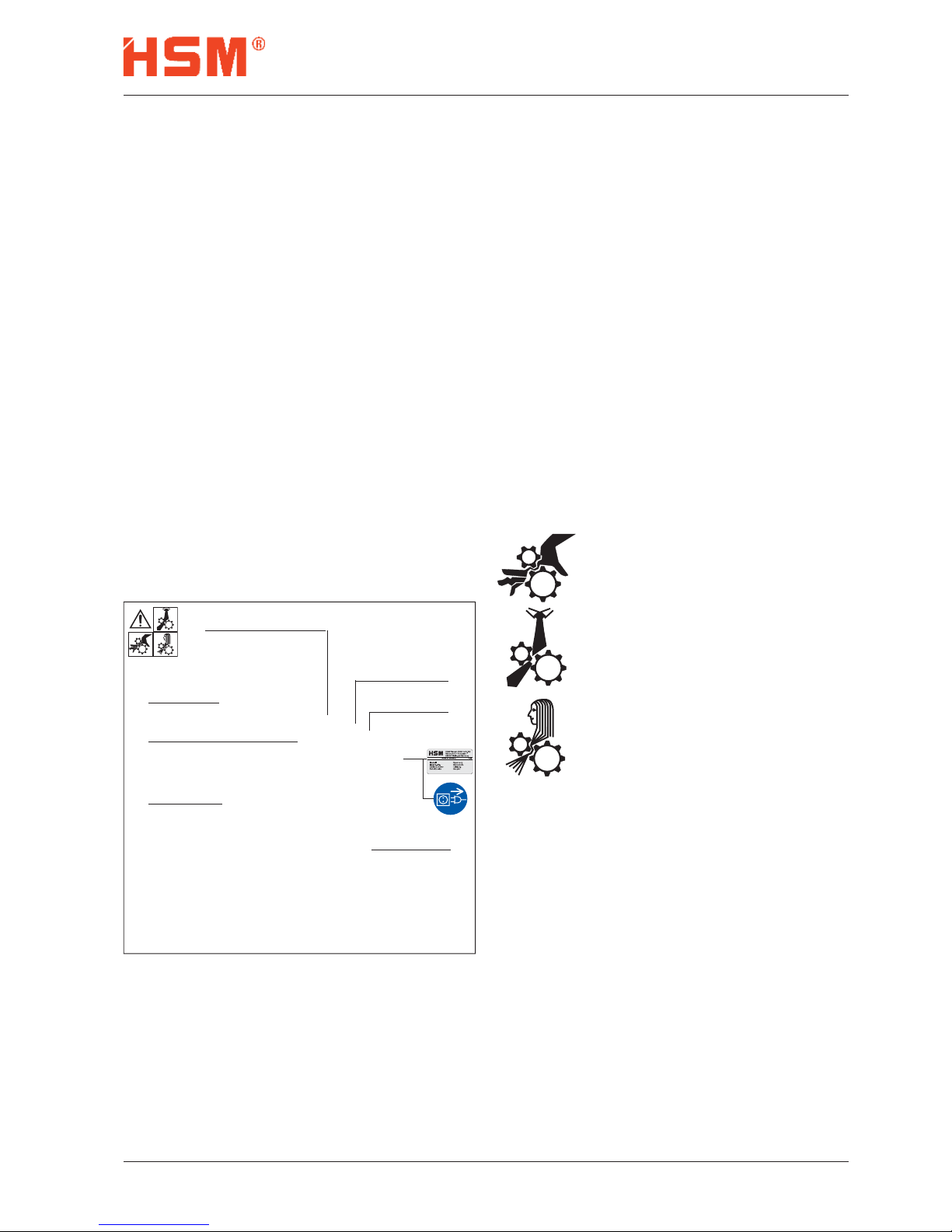

3. Safety instructions

• Read all instructions before start-up of the
paper shredder. Save these instructions
for later use.

• Follow all warnings and instructions
marked on the product!

• Make sure no liquid is spilled on or in the
paper shredder.

• If the shredder is damaged or does not
function properly, switch the device off,
pull out the mains plug and inform our
service engineers.

• Keep paper shredder out of the reach of
children.

• This shredder should be operated only
with an operator in attendance.

Risk of injury!

Do not reach into the paper
feed slot.

Risk of injury from slivers!

Wear protective goggles when
destroying hard credit cards.

Risk of injury by pulling in!

Keep long hair, loose articles of
clothing, ties, scarves, jewellery
etc. away from feed opening.
Material with the tendency to
form loops, e.g. tapes, strap­ping material, etc. must not be
shredded.

http://www.monomachines.com/

http://www.monomachines.com/

HSM 105.3 Paper shredder

Before changing the location,
cleaning or anything else other
than normal operation

turn off and unplug the paper
shredder!

Mainte nan ce and ser vi ce work
may be per for med on ly by:

• HSM cu sto mer ser vi ce

• spe cial ly trai ned staff
(e.g. qua li fi ed electri cians)

• ser vi ce tech ni cians from our

con tracting part ners

4. Scope of delivery

• Paper shredder, ready for connection, in
carton packing

• 5 Bags for shredded material

• Special cutting block oil 50 ml (cross cut)

• Operating instructions

Acces so ries:

• Bag for shredded material,
order No.: 1.661.995.050

• Special cutting block oil 250 ml,
order No.: 1.235.997.401

5. Installation

• This paper shredder should never be

placed near or over a radiator or heat
source.

• The ventilation slots must not be blocked

or covered and they must be at a distance
of at least 10 cm away from walls or furni­ture.

• Make sure the mains plug is easily acces-

sible.

• Before plugging in the mains plug, check

that the voltage and frequency of your
local mains supply correspond to those
stated on the type plate.

6. Put ting in to ope ra ti on

Switching the paper shredder on

1

• Press rocker switch pos. 1.

• Rocker switch locks in.

• Green LED lights.

• Paper shredder is ready for ope­ration (standby).

Feed paper

See „Technical data“ for sheet
capacity.

• The shredding pro cess is star ted
by a pho to –cell in the paper fee­ding opening.

• When the paper fee ding opening
is free again, the cut ting sy stem
au to ma tical ly swit ches off af ter
app rox. 3 sec. and returns to
standby.

Swit ching paper shredder off

• Tap rocker switch pos. 2.

2

• Rocker switch resets to zero
position.

8 english 0511

http://www.monomachines.com/

http://www.monomachines.com/

Paper shredder HSM 105.3

7. Troubleshooting

Pa per jam

You have fed in too much paper.

Caution!

1

Do not press rocker switch alter-

2

nately forwards/backwards
(pos. 1 / pos. 2):
Cutting unit can be damaged.

• Press and hold down rocker

2

switch pos. 2.

• Pa per is pus hed out.

• Se pa ra te pa per stack.

1

• Press rocker switch pos. 1.

• Feed pa per successively.

Cut material container full

• Red LED on control panel lights.

• Paper shredder switches off

Empty the cut material container,
because if it is too full, malfunc­tions can occur in the cutting sys­tem

• Tap rocker switch pos. 2.

2

• Empty full shredded material
container.

Shredded material container con­tact interrupted

• Red LED on control panel lights.

• Paper shredder switches off.

• Check whether shredded
material container is correctly
inserted in bottom frame.

If other faults occur, please check the follo­wing before calling our customer service:

• Is mains plug in ser ted?

• Is rocker switch tur ned on?

• Is the mo tor over lo aded?
al low mo tor to cool down for 15 - 20 min.

8. Maintenance and care

Cleaning:

• Switch off the shredder, pull out the mains
plug.

• When cleaning only use a soft cloth and a
mild soap-water solution. Never use scou­ring agents, cleaning fluid, petroleum or
thinners.

When the cutting capacity drops or
the noise increases (Cross cut):

• Switch paper shredder off:
Tap rocker switch pos. 2.

2

• Spray special cutting block oil th­rough paper feed opening across
the whole width of the cutting
system blades.

• Run cutting system backwards

2

(pos. 2) without feeding paper.

• Paper dust and particles are
shaken off.

0511 english 9

http://www.monomachines.com/

http://www.monomachines.com/

HSM 105.3 Paper shredder

9. Technical Data

Cutting type Strip cut Cross cut
Shred size (mm) 5.8 3.9 1.9 3.9 x 30 1.9 x 15 0.78x11
Sa fe ty ra ting DIN 32757 – 1 2 2 3 3 4 5
Cutting ca pa ci ty (sheets), DIN A4 70 g/m

2

80 g/m

2

22 - 24
17 - 19

16 - 18
13 - 15

12 - 14

9 - 11

12 - 14

9 - 11

9 - 11
7 - 9

5 - 6
4 - 5

Weight 11.5 kg 12.5 kg
Cutting speed 80 mm/s 90 mm/s
Noise level (Idle running/ load) 58 dB(A) / 59 - 63 dB(A)
Lo ading width 240 mm
Voltage 230 V, 50 Hz

100 V, 50/60 Hz – 115 V, 60 Hz

Power

for the maximum number of sheets 440 W

Dimensions W x D x H (mm) 375 x 279 x 583
Volume of shredded material bag 33 l

Technical and optical modifications reserved.

Declaration of Conformity

Machinery directive 98 / 37 / EG
EMC directive 89 / 336 / EWG
Low voltage directive 73 / 23 / EWG

The manufacturer HSM Pressen GmbH + Co. KG, Bahnhofstraße 115, D-88682 Salem
declares herewith, that the paper shredders HSM 105.3 aboved mentioned correspond with the EC Machine Directive inclu­ding all relevant modifications.

Applied standards and technical specifications:

• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001

• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001

• EN 61000-3-2:2000 • EN 61000-4-6:1996 + A1:2001

• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001

• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2001

• EN 294:1992

Salem, 02.11.2005
Rolf Gasteier - Technical Director

Machine type inspection for compliance with the requirements of the EC Machine Directive was carried out by the „Admi­nistration“/Inspection Authority Committee of Experts, Subject Area „Office Machines and Devices“, on the premises of the
Verwaltungs-Berufsgenossenschaft, Deelbögenkamp 4, D-22297 Hamburg. This inspection authority is the authority respon­sible in accordance with Annex V of the EC Machine Directive.
