Page 1
HP ZBook Studio G3 Mobile Workstation
Model numbers: 15-ap000 – 15ap099
Maintenance and Service Guide
Page 2
© Copyright 2015 HP Development Company,
L.P.
AMD is a trademark of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by HP Inc. under license.
Intel and Xeon are trademarks of Intel
Corporation in the U.S. and other countries.
Windows is either a registered trademark or
trademark of Microsoft Corporation in the
United States and/or other countries. NVIDIA
and Quadro are trademarks and/or registered
trademarks of NVIDIA Corporation in the U.S.
and other countries. Red Hat Enterprise Linux is
a registered trademark of Red Hat, Inc. in the
United States and other countries.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and
the Symbol together are registered
trademarks, and DTS Studio Sound is a
trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved .
First Edition: December 2015
Document Part number: 839280-001
Product notice
This user guide describes features that are
common to most models. Some features may
not be available on your computer.
Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to
http://www.microsoft.com for details.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a full refund subject to the
refund policy of your seller.
For any further information or to request a full
refund of the price of the computer, please
contact your seller.
This computer may require upgraded and/ or
separately purchased hardware and/or a DVD
drive to install the Windows 7 software and
take full advantage of Windows 7 functionality.
See http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.
Page 3
Important Notice about Customer Self-Repair Parts
CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an
authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair
parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for
Authorized Service Provider parts," can damage the computer or void your warranty.
iii
Page 4
iv Important Notice about Customer Self-Repair Parts
Page 5
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place
the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, at
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as
pillows or rugs or clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft
surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with
the user-accessible surface temperature limits dened by the International Standard for Safety of
Information Technology Equipment (IEC 60950-1).
v
Page 6
vi Safety warning notice
Page 7
Table of contents
1 Product description ....................................................................................................................................... 1
2 External component identication .................................................................................................................. 5
Display .................................................................................................................................................................... 5
Top .......................................................................................................................................................................... 6
TouchPad ............................................................................................................................................. 6
Lights ................................................................................................................................................... 7
Buttons, speakers, and ngerprint reader .......................................................................................... 8
Left ......................................................................................................................................................................... 9
Right ..................................................................................................................................................................... 10
Front ..................................................................................................................................................................... 11
Bottom ................................................................................................................................................................. 12
Labels ................................................................................................................................................................... 13
3 Illustrated parts catalog .............................................................................................................................. 14
Computer major components .............................................................................................................................. 14

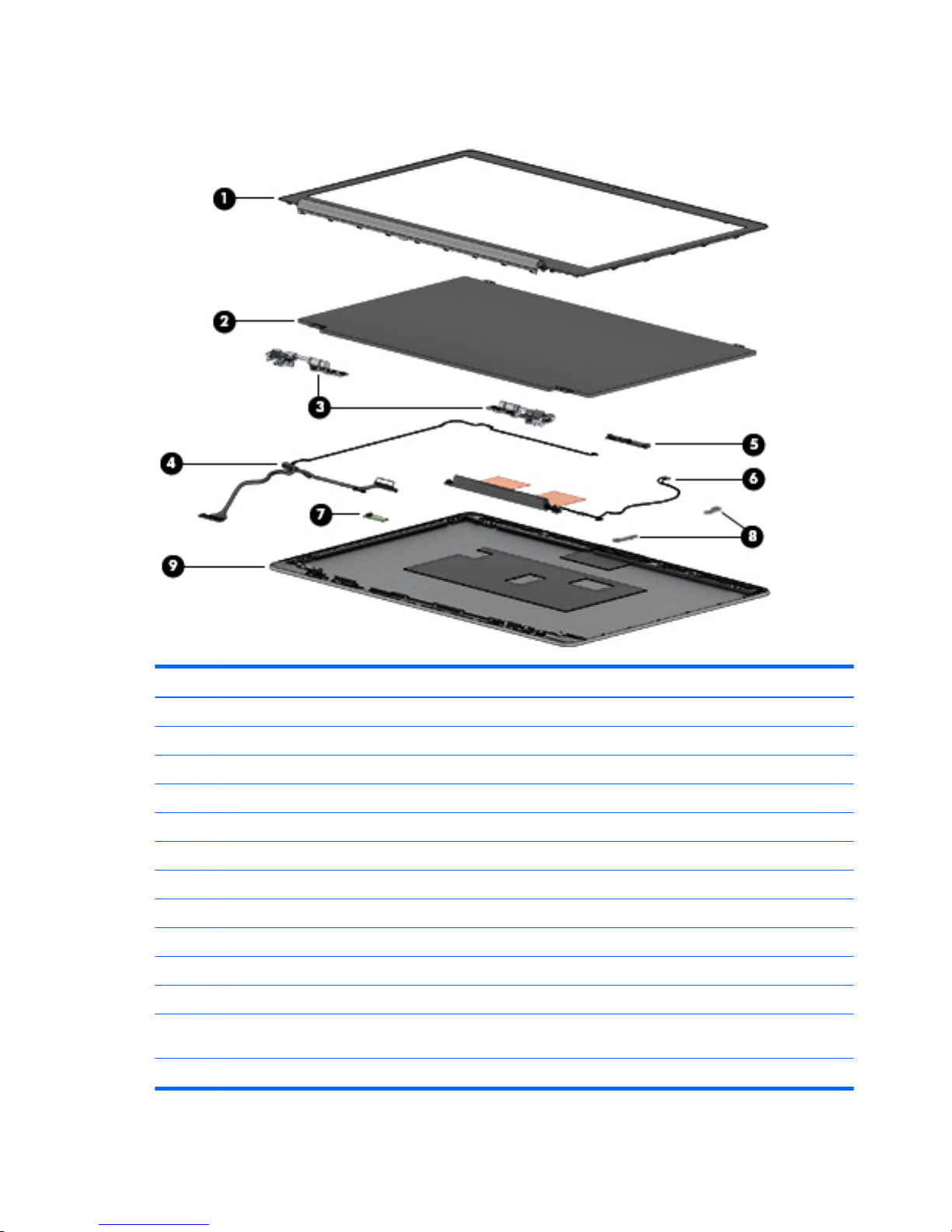

Display assembly subcomponents ...................................................................................................................... 18

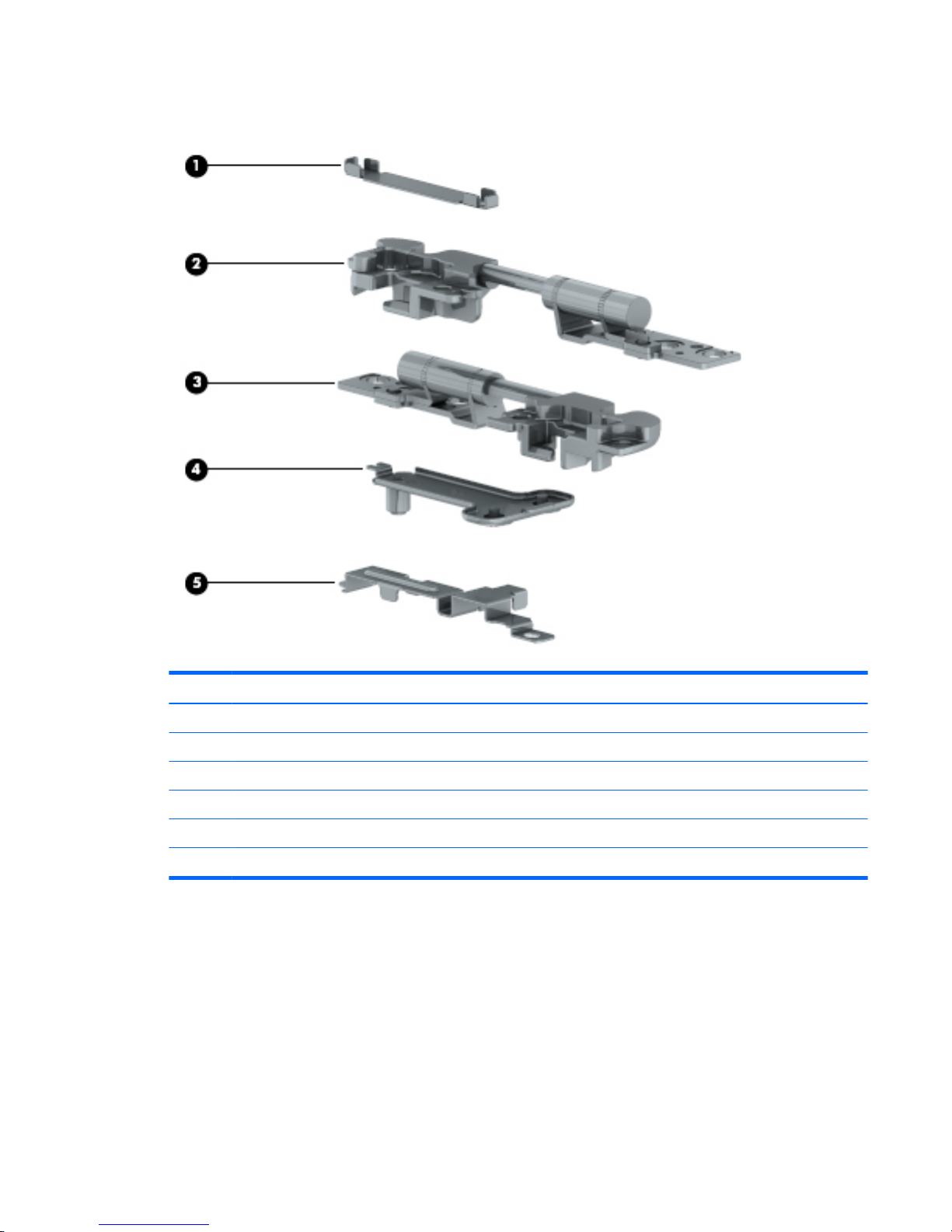

Bracket Kit ............................................................................................................................................................ 19
Plastics Kit ........................................................................................................................................................... 20
Miscellaneous parts ............................................................................................................................................. 21
4 Removal and replacement procedures preliminary requirements .................................................................... 22
Tools required ...................................................................................................................................................... 22
Service considerations ......................................................................................................................................... 22
Plastic parts ....................................................................................................................................... 22
Cables and connectors ...................................................................................................................... 23
Drive handling ................................................................................................................................... 23
Grounding guidelines ........................................................................................................................................... 23
Electrostatic discharge damage ........................................................................................................ 23
Packaging and transporting guidelines .......................................................................... 25
Workstation guidelines ................................................................................ 25
5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 27
Component replacement procedures .................................................................................................................. 27

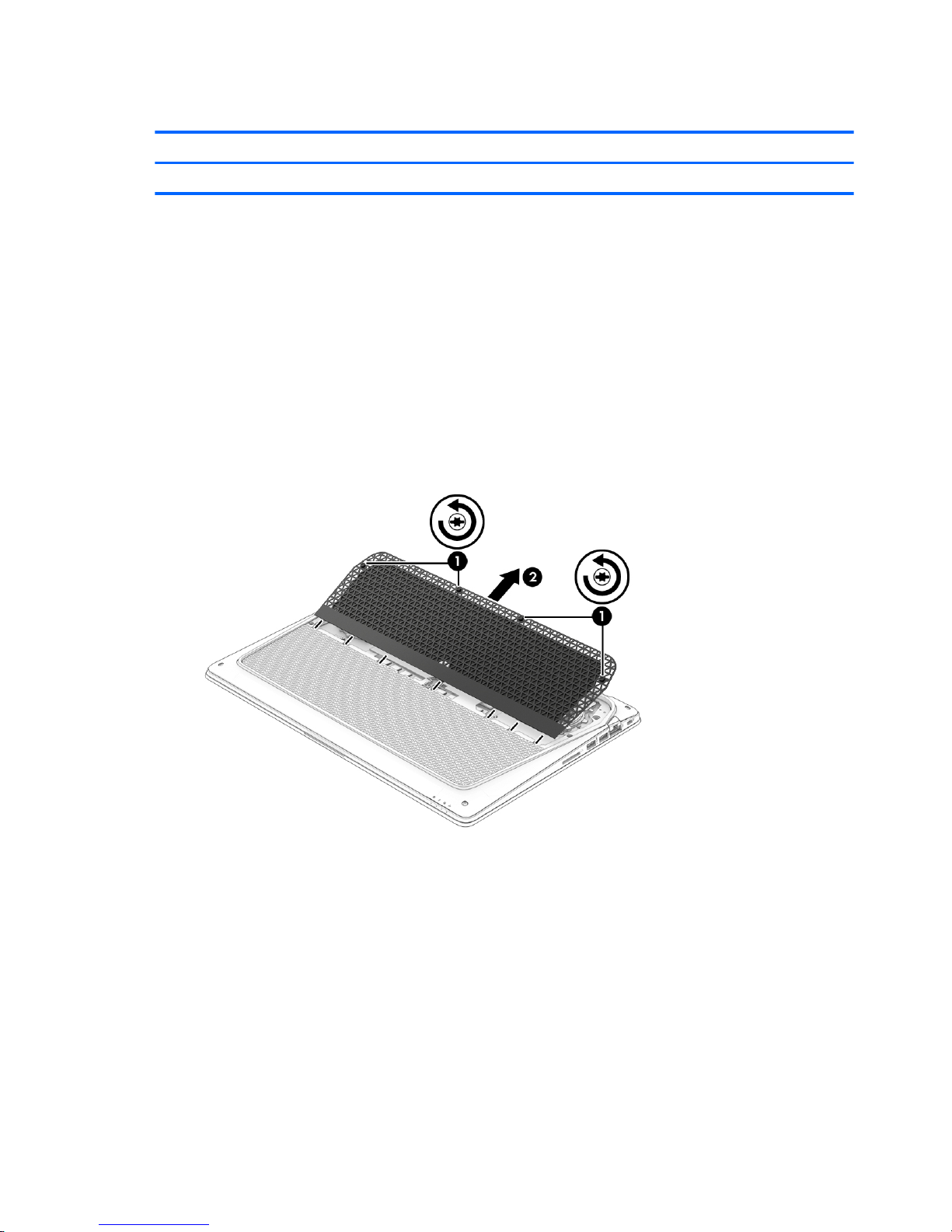

Service door ....................................................................................................................................... 28

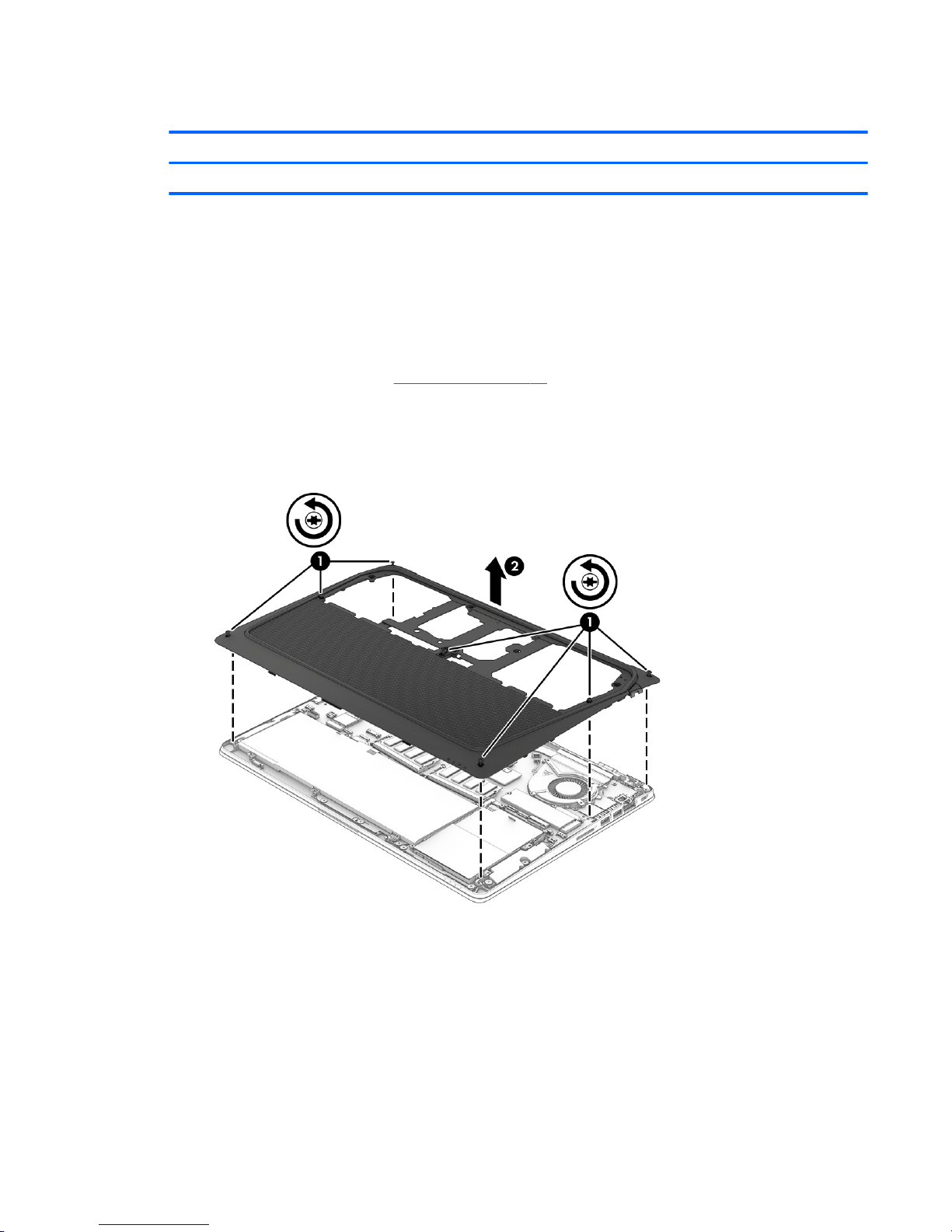

Bottom cover ..................................................................................................................................... 29
vii
Page 8

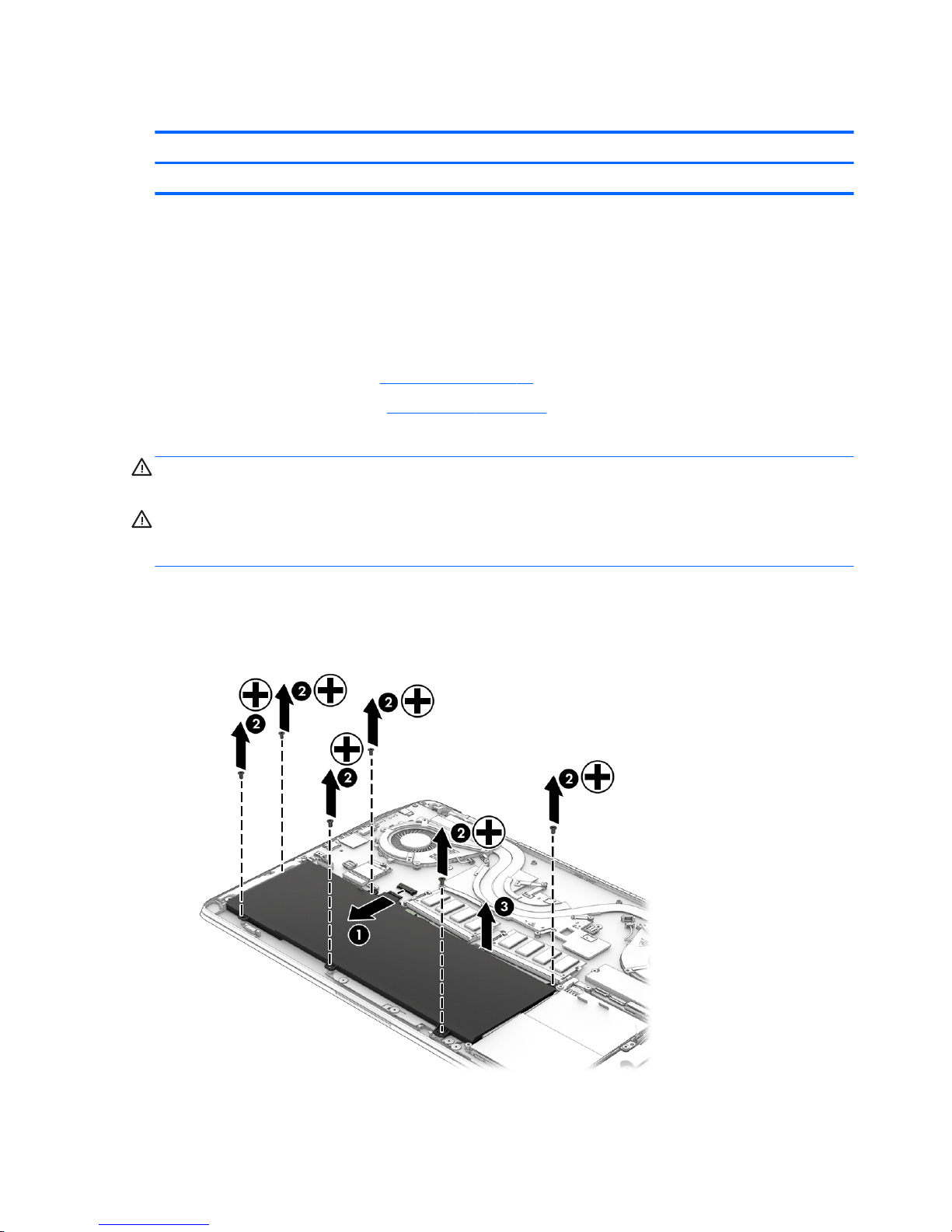

Battery ............................................................................................................................................... 30

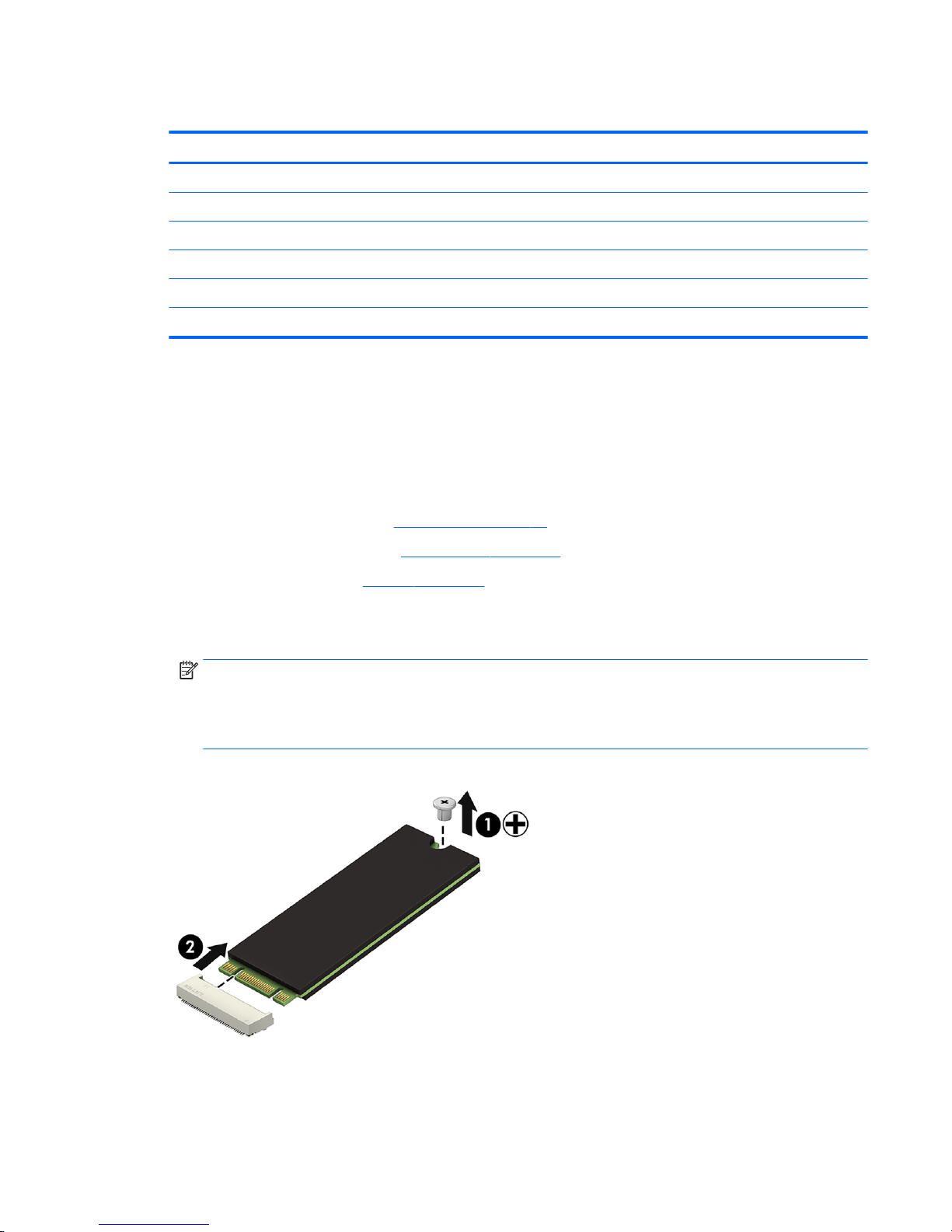

Solid-state drive (M.2) ....................................................................................................................... 31

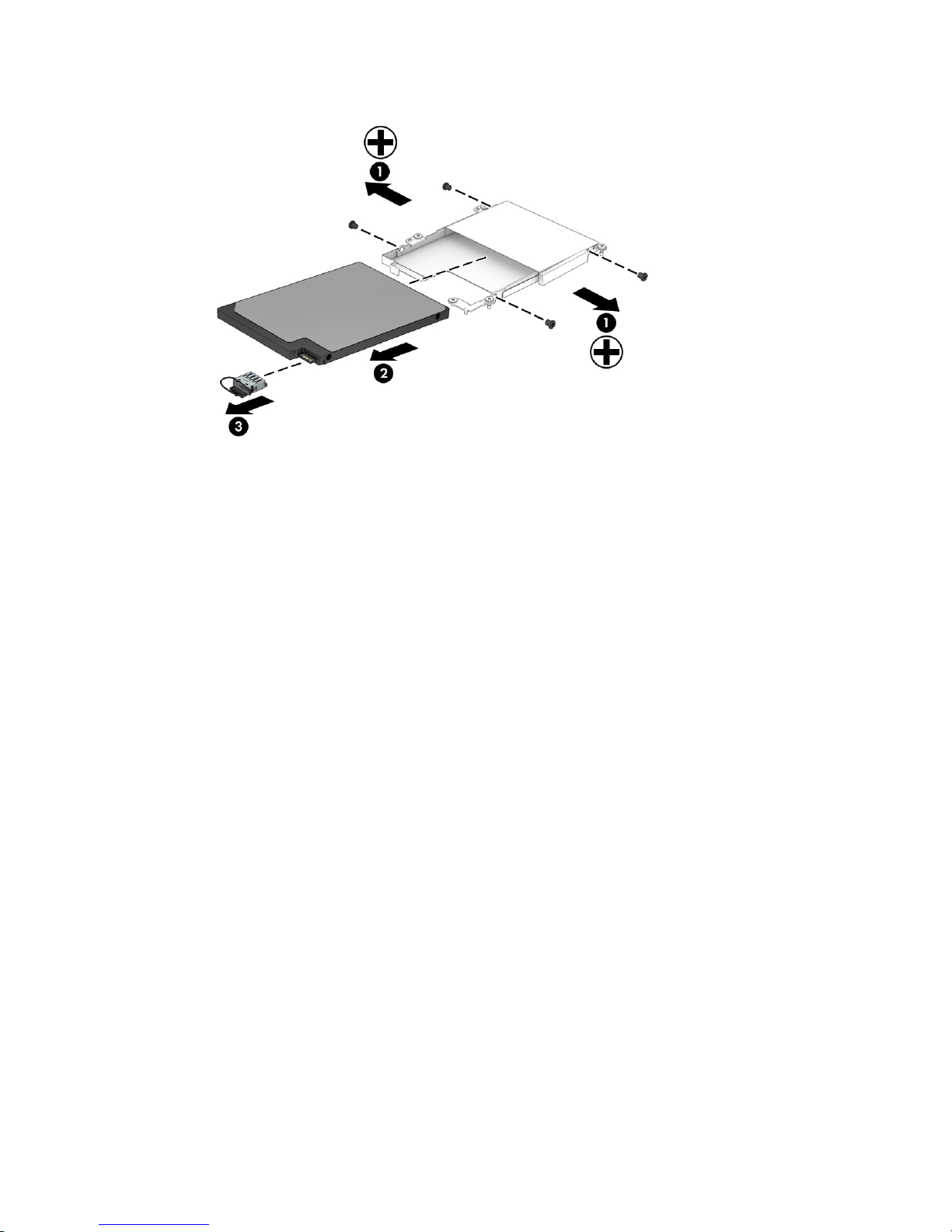

Hard drive .......................................................................................................................................... 32

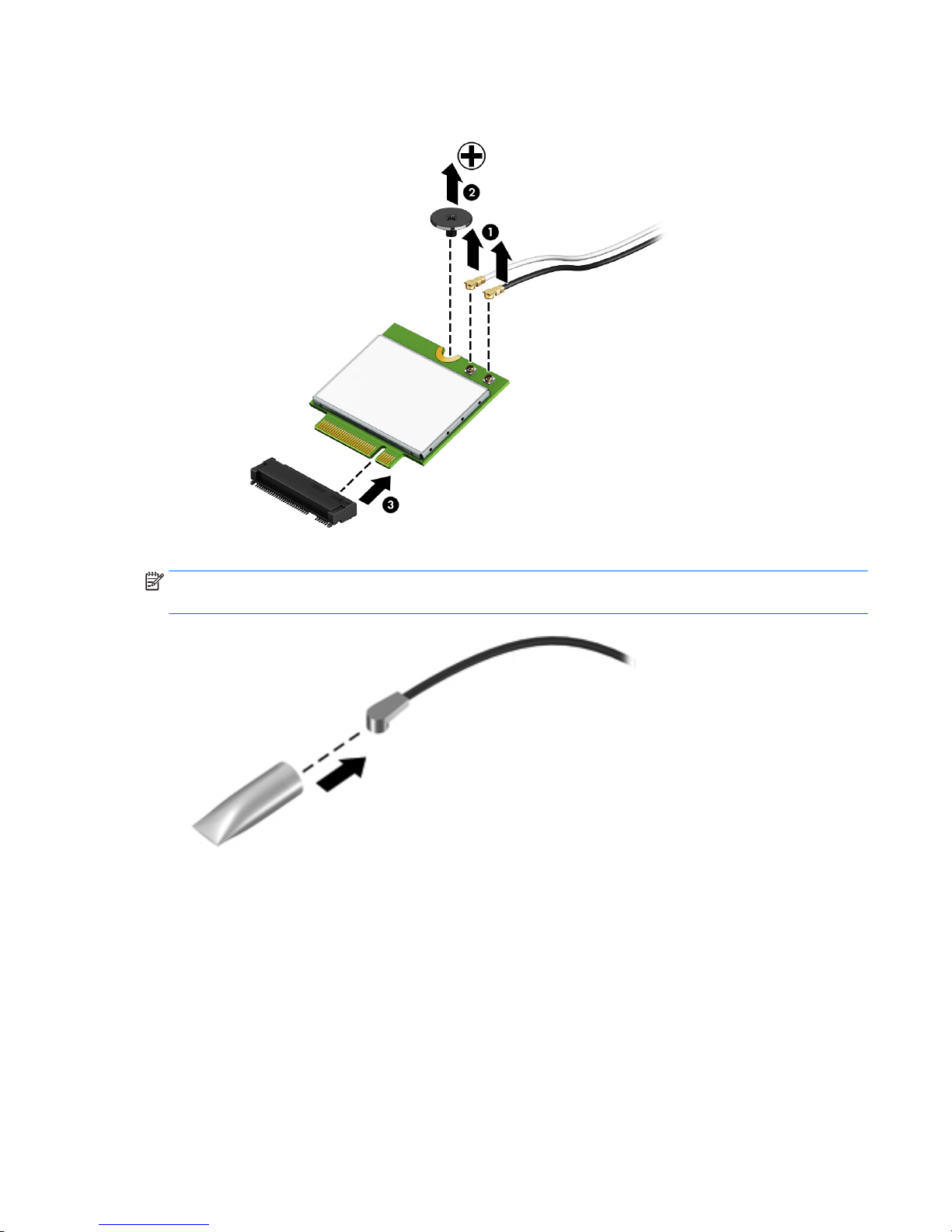

WLAN module .................................................................................................................................... 34

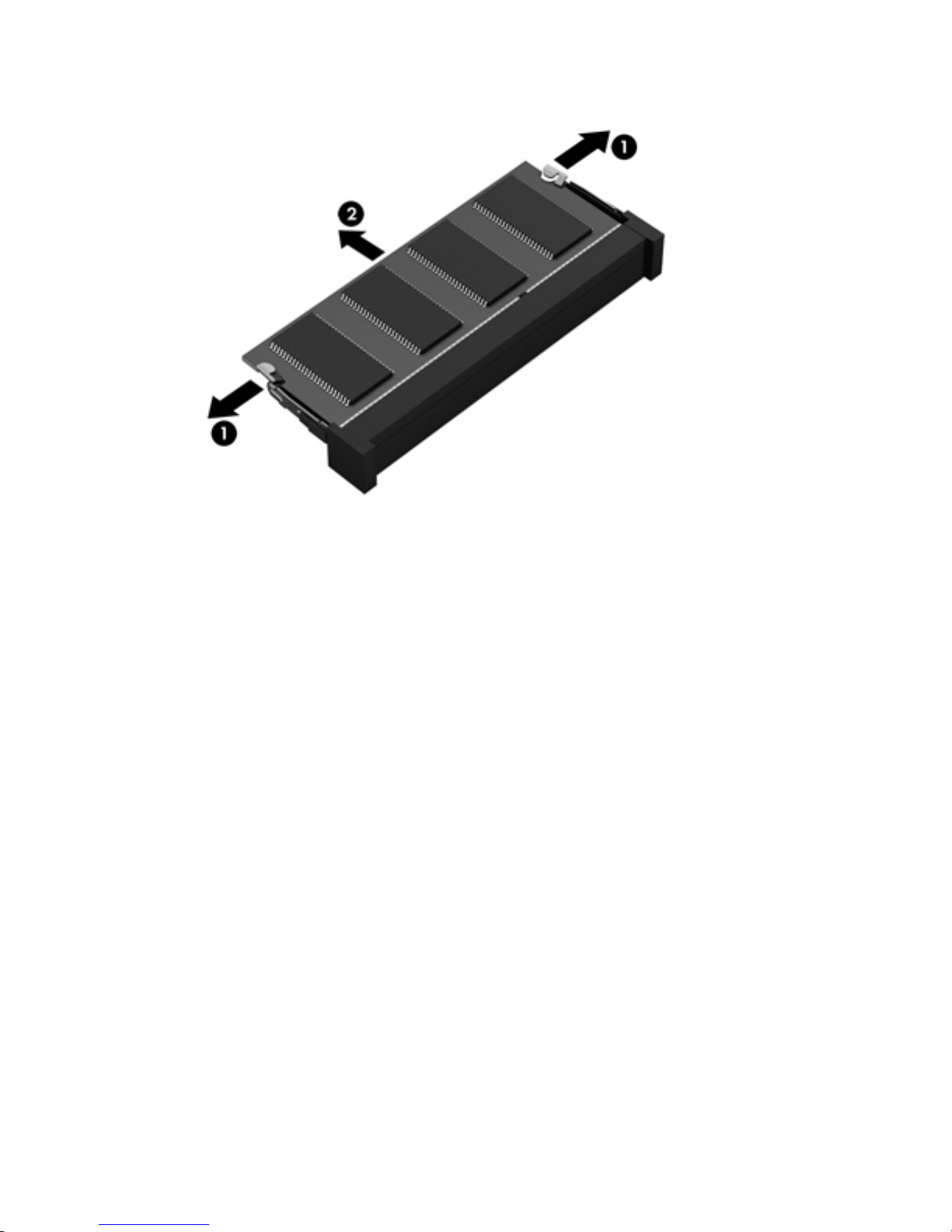

Memory module ................................................................................................................................ 36

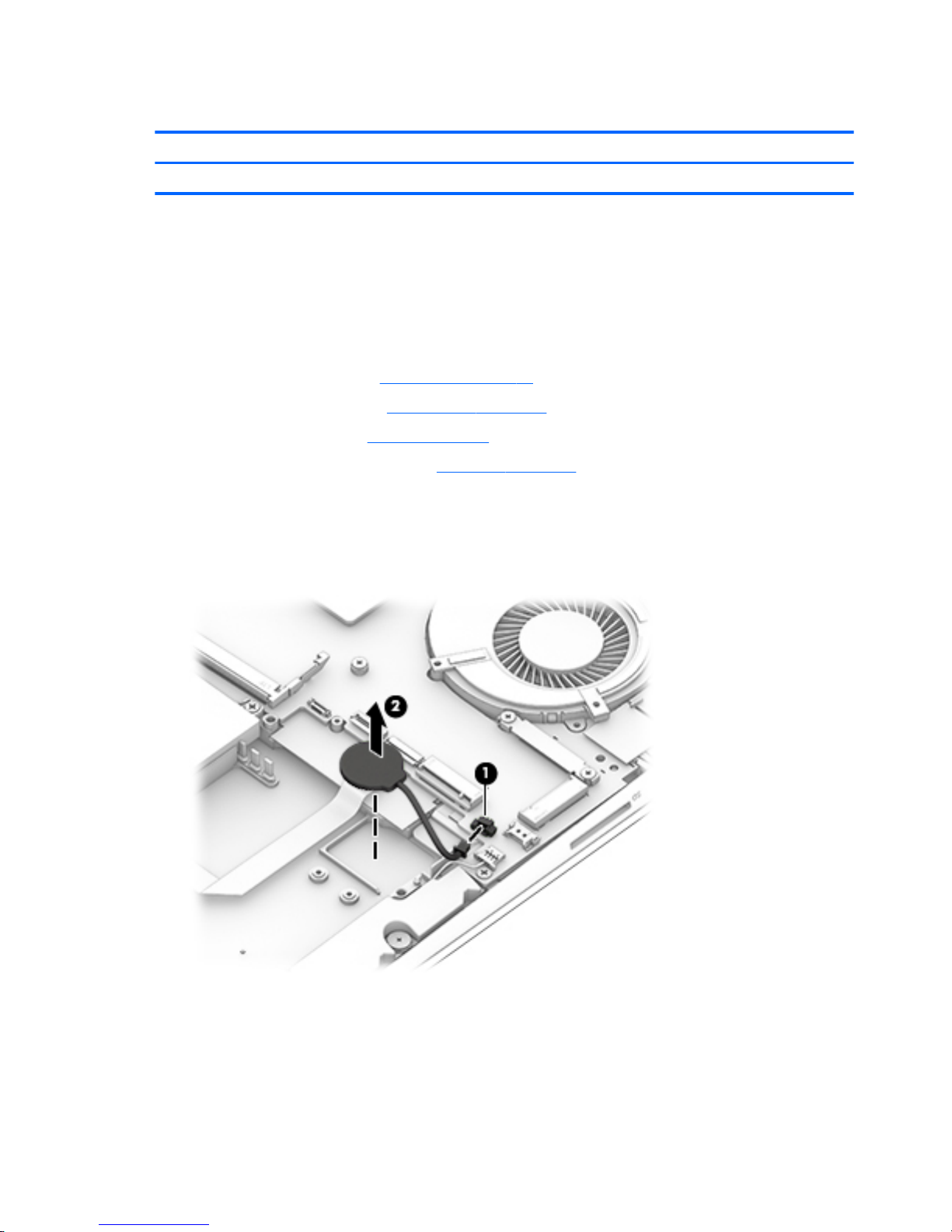

RTC battery ........................................................................................................................................ 38
6 Removal and replacement procedures for authorized service provider parts .................................................... 39
Component replacement procedures .................................................................................................................. 39

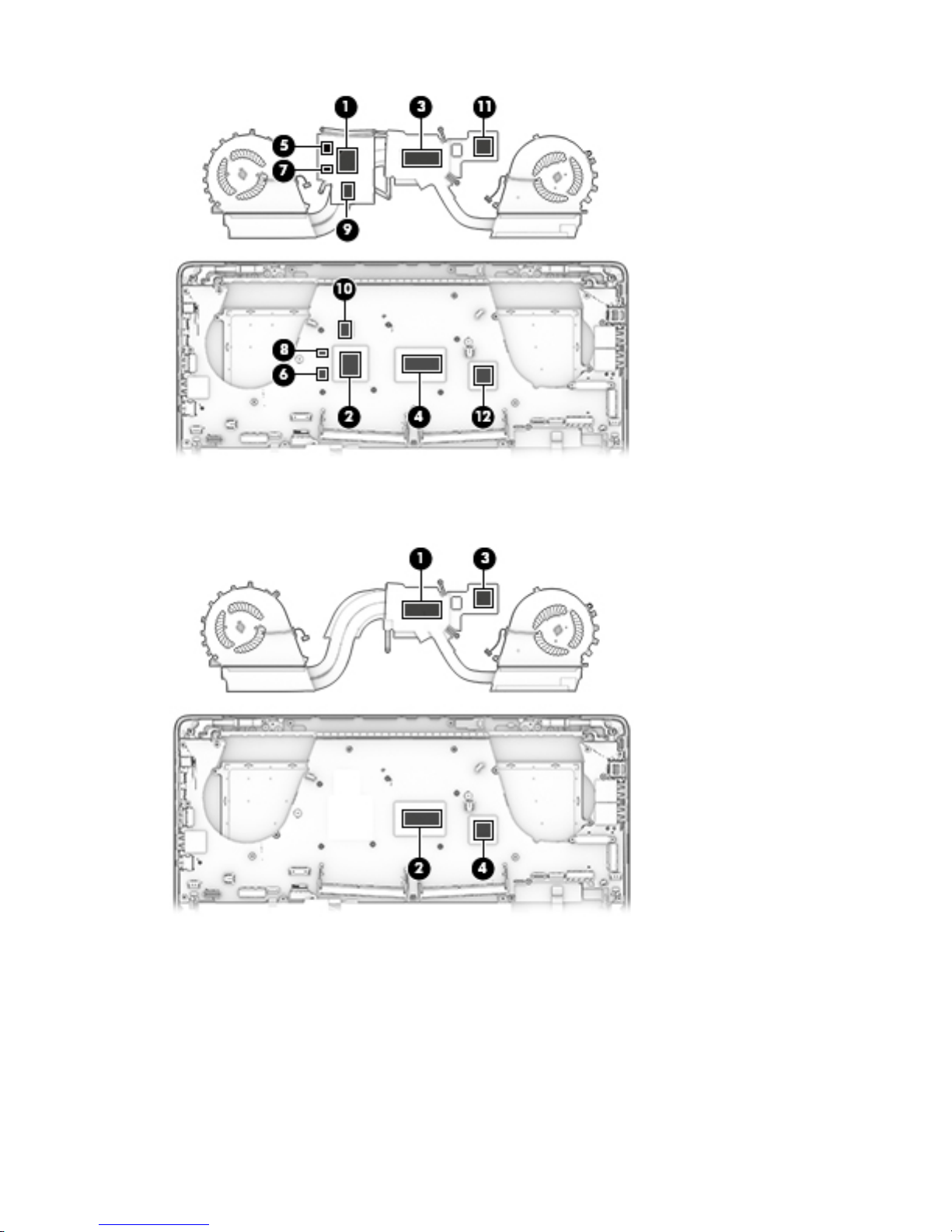

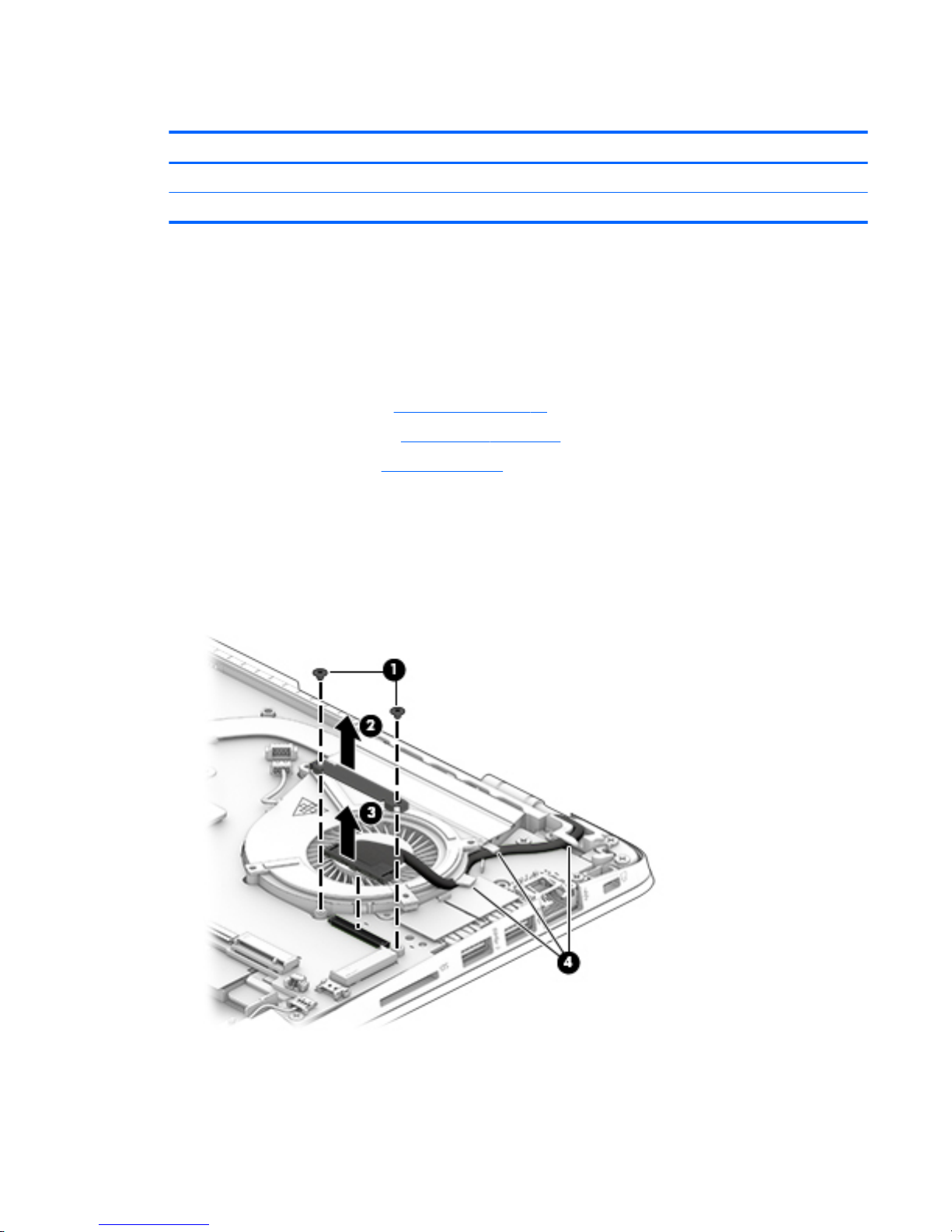

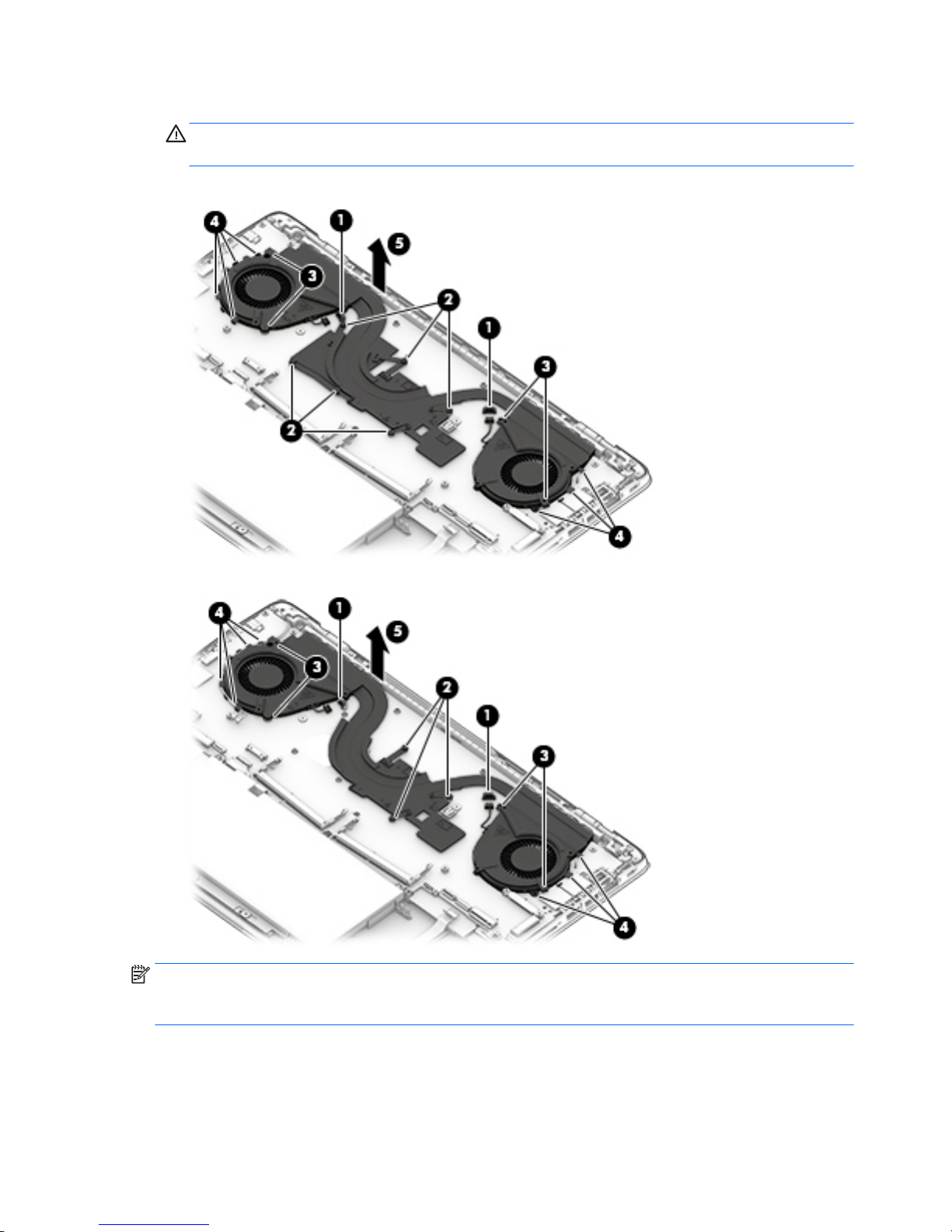

Thermal module ................................................................................................................................ 39

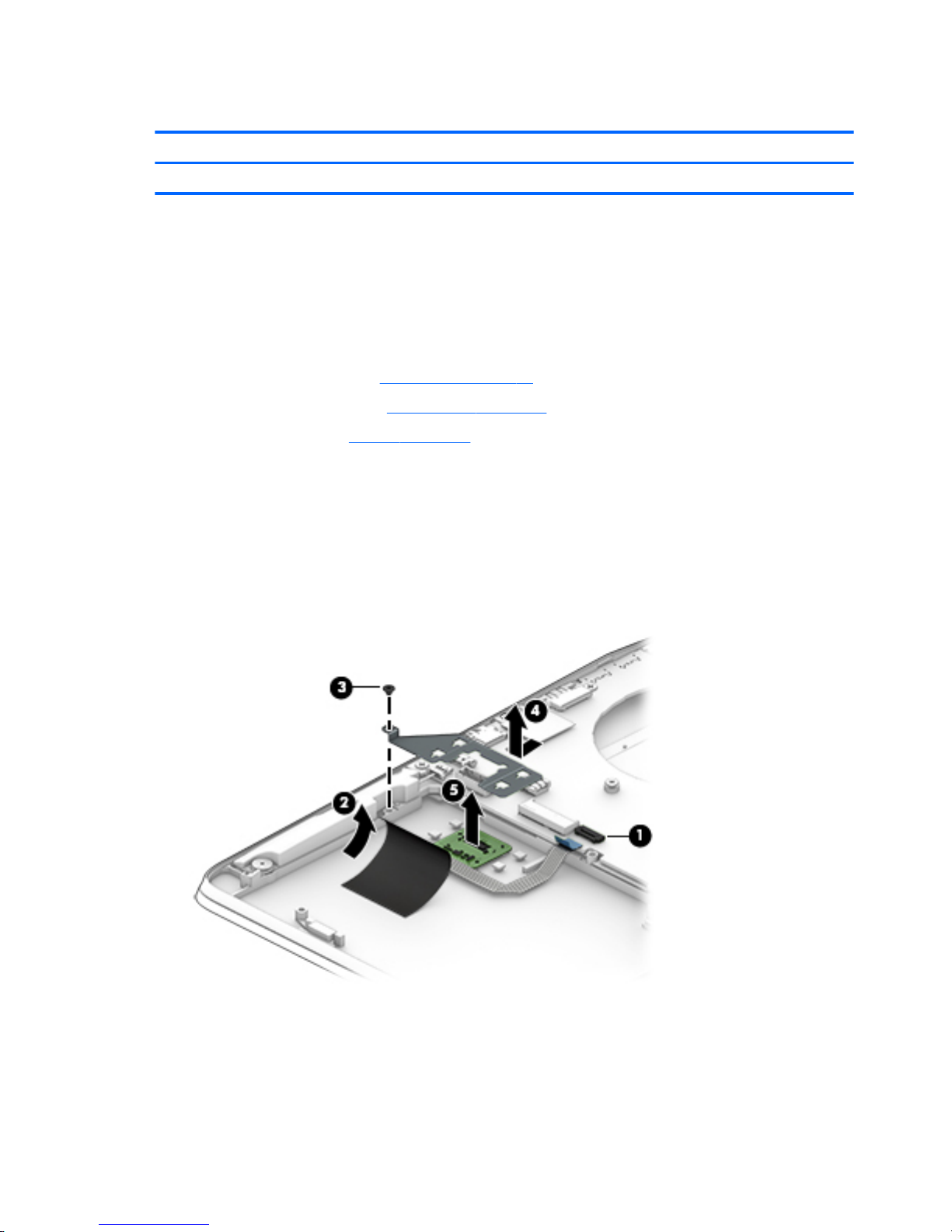

Fingerprint reader board ................................................................................................................... 42
LED board .......................................................................................................................................... 43

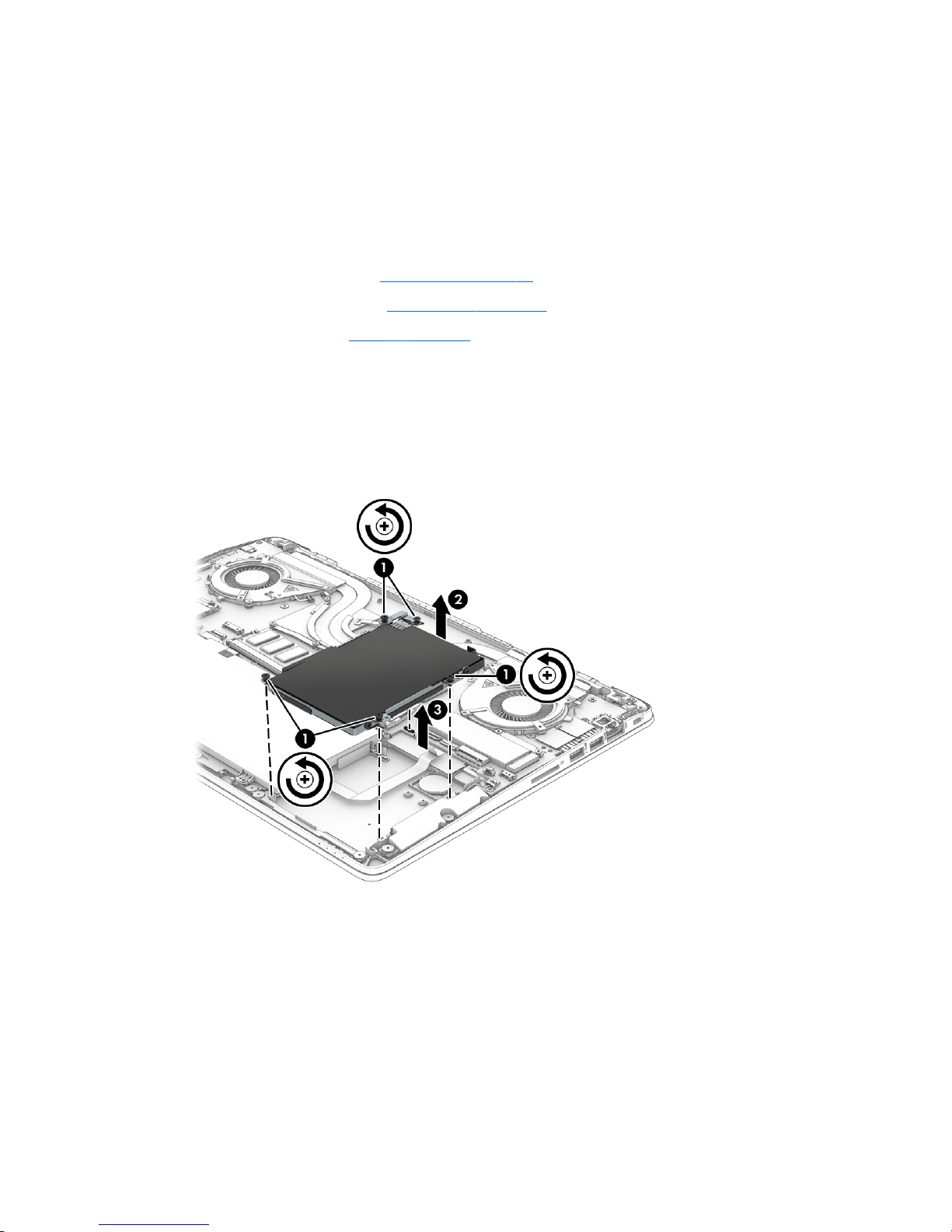

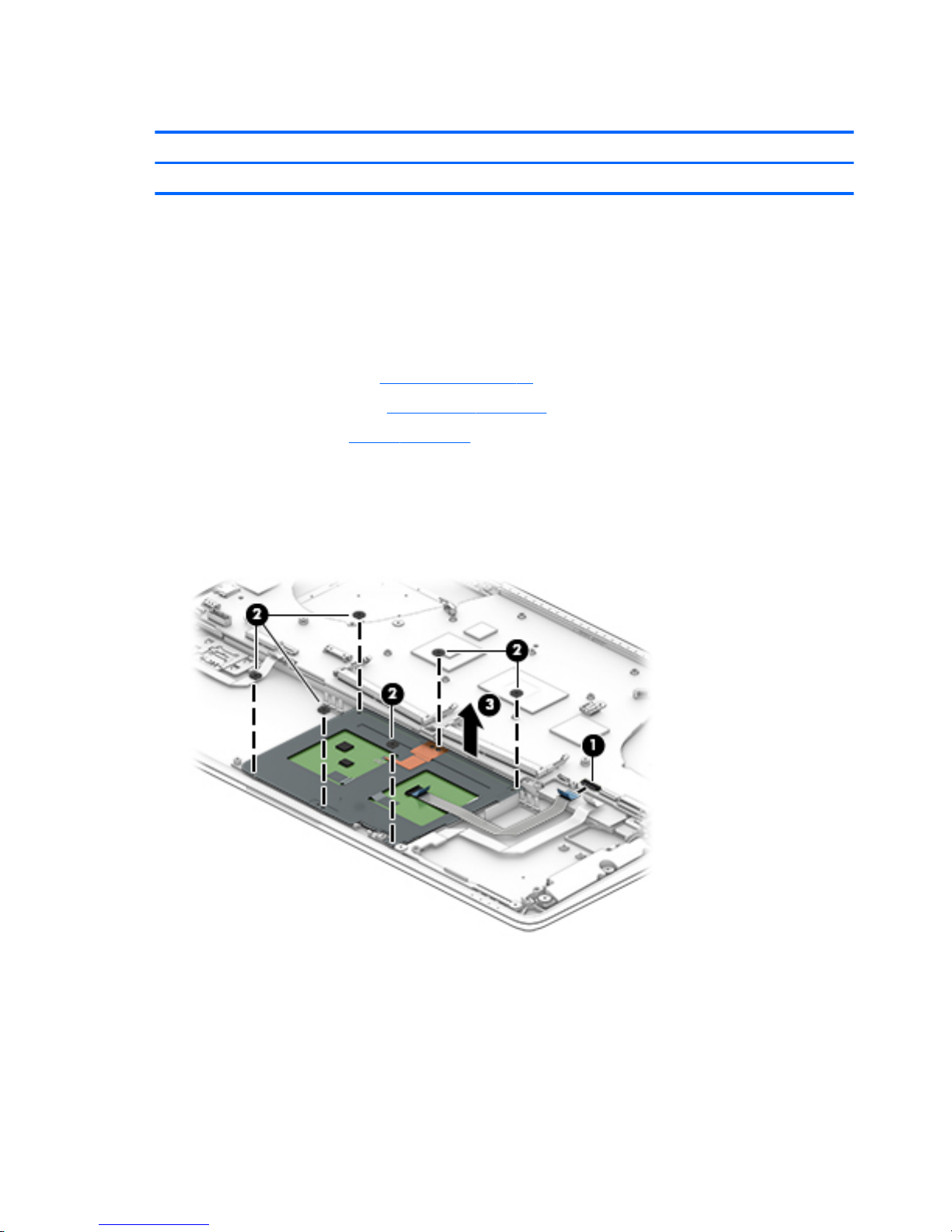

TouchPad ........................................................................................................................................... 44
Display cable ..................................................................................................................................... 45

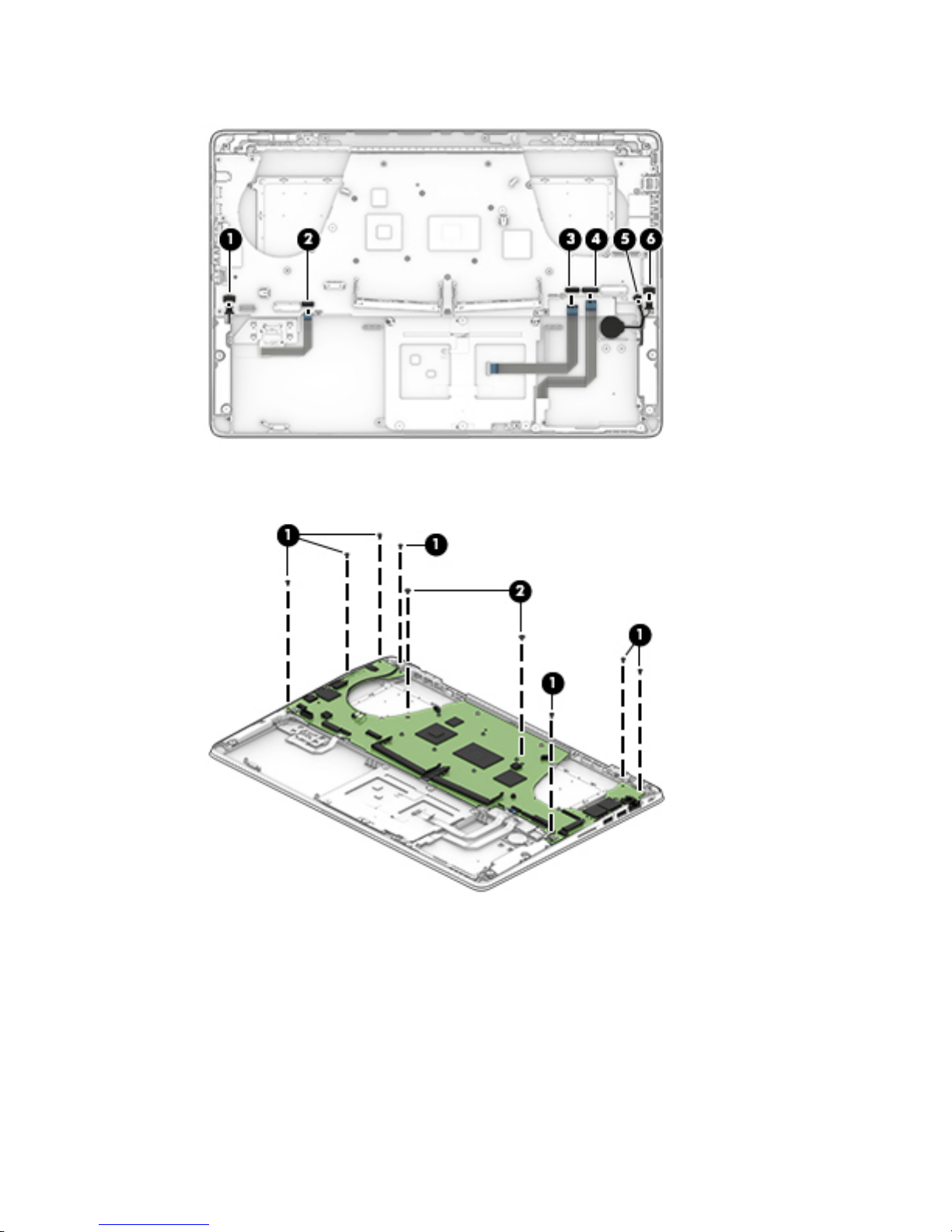

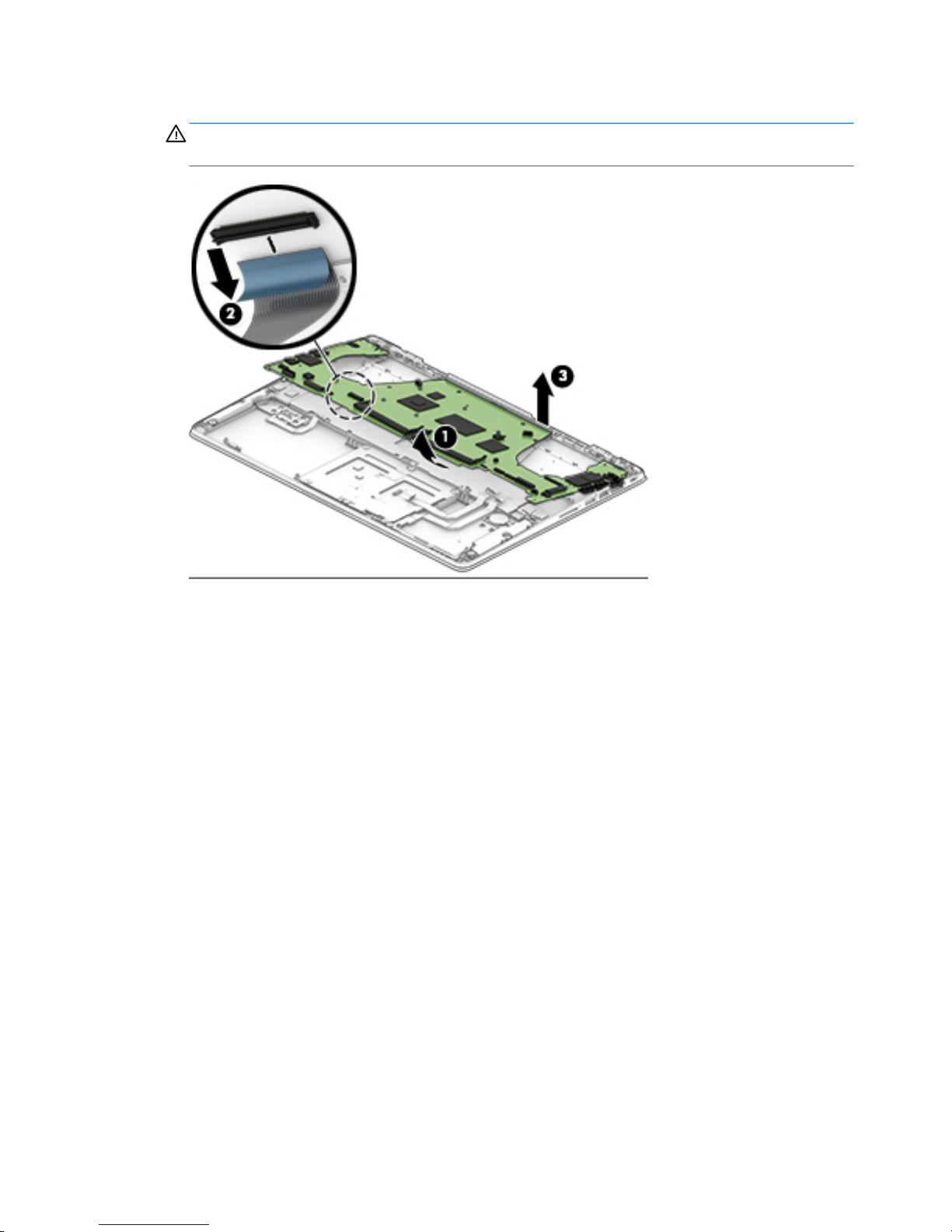

System board .................................................................................................................................... 46

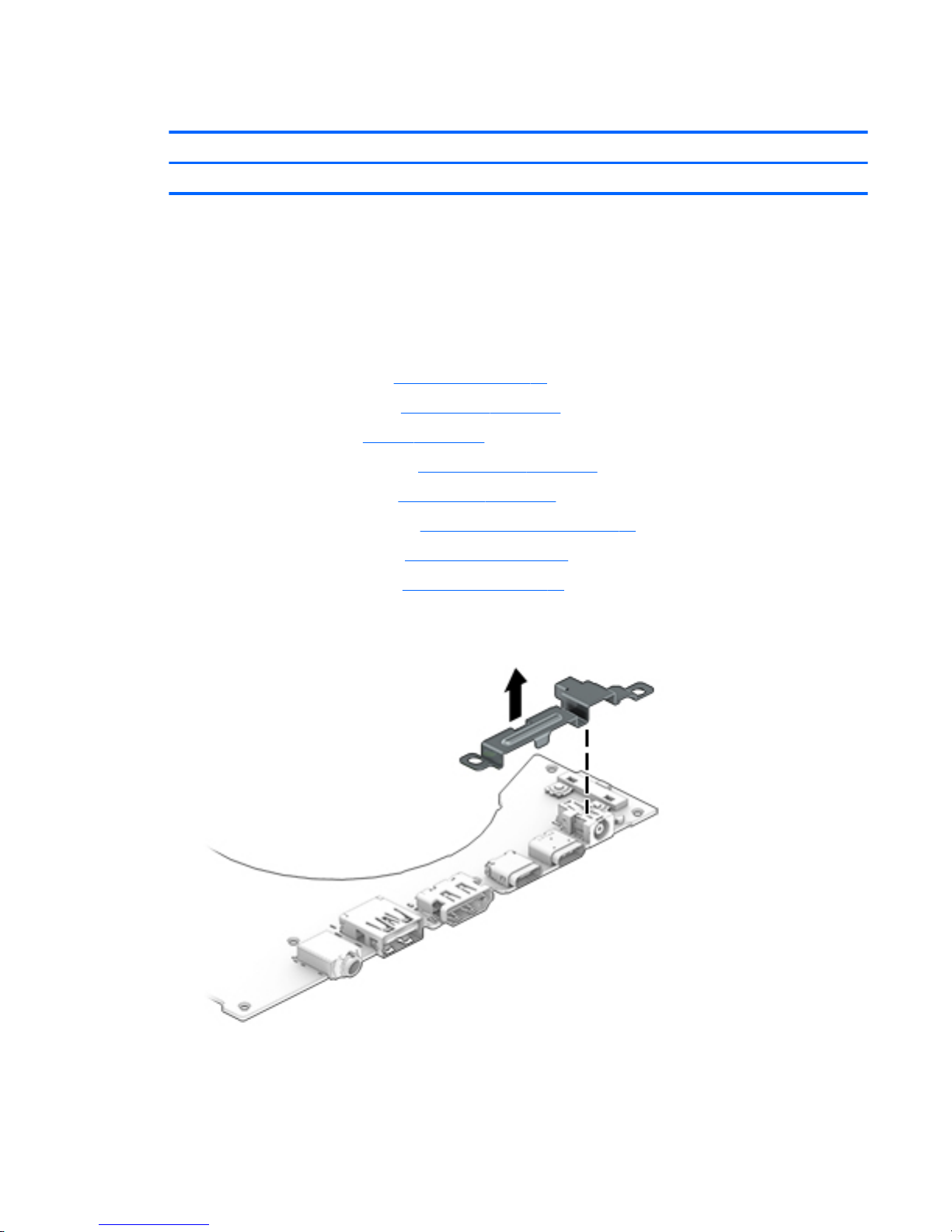

I/O support bracket ........................................................................................................................... 49

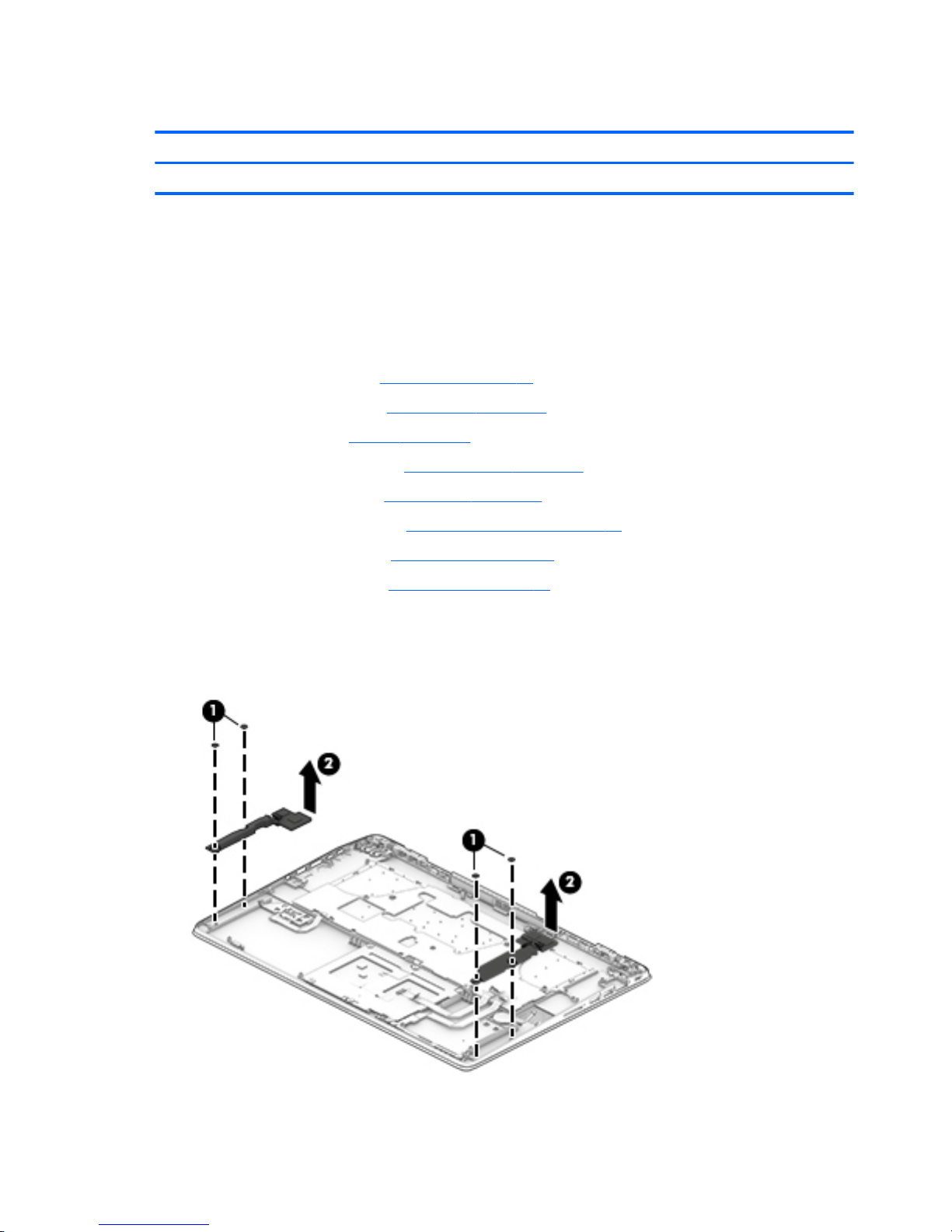

Speakers ............................................................................................................................................ 50
Keyboard ........................................................................................................................................... 51

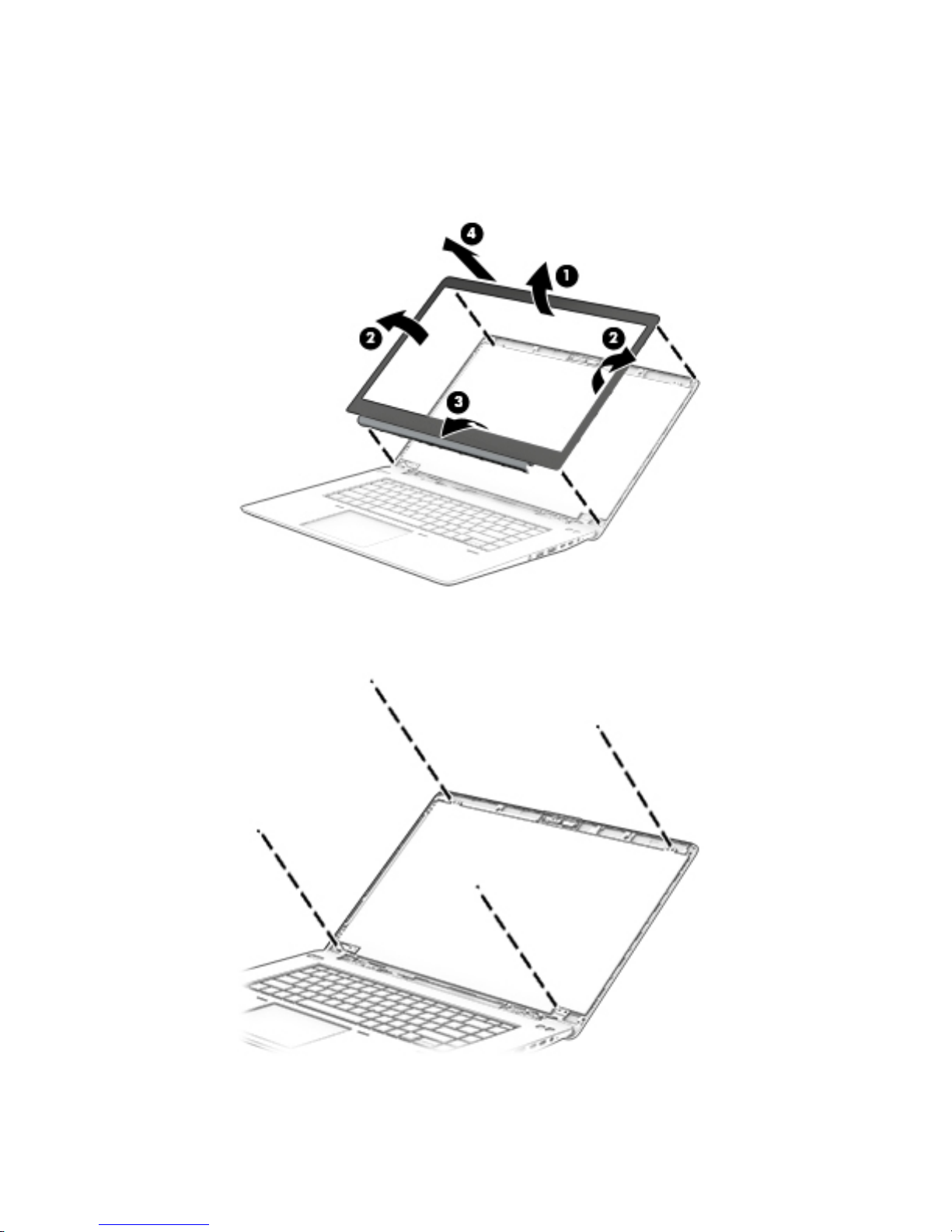

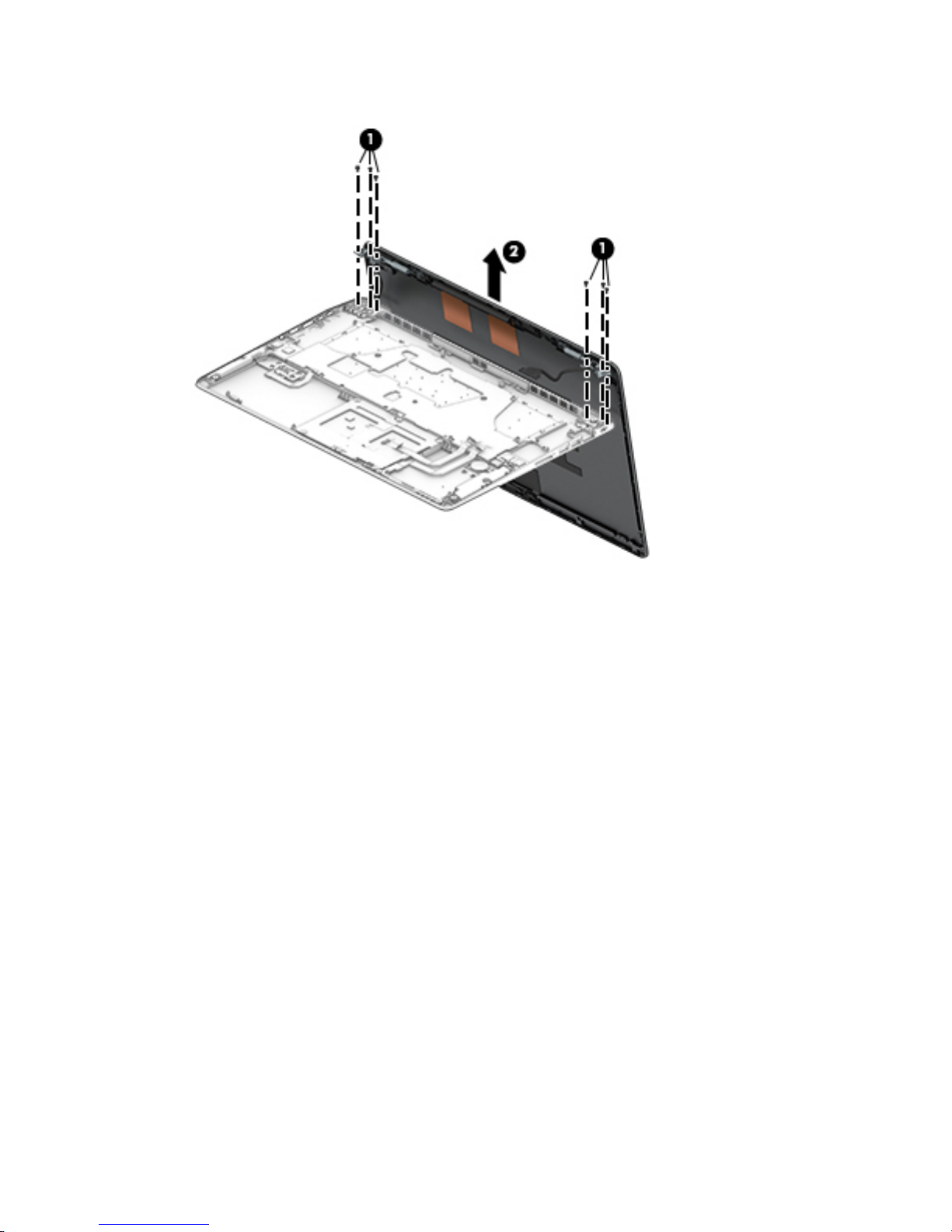

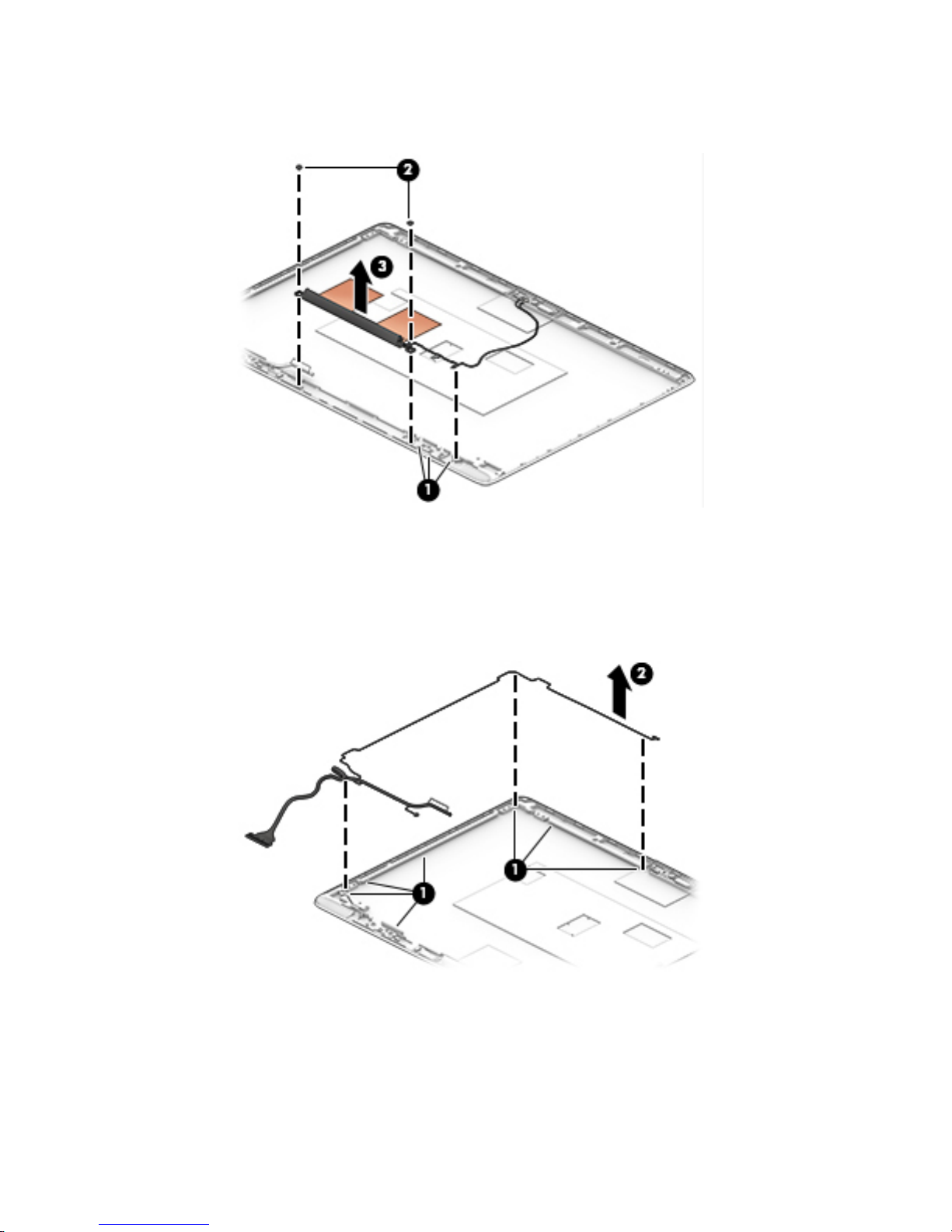

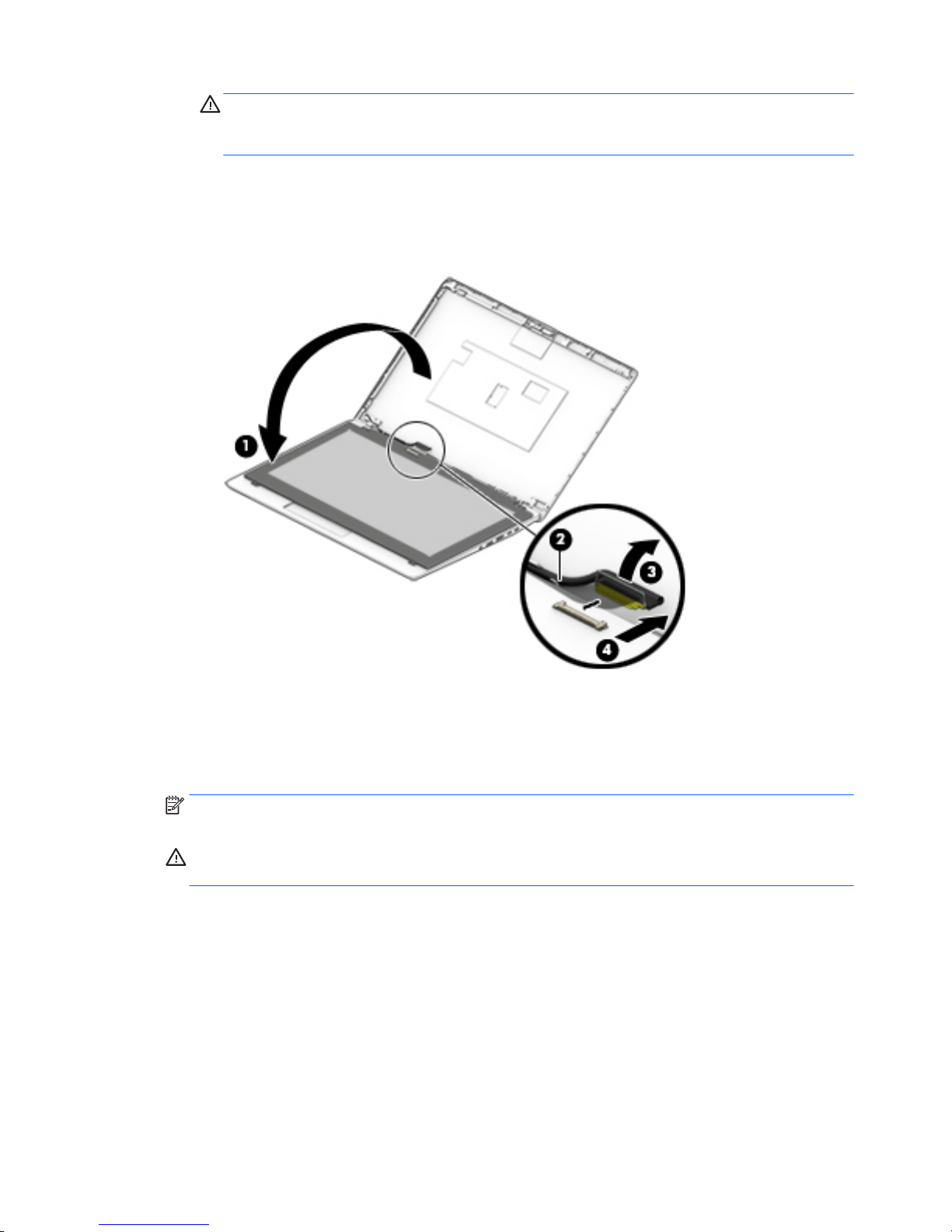

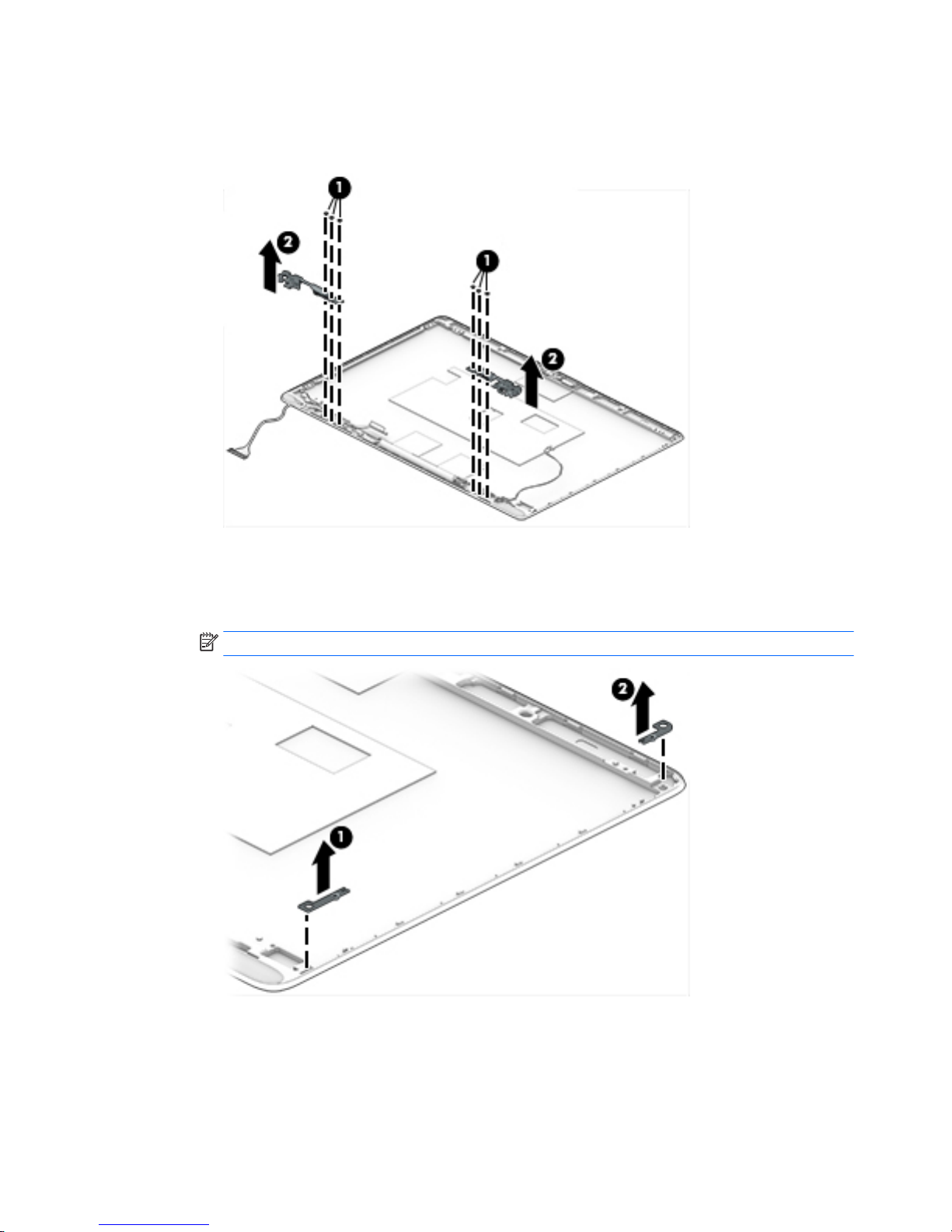

Display assembly ............................................................................................................................... 53
Top cover ........................................................................................................................................... 60
7 Troubleshooting guide ................................................................................................................................. 61
Resources ............................................................................................................................................................. 62
General troubleshooting steps ............................................................................................................................ 62
Identify the issue ............................................................................................................................... 63
1. Understand the issue .................................................................................................. 63
Boot up sequence ......................................................................................... 63
Failure classication ..................................................................................... 63
2. Examine the environment .......................................................................................... 65
3. Perform a visual inspection of hardware ................................................................... 66
4. Update BIOS and drivers ............................................................................................. 66
Manually updating BIOS and drivers ............................................................ 66
Remotely deploying BIOS and drivers .......................................................... 66
Analyze the issue ............................................................................................................................... 66
5. Remove or uninstall recently added hardware, software .......................................... 66
6. HP Hardware Diagnostics and Tools ........................................................................... 67

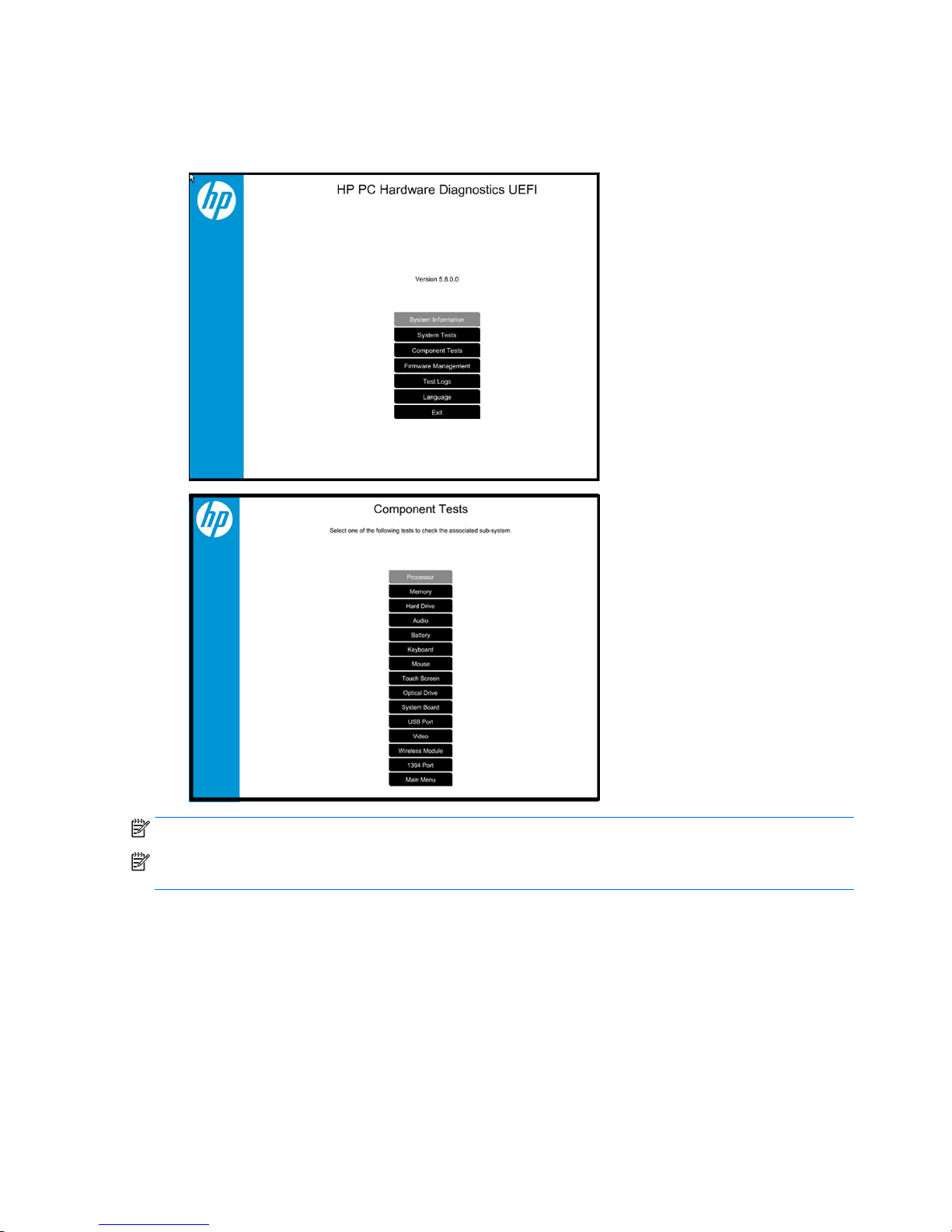

HP PC Hardware Diagnostics (UEFI) ............................................................. 67

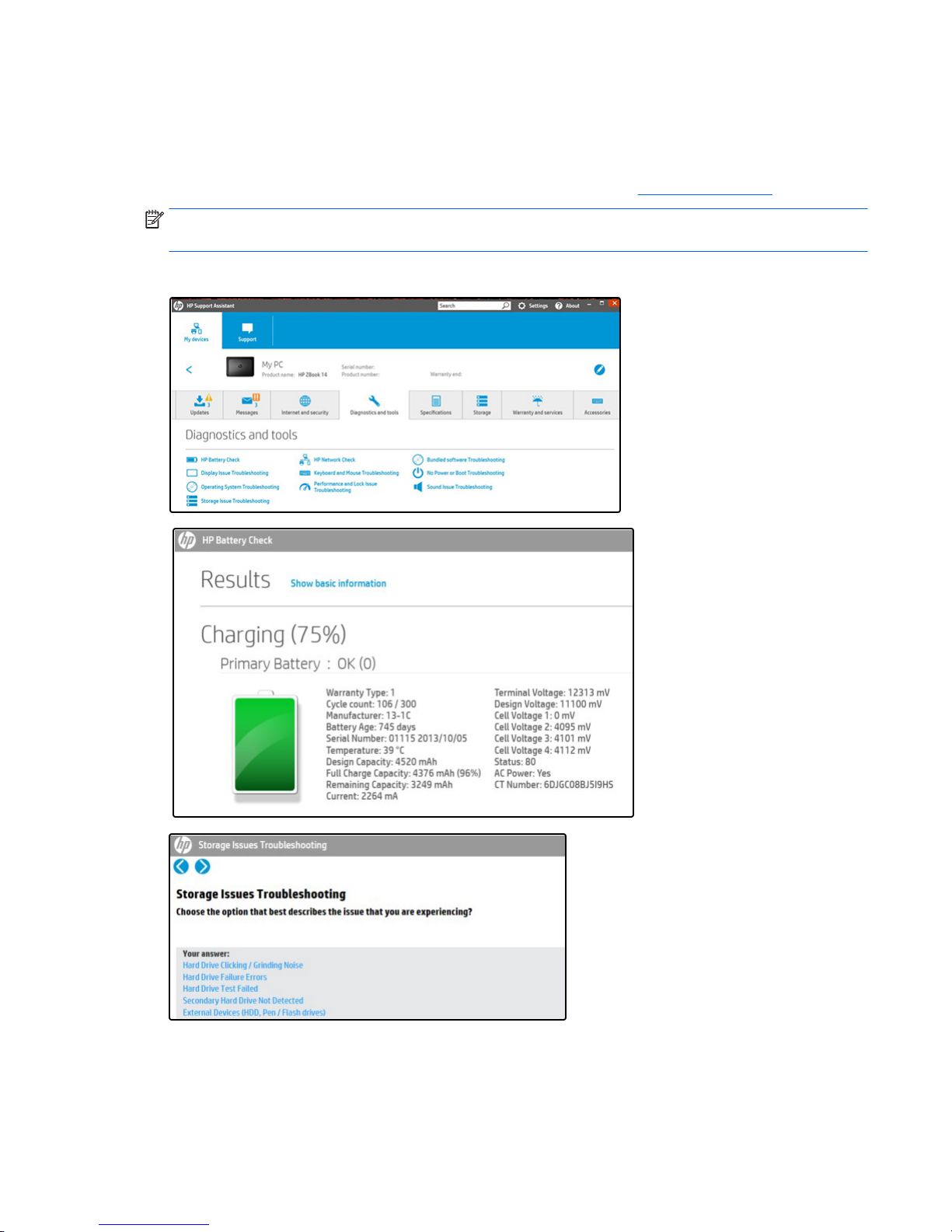

HP Support Assistant (HPSA) ....................................................................... 69
HP BIOS Conguration Utility (BCU) ............................................................. 70
HP Image Diagnostic Tool ............................................................................. 70
HP Thermal Monitor ..................................................................................... 70
viii
Page 9
Non HP diagnostics tools ............................................................................. 70
7. Status lights, blinking light codes, troubleshooting lights, and POST error
messages ........................................................................................................................ 71
Status lights .................................................................................................. 71
Blinking light codes ...................................................................................... 72
POST error messages ................................................................................... 72

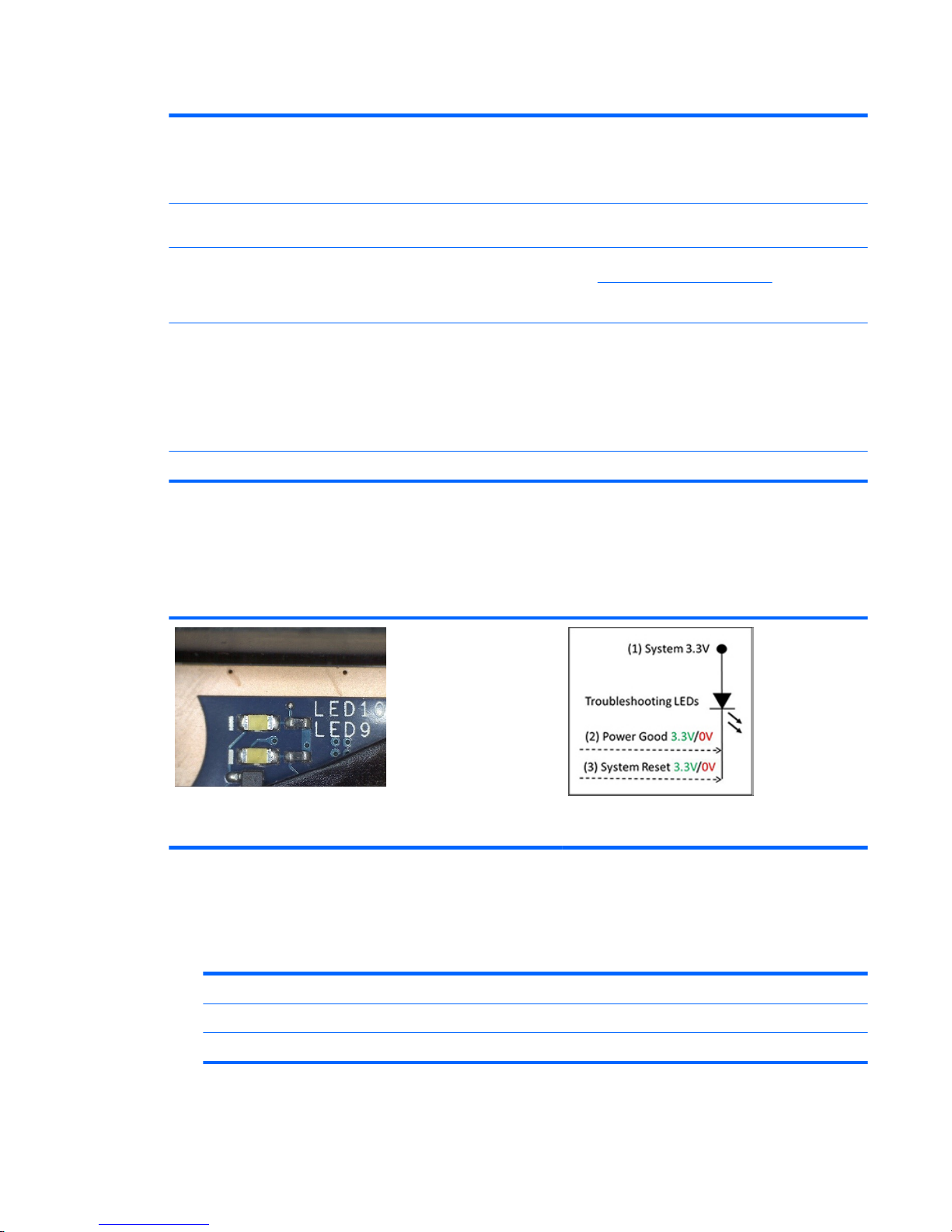

Power Good (Troubleshooting) lights .......................................................... 73
Resolve the issue ............................................................................................................................... 74
8. Hard reset .................................................................................................................... 74
9. Soft reset (Default Settings) ....................................................................................... 75
10. Reseat cables and connections ................................................................................ 75
11. Test with minimum conguration ............................................................................ 76
Essential hardware conguration ................................................................ 76
Safe mode ..................................................................................................... 77
12. Test with veried working conguration (hardware and/or operating system) ..... 77
13. Replace the system board ........................................................................................ 77
Verify solution ................................................................................................................................... 78
Helpful Hints ........................................................................................................................................................ 78
At startup ........................................................................................................................................... 78
During operation ............................................................................................................................... 79
Consulting with HP Service ............................................................................................................... 79

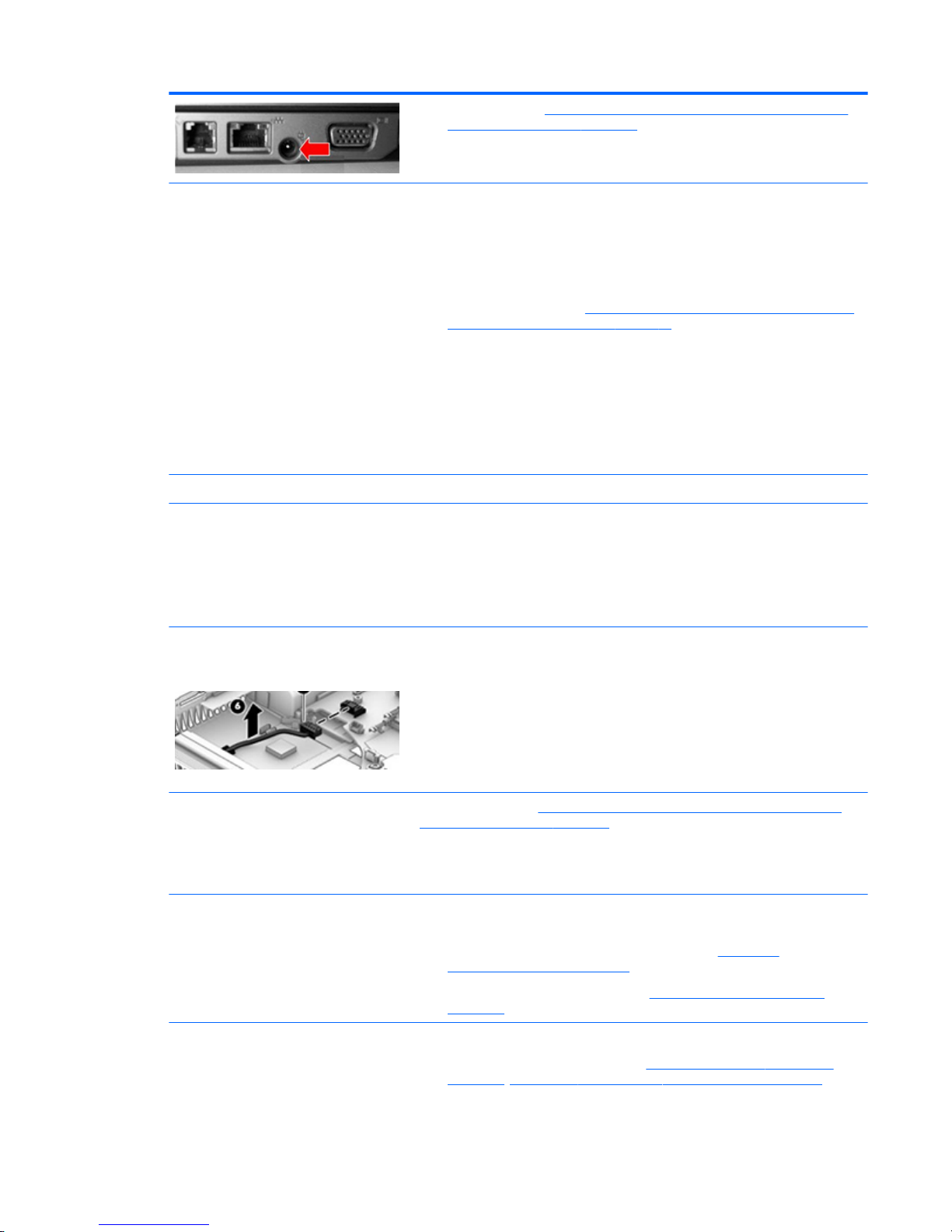

Common issues and possible solutions .............................................................................................................. 80
Power-on issues ................................................................................................................................ 80
No Power ......................................................................................................................... 80
Intermittent power-on, shutdown, reboot ..................................................................... 82

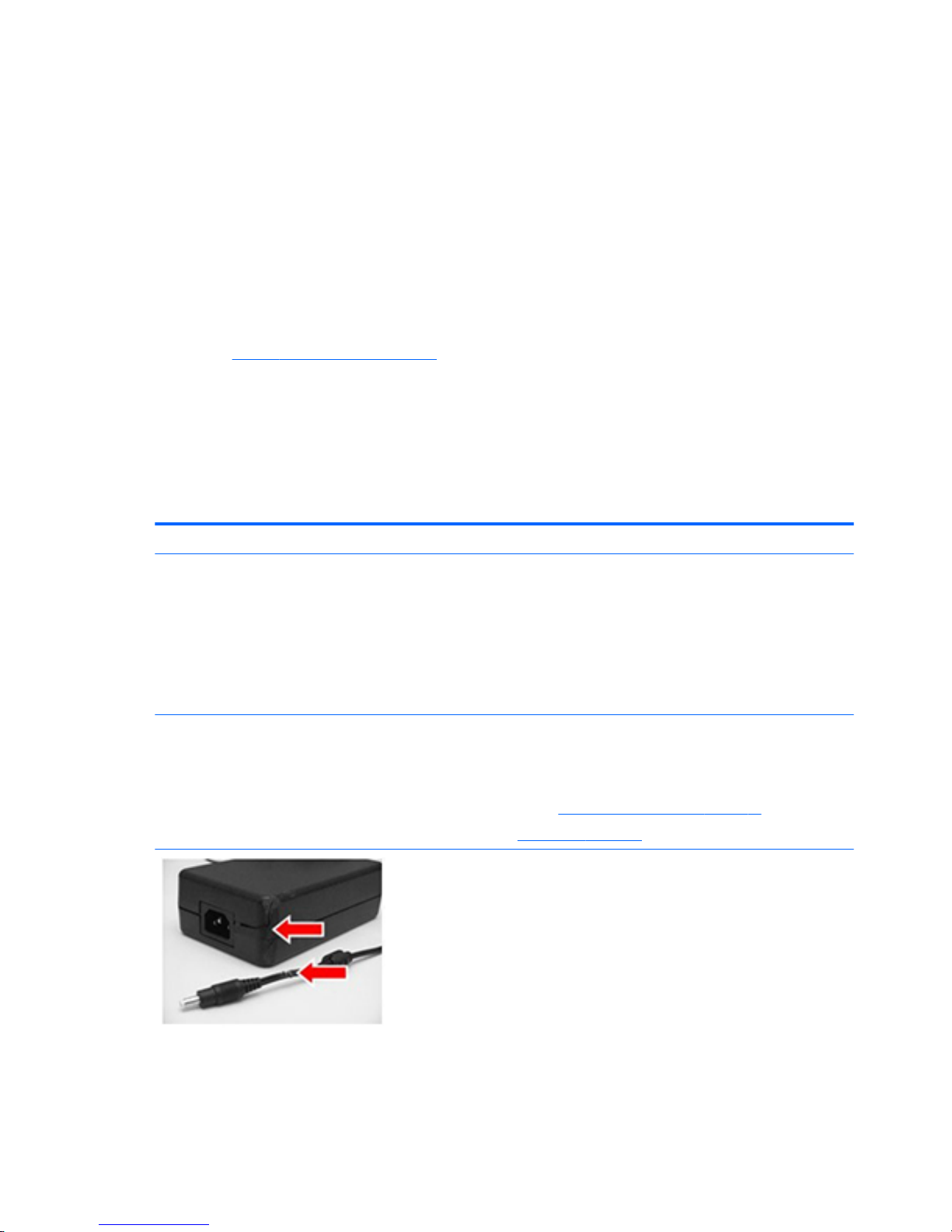

AC adapter issue .............................................................................................................. 83
Battery not recognized, not charging ............................................................................. 83
Battery discharges too fast ............................................................................................ 85
Burnt smell ...................................................................................................................... 86
POST .................................................................................................................................................. 86
No video (with power) ..................................................................................................... 86
Blinking lights ................................................................................................................. 87
Diagnostics error messages ........................................................................................... 88
BIOS password ................................................................................................................ 89
Performance (OS) .............................................................................................................................. 89
Intermittent shutdown ................................................................................................... 90
Blue screen ...................................................................................................................... 91
Freeze at Windows Logo (hang/lockup) ......................................................................... 93
Electromagnetic Interference (EMI) ................................................................................ 94
No wake up ...................................................................................................................... 95
Unresponsive .................................................................................................................. 96
ix
Page 10
Slow performance ........................................................................................................... 96
HP Smart Adapter warning message .............................................................................. 97
Incorrect time and date ................................................................................................... 97
Display ............................................................................................................................................... 98
Display anomalies ........................................................................................................... 98
Symptom ...................................................................................................... 98
Quick check ................................................................................................... 99
HP PC Hardware Diagnostics (UEFI) for video test ....................................... 99
Display assembly diagram ......................................................................... 100
Dead pixel ..................................................................................................................... 100
No video (internal) ........................................................................................................ 100
No video (external) ....................................................................................................... 101
DisplayPort/VGA ........................................................................................................... 101
HDMI .............................................................................................................................. 101
No or bad external video via docking ........................................................................... 102
Incorrect or missing color/distorted image .................................................................. 102
Touch screen ................................................................................................................. 103
I/O devices ....................................................................................................................................... 104
Keyboard ....................................................................................................................... 104
Keyboard point stick ..................................................................................................... 105
Keyboard backlight ....................................................................................................... 105
TouchPad ....................................................................................................................... 106
Network Connectivity Ethernet (RJ-45 jack) ................................................................ 106
Network connectivity wireless (WLAN) ........................................................................ 107
WWAN ............................................................................................................................ 108
USB ................................................................................................................................ 109
Smart card reader ......................................................................................................... 110
Speaker, headphone - audio issues .............................................................................. 111
Thunderbolt (TB) ........................................................................................................... 112
Storage ............................................................................................................................................ 113
Hard drive/solid-state drive not recognized ................................................................ 114
No boot to operating system (no read/write error) ..................................................... 114
Read-write error ........................................................................................................... 115
Slow performance ......................................................................................................... 115
Blue screen (BSOD) error .............................................................................................. 115
Noisy hard drive ............................................................................................................ 116
Mechanical ....................................................................................................................................... 117
Fan error message - 90B .............................................................................................. 117
Noise (sound) ................................................................................................................ 118
Fan runs constantly ...................................................................................................... 119
Thermal shutdown (hot) ............................................................................................... 120
x
Page 11
Stuck power button ...................................................................................................... 120
Additional information ...................................................................................................................................... 121
Acronyms ......................................................................................................................................... 121
Blinking lights and boot error codes ............................................................................................... 122
Processor not executing code ...................................................................................... 122
BIOS recovery code unable to nd valid BIOS recovery image ..................................... 122
Memory module error ................................................................................................... 122
Graphics Controller Error (No Controller) ..................................................................... 123
Failure - System Board Error ........................................................................................ 123
Intel Trusted Execution Technology (TXT) Error .......................................................... 123
Sure Start unable to nd valid BIOS Boot Block image ................................................ 123
Sure Start has identied a problem (Manual Recovery Policy Set) .............................. 124
POST Error Messages and User Actions .......................................................................................... 124
Routine Maintenance for Performance Improvement .................................................................... 126
Common Blue Screen Error Messages ............................................................................................ 126
Error message list ......................................................................................................... 126
Bug check symbolic names ........................................................................................... 126
Microsoft general troubleshooting of Windows bug check codes ............................... 127
Use Windows Debugging Tool ......................................................................................................... 127
Windows Software Development Kit (SDK) .................................................................. 128
Display Issue: Pixel Anomalies ........................................................................................................ 132
Cable management ......................................................................................................................... 133
Connector types .............................................................................................................................. 134
8 Computer Setup (BIOS), TPM, and HP Sure Start in Windows 7 ........................................................................ 136
Using Computer Setup ....................................................................................................................................... 136
Starting Computer Setup ................................................................................................................ 136
Navigating and selecting in Computer Setup ................................................................................. 136
Restoring factory settings in Computer Setup ............................................................................... 137
Updating the BIOS ........................................................................................................................... 138
Determining the BIOS version ...................................................................................... 138
Downloading a BIOS update ......................................................................................... 138
Changing the boot order using the f9 prompt ................................................................................ 139
TPM BIOS settings (select products only) ......................................................................................................... 139
Using HP Sure Start (select products only) ....................................................................................................... 140
9 Computer Setup (BIOS), TPM, and HP Sure Start in Windows 10 ...................................................................... 141
Using Computer Setup ....................................................................................................................................... 141
Starting Computer Setup ................................................................................................................ 141
Navigating and selecting in Computer Setup ................................................................................. 141
Restoring factory settings in Computer Setup ............................................................................... 142
xi
Page 12
Updating the BIOS ........................................................................................................................... 143
Determining the BIOS version ...................................................................................... 143
Downloading a BIOS update ......................................................................................... 143
Changing the boot order using the f9 prompt ................................................................................ 144
TPM BIOS settings (select products only) ......................................................................................................... 144
Using HP Sure Start (select products only) ....................................................................................................... 145
10 Using HP PC Hardware Diagnostics (UEFI) ................................................................................................... 146
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................. 146
11 Backup and recovery in Windows 7 ............................................................................................................ 148
Creating recovery media and backups .............................................................................................................. 148
Guidelines ........................................................................................................................................ 148
Creating recovery media with HP Recovery Disc Creator ............................................................... 148
Creating recovery media ............................................................................................... 149
Backing up your information .......................................................................................................... 149
Performing a system recovery .......................................................................................................................... 150
Using the Windows recovery tools .................................................................................................. 150
Using f11 recovery tools (select models only) ............................................................................... 151
Using Windows 7 operating system media ..................................................................................... 151
12 Backing up, restoring, and recovering in Windows 10 .................................................................................. 153
Creating recovery media and backups .............................................................................................................. 153
Creating HP Recovery media (select products only) ....................................................................... 153
Using Windows tools ......................................................................................................................................... 154
Restore and recovery ......................................................................................................................................... 155
Recovering using HP Recovery Manager ........................................................................................ 155
What you need to know before you get started ........................................................... 155
Using the HP Recovery partition (select products only) .............................................. 156
Using HP Recovery media to recover ............................................................................ 156
Changing the computer boot order .............................................................................. 157
Removing the HP Recovery partition (select products only) ....................................... 157
13 Specications .......................................................................................................................................... 158
Computer specications .................................................................................................................................... 158
14 Statement of memory volatility ................................................................................................................ 159
Nonvolatile memory usage ............................................................................................................................... 163
Questions and answers ..................................................................................................................................... 165
Using HP Sure Start (select models only) .......................................................................................................... 166
xii
Page 13
15 Recycling ................................................................................................................................................ 167
Index ........................................................................................................................................................... 168
xiii
Page 14
xiv
Page 15
1 Product description
Category Description
Product Name HP ZBook Studio G3 Mobile Workstation
Model numbers: 15-ap000 – 15ap099
Processors 6th Generation Intel® Core™ i7 Processor, Skylake, quad-core, BGA:
●
Intel Core i7-6820HQ 2.70-GHz (up to 3.60-GHz) processor (2133-MHz front-side bus
(FSB), 8.0-MB L3 cache, 45 W)
●
Intel Core i7-6700HQ 2.60-GHz (up to 3.50-GHz) processor (2133-MHz front-side bus
(FSB), 8.0-MB L3 cache, 45 W)
6th Generation Intel Xeon® Processor, Sky Lake, quad-core, BGA:
●
Xeon E3-1505M, 2.80-GHz (up to 3.70-GHz) processor (2133-MHz front-side bus (FSB),
8.0-MB L3 cache, 45 W)
Chipset Mobile Intel CM236 chipset
Graphics Intel UMA Graphics - with shared video memory
Switchable graphics
Core processors: Intel HD graphics 530
Xeon processors: Intel HD graphics P530
●
NVIDIA® Quadro® M1000M NVIDIA N16P-Q1 with 2-GB GDDR5 graphics subsystem
memory (128-MB×16, 1.35-V, 1400-MHz, qty 8, 128-bit, FBW)
Support for hybrid (switchable) graphics
Support for open GL
Support for DisplayPort 1.2
Support for NVIDIA Mosaic Technology
Panel 15.6-in, light-emitting diode (LED) backlight
●
Full-high denition (FHD), AntiGlare (AG), UWVA (1920×1080 resolution, 300 nits), with
or without camera or touch screen with camera
●
Ultra-high denition (UHD), AntiGlare (AG), UWVA (3840×2160 resolution, 340 nits), with
or without camera
●
Ultra-high denition (UHD), AntiGlare (AG), UWVA (3840×2160 resolution, 340 nits),
Dream Color, with or without camera
All panels are 16:9 aspect ratio
Memory Two customer-accessible/upgradable memory module slots
Support for DDR4 2133-MHz PC4-17000 dual channel memory
Support for 32-GB of system RAM in the following congurations:
DDR4-2133: (for models with Core processors)
●
32-GB total system memory (16-GB×2)
●
16-GB total system memory (16-GB×1 or 8-GB×2)
1
Page 16
Category Description
●
8-GB total system memory (8192-GB×1, 4096-GB×2)
ECC DDR4-2133: (for models with Xeon processors)
●
32-GB total system memory (16-GB×2)
●
16-GB total system memory (16-GB×1 or 8-GB×2)
●
8-GB total system memory (8192-GB)
Primary M.2 storage M.2 (NGFF) SS/DS Solid State Drive (2280)
SATA:
512-GB SATA-3 self-encrypting drive (Opal 2)
256-GB SATA-3 self-encrypting drive (Opal 2)
128-GB SATA-3, TLC
PCIe:
1 TB (NVMe)
512 GB (NVMe)
256 GB (NVMe)
Secondary M.2 storage M.2 (NGFF) SS/DS Solid State Drive (2280)
SATA:
512-GB SATA-3 self-encrypting drive (Opal 2)
256-GB SATA-3 self-encrypting drive (Opal 2)
128-GB SATA-3, TLC
PCIe:
1 TB (NVMe)
512 GB (NVMe)
256 GB (NVMe)
Audio and video Stereo speakers
Dual array microphone
Intel SST Audio
Conexant Smart Amplier & Ambient Noise Suppression with DTS Studio Sound
Integrated HD 720p webcam
Support for no webcam option
Ethernet Intel I219-LM 10/100/1000 Ethernet, with Intel I217-LM Gigabit Network Connection
S3/S4/S5 wake on LAN
Wireless WLAN
Integrated wireless local area network (WLAN) options by way of wireless module
Two WLAN antennas built into display assembly
Support for the following WLAN formats:
●
Intel Dual Band Wireless-AC 7260 802.11 AC 2x2 WiFi + BT 4.0 Combo Adapter
●
Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo
2 Chapter 1 Product description
Page 17
Category Description
WPAN
Bluetooth® 4.1 only supported via combo card
External media cards Integrated SD UHS-II ash media slot
Supports next generation SD, SDHC, SDXC
Ports
●
Multi-Pin AC Port
●
Combination mic-in/stereo headphone jack
●
RJ-45 (Ethernet)
●
USB Type-C Thunderbolt
●
USB 3.0 (2)
●
USB 3.0 charging (1)
●
HDMI
Docking Docking support for HP Advanced Docking Station
Keyboard/pointing devices Keyboard
Backlit
DuraKeys
TouchPad
●
On/o button
●
Glass with chemical etched surface
●
Taps enabled by default
●
Gestures enabled by default:
◦
2-nger scrolling
◦
2-nger zoom (pinch)
●
Image sensor TouchPad
Power requirements AC adapter
●
150-W, HP Smart Adapter, slim
Battery
●
4-cell, 64-WHr, 4.21-AHr, Li-ion battery
Power cord (localized)
3-wire plug, 1.8 m (with ground pin)
Security Support security lock
Trusted platform module (TPM) 9760 1.2/2.0 (Inneon; soldered down)
Fingerprint reader
BIOS Preboot power on - BIOS option (Password, Fingerprint)
Drive Encryption preboot option (ngerprint, password, smart card)
Operating system Preinstalled:
●
Windows 10 Home 64
3
Page 18
Category Description
●
Windows 10 Home Single Language 64
●
Windows 10 Pro 64
●
Windows 10 Pro 64 Downgrade Windows 7
●
Windows 7 Professional
●
FreeDOS 2.0
Restore media-DRDVD:
●
DRDVD Windows 10 (available with any Windows 10 operating system and required with
any Windows 10 Downgrade operating system)
●
DRDVD Windows 7 Service Pack 1 (available with any Windows 7 or Windows 10
Downgrade operating system)
Restore media-OSDVD:
●
Windows 10 (only available and required with Windows 10 Downgrade operating
system; not available in People’s Republic of China or Asia )
●
Windows 7 Service Pack 1 (available with any Windows 7 Professional or Windows 10
Downgrade operating system; not available in the People’s Republic of China or Asia)
Certied:
●
Microsoft WHQL
Supported:
●
Red Hat® Enterprise Linux (RHEL) 6.x 64bit
●
Red Hat® Enterprise Linux (RHEL) 7.x 64bit
Web-only support:
●
Windows 10 Enterprise
●
Windows 7 Enterprise 64-bit, Service Pack 1
Serviceability End user replaceable parts:
●
AC adapter
●
Battery (system)
●
Memory modules
●
Solid-state drive
●
WLAN module
4 Chapter 1 Product description
Page 19
2 External component identication
Display
Component Description
(1) WLAN antennas* (select products only) Send and receive wireless signals to communicate with wireless local
area networks (WLANs).
(2) Internal microphones (2) (select products only) Record sound.
(3) Webcam light (select products only) On: The webcam is in use.
(4) Webcam (select products only) Records video and captures photographs. Some models allow you to
video conference and chat online using streaming video.
To use the webcam in Windows 10:
▲
Type camera in the taskbar search box, and then select
Camera.
For information on using the webcam in Windows 7, select Start > All
Programs > Communication and Chat > HP WebCam.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.
To access this guide in Windows 10:
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
‒ or –
Display 5
Page 20
Component Description
Click the question mark icon in the taskbar.
2. Select My PC, select the Specications tab, and then select User Guides.
To access the user guides in Windows 7, select Start > All Programs > HP Help and Support > HP Documentation.
Top
TouchPad
Component Description
(1) TouchPad on/o button Turns the TouchPad on and o.
(2) TouchPad zone Reads your nger gestures to move the pointer or activate
items on the screen.
6 Chapter 2 External component identication
Page 21
Lights
Component Description
(1) Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a power-saving
state. The computer shuts o power to the display and
other unneeded components.
●
O: The computer is o or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.
(2) Caps lock light On: Caps lock is on, which switches the key input to all capital
letters.
(3) Microphone mute light
●
Amber: Microphone sound is o.
●
O: Microphone sound is on.
(4) Num lock light On: Num lock is on.
(5) Wireless light On: An integrated wireless device, such as a wireless local area
network (WLAN) device and/or a Bluetooth® device, is on.
NOTE: On some models, the wireless light is amber when all
wireless devices are o.
(6) Mute light
●
Amber: Computer sound is o.
●
O: Computer sound is on.
(7) TouchPad light
●
On: The TouchPad is o.
●
O: The TouchPad is on.
Top 7
Page 22
Buttons, speakers, and ngerprint reader
Component Description
(1) Power button
●
When the computer is o, press the button to turn on the
computer.
●
When the computer is on, press the button briey to initiate
Sleep.
●
When the computer is in the Sleep state, press the button
briey to exit Sleep.
●
When the computer is in Hibernation, press the button
briey to exit Hibernation.
CAUTION: Pressing and holding down the power button results
in the loss of unsaved information.
If the computer has stopped responding and shutdown
procedures are ineective, press and hold the power button for at
least 5 seconds to turn o the computer.
To learn more about your power settings in Windows 10, see your
power options.
▲
Type power in the taskbar search box, and then select
Power and sleep settings.
‒ or –
Right-click the Start button, and then select Power
Options.
To learn more about your power settings in Windows 7: Select
Start > Control Panel > System and Security > Power Options.
(2) Wireless button Turns the wireless feature on or o but does not establish a
wireless connection.
8 Chapter 2 External component identication
Page 23
Component Description
A wireless network must be set up before a wireless connection is
possible.
(3) Volume mute button Mutes and restores speaker sound.
(4) Speakers (2) Produce sound.
(5) Fingerprint reader (select products only) Allows a ngerprint logon to Windows, instead of a password
logon.
Left
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or
stolen.
(2) RJ-45 (network) jack/status lights Connects a network cable.
●
Green (left): The network is connected.
●
Amber (right): Activity is occurring on the network.
(3) USB 3.0 port Connects an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner, or USB hub.
(4) USB 3.0 charging (powered) port Connects an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner, or USB hub. Standard USB ports
will not charge all USB devices or will charge using a low current.
Some USB devices require power and require you to use a
powered port.
NOTE: USB charging ports can also charge select models of
cell phones and MP3 players, even when the computer is o.
(5) Memory card reader Reads optional memory cards that store, manage, share, or
access information.
Left 9
Page 24
Right
Component Description
(1) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices.
To access this guide in Windows 10:
1. Type support in the taskbar search box, and then select
the HP Support Assistant app.
‒ or –
Click the question mark icon in the taskbar.
2. Select My PC, select the Specications tab, and then
select User Guides.
To access the user guides in Windows 7, select Start > All
Programs > HP Help and Support > HP Documentation.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
(2) USB 3.0 port Connects an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner, or USB hub.
(3) HDMI port Connects an optional video or audio device, such as a high-
denition television, any compatible digital or audio
component, or a high-speed High Denition Multimedia
Interface (HDMI) device.
(4) USB Type-C (charging) ports (2) Connect any USB device with a Type-C connector.
NOTE: USB Type-C ports charge products such as cell phones,
laptops, tablets, and MP3 players, even when the computer is
o. Also, some USB Type-C ports connect DisplayPort, VGA,
HDMI and other video devices to provide video output.
NOTE: Adapters (purchased separately) may be required.
(5) Power connector Connects an AC adapter.
(6) AC adapter and battery light
●
White: The AC adapter is connected.
10 Chapter 2 External component identication
Page 25
Component Description
●
O: The AC adapter is not connected.
Front
Component Description
(1) Wireless light On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
NOTE: On some models, the wireless light is amber when
all wireless devices are o.
(2) Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a powersaving state. The computer shuts o power to the
display and other unneeded components.
●
O: The computer is o or in Hibernation.
Hibernation is a power-saving state that uses the
least amount of power.
(3) Battery light When AC power is connected:
●
White: The battery charge is greater than 90 percent.
●
Amber: The battery charge is from 0 to 90 percent.
●
O: The battery is not charging.
When AC power is disconnected:
●
Blinking amber: The battery has reached a low
battery level. When the battery has reached a critical
battery level, the battery light begins blinking
rapidly.
●
O: The battery is not charging.
(4) Drive light
●
Blinking white: The hard drive is being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked the
hard drive.
Front 11
Page 26
Bottom
Component Description
(1) Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and o during routine
operation.
12 Chapter 2 External component identication
Page 27
Labels
The labels axed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
IMPORTANT: Check the following locations for the labels described in this section: the bottom of the
computer, inside the battery bay, under the service door, or on the back of the display.
●
Service label—Provides important information to identify your computer. When contacting support, you
will probably be asked for the serial number, and possibly for the product number or the model number.
Locate these numbers before you contact support.
Your service label will resemble one of the examples shown below. Refer to the illustration that most
closely matches the service label on your computer.
Component
(1) Serial number
(2) Product number
(3) Warranty period
(4) Model number (select products only)
Component
(1) Model name (select products only)
(2) Product number
(3) Serial number
(4) Warranty period
●
Regulatory label(s)—Provide(s) regulatory information about the computer.
●
Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval
markings for the countries or regions in which the devices have been approved for use.
Labels 13
Page 28
3 Illustrated parts catalog
Computer major components
14 Chapter 3 Illustrated parts catalog
Page 29
Item Component Spare part number
(1) Display assembly: The DreamVision display assembly is spared as a whole unit assembly only. The LED display assembly
is spared at the subcomponent level only. For more LED display assembly spare part information, see Display assembly
subcomponents on page 18.
15.6-in, UHD, UWVA, DreamVision display assembly not equipped with a webcam 840945-001
15.6-in, UHD, UWVA, DreamVision display assembly equipped with a webcam 840946-001
15.6-in, FHD, UWVA display assembly with a touch screen 840947-001
(2) Top cover 840636-001
(3) TouchPad (includes cable) 840962-001
(4) RTC battery (includes cable and double-sided adhesive) 840953-001
(5) Fingerprint reader board (includes bracket) 840952-001
(6) Keyboard (includes keyboard cable):
For use in Belgium 841681-A41
For use in Brazil 841681-201
For use in Bulgaria 841681-261
For use in Canada 841681-DB1
For use in the Czech Republic and Slovakia 841681-FL1
For use in Denmark 841681-081
For use in France 841681-051
For use in Germany 841681-041
For use in Greece 841681-151
For use in Hungary 841681-211
For use in Iceland 841681-DD1
For use in India 841681-D61
For use in Israel 841681-BB1
For use in Italy 841681-061
For use in Japan 841681-291
For use in Latin America 841681-161
For use in the Netherlands 841681-B31
For use in Northwest Africa 841681-FP1
For use in Norway 841681-091
For use in Portugal 841681-131
For use in Romania 841681-271
For use in Russia 841681-251
For use in Saudi Arabia 841681-171
For use in Slovenia 841681-BA1
Computer major components 15
Page 30
Item Component Spare part number
For use in South Korea 841681-AD1
For use in Spain 841681-071
For use in Sweden and Finland 841681-B71
For use in Switzerland 841681-BG1
For use in Taiwan 841681-AB1
For use in Thailand 841681-281
For use in Turkey 841681-141
For use in the United Kingdom and Singapore 841681-031
For use in the United States 841681-001
(7) LED board 840957-001
(8) Speakers (include cable) 840958-001
(9) System board (includes processor and replacement thermal material):
All system boards use the following part numbers:
xxxxxx-001: Windows 7 or non-Windows operating systems
xxxxxx-601: Windows 10 operating system
Intel Xeon E3-1505M processor 840933-xxx
Intel Core i7-6820HQ processor and discrete graphics memory 840932-xxx
Intel Core i7-6820HQ processor and UMA graphics memory 840930-xxx
Intel Core i7-6700HQ processor and discrete graphics memory 840931-xxx
Intel Core i7-6700HQ processor and UMA graphics memory 840929-xxx
(10) Display cable (eDP) bracket (included in Bracket Kit, spare part number 840966-001) 840966-001 (Bracket Kit)
(11) I/O support bracket (included in Bracket Kit, spare part number 840966-001) 840966-001 (Bracket Kit)
Fan/heat sink assembly (includes replacement thermal material):
(12) For use only with models with discrete graphics memory 840960-001
(13) For use only with models with UMA graphics memory 840961-001
(14) Solid-state drive (SSD):
1-TB, Z Turbo drive PCIe 840951-001
512-GB, Z Turbo Drive, PCIe 840950-001
256-GB, Z Turbo Drive, PCIe 840949-001
256-GB, SATA-3, self-encrypting drive (SED), OPAL 2 840948-001
128-GB, TLC 846386-001
(15) Solid-state drive bracket (included in Bracket Kit, spare part number 840966-001) 840966-001 (Bracket Kit)
(16) Memory module (PC4, 17000, 2133-MHz):
For use with Core processors:
16 Chapter 3 Illustrated parts catalog
Page 31
Item Component Spare part number
●
16 GB 820571-001
●
8 GB 820570-001
●
4 GB 820569-001
For use with Xeon processors:
●
16 GB, ECC 835886-001
●
8 GB, ECC 835887-001
(17) WLAN module:
Intel Dual Band Wireless-AC 8260 3rd Gen Intel 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth
4.2
806721-001
Intel Dual Band Wireless-AC 8260 3rd Gen Intel 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth
4.2 (non-vPro)
806722-001
(18) Battery, 4-cell, 64-WHr, 4.21-AHr, Li-ion battery 808450-001
(19) Bottom cover 840954-001
(20) Service door 840959-001
Computer major components 17
Page 32
Display assembly subcomponents
Item Component Spare part number
(1) Display bezel
For use only on computer models equipped with a webcam 840935-001
For use only on computer models not equipped with a webcam 840936-001
(2) Display panel
15.6-in, FHD, UWVA, LED display panel 840941-001
15.6-in, UHD, UWVA, B LED display panel 840943-001
(3) Display hinges (includes left and right hinges) 840937-001
(4) Display Cable Kit 840938-001
(5) Webcam module (includes double-sided adhesive) 840965-001
(6) Antenna (left and right) 840940-001
(7) Thermal board 840956-001
(8) Display panel bracket (only spared with UHD displays; included in Bracket Kit, spare part
number 840966-001)
840966-001 (Bracket Kit)
(9) Display enclosure 844836-001
18 Chapter 3 Illustrated parts catalog
Page 33
Bracket Kit
Item Component Spare part number
Bracket Kit 840966-001
(1) EDP bracket
(2) Display panel bracket, left
(3) Display panel bracket, right
(4) 2nd SSD bracket
(5) I/O support bracket
Bracket Kit 19
Page 34

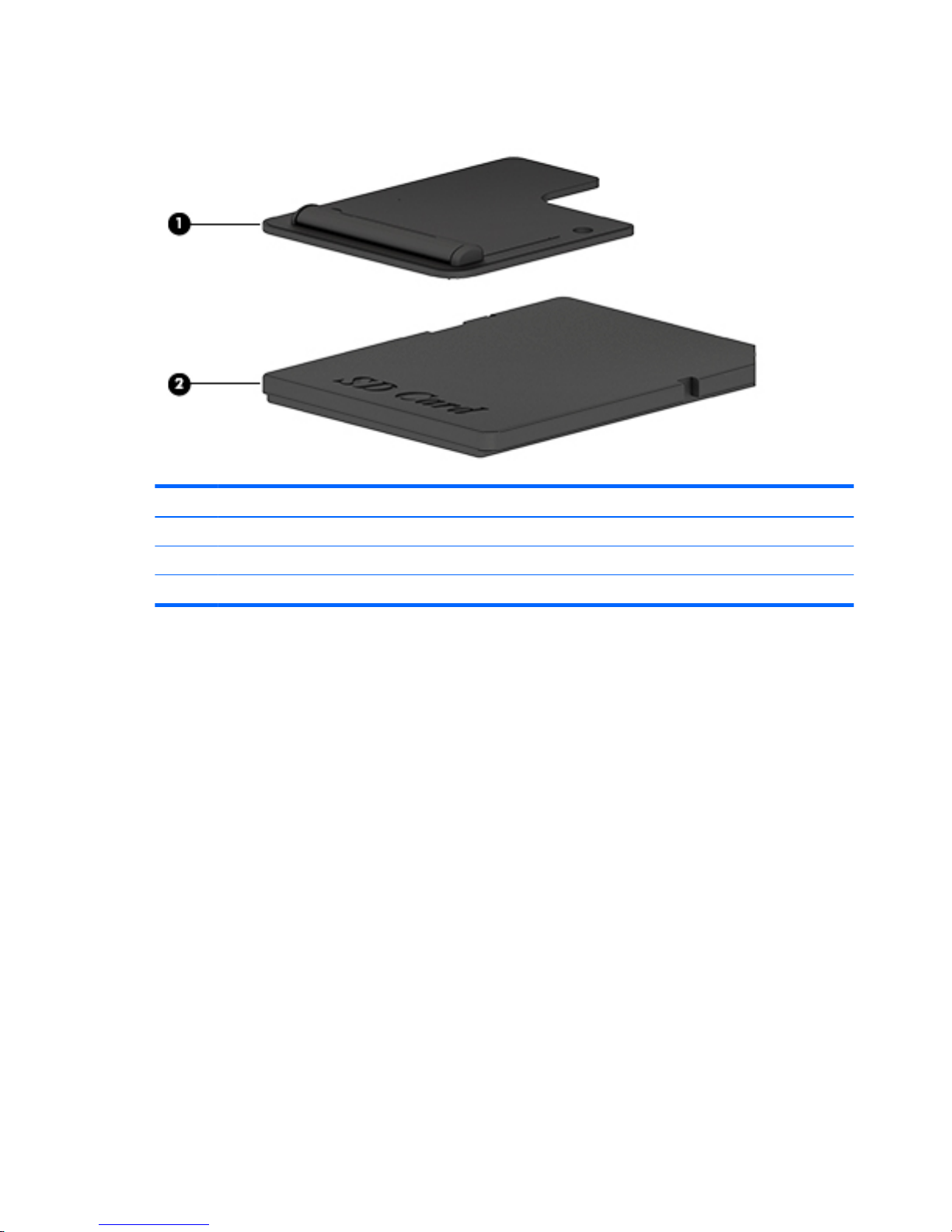

Plastics Kit
Item Component Spare part number
Plastics Kit 840964-001
(1) Fingerprint reader insert
(2) Card reader insert
20 Chapter 3 Illustrated parts catalog
Page 35
Miscellaneous parts
Component Spare part number
AC adapter
150-W HP Smart adapter (PFC, 4.5-mm) 776620-001
Power cord (3-pin, black, 1.83-m):
For use in Argentina 490371-D01
For use in Australia 490371-011
For use in Brazil 490371-202
For use in Denmark 490371-081
For use in Europe 490371-021
For use in India 490371-D61
For use in Israel 490371-BB1
For use in Italy 490371-061
For use in Japan 490371-291
For use in North America 490371-001
For use in the People's Republic of China 490371-AA1
For use in South Africa 490371-AR1
For use in South Korea 490371-AD1
For use in Switzerland 490371-111
For use in Taiwan 490371-AB1
For use in Thailand 490371-201
For use in the United Kingdom and Singapore 490371-031
HP USB External DVD+RW Drive 747080-001
HP Professional Slim Top Load Case 703888-001
HP Business Top Load Case 718550-001
Fingerprint reader insert (for use in models without a ngerprint reader; included in Plastic Kit, spare
part number 840964-001)
840964-001 (Plastic Kit)
Card reader insert (included in Plastic Kit, spare part number 840964-001) 840964-001 (Plastic Kit)
HP Ultraslim Keyed Cable Lock 703372-001
HP USB-C to USB 3.0 adapter 814618-001
Screw Kit 840939-001
Mouse
HP USB laser 674318-001
HP Wireless 691922-001
HP Ultrathin Bluetooth Mouse 811730-001
Miscellaneous parts 21
Page 36
4 Removal and replacement procedures
preliminary requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screw driver
●
Magnetic screw driver
●
Phillips P0 and P1 screw drivers
●
Torx screwdriver
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care
when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.
22 Chapter 4 Removal and replacement procedures preliminary requirements
Page 37
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the
reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Before removing an optical drive, be sure that a disc is not in the drive and be sure that the optical drive tray is
closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive or an optical drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.
Grounding guidelines 23
Page 38
CAUTION: To prevent damage to the computer when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity aects the electrostatic voltage levels generated by
dierent activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl oor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from styrene foam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
24 Chapter 4 Removal and replacement procedures preliminary requirements
Page 39
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.
●
Use conductive eld service tools, such as cutters, screw drivers, and vacuums.
●
When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and styrene
foam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn o power and input signals before inserting or removing connectors or test equipment.
Grounding guidelines 25
Page 40
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.
●
When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be
eective, the conductive equipment must be worn in contact
with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or oor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and oor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
26 Chapter 4 Removal and replacement procedures preliminary requirements
Page 41
5 Removal and replacement procedures for
Customer Self-Repair parts
NOTE: The Customer Self-Repair program is not available in all locations. Installing a part not supported by
the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer
Self-Repair is supported in your location.
Component replacement procedures
NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair
parts successfully.
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag on the bottom of your computer. See Labels on page 13 for details.
This chapter provides removal and replacement procedures for Customer Self-Repair parts.
There are as many as 16 screws that must be removed, replaced, and/or loosened when servicing Customer
Self-Repair parts. Make special note of each screw size and location during removal and replacement.
Component replacement procedures 27
Page 42
Service door
Description Spare part number
Service door 840959-001
Before removing the service door, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.

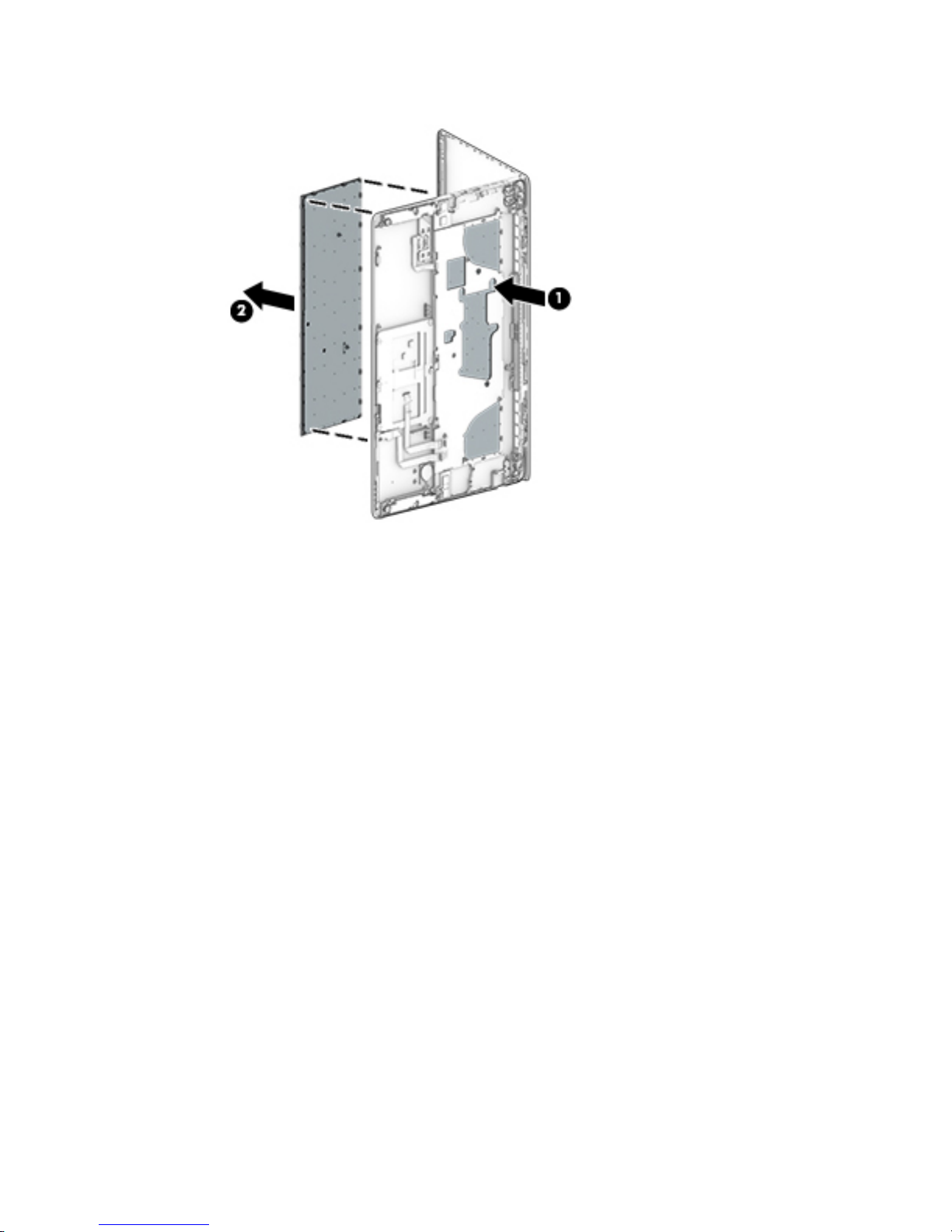

Remove the service door:
1. Position the computer upside down.
2. Loosen the four captive Torx screws (1) that secure the door to the computer.
3. Lift the door o the computer (2).
Reverse this procedure to install the service door.
28 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Page 43
Bottom cover
Description Spare part number
Bottom cover 840959-001
Before removing the bottom cover, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
Remove the bottom cover:
1. Loosen the seven captive Torx screws (1) that secure the bottom cover to the computer.
2. Lift the bottom cover o the computer (2).
Reverse this procedure to install the bottom cover.
Component replacement procedures 29
Page 44
Battery
Description Spare part number
4-cell, 64-WHr, 4.21-AHr, Li-ion battery 808450-001
Before removing the battery, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
Remove the battery:
WARNING! To reduce potential safety issues, use only the user-replaceable battery provided with the
computer, a replacement battery provided by HP, or a compatible battery purchased from HP.
CAUTION: Removing a user-replaceable battery that is the sole power source for the computer can cause
loss of information. To prevent loss of information, save your work or shut down the computer through
Windows before removing the battery.
1. Disconnect the battery cable from the system board (1).
2. Remove the six Phillips PM2.5×4.0 screws (2) that secure the battery to the computer.
3. Remove the battery from the computer (3).
Reverse this procedure to install the battery.
30 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Page 45
Solid-state drive (M.2)
Description Spare part number
1-TB, Z Turbo drive PCIe 840951-001
512-GB, Z Turbo Drive, PCIe 840950-001
256-GB, Z Turbo Drive, PCIe 840949-001
256-GB, SATA-3, self-encrypting drive (SED), OPAL 2 840948-001
128-GB, TLC 846386-001
Solid-state drive bracket (included in Bracket Kit, spare part number 840966-001) 840966-001 (Bracket Kit)
Before removing the solid-state drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
Remove the solid-state drive:
1. Remove the Phillips PM2.0×3.5 screw (1) that secures the solid-state drive to the system board.
NOTE: If the module springs up when the screw is removed, be sure to remove the module at the angle
dictated by the spring mechanism.
When installing the module, be sure to insert the module at the angle that it sits after the screw is
removed and the module springs up.
2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
Component replacement procedures 31
Page 46
Hard drive
Before removing the hard drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
Remove the hard drive:
1. Loosen the six captive Phillips screws (1) that secure the hard drive to the computer.
2. Lift the hard drive enough to access connector under the top left bracket, and then disconnect the hard
drive cable from the system board (2).
3. Lift the hard drive out of the computer (3).
4. To remove the hard drive from the bracket, remove the four Phillips PM3.0×3.0 screws (1) that secure
the bracket to the hard drive.
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Page 47
5. Slide the drive out of the bracket (2), and then disconnect the connector from the hard drive (3).
Reverse this procedure to install the solid-state drive.
Component replacement procedures 33
Page 48
WLAN module
Description Spare part number
Intel Dual Band Wireless-AC 8260 3rd Gen Intel 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 4.2 806721-001
Intel Dual Band Wireless-AC 8260 3rd Gen Intel 802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 4.2 (nonvPro)
806722-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Disconnect the battery (see Battery on page 30).
Remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”.
The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board. (The
WLAN module tilts up.)
34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Page 49
3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: If the WLAN antenna cables are not connected to the terminals on the WLAN module, protective
sleeves should be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures 35
Page 50
Memory module
Description Spare part number
For use with Core processors:
16 GB 820571-001
8 GB 820570-001
4 GB 820569-001
For use with Xeon processors:
16 GB, ECC 835886-001
8 GB, ECC 835887-001
Update BIOS before adding memory modules
Before adding new memory, make sure you update the computer to the latest BIOS.
CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in
various system problems.
To update BIOS:
1. Navigate to www.hp.com.
2. Click Support & Drivers > Drivers & Software.
3. In the Enter a product name/number box, type the computer model information, and then click Search.
4. Click the link for the computer model.
5. Select the operating system, and then click Next.
6. Under Step 2: Select a Download, click the BIOS link.
7. Click the link for the most recent BIOS.
8. Click the Download button, and then follow the on-screen instructions.
Before removing a memory module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Disconnect the battery (see Battery on page 30).
Remove the memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The memory module tilts up.)
36 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Page 51
2. Remove the memory module (2) by pulling the module away from the slot at an angle.
Reverse this procedure to install a memory module.
Component replacement procedures 37
Page 52
RTC battery
Description Spare part number
RTC battery (includes cable and double-sided adhesive) 840953-001
Before removing the RTC battery, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Disconnect the battery (see Battery on page 30).
7. If installed, remove the hard drive (see Hard drive on page 32).
Remove the RTC battery:
1. Disconnect the RTC battery cable (1) from the system board.
2. Detach the RTC battery (2) from the base enclosure. (The RTC battery is attached to the base enclosure
with double-sided adhesive.)
3. Remove the RTC battery and cable.
Reverse this procedure to install the RTC battery.
38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
Page 53
6 Removal and replacement procedures for
authorized service provider parts
CAUTION: Components described in this chapter should be accessed only by an authorized service provider.
Users who access these parts can damage the computer or void the warranty.
Component replacement procedures
There are as many as 74 screws that must be removed, replaced, and/or loosened when servicing the parts
described in this chapter. Make special note of each screw size and location during removal and replacement.
Thermal module
NOTE: The thermal module spare part kit includes replacement thermal material.
Description Spare part number
Thermal module for use only with models with discrete graphics memory 840960-001
Thermal module for use only with models with UMA graphics memory 840961-001
Before removing the thermal module, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Disconnect the battery (see Battery on page 30).
Remove the thermal module:
1. Disconnect the cable for each fan from the system board (1).
2. Loosen the six captive screws (discrete models) or three captive screws (UMA models) in the middle of
the heat sink (between the fans) in the order indicated on the heat sink (2) and the two captive screws
from each fan (3).
3. Remove the antennas from the routing path atop the left fan (4) and the display connector from the
routing path atop the right fan (4).
Component replacement procedures 39
Page 54
4. Remove the fan/heat sink assembly (5).
CAUTION: When lifting the heat sink out of the computer, be careful not to bend the arm that connects
the fans.
Discrete models:
UMA models:
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly
and the system board components each time the fan/heat sink assembly is removed. Replacement thermal
material is included with the thermal module, processor, and system board spare part kits.
Discrete graphics models:
●
Various thermal pads are used on the system board components and the heat sink sections and that
service them. See the following image for thermal pad locations.
40 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 55
UMA graphics models:
●
Various thermal pads are used on the system board components and the heat sink sections and that
service them. See the following image for thermal pad locations.
Reverse this procedure to install the thermal module.
Component replacement procedures 41
Page 56
Fingerprint reader board
Description Spare part number
Fingerprint reader board (includes bracket) 840952-001
Before removing the ngerprint reader board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
Remove the ngerprint reader board:
1. Disconnect the cable from the system board (1).
2. Lift the tape from atop the ngerprint reader (2).
3. Remove the Phillips PM2.0×3.0 screw that secures the bracket to the computer (3).
4. Slide the bracket downward to disengage it, and then lift the bracket o the ngerprint reader (4).
5. Remove the ngerprint reader from the computer (5).
Reverse this procedure to install the ngerprint reader board.
42 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 57
LED board
Description Spare part number
LED board 840957-001
Before removing the LED board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).

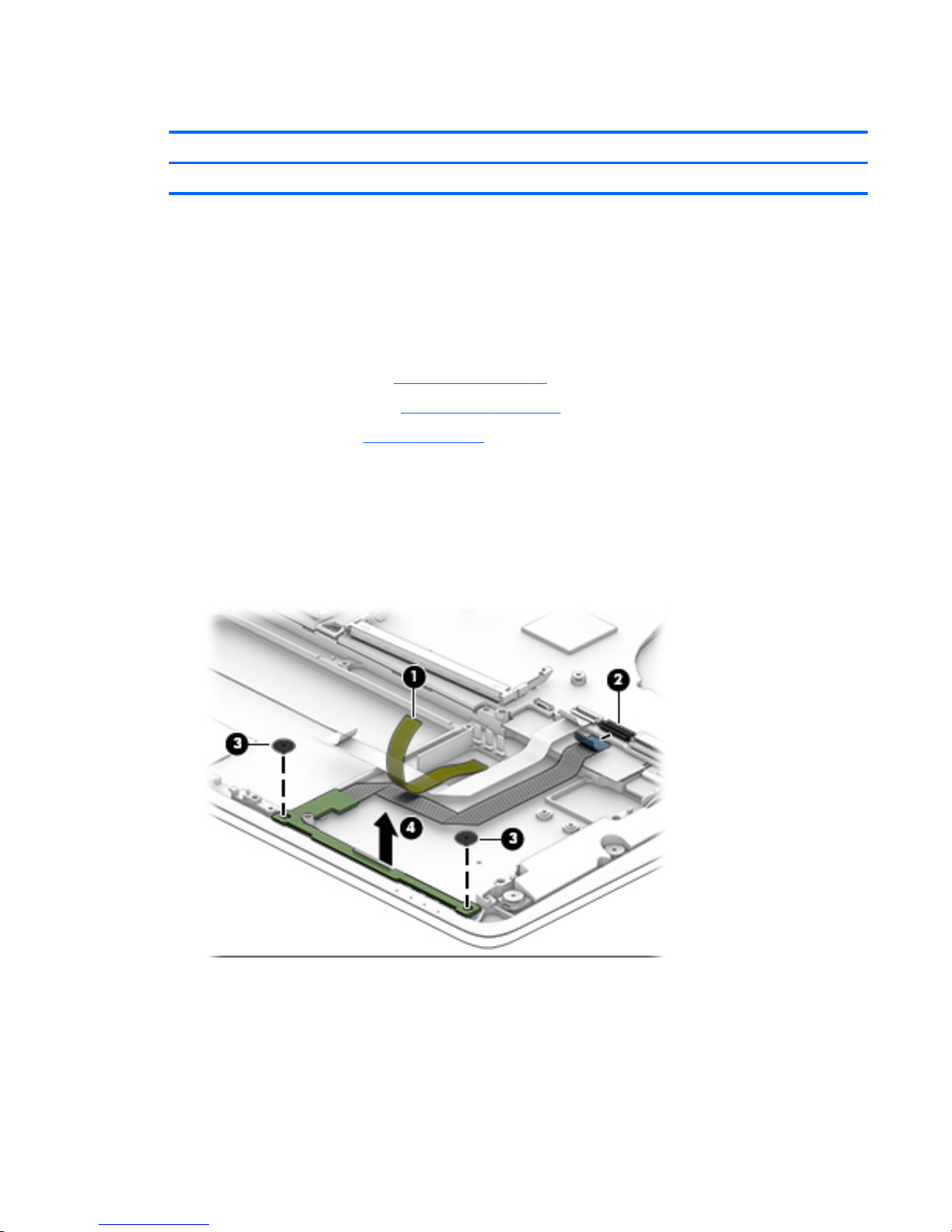

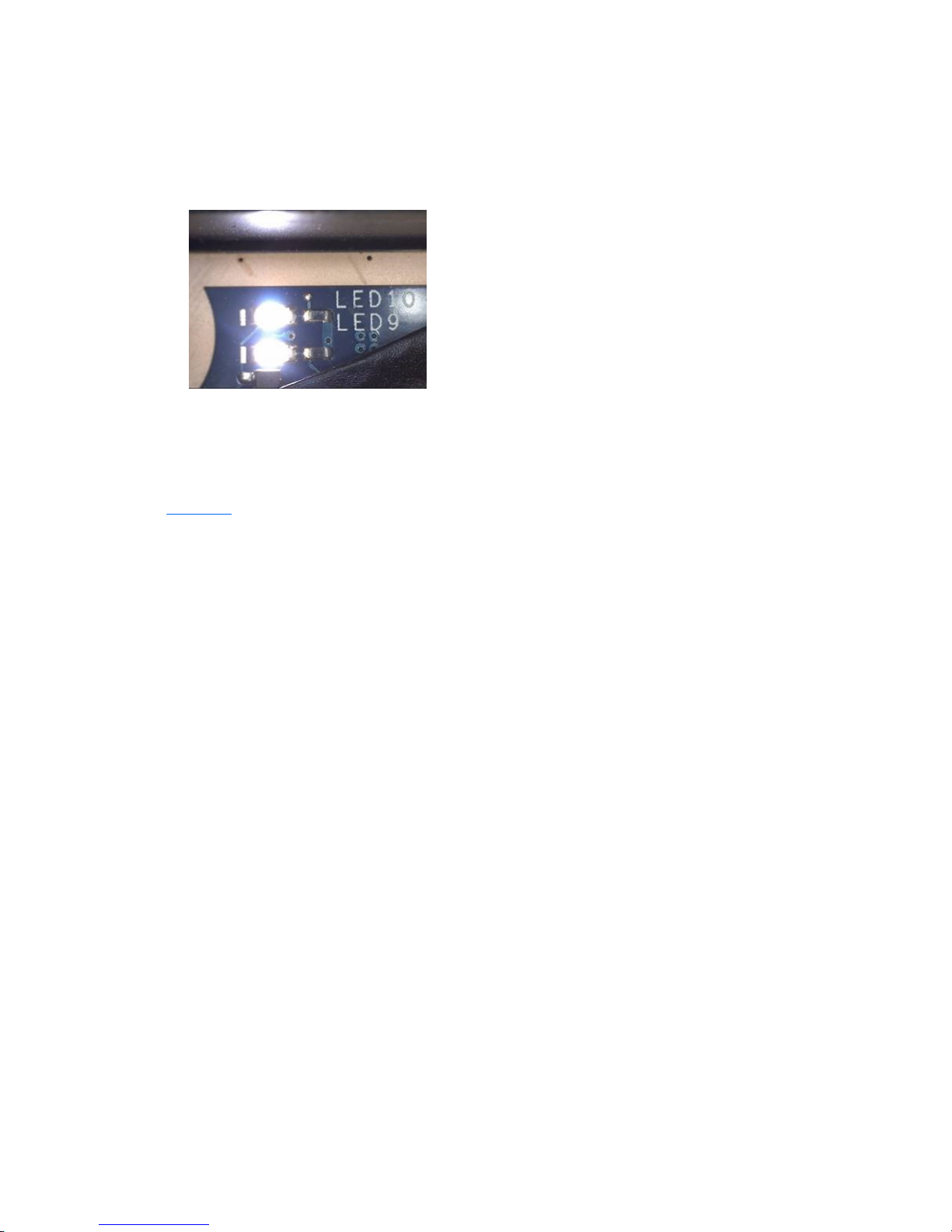

Remove the LED board:
1. Remove the tape from atop the cable (1).
2. Disconnect the cable from the system board (2).
3. Remove the two Phillips PM2.0×2.0 broadhead screws (3) that secure the LED board to the computer.
4. Remove the LED board (4).
Reverse this procedure to install the LED board.
Component replacement procedures 43
Page 58
TouchPad
Description Spare part number
TouchPad 840962-001
Before removing the TouchPad, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
Remove the TouchPad:
1. Disconnect the cable from the system board (1).
2. Remove the six Phillips PM2.0×2.0 screws (2) that secure the TouchPad to the top cover.
3. Lift the TouchPad out of the computer (3).
Reverse this procedure to install the TouchPad.
44 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 59
Display cable
Description Spare part number
Display cable 840938-001
eDP bracket (included in Bracket Kit, spare part number 840966-001) 840966-001 (Bracket Kit)
Before removing the display cable, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Disconnect the battery (see Battery on page 30).
Remove the display cable:
1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the display cable to the computer.
2. Lift the eDP bracket from atop the connector (2).
3. Disconnect the cable from the system board (3).
4. Remove the cable from the clips along its routing path (4).
Reverse this procedure to install the display cable.
Component replacement procedures 45
Page 60
System board
NOTE: The system board spare part kit includes battery connector bracket and replacement
thermal material.
All system boards use the following part numbers:
xxxxxx-001: Windows 7 or non-Windows operating systems
xxxxxx-601: Windows 10 operating system
Description Spare part number
Intel Xeon E3-1505M processor 840933-xxx
Intel Core i7-6820HQ processor and discrete graphics memory 840932-xxx
Intel Core i7-6820HQ processor and UMA graphics memory 840930-xxx
Intel Core i7-6700HQ processor and discrete graphics memory 840931-xxx
Intel Core i7-6700HQ processor and UMA graphics memory 840929-xxx
Before removing the system board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
7. Remove the thermal module (see Thermal module on page 39).
8. Remove the display cable (see Display cable on page 45).
NOTE: When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Solid-state drive (see Solid-state drive (M.2) on page 31)
●
WLAN module (see WLAN module on page 34)
●
Memory module (see Memory module on page 36)
Remove the system board:
1. Disconnect the following cables from the system board:
(1) Right speaker cable
(2) Fingerprint reader cable
(3) TouchPad cable
(4) LED board cable
(5) RTC battery cable
46 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 61
(6) Left speaker cable
2. Remove the seven Phillips PM2.5×4.0 screws (1).
3. Remove the two Phillips PM2.5×4.0 shoulder screws (2).
4. Lift in the middle of the board until the connectors disengage from the left side of the computer (1).
5. Disconnect the keyboard cable from the bottom of the system board (2).
Component replacement procedures 47
Page 62
6. Remove the system board from the computer (3).
CAUTION: When you lift the system board from the computer, be careful not to damage or break the
narrow sections of the board.
Reverse this procedure to install the system board.
48 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 63
I/O support bracket
Description Spare part number
I/O support bracket (included in Bracket Kit, spare part number 840966-001) 840966-001 (Bracket Kit)
Before removing the I/O support bracket, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
7. Remove the thermal module (see Thermal module on page 39).
8. Remove the display cable (see Display cable on page 45).
9. Remove the solid-state drive (see Solid-state drive (M.2) on page 31).
10. Remove the WLAN module (see WLAN module on page 34).
11. Remove the system board (see System board on page 46).
Remove the I/O support bracket:
▲
Lift the I/O support bracket straight up and o the system board.
Reverse this procedure to install the I/O support bracket.
Component replacement procedures 49
Page 64
Speakers
Description Spare part number
Speakers (includes cable) 840958-001
Before removing the speakers, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
7. Remove the thermal module (see Thermal module on page 39).
8. Remove the display cable (see Display cable on page 45).
9. Remove the solid-state drive (see Solid-state drive (M.2) on page 31).
10. Remove the WLAN module (see WLAN module on page 34).
11. Remove the system board (see System board on page 46).
Remove the speakers:
1. Remove the four Phillips PM2.0×3.0 broadhead screws (1) that secure the speakers to the computer.
2. Remove the speakers (2).
Reverse this procedure to install the speakers.
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 65
NOTE: When installing the speakers, make sure the rubber grommets around the screws are correctly
installed.
Keyboard
For use in country or region Spare part
number
For use in country or region Spare part number
Keyboard with backlight:
For use in Belgium 841681-A41 For use in Northwest Africa 841681-FP1
For use in Brazil 841681-201 For use in Norway 841681-091
For use in Bulgaria 841681-261 For use in Portugal 841681-131
For use in Canada 841681-DB1 For use in Romania 841681-271
For use in the Czech Republic and Slovakia 841681-FL1 For use in Russia 841681-251
For use in Denmark 841681-081 For use in Saudi Arabia 841681-171
For use in France 841681-051 For use in Slovenia 841681-BA1
For use in Germany 841681-041 For use in South Korea 841681-AD1
For use in Greece 841681-151 For use in Spain 841681-071
For use in Hungary 841681-211 For use in Sweden and Finland 841681-B71
Before removing the keyboard, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
7. Remove the thermal module (see Thermal module on page 39).
8. Remove the display cable (see Display cable on page 45).
9. Remove the solid-state drive (see Solid-state drive (M.2) on page 31).
10. Remove the WLAN module (see WLAN module on page 34).
11. Remove the system board (see System board on page 46).
Remove the keyboard:
1. Partially open the computer.
2. Rest and secure the computer on its left side.
3. Insert a thin tool into the keyboard release hole, and then press on the back of the keyboard until the
keyboard disengages from the computer (1).
Component replacement procedures 51
Page 66
4. Remove the keyboard (2).
Reverse this procedure to install the keyboard.
52 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 67
Display assembly
NOTE: The DreamVision display assembly is spared as a whole unit assembly only. The LED display
assembly is spared at the subcomponent level only. For more LED display assembly spare part information,
see the individual removal subsections.
Description Spare part number
15.6-in, UHD, UWVA, DreamVision display assembly not equipped with a webcam 840945-001
15.6-in, UHD, UWVA, DreamVision display assembly equipped with a webcam 840946-001
15.6-in, FHD, UWVA display assembly with a touch screen 840947-001
To remove the display assembly and access the LED display assembly subcomponents, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service door (see Service door on page 28).
5. Remove the bottom cover (see Bottom cover on page 29).
6. Remove the battery (see Battery on page 30).
7. Remove the thermal module (see Thermal module on page 39).
8. Remove the display cable (see Display cable on page 45).
9. Remove the solid-state drive (see Solid-state drive (M.2) on page 31).
10. Remove the WLAN module (see WLAN module on page 34).
11. Remove the system board (see System board on page 46).
Remove the display assembly:
1. Remove the three Phillips PM2.5×4.0 screws (1) that secure each hinge to the computer.
2. Open the computer as far as possible.
Component replacement procedures 53
Page 68
3. Separate the display from the computer (2).
4. If it is necessary to replace the display bezel or any of the LED display assembly subcomponents:
a. Use a plastic tool to disengage the bezel starting at the top (1), left and right sides (2), and bottom
(3).
54 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 69
b. Remove the display bezel (4).
The display bezel is available using the following spare part numbers:
840935-001: Models with a webcam
840936-001: Models without a webcam
5. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.0×2.0 screws that secure the display panel to the display enclosure.
Component replacement procedures 55
Page 70
CAUTION: Before turning the display panel upside down, make sure the work surface is clear of
tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.
b. Lift the top edge of the display panel (1) and swing it up and forward until it rests upside down in
front of the display enclosure.
c. Remove the display cable from the clip (2).
d. Lift the tape (3), and then disconnect the display panel cable (4) from the display panel.
e. Remove the display panel.
The display panel is available using spare part numbers 840941-001 (15.6-in, FHD, UWVA, LED
display panel) and 840943-001 (15.6-in, UHD, UWVA, LED B display panel).
6. If it is necessary to replace the webcam module or microphone module:
NOTE: The webcam module and microphone module are similar in appearance and installed in the
same location. The removal procedures are the same for both modules.
CAUTION: Handle the module with caution. This module has a thin prole and is susceptible to damage
when not handled carefully.

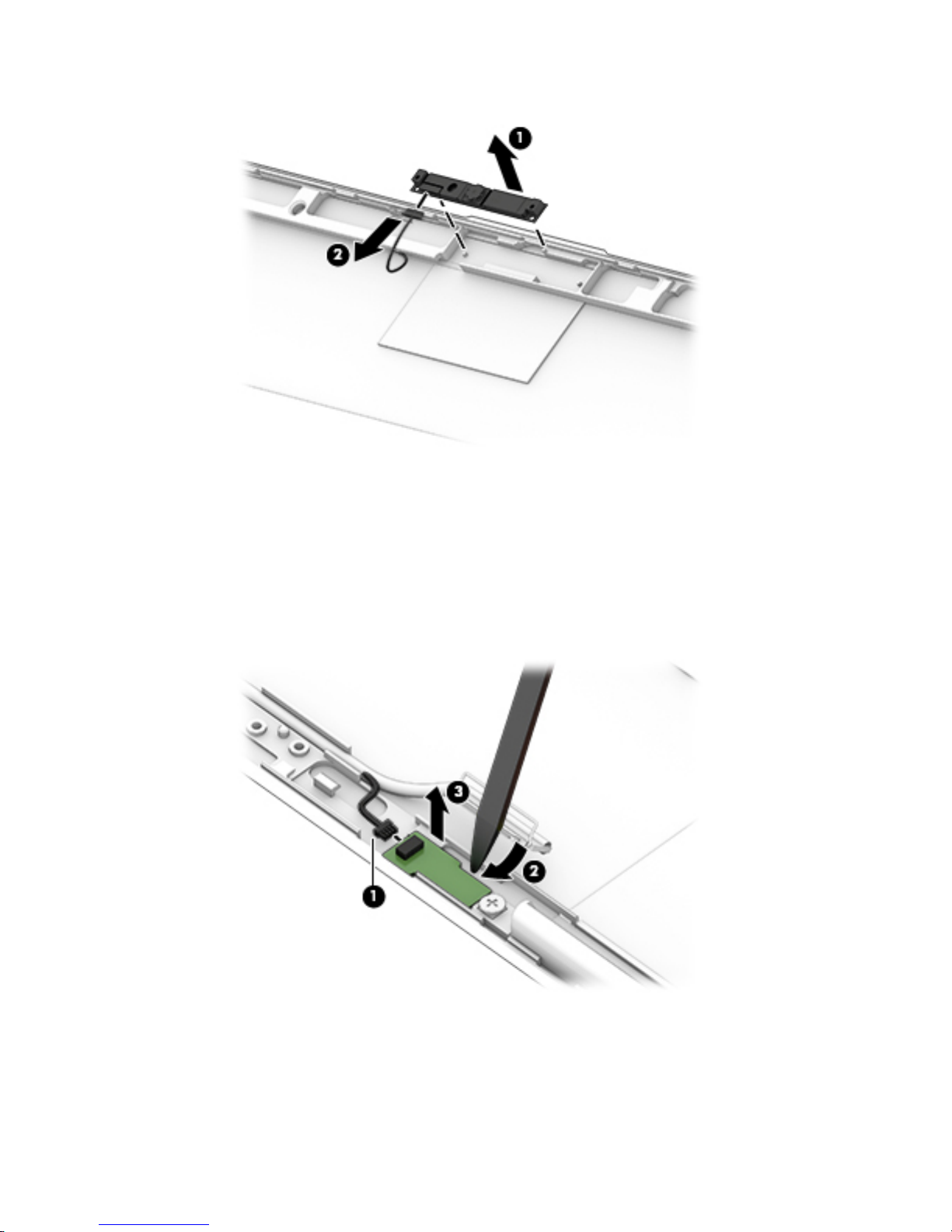

a. Detach the webcam or microphone module (1) from the display enclosure. (The module is attached
to the display enclosure with double-sided adhesive.)
56 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 71
b. Disconnect the module cable (2) from the module.
c. Remove the module.
The webcam module is available using spare part number 840965-001.
The microphone module is available using spare part number 840955-001.
7. If it is necessary to replace the thermal board:
a. Disconnect the thermal board cable (1) from the board.
b. Using a at tool, pry the board loose (2), and then remove the board (3) from the display
enclosure. (The thermal board is attached to the display enclosure with double-sided adhesive.)
c. Remove the thermal board.
The thermal board is available using spare part number 840956-001.
8. If it is necessary to replace the display hinges:
a. Remove the three Torx T8M2.5×4.0 screws (1) that secure each display hinge to the display panel.
Component replacement procedures 57
Page 72
b. Remove the display hinges (2).
The display hinges are available using spare part number 840937-001 and include the left and
right hinges.
9. (UHD models only) If it is necessary to replace the display brackets:
▲
Lift the bottom bracket (1) and top bracket (2) out of the display enclosure.
Display panel brackets are available in the Bracket Kit using spare part number 840966-001.
NOTE: The display brackets can only be removed from UHD panels.
10. If it is necessary to replace the wireless antennas:
a. Remove the cables from the routing path on the bottom-right corner of the display (1).
b. Remove the two Phillips PM2.0×2.0 screws (2) that secure the plastic holder to the bottom of the
display.
58 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 73
c. Peel the antennas o the display (3).
The antennas are available using spare part number 840940-001.
11. If it is necessary to replace the display cable:
a. Remove the display cable and webcam cable from the routing path along the bottom and left side
of the display enclosure (1).
b. Remove the display cable from the display enclosure (2).
The antennas are available using spare part number 840938-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 59
Page 74
Top cover
Description Spare part number
Top cover 840636-001
The top cover spare remains after removing all other spare parts.
60 Chapter 6 Removal and replacement procedures for authorized service provider parts
Page 75
7 Troubleshooting guide
This chapter is primarily focused on troubleshooting HP Mobile Workstations and HP Notebooks. The
information is provided so that you can solve problems yourself or at least narrow down what may be causing
the problem. Based on some of the most common symptoms, this chapter helps to identify logical steps and
available resources or tools for resolving an issue. HP recommends that you follow the instructions carefully,
observe safety precautions, and note any observations or results. Capturing this information may help
identify and resolve the problem faster.
WARNING! To reduce the risk of electric shock or damage to the equipment:
●
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
●
Plug the power cord into a grounded (earthed) outlet that is easily accessible at all times.
●
Disconnect power from the equipment by unplugging the power cord from the AC outlet.
●
Before disassembling notebooks, always disconnect power and remove the battery.
CAUTION: Static electricity can damage the electronic components of the computer. To prevent damage to
the computer, carefully observe the electrostatic discharge precautions.
●
Discharge static electricity by briey touching a grounded metal object before you begin.
●
Work on a static-free mat.
●
Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body to
the ground.
●
Create a common ground for the equipment you are working on by connecting the static-free mat, static
strap, and peripheral units to that piece of equipment.
●
Refer to the Electrostatic Discharge Section of the Maintenance & Service Guide for more information.
CAUTION: The computer includes customer self-repair parts and parts that should only be accessed by an
authorized service provider. See the chapter titled "Removal and replacement procedures for Customer SelfRepair parts," for details. Accessing parts described in the chapter titled "Removal and replacement
procedures for authorized service provider only parts" can damage the computer or void the computer
warranty.
61
Page 76
Resources
HP Resource Tool Description Link
HP Elite Support Provides live HP Premium support (available 24/7) to
Elite computers.
http://www8.hp.com/us/en/ads/eliteproducts/overview.html
HP Support Center Provides important support, such as warranty,
support cases, drivers, Customer Advisories,
Customer and Security Bulletins, and Product Change
Notices.
http://h20565.www2.hp.com/portal/site/
hpsc
HP Troubleshooting Support page Provides troubleshooting information for your
specic HP computer.
http://www8.hp.com/us/en/
troubleshooting.html
Subscribers Choice Allows you to sign up for HP product updates. http://www8.hp.com/us/en/subscribe/
HP Support Forums Provide discussions about HP products and issues. http://h30434.www3.hp.com/psg/
Service Access Workbench (SAW)
(Available for technicians and
Business Partners only)
Provides navigable content intended for use by
internal and outsourced call center sta and can be a
resource for support and product division
professionals.
http://sawpro.atlanta.hp.com
Vendors’ web sites Provide additional information for associated
components such as Intel (processor, WLAN),
Microsoft (Windows 7/8/10), AMD/NVidia (GPU), and
so on.
http://www.intel.com
http://www.microsoft.com
http://www.amd.com
http://www.nvidia.com
General troubleshooting steps
A basic logic should be used when troubleshooting computer issues. This section will help you become
familiar with troubleshooting methodology and eciently resolve problems. Proceed through the steps in the
following table until the issue is resolved, and then move on to the next step that is relevant to the issue. For
example, if you resolve a memory issue using the HP PC Diagnostics (UEFI) tool in step 6, you can then move
on to step 10 to reseat the memory into its memory slot.
NOTE: General troubleshooting steps do not have to be followed in a specic order if an issue does not
apply.
Table 7-1 Troubleshooting methodology and general troubleshooting steps
Identify issue Analyze issue Resolve issue Verify solution
1. Understand the issue
on page 63
2. Examine the environment
on page 65
3. Perform a visual inspection
of hardware on page 66
4. Update BIOS and drivers
on page 66
5. Remove or uninstall recently
added hardware, software
on page 66
6. HP Hardware Diagnostics and
Tools on page 67
7. Status lights, blinking light
codes, troubleshooting lights,
and POST error messages
on page 71
8. Hard reset on page 74
9. Soft reset (Default Settings)
on page 75
10. Reseat cables and connections
on page 75
11. Test with minimum conguration
on page 76
12. Test with veried working
conguration (hardware and/or operating
system) on page 77
13. Replace the system board on page 77
Verify solution
on page 78
62 Chapter 7 Troubleshooting guide
Page 77
Identify the issue
1. Understand the issue
It is important to understand the issue that occurred, including related symptoms. It helps to understand the
basic computer boot-up sequence as well as the failure itself. The boot-up sequence and associated failures
are described below.
Boot up sequence
The computer performs several steps after you press the power button or restart the computer.
It is important to understand where in the boot-up sequence the symptoms occur. The following table lists
the phases of the boot-up sequence and explains the symptoms that may occur in each phase. For example, a
blue screen error (BSOD) often occurs during the performance phase.
Table 7-2 Boot-up sequence
Power-on After power button is pressed, the computer boots after all internal power rails (i.e., 5V, 3.3V) are stable.
Conrm that power lights are on fan is spinning.
Next step: If the computer experiences a power-on issue, see “Verify Power Good (Troubleshooting) lights” in
No Power on page 80.
Common issues: all lights are o; troubleshooting lights are on; does not boot; video is absent.
POST (UEFI/BIOS) Power-On Self-Test (POST) veries that hardware components (processor, hard drive, memory, etc.) are
functional. When POST is complete, the HP logo displays briey and then disappears.
If there are errors, the computer may exhibit blinking lights and POST error messages
Common issues: lights blink, error message appears, hangs.
Performance
(operating system)
System boots to operating system, and Windows logo screen appears..
Common issues: hangs (lock up/freezes), blue screen, video distorted, driver conict, slow performance,
display issue (dead pixel), I/O issue (no speaker sound), wireless/audio unavailable, noise.
See Analyze the issue on page 66 table below for detailed troubleshooting information).
Failure classication
Failure classication is a breakdown of dierent types of failures and symptoms that could occur during the
boot-up sequence. Table 3 and table 4 represent the failure classication for common notebook failures.
Table 3 categorizes failures by the boot-up sequence.
1. Power-on: Common issues are No Power, Recycle/Reboot, etc.
2. POST: Common issues are No Boot (have power), Light Flash or Diagnostics Error.
3. Performance: Common issues are Intermittent Loss of Power, Blue Screen, Hang, etc. In many cases,
issues may be identied and associated with a particular hardware (i.e., display, storage).
Table 4 categorizes failures by hardware.
4. Display
5. I/O devices (Input/Output)
6. Storage
7. Mechanical
General troubleshooting steps 63
Page 78
A single symptom can be listed under dierent groups. For example, No Video can belong to (1) Power-on or
(4) Display; but Flickering when powered should be listed in (4) Display. Or, in another example, a blue screen
can be caused by a driver conict in Performance (4), but it can also be caused by a defective hard drive under
(6) Storage. Therefore, failures that share similar symptoms are noted..
If possible, make a record of the failure symptom, the phase of the boot-up sequence where the failure
occurs, and the most likely location in the failure tree (Table 7-3 Failure classication by boot-up sequence
on page 64 and Table 7-4 Failure classication by hardware devices and mechanical on page 65). This will
help isolate the issue and indicate the next steps. For example, when the computer is running the operating
system, it may experience an issue with (4) Display, (5) I/O devices (keyboard, wireless, and so on), (6)
Storage, or (7) Mechanical components (stuck buttons, thermal shutdown, and so on).
NOTE: “Uncategorized” is used if an issue found is not listed. For example, Bluetooth is oered on certain
hardware congurations; therefore, a Bluetooth issue can be classied under “I/O Device” if needed.
Failure classication by boot-up sequence
Table 7-3 Failure classication by boot-up sequence
1. Power-on 2. POST 3. Performance
1. No Power on page 80
2. Intermittent power-on, shutdown,
reboot on page 82
a
3. AC adapter issue on page 83
4. Battery not recognized, not charging
on page 83
5. Battery discharges too fast
on page 85
6. Burnt smell on page 86
1. No video (with power)
on page 86
2. Blinking lights on page 87
3. Diagnostics error messages
on page 88
4. BIOS password on page 89
1.
Intermittent shutdown on page 90
a
2.
Blue screen (BSOD) error on page 115
b
3. Freeze at Windows Logo (hang/lockup)
on page 93
4. Electromagnetic Interference (EMI)
on page 94
5. No wake up on page 95
6. Unresponsive on page 96
7.
Slow performance on page 96
c
8. HP Smart Adapter warning message
on page 97
9. Incorrect time and date on page 97
a,b,c
similar symptoms
64 Chapter 7 Troubleshooting guide
Page 79
Failure classication by hardware devices and mechanical
Table 7-4 Failure classication by hardware devices and mechanical
4. Display 5. I/O devices 6. Storage 7. Mechanical
1. Display anomalies
on page 98
2. Dead pixel on page 100
3. No video (internal)
on page 100
d
4. No video (external)
on page 101
d
5. DisplayPort/VGA
on page 101
6. HDMI on page 101
7. No or bad external video
via docking on page 102
8. Incorrect or missing color/
distorted image
on page 102
9. Touch screen
on page 103
1. Keyboard on page 104
2. Keyboard point stick
on page 105
3. Keyboard backlight
on page 105
4. TouchPad on page 106
5. Network Connectivity
Ethernet (RJ-45 jack)
on page 106
6. Network connectivity
wireless (WLAN)
on page 107
7. WWAN on page 108
8. USB on page 109
9. Smart card reader
on page 110
10. Speaker, headphone audio issues on page 111
11. Thunderbolt (TB)
on page 112
1. Hard drive/solid-state
drive not recognized
on page 114
2. No boot to operating
system (no read/write
error) on page 114
3. Read-write error
on page 115
4. Slow performance
on page 96
c
5. Blue screen (BSOD) error
on page 115
b
6. Noisy hard drive
on page 116
1. Fan error message - 90B
on page 117
2. Noise (sound)
on page 118
3. Fan runs constantly
on page 119
4. HP Thermal Monitor
on page 70
5. Stuck power button
on page 120
b,c,d
similar symptoms
2. Examine the environment
It is important to examine the computer’s environment. If you can quickly identify the cause of the issue,
fewer resolution steps may be needed. Perform the following environment inspections:
●
Check all cables and connections to be sure that there are no loose connections.
●
Conrm that power sources are good, such as wall power type/adapter (110V/220V ac), power strip. Test
with a veried working AC outlet.
●
Check for compatibility issues between the computer and third-party devices, peripherals, noncertied
devices, incompatible hardware (i.e., Mac OS device). Incompatibility can result in blue screen errors,
improper operation, and so on.
●
Isolate the computer from sources of electromagnetic interference (EMI), such as cell phones, 2-way
radios, oor mats, fans (and other electronic motors). EMI may contribute to a display freeze issue or
lock-up.
General troubleshooting steps 65
Page 80
3. Perform a visual inspection of hardware
It is important to do a visual inspection of the hardware itself. Perform physical inspection of the computer:
●
Look for abnormalities such as a cracked display, dented battery, broken latches for battery bay,
keyboard key caps popped out, dust over connectors, liquid spill over keyboard, etc.
●
Look for signs of drop, movement, or vibration that may cause internal and external loose connections.
4. Update BIOS and drivers
IMPORTANT: Whenever possible, update to the latest BIOS, rmware, and drivers before troubleshooting.
Note that some customer company policies prohibit updates. Check your company policy before taking action.
The updates may include xes for your computer issues, and they may also enhance system performance. HP
continually improves the update process to make it easier. The BIOS update can be done locally through a
manual process, through an automatic installation, or through a remote installation on multiple units.
Manually updating BIOS and drivers
●
See the Computer Setup chapters to manually update BIOS and drivers.
●
Refer to specic BIOS update installation instructions that accompany the download.
Remotely deploying BIOS and drivers
Instead of manually searching for and downloading each SoftPaq, users and IT personnel can use two tools to
identify and download all appropriate SoftPaqs for the selected HP models.
●
HP SoftPaq Download Manager (SDM) is a software tool designed to streamline the download,
extraction, and installation process of SoftPaqs, including BIOS and drivers.
●
HP System Software Manager (SSM) is a software tool designed to simplify the deployment of SoftPaqs
to HP computers.
Analyze the issue
5. Remove or uninstall recently added hardware, software
HP has designed this computer and validated it using a full-range hardware and software qualication matrix.
If an issue appears to have started recently, it may be related to the recent addition of hardware or software.
A good method to determine the root cause is to remove recently added components or uninstall applications
one at a time and restart the computer when necessary.
IMPORTANT: After you have completed the process of uninstalling hardware or software and are ready to
reinstall, when installing a new device be sure that it is seated properly and all cables are correctly connected.
After installing the device, restart the computer and make sure the new device is powered on. In addition, if
the new device is a root cause of a problem, it could cause a conict in drivers or incompatibility issues with
other programs installed. For any new hardware you have added, be sure to install the latest drivers available
from the device vendor website.
66 Chapter 7 Troubleshooting guide
Page 81
6. HP Hardware Diagnostics and Tools
HP oers dierent diagnostics and tools to diagnose hardware failure. This section describes how to use
some of these tools. Make sure to check for the latest versions before use.
HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unied Extensible Firmware Interface (UEFI) that allows you to run diagnostic
tests to determine whether the computer hardware is functioning properly. The HP PC Hardware Diagnostics
(UEFI) tool is built within BIOS (basic memory and hard drive diagnostics only), or within new hard drives
themselves. These drives contain more advanced versions of the diagnostic tool than the BIOS-based version.
In addition, for HP authorized service partners and IT professionals who need to support a mixed environment
of older and newer HP/Compaq PCs, the HP PC Diagnostics 3-in-1 USB Key is a diagnostic tool that supports a
wide range of HP Desktop and Notebook computers.
The tool runs outside the operating system so that it can isolate hardware failures from issues that are
caused by the operating system or other software components. In reality, many problems can be determined
using this tool if the issue is a defective part or a loose connection (i.e., reseating keyboard cable after the
tool reports a keyboard error).
The tool has three major functions:
●
System Tests - Check the computer’s hardware to assure everything is functioning properly. If your
system won’t boot into Windows, try the Quick System Test. For more comprehensive testing, use the
Extensive System Test option. If the System Test did not detect a hardware problem, continue with the
Component Tests.
●
Component Tests – Focus on selected hardware components in your computer.
●
Firmware Management – Update your computer’s BIOS to the latest version (available separately) or roll
back to a previous version.
To start HP PC Hardware Diagnostics (UEFI):
1. Turn on or restart the computer, quickly press the esc button on the computer, and then press F2. The
BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB drive
b. Hard drive
c. BIOS
General troubleshooting steps 67
Page 82
2. When the diagnostic tool opens, use the keyboard arrow keys to select the type of diagnostic test you
want to run, and then follow the on-screen instructions.
Screen shot appearance may vary.
NOTE: Users should utilize this tool, especially when the computer cannot boot to Windows.
NOTE: If a component fails a test, write down the information so it is available when contacting support.
The information is also available in Test Logs on the Main Menu.
For more information, see the chapter titled “Using HP PC Hardware Diagnostics (UEFI).”
68 Chapter 7 Troubleshooting guide
Page 83
HP Support Assistant (HPSA)
HP Support Assistant (HPSA) helps you maintain peak performance and resolve problems through automatic
updates, built-in diagnostics, and a variety of assistance options. HPSA is preinstalled on every new HP PC
with Windows 7, Windows 8, or Windows 10. HP is continually improving this tool. Please verify the latest
version is installed to receive the most benet. For more information, see HP Support Assistant.
NOTE: HPSA can be used only if the computer boots into Windows. If the computer does not boot into
Windows, use HP PC Hardware Diagnostics (UEFI) instead.
HPSA also integrates diagnostics and tools that help resolve issues. See example screen shots as follows.
General troubleshooting steps 69
Page 84
HP BIOS Conguration Utility (BCU)
HP BCU is a free utility that captures the BIOS settings and their values. This tool provides a text le of the
computer’s BIOS conguration. This can help identify any settings that may be contributing to an issue.
In some cases, it may help to compare this BIOS text le to the default settings of the computer.
For more information, see the HP BIOS Conguration Utility (BCU) User guide.
NOTE: HP recommends that you reset BIOS before trying BCU. Resetting the BIOS is always available and
relatively quick to try, whereas BCU takes extra time and eort.
HP Image Diagnostic Tool
Available to HP Authorized Support Partners (ASPs) and users from the HP public ftp site, this tool collects
information about the current state of the computer, including product serial number, platform and BIOS
information, and information about user-installed software and hardware components. HP encourages you to
review the report before sending it to support. The report may assist you with diagnostics and solutions to
problems you encounter.
HP Thermal Monitor
NOTE: Available only to authorized service providers/technicians.
Available only for HP internal use, HP Thermal Monitor can be used to stress the processor and GPU and
monitor the temperature values of various components in the system. The components that are currently
monitored include the processor, GPU, ACPI thermal zones, hard drive, and battery. The tool reads the
temperatures of the components, logs the data, and helps to determine whether the computer would
overheat in the event of thermal shutdown, fan spinning loud, etc.
Non HP diagnostics tools
Windows-to-Go USB
Windows-To-Go USB is a Microsoft-based tool for Enterprise editions of Windows that can help in
troubleshooting. You can nd a process online about how to create a live Windows USB drive. For more
information, see Windows To Go: Feature Overview.
Intel Processor Diagnostic Tool
Determine what processor is in your computer and verify the processor operating frequency. The tool also
tests specic processor features and performs a stress test on the processor. For more information, see
http://www.intel.com/support/processors/sb/CS-031726.htm?iid=subhdr+tools_procdiagtool.
70 Chapter 7 Troubleshooting guide
Page 85
7. Status lights, blinking light codes, troubleshooting lights, and POST error messages
Carefully observe any behavior the computer may be exhibiting: status lights, blinking lights, and POST error
messages during boot. It is important to understand what these indicators mean.
Status lights
See the chapter titled “External Component Identication” for light locations. The following table describes
basic lights on the computer.
Component Description
Power button When the computer is o, press the button to turn on the computer.
When the computer is on, press the button briey to initiate Sleep (Windows) or Suspend
(Linux).
When the computer is in the Sleep state, press the button briey to exit Sleep (Windows) or
Suspend (Linux).
When the computer is in Hibernation, press the button briey to exit Hibernation.
CAUTION: Pressing and holding down the power button results in the loss of unsaved
information.
If the computer has stopped responding and operating system shutdown procedures are
ineective, press and hold the power button.
Front power light On: The computer is on.
Blinking: The computer is in the Sleep state.
O: The computer is o.
Front AC adapter and battery light White: The computer is connected to external power and the battery is charged from 90 to
99 percent.
Amber: The computer is connected to external power and the battery is charged from 0 to 90
percent.
Blinking amber: A battery that is the only available power source has reached a low battery
level. When the battery reaches a critical battery level, the battery light begins blinking
rapidly. By default, the critical battery level is dened in Power Options as 5%.
O: The battery is fully charged.
Front hard drive light Blinking white: The hard drive is being accessed.
Amber: HP 3D DriveGuard has temporarily parked the hard drive.
Rear AC adapter light White: The computer is connected to external power.
O: The computer is not connected to external power.
General troubleshooting steps 71
Page 86
Blinking light codes
During startup, the computer may not boot properly. If this occurs, blinking light codes that will help identify
what is causing the issue. The computer uses the blinking lights below to identify a hardware component that
reports an error during startup. For more information, see Blinking lights and boot error codes on page 122.
Table 7-5 Boot-error codes
Blink codes Error
Amber battery light: blinks 1 Hz continuously Embedded controller unable to load rmware
Caps/num lock lights = 1 blink Processor not executing code
Caps/num lock lights = 2 blinks BIOS recovery code unable to nd valid BIOS recovery image
Caps/num lock lights = 3 blinks Memory module error
Caps/num lock lights = 4 blinks Graphics controller error
Caps/num lock lights = 5 blinks System board error
Caps/num lock lights = 6 blinks Intel Trusted Execution Technology (TXT) Error
Caps/num lock lights = 7 blinks Sure Start unable to nd valid BIOS Boot Block image
Caps/num lock lights = 8 blinks Sure Start has identied a problem (Manual Recovery Policy Set)
POST error messages
The Power-On Self-Test (POST) is a series of diagnostic tests that runs automatically when the computer is
powered on. If the POST encounters a problem, visual error messages are displayed before the operating
system starts. POST checks the following items to ensure that the computer system is functioning properly:
●
Memory
●
Processors
●
BIOS
●
Mass storage devices
●
Fans
The following table describes errors encountered during HP PC Hardware Diagnostics (UEFI).
Table
7-6 System diagnostics failure codes and user actions
Test description Failure description
Error
code Suggested user actions
Startup Test Memory module 200 Attempt to reseat the memory module and then repeat the test.
See the support document titled Overview of How to
Troubleshoot Problems When a Computer Does Not Start Up or
Boot Properly for details on troubleshooting issues related to the
memory module.
Startup Test Hard Disk 1 SMART 301 Attempt to reseat the hard drive and repeat the test. The hard
drive may have failed.
Boot Device Manager Boot device not found 3F0 Reset BIOS. Then reseat the hard drive and repeat the test.
BIOS Recovery BIOS Recovery Occurred 500 This message indicates that BIOS recovery was completed
successfully. No further action is required.
72 Chapter 7 Troubleshooting guide
Page 87
Table 7-6 System diagnostics failure codes and user actions (continued)
BIOS Application BIOS Application Error 501 The BIOS installation may have become corrupted. Download the
latest version of the BIOS and install it.
If reinstalling the BIOS fails, contact support for further
assistance.
CMOS Recovery CMOS Recovery Occurred 502 This message indicates that CMOS recovery was completed
successfully. No further action is required.
Battery Check Primary Battery Replace 601 This message indicates that the primary battery has very low
capacity. See Checking the Status of the Battery for details on
using the HP Support Assistant to verify the battery capacity and,
if necessary, order a replacement.
Wireless Modules Not installed or responding 701 Reseat the wireless LAN adapter module and antennas.
Because seating or reseating a wireless LAN adapter is unique to
each computer model, see the WLAN module removal section in
the removal and replacement chapter for further details.
Contact support if third-party wireless adapters are installed in
the computer.
Fan Fan not operating correctly 90B The system fan may be malfunctioning. Replace the fan.
Power Good (Troubleshooting) lights
HP has added troubleshooting power lights to ZBook G3 Mobile Workstations (Studio, ZBook 15, and ZBook
17) to help troubleshoot power-on issues. The lights indicate when the system board power rails are unstable
and/or the system needs a hardware reset.
These lights should be visible after removing the service door or bottom
cover. Consult with support for platform-specic locations of the lights.
Troubleshooting LEDs diagram
●
Example: System board is good. Lights that turn on briey (< 1 second) and immediately turn o indicate
normal function. In this case, system (3.3V), power good (3.3V), and system reset (3.3V) are all good and
troubleshooting lights should not be lit. However, other external lights should be lit as normal
afterward.
Troubleshooting lights
External lights Action Note
O On Do not replace system board No power-on issue
On O Replace board Power-on issue
General troubleshooting steps 73
Page 88
●
Example: System board needs replacement. When (1) system 3.3V exists, but one power rail is bad then
(2) power good is low (0V), and troubleshooting lights will turn on.
After you press the system power button, troubleshooting lights will turn on for 5 seconds and turn
o. The system external lights will not light up. Follow general troubleshooting steps (i.e., remove
recently added hardware, test with minimum conguration, etc.) prior to replacing the system board.
Resolve the issue
8. Hard reset
A hard reset (or forced reset) erases all information in the computer's memory and may restore functionality.
Resetting the computer forces the system to clear and reestablish the connections between the BIOS and the
hardware.
Performing a hard reset might x the following common conditions:
●
Windows stops responding.
●
Computer stops before Windows loads, indicated by incomplete boot-up, blinking cursor on a black
background, and errors relating to operating system not found or a missing drive.
●
Display suddenly goes blank and stays blank.
●
Software freezes.
●
Keyboard stops responding.
●
The computer does not exit Sleep or Suspend state.
●
An external device stops responding. Turn o the power to that device in addition to performing the
steps in this document.
Before performing a hard reset, you must disconnect or remove all peripheral devices. You should start and
test the computer by itself, and if the problem is not resolved, reconnect one peripheral device at a time. To
resolve the startup or operational problem, run HP Support Assistant, or manually install all updated drivers
from Microsoft and HP.
Before beginning, turn the computer over and look for a battery compartment door (service door). For 2015
platforms, the battery is considered removable but not accessible. See the battery section for how to remove/
unplug the battery.
To perform a hard reset on a computer with a sealed or non removable battery, use the following steps:
1. Turn o the computer.
2. Remove the computer from any port replicator or docking station.
3. Disconnect all external connected peripheral devices such as USB storage devices, external displays, and
printers.
74 Chapter 7 Troubleshooting guide
Page 89
4. Unplug the AC adapter from the computer.
5. Disconnect the battery.
6. Press and hold the power button for at least 15 seconds to drain residual power.
7. Reconnect the battery and plug the AC adapter back into the computer, but do not connect any of the
peripheral devices.
8. Press the power button to turn on the computer.
9. If a startup menu appears, use the arrow keys to select Start Windows Normally, and then press the
Enter key.
10. After reconnecting each of the peripheral devices, run Windows Update and HP Support Assistant to
update all device drivers.
Clear CMOS
CMOS refers to the battery-powered, semiconductor chip located on computer's system board. Notebooks
store low-level settings like the system time and hardware settings in CMOS. Sometimes it is necessary to
clear CMOS, which requires removing and reinserting the 3V RTC battery for a short period of time (a few
minutes before reinserting), in addition to removing the AC adapter and battery.
NOTE: Clearing the CMOS should only be performed for troubleshooting purposes. There is no reason to
clear CMOS if the computer is working properly.
The notebook service door must be removed to access the CMOS battery. See the RTC battery replacement
section for the battery removal/replacement.
9. Soft reset (Default Settings)
NOTE: Some company policies prohibit updates or changes. Check whether the computer has custom BIOS
settings before taking action.
If your computer is having issues booting, has errors during boot, is running into issues after adding
hardware, or you are having other abnormal system behaviors that cannot be resolved through any other
methods (i.e., hard reset), it may be necessary to reset the system BIOS to default settings.
To load BIOS to default settings: Reboot the computer, and then press F10 > Main > Restore defaults. For
more information, see the BIOS F10 Setup technical white paper at http://support.hp.com, enter your
computer model, and then go to Manuals > White papers > HP PC BIOS F10 Setup Guide.
10. Reseat cables and connections
NOTE: Before disassembling the computer to reseat cables and connections, always disconnect power and
remove the battery or disconnect a non removable battery.
Many problems are caused by improper connections or loose connections due to abnormal movement and
vibration. See Cable management on page 133 and Connector types on page 134 for suggested cable
management practices when removing and installing components.
You can access and reseat connections for Customer Self-Repair (CSR) parts (see the “Removal and
replacement procedures for Customer Self-Repair parts” chapter for details). Examples of reseating hardware
include:
●
Reseating the battery into the battery bay can resolve no-battery found and no-charging issues.
●
Reseating memory modules can resolve memory error, no-boot, and blue screen issues.
General troubleshooting steps 75
Page 90
●
Reseating the hard drive can resolve a POST error 3F0 (no boot device) issue (see POST Error Messages
and User Actions on page 124).
●
Reseating the keyboard cable can resolve an unrecognized keys error.
●
Reseating the wireless module and antenna cable can resolve a wireless connection issue.
For eld replaceable units (FRUs), authorized service providers can try the following steps (for more
information, see the ”Removal and replacement procedures for authorized service provider parts” chapter).
●
Reseating the fan cable can x POST error 90B (no fan detected) issue (see POST Error Messages and
User Actions on page 124).
●
Reseating the power cable can x a no boot issue.
●
Reseating the daughterboards (some models may have a power button board, VGA board, etc.) can
resolve their functional issues.
●
Reseating graphics cables and panel connectors can x distorted/ickering video.
●
Replacing thermal pads may resolve thermal power-down issue.
11. Test with minimum conguration
The factory-shipped computer (hardware conguration and preinstalled operating system image) is well
tested and ready for use. Therefore, using the original factory hardware conguration and/or booting to
operating system safe mode often resolves issues quickly.
●
Disconnect any external USB storage, remove any discs in optical drives, remove the computer from a
docking station, remove external video, etc.
●
In addition to removing recently added components, the issue can be narrowed down further with a
minimum conguration. For example, if HP PC Diagnostics reports a memory error, test one memory
module at a time to isolate the defective module.
●
If the computer does not successfully boot the operating system, booting to safe mode may help
identify what may be causing the issue as described below.
Essential hardware conguration
NOTE: This step is to be used by authorized service providers only. HP will not honor the warranty for a
system tested with the system board removed without the heat sink, fan, etc.
If none of the steps above resolve the issue, start the computer with essential hardware only. The purpose is
to remove as much as hardware as possible while still maintaining the computer’s ability to turn on.
This essential conguration is often used to troubleshoot power-on related issues, such as no-boot, reboot,
and freezing issues.
The essential hardware consists of the following:
●
System board
●
AC adapter (unplug nonremovable battery or remove battery)
●
Processor (and heat sink/fan). (Processor may be integrated into the system board.)
●
Memory (one veried working memory DIMM)
●
Graphics card (if no VGA port is available on the system board). Platform may have both Intel integrated
graphics and discrete graphics. Therefore, discrete graphics card may not be needed.
●
External VGA monitor
76 Chapter 7 Troubleshooting guide
Page 91
●
External USB keyboard
●
External mouse
NOTE: After the service door is removed, disconnect all connections (internal keyboard, display, discrete
GPU, hard drive/solid-state drive, daughterboards, etc.) to achieve the essential hardware conguration
above. DO NOT disassemble the system board from its enclosure at this time.
Reverse the procedure above by reinstalling each piece of hardware removed, one piece at a time, and testing
your computer after each installation. Since your computer works with only the essential hardware installed,
those parts must be working properly. This means that one of the hardware components removed is causing
the computer to not work properly. By installing each device back into the computer and testing each time,
the failing hardware will eventually be
identied.
Safe mode
A driver conict often results in a blue screen error message. Therefore, booting in safe mode can resolve
many issues in Windows because safe mode forces the computer to load a limited version of Windows which
only contains essential les. Safe mode is useful for troubleshooting problems with programs and drivers
that might not start correctly or that might prevent Windows from starting correctly.
If a problem does not reappear when you start in safe mode, eliminate the default settings and basic device
drivers as possible causes. Refer to the links below for how to start your computer in safe mode:
●
HP PCs – Windows 7 Safe Mode
●
HP PCs – Windows Safe Mode (Windows 10, 8)
12. Test with veried working conguration (hardware and/or operating system)
One troubleshooting technique that can quickly isolate an issue is using a veried working part while testing.
A good example is to use an external keyboard, mouse, or VGA monitor when you have issues with an internal
keyboard, TouchPad, or display. Testing with a veried working AC adapter can identify an error caused by a
faulty one. Similarly, testing with a veried working operating system can determine bad behaviors of the
current operating system. See Non HP diagnostics tools on page 70 for instructions about obtaining and using
a Windows-To-Go USB.
NOTE: In some situations, more than one item may contribute to a problem.
13. Replace the system board
The system board may be replaced only by authorized service providers. This should not be considered an
initial step taken to resolve an issue. Review and perform all steps discussed previously before replacing the
system board. 4. Update BIOS and drivers on page 66, 7. Status lights, blinking light codes, troubleshooting
lights, and POST error messages on page 71, 8. Hard reset on page 74, and 9. Soft reset (Default Settings)
on page 75, and/or 10. Reseat cables and connections on page 75 can resolve many system board issues
without requiring the eort of replacing unnecessary hardware.
Review Table 7-1 Troubleshooting methodology and general troubleshooting steps on page 62 for
appropriate troubleshooting steps.
IMPORTANT: System board failure is not common. Do not replace the system board until you have tried all
other troubleshooting options.
NOTE: Determine whether a previous service case might be related to the current problem. For example, a
fan detection issue may be caused by a loose connection resulting from previous service.
TIP: Without an RTC battery (3V coin-cell battery), the computer automatically reboots. This is a useful
feature when the power connector cable (between external AC adapter and system board) is defective.
General troubleshooting steps 77
Page 92
NOTE: Most of the time, eective troubleshooting can prevent a system board replacement.
Items that may prevent resolution of the issue:
●
The information provided about the issue omits key details, including any actions taken before the issue
occurred.
●
BIOS, software, and drivers have not been updated.
●
Cables or connections are loose.
●
Technician is unaware of information available from the HP Support website (i.e., CA - Customer
Advisory).
●
The issue is related to existing or known issues that may be identied in existing support articles.
●
Technician may have omitted steps in the provided repair instructions (e.g., Spare Part Replacement
Instructions).
●
Skipping one of steps from Troubleshooting Methodology table results in No Defect Found (NDF)/No
Fault Found (NFF)/No Issue Detected (NID) messages.
Verify solution
●
Verify that the implemented solution works. Reboot the system or device and try to complete the task
that produced the issue.
●
If a part has been replaced, verify other basic functions. For example, GPU replacement requires
keyboard removal. Therefore, it is good practice to verify all basic components to be sure that the
solution is complete.
●
Explain to the customer why the issue occurred and what was done to resolve it. If the solution you used
was in an HP Public document, provide the document information to the customer, letting them know it
can be located on www.hp.com. Also, tell them that there are other solutions available on the website.
Advise the customer to check the website rst when they have an issue. It may save them time calling in.
●
Document the correct issue. Update the case with as many details as possible for other agents and
engineering to analyze and study for lessons learned.
Helpful Hints
After you become familiar with the general troubleshooting steps above (General troubleshooting steps
on page 62), follow the helpful hints below before running diagnostics and troubleshooting.
At startup
TIP: If you have installed an operating system other than the factory-installed operating system, go to
http://www.hp.com/go/quickspecs and verify that it is supported on your system.
1. Be sure that the computer is plugged into a working AC outlet.
2. Be sure that power is connected to the docking station if a dock is used.
3. Be sure that the AC adapter light is on.
4. Be sure that the AC adapter is connected when you update BIOS to avoid BIOS corruption.
5. Be sure that the computer is turned on, the rear power light is solid white (connected to an external
power source) and the front power light is solid white (normal operation).
6. Remove all optical and ash drives from your system before turning it on.
78 Chapter 7 Troubleshooting guide
Page 93
7. Be sure that the boot option is set to a working operating system drive.
8. Be sure that externally connected monitors are turned on and their power lights are on. Not all monitors
are equipped with lights to indicate their functionality.
9. Turn up the brightness and contrast controls of a display or external display device if the screen is dim.
During operation
1. To wake the computer:
a. Press the power button or any key on the keyboard.
b. If the system remains in the Sleep (Windows), Suspend (Linux), or Hibernate state, shut down the
system by pressing and holding the power button for at least four seconds.
c. If the system does not shut down, unplug the power cord, wait a few seconds, and then plug it in
again. Then press the power button again to restart the system. If it does not turn on, press the
power button to start the computer.
2. Look for blinking lights on the computer. The blinking lights could be error codes that will help diagnose
the problem.
3. Check all cables for loose or incorrect connections (external devices, power cords, dock, etc.).
4. After installing a non-Plug and Play expansion board or other option, recongure the computer. For
example, if you upgrade to a solid-state drive, you may need to recongure the boot order.
5. Be sure that all required device drivers have been installed. For example, if you have connected a printer,
you must install a printer driver.
6. If there is a network connection issue, plug another computer with a dierent cable into the network
connection. There might be a problem with the network plug or cable.
7. If hardware has recently been installed, remove it and determine whether the computer functions
properly.
8. If software has recently been installed, uninstall it and determine whether the computer functions
properly.
9.
If the screen is blank, conrm the display choice by pressing Windows logo + P and set to screen
only. Or plug an external monitor into a dierent video port on the computer if one is available and close
the computer lid.
10. Verify that the latest version of BIOS, drivers, and software are installed. A new release might support
new features or x the problem.
11. Press the caps lock and/or num lock key. If the caps lock and/or num lock light toggles on or o, the
keyboard is likely operating correctly.
12. Press the TouchPad On/O button light. If the light toggles on or o, the TouchPad is likely operating
correctly.
Consulting with HP Service
If further HP support is required, a lot of the following information may be requested when you call, so it may
be helpful to take notes.
●
Technical support registration number (if applicable)
●
Product serial number
Helpful Hints 79
Page 94
●
Product model name and number
●
Product identication number
●
Applicable error messages
●
Add-on boards or hardware
●
Third-party hardware or software
●
Operating system type and revision level
Common issues and possible solutions
This section contains common issues, symptoms, and a series of tables that describe possible solutions to
issues from Failure classication on page 63 tables. The following sections identify the issue with symptoms
and solutions to resolve an issue.
Power-on issues
No Power
When a unit experiences no power there are several contributing factors to consider. Be sure to consider all
symptoms related to this behavior in troubleshooting.
Symptoms
●
Computer does not start
●
Display is black or blank
●
No fan noise
●
No hard drive spinning
●
Lights do not glow
Possible causes
Failed power input to the computer (external power source, AC adapter, faulty battery).
Bad connection to the computer (bad power button, power connector).
Defective parts (memory, hard drive, graphics) or failed system board.
Troubleshooting steps
Perform quick check
Remove all external devices, including docking station.
Verify external power source (2. Examine the environment on page 65).
Perform a hard reset (8. Hard reset on page 74).
Verify AC adapter
It is preferable to verify the battery before verifying the AC adapter. However, you can
verify the AC adapter rst, before opening the service door for a battery check.
●
Verify AC adapter is compatible with product. Verify that the part number is for
this computer if possible.
●
Verify AC adapter and power cord are good (no physical damage, bent middle ID
pin).
●
Verify AC adapter works on a veried working computer.
●
Plug in AC adapter and power on computer without battery.
●
Inspect power port on computer side for any damage, dust, or debris.
80 Chapter 7 Troubleshooting guide
Page 95
●
Check power light (7. Status lights, blinking light codes, troubleshooting lights,
and POST error messages on page 71). Rear power light indicates external power
to the computer is good.
NOTE: Refer to battery replacement section
for removing/replacing the battery
Verify battery condition/status
1. Check battery condition (overall result, cycle life, voltage, etc.) using HP PC
Hardware Diagnostics (UEFI) or HPSA tools.
2. Verify that battery is installed properly in battery bay without a gap and that
latch locks are tight (for models with removable batteries).
3. Check battery status light (7. Status lights, blinking light codes, troubleshooting
lights, and POST error messages on page 71). Be sure that battery is not fully
discharged, preventing system from booting.
4. Determine whether the computer can turn on with battery only.
5. Remove service door and test with a veried working battery. If the computer
boots, inspect original battery before replacement.
6. Test battery with a veried working computer to verify that it is OK.
7. If there is still no boot, remove battery and boot on AC power only.
The sections below are intended for authorized service providers/technicians.
Verify AC adapter – voltage
1. Measure DC voltage output that should be around 19.5 VDC and acceptable
voltage range is from 18.5 – 20.5 VDC.
2. If the DC voltage is out of range, replace the AC adapter.
NOTE: This action requires a digital voltmeter.
NOTE: 2015 mWS does not have the power
cable between system board and power
connector on chassis
Verify power button, power connector
1. Be sure that power button is not stuck.
2. Reseat power connector cable (if applicable).
3. Replace new power connector cable (if the cable exists and is defective)
4. To isolate faulty power connector cable and power button, technicians can short
power-on pads/pins to power up the computer. Contact HP Engineering for this
information.
Verify blinking lights (7. Status lights, blinking light codes, troubleshooting lights,
and POST error messages on page 71)
At this point, there should be sucient power from the AC adapter to the system
board. Expect to hear the fan spinning and see blinking lights or error messages (i.e.,
faulty memory, HDD, etc)
Verify Power Good (Troubleshooting) lights
1. Verify if the system board has power-on issue related. If there is no power-on
issue, move to next steps. For more information, see Power Good
(Troubleshooting) lights on page 73.
2. Verify all connections and reseat parts (10. Reseat cables and connections
on page 75).
Verify system board
1. Test essential hardware conguration (11. Test with minimum conguration
on page 76, 12. Test with veried working conguration (hardware and/or
Common issues and possible solutions 81
Page 96
operating system) on page 77, 13. Replace the system board on page 77) by
removing nonessential parts.
2. If there is still no boot, replace system board.
Tips and tricks Computer automatically boots without pressing power button when RTC 3V battery
has been removed. Therefore, after the service door and RTC 3V battery are removed,
no need to press power button from top side.
In essential hardware conguration, mWS G1 and G2 may require discrete GPU to boot.
However, mWS G3 can boot with integrated graphics.
See Overview of How to Troubleshoot Problems When a Computer Does Not Start Up
or Boot Properly
Intermittent power-on, shutdown, reboot
Symptoms
●
Does not always turn on
●
Intermittently hangs
●
Intermittently shuts down
●
Spontaneously reboots
Possible causes
Electrical short, uctuating power source, unstable power rails, loose connections, bent pins,
stray wires, dust, obvious damage, nearly faulty parts (bulging/leaking capacitor).
Potentially will turn into a no power issue soon (No Power on page 80).
Troubleshooting steps
1. Visually check power ports on both AC adapter and computer sides.
2. Inspect power sources:
a. Verify AC adapter working correctly. Use a conrmed working adapter to test.
b. Verify that battery is not depleted while system is in Sleep state. Test with a
conrmed working battery.
The sections below are intended for authorized service providers/technicians.
1. Follow actions in No Power on page 80.
a. Be sure that AC adapter has correct DC voltage.
b. Verify battery - test with a conrmed working battery.
c. Verify that power button is not stuck.
d. Verify that power connector is not loose.
e. Verify that Power Good LEDs are solid.
f. Remedy loose connections and reseat major components (processor, memory, GPU,
hard drive/solid-state drive, etc).
2. Perform visual check for loose connections, bent pins, stray wires, dust, nearly faulty parts
(bulging/leaking capacitor).
3. Test essential hardware conguration (11. Test with minimum conguration on page 76)
a. If system boots, reinstall nonessential hardware one component at a time to isolate
issue.
b. If system does not boot, replace essential hardware with veried working parts, one
component at a time. If system still does not boot, replace system board.
82 Chapter 7 Troubleshooting guide
Page 97
AC adapter issue
Solution
Symptoms
●
No sign of power
●
No boot
●
No rear power light
●
No front power light
●
Battery does not charge when AC
adapter is connected
Possible causes
AC adapter and others (i.e., external power source)
Troubleshooting steps
Quick check
1. Verify external power source (2. Examine the environment on page 65).
2. Remove all external devices, including docking station.
3. Perform a hard reset for the computer (8. Hard reset on page 74).
4. Disconnect and reassemble the power cord and adapter in case the adapter
experienced short circuit, over current, over temperature events.
5. Use a veried working adapter. If the computer operates normally, there is a
problem with the original adapter.
6. Verify that the AC adapter works on a veried working computer. If the computer
operates normally, there is no problem with the adapter. See HP Smart Adapter
warning message on page 97 for further information.
Verify AC adapter
1. Remove working battery.
2. Verify that AC adapter is compatible with product. Verify that part number is for
this computer if possible.
3. Inspect AC adapter and power cord for physical damage, bent middle ID pin.
4. Plug in AC adapter and power the computer without battery.
5. Inspect the power port on computer side for any damage, dust, debris.
6. Check power light (7. Status lights, blinking light codes, troubleshooting lights,
and POST error messages on page 71). Rear power light indicates that external
power to the computer is good.
7. If there is still no rear power light or no boot, replace the AC adapter.
Tips and tricks The HP Smart AC adapter has a special pin in the middle, called the ID pin, for power
rating and throttling purpose. If this pin is broken, the rear power light will be on but
the power button and front power lights will blink continuously and the computer will
not turn on. Third party AC adapter will not work on the computer.
Use the AC adapter that came with the computer for better performance.
See HP Notebook PCs - Testing and Using the AC Power Adapter
Battery not recognized, not charging
Symptoms
●
No battery status light
●
Blinking amber (critically low
battery level)
●
No boot without AC adapter
Possible causes
Defective AC adapter and/or battery.
NOTE: Before proceeding, verify that the computer can boot to BIOS or Windows with a
good AC adapter.
Common issues and possible solutions 83
Page 98
Troubleshooting steps
Visual inspections
1. Inspect battery connectors for any signs of damage.
2. Verify that battery is installed properly in battery bay without gap or obstructions and
latch locks are tight. Reseat battery (for models with removable batteries).
3. Determine whether battery gets hot (batteries heat up when charging, but not too hot
to touch).
Check battery warranty to see whether the battery is new or its warranty is expired. Battery
capacity degrades over time.
Verify front battery status light
1. Battery status light is o: battery not recognized.
2. Battery status light is blinking amber: critically low battery level.
Reset
1. Hard reset (8. Hard reset on page 74)
2. Soft reset (9. Soft reset (Default Settings) on page 75)
Verify AC adapter
1. Determine whether the computer needs the AC adapter to boot and operate.
Sometimes, intermittently bad AC adapter and loose connection between adapter and
computer results in inability to charge battery which causes short run time.
2. Inspect AC adapter to verify that it is functioning.
3. Test with a working AC adapter and conrm whether battery is charging.
4. Be sure that battery is fully charged (AC adapter plugged in at least 2.5 hours).
Diagnostics: HP tools will report results such as passed, calibrate, weak, replace, no battery
and unknown, and suggest corresponding actions.
Use HP Hardware Diagnostics (UEFI) (6. HP Hardware Diagnostics and Tools on page 67)
●
HP PC Hardware Diagnostics (UEFI) is a good tool to use to isolate and determine faulty
battery, especially for quickly discharging (short life) battery.
Use HP Support Assistant tools in Windows (HP Support Assistant (HPSA) on page 69)
1. Verify that battery is recognized and charging.
2. Verify battery condition if battery cycle life is over specs (i.e., long life of 1000-cycle life
and 3-year warranty). Battery may have premature capacity loss within its cycle life or
warranty.
3. If issue remains, test with a veried working battery and verify battery status lights
and battery conditions.
4. If issue remains, replace system board.
5. Verify the new replacement.
Tips and tricks
See the computer user guide for instructions regarding battery maintenance and increasing
battery life.
●
Reference: HP Notebook Mobile Workstations - Improving Battery Performance
(Windows 10, 8, 7, Vista)
●
Reference video: Testing and Calibrating the Battery on PC Notebooks
84 Chapter 7 Troubleshooting guide
Page 99
Battery discharges too fast
Symptoms
Battery has good status light but discharges
too fast
Possible causes
AC adapter and/or battery.
Troubleshooting steps
Verify AC adapter
Determine whether the computer needs the AC adapter to boot and operate.
Sometimes, intermittently bad AC adapter and loose connection between adapter and
computer results in inability to charge battery and causes short run time.
1. Inspect AC adapter to verify that it is working.
2. Test with AC adapter alone and with a veried working AC adapter.
Verify battery: Battery capacity can degrade over time, so check the warranty
coverage. Run a battery test to conrm if issue is hardware-related.
1. Review battery power plans in Control Panel > Power Options that may consume
more energy and discharge battery faster. Resetting default to Power Saver
option can conserve battery power.
2. Determine whether any graphics processing is running.
3. Verify battery maintenance and operations. Leaving the battery at a high level of
charge in a high-temperature environment for extended periods accelerates the
loss of capacity.
4. Test and calibrate battery using HP PC Hardware Diagnostics (UEFI).
5. Verify battery life cycle using HP Support Assistant tool.
If battery cycle life is over specs (long life battery of 1000-cycle life and 3-year
warranty), battery may have capacity loss beyond its lifecycle or warranty.
6. Compare discharge time with a veried working battery (remove AC adapter)
using Hardware Diagnostics (UEFI) > Hard Drive Tests > Extensive Test > Loop
until error.
Tips and tricks To conserve battery power, turn o Wireless On-O button and other peripherals/USB
devices, applications, processes (in Task Manager) when not in use; also, reduce screen
brightness.
Follow HP instructions of how to maintain battery and increase battery life.
Reference: HP Notebook Mobile Workstations - Improving Battery Performance
(Windows 10, 8, 7, Vista)
Reference video: Testing and Calibrating the Battery on PC Notebooks
Common issues and possible solutions 85
Page 100
Burnt smell
Symptoms
Emits smoke, burnt smell
Possible causes
Defective on-board components.
Troubleshooting steps
General visual inspection
1. Disconnect the computer from power source (AC adapter and battery).
2. Inspect for visual damage on AC adapter and battery. Test on a known working
computer to isolate issue. If issue follows AC adapter or battery, replace it.
3. Inspect any sign of liquid spill on the computer (back of keyboard).
The sections below are intended for authorized service providers/technicians.
Further inspection on components
1. Inspect further sources internally after disassembling chassis, such as burnt or
damaged components.
2. If the issue persists, replace boards, AC adapter, and battery for safety concern
and report issues to HP.
POST
No video (with power)
Symptoms
●
No video (black/blank image) but
have power
●
Light activity
●
No error messages
●
Fan noise
●
Hard drive light blinking and hard
drive noise
Possible causes
Failed display
Failed critical components (memory, hard drive, system board)
Loose connection
Recently added hardware
NOTE: Assume the computer has not previously been set up for multiple displays.
Troubleshooting steps
Quick check
1. Verify that system light activity is OK.
2. Remove all external devices, including docking station. Recently added hardware
and/or applications may cause graphics driver conict and result in loss of video.
3. Perform hardware reset (8. Hard reset on page 74) and verify that HP Logo is presented
correctly on display screen when pressing F10.
4. Test with external monitor via VGA port (or DisplayPort, HDMI, etc). Press power button
and close the computer lid to force video output to external video. If unsuccessful,
contact HP service.
86 Chapter 7 Troubleshooting guide
