Product Features
Standard Configuration Features
The HP workstation xw4000 can be easily converted to a desktop.
Features may vary depending on your model. For a complete listing
of the hardware and software installed on your computer, run
Diagnostics for Windows or the INSPECT utility (available on some
models). Instructions for using these utilities are provided in the
Troubleshooting Guide on the Documentation Library CD.
1
Hardware Reference Guide 1–1
Product Features
Front Panel Components
1 Diskette drive activity light 7 CD-ROM eject button
2 Dual-state power button 8 CD-ROM drive busy indicator
3 Power-on light 9 Diskette drive eject button
4 Headphone connector - Hard drive activity light
5 1394 connector (optional)* q Microphone connector
6 Universal Serial Bus (USB) connectors
*Your workstation is equipped with a 1394 connector. This connector is functional only when
an optional 1394 PCI expansion board is installed.
1–2 Hardware Reference Guide
Rear Panel Components
Product Features
Rear Panel Components*
1 Power Cord Connector 7 Parallel Connector
2 Mouse Connector 8 Monitor Connector
3 Keyboard Connector 9 Headphone/Line-out Connector
4 Universal Serial Bus (USB) Connector - Line-in Audio Connector
5 Serial Connector (COM1) q Microphone/Line-in Connector
6 Ethernet RJ-45 Connector w Serial Connector (COM2)
*Arrangement and number of connectors may vary by model.
Hardware Reference Guide 1–3
Product Features
Using the Keyboard
Easy Access Keyboard Components
1 Ctrl Key Used in combination with another key; its effect depends on
the application software you are using.
2 Windows Logo Key* Used to open the Start menu in Microsoft Windows. Used in
combination with other keys to perform other functions. (See
the following section.)
3 Alt Key Used in combination with another key; its effect depends on
the application software you are using.
4 Application Key* Used (like the right mouse button) to open pop-up menus in a
Microsoft Office application. May perform other functions in
other software applications.
5 Internet Keys Provides quick access to specific Internet destinations.
6 Editing Keys Includes the following: Insert, Home, Page Up, Delete,
End, and Page Down.
Holding down
✎
allows you to restart your computer.
*Keys available in select geographic regions.
1–4 Hardware Reference Guide
Ctrl
and
while pressing
Alt
Delete
Product Features
Easy Access Keyboard Components
7 Num Lock light Indicates whether the Num Lock feature is on or off.
8 Caps Lock light Indicates whether the Caps Lock feature is on or off.
9 Scroll Lock light Indicates whether the Scroll Lock feature is on or off.
(Continued)
Windows Logo Key
Use the Windows Logo Key in combination with other keys to
perform certain functions available in the Windows operating
systems.
Windows Logo Key + F1 Displays a pop-up menu for the selected object
Windows Logo Key + Tab Activates the next Taskbar button
Windows Logo Key + e Launches Explore My Computer
Windows Logo Key + f Launches Find Document
Windows Logo Key + Ctrl + f Launches Find Computer
Windows Logo Key + m Minimizes all open applications
Shift + Windows Logo Key + m Undoes Minimize All
Windows Logo Key + r Displays the Run dialog box
Hardware Reference Guide 1–5
Product Features
Easy Access Software
Your Easy Access Keyboard Buttons are programmed to default
assignments. The pre-installed Easy Access Software allows you to
reprogram the Easy Access Buttons to reflect your personal
preferences. The buttons can be reprogrammed to any program or
service of your choice or to any Web site (URL).
Reprogramming the Easy Access Buttons
The Easy Access Keyboard icon is located on the Windows desktop
status bar. Refer to the Readme-user.txt file for instructions about
reprogramming the Easy Access Buttons.
Locking and Unlocking the Easy Access Buttons
The System Administrator can lock and unlock the Easy Access
Buttons. Once locked, the buttons can only be reprogrammed by
modifying the .bcf file. For administrative privileges, which require
control of the Easy Access Button destinations, refer to the
Readme-admin.txt file.
Easy Access Paper Icon Insert
The paper icon insert functions as a visual aid in identifying the
programmed destination of each Easy Access Button. Whenever you
reprogram an Easy Access Button, use the Paper Insert Template
document to select and print an icon that reflects the new button
assignment. The Paper Insert Template.doc is installed, by default,
under C:\Program files\Compaq\Easy Access Keyboard.
For proper alignment, the spacing around the icons may require
✎
adjustment.
1–6 Hardware Reference Guide
Special Mouse Functions
Most software applications support the use of a mouse. The functions
assigned to each mouse button depend on the software applications
you are using.
Serial Number Location
Each computer has a unique serial number which is located on the
access panel or on the rear of the unit. Keep this number available for
use when contacting customer support for assistance.
Product Features
Serial Number Location
Hardware Reference Guide 1–7
Product Features
Changing from a Minitower to a Desktop Configuration
1. Shut down the operating system properly, then turn off the
computer and any external devices. Disconnect the power cord
from the power outlet and disconnect any external devices.
2. Remove the computer access panel as described in the section
“Removing the Computer Access Panel.”
3. Remove the front bezel as described in the section “Removing the
Front Bezel.”
4. Disconnect all power and data cables from the drives in the
5.25-inch drive bays.
5. To release the drives from the 5.25-inch drive bay, press the long
(green) drivelock
as shown.
1

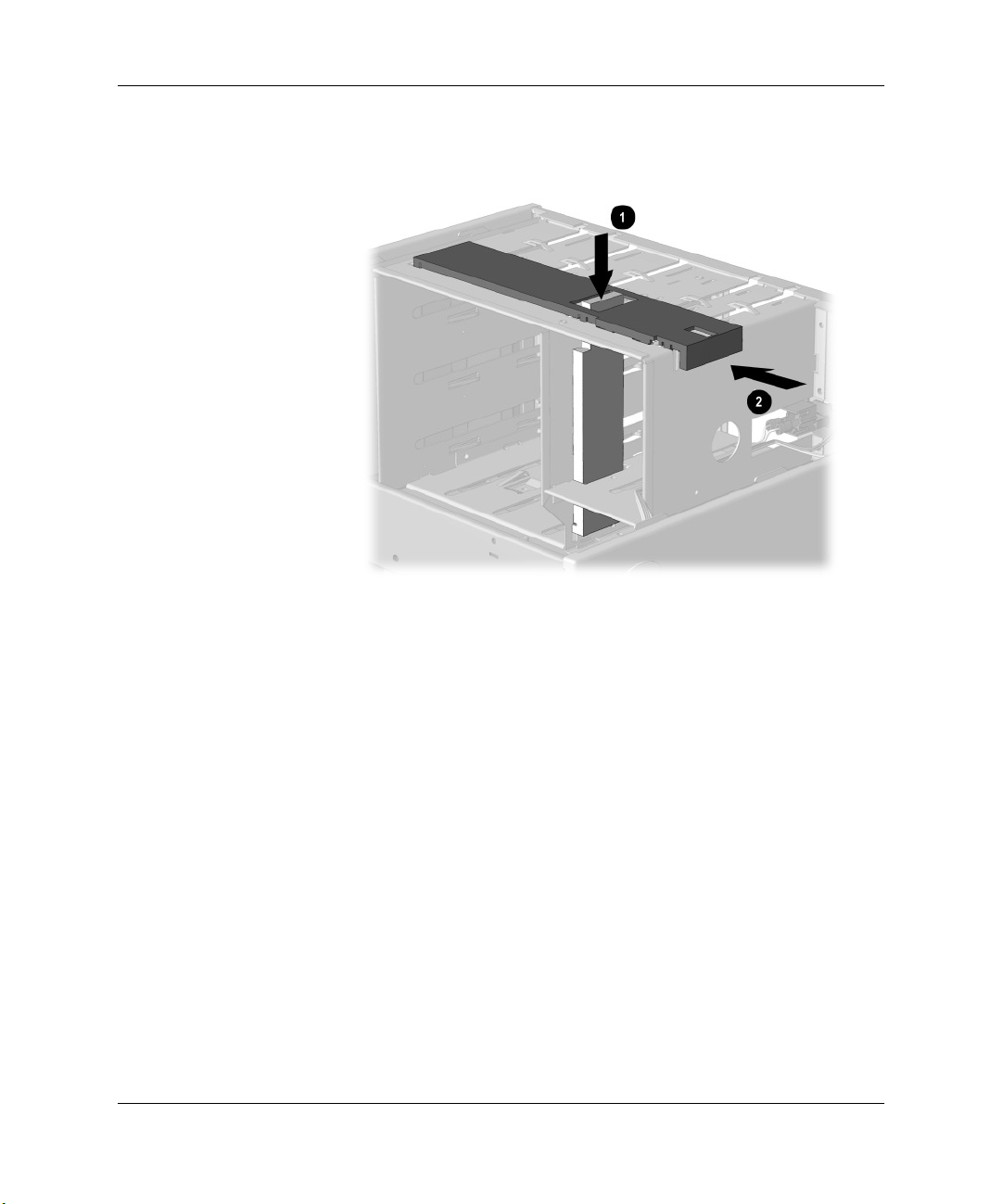

Activating the Drivelock (Shown from the Rear of the Chassis)
1–8 Hardware Reference Guide
6. While pressing the drivelock, pull the drives out of the drive bay.
7. Before you install each drive into the chassis, turn it so that it is
perpendicular to the internal 3.5-inch drive. The bottom of the
drive should be parallel to the green drivelock.
The diskette drive should always be placed in the bay nearest the top
✎
of the chassis in the desktop configuration for proper drive clearance
and access.
Product Features
Installing a Drive in the Desktop Configuration
8. Gently slide the drive into the bay. When the drive is properly
inserted, the drivelock will secure it.
CAUTION: The use of unnecessary force may result in damage to the
Ä
drives.
Hardware Reference Guide 1–9
Product Features
9. Reconnect all power and data cables to the drives in the 5.25-inch
drive bays.
10. Remove the subpanel as described in the section “Removing
Bezel Blanks” and reposition it with the bezel blanks in the
proper orientation for the desktop configuration.
11. Remove the chrome logo plate from the subpanel and reposition
it (rotate it 180°) with the logo plate in the proper orientation for
the desktop configuration, then snap it back into the subpanel.
CAUTION:
Ä
front bezel. Pulling the subpanel away at an angle could damage the pins
that align it within the front bezel.
Changing from a Minitower to a Desktop Configuration
12. Replace the subpanel, front bezel, and the computer access panel.
13. Reconnect the external equipment.
Hold the subpanel straight when you pull it away from the
1–10 Hardware Reference Guide
Changing from a Desktop to a Minitower Configuration
1. Shut down the operating system properly, then turn off the
computer and any external devices. Disconnect the power cord
from the power outlet and disconnect any external devices.
2. Remove the computer access panel as described in the section
“Removing the Computer Access Panel.”
3. Remove the front bezel as described in the section “Removing the
Front Bezel.”
4. Disconnect all power and data cables from the drives in the
5.25-inch drive bays.
5. To release the drives from the 5.25-inch drive bay, press the short
(yellow) drivelock
as shown.
1
Product Features
Activating the Drivelock (Shown from the Rear of the Chassis)
Hardware Reference Guide 1–11
Product Features
6. While pressing the drivelock, pull the drives out of the drive bay.
7. Before you install each drive into the chassis, turn it so that it is in
the same orientation as the internal 3.5-inch drive. The bottom of
the drive should be parallel to the yellow drivelock.
The diskette drive should always be placed in the bay nearest the
✎
internal 3.5-inch drives in the minitower configuration for proper
clearance within the chassis.
Installing a Drive in the Minitower Configuration
8. Gently slide the drive into the bay. When the drive is properly
inserted, the drivelock will secure it.
CAUTION: The use of unnecessary force may result in damage to the
Ä
drives.
9. Reconnect all power and data cables to the drives in the 5.25-inch
drive bays.
10. Remove the subpanel as described in the section “Removing
Bezel Blanks” and reposition it with the bezel blanks in the
proper orientation for the minitower configuration.
CAUTION: Hold the subpanel straight when you pull it away from the
Ä
front bezel. Pulling the subpanel away at an angle could damage the pins
that align it within the front bezel.
1–12 Hardware Reference Guide
Product Features
11. Remove the chrome logo plate from the subpanel and reposition
it (rotate it 180°) with the logo plate in the proper orientation for
the minitower configuration, then snap it back into the subpanel.
Changing from a Desktop to a Minitower Configuration
12. Replace the subpanel, front bezel, and the computer access panel.
13. Reconnect the external equipment.
Hardware Reference Guide 1–13
Installation Sequence
It is very important that you follow this sequence of steps to ensure
the proper installation of any optional equipment.
1. If your computer includes the Smart Cover Lock feature and you
have set the lock, use Computer Setup to unlock the lock and
disable the Smart Cover Sensor.
For more information about Computer Setup, refer to the
Computer Setup Guide.
2. If the computer is already on, turn it off and disconnect the power
cord from the wall outlet.
WARNING: To reduce the risk of personal injury from electrical shock
Å
and/or hot surfaces, be sure to disconnect the power cord from the wall
outlet and allow the internal system components to cool before touching.
2
Hardware Upgrades
WARNING:
Å
equipment, do not plug telecommunications or telephone connectors into
the network interface controller (NIC) receptacles.
CAUTION:
Ä
the computer or optional equipment. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object. See Appendix E, “Electrostatic Discharge,” for
more information.
3. Open the computer by removing its outside cover. See the section
“Removing the Computer Access Panel.”
Hardware Reference Guide 2–1
To reduce the risk of electrical shock, fire, or damage to the
Static electricity can damage the electronic components of
Hardware Upgrades
4. Install any optional equipment. See the applicable sections of this
guide or refer to the documentation provided with the optional
equipment for instructions.
5. Replace the computer cover.
6. Turn on the monitor, computer, and any devices you want to test.
7. Reconfigure the computer, if necessary. Refer to the Computer
Setup Guide for instructions about using Computer Setup.
If you normally lock the Smart Cover Lock, use Computer Setup to
relock the lock and enable the Smart Cover Sensor.
Smart Cover Lock
The Smart Cover Lock is an optional feature included on select
✎
models only.
The Smart Cover Lock is a software-controllable cover lock,
controlled by the setup password. This lock prevents unauthorized
access to the internal components. The computer ships with the
Smart Cover Lock in the unlocked position. For more information
about locking the Smart Cover Lock, refer to the Desktop
Management guide.
Using the Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password
to disable the lock, you will need a Smart Cover FailSafe Key to open
the computer cover. You will need the key in any of the following
circumstances:
Power outage
■
Startup failure
■
PC component (for example, processor or power supply) failure
■
Forgotten password
■
CAUTION: The Smart Cover FailSafe Key is a specialized tool available
Ä
from HP. Be prepared; order this key before you need one.
2–2 Hardware Reference Guide
To obtain a FailSafe Key:
Contact your authorized HP reseller or service provider.
■
Hardware Upgrades
Refer to the HP Web site
■
(http://www.hp.com)
for ordering
information.
Call the appropriate number listed in the warranty.
■
To open the access panel:
1. Turn off the computer and any external devices.
2. Disconnect the power cord from the power outlet and disconnect
any external devices.
3. Using the Smart Cover FailSafe Key, remove the two
tamper-proof screws that secure the Smart Cover Lock to the
chassis.
Removing the Smart Cover Lock Screws
4. Remove the access panel.
To reattach the Smart Cover Lock, secure the lock in place with the
tamper-proof screws.
Hardware Reference Guide 2–3
Hardware Upgrades
Removing the Computer Access Panel
Before removing the access panel, lay the computer down on its large
base for greater stability.
1. If you have locked the Smart Cover Lock, see the previous
section on Smart Cover Lock or use Computer Setup to unlock it.
2. Shut down the operating system properly, then turn off the
computer and any external devices.
3. Disconnect the power cord from the power outlet and disconnect
any external devices.
CAUTION:
Ä
computer is turned off and that the power cord is disconnected from the
electrical outlet. Loosen the two screws that secure the access panel to the
computer chassis.
4. Slide the access panel back about 1 inch (2.5 cm), then lift it up
and off the unit.
Before removing the computer access panel, ensure that the
Removing the Computer Access Panel
To replace the access panel, reverse steps 1-4.
2–4 Hardware Reference Guide
Removing the Front Bezel
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices. Disconnect the power cord
from the power outlet and disconnect any external devices.
Remove the computer access panel.
Hardware Upgrades

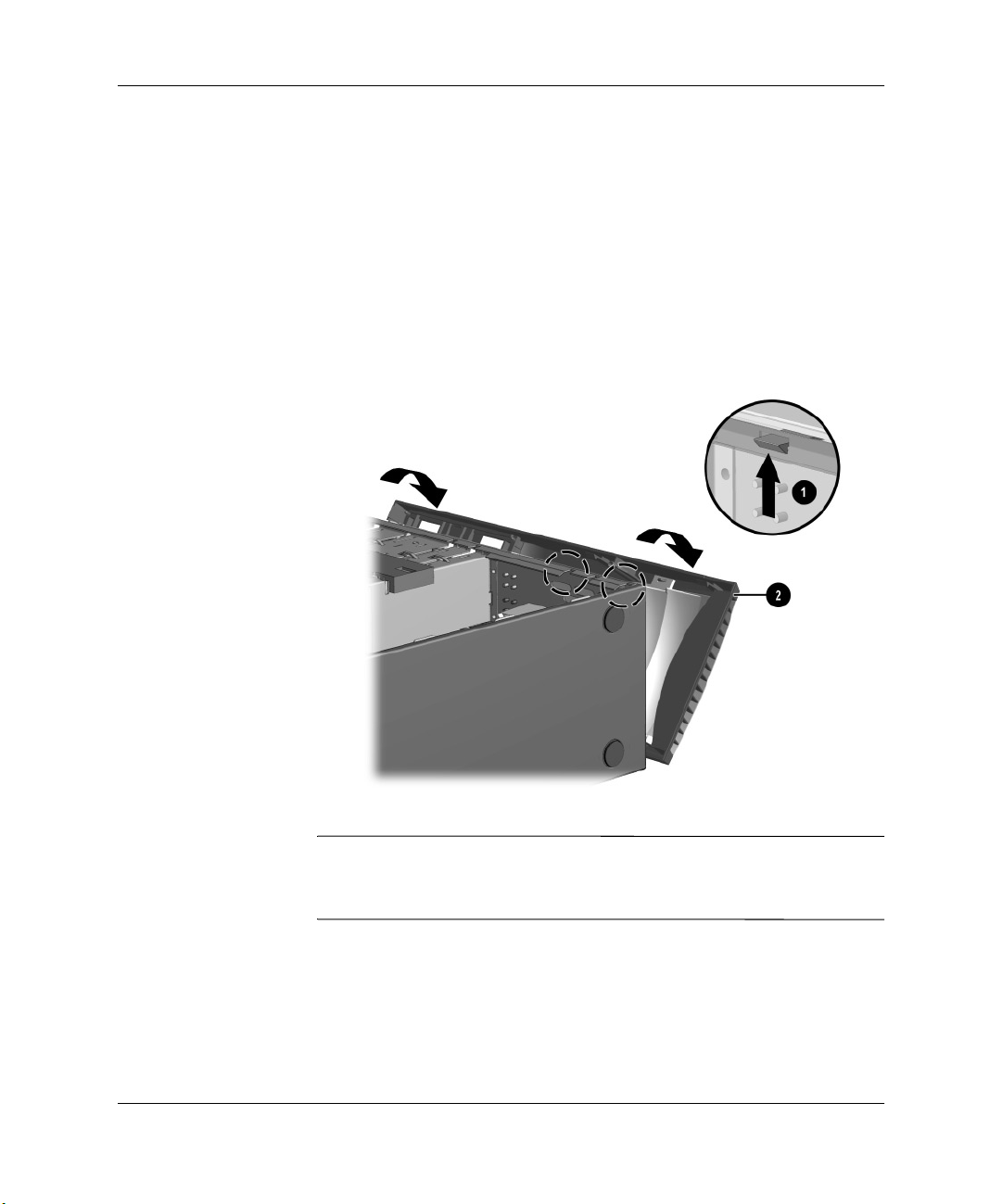

3. Push up on the two release tabs
away from the chassis to release it
Removing the Front Bezel
When replacing the front bezel, ensure that the bottom hinge points
✎
are properly placed in the chassis before rotating the front bezel back
into its original position.
, then rotate the front bezel
1
.
2
Hardware Reference Guide 2–5
Hardware Upgrades
Removing Bezel Blanks
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices. Disconnect the power cord
from the power outlet and disconnect any external devices.
3. Remove the computer access panel. Remove the front bezel.

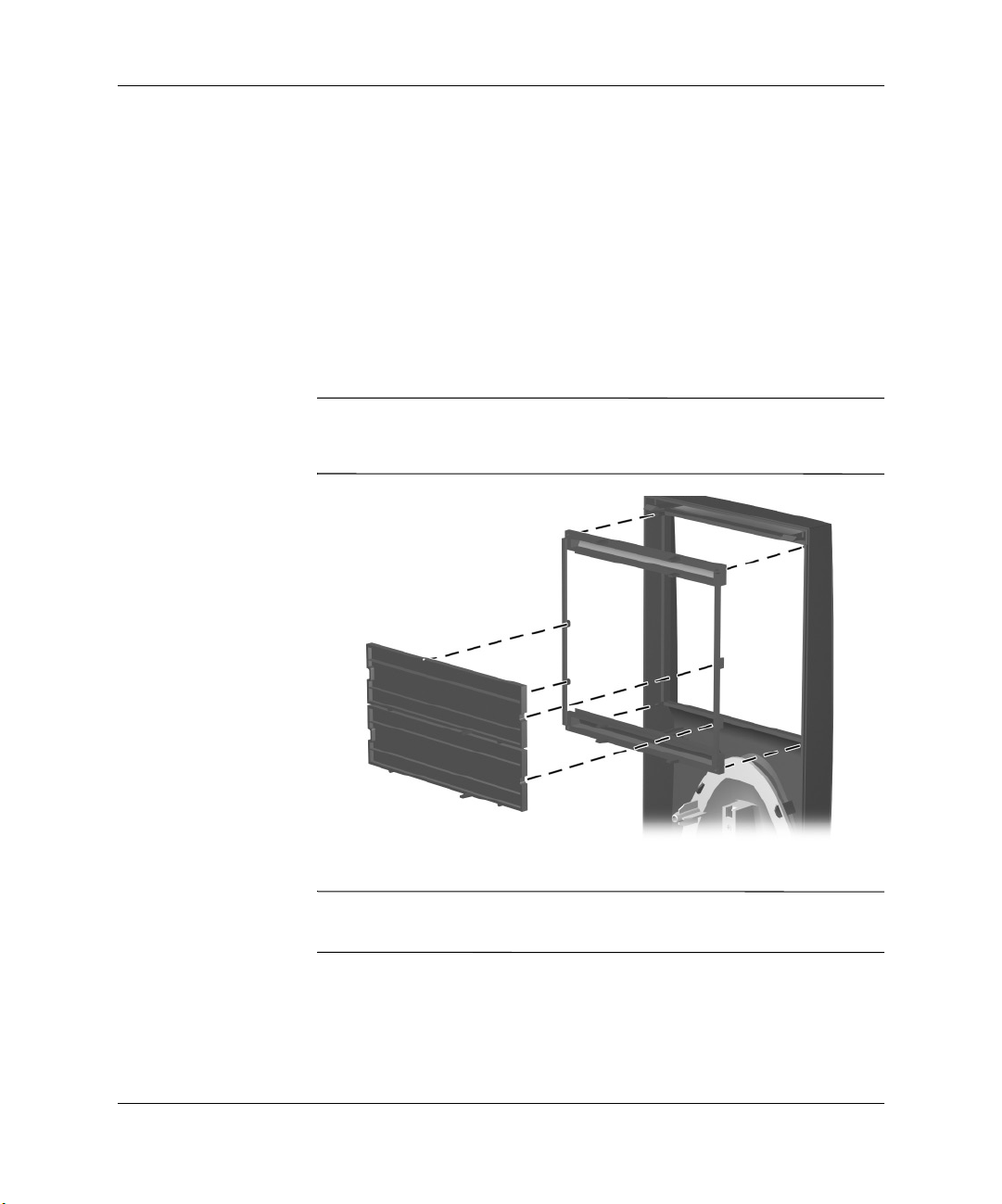

4. Gently pull the subpanel, with the bezel blanks secured in it,
away from the front bezel, then remove the desired bezel blank.
CAUTION:
Ä
front bezel. Pulling the subpanel away at an angle could damage the pins
that align it within the front bezel.
Removing Bezel Blanks from the Subpanel
When replacing the subpanel, ensure that the aligning pins and any
✎
remaining bezel blanks are in their proper orientation.
Hold the subpanel straight when you pull it away from the
2–6 Hardware Reference Guide
Installing Additional Memory
Your computer comes with double data rate (DDR) DIMMs.
The memory sockets on the Intel 845 chipset-based system board
can be populated with industry-standard DDR DIMMs. These
memory module slots are populated with at least one preinstalled
memory module. To achieve the maximum memory support, you
may be required to replace the preinstalled DIMM with a higher
capacity DIMM.
Hardware Upgrades
CAUTION:
Ä
non-ECC memory. For those systems that do support ECC, HP does not
support mixing ECC and non-ECC memory. Doing so will cause the system
to blink the NUMLOCK LED on the keyboard continuously and, if a
speaker is installed in the system, there will be a short beep followed by
two long beeps. In addition, the system will not boot the operating system.
For proper system operation, your DDR DIMMs must be
industry-standard 184-pin, unbuffered PC 1600 200 Mhz- or PC2100
266 Mhz-compliant DDR DIMMs. The DDR DIMMs must support
CAS Latency 2 or 2.5 (CL = 2 or CL = 2.5). They must also contain
the mandatory JEDEC SPD information. Also, x16 (double-sided)
and x4 DIMMs are not supported. The system will not start using
unsupported DIMMs. The largest memory supported is 2 GB using
two 1 GB memory modules.
Some models support ECC memory and some support
Hardware Reference Guide 2–7
Hardware Upgrades
Memory Module Installation
CAUTION: Your memory module sockets have gold metal contacts.
Ä
When upgrading your memory, it is important to use memory modules
with gold metal contacts to prevent corrosion and/or oxidation resulting
from having incompatible metals in contact with each other.
CAUTION:
Ä
the computer or optional cards. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object. See Appendix E, “Electrostatic Discharge,” for
more information.
CAUTION: When handling a memory module, be careful not to touch
Ä
any of the contacts. Doing so may damage the module.
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices, then disconnect the power
cord from the power outlet.
3. Remove the access panel and locate the memory module sockets.
WARNING: To reduce risk of personal injury from hot surfaces, allow
Å
the internal system components to cool before touching.
Static electricity can damage the electronic components of
2–8 Hardware Reference Guide
Hardware Upgrades
4. Open both latches of the memory module socket 1 and insert the
memory module into the socket
Installing a DIMM
2
.
5. Begin by installing a module into the socket nearest the
preinstalled module and install the modules following the
numerical order of the sockets.
6. A memory module can be installed in only one way. Match the
notch on the module with the tab on the memory socket. Push the
module down into the socket, ensuring that the module is fully
inserted and properly seated and then secure the latches
3
.
7. Repeat steps 4 to 6 to install additional modules.
8. Replace the access panel.
9. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
The computer should automatically recognize the additional memory
the next time you turn on the computer.
Hardware Reference Guide 2–9
Hardware Upgrades
Installing or Removing an Expansion Card
Your computer contains expansion slots that can be used to upgrade
or add components to your computer.
Removing an Expansion Slot Cover
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices.
3. Disconnect the power cord from the power outlet, then disconnect
any external devices.
4. Remove the computer access panel and locate the correct vacant
slot in the computer chassis.
5. Remove the screw securing the slot cover, then remove the
expansion slot cover from the slot as illustrated.
Removing the Screw and Expansion Slot Cover
2–10 Hardware Reference Guide
Removing or Installing an Expansion Card
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices, then disconnect the power
cord from the power outlet.
3. Remove the computer access panel.
4. If installing an expansion card, skip to step 11.
5. To remove an installed expansion card, disconnect any cables
attached to the expansion card.
6. Remove the screw at the side of the expansion slot.
7. Hold the card at each end and carefully rock it back and forth
until the connectors pull free from the slot. Be sure not to scrape
the card against other components.
8. Store the card in anti-static packaging.
9. To close the open slot, install an expansion slot cover or new
expansion card.
Hardware Upgrades
10. If not installing a new expansion card, skip to step 15.
Hardware Reference Guide 2–11
Hardware Upgrades
11. To install a new expansion card in an open slot, remove the
expansion slot cover.
12. Slide the expansion card into the expansion slot and press it
firmly into place.
Removing or Installing an Expansion Card
When you install an expansion card, make sure you press firmly on
✎
the card so that the whole connector seats properly in the expansion
card slot.
13. Replace the screw at the side of the expansion slot.
14. Connect external cables to the installed card, if needed. Connect
internal cables to the system board, if needed.
15. Replace the computer access panel.
16. Reconfigure the computer, if necessary.
2–12 Hardware Reference Guide
Drive Positions
Desktop and Minitower Drive Positions
Hardware Upgrades
1 Two 5.25-inch, half-height bays for optional drives (labeled as
drive bays 1 and 2)
2 One standard 3.5-inch, 1.44-MB diskette drive mounted with
a drive adapter in the 5.25-inch, one-third height bay (labeled as
drive bay 3)
3 Two internal 3.5-inch, one-third height bays for hard drives
(labeled as drive bays 4 and 5)
To verify the type and size of the storage devices installed in your
computer, run Computer Setup. Refer to the Computer Setup Guide
for more information.
Drive bay numbers are stamped on the chassis, behind the front bezel.
✎
Hardware Reference Guide 2–13
Hardware Upgrades
Installing Additional Drives
The computer supports up to five drives which may be installed in
various configurations.
When installing additional drives, follow these guidelines:
For optimal performance, connect hard drives to the primary
■
controller. Connect expansion devices, such as CD-ROM,
IDE tape, and diskette drives, to the secondary controller using
an 80-conductor IDE cable.
You may install either a third-height or a half-height drive into a
■
half-height bay.
You must install guide screws to ensure the drive will line up
■
correctly in the drive cage. Your workstation has extra guide
screws stored behind the front bezel. Some options use metric
hardware. The HP supplied metric screws are black.
Ä
CAUTION:
If you are inserting or removing a hard drive, shut down the operating
■
system properly, then turn off the computer. Do not remove a hard
drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static
■
electricity. While handling a drive, avoid touching the connector.
For more information about preventing electrostatic damage, refer to
Appendix E, “Electrostatic Discharge.”
Handle a drive carefully; do not drop it.
■
Do not use excessive force when inserting a drive.
■
Avoid exposing a hard drive to liquids, temperature extremes, or
■
products that have magnetic fields such as monitors or speakers.
le:
To prevent loss of work and damage to the computer or drive:
2–14 Hardware Reference Guide
Installing a CD-ROM, DVD-ROM, or other Removable Storage Device
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices, disconnect the power cord
from the power outlet, and remove the computer access panel.
Hardware Upgrades
3. Install two guide screws on each side of the drive
Some options use metric hardware. Your workstation has extra guide
✎
screws located behind the front bezel. The HP-supplied metric screws
are black.
4. Install the drive in the desired drive bay by sliding it into the front
of the drive cage
in the bay.
Be sure the guide screws line up with the guide slots in the drive cage.
; the drivelock automatically secures the drive
2
1
✎
.

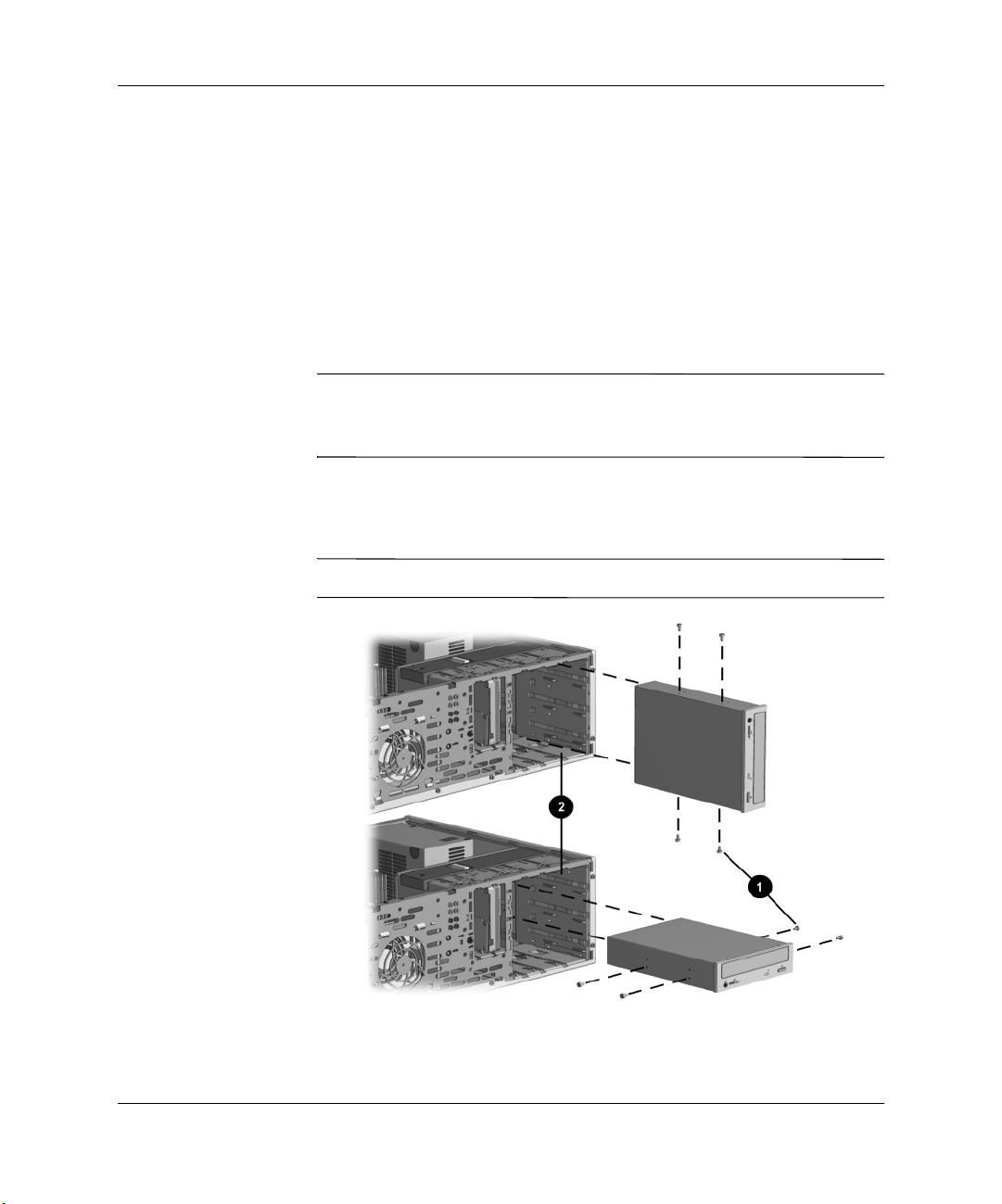

Aligning the Guide Screws and Installing an Optional 5.25-Inch Drive
on a Minitower (top) and a Desktop (bottom)
Hardware Reference Guide 2–15
Hardware Upgrades
5. Connect the drive power 1 and signal 2 cables and, if it is a
CD-ROM or DVD-ROM drive and if analog audio is preferred to
digital audio, connect the audio cable
. The other end of the
3
audio cable should be connected to the embedded audio
connector on the system board.

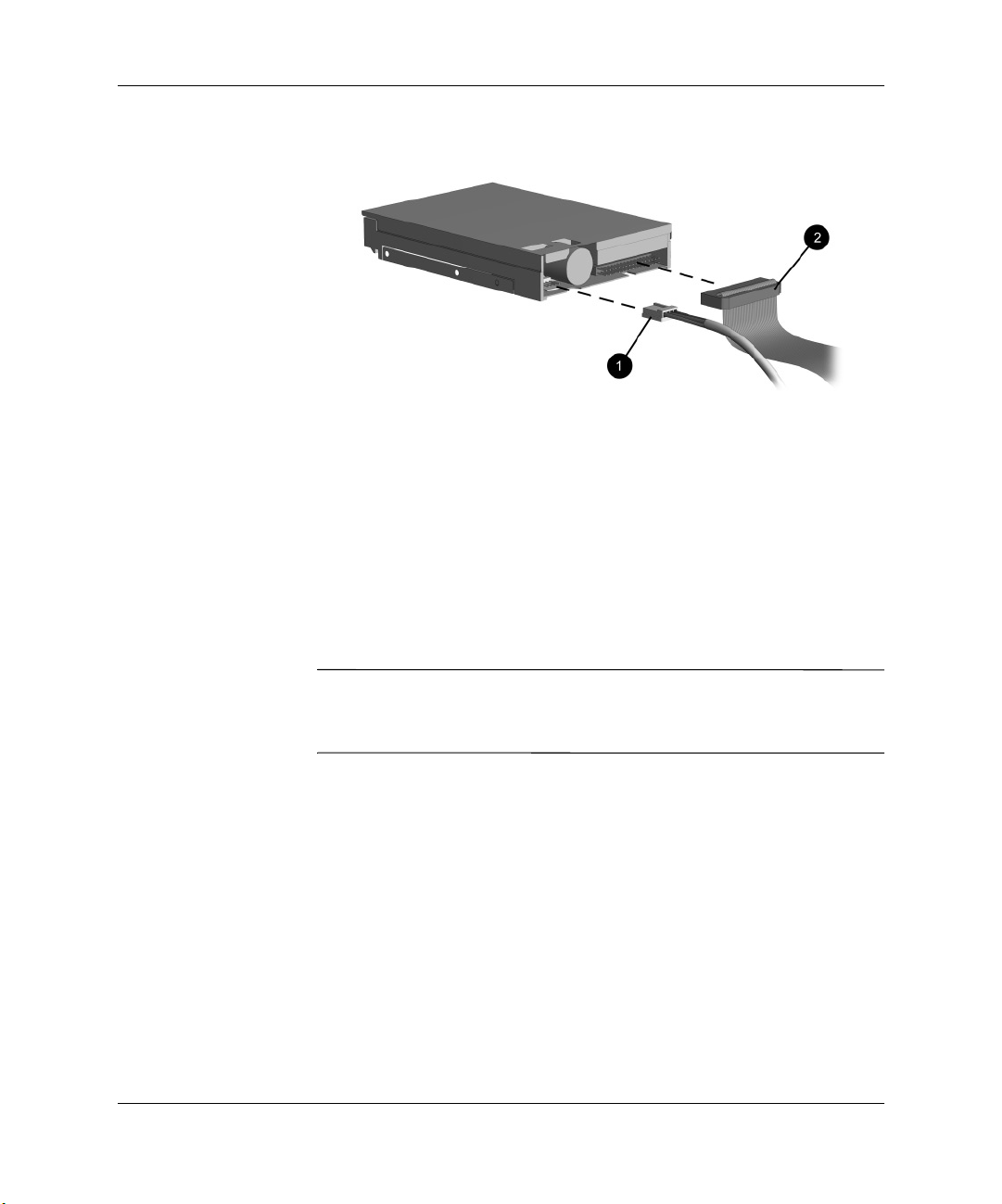

Connecting the Drive Cables
6. Remove the appropriate bezel blank from the subpanel inside the
front bezel. See the section “Removing Bezel Blanks,” for more
information.
7. Replace the computer access panel.
8. Reconfigure the computer, if necessary. See the section
“Installation Sequence,” for more information.
2–16 Hardware Reference Guide
Hardware Upgrades
Installing a 3.5-Inch Drive into a 5.25-Inch Drive Bay
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external drives, disconnect the power cord
from the power outlet, and remove the computer access panel.
3. Remove the front bezel.
4. Install one guide screw on the right side of the drive.
5. Insert the drive into the adapter
so that the guide screw aligns
2
in the slot, and then attach with two retaining screws.
6. Snap on the brace
and attach the drive bezel 3 to the front of
1
the adapter.
Attaching a 3.5-Inch Drive to the 5.25-Inch Adapter
Hardware Reference Guide 2–17
Hardware Upgrades
7. Install two guide screws on each side of the adapter 1.
8. Install the adapter in the desired drive bay
front of the drive cage; the drivelock automatically secures the
adapter when it snaps into place.
The primary 3.5-inch diskette drive should only be installed into
✎
bay 3. Bay 3 is the topmost bay in the desktop configuration.
by sliding it into the
2
Aligning the Guide Screws and Installing an Adapter with a
3.5-Inch Drive on a Minitower (top) and a Desktop (bottom)
2–18 Hardware Reference Guide
Hardware Upgrades
9. Connect the drive power 1 and signal 2 cables.
Connecting the Drive Cables
10. Remove the appropriate bezel blank from the subpanel inside the
front bezel. See the section, “Removing Bezel Blanks,” for more
information.
11. Replace the computer access panel.
12. Reconfigure the computer, if necessary. See the section,
“Installation Sequence,” for more information.
Installing a Hard Drive into a 3.5-inch Drive Bay
HP does not support mixing IDE and SCSI hard drives in the same
✎
system. If you are replacing a hard drive in bay 4 or bay 5, it should
be of the same type.
To install a hard drive in a 3.5-inch drive bay:
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external drives, disconnect the power cord
from the power outlet, and remove the computer access panel.
Hardware Reference Guide 2–19
Hardware Upgrades
3. Remove the front bezel.
4. Install two guide screws on each side of the drive
1
.
5. Install a hard drive into the 3.5-inch bay; refer to the following
illustration.

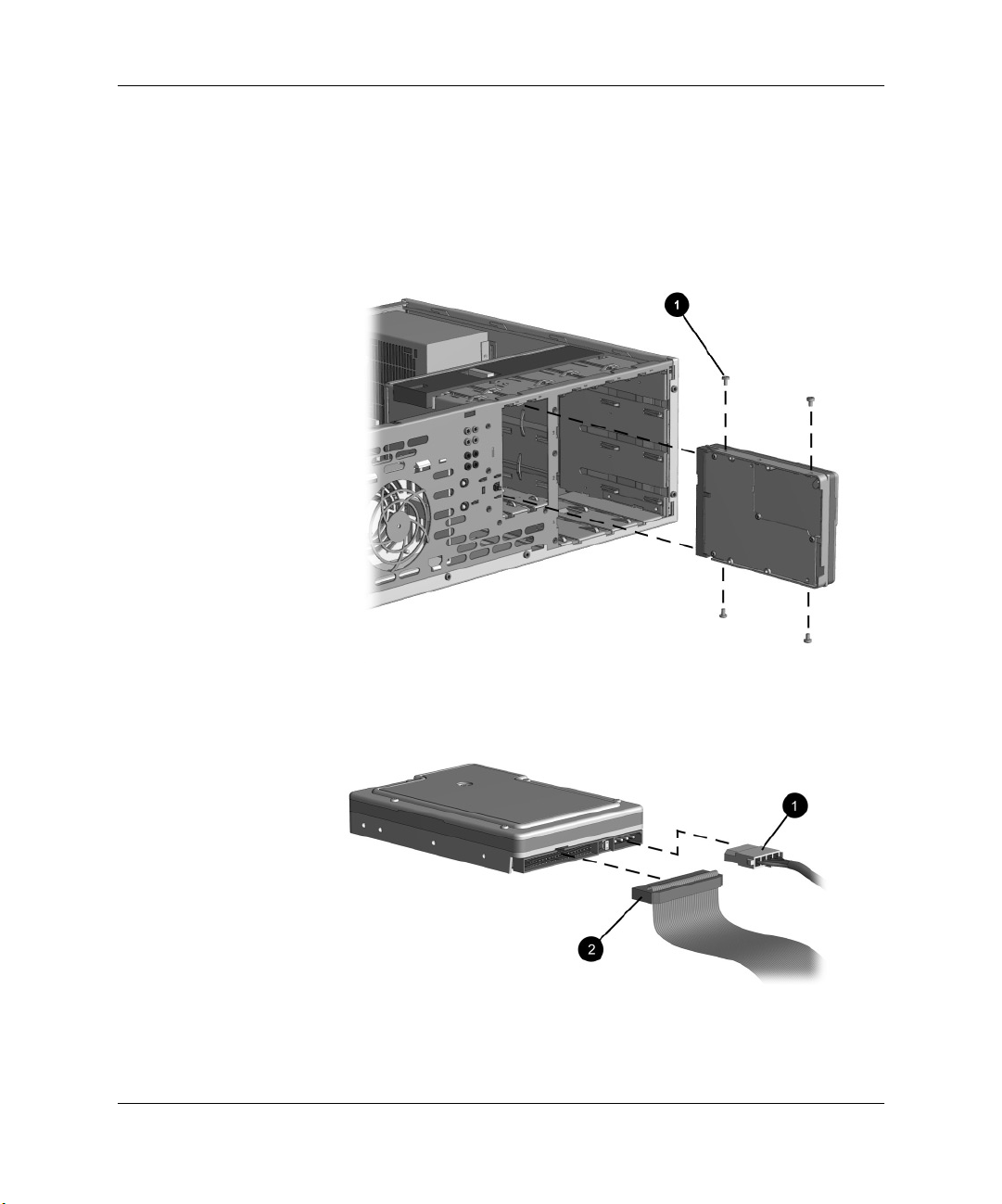

Installing a Hard Drive into the Hard Drive Bay
6. Connect the power cable 1 and signal cable 2 to the hard drive.
Connecting the Power Cable and Signal Cable
2–20 Hardware Reference Guide
7. Connect the opposite end of the cables to the appropriate system
board connector.
8. Replace the computer access panel.
9. Reconfigure the computer, if necessary. See the section,
“Installation Sequence,” for more information.
Removing a Drive from the Drive Bay
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer, disconnect the power cord from the power outlet, and
remove the computer access panel.
3. Remove the front bezel.
4. Disconnect the drive power and signal cables and, if it is a
CD-ROM or DVD-ROM drive, disconnect the audio connector.
Hardware Upgrades
Hardware Reference Guide 2–21
Hardware Upgrades
5. Press drivelock mechanisms (1 or 2) to unlock the drive in the
drive bay.
Drivelock 1 Secures the 5.25-Inch Drives in the Desktop and
Drivelock 2 Secures All Drives in the Minitower (Shown from the
Rear of the Chassis)
2–22 Hardware Reference Guide
Hardware Upgrades
6. While pressing the drivelock, pull the drive out of the drive bay.
Removing a Drive from the 5.25-Inch Drive Bay
7. Remove the drive from the drive bay and store in anti-static
packaging.
Hardware Reference Guide 2–23
A
Specifications
hp workstation xw4000
Dimensions
Height
Width
Depth
Approximate Weight 26.0 lb 12.0 kg
Weight Supported (maximum distributed load) 100.0 lb 45.5 kg
Temperature Range
Operating
Nonoperating
Relative Humidity (noncondensing)
Operating
Nonoperating
17.65 in
6.60 in
17.61 in
50° to 95° F
-4° to 140° F
8-90%
5-95%
44.83 cm
16.76 cm
44.73 cm
10° to 35° C
-20° to 60° C
8-90%
5-95%
Maximum Altitude (unpressurized)
Operating
Nonoperating
Power Supply
Operating Voltage Range
Rated Voltage Range*
Rated Line Frequency
Power Output 250 W 250 W
*This system utilizes a full-ranging, active power factor-corrected power supply. This eliminates
the need for an input voltage select switch and greatly reduces the input current amplitude and
harmonics.
Hardware Reference Guide A–1
10,000 ft
30,000 ft
90-264 VAC
100-240 VAC
47-63 Hz
3048 m
9144 m
90-264 VAC
100-240 VAC
47-63 Hz
Specifications
hp workstation xw4000
Rated Input Current (maximum)* 3.6 A @ 100 VAC 1.8 A @ 200 VAC
Heat Dissipation
Maximum
Nominal
*This system utilizes a full-ranging, active power factor-corrected power supply. This eliminates
the need for an input voltage select switch and greatly reduces the input current amplitude and
harmonics.
(Continued)
1314 BTU/hr
657 BTU/hr
331 kg-cal/hr
165 kg-cal/hr
A–2 Hardware Reference Guide
System Board
1 PCI sockets - Diskette drive connector
Specifications
System board components
2 Headphone/microphone
connector
3 AGP graphics socket w CMOS reset button
4 Processor power connector e Smart Cover sensor
5 Embedded voltage regulator
module (VRM)
6 Processor socket t Password enabler jumper
7 System fan connectors y Internal speaker connector
8 DIMM sockets u Auxiliary audio in
9 Power supply connector i CD-ROM audio connector
Hardware Reference Guide A–3
q Ultra ATA connectors
r Front USB connector
Hard Drive Installation Guidelines
Using the Cable-Select Feature with Ultra ATA Devices
Optional drives are available from HP in kits that include a special
drive cable. The configuration of the drive employs a cable-select
feature that identifies the drive as device 0 (primary drive) or device 1
(secondary drive).
Device 1 is the drive connected to the cable’s middle connector.
Device 0 is the drive connected to the cable’s end connector (applies
only to 80-conductor ATA cables). See “Guidelines for Installing
Ultra ATA Devices” in this appendix for an example of an Ultra
ATA cable.
HP hard drives ship with jumpers preset to cable-select mode;
therefore, no jumper setting changes on the existing or optional drives
are required. If you purchase a third-party hard drive, refer to the
documentation included with the kit to ensure proper installation and
configuration of cables.
B
If installing a second device on the primary controller, you must use
✎
an 80-conductor Ultra ATA cable for optimal performance. This cable
is standard on select models.
Hardware Reference Guide B–1
Hard Drive Installation Guidelines
Guidelines for Installing Ultra ATA Devices
When installing additional Ultra ATA drives, follow these guidelines:
If using multiple Ultra ATA devices, split the between the primary
■
and secondary Ultra ATA channels for optimum performance.
Use an additional Ultra ATA cable to connect the additional
device to the system board.
Use an 80-conductor Ultra ATA cable:
■
18 inches maximum total length, 80-conductor cable with
❏
maximum spacing of 6 inches between Device 0 and
Device 1.
80-Conductor Ultra ATA Cable
1 Device 0 (master drive) connector
2 Device 1(slave drive) connector
3 System board connector
For optimal performance, connect hard drives to the primary
■
controller. Connect expansion devices, such as ATA CD-ROM
and DVD-ROM drives, tape drives, and diskette drives, to the
secondary controller.
Install either a third-height or a half-height drive into a
■
half-height bay.
Install guide screws to ensure that the drive lines up correctly in
■
the drive cage. Extra guide screws can be found behind the front
bezel. Some options use M3 metric hardware. HP supplied metric
screws are black.
If only one device is connected to a cable, attach that device to the
■
end (Device 0) connector.
B–2 Hardware Reference Guide
SCSI Devices
This section contains information relating to SCSI device guidelines
and installation.
Guidelines for Using SCSI Devices
When installing and operating SCSI devices, you must follow these
guidelines:
A single Ultra SCSI controller supports up to seven SCSI devices
■
per channel.
Each Wide-Ultra SCSI, Ultra-Wide SCSI, Wide Ultra2 SCSI,
■
Ultra 320 SCSI, or Ultra 160 SCSI controller supports up to
15 SCSI devices per channel.
If using multiple SCSI devices, HP recommends that the devices
■
be split between Channel A and Channel B, if available, for
optimum performance.
SCSI cable recommendation:
■
53 inches maximum length twisted-pair, LVD cable with built-in
terminator, maximum of five drives with a minimum driving
spacing of 5.25 inches.
Hard Drive Installation Guidelines
The SCSI controller requires a unique SCSI ID (0–7 or 8–15) for
■
each SCSI device installed. The controller identifies a SCSI
device by its SCSI ID number rather than by its location. Moving
a SCSI device from one position to another on the SCSI chain
does not affect communication between the controller and the
device. The reserved and available SCSI ID numbers for SCSI
devices are:
0—reserved for the primary hard drive
❏
7—reserved for the controller
❏
1 through 6 and 8 through 15—available for all other
❏
SCSI devices
Every SCSI chain or circuit must be terminated (closed) at both
■
ends. Termination can be accomplished through one of the
following methods:
Hardware Reference Guide B–3
Hard Drive Installation Guidelines
■
■
■
Using a cable with a built-in terminator. This cable was
❏
shipped with your computer.
Using a cable with a terminating resistor plug in the last
❏
connector.
Connecting a SCSI device with its termination enabled into
❏
the last connector.
Connecting an external SCSI device with its termination
❏
enabled to the external SCSI connector on the rear panel of
the computer.
All external SCSI devices must be turned on before turning on the
power to the computer. This action enables the SCSI controller to
recognize the external devices.
The system accommodates a combination of internal and external
SCSI devices, such as hard drives, tape drives, and CD-ROM
drives.
HP does not recommend mixing different-width SCSI devices
on the same SCSI chain or on the same SCSI channel. Mixing
devices of different widths on the same chain or channel will
always result in the data transfer rate of the slowest device in
that chain. It is acceptable to mix Wide-Ultra2, Ultra 160, and
Ultra 320 devices on a single channel. Do not put narrow devices
on a channel with any device type other than another narrow
device.
For additional information about optional SCSI devices, refer to the
documentation included with the device or contact your HP
authorized dealer, reseller, or service provider.
CAUTION: Do not route cables near the air intake to the power supply.
Ä
Cables routed in this manner can block airflow to the power supply,
causing it to overheat.
B–4 Hardware Reference Guide
Hard Drive Installation Guidelines
Guidelines for Installing Optional SCSI Devices
If you mix Ultra ATA and SCSI hard drives in the same system, the
✎
Ultra ATA drive will be the boot drive unless the boot order is
changed in the F10 Setup.
When replacing a hard drive, the replacement drive should be of the
same type as the drive being removed. If you are replacing an Ultra
ATA hard drive with a SCSI hard drive, you will need a multimode
Low Voltage Differential (LVD) SCSI cable option kit.
If only one SCSI hard drive is used, it should be installed in bay 4 if
your computer has four or more bays.
Before installing a SCSI device:
Verify the SCSI ID of the drive and, if necessary, set the SCSI ID
■
to a unique number. See “Guidelines for Using SCSI Devices” in
this appendix or refer to the documentation included with the
device.
Determine if the device requires that termination be enabled or
■
disabled. Set the termination if necessary. See “Using a SCSI
Cable” in this appendix or refer to the documentation included
with the device.
Some devices may not have terminating jumpers on the device.
✎
Termination on these devices must be achieved with terminated cable.
Turn on an external SCSI device before turning on power to the
computer. This enables the system board controller to recognize the
external SCSI device and automatically reset. When an external SCSI
device is connected to the external SCSI connector on the rear panel
of the computer, that device becomes the end of the SCSI chain and
must be terminated.
SCSI Controllers
Select models such as workstations ship with an integrated single
channel Ultra 160 SCSI controller with an internal connector on the
system board.
Hardware Reference Guide B–5
Hard Drive Installation Guidelines
SCSI Cables
The front drive bays are available for installing or connecting mass
storage SCSI devices.
Using a SCSI Cable
Select models ship with a multimode SCSI cable that supports
Low Voltage Differential (LVD) or single-ended devices. The cable
accommodates up to three SCSI devices in the front drive bay area
(UATA models do not have the SCSI cable).
Five-Device SCSI Cable with Terminator
The cable that shipped with your computer may look different than
✎
the one illustrated (a five-device cable).
For additional information about installing optional SCSI devices,
refer to the documentation included with the device option kit or
contact your HP authorized dealer, reseller, or service provider.
Using SCSI
B–6 Hardware Reference Guide
Select
with SCSI Devices
The SCSI host adapter includes the SCSISelect utility to configure
the host adapter and to run SCSI disk utilities. To run the SCSISelect
utility:
In Post Messages Enabled mode: Press
■
Press <Ctrl><A> for SCSISelect Utility message displays
during POST.
In Post Messages Disabled mode: When the HP logo screen
■
displays, press any key to exit the logo screen. Immediately after
exiting the logo screen, press
utility.
+ A to access the SCSISelect
Ctrl
+ A when the
Ctrl
Hard Drive Installation Guidelines
A menu displays with the following options:
Configure/View Host Adapter Settings
■
SCSI Bus Interface Definitions
❏
Host Adapter SCSI ID
◆
SCSI Parity Checking
◆
Host Adapter SCSI Termination
◆
Additional Options
❏
Boot Device Options
◆
SCSI Device Configuration
◆
Advanced Configuration Options
◆
SCSI Disk Utilities
■
Lists all SCSI devices and SCSI ID numbers
For additional information about configuring POST message
✎
display status, refer to the Computer Setup Guide on the
Documentation Library CD.
Choosing the Quiet Drive Options
The Quiet Drive is an optional feature and may or may not be
✎
included on your computer.
If this computer is equipped with a Quiet Drive or, if you choose to
install a Quiet Drive, you may configure the drive to operate in Quiet
mode or Performance mode (default). When idle, the Quiet Drive
produces an acoustic noise level approximately 4 decibels (dB) lower
than that of a standard drive. When configured to operate in Quiet
mode, the Quiet Drive reads and writes data at an acoustic noise level
approximately 7 dB lower than that of a standard drive.
When configured to operate in Quiet mode, the drive will not operate
✎
at maximum performance levels. For maximum drive performance,
set the drive to operate in Performance mode.
Hardware Reference Guide B–7
Hard Drive Installation Guidelines
To determine if your computer contains a Quiet Drive or to activate
Quiet mode, complete the following steps:
1. Turn on or restart the computer. If you are in Windows, click
2. When the F10 = Setup message displays in the lower-right corner
Start > Shut Down > Restart the Computer.
of the screen, press the
F10
key.
If you do not press the
✎
must restart the computer to access the utility.
3. Select your language from the list and press the
4. A choice of five headings displays in the Computer Setup
Utilities menu. Using the arrow keys or the
Storage > Device Configuration.
5. Select the drive from the list of devices. Press the
6. Select Quiet Drive > Quiet (Performance is the factory-set
default.)
If the Quiet Drive option is not displayed, your computer does not
✎
contain a Quiet drive.
7. To apply and save changes, select File > Save Changes.
key while the message is displayed, you
F10
Tab
key.
Enter
key, select
key.
Enter
B–8 Hardware Reference Guide
RTC Battery Replacement
The battery that comes with your computer provides power to the
real-time clock (RTC) and has a minimum lifetime of about three
years. When replacing the RTC battery, use a battery equivalent to the
battery originally installed on your computer. Your computer comes
with a 3-volt lithium coin cell battery.
The lifetime of the lithium battery can be extended by plugging the
✎
computer into a live AC wall socket. The lithium battery is only used
when the computer is NOT connected to AC power.
WARNING: Your computer contains an internal lithium manganese dioxide
Å
battery. There is a risk of fire and burns if the battery is not handled properly.
To reduce the risk of personal injury:
Do not attempt to recharge the battery.
■
Do not expose to temperatures higher than 60° C (140° F).
■
Do not disassemble, crush, puncture, short external contacts, or
■
dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
■
Position the battery with the positive (+) side facing up when replacing
■
the battery.
C
CAUTION:
Ä
computer CMOS settings. When the battery is removed or replaced, the
CMOS settings will be cleared. Refer to the Troubleshooting Guide for
information on backing up the CMOS settings.
Batteries, battery packs, and accumulators should not be disposed of
N
together with the general household waste. In order to forward them to
recycling or proper disposal, please use the public collection system or
return them to HP, their authorized partners, or their agents.
Hardware Reference Guide C–1
Before replacing the battery, it is important to back up the
RTC Battery Replacement
CAUTION:
Ä
the computer or optional equipment. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock and disable the Smart Cover Sensor.
2. Shut down the operating system properly, turn off the computer
and any external devices, disconnect the power cord from the
electrical outlet, and remove the computer cover or access panel.
It may be necessary to remove an expansion card to gain access to the
✎
battery.
3. Locate the battery and battery holder on the system board.
4. Depending on the type of battery holder on your system board,
complete the following instructions to replace the battery.
Static electricity can damage the electronic components of
Type 1
a. Lift the battery out of its holder.

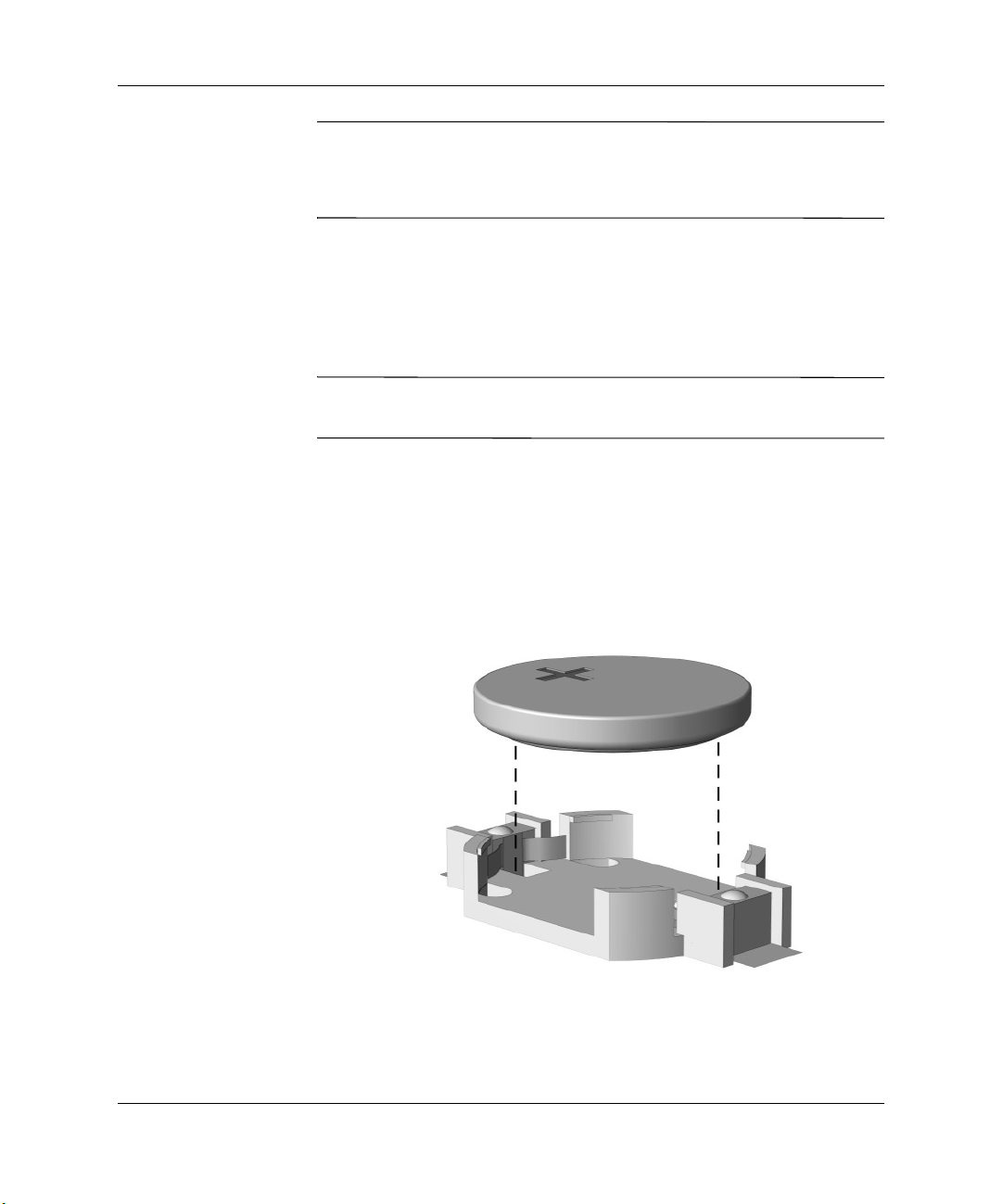

Removing a Coin Cell Battery (Type 1)
C–2 Hardware Reference Guide
RTC Battery Replacement
b. Slide the replacement battery into position, positive (+)
side up.
The battery holder automatically secures the battery in the proper
position.
CAUTION:
Ä
positive (+) side up. Follow the battery handling precautions/warnings
documented at the beginning of this section.
For proper operation, position the battery with the
Type 2
a. To release the battery from its holder, squeeze the metal
clamp that extends above one edge of the battery.
b. When the battery pops up, lift it out.
Removing a Coin Cell Battery (Type 2)
Hardware Reference Guide C–3
RTC Battery Replacement
Ä
c. To insert the new battery, slide one edge of the replacement
battery under the holder’s lip with the positive (+) side up.
Push the other edge down until the clamp snaps over the other
edge of the battery.
CAUTION: For proper operation, position the battery with the
positive (+) side up. Follow the battery handling precautions/warnings
documented at the beginning of this section.

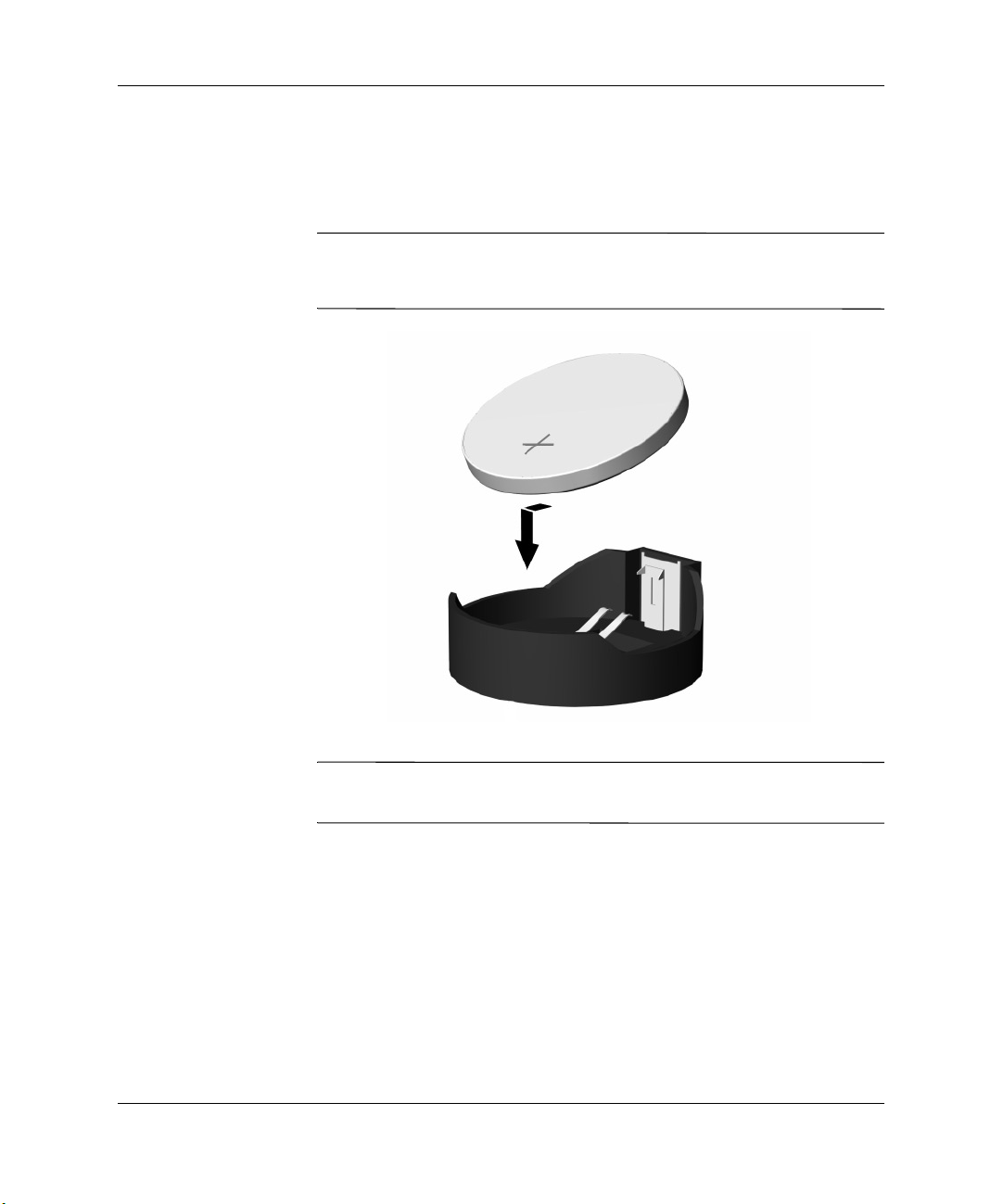

Replacing a Coin Cell Battery (Type 2)
After the battery has been replaced, use the following steps to
✎
complete this procedure.
5. Replace the computer cover or access panel.
6. Plug in the computer and turn on power to the computer.
7. Reset the date and time, your passwords, and any special system
setups, using Computer Setup. Refer to the Computer Setup
Guide.
If you normally lock the Smart Cover Lock, use Computer Setup to
relock the lock and enable the Smart Cover Sensor.
C–4 Hardware Reference Guide
Security Lock Provisions
Installing a Security Lock
Your workstation is designed to accept a lock 1 (not provided)
to control access to the inside components. Your workstation is
also designed with a cable lock slot
available to help secure the workstation to a fixed object using this
cable lock slot.
. An optional cable lock is
2
D

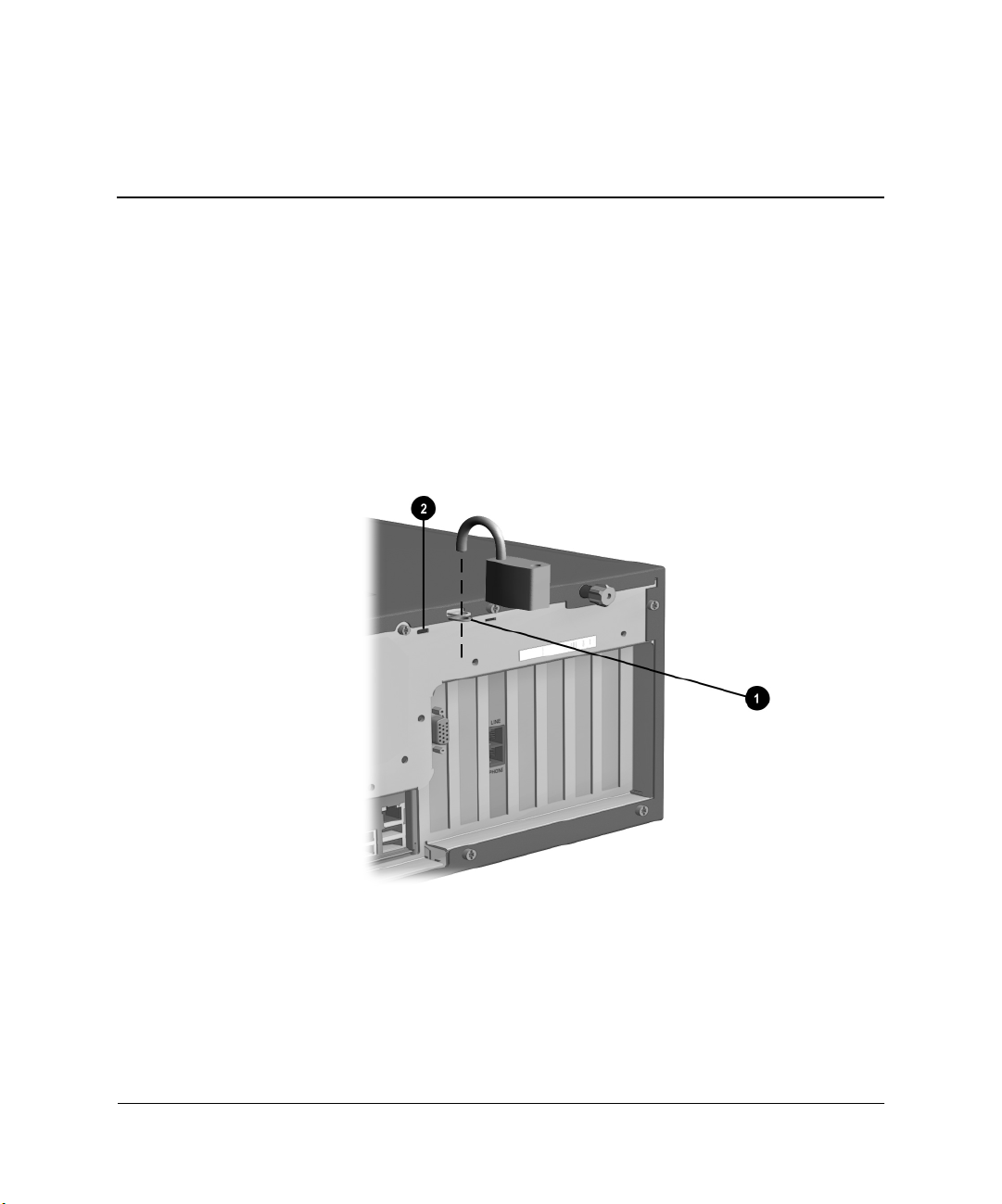

Securing the workstation
Hardware Reference Guide D–1
Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may
damage system boards or other static-sensitive devices. This type of
damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
Avoid hand contact by transporting and storing products in
■
static-safe containers.
Keep electrostatic-sensitive parts in their containers until they
■
arrive at static-free workstations.
Place parts on a grounded surface before removing them from
■
their containers.
Avoid touching pins, leads, or circuitry.
■
E
Always be properly grounded when touching a static-sensitive
■
component or assembly.
Hardware Reference Guide E–1
Electrostatic Discharge
Grounding Methods
There are several methods for grounding. Use one or more of the
following methods when handling or installing electrostatic-sensitive
parts:
Use a wrist strap connected by a ground cord to a grounded
■
workstation or computer chassis. Wrist straps are flexible straps
with a minimum of 1 megohm +/-10 percent resistance in the
ground cords. To provide proper ground, wear the strap snug
against the skin.
Use heelstraps, toestraps, or bootstraps at standing workstations.
■
Wear the straps on both feet when standing on conductive floors
or dissipating floor mats.
Use conductive field service tools.
■
Use a portable field service kit with a folding static-dissipating
■
work mat.
If you do not have any of the suggested equipment for proper
grounding, contact your HP authorized dealer, reseller, or service
provider.
For more information on static electricity, contact your HP authorized
✎
dealer, reseller, or service provider.
E–2 Hardware Reference Guide
Routine Computer Care and
Routine Computer Care
Follow these suggestions to take care of your computer and monitor:
Operate the computer on a sturdy, level surface. Leave a 3-inch
■
(7.6-cm) clearance at the back of the system unit and above the
monitor to permit the required airflow.
Never operate the computer with the cover or side panel removed.
■
Never restrict the airflow into the computer by blocking the front
■
vents or air intake. Do not place the keyboard, with the keyboard
feet down, directly against the front of the desktop unit as this
also restricts airflow.
Keep the computer away from excessive moisture, direct sunlight,
■
and extremes of heat and cold. For information about the
recommended temperature and humidity ranges for your
computer, refer to Appendix A, “Specifications,” in this guide.
F
Shipping Preparation
Keep liquids away from the computer and keyboard.
■
Never cover the ventilation slots on the monitor with any type of
■
material.
Turn off the computer before you do either of the following:
■
Wipe the exterior of the computer with a soft, damp cloth as
❏
needed. Using cleaning products may discolor or damage the
finish.
Occasionally clean the air vents on the front and back of the
❏
computer. Lint and other foreign matter can block the vents
and limit the airflow.
Hardware Reference Guide F–1
Routine Computer Care and Shipping Preparation
CD-ROM Drive Precautions
Be sure to observe the following guidelines while operating or
cleaning your CD-ROM drive.
Operation
Do not move the drive during operation. This may cause it to
■
malfunction during reading.
Avoid exposing the drive to sudden changes in temperature,
■
as condensation may form inside the unit. If the temperature
suddenly changes while the drive is on, wait at least one hour
before you turn off the power. If you operate the unit
immediately, it may malfunction while reading.
Avoid placing the drive in a location that is subject to high
■
humidity, extreme temperatures, mechanical vibration, or direct
sunlight.
Cleaning
Clean the panel and controls with a soft, dry cloth or a soft cloth
■
lightly moistened with a mild detergent solution. Never spray
cleaning fluids directly on the unit.
Avoid using any type of solvent, such as alcohol or benzene,
■
which may damage the finish.
Safety
If any object or liquid falls into the drive, immediately unplug the
computer and have it checked by an authorized HP service provider.
F–2 Hardware Reference Guide
Shipping Preparation
Follow these suggestions when preparing to ship your computer:
1. Back up the hard drive files on PD discs, tape cartridges, or
diskettes. Be sure that the backup media is not exposed to
electrical or magnetic impulses while stored or in transit.
The hard drive locks automatically when the system power is
✎
turned off.
2. Remove and store any program diskettes from the diskette drives.
3. Insert a blank diskette into the diskette drive to protect the drive
while in transit. Do not use a diskette on which you have stored or
plan to store data.
4. Turn off the computer and external devices.
5. Disconnect the power cord from the electrical outlet, then from
the computer.
6. Disconnect the system components and external devices from
their power sources, then from the computer.
Routine Computer Care and Shipping Preparation
Ensure that all boards are seated properly and secured in the board
✎
slots before shipping the computer.
7. Pack the system components and external devices in their original
packing boxes or similar packaging with sufficient packing
material to protect them.
For environmental nonoperating ranges, see Appendix A,
✎
“Specifications,” in this guide.
Hardware Reference Guide F–3
B
battery
2–6
C–1
replacement
bezel blanks
removing
C
cable lock D–1
Components
1–1
1–4
Easy Access Keyboard
Keyboard
Rear Panel
computer access panel
removing
computer care
Configuration
desktop
minitower
Configuration Features
1–4
1–3, 1–11
2–4
F–1
1–8
1–11
D
DDR (double data rate memory) 2–7
DDR DIMMs
installing
Drive positions
DVD-ROM
2–7
2–15
2–13
E
Easy Access Keyboard 1–4
electrostatic discharge
E–1
F
front bezel
removing
2–5
H
hard drive
installation guidelines
B–1
I
installation sequence 2–1
installing
2–15
2–19
2–17
2–14
2–11
a 3.5-inch drive
a hard drive
additional drives
an expansion card
CD-ROM
K
keyboard 1–4
Easy Access Keyboard Buttons
Windows Logo Key
1–5
M
memory
2–7
DDR
DIMMs
illustration
metric screws
2–9
2–9
2–14
Index
1–6
Hardware Reference Guide Index–1
Index
P
power-on light 1–2
Q
Quiet Drive B–7
R
Rear Panel Components 1–3
removing
a drive
an expansion card
an expansion slot cover
bezel blanks
computer access panel
front bezel
2–21
2–5
2–6
2–10, 2–11
2–4
2–10
S
SCSI controller B–5
SCSI device
guidelines
SCSISelect utility
security
Smart Cover Lock
serial number
shipping preparation
Smart Cover FailSafe Key
Smart Cover Lock
software
Easy Access
specifications
B–3
1–7
A–1
1–6
B–6
2–2
F–1
2–2
2–2
Index–2 Hardware Reference Guide
Loading...
