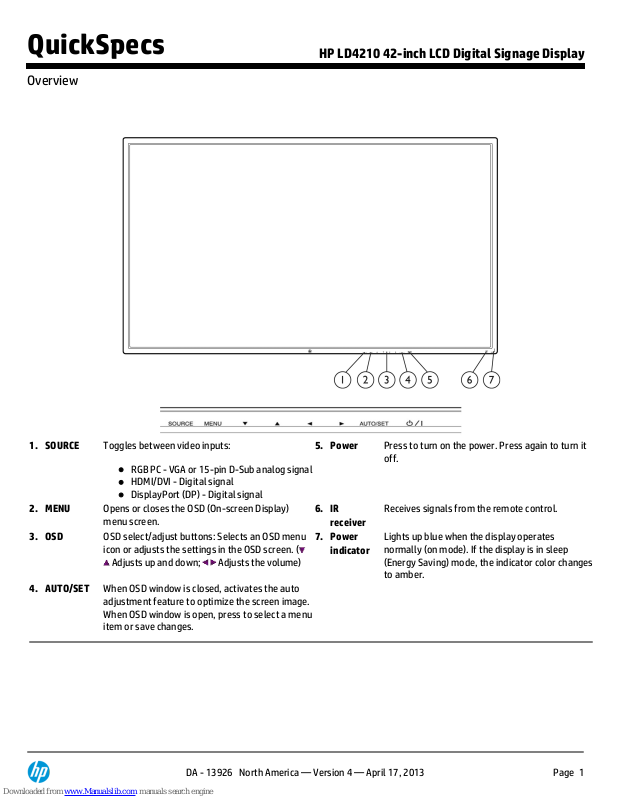

Page 1
1.
SOURCE
Toggles between video inputs:
RGB PC - VGA or 15-pin D-Sub analog signal
HDMI/DVI - Digital signal
DisplayPort (DP) - Digital signal
5.
Power
Press to turn on the power. Press again to turn it
off.
2.
MENU
Opens or closes the OSD (On-screen Display)
menu screen.
6.
IR
receiver
Receives signals from the remote control.
3.
OSD
OSD select/adjust buttons: Selects an OSD menu
icon or adjusts the settings in the OSD screen. (
Adjusts up and down; Adjusts the volume)
7.
Power
indicator
Lights up blue when the display operates
normally (on mode). If the display is in sleep
(Energy Saving) mode, the indicator color changes
to amber.
4.
AUTO/SET
When OSD window is closed, activates the auto
adjustment feature to optimize the screen image.
When OSD window is open, press to select a menu
item or save changes.
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Overview
DA - 13926 North America — Version 4 — April 17, 2013
Page 1
Page 2
OSD Buttons on back of display
1.
On/Off
5.
Left
2.
Auto/Set
6.
Right
3.
Up
7.
Menu
4.
Down
8.
Source
At a Glance
1920 x 1080 native resolution supporting 1080p (Full HD)
Landscape and portrait wall mounting positions
Video inputs support HDMI In, DisplayPort In/Out, RGB
In/Out, and RS-232-C In/Out signal inputs
LAN port for remote display control and controlling the HP
Media Sign Player
HP Media Sign Player-Play image, video, and music files
from a USB storage device, define play list, timing options,
scheduling
USB port for the HP Media Sign Player
Screen adjustment buttons (Power On/Off, AUTO/SET, OSD
Controls, MENU, and SOURCE) on the back of the display
User controls to adjust Picture, Tile Mode, Timer, Energy
Saving, Aspect Ratio, Audio, and additional setup options
Security cable provision on rear panel to lock down the
display and help prevent theft
Support VESA compliant mounting interface with 600 x 400
mm (23.62 x 15.75 in) hole pattern
Audio input jack and external speaker ports
Model
XG825AA
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Overview
DA - 13926 North America — Version 4 — April 17, 2013
Page 2
Page 3
Panel
Type
106,7 cm
(42-inch) diagonal Wide-Aspect Active Matrix TFT (thin film
transistor)
Viewable Image Area
106,7 cm
(42 in) widescreen; diagonally measured
Screen Opening
(W x H)
93,3 x 52,6 cm
(36.74 x 20.7 in)
Viewing Angle
(typical)
Up to 178° horizontal/178° vertical (10:1 minimum contrast ratio)
Brightness
(typical)
*
700 nits (cd/m2)
Contrast Ratio
(typical)
*
1200:1, Dynamic contrast ratio: 3000:1
Response Time
(typical)
*
9 ms
Pixel Pitch
0.4845mm square
Color Gamut
(72% color gamut)
*All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
On Screen Display
(OSD)
Controls
Buttons or Switches
Source, menu, OSD Select/Adjust, auto/set, power
Languages
English, French, German, Spanish, Italian, Portuguese, Chinese, Japanese,
Korean, Russian
User Controls
Source selection, HP Media Sign Player, picture modes, tile modes, color
temperature, aspect ratio, audio modes, auto volume, on/off time, key
lock, ISM method, auto config., clock, phase
Signal Interface/
Performance
Horizontal Frequency
30 to 83 kHz
Vertical Frequency
56 ~ 76 Hz (Analog). 56 ~ 61 Hz (Digital)
Native Resolution
1920 x 1080 @ 60 Hz (Analog/Digital) (FHD)
Max Resolution
1920 x 1080 @ 60 Hz (Digital)
1920 x 1080 @ 60 Hz (Analog)
Preset VESA Graphic Modes
(non-
interlaced)
1920 x 1080 @ 60 Hz
1680 x 1050 @ 60Hz
1600 x 900 @ 60Hz
1440 x 900 @ 60Hz
1280 x 1024 @ 60 Hz, 75 Hz
1280 x 720 @ 60 Hz
1024 x 768 @ 60 Hz, 75 Hz
800 x 600 @ 60 Hz and 75 Hz
640 x 480 @ 60 Hz and 75 Hz
Text Mode
720 x 400 @ 70 Hz
Mac Mode
832 x 624 @ 75 Hz
Maximum Pixel Clock Speed
150 MHz
User Programmable Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color Temperature
6500K
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 3
Page 4
Video/
Other Inputs
(see Figure A-1 below)
RS232C
1 input and 1 output
Input Signal
VGA (RGB), HDMI/DVI (can connect to DVI with optional adapter sold
separately), DisplayPort (DP)
Output
VGA (RGB) and DisplayPort (DP) out for tiling
USB for use with HP Media Sign
Player
USB connects a USB storage device to the HP Media Sign Player. HP Media
Sign Player can play multimedia files (Photo, Music, and Movie) from a USB
storage device (not included).
See User Guide for more details on this function.
NOTE:
USB storage devices below USB 2.0 are supported as well, but they might not work properly. Not all
media file formats are supported. See User Guide for more details.
LAN (RJ45)
1 input for remote control. Same commands as RS232.
Audio
1 audio input jack, AUDIO (RGB/DVI) connects the audio cable to the Line
Out on the media player/computer sound card.
Speaker
Connects the external speakers (not included) to the display.
Plug and Play
Yes
Input Impedance
75 ohms ± 10%
Sync Input
TTL separate sync
VGA Cable Length
1,8 m
(5.9ft )
HDMI Cable Length
1,8 m
(5.9ft )
DisplayPort Cable Length
1,8 m
(5.9ft )
Figure A-1
Power
Input Power
Auto-Sensing, 100 to 240 VAC
Frequency
50/60 Hz
Typical Power Consumption
220 W
Maximum
250 W
Power Saving
Sleep: 2 W (HDMI / DisplayPort) and 1 W (VGA)
Off: = 1 W
Power Cable Length
1,9 m
(6.2 ft )
Mechanical
Dimensions
(H x W x D)
See Figures B-1 and B-2 below.
Unpacked w/o stand (feet) or
speakers
(head only)
55,98 x 96,71 x 12,37 cm
(22.04 x 38.07 x 4.87 in)
(with optional speakers attached)
Unpacked w/speakers
55,98 x 96,71 x 12,37 cm
(22.04 x 38.07 x 4.87 in)
(with optional stand/feet)
attached)
Unpacked w/stand
(feet)
63,50 x 96,71 x 25,86 cm
(38.07 x 25 x 10.18 in)
(with optional stand/feet and
speakers attached)
Unpacked w/stand
(feet)
/speakers
63,50 x 96,71 x 25,86 cm
(25 x 38.07 x 10.18 in)
Packaged
66,2 x 104,5 x 25,0 cm
(26.1 x 41 x 9.84 in)
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 4
Page 5
Weight - maximum
Unpacked w/o stand (feet) or
speakers
(head only)
18,6 kg
(41.01 lbs)
(with optional speakers attached)
Unpacked w/speakers
19,3 kg
(42.55 lbs)
(with optional stand/feet
attached)
Unpacked w/stand
(feet)
21,9 kg
(48.28 lbs)
(with optional stand/feet and
speakers attached)
Unpacked w/stand
(feet)
/speakers
22,6 kg
(49.82 lbs)
Packaged
20,7 kg
(45.64 lbs)
Tilt Range
None
Swivel Range
None
Height Adjustable
None
Pivot Rotation
None
Base
(feet)
Display Stand Kit sold separately
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 5
Page 6
NOTE:
Stand (feet) and speakers shown above are optional and sold separately.
Environmental
Temperature - Operating
0° to 40° C
(32° to 104° F)
Temperature - Non-operating
-20° to 60° C
(-29° to 140° F)
Humidity - Operating
10% to 80% non-condensing
Humidity - Non-operating
5% to 95%, 38.7° C max wet-bulb
Altitude - Operating
0 to 5000 m
(0 to16,404 ft)
Altitude - Non-operating
0 to 12,192 m
(0 to 40,000 ft)
Environmental Data
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
IT ECO declaration
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 6
Page 7
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
208.6 W 203.7 W 211.3 W
Sleep
0.649 W 0.655 W 0.650 W
Off
0.279 W 0.361 W 0.284 W
Heat Dissipation
*
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
713.4 BTU/hr
697 BTU/hr 723 BTU/hr
Sleep
2.2 BTU/hr
2.240 BTU/hr
2.2 BTU/hr
Off
0.95 BTU/hr 1.23 BTU/hr 0.97 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Additional Information
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
Plastics parts weighing over 25 grams used in the product are marked
per ISO 11469 and ISO1043.
This product contains 0% post-consumer recycled plastic (by wt.)
This product is 97.6% recycle-able when properly disposed of at end of
life.
Packaging Materials
External:
Paper
1964g
Polyethylene
74g
Internal:
Polyethylene high density
34g
EPP (Expanded
Polypropolene)
218g
RoHS Compliance
Hewlett-Packard is committed to compliance with all applicable environmental
laws and regulations, including the European Union Restriction of Hazardous
Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by
meeting the requirements of the RoHS Directive on a worldwide basis. By July
1, 2006, RoHS substances will be virtually eliminated (virtually = to levels
below legal limits) for all HP electronic products subject to the RoHS Directive,
except where it is widely recognized that there is no technically feasible
alternative (as indicated by an exemption under the EU RoHS Directive).
Material Usage
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html
):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 7
Page 8
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be
frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and corrugated
materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/recyclers
. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Hewlett-Packard
Corporate Environmental
For more information about HP's commitment to the environment:
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 8
Page 9
Information
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
Options
(sold separately)
HP Digital Signage
Display Security Wall
Mount—Part number
WB975AA, WB976AA
(EMEA)
Attaches to the VESA mounting holes on the back of the display to hang the
display in landscape or portrait orientation on a wall.
42-inch Display Stand Kit
(feet)—Part number
XT655AA
The two-footed stand provides support for the digital signage display when
used on a table top. Designed to help the display maintain stability when
touched, the feet slide into to bottom of display and lock into place with
included screws.
HP Digital Signage
Speakers—Part number
NK352AA
Add a full range of sound (10 watts each) with these rear-facing speakers that
discreetly attach to the rear of the display.
HP Business PC Security
Lock Kit—Part number
PV606AA
Attaches to the rear of the display with a six-foot steel cable to protect it
against unauthorized removal by physically connecting it to an anchor point.
Other
Accessories Included
Remote control, VGA cable, HDMI cable, DisplayPort cable, Power cable
Software
HP Network Sign Manger - management software which runs on any network
connected media player or PC and enables central site control and
management of all network attached or serial attached HP LD4210 displays.
With HP Network Sign Manager, you can adjust all the display settings and
play media files stored in the USB device. It also allows you to organize and
manage network attached displays in groups, such as all the displays within a
building or campus.
User Guide Languages
Danish, Dutch, Finnish, French, German, Italian, Norwegian, Spanish, Swedish,
Czech, Greek, Hungarian, Polish, Russian, Slovenian, Turkish, Arabic, B.
Portuguese, Bahasa Indonesian, S. Chinese, T. Chinese, Korean, Japanese
Warranty Languages
Danish, Dutch, Finnish, French, German, Italian, Norwegian, Spanish, Swedish,
Czech, Greek, Hungarian, Polish, Russian, Slovenian, Turkish, Arabic, B.
Portuguese, Bahasa Indonesian, S. Chinese, T. Chinese, Korean, Japanese
Color
Black
VESA External Mounting
Yes, 600 x 400mm 4-hole pattern
Security Lock-Ready
Yes, one security slot available
Certification and
Compliance
UL UL60950-1 First Edition, cUL CAN/CSA-C22.2 NO. 60950-1-03, NOM NYCE, TUV EN60950-1, PSE J60065
(H14), J55013 (H14), CCC GB4943, GB9254, GB17625.1, PSB IEC60950-1, TUV-S (Argentina) IEC60950-1,
BSMI CNS13438, CNS14336, FCC CLASS B FCC 47 CFR Part 15 Class B, ICES-003 Class B, ICES-003 Class B,
CE EN55022B, EN55024, EN61000-3-2, 3, VCCI VCCI-V-2 V-3 V-4, CISPR-22B, C-Tick AS/NZS3548:1995,
KCC (Korean) Requirements, Korea Energy Boy, SmartWay - NA only - Energy logistics, EUP Lot 6 Tier 1,
China Energy Label (CEL).
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 9
Page 10
Compatibility
Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.
Service and Warranty
Protected by HP, including a 3 year standard limited warranty. Optional Care Pack Services are extended
service contracts which go beyond your standard warranties.
© Copyright 2010, 2011, 2013 Hewlett-Packard Development Company, L.P.
1 HP Care Pack Services extend service contracts beyond the standard warranties. Service levels and response times for HP Care Packs
may vary depending on your geographic location. Service starts from date of hardware purchase. To choose the right level of service
for your HP product, use the HP Care Pack Services Lookup Tool at
http://www.hp.com/go/lookuptool
. Additional HP Care Pack
Services information by product is available at
http://www.hp.com/hps/carepack
.
All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either
higher or lower. The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
QuickSpecs
HP LD4210 42-inch LCD Digital Signage Display
Technical Specifications
DA - 13926 North America — Version 4 — April 17, 2013
Page 10
Loading...
