HP W600 MS Windows Printing

H P D e s k W r i t e r 6 0 0 P r i n t e r M o d e l N u m b e r a n d D e s c r i p t i o n
Model Number and Description
HP DeskWriter 600 Printer
Printer Name Model Number Status Description
HP DeskWriter 600 C2185A Available Fast black and color personal
printer for Macintosh computers
H P D e s k W r i t e r 6 0 0 P r i n t e r F r o n t V i e w
Resume Button & Light
Print Cartridge Cradles
Card Guide
IN Tray
Paper Width Adjuster Paper Length Adjuster
Power Button & Light
Output Tray Assembly
Envelope Feed Slot
Front View
H P D e s k W r i t e r 6 0 0 P r i n t e r R e a r V i e w
Rear View
Interface Port
Power Module Socket
H P D e s k W r i t e r 6 0 0 P r i n t e r O r d e r i n g P r i n t e r O p t i o n s
Ordering Printer Options
Localized Printer Options
User’s
Region or
Country
Argentina Spanish C2185A AC8 9100-5129 C2185-60218
Asia, North English C2185A ART 9100-5346 C2185-60201
Asia-Pacific English C2185A ARS 9100-5131 C2185-60201
Australia English C2185A ABG 9100-5127 C2185-60201
Brazil Portuguese C2185A AC4 9100-5124 C2185-60216
Brazil 2 Portuguese C2185A A1Z 9100-5346 C2185-60216
Canada (French) French C2185A ABC 9100-5124 C2185-60208
Caribbean English C2185A ARV 9100-5346 C2185-60200
Denmark Danish C2185A ABY 9100-5132 C2185-60205
Europe (Dutch) Dutch C2185A ACU 9100-5132 C2185-60206
Europe (English) English C2185A ABB 9100-5132 C2185-60201
Europe (French) French C2185A ACS 9100-5132 C2185-60208
Europe (German) German C2185A ACT 9100-5132 C2185-60209
Europe (Italian) Italian C2185A ARP 9100-5132 C2185-60212
Finland Finnish/English C2185A ABX 9100-5132 C2185-60207
Hong Kong English C2185A AB5 9100-5346 C2185-60201
India English C2185A ACJ 9100-5128 C2185-60201
Japan Japanese C2185A ABJ 9100-5130 C2185-60213
Korea Korean/English C2185A AB1 9100-5126 C2185-60214
Latin America Spanish C2185A ABM 9100-5124 C2185-60218
Portugal Portuguese C2185A AB9 9100-5132 C2185-60216
Singapore English C2185A AB4 9100-5131 C2185-60201
South Africa English C2185A ACQ 9100-5128 C2185-60201
South America Spanish C2185A AKV 9100-5346 C2185-60218
Spain Spanish C2185A ABE 9100-5132 C2185-60218
Sweden Swedish C2185A ABS 9100-5132 C2185-60219
Taiwan English C2185A ARB 9100-5124 C2185-60201
U.K. English C2185A ABU 9100-5131 C2185-60201 U.S. English C2185A ABA 9100-5124 C2185-60200
Documentation
Language
Printer
Option
Numbers
Power
Module
Part Numbers
User’s
Documentation
Kit Part Numbers
H P D e s k W r i t e r 6 0 0 P r i n t e r O r d e r i n g P r i n t e r O p t i o n s
Available Power Modules
Region or Country Power Requirements Power Module Part Number
Argentina 220V/50 Hz 9100-5129 (C2179A)
Australia 240V/50 Hz 9100-5127 (C2181A)
Brazil, Philippines 220V/50 Hz 9100-5391
Canada 120V/60 Hz 9100-5124 (C2175A)
Caribbean 220V/50 Hz 9100-5346
China 220V/50 Hz 9100-5129 (C2179A)
Europe (Except U.K.) 230V/50 Hz 9100-5132 (C2176A)
Hong Kong 220V/50 Hz 9100-5348
Japan 100V/50/60 Hz 9100-5130 (C2178A)
Korea 220V/60 Hz 9100-5126 (C2182A)
Mexico 120V/60 Hz 9100-5124 (C2175A)
South Africa 220V/50 Hz 9100-5128 (C2180A)
U. K. 240V/50 Hz 9100-5131 (C2177A) U. S. 120V/60 Hz 9100-5124 (C2175A)
H P D e s k W r i t e r 6 0 0 P r i n t e r I t e m s I n c l u d e d
Items Included
HP DeskWriter 600
Power Module
User's Guide
Printer software on diskette
One black print cartridge
H P D e s k W r i t e r 6 0 0 P r i n t e r F o n t s I n c l u d e d
Fonts Included
Scalable TrueType® Fonts For Macintosh
H P D e s k W r i t e r 6 0 0 P r i n t e r P a r t N u m b e r s
Part Numbers
Item Description Part Number
Color Kits
Interface Cables Macintosh RS-422 Serial Cable 92215S
Print Cartridges Black Inkjet Print Cartridge 51629A
Media Premium Transparency Film (U.S. letter, 50 sheets) C3834A
1
Contains color print cartridge and storage garage. The color print cartridge replaces the black cartridge to allow color printing.
U.S. Europe Asia Japan, Inter-America
Macintosh AppleTalk Network Cable 92215N
Color Inkjet Print Cartridge 51649A
Premium Transparency Film (U.S. letter, 20 sheets) C3828A Premium Transparency Film (European A4, 50 sheets) C3835A Premium Transparency Film (European A4, 20 sheets) C3832A Premium Glossy Paper (U.S. letter, 50 sheets) C3836A Premium Glossy Paper (U.S. letter, 10 sheets) C3833A Premium Glossy Paper (European A4, 50 sheets) C3837A Premium Glossy Paper (European A4, 10 sheets) C3831A Premium InkJet Paper (U.S. letter, 200 sheets) 51634Y Premium InkJet Paper (European A4, 200 sheets) 51634Z
C4533A C4534A C4535A C4536A
H P D e s k W r i t e r 6 0 0 P r i n t e r C o l o r K i t I n f o r m a t i o n
Color Kit Information
Color Kit

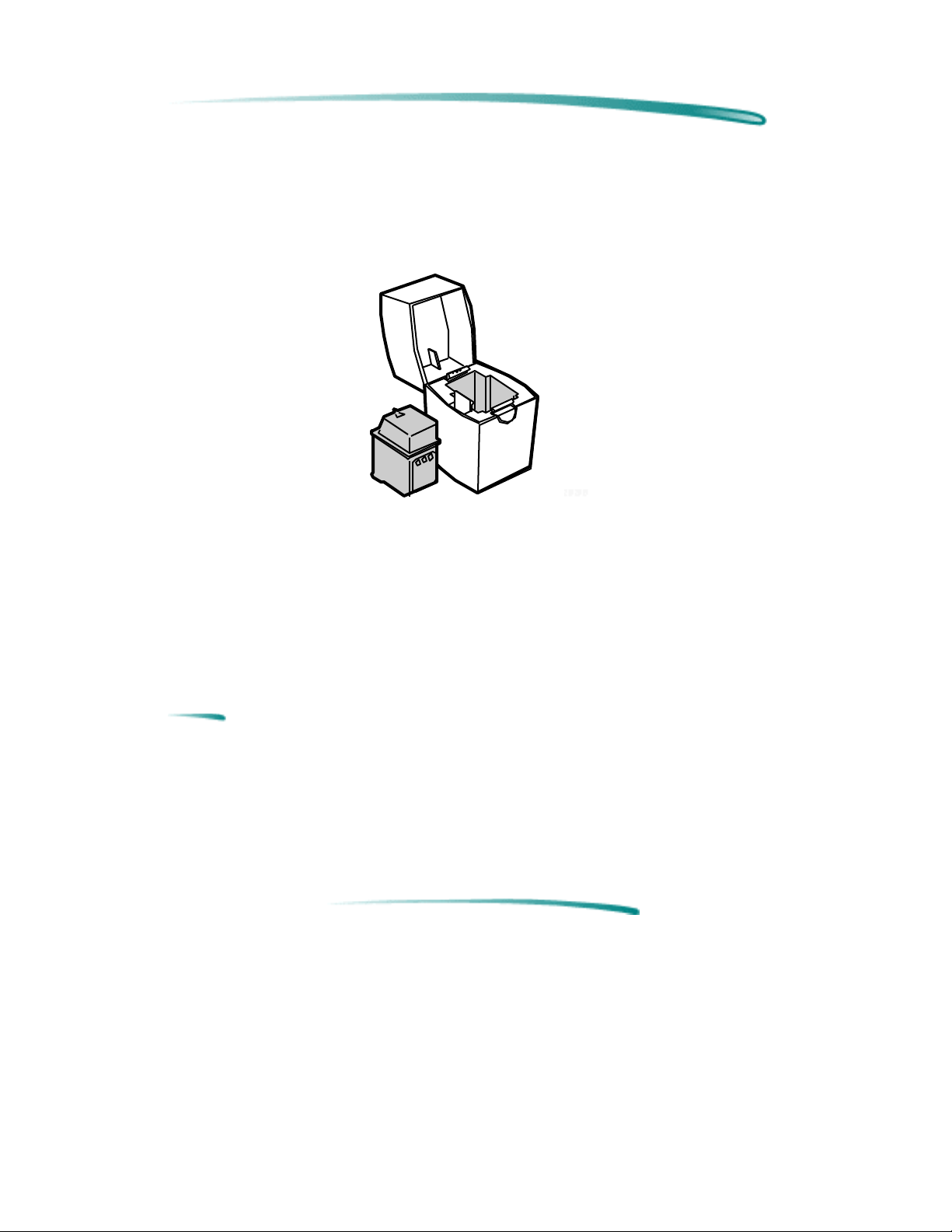

The optional Color Kit which includes a color print cartridge and a print cartridge storage container, provides color output printing capability from an HP DeskWriter 600 printer. The printer comes from the factory as color capable, it does not require any modifications. Color features, however, need to be turned on in the HP DeskWriter printer driver. For more information, refer to the HP DeskWriter 600 printer user documentation or the documentation included with the color kit.
Notes The print cartridge storage container will hold one black or
one color print cartridge. To obtain maximum print quality and print cartridge life, always store the open print cartridge that is not in the printer in the print cartridge storage container.
When printing a color page with the color print cartridge, you cannot print true black. The printer will print composite black, made up of cyan, magenta, and yellow inks.
H P D e s k W r i t e r 6 0 0 P r i n t e r U s e r R e p l a c e a b l e C o m p o n e n t s
User Replaceable Components
Access Door
Base Foot
Paper Tray
Description Part Number
Access Door (Top Cover) Assembly C2164-67816 Base Foot Assembly C2162-60098 Paper Tray Assembly C2164-67807
H P D e s k W r i t e r 6 0 0 P r i n t e r H o s t / S y s t e m R e q u i r e m e n t s
Host/System Requirements
QuickDraw Operation
System 7.0 or later 68020 16 MHz or faster processor, 68040 25 MHz recommended
At least 4 At least 10 MB free hard disk space
MB of RAM, 8 MB recommended
QuickDraw GX Operation
System 7.5 or later 68020 16 MHz or faster processor, 68040 25 MHz recommended At least 8 MB of RAM, 12 MB recommended At least 10 MB free hard disk space
H P D e s k W r i t e r 6 0 0 P r i n t e r D r i v e r I n s t a l l a t i o n
Driver Installation
For the printer to operate properly, a printer driver must be installed in your computer. Refer to “Printer Driver Information/Installing the Printer Driver” for more detailed information.
H P D e s k W r i t e r 6 0 0 P r i n t e r I n t e r f a c e S p e c i f i c a t i o n s
Interface Specifications
The DeskWriter 600 Printer has an 8-pin mini-DIN interface connector port. This connector port is compatible with RS-422-A serial, AppleTalk, and high-speed externally-clocked serial mode communication. The printer automatically determines if it is connected to an AppleTalk network or directly to a Macintosh printer port.
Communication Modes and Supported Protocols
Category Macintosh I/O Connector
Communication Modes RS-422 Serial (57.6 Kbaud)
AppleTalk (230.4 Kbaud) High-Speed Externally-Clocked Serial Mode
Macintosh Protocols Serial Pacing Protocol (SPP)
AppleTalk Transaction Protocol (ATP) AppleTalk Link Access Protocol (ALAP) Datagram Delivery Protocol (DDP) Echo Protocol (EP) Name Binding Protocol (NBP) Printer Access Protocol (PAP) Routing Table Maintenance Protocol (RTMP)
Note For a complete description of your printer’s interface, see
“Printer Interface Information.”
H P D e s k W r i t e r 6 0 0 P r i n t e r P r o d u c t P e r f o r m a n c e S p e c i f i c a t i o n s
Product Performance Specifications
The HP DeskWriter 600 prints a 600x300 dot size. Dots are placed on a 600x300 grid. Depletion is used to remove approximately 10% of the dots to prevent laying too much ink on the page.
In the Best mode, the paper advances at 600 DPI increments and places dots on a true 600x600 grid. Depletion in the Best mode removes approximately 43% of the dots.
Resolution determinations are made in the Macintosh and sent to the printer.
Print Speed
EconoFast Mode Normal Mode Best Mode
Black Print Speed 14 pages per minute 2.5 pages per minute 1 page per minute Color Print Speed 11.0 minutes per page 2.0 minutes per page 4 minutes per page
1. Approximate figures. Exact speed will vary depending upon the system configuration, software program, and document complexity.
Resolution
EconoFast Mode Normal Mode Best Mode
Black Resolution 300 x 300 DPI 600 x 300 DPI 600 x 600 DPI Color Resolution
Plain Paper & Premium Papers 300 x 300 DPI 300 x 300 DPI 300 x 300 DPI Glossy Paper and
Transparency Film (black and color)
N/A 600 x 300 DPI 600 x 300 DPI
Note DPI is measured in addressable raster points per inch.
H P D e s k W r i t e r 6 0 0 P r i n t e r P a p e r H a n d l i n g S p e c i f i c a t i o n s
Paper Handling Specifications
Category Specification
Paper Grain Long Grain Only Paper 60 to 135 g/m2 (16 to 36 lb.) Envelopes 75 to 90 g/m2 (20 to 24 lb.) Cards 110 to 200 g/m2 (29 to 53 lb., 61 to 110 lb. index
max.; 8.5 pt max thickness)
2
Labels IN Tray Capacity Up to 100 Sheets (<1/2 in.) OUT Tray Capacity Up to 50 Sheets Multiple Envelopes Card Capacity Up to 30 Cards
1. Envelope capacity is dependent on the manufacturer, type of envelope and its construction.
2. Use only U.S. letter or A4 size sheets. Use only Avery paper labels specifically designed for use with HP InkJet Printers.
1
Up to 25 Sheets of Avery Paper Labels
Up to 20 Envelopes (<1/2 in.)
Note The HP DeskWriter 600 Printer works well with most types of
paper although variables in paper composition may affect print quality and paper handling. Bond paper, such as letterhead, gives excellent quality. Paper should be tested to ensure best performance.
H P D e s k W r i t e r 6 0 0 P r i n t e r P a p e r H a n d l i n g S p e c i f i c a t i o n s
Supported Media/Sizes
Category Specification
US Letter 215.9 x 279.4 mm (8.5 x 11 in.) US Legal 215.9 x 355.6 mm (8.5 x 14 in.) U.S. Executive 184.1 x 266.7 mm ( 7.25 x 10.5 in.) ISO & JIS A4 210 x 297 mm (8.27 x 11.69 in.) ISO & JIS A5 148.5 x 210 mm (5.83 x 8.27 in.) ISO & JIS B5 182 x 257 mm (7.17 x 10.12 in.) U.S. No. 10 Envelope U.S. A2 Envelope (5.5) 111 x 146 mm (4.375 x 5.75 in.) European DL Envelope European C6 Envelope U.S. 4 x 6 Card 101.6 x 152.4 mm (4 x 6 in.) U.S. 5 x 8 Card 127 x 203.2 mm (5 x 8 in.) European A6 Card 105 x 148.5 mm (4.13 x 5.83 in.) Japanese Hagaki Postcard 100 x 148 mm (3.94 x 5.83 in.)
Custom Size (user defined)
Width 127 to 216 mm (5 to 8.5 in.) Length 148 to 356 mm (5.83 to 14 in.)
1. To minimize print skew, use envelopes with rectangular flaps rather than triangular flaps.
1
1
1
104.7 x 241.3 mm (4.12 x 9.5 in.)
110 x 220 mm (4.33 x 8.66 in.) 114 x 162 mm (4.49 x 6.38 in.)
H P D e s k W r i t e r 6 0 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s
Printable Area Specifications
U.S. Paper and Transparency
Page Size Top Margin Bottom Margin U.S. Executive
184.1 x 266.7 mm (7.25 x 10.5 in.)
U.S. Letter
215.9 x 279.4 mm (8.5 x 11 in.)
U.S. Legal
215.9 x 355.6 mm (8.5 x 14 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
14.9 mm
(0.59 in.)
14.9 mm
(0.59 in.)
14.9 mm
(0.59 in.)
Left and Right
Margins
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
H P D e s k W r i t e r 6 0 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s
International Paper and Transparency
Left and Right
Page Size Top Margin Bottom Margin International A4
210 x 297 mm (8.27 x 11.69 in.)
International A5
148.5 x 210 mm (6.00 x 8.27 in.)
International B5
182 x 257 mm (7.17 x 10.12 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
14.9 mm
(0.59 in.)
21.3 mm
(0.84 in.)
14.9 mm
(0.59 in.)
Margins
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
H P D e s k W r i t e r 6 0 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s

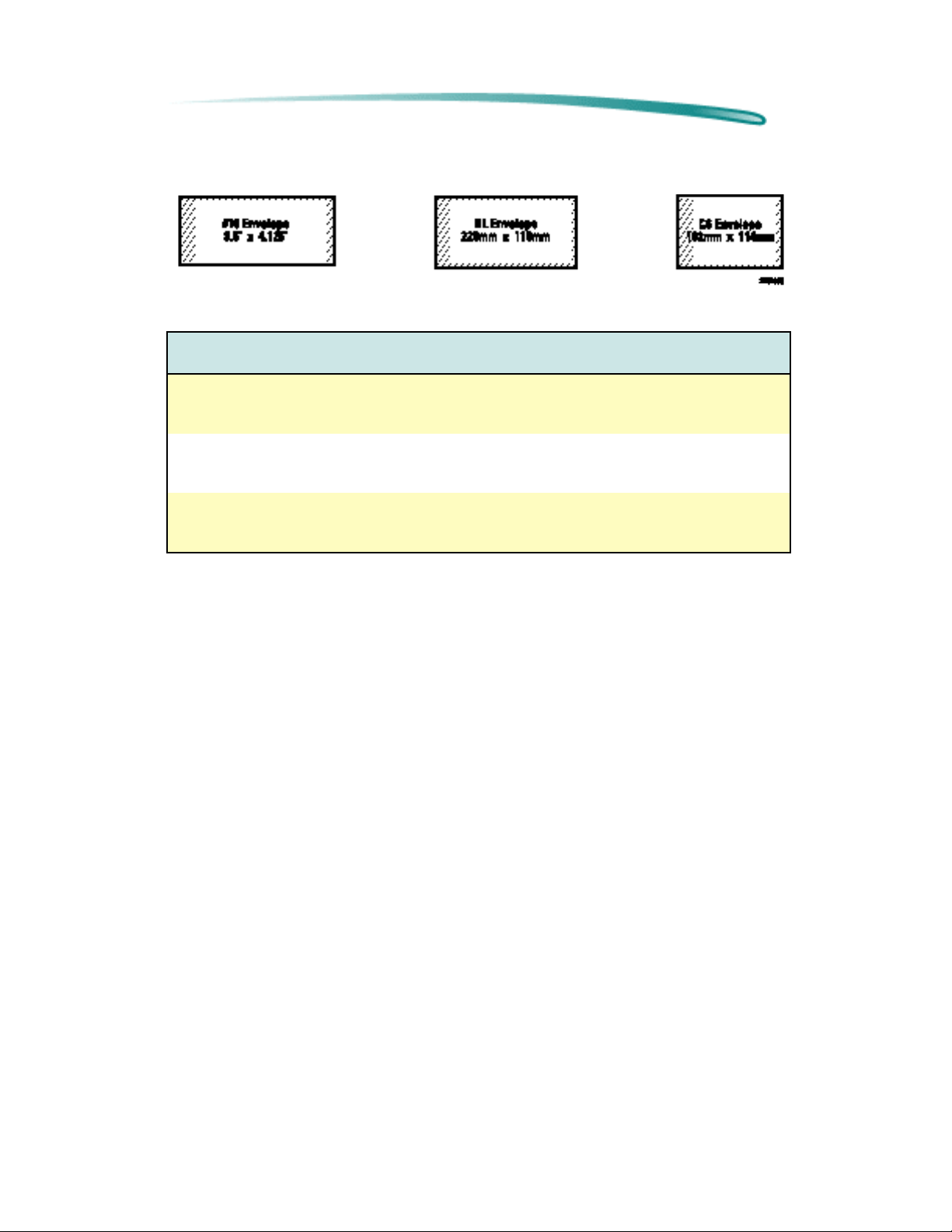

Envelopes
Left and Right
Envelope Size Top Margin Bottom Margin U.S. #10 Envelope
104.7 x 241.3 mm (4.12 x 9.5 in.)
International DL
110 x 220 mm (4.33 x 8.66 in.)
International C6
114 x 162 mm (4.49 x 6.38 in.)
26 mm
(0.84 in.)
26 mm
(0.84 in.)
26 mm
(0.84 in.)
6.6 mm
(0.29 in.)
6.6 mm
(0.29 in.)
6.6 mm
(0.29 in.)
Margins
3.2 mm
(0.125 in.)
3.2 mm
(0.125 in.)
3.2 mm
(0.125 in.)
H P D e s k W r i t e r 6 0 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s

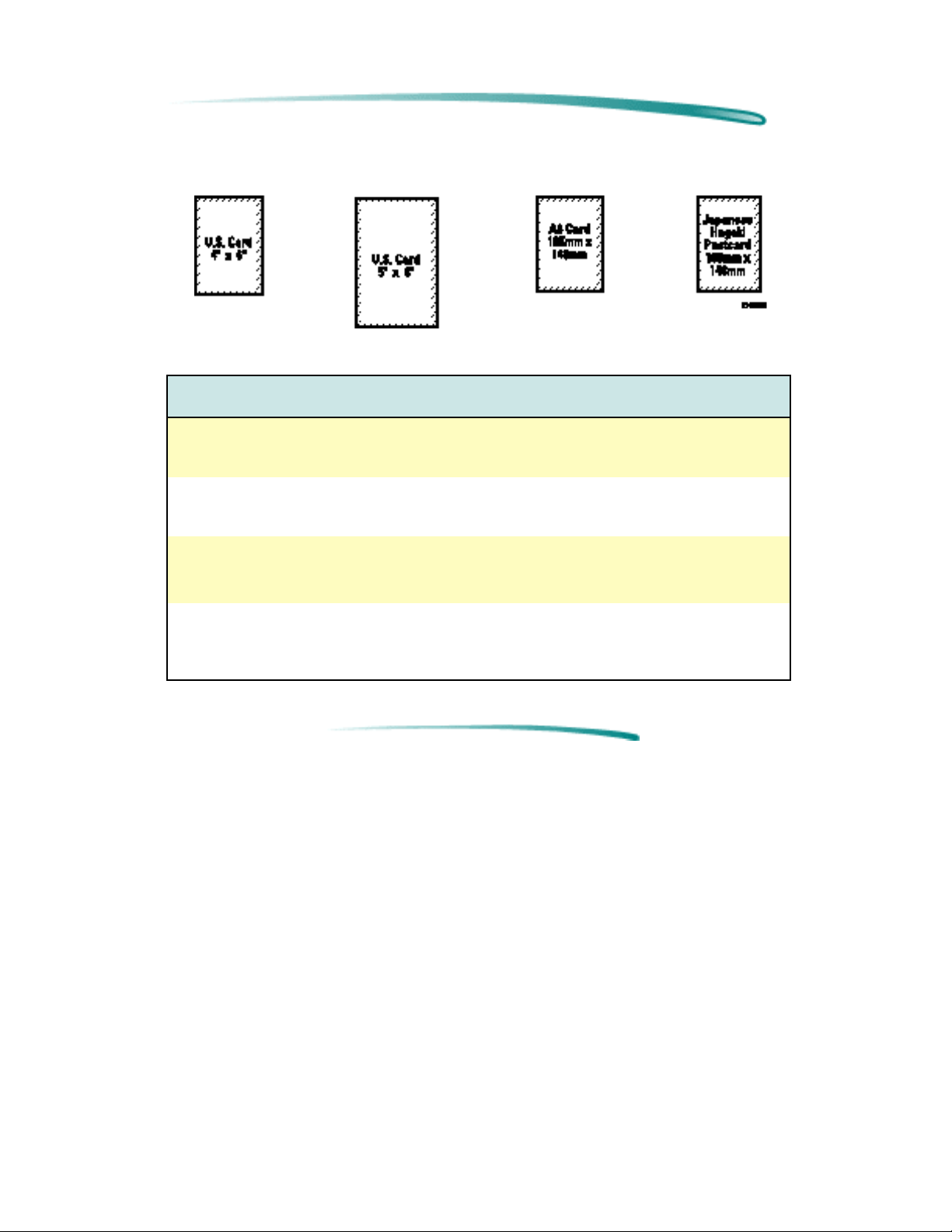

Cards
Left and Right
Card Size Top Margin Bottom Margin U.S. 4 x 6
101.6 x 152.4 mm (4 x 6 in.)
U.S. 5 x 8
127 x 203.2 mm (5 x 8 in.)
International A6
105 mm x 148.5 mm (4.13 x 6.00 in.)
Japanese Hagaki Postcard
100 mm x 148 mm (3.94 x 5.83 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
6.6 mm
(0.26 in.)
0.84 mm
(21.3 in.)
0.84 mm
(21.3 in.)
0.84 mm
(21.3 in.)
0.84 mm
(21.3 in.)
Margins
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
6.4 mm
(0.25 in.)
H P D e s k W r i t e r 6 0 0 P r i n t e r P h y s i c a l S p e c i f i c a t i o n s
Physical Specifications

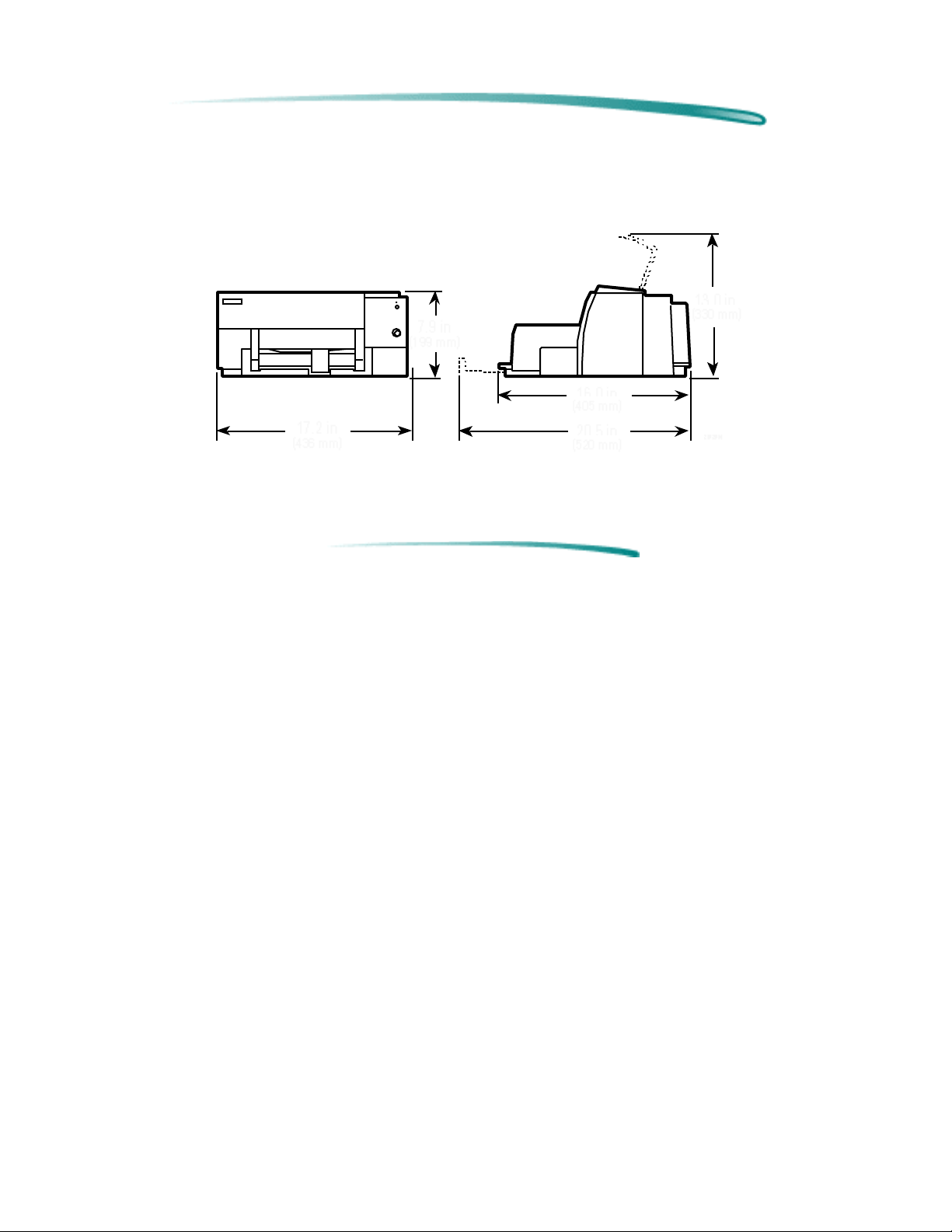

Weight: 5.3 Kg (11.6 lb.)
H P D e s k W r i t e r 6 0 0 P r i n t e r E l e c t r i c a l S p e c i f i c a t i o n s
Electrical Specifications
Category Specification Input Voltage
Frequency
100 VAC 50/60 Hz (±3 Hz) 120 VAC 60 Hz (±3 Hz) 127 VAC 60 Hz (±3 Hz) 220 VAC 50 Hz (±3 Hz) 230 VAC 50 Hz (±3 Hz) 240 VAC 50 Hz (±3 Hz)
Maximum Power Consumption
Powered Off (plugged in) 2 Watts Powered On (non-printing) 4.5 Watts Powered On (printing state) 12 Watts
1. Power modules are available for each listed input voltage.
1
100 VAC, 120 VAC, 127 VAC, 220 VAC, 230 VAC, or 240 VAC (±10%)
H P D e s k W r i t e r 6 0 0 P r i n t e r E n v i r o n m e n t a l S p e c i f i c a t i o n s
Environmental Specifications
Category Specification Temperature
Operating 5 to 40° C (41 to 104° F) Non-Operating (storage) –40 to 60° C (–40 to 140° F)
Relative Humidity 10 to 80% RH non-condensing Recommended
Operating Conditions for Best Print Quality
Noise Levels per ISO 9296
Sound Power, L Sound Pressure, L
1. Bystander positions.
wAd
pAm
1
15 to 35° C (59 to 95° F), 20 to 80% RH non-condensing
Best Mode
6.0 B(A)
46 dB(A) 50 dB(A) 51 dB(A)
Normal Mode
6.3 B(A)
EconoFast Mode
6.5 B(A)
H P D e s k W r i t e r 6 0 0 P r i n t e r S a f e t y a n d E M I S p e c i f i c a t i o n s
Safety and EMI Specifications
Category Specification Safety Certifications
Power Module UL, CSA, TUV, SEMKO, NEMKO, SEV, SECV,
FIMKO, DEMKO, NOM
Printer with Power Module UL, CSA, TUV, ETL
EMI Certifications
Printer with Power Module FCC Class B, when used with a Class B
computing device (USA), EMC Directive 89/336/EEC (European Community), VCCI (Japan), SABS (South Africa)
H P D e s k W r i t e r 6 0 0 P r i n t e r R e l i a b i l i t y S p e c i f i c a t i o n s
Reliability Specifications
Category Specification Mechanism Life 60,000 pages
Mean Time Between Failures (MTBF) 20,000 hours Printer Usage Rate
Power On Per Year 2,000 hours Printed Pages Per Year 12,000 pages Black Pages Per Month 1,000 pages total maximum Color Pages Per Month 160 pages total maximum
H P D e s k W r i t e r 6 0 0 P r i n t e r P a c k a g i n g S p e c i f i c a t i o n s
Packaging Specifications
Weight = 8.137 kg (17.94 lb.)
Loading...
