H P D e s k W r i t e r 5 4 0 P r i n t e r M o d e l N u m b e r a n d D e s c r i p t i o n
Model Number and Description
HP DeskWriter 540 Printer
Note The figure above shows the earlier version paper tray
assembly. Later version HP DeskWriter 540 printers have an
envelope feed slot. See “Front View” for an HP DeskWriter
540 printer with the envelope feed slot.
Printer Description
Model Number Status Description
C2163A Available HP’s affordable high-quality monochrome desktop
printer with optional color.
H P D e s k W r i t e r 5 4 0 P r i n t e r F r o n t V i e w
Front View
Access Door
Resume Button and Light
Power Button and Light
Print Cartridge Cradle
Card Guide
Paper Width Adjuster
Output Tray Assembly
IN Tray
Envelope Feed Slot
Paper Length Adjuster
H P D e s k W r i t e r 5 4 0 P r i n t e r R e a r V i e w
Socket
Rear View
Interface Port
Power Module
H P D e s k W r i t e r 5 4 0 P r i n t e r O r d e r i n g P r i n t e r O p t i o n s
Ordering Printer Options
The HP DeskWriter 540 printer is the same for all countries, however,
power modules and user’s documentation varies by region.
Localized Printer Options
User’s
Region or
Country
Canada
(French)
Denmark Danish/English C2163A ABY 9100-5132 C2163-60202
Europe English C2163A ABB 9100-5126 C2163-60025
Finland Finnish/English C2163A ABX 9100-5132 C2163-60204
France French C2163A ACS 9100-5132 C2163-60205
Germany German C2163A ACT 9100-5132 C2163-60206
Intercon English C2163A ABK None None
Italy Italian C2163A ARP 9100-5132 C2163-60207
Mexico Spanish C2163A AR9 9100-5125 C2163-60039
Portugal Portuguese/
South Africa English C2163A ACQ 9100-5128 C2163-60201
Spain Spanish C2163A ABE 9100-5126 C2163-60039
Sweden Swedish C2163A ABS 9100-5132 C2163-60211
UK English C2163A ABU 9100-5131 C2163-60201
USA English C2163A ABA 9100-5124 C2163-60025
1. For supplies and accessories, refer to “Accessories/Supplies and Accessories.”
2. For more power module information, refer to “Power Module Information.”
Documentation
Language
French C2163A ABC 9100-5124 C2163-60032
English
1
Printer
Option
Numbers
C2163A AB9 9100-5132 C2163-60209
Power
Module
Part Numbers
2
User’s
Documentation
Kit Part Numbers
H P D e s k W r i t e r 5 4 0 P r i n t e r I t e m s I n c l u d e d
Items Included
Items Included
HP DeskJet 540 Printer
Power Module
User’s Guide
Printer Software
Black Print Cartridge,
Part Number 51626A
1 See “Ordering Printer Options” for printer ordering information.
2 Refer to “Power Module Information” for power module information.
3 See “Ordering Printer Options” for user documentation part numbers.
4 See “Ordering Printer Options” for printer driver part numbers. See “Items Included” for a listing of
software included with the printer.
2
3
1
4
Note The color print cartridge and the print cartridge storage
container are sold separately as a color kit. See “Supplies
and Accessories” for color kit part numbers.
H P D e s k W r i t e r 5 4 0 P r i n t e r F o n t s I n c l u d e d
Fonts Included
The HP DeskWriter 540 printer is shipped with the following TrueType
fonts:
TrueType Fonts Included
H P D e s k W r i t e r 5 4 0 P r i n t e r P a r t N u m b e r s
Part Numbers
Part Numbers
Item Part Number Description
Print Cartridges
HP Premium
Transparency Film
HP Premium
Glossy Paper
HP Premium
InkJet Paper
Color Kits
User Replaceable
Components
Power Modules Refer to “Power Modules.”
Interface Cables Refer to “Configuration and
Documentation See “Ordering Printer
1. Color kits include a color print cartridge and a print cartridge storage container. Refer to “Color Kit
Information.”
1
1
Refer to “Accessories/User
Replaceable Components.”
Interface Information/
Interface Cable Information/
Recommended Interface
Cables.”
Options.”
51625A Color Inkjet Print Cartridge
(Cyan, Magenta, and Yellow Inks)
51626A High-Capacity Inkjet Print Cartridge
(Black Ink)
C3834A US Letter Size, 50 sheets
C3828A US Letter Size, 20 sheets
C3835A European A4 Size, 50 sheets
C3832A European A4 Size, 20 sheets
C3836A US Letter Size, 50 sheets
C3833A US Letter Size, 10 sheets
C3837A European A4 Size, 50 sheets
C3831A European A4 Size, 10 sheets
51634Y US Letter Size, 200 sheets
51634Z European A4 Size, 200 sheets
C3067A U.S., Asia
C3069A Europe
C3276A International English, French, Spanish,
Portuguese
H P D e s k W r i t e r 5 4 0 P r i n t e r C o l o r K i t I n f o r m a t i o n
Color Kit Information
Color Kit
The optional Color Kit which includes a color print cartridge and a print
cartridge storage container, provides color output printing capability from
an HP DeskWriter 540 printer. The printer comes from the factory as color
capable, it does not require any modifications. Color features, however,
need to be turned on in the HP DeskWriter printer driver. For more
information, see the “HP DeskWriter 540 Printer User’s Documentation” or
the documentation included with the color kit, see “Supplies and
Accessories.”
Notes The print cartridge storage container will hold one black or
one color print cartridge. To obtain maximum print quality and
print cartridge life, always store the open print cartridge that is
not in the printer in the print cartridge storage container.
When printing a color page with the color print cartridge, you
cannot print true black. The printer will print composite black,
made up of cyan, magenta, and yellow inks.
H P D e s k W r i t e r 5 4 0 P r i n t e r U s e r R e p l a c e a b l e C o m p o n e n t s
User Replaceable Components
User Replaceable Components
User Replaceable Components
Part Number Description
C2162-60097 Access Door Assembly
C2162-60098 Base Foot Assembly (4 ea.)
C2164-67807 Paper Tray Assembly
C2171-67801 Absorber
H P D e s k W r i t e r 5 4 0 P r i n t e r H o s t / S y s t e m R e q u i r e m e n t s
Host/System Requirements
Macintosh Plus or later.
Hard drive with at least 7.5 MB of free disk space.
System software version 6.0.7 or later.
System Memory (RAM).
System 6 System 7
Monochrome Printing 2 MB 4 MB
Color Printing 4 MB 4 MB
Note For QuickDraw and more printer driver information, refer to
“Printer Driver Information.”
H P D e s k W r i t e r 5 4 0 P r i n t e r D r i v e r I n s t a l l a t i o n
Driver Installation
For the printer to operate properly, a printer driver must be installed in your
computer. Refer to “Printer Driver Information/Installing the Printer Driver”
for more information.
H P D e s k W r i t e r 5 4 0 P r i n t e r I n t e r f a c e S p e c i f i c a t i o n s
Interface Specifications
Interface Specifications
Subject Specification
Connector Port 8-pin mini-circular DIN
Compatibility RS-422-A Serial and AppleTalk network
Serial
Handshaking
Bit Rate
AppleTalk Network
Protocols
Bit Rate
DTR
57.6K BPS (bits per second)
AppleTalk Transaction Protocol (ATP)
AppleTalk Link Access Protocol (ALAP)
Datagram Delivery Protocol (DDP)
Echo Protocol (EP)
Name Binding Protocol (NBP)
Printer Access Protocol (PAP)
Routing Table Maintenance Protocol (RTMP)
230.4K BPS (bits per second)
Note For a complete description of your printer’s interface, see
“Printer Interface Information.”
H P D e s k W r i t e r 5 4 0 P r i n t e r P r o d u c t P e r f o r m a n c e S p e c i f i c a t i o n s
Product Performance Specifications
Print Speed and Resolution Specifications
Category EconoFast Normal Best
Black Print Speed 3 PPM 2 PPM 1 PPM
Color Print Speed 1.5 MPP 2.5 MPP 4 MPP
Black 300 X 300 DPI 600 X 300 DPI 600 X 300 DPI
Color 300 X 300 DPI 300 X 300 DPI 300 X 300 DPI
PPM = Pages Per Minute
MPP = Minutes Per Page
DPI = Addressable Dots Per Inch
Note All color resolution is 300 dpi.
H P D e s k W r i t e r 5 4 0 P r i n t e r P a p e r H a n d l i n g S p e c i f i c a t i o n s
Paper Handling Specifications
Paper Handling Capabilities
Category Specification
Paper Grain Long grain only
Supported Media Sizes
US Letter
US Legal
Executive
ISO & JIS A4
ISO & JIS A5
B5-JIS
User Defined
Width
Length
Supported Envelope Sizes
US No. 10 Envelope
European DL Envelope
European C6 Envelope
Supported Index Card Sizes
US Size
US Size
European A6 Card
Japanese Hagaki Postcard
Media Weight
Paper
Envelopes
Index Cards
IN Tray Capacity Up to 100 Sheets (<1/2 in.)
Envelope Feeder Capacity Up to 20 Envelopes (<1/2 in.)
Card Capacity Up to 30 Cards
OUT Tray Capacity Up to 50 Sheets
1 To minimize print skew, use envelopes with rectangular flaps rather than triangular flaps.
2 Envelope capacity is dependent on the manufacturer, type of envelope, and its construction.
1
8 1/2 in. X 11 in. (216 mm X 279 mm)
8 1/2 in. X 14 in. (216 mm X 356 mm)
7 1/4 in. X 10 1/2 in. (184mm X 267 mm)
(210 mm X 297 mm)
(148.5 mm X 210 mm)
(182 mm X 257 mm)
5 in. to 8 1/2 in. (127 mm to 216 mm)
5.83 in. to 14 in. (148 mm to 356 mm)
4 1/8 in. X 9 1/2 in.
(110 mm X 220 mm)
(114 mm X 162 mm)
4 in. X 6 in. (81.6 mm X 152.4 mm)
5 in. X 8 in. (127 mm X 203.2 mm)
(105 mm X 148.5 mm)
(100 mm X 148 mm)
16 to 36 lb (60 to 135 g/m2)
20 to 24 lb (75 to 90 g/m2)
29 to 53 lb (110 to 200 g/m2),
61 to 110 lb Index, 8.5 pt Maximum
Note The HP DeskWriter 540 printer works well with most types of
paper although variables in paper composition may affect
print quality and paper handling. Bond paper, such as
letterhead gives excellent quality. Paper should be tested to
ensure best performance.
H P D e s k W r i t e r 5 4 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s
Printable Area Specifications

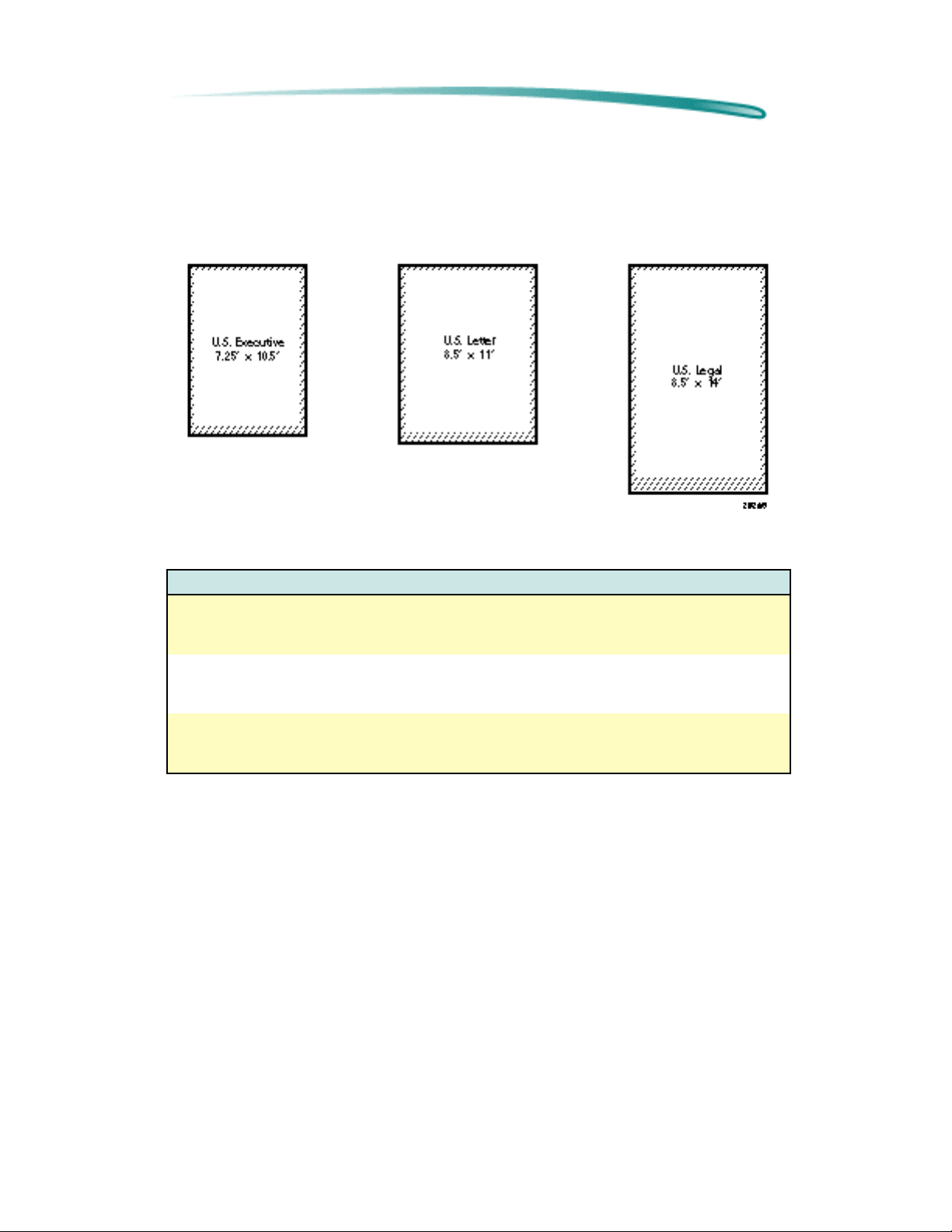

US Paper and Transparency Sizes
US Paper and Transparency Printable Area
Top Margin Bottom Margin Left & Right Margins
U.S. Executive
71/4 X 10 1/2 in.
(184.1 mm X 266.7 mm)
U. S. Letter
8 1/2 in. X 11 in.
(215.9 mm X 279.4 mm)
U. S. Legal
8 1/2 in. X 14 in.
(215.9 mm X 355.6 mm)
0.26 in.
(6.6 mm)
0.26 in.
(6.6 mm)
0.26 in.
(6.6 mm)
0.59 in.
(14.9 mm)
0.59 in.
(14.9 mm)
0.59 in.
(14.9 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
H P D e s k W r i t e r 5 4 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s

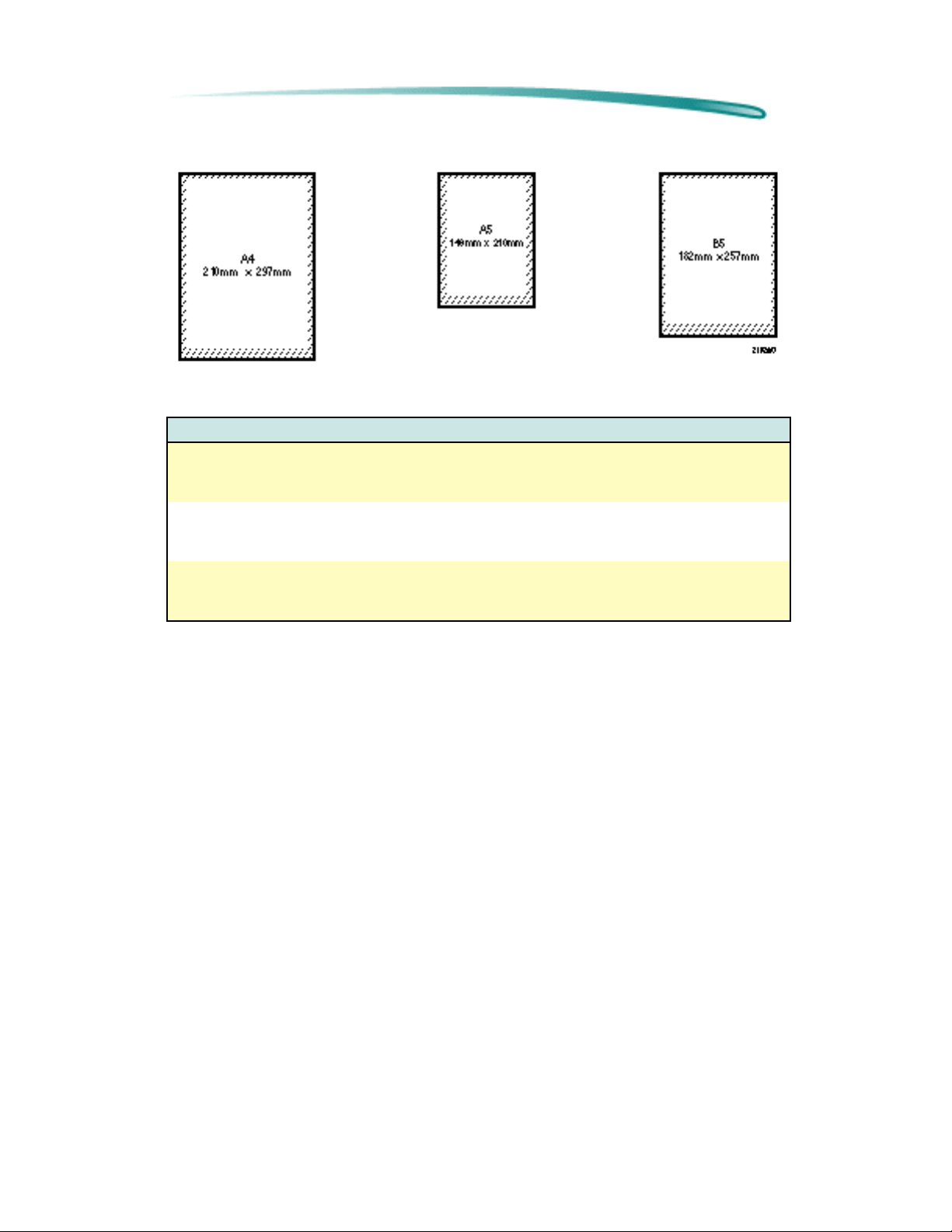

International Paper and Transparency Sizes
International Paper and Transparency Printable Area
Top Margin Bottom Margin Left & Right Margins
ISO & JIS A4
8.27 in. X 11.69 in.
(210.0 mm X 297.0 mm)
ISO & JIS A5
2
5.83 in. X 8.27 in.
(148 mm X 210 mm)
JIS B5
2
7.17 in. X 10.12 in.
(182 mm X 257 mm)
0.26 in.
(6.6 mm)
0.26 in.
(6.6 mm)
0.26 in.
(6.6 mm)
0.59 in.
(14.9 mm)
0.84 in.
(21.3 mm)
0.59 in.
(14.9 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
H P D e s k W r i t e r 5 4 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s

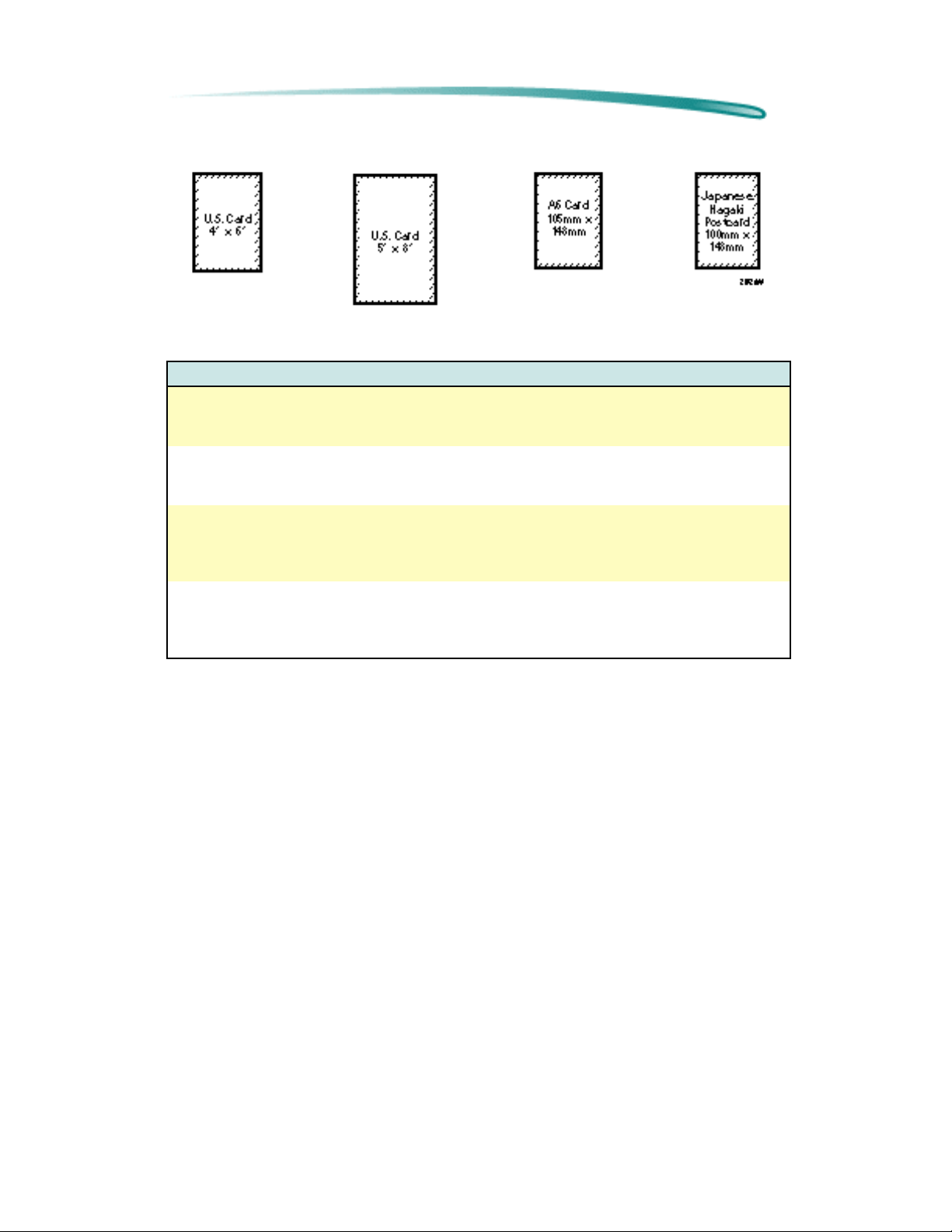

Card Stock Sizes
Card Stock Printable Area
Top Margin Bottom Margin Left & Right Margins
U.S. Card Stock
4 in. X 6 in.
(101.6 mm X 152.4 mm)
U.S. Card Stock
5 in. X 8 in.
(127.0 mm X 203.2 mm)
ISO & JIS A6
Cards
4.13 in. X 5.83 in.
(105 mm X 148 mm)
Japanese Hagaki
Postcards
3.934 in. X 5.83 in.
(100 mm X 148 mm)
2
0.26 in.
(6.6 mm)
2
0.26 in.
(6.6 mm)
2
0.26 in.
(6.6 mm)
2
0.26 in.
(6.6 mm)
0.84 in.
(21.3 mm)
0.84 in.
(21.3 mm)
0.84 in.
(21.3 mm)
0.84 in.
(21.3 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
0.25 in.
(6.4 mm)
H P D e s k W r i t e r 5 4 0 P r i n t e r P r i n t a b l e A r e a S p e c i f i c a t i o n s
Envelope Sizes
DOS Envelope Printable Area (Landscape)
Left Margin Right Margin Top & Bottom Margins
No. 10 Envelopes
4 1/8 in. X 9 1/2 in.
(104.8 mm X 241.3 mm)
International DL
Envelopes
4.33 in. X 8.66 in.
(110 mm X 220 mm)
International C6
Envelopes
4.49 in. X 6.38 in.
(114 mm X 162 mm)
2
0.84 in.
(26 mm)
0.84 in.
(26 mm)
0.84 in.
(26 mm)
0.29 in.
(6.6 mm)
0.29 in.
(6.6 mm)
0.29 in.
(6.6 mm)
0.125 in.
(3.2 mm)
0.125 in.
(3.2 mm)
0.125 in.
(3.2 mm)
H P D e s k W r i t e r 5 4 0 P r i n t e r P h y s i c a l S p e c i f i c a t i o n s
Physical Specifications
Printer Physical Specifications
Weight 5.3 Kg (11.6 LB)
H P D e s k W r i t e r 5 4 0 P r i n t e r E l e c t r i c a l S p e c i f i c a t i o n s
Electrical Specifications
Electrical Specifications
Category Specification
Input Voltage 100 VAC, 120 VAC, 220 VAC, 230 VAC, or 240
VAC (±10%)
Frequency
100 VAC
120 VAC
220 VAC
230 VAC
240 VAC
Power Consumption
Powered Off (Plugged In)
Powered On (Idle State)
Powered On (Printing State)
1. Power modules are available for each listed input voltage. Refer to “Power Module Information.”
50/60 Hz (±3 Hz)
60 Hz (±3 Hz)
50 Hz (±3 Hz)
50 Hz (±3 Hz)
50 Hz (±3 Hz)
2 Watts
4.5 Watts
12 Watts (Maximum)
H P D e s k W r i t e r 5 4 0 P r i n t e r E n v i r o n m e n t a l S p e c i f i c a t i o n s
Environmental Specifications
Environmental Specifications
Category Specification
Temperature
Operating
Non-Operating
Recommended Operating
Relative Humidity 10% to 80% RH at 30° C
Altitude
Operating
Non-Operating
Mechanical Vibration
Frequency Range
Operating (Random)
Non-Operating (Random)
Swept Sine
BTU Output 41 BTU/hour (maximum)
ESD per CISPR24 Part 2 Passed1, No Waivers
Noise Levels per ISO 9296
Sound Pressure (L
EconoFast Mode
Presentation Mode
Sound Power (L
EconoFast Mode
Presentation Mode
1. ESD contact points include the carriage rod, paper guide, service station motor, interface port,
and pivot return spring. Air discharge points include the carriage assembly, rear seams, and top
seams.
wAd
)
pAm
)
5 to 40° C (41 to 104° F)
-40 to 60° C (-40 to 140° F)
15 to 35° C (59 to 95° F)
0 to 3048 meters (10,000 feet)
0 to 4572 meters (15,000 feet)
5 to 500 Hz
Approximately 0.21 G rms
Approximately 2.09 G rms
0.5 G (0 to peak)
49 dB(A)
46 dB(A)
6.4 B(A)
6.1 B(A)
H P D e s k W r i t e r 5 4 0 P r i n t e r S a f e t y a n d E M I S p e c i f i c a t i o n s
Safety and EMI Specifications
Product Safety Specifications
Category Specification
Power Module Safety
Certifications
Printer/Power Module
Safety Certifications
EMI Certifications FCC Class B when used with a Class B computing device (USA),
UL, CSA, TUV, SEMKO, NEMKO, SECV, FIMKO, DEMKO, NOM
UL, CSA, TUV, ETL
EMC Directive 89/336/EEC (European Community), VCCI (Japan),
SABS (South Africa)
H P D e s k W r i t e r 5 4 0 P r i n t e r R e l i a b i l i t y S p e c i f i c a t i o n s
Reliability Specifications
Reliability Specifications
Category Specification
Vertical Resolution ±0.002 in.
Printer Usage Rate 1000 Pages Per Month (Maximum)
Mean Time Between Failures (MTBF) 20,000 Hours
(2000 Hours Power-On and 12,000 Printed
Pages per Year)
Mechanism Life 60,000 Pages
H P D e s k W r i t e r 5 4 0 P r i n t e r P a c k a g i n g S p e c i f i c a t i o n s
Packaging Specifications
Loading...
