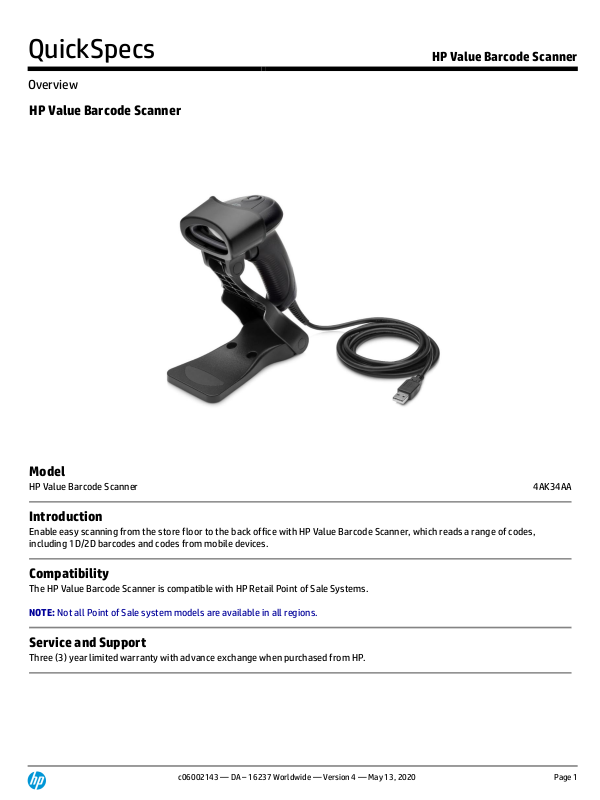

QuickSpecs
HP Value Barcode Scanner
Overview
c06002143 — DA – 16237 Worldwide — Version 4 — May 13, 2020
Page 1
HP Value Barcode Scanner
Model
HP Value Barcode Scanner
4AK34AA
Introduction
Enable easy scanning from the store floor to the back office with HP Value Barcode Scanner, which reads a range of codes,
including 1D/2D barcodes and codes from mobile devices.
Compatibility
The HP Value Barcode Scanner is compatible with HP Retail Point of Sale Systems.
NOTE: Not all Point of Sale system models are available in all regions.
Service and Support
Three (3) year limited warranty with advance exchange when purchased from HP.
QuickSpecs
HP Value Barcode Scanner
Technical Specifications
c06002143 — DA – 16237 Worldwide — Version 4 — May 13, 2020
Page 2
General
Scanner Type
2D Linear Imager
Light source
White LED
Resolution
≥4 mil
Depth of Field
Typical Performance *
Narrow Width
Depth of Field
Code 39
50mm-125mm (1.9in-4.9in) (5 mils)
35mm-250mm (1.4in-9.8in) (10 mils)
EAN-13
60mm-230mm (2.4in-9.1in) (13 mil)
PDF417
55mm-75mm (2.2in-2.9in) (6.7 mils)
20mm-145mm (.78in-5.7in) (10 mil)
QR Code
25mm-80mm (.98in-3.1in) (10 mil)
10mm-135mm (.4in-5.3in) (15 mil)
Datamatrix
35mm-75mm (1.4in-2.9in) (10 mil)
15mm-115mm (.59in-4.5in) (15 mil)
Symbol Contrast
25% minimum reflectance
Roll (tilt)
360°
Pitch
± 45°
Skew
± 40°
1D decode symbologies
EAN-8
EAN-13
UPC-E
UPC-A
Code 128
UCC/EAN 128
I2Of5
ITF14
ITF6
Matrix 25
CodaBar
Code 39
Code 93
ISSN
ISBN
Industrial 25
Standard 25
Plessey
Code 11
MSI Plessey
UCC/EAN Composite
GS1 Databar
China Post 25
Code 49
Code 16K
2D decode symbologies
PDF417
QR Code
Micro QR
Data Matrix
Aztec
Maxicode
QuickSpecs
HP Value Barcode Scanner
Technical Specifications
c06002143 — DA – 16237 Worldwide — Version 4 — May 13, 2020
Page 3
Chinese Sensible Code
GM Code
MicroPDF417
Code One
Postal decode symbologies
USPS Postnet
Royal Mail
KIX Post
Austrailian Postal
Mechanical
Dimensions (L x W x H)
145 x 101 x 68 mm (5.7 x 3.97 x 2.7 in)
Weight
115 g (4.1 oz)
Cable length
2 m (6.5 ft)
Color
Black
Interface/Connection
Interface
USB Temperature
Operating
-4 to 140 °F (-20 to 60 °C)
Storage/transport
-40 to 158 °F (-40 to 70 °C)
Humidity (non-condensing)
5 ~ 95%
Power
Standby Current
58.6mA
Operating
165.8mA (typical), 170.2mA (max)
Drivers
Windows UBB HID-KB and OPOS & JPOS (via USB-COM mode drivers)
Reliability
Water Penetration Protection
IP42
Drop
ESD
1.2 m (3.2 ft)
±8kV (direct discharge)
±15kV (air discharge)
Operating System
Compatible with:
Windows 10 (32-bit)
Windows 10 (64-bit)
Windows 10 IoT (32-bit)
Windows 10 IoT (64-bit)
Windows 8.1 Professional (32-bit)
Windows 8.1 Professional (64-bit)
Windows Embedded 8.1
Windows 7 Business (64-bit)
Windows Embedded POS Ready 7 (64-bit)
Windows Embedded POS Ready 2009
Agency Certifications
FCC Part15, Class B, CE EMC Class B, IEC62471, RoHS
Option Kit Contents
HP Value Barcode Scanner, Scanner Stand, USB Cable.
QuickSpecs
HP Value Barcode Scanner
Technical Specifications
c06002143 — DA – 16237 Worldwide — Version 4 — May 13, 2020
Page 4
QuickSpecs
HP Linear Barcode Scanner
Summary of Changes
c06002143 — DA – 16237 Worldwide — Version 4 — May 13, 2020
Page 5
Date of change:
Version History:
Description of change:
February 20, 2019
From v1 to v2
Warranty updated
September 20, 2019
From v2 to v3
Service and Support updated
May 13, 2020
From v3 to v4
Specs updated
© Copyright 2020 HP Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
