HP t423, t418, t413, t408, t403 Getting Started Guide [da]

...

t450

Digital Camcorder

Caméscope numérique

Video Cámara Digital Câmara Digital Video

Guide de démarrage rapide

For the full version of the t450 product user manual go to: www.hp.com/support

Pour la version complète du manuel d’utilisateur du modèle t450, allez sur: www.hp.com/support

Para descargarse la versión completa del manual de instrucciones del modelo t450,

Para a versão completa do manual da t450, visite: www.hp.com/support

puede acceder al siguiente enlace: www.hp.com/support

Quick Start Guide

Guía rápida

Guia rápido de instruções

English

Tour of Your Camcorder

[Photo] Button

Battery/SD Card Cove

[Tele/Wide] Toggle

Optical Lens

External Lens Mount

Microphone

Indicator

Light

Tripod Socket

English

Tour of Your Camcorder

Speaker

[Power] Button

LED Indicator

[Record] Button

Mini USB Port

HDMI Port

[Wireless] On/Off Button

LCD Touch Panel

[Pause] Button

English

Getting Started

Adapter charging mode

PC USB charging mode

Step 1 : Load the Battery

• Slide the latch and open the battery cover.

• Insert the battery correspondingly with the correct polarity marks (+ or -).

• Close the battery cover firmly so that it

locks into place.

Step 2 :

Charge the Li-ion Battery

• Charge the battery fully before rst use.

• Under charging, the indicator will ash.

• It could take up to 5 hours to charge fully

with an adapter. Once complete, the indicator will turn off automatically.

Note:

• A longer time is required via a PC USB.

Step 3 :

Insert the Memory Card

• Slide the latch and open the battery cover.

• Insert the SD card into the slot until it locks properly.

• To remove the SD card, press inward to release it and gently pull it out.

English

Record & Play WiVideo Installation

Power

• Flip out the LCD panel or press the [ Power ]button.

• After idling for 3 minutes, the

device

will turn off automatically.

Record

• Press to take video. Press again to stop.


• Press to take photo.

Tele/Wide

• T: Zoom in . • W: Zoom out.

Wireless

• Touch to enable/disable wireless Use wireless to link with PC/ Mobile/Cloud.

Pause

• Press to pause recording. Press again to continue.

Video/Photo

• Touch to switch between Video and Photo.

• The default is in Video mode.

• Touch to turn the option menu on.

• Scroll left/right or touch to change among three menu pages (Video/Photo/Setting).

Playback

• Touch to go to the Playback Mode View or delete the recorded  les.

Tap on the screen to display the icons.

①

②

③

④

⑤

⑥

⑦

⑧

⑨

English

WiVideo Installation

To support wireless connection between camcorder and PC/Laptop (wireless enabled), WiVideo is a software that allows to view, manage video/ photo and live streaming taken from the camcorder wirelessly. Two versions are provided:

Note: Streaming will remain on even LCD panel is closed.

Version 1 :

Version 2 :

App Store

Google Play

PC WiVideo Suite

• Power on the camcorder before connecting to a PC/notebook.

• Use the camcorder (internal memory) to install [ WiVideo Suite ] automatically onto the PC/ Laptop via USB cable when AutoRuns/AutoPlay is activated.

• If AutoRuns/AutoPlay is not activated: Go to [ My computer ]→ search [ WiVideo Suite ] for installation.

Note:

• WiVideo is for Windows® only.

• When language on screen is not legible,

refer to troubleshooting page.

Mobile WiVideo App

• For iPhone/iPad:

Download and install WiVideo App from App Store onto iPhone/iPad.

• For Android phone/tablet:

Download and install WiVideo App from Google Play onto Android phone/tablet.

English

Wireless Mode To PC PC WiVideo Suite Function

Step 1: (Camcorder side)

• Press [ Wireless ] button → Seletct [ Wireless to PC ].

The screen will show the Wireless ID and Password.(The default password is 0000. Wireless ID and password can be edited on Setting menu.)

WiFi to PC

Wireless to PC

CD-675C-60675C

WiFi ID

CD-675C-60675C

Wireless ID

Password

0000

Password

0000

Step 2:(PC/Laptop side)

• Open the WiVideo software

• Click [ Detect Wireless Camera] button to search for

camcorder.

• Check [ Wireless ID ] and enter [ Password ] shown on

camera to the WiVideo window.

• Then, wireless to PC WiVideo Suite Mode is completed.

CD-675C-60675C

0000

Note: Turn PC/Laptop wireless function on before use.

English

PC WiVideo Suite Function

Active Mode Function

Manage Video and Photo Files

• Transfer les from camera to PC.

• Delete les in camera.

Wireless/USB

Watch Live Video (wireless only)

• Watch live streaming on PC.

• Remote control the camera.

Wireless

Wireless Webcam for Skype/MSN (wireless only)

• Change video/audio setting of Skype/MSN.

• Select WiVideo Camera

Wireless

USB

(e.g. Skype)

A ccount Setting (USB only)

• Set up social network account and save info to camera via USB.

Wireless Setup (USB only)

• Congure and synchronize wireless proles on camera via USB.

• Name camera and create security password.

English

Wireless Modes to Mobile

System AP/3G Mode Schema Page Note

1. Once Direct mode is on

w/o

Direct

w/o

iPhone/

iPad

Android

w/3G Hotspot

w/AP AP

w/o AP Hotspot

w/AP AP

(

Hotspot

)

AP : Wireless Access Point Hotspot : Mobile as Access Point

original wireless will be turned off.

2. Remember to turn wireless

connection back on once quit Direct mode.

1. Hotspot is limited or charged by wireless mobile service

(3G/4G) provider.

2. Mobile system will be slower.

1. Distance will affect the signal

strength.

1. Hotspot is limited or charged by wireless mobile service

(3G/4G) provider.

2. Mobile system will be slower.

1. Distance will affect the signal strength.

English

Wireless to Mobile (iPhone/iPad)

Direct Mode

Wireless to Mobile

wireless ID

CD-675C-60675C

Password

0000

Step 1 : (Camcorder side)

• Press [ Wireless ] button → Select [ Wireless to Mobile ]

→ Select [ Direct Mode ] → The screen will show [ Wireless ID ] and [ Password ].

Step 2 : (Mobile side)

• Go to [ Settings ] → [ Wireless ] → Select the same [ Wireless ID ] in Step 1 to connect.

• Once the icon [ connection is activated.

• Activate Mobile WiVideo App.

Note: It will take a while for [

] shows, the Dierct Mode

] to show up.

English

Wireless to Mobile (iPhone/iPad)

Mobile Hotspot Mode

[ Mobile Hotspot ]

AP Mode

[ AP ]

Step 1 : (Mobile side)

• Go to [ Settings ] → [ Wireless ] → Enable [ Personal Hotspot ]

Step 2 : (Camcorder side)

• Press [ Wireless ] button → Select [ Wireless to Mobile

available AP → Connect camcorder to mobile Hotspot.

] to scan

Step 1 : (Mobile side)

• Go to [ Settings ] → [ Wireless ] → Enable wireless and Select one available AP.

Step 2 : (Camcorder side)

• Press [ Wireless ] → Select [ Wireless to Mobile

→ Connect camcorder to the same selected AP.

] to scan available AP

English

Wireless to Mobile (Android)

Mobile Hotspot Mode

AP Mode

Step 1 : (Mobile side)

• Go to [ Settings ] → [ Wireless & network ] → Enable mobile Hotspot/AP

Note: Operation may vary, please refer to each individual model.

Step 2 : (Camcorder side)

• Press [ Wireless ] button → Select [ Wireless to Mobile

available AP → Connect camera to mobile Hotspot/AP.

] to scan

Step 1 : (Mobile side)

• Go to [ Settings ] → [ Wireless & network ] → [ Wireless settings ] → Enable wireless and Select one available AP.

Step 2 : (Camcorder side)

• Press [ Wireless ] button → [ Wireless to Mobile → Connect camera to the same selected AP.

] to scan available AP

English

Mobile WiVideo Suite Function

Tele(T)

• Zoom in

Wide(W)

• Zoom out

Video

• Press to take/stop video


• Press to take photo

View

• Watch live view on camcorder

Album

• Playback/Delete les on camcorder

Setup

• Manage settings on camcorder

English

Wireless Mode to Cloud

Ustream enables to broadcast live events freely. People can watch live video broadcasting on PC and Mobile devices. WiVideo Suite can guide you to setup Ustream automatically.

1. Set up Ustream account on PC ( PC internet connection is required)

Step 1 : Create an account

• Plug the USB cable between PC/Laptop and camcorder

• Go to WiVideo Suite [ Account Setup ]

• Click [ Create A New Account ] and then ll up the information requested step by step.

• Then click [ Sign Up ].

Step 2 : Save account information to camera

• Enter Username/Password created in Step 1

• Then click [ Save ].

English

Wireless Mode to Cloud

Step 3 : Select one channel

WiVideo Suite creates one default channel. You can create more channels on Ustream website.

• Select one channel for Ustream video broadcasting.

• For privacy, it is optional to enter password for the selected channel.

Warning:

• Mobile device Ustream App cannot access private channel.

• For private channel usage, refer to Ustream website for detail information.

2. Prepare AP/Mobile Hotspot for Ustream broadcasting

AP(Access Point)

Mobile

English

Wireless Mode to Cloud

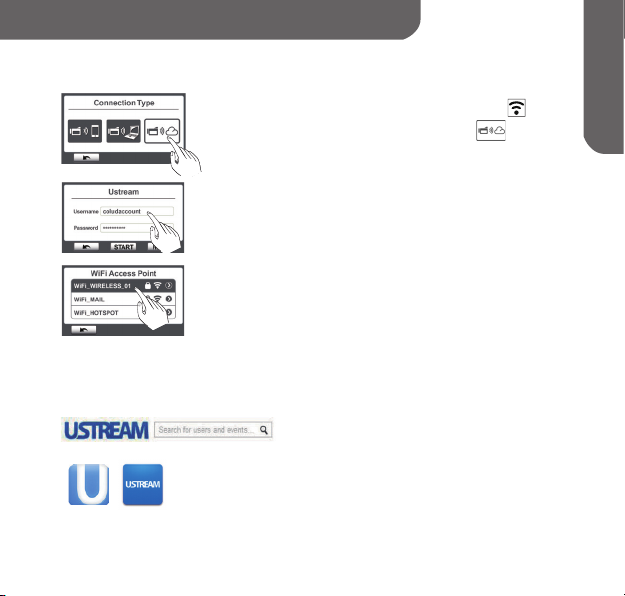

3. Broadcast live video on Ustream (Camcorder side)

Step 1 :

Press [ Wireless

• Select [ Wireless to Cloud ]

Step 2 :

• Enter your username and password.

Step 3 :

Scan & Select Access Point

• The camcorder lists available Access Points.

• Select one for wireless connection. The camcorder connects to Ustream server and

starts video streaming.

4. Watch your Ustream broadcasting on PC/Mobile Device

PC user:

• Go to Ustream website and enter

www.ustream.tv

the username/channel

Mobile user:

• Download Ustream App from App Store/

Ustream

Google Play Launch App and enter the username/channel

] button

Troubleshooting

Problem/Situation Remediation/Solution

Cannot power on the device/ The power turns off suddenly.

The les on the memory card do not display smoothly when the LCD shows the “!” mark.

Why do some of my indoor photos look blurry and dark?

When the device is connected to the PC via USB cable.

Cannot connect to wireless

WiVideo Suite does not install properly.

WiVideo Suite language on screen is not legible.

Check battery direction and press the [ Power Button ] to turn on.

Battery is weak or run out. Recharge the battery.

“!” means the SD card is low-speed or contains corrupted les Try to form at the card on the de vice not on PC.

The card has some problems and cannot be recognized. Use another card.

The device extends photo exposure time under low light/ indoor condition. Keep the device (and the target subject) steady for several seconds while taking photo.

The disk [ DV ] indicates the internal memory of the camera. The disk [ Removable Disk ] indicates the SD card. The disk [ WiVideo Suite ] indicates the built-in application.

The password conguration does not match the AP.

The AP router or the computer wireless is not turned on. Turn the AP router or your computer wireless on.

The device is not in the wireless network service area or the wireless network service is affected by distance.

If the disk [ WiVideo Suite ] cannot be found, reboot your computer.

Refer to FAQ of the instructions from each original computer manufacturer.

Français

Aperçu de votre caméscope

Bouton [Photo]

Couvercle du logement de la

Bouton [Tele/Wide

(télé-objectif/grand angle)]

Objectif

Monture d’objectif externe

Microphone

Voyant indicateur

Éclairage

batterie/carte SD

Filetage pour trépied

Français

Aperçu de votre caméscope

Haut-parleur

Bouton [Power (marche-arrêt)]

Voyant LED

Touche [Record (enregistrement)] Mini port USB

Port HDMI

Bouton On/Off [Wireless]

Panneau LCD

Touche [Pause]

Français

Guide de démarrage

Chargement via adaptateur secteur

Chargement via port USB de l’ordinateur

Étape 1 : Chargez la batterie

• Faites glisser le verrou et ouvrez le logement de la batterie.

• Insérez la batterie en respectant les marques de polarité (+ ou -).

• Refermez fermement le logement de la

batterie.

Étape 2 :

Chargez la batterie Li-ion

• Chargez complètement la batterie avant la première utilisation.

• Le voyant clignote pendant la charge.

• Le temps de charge complet avec l’adaptateur secteur est de 5 heures. Une fois la charge terminée, le voyant s’éteint automatiquement.

NB:

• Le temps de charge est plus long via le port USB d’un ordinateur.

Étape 3 :

Insérez la carte de mémoire

• Faites glisser le verrou et ouvrez le logement

de la batterie.

• Insérez la carte SD dans le logement jusqu’à ce qu’elle se verrouille en place.

• Pour retirer la carte SD, appuyez dessus pour la libérer et tirez délicatement dessus.

+ 46 hidden pages
