HP StorageWorks
Modular Smart Array 30
User Guide
(Formerly HP StorageWorks
Model 4400 Family of Ultra320 SCSI Disk Enclosures)
November 2003 (Second Edition)
Part Number 335900-002
© 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for
HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
HP StorageWorks Modular Smart Array 30 User Guide
November 2003 (Second Edition)
Part Number 335900-002
HP StorageWorks Modular Smart Array 30 User Guide iii
Contents
About This Guide
Audience Assumptions..................................................................................................... vii
Important Safety Information........................................................................................... vii
Symbols on Equipment .................................................................................................... vii
Rack Stability .................................................................................................................... ix
Symbols in Text.................................................................................................................ix
Getting Help ........................................................................................................................x
Technical Support.........................................................................................................x
HP Website ...................................................................................................................x
Authorized Reseller .................................................................................................... xi
Reader’s Comments .......................................................................................................... xi
Chapter 1
System and Components
System ............................................................................................................................. 1-1
Ultra320 I/O Module....................................................................................................... 1-3
Environmental Monitoring Unit...................................................................................... 1-4
Disk Drive and Drive Blank............................................................................................ 1-6
Power Supply and Blower Assembly.............................................................................. 1-7
Chapter 2
Installing the System in a Rack
Removing the System Components................................................................................. 2-1
Drive Blanks ............................................................................................................. 2-1
Disk Drives ............................................................................................................... 2-1
Power Supply Assembly........................................................................................... 2-2
EMU.......................................................................................................................... 2-2
Contents
iv HP StorageWorks Modular Smart Array 30 User Guide
I/O Module ................................................................................................................2-2
Mounting the System in a Rack.......................................................................................2-2
Completing the Installation..............................................................................................2-7
Verifying Normal Operation............................................................................................2-8
System LEDs.............................................................................................................2-8
Power Supply Assembly LED...................................................................................2-8
I/O Module LEDs......................................................................................................2-9
EMU LED ...............................................................................................................2-10

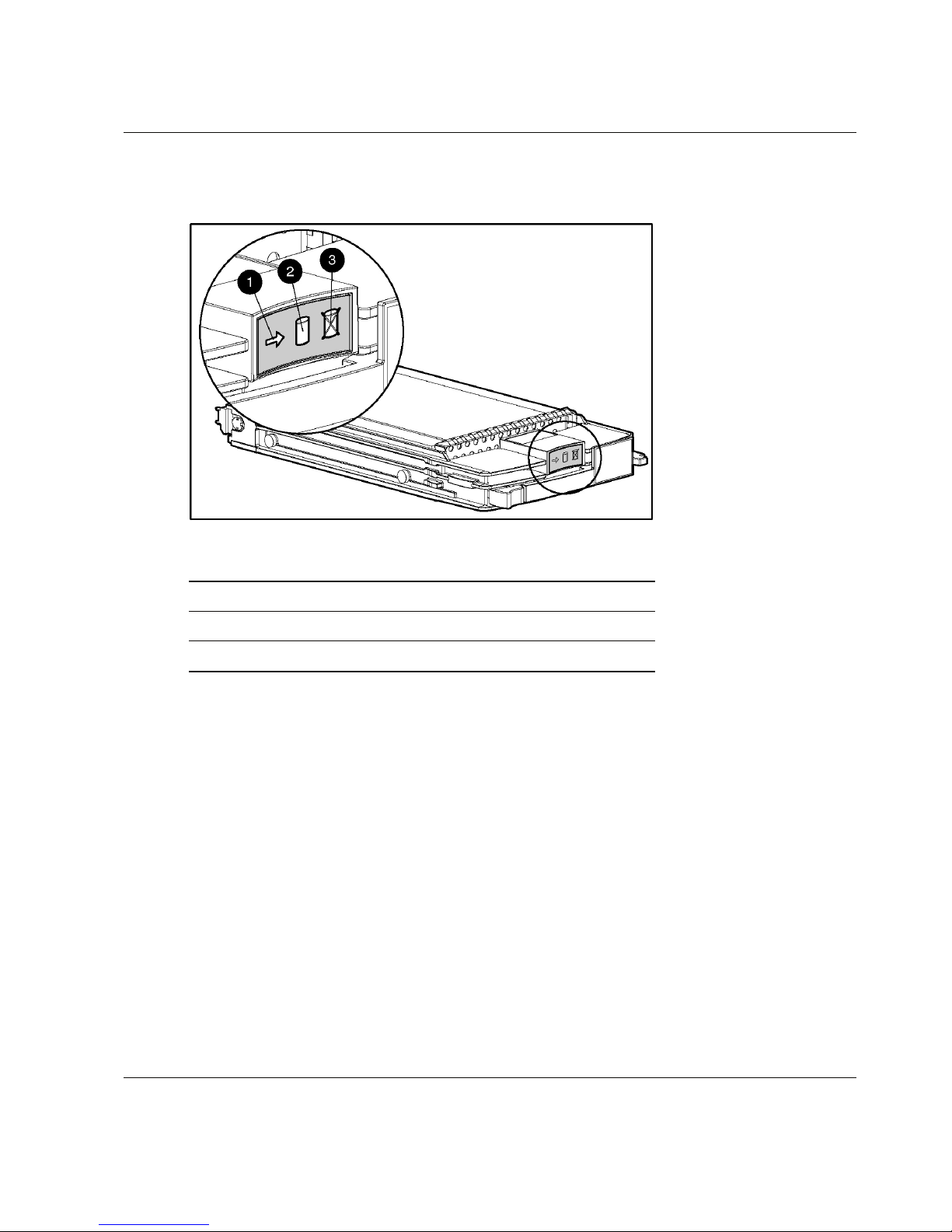

Disk Drive LEDs.....................................................................................................2-11
Chapter 3
Replacing System Components
Replacement Procedures..................................................................................................3-2
Disk Drive or Drive Blank ........................................................................................3-2
Blower .......................................................................................................................3-4
Power Supply Unit ....................................................................................................3-5
EMU..........................................................................................................................3-6
I/O Module ................................................................................................................3-7
Appendix A
Regulatory Compliance Notices
Federal Communications Commission Notice ...............................................................A-1
Class A Equipment...................................................................................................A-2
Class B Equipment...................................................................................................A-2
Declaration of Conformity for Products Marked with the FCC Logo, United States
Only.......................................................................................................................... A-3
Modifications ...........................................................................................................A-3
Cables.......................................................................................................................A-3
Canadian Notice (Avis Canadien) ..................................................................................A-4
Class A Equipment...................................................................................................A-4
Class B Equipment...................................................................................................A-4
European Union Notice ..................................................................................................A-4
Japanese Notice...............................................................................................................A-5

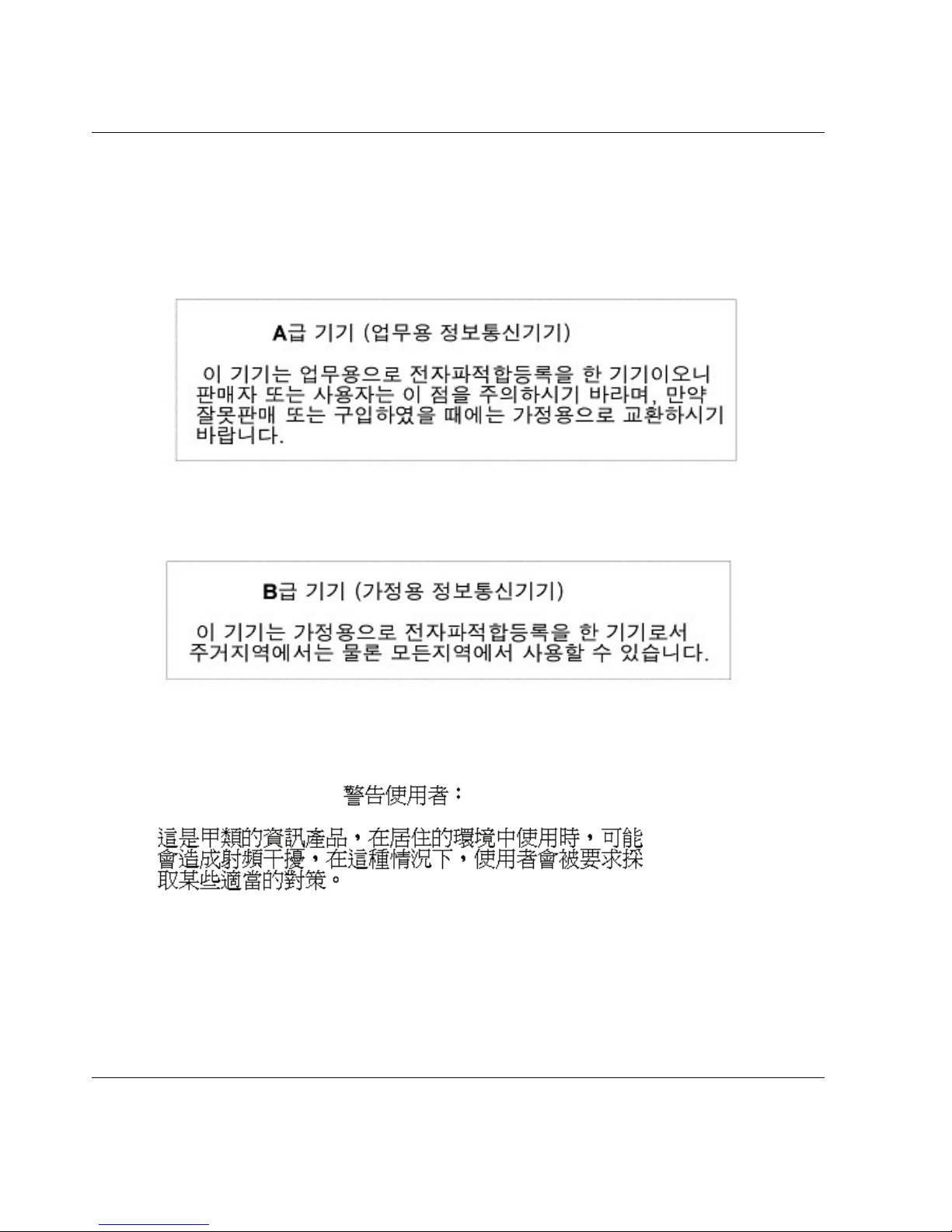

Korean Notice.................................................................................................................A-6
Class A Equipment...................................................................................................A-6
Class B Equipment...................................................................................................A-6
BSMI Notice...................................................................................................................A-6
Contents
HP StorageWorks Modular Smart Array 30 User Guide v
Appendix B
Electrostatic Discharge
Preventing Electrostatic Damage ....................................................................................B-1
Grounding Methods to Prevent Electrostatic Damage ....................................................B-2
Appendix C
Specifications
Power Specifications .......................................................................................................C-1
Environmental Specifications..........................................................................................C-2
Physical Specifications....................................................................................................C-2
Appendix D
SCSI Address Map
Index
HP StorageWorks Modular Smart Array 30 User Guide vii
About This Guide
This guide provides step-by-step installation instructions and reference information
for operation and troubleshooting for the HP StorageWorks Modular Smart Array 30.
Audience Assumptions
This guide is for the person who installs, administers, and troubleshoots servers. HP
assumes you are qualified in the servicing of computer equipment and trained in
recognizing hazards in products with hazardous energy levels.
Important Safety Information
Before installing this product, read the Important Safety Information document
included with the system.
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence of
potentially hazardous conditions:
WARNING: This symbol, in conjunction with any of the following symbols,
indicates the presence of a potential hazard. The potential for injury exists if
warnings are not observed. Consult your documentation for specific details.
About This Guide
viii HP StorageWorks Modular Smart Array 30 User Guide
This symbol indicates the presence of hazardous energy circuits or electric
shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure. Refer all maintenance, upgrades, and servicing to
qualified personnel.
This symbol indicates the presence of electric shock hazards. The area
contains no user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not
open this enclosure.
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors into this
receptacle.
This symbol indicates the presence of a hot surface or hot component. If this
surface is contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the
surface to cool before touching.
These symbols, on power supplies or systems, indicate that the
equipment is supplied by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock,
remove all power cords to completely disconnect power from the
system.
Weight in kg
Weight in lb
This symbol indicates that the component exceeds the recommended
weight for one individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements
and guidelines for manual material handling.
About This Guide
HP StorageWorks Modular Smart Array 30 User Guide ix
Rack Stability
WARNING: To reduce the risk of personal injury or damage to the equipment,
be sure that:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if
more than one component is extended for any reason.
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
WARNING: Text set off in this manner indicates that failure to follow directions
in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents essential information to explain a concept
or complete a task.
NOTE: Text set off in this manner presents additional information to emphasize or supplement
important points of the main text.
About This Guide
x HP StorageWorks Modular Smart Array 30 User Guide
Getting Help
If you have a problem and have exhausted the information in this guide, you can get
further information and other help in the following locations.
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-652-6672.
This service is available 24 hours a day, 7 days a week. For continuous quality
improvement, calls may be recorded or monitored. Outside North America, call the
nearest HP Technical Support Phone Center. Telephone numbers for worldwide
Technical Support Centers are listed on the HP website,
http://www.hp.com.
Be sure to have the following information available before you call HP:
• Technical support registration number (if applicable)
• Product serial number
• Product model name and number
• Applicable error messages
• Add-on boards or hardware
• Third-party hardware or software
• Operating system type and revision level
HP Website
The HP website has information on this product as well as the latest drivers and flash
ROM images. You can access the HP website at
http://www.hp.com.
About This Guide
HP StorageWorks Modular Smart Array 30 User Guide xi
Authorized Reseller
For the name of your nearest authorized reseller:
• In the United States, call 1-800-345-1518.
• In Canada, call 1-800-263-5868.
• Elsewhere, see the HP website for locations and telephone numbers.
Reader’s Comments
HP welcomes your comments on this guide. Please send your comments and
suggestions by e-mail to
ServerDocumentation@hp.com.
HP StorageWorks Modular Smart Array 30 User Guide 1-1
1
System and Components
System
Figure 1-1: System, front view
Item Description
1 Disk drive or drive blank in bay 1 (shipped with drive
blanks)
2 Thumbscrews
3 System status LEDs
4 Disk drive or drive blank in bay 14
System and Components
1-2 HP StorageWorks Modular Smart Array 30 User Guide
Figure 1-2: System, rear view
Item Description
1 Environmental Monitoring Unit (EMU)
2 Power supply units
3 I/O module (single-port or dual-port)
4 Blowers
Each system has either one or two internal SCSI buses, depending on the I/O module
installed. Each bus supports the Ultra320, Ultra3, and Ultra2 protocols.
IMPORTANT: The system does not support single-ended (SE) drives. Installing an SE drive
creates an error condition.
The system fault bus is supported by the HP StorageWorks HS series of array
controllers. Thus the controller, in conjunction with the EMU, can monitor the status
of the system components (primarily the power supply units and blowers) and report
any error conditions by causing the component and system LEDs to be illuminated
appropriately. Additionally, the controller can detect when a disk drive has been
removed or installed.
System and Components
HP StorageWorks Modular Smart Array 30 User Guide 1-3
Ultra320 I/O Module
Figure 1-3: Ultra320 I/O modules
Item Description
1 Release latch
2 SCSI bus A connector, dual-port module
3 Status LEDs, with Ultra320 designator
4 SCSI bus B connector, dual-port module
5 SCSI bus A connector, single-port module
An I/O module supports up to 14 drives. With a dual-port module, these drives must
be shared between the two ports, so up to seven devices can be connected to each bus
in this case. Each bus requires its own host controller.
The I/O module has an internal sensor that provides protection from power surges. If
the current is too high, power to the module is discontinued. The module is then
disabled until the sensor detects that the current has returned to normal.
NOTE: The system must have both an Ultra320 I/O Module and an Ultra320 EMU for data
transfer rates to achieve Ultra320 speeds. The firmware on the hard drives must be upgraded
to ensure that the drives can also operate at Ultra320 speed.
System and Components
1-4 HP StorageWorks Modular Smart Array 30 User Guide
Environmental Monitoring Unit
Figure 1-4: Environmental Monitoring Unit
Item Description
1 EMU status LED
2 (This socket not used in Modular Smart Array 30
systems)
Note: The purple handle indicates that the EMU is
hot-pluggable when used with an HP StorageWorks HS-type
controller.
The EMU performs the following functions:
• Assigns device SCSI addresses, in conjunction with the I/O module
• Monitors various temperatures relevant to optimum system operation:
— If the internal system temperature reaches 45°C (113°F), the EMU causes the
amber System Fault LED to become illuminated.
— If the ambient (room) temperature reaches 50°C (122°F) and Insight
Manager is running on the system, the EMU sends a signal to this utility to
indicate an alarm condition.
System and Components
HP StorageWorks Modular Smart Array 30 User Guide 1-5
— If the internal temperature of a power supply unit exceeds 85°C (185°F), the
power supply unit automatically shuts down.
• Monitors and reports the status of the power supply units, blowers, and system
(when the SCSI adapter or RAID controller supports this function):
— If the controller detects a device fault, it can send a signal to the EMU to
blink the specific device status LED rapidly.
— If the user requests identification of a device, the controller can cause the
EMU to blink the status LED of the specific device slowly.
NOTE: The system must have both an Ultra320 I/O Module and an Ultra320 EMU for data
transfer rates to achieve Ultra320 speeds. The firmware on the hard drives must be upgraded
to ensure that the drives can also operate at Ultra320 speed.
Loading...
