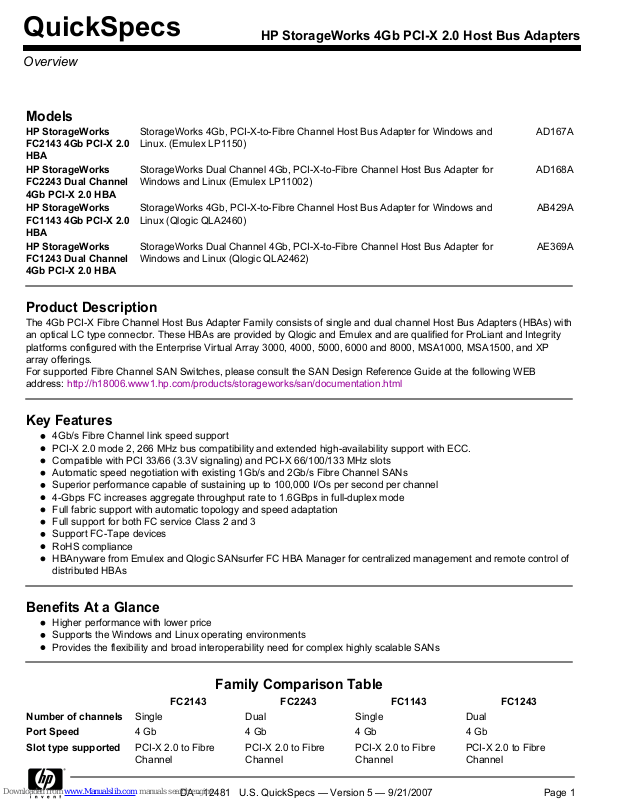

HP StorageWorks FC1143, StorageWorks FC1243, StorageWorks FC2243 Quickspecs

Models

HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA

StorageWorks 4Gb, PCI-X-to-Fibre Channel Host Bus Adapter for Windows and Linux. (Emulex LP1150)

AD167A

HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA

StorageWorks Dual Channel 4Gb, PCI-X-to-Fibre Channel Host Bus Adapter for Windows and Linux (Emulex LP11002)

AD168A

HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA

StorageWorks 4Gb, PCI-X-to-Fibre Channel Host Bus Adapter for Windows and Linux (Qlogic QLA2460)

AB429A

HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA

StorageWorks Dual Channel 4Gb, PCI-X-to-Fibre Channel Host Bus Adapter for Windows and Linux (Qlogic QLA2462)

AE369A

Product Description

The 4Gb PCI-X Fibre Channel Host Bus Adapter Family consists of single and dual channel Host Bus Adapters (HBAs) with an optical LC type connector. These HBAs are provided by Qlogic and Emulex and are qualified for ProLiant and Integrity platforms configured with the Enterprise Virtual Array 3000, 4000, 5000, 6000 and 8000, MSA1000, MSA1500, and XP array offerings. For supported Fibre Channel SAN Switches, please consult the SAN Design Reference Guide at the following WEB address:

http://h18006.www1.hp.com/products/storageworks/san/documentation.html

Key Features

4Gb/s Fibre Channel link speed support PCI-X 2.0 mode 2, 266 MHz bus compatibility and extended high-availability support with ECC. Compatible with PCI 33/66 (3.3V signaling) and PCI-X 66/100/133 MHz slots Automatic speed negotiation with existing 1Gb/s and 2Gb/s Fibre Channel SANs Superior performance capable of sustaining up to 100,000 I/Os per second per channel 4-Gbps FC increases aggregate throughput rate to 1.6GBps in full-duplex mode Full fabric support with automatic topology and speed adaptation Full support for both FC service Class 2 and 3 Support FC-Tape devices RoHS compliance HBAnyware from Emulex and Qlogic SANsurfer FC HBA Manager for centralized management and remote control of distributed HBAs

Benefits At a Glance

Higher performance with lower price Supports the Windows and Linux operating environments Provides the flexibility and broad interoperability need for complex highly scalable SANs

Family Comparison Table

FC2143 FC2243 FC1143 FC1243

Number of channels

Single

Dual

Single

Dual

Port Speed

4 Gb 4 Gb 4 Gb 4 Gb

Slot type supported

PCI-X 2.0 to Fibre Channel

QuickSpecs

HP StorageWorks 4Gb PCI-X 2.0 Host Bus Adapters

Overview

DA - 12481 U.S. QuickSpecs — Version 5 — 9/21/2007

Page 1

OS Supported

Microsoft Windows 2000

Microsoft Windows Server 2003

Microsoft Windows Server 2003 64-Bit Edition

Microsoft Windows Server 2003 for 64-bit Extended Systems

Red Hat Enterprise Linux 3 (AMD64/EM64T)

Red Hat Enterprise Linux 3 (x86)

Red Hat Enterprise Linux 4 (AMD64/EM64T)

Red Hat Enterprise Linux 4 (Itanium)

Red Hat Enterprise Linux 4 (x86)

SUSE LINUX Enterprise Server 8

SUSE LINUX Enterprise Server 8 (AMD64)

SUSE LINUX Enterprise Server 9 (AMD64/EM64T)

SUSE LINUX Enterprise Server 9 (Itanium)

SUSE LINUX Enterprise Server 9 (x86)

VMware V2.5.4 and later V3.0 and later

Servers Supported

HP ProLiant platforms HP Integrity platforms

HP ProLiant platforms

Array Platforms Supported

EVA3000, EVA4x00, EVA5000, EVA6x00, EVA8x00, XP Disk Arrays, MSA1000, MSA1500

Environmental Operating Temperature

32° to 131° F (0° to 55°C)32° to 131° F (0° to 55°C)32° to 113° F (0° to 45°C)32° to 113° F (0° to 45°

C)

QuickSpecs

HP StorageWorks 4Gb PCI-X 2.0 Host Bus Adapters

Overview

DA - 12481 U.S. QuickSpecs — Version 5 — 9/21/2007

Page 2

Environmental Storage Temperature

-20° to 158° F (-4° to 70° C)

-40° to 158° F -40° to 158° F

Environmental Relative Humidity Operating

10% to 90% noncondensing

Product Dimensions (HxW)

6.7 x 2.5 in (16.93 cm x

5.15 cm)

6.7 x 2.5 in (16.93 cm x

5.15 cm)

6.60 x 2.54 in (167.64mm x 64.4 mm)

Media

Multi-mode Optic Multi-mode Optic Multi-mode Optic Multi-mode Optic

Connector

Short wave laser with LC type connector

Brackets

Shipped with both ½ height and full-height brackets

For additional technical specifications go to

http://saw.cce.hp.com/km/saw/home.do

(HP employees and partners only)

Warranty

3-0-0 Three-year parts exchange warranty. Additional Warranty protection can be purchased. HP Global Services provides a three-year, limited warranty, fully supported by a worldwide network of resellers and service providers toll-free 7 x 24 hardware technical phone support for the duration of the warranty. In addition, available service offerings include a full range of HP Care Pack packaged hardware and software services.

NOTE:

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

QuickSpecs

HP StorageWorks 4Gb PCI-X 2.0 Host Bus Adapters

Overview

DA - 12481 U.S. QuickSpecs — Version 5 — 9/21/2007

Page 3

Software Product Services

Stand-alone telephone support

Rights to new license

Media and documentation updates

Hardware Product Services

Installation services

On-site maintenance (includes warranty support)

Response time upgrades during the warranty period

Post-warranty coverage

RAID setup and performance consulting via statement of work

For additional hardware installation and maintenance information, please refer to the URL listed below:

http://www.hp.com/hps/hardware/

Warranty Upgrade Options

Response - Upgrade on-site response from next business day to same day 4 hours

Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days

Duration - Select duration of coverage for a period of 1, 3, or 5 years

Additional Warranty protection and/or HP Installation packages can be purchased.

HP Care Pack Information and Installation Services

Sample part numbers:

3 year, uplift to 5 x 9, Next Day Response

FM-**XHW-36

3 year, uplift to 5 x 9, 4-hour Response

FM-**4HR-36

3 year, uplift to 7 x 24, 4-hour Response

FM-**724-36

Hardware Installation

FM-**INS-IN

** Represents a two-digit, product-specific code

HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage.

HP Care Pack is not available for less than the product's warranty duration.

HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.

HP Care Pack services are prepaid.

If ordering this HBA for a non-HP server, manually add package band 8D4 and Installation HA113A1 band 527. If ordering this HBA as an add-on to an existing HP server, manually add Installation HA113A1 band 527.

For additional HP Care Pack (hardware & software) information, as well as orderable part numbers, please refer to the URL

http://www.hp.com/hps/carepack/

NOTE:

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for

details.

QuickSpecs

HP StorageWorks 4Gb PCI-X 2.0 Host Bus Adapters

Service and Support, HP Care Pack and Warranty Information

DA - 12481 U.S. QuickSpecs — Version 5 — 9/21/2007

Page 4

Windows is a registered trademark of the Microsoft Corporation.

Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided "as is" without warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

QuickSpecs

HP StorageWorks 4Gb PCI-X 2.0 Host Bus Adapters

Service and Support, HP Care Pack and Warranty Information

DA - 12481 U.S. QuickSpecs — Version 5 — 9/21/2007

Page 5
