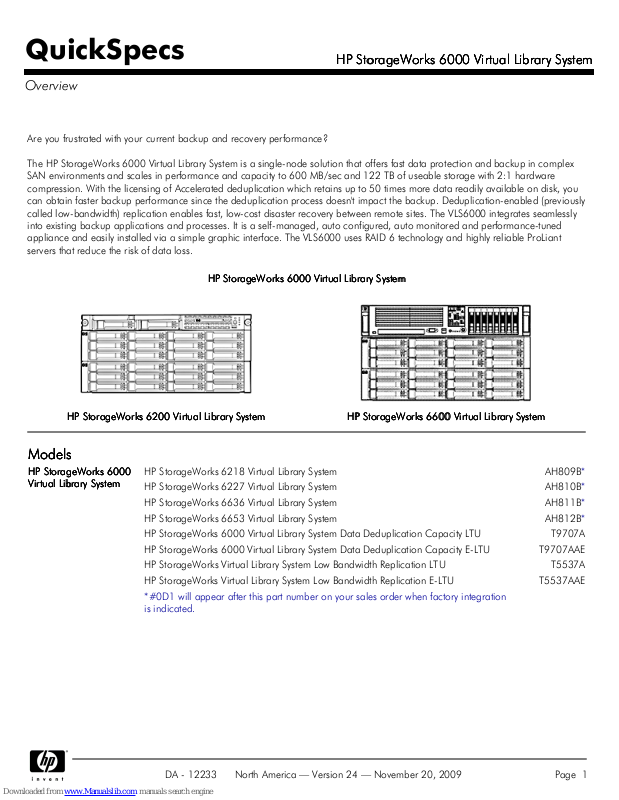

Are you frustrated with your current backup and recovery performance?
The HP StorageWorks 6000 Virtual Library System is a single-node solution that offers fast data protection and backup in complex
SAN environments and scales in performance and capacity to 600 MB/sec and 122 TB of useable storage with 2:1 hardware
compression. With the licensing of Accelerated deduplication which retains up to 50 times more data readily available on disk, you
can obtain faster backup performance since the deduplication process doesn't impact the backup. Deduplication-enabled (previously
called low-bandwidth) replication enables fast, low-cost disaster recovery between remote sites. The VLS6000 integrates seamlessly
into existing backup applications and processes. It is a self-managed, auto configured, auto monitored and performance-tuned
appliance and easily installed via a simple graphic interface. The VLS6000 uses RAID 6 technology and highly reliable ProLiant
servers that reduce the risk of data loss.
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6200 Virtual Library System
HP StorageWorks 6200 Virtual Library SystemHP StorageWorks 6200 Virtual Library System
HP StorageWorks 6200 Virtual Library System HP StorageWorks 6600 Virtual Library System
HP StorageWorks 6600 Virtual Library SystemHP StorageWorks 6600 Virtual Library System
HP StorageWorks 6600 Virtual Library System
Models
ModelsModels
Models
HP StorageWorks 6000
HP StorageWorks 6000HP StorageWorks 6000
HP StorageWorks 6000
Virtual Library System
Virtual Library SystemVirtual Library System
Virtual Library System
HP StorageWorks 6218 Virtual Library System
AH809B
*
HP StorageWorks 6227 Virtual Library System
AH810B
*
HP StorageWorks 6636 Virtual Library System
AH811B
*
HP StorageWorks 6653 Virtual Library System
AH812B
*
HP StorageWorks 6000 Virtual Library System Data Deduplication Capacity LTU
T9707A
HP StorageWorks 6000 Virtual Library System Data Deduplication Capacity E-LTU
T9707AAE
HP StorageWorks Virtual Library System Low Bandwidth Replication LTU
T5537A
HP StorageWorks Virtual Library System Low Bandwidth Replication E-LTU
T5537AAE
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Overview
DA - 12233 North America — Version 24 — November 20, 2009
Page 1
Page 2
6000 Virtual Library
6000 Virtual Library6000 Virtual Library
6000 Virtual Library
System Customer benefits
System Customer benefitsSystem Customer benefits
System Customer benefits
Seamless integration into current backup and recovery processes
Fast data restoration and backup performance
Cost-effective data protection and on-going management
Your valuable data is protected by HP, your trusted and experienced storage vendor.
Key Features
Key FeaturesKey Features
Key Features
Accelerated deduplication and deduplication-enabled replication can be licensed for the VLS6000
A single-node solution that offers industry-leading performance and easily scales in performance
and capacity to 600 MB/sec and up to122 TB of useable storage, with 2:1 hardware
compression (VLS6600 only)
Hardware RAID 6 reduces the risk of data loss
Certified with popular backup software packages through HP StorageWorks Enterprise Backup
Solution (
www.hp.com/go/ebs
)
A highly available solution using HP ProLiant servers with redundant subsystems: fans, power
supply units, hardware-mirrored systems disks and hot swap array drives
Ships with Automigration - software included with the VLS GUI which simplifies moving cartridge
data from the VLS to a tape library or another Virtual Library System.
The VLS6000 supports up to 10,000 slots and 32,000 cartridges (only when using the VLS
firmware version 3.X or higher required for Accelerated deduplication).
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Standard Features
DA - 12233 North America — Version 24 — November 20, 2009
Page 2
Page 3
Accelerated deduplication
Accelerated deduplicationAccelerated deduplication
Accelerated deduplication
The VLS6000 now supports the option of capacity licensing for Accelerated deduplication. One
VLS6000 license T9707A or T9707AAE (NOTE: Electronic software is available in all countries except
China and Japan. For China and Japan should order the physical equivalent.) is required for each shelf
with 250 GB or 500 GB disks (4.4 TB) and two licenses are required for each shelf with 750 GB disks
(6.6 TB) or 1 TB disks (8 TB). Accelerated deduplication retains up to 50 times more data readily
available on disk by replacing redundant blocks of data with pointers to the original block. Accelerated
deduplication delivers fast backup performance since the deduplication process does not impact the
backup. Accelerated deduplication delivers fast restore performance since the latest backup copy is
always retained in its entirety while data reduction occurs on the previous backups. Accelerated
deduplication needs to recognize the specific backup application being used since it initially strips out
the cartridge headers in order to decompose all the files and data types in order to do file-level
comparisons to previous backups.
Seamless integration
Seamless integrationSeamless integration
Seamless integration
The HP 6000 Virtual Library System is deployed, managed and operated just like a tape library
minimizing disruptions to your environment. Emulations include the HP ESL E-series and MSL tape
libraries as well as 1/8 G2 tape autoloaders. The VLS6000 also emulates the HP Ultrium 230 Tape
Drives (LTO-1), HP Ultrium 460 Tape Drives (LTO-2), HP Ultrium 960 Tape Drives (LTO-3), HP Ultrium
1840 Tape Drives (LTO-4 capacity only, no encryption), DLT 7000, DLT 8000, and SDLT 320 Tape
Drives.
Fast data restoration and
Fast data restoration andFast data restoration and
Fast data restoration and
backup performance
backup performancebackup performance
backup performance
A single-node solution that offers industry-leading performance and easily scales in performance and
capacity to 600 MB/sec and 122 TB of useable storage, with 2:1 hardware compression (VLS6600 only)
without impact on performance. Accelerated deduplication (an optional license) retains up to 50 times
more data readily available on disk. Accelerated deduplication delivers fast backup performance since
the deduplication process does not impact the backup.
Cost-effective data
Cost-effective dataCost-effective data
Cost-effective data
protection and on-going
protection and on-goingprotection and on-going
protection and on-going
management
managementmanagement
management
A self-managed, auto-configuration, auto-monitoring and self diagnosis, auto performance-tuning and
load-balancing appliance that is easily installed through a simple interface. As environments and needs
change, so does the VLS6000.
Reliability
ReliabilityReliability
Reliability
While the HP 6000 Virtual Library System contains reliable hardware featuring hot plug disk drives,
standard redundant power supplies and fans as well as hardware RAID 6 protection, the real reliability is
for your data protection process. Simplifying the process by which storage is shared means fewer errors
occur, allowing your process to run more smoothly and faster.
Deduplication-enabled
Deduplication-enabledDeduplication-enabled
Deduplication-enabled
Replication
ReplicationReplication
Replication
The HP StorageWorks 6200 and 6600 Virtual Library Systems support the license of deduplicationenabled replication. This application, which layers on top of Accelerated deduplication, allows customers
to implement low-cost disaster recovery between multiple geographically-dispersed data centers. It
allows these VLS systems to synchronize via low cost IP-WAN connections by only sending the changes
(after data deduplication) across the wire. Deduplication-enabled replication provides an improved
disaster recovery solution that allows customers to reduce or eliminate off site vaulting of tapes (including
associated services) and reduce or eliminate media handling costs.
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Product Highlights
DA - 12233 North America — Version 24 — November 20, 2009
Page 3
Page 4
Automigration
AutomigrationAutomigration
Automigration
The HP StorageWorks 6200 and 6600 Virtual Library Systems support Automigration. This service is a
form of "disk cache to tape", called "echo copy", which allows copies of data to be moved off the virtual
library to a physical library or another VLS under the control of the VLS, not the backup application.
Future updates will allow full integration with ISVs via SMI-S 1.3 specifications supporting what is known
as "smart copy". HP Data Protector 6.1 supports smart copy. Automigration is an HP developed
intellectual property and does not require licensing. SAN based Automigration is only supported on nondeduplication/replication enabled VLS systems.
Automigration - Echo
Automigration - EchoAutomigration - Echo
Automigration - Echo
Copy
CopyCopy
Copy
Echo copy can streamline the process and reduce the costs of making physical tape cartridges from
virtual tape cartridges, for vaulting and off-sitting purposes. Echo copy is run through the Automigration
software (a tab on the VLS GUI), not the backup application. It acts as a transparent disk cache to the
physical library, so that the backup application writes to virtual cartridges in the virtual library, and
Automigration then automatically schedules the copies from virtual cartridges to their matching physical
cartridges (with the same barcodes) based on the Automigration policies the user establishes.
Since Echo copy is managed through the Automigration software, not the backup application, the
destination library is not visible to the backup application - so no licensing is required. Copy traffic is no
longer routed through the SAN which speeds up the copy process. Since the tape library is dedicated to
the VLS no copy servers are required. Echo copy also eliminates the need for tape-to-tape copy
administration since this is automated through copy policy management. All destination tapes created by
echo copy are in the native tape format, so they can be easily restored directly from any tape drive or
library that is visible to the backup application.
Automigration - Smart
Automigration - SmartAutomigration - Smart
Automigration - Smart
Copy
CopyCopy
Copy
Smart copy provides the same capabilities with one important exception. Smart Copy allows the backup
ISV to initiate the copy with the VLS6000 actually implementing the move. The cartridge bar codes
between the two copies are different and the backup ISV is able to track the move. SMI-S 1.3 support is
required by the ISV to be able to implement Smart Copy. HP Data Protector 6.1 supports smart copy.
Data Protection Software
Data Protection SoftwareData Protection Software
Data Protection Software
& ISV support
& ISV support& ISV support
& ISV support
Check the EBS website for the latest VLS and Accelerated deduplication supported backup ISVs and data
types
http://www.hp.com/go/ebs
Electronic Software
Electronic SoftwareElectronic Software
Electronic Software
Delivery
DeliveryDelivery
Delivery
Electronic software is now available in most countries. HP recommends purchasing electronic products
over physical products when available for faster delivery and the convenience of not having to manageeither file away or throw away-confidential paper licenses. For more information, please contact an HP
representative.
Compatibility
CompatibilityCompatibility
Compatibility
HP's Enterprise Business Solutions (EBS) assures that your HP StorageWorks 6000 Virtual Library System
works with leading servers, operating systems, and backup applications - and not just those sold by HP.
Based on a foundation of extensive interoperability testing, EBS 1-2-3 provides a step-by-step
methodology for designing, configuring, and implementing your SAN ensuring HP VLS6000 will work
seamlessly in many environments. HP VLS6000 is especially suitable in a mixed system environment. For
the latest list of servers, workstations, operating systems, and backup software that support HP 6000
Virtual Library System, check the tape backup compatibility pages on our web site at:
http://www.hp.com/go/ebs
.
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Product Highlights
DA - 12233 North America — Version 24 — November 20, 2009
Page 4
Page 5
Server Compatibility
Server CompatibilityServer Compatibility
Server Compatibility
The HP StorageWorks 6000 Virtual Library System is supported on many popular industry servers
including HP ProLiant and HP-UX servers. For a complete list of HP and third party servers, please visit
the Enterprise Backup Solution on the Worldwide web at:
http://www.hp.com/go/ebs
.
OS Support
OS SupportOS Support
OS Support
HP provides extensive support on most major operating systems. For the most up-to-date information,
please visit the latest compatibility matrix at
http://www.hp.com/go/ebs
Backup Software Support
Backup Software SupportBackup Software Support
Backup Software Support
The HP StorageWorks 6000 Virtual Library System is supported on leading backup software applications.
As new certifications are achieved, they are posted on the Enterprise Backup Solution Compatibility
Matrix. Please visit
http://www.hp.com/go/ebs
for the latest compatibility information.
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Product Highlights
DA - 12233 North America — Version 24 — November 20, 2009
Page 5
Page 6
Warranty and Services
Warranty and ServicesWarranty and Services
Warranty and Services
Included with the Product
Included with the ProductIncluded with the Product
Included with the Product
Hewlett-Packard provides a 1-year, next-day, on-site, limited warranty for the HP StorageWorks VLS9000
hardware, plus 9x5 phone support for the duration of the warranty. All hard drive modules have a 1year, parts exchange, limited warranty, with next business day response, plus 9x5 phone support for the
duration of the warranty.
HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days
from delivery.
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/en_321708-008.pdf
For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
For increased uptime, productivity and ROI -HP Care Pack packaged services for StorageFor increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and
solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of
deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as:
flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment,
bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the
technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that
come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of
downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce
downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply
put, HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned
downtime.
Extending warranties with HP Care Pack Services
Extending warranties with HP Care Pack ServicesExtending warranties with HP Care Pack Services
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware
and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The
portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In
addition, with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the
specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of
technical or per-event type service options - including server, storage, and network, SAN device, and software, environment,
installation and education services. Services that you can mix and match depending on your specific requirements, from preliminary
planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our
HP Care Pack packaged services for Storage assures help when you need it most. And for many products, post-warranty HP Care
Pack Services are available when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services: Offering reliability, flexibility and value-just like your storageHP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely
managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP
Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT
staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset management programs
to cost-effective buy, manage and eventually retire your older equipment.
HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology
works, business works.
http://www.hp.com/hps/storage
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Warranty Information, HP Care Pack, and Service and Support
DA - 12233 North America — Version 24 — November 20, 2009
Page 6
Page 7
NOTE:
NOTE:NOTE:
NOTE:
Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended HP Care Pack Services for optimal satisfaction with your HP product.Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended Support
Recommended SupportRecommended Support
Recommended Support
3-Year HP Support Plus 24
3-Year HP Support Plus 243-Year HP Support Plus 24
3-Year HP Support Plus 24
For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and
software support services designed specifically for your technology. Available 24x7, this 3-year
combined reactive support option delivers onsite hardware support and over-the-phone software support
around-the-clock. Leverage the full strength of HP Technology Services - customers can trust the services
professionals at HP to work collaboratively with them, putting our strategic and technical know-how to
work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf
Recommended
RecommendedRecommended
Recommended
Deployment
DeploymentDeployment
Deployment
HP Installation and Startup Service for HP StorageWorks VLS Tape Libraries
HP Installation and Startup Service for HP StorageWorks VLS Tape LibrariesHP Installation and Startup Service for HP StorageWorks VLS Tape Libraries
HP Installation and Startup Service for HP StorageWorks VLS Tape Libraries
For smooth startup, HP Installation and Startup Service for HP StorageWorks VLS Tape Libraries-
provides for the deployment of HP StorageWorks libraries, including library sub-components in SAN
environments. In today's new era of business technology- customers can trust the services professionals
at HP to work collaboratively with them, putting our strategic and technical know-how to work across
their entire infrastructure.
Installation and startup by an HP technical specialist
Availability of an HP service specialist to answer basic questions during the delivery of this service
Delivery of the service at a mutually scheduled convenient time
Verification prior to installation that all service prerequisites are met
A project manager to manage the implementation of the service engagement (Implementation
Service only)
Service performed by an HP technical specialist
Delivery of the service at a mutually scheduled time
Product installation according to the product specifications
Deployment activities designed to bring the Fibre Channel-based tape library into operation
Improved performance
Higher value of the HP StorageWorks VLS libraries due to leveraging of HP knowledge in
implementing Fibre Channel-based systems and solutions
Fewer implementation-related disruptions in the IT environment
Increased system reliability and more effective data management
Installation that adheres to the product specifications and supports business configuration
requirements
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA1-1971ENW.pdf
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Warranty Information, HP Care Pack, and Service and Support
DA - 12233 North America — Version 24 — November 20, 2009
Page 7
Page 8
Related HP Care Pack Services that will enhance your HP product experience.
Related HP Care Pack Services that will enhance your HP product experience.Related HP Care Pack Services that will enhance your HP product experience.
Related HP Care Pack Services that will enhance your HP product experience.
Related Services
Related ServicesRelated Services
Related Services
HP Data Replication Solution Services for HP StorageWorks Virtual Library System
HP Data Replication Solution Services for HP StorageWorks Virtual Library SystemHP Data Replication Solution Services for HP StorageWorks Virtual Library System
HP Data Replication Solution Services for HP StorageWorks Virtual Library System
For businesses looking to support data replication between data centers for disaster recovery:
To help you safeguard your critical business information, HP Data Replication Solution Service provides
implementation of the replication feature of the VLS product family. This service provides the analysis,
design, implementation, and testing services necessary to deploy optimal functionality of real time data
replication on a VLS product. This service provides comprehensive implementation and test plans for
data replication at the Customer location. With special consideration for data availability, consistency,
currency, and I/O performance, our storage specialist will collaborate with the Customer designated IT
storage administrator to plan, design, and optimize the configuration.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4818ENW.pdf
HP Backup and Recovery Solution Service
HP Backup and Recovery Solution ServiceHP Backup and Recovery Solution Service
HP Backup and Recovery Solution Service
For customers who need help implementing their backup software:
Rapid recovery from system downtime can hinge on the efficiency of your backup and recovery
management environment - and on how well that environment is integrated with your storage
infrastructure. But integration processes can be time-consuming and complex, and your IT resources are
already stretched thin. Where can you find the expert help you need?
For fast, effective integration of your backup solution into an existing or new storage infrastructure, turn
to the storage experts at HP Services. Our Backup and Recovery Solution Service (BRSS) provides end-toend management of your backup integration process. The BRSS team works with you to analyze your
business and IT environment; develop a comprehensive integration plan and timetable; design an
architecture that suits your critical requirements; install backup software; implement your solution; and
validate your configuration.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-7441EN.pdf
eSupport
eSupporteSupport
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit:
http://www.hp.com/support
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Warranty Information, HP Care Pack, and Service and Support
DA - 12233 North America — Version 24 — November 20, 2009
Page 8
Page 9
HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24
X 7, so you can spend less time solving problems and more time focused on your business. You can
have your systems remotely monitored for hardware failure using secure technology that's been proven at
thousands of companies around the world. In many cases, you can avoid problems before they occur.
Customer Technical
Customer TechnicalCustomer Technical
Customer Technical
Training
TrainingTraining
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online.
www.hp.com/learn/storage
HP Services Awards
HP Services AwardsHP Services Awards
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html
Additional Services
Additional ServicesAdditional Services
Additional Services
Information
InformationInformation
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP"
http://www.hp.com
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Warranty Information, HP Care Pack, and Service and Support
DA - 12233 North America — Version 24 — November 20, 2009
Page 9
Page 10
Model
ModelModel
Model
Description
DescriptionDescription
Description
Part Number
Part NumberPart Number
Part Number
HP 6218 Virtual Library
HP 6218 Virtual LibraryHP 6218 Virtual Library
HP 6218 Virtual Library
System
SystemSystem
System
HP StorageWorks 6218 Virtual Library System
AH809B
*
Supplied with each Virtual Library System
HP StorageWorks 6200 Virtual Library System node
HP StorageWorks MSA20 Storage Enclosure configured with twelve 500 GB
SATA disk drives
Includes full 16 GB of RAM
Serial Cable
Installation Poster
HP 6000 Virtual Library System Documentation CD
System recovery CD
4 IEC power cords (2 for the node, 2 for the MSA20)
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6227 Virtual Library
HP 6227 Virtual LibraryHP 6227 Virtual Library
HP 6227 Virtual Library
System
SystemSystem
System
HP StorageWorks 6227 Virtual Library System
AH810B
*
Supplied with each Virtual Library System
HP StorageWorks 6200 Virtual Library System node
HP StorageWorks MSA20 Storage Enclosure configured with twelve 750 GB
SATA disk drives
Includes full 16 GB of RAM
Serial Cable
HP StorageWorks Command View Tape Library Software CD
Installation Poster
HP 6000 Virtual Library System Documentation CD
HP Command View Tape Library Software Documentation CD
System recovery CD
4 IEC power cords (2for the node, 2 for the MSA20)
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6636 Virtual Library
HP 6636 Virtual LibraryHP 6636 Virtual Library
HP 6636 Virtual Library
System
SystemSystem
System
HP StorageWorks 6636 Virtual Library System
AH811B
*
Supplied with each Virtual Library System
HP StorageWorks 6600 Virtual Library System node
Two HP StorageWorks MSA20 Storage Enclosure each configured with twelve
500 GB SATA disk drives
Includes full 16 GB of RAM
Serial Cable
HP StorageWorks Command View Tape Library Software CD
Installation Poster
HP 6000 Virtual Library System Documentation CD
HP Command View Tape Library Software Documentation CD
System recovery CD
6 IEC power cords (2 for the node, 2 for each MSA20)
*#0D1 will appear after this part number on your sales order when factory integration
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Kit Contents
DA - 12233 North America — Version 24 — November 20, 2009
Page 10
Page 11
is indicated.
HP 6653 Virtual Library
HP 6653 Virtual LibraryHP 6653 Virtual Library
HP 6653 Virtual Library
System
SystemSystem
System
HP StorageWorks 6653 Virtual Library System
AH812B
*
Supplied with each Virtual Library System
HP StorageWorks 6600 Virtual Library System node
Two HP StorageWorks MSA20 Storage Enclosure each configured with twelve
750 GB SATA disk drives
Includes full 16 GB of RAM
Serial Cable
HP StorageWorks Command View Tape Library Software CD
Installation Poster
HP 6000 Virtual Library System Documentation CD
HP Command View Tape Library Software Documentation CD
System recovery CD
6 IEC power cords (2 for the node, 2 for each MSA20)
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6000 Virtual Library
HP 6000 Virtual LibraryHP 6000 Virtual Library
HP 6000 Virtual Library
System 2.5 TB Capacity
System 2.5 TB CapacitySystem 2.5 TB Capacity
System 2.5 TB Capacity
Bundle
BundleBundle
Bundle
HP StorageWorks 6000 Virtual Library System 2.5 TB Capacity Bundle
AF730A
*
Supplied with each Virtual Library System Capacity Bundle
HP 6000 Virtual Library System Capacity License (T4259A)
HP StorageWorks MSA20 Storage Enclosure configured with twelve 250 GB
SATA disk drives
2 IEC power cords
Installation Poster
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6000 Virtual Library
HP 6000 Virtual LibraryHP 6000 Virtual Library
HP 6000 Virtual Library
System 4.4 TB Capacity
System 4.4 TB CapacitySystem 4.4 TB Capacity
System 4.4 TB Capacity
Bundle
BundleBundle
Bundle
HP StorageWorks 6000 Virtual Library System 4.4 TB Capacity Bundle
AG170A
*
Supplied with each Virtual Library System Capacity Bundle
HP 6000 Virtual Library System Capacity License (T4259A)
HP StorageWorks MSA20 Storage Enclosure configured with twelve 500 GB
SATA disk drives
2 IEC power cords
Installation Poster
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6000 Virtual Library
HP 6000 Virtual LibraryHP 6000 Virtual Library
HP 6000 Virtual Library
System 6.6 TB Capacity
System 6.6 TB CapacitySystem 6.6 TB Capacity
System 6.6 TB Capacity
Bundle
BundleBundle
Bundle
HP StorageWorks 6000 Virtual Library System 6.6 TB Capacity Bundle
AH813A
*
Supplied with each Virtual Library System Capacity Bundle
HP 6000 Virtual Library System Capacity License (T4259A) - contains quantity
2
HP StorageWorks MSA20 Storage Enclosure configured with twelve 750 GB
SATA disk drives
2 IEC power cords
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Kit Contents
DA - 12233 North America — Version 24 — November 20, 2009
Page 11
Page 12
Installation Poster
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6000 Virtual Library
HP 6000 Virtual LibraryHP 6000 Virtual Library
HP 6000 Virtual Library
System 8 TB Capacity
System 8 TB CapacitySystem 8 TB Capacity
System 8 TB Capacity
Bundle
BundleBundle
Bundle
HP StorageWorks 6000 Virtual Library System 8 TB Capacity Bundle
AL564A
*
Supplied with each Virtual Library System Capacity Bundle
HP 6000 Virtual Library System Capacity License (T4259A) - contains quantity
2
HP StorageWorks MSA20 Storage Enclosure configured with twelve 1 TB SATA
disk drives
2 IEC power cords
Installation Poster
*#0D1 will appear after this part number on your sales order when factory integration
is indicated.
HP 6000 Virtual Library
HP 6000 Virtual LibraryHP 6000 Virtual Library
HP 6000 Virtual Library
System 2Gb Upgrade
System 2Gb UpgradeSystem 2Gb Upgrade
System 2Gb Upgrade
Node
NodeNode
Node
HP 6000 Virtual Library System 2Gb Upgrade Node
AP334A
Supplied with each 2Gb Upgrade Node
HP StorageWorks 6600 Virtual Library System node
Includes full 16 GB of RAM
Includes 3.x Accelerated deduplication firmware
Serial Cable
HP StorageWorks Command View Tape Library Software CD
Installation Poster
HP 6000 Virtual Library System Documentation CD
HP Command View Tape Library Software Documentation CD
System recovery CD
2 IEC power cords
NOTE:
NOTE:NOTE:
NOTE:
This node is intended to upgrade older VLS6000 systems (VLS61xx, VLS65xx
and VLS68xx) to take advantage of Accelerated deduplication and deduplicationenabled replication. If the system is a VLS68xx with greater than 8 shelves of storage,
the system will have to be split into two separate systems (needing 2 upgrade nodes)
to be a supportable VLS6600 configuration.
VLS6000 Capacity
VLS6000 CapacityVLS6000 Capacity
VLS6000 Capacity
License
LicenseLicense
License
HP StorageWorks 6000 Virtual Library System Capacity License
T4259A/
T4259AAE
**
Supplied with each Virtual Library System Capacity License
HP 6000 Virtual Library System Capacity License
NOTE:
NOTE:NOTE:
NOTE:
This product enables a customer supplied MSA20 with twelve 250 GB, 500
GB, 750 GB or 1 TB hard disk drives (HDDs) to be licensed to an existing HP 6000
Virtual Library System. If you require the hardware and the license, purchase the HP
6000 Virtual Library System 2.5 TB Capacity Bundle (AF730A), the HP 6000 Virtual
Library System 4.4 TB Capacity Bundle (AG170A), the HP 6000 Virtual Library System
6.6 TB Capacity Bundle (AH813A) or the HP 6000 Virtual Library System 8 TB
Capacity Bundle (AL564A).
NOTE:
NOTE:NOTE:
NOTE:
Partial configurations cannot be added to the HP 6000 Virtual Library System
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Kit Contents
DA - 12233 North America — Version 24 — November 20, 2009
Page 12
Page 13
1.
2.
3.
4.
- each MSA20 must have 12 HDDs of the same capacity installed. 2.5 TB and 4.4 TB
shelves require 1 license for each shelf, 6.6 TB and 8 TB shelves require 2 licenses for
each shelf.
**Electronic software is available in all countries except China and Japan. For China
and Japan should order the physical equivalent.
HP VLS6000 Data
HP VLS6000 DataHP VLS6000 Data
HP VLS6000 Data
Deduplication Capacity
Deduplication CapacityDeduplication Capacity
Deduplication Capacity
LTU
LTULTU
LTU
HP StorageWorks 6000 Virtual Library System Deduplication Capacity LTU
T9707A/
T9707AAE
**
Supplied with license
One VLS6000 license T9707A or T9707AAE** is required for each shelf with
250 GB or 500 GB disks (4.4 TB) and two licenses are required for each shelf
with 750 GB disks (6.6 TB) or 1 TB disks (8 TB).
**Electronic software is available in all countries except China and Japan. For China
and Japan should order the physical equivalent.
NOTE:
NOTE:NOTE:
NOTE:
In addition to the capacity deduplication licensing for VLS here are other key
considerations:
There is a REQUIREMENT for 16 GB of RAM for each ProLiant server in order
to support Accelerated deduplication and deduplication-enabled replication.
Newer VLS6000 systems (AH809B, AH810B, AH811B, and AH812B) come
standard with 16 GB of RAM. For older VLS6000 systems shipped with 4 GB
RAM (AH809A, AH810A, AH811A, AH812A) you will need to add 12 GB
RAM. This involves ordering the following part numbers for each node:
397413-B21 HP 4GB FBD PC2-5300 2x2GB Kit
397415-B21 HP 8GB FBD PC2-5300 2x4GB Kit
Minimum of VLS firmware level 3.1 must be used to support Accelerated
deduplication. This firmware will only be available (initially) as a web
download.
You will need to reference the following website for configuration, capacity and
performance considerations for sizing VLS Accelerated deduplication
configurations and use models.
www.hp.com/support/vls_dedup
Accelerated deduplication needs to recognize the specific backup application
being used since it initially strips out the cartridge headers in order to
decompose all the files and data types in order to do file-level comparisons to
previous backups. Check the EBS website for the latest Accelerated
deduplication supported backup ISVs and data types
http://www.hp.com/go/ebs
NOTE:
NOTE:NOTE:
NOTE:
The entire VLS device must be licensed for deduplication - no partial
licenses supported. Deduplication licenses will be installed via the VLS GUI
license plug-in.
HP VLS Low Bandwidth
HP VLS Low BandwidthHP VLS Low Bandwidth
HP VLS Low Bandwidth
Replication LTU
Replication LTUReplication LTU
Replication LTU
HP StorageWorks Virtual Tape Library Low Bandwidth Replication LTU
T5537A/
T5537AAE
**
Supplied with License
One VLS license T5537A or T5537AAE** is required per VLS6000 for target
sites only - none required on source site for active-passive configurations. For
active-active configurations involving bi-directional replication, each site
requires a license.
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Kit Contents
DA - 12233 North America — Version 24 — November 20, 2009
Page 13
Page 14
1.
2.
3.
4.
**Electronic software is available in all countries except China and Japan. For China
and Japan should order the physical equivalent.
NOTE:
NOTE:NOTE:
NOTE:
In addition to the deduplication-enabled replication licensing for VLS here are
other key considerations:
All VLS systems involved with replication (whether a source or target) must all be
licensed for Accelerated deduplication. In addition they have the same HW
requirements and considerations as for Accelerated deduplication (see above).
Minimum of VLS firmware level 3.2 must be used to support deduplicationenabled replication. This replication firmware will be included in the 3.2 release
and can be activated through licensing.
Four modes of deduplication-enabled replication will be supported including:
two-site active-passive (replication in one direction), two-site active-active
(replication in both directions) many to one supporting up to four sites all
replicating to a fifth site and N-way with four sites (similar to two-site activeactive). Each site is a source and target.
C&I services will provide analysis, design, implementation and testing necessary
to deploy a VLS solution with Accelerated deduplication and deduplicationenabled replication.
Feature Comparison
Feature ComparisonFeature Comparison
Feature Comparison
VLS Firmware Level
VLS Firmware LevelVLS Firmware Level
VLS Firmware Level
2.3 (VLS not running Accelerated
2.3 (VLS not running Accelerated2.3 (VLS not running Accelerated
2.3 (VLS not running Accelerated
deduplication)
deduplication)deduplication)
deduplication)
3.2 (VLS running Accelerated
3.2 (VLS running Accelerated3.2 (VLS running Accelerated
3.2 (VLS running Accelerated
deduplication)
deduplication)deduplication)
deduplication)
Supported Platforms
Supported PlatformsSupported Platforms
Supported Platforms
All VLS models: VLS6200, VLS6600,
All VLS models: VLS6200, VLS6600,All VLS models: VLS6200, VLS6600,
All VLS models: VLS6200, VLS6600,
VLS9000, VLS12000 with 4 GB RAM
VLS9000, VLS12000 with 4 GB RAMVLS9000, VLS12000 with 4 GB RAM
VLS9000, VLS12000 with 4 GB RAM
VLS 4GB models: VLS6200, VLS6600,
VLS 4GB models: VLS6200, VLS6600,VLS 4GB models: VLS6200, VLS6600,
VLS 4GB models: VLS6200, VLS6600,
VLS9000, VLS12000 with 16 GB RAM
VLS9000, VLS12000 with 16 GB RAMVLS9000, VLS12000 with 16 GB RAM
VLS9000, VLS12000 with 16 GB RAM
VLS9000/VLS12000 node support
VLS9000/VLS12000 node supportVLS9000/VLS12000 node support
VLS9000/VLS12000 node support
Up to 8 nodes
Up to 8 nodesUp to 8 nodes
Up to 8 nodes
Up to 4 nodes with supported ISVs
Up to 4 nodes with supported ISVsUp to 4 nodes with supported ISVs
Up to 4 nodes with supported ISVs
Backup Ingest performance
Backup Ingest performanceBackup Ingest performance
Backup Ingest performance
600 MB/sec
600 MB/sec600 MB/sec
600 MB/sec 550 MB/sec
550 MB/sec550 MB/sec
550 MB/sec
Number of slots
Number of slotsNumber of slots
Number of slots
1024 per library
1024 per library1024 per library
1024 per library
10000 per library
10000 per library10000 per library
10000 per library
Number of libraries
Number of librariesNumber of libraries
Number of libraries
16 per node
16 per node16 per node
16 per node 16 per node
16 per node16 per node
16 per node
Number of cartridges
Number of cartridgesNumber of cartridges
Number of cartridges
8192
81928192
8192
32000
3200032000
32000
Automigration - Echo Copy
Automigration - Echo CopyAutomigration - Echo Copy
Automigration - Echo Copy
Yes
YesYes
Yes
No
NoNo
No
Automigration - Smart Copy
Automigration - Smart CopyAutomigration - Smart Copy
Automigration - Smart Copy
Yes with DP 6.1
Yes with DP 6.1Yes with DP 6.1
Yes with DP 6.1
No
NoNo
No
Delete Cartridge
Delete CartridgeDelete Cartridge
Delete Cartridge
Yes
YesYes
Yes
No
NoNo
No
Replication support
Replication supportReplication support
Replication support
High-bandwidth
High-bandwidthHigh-bandwidth
High-bandwidth
Deduplication-enabled
Deduplication-enabledDeduplication-enabled
Deduplication-enabled
Hot Add Arrays
Hot Add ArraysHot Add Arrays
Hot Add Arrays
Yes
YesYes
Yes
No
NoNo
No
Hot Add Nodes
Hot Add NodesHot Add Nodes
Hot Add Nodes
Yes
YesYes
Yes
N/A
N/AN/A
N/A
Storage pool support
Storage pool supportStorage pool support
Storage pool support
Multiple storage pools
Multiple storage poolsMultiple storage pools
Multiple storage pools
Single storage pool
Single storage poolSingle storage pool
Single storage pool
Virtual LUN Support
Virtual LUN SupportVirtual LUN Support
Virtual LUN Support
144 per node
144 per node144 per node
144 per node
96 per node
96 per node96 per node
96 per node
LUN Masking usability, Command line
LUN Masking usability, Command lineLUN Masking usability, Command line
LUN Masking usability, Command line
interface enhancements
interface enhancementsinterface enhancements
interface enhancements
No
NoNo
No
Yes
YesYes
Yes
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Kit Contents
DA - 12233 North America — Version 24 — November 20, 2009
Page 14
Page 15
Power Distribution units
Power Distribution unitsPower Distribution units
Power Distribution units
NOTE:
NOTE:NOTE:
NOTE:
For more information on power distribution units, please consult the
QuickSpecs on the Worldwide web at:
http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html
Low Voltage Modular
Low Voltage ModularLow Voltage Modular
Low Voltage Modular
PDU Model, 100 - 127
PDU Model, 100 - 127PDU Model, 100 - 127
PDU Model, 100 - 127
VAC
VACVAC
VAC
24A Model - mPDU, 24A, Low
252663-D71
High Voltage Modular
High Voltage ModularHigh Voltage Modular
High Voltage Modular
PDU Model(s), 200 - 240
PDU Model(s), 200 - 240PDU Model(s), 200 - 240
PDU Model(s), 200 - 240
VAC
VACVAC
VAC
16A Model - mPDU, 16A, High
252663-B24
24A Model - mPDU, 24A, High
252663-D72
40A Model - mPDU, 40A, High
252663-B21
40A Model - mPDU, 40A, High (power cord attached)
252663-D73
Power Cords
Power CordsPower Cords
Power Cords
(for connection to
standard wall outlets)
Power Cord, C13, 10A, 1.83m
AF556A
NOTE:
NOTE: NOTE:
NOTE:
Each unit comes with 2 IEC power cord for the node and two power cords for
each MSA20 included (4 cords with the VLS6100 & 6200, 6 cords with the VLS6500
and 6600 and 10 cords with the VLS6800).
FC Host Bus Adapters
FC Host Bus AdaptersFC Host Bus Adapters
FC Host Bus Adapters
For more information on FC HBAs please consult the EBS connectivity matrix at
http://www.hp.com/go/ebs
.
HP Data Protector
HP Data ProtectorHP Data Protector
HP Data Protector
software
softwaresoftware
software
LTU (license-to-use), media and manuals
LTU (license-to-use), media and manualsLTU (license-to-use), media and manuals
LTU (license-to-use), media and manuals
Data Protector Starter Pack Single Drive, for Windows
B6961AA
Data Protector Starter Pack Single Drive, for HP-UX
B6951AA
Data Protector Starter Pack Single Drive, for Sun Solaris
B6951DA
LTU only
LTU onlyLTU only
LTU only
Data Protector Starter Pack Single Drive, for Windows LTU only
B6961BA
Data Protector Starter Pack Single Drive, for HP-UX LTU only
B6951BA
Data Protector Starter Pack Single Drive, for Sun Solaris LTU only
B6951CA
Media
MediaMedia
Media
Data Protector Media
B6960MA
Manuals
ManualsManuals
Manuals
Data Protector Manuals
B6960LA
Drive Extensions
Drive ExtensionsDrive Extensions
Drive Extensions
Data Protector drive license for Windows, NetWare, or Linux (Intel)
B6963AA
Data Protector drive license for UNIX, NAS, or SAN
B6953AA
Data Protector Library Extension, 61-250 Slots
B6957BA
Data Protector Library Extension, unlimited Slots
B6958BA
Functional Extensions
Functional ExtensionsFunctional Extensions
Functional Extensions
Data Protector on-line extension for Windows
B6965BA
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Related Options
DA - 12233 North America — Version 24 — November 20, 2009
Page 15
Page 16
Data Protector on-line extension for UNIX
B6955BA
Data Protector open file backup license for 1 server
BA153AA
Data Protector open file backup license for 10 servers
BA153BA
Data Protector open file backup license for 5 workstations
BA154AA
Data Protector open file backup license for 1 Enterprise Server
BA155AA
Data Protector open file backup media. no license
BA152AA
Data Protector Manager-of-Managers extension for Windows
B6966AA
Data Protector Manager-of- Managers extension for UNIX
B6956AA
Advanced backup to disk license, 1 TB
B7038AA
Manuals for Functional extensions
B6960EA
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Related Options
DA - 12233 North America — Version 24 — November 20, 2009
Page 16
Page 17
Step 1 – Select a Configuration
Step 1 – Select a ConfigurationStep 1 – Select a Configuration
Step 1 – Select a Configuration
HP StorageWorks 6653 Virtual Library System
AH812B
HP StorageWorks 6636 Virtual Library System
AH811B
HP StorageWorks 6227 Virtual Library System
AH810B
HP StorageWorks 6218 Virtual Library System
AH809B
Step 2 – Add additional capacity (optional)
Step 2 – Add additional capacity (optional)Step 2 – Add additional capacity (optional)
Step 2 – Add additional capacity (optional)
HP StorageWorks 6000 Virtual Library System 8 TB Capacity Bundle
AL564A
*
HP StorageWorks 6000 Virtual Library System 6.6 TB Capacity Bundle
AH813A
*
HP StorageWorks 6000 Virtual Library System 4.4 TB Capacity Bundle
AG170A
*
HP StorageWorks 6000 Virtual Library System 2.5 TB Capacity Bundle
AF730A
*
HP 6200 Virtual Library System:
up to three additional capacity bundles may be added to the base unit.
HP 6600 Virtual Library System:
up to six additional capacity bundles may be added to the base unit.
Capacity kits (enclosures) can be mixed within VLS6000 units. All 12 drives within
each enclosure (shelf) must be of the same capacity. For example if you have a
VLS6218 that has one 500 GB drive enclosure, you can add an additional drive
enclosure (capacity bundle) with any one of the four available capacity bundles, 250
GB, 500 GB, 750 GB or 1 TB.
* #0D1 will appear after this part number on your sales order when factory integration
is indicated.
Step 3 - Select appropriate Services/Support (optional)
Step 3 - Select appropriate Services/Support (optional)Step 3 - Select appropriate Services/Support (optional)
Step 3 - Select appropriate Services/Support (optional)
Determine whether you require services via HP direct/HP authorized enterprise resellers or HP authorized commercial
resellers.
Choose Installation or Installation and Startup service desired. HP recommends Installation and Startup for SAN based
libraries. (Details of specific part numbers in service section.)
Choose support uplift type. There are different service uplifts uplifting years of service, hours of availability and response time.
HP recommends three year 24X7 support uplifts for SAN libraries. (Details of specific part numbers in service section.)
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Configuration Information
DA - 12233 North America — Version 24 — November 20, 2009
Page 17
Page 18
Step 4 - Select the Appropriate Rack
Step 4 - Select the Appropriate RackStep 4 - Select the Appropriate Rack
Step 4 - Select the Appropriate Rack
Description
DescriptionDescription
Description
Part Number
Part NumberPart Number
Part Number
Supports Factory
Supports FactorySupports Factory
Supports Factory
Racking
RackingRacking
Racking
Supports Field
Supports FieldSupports Field
Supports Field
Racking
RackingRacking
Racking
S10614 (14U) Rack Cabinet - Shock Pallet
2
292302-B22
X X
10622 (22U) Rack Cabinet - Shock Pallet
AF022A
X X
10622 (22U) Rack Cabinet - Pallet
AF021A
X
10636 G2 (36U) Rack Cabinet - Shock Pallet
AF012A
X X
10636 G2 (36U) Rack Cabinet - w/Extension - Shock Pallet
AF014A
X X
10636 G2 (36U) Rack Cabinet - Pallet
AF011A
X
10636 G2 (36U) Rack Cabinet - Crate
AF013A
X X
10642 G2 (42U) Rack Cabinet - Shock Pallet
AF002A
X X
10642 G2 (42U) Rack Cabinet - w/ Extension - Shock Pallet
AF004A
X X
10642 G2 (42U) Rack Cabinet - Pallet
AF001A
X
10642 G2 (42U) Rack Cabinet - Crated
AF003A
X
Modular Cooling System (MCS) - 42U Cabinet
AF098A
X X
2
14U racks cannot be used for the VLS6600.
NOTE:
NOTE:NOTE:
NOTE:
(Pallet) used to ship empty racks shipped on a truck
(Shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
(Crated) used for air shipments of empty racks.
NOTE:
NOTE:NOTE:
NOTE:
It is mandatory to use a shock pallet in order to ship racks with equipment installed.
NOTE:
NOTE:NOTE:
NOTE:
The full line of VLS6000 products can now be integrated and shipped installed in racks
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Configuration Information
DA - 12233 North America — Version 24 — November 20, 2009
Page 18
Page 19
VLS6218
VLS6218VLS6218
VLS6218
*
VLS6227
VLS6227VLS6227
VLS6227
*
VLS6636
VLS6636VLS6636
VLS6636 VLS6653
VLS6653VLS6653
VLS6653
Usable Capacity
(std - non compressed)
4.4 TB 6.6 TB 8.8 TB
13.2 TB
Usable Capacity (2:1 compression)
8.8 TB
13.2 TB 17.6 TB 26.4 TB
Max Usable Capacity
(std – non compressed)
28.4 TB 30.6 TB 56.8 TB 61.2 TB
Max Usable Capacity (2:1
compression)
56.8 TB 61.2 TB
113.6 TB 122.4 TB
* These products employ software compression which will impact system performance
Performance by configuration 4
Performance by configuration 4Performance by configuration 4
Performance by configuration 4
Gb Models
Gb ModelsGb Models
Gb Models
HP 6200 Virtual Library
HP 6200 Virtual LibraryHP 6200 Virtual Library
HP 6200 Virtual Library
System
SystemSystem
System
HP 6600 Virtual Library System
HP 6600 Virtual Library SystemHP 6600 Virtual Library System
HP 6600 Virtual Library System
w/ compression disabled
w/ uncompressible data
w/ 2:1 compressible data
1 disk enclosure
0.4 TB/hr (100 MB/s)
n/a n/a
2 disk enclosures
0.7 TB/hr (200 MB/s) 0.7 TB/hr (200 MB/s) 1.4 TB/hr (400 MB/s)
3 disk enclosures
1.1 TB/hr (300 MB/s) 1.1 TB/hr (300 MB/s) 2.2 TB/hr (600 MB/s)
4 disk enclosures
1.4 TB/hr (400 MB/s) 1.4 TB/hr (400 MB/s) 2.2 TB/hr (600 MB/s)
5 to 8 enclosures
n/a
2.0 TB/hr (560 MB/s) 2.2 TB/hr (600 MB/s)
NOTE:
NOTE:NOTE:
NOTE:
Maximum theoretical performance values. Actual performance is dependent on environment. Software compression on
VLS6200 impacts performance by up to 50%
NOTE:
NOTE:NOTE:
NOTE:
1MB = 1,000,000 bytes
HP 6200 Virtual Library System
HP 6200 Virtual Library SystemHP 6200 Virtual Library System
HP 6200 Virtual Library System HP 6600 Virtual Library System
HP 6600 Virtual Library SystemHP 6600 Virtual Library System
HP 6600 Virtual Library System
Number of Virtual Libraries
Number of Virtual LibrariesNumber of Virtual Libraries
Number of Virtual Libraries
1 to 16 1 to 16
Number of Virtual Tape Drives
Number of Virtual Tape DrivesNumber of Virtual Tape Drives
Number of Virtual Tape Drives
1 to 128 1 to 128
Interface
InterfaceInterface
Interface
VLS6200 is Two 4 Gb Fibre Channel Ports
(LC connectors, auto-negotiating)
VLS6600 is Four 4 Gb Fibre Channel Ports
(LC connectors, auto-negotiating)
Power Consumption by Component
Power Consumption by ComponentPower Consumption by Component
Power Consumption by Component
VLS6200 Node
852 W
VLS6600 Node
1035 W
MSA20 Enclosure each (with disks)
345 W
RAID Level
RAID LevelRAID Level
RAID Level
VLS6200, VLS6600
RAID 5 or RAID 6
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Technical Specifications
DA - 12233 North America — Version 24 — November 20, 2009
Page 19
Page 20
Dimensions and Physical
Dimensions and PhysicalDimensions and Physical
Dimensions and Physical
Characteristics
CharacteristicsCharacteristics
Characteristics
HP 6200 Virtual Library System
HP 6200 Virtual Library SystemHP 6200 Virtual Library System
HP 6200 Virtual Library System
Form Factor
Form FactorForm Factor
Form Factor
3U (total installed form factor – base unit)
Physical Dimensions
Physical DimensionsPhysical Dimensions
Physical Dimensions
(HxWxD):
NOTE:
NOTE: NOTE:
NOTE:
1 enclosure
standard
Node
NodeNode
Node
1.7 x 16.8 x 27.8 in (4.3 x 42.6 x 70.5 cm)
Disk enclosure
Disk enclosureDisk enclosure
Disk enclosure
3.5 x 19.2 x 23.5 in (8.8 x 48.8 x 59.7 cm)
Shipping
ShippingShipping
Shipping
(HxWxD)
41.0 x 48.0 x 40.0 in (104 x 122 x 102 cm)
Out of Box Weight
Out of Box WeightOut of Box Weight
Out of Box Weight
Node
NodeNode
Node
37 lb (16.78 kg)
Disk Enclosure
Disk EnclosureDisk Enclosure
Disk Enclosure
53 lb (24 kg) (per enclosure)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
143 lb (64.9 kg)
HP 6600 Virtual Library System
HP 6600 Virtual Library SystemHP 6600 Virtual Library System
HP 6600 Virtual Library System
Form Factor
Form FactorForm Factor
Form Factor
6U (total installed form factor – base unit)
Physical Dimensions
Physical DimensionsPhysical Dimensions
Physical Dimensions
(HxWxD):
NOTE:
NOTE: NOTE:
NOTE:
2 enclosures
standard
Node
NodeNode
Node
1.7 x 16.8 x 27.8 in (4.3 x 42.6 x 70.5 cm)
Disk Enclosure
Disk EnclosureDisk Enclosure
Disk Enclosure
3.5 x 19.2 x 23.5 in (8.8 x 48.8 x 59.7 cm)
Shipping
Shipping Shipping
Shipping
(HxWxD)
48.0 x 40.0 x 40.0 in (121.9 x 101.6 x 101.6
cm)
Out of Box Weight
Out of Box WeightOut of Box Weight
Out of Box Weight
Node
NodeNode
Node
37 lb (16.78 kg)
Disk Enclosure
Disk EnclosureDisk Enclosure
Disk Enclosure
54.3 lb (24.6 kg) (per enclosure)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
168 lb (76.2 kg)
HP 6000 Virtual Library System 2.5 TB Capacity Bundle Kit ,HP 6000 Virtual Library System 4.4 TB
HP 6000 Virtual Library System 2.5 TB Capacity Bundle Kit ,HP 6000 Virtual Library System 4.4 TBHP 6000 Virtual Library System 2.5 TB Capacity Bundle Kit ,HP 6000 Virtual Library System 4.4 TB
HP 6000 Virtual Library System 2.5 TB Capacity Bundle Kit ,HP 6000 Virtual Library System 4.4 TB
Capacity, HP 6000 Virtual Library System 6.6 TB Bundle Kit and HP 6000 Virtual Library System 8 TB
Capacity, HP 6000 Virtual Library System 6.6 TB Bundle Kit and HP 6000 Virtual Library System 8 TBCapacity, HP 6000 Virtual Library System 6.6 TB Bundle Kit and HP 6000 Virtual Library System 8 TB
Capacity, HP 6000 Virtual Library System 6.6 TB Bundle Kit and HP 6000 Virtual Library System 8 TB
Bundle Kit
Bundle KitBundle Kit
Bundle Kit
Form Factor
Form FactorForm Factor
Form Factor
2U
Dimensions
DimensionsDimensions
Dimensions
Physical Dimensions
Physical DimensionsPhysical Dimensions
Physical Dimensions
(HxWxD)
3.5 x 19.2 x 23.5 in (8.8 x 48.8 x 59.7 cm)
Shipping
ShippingShipping
Shipping
(HxWxD)
33.5 x 32.5 x 28.0 in (85.1 x 82.6 x 71 cm)
Weight
WeightWeight
Weight
Out of Box Weight
Out of Box WeightOut of Box Weight
Out of Box Weight
53 lb (24 kg) (per enclosure)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
68 lb (30.8 kg)
HP 6000 Virtual Library System 2 Gb Upgrade Node - same as specifications for VLS6600 node
HP 6000 Virtual Library System 2 Gb Upgrade Node - same as specifications for VLS6600 nodeHP 6000 Virtual Library System 2 Gb Upgrade Node - same as specifications for VLS6600 node
HP 6000 Virtual Library System 2 Gb Upgrade Node - same as specifications for VLS6600 node
above.
above.above.
above.
VLS6000 Capacity License
VLS6000 Capacity LicenseVLS6000 Capacity License
VLS6000 Capacity License
Shipping
ShippingShipping
Shipping
(HxWxD)
8.5 x 11.0 in (21.6 x 27.9 cm)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
1 lb (0.5 kg)
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Technical Specifications
DA - 12233 North America — Version 24 — November 20, 2009
Page 20
Page 21
Environmental
EnvironmentalEnvironmental
Environmental
Operating temperature range
10° to 35° C (50° to 95° F)
Shipping temperature range
-40° to 66° C (-40° to 150° F)
Operating Humidity (non-condensing)
20 to 80% Relative Humidity
Worldwide Product Safety
Worldwide Product SafetyWorldwide Product Safety
Worldwide Product Safety
and EMC Approvals
and EMC Approvalsand EMC Approvals
and EMC Approvals
Safety: Worldwide compliance to 60950-1
EMC: MSA 20 Regulatory Model Number HSTNM-S001 CISPR 22 CISPR 24 & FCC Class A
VLS 61000 and VLS65000 heads: Regulatory Model Number HSTNM-2105 CISPR 22 CISPR 24 & FCC
Class B
NOTE:
NOTE:NOTE:
NOTE:
For country specific compliance contact your local sales representative
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows NT is a US registered trademark of Microsoft Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library SystemHP StorageWorks 6000 Virtual Library System
HP StorageWorks 6000 Virtual Library System
Technical Specifications
DA - 12233 North America — Version 24 — November 20, 2009
Page 21
Loading...
