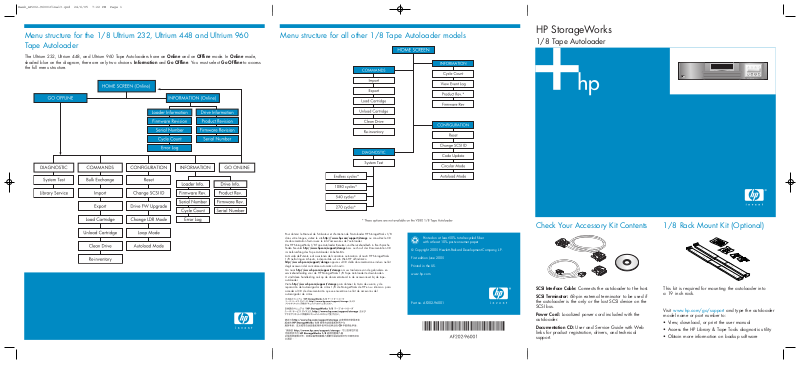

HP StorageWorks
1/8 Tape Autoloader
Check Your Accessory Kit Contents
SCSI Interface Cable: Connects the autoloader to the host.
SCSI Terminator: 68-pin external terminator to be used if
the autoloader is the only or the last SCSI device on the
SCSI bus.
Power Cord: Localized power cord included with the
autoloader.
Documentation CD: User and Service Guide with Web
links for product registration, drivers, and technical
support.
1/8 Rack Mount Kit (Optional)
This kit is required for mounting the autoloader into
a 19 inch rack.
Visit www.hp.com/go/support and type the autoloader
model name or part number to:
•View, download, or print the user manual
•Access the HP Library & Tape Tools diagnostic utility
• Obtain more information on backup software
Front overview
1. Mailslot
2. Front panel LED’s
3. Power switch
4. Front panel LCD display
5. Control keys
1
Unpacking the autoloader
Rear overview
1. 68-pin SCSI connector
2. Fan vent
3. Power connector
Internal overview
After removing the accessories package, lift the
autoloader and padding out of the box and place it on
a work surface, top facing up. Carefully remove the
shipping padding from the left and right sides of the
autoloader and then the bag. Save the packing
materials to move or ship the autoloader in the future.
2
Choosing a location
1. Drive
2. Cartridge carriers
Select a location that has adequate clearance for
ventilation, minimal dust and debris, and has an
appropriate power source.
For standalone autoloaders, select a location that is flat,
sturdy, and level. Do not place the autoloader on its
side or stack items on top of the autoloader.
3
Installing the autoloader in a
5
Powering on the autoloader
rack
1. Mounting bracket
2. Mounting rail

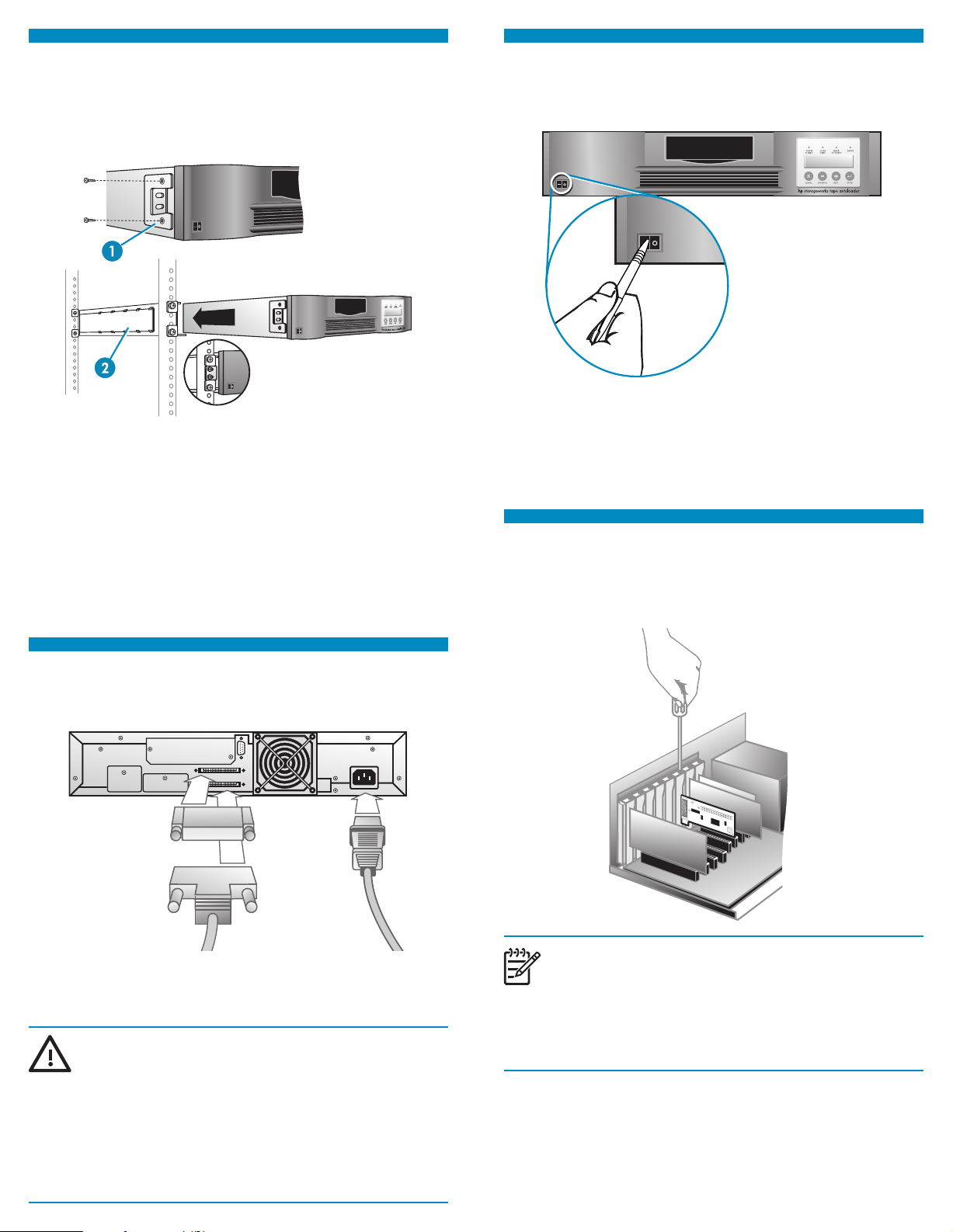

Install the autoloader by 1) Installing a mounting
bracket to each side of the autoloader, and
Installing the mounting rails to the selected rack
location. Slide the autoloader onto the rails and secure
the mounting brackets to the rack. (See detailed
installation instructions in the User and Service Guide.)
(optional)
2)
Plug the autoloader power cable into a properly
grounded outlet. Power on the autoloader by pressing
the power button on the front panel. Power on the host
and all attached devices.
6
Preparing the host and verifying the connection
4
Make sure all devices on the SCSI bus are powered off.
Attach the SCSI cable, terminator, and power cord as
shown.
Connecting the autoloader
WARNING: This product can ONLY be used with an HP
approved power cord for your specific geographic region.
Use of a non-HP approved power cord may result in: 1) not
meeting individual country specific safety requirements;
2) insufficient conductor ampacity that could result in
overheating with potential personal injury and/or property
damage; and 3) an unapproved power cord could fracture
resulting in the internal contacts being exposed, which
potentially could subject the user to a shock hazard. HP
disclaims all liability in the event a non-HP approved power
cord is used.
NOTE: It is important to connect to a SCSI HBA
that supports your autoloader's optimum
performance. Some models also require an HBA
that supports LUN scanning. Please refer to the
user manual for detailed recommendations and
more information about SCSI IDs.
Install a SCSI host bus adapter, software, and
compatible driver on the host computer.
Install the HP Library & Tape Tools diagnostic
utility available at www.hp.com/support/TapeTools to
verify installation, upgrade firmware, and to aid in
troubleshooting.
Operating the Autoloader
Operator’s Panel Overview

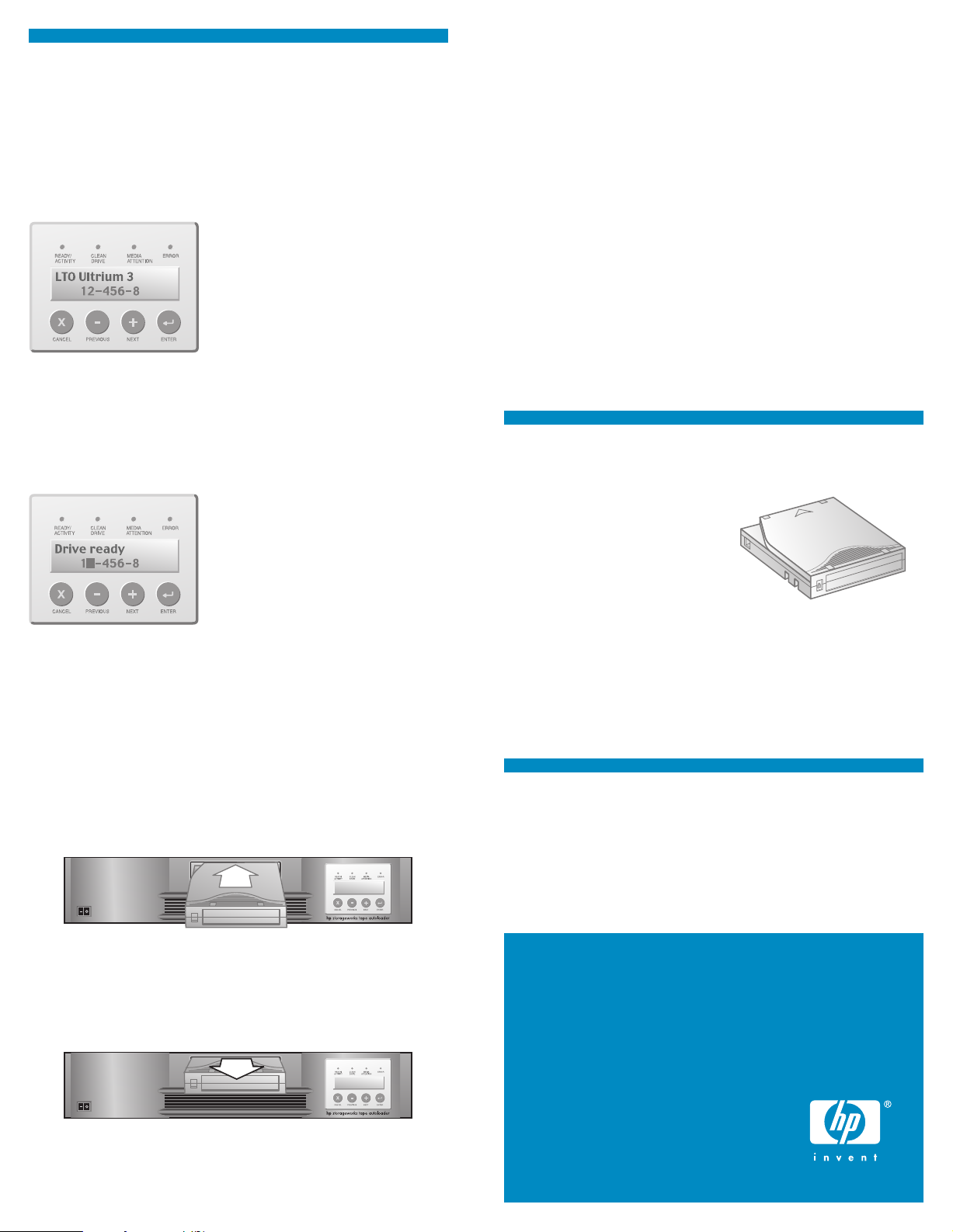

The Operator’s Panel has four LEDs, four buttons, and a
2-line by 16-character LCD screen. It provides everything
you need to monitor autoloader status and to control all
of its functions.
The display defaults to the Home screen. The Home
screen consists of the autoloader status on the top line
and the current cartridge inventory on the second line.
If the tape drive does not have a cartridge loaded, the
top line displays <
depending upon the type of autoloader (as shown).
If the tape drive has a cartridge loaded, the top line
displays
the type of autoloader (as shown). The cartridge
currently loaded in the drive is indicated by an
alternating black block and the slot number.
This display can also indicate that the specified
cartridge is being loaded, unloaded, imported, or
exported. The autoloader status line indicates the
current operation.
Drive ready or Drive loaded, depending upon
Importing cartridges
Drive type> or Drive empty,
Loading cartridges
Load tapes from the autoloader slots into the drive by
using the Load Cartridge command from the front
panel.
Unloading cartridges
Unload tapes from the drive to the autoloader slots
using the Unload Cartridge command from the front
panel.
Cleaning the drive
Clean the drive when the Clean Drive LED is
illuminated. Use the Clean Drive command from the
front panel to import a cleaning cartridge into the
autoloader and begin the cleaning operation.
Only model specific cleaning cartridges can be used.
All other cleaning cartridges will be rejected by the
autoloader.
Ordering media
To prolong the life of the
drive, use HP storage
media that is specific to
your tape autoloader
model. To determine
your model and
cartridge type, refer to
the HP StorageWorks 1/8 Tape Autoloader User and
Service Guide found on the Documentation CD that
came with your tape autoloader. To learn more about,
or to purchase HP media, visit
www.hp.com/go/storagemedia
Register your autoloader
Register your autoloader online at: www.register.hp.com.
HP customers who register join a select group to receive
technical support updates and special HP offers.
Load tapes into the autoloader by using the Import
command from the front panel and inserting the data
cartridge into the mailslot.
Exporting cartridges
Unload tapes from the autoloader by using the Export
command from the front panel. The selected tape
will automatically eject.

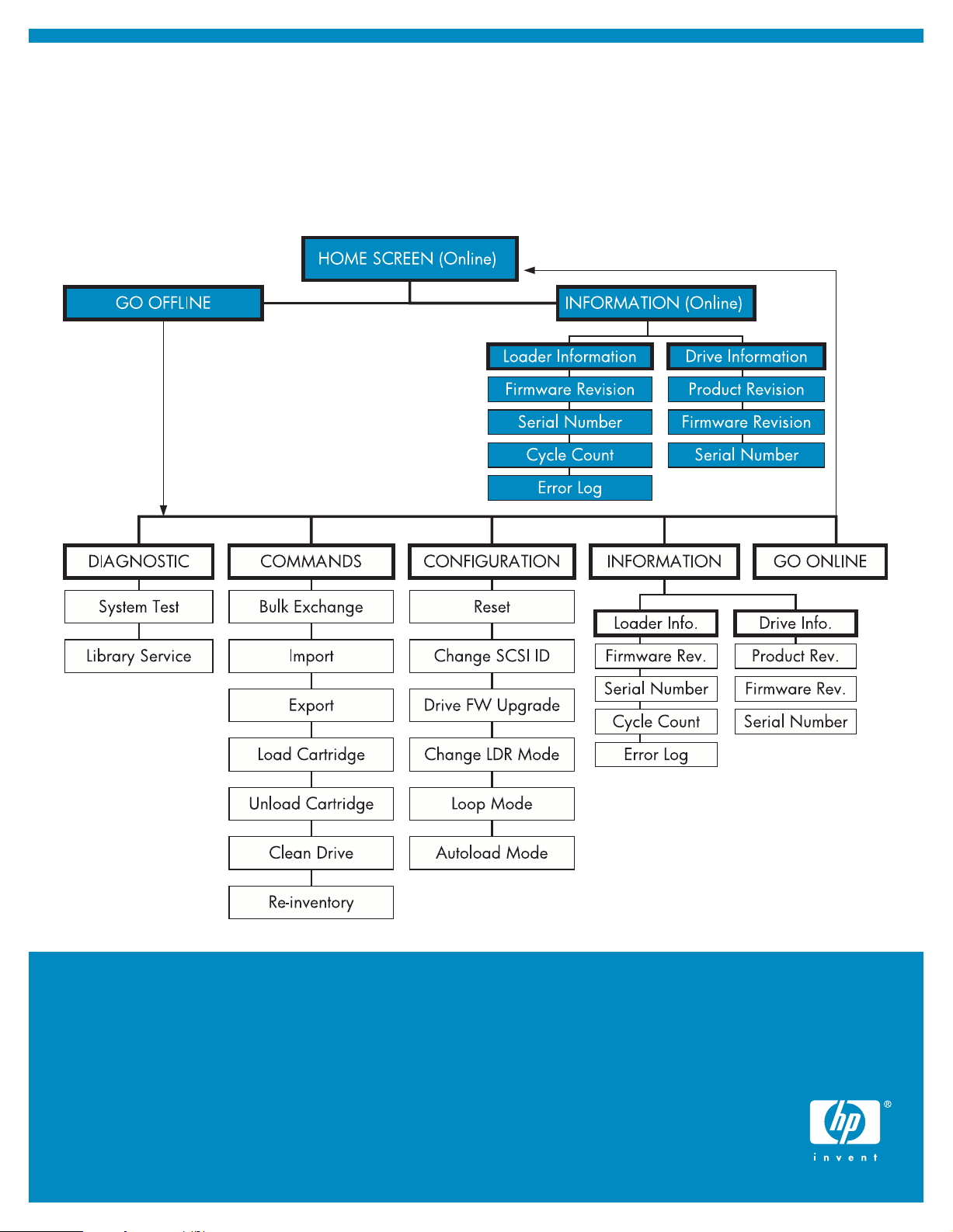

Menu structure for the 1/8 Ultrium 232, Ultrium 448 and Ultrium 960
Tape Autoloader
The Ultrium 232, Ultrium 448, and Ultrium 960 Tape Autoloaders have an Online and on Offline mode. In Online mode,
shaded blue on the diagram, there are only two choices:
the full menu structure.
Information and Go Offline. You must select Go Offline to access

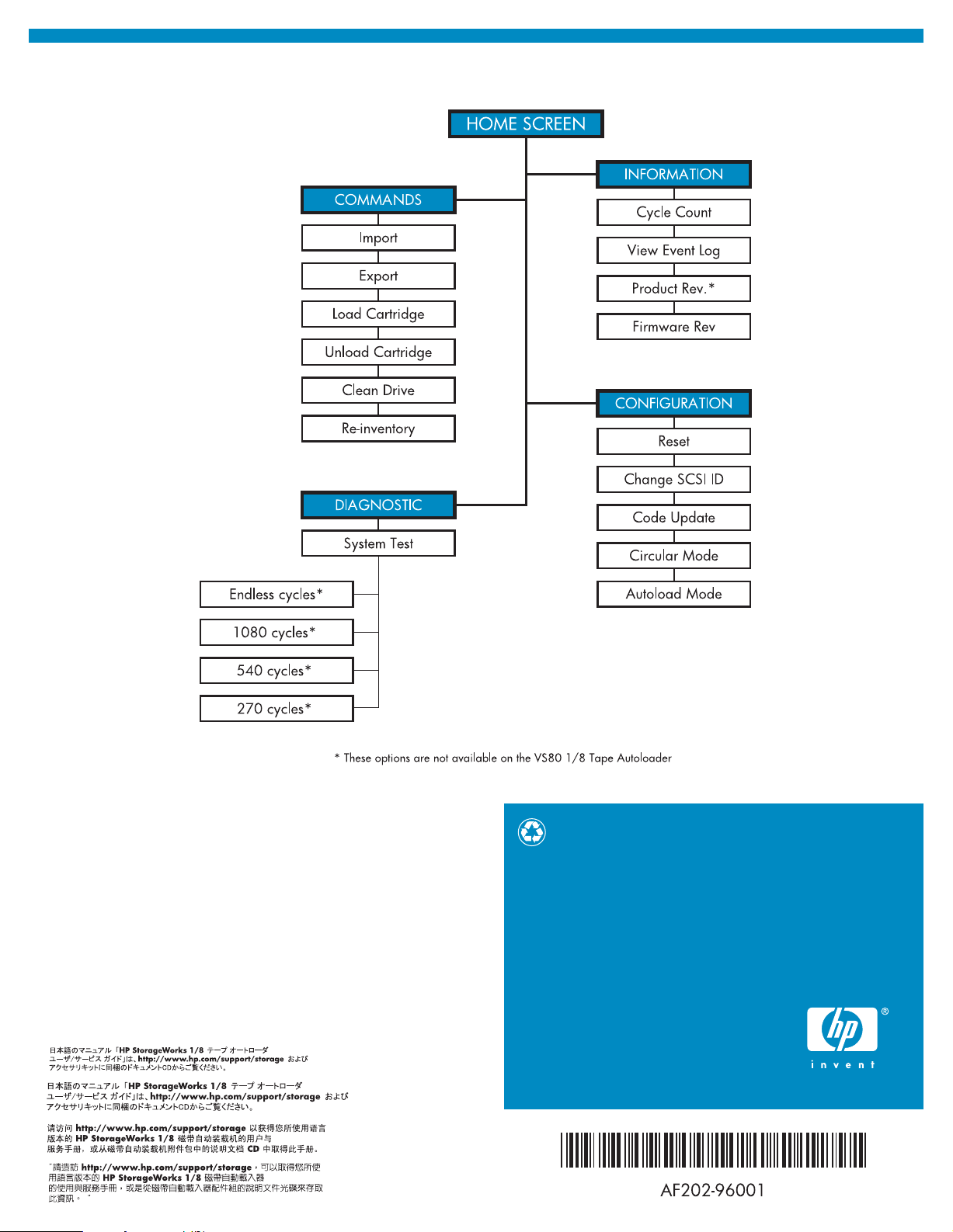

Menu structure for all other 1/8 Tape Autoloader models
