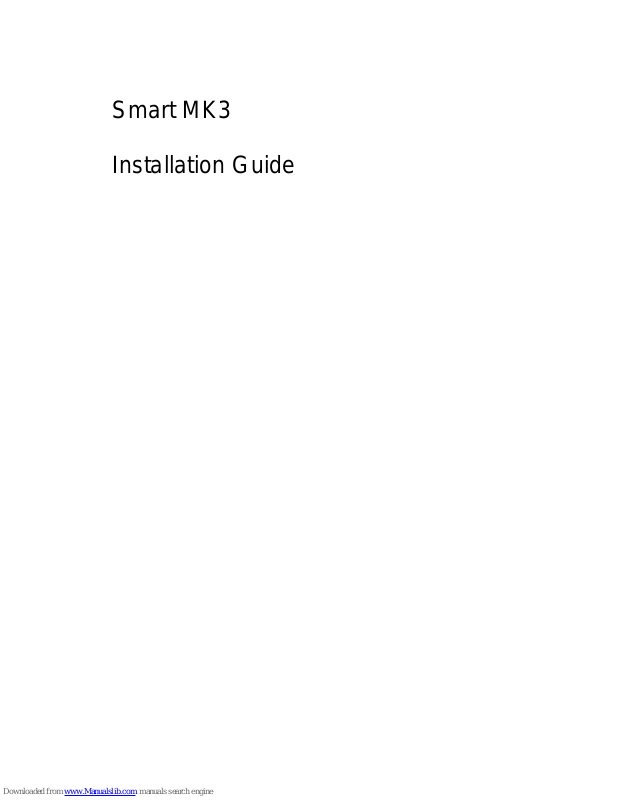

Smart MK3
Installation Guide
Page 2
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Hewlett-Packard shall not be liable for err ors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use
of this material.
Hewlett-Packard assumes no responsibility for t he use or r eliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary infor m at ion t hat is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated to another language without the prior written consent
of Hewlett-Packard Company.
Microsoft®, Windows® and MS-DOS® are registered tradem ar ks of Microsoft
Corporation.
MMX
TM
is a trademark of Intel Corporation.
Pentium® is a registered trademark of Intel Corporation.
Hewlett-Packard France
Business Desktop Division
38053 Grenoble Cedex 9
France
© 2001 Hewlett Packard Company
Page 3
Read This First
Before installing the network adapt er:
If your OS is Windows NT 4.0, go into the BIOS setup and set PnP O S field to NO.
If your OS is Windows 98 2
nd
edition, go into the BIOS setup and set PnP OS field to
YES.
If your OS is Windows 2000 Professional, go into the BIOS setup and set PnP O S
field to YES.
If your OS is Windows NT4.0 and Wak e on LAN capabilit y is needed, go into the
BIOS setup and enable power-up when a specific command is received by the
Network Interface.
For all OS, remove any previously installed network adapter (usually located in slot
#5) if it is not needed.
Installing the network adapter in slot #4 is r ecommended. HP has tested this
installation procedure using slot #4.
For advanced users only: In case of resource conflict, you can try to change the
resources for the network adapter. To do this, turn the Vectra system power off ,
remove the network adapter and install it into a different PCI slot.
Page 4
Connecting to a Novell NetWare 5.1 or 4.11 Server
Microsoft Windows NT 4.0 Workstation
Requirements
Operating System Windows NT 4.0 Workstation
Driver Version 6.04
Driver File MDGNDIS4.SYS
Server OS NetWare 5.1 or 4.11 Server
Client OS Client v4.80 for Wi ndows NT/ 2000
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Logon to W indows with administrator pr ivilege s.
6. Click OK to ignore the warning message indicating a driver failed during system
startup. This is caused the removal of the previously installed network adapter.
This message should no longer appear af ter removing the driver from the
Network properties.
7. The following steps are based on a subsequent installat ion of Networking on the
system. Adding a network adapter for the first time has some minor differences.
Ask your administrator for m ore information.
8. Open the Network properties windows to remove a previously installed network
adapter and to add a new one.
9. Click on the “Adapters” tab and highlight the network adapter you want removed
then click on the “Remove” button.
10. Click on the “Adapters” tab then on the “Add” button.
11. Insert the driver disk and click on “Have Disk”.
12. Type in the location of the NDIS4 drivers and click on “OK”.
13. With “Madge Automated Installat ion - RECO MMENDED” highlighted, click on
“OK”.
Page 5
14. Select “Madge Smart 16/ 4 PCI Ringnode Mk3” and click on “Properties”. Click on
the “Advanced” button and enable Wake-On-LAN.
15. Additional changes in the Network properties, such as: workgroup name,
computer name, TCP/IP properties, et c. may be necessary. Ask your Network
Administrator for more information.
16. Click on “Close” to complete the installation.
17. Remove the driver disk and click on “Yes” when prompted to restart your
computer.
18. Logon to Windows with administrator privileges.
19. From the location of the “Novell Client v4.80 for Windows NT/2000” installation
files, execute “SETUPNW.EXE”.
20. Select either “Typical” or “Custom” and click on “Install”. Typical Installation is
normally chosen. Select Custom Installation only if you are an administ r at or or an
advanced user. When prompt ed for options during installation, ask your Net work
Administrator for more information.
21. Click on “Yes” to accept the “Novell Terms and Conditions”.
22. Click on “Reboot” to restart the system once t he inst allation is complete.
23. Logon to Windows with administrator privileges and re-inst all the current service
pack.
Page 6
Connecting to a Microsoft Windows 2000 Advanced or NT 4.0
Server
Microsoft Windows NT 4.0 Workstation
Requirements
Operating System Windows NT 4.0 Workstation
Driver Version 6.04
Driver File MDGNDIS4.SYS
Server OS Windows 2000 Advanced or NT 4.0
Server
Client OS Microsoft
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Logon to W indows with administrator pr ivilege s.
6. Click OK to ignore the warning message indicating a driver failed during system
startup. This is caused the removal of the previously installed network adapter.
This message should no longer appear af ter removing the driver from the
Network properties.
7. The following steps are based on a subsequent installat ion of Networking on the
system. Adding a network adapter for t he first time has some minor differences.
Ask your administrator for m ore information.
8. Open the Network properties windows to remove a previously installed network
adapter and to add a new one.
9. Click on the “Adapters” tab and highlight the network adapter you want removed
then click on the “Remove” button.
10. Click on the “Add” button to add the new network adapter.
11. Insert the driver disk and click on “Have Disk”.
12. Type in the location of the NDIS4 drivers and click on “OK”.
Page 7
13. With “Madge Automated Installation - RECOMMENDED” highlighted, click on
“OK”.
14. Select “Madge Smart 16/ 4 PCI Ringnode Mk3” and click on “Properties”. Click on
the “Advanced” button and enable Wake-On-LAN.
15. Additional changes in the Network properties, such as: workgroup name,
computer name, TCP/IP properties, et c. may be necessary. Ask your Network
Administrator for more information.
16. Click on “Close” to complete the installation.
17. Remove the driver disk and click on “Yes” when prompted to restart your
computer.
18. Logon to Windows with administrator privileges and re-inst all the current service
pack.
Page 8
Connecting to a Novell NetWare 5.1 or 4.11 Server
Microsoft Windows 98 2nd edition
Requirements
Operating System Windows 98 2nd edition
Driver Version 6.04
Driver File MDGNDIS4.SYS
Server OS NetWare 5.1 or 4.11 Server
Client OS Client v3.30 for Wi ndows 95/ 98
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Windows will detect the network adapter as “PCI Token Ring Controller ”.
6. Insert the driver disk and click on “Next” to continue the installation.
7. Accept the default selection: “Search for the best driver for your device
(Recommended).” and click “Next”.
8. Select the locations W indows will search for dr ivers. Check “Specify a location:”
and type in or browse the location of the NDIS4 driver. Click “Next” to continue.
9. Accept the driver found, “Madge Smart 16/ 4 PCI Ringnode Mk3”, by clicking on
“Next”.
10. Click on “Finish” when the driver installation is complete.
11. Remove the driver disk and click on “Yes” when prompted to restart the system.
12. Additional changes in the Network properties, such as: workgroup name,
computer name, TCP/IP properties, et c. may be necessary. Ask your Network
Administrator for mor e information. After changes are made, a restart will be
necessary.
13. From the location of the “Novell Client v3.30 for Windows 95/98” installation files,
execute “Setup.exe”.
14. Click on “Yes” to accept the “Novell Terms and Conditions”.
Page 9
15. Select either “Typical” or “Custom” and click on “Install”. Typical Installation is
normally chosen. Select Custom Installation only if you are an administ r at or or an
advanced user. When prompt ed for options during installation, ask your Net work
Administrator for more information.
16. Click on “Reboot” once the Novell client installation is complete.
Known Problems
Problem1
There is an issue with waking up the system. Currently there is no resolution t o t he
problem. However, the problem can be prevented by not placing the system on
Stand by. Also, the Power Management properties’ "Turn off monitor:" and “System
standby:” settings must be set to “Never”.
Page 10
Connecting to a Microsoft Windows 2000 Advanced or NT 4.0
Server
Microsoft Windows 98 2nd edition
Requirements
Operating System Windows 98 2nd edition
Driver Version 6.04
Driver File MDGNDIS4.SYS
Server OS Windows 2000 Advanced or NT 4.0
Server
Client OS Microsoft
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Windows will detect the network adapter as “PCI Token Ring Controller ”.
6. Insert the driver disk and click on “Next” to continue the installation.
7. Accept the default selection: “Search for the best driver for your device
(Recommended).” and click “Next”.
8. Select the locations W indows will search for dr ivers. Check “Specify a location:”
and type in or browse the location of the NDIS4 driver. Click “Next” to continue.
9. Accept the driver found, “Madge Smart 16/ 4 PCI Ringnode Mk3”, by clicking on
“Next”.
10. Click on “Finish” when the driver installation is complete.
11. Remove the driver disk and click on “Yes” when prompted to restart the system.
12. Additional changes in the Network properties, such as: workgroup name,
computer name, TCP/IP properties, et c. may be necessary. Ask your Network
Administrator for mor e information. After changes are made, a restart will be
necessary.
Page 11
Known Problems
Problem1
There is an issue with waking up the system. Currently there is no resolution t o t he
problem. However, the problem can be prevented by not placing the system on
Stand by. Also, the Power Management properties’ "Turn off monitor:" and “System
standby:” settings must be set to “Never”.
Page 12
Connecting to a Novell NetWare 5.1 or 4.11 Server
Microsoft Windows 2000 Professional
Requirements
Operating System Windows 2000 Professi onal
Driver Version 5.95.90.0 (Embedded in OS)
Driver File MDGNDIS5.SYS
Server OS NetWare 5.1 or 4.11 Server
Client OS Client v4.80 for Wi ndows NT/ 2000
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Logon to W indows with administrat or privileges.
6. Windows will silently detect (i.e. without any messages or prom pt s) the network
adapter as “Madge Smart 16/4 PCI Ringnode Mk3” dur ing start up and
automatically install its embedded driver.
7. From the Device Manager, under Network adapters, double-click on “Madge
Smart 16/4 PCI Ringnode Mk3” to open its Properties window. Click on the
“Power Management” tab and check “Allow this device to bring the computer out
of standby”.
8. Additional changes in the System or Local Area Connection properties, such as:
workgroup name, computer name, TCP/IP properties, etc. may be necessary.
Ask your Network Administrator f or more information. Aft er changes are made, a
restart may be necessary.
9. From the location of the “Novell Client v4.80 f or Windows NT/2000” installat ion
files, execute “SETUPNW.EXE”.
10. Click on “Yes” to accept the “Novell Terms and Conditions”.
11. Select either “Typical” or “Custom” and click on “Install”. Typical Installation is
normally chosen. Select Custom Installation only if you are an administ r at or or an
advanced user. When prompt ed for options during installation, ask your Net work
Administrator for more information.
Page 13
12. Click on “Reboot” once the installation is complete.
Known Problems
Problem1
When the system wakes up from standby, the monitor does not turn back on. As a
workaround the problem, after the computer wakes up from Standby, move the
mouse or press a key on the keyboard to get a display f r om the monitor.
Page 14
Connecting to a Microsoft Windows 2000 Advanced or NT 4.0
Server
Microsoft Windows 2000 Professional
Requirements
Operating System Windows 2000 Professi onal
Driver Version 5.95.90.0 (Embedded in OS)
Driver File MDGNDIS5.SYS
Server OS Windows 2000 Advanced or NT 4.0
Server
Client OS Microsoft
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Logon to W indows with administrat or privileges.
6. Windows will silently detect (i.e. without any messages or prom pt s) the network
adapter as “Madge Smart 16/4 PCI Ringnode Mk3” during start up and
automatically install its embedded driver.
7. From the Device Manager, under Network adapters, double-click on “Madge
Smart 16/4 PCI Ringnode Mk3” to open its Properties window. Click on the
“Power Management” tab and check “Allow this device to bring the computer out
of standby”.
8. Additional changes in the System or Local Area Connection properties, such as:
workgroup name, computer name, TCP/IP properties, etc. may be necessary.
Ask your Network Administrator f or more information. Aft er changes are made, a
restart may be necessary.
Known Problems
Problem1
When the system wakes up from standby, the monitor does not turn back on. As a
workaround the problem, after the computer wakes up from Standby, move the
mouse or press a key on the keyboard to get a display f r om the monitor.
Page 15
Connecting to a Novell NetWare 5.1 or 4.11 Server
Microsoft Windows 2000 Professional
Requirements
Operating System Windows 2000 Professi onal
Driver Version 5.95.90.0 (Embedded in OS)
Driver File MDGNDIS5.SYS
Server OS NetWare 5.1 or 4.11 Server
Client OS Client v4.80 for Wi ndows NT/ 2000
Procedure
1. With the HP Vect r a turned off, install the network adapter into an available PCI
slot.
2. Connect the network cable to the newly installed network adapter.
3. Connect the WO L cable bet ween the network adapter and the PC motherboard.
4. Power on the machine and boot to W indows.
5. Logon to W indows with administrat or privileges.
6. Windows will silently detect (i.e. without any messages or prom pts) the network
adapter as “Madge Smart 16/4 PCI Ringnode Mk3” during start up and
automatically install its embedded driver.
7. From the Device Manager, under Network adapters, double-click on “Madge
Smart 16/4 PCI Ringnode Mk3” to open its Properties window. Click on the
“Power Management” tab and check “Allow this device to bring the computer out
of standby”.
8. Additional changes in the System or Local Area Connection properties, such as:
workgroup name, computer name, TCP/IP properties, etc. may be necessary.
Ask your Network Administrator f or more information. Aft er changes are made, a
restart may be necessary.
9. From the location of the “Novell Client v4.80 f or Windows NT/2000” installat ion
files, execute “SETUPNW.EXE”.
10. Click on “Yes” to accept the “Novell Terms and Condit ions ”.
11. Select either “Typical” or “Custom” and click on “Install”. Typical Installation is
normally chosen. Select Custom Installation only if you are an administ r at or or an
advanced user. When prompt ed for options during installation, ask your Net work
Administrator for more information.
12. Click on “Reboot” once the installation is complete.
Page 16
Known Problems
Problem1
When the system wakes up from standby, the monitor does not turn back on. As a
workaround the problem, after the computer wakes up from Standby, move the
mouse or press a key on the keyboard to get a display f r om the monitor.
Loading...
