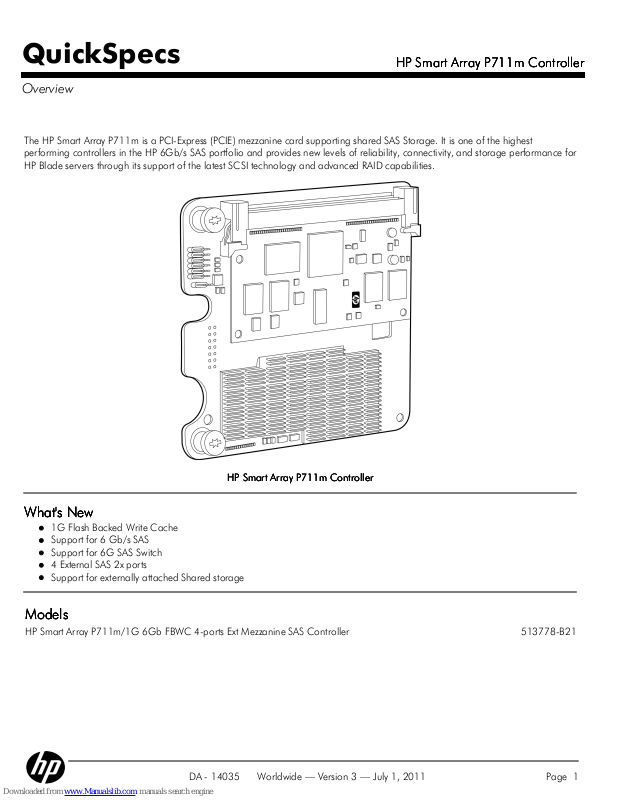

HP Smart Array P711m Quickspecs

The HP Smart Array P711m is a PCI-Express (PCIE) mezzanine card supporting shared SAS Storage. It is one of the highest
performing controllers in the HP 6Gb/s SAS portfolio and provides new levels of reliability, connectivity, and storage performance for
HP Blade servers through its support of the latest SCSI technology and advanced RAID capabilities.

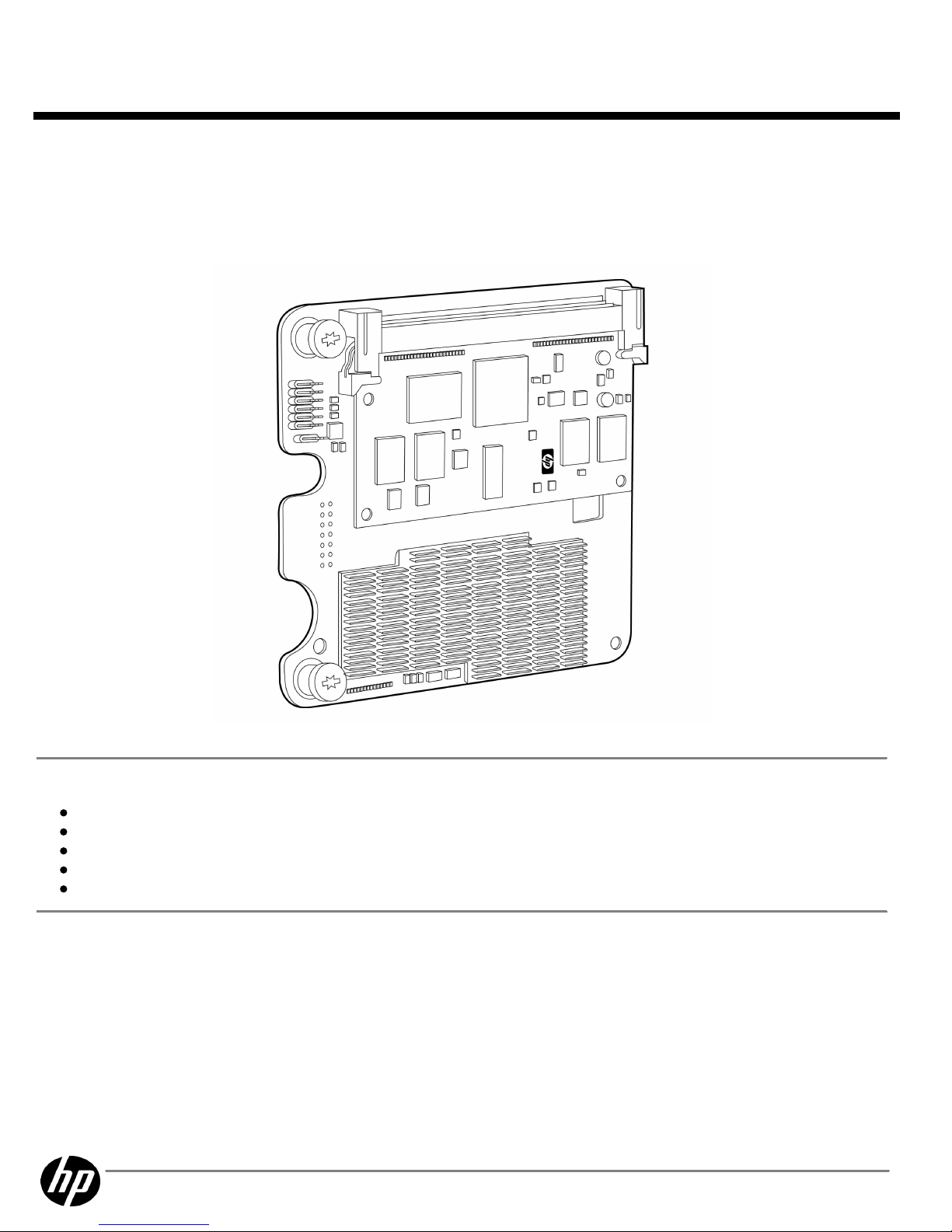

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

What's New

What's NewWhat's New

What's New

1G Flash Backed Write Cache
Support for 6 Gb/s SAS
Support for 6G SAS Switch
4 External SAS 2x ports
Support for externally attached Shared storage

Models

ModelsModels

Models

HP Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller

513778-B21

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Overview

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 1

The Smart Array

The Smart ArrayThe Smart Array

The Smart Array
Advantage

AdvantageAdvantage

Advantage

HP's innovative design and integration work within the Smart Array family of products creates customer
value that is unmatched in the industry. Use of Smart Array products across multiple applications results
in a much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP
Smart Array family brings an unparalleled return on investment.

Key Features

Key FeaturesKey Features

Key Features

Storage interface (SAS/SATA)

6Gb/s SAS technology delivers up to 600 MB/s per physical link.
3Gb/s SATA technology delivers up to 300 MB/s for directly attached SATA drives.
Mix-and-match SAS and SATA drives. Deploy drive technology as needed to fit the
computing environment.
Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries.

RAID controller features

1 GB flash-backed write cache (not all of which is available for user data)

RAID 0, 1, 3, 5, 6, 10, 50 on P2000sa G3 SA
Recovery ROM protects against ROM corruption.
Smart Array PCIe mezzanine card that connects to a HP 6Gb/s SAS BL Switch through the c-Class
enclosure high-speed mid-plane supporting shared SAS storage.
Eight (8) 6Gb/s SAS physical links distributed across 4 external 2x ports to support up to 4 6Gb/s
SAS Switches

HP P2000 G3 Modular

HP P2000 G3 ModularHP P2000 G3 Modular

HP P2000 G3 Modular
Smart Array Systems

Smart Array SystemsSmart Array Systems

Smart Array Systems

Online Management Features:

Online Management Features:Online Management Features:

Online Management Features:

HP Storage Management Utility (SMU).

Management access, out-of-band:

WEB GUI, CLI
Interface Types:

USB, 10/100 Ethernet.
Protocols Supported:

SNMP, SMI-S, SSL, SSH, SMTP, FTP, HTTP, Telnet

P2000 G3 Smart Array Systems - RAID 0, 1, 3, 5, 6, 10, 50:

P2000 G3 Smart Array Systems - RAID 0, 1, 3, 5, 6, 10, 50:P2000 G3 Smart Array Systems - RAID 0, 1, 3, 5, 6, 10, 50:

P2000 G3 Smart Array Systems - RAID 0, 1, 3, 5, 6, 10, 50:

In addition to the usual RAID levels, the P2000 G3 features several important additional levels. RAID 6 is
the highest level of RAID protection. It allocates two sets of parity data across drives and allows
simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data
loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID levels,
allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50
combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding
higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance

PerformancePerformance

Performance

Eight (8) 6Gb/s SAS physical links distributed across 4 external 2x ports which supports up to 4
6Gb/s SAS Switches
6Gb/s SAS (600MB/s bandwidth per physical link)
1G Flash Backed Write Cache

Capacity

CapacityCapacity

Capacity

Dependent upon attached enclosure. See specific drive enclosure QuickSpecs for details.

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Standard Features

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 2

Fault Tolerance RAID

Fault Tolerance RAIDFault Tolerance RAID

Fault Tolerance RAID
Descriptions

DescriptionsDescriptions

Descriptions

Keeps data available and server running while a failed drive is being replaced; several fault tolerance
configurations are supported including but not limited to (see P2000 G3 QuickSpecs for details):

RAID 0 (striping)

RAID 0 (striping)RAID 0 (striping)

RAID 0 (striping)

provides no extra data protection. Data is striped across all drives in the array to
increase performance. RAID 0 requires a minimum of one drive.
RAID 1 (mirroring)

RAID 1 (mirroring)RAID 1 (mirroring)

RAID 1 (mirroring)

protects against failure of one drive. Data is duplicated on a pair of drives.
RAID 1 requires a minimum of two drives. Also see the Advanced Pack Mirror Splitting and
Combining feature.
RAID 1+0 (mirroring and striping)

RAID 1+0 (mirroring and striping)RAID 1+0 (mirroring and striping)

RAID 1+0 (mirroring and striping)

protects against failure of one drive (and failure of particular
multiple drives). RAID 1+0 is a nested RAID method that uses RAID 0 striping across RAID 1
arrays to provide performance and protection. RAID 1+0 requires a minimum of four drives. Also
see the Advanced Pack Mirror Splitting and Combining feature.
RAID 5 (distributed data guarding)

RAID 5 (distributed data guarding) RAID 5 (distributed data guarding)

RAID 5 (distributed data guarding)

protects against failure of one drive. Data protection is
provided by parity data distributed across all the drives. When a physical drive fails, data that was
on the failed drive can be calculated from the remaining parity data and user data on the other
drives in the array. This recovered data is usually written to an online spare drive through a
process called a rebuild. RAID 5 requires a minimum of three drives.
RAID 6 with ADG

RAID 6 with ADG RAID 6 with ADG

RAID 6 with ADG

(Advanced Data Guarding): This is the highest level of fault tolerance. It
allocates two sets of parity data across drives and allows simultaneous write operations. This level
of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
RAID 50 (RAID 5+0)

RAID 50 (RAID 5+0)RAID 50 (RAID 5+0)

RAID 50 (RAID 5+0)

protects against failure of one drive (and failure of particular multiple
drives). RAID 50 is a nested RAID method that uses RAID 0 striping across RAID 5 arrays. RAID 50
tolerates one drive failure in each spanned array without loss of data. RAID 50 requires less
rebuild time than single RAID 5 arrays RAID 50 requires a minimum of six drives.
RAID 60 (RAID 6+0)

RAID 60 (RAID 6+0)RAID 60 (RAID 6+0)

RAID 60 (RAID 6+0)

allows administrators to split the RAID 6 storage across multiple external
boxes. RAID 60 requires a minimum of eight drives. RAID 60 is a nested RAID method that uses
RAID 0 block-level striping across multiple RAID 6 arrays with dual distributed parity. With the
inclusion of dual parity, RAID 60 will tolerate the failure of two disks in each spanned array without
loss of data.

NOTE:

NOTE: NOTE:

NOTE:

See Enclosure QuickSpecs for descriptions of RAID levels specific to the HP P2000 Modular

Smart Array Systems

Fault Recovery

Fault RecoveryFault Recovery

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

Recovery ROM:

Recovery ROM:Recovery ROM:

Recovery ROM:

This feature provides unique redundancy that protects from a ROM image
corruption. A new version of firmware can be flashed to the ROM while the controller maintains
the last known working version of firmware. If the firmware becomes corrupt, the controller will
revert back to the previous version of firmware and continue operating. This reduces the risk of
flashing firmware to the controller.
On-Line Spares:

On-Line Spares:On-Line Spares:

On-Line Spares:

There is no limit to the number of spare drives that can be installed prior to drive
failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed
automatically.

Ease of Use

Ease of UseEase of Use

Ease of Use

Consistency and Upgradeability make the Smart Array family unique in the industry:

GUI based configuration, management and diagnostic software tools
Common data format between generations of products
Data migration between servers and external Modular Smart Array enclosures

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Standard Features

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 3

Supported Servers

Supported ServersSupported Servers

Supported Servers

HP ProLiant BL280c G6
HP ProLiant BL460c G7
HP ProLiant BL465c G7
HP ProLiant BL490c G6
HP ProLiant BL620c G7
HP ProLiant BL680c G7
HP ProLiant BL685c G7

NOTE:

NOTE:NOTE:

NOTE:

Some servers listed above may be discontinued.

NOTE:

NOTE:NOTE:

NOTE:

For more information on internal vs external connections, please refer to proper blade
QuickSpecs
NOTE:

NOTE:NOTE:

NOTE:

For more information on supported server options, please refer to appropriate server QuickSpecs

Operating Systems and

Operating Systems andOperating Systems and

Operating Systems and
Virtualization Software

Virtualization SoftwareVirtualization Software

Virtualization Software
Support for ProLiant

Support for ProLiantSupport for ProLiant

Support for ProLiant
Servers

ServersServers

Servers

Microsoft Windows 2003
Microsoft Windows 2003
Microsoft Windows 2008 R2 SP1
Microsoft Windows 2008 R2 SP1
SLES 10 SP3
SLES 11 SP1
Red Hat Enterprise Linux 5 U6
Red Hat Enterprise Linux 6

NOTE:

NOTE:NOTE:

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/supportos

.

Software Suite

Software SuiteSoftware Suite

Software Suite

All Smart Array products share a common set of configuration, management and diagnostic tools,
including Array Configuration Utility, Array Diagnostic Utility (ADU), and Systems Insight Manager. This
software consistency of tools reduces the cost of training for each successive generation of product and
takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of
ownership by reducing training and technical expertise necessary to install and maintain HP server
storage.

Systems Insight Manager

Systems Insight ManagerSystems Insight Manager

Systems Insight Manager

Powerful server and server options/storage manager tool
Monitors over 1200 system wide parameters
Configuration/Diagnostic Utilities

HP Array Configuration

HP Array ConfigurationHP Array Configuration

HP Array Configuration
Utility

UtilityUtility

Utility

(ACU)

Powerful Web based configuration utility for all Smart Array controllers
Provides a graphical view of HP server drive array configurations
Allows for management of multiple arrays over a secure internet
connection from anywhere in the world
Easy to use Wizards for configuration
Runs offline (via Smart Start) and online on Windows

HP Option ROM

HP Option ROMHP Option ROM

HP Option ROM
Configuration for Arrays

Configuration for ArraysConfiguration for Arrays

Configuration for Arrays
(ORCA)

An alternative method for easily viewing, creating, and deleting
multiple arrays and logical volumes during system power up.
For advanced array configurations use ACU

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Compatibility

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 4

HP Storage Management

HP Storage ManagementHP Storage Management

HP Storage Management
Utility

UtilityUtility

Utility

Initial System Configuration Wizard is the easiest and simplest method
for configuring the storage system initially.
Command Line Interface (CLI) for command level method of
configuring and managing the storage
Main User Interface for multi server environments that need
customization for creation of storage Luns and targets.

HP Array Diagnostic Utility

HP Array Diagnostic UtilityHP Array Diagnostic Utility

HP Array Diagnostic Utility
(ADU)

In depth diagnostic and reporting utility for all Smart Array controllers

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Compatibility

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 5

Warranty

WarrantyWarranty

Warranty

The warranty for this device is 3 years parts only.
Pre-Failure Warranty

Pre-Failure WarrantyPre-Failure Warranty

Pre-Failure Warranty

: Drives attached to the Smart Array Controller and monitored under Insight
Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP
Support Center or refer to your HP Server Documentation.

Software Product Services

Software Product ServicesSoftware Product Services

Software Product Services

Standalone telephone support
Rights to new license version
Media and documentation updates

Hardware Product

Hardware ProductHardware Product

Hardware Product
Services

ServicesServices

Services

Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work

Warranty Upgrade

Warranty UpgradeWarranty Upgrade

Warranty Upgrade
Options

OptionsOptions

Options

Response

ResponseResponse

Response

- Upgrade on-site response from next business day to same day 4 hours

Coverage

CoverageCoverage

Coverage

- Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days

Duration

DurationDuration

Duration

- Select duration of coverage for a period of 1, 3, or 5 years

Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level
this product attaches too.

HP Care Pack Information

HP Care Pack InformationHP Care Pack Information

HP Care Pack Information

HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage. Care Packs for this option is sold at the system level this option attaches
too.

HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the

commencement date will be the same as the Warranty Start Date (delivery date to end user customer).
Proof of purchase may be required.

HP Care Pack services are prepaid.

NOTE:

NOTE:NOTE:

NOTE:

For additional HP Care Pack (hardware & software) information, as well as orderable part

numbers, please refer to the URL:

http://www.hp.com/hps/carepack/

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Service and Support, HP Care Pack, and Warranty Information

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 6

HP Hard Drives

HP Hard DrivesHP Hard Drives

HP Hard Drives

NOTE:

NOTE:NOTE:

NOTE:

Supports attached enclosures.

P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch

P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inchP2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch

P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch
Disk Enclosure

Disk EnclosureDisk Enclosure

Disk Enclosure
HP P2000 300GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive

AP858A

HP P2000 450GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive

AP859A

HP P2000 600GB 6G SAS 15K rpm LFF Dual Port Enterprise Hard Drive

AP860A

P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000

P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000

P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000

3.5-inch Disk Enclosure

3.5-inch Disk Enclosure3.5-inch Disk Enclosure

3.5-inch Disk Enclosure
HP StorageWorks P2000 1TB 6G SAS 7.2K LFF (3.5-inch) Dual Port MDL Hard Drive

AP861A

HP StorageWorks P2000 2TB 6G SAS 7.2K LFF (3.5-inch) Dual Port MDL Hard Drive

AW555A

MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk

MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 diskMSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk

MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk
enclosure

enclosureenclosure

enclosure
HP StorageWorks MSA2 1TB 7.2K rpm 3.5 inch Dual-port SATA Hard Disk Drive

AJ740A

HP StorageWorks P2000 2TB 3G SATA 7.2K LFF MDL Hard Drive

AW556A

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) DrivesSAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

NOTE:

NOTE:NOTE:

NOTE:

Supports P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive

bay).

HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive

507125-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive

507127-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive

581284-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive

581286-B21

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive

512545-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive

512547-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SAS Hot Plug SFF (2.5-inch) Midline (MDL) DrivesSAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

NOTE:

NOTE:NOTE:

NOTE:

Supports P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive
bay).

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard
Drive

507610-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) DrivesSATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

NOTE:

NOTE:NOTE:

NOTE:

SFF SATA drives are single ported and therefore do not have a fail-over path
intrinsic to their design.
NOTE:

NOTE: NOTE:

NOTE:

Supports P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive

bay).

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Related Options

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 7

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

HP SAS Switches

HP SAS SwitchesHP SAS Switches

HP SAS Switches

HP StorageWorks 6Gb/s SAS BL Switch - Single Pack

BK763A

HP StorageWorks 6Gb/s SAS BL Switch - Dual Pack

BK764A

NOTE:

NOTE: NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information at:

http://h18000.www1.hp.com/products/quickspecs/13960_div/13960_div.html

HP c Class Blade

HP c Class BladeHP c Class Blade

HP c Class Blade
Enclosures

EnclosuresEnclosures

Enclosures

HP BLc7000 CTO 3 IN LCD ROHS Encl

507019-B21

HP BLc7000 1PH 2PS 4 Fan TL ROHS ICE

507014-B21

HP BLc7000 1PH 6PS10Fan Fl ROHS 16IC Kit

507015-B21

HP BLc7000 3PH 6PS 10 Fan INT ROHS ICE

507016-B21

HP BLc7000 3PH 6PS10FanENG ROHS IC Kit

507017-B21

HP P2000 G3 Modular

HP P2000 G3 ModularHP P2000 G3 Modular

HP P2000 G3 Modular
Smart Array Systems

Smart Array SystemsSmart Array Systems

Smart Array Systems

P2000 G3 SAS Controller

P2000 G3 SAS ControllerP2000 G3 SAS Controller

P2000 G3 SAS Controller
HP StorageWorks P2000 G3 SAS MSA Array System Controller

NOTE:

NOTE:NOTE:

NOTE:

Four 6Gb SAS ports per controller.

AW592A

P2000 Chassis

P2000 ChassisP2000 Chassis

P2000 Chassis
P2000 Controller-less Chassis (AC-powered)

P2000 Controller-less Chassis (AC-powered)P2000 Controller-less Chassis (AC-powered)

P2000 Controller-less Chassis (AC-powered)
HP StorageWorks P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)

NOTE:

NOTE:NOTE:

NOTE:

Will accept one or two controllers or Disk Enclosure I/O modules.

AP838A

HP StorageWorks P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)

NOTE:

NOTE:NOTE:

NOTE:

Will accept one or two controllers, not I/O modules.

AP839A

Configured Units, 6 Gb SAS Systems

Configured Units, 6 Gb SAS SystemsConfigured Units, 6 Gb SAS Systems

Configured Units, 6 Gb SAS Systems
HP StorageWorks P2000 G3 SAS MSA Dual Controller LFF Array System

AW593A

HP StorageWorks P2000 G3 SAS MSA Dual Controller SFF Array System

AW594A

Disk Enclosures

Disk EnclosuresDisk Enclosures

Disk Enclosures
HP StorageWorks P2000 Dual I/O LFF Drive Enclosure, twelve 3.5" drive bays

(w/ two .5m mini-SAS to mini-SAS cables. Used with single or dual controller LFF or
SFF array head)

AP843A

HP StorageWorks P2000 LFF Drive Enclosure I/O Module (no cable included.
Designed exclusively for use with the LFF chassis AP838A to create a single I/O JBOD)

AJ844A

HP StorageWorks D2700 SFF Disk Enclosure, twenty-five 2.5" drive bays
(w/ two .5m mini-SAS to mini-SAS cables. Used with single or dual controller LFF or
SFF array head)

AJ941A

HP Tape Backup

HP Tape BackupHP Tape Backup

HP Tape Backup

Tape Autoloaders

Tape AutoloadersTape Autoloaders

Tape Autoloaders
HP StorageWorks 1/8 G2 LTO-5 Ultrium 1760 SAS Tape Autoloader

BL536A

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

AK377A

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

AH558A

Tape Libraries

Tape LibrariesTape Libraries

Tape Libraries
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

AK378A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Related Options

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 8

HP StorageWorks MSL2024 1 LTO-5 Ultrium 3000 SAS Drive Library

BL537A

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

AK380A

HP StorageWorks MSL2048 1 LTO-5 Ultrium 3000 SAS Drive Library

BL538A

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library

AK382A

HP StorageWorks MSL8096 2 LTO-5 Ultrium 3000 SAS Drive Library

BL539A

NOTE:

NOTE:NOTE:

NOTE:

HP recommends a maximum of 2 tape drives per 6Gb/s SAS BL Switch and
64K transfer sizes. Attaching a library with 4 tape drives requires purchasing a second
tape library SAS cable (AN975A or AN976A) and attaching 2 drives to the redundant
6Gb/s SAS BL Switch. Attaching more than 2 tape drives per switch and transfer sizes
greater than 64K could result in a failed backup or restore. A future release of
firmware on the tape library drives will allow more than 2 tape drives to be attached to
a switch.

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Related Options

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 9

Dimensions

DimensionsDimensions

Dimensions

4 in x 4.5 in x 0.8 in (10.1 cm x 11.4 cm x 2 cm)

Disk Drive and Enclosure

Disk Drive and EnclosureDisk Drive and Enclosure

Disk Drive and Enclosure
Protocol Support

Protocol SupportProtocol Support

Protocol Support

SAS protocol: 6 Gb/s, 3 Gb/s, or 1.5 Gb/s
SATA protocol: 3 Gb/s or 1.5 Gb/s

SAS Connectors

SAS ConnectorsSAS Connectors

SAS Connectors

Four (4) 2x connectors external

Memory Bus Speed

Memory Bus SpeedMemory Bus Speed

Memory Bus Speed

DDR2-800 (6.4 GiB/s maximum bandwidth)

SAS Port Link Rate

SAS Port Link RateSAS Port Link Rate

SAS Port Link Rate

6Gb/s per physical link

Software Upgradeable

Software UpgradeableSoftware Upgradeable

Software Upgradeable
Firmware

FirmwareFirmware

Firmware

Yes

Cache Memory

Cache MemoryCache Memory

Cache Memory

1 GB capacity (not all of which is available for user data)
64-bit data width with 8-bit error correcting code (ECC)
Flash-backed on power loss
Tether to capacitor pack
Removable

Logical Drives Supported

Logical Drives SupportedLogical Drives Supported

Logical Drives Supported

512 logical drives external

Maximum Capacity

Maximum CapacityMaximum Capacity

Maximum Capacity

Variable depending on attached enclosure

Memory Addressing

Memory AddressingMemory Addressing

Memory Addressing

64-bit, supporting servers memory space greater than 4 GB

RAID Support

RAID SupportRAID Support

RAID Support

RAID 0, 1, 3, 5, 6, 10, 50 on P2000 SA G3

Upgradeable Firmware

Upgradeable FirmwareUpgradeable Firmware

Upgradeable Firmware

Flashable ROM with redundant firmware images

Environment-friendly

Environment-friendlyEnvironment-friendly

Environment-friendly
Products and Approach

Products and ApproachProducts and Approach

Products and Approach

End-of-life Management

End-of-life ManagementEnd-of-life Management

End-of-life Management
and Recycling

and Recyclingand Recycling

and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2011 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP Smart Array P711m Controller

HP Smart Array P711m ControllerHP Smart Array P711m Controller

HP Smart Array P711m Controller

Technical Specifications

DA - 14035 Worldwide — Version 3 — July 1, 2011

Page 10
