HP ProLiant ML150 Generation 2 Maintenance and Service Guide

HP ProLiant ML150 Generation 2 Server

Maintenance and Service Guide

March 2007 (Fourth Edition)

Part Number 368148-004

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

March 2007 (Fourth Edition) Part Number 368148-004

Chapter 1

Illustrated Parts Catalog

Exploded View.......................................................................................................................................... 1-2

Chapter 2

Removal and Replacement Procedures

Electrostatic Discharge Information.......................................................................................................... 2-2

Symbols on Equipment ............................................................................................................................. 2-3

Preparation Procedures.............................................................................................................................. 2-4

Non-Hot-Pluggable Device................................................................................................................. 2-4

Powering Down the Server ................................................................................................................. 2-4

Bezel Door................................................................................................................................................. 2-6

Access Panel.............................................................................................................................................. 2-8

Cable Routing Diagrams ........................................................................................................................... 2-9

IDE CD-ROM Drive Signal Cable ..................................................................................................... 2-9

Diskette Drive Signal Cable.............................................................................................................. 2-10

SCSI Hot-Plug Hard Drive Cable..................................................................................................... 2-10

SCSI Non-Hot-Plug Hard Drive Cable............................................................................................. 2-11

SATA Hot-Plug Hard Drive Cable................................................................................................... 2-11

System Fan Modules ............................................................................................................................... 2-13

Drive Bay Configuration......................................................................................................................... 2-16

Boot Priority ..................................................................................................................................... 2-17

Flexible Diskette Drive ........................................................................................................................... 2-18

CD-ROM Drive....................................................................................................................................... 2-20

SCSI Hot-Plug Hard Drive Blank Carrier............................................................................................... 2-22

SCSI Hot-Plug Hard Drive...................................................................................................................... 2-23

SCSI Hot-Plug Hard Drive Cage............................................................................................................. 2-25

SCSI Non-Hot-Plug Hard Drive.............................................................................................................. 2-27

SCSI Non-Hot-Plug Hard Drive Cage .................................................................................................... 2-29

SATA Hot-Plug Hard Drive Blank Carrier ............................................................................................. 2-30

SATA Hot-Plug-Hard Drive.................................................................................................................... 2-31

SATA Hot-Plug Hard Drive Cage........................................................................................................... 2-33

Expansion Slots....................................................................................................................................... 2-35

Expansion Board ..................................................................................................................................... 2-36

Expansion Board Holder ......................................................................................................................... 2-38

Memory Module Guidelines.................................................................................................................... 2-39

Memory Modules .................................................................................................................................... 2-41

Processors and Heatsinks ........................................................................................................................ 2-42

System Board .......................................................................................................................................... 2-47

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide iii

Contents

System Battery.........................................................................................................................................2-48

System Board Battery........................................................................................................................2-48

Power Supply...........................................................................................................................................2-50

Stands.......................................................................................................................................................2-51

Chapter 3

Diagnostic Tools and Setup Utilities

POST..........................................................................................................................................................3-1

POST Error Messages................................................................................................................................3-1

BIOS Setup Utility.....................................................................................................................................3-3

Accessing the BIOS Setup Utility .......................................................................................................3-3

Using the Setup Screens......................................................................................................................3-3

Menu Bar.............................................................................................................................................3-4

BIOS Update............................................................................................................................................3-10

Creating the BIOS Update Diskette ..................................................................................................3-10

Updating BIOS..................................................................................................................................3-10

SCSI Configuration Utility ......................................................................................................................3-11

Starting SCSISelect ...........................................................................................................................3-11

Exiting SCSISelect............................................................................................................................3-12

Using the Menus................................................................................................................................3-12

Configuring SCSISelect Settings ......................................................................................................3-13

Using SCSI Disk Utilities..................................................................................................................3-15

Using the Taped Based One Button Disaster Recovery....................................................................3-16

Adaptec RAID Configuration Utility.......................................................................................................3-16

Starting the ARC Utility....................................................................................................................3-16

Exiting the ARC Utility.....................................................................................................................3-17

Using the Menus................................................................................................................................3-17

Using ACU........................................................................................................................................3-18

Using the Disk Utilities .....................................................................................................................3-21

Chapter 4

Connectors, Jumpers, and LEDs

Connectors and Components .....................................................................................................................4-2

Rear Panel Components ......................................................................................................................4-2

System Board Components .................................................................................................................4-3

Jumpers ......................................................................................................................................................4-5

System Configuration Jumper Settings ...............................................................................................4-5

Clearing System Configuration Settings .............................................................................................4-6

LEDs ..........................................................................................................................................................4-7

Power Button and System Status LEDs ..............................................................................................4-7

Hot-Plug Hard Drive LEDs.................................................................................................................4-9

Network Interface Controller (NIC) LEDs........................................................................................4-10

Chapter 5

Physical and Operating Specifications

System Unit................................................................................................................................................5-2

Memory......................................................................................................................................................5-3

1.44-MB Diskette Drive.............................................................................................................................5-3

IDE CD-ROM Drive..................................................................................................................................5-4

Wide Ultra3 SCSI Hard Drives..................................................................................................................5-5

iv HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

SATA Hard Drives.................................................................................................................................... 5-5

LAN-on-Motherboard (LOM)................................................................................................................... 5-6

Index

Contents

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide v

Illustrated Parts Catalog

This chapter provides the illustrated parts breakdown and spare parts lists for the HP ProLiant ML150 Generation 2 (G2) Server. Refer to Table 1-1 for the names of referenced spare parts.

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 1-1

Illustrated Parts Catalog

Exploded View

Figure 1-1: Exploded view

Table 1-1: Spare Parts List

Item Description Spare Part Number

1 Power supply 372783-001

2 Rear system fan 372787-001

3 Rear system fan holder 374895-001

4 System board 373275-001

continued

1-2 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Illustrated Parts Catalog

Table 1-1: Spare Parts List continued

Item Description Spare Part Number

5 Memory

a) 512-MB PC2700 DDR ECC Registered DIMM

b) 1-GB PC2700 DDR ECC Registered DIMM

c) 2-GB PC2700 DDR ECC Registered DIMM

6 Heatsink 373584-001

7 3V Lithium battery for system board 234556-001

8 Processor

a) Intel® Xeon™ 2.8-GHz/800-MHz 373580-001

b) Intel® Xeon™ 3.0-GHz/800-MHz

c) Intel® Xeon™ 3.2-GHz/800-MHz

d) Intel® Xeon™ 3.4-GHz/800-MHz

e) Intel® Xeon™ 3.6-GHz/800-MHz



9 Front system fan holder 373305-001

10 Front system fan 373183-001

11 SCSI hot-plug hard drive cage 373277-001

12 Bezel door 373457-001

13 Diskette drive 233409-001

14 IDE CD-ROM drive 288894-001

IDE Combo drive

SCSI card

SCSI hot-plug backplane

SCSI hot-plug hard drive cable

SCSI hot-plug hard drive carrier



SCSI non-hot-plug hard drive cable

SCSI hot-plug hard drive



a) 36-GB hard drive, 15,000 rpm 377680-001

b) 72-GB hard drive, 10,000 rpm 377681-001

c) 146-GB hard drive, 10,000 rpm 377682-001

SCSI non-hot-plug hard drive cage

36-GB SCSI non-hot-plug hard drive, 15,000 rpm



370780-001

367167-001

367553-001

373581-001

373582-001

373583-001

374156-001

337272-001

373239-001

373238-001

384448-001

373465-001

384449-001

373456-001



372659-001

continued

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 1-3

Illustrated Parts Catalog

Table 1-1: Spare Parts List continued

Item Description Spare Part Number

SATA card

SATA LED cable



SATA hot-plug backplane

SATA hot-plug hard drive cable

373013-001

377227-001

373012-001

a) Green cable 384450-001

b) Yellow cable 384451-001

c) White cable 384452-001

d) Blue cable 384453-001

80-GB SATA hot-plug hard drive, 7,200 rpm 

HP ProLiant ML150 G2 Lights-Out 100 remote management card

353042-001

372860-001

30 10/100/1000-T PCI card 353446-001



Not shown



Diskette drive cable

CD-ROM drive cable

Power LED cable

Processor common enabling kit (CEK) 

Power switch

Insulator for SCSI hot-plug model

EMI shield for the SCSI non-hot-plug model

Rail kit

Hardware kit

Return kit

373276-001

373278-001

373382-001

373705-001

373941-001

374375-001

374374-001

373383-001

373015-001

373464-001

1-4 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Removal and Replacement Procedures

This chapter provides subassembly/module-level removal and replacement procedures for the HP ProLiant ML150 G2 Server.

To service the server, a T-15 Torx screwdriver may be needed.

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-1

Removal and Replacement Procedures

Electrostatic Discharge Information

An electrostatic discharge (ESD) can damage static-sensitive devices or microcircuitry. Proper packaging and grounding techniques are necessary precautions to prevent damage. To prevent electrostatic damage, observe the following precautions:

• Transport products in static-safe containers such as conductive tubes, bags, or boxes.

• Keep electrostatic-sensitive parts in their containers until they arrive at static-free

stations.

• Cover workstations with approved static-dissipating material. Use a wrist strap connected

to the work surface, and properly grounded (earthed) tools and equipment.

• Keep work area free of nonconductive materials, such as ordinary plastic assembly aids

and foam packing.

• Make sure that you are always properly grounded (earthed) when touching a

static-sensitive component or assembly.

• Avoid touching pins, leads, or circuitry.

• Always place drives with the Printed Circuit Board (PCB) assembly-side down.

• Use conductive field service tools.

2-2 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Symbols on Equipment

These symbols may be located on equipment in areas where hazardous conditions may exist.

WARNING: This symbol, in conjunction with any of the following symbols, indicates the presence of a potential hazard. The potential for injury exists if warnings are not observed. Consult your documentation for specific details.

This symbol indicates the presence of hazardous energy circuits or electric shock hazards. Refer all servicing to qualified personnel.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.

This symbol indicates the presence of electric shock hazards. The area contains no user or field serviceable parts. Do not open for any reason.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure

This symbol on an RJ-45 receptacle indicates a network interface connection. WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do

not plug telephone or telecommunications connectors into this receptacle.

This symbol indicates the presence of a hot surface or hot component. If this surface is contacted, the potential for injury exists.

WARNING: To reduce the risk of injury from a hot component, allow the surface to cool before touching.

These symbols, on power supplies or systems, indicate that the equipment is supplied by multiple sources of power.

WARNING: To reduce the risk of injury from electric shock, remove all power cords to completely disconnect power from the system.

This symbol indicates that the component exceeds the recommended weight for one individual to handle safely.

Weight in kg Weight in lb

WARNING: To reduce the risk of personal injury or damage to the equipment, observe local occupational health and safety requirements and guidelines for manual material handling.

Removal and Replacement Procedures

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-3

Removal and Replacement Procedures

Preparation Procedures

WARNING: Only authorized technicians trained by HP should attempt to repair this equipment. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard.

CAUTION: Electrostatic discharge (ESD) can damage electronic components. Be sure that

you are properly grounded (earthed) before beginning any installation procedure. Refer to “Electrostatic Discharge Information” earlier in this chapter for more information.

Before removing any serviceable parts, determine whether the part is hot-pluggable or non-hot-pluggable.

Non-Hot-Pluggable Device

If the device is non-hot-pluggable, the server must be powered down. Non-hot-pluggable devices in the server include the processor, all boards, memory modules, fans, PCI option cards and drive cages.

Powering Down the Server

WARNING: To reduce the risk of injury from electric shock, disconnect all power cords to completely remove power from the system.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal system components to cool before touching them.

CAUTION: Protect the server from power fluctuations and temporary interruptions with a

regulating uninterruptible power supply (UPS). This device protects the hardware from damage caused by power surges and voltage spikes, and keeps the system in operation during a power failure.

CAUTION: The server must always be operated with system unit covers on. Proper cooling is not achieved when the system unit covers are removed.

2-4 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Removal and Replacement Procedures

To power down the server:

1. Shut down the operating system in an orderly manner as directed in the operating system instructions.

2. If the server is on, press the power button to power down the server. If you are unable to shut down the server normally, press and hold the power button for

more than four seconds to power down the server.

3. Be sure that the power indicator on the front panel is off and that the fan noise has stopped.

4. Disconnect the AC power cord from the AC outlet, and then from the server.

5. Disconnect all external peripheral devices from the server.

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-5

Removal and Replacement Procedures

Bezel Door

To remove the bezel door:

1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this chapter.

2. If the bezel lock is locked, unlock the bezel door using the included key.

Figure 2-1: Unlocking the bezel door

2-6 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Removal and Replacement Procedures

3. Open the bezel door fully to the right (1).

4. Lift the bezel door and then pull it away from the chassis (2).

Figure 2-2: Removing the bezel door

To replace the bezel door, reverse steps 3 through 4.

NOTE: There is an EMI shield attached to the back of the bezel door for the SCSI non-hot-plug model. To remove the EMI shield, remove the four screws securing the shield to the bezel door.

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-7

Removal and Replacement Procedures

Access Panel

To remove the access panel:

1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this chapter.

2. Loosen the two thumbscrews located on the right of the rear of the chassis (1).

3. Slide the access panel back about 1.5 cm (0.5 inch) (2).

4. Detach the top edge of the access panel from the chassis about 30 degrees, and then pull up to remove the access panel (3).

Figure 2-3: Removing the access panel

To replace the access panel, reverse steps 2 through 4.

2-8 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Cable Routing Diagrams

Figure 2-4 through Figure 2-8 show the cable routing for the server.

CAUTION: When routing cables, be sure that the cables are not in a position where they can be pinched or crimped.

IDE CD-ROM Drive Signal Cable

Removal and Replacement Procedures

Figure 2-4: IDE CD-ROM drive signal cable routing

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-9

Removal and Replacement Procedures

Diskette Drive Signal Cable

Figure 2-5: Diskette drive signal cable routing

SCSI Hot-Plug Hard Drive Cable

Figure 2-6: SCSI hot-plug hard drive cable routing

2-10 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

SCSI Non-Hot-Plug Hard Drive Cable

Figure 2-7: SCSI non-hot-plug hard drive cable routing

Removal and Replacement Procedures

SATA Hot-Plug Hard Drive Cable

Figure 2-8: SATA hot-plug hard drive cable routing

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-11

Removal and Replacement Procedures

NOTE: When connecting the SATA data cables, be sure to connect them in the following order:

• The connectors on the SATA card from left to right: white, yellow, green, blue.

• The connectors on the SATA backplane from top to bottom: white, yellow, green; blue on the

bottom right corner.

NOTE: There are two SATA LED cables which are tied together using a cable tie. When connecting the SATA LED cables, be sure to connect them in the following way:

• The two cables should connect to the J14 (hard drive activity indictor) and J15 (hard drive status

indicator) connectors on the SATA card.

• The cable with one end to the J14 connector on the SATA card should connect to the J505

connector on the SATA backplane.

• The cable with one end to the J15 connector on the SATA card should connect to the J507

connector on the SATA backplane.

NOTE: You can upgrade by purchasing an HP 6-Port SATA RAID Controller option kit. When installing the 6-Port SATA RAID Controller, plug the I2C cable into the 3-pin connector labeled

J516 on the SATA backplane. Insert the cable by aligning pin 1 on the cable with pin 1 of connector J516. For detailed information on how to install the card, refer to the 6-Port SATA RAID controller User Guide.

2-12 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

System Fan Modules

To remove the rear system fan module:

1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this

chapter.

2. Open the bezel door. Refer to “Bezel Door” earlier in this chapter.

3. Remove the access panel. Refer to “Access Panel” earlier in this chapter.

4. Disconnect the rear system fan cable (1) from the system board.

NOTE: Front system fan cable connection shown for clarity (2).

Removal and Replacement Procedures

Figure 2-9: Disconnecting the fan cables from the system board

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-13

Removal and Replacement Procedures

5. Press the stopper in the center of the fan module on the rear of the chassis to release the fan module from the rear panel (1).

6. Pull down the fan module slightly to remove it from the rear panel (2).

7. Carefully lift the fan module out and away from the chassis (3).

Figure 2-10: Removing the rear system fan module

8. To separate the fan and fan holder (the blue plastic part), pull the four latches of the fan holder (two at the top and two at the bottom) away from the fan.

Figure 2-11: Removing the rear system fan holder

To replace the rear system fan module, reverse steps 2 through 8.

2-14 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Removal and Replacement Procedures

To remove the front system fan module:

1. Disconnect the front system fan cable from the system board. Refer to Figure 2-9.

2. Press the two tabs of the fan holder together towards the center of the fan module (1) to

release the fan module from the front panel.

3. Carefully lift the fan module out and away from the chassis (2).

Figure 2-12: Removing the front system fan module

4. When the fan module is removed from the chassis, it is easy to separate the fan and fan

holder (the blue plastic part).

Figure 2-13: Removing the front system fan holder

To replace the front system fan module, reverse steps 1 through 4. When installing the fan module, a click sound indicates that the fan module is secured to the

front panel.

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-15

Removal and Replacement Procedures

Drive Bay Configuration

The server supports a maximum of nine drive bays (three are for removable media devices; six are for hot-plug hard drives). The removable media device bays contain a 3.5-inch

1.44-MB diskette drive; a 5.25-inch IDE optical device; and an empty drive bay.

Figure 2-14: Server drive bay configuration

Table 2-1: Drive Bay Configuration

Item Description

1 Optical drive

2 1.44-MB diskette drive

3 SCSI hot-plug hard drive bays

4 SCSI non-hot-plug hard drive bays

5 SATA hot-plug hard drive bays

2-16 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Boot Priority

The server’s boot order should be considered when selecting a boot device. This is especially important if you are installing a board that requires a higher priority in the boot order. The board’s boot priority is set by its slot location in the boot order.

By default, the server searches for boot devices in the following order:

1. Legacy Floppy Drives (for the flexible diskette drive or virtual floppy)

2. USB FDD: (for the external USB floppy diskette drive)

3. IDE 0: (for the IDE CD-ROM drive)

4. USB HDD: (for the external USB hard disk drive or flash disk)

5. USB CDROM: (for the external USB CD-ROM drive)

6. SCSI/SATA: (for the SCSI or SATA hard disk drive)

7. PXE: (for the embedded LAN)

8. (reserved for additional boot devices)

NOTE: The boot order can be changed using the server’s BIOS Setup Utility.

Removal and Replacement Procedures

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-17

Removal and Replacement Procedures

Flexible Diskette Drive

To remove the flexible diskette drive:

1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this chapter.

2. Open the bezel door. Refer to “Bezel Door” earlier in this chapter.

3. Press the two release tabs of the rails inward and slide the drive out far enough to expose the connectors.

4. Disconnect the power and signal cable connectors.

5. Hold the drive by its sides and gently slide the drive out of the drive bay.

Figure 2-15: Removing the flexible diskette drive

2-18 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Removal and Replacement Procedures

6. Remove the rails from the drive.

Remove the two screws securing each rail on the side of the drive.

Figure 2-16: Removing the rails from the flexible diskette drive

To replace the flexible diskette drive, reverse steps 2 through 6.

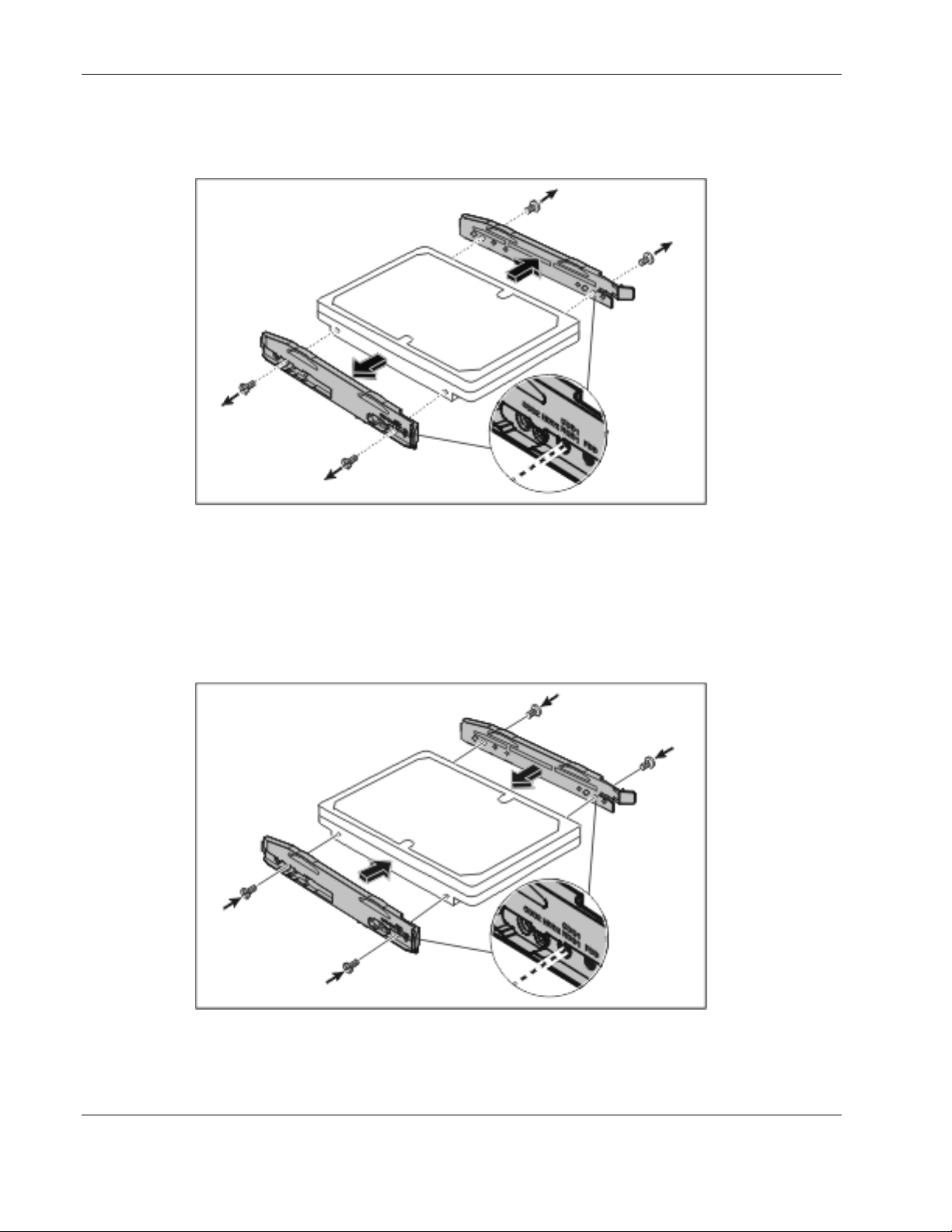

When attaching the rails to the sides of the flexible diskette drive, be sure that the screws are secured in the correct holes on the rails.

Figure 2-17: Attaching the rails to the flexible diskette drive

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-19

Removal and Replacement Procedures

CD-ROM Drive

To remove the CD-ROM drive:

1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this chapter.

2. Open the bezel door. Refer to “Bezel Door” earlier in this chapter.

3. Press the two release tabs of the rails inward and slide the drive out far enough to expose the connectors.

4. Disconnect the power and signal cable connectors.

5. Hold the drive by its sides and gently slide the drive out of the drive bay.

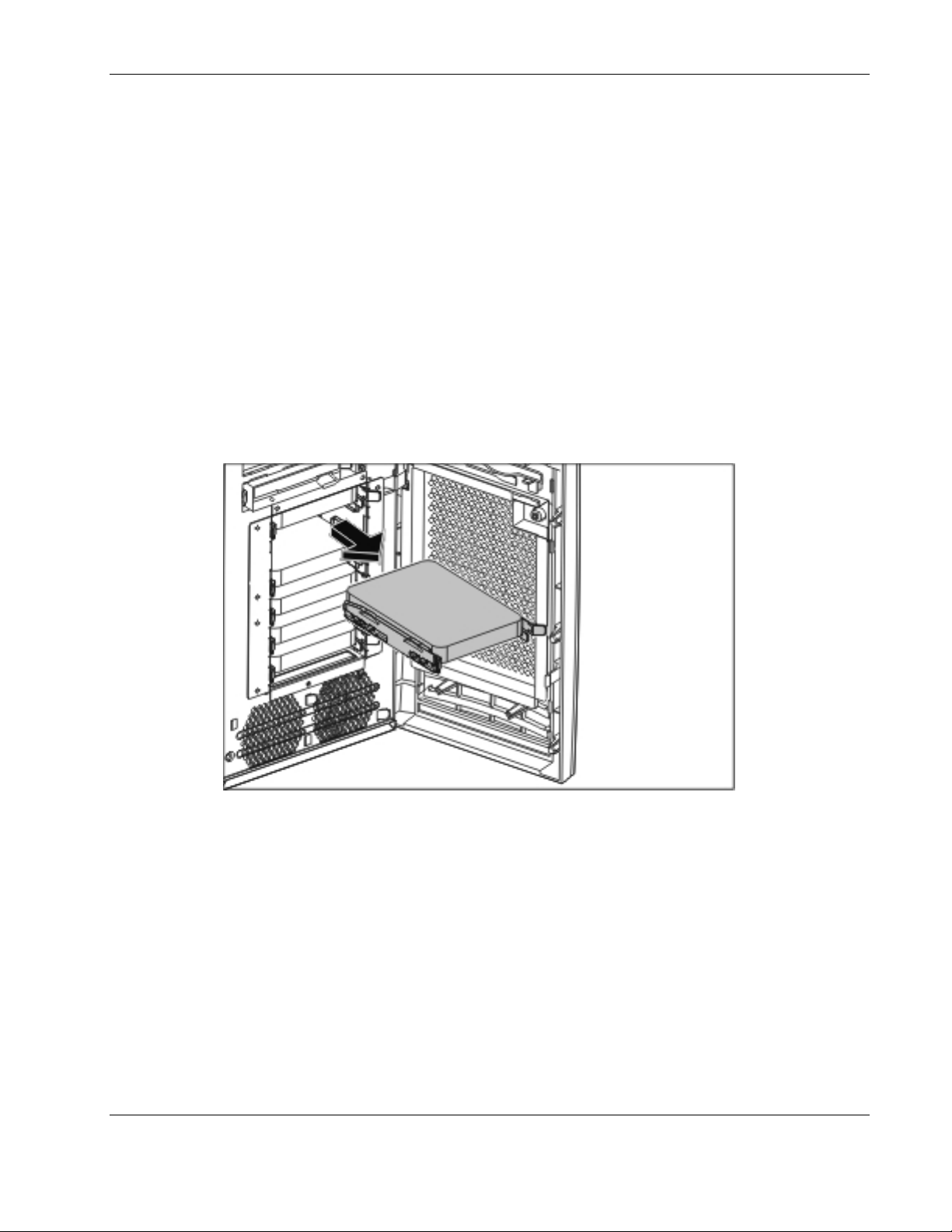

Figure 2-18: Removing the CD-ROM drive

2-20 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide

Removal and Replacement Procedures

6. Remove the rails from the drive.

Remove the two screws securing each rail on the side of the drive.

Figure 2-19: Removing the rails from the CD-ROM drive

To replace the CD-ROM drive, reverse steps 2 through 6.

When attaching the rails to the sides of the CD-ROM drive, be sure that the screws are secured in the correct holes on the rails.

Figure 2-20: Attaching the rails to the CD-ROM drive

HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-21

+ 73 hidden pages
