experience. HP assumes you are qualified in the servicing of computer equipment and
Part Number: 730598-003

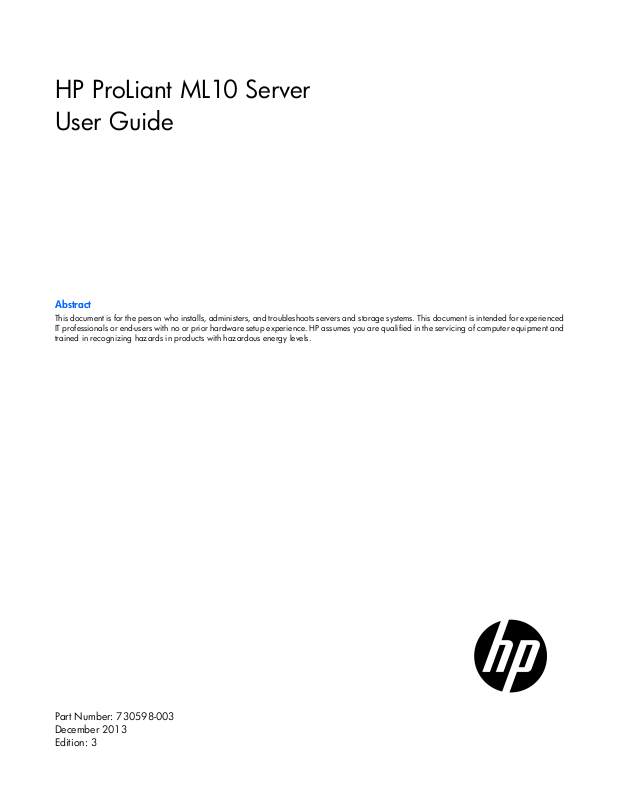

User Guide
Abstract
This document is for the person who installs, administers, and troubleshoots servers and storage systems. This document is in
IT professionals or end-users with no or prior hardware setup
trained in recognizing hazards in products with hazardous energy levels.
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
Fan locations .......................................................................................................................................... 11
Power up the server ................................................................................................................................. 12
Power down the server ............................................................................................................................. 12
Remove the access panel.......................................................................................................................... 12
Remove the front bezel ............................................................................................................................. 13
Install the front bezel ................................................................................................................................ 14
Install the access panel............................................................................................................................. 14
Setting up a tower server .......................................................................................................................... 18
Powering up and configuring the server ..................................................................................................... 18
Installing the operating system................................................................................................................... 19
Registering the server ............................................................................................................................... 19
Ambient temperature sensor cabling .......................................................................................................... 45
Fan cabling ............................................................................................................................................ 45
Power supply cabling............................................................................................................................... 46
Software and configuration utilities ............................................................................................... 47
Server specifications ................................................................................................................................ 60
Power supply specifications ...................................................................................................................... 60
Support and other resources ........................................................................................................ 62
Before you contact HP .............................................................................................................................. 62
HP contact information ............................................................................................................................. 62
Slot 4 PCIe2x4 (1)
USB connectors (4)
NIC connector
Video connector
Kensington security slot
PCIe slot cover retainer
Power cord connector
Component identification 7
Rear panel LEDs and buttons
Power supply LED
Solid green = System on/System in standby
Item Description Status
1
2
3
NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
NIC link LED Solid green = Link exists
Off = No link exists
Off = No power present
System board components
Component identification 8
Front USB connector
4-pin power supply connector
Item Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
*PCIe3 with E3-1220 v2 processor
Processor socket
DIMM slots (4)
24-pin power supply connector
System fan connector
Internal USB connector
System battery
SATA connectors (2)
Ambient temperature sensor connector
Mini-SAS connector
Front I/O connector
Processor fan connector
DIMM slots are numbered sequentially (1 through 4) for the processor.
Component identification 9
Off
Off = System configuration can be
System maintenance switch
Position Default Function
1
2
3
4
5
6
7
8
9
10
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
Off Off = iLO security is enabled
On = iLO security is disabled
changed
On = System configuration is locked
— Reserved
— Reserved
Off Off = Power-on password is enabled
On = Power-on password is disabled
Off Off = No function
On = Clear NVRAM
— Reserved
— Reserved
— Reserved
— Reserved
CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
properly configure the server or data loss could occur.
NMI functionality
An NMI crash dump creates a crash dump log before resetting a system which is not responding.
Crash dump log analysis is an essential part of diagnosing reliability problems, such as failures of operating
systems, device drivers, and applications. Many crashes freeze a system, and the only available action for
administrators is to restart the system. Resetting the system erases any information which could support
problem analysis, but the NMI feature preserves that information by performing a memory dump before a
system reset.
To force the system to invoke the NMI handler and generate a crash dump log, do one of the following:
• Use the iLO Virtual NMI feature.
• Short the NMI header ("System board components" on page 8).
For more information, see the HP website (http://www.hp.com/support/NMI).
Component identification 10
