HP ProLiant DL160 Gen10 SFF Quick guide
QuickSpecs
HPE ProLiant DL160 Gen10 Server
Overview
Page 1
HPE ProLiant DL160 Gen10 Server
The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability
and efficiency in a
from SMB to
Service Providers running wide range of workloads - at a compelling price point.
8 SFF chassis - Front View
1.
Quick removal access panel
6.
iLO Service Port
2.
Serial no. label pull tab
7.
UID button/LED
3.
Health LED
8.
NIC Status LED
4.
Power On/Standby button and system power LED
9.
Standard 8 SAS/SATA/SSD drive bays
5.
USB 3.0 port
dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers –
QuickSpecs
HPE ProLiant DL160 Gen10
Server
Overview
Page 2
4 LFF chassis - Front View
1.
Quick removal access panel
6.
NIC status LED
2.
Serial no. label pull tab
7.
Health LED
3.
iLO Service Port
8.
Power On/Standby button and system power LED
4.
USB 3.0 Port
9.
4 SAS/SATA/SSD drive bays
5.
UID button/LED
Rear View
1.
Slot 1 PCIe 3.0
5.
Embedded 2x 1GbE Adapter
2.
Slot 2 PCIe 3.0
6.
VGA Port
3.
Optional: Slot 3 PCIe 3.0 (Requires 2nd processor)
7.
iLO Management Port
4.
Power Supply (Redundant hot-plug shown)
8.
USB 3.0 Ports
QuickSpecs
HPE ProLiant DL160 Gen10
Server
Overview
Page 3
8SFF chassis – with optional 2nd CPU - Internal View
1
Standard single rotor hot swap fans
1 CPU
Optional:
11
MicroSD card slot
2
Optional: Smart Storage Battery (No battery shown)
12
iLO Service Port Connector
3
DDR4 DIMM slots (Fully populated 16 DIMMs shown)
13
Primary (CPU1) PCIe 3.0 riser
4
Up to 2 processors (shown with standard heat sinks)
14
Mini-SAS port 1
5
Hard Drive backplane power connector
15
Mini-SAS port 2
6
System Battery
16
Mini-SAS port 3
7
Internal USB 3.0 connector
17
SATA port 4
8
Secondary (CPU2) PCIe 3.0 riser*
18
SATA port 5
9
Power supply (non-redundant power supply shown)
19
Front Power USB 3.0 connector
10
Flexible Smart Array Controller Connector
– 3 standard fans
2 CPUs – 6 standard fans (redundant fan shown)
QuickSpecs
HPE ProLiant DL160 Gen10
Server
Overview
Page 4
Platform Information
Form Factor
1U rack
Chassis Types
8 SFF
4 LFF
System Fans
Standard – fan types included
Non-Redundant
1P Model
3 fans
2P Model
6 fans
NOTE: The second processor option kit contains 3 additional fans
QuickSpecs
HPE ProLiant DL160 Gen10 Server
Standard Features
Page 5
Processors – Up to 2 of the following depending on model.
NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon
Intel Xeon Models
CPU
Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory per
socket
Silver Processors
Silver 4110 Processor
2.1 GHz
8
11.00 MB
85W
2 @ 9.6 GT/s
2400 MT/s
768 GB
Bronze Processors
Bronze 3106 Processor
1.7 GHz
8
11.00 MB
85W
2 @ 9.6 GT/s
2133 MT/s
768 GB
NOTE: Silver – 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MT/s providing up to 768 GB memory
bit FMA), 48 lanes PCIe 3.0,
Channel DDR4 @ 2133 MT/s providing up to
768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
Chipset
On System Management Chipset
Memory
Type:
HPE DDR4 SmartMemory,
Registered (RDIMM)

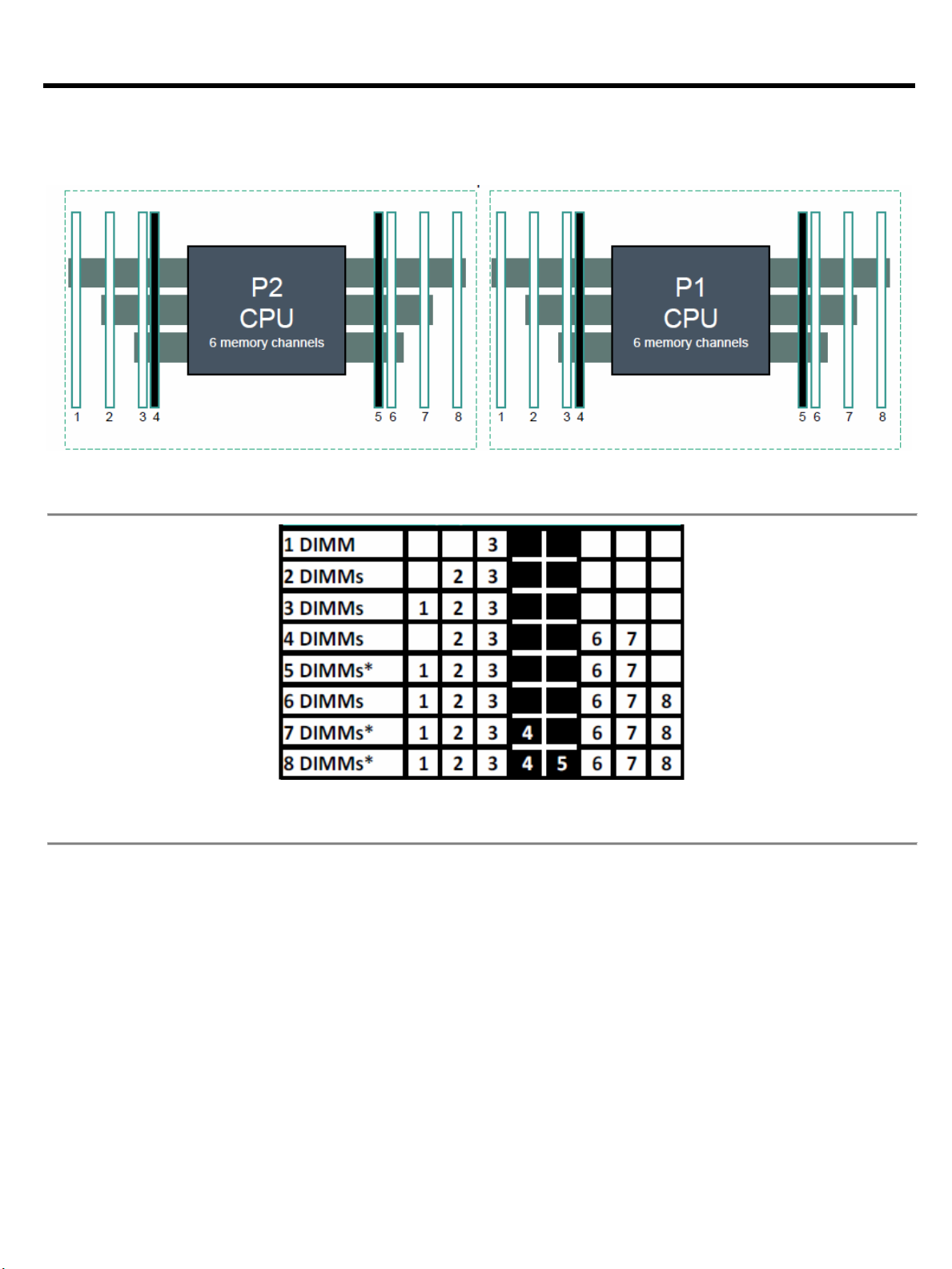

DIMM Slots Available
16
8 DIMM slots per processor, 6 channels per processor, 2 channels @ 2
DIMMs per channel, 4 channels @ 1 DIMM per channel
Maximum capacity (RDIMM)
256 GB
16 x 16 GB RDIMM @ 2666 MT/s
NOTE: The maximum memory by socket is limited by the processor selection.
Memory Protection
capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512standard RAS supported.
NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-
Intel C622 Chipset
NOTE: For more information regarding Intel® chipsets, please see the following
URL: http://www.intel.com/products/server/chipsets/
HPE iLO 5 ASIC
NOTE: Read and learn more in the iLO QuickSpecs.
One of the following depending on model
For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.
QuickSpecs
HPE ProLiant DL160 Gen10 Server
Standard Features
Page 6
Expansion Slots
FlexibleLOM Riser
Slots #
Technology
Bus
Width
Connector Width
Slot Form Factor
Notes
1
PCIe 3.0
X8
X8
Flexible LOM
Proc 1
2
PCIe 3.0
X8
X8
Half-height,
half-length slot
Proc 1
NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.
NOTE: FlexibleLOM riser will replace standard CPU1 X16/X8 riser.
CPU2 Riser
Slots #
Technology
Bus
Width
Connector Width
Slot Form Factor
Notes
1
PCIe 3.0
X16
X16
Half-height,
half-length slot
Proc 2
NOTE:
NOTE: Max 3-PCIe slots are available on the HPE ProLiant DL160 Gen10 Server.
Storage Controllers
kout
One of the following depending on model
Software RAID
additional controller will
HPE Smart Array S100i SR Gen10 SW RAID only supports Windows and does not support Linux. For Linux users, HPE
disk RAID 1 boot volume. For more information
Essential RAID Controller
HPE Smart Array E208e-p SR Gen10 Controller
Performance RAID Controller
NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.
NOTE: This riser is mandatory for installing FlexibleLOMs
Bus Width Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.
NOTE: Cannot be installed if type-a modular smart array controller is installed.
The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed brea
of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.
HPE Smart Array S100i SR Gen10 SW RAID
NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an
be needed.
NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.
NOTE:
offers a solution that uses in-distro open-source software to create a twovisit: https://downloads.linux.hpe.com/SDR/project/lsrrb/
HPE Smart Array E208i-a SR G10 LH Controller
HPE Smart Array E208i-p SR Gen10 Controller
HPE Smart Array P408i-a SR G10 LH Controller
QuickSpecs
HPE ProLiant DL160 Gen10 Server
Standard Features
Page 7
Internal Storage Devices
None ship standard
Maximum Internal Storage
Capacity
Configuration
Hot Plug SFF SAS
9.6 TB
8 X 1.2 TB
Hot Plug LFF SAS
8 TB
4 X 2 TB
Hot Plug LFF SATA
4 TB
4 X 1 TB
Hot Plug SFF SAS SSD
3.2 TB
8 X 400GB
Hot Plug SFF SATA SSD
3.84 TB
8 X 480 GB
Power Supply
less
d
size" a power supply for specific server configurations. This flexibility helps
14 jumper cord (A0K02A). This jumper cord is also included with
HPE Server power supplies.
Interfaces
Video
1 rear – VGA Port (standard )
Network Ports
2 x 1 GbE ports embedded on board with optional FlexibleLOM
HPE iLO Remote Management
Network Port
1 Gb Dedicated
Front iLO Service Port
1 standard
Micro SD Slot
1 Micro SD
NOTE:
pluggable device. Customers should not attempt to plug an SD card into the SD slot while
the server is powered.
USB 3.0
Up to 4 total: 1 front, 2 rear, 1 internal
Hard Drives
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
NOTE: Available in 94% efficiency.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, toolinstallation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation an
offer multiple power output options, allowing users to "rightto reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/Ceach standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
For information on power specifications and technical content visit
The Micro SD slot is not a hot-
QuickSpecs
HPE ProLiant DL160 Gen10 Server
Standard Features
Page 8
Operating Systems and Virtualization Software Support for ProLiant Servers**
Industry Standard Compliance
NOTE: UEFI is the default for the HPE ProLiant DL160 Gen10 Server. Legacy mode can be selected in the field.
Graphics
• 4 Gbit DDR 3 with ECC protection
• Windows Server 2016
• Windows Server 2019
• VMware ESXi 6.0 U3
• VMware ESXi 6.5 U2
• VMware ESXi 6.7 U1
• Red Hat Enterprise Linux (RHEL) 7.6 (with Kbase)
• SUSE Linux Enterprise Server (SLES) 12 SP4
• SUSE Linux Enterprise Server (SLES) 15
**Certification pending
• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• USB 3.0 Compliant (internal)
• SMBIOS 3.1
• UEFI 2.6
• Redfish API
• IPMI 2.0
• Secure Digital 2.0
• Advanced Encryption Standard (AES)
• Triple Data Encrytion Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• Active Directory v1.0
• ASHRAE A3/A4
NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please
visit: http://www.hpe.com/servers/ashrae.
UEFI (Unified Extensible Firmware Interface Forum)
Integrated Video Standard
• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory
HPE iLO 5 on system management memory
• 32 MB Flash
