HP ProBook 645 G4 Maintenance And Service Manual

HP ProBook 645 G4 Notebook PC

Maintenance and Service Guide

© Copyright 2018 HP Development Company,
L.P.

AMD and AMD Radeon are trademarks of
Advanced Micro Devices, Inc. Bluetooth is a
trademark owned by its proprietor and used by
HP Inc. under license. Intel and Core are
trademarks of Intel Corporation in the U.S. and
other countries. Microsoft and Windows are
trademarks of the Microsoft group of
companies.

The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.

First Edition: March 2018

Document Part Number: L13016-001

Product notice

This user guide describes features that are
common to most models. Some features may
not be available on your computer.

Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to

http://www.microsoft.com for details.

Software terms

By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a full refund subject to the
refund policy of your seller.

For any further information or to request a full
refund of the price of the computer, please
contact your seller.

Important Notice about Customer Self-Repair Parts

CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an

authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair
parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for
Authorized Service Provider only parts," can damage the computer or void your warranty.

iii

iv Important Notice about Customer Self-Repair Parts

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the

device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits dened by the International Standard for Safety of Information Technology
Equipment (IEC 60950-1).

v

vi Safety warning notice

Table of contents

1 Product description ....................................................................................................................................... 1

2 Components .................................................................................................................................................. 6

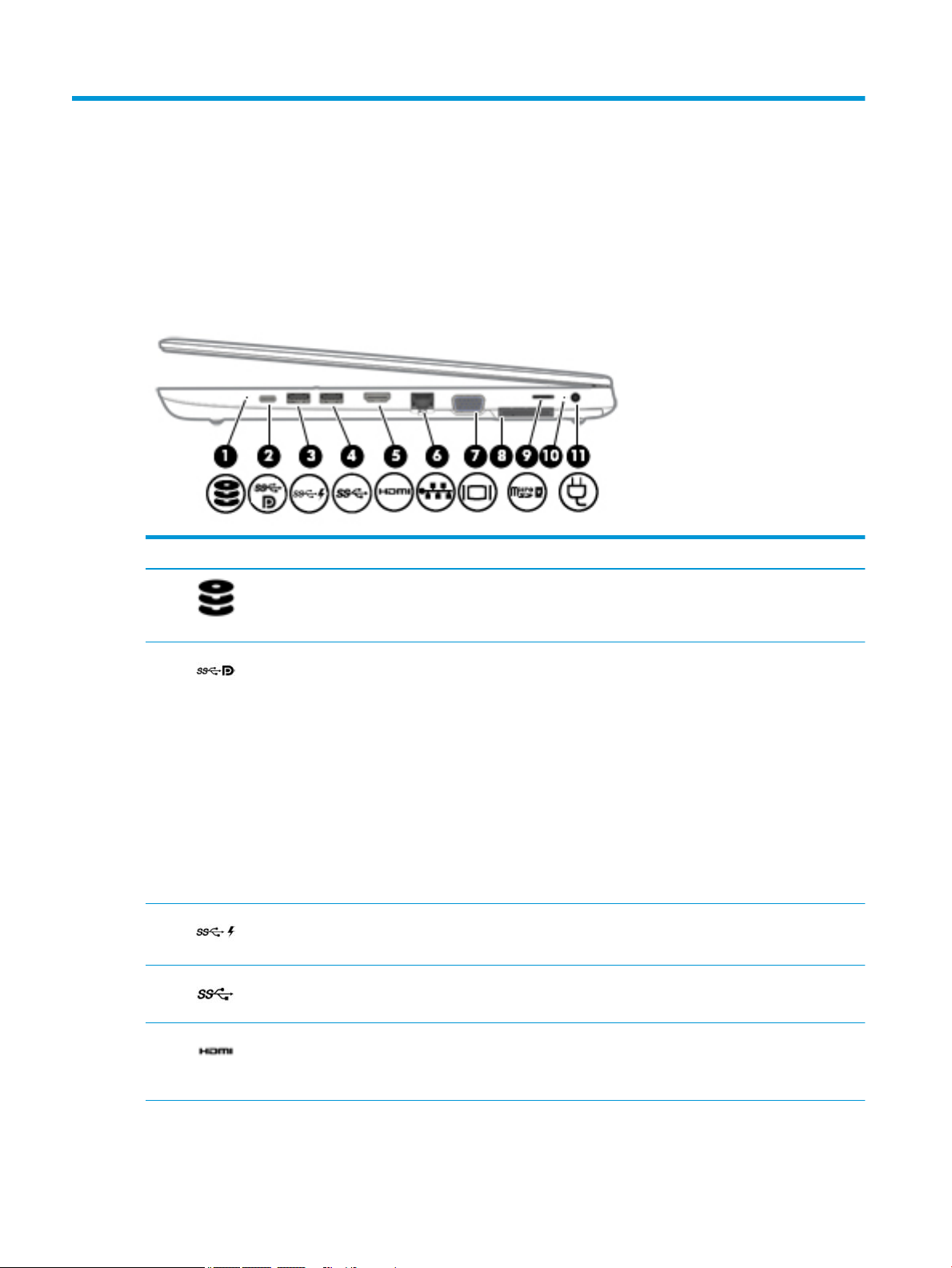

Right ....................................................................................................................................................................... 6

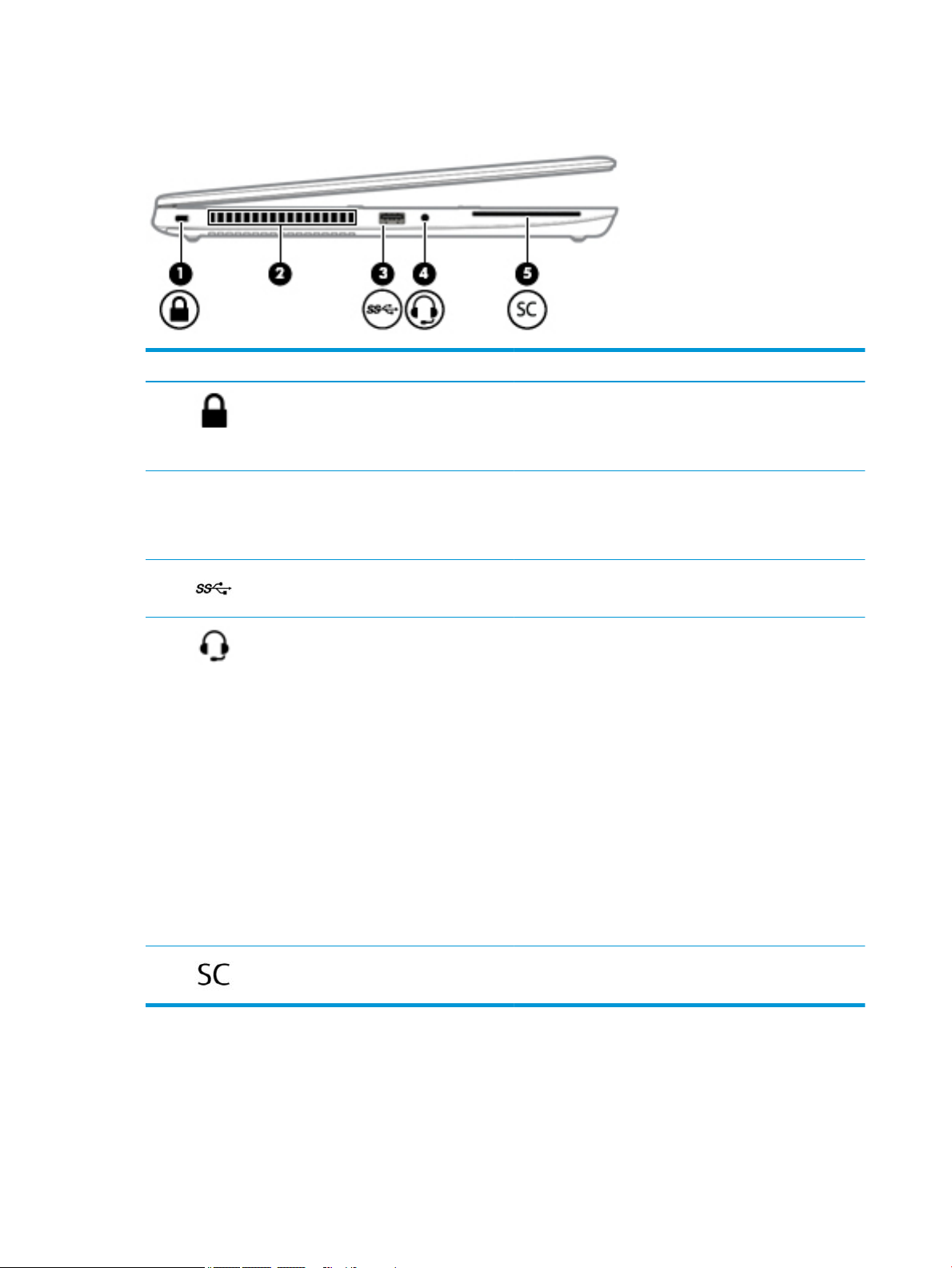

Left ......................................................................................................................................................................... 8

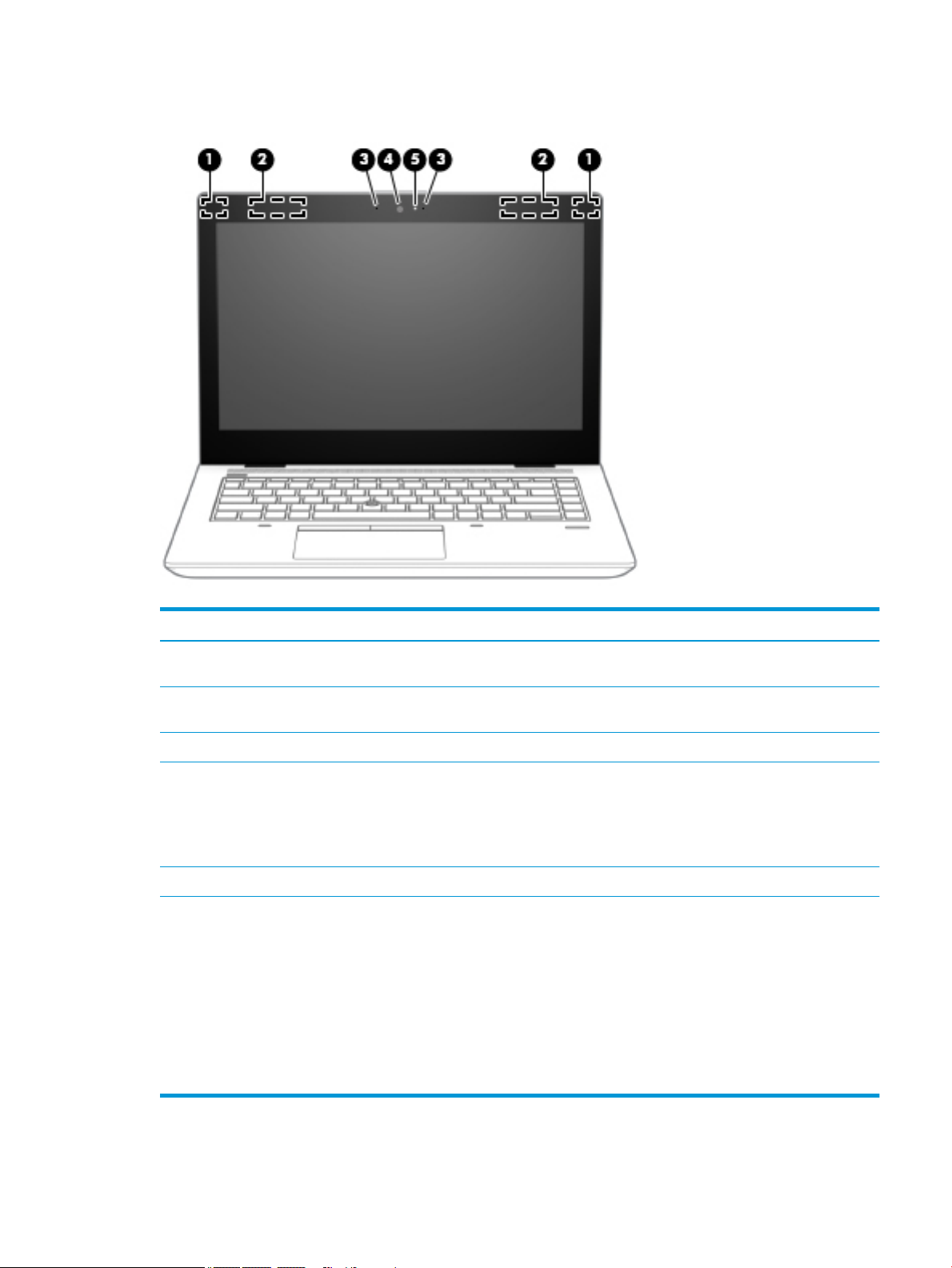

Display .................................................................................................................................................................... 9

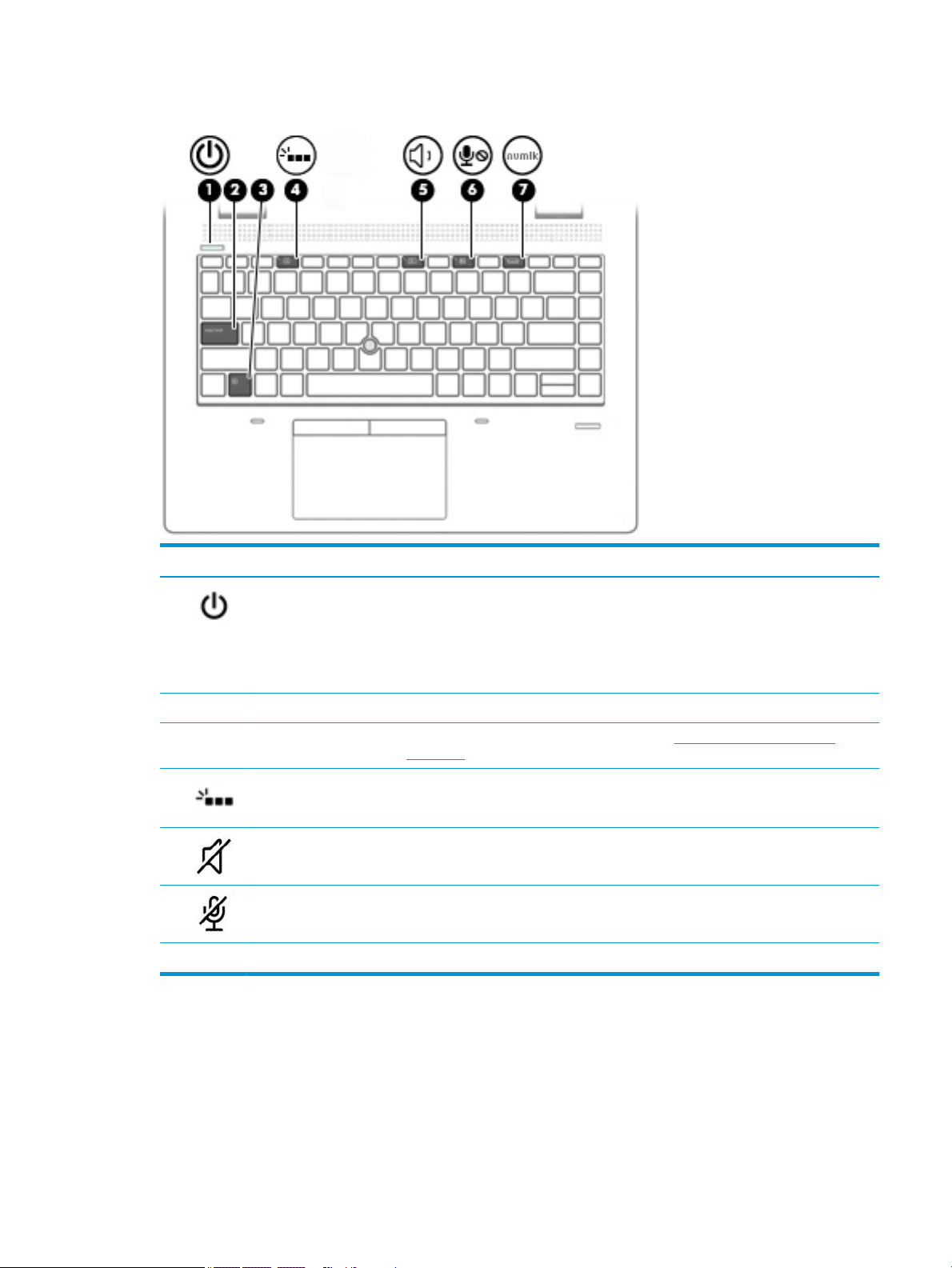

Keyboard area ...................................................................................................................................................... 10

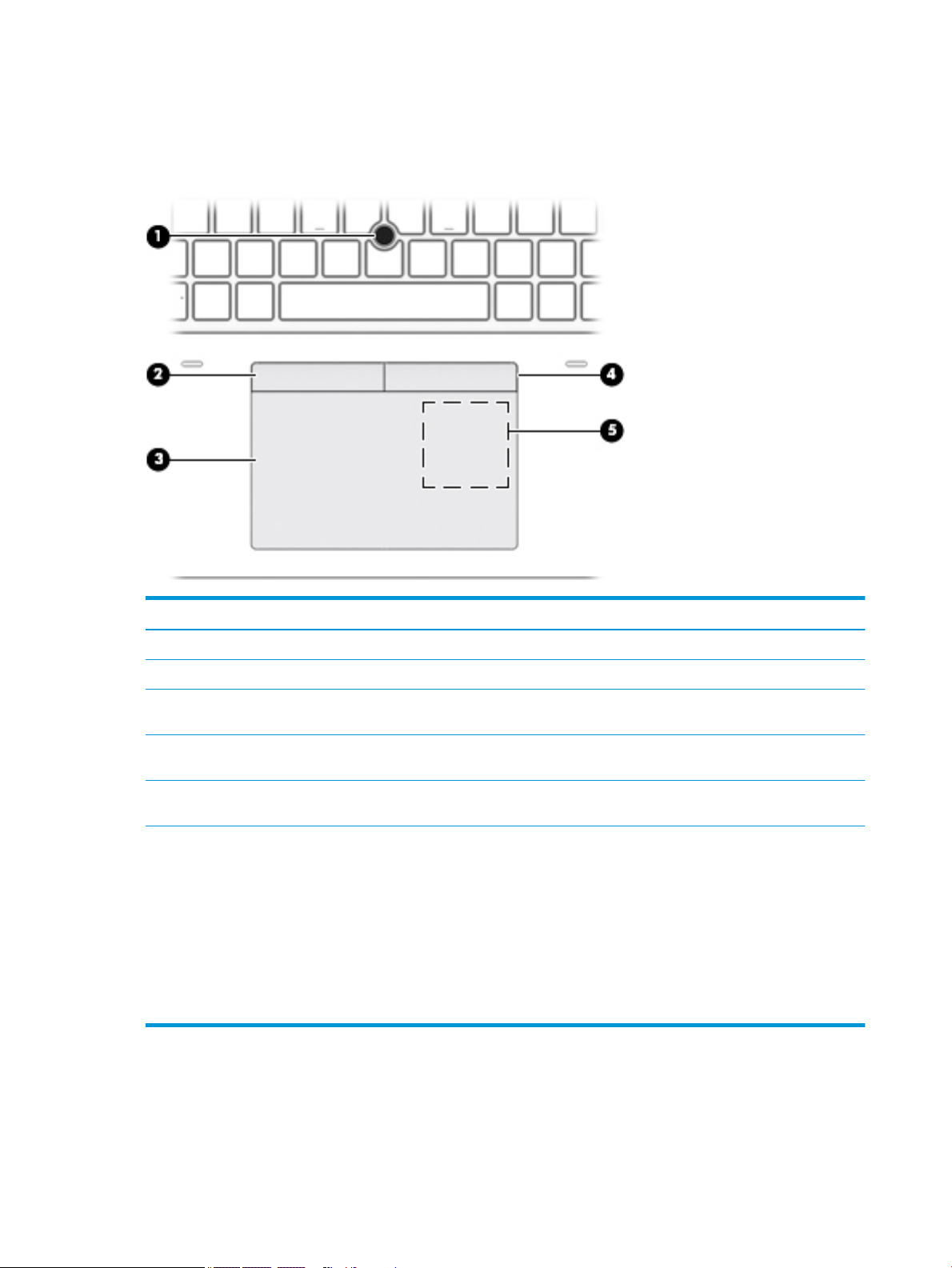

TouchPad ........................................................................................................................................... 10

Lights ................................................................................................................................................. 11

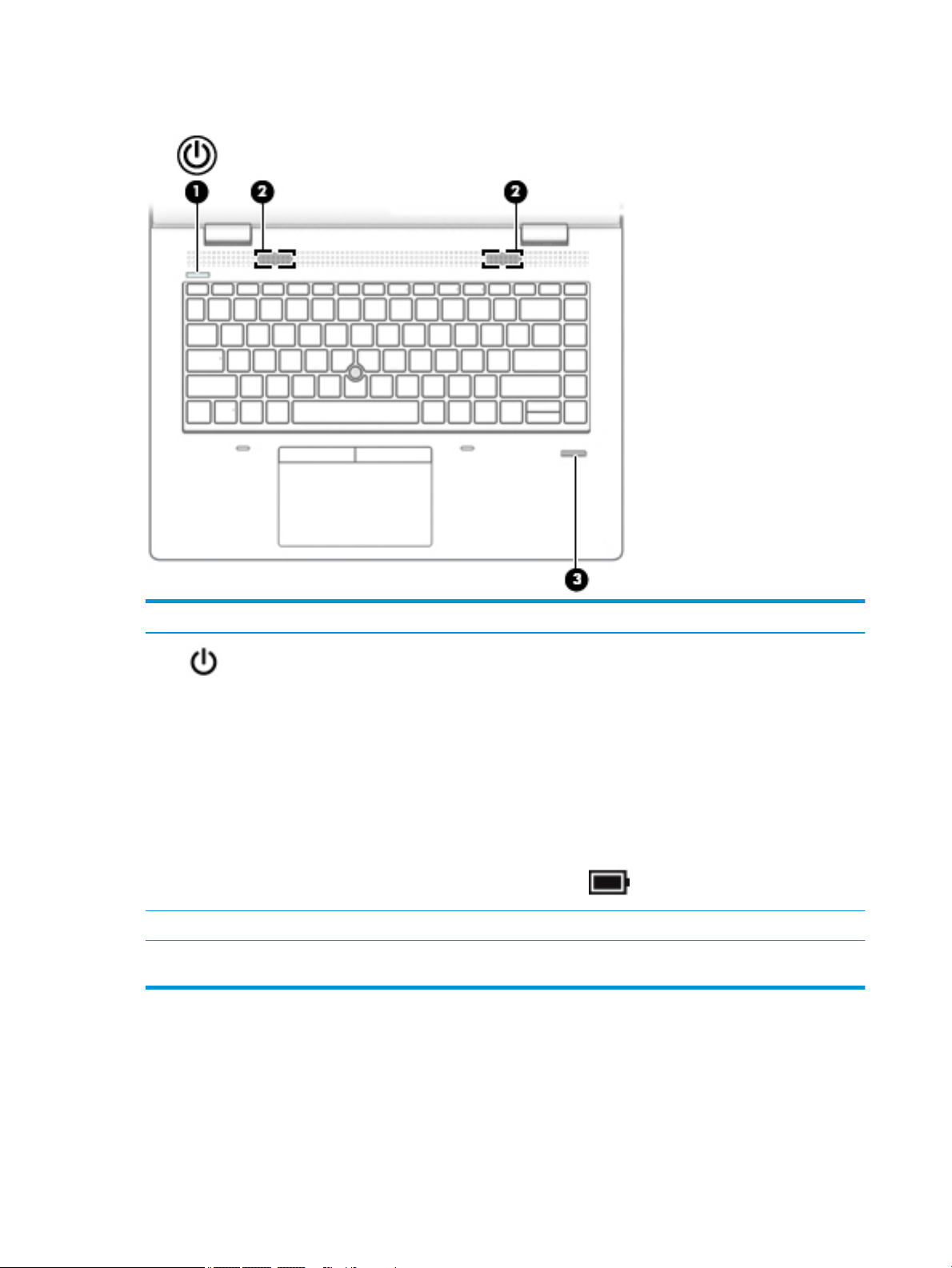

Buttons, speakers, and ngerprint reader ........................................................................................ 12

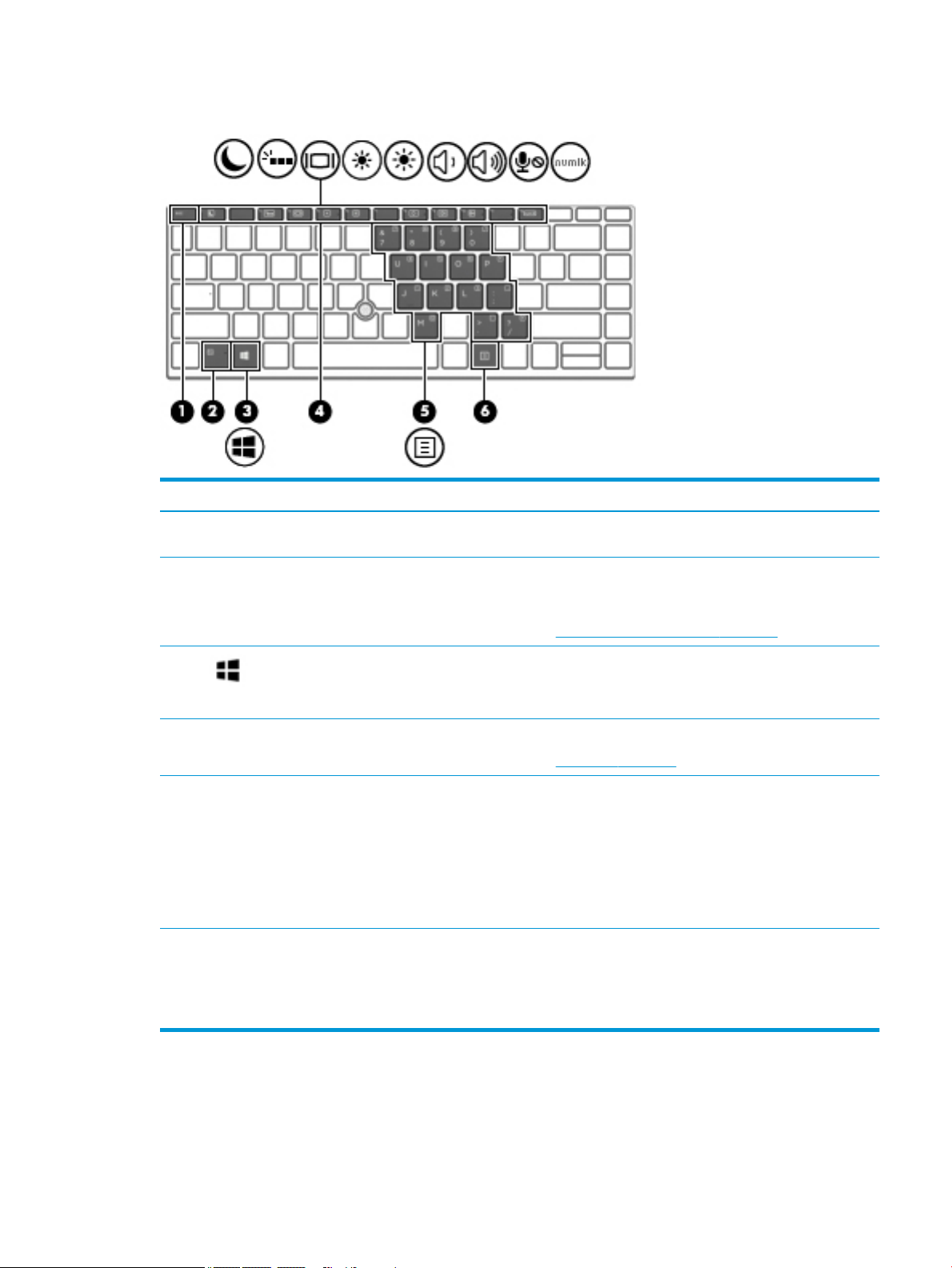

Special keys ....................................................................................................................................... 13

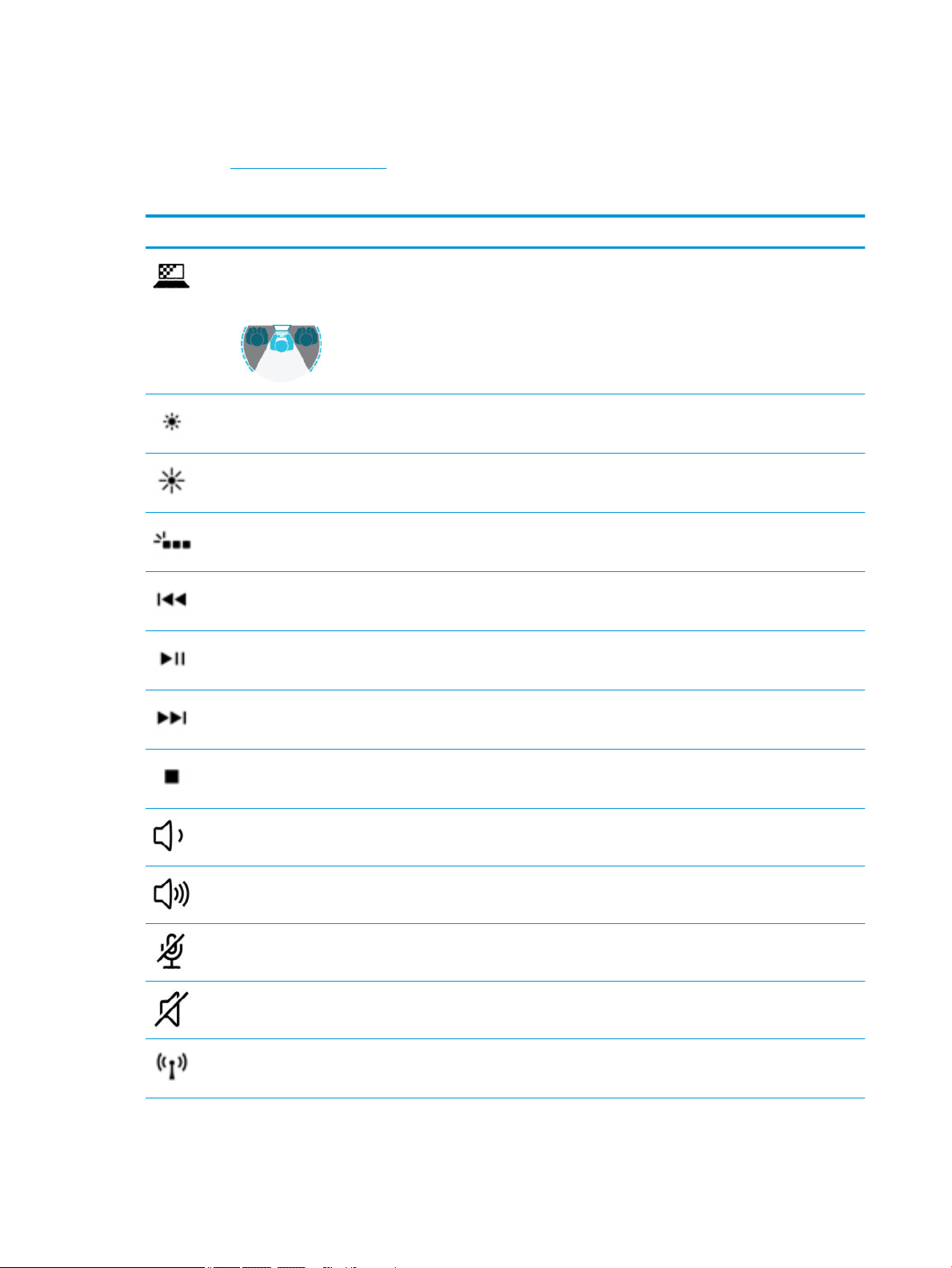

Action keys ........................................................................................................................................ 14

Hot keys (select products only) ......................................................................................................... 15

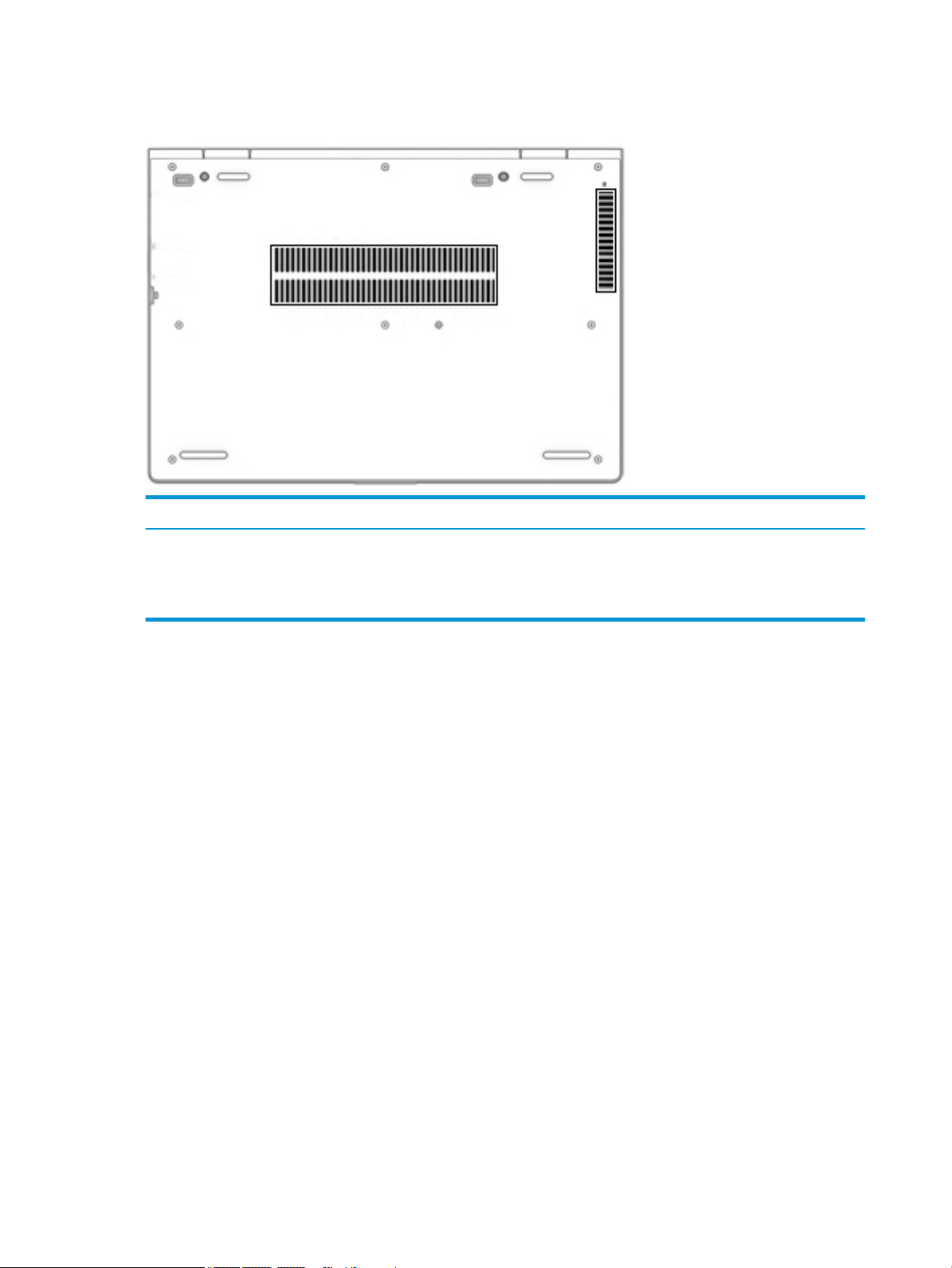

Bottom ................................................................................................................................................................. 16

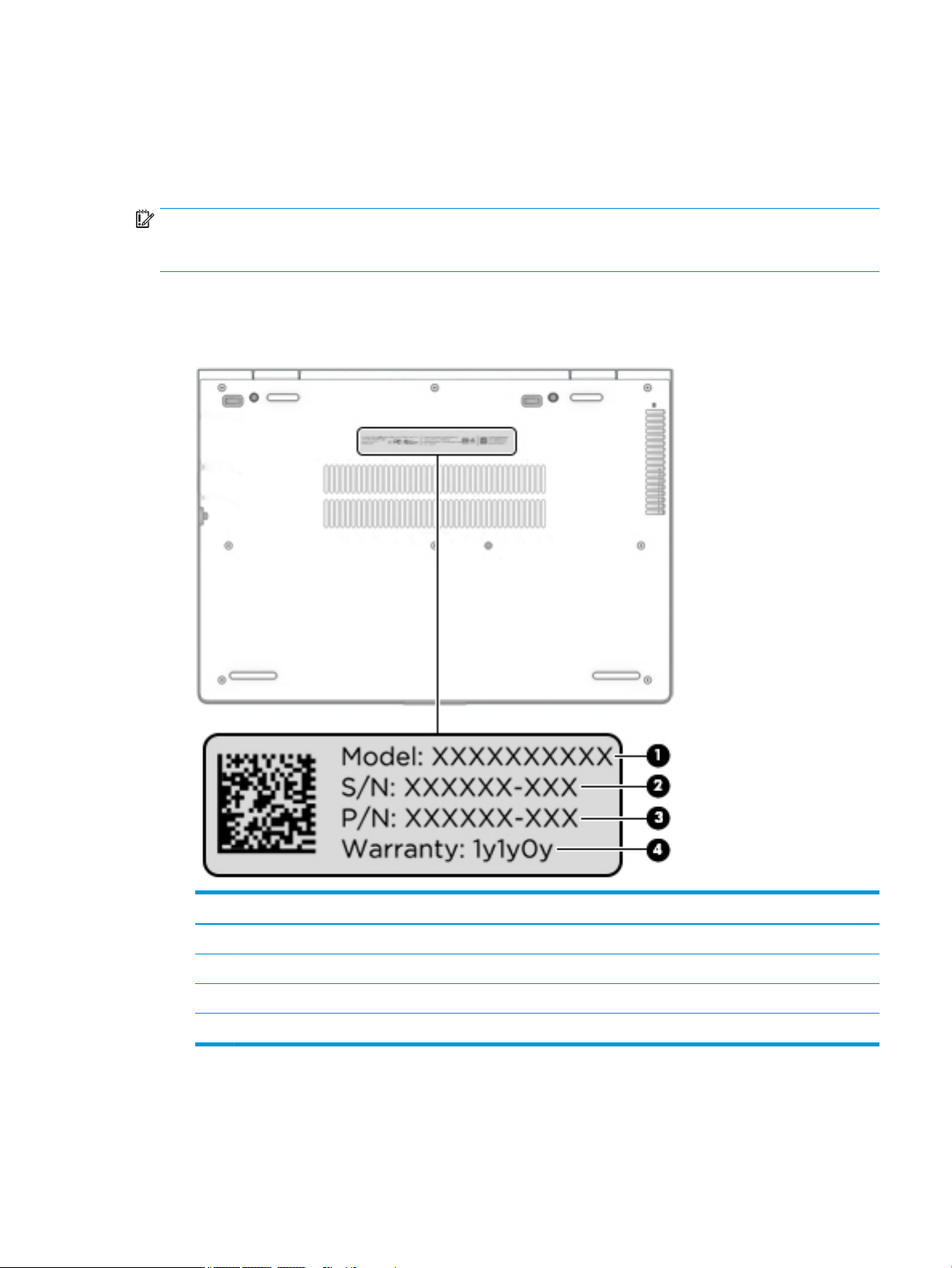

Labels ................................................................................................................................................................... 17

3 Illustrated parts catalog .............................................................................................................................. 18

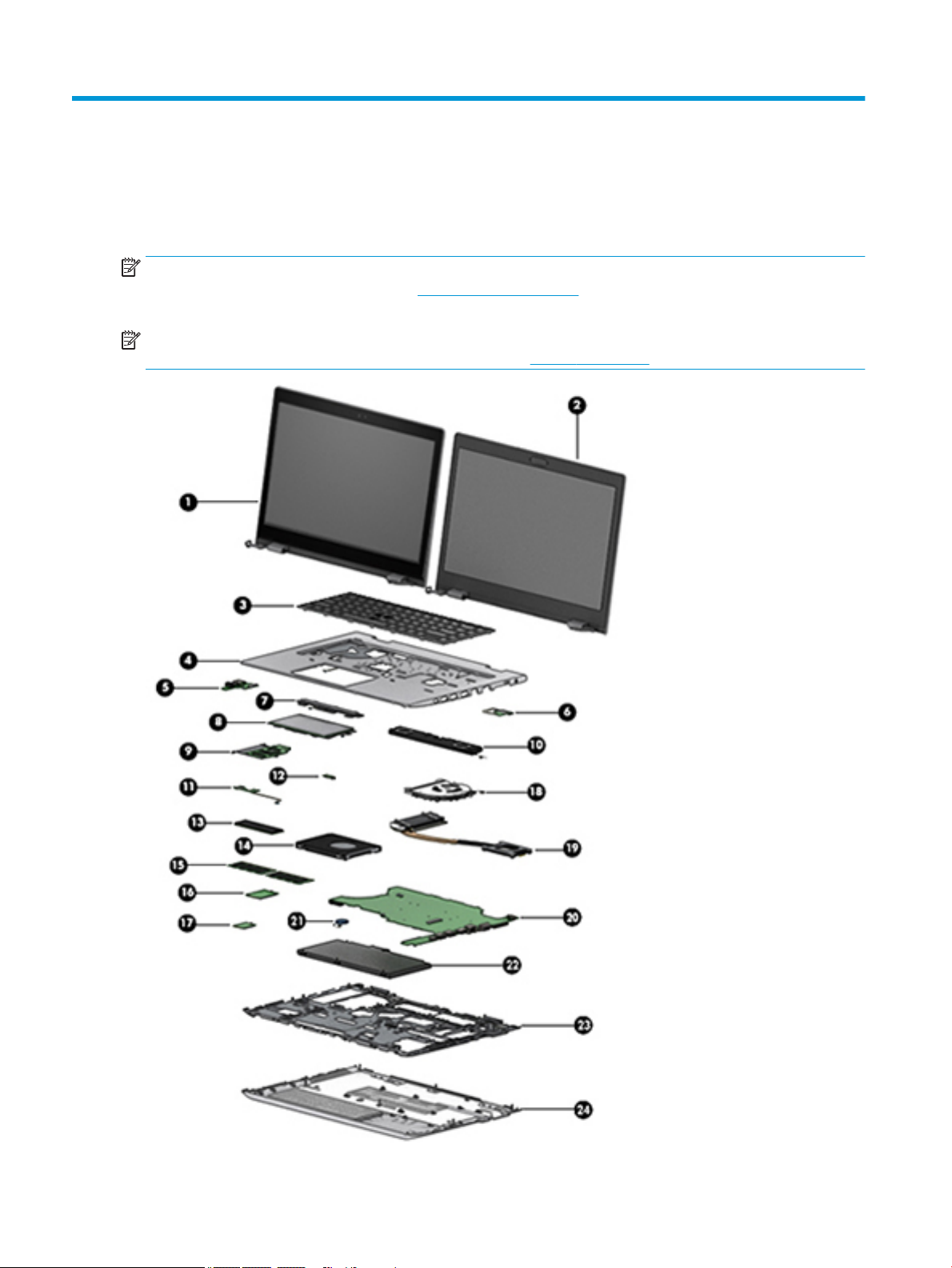

Computer major components .............................................................................................................................. 18

Cable Kit ............................................................................................................................................................... 21

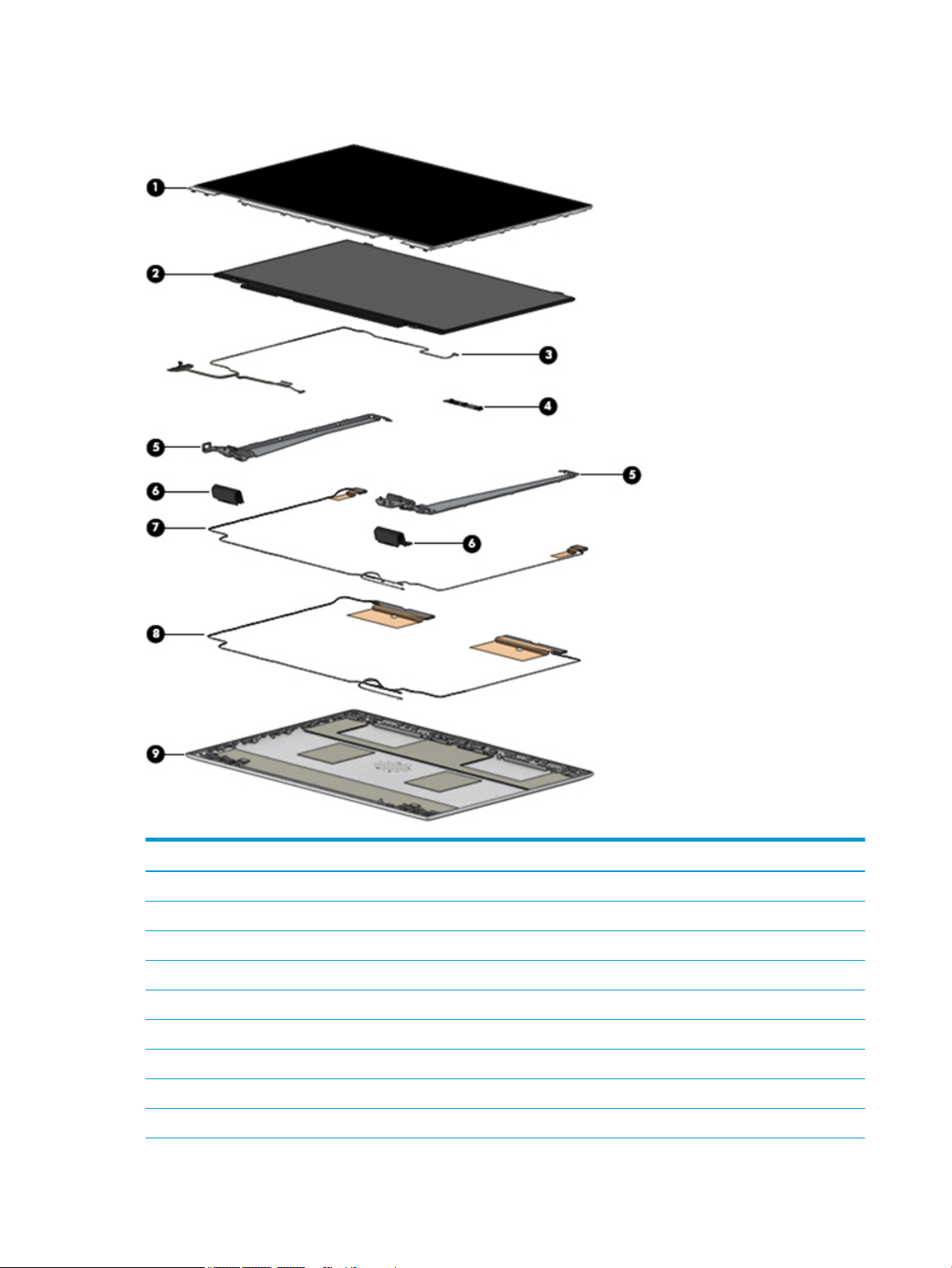

Display assembly subcomponents ...................................................................................................................... 22

Plastics ................................................................................................................................................................. 23

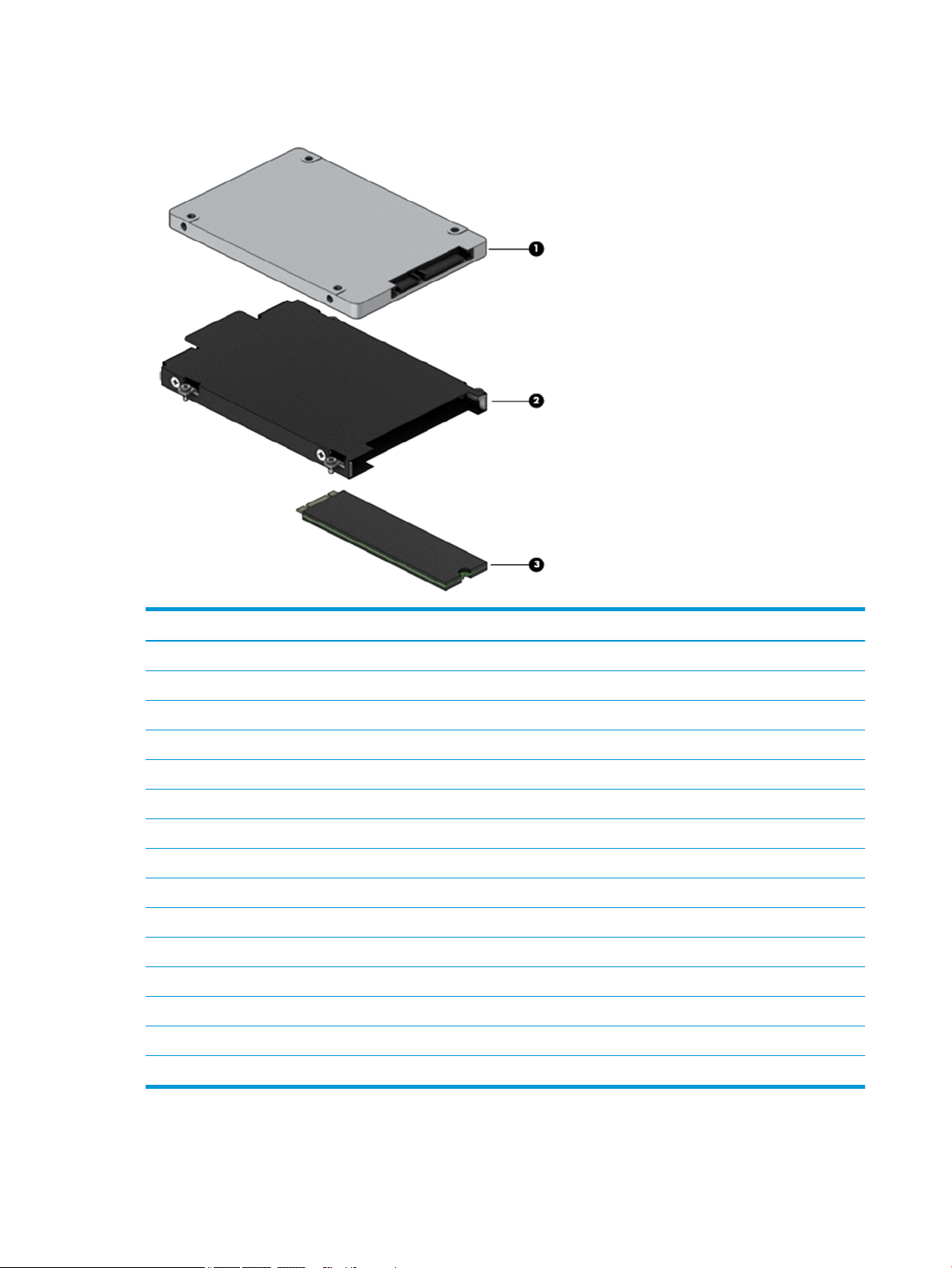

Mass storage devices ........................................................................................................................................... 24

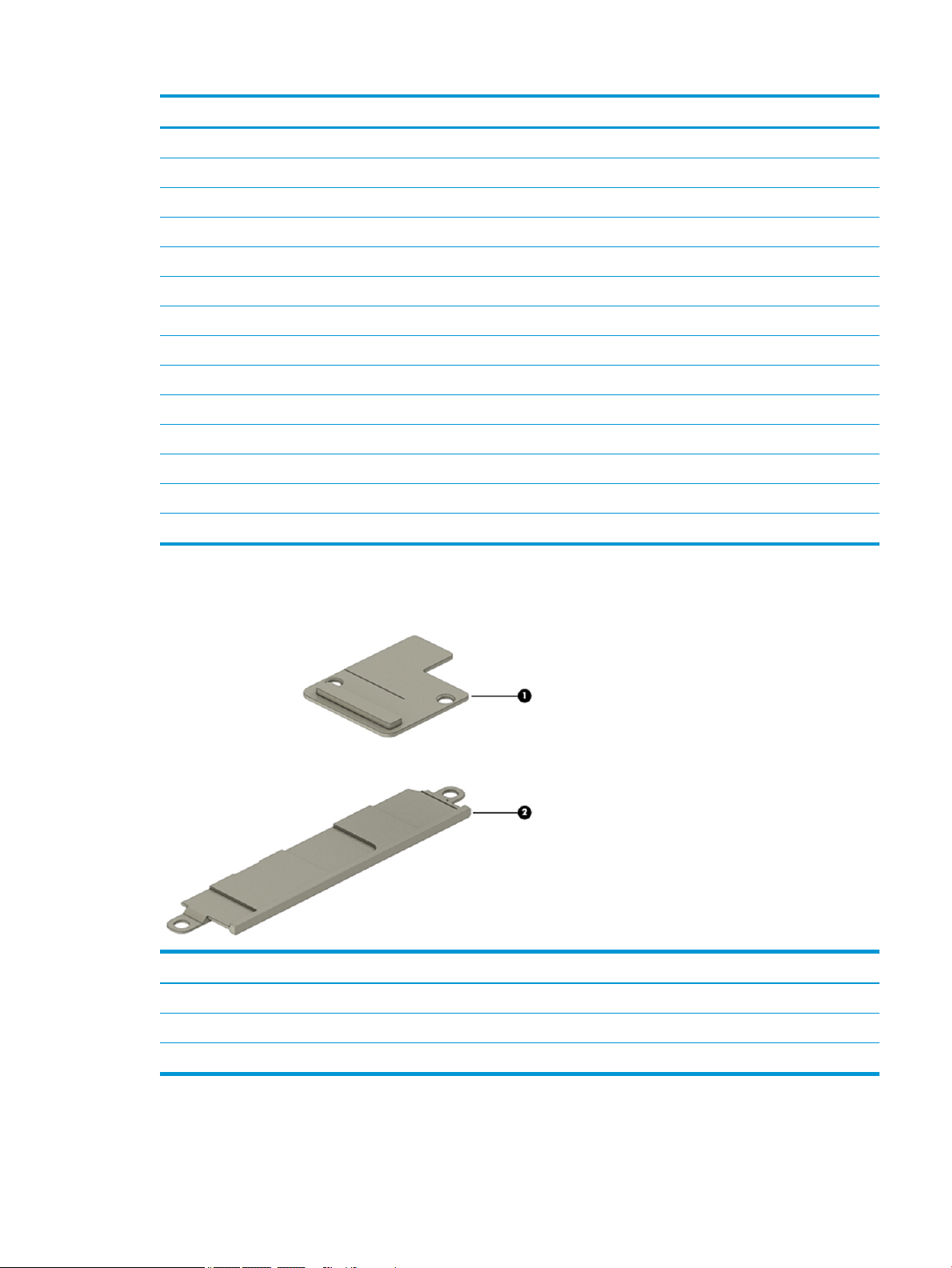

Miscellaneous parts ............................................................................................................................................. 25

4 Removal and replacement procedures preliminary requirements .................................................................... 27

Tools required ...................................................................................................................................................... 27

Service considerations ......................................................................................................................................... 27

Plastic parts ....................................................................................................................................... 27

Cables and connectors ...................................................................................................................... 28

Drive handling ................................................................................................................................... 28

Grounding guidelines ........................................................................................................................................... 29

Electrostatic discharge damage ........................................................................................................ 29

Packaging and transporting guidelines .......................................................................... 30

Workstation guidelines ................................................................................................... 30

Equipment guidelines ..................................................................................................... 31

vii

5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 32

Component replacement procedures .................................................................................................................. 32

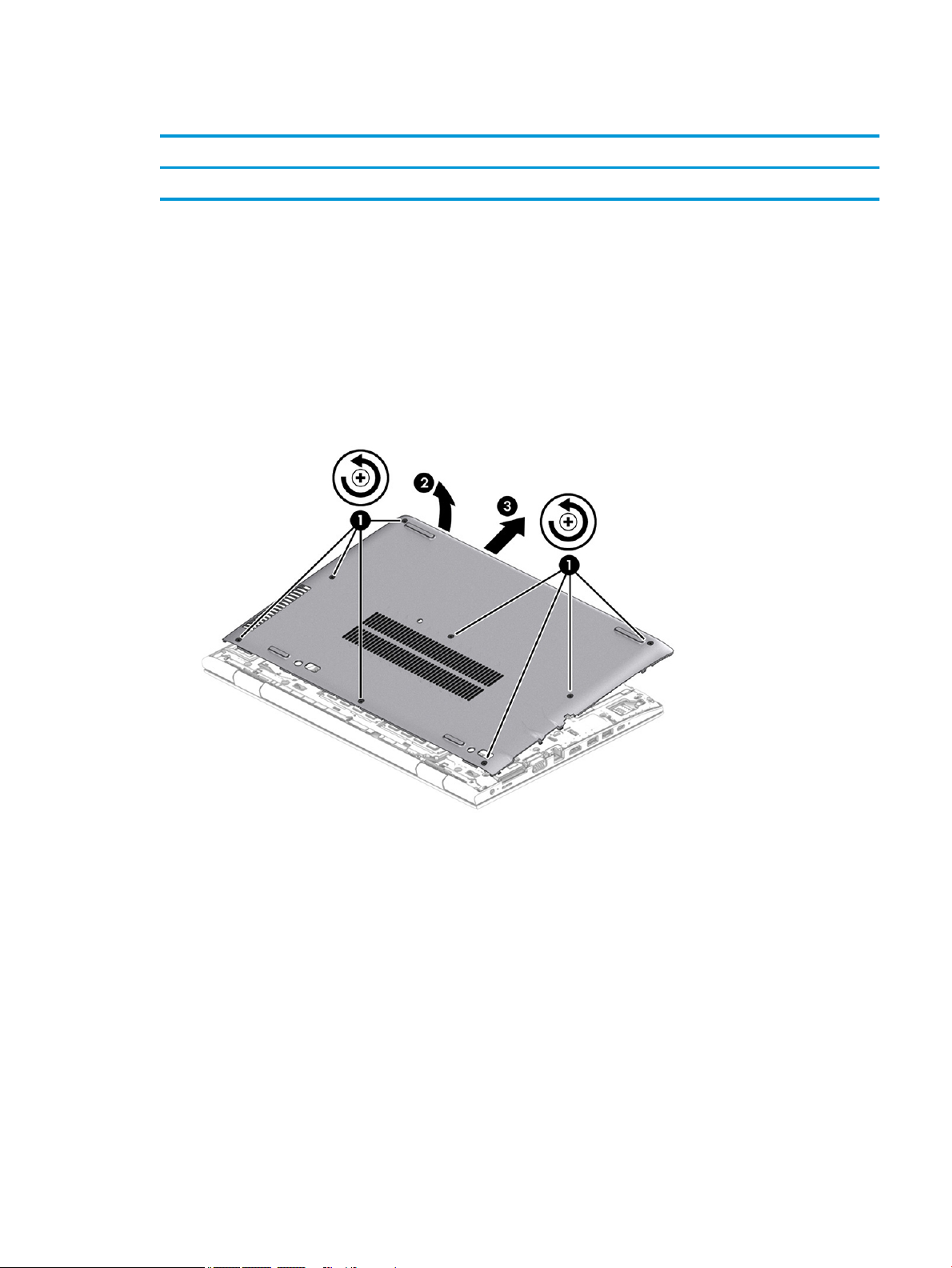

Bottom cover ..................................................................................................................................... 33

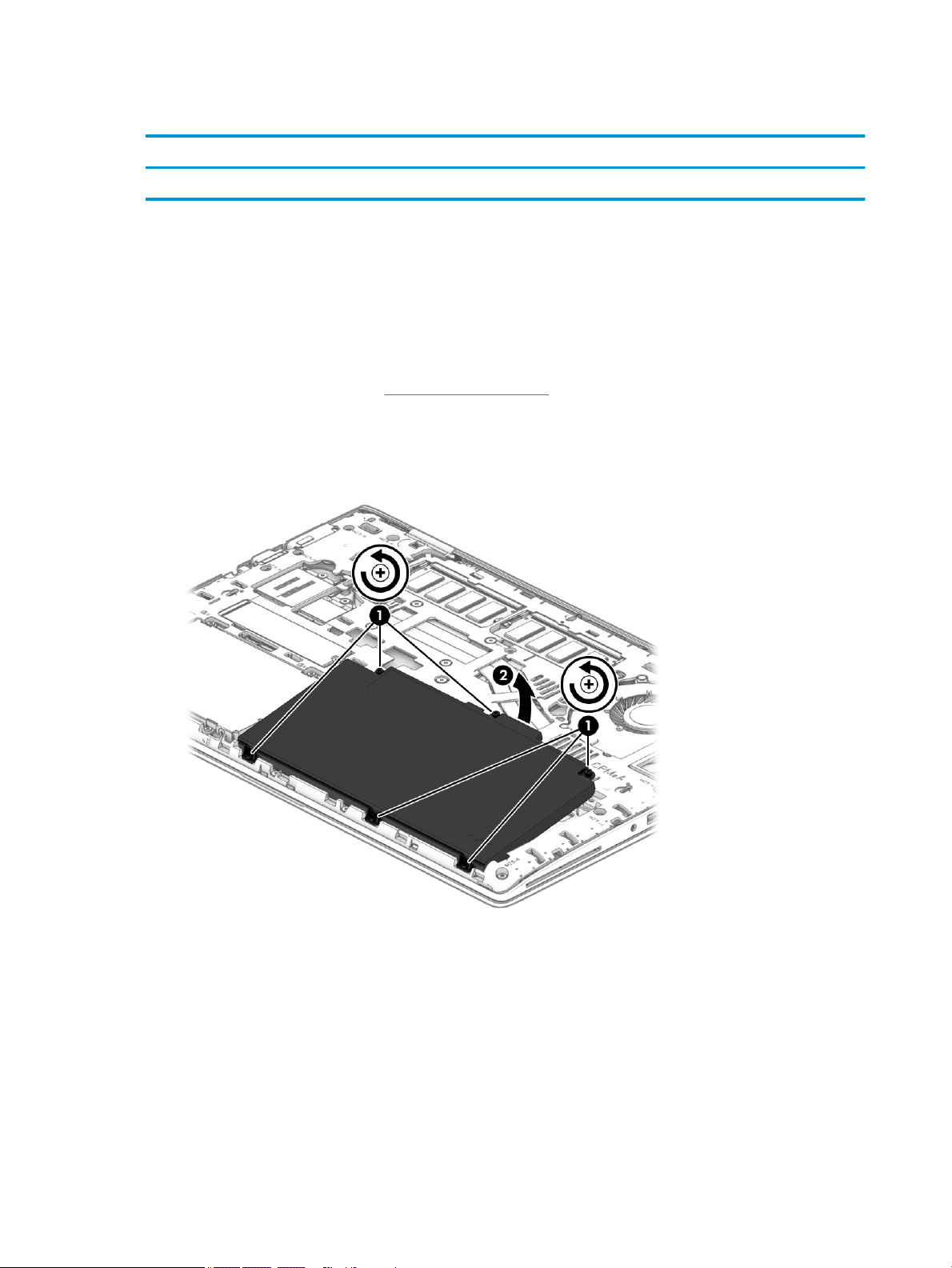

Battery ............................................................................................................................................... 34

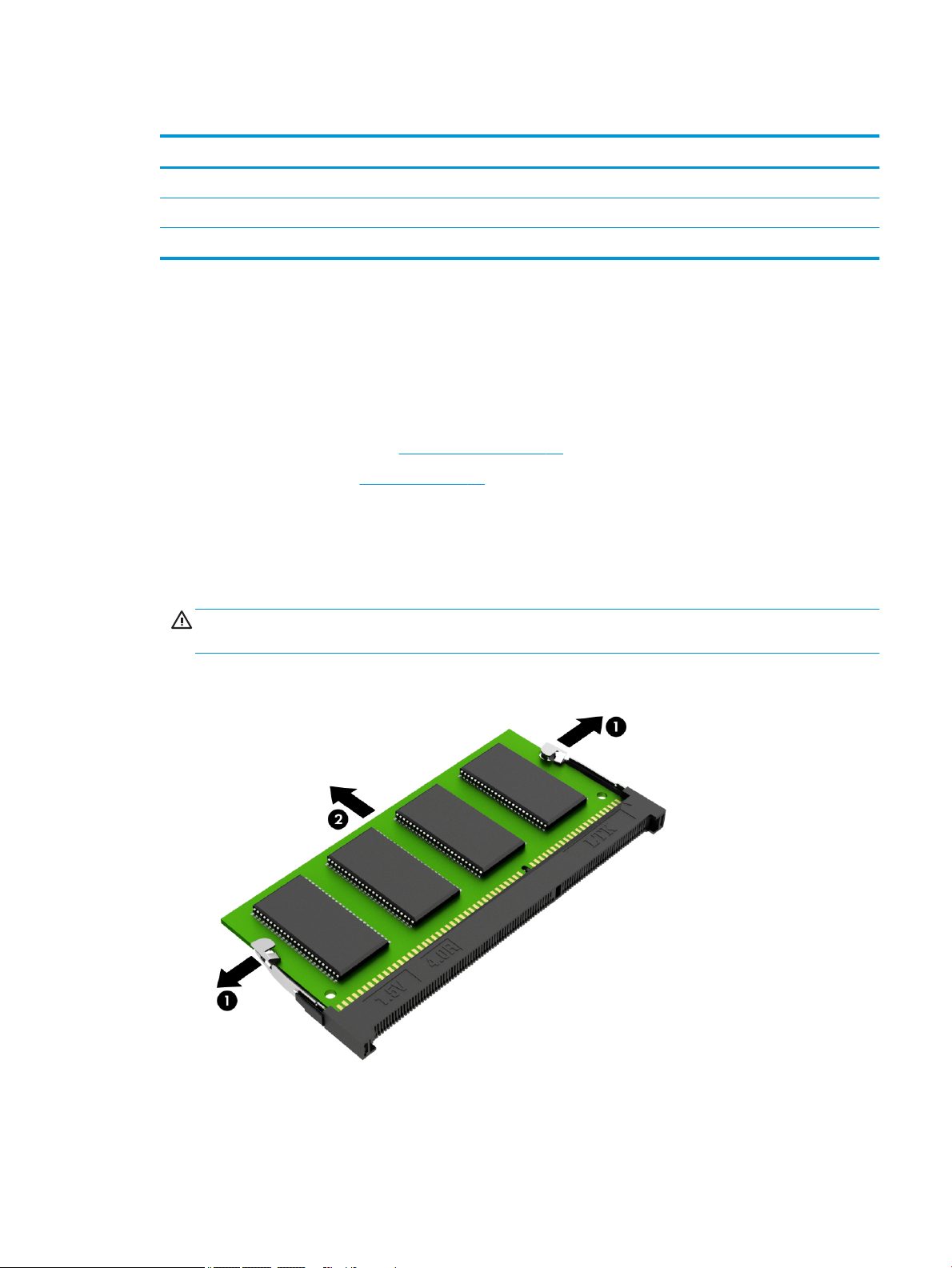

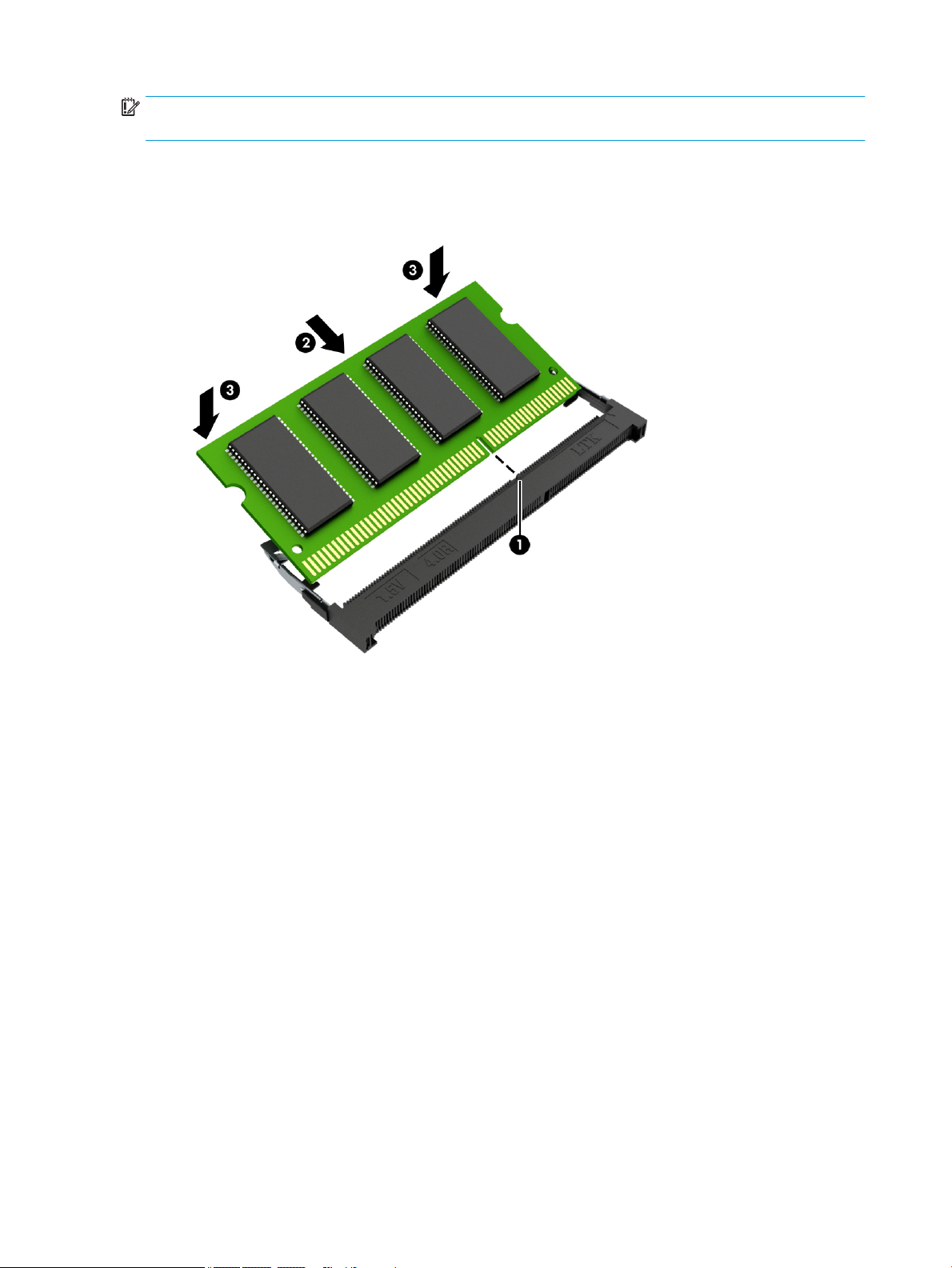

Memory .............................................................................................................................................. 35

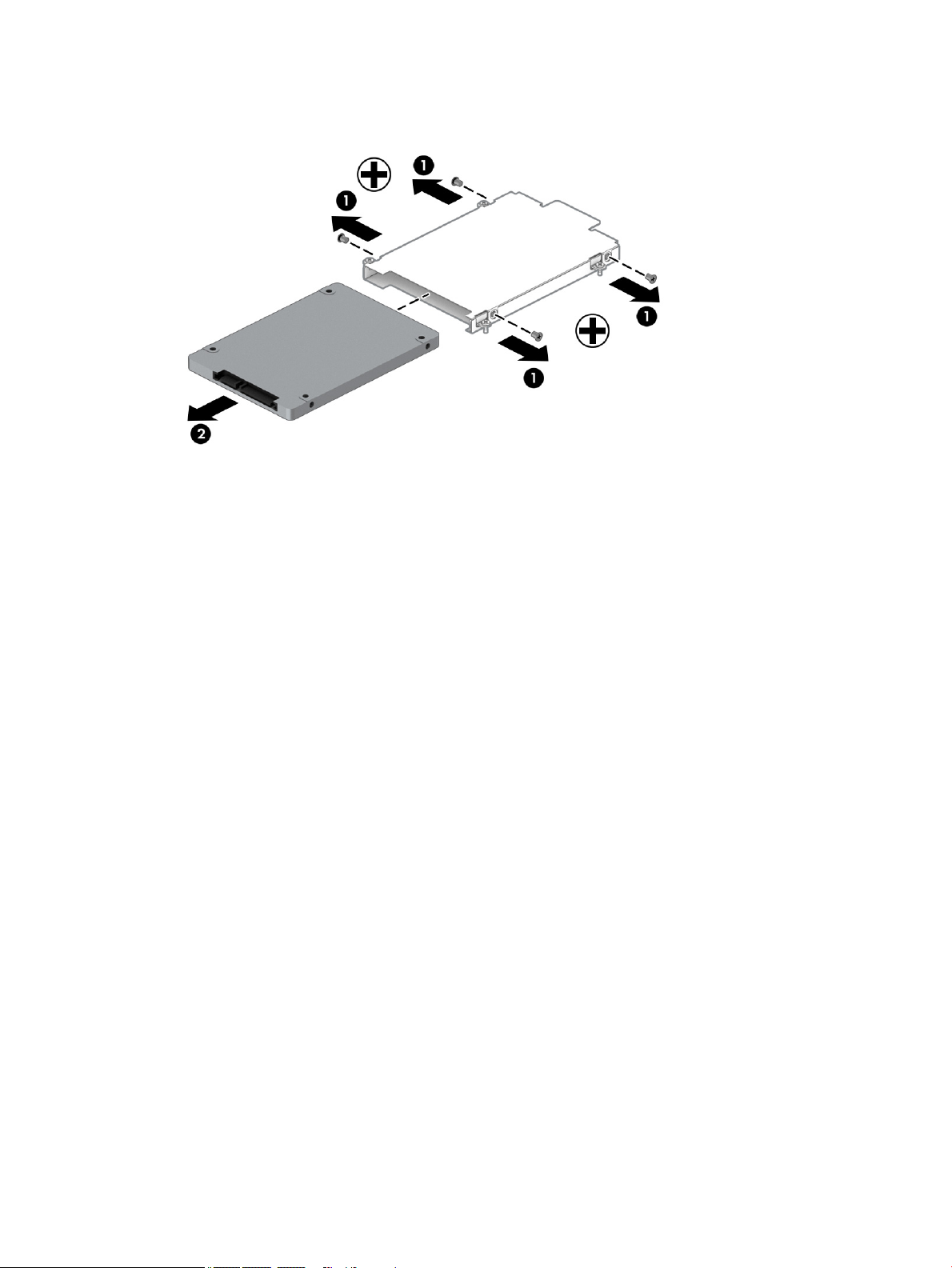

Hard drive .......................................................................................................................................... 37

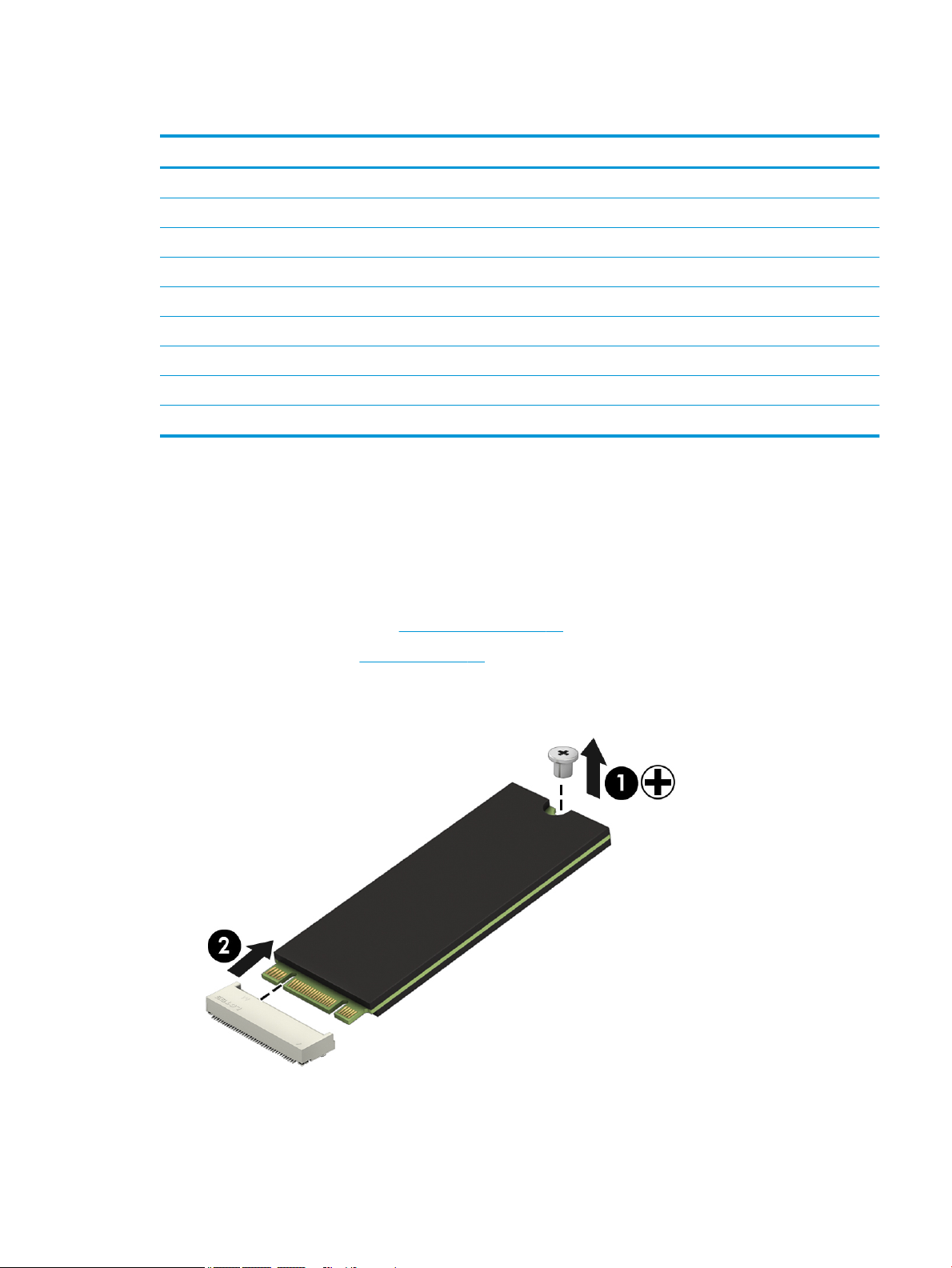

Solid-state drive ................................................................................................................................ 39

6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 40

Component replacement procedures .................................................................................................................. 40

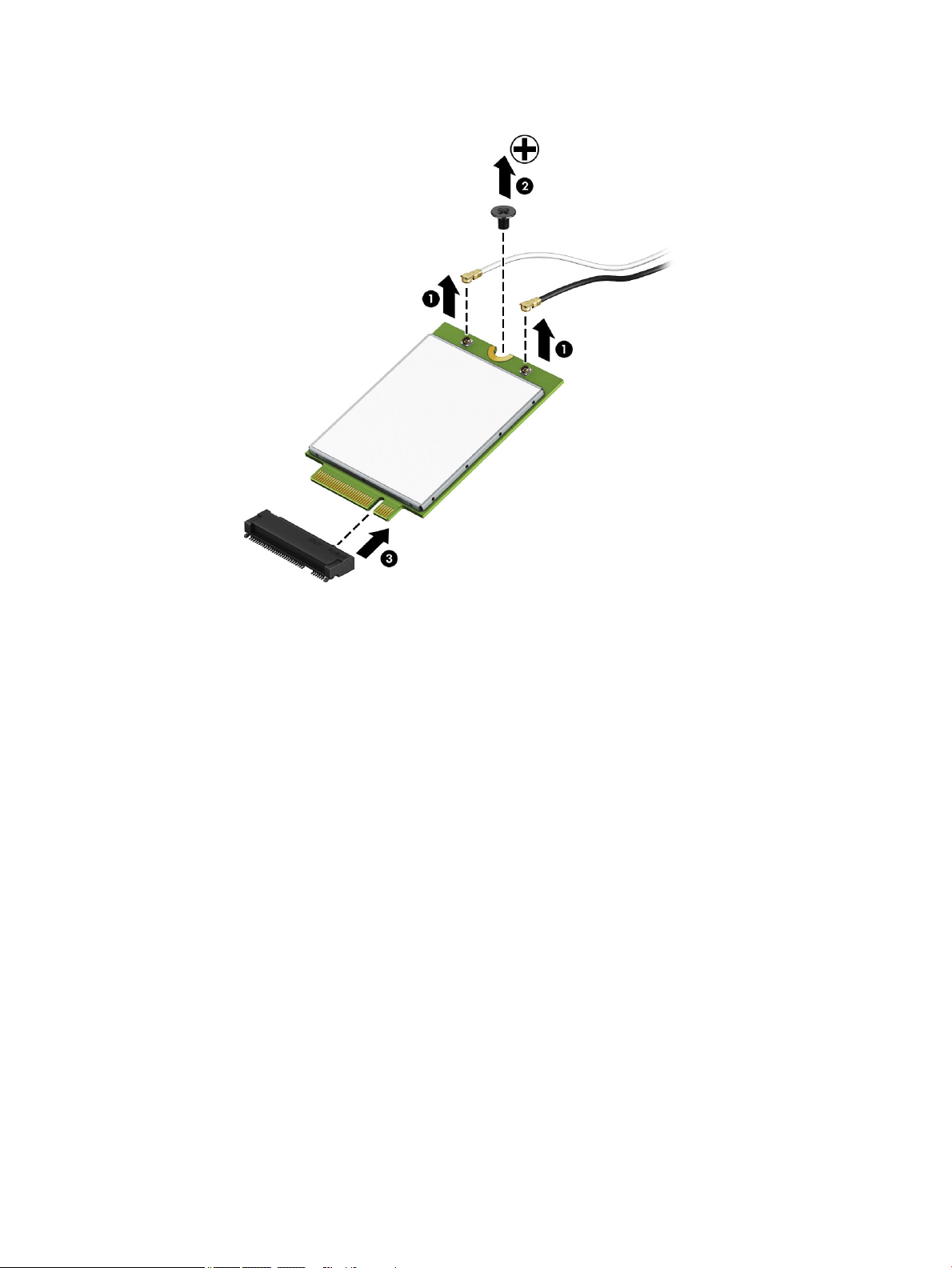

WWAN module ................................................................................................................................... 40

WLAN module .................................................................................................................................... 42

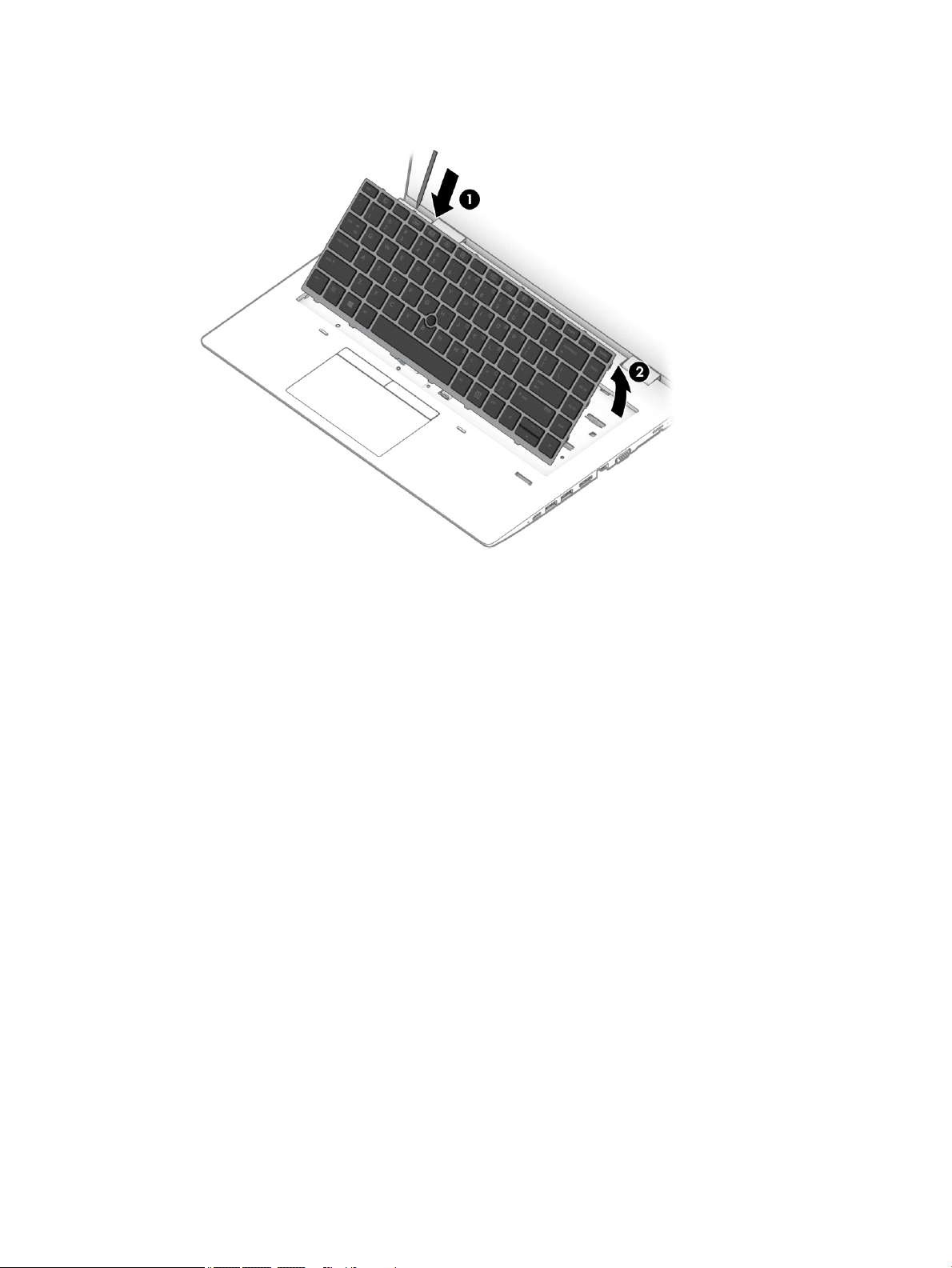

Keyboard ........................................................................................................................................... 43

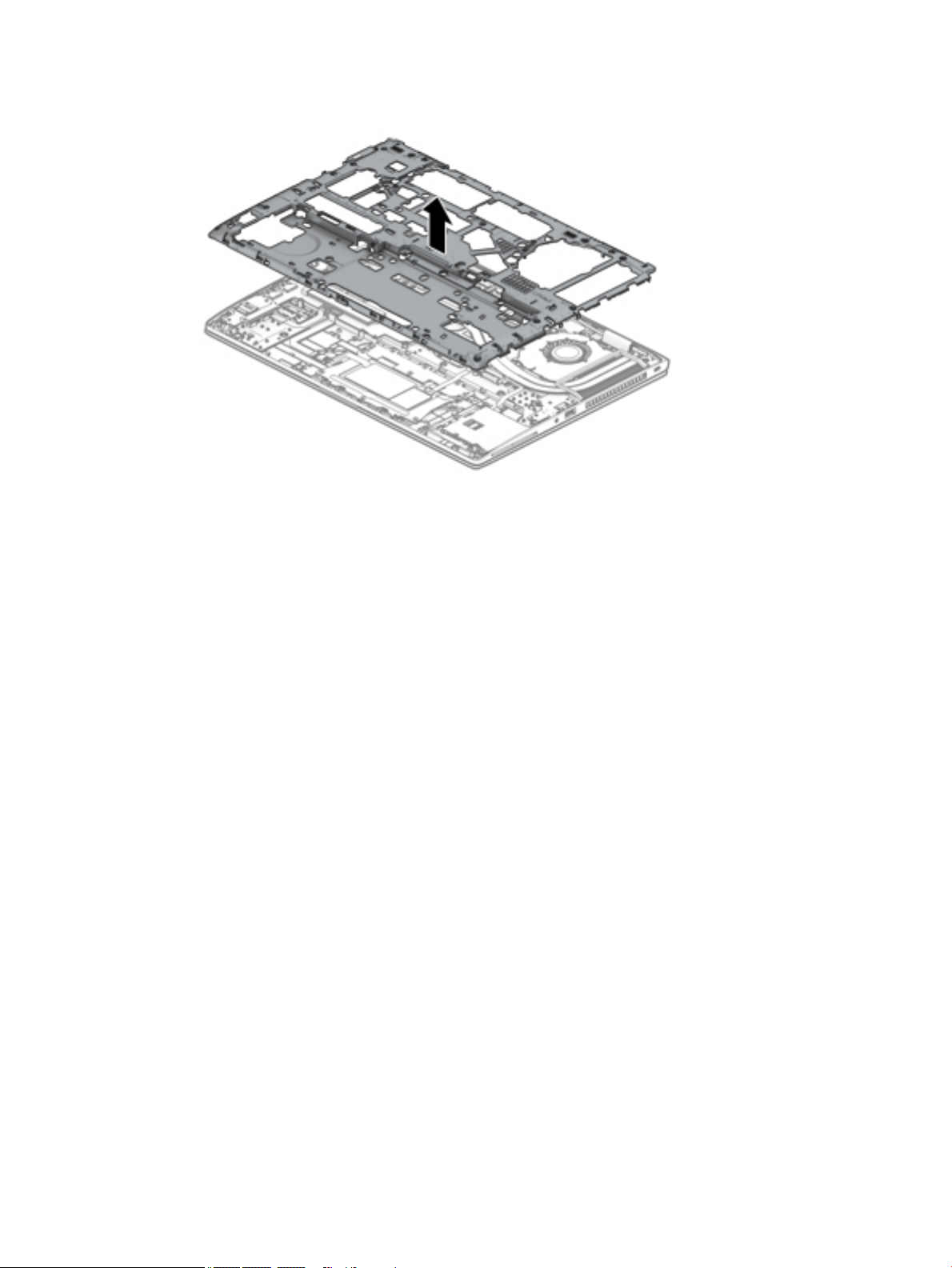

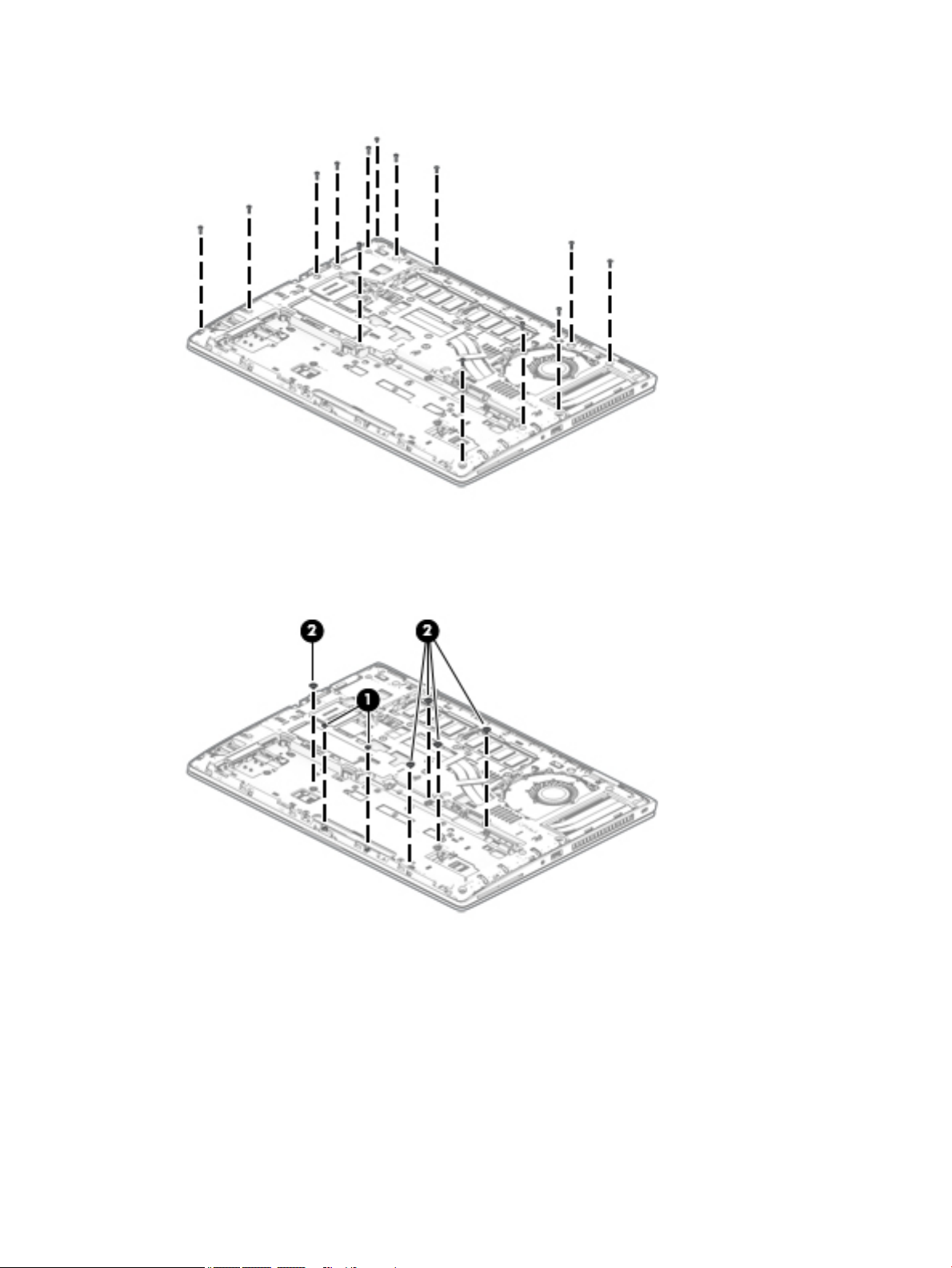

Internal frame ................................................................................................................................... 47

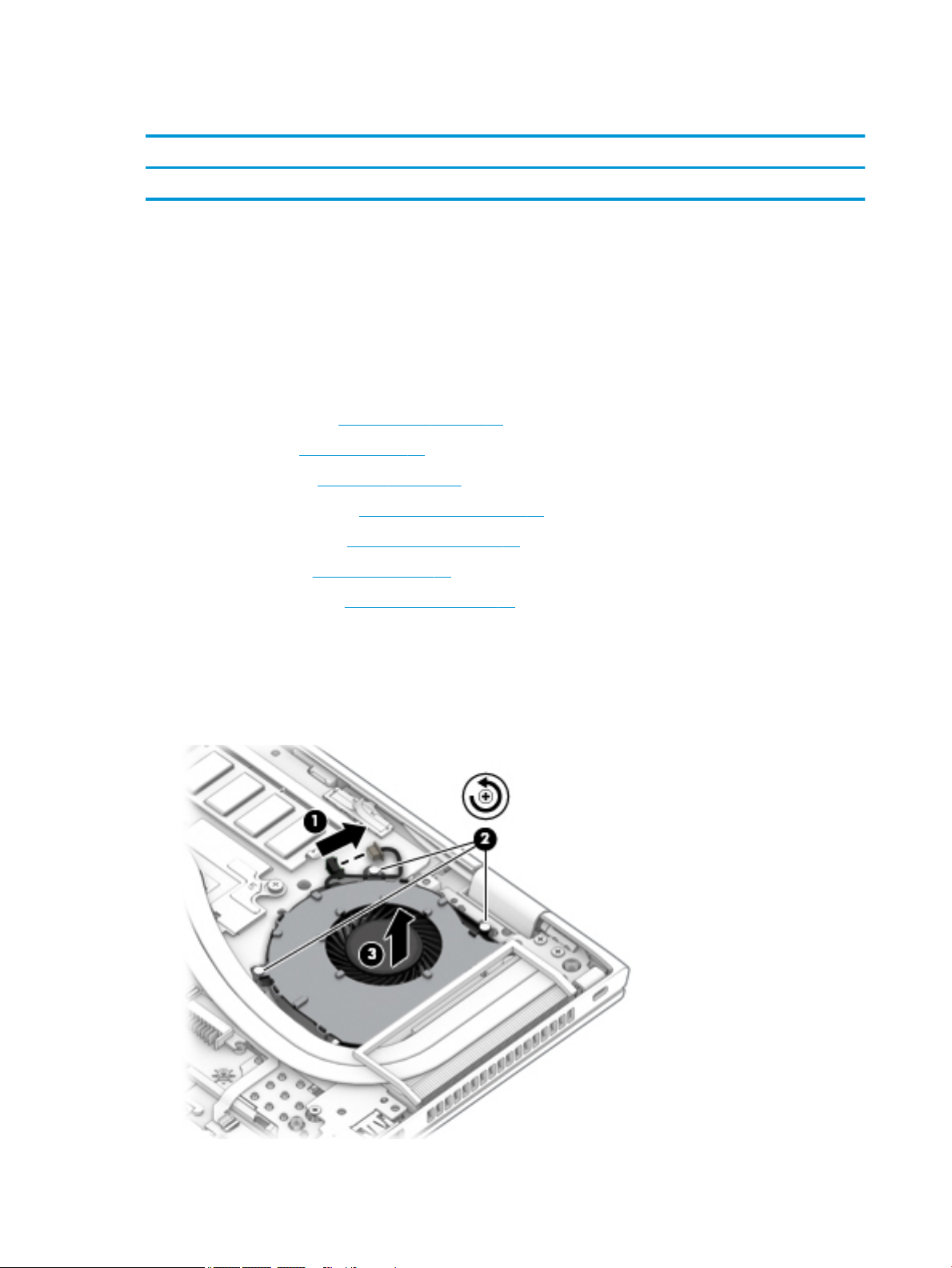

Fan ..................................................................................................................................................... 50

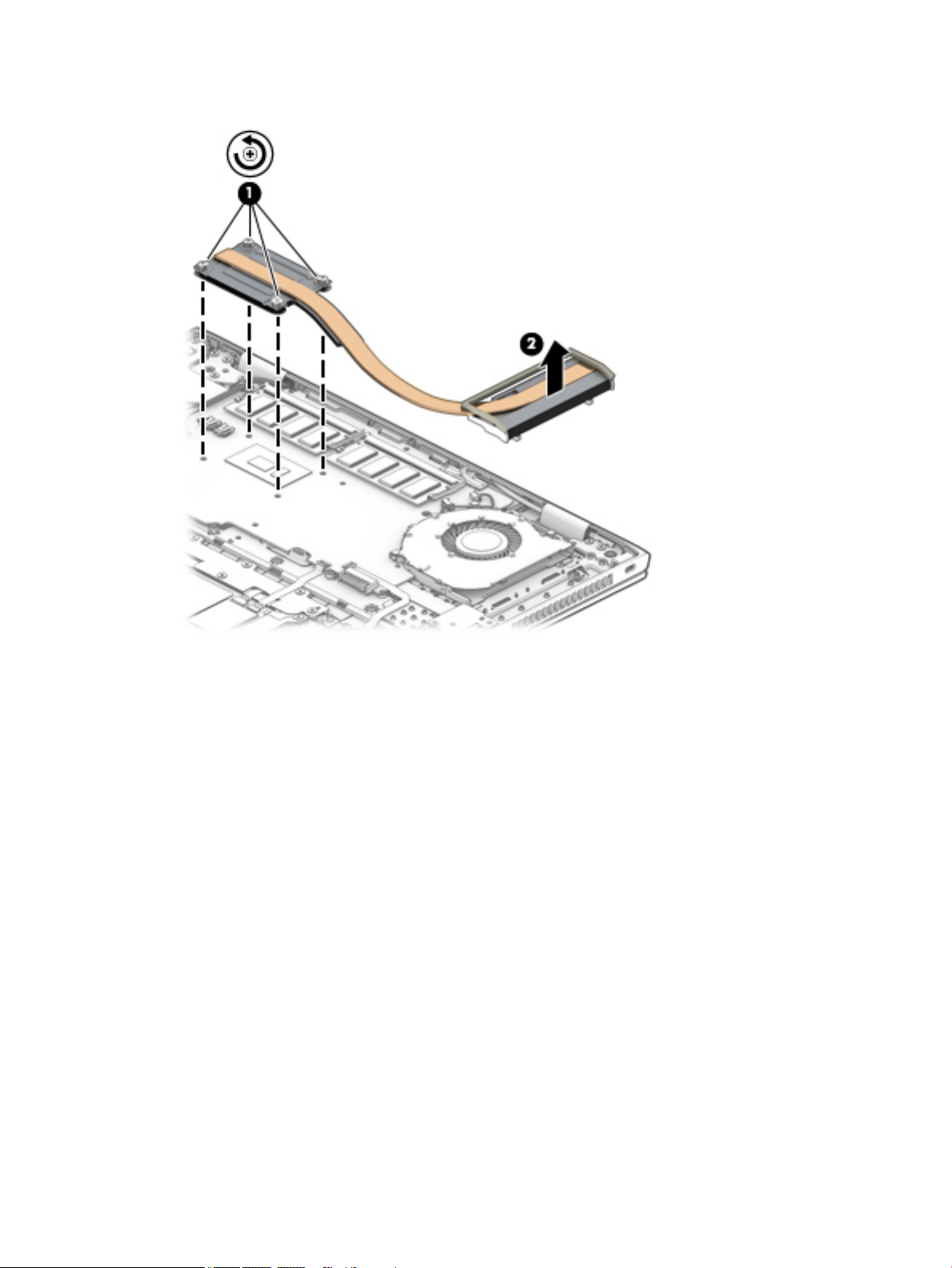

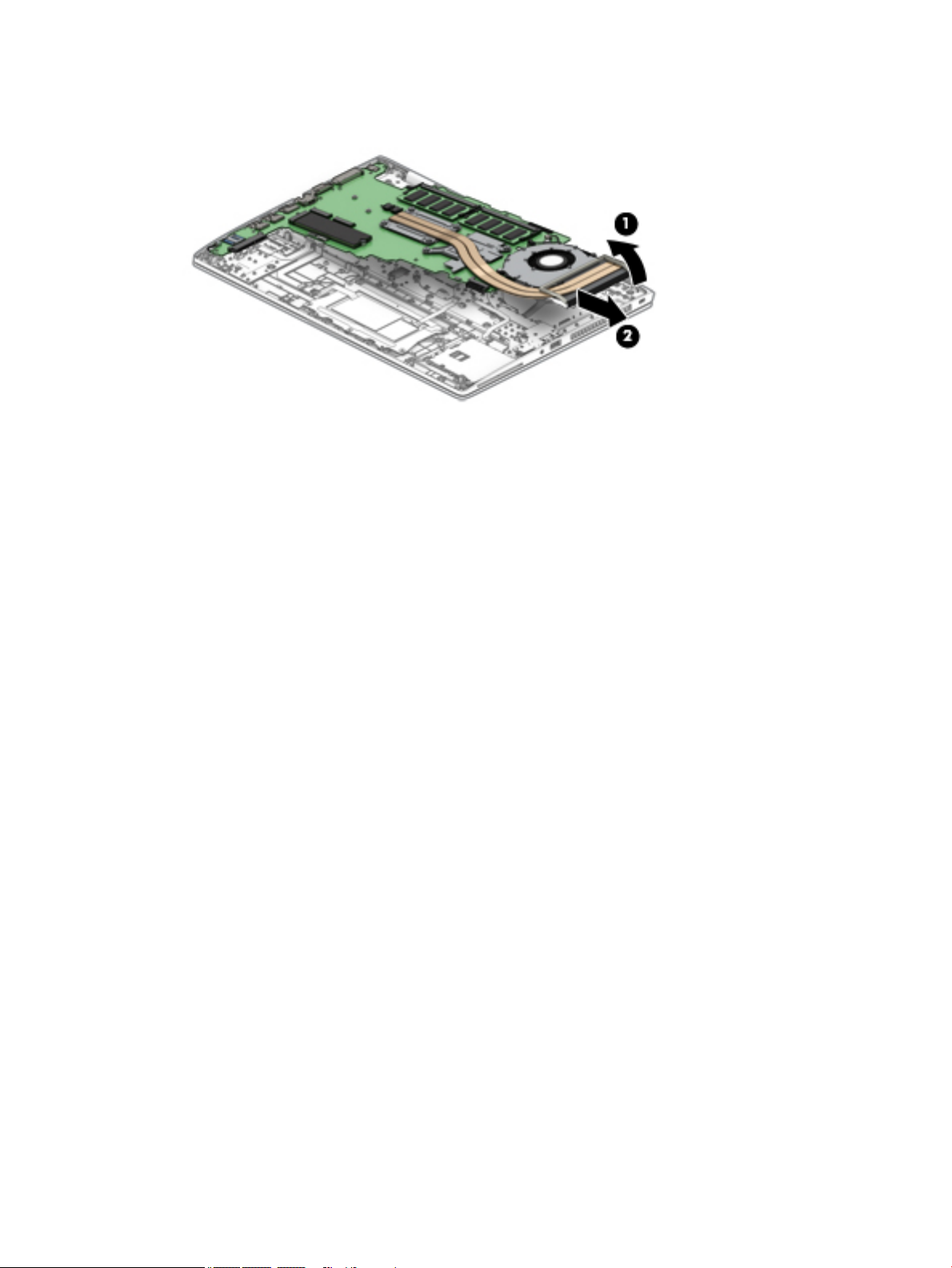

Heat sink assembly ........................................................................................................................... 51

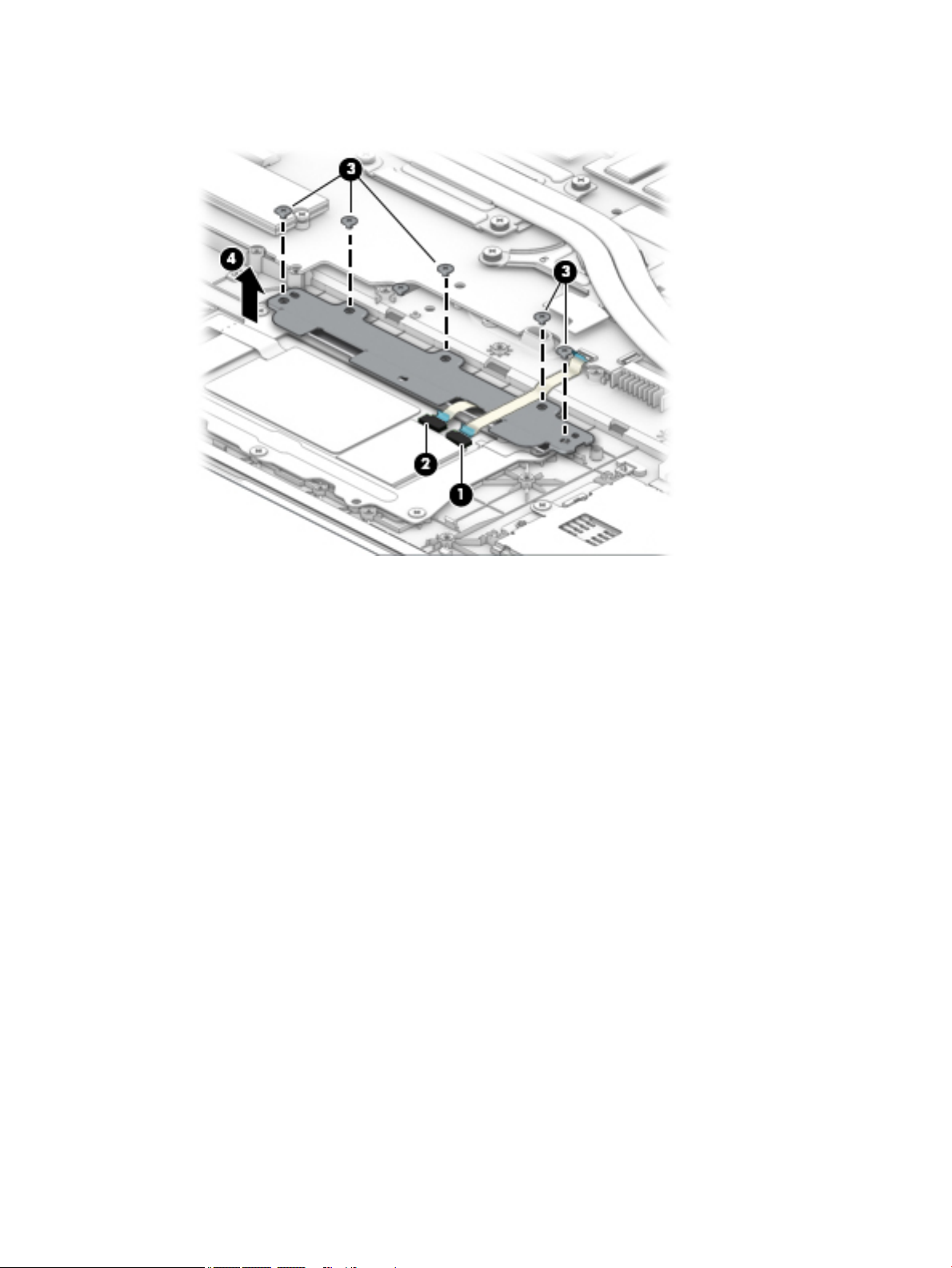

TouchPad button board ..................................................................................................................... 54

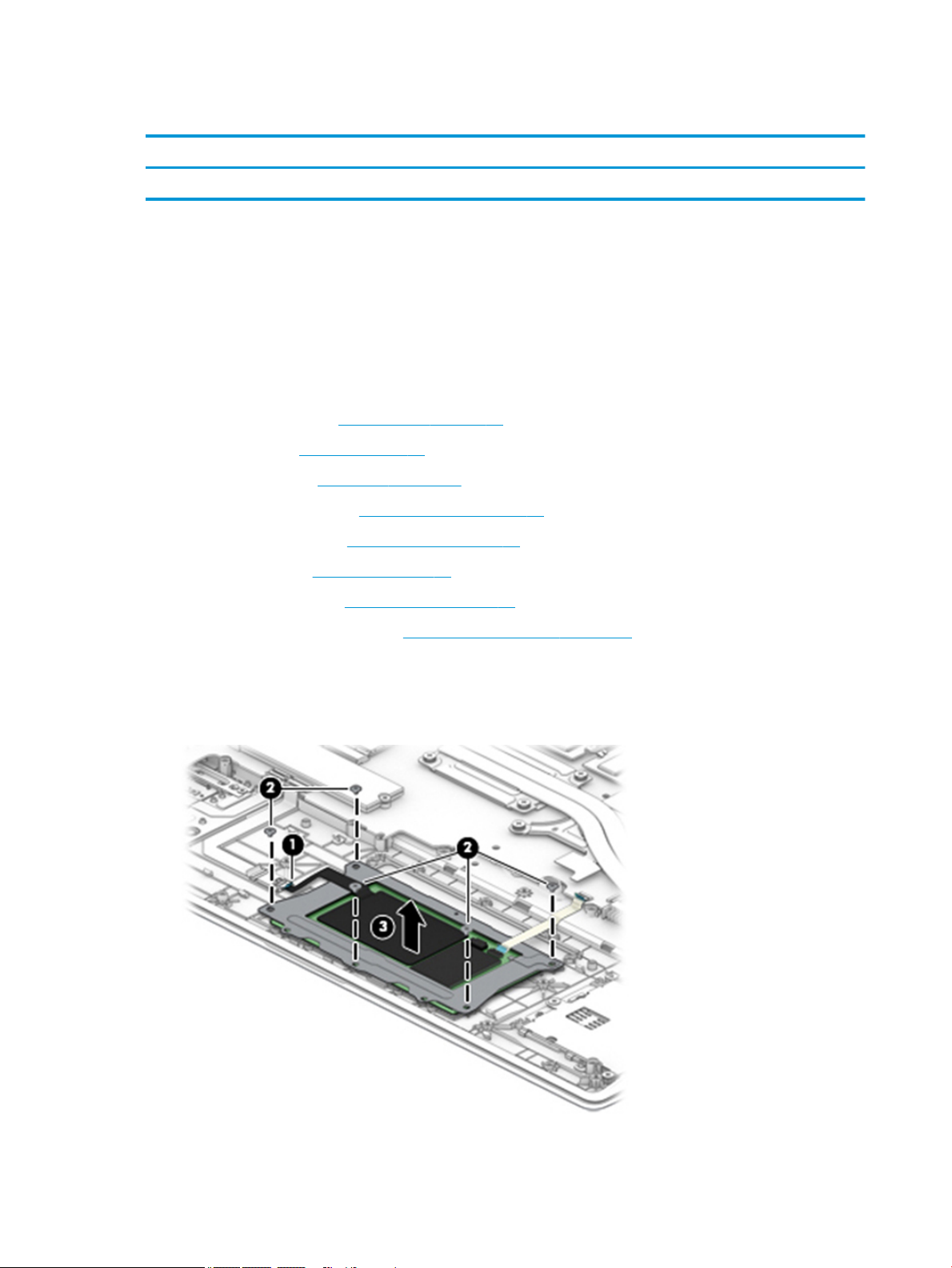

TouchPad ........................................................................................................................................... 56

Near Field Communication (NFC) module ......................................................................................... 57

Smart card reader .............................................................................................................................. 59

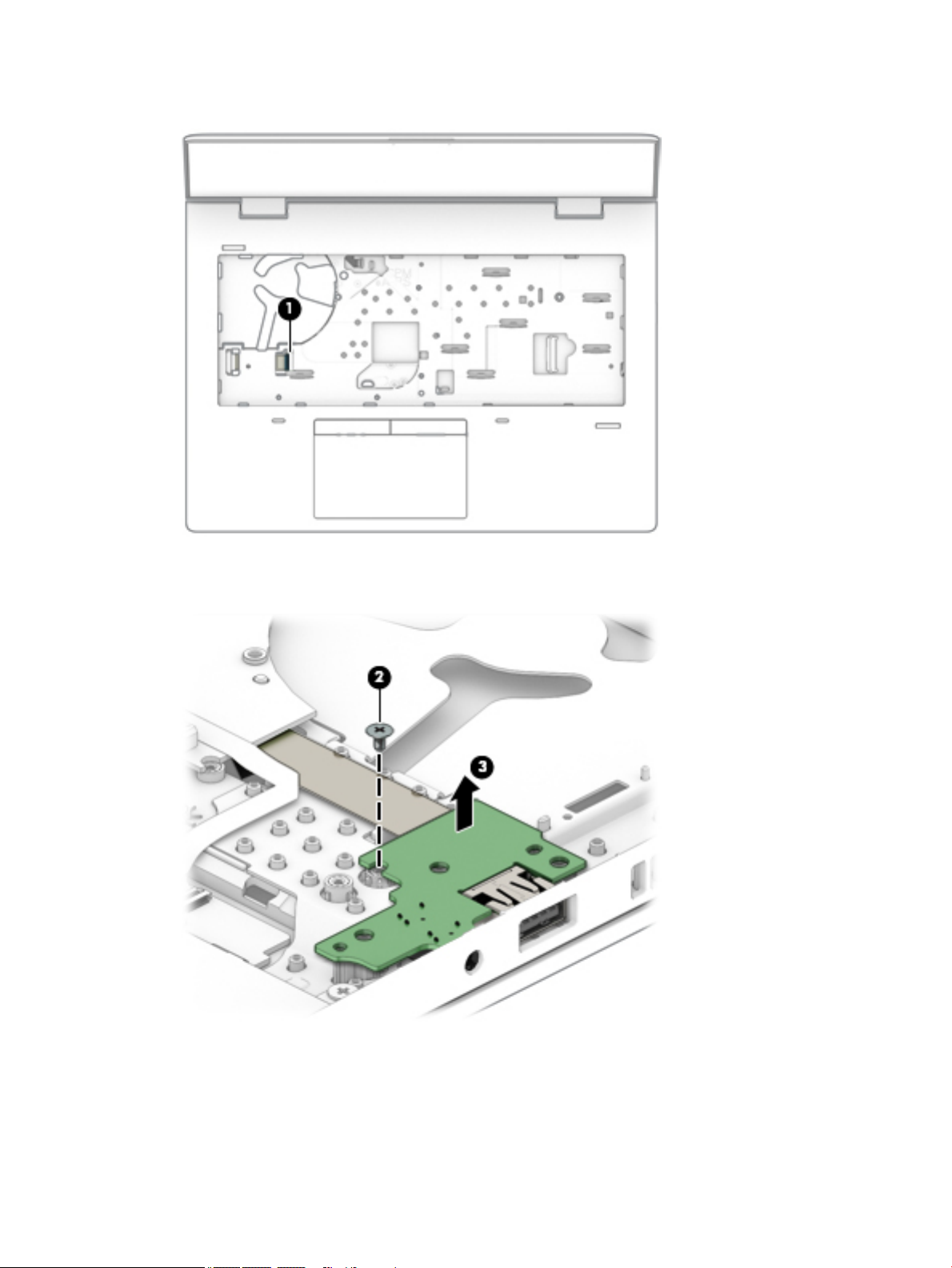

USB board .......................................................................................................................................... 61

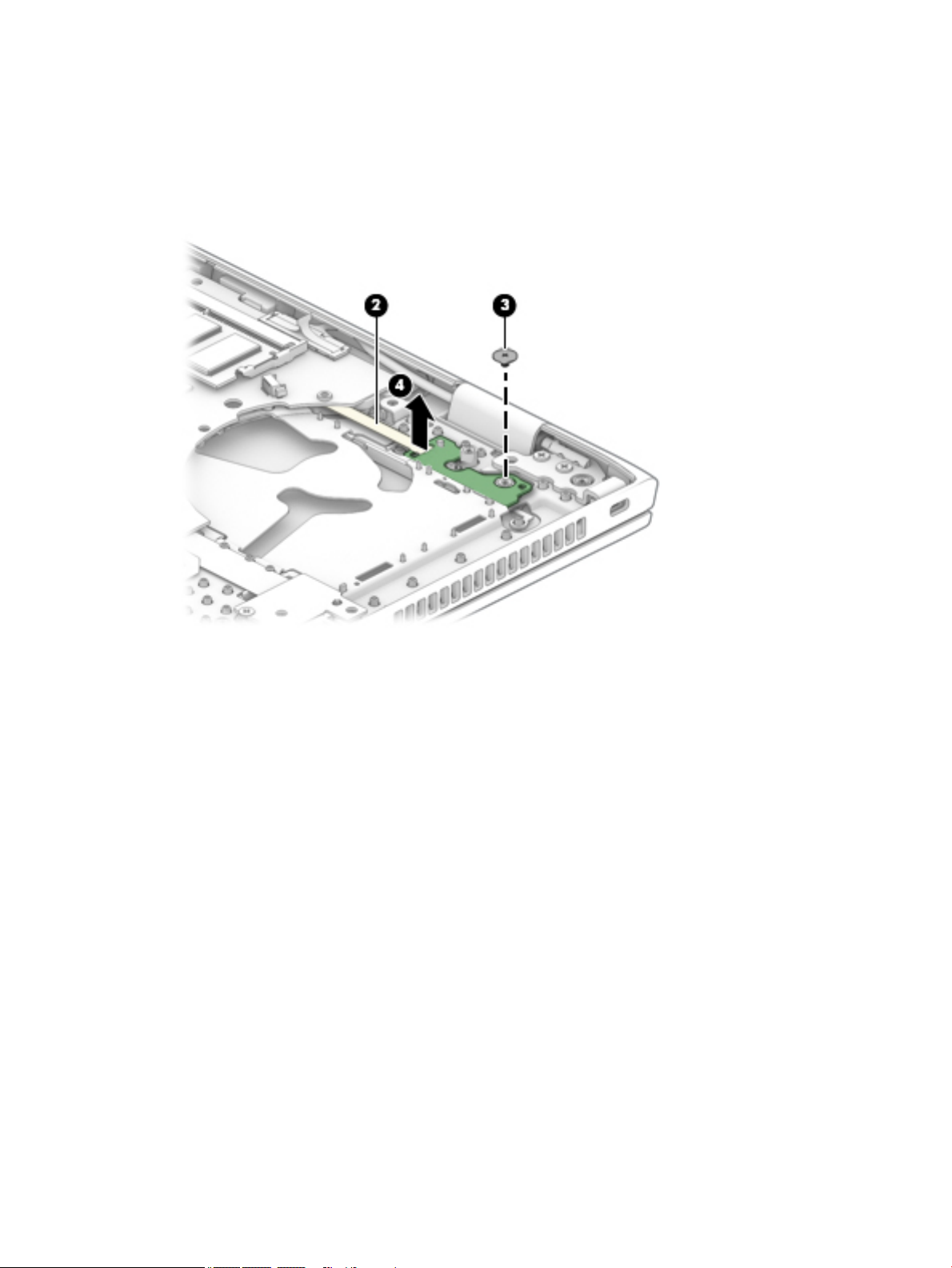

Power button board .......................................................................................................................... 63

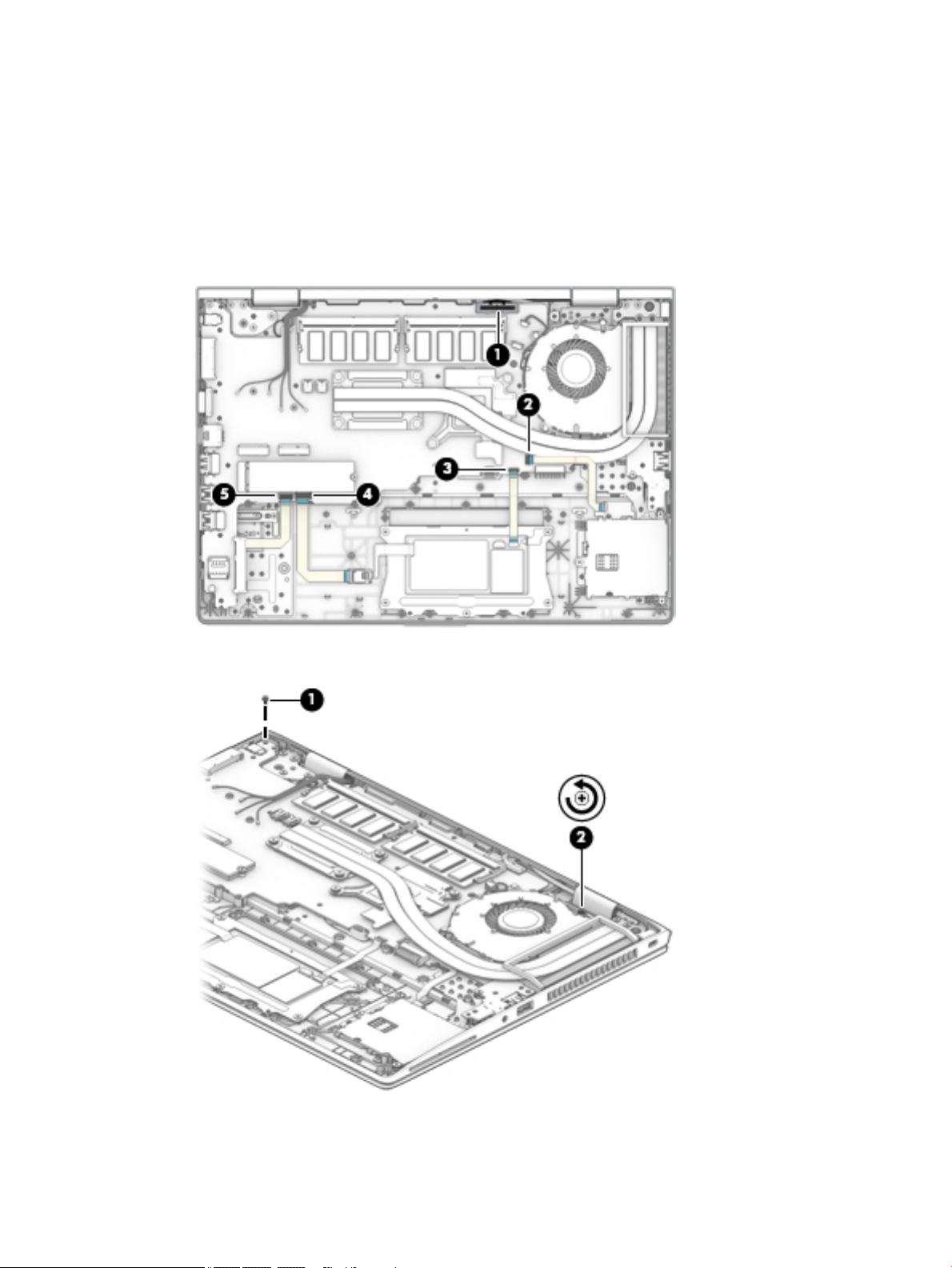

System board .................................................................................................................................... 65

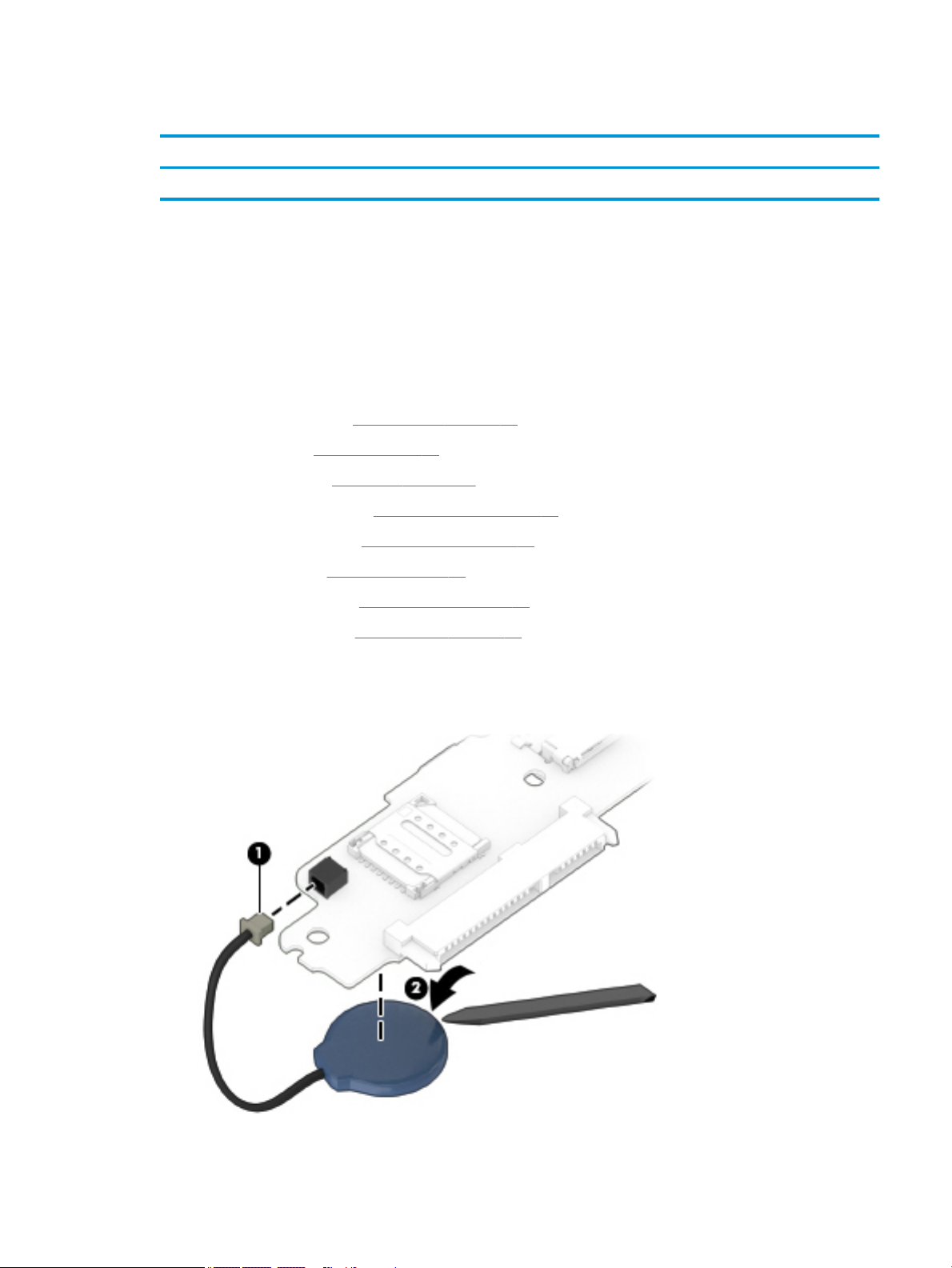

RTC battery ........................................................................................................................................ 69

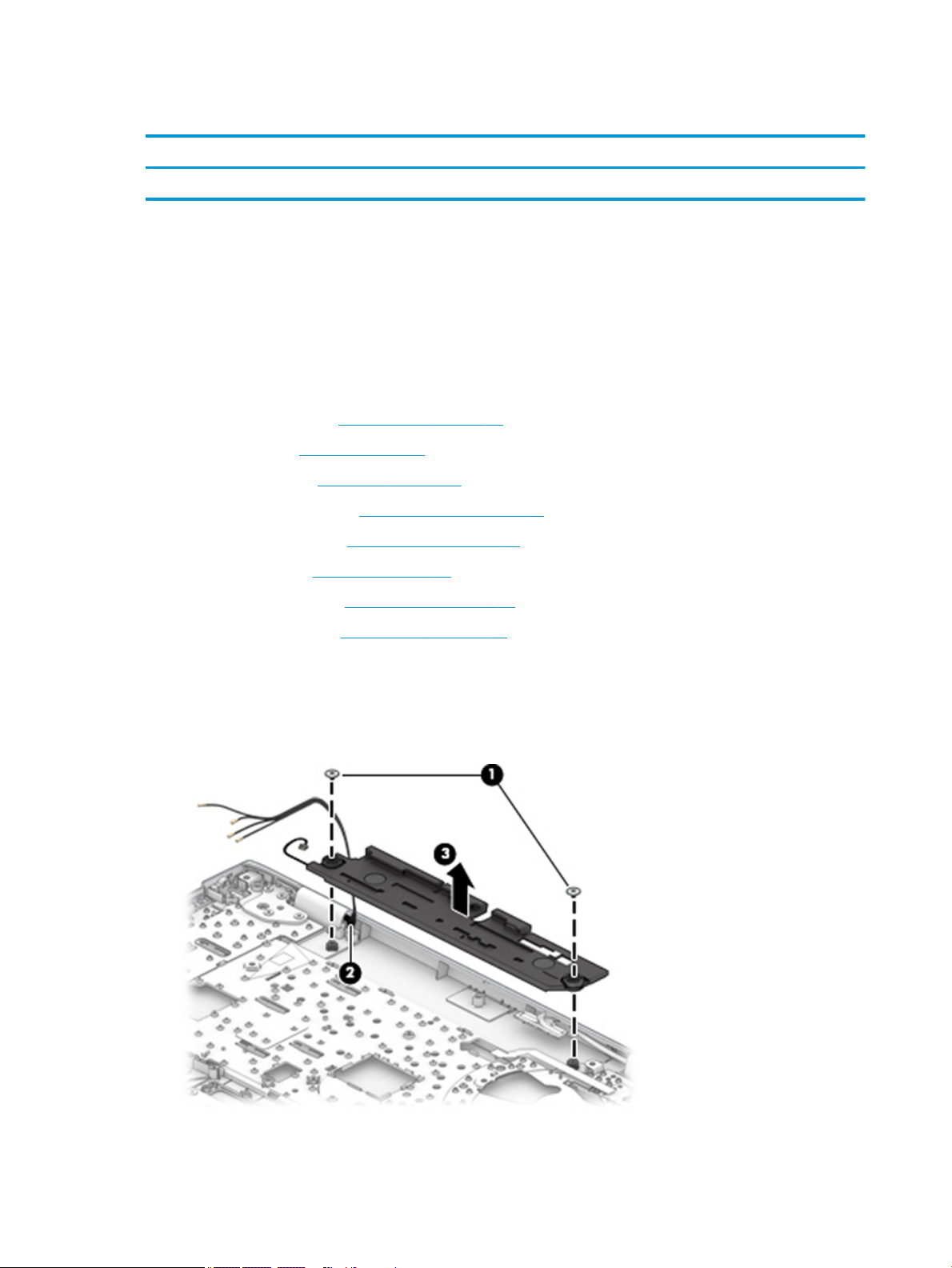

Speaker .............................................................................................................................................. 70

Fingerprint reader assembly ............................................................................................................. 71

Display assembly ............................................................................................................................... 73

7 Computer Setup (BIOS), TPM, and HP Sure Start ............................................................................................. 81

Using Computer Setup ......................................................................................................................................... 81

Starting Computer Setup .................................................................................................................. 81

Using a USB keyboard or USB mouse to start Computer Setup (BIOS) .......................... 81

Navigating and selecting in Computer Setup ................................................................................... 81

Restoring factory settings in Computer Setup ................................................................................. 82

Updating the BIOS ............................................................................................................................. 82

Determining the BIOS version ......................................................................................... 82

Downloading a BIOS update ........................................................................................... 83

Changing the boot order using the f9 prompt .................................................................................. 84

TPM BIOS settings (select products only) ........................................................................................................... 84

Using HP Sure Start (select products only) ......................................................................................................... 84

viii

8 Using HP PC Hardware Diagnostics ................................................................................................................ 85

Using HP PC Hardware Diagnostics Windows ..................................................................................................... 85

Downloading HP PC Hardware Diagnostics Windows ....................................................................... 85

Downloading the latest HP PC Hardware Diagnostics Windows version ....................... 86

Downloading HP Hardware Diagnostics Windows by product name or number

(select products only) ..................................................................................................... 86

Installing HP PC Hardware Diagnostics Windows ............................................................................. 86

Using HP PC Hardware Diagnostics UEFI ............................................................................................................. 86

Starting HP PC Hardware Diagnostics UEFI ....................................................................................... 87

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive .............................................. 87

Downloading the latest HP PC Hardware Diagnostics UEFI version .............................. 87

Downloading HP PC Hardware Diagnostics UEFI by product name or number

(select products only) ..................................................................................................... 87

Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) ............................................. 88

Downloading Remote HP PC Hardware Diagnostics UEFI ................................................................. 88

Downloading the latest Remote HP PC Hardware Diagnostics UEFI version ................. 88

Downloading Remote HP PC Hardware Diagnostics UEFI by product name or

number ............................................................................................................................ 88

Customizing Remote HP PC Hardware Diagnostics UEFI settings .................................................... 88

9 Backing up, restoring, and recovering ........................................................................................................... 90

Creating recovery media and backups ................................................................................................................ 90

Creating HP Recovery media (select products only) ......................................................................... 90

Using Windows tools ........................................................................................................................................... 91

Restore and recovery ........................................................................................................................................... 92

Recovering using HP Recovery Manager ........................................................................................... 92

What you need to know before you get started ............................................................. 92

Using the HP Recovery partition (select products only) ................................................. 93

Using HP Recovery media to recover .............................................................................. 93

Changing the computer boot order ................................................................................ 94

Removing the HP Recovery partition (select products only) ......................................... 95

10 Specications ............................................................................................................................................ 96

Computer specications ...................................................................................................................................... 96

35.6-cm (14.0-in) display specications ............................................................................................................. 97

M.2 PCIe solid-state drive specications ............................................................................................................ 98

M.2 SATA solid-state drive specications ............................................................................................................ 99

Hard drive specications ................................................................................................................................... 100

11 Power cord set requirements .................................................................................................................... 101

Requirements for all countries .......................................................................................................................... 101

ix

Requirements for specic countries and regions ............................................................................................. 101

12 Statement of memory volatility ................................................................................................................ 103

Nonvolatile memory usage ............................................................................................................................... 105

Questions and answers ..................................................................................................................................... 107

Using HP Sure Start (select models only) .......................................................................................................... 108

13 Recycling ................................................................................................................................................ 109

Index ........................................................................................................................................................... 110

x

1 Product description

Category Description

Product Name HP 645 ProBook G4 Notebook PC

Processor AMD Ryzen™ mobile processors with Radeon™ Vega Graphics:

●

AMD Ryzen 7 PRO 2700U

●

AMD Ryzen 5 PRO 2500U

●

AMD Ryzen 3 PRO 2300U

Graphics Intergrated UMA graphics:

Radeon Vega Graphics

Up to three independent displays supported with HP Docking Station and with HP Docking Station HP
Thunderbolt Dock G2

Panel Supports standard bezel

35.6-cm (14.0-in), anti glare, slim, 45% CG, 220 nits, eDP 1.2, non-touch:

High denition (HD)(1366×768) without camera

HD (1366×768) with camera

HD (1366×768) without camera, with WWAN

HD (1366×768) with camera, with WWAN

Full high-denition (FHD)(1920×1080) IPS without camera

FHD (1920×1080) IPS with camera

FHD (1920×1080) IPS with WWAN, without camera

FHD (1920×1080) IPS with WWAN, with camera

35.6-cm (14.0-in), 45% CG, eDP 1.2, slim, 220 nits, touch screen:

FHD (1920×1080) IPS, with WWAN, with camera

Memory Two memory module slots

Memory is customer accessible/upgradeable

DDR4-2400, dual-channel support

Supports up to 32 GB of system RAM in the following congurations:

●

32768 MB (16384 MB×2)

●

16384 MB (16384 MB×1) or (8192 MB×2)

●

12288 MB (8192 MB×1 + 4096 MB×1)

●

8192 MB (8192 MB×1 or 4096 MB×2)

●

4096 MB (4096 MB×1)

1

Category Description

Primary storage Hard drives, SATA, 6.35 cm (2.5-in), 7.0 mm (.28 in)

●

2 TB, 5400 rpm

●

1 TB, 7200 rpm

●

500 GB, 7200 rpm, self-encrypting drive (SED), FIPS 140-2

●

500 GB, 7200 rpm

Primary M.2 storage M.2 solid-state drives (NGFF, 2280):

●

1 TB, PCIe, Gen3×4, SS, NVMe, TLC

●

512 GB, PCIe, Gen3×4, SS, NVMe, TLC

●

512 GB, SATA-3, SS, TLC, FIPS-140–2

●

360 GB, PCIe, Gen3×4, SS, NVMe, TLC (Intel)

●

256 GB, PCIe, Gen3×4, SS, NVMe, TLC

●

256 GB, PCIe, SS, NVMe, value

●

256 GB, SATA-3, TLC, Opal 2

●

128 GB, SATA-3, SS, TLC

Audio and video Audio controls

Dual-array microphone

Stereo speakers (2)

Camera HD 720p

Camera privacy shutter (only with non-touch camera panels)

Supports WDR (Wide Dynamic Range)

Support for models without camera

Ethernet Realtek RTL8111EPH-CG 10/100/1000 Ethernet NIC with DASH Support

*The following support S3/S4/S5 wake on LAN/HBMA (via out of band): embedded NIC, HP Elite USB-C Dock,
HP USB-C Universal Dock, HP Thunderbolt Dock 120W/230W G2, and HP USB-C Mini Dock.

*The following support S3 wake on LAN/HBMA (via Windows operating system): HP Thunderbolt 3 Dock, HP
Elite USB-C Docking Station G2, HP USB-C Travel Dock, and HP USB Travel Dock.

Wireless networking Wireless Personal Area Network (WPAN) Bluetooth

Integrated wireless personal area network (PAN) supported by Bluetooth® 4.2 combo card

Wireless Local Area Network (WLAN)

Supports the following WLAN formats:

●

Intel Dual Band Wireless-AC 3168 802.11ac 1×1 WiFi + Bluetooth 4.2 combo adapter (non-vPro)

●

Intel Dual Band Wireless-AC 8265 802.11ac 2×2 WiFi + Bluetooth 4.2 combo adapter (non-vPro)

●

Realtek RTL8821CE 802.11ac 1×1 Wi-Fi + Bluetooth 4.2 combo adapter

Integrated WLAN options with dual antennas (M.2/PCIe)

2 Chapter 1 Product description

Realtek RTL8822BE 802.11ac 2×2 Wi-Fi + Bluetooth 4.2 combo adapter

Category Description

Supports models without WLAN

Compatible with Miracast-certied devices

Bluetooth Disabled IOPT

Supports Wireless/LAN/WAN switching

Supports HP Connection Optimizer with WiFi Load balancing

Near-Field Communication (NFC)

NFC Mirage WNC XRAV-1 (NXP NPC300 I2C, 10 mm × 17 mm)

NFC antenna

Supports models without NFC

Wireless Wide Area Network (WWAN)

SIM Module (3FF/micro SIM)

Supports the following WWAN formats via connector:

●

Integrated WWAN options with dual antennas (M.2 30×42 socket USB2)

LTE CAT4: Huawei HP lt4132, LTE/HSPA+ w/GPS M.2

●

Integrated WWAN options with dual antennas (M.2 30×42 socket PCIe)

LTE CAT9: Fibocom Intel XMM 7360 LTE - Advanced

WWAN Antennas (2) (world wide 5 band, congured at top of panel on all units)

Supports models without WWAN

Supports WWAN after market option

WWAN cards are compatible with a programmable removable eSIM

External media
cards

Ports VGA (Dsub 15 pin) supporting 1920×1200 external resolution @ 60 Hz and hot plug/unplug and auto detect

Docking HP Docking Station

Keyboard/pointing
devices

Micro SD Media Reader slot supports SD, SDHC, and SDXC.

USB Type-C (PD+DP, Gen 1)

USB 3.0 charging port

HDMI 1.4

RJ-45/Ethernet

Docking connector

Audio-out (headphone)/audio-in (microphone) combo jack

AC port, 4.5 mm

HP Thunderbolt Dock 120W G2

HP Advanced Keyboard:

HP Dura Keys, dual point, backlit, spill resistant with drain

HP Dura Keys, TouchPad, backlit, spill resistant with drain

3

Category Description

Non-backlit, TouchPad, spill-resistant with drain

TouchPad:

Support PTP with Miniport driver

Settings enabled by default: 2-nger scrolling, 2-nger zoom (pinch), OSD (enabled/disabled), 3-nger tap
(Cortana), 3-nger ip (app switch), 4-nger tap (Action Center)

Gestures disabled by default: 3-nger ick, 2-nger rotate, momentum motion, 1-nger vertical scroll

Taps enabled by default

On/o control by driver

Power requirements Battery:

HP Long Life Lithium Prismatic/Polymer Battery, 3-cell, 48 WHr, 4.21 Ahr

HP Fast Charge Technology, 90% in 90 minutes

AC adapter:

65 W “Smart” right angle, 4.5 mm

65 W “Smart” right angle, 4.5 mm - EM

65 W Straight USB Type C

65 W Straight USB Type C

45 W “Smart” right angle, 4.5 mm

45 W “Smart” right angle, 4.5 mm - Argentina

45 W “Smart” right angle, 4.5 mm, 2-prong (Japan only)

Power cord:

2 wire plug (C7), 1 m, conventional

3 wire plug (C5), 1.8 m, conventional

3 wire plug (C5), 1 m, conventional

Duckhead power cord (C5) 1.0 m

Duckhead power cord (C5) 1.8 m

Duckhead power cord (C5)

Security Security lock

Fingerprint reader

Supports Trusted Platform Module (TPM) 2.0 (Inneon, soldered down)

Integrated Smart Card reader (active)

Preboot authentication (password, smart card)

Supports models without a Smart Card reader

Hardware enforced rmware protection: HP Hardware Root of Trust + Sure Start Gen4; ANSSI Certied
Hardware Root of Trust: Yes

Operating system Preinstalled:

4 Chapter 1 Product description

Category Description

Windows 10 Home 64

Windows 10 Home 64 Single Language

Windows 10 Home 64 Chinese Market CPPP

Windows 10 Home 64 High End Chinese Market CPPP

Windows 10 Home 64 Plus

Windows 10 Home 64 Plus Single Language

Windows 10 Professional 64

Windows 10 Home 64 StF MSNA Standard

Windows 10 Home 64 StF MSNA Plus

Windows 10 Home 64 StF MSNA Strategic

FreeDOS 2.0

Restore Media:

Windows 10 DRDVD

Windows 10 DRUSB

Windows 10 Pro 64 OSDVD

Windows 10 Pro 64 OSUSB

Certied:

Microsoft WHQL

Web-only support:

Windows 10 Enterprise 64

Windows 10 Enterprise 64 LTSB 1607

Win 10 Pro 64 CBB 1703 OS

Serviceability End user replaceable parts:

AC adapter

Battery

Hard drive

Solid-state drive

Memory module

5

2 Components

Your computer features top-rated components. This chapter provides details about your components, where
they're located, and how they work.

Right

Component Description

(1) Drive light

(2) USB Type-C power connector port, SuperSpeed

port, and DisplayPort

(3) USB 3.x SuperSpeed port with HP Sleep and

Charge

(4) USB 3.x SuperSpeed port Connects a USB device, such as a cell phone, camera, activity

(5) HDMI port Connects an optional video or audio device, such as a high-

●

Blinking white: The hard drive is being accessed.

●

Amber: HP 3D DriveGuard has temporarily parked the hard
drive.

Connects an AC adapter that has a USB Type-C connector,
supplying power to the computer and, if needed, charging the
computer battery.

– and –

Connects a USB device that has a Type-C connector, such as a
cell phone, camera, activity tracker, or smartwatch, and
provides high-speed data transfer.

– and –

Connects a display device that has a USB Type-C connector,
providing DisplayPort output.

NOTE: Cables and/or adapters (purchased separately) may be

required.

Connects a USB device, provides high-speed data transfer, and
even when the computer is o, charges most products such as a
cell phone, camera, activity tracker, or smartwatch.

tracker, or smartwatch, and provides high-speed data transfer.

denition television, any compatible digital or audio
component, or a high-speed High Denition Multimedia
Interface (HDMI) device.

6 Chapter 2 Components

Component Description

(6) RJ-45 (network) jack/status lights Connects a network cable.

●

Green (left): The network is connected.

●

Amber (right): Activity is occurring on the network.

(7) External monitor port (select products only) Connects an external VGA monitor or projector. Select products

may include an optional serial port.

(8) Docking connector Connects an optional docking device.

(9) MicroSD memory card reader Reads optional memory cards that store, manage, share, or

access information.

To insert a card:

1. Hold the card label-side up, with the connectors facing the

computer.

2. Insert the card into the memory card reader, and then

press in on the card until it is rmly seated.

To remove a card:

▲ Press in on the card, and then remove it from the memory

card reader.

(10) Battery light When AC power is connected:

●

White: The battery charge is greater than 90 percent.

●

Amber: The battery charge is from 0 to 90 percent.

●

O: The battery is not charging.

When AC power is disconnected (battery not charging):

●

Blinking amber: The battery has reached a low battery
level. When the battery has reached a critical battery level,
the battery light begins blinking rapidly.

●

O: The battery is not charging.

(11) Power connector Connects an AC adapter.

Right 7

Left

Component Description

(1) Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a deterrent, but

it may not prevent the computer from being mishandled or
stolen.

(2) Vent Enables airow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for
the internal fan to cycle on and o during routine operation.

(3) USB 3.x SuperSpeed port Connects a USB device, such as a cell phone, camera, activity

tracker, or smartwatch, and provides high-speed data transfer.

(4) Audio-out (headphone)/Audio-in (microphone)

combo jack (select products only)

(5) Smart card reader Supports optional smart cards.

Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional standalone microphones.

WARNING! To reduce the risk of personal injury, adjust the

volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices.

To access this guide:

▲ Select the Start button, select HP Help and Support, and

then select HP Documentation.

‒ or –

▲ Select the Start button, select HP, and then select HP

Documentation.

NOTE: When a device is connected to the jack, the computer

speakers are disabled.

8 Chapter 2 Components

Display

Component Description

(1) WLAN antennas* Send and receive wireless signals to communicate with wireless local

area networks (WLANs).

(2) WWAN antennas* Send and receive wireless signals to communicate with wireless wide

(3) Internal microphones Record sound.

(4) Camera Allows you to video chat, record video, and record still images. Some

(5) Camera light(s) On: One or more cameras are in use.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions.

For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.

To access this guide:

▲ Select the Start button, select HP Help and Support, and then select HP Documentation.

‒ or –

▲ Select the Start button, select HP, and then select HP Documentation.

area networks (WWANs).

cameras also allow a facial recognition logon to Windows, instead of
a password logon.

NOTE: Camera functions vary depending on the camera hardware

and software installed on your product.

Display 9

Keyboard area

TouchPad

Component Description

(1) Pointing stick (select products only) Moves the pointer on the screen.

(2) Left pointing stick button (select products only) Functions like the left button on an external mouse.

(3) TouchPad zone Reads your nger gestures to move the pointer or activate

(4) Right pointing stick button (select products

only)

(5) Near Field Communications (NFC) tapping area

and antenna*

*The antenna is not visible from the outside of the computer. For optimal transmission, keep the area immediately around the antenna
free from obstructions.

For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.

To access this guide:

▲ Select the Start button, select HP Help and Support, and then select HP Documentation.

‒ or –

▲ Select the Start button, select HP, and then select HP Documentation.

items on the screen.

Functions like the right button on an external mouse.

Allows you to wirelessly share information when you tap it with
an NFC-enabled device.

10 Chapter 2 Components

Lights

Component Description

(1) Power light

(2) Caps lock light On: Caps lock is on, which switches the key input to all capital letters.

(3) Fn lock light On: The fn key is locked. For more information, see Hot keys (select products only)

(4) Keyboard backlight Illuminates the keyboard for higher visibility in low-light conditions.

(5) Mute light

(6) Microphone mute light

(7) Num lk light On: Num lock is on.

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state, a power-saving state. The computer
shuts o power to the display and other unneeded components.

●

O: The computer is o or in Hibernation. Hibernation is a power-saving state that
uses the least amount of power.

on page 15.

●

On: Computer sound is o.

●

O: Computer sound is on.

●

On: Microphone is o.

●

O: Microphone is on.

Keyboard area 11

Buttons, speakers, and ngerprint reader

Component Description

(1) Power button

(2) Speakers Produce sound.

(3) Fingerprint reader (select

products only)

●

When the computer is o, press the button to turn on the computer.

●

When the computer is on, press the button briey to initiate Sleep.

●

When the computer is in the Sleep state, press the button briey to exit Sleep.

●

When the computer is in Hibernation, press the button briey to exit Hibernation.

CAUTION: Pressing and holding down the power button results in the loss of unsaved

information.

If the computer has stopped responding and shutdown procedures are ineective, press
and hold the power button for at least 5 seconds to turn o the computer.

To learn more about your power settings, see your power options.

▲

Right-click the Power meter icon and then select Power Options.

Allows a ngerprint logon to Windows, instead of a password logon.

12 Chapter 2 Components

Special keys

Component Description

(1) esc key Displays system information when pressed in combination with

(2) fn key Executes frequently used system functions when pressed in

the fn key.

combination with another key. Such key combinations are called
hot keys.

See Hot keys (select products only) on page 15.

(3) Windows key Opens the Start menu.

NOTE: Pressing the Windows key again will close the Start

menu.

(4) Action keys Execute frequently used system functions.

See Action keys on page 14.

(5) Embedded numeric keypad A numeric keypad superimposed over the keyboard alphabet

keys. When fn+num lk is pressed, the keypad can be used like an
external numeric keypad. Each key on the keypad performs the
function indicated by the icon in the upper-right corner of the
key.

NOTE: If the keypad function is active when the computer is

turned o, that function is reinstated when the computer is
turned back on.

(6) num lk key Turns the embedded numeric keypad on and o when pressed in

combination with the fn key.

– or –

Turns the embedded numeric keypad on and o.

Keyboard area 13

Action keys

An action key performs the function indicated by the icon on the key. To determine which keys are on your
product, see Special keys on page 13.

▲

Icon Description

To use an action key, press and hold the key.

Helps prevent side-angle viewing from onlookers. If needed, decrease or increase brightness for well-lit or darker
environments. Press the key again to turn o the privacy screen.

NOTE: To quickly turn on the highest privacy setting, press fn+p.

Decreases the screen brightness incrementally as long as you hold down the key.

Increases the screen brightness incrementally as long as you hold down the key.

Turns the keyboard backlight o or on.

NOTE: To conserve battery power, turn o this feature.

Plays the previous track of an audio CD or the previous section of a DVD or a Blu-ray Disc (BD).

Starts, pauses, or resumes playback of an audio CD, a DVD, or a BD.

Plays the next track of an audio CD or the next section of a DVD or a BD.

Stops audio or video playback of a CD, a DVD, or a BD.

Decreases speaker volume incrementally while you hold down the key.

Increases speaker volume incrementally while you hold down the key.

Mutes the microphone.

Mutes or restores speaker sound.

14 Chapter 2 Components

Turns the wireless feature on or o.

NOTE: A wireless network must be set up before a wireless connection is possible.

Icon Description

Turns the TouchPad and TouchPad light on and o.

Switches the screen image among display devices connected to the system. For example, if a monitor is connected to
the computer, repeatedly pressing the key alternates the screen image from computer display to monitor display to
simultaneous display on both the computer and monitor.

Initiates Sleep, which saves your information in system memory. The display and other system components turn o
and power is conserved. To exit Sleep, briey press the power button.

CAUTION: To reduce the risk of information loss, save your work before initiating Sleep.

Provides quick access to your Skype for Business calendar.

NOTE: This feature requires Skype® for Business or Lync® 2013 running on Microsoft Exchange or Oce 365®

servers.

Turns the screen sharing function on or o.

NOTE: This feature requires Skype for Business or Lync 2013 running on Microsoft Exchange or Oce 365 servers.

●

Answers a call.

●

Starts a call during a 1-on-1 chat.

●

Places a call on hold.

NOTE: This feature requires Skype for Business or Lync 2013 running on Microsoft Exchange or Oce 365 servers.

●

Ends a call.

●

Declines incoming calls.

●

Ends screen sharing.

NOTE: This feature requires Skype for Business or Lync 2013 running on Microsoft Exchange or Oce 365 servers.

NOTE: The action key feature is enabled at the factory. You can disable this feature by pressing and holding

the fn key and the left shift key. The fn lock light will turn on. After you have disabled the action key feature,
you can still perform each function by pressing the fn key in combination with the appropriate action key.

Hot keys (select products only)

A hot key is the combination of the fn key and another key.

To use a hot key:

▲

Press the fn key, and then press one of the keys listed in the following table.

Key Description

C Turns on scroll lock.

E Turns on the insert function.

R Breaks the operation.

S Sends a programing query.

W Pauses the operation.

Keyboard area 15

Bottom

Component Description

Vents Enable airow to cool internal components.

NOTE: The computer fan starts up automatically to cool internal components

and prevent overheating. It is normal for the internal fan to cycle on and o during
routine operation.

16 Chapter 2 Components

Labels

The labels axed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer. Labels may be in paper form or imprinted on the
product.

IMPORTANT: Check the following locations for the labels described in this section: the bottom of the

computer, inside the battery bay, under the service door, on the back of the display, or on the bottom of a
tablet kickstand.

●

Service label—Provides important information to identify your computer. When contacting support, you
may be asked for the serial number, the product number, or the model number. Locate this information
before you contact support.

Component

(1) Model number

(2) Serial number

(3) Part number

(4) Warranty period

●

Regulatory label(s)—Provide(s) regulatory information about the computer.

●

Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval
markings for the countries or regions in which the devices have been approved for use.

Labels 17

3 Illustrated parts catalog

Computer major components

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Labels on page 17 for details.

18 Chapter 3 Illustrated parts catalog

Item Component Spare part number

Display

NOTE: Displays are not spared as whole units. Display subcomponent spare parts are

available.

For spare part information, see Display assembly subcomponents on page 22.

(1) Touch screen Not spared

(2) Non-touch Not spared

(3) Keyboard

NOTE: For a detailed list of country codes, see Keyboard on page 43.

Backlit with pointing stick L09548-xx1

Backlit L09546-xx1

No backlight L09547-xx1

(4) Top cover

For use in models with a pointing stick L09559-001

For use in models without a pointing stick L09560-001

(5) USB board L09553-001

(6) Power button board (includes cable) L09552-001

(7) TouchPad button board L09541-001

(8) TouchPad L09561-001

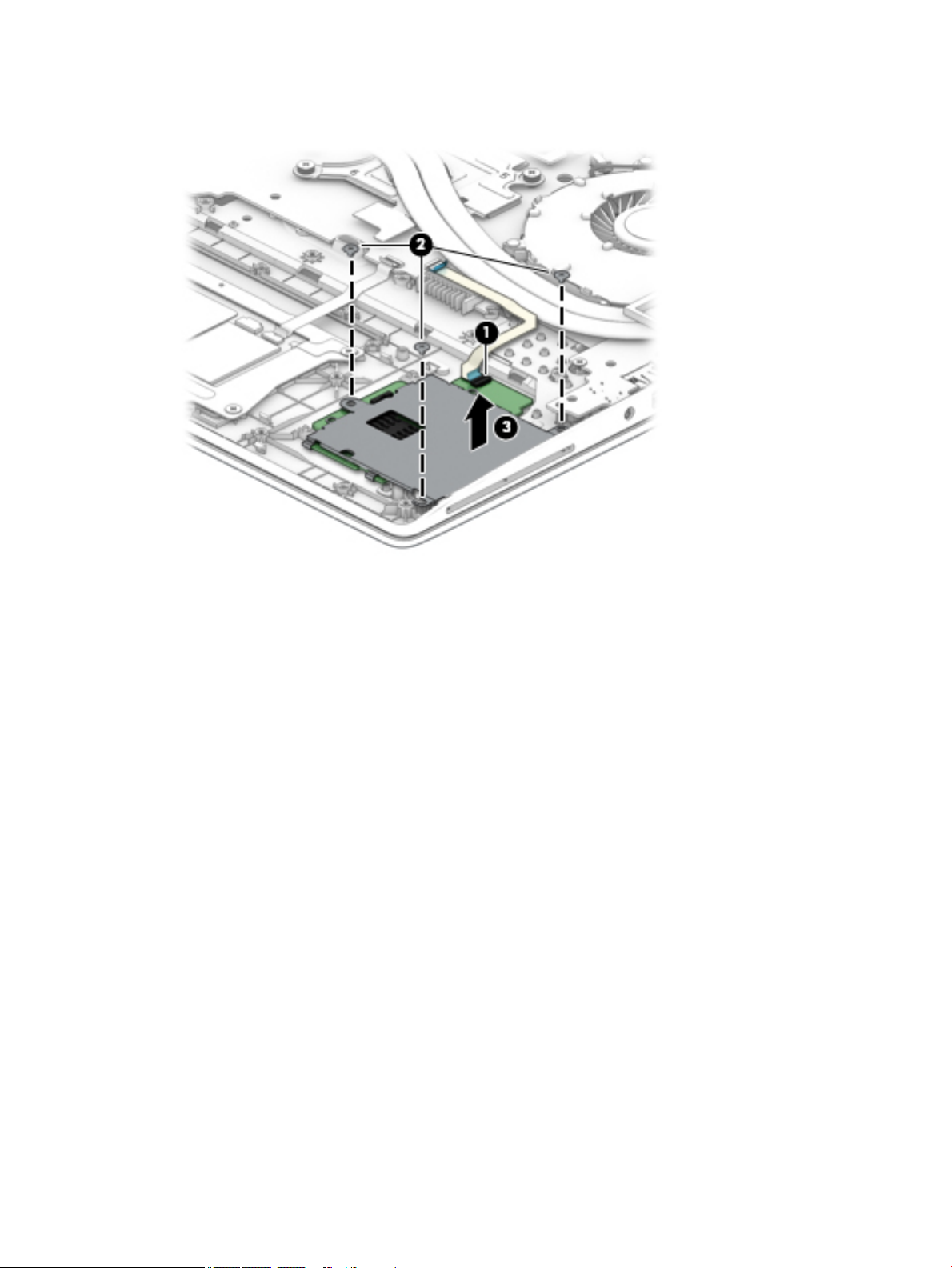

(9) Smart card reader board L09550-001

(10) Speaker (includes cable) L09558-001

(11) Fingerprint reader board (includes cable) L09538-001

(12) NFC module L09554-001

(13) Solid-state drive

NOTE: For spare part information, see Mass storage devices on page 24.

(14) Hard drive

NOTE: For spare part information, see Mass storage devices on page 24.

(15) Memory modules (2400 MHz DDR4)

16 GB 865396-850

8 GB 862398-850

4 GB 862397-850

(16) WWAN module

LTE CAT4: Huawei HP lt4132, LTE/HSPA+ with GPS 845710-003

LTE CAT9: Fibocom Intel XMM 7360 LTE - Advanced 917823-001

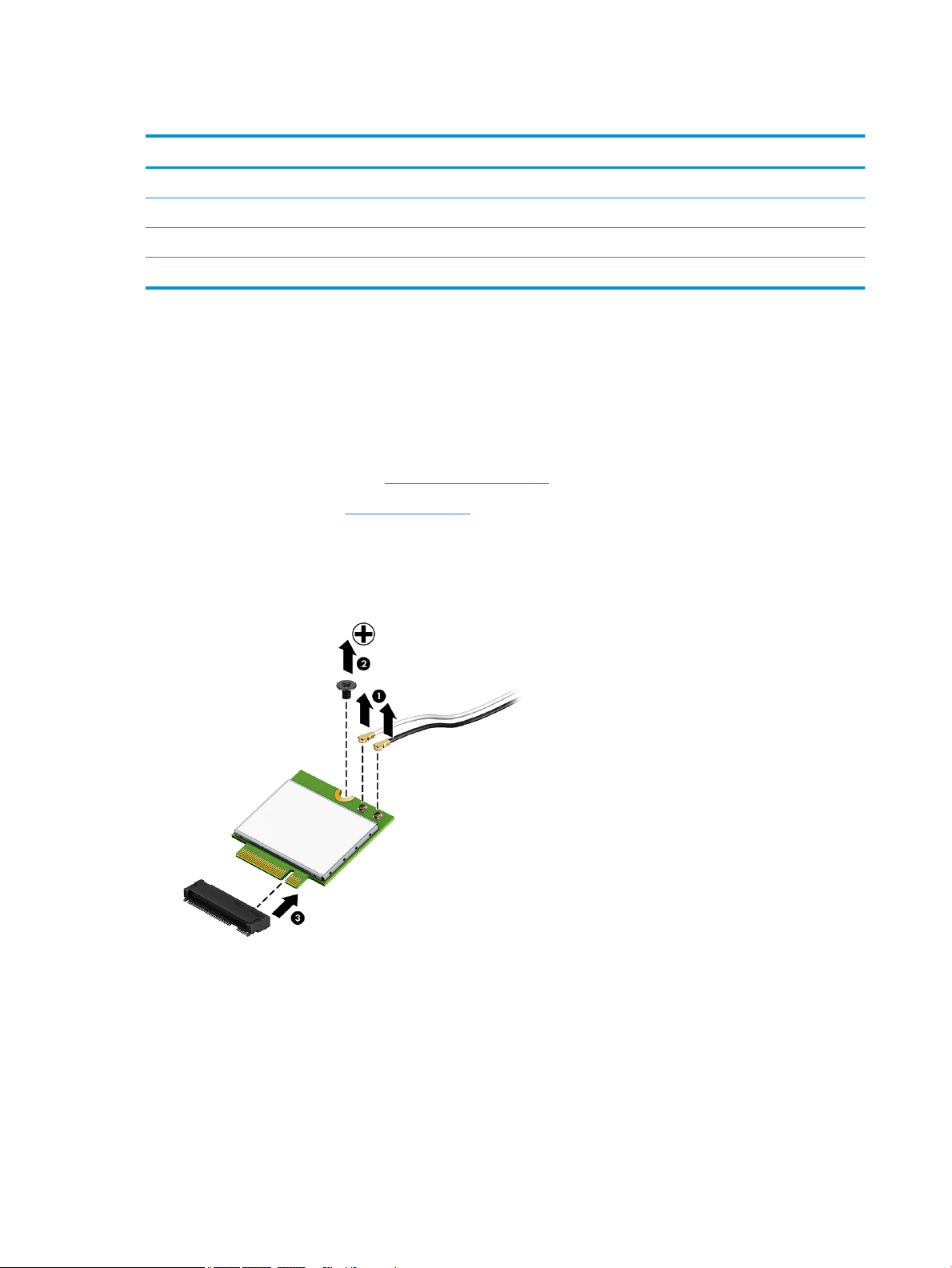

(17) WLAN module

Intel Dual Band Wireless-AC 3168 802.11ac 1x1 WiFi + BT4.2 Combo Adapter (non-vPro) 852511-001

Computer major components 19

Item Component Spare part number

Intel Dual Band Wireless-AC 8265 802.11ac 2x2 Wi-Fi + Bluetooth 4.2 Combo Adapter

(non-vPro)

Realtek RTL8822BE 802.11ac 2x2 Wi-Fi + Bluetooth 4.2 Combo Adapter 915623-001

Realtek RTL8821CE 802.11ac 1x1 Wi-Fi + Bluetooth 4.2 Combo Adapter 915621-001

(18) Fan L09535-001

(19) Heat sink L09537-001

(20) System board

NOTE: All system board spare part kits include replacement thermal material.

All system boards use the following part numbers:

xxxxxx-001: Non-Windows operating systems

xxxxxx-601: Windows operating system

AMD Ryzen 7 PRO 2700U L12802-xx1

AMD Ryzen 5 PRO 2500U L12801-xx1

AMD Ryzen 3 PRO 2300U L12800-xx1

(21) RTC battery (includes cable) 857798-001

(22) Battery (3-cell, 48 WHr, 4.212 Ahr) 931719-850

(23) Internal frame L09540-001

851594-001

(24) Bottom cover L23633-001

20 Chapter 3 Illustrated parts catalog

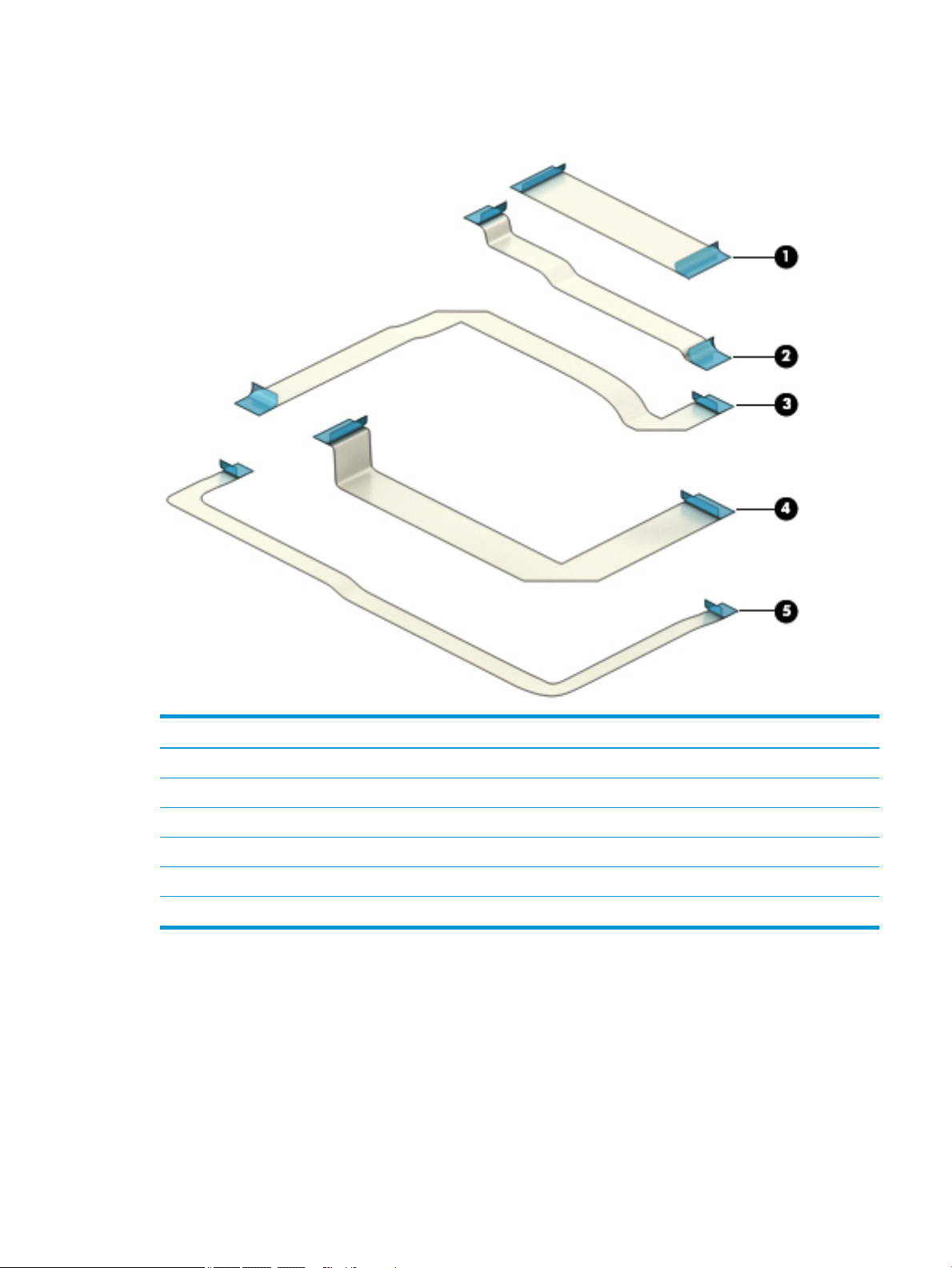

Cable Kit

Item Component Spare part number

Cable Kit L09534-001

(1) Pointing stick cable

(2) NFC module cable

(3) Smart card board cable

(4) TouchPad button board cable

(5) USB board cable

Cable Kit 21

Display assembly subcomponents

Item Component Spare part number

(1) Display bezel

For use with non-touch displays with a camera module L09530-001

For use with non-touch displays with a microphone module L09531-001

For use in touch screen models L19830-001

Camera shutter (for use in non-touch models; not illustrated) L09542-001

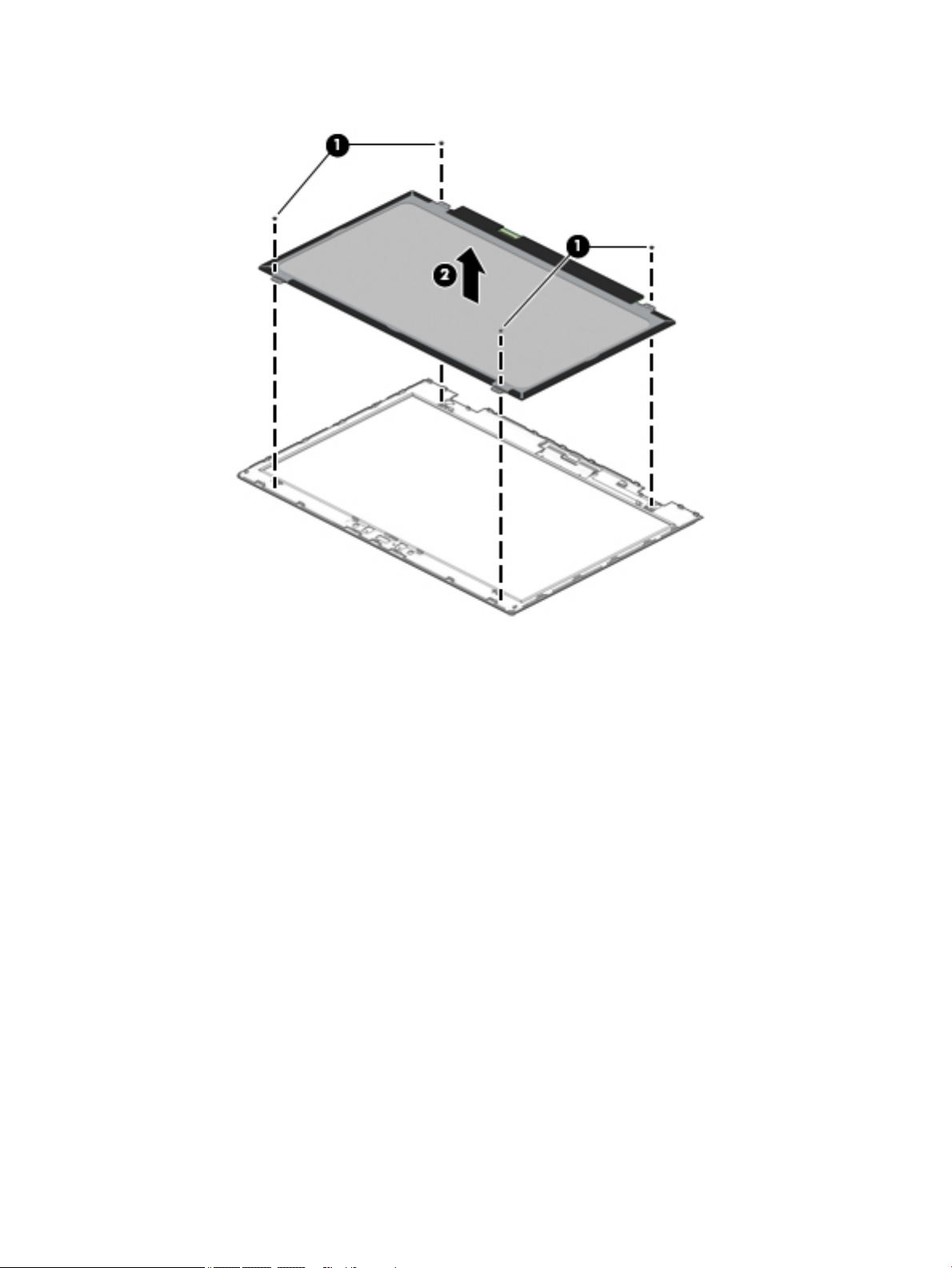

(2) Display panel

Non-touch, FHD L12814-001

Non-touch, HD L12813-001

Touch L18411-001

22 Chapter 3 Illustrated parts catalog

Item Component Spare part number

(3) Display cable

For use in non-touch models L09533-001

For use in touch models L19834-001

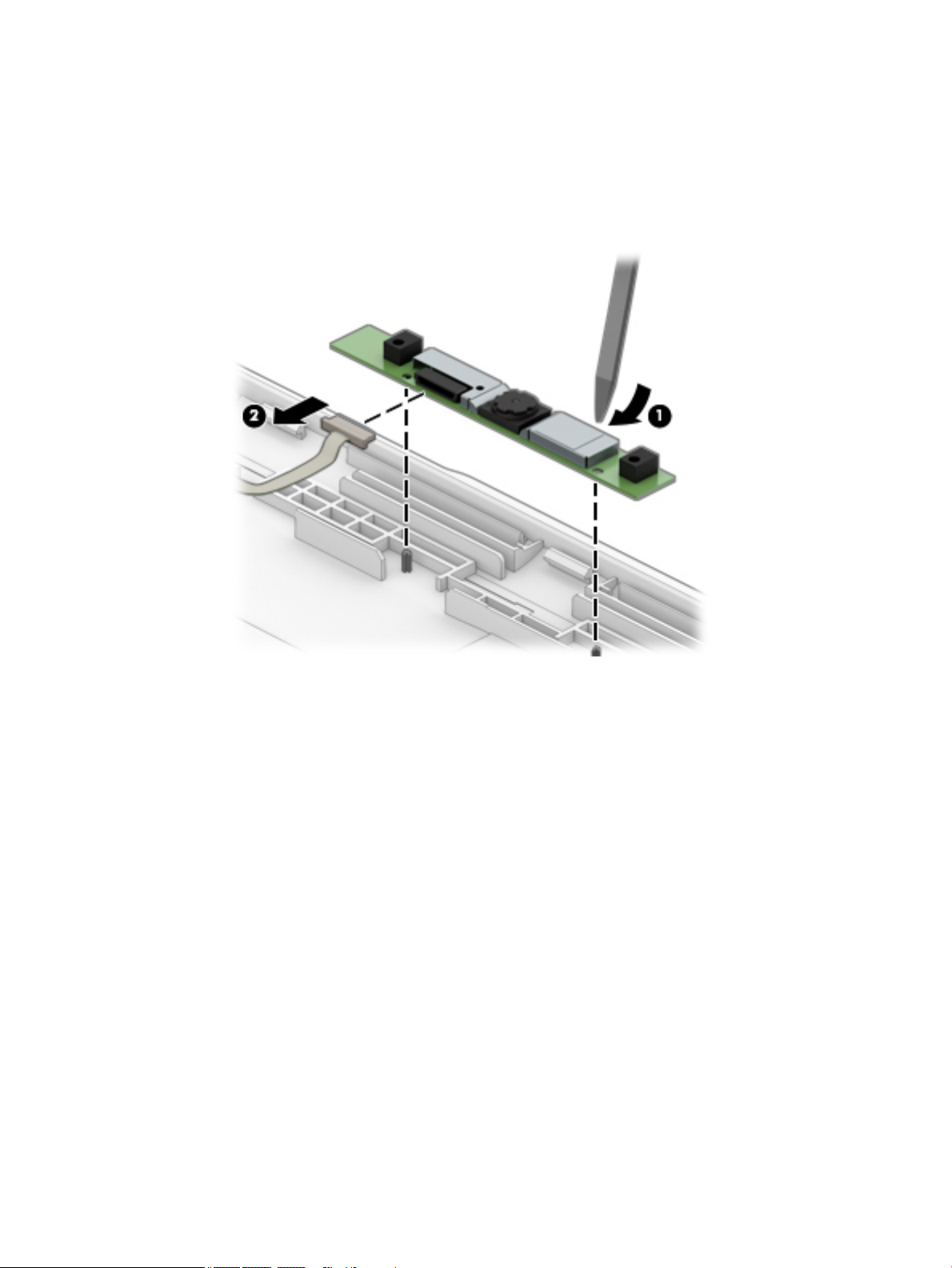

(4) Camera module L23432-001

Microphone module (not illustrated) L09551-001

(5) Hinge Kit (includes left and right hinges)

For use in non-touch models L09544-001

For use in touch models L23433-001

(6) Hinge covers (right and left) L09545-001

(7) WLAN antenna cable (included in Antenna Kit) L09523-001

(8) WWAN antenna cable (included in Antenna Kit) L09523-001

(9) Back cover

For use in non-touch models L09526-001

For use in touch models L19831-001

Plastics

Item Component Spare part number

Plastics Kit

(1) Smart card reader insert L09555-001

(2) Fingerprint reader insert (for use in models without a ngerprint reader) L09556-001

Plastics 23

Mass storage devices

Item Component Spare part number

(1) Hard drive

1 TB, 7200 rpm L06427-850

500 GB, 7200 rpm 703267-001

500 GB, 7200 rpm, FIPS 140-2 820572-001

(2) Hard drive cover (included in Bracket Kit) L09539-001

(3) Solid-state drive (M.2)

1 TB, PCle, NVMe, TLC L12805-001

512 GB, SATA-3, FIPS 140-2 L12810-001

512 GB, PCIe, NVMe, TLC L12811-001

360 GB, PCIe, NVMe, TLC L12809-001

256 GB, PCIe, NVMe, TLC, self-encrypting drive (SED), Opal 2 L12806-001

256 GB, PCIe, NVMe, TLC L12807-001

256 GB, PCIe, NVMe, value L12808-001

256 GB, SATA-3, self-encrypting drive (SED), Opal 2 L12803-001

128 GB, SATA-3, TLC L12804-001

24 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Component Spare part number

AC adapter

65 W AC adapter, nPFC, S-3P, 4.5 mm 710412-001

65 W AC adapter, nPFC, SMART, RC, 4.5 mm, EM 913691-850

45 W AC adapter, nPFC, SMART, RC, 4.5 mm, non-slim 741727-001

45 W AC adapter, nPFC, SMART, RC, 4.5 mm, 2P 742436-001

Power cord, C5, conventional, 1.0 m

For use in Argentina 931249-001

For use in Australia 923430-001

For use in Brazil 923430-002

For use in Denmark 923430-003

For use in Europe 923430-004

For use in India 923430-006

For use in Israel 923430-005

For use in Italy 923430-007

For use in Japan 931252-001

For use in North America 923430-008

For use in the People’s Republic of China 931251-001

For use in South Africa 923430-009

For use in South Korea 931250-001

For use in Switzerland 923430-010

For use in Thailand 923430-011

For use in Taiwan 923430-012

For use in the United Kingdom 923430-013

Power cord, C5, conventional, 1.8 m

For use in Argentina 931257-001

For use in Australia 931265-001

For use in Brazil 931258-001

For use in Denmark 931261-001

For use in Europe 931259-001

For use in India 931270-001

For use in Israel 931262-001

For use in Italy 931256-001

For use in Japan 931271-001

Miscellaneous parts 25

Component Spare part number

For use in North America 931255-001

For use in the People’s Republic of China 931268-001

For use in South Africa 931264-001

For use in South Korea 931267-001

For use in Switzerland 931263-001

For use in Thailand 931266-001

For use in Taiwan 931269-001

For use in the United Kingdom 931260-001

Power cord, C7, conventional, 1.0 m

For use in Japan 931325-001

Plastics

Smart card reader insert L09555-001

Fingerprint reader insert (for use in models without a ngerprint reader) L09556-001

Bracket Kit (includes ngerprint reader bracket, hard drive cover, and smart card bracket) L09539-001

Pointing stick covers (20 pieces) L15396-001

Screw Kit L09557-001

26 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Phillips P1 magnetic screwdriver

●

Plastic, non-marking pry tool

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying

screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care

when handling the plastic

Tools required 27

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the

reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.

Before removing an optical drive, be sure that a disc is not in the drive and be sure that the optical drive tray is
closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive or an optical drive, place it in a static-proof bag.

Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

28 Chapter 4 Removal and replacement procedures preliminary requirements

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity aects the electrostatic voltage levels generated by dierent
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl oor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from plastic foam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Grounding guidelines 29

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.

●

Use conductive eld service tools, such as cutters, screwdrivers, and vacuums.

●

When xtures must directly contact dissipative surfaces, use xtures made only of static safe materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and plastic
foam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn o power and input signals before inserting or removing connectors or test equipment.

30 Chapter 4 Removal and replacement procedures preliminary requirements

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.

●

When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be eective, the conductive equipment must be worn in contact
with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or oor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and oor mats.

Material Use Voltage protection level

Antistatic plastics Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Grounding guidelines 31

5 Removal and replacement procedures for

Customer Self-Repair parts

This chapter provides removal and replacement procedures for Customer Self-Repair parts.

NOTE: The Customer Self-Repair program is not available in all locations. Installing a part not supported by

the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer
Self-Repair is supported in your location.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Labels on page 17 for details.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

There are as many as 24 screws that must be removed, replaced, and/or loosened when servicing Customer
Self-Repair parts. Make special note of each screw size and location during removal and replacement.

32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Bottom cover

Description Spare part number

Bottom cover L23633-001

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

Remove the bottom cover:

1. Loosen the eight Phillips screws (1) that secure the cover to the computer.

2. Using a plastic tool, starting near a hinge under the display, pry the bottom cover up to remove it (2).

Component replacement procedures 33

Battery

Description Spare part number

Battery (3-cell, 48 WHr, 4.212 Ahr) 931719-850

Before removing the battery, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the bottom cover (see Bottom cover on page 33).

Remove the battery:

1. Loosen the six captive screws (1) that secure the battery to the computer.

2. Lift the top of the battery, and then remove it from the computer (2).

Reverse this procedure to install the battery.

34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Memory

Description Spare part number

Memory module, 16 GB 865396-850

Memory module, 8 GB 862398-850

Memory module, 4 GB 862397-850

Before removing the memory module, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the bottom cover (see Bottom cover on page 33).

5. Remove the battery (see Battery on page 34).

Remove the memory modules:

1. Spread the two retention clips outward (1) until the memory module tilts up at a 45-degree angle.

2. Grasp the edge of the memory module (2), and then gently pull the module out of the slot. Use the same

procedure to remove both memory modules.

CAUTION: To prevent damage to the memory module, hold the memory module by the edges only. Do

not touch the components on the memory module.

To protect a memory module after removal, place it in an electrostatic-safe container.

Install the memory modules:

Component replacement procedures 35

IMPORTANT: To prevent damage to the memory module, hold the memory module by the edges only. Do

not touch the components on the memory module. Do not bend the memory module.

1. Align the notched edge of the memory module with the tab in the memory module slot (1).

2. Press the module into the slot until seated (2).

3. Gently press down on the module edges until the side retention clips snap into place (3).

36 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Hard drive

Description Spare part number

Hard drive, 1 TB, 7200 rpm L06427-850

Hard drive, 500 GB, 7200 rpm 703267-001

Hard drive, 500 GB, 7200 rpm, FIPS 140-2 820572-001

Hard drive cover (included in Bracket Kit) L09539-001

Before removing the hard drive, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

4. Remove the bottom cover (see Bottom cover on page 33).

5. Remove the battery (see Battery on page 34).

Remove the hard drive:

1. Loosen the four captive Phillips screws (1) that secure the drive assembly to the computer.

unplugging the AC adapter from the computer.

2. Pull the plastic tab to disconnect the hard drive from the connector and remove the drive from the

computer (2).

Component replacement procedures 37

3. If it is necessary to disassemble the hard drive, remove the four Phillips M3.0×3.0 screws (1), and then

slide the drive out of the drive cover (2).

Reverse this procedure to reassemble and install the hard drive.

38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Solid-state drive

Description Spare part number

Solid-state drive, 1 TB, PCle, NVMe, TLC L12805-001

Solid-state drive, 512 GB, SATA-3, FIPS 140-2 L12810-001

Solid-state drive, 512 GB, PCIe, NVMe, TLC L12811-001

Solid-state drive, 360 GB, PCIe, NVMe, TLC L12809-001

Solid-state drive, 256 GB, PCIe, NVMe, TLC, self-encrypting drive (SED), Opal 2 L12806-001

Solid-state drive, 256 GB, PCIe, NVMe, TLC L12807-001

Solid-state drive, 256 GB, PCIe, NVMe, value L12808-001

Solid-state drive, 256 GB, SATA-3, self-encrypting drive (SED), Opal 2 L12803-001

Solid-state drive, 128 GB, SATA-3, TLC L12804-001

Before removing the solid-state drive, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the bottom cover (see Bottom cover on page 33).

5. Remove the battery (see Battery on page 34).

Remove the solid-state drive:

▲

Remove the Phillips M2.0×3.0 screw (1), and then pull the solid-state drive module from the socket (2).

Reverse this procedure to install the solid-state drive.

Component replacement procedures 39

6 Removal and replacement procedures for

Authorized Service Provider parts

This chapter provides removal and replacement procedures for Authorized Service Provider only parts.

CAUTION: Components described in this chapter should only be accessed by an authorized service provider.

Accessing these parts can damage the computer or void the warranty.

CAUTION: This computer does not have user-replaceable parts. Only HP authorized service providers should

perform the removal and replacement procedures described here. Accessing the internal part could damage
the computer or void the warranty.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Labels on page 17 for details.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

There are as many as 64 screws that must be removed, replaced, and/or loosened when servicing Authorized
Service Provider only parts. Make special note of each screw size and location during removal and
replacement.

WWAN module

Description Spare part number

LTE CAT4: Huawei HP lt4132, LTE/HSPA+ with GPS 845710-003

LTE CAT9: Fibocom Intel XMM 7360 LTE - Advanced 917823-001

Before removing the WWAN module, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the bottom cover (see Bottom cover on page 33).

5. Remove the battery (see Battery on page 34).

Remove the WWAN module:

1. Disconnect the two antenna cables from the module (1).

40 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

2. Remove the Phillips M2.0×3.0 screw (2), and then pull the module out of the socket (3).

Reverse this procedure to install the WWAN module.

Component replacement procedures 41

WLAN module

Description Spare part number

Intel Dual Band Wireless-AC 3168 802.11ac 1x1 WiFi + BT4.2 Combo Adapter (non-vPro) 852511-001

Intel Dual Band Wireless-AC 8265 802.11ac 2x2 Wi-Fi + Bluetooth 4.2 Combo Adapter (non-vPro) 851594-001

Realtek RTL8822BE 802.11ac 2x2 Wi-Fi + Bluetooth 4.2 Combo Adapter 915623-001

Realtek RTL8821CE 802.11ac 1x1 Wi-Fi + Bluetooth 4.2 Combo Adapter 915621-001

Before removing the WLAN, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the bottom cover (see Bottom cover on page 33).

5. Remove the battery (see Battery on page 34).

Remove the WLAN module:

1. Disconnect the two antenna cables from the module (1).

2. Remove the Phillips M2.0×3.0 screw (2), and then pull the module out of the socket (3).

Reverse this procedure to install the WLAN module.

42 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Keyboard

In this section, the rst table provides the main spare part numbers for the keyboard. The second table
provides the country codes.

Description Spare part number

Keyboard, backlit with pointing stick L09548-xx1

Keyboard, backlit L09546-xx1

Keyboard, no backlight L09547-xx1

Pointing stick cable (included in Cable Kit) L09534-001

For use in country or
region

Belgium -A41 India -D61 Saudi Arabia -171

Brazil -201 Israel -BB1 Slovenia -BA1

Bulgaria -261 Italy -061 South Korea -AD1

Canada -DB1 Japan -291 Spain -071

Czech Republic and
Slovakia

Denmark -081 The Netherlands -B31 Switzerland -BG1

France -051 Northern Africa -FP1 Taiwan -AB1

Germany -041 Norway -091 Thailand -281

Greece -151 Portugal -131 Turkey -141

Hungary -211 Romania -271 United Kingdom -031

Iceland -DD1 Russia -251 United States -001

Spare part
number

-FL1 Latin America -161 Sweden and Finland -B71

For use in country or
region

Spare part
number

For use in country or
region

Spare part
number

Before removing the keyboard, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the bottom cover (see Bottom cover on page 33).

5. Remove the battery (see Battery on page 34).

Remove the keyboard:

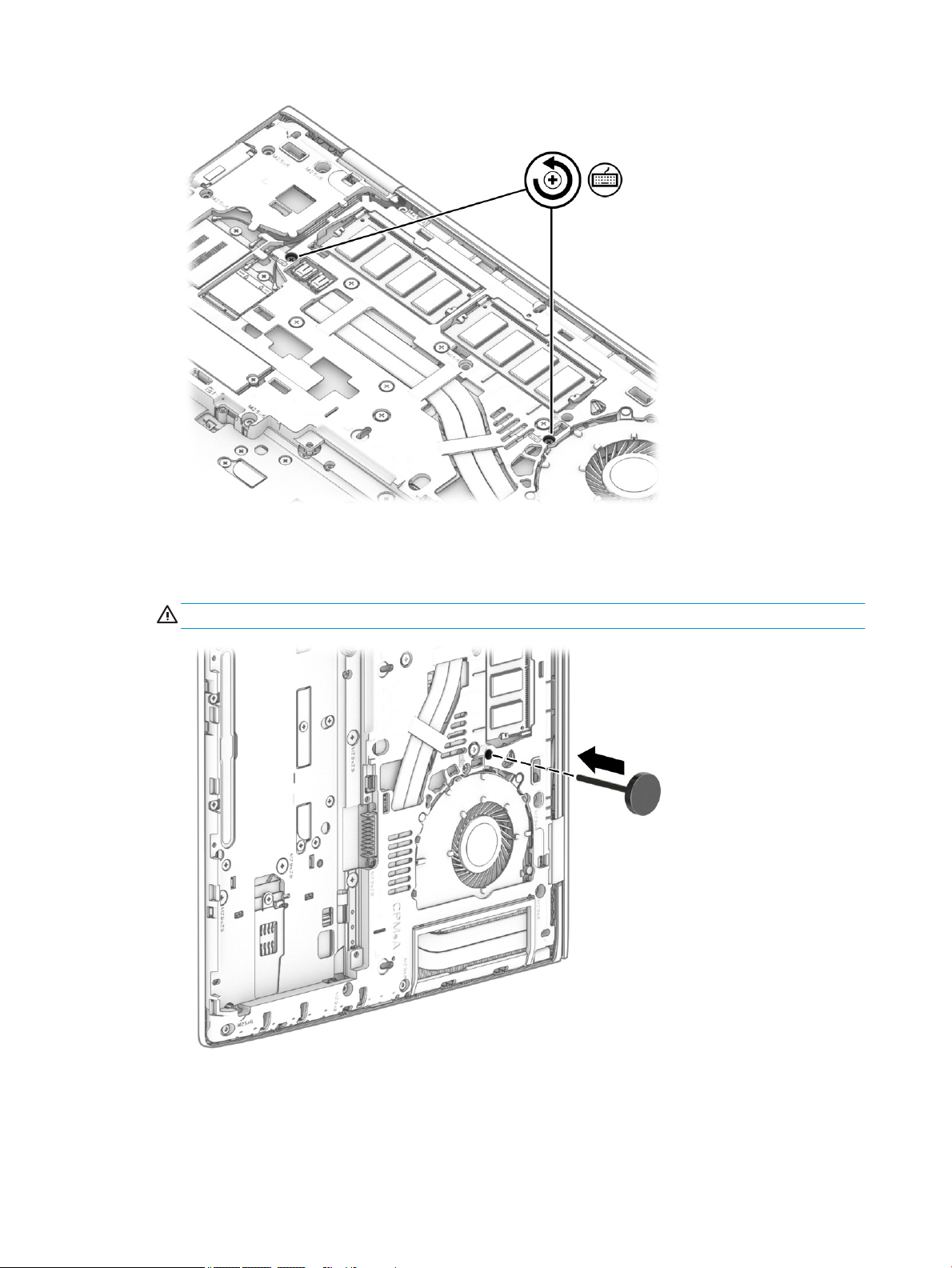

1. Loosen the two captive Phillips screws that secure the keyboard to the computer.

Component replacement procedures 43

2. Position the computer on its side and open so you can access the bottom.

3. Insert a blunt tool into the keyboard release opening near the fan, and then press gently on the back of

the keyboard until it disengages from the computer.

CAUTION: Press gently to avoid damaging the keyboard.

4. Position the computer upright and open the display as far as possible.

44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

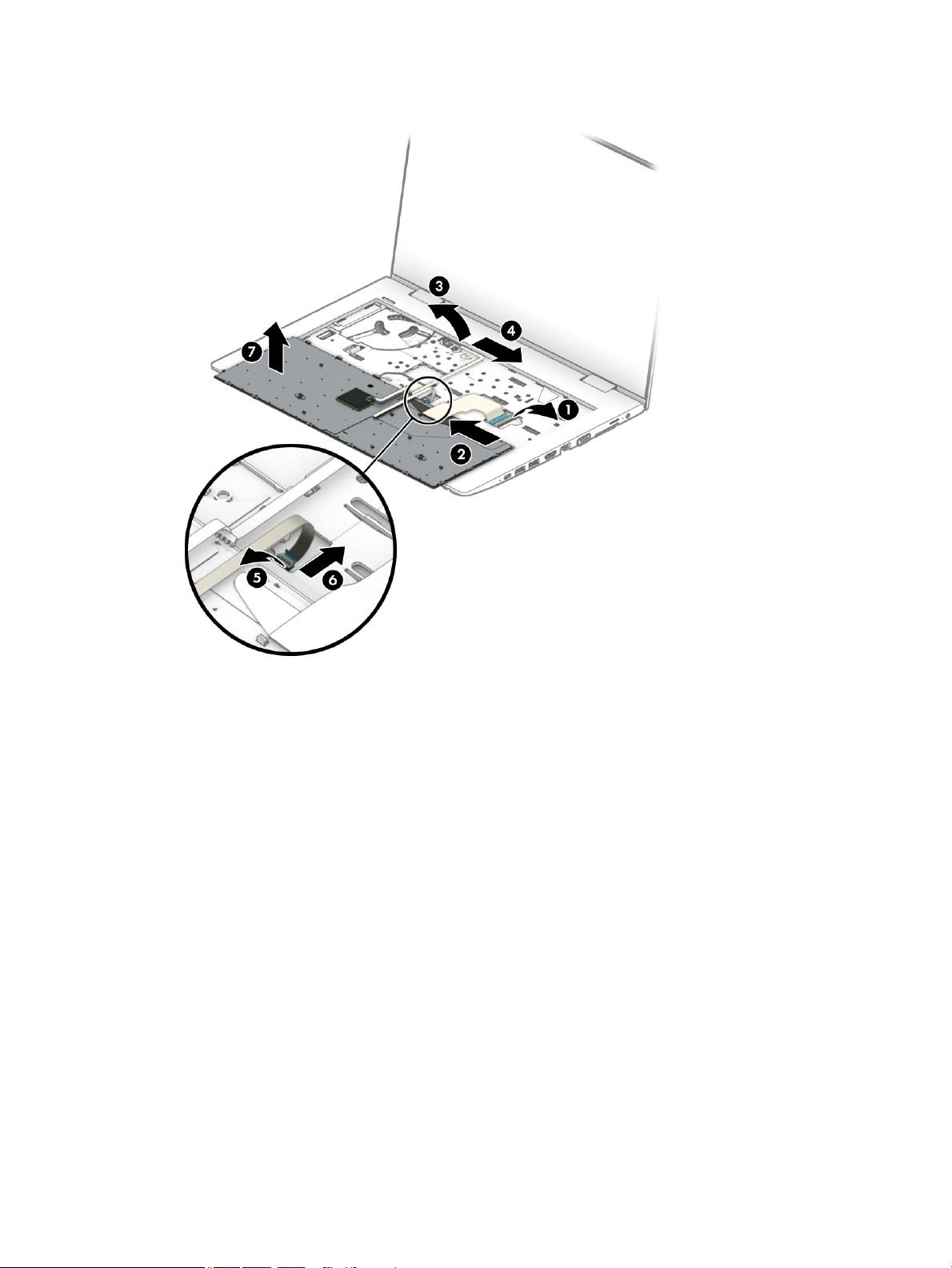

5. Press the keyboard downward slightly so you can disengage the top (1), and then lift and rotate the

keyboard up and over onto the palm rest (2).

6. Release and disconnect the following connectors and cables located underneath the installed keyboard:

●

Release the keyboard cable connector (1) and then remove the cable (2).

●

Release the pointing stick cable connector (3), and then remove the cable (4).

●

For products with a backlit keyboard, release the backlight cable connector (5) and then remove
the cable (6).

Component replacement procedures 45

7. Remove the keyboard from the computer (7).

Reverse this procedure to install the keyboard.

46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Internal frame

Description Spare part number

Internal frame L09540-001

Before removing the internal frame, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Keyboard (see Keyboard on page 43)

Remove the internal frame:

IMPORTANT: Make special note of each screw size and location during removal and replacement

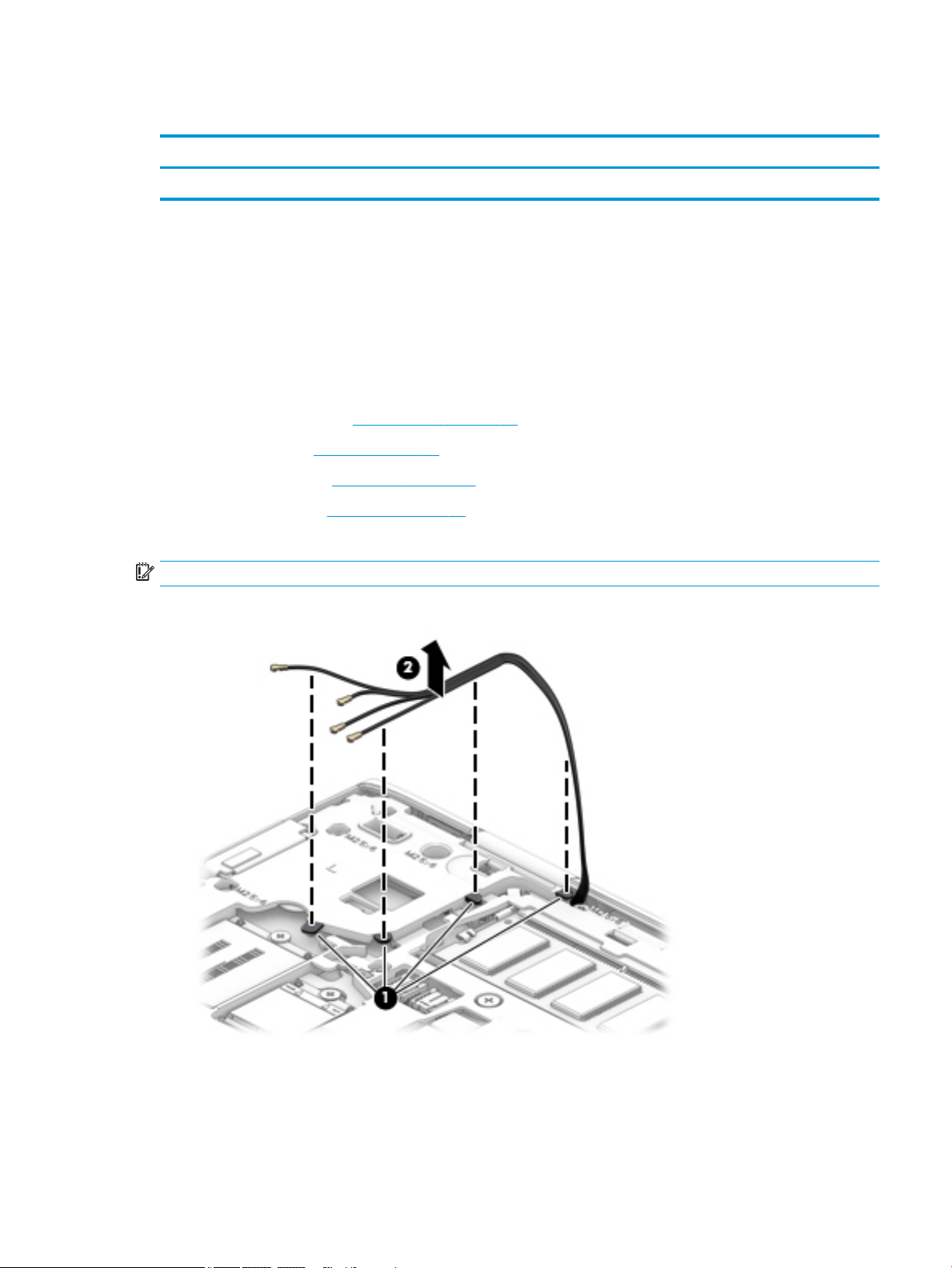

1. Remove the antenna cables from clips in the frame (1), and then remove the cables from the frame (2).

Component replacement procedures 47

2. Remove the 14 Torx T8M 2.5×6.0 screws that secure the frame to the computer.

3. Remove the following screws that secure the frame to the computer:

(1): Two Phillips M 2.0×2.5 screws

(2): Five broad head Phillips M2.5×2.5 screws

48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Remove the frame from the computer.

Reverse this procedure to install the internal frame.

Component replacement procedures 49

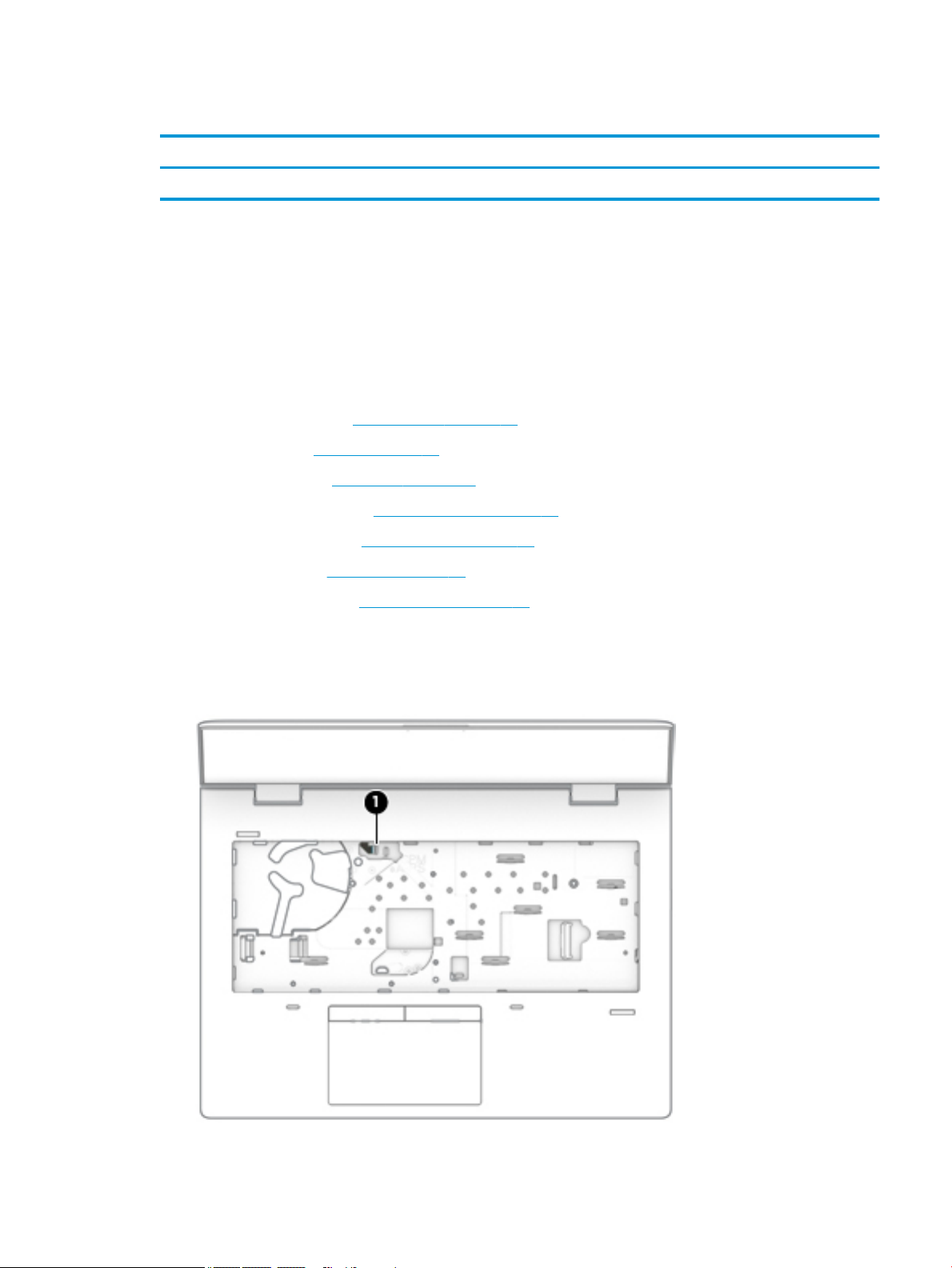

Fan

Description Spare part number

Fan L09535-001

Before removing the fan, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the fan:

1. Disconnect the fan cable from the system board (1).

2. Loosen the three captive Phillips screws that secure the fan to the computer (2).

3. Remove the fan from the computer (3).

50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Reverse this procedure to install the fan.

Heat sink assembly

Description Spare part number

Heat sink assembly L09537-001

Before removing the heat sink, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

To remove the heat sink assembly:

1. In the order indicated on the heat sink assembly, loosen the four captive Phillips screws that secure the

assembly to the computer (1).

Component replacement procedures 51

2. Lift the heat sink assembly from the computer (2).

52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

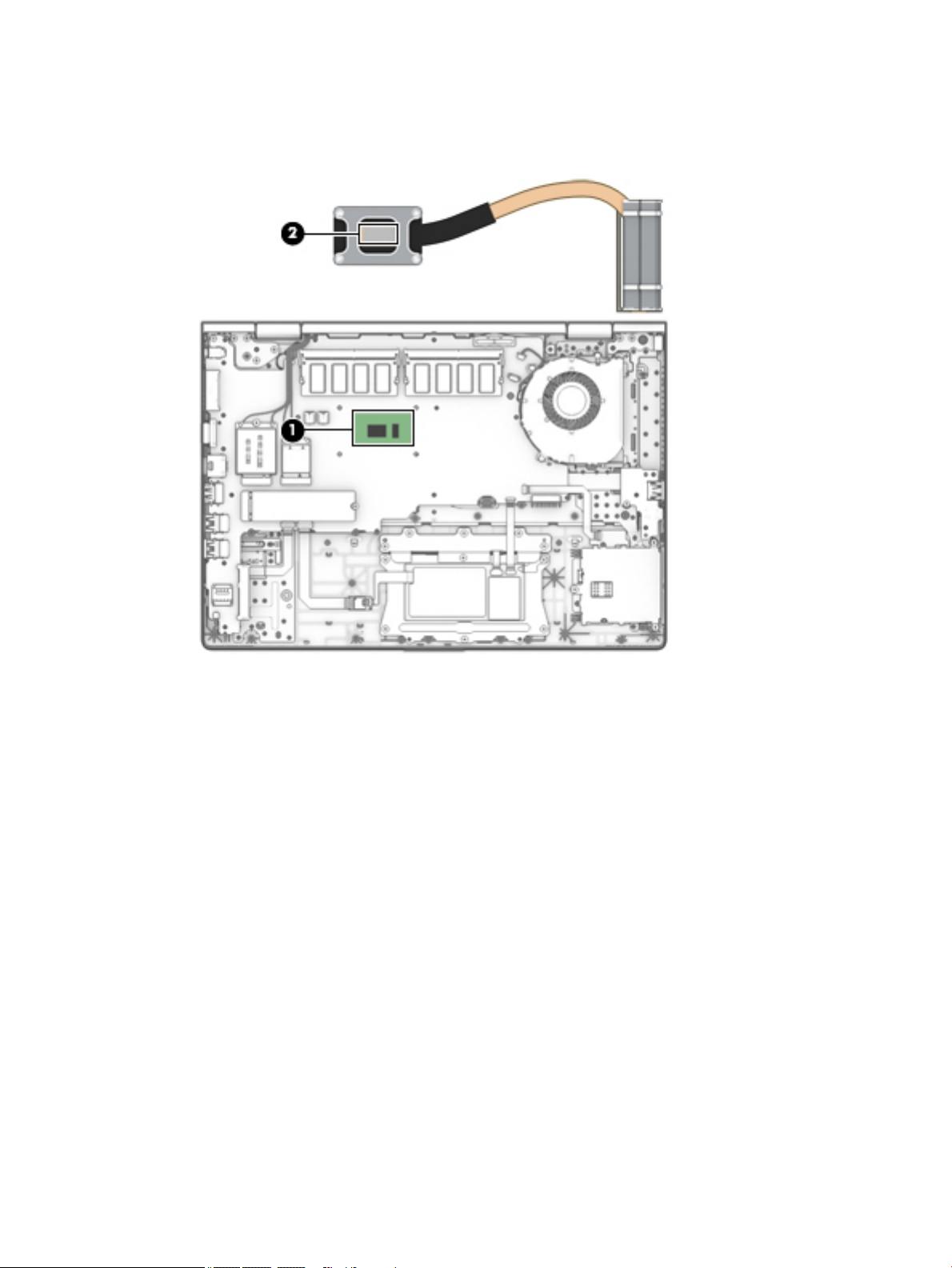

3. Thoroughly clean the thermal material from the surfaces of the system board components (1) and the

heat sink (2) each time the heat sink is removed. Replacement thermal material is included with the heat
sink and system board spare part kits.

Reverse this procedure to install the heat sink assembly.

Component replacement procedures 53

TouchPad button board

Description Spare part number

TouchPad button board L09541-001

TouchPad button board cable (included in Cable Kit) L09534-001

Before removing the TouchPad button board, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the TouchPad button board:

1. Disconnect the system board cable from the ZIF connector on the TouchPad (1).

2. Disconnect the TouchPad button board cable from the ZIF connector on the TouchPad (2).

54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

3. Remove the ve Phillips M2.0×2.0 screws (3), and then remove the TouchPad button board from the

computer (4).

Reverse this procedure to install the TouchPad button board.

Component replacement procedures 55

TouchPad

Before removing the TouchPad, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

4. Remove the following components:

Description Spare part number

TouchPad module for use in models with a pointing stick L09561-001

unplugging the AC adapter from the computer.

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

h. TouchPad button board (see TouchPad button board on page 54)

To remove the TouchPad:

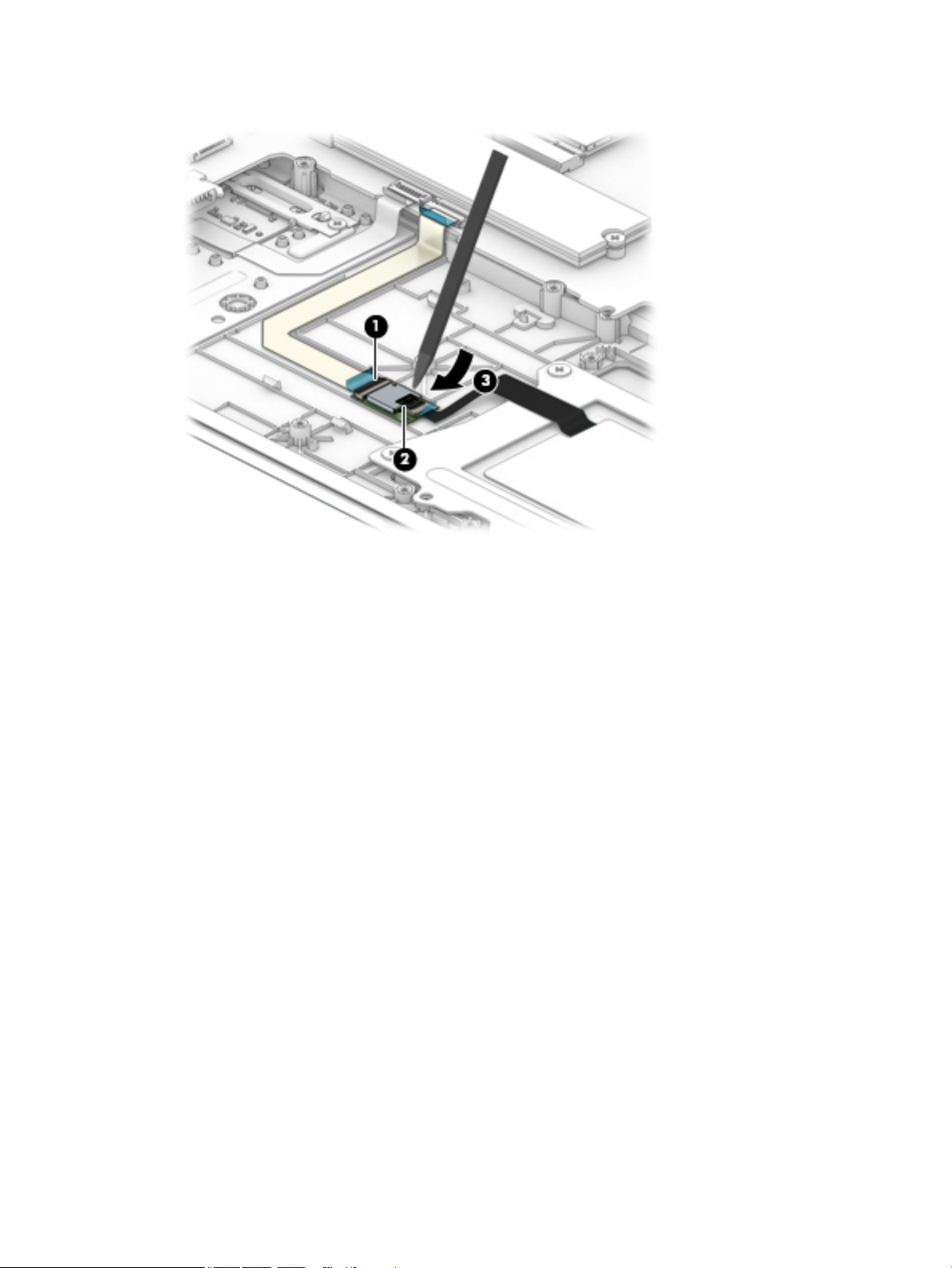

1. Disconnect the NFC antenna cable from the NFC module reverse ZIF connector (1)

2. Remove the ve Phillips M2.0×2.0 screws (2), and then remove the TouchPad (3).

Reverse this procedure to install the TouchPad.

56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Near Field Communication (NFC) module

Description Spare part number

NFC module L09554-001

NFC antenna L09524-001

NFC cable (included in Cable Kit) L09534-001

Before removing the NFC module, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the NFC module:

1. Disconnect the system board cable from the NFC module ZIF connector (1).

2. Disconnect the NFC antenna cable (that connects to the TouchPad) from the NFC module reverse ZIF

connector (2).

Component replacement procedures 57

3. Use a tool to disengage the NFC module from the computer (3).

Reverse this procedure to replace the NFC module.

58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Smart card reader

Description Spare part number

Smart card reader board L09550-001

Smart card reader bracket (included in Bracket Kit) L09539-001

Smart card reader cable (included in Cable Kit) L09534-001

Before removing the smart card reader, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the smart card reader:

1. Disconnect the system board cable from the smart card reader board ZIF connector (1).

Component replacement procedures 59

2. Remove the three Phillips M2.0×2.5 screws (2), and then remove the smart card reader board from the

computer (3).

Reverse this procedure to install the smart card reader.

60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

USB board

Description Spare part number

USB board L09553-001

USB board cable (included in Cable Kit) L09534-001

Before removing the USB board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

computer on, and then shut it down through the operating system.

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the USB board:

1. Position the computer upright and open as far as possible.

Component replacement procedures 61

2. Disconnect the USB board cable from the system board (1).

3. Position the computer upside down.

4. Remove the Phillips M2.0×3.0 screw (2), and then remove the board from the computer (3).

Reverse this procedure to replace the USB board.

62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power button board

Description Spare part number

Power button board (includes cable) L09552-001

Before removing the power button board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the power button board:

1. Position the computer upright and open as far as possible.

2. Disconnect the power button board cable from the system board (1).

Component replacement procedures 63

3. Position the computer upside down.

4. Lift the cable up to disengage it from the adhesive that secures it to the chassis (2).

5. Remove the Phillips M2.0×3.0 screw (3) that secures the board to the computer.

6. Remove the board and cable from the computer (4).

Reverse this procedure to install the power button board.

64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

System board

NOTE: All system board spare part kits include replacement thermal material.

All system boards use the following part numbers:

xxxxxx-001: Non-Windows operating systems

xxxxxx-601: Windows operating system

Description Spare part number

System board with integrated AMD Ryzen 7 PRO 2700U mobile processor L12802-xx1

System board with integrated AMD Ryzen 5 PRO 2500U mobile processor L12801-xx1

System board with integrated AMD Ryzen 3 PRO 2300U mobile processor L12800-xx1

Before removing the system board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WLAN module on page 42)

f. WLAN module (see WWAN module on page 40)

g. Memory modules (see Memory on page 35)

h. Keyboard (see Keyboard on page 43)

i. Internal frame (see Internal frame on page 47)

Remove the system board:

IMPORTANT: Make special note of each screw size and location during removal and replacement

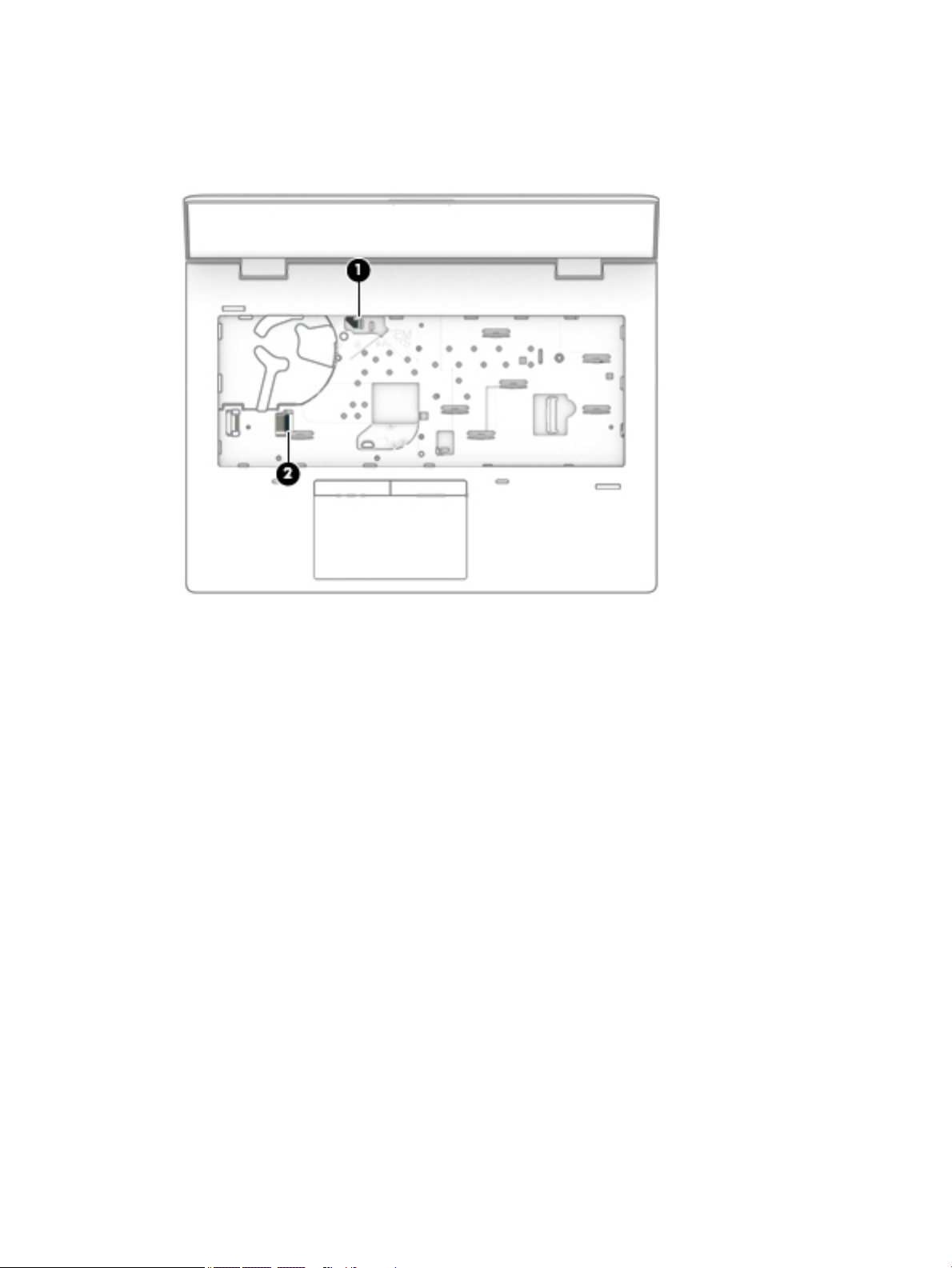

1. Position the computer upright and open.

Component replacement procedures 65

2. Disconnect the following cables from the system board:

(1): Power button board cable

(2): USB cable

3. Position the computer upside down.

66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Disconnect the following cables from the system board:

(1): Display cable

(2): Smart card reader cable

(3): TouchPad cable

(4): NFC module cable

(5): Fingerprint reader board cable

5. Remove the Phillips M2.0×3.0 screw (1), and then loosen captive Phillips screw (2) on the fan.

Component replacement procedures 67

6. Lift the right side of the system board (1), and then pull it to the right to remove it from the computer

(2).

Reverse this procedure to install the system board.

68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

RTC battery

Description Spare part number

RTC battery 857798-001

Before removing the RTC battery, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

computer on, and then shut it down through the operating system.

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

h. System board (see System board on page 65)

To remove the RTC battery:

▲

Disconnect the RTC battery cable from the system board (1), and then pry the RTC battery from the
system board (2).

Reverse this procedure to install the RTC battery.

Component replacement procedures 69

Speaker

Description Spare part number

Speaker Kit L09558-001

Before removing the speaker, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

h. System board (see System board on page 65)

Remove the speaker:

1. Remove the two Phillips M2.5×3.0 screws (1) that secure the speaker to the computer.

2. Lift the speaker assembly up enough to access and remove the antenna cables connected to it (2), and

then remove the speaker from the computer (3).

Reverse this procedure to install the speaker.

70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Fingerprint reader assembly

Description Spare part number

Fingerprint reader assembly (includes cable) L09538-001

Fingerprint reader bracket (included in Bracket Kit) L09539-001

Before removing the ngerprint reader assembly, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

h. System board (see System board on page 65)

Remove the ngerprint reader assembly:

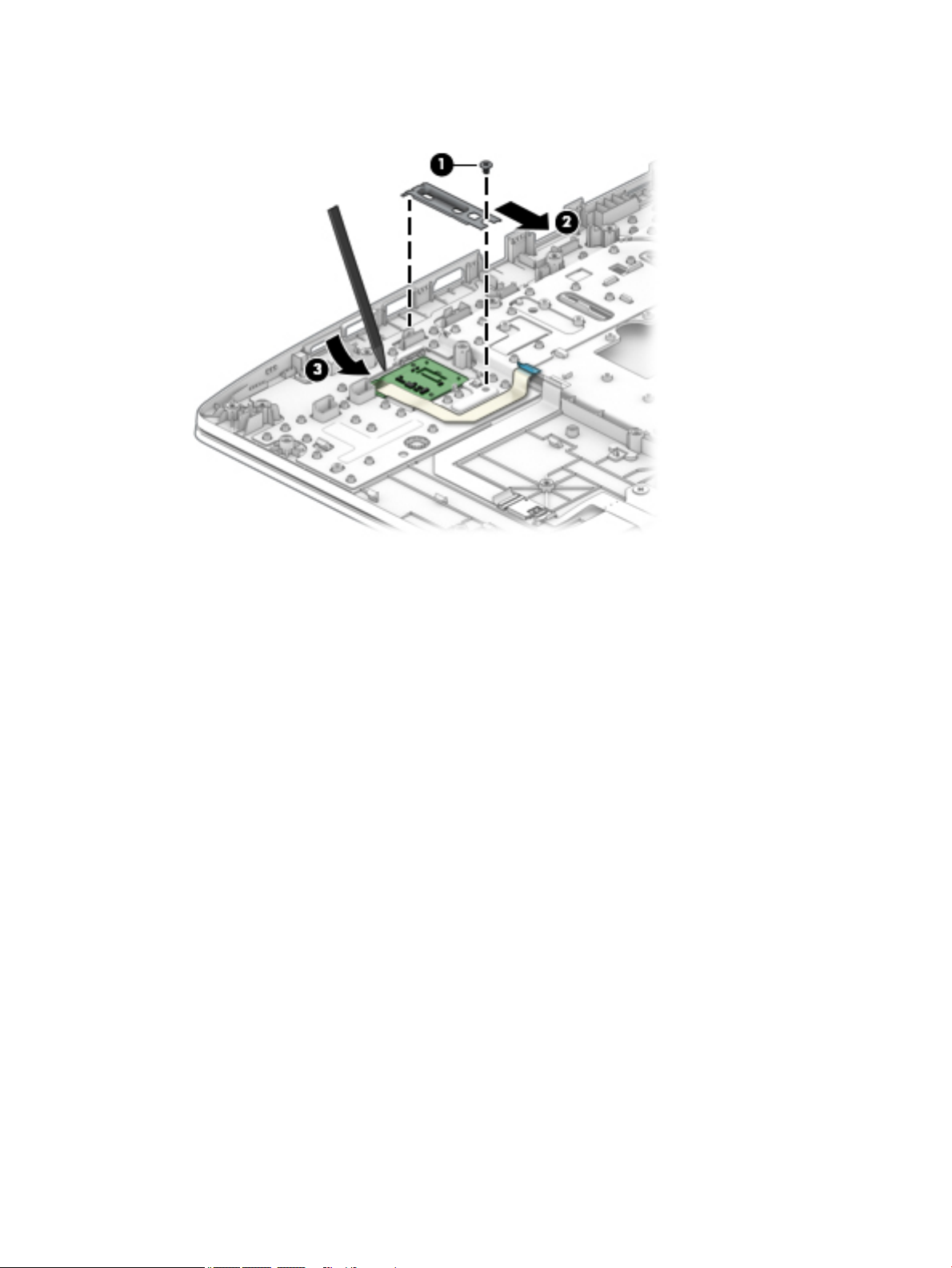

1. Remove the Phillips M2.0×2.0 screw (1) from the ngerprint reader bracket.

2. Slide the bracket toward the right, and then lift the right side up and pull the bracket toward the right

and o the ngerprint reader board (2).

Component replacement procedures 71

3. Use a tool to disengage the ngerprint reader board from the computer (3).

Reverse this procedure to install the ngerprint reader assembly.

72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Display assembly

Full hinge-up displays are not spared. Displays are spared only at the subcomponent level.

Before removing the display panel, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the following components:

a. Bottom cover (see Bottom cover on page 33)

b. Battery (see Battery on page 34)

c. Hard drive (see Hard drive on page 37)

d. Solid-state drive (see Solid-state drive on page 39)

e. WWAN module (see WWAN module on page 40)

f. Keyboard (see Keyboard on page 43)

g. Internal frame (see Internal frame on page 47)

Remove the display assembly:

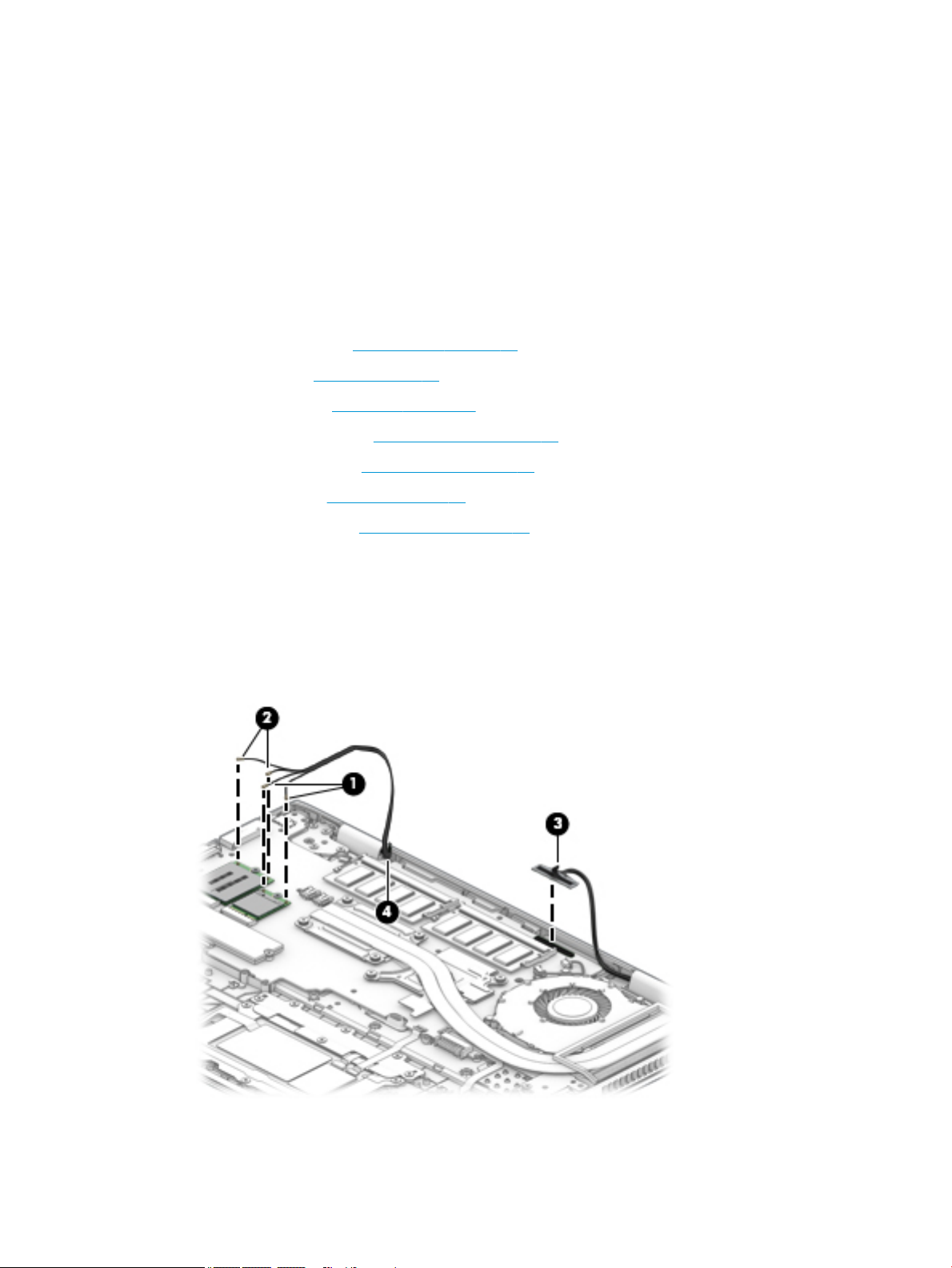

1. Disconnect the antenna cables from the WLAN module (1) and the WWAN module (2) (select models

only).

2. Disconnect the display cable from the system board (3).

3. Remove the antenna cables from the clips in the speaker (4).

4. Rotate the display to open the hinges as far as possible (about 145 degrees) (1).

Component replacement procedures 73

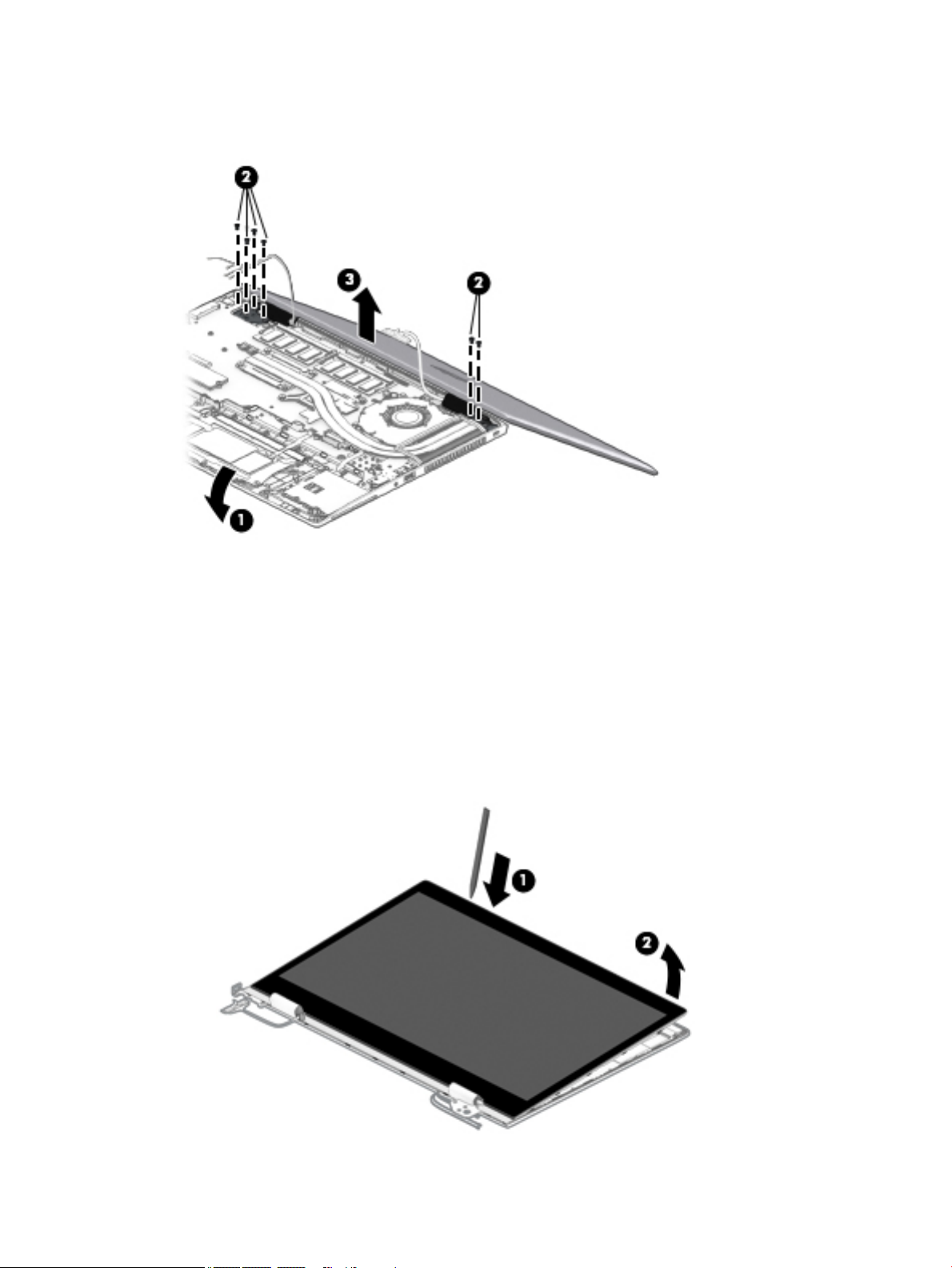

5. Remove the six Phillips M2.5×5.0 screws (2) from the display hinges.

6. Pull the display away from the computer (3).

Remove the display assembly components:

1. If it is necessary to replace the display bezel:

a. Use a non-marking tool to separate the display from the display cover (1).

b. Rotate the display over and place it next to the display cover (2).

Display bezels are available using the following spare part numbers:

– Non-touch displays with camera module: L09530-001

– Non-touch displays with microphone module: L09531-001

– Touch displays: L19830-001

74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

2. If it is necessary to replace the camera or microphone module:

a. Use a tool to detach the camera (1) from the display cover.

b. Disconnect the cable (2) from the camera.

The camera module is available using spare part number L23432-001.

The microphone module is available using spare part number L09551-001.

3. If it is necessary to replace the display panel:

a. Lift the tape on the main connector (1).

b. Squeeze both sides of main connector on the panel, and then pull the cable from the connector (2).

Component replacement procedures 75

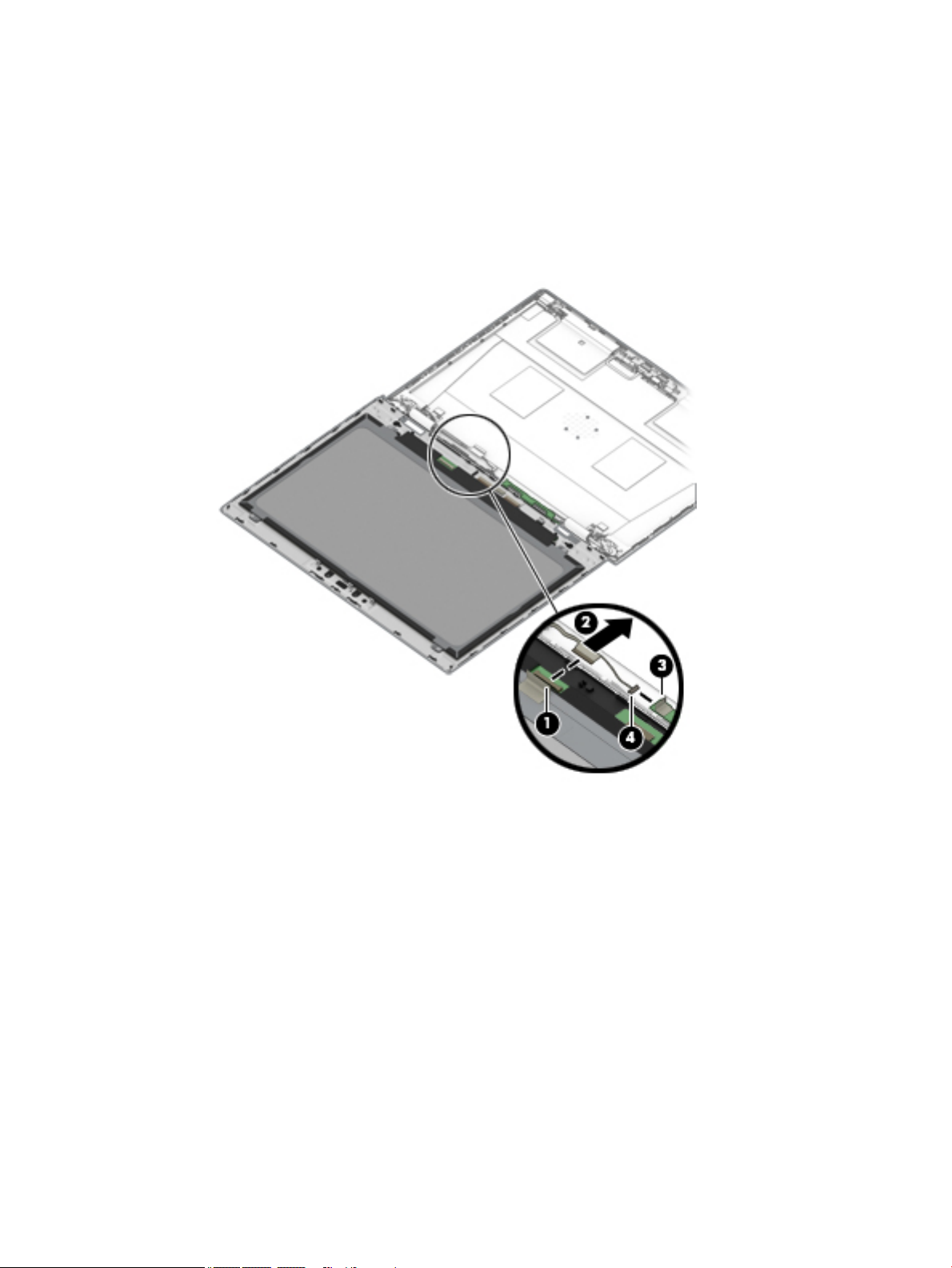

c. (Touch models only) Lift the tape on the touch board connector (3), and then pull the cable from

the connector (4).

Raw display panels are available using the following spare part numbers:

– Non-touch, FHD: L12814-001

– Non-touch, HD: L12813-001

– Touch, FHD: L18411-001

d. Remove the four Phillips M2.0×1.6 screws (1) that secure the display panel to the display cover.

76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

e. Lift the panel from the display cover (2).

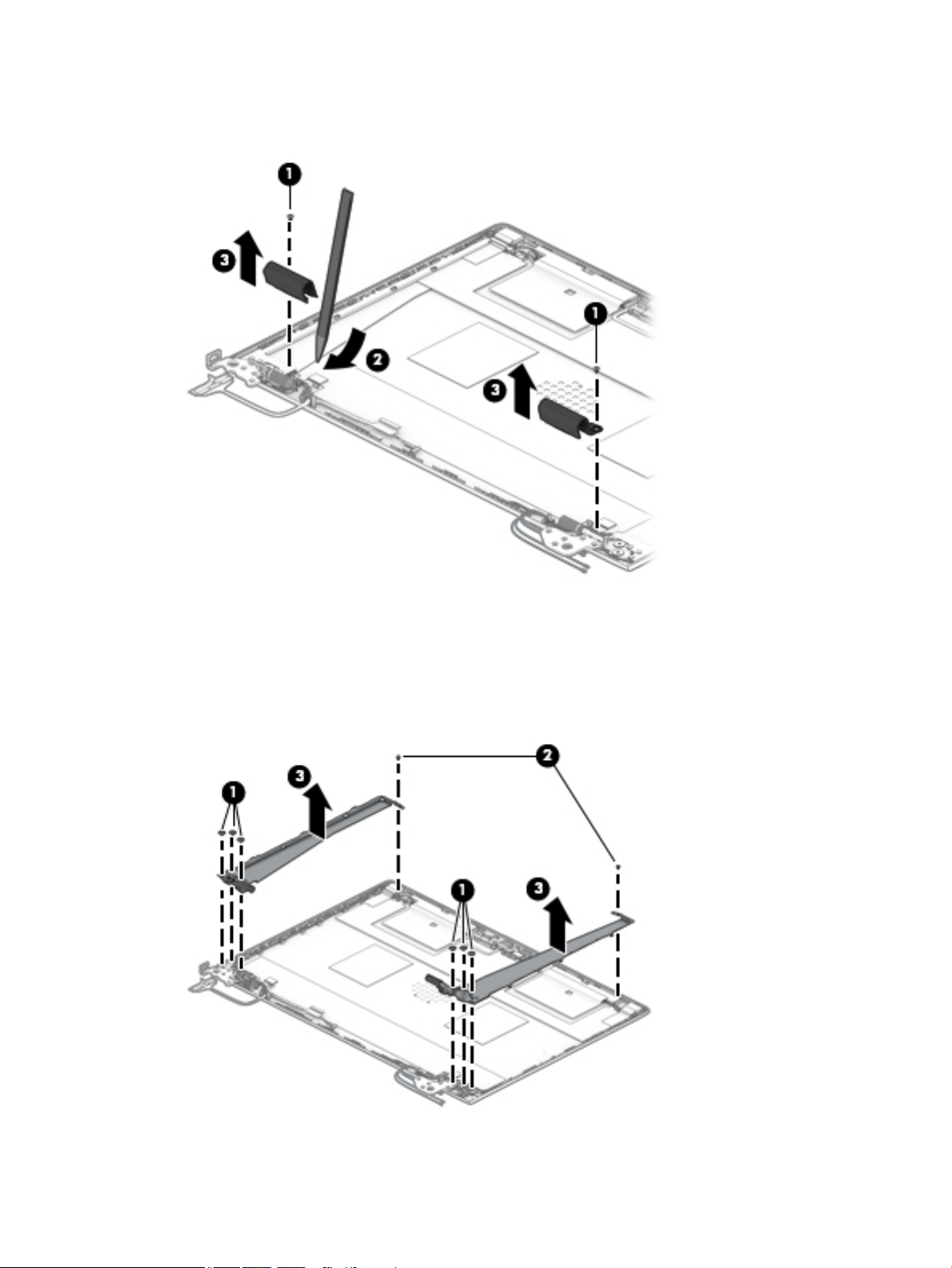

4. If it is necessary remove the hinge covers, remove the Phillips M2.0×3.0 screw from each hinge cover (1).

5. Use a thin tool to pry up at the seam under each hinge cover, between the hinge cover and bottom of the

display cover (2).

Component replacement procedures 77

6. Remove the hinge covers from the display cover (3).

Display hinge covers are available using spare part number L09545-001.

7. If it is necessary to replace the hinge brackets, remove the three Phillips M2.5×3.0 screws from the

bottom of each hinge (1) and the Phillips M2.0×3.0 screw from the top of each hinge (2).

8. Remove the hinges from the display cover (3).

Display hinges are available using spare part number L09544-001 for non-touch models or L23433-001
for touch models.

78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

9. If it is necessary to replace the WLAN antenna cables, note the proper cable routing through the right

hinge (1).

10. Peel the antennas from the top of the display cover (2), and then remove the WLAN antenna cables from

the channels along the sides of the display cover (3).

11. Remove the antenna cables from the display cover (4).

WLAN antennas are available in the Antenna Kit using spare part number L09523-001.

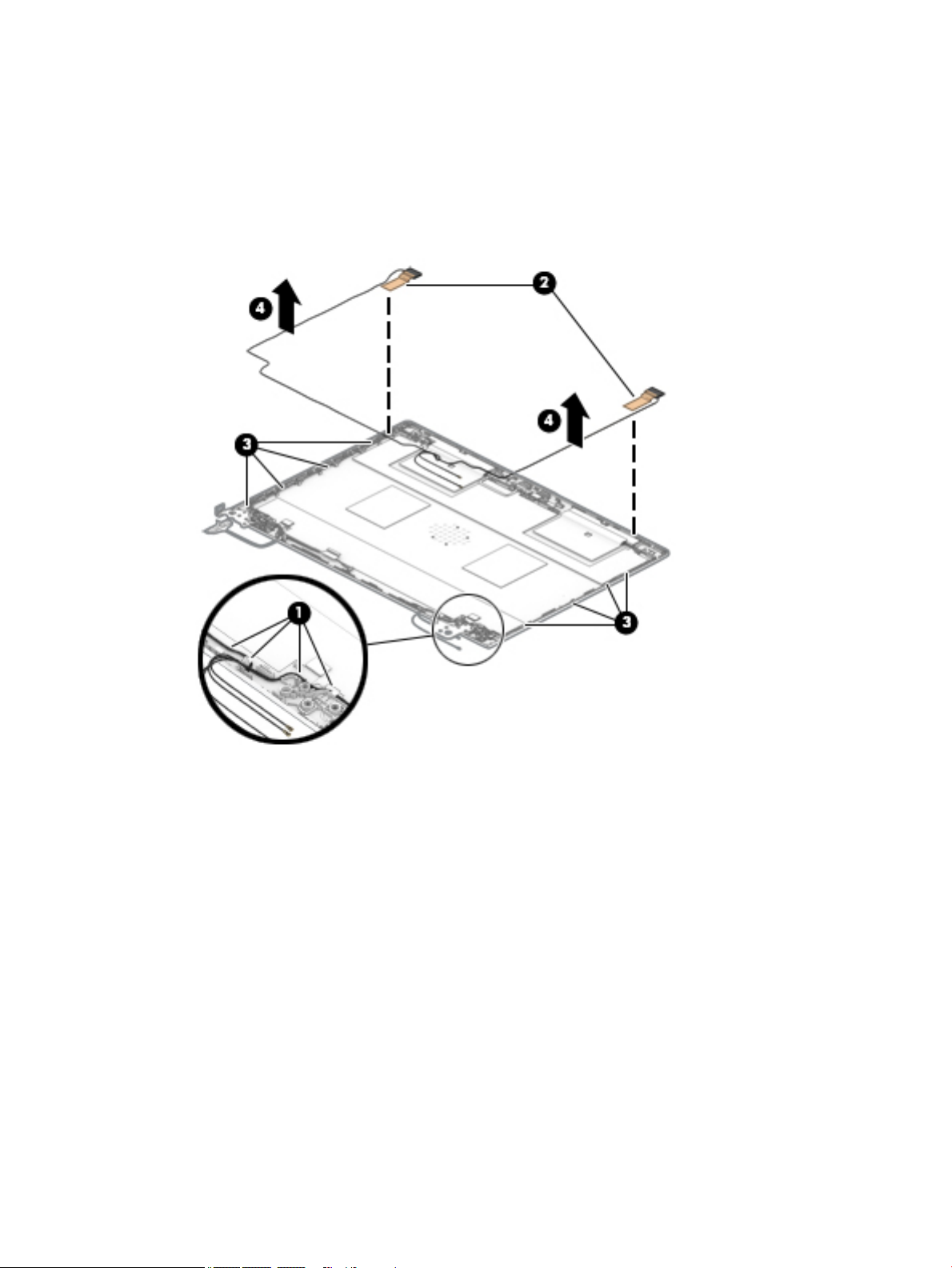

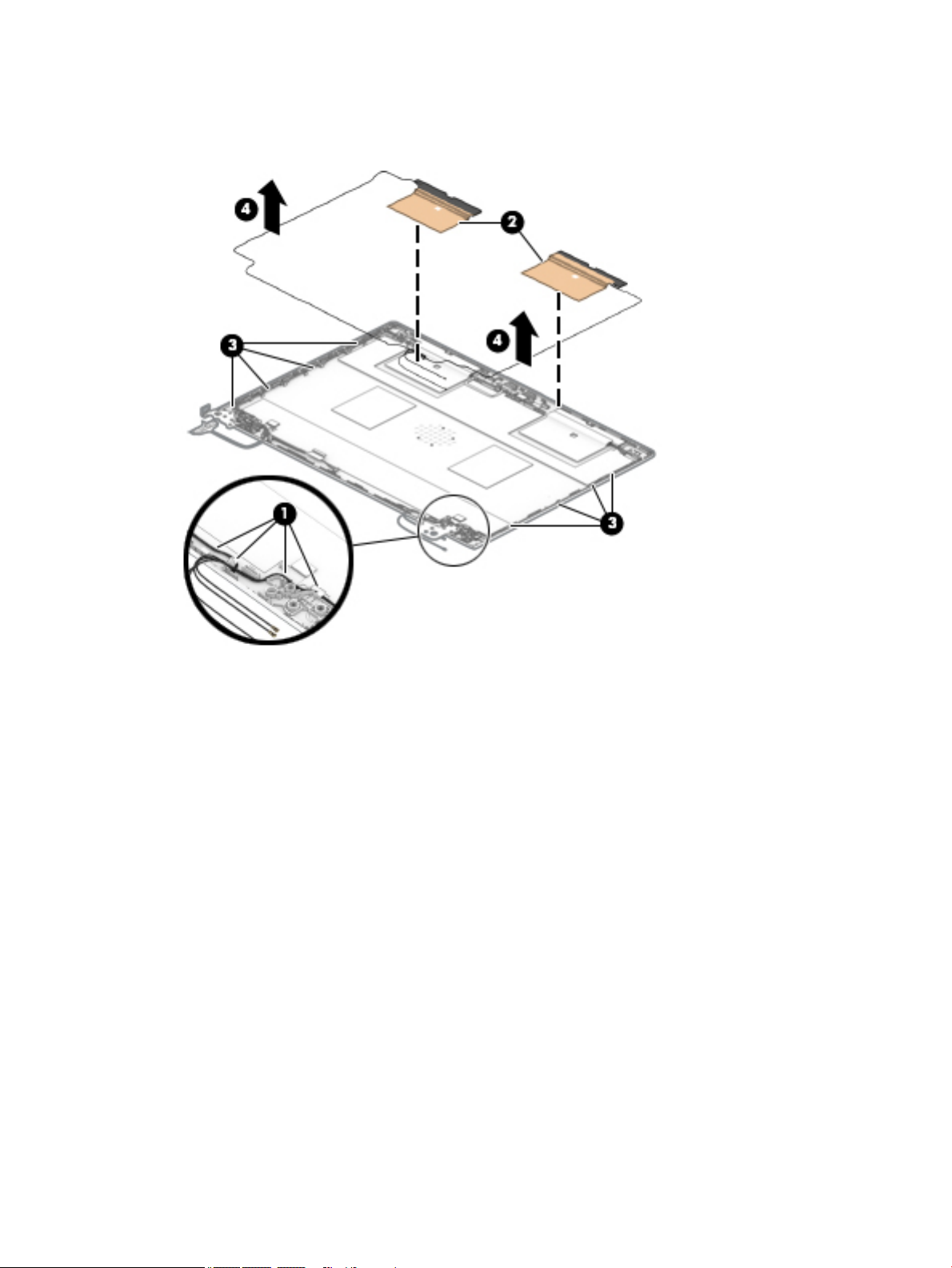

12. If it is necessary to replace the WWAN antenna cables, note the proper cable routing through the right

hinge (1).

13. Peel the antennas from the top of the display cover (2), and then remove the WWAN antenna cables

from the channels along the sides of the display cover (3).

Component replacement procedures 79

14. Remove the antenna cables from the display cover (4).

WWAN antennas are available in the Antenna Kit using spare part number L09523-001.

The display rear cover is available using spare part number L09526-001 for non-touch models or L19831-001
for touch models.

The display cable is available using spare part number L09533-001 for non-touch models or L19834-001 for
touch models.

Reverse these procedures to reassemble and install the display assembly components.

80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

7 Computer Setup (BIOS), TPM, and HP Sure

Start

Using Computer Setup

Computer Setup, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Computer Setup
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.

NOTE: Use extreme care when making changes in Computer Setup. Errors can prevent the computer from

operating properly.

Starting Computer Setup

▲

Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.

Using a USB keyboard or USB mouse to start Computer Setup (BIOS)

You can start Computer Setup by using a keyboard or mouse connected to a USB port, but you must rst
disable FastBoot.

1. Turn on or restart the computer, and when the HP logo appears, press f9 to enter the Boot Device

Options menu.

2. Clear the check box for Fast Boot.

3. To save your changes and exit, select the Save icon in the lower-right corner of the screen, and then

follow the on-screen instructions.

– or –

Select Main, select Save Changes and Exit, and then press enter.

Your changes go into eect when the computer restarts.

Navigating and selecting in Computer Setup

●

To select a menu or a menu item, use the tab key and the keyboard arrow keys and then press enter, or
use a pointing device to select the item.

●

To scroll up and down, select the up arrow or the down arrow in the upper-right corner of the screen, or
use the up arrow key or the down arrow key on the keyboard.

●

To close open dialog boxes and return to the main Computer Setup screen, press esc, and then follow
the on-screen instructions.

Using Computer Setup 81

To exit Computer Setup menus, choose one of the following methods:

●

To exit Computer Setup menus without saving your changes:

Select the Exit icon in the lower-right corner of the screen, and then follow the on-screen instructions.

– or –

Select Main, select Ignore Changes and Exit, and then press enter.

●

To save your changes and exit Computer Setup menus:

Select the Save icon in the lower-right corner of the screen, and then follow the on-screen instructions.

– or –

Select Main, select Save Changes and Exit, and then press enter.

Your changes go into eect when the computer restarts.

Restoring factory settings in Computer Setup

NOTE: Restoring defaults will not change the hard drive mode.

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

1. Start Computer Setup. See Starting Computer Setup on page 81.

2. Select Main, and then select Apply Factory Defaults and Exit.

NOTE: On select products, the selections may display Restore Defaults instead of Apply Factory

Defaults and Exit.

3. Follow the on-screen instructions.

4. To save your changes and exit, select the Save icon in the lower-right corner of the screen, and then

follow the on-screen instructions.

– or –

Select Main, select Save Changes and Exit, and then press enter.

Your changes go into eect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory settings.

Updating the BIOS

Updated versions of the BIOS may be available on the HP website.

Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.

Some download packages contain a le named Readme.txt, which contains information regarding installing
and troubleshooting the le.

Determining the BIOS version

To decide whether you need to update Computer Setup (BIOS), rst determine the BIOS version on your
computer.

BIOS version information (also known as ROM date and System BIOS) can be accessed by pressing fn+esc (if
you are already in Windows) or by using Computer Setup.

82 Chapter 7 Computer Setup (BIOS), TPM, and HP Sure Start

1. Start Computer Setup. See Starting Computer Setup on page 81.

2. Select Main, and then select System Information.

3. To exit Computer Setup without saving your changes, select the Exit icon in the lower-right corner of the

screen, and then follow the on-screen instructions.

– or –

Select Main, select Ignore Changes and Exit, and then press enter.

To check for later BIOS versions, see Downloading a BIOS update on page 83.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and

install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do
not download or install a BIOS update while the computer is running on battery power, docked in an optional
docking device, or connected to an optional power source. During the download and installation, follow these
instructions:

Do not disconnect power on the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

1. Type support in the taskbar search box, and then select the HP Support Assistant app.

– or –

Select the question mark icon in the taskbar.

2. Select Updates, and then select Check for updates and messages.

3. Follow the on-screen instructions.

4. At the download area, follow these steps:

a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your

computer. Make a note of the date, name, or other identier. You may need this information to
locate the update later, after it has been downloaded to your hard drive.

b. Follow the on-screen instructions to download your selection to the hard drive.

Make a note of the path to the location on your hard drive where the BIOS update is downloaded.
You will need to access this path when you are ready to install the update.

NOTE: If you connect your computer to a network, consult the network administrator before installing

any software updates, especially system BIOS updates.

BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the download
is complete. If no instructions are displayed, follow these steps:

1. Type file in the taskbar search box, and then select File Explorer.

2. Select your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder that contains the update.

4. Double-click the le that has an .exe extension (for example, lename.exe).

The BIOS installation begins.

5. Complete the installation by following the on-screen instructions.

Using Computer Setup 83

NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le

from your hard drive.

Changing the boot order using the f9 prompt

To dynamically choose a boot device for the current startup sequence, follow these steps:

1. Access the Boot Device Options menu:

●

Turn on or restart the computer, and when the HP logo appears, press f9 to enter the Boot Device
Options menu.

2. Select a boot device, press enter, and then follow the on-screen instructions.

TPM BIOS settings (select products only)

IMPORTANT: Before enabling Trusted Platform Module (TPM) functionality on this system, you must ensure

that your intended use of TPM complies with relevant local laws, regulations and policies, and approvals or
licenses must be obtained if applicable. For any compliance issues arising from your operation/usage of TPM
which violates the above mentioned requirement, you shall bear all the liabilities wholly and solely. HP will
not be responsible for any related liabilities.

TPM provides additional security for your computer. You can modify the TPM settings in Computer Setup
(BIOS).

NOTE: If you change the TPM setting to Hidden, TPM is not visible in the operating system.

To access TPM settings in Computer Setup:

1. Start Computer Setup. See Starting Computer Setup on page 81.

2. Select Security, select TPM Embedded Security, and then follow the on-screen instructions.

Using HP Sure Start (select products only)

Select computer models are congured with HP Sure Start, a technology that monitors the computer's BIOS
for attacks or corruption. If the BIOS becomes corrupted or is attacked, HP Sure Start automatically restores
the BIOS to its previously safe state, without user intervention.

HP Sure Start is congured and already enabled so that most users can use the HP Sure Start default
conguration. The default conguration can be customized by advanced users.

To access the latest documentation on HP Sure Start, go to http://www.hp.com/support. Select Find your
product, and then follow the on-screen instructions.

84 Chapter 7 Computer Setup (BIOS), TPM, and HP Sure Start

8 Using HP PC Hardware Diagnostics

Using HP PC Hardware Diagnostics Windows

HP PC Hardware Diagnostics Windows is a Windows-based utility that allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs within the Windows
operating system in order to diagnose hardware failures.

If HP PC Hardware Diagnostics Windows is not installed on your computer, rst you must download and install
it. To download HP PC Hardware Diagnostics Windows, see Downloading HP PC Hardware Diagnostics

Windows on page 85.

After HP PC Hardware Diagnostics Windows is installed, follow these steps to access it from HP Help and
Support or HP Support Assistant.

1. To access HP PC Hardware Diagnostics Windows from HP Help and Support:

a. Select the Start button, and then select HP Help and Support.

b. Right-click HP PC Hardware Diagnostics Windows, select More, and then select Run as

administrator.

– or –

To access HP PC Hardware Diagnostics Windows from HP Support Assistant:

a. Type support in the taskbar search box, and then select the HP Support Assistant app.

– or –

Select the question mark icon in the taskbar.

b. Select Troubleshooting and xes.

c. Select Diagnostics, and then select HP PC Hardware Diagnostics Windows.

2. When the tool opens, select the type of diagnostic test you want to run, and then follow the on-screen

instructions.

NOTE: If you need to stop a diagnostic test at any time, select Cancel.

3. When HP PC Hardware Diagnostics Windows detects a failure that requires hardware replacement, a 24-

digit Failure ID code is generated. For assistance in correcting the problem, contact support, and then
provide the Failure ID code.

Downloading HP PC Hardware Diagnostics Windows

●

The HP PC Hardware Diagnostics Windows download instructions are provided in English only.

●

You must use a Windows computer to download this tool because only .exe les are provided.

Using HP PC Hardware Diagnostics Windows 85

Downloading the latest HP PC Hardware Diagnostics Windows version

To download HP PC Hardware Diagnostics Windows, follow these steps:

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics section, select Download, and then select the installation location:

To run the tool on your computer, download it to the computer desktop.

– or –

To run the tool from a USB ash drive, download it to a USB ash drive.

3. Select Run.

Downloading HP Hardware Diagnostics Windows by product name or number (select products only)

NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the

product name or number.

To download HP PC Hardware Diagnostics Windows by product name or number (select products only), follow
these steps:

1. Go to http://www.hp.com/support.

2. Select Get software and drivers, and then enter the product name or number.

3. In the HP PC Hardware Diagnostics section, select Download, and then select the installation location:

To run the tool on your computer, download it to the computer desktop.

– or –

To run the tool from a USB ash drive, download it to a USB ash drive.

4. Select Run.

Installing HP PC Hardware Diagnostics Windows

To install HP PC Hardware Diagnostics Windows, follow these steps:

▲

Navigate to the folder on your computer or the ash drive where the .exe le was downloaded, double­click the .exe le, and then follow the on-screen instructions.

Using HP PC Hardware Diagnostics UEFI

HP PC Hardware Diagnostics UEFI (Unied Extensible Firmware Interface) allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs outside the operating
system so that it can isolate hardware failures from issues that are caused by the operating system or other
software components.

If your PC will not boot into Windows, you can use HP PC Hardware Diagnostics UEFI to diagnose hardware
issues.

When HP PC Hardware Diagnostics UEFI detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. For assistance in correcting the problem, contact support, and provide the Failure
ID code.

NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode, and you

must use the attached keyboard.

86 Chapter 8 Using HP PC Hardware Diagnostics

NOTE: If you need to stop a diagnostic test, press esc.

Starting HP PC Hardware Diagnostics UEFI

To start HP PC Hardware Diagnostics UEFI, follow these steps:

1. Turn on or restart the computer, and quickly press esc.

2. Press f2.

The BIOS searches three places for the diagnostic tools, in the following order:

a. Connected USB ash drive

NOTE: To download the HP PC Hardware Diagnostics UEFI tool to a USB ash drive, see

Downloading the latest HP PC Hardware Diagnostics UEFI version on page 87.

b. Hard drive

c. BIOS

3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the

on-screen instructions.

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive can be useful in the following situations:

●

HP PC Hardware Diagnostics UEFI is not included in the preinstall image.

●

HP PC Hardware Diagnostics UEFI is not included in the HP Tool partition.

●

The hard drive is damaged.

NOTE: The HP PC Hardware Diagnostics UEFI download instructions are provided in English only, and you

must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are provided.

Downloading the latest HP PC Hardware Diagnostics UEFI version

To download the latest HP PC Hardware Diagnostics UEFI version to a USB ash drive:

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics UEFI section, select Download UEFI Diagnostics, and then select

Run.

Downloading HP PC Hardware Diagnostics UEFI by product name or number (select products only)

NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the

product name or number.

To download HP PC Hardware Diagnostics UEFI by product name or number (select products only) to a USB
ash drive:

1. Go to http://www.hp.com/support.

2. Enter the product name or number, select your computer, and then select your operating system.

3. In the Diagnostics section, follow the on-screen instructions to select and download the specic UEFI

Diagnostics version for your computer.

Using HP PC Hardware Diagnostics UEFI 87

Using Remote HP PC Hardware Diagnostics UEFI settings (select products only)

Remote HP PC Hardware Diagnostics UEFI is a rmware (BIOS) feature that downloads HP PC Hardware
Diagnostics UEFI to your computer. It can then execute the diagnostics on your computer, and it may upload
results to a precongured server. For more information on Remote HP PC Hardware Diagnostics UEFI, go to

http://www.hp.com/go/techcenter/pcdiags, and then select Find out more.

Downloading Remote HP PC Hardware Diagnostics UEFI

NOTE: HP Remote PC Hardware Diagnostics UEFI is also available as a Softpaq that can be downloaded to a

server.

Downloading the latest Remote HP PC Hardware Diagnostics UEFI version

To download the latest Remote HP PC Hardware Diagnostics UEFI version, follow these steps:

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics UEFI section, select Download Remote Diagnostics, and then select

Run.

Downloading Remote HP PC Hardware Diagnostics UEFI by product name or number

NOTE: For some products, it may be necessary to download the software by using the product name or

number.

To download HP Remote PC Hardware Diagnostics UEFI by product name or number, follow these steps:

1. Go to http://www.hp.com/support.

2. Select Get software and drivers, enter the product name or number, select your computer, and then

select your operating system.

3. In the Diagnostics section, follow the on-screen instructions to select and download the Remote UEFI

version for the product.

Customizing Remote HP PC Hardware Diagnostics UEFI settings

Using the Remote HP PC Hardware Diagnostics setting in Computer Setup (BIOS), you can perform the
following customizations:

●

Set a schedule for running diagnostics unattended. You can also start diagnostics immediately in
interactive mode by selecting Execute Remote HP PC Hardware Diagnostics.

●

Set the location for downloading the diagnostic tools. This feature provides access to the tools from the
HP website or from a server that has been precongured for use. Your computer does not require the
traditional local storage (such as a disk drive or USB ash drive) to run remote diagnostics.

●

Set a location for storing the test results. You can also set the user name and password settings used for
uploads.

●

Display status information about the diagnostics run previously.

To customize Remote HP PC Hardware Diagnostics UEFI settings, follow these steps:

1. Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.

2. Select Advanced, and then select Settings.

88 Chapter 8 Using HP PC Hardware Diagnostics

3. Make your customization selections.

4. Select Main, and then Save Changes and Exit to save your settings.

Your changes take eect when the computer restarts.

Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) 89

9 Backing up, restoring, and recovering

This chapter provides information about the following processes. The information in the chapter is standard
procedure for most products.

●

Creating recovery media and backups

●

Restoring and recovering your system

For additional information, refer to the HP Support Assistant app.

▲

Type support in the taskbar search box, and then select the HP Support Assistant app.

‒ or –

Select the question mark icon in the taskbar.

IMPORTANT: If you will be performing recovery procedures on a tablet, the tablet battery must be at least

70% charged before you start the recovery process.

IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before

beginning any recovery process.

Creating recovery media and backups

The following methods of creating recovery media and backups are available on select products only. Choose
the available method according to your computer model.

●

Use HP Recovery Manager to create HP Recovery media after you successfully set up the computer. This
step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall
the original operating system in cases where the hard drive is corrupted or has been replaced. For
information on creating recovery media, see Creating HP Recovery media (select products only)

on page 90. For information on the recovery options that are available using the recovery media, see
Using Windows tools on page 91.

●

Use Windows tools to create system restore points and create backups of personal information.

For more information, see Recovering using HP Recovery Manager on page 92.

NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.

Creating HP Recovery media (select products only)

If possible, check for the presence of the Recovery partition and the Windows partition. From the Start menu,
select File Explorer, and then select This PC.

●

If your computer does not list the Windows partition and the Recovery partition, you can obtain recovery
media for your system from support. See the Worldwide Telephone Numbers booklet included with the
computer. You can also nd contact information on the HP website. Go to http://www.hp.com/support,
select your country or region, and follow the on-screen instructions.

90 Chapter 9 Backing up, restoring, and recovering
