HP ProBook 470 G2 Maintenance And Service Manual

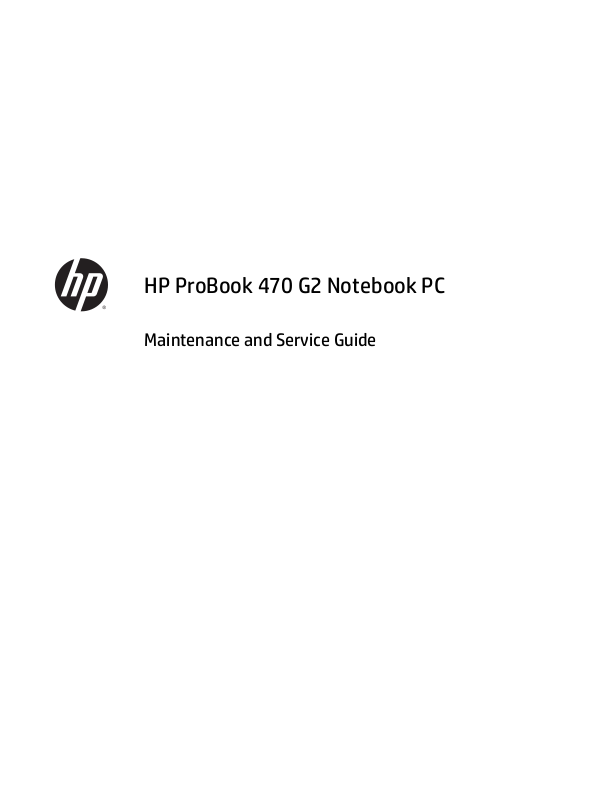

HP ProBook 470 G2 Notebook PC

Maintenance and Service Guide

© Copyright 2014 Hewlett-Packard
Development Company, L.P.

Intel and Pentium are trademarks of Intel
Corporation in the U.S. and other countries.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft, Windows,
WIndows 7, and Windows 8 are U.S. registered
trademarks of the Microsoft group of
companies. SD Logo is a trademark of its
proprietor.

The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.

First Edition: June 2014

Document Part Number: 773259-001

Product notice

This guide describes features that are common
to most models. Some features may not be
available on your computer.

Not all features are available on all editions of
Windows 8. This computer may require
upgraded and/or separately purchased
hardware, drivers, and/or software to take full
advantage of Windows 8 functionality. See

http://www.microsoft.com for details.

This computer may require upgraded and/ or
separately purchased hardware and/or a DVD
drive to install the Windows 7 software and
take full advantage of Windows 7 functionality.
See http://windows.microsoft.com/en-us/

windows7/get-know-windows-7 for details.

Important Notice about Customer Self-Repair Parts

CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an

authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair
parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for
Authorized Service Provider only parts," can damage the computer or void your warranty.

iii

iv Important Notice about Customer Self-Repair Parts

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place

the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as
pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft
surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with
the user-accessible surface temperature limits defined by the International Standard for Safety of
Information Technology Equipment (IEC 60950).

v

vi Safety warning notice

Table of contents

1 Product description ....................................................................................................................................... 1

2 External component identification ................................................................................................................. 5

Display ................................................................................................................................................................... 5

Top ......................................................................................................................................................................... 6

TouchPad ............................................................................................................................................. 6

Lights ................................................................................................................................................... 7

Buttons, speakers, and fingerprint reader (select models only) ....................................................... 8

Keys ..................................................................................................................................................... 9

Bottom ................................................................................................................................................................. 10

Front ..................................................................................................................................................................... 11

Left ....................................................................................................................................................................... 11

Right ..................................................................................................................................................................... 12

Service tag and PCID label ................................................................................................................................... 13

Service tag ......................................................................................................................................... 13

PCID label ........................................................................................................................................... 14

3 Illustrated parts catalog .............................................................................................................................. 15

Computer major components ............................................................................................................................. 15

Display components ............................................................................................................................................ 19

Cable Kit ............................................................................................................................................................... 20

Mass storage devices .......................................................................................................................................... 20

Miscellaneous parts ............................................................................................................................................. 21

Sequential part number listing ........................................................................................................................... 23

4 Removal and replacement procedures preliminary requirements .................................................................... 29

Tools required ...................................................................................................................................................... 29

Service considerations ........................................................................................................................................ 29

Plastic parts ....................................................................................................................................... 29

Cables and connectors ...................................................................................................................... 30

Drive handling ................................................................................................................................... 30

Grounding guidelines ........................................................................................................................ 31

Electrostatic discharge damage ..................................................................................... 31

Packaging and transporting guidelines ....................................................... 32

Workstation guidelines ................................................................................ 32

Equipment guidelines ................................................................................... 33

vii

5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 34

Component replacement procedures ................................................................................................................. 34

Battery ............................................................................................................................................... 35

Service door ....................................................................................................................................... 36

Hard drive .......................................................................................................................................... 38

Memory modules .............................................................................................................................. 40

Optical drive ...................................................................................................................................... 42

WLAN/Bluetooth combo card ........................................................................................................... 44

Keyboard ........................................................................................................................................... 46

6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 49

Component replacement procedures ................................................................................................................. 49

Top cover ........................................................................................................................................... 49

Speaker assembly ............................................................................................................................. 52

Fingerprint reader assembly ............................................................................................................. 54

Power button board .......................................................................................................................... 55

Function board .................................................................................................................................. 57

Card reader board ............................................................................................................................. 58

USB/audio board ............................................................................................................................... 60

Touchpad button board .................................................................................................................... 62

Fan ..................................................................................................................................................... 64

Battery connector cable .................................................................................................................... 66

System board .................................................................................................................................... 67

Optical drive and hard drive extension boards ................................................................................. 70

RTC battery ........................................................................................................................................ 71

Heat sink assembly ........................................................................................................................... 73

Display assembly .............................................................................................................................. 75

Power connector and cable ............................................................................................................... 82

7 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) in Windows 8 .................................. 84

Using Computer Setup ......................................................................................................................................... 84

Starting Computer Setup .................................................................................................................. 84

Navigating and selecting in Computer Setup ................................................................................... 84

Restoring factory settings in Computer Setup ................................................................................. 85

Updating the BIOS ............................................................................................................................. 85

Determining the BIOS version ........................................................................................ 85

Downloading a BIOS update ........................................................................................... 86

Using MultiBoot ................................................................................................................................................... 87

About the boot device order ............................................................................................................. 87

Choosing MultiBoot preferences ...................................................................................................... 87

viii

Setting a new boot order in Computer Setup ................................................................. 87

Dynamically choosing a boot device using the f9 prompt ............................................. 88

Setting a MultiBoot Express prompt .............................................................................. 88

Entering MultiBoot Express preferences ....................................................................... 88

Using HP PC Hardware Diagnostics (UEFI) .......................................................................................................... 89

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................. 89

8 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) in Windows 7 .................................. 90

Using Computer Setup ......................................................................................................................................... 90

Starting Computer Setup .................................................................................................................. 90

Navigating and selecting in Computer Setup ................................................................................... 90

Restoring factory settings in Computer Setup ................................................................................. 91

Updating the BIOS ............................................................................................................................. 91

Determining the BIOS version ........................................................................................ 91

Downloading a BIOS update ........................................................................................... 92

Using MultiBoot ................................................................................................................................................... 93

About the boot device order ............................................................................................................. 93

Choosing MultiBoot preferences ...................................................................................................... 93

Setting a new boot order in Computer Setup ................................................................. 93

Dynamically choosing a boot device using the f9 prompt ............................................. 94

Setting a MultiBoot Express prompt .............................................................................. 94

Entering MultiBoot Express preferences ....................................................................... 94

Using HP PC Hardware Diagnostics (UEFI) (select models only) ........................................................................ 94

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................. 95

9 Computer Setup (BIOS) and HP PC Hardware Diagnostics (UEFI) in Ubuntu Linux ............................................... 96

Starting Computer Setup ..................................................................................................................................... 96

Using Computer Setup ......................................................................................................................................... 96

Navigating and selecting in Computer Setup ................................................................................... 96

Restoring factory settings in Computer Setup ................................................................................. 97

Updating the BIOS ................................................................................................................................................ 97

Determining the BIOS version ........................................................................................................... 97

Downloading a BIOS update .............................................................................................................. 98

Using HP PC Hardware Diagnostics (UEFI) .......................................................................................................... 98

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................. 99

10 Backup and recovery in Windows 8 ............................................................................................................ 100

Backing up your information ............................................................................................................................. 100

Performing a system recovery .......................................................................................................................... 100

Using the Windows recovery tools ................................................................................................. 100

ix

Using f11 recovery tools ................................................................................................................. 101

Using Windows operating system media (purchased separately) ................................................ 102

Using Windows Refresh or Windows Reset .................................................................................... 102

Using HP Software Setup ................................................................................................................ 102

11 Backup and recovery in Windows 7 ............................................................................................................ 103

Creating recovery media and backups .............................................................................................................. 103

Guidelines ........................................................................................................................................ 103

Creating recovery media with HP Recovery Disc Creator ............................................................... 103

Creating recovery media .............................................................................................. 104

Backing up your information .......................................................................................................... 104

Performing a system recovery .......................................................................................................................... 105

Using the Windows recovery tools ................................................................................................. 105

Using f11 recovery tools (select models only) ............................................................................... 106

Using Windows 7 operating system media .................................................................................... 106

12 Backup and Recovery in Ubuntu Linux ........................................................................................................ 108

Creating backups ............................................................................................................................................... 108

Backing up your information ............................................................................................................................. 108

Performing a system recovery .......................................................................................................................... 109

USB Recovery option (select models only) ....................................................................................................... 109

Remove everything and reinstall Ubuntu ......................................................................................................... 110

13 Specifications .......................................................................................................................................... 112

Computer specifications .................................................................................................................................... 112

43.9-cm (17.3-in), HD+ display specifications ................................................................................................. 113

Hard drive specifications ................................................................................................................................... 114

Solid-state drive specifications ........................................................................................................................ 115

DVD±RW SuperMulti DL Drive specifications .................................................................................................... 116

Blu-ray ROM DVD±RW SuperMulti DL Drive ...................................................................................................... 117

DVD-ROM drive .................................................................................................................................................. 117

Specification information in Device Manager ................................................................................................... 118

14 Statement of Volatility ............................................................................................................................ 119

Non-volatile memory usage ............................................................................................................................. 121

Questions and answers ..................................................................................................................................... 123

15 Power cord set requirements .................................................................................................................... 124

Requirements for all countries and regions ..................................................................................................... 124

Requirements for specific countries and regions ............................................................................................. 124

x

16 Recycling ................................................................................................................................................ 126

Battery ............................................................................................................................................................... 126

Display ............................................................................................................................................................... 126

Index ........................................................................................................................................................... 132

xi

xii

1 Product description

Category Description

Product Name HP ProBook 470 G2 Notebook PC

Processors Intel® Core™ i7 processor, Dual Core, 4th generation (4-MB L3 cache)

4558U, 2.8-GHz/3.3-GHz Core Turbo/Intel Iris Graphics 5100

4510U, 2.0-GHz/3.1-GHz Core Turbo/Intel HD Graphics 5000

Intel® Core i5 processors, Dual Core, 4th generation (3-MB L3 cache)

4210U, 1.7-GHz/2.7-GHz Core Turbo processor/Intel HD Graphics 4400

Intel Core i3 processors, Dual Core, 4th generation (3-MB L3 cache)

4030U, 1.9-GHz processor/Intel HD Graphics 4400

Chipset Integrated with processor

Graphics Switchable discrete (Intel processors):

AMD Radeon R5 M255 with 2 GB or 1 GB dedicated video memory

Supports HD decode, DX11, HDMI, PX7.0

Panel HD+ LVDS wedge

43.9-cm (17.3-inch), anti-glare, HD+, 1600x900, SVA, 200 nits, 1 or 2 WLAN antennas

FHD LVDS wedge

43.9-cm (17.3-inch), anti-glare, FHD, 1920x1080, WVA, 300 nits, 1 or 2 WLAN antennas

Memory Two customer-accessible memory module slots supporting up to 16 GB of RAM

Supports dual-channel memory

PC3L-12800, 1600-MHz, DDR3L SODIMMs

Supports the following configurations:

●

16384 MB (8192 × 2; dual channel)

●

12288 MB (8192 + 4096; dual channel)

●

8192 MB (8192 × 1)

●

8192 MB (4096 × 2; dual channel)

●

6144 MB (4096 + 2048; dual channel)

●

4096 MB (4096 × 1)

●

2048 MB (2048 × 1)

Primary storage Supports 7-mm/9.5-mm, 2.5-in SATA hard drives with HP 3D DriveGuard

Customer-accessible

Supports the following drives:

●

1.5-TB, 5400-rpm

1

Category Description

●

1-TB, 5400-rpm

●

750-GB, 7200-rpm

●

500-GB, 7200-rpm

●

500-GB, 5400-rpm, hybrid (8-GB SSD) MLC

●

500-GB, 5400-rpm

●

320-GB, 5400-rpm

●

128-GB Solid-state drive (SSD)

Fixed optical drives Supports the following 9.5-mm SATA optical drives:

●

DVD-ROM

●

DVD+/-RW SuperMulti DL

●

Blu-ray ROM DVD+/-RW SuperMulti DL

Supports no optical drive option

Audio/Visual Integrated camera (720p HD)

Stereo speakers (2)

Integrated dual-array microphone (webcam models only)

Integrated mono microphone (non-webcam models only)

Headphone/microphone combo jack

Realtek ALC3227-CG

Skype-ready

HD audio with DTS Sound+

Supports “no camera” option

Ethernet Realtek RTL8161GSH-CG 10/100/1000

S3/S4/S5 wake on LAN (AC mode and battery mode)

NIC power down technology

Ethernet cable not included

Wireless Integrated WLAN options by way of wireless module:

WLAN antennas built into display assembly

Supports “no WLAN/Bluetooth” option

Integrated WLAN options via Minicard:

●

Intel 802.11 a/b/g/n/AC 2x2 +BT Combo (Wilkins Peak 2) - no vPro

●

Intel 802.11 a/b/g/n/AC 1x1 +BT Combo (Wilkins Peak 1)

●

QCA 802.11 b/g/n 1x1 (Marilyn) Backup

●

Broadcom 802.11 a/b/g/n 2x2 +BT Combo (Bumblebee) w/o WiDi

●

Broadcom 802.11 b/g/n 1x1 +BT Combo (Harrier) Backup

●

Realtek 802.11 b/g/n 1x1 (Focus)

2 Chapter 1 Product description

Category Description

●

Realtek 802.11 b/g/n 1x1 +BT Combo (Skyray)

Wireless Personal Area Network (PAN) only supported by Bluetooth 4.0 combo card

External media card Digital Media Reader Slot

Supports SD, SDHC, SDXC

Ports Headphone/Microphone Combo Jack

RJ-45 (Ethernet, includes link and activity lights)

USB 3.0 (2)

USB 2.0 (2)

VGA (Dsub 15-pin) supporting 2048 × 1536 external resolution at 50-GHz (hot plug/unplug

with auto-detect)

HDMI 1.4

Multi-pin AC port

Keyboard/pointing devices Full-sized, chiclet, spill-resistant keyboard with numeric keypad

Backlit, full-sized, chiclet, spill-resistant keyboard with numeric keypad

Touchpad includes: on/off button on board; 2-way scroll with legend, taps enabled by

default, 2-finger scrolling and zoom enabled by default

Power requirements 90-W Smart AC adapter with localized cable plug support (3-wire plug with ground pin)

65-W Smart AC adapter with localized cable plug support (3-wire plug with ground pin)

Power cord: 3-wire plug - 1.8 m or 1.0 m

6-cell, 51-Wh, 2.55 Ah, Li-ion battery (long life)

6-cell, 47-Wh, 2.2 Ah, Li-ion battery

Security Integrated fingerprint reader

No fingerprint reader option

Security lock

TPM SLB9660 (FW ver. 1.2) (Infineon; soldered down)

TPM support

Operating system Preinstalled:

Windows 7 Professional 64

Windows 7 Home Premium 64

Windows 7 Home Basic 64

Windows 8.1 Professional 64-bit Digital Product Key (DPK) with Windows 7 Professional 64

Windows 8.1 Professional 64-bit Digital Product Key (DPK) with Windows 7 Professional 64

– MSNA

Windows 8.1 China (CH) 64-bit

Windows 8.1 Emerging Markets (EM) 64-bit

Windows 8.1 Multi-language (ML) 64-bit

3

Category Description

Windows 8.1 Professional 64-bit

Windows 8.1 Professional 64-bit – MSNA

FreeDOS 2.0

Ubuntu Linux

Restore Media (DRDVD/SRDVD):

DRDVD Windows 8.1

DRDVD Windows 7

SRDVD Ubuntu Linux

Restore Media (OSDVD):

Windows 7 Home Basic 64

Windows 7 Home Premium 64

Windows 7 Professional 32

Windows 7 Professional 64

Windows 8.1 Professional 64

Windows 8.1 64-bit

Windows 8.1 Country Specific 64-Bit

Windows 8.1 Emerging Market 64-Bit

Web-only support:

Windows 7 Professional 32

Windows 7 Enterprise 64

Windows 7 Enterprise 32

Windows 8.1 Enterprise 64

Certified:

Microsoft WHQL

Serviceability End-user replaceable parts:

AC adapter

Battery (system)

Hard drive

Memory module

Optical drive

WLAN module

Keyboard

4 Chapter 1 Product description

2 External component identification

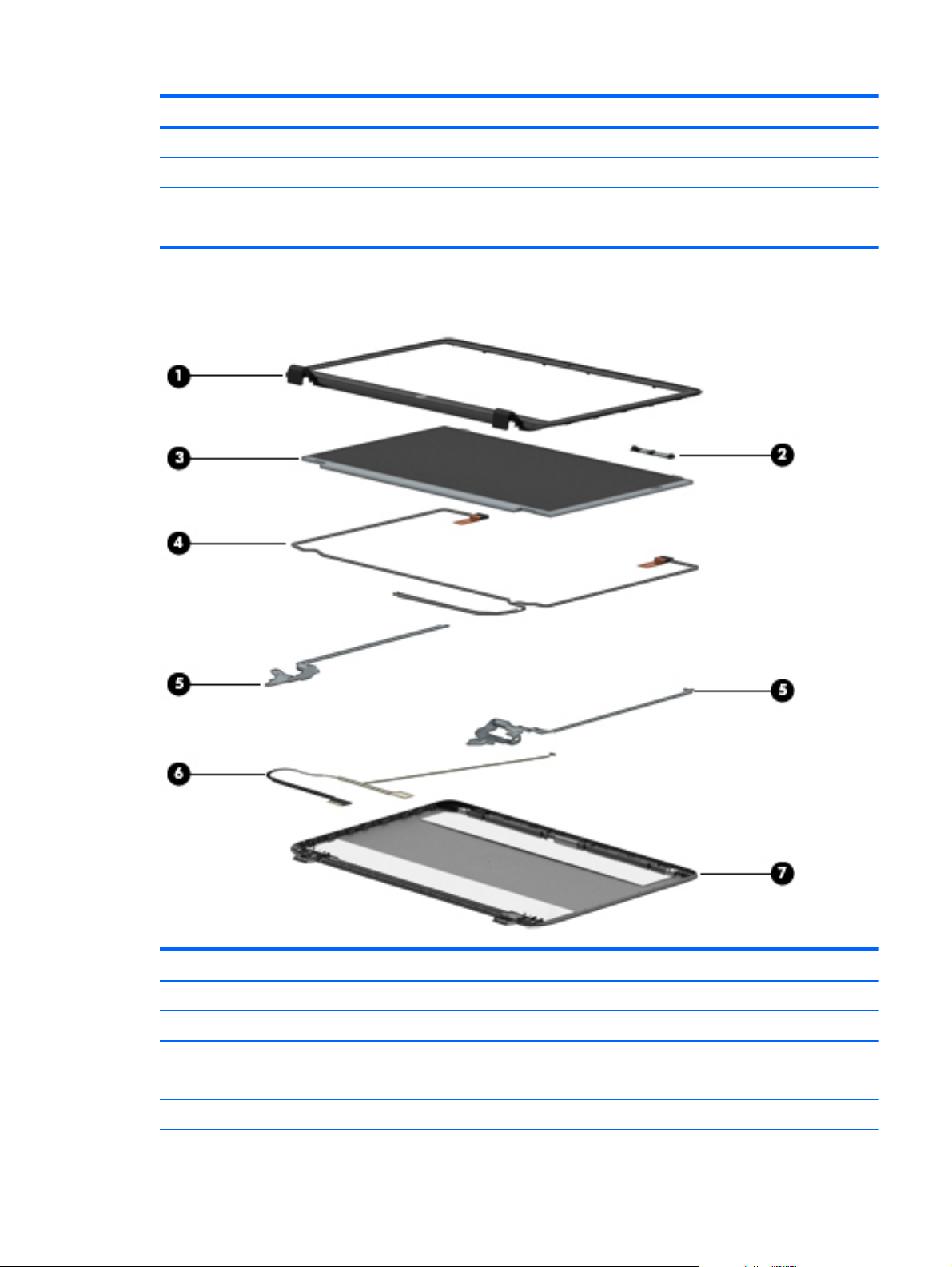

Display

Component Description

(1) Internal microphones (2) Record sound.

(2) Webcam light On: The webcam is in use.

(3) Webcam Records video and captures photographs. Some models allow you to

video conference and chat online using streaming video.

For information on using the webcam in Windows 8, access HP
Support Assistant. To access HP Support Assistant, from the Start
screen, select the HP Support Assistant app.

For information on using the webcam in Windows 7, select Start > All

Programs > Communication and Chat > HP WebCam.

(4) WLAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless local

area networks (WLAN).

(5) Internal display switch Turns off the display or initiates Sleep if the display is closed while

the power is on.

NOTE: The display switch is not visible from the outside of the

computer.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions. For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices
that applies to your country or region. To access this guide in Windows 8, from the Start screen, type support, and then select the
HP Support Assistant app. To access the user guides in Windows 7, select Start > Help and Support > User Guides.

Display 5

Top

TouchPad

Component Description

(1) TouchPad on/off button Turns the TouchPad on and off.

(2) TouchPad zone Moves the pointer and selects or activates items on the screen.

NOTE: The TouchPad also supports edge-swipe gestures.

(3) Left TouchPad button Functions like the left button on an external mouse.

(4) Right TouchPad button Functions like the right button on an external mouse.

6 Chapter 2 External component identification

Lights

Component Description

(1)

(2) Caps lock light On: Caps lock is on, which switches the keys to all capital letters.

(3)

(4) Num lock light On: Num lock is on.

(5)

(6)

(7) TouchPad light

Power light

Microphone mute light

Wireless light White: An integrated wireless device, such as a wireless local

Speaker mute light

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state, a power­saving state. The computer shuts off power to the display
and other unneeded components.

●

Off: The computer is off or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.

●

Amber: microphone sound is off.

●

Off: microphone sound is on.

area network (WLAN) device and/or a Bluetooth® device, is on.

NOTE: On some models, the wireless light is amber when all

wireless devices are off.

●

Amber: Computer sound is off.

●

White: Computer sound is on.

●

Amber: The TouchPad is off.

●

Off: The TouchPad is on.

Top 7

Buttons, speakers, and fingerprint reader (select models only)

Component Description

(1)

(2) Speakers (2) Produce sound.

(3) Wireless button Turns the wireless feature on or off but does not establish a

Power button

●

When the computer is off, press the button to turn on the
computer.

●

When the computer is on, press the button briefly to initiate
Sleep.

●

When the computer is in the Sleep state, press the button
briefly to exit Sleep.

●

When the computer is in Hibernation, press the button
briefly to exit Hibernation.

CAUTION: Pressing and holding down the power button will

result in the loss of unsaved information.

If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the power
button for at least 5 seconds to turn off the computer.

To learn more about your power settings in Windows 8, see your
power options. From the Start screen, type power, select Power
and sleep settings, and then select Power and sleep from the
list of applications.

To learn more about your power settings in Windows 7, select

Start > Control Panel > System and Security > Power Options.

wireless connection.

8 Chapter 2 External component identification

Component Description

Keys

(4)

(5) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password

Speaker mute button Mutes and restores speaker sound.

logon.

Component Description

(1) esc key Displays system information when pressed in combination with

the fn key.

(2) fn key Executes frequently used system functions when pressed in

combination with a function key, the num lk key, or the esc key.

(3)

(4) Function keys Execute frequently used system functions when pressed in

(5) num lk key Alternates between the navigational and numeric functions on

(6) Integrated numeric keypad When num lk has been enabled, it can be used like an external

Windows key Windows 8: Returns you to the Start screen from an open app or

the Windows desktop.

NOTE: Pressing the Windows key again will return you to the

previous screen.

Windows 7: Displays the Windows Start menu.

combination with the fn key.

the integrated numeric keypad.

numeric keypad.

Top 9

Bottom

Component Description

(1) Vent Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

(2)

(3)

(4) Service door Provides access to the wireless LAN (WLAN) module slot.

(5) Battery bay Holds the battery.

Service door Provides access to the hard drive bay and the memory

module slots.

Battery release latches (2) Releases the battery.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country or
region. If you replace the module and then receive a
warning message, remove the module to restore
computer functionality, and then contact support through
HP Support Assistant. To access HP Support Assistant in
Windows 8, from the Start screen, select the HP Support
Assistant app. To access Help and Support in Windows 7,
select Start > Help and Support.

10 Chapter 2 External component identification

Front

Component Description

Left

(1)

(2) Memory card reader Reads optional memory cards that store, manage, share,

Component Description

(1)

Power connector Connects an AC adapter.

Hard drive light

●

Blinking white: The hard drive is being accessed.

●

Amber: HP 3D DriveGuard has temporarily parked the
hard drive.

or access information.

(2) AC adapter/Battery light

(3) Vent Enables airflow to cool internal components.

(4)

(5)

External monitor port Connects an external VGA monitor or projector.

RJ-45 (network) jack/lights Connects a network cable.

●

White: The computer is connected to external power and
the battery is charged from 90 to 99 percent.

●

Amber: The computer is connected to external power and
the battery is charged from 0 to 89 percent.

●

Off: The battery is fully charged.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.

●

Green (right): The network is connected.

Front 11

Component Description

●

Amber (left): Activity is occurring on the network.

Right

(6)

(7)

Component Description

(1)

HDMI port Connects an optional video or audio device, such as a high-

definition television, any compatible digital or audio
component, or a high-speed HDMI device.

USB 3.0 ports (2) Each USB 3.0 port connects an optional USB device, such as a

keyboard, mouse, external drive, printer, scanner or USB hub.

Audio-out (headphone)/Audio-in (microphone)
jack

Connects optional powered stereo speakers, headphones,
earbuds, or a headset. Also connects an optional headset
microphone. This jack does not support optional microphone­only devices.

WARNING! To reduce the risk of personal injury, adjust the

volume before putting on headphones, earbuds, or a headset.
For additional safety information, see the Regulatory, Safety,
and Environmental Notices. To access this guide in Windows 8,
from the Start screen, type support, and then select the HP
Support Assistant app. To access the user guides in Windows 7,
select Start > Help and Support > User Guides. To access this
guide in Windows 8, from the Start screen, type support, and
then select the HP Support Assistant app. To access the user
guides in Windows 7, select Start > Help and Support > User

Guides.

NOTE: When a device is connected to the jack, the computer

speakers are disabled.

NOTE: Be sure that the device cable has a 4-conductor

connector that supports both audio-out (headphone) and
audio-in (microphone).

(2)

(3) Optical drive (select models only) Depending on your computer model, reads an optical disc or

USB 2.0 ports (2) Connects an optional USB device, such as a keyboard, mouse,

external drive, printer, scanner or USB hub.

reads and writes to an optical disc.

12 Chapter 2 External component identification

Component Description

(4) Optical drive eject button (select models only) Releases the optical drive disc tray.

(5)

Security cable slot Attaches an optional security cable to the computer.

Service tag and PCID label

Service tag

When ordering parts or requesting information, provide the computer serial number and model description
provided on the service tag.

●

Product name (1). This is the product name affixed to the front of the computer.

NOTE: The security cable is designed to act as a deterrent, but

it may not prevent the computer from being mishandled or
stolen.

●

Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.

●

Part number/Product number (p/n) (3). This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.

●

Warranty period (4). This number describes the duration (in years) of the warranty period for the
computer.

●

Model description (select models only) (5). This is the alphanumeric identifier used to locate documents,
drivers, and support for the computer.

Service tag and PCID label 13

PCID label

The PCID label provides the information required to properly reset the notebook firmware (BIOS) back to
factory shipped specifications when replacing the system board. The label may have a different number of
characters depending on the operating system on the computer.

NOTE: Computer details may vary from images.

Windows 8.1 models

Non-Windows 8.1 models

14 Chapter 2 External component identification

3 Illustrated parts catalog

Computer major components

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to
follow the on-screen instructions.

http://partsurfer.hp.com, select your country or region, and then

Service tag and PCID label on page 13 for details.

Computer major components 15

Item Description Spare part number

(1) Display panel, 43.9-cm (17.3-inch) not spared

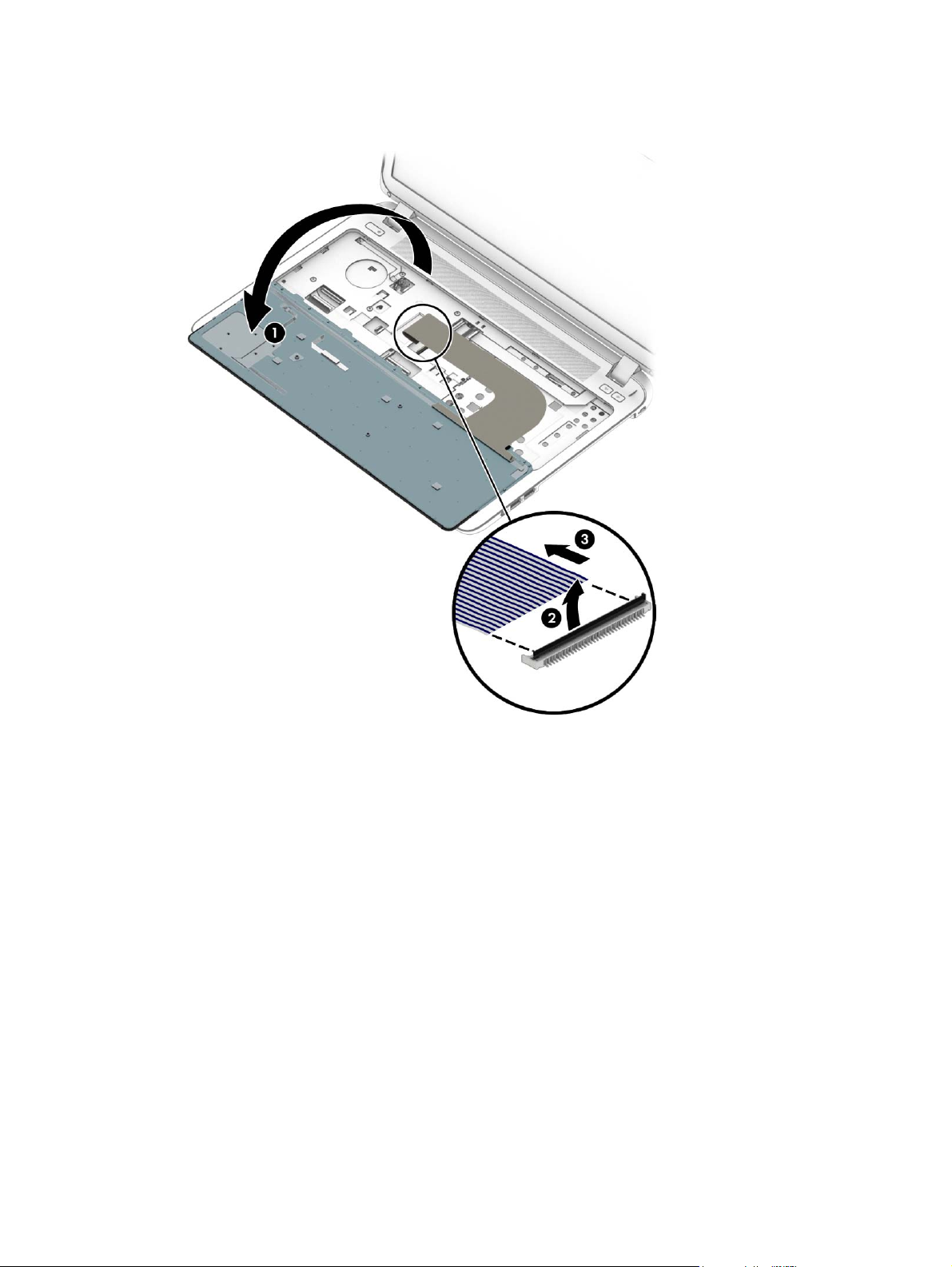

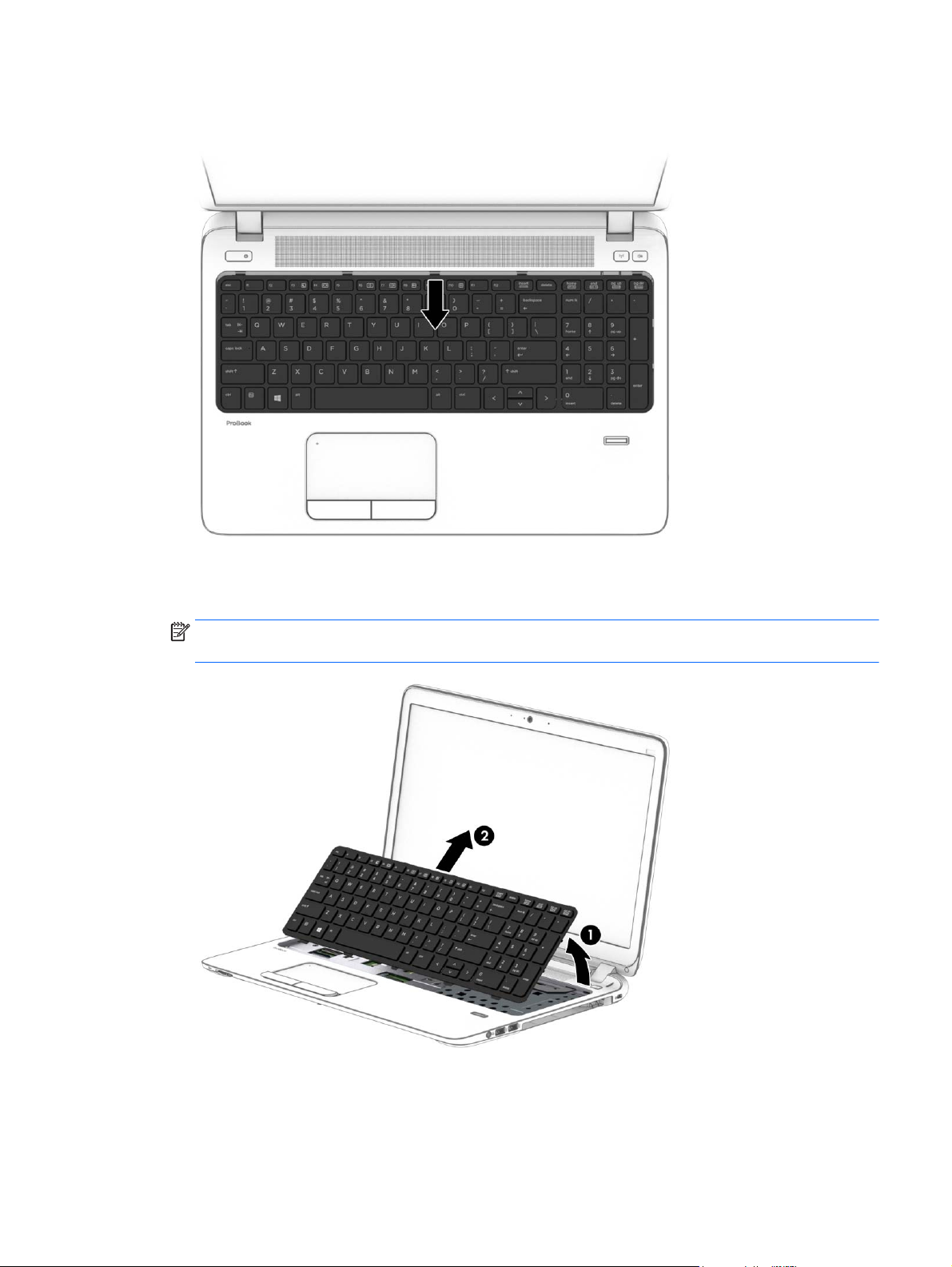

(2) Keyboard (includes cable)

NOTE: For a detailed list of available keyboards, see

on page 23.

Backlit 768130-xxx

No backlight 768787-xx1

16 Chapter 3 Illustrated parts catalog

Sequential part number listing

Item Description Spare part number

(3) Top cover (includes touchpad assembly) 768390-001

(4) Touchpad button board 768140-001

(5) Power button board assembly 767442-001

(6) Card reader board 768384-001

(7) Function board 768380-001

(8) Fingerprint reader assembly (includes cable, bracket, and bezel) 768378-001

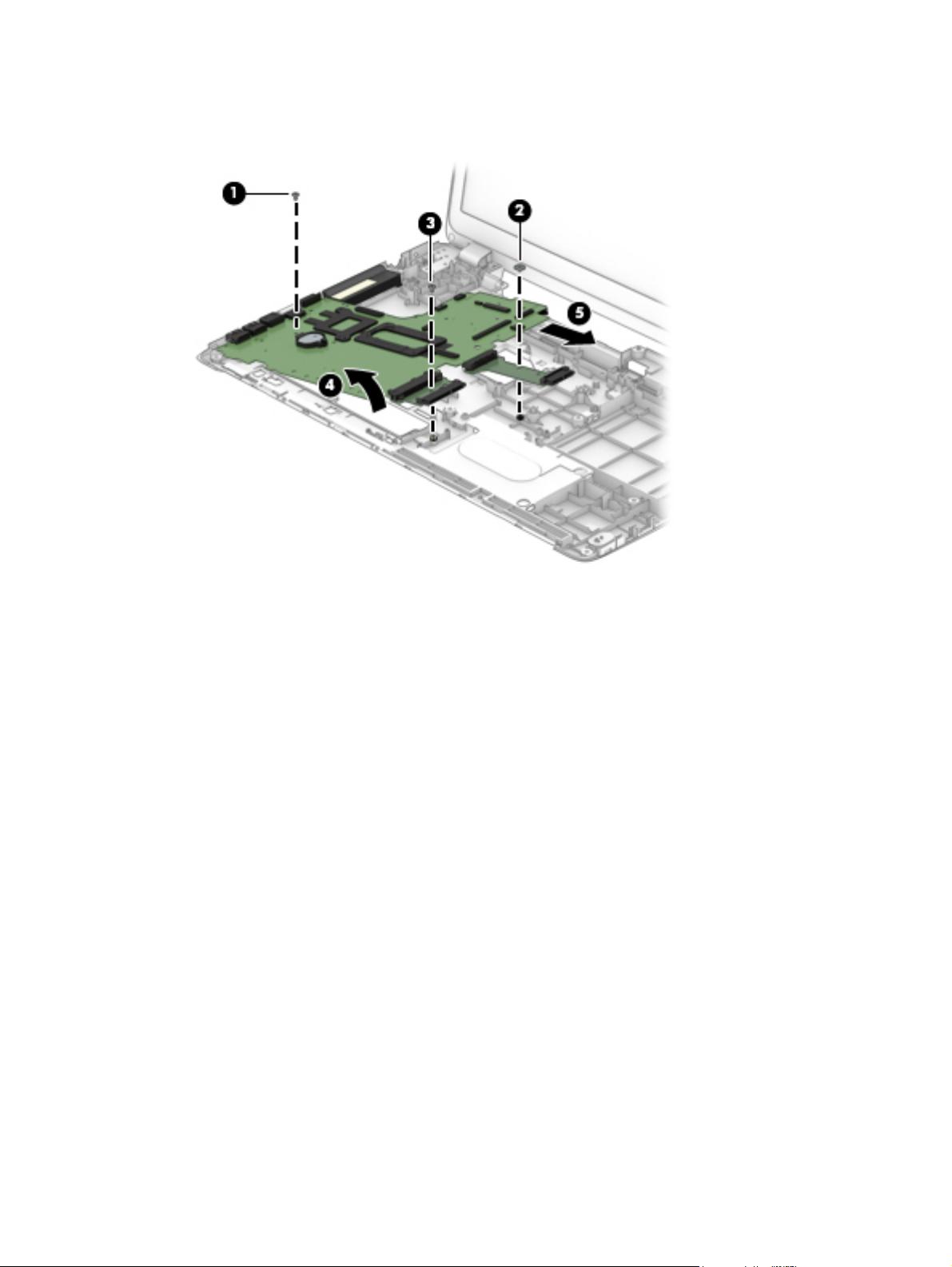

(9) System board (includes replacement thermal material)

Intel i7-4510U processor; 2-GB discrete graphics memory

Intel i5-4210U processor; 2-GB discrete graphics memory

Intel i3-4030U processor; 2-GB discrete graphics memory

Intel i7-4558U processor; 1-GB discrete graphics memory

Intel i5-4210U processor; 1-GB discrete graphics memory

●

Without Windows 8.1.1 768401-001

●

Windows 8.1 Professional 768401-501

●

Windows 8.1 Standard 768401-601

●

Without Windows 8.1 768399-001

●

Windows 8.1 Professional 768399-501

●

Windows 8.1 Standard 768399-601

●

Without Windows 8.1 768398-001

●

Windows 8.1 Professional 768398-501

●

Windows 8.1 Standard 768398-601

●

Without Windows 8.1 768395-001

●

Windows 8.1 Professional 768395-501

●

Windows 8.1 Standard 768395-601

Intel i3-4030U processor; 1-GB discrete graphics memory

(10) USB/audio board 768382-001

(11) Memory modules (PC3L-12800, 1600-MHz, DDR3L)

8-GB 693374-001

●

Without Windows 8.1 768393-001

●

Windows 8.1 Professional 768393-501

●

Windows 8.1 Standard 768393-601

●

Without Windows 8.1 768392-001

●

Windows 8.1 Professional 768392-501

●

Windows 8.1 Standard 768392-601

Computer major components 17

Item Description Spare part number

4-GB 691740-001

2-GB 691739-001

(12) Optical drive extension board not spared

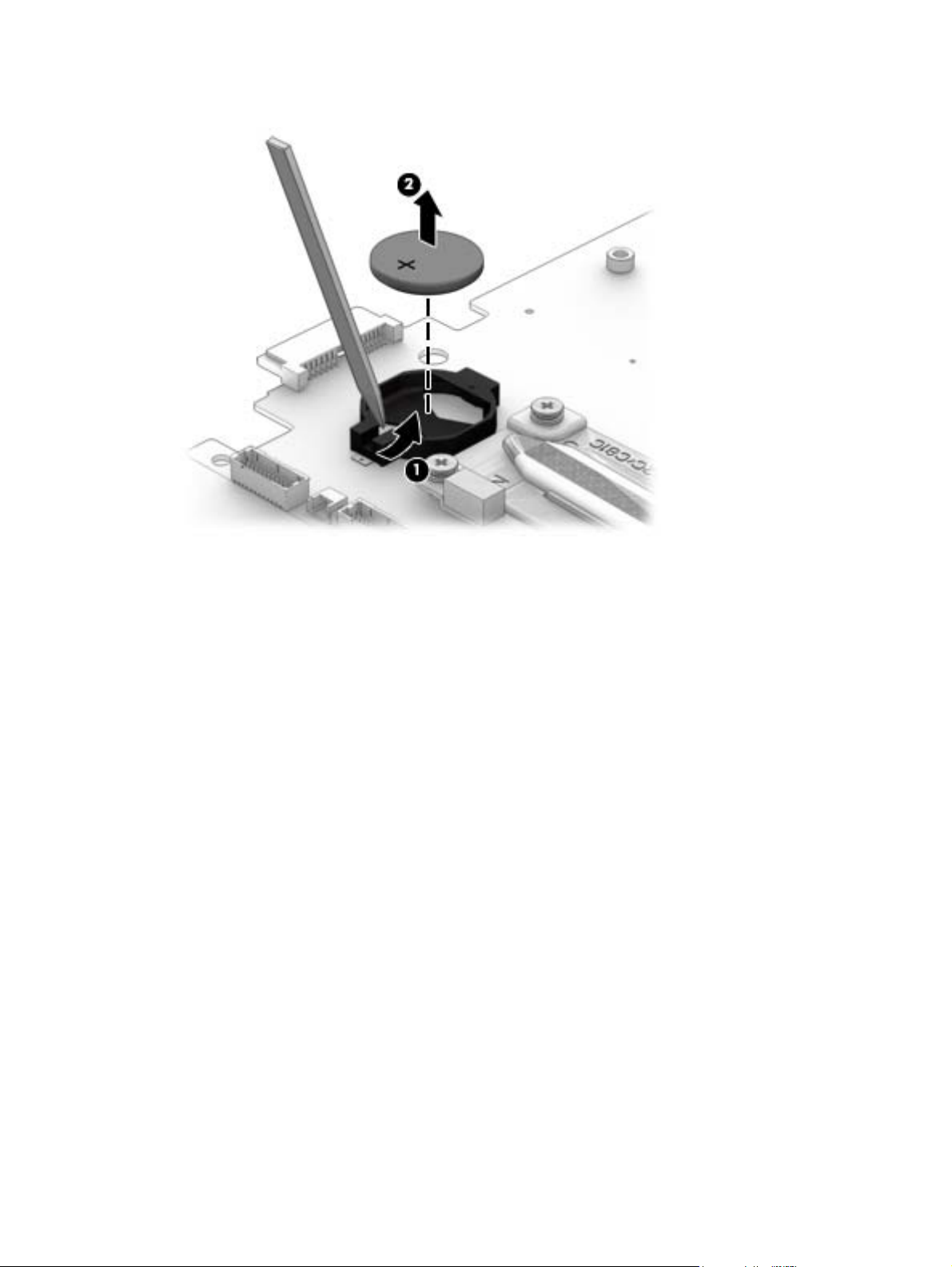

(13) RTC battery 738824-001

(14) WLAN module

Atheros AR9485 802.11b/g/n 1x1 WiFi Adapter 675794-001

Realtek RTL8188EE 802.11bgn Wi-Fi Adapter 709848-001

Intel Dual Band Wireless-AC 3160 802.11 ac 1x1 WiFi + BT 4.0 combo adapter 710662-001

Broadcom BCM943228HMB 802.11abgn 2x2 Wi-Fi Adapter + Broadcom Bluetooth 4.0 Adapter 730668-001

Broadcom BCM43142 802.11 bgn 1x1 Wi-Fi + BT4.0 HMC combo adapter 753076-001

Realtek RT8723BE 802.11 bgn 1x1 Wi-Fi + BT4.0 combo adapter 753077-001

Intel Dual Band Wireless-AC 7260 802.11 ac 2x2 WiFi + Intel Dual Band Wireless-AC 7260 BT 4.0

combo adapter

Heat sink assembly (includes replacement thermal material)

(15) For use in models with all processors except for the Intel i7-4558U 768050-001

For use in models with an Intel i7-4558U processor 768049-001

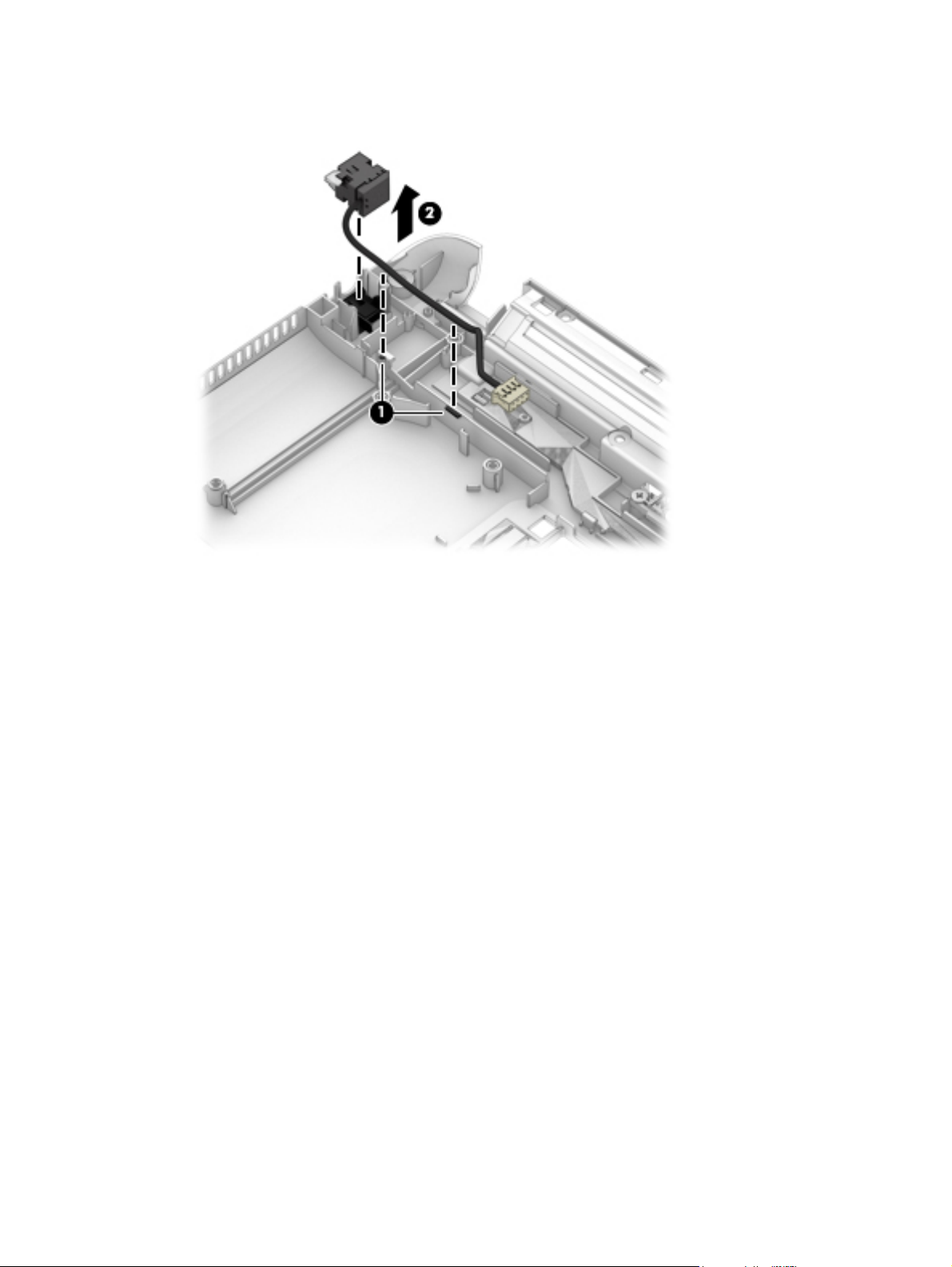

(16) Power connector and cable 767432-001

(17) Fan 767433-001

(18) Speaker assembly 768389-001

(19) Battery, Li-ion

6-cell, 51 WHr, 2.55 Ah 757661-001

6-cell, 47 WHr, 2.2 Ah 708457-001

(20) Base enclosure 768374-001

Service doors, includes: 768385-001

(21) Small service door

(22) Large service door

(23) Hard drive

1.5-TB, 5400-rpm, 9.5 mm 747375-001

756753-001

1-TB, 5400-rpm 676521-001

750-GB, 7200-rpm 778191-001

750-GB, 5400-rpm 634250-001

500-GB, 7200-rpm 703267-001

500-GB, 5400-rpm, 7 mm, hybrid (8-GB SSD) 732000-001

320-GB, 5400-rpm 778183-001

128-GB Solid-state drive, M.2 773069-001

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(24) Optical drive (includes bracket, bezel, and screws)

Blu-ray ROM DVD±RW SuperMulti DL Drive 768473-001

DVD±RW SuperMulti DL Drive 768475-001

DVD-ROM drive 768474-001

Display components

Item Description Spare part number

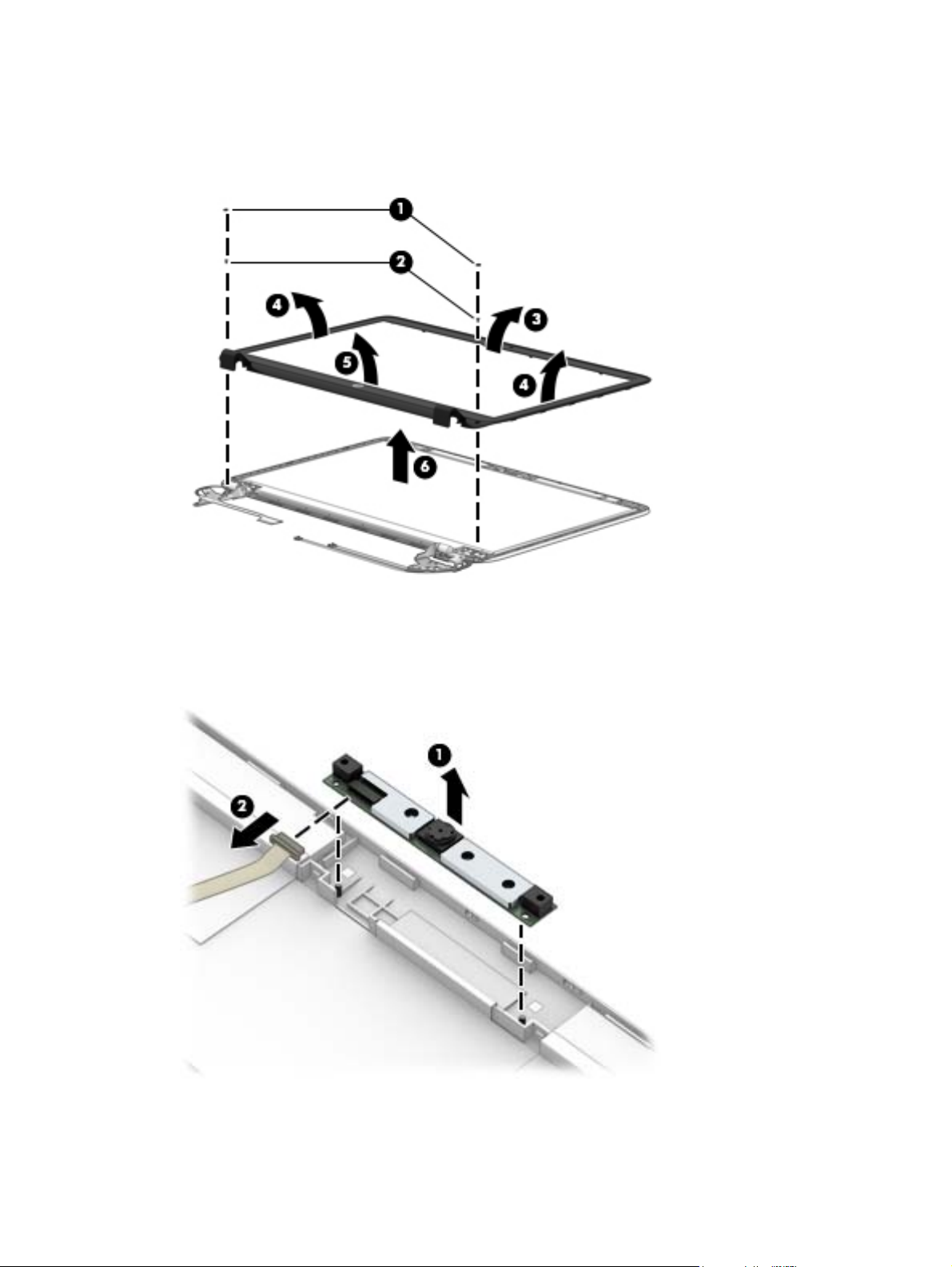

(1) Display bezel

For use in models with a webcam 768375-001

For use in models without a webcam 768376-001

(2) Webcam module 767457-001

Microphone module 773563-001

Display components 19

Item Description Spare part number

(3) Display panel (raw), HD+ 768386-001

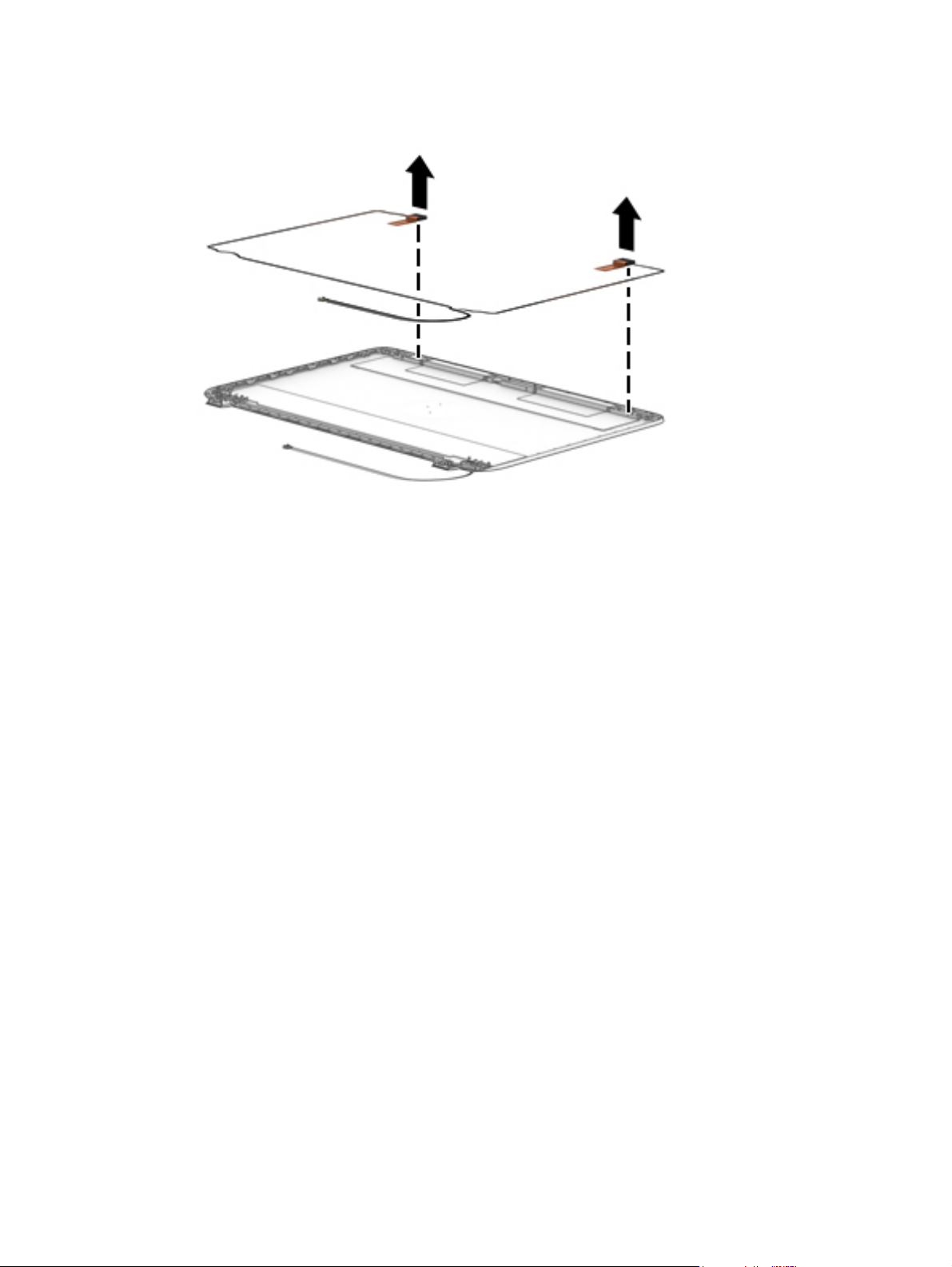

(4) WLAN antennas

(5) Display Hinge Kit (includes left and right hinges) 768379-001

(6) Display/webcam cable assembly 768377-001

(7) Display rear cover (includes wireless antennas) 768373-001

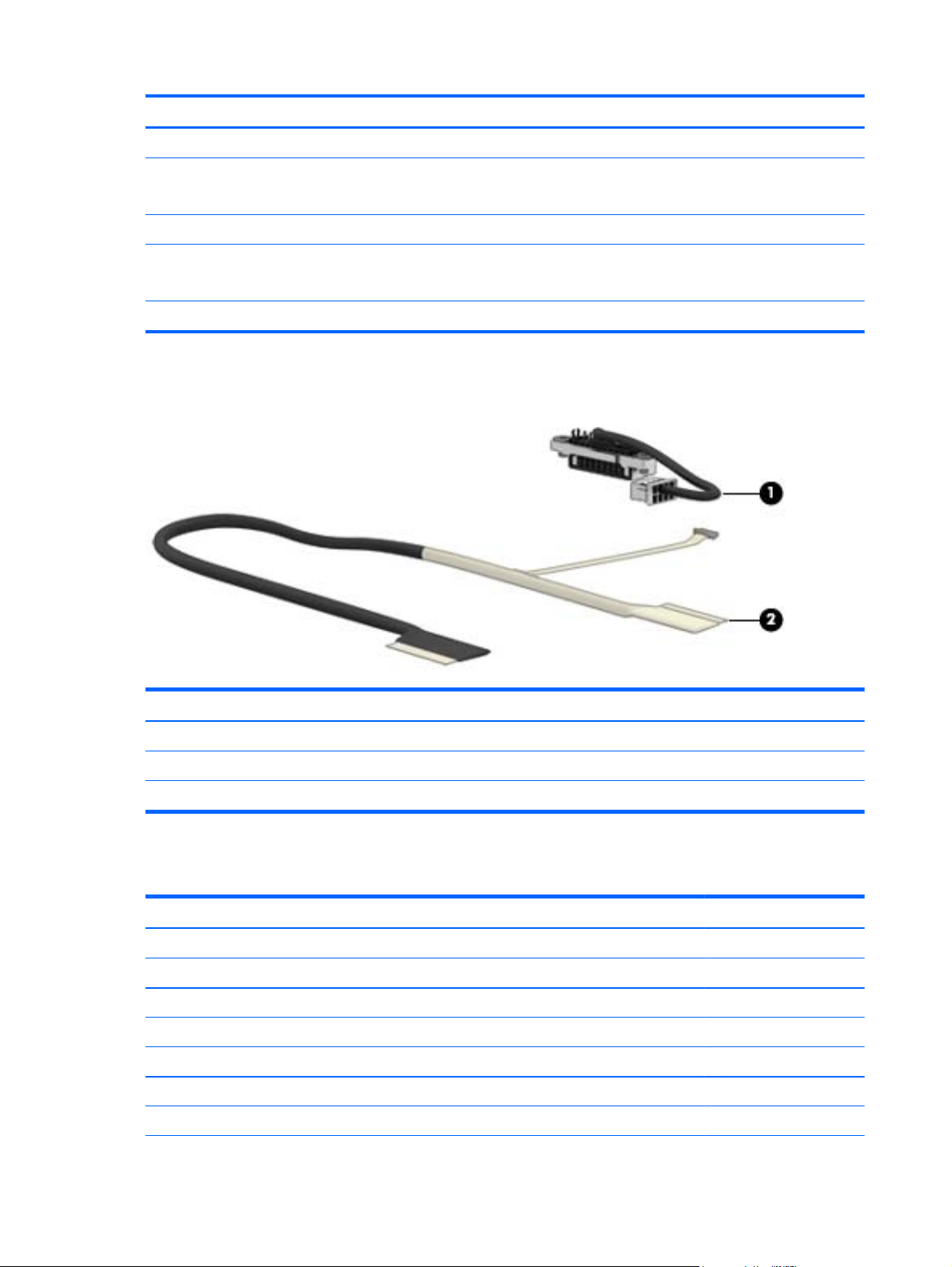

Cable Kit

not spared separately

Included in Display Rear Cover kit, 768373-001

(in Cable Kit)

Item Description Spare part number

Cable Kit 768377-001

(1) Battery connector cable

(2) Display/webcam cable

Mass storage devices

Description Spare part number

Hard drives

1.5-TB, 5400-rpm, 9.5 mm 747375-001

1-TB, 5400-rpm 676521-001

750-GB, 7200-rpm 778191-001

750-GB, 5400-rpm 634250-001

500-GB, 7200-rpm 703267-001

500-GB, 5400-rpm, 7 mm, hybrid (8-GB SSD) 732000-001

20 Chapter 3 Illustrated parts catalog

Description Spare part number

320-GB, 5400-rpm 778183-001

128-GB Solid-state drive, M.2 773069-001

Hard Drive Hardware Kit (includes hard drive bracket and screws; not illustrated) 767437-001

Optical drives (include bezel, bracket, and screws)

Blu-ray ROM DVD±RW SuperMulti DL Drive 768473-001

DVD±RW SuperMulti DL Drive 768475-001

DVD-ROM drive 768474-001

Miscellaneous parts

Description Spare part number

AC adapters

90-W AC adapter 693712-001

90-W AC adapter for use in India 693712-001

65-W AC adapter 693711-001

65-W AC adapter for use in India 693710-001

Power cords, 1.83 m, 3-pin:

For use in Australia 490371-011

For use in Europe, the Middle East, and Africa 490371-021

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy 490371-061

For use in Japan 490371-291

For use in the People’s Republic of China 490371-AA1

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

For use in Taiwan 490371-AB1

For use in Thailand 490371-201

For use in the United Kingdom 490371-031

For use in the United States 490371-001

Power cords, 1.0 m, 3-pin:

For use in Australia 755530-011

For use in Denmark 755530-081

Miscellaneous parts 21

Description Spare part number

For use in Europe, the Middle East, and Africa 755530-021

For use in India 755530-D61

For use in Israel 755530-BB1

For use in Italy 755530-061

For use in Japan 755530-291

For use in the People’s Republic of China 755530-AA1

For use in South Africa 755530-AR1

For use in South Korea 755530-AD1

For use in Switzerland 755530-111

For use in Taiwan 755530-AB1

For use in Thailand 755530-201

For use in the United Kingdom 755530-031

For use in the United States 755530-001

Power cords, 1.0 m, 2-pin:

For use in Japan 762689-291

Rubber Kit (includes rubber base enclosure screw covers and mylar display bezel screw covers) 768387-001

Screw Kit 768388-001

22 Chapter 3 Illustrated parts catalog

Sequential part number listing

CSR flag designations:

A = Mandatory

B = Optional

C = Service technician recommended

N = Non-user replaceable

Spare part
number

490371-001 A Power cord (1.83 m, 3-pin) for use in North America

490371-011 A Power cord (1.83 m, 3-pin) for use in Australia

490371-021 A Power cord (1.83 m, 3-pin) for use in Europe, the Middle East, and Africa

490371-031 A Power cord (1.83 m, 3-pin) for use in the United Kingdom

490371-061 A Power cord (1.83 m, 3-pin) for use in Italy

490371-111 A Power cord (1.83 m, 3-pin) for use in Switzerland

490371-201 A Power cord (1.83 m, 3-pin) for use in Thailand

490371-291 A Power cord (1.83 m, 3-pin) for use in Japan

490371-AA1 A Power cord (1.83 m, 3-pin) for use in the People’s Republic of China

490371-AB1 A Power cord (1.83 m, 3-pin) for use in Taiwan

490371-AD1 A Power cord (1.83 m, 3-pin) for use in South Korea

490371-AR1 A Power cord (1.83 m, 3-pin) for use in South Africa

490371-BB1 A Power cord (1.83 m, 3-pin) for use in Israel

490371-D61 A Power cord (1.83 m, 3-pin) for use in India

634250-001 A 750-GB, 5400-rpm hard drive

CSR flag Description

675794-001 A Atheros AR9485 802.11b/g/n 1x1 WiFi Adapter

676521-001 A 1-TB, 5400-rpm hard drive

691739-001 A 2-GB memory module (PC3L-12800, 1600-MHz, DDR3L)

691740-001 A 4-GB memory module (PC3L-12800, 1600-MHz, DDR3L)

693374-001 A 8-GB memory module (PC3L-12800, 1600-MHz, DDR3L)

693710-001 A 65-W AC adapter for use in India

693711-001 A 65-W AC adapter

693712-001 A 90-W AC adapter for use in India

693713-001 A 90-W AC adapter

703267-001 A 500 GB, 7200 rpm hard drive, 7 mm

708457-001 A 6-cell, 47 WHr, 2.2 Ah Li-ion battery

709848-001 A Realtek RTL8188EE 802.11bgn Wi-Fi Adapter

Sequential part number listing 23

Spare part
number

710662-001 A Intel Dual Band Wireless-AC 3160 802.11 ac 1x1 WiFi + BT 4.0 combo adapter

730668-001 A Broadcom BCM943228HMB 802.11abgn 2x2 Wi-Fi Adapter + Broadcom Bluetooth 4.0 Adapter

732000-001 A 500-GB, 5400-rpm, 7 mm, hybrid (8-GB SSD) hard drive

738824-001 C RTC battery

747375-001 A 1.5-TB, 5400-rpm, 9.5 mm, hard drive

753076-001 A Broadcom BCM43142 802.11b/g/n, 1x1 Wi-Fi + BT4.0 HMC combo adapter

753077-001 A Realtek RT8723BE 802.11 bgn 1x1 Wi-Fi + BT4.0 combo adapter

755530-001 A Power cord (1.0 m, 3-pin) for use in North America

755530-011 A Power cord (1.0 m, 3-pin) for use in Australia

755530-021 A Power cord (1.0 m, 3-pin) for use in Europe, the Middle East, and Africa

755530-031 A Power cord (1.0 m, 3-pin) for use in the United Kingdom

755530-061 A Power cord (1.0 m, 3-pin) for use in Italy

755530-081 A Power cord (1.0 m, 3-pin) for use in Denmark

755530-111 A Power cord (1.0 m, 3-pin) for use in Switzerland

755530-201 A Power cord (1.0 m, 3-pin) for use in Thailand

CSR flag Description

755530-291 A Power cord (1.0 m, 3-pin) for use in Japan

755530-AA1 A Power cord (1.0 m, 3-pin) for use in the People’s Republic of China

755530-AB1 A Power cord (1.0 m, 3-pin) for use in Taiwan

755530-AD1 A Power cord (1.0 m, 3-pin) for use in South Korea

755530-AR1 A Power cord (1.0 m, 3-pin) for use in South Africa

755530-BB1 A Power cord (1.0 m, 3-pin) for use in Israel

755530-D61 A Power cord (1.0 m, 3-pin) for use in India

756753-001 A Intel Dual Band Wireless-AC 7260 802.11 ac 2x2 WiFi + Intel Dual Band Wireless-AC 7260 BT 4.0 combo

adapter

757661-001 A 6-cell, 51 WHr, 2.55 Ah Li-ion battery

762689-291 A Power cord (1.0 m, 2-pin) for use in Japan

767432-001 C Power connector and cable

767433-001 C Fan

767437-001 A Hard Drive Hardware Kit (includes bracket and screws)

767442-001 C Power button board

767457-001 C Webcam module

768049-001 C Heat sink assembly for use in models with an Intel i7-4558U processor (includes replacement thermal

material)

768050-001 C Heat sink assembly for use in models with all processors except for the Intel i7-4558U (includes

24 Chapter 3 Illustrated parts catalog

replacement thermal material)

Spare part
number

768130-001 A Keyboard, backlit, for use in the United States

768130-031 A Keyboard, backlit, for use in the United Kingdom

768130-041 A Keyboard, backlit, for use in Germany

768130-051 A Keyboard, backlit, for use in France

768130-061 A Keyboard, backlit, for use in Italy

768130-071 A Keyboard, backlit, for use in Spain

768130-081 A Keyboard, backlit, for use in Denmark

768130-091 A Keyboard, backlit, for use in Norway

768130-131 A Keyboard, backlit, for use in Portugal

768130-141 A Keyboard, backlit, for use in Turkey

768130-151 A Keyboard, backlit, for use in Greece

768130-171 A Keyboard, backlit, for use in Saudi Arabia

768130-211 A Keyboard, backlit, for use in Hungary

768130-251 A Keyboard, backlit, for use in Russia

768130-261 A Keyboard, backlit, for use in Bulgaria

CSR flag Description

768130-271 A Keyboard, backlit, for use in Romania

768130-281 A Keyboard, backlit, for use in Thailand

768130-291 A Keyboard, backlit, for use in Japan

768130-A41 A Keyboard, backlit, for use in Belgium

768130-AB1 A Keyboard, backlit, for use in Taiwan

768130-AD1 A Keyboard, backlit, for use in South Korea

768130-B31 A Keyboard, backlit, for use in the Netherlands and Europe

768130-B71 A Keyboard, backlit, for use in Sweden and Finland

768130-BA1 A Keyboard, backlit, for use in Slovenia

768130-BB1 A Keyboard, backlit, for use in Israel

768130-BG1 A Keyboard, backlit, for use in Switzerland

768130-D61 A Keyboard, backlit, for use in India

768130-DD1 A Keyboard, no backlight, for use in Iceland

768130-DH1 A Keyboard, backlit, for use in the Netherlands

768130-FL1 A Keyboard, backlit, for use in the Czech Republic and Slovakia

768130-FP1 A Keyboard, backlit, for use in northern Africa

768140-001 C Touchpad button board

768373-001 C Display rear cover (includes wireless antennas)

768374-001 C Base enclosure

Sequential part number listing 25

Spare part
number

768375-001 C Display bezel for use in models with a webcam

768376-001 C Display bezel for use in models without a webcam

CSR flag Description

768377-001 C Cable Kit (see

768378-001 C Fingerprint reader assembly (includes cable, bracket, and bezel)

768379-001 C Display Hinge Kit (includes left and right hinges)

768380-001 C Function board

768382-001 C USB/audio board

768384-001 C Card reader board

768385-001 A Service doors (includes large and small service door)

768386-001 C Display panel (raw), HD+

768387-001 A Rubber Kit (includes rubber base enclosure screw covers and mylar display bezel screw covers)

768388-001 N Screw Kit

768389-001 C Speaker assembly

768390-001 C Top cover (includes touchpad)

768392-001 C System board Without Windows 8.1; Intel i3-4030U processor; 1-GB discrete graphics memory

768392-501 C System board with Windows 8.1 Professional; Intel i3-4030U processor; 1-GB discrete graphics

memory

768392-601 C System board with Windows 8.1 Standard; Intel i3-4030U processor; 1-GB discrete graphics memory

768393-001 C System board Without Windows 8.1; Intel i5-4210U processor; 1-GB discrete graphics memory

Cable Kit on page 20 for more Cable Kit spare part information)

768393-501 C System board with Windows 8.1 Professional; Intel i5-4210U processor; 1-GB discrete graphics

memory

768393-601 C System board with Windows 8.1 Standard; Intel i5-4210U processor; 1-GB discrete graphics memory

768395-001 C System board Without Windows 8.1; Intel i7-4558U processor; 1-GB discrete graphics memory

768395-501 C System board with Windows 8.1 Professional; Intel i7-4558U processor; 1-GB discrete graphics

memory

768395-601 C System board with Windows 8.1 Standard; Intel i7-4558U processor; 1-GB discrete graphics memory

768398-001 C System board Without Windows 8.1; Intel i3-4030U processor; 2-GB discrete graphics memory

768398-501 C System board with Windows 8.1 Professional; Intel i3-4030U processor; 2-GB discrete graphics

memory

768398-601 C System board with Windows 8.1 Standard; Intel i3-4030U processor; 2-GB discrete graphics memory

768399-001 C System board Without Windows 8.1; Intel i5-4210U processor; 2-GB discrete graphics memory

768399-501 C System board with Windows 8.1 Professional; Intel i5-4210U processor; 2-GB discrete graphics

memory

768399-601 C System board with Windows 8.1 Standard; Intel i5-4210U processor; 2-GB discrete graphics memory

768401-001 C System board Without Windows 8.1; Intel i7-4510U processor; 2-GB discrete graphics memory

26 Chapter 3 Illustrated parts catalog

Spare part
number

768401-501 C System board with Windows 8.1 Professional; Intel i7-4510U processor; 2-GB discrete graphics

768401-601 C System board with Windows 8.1 Standard; Intel i7-4510U processor; 2-GB discrete graphics memory

768473-001 A Blu-ray ROM DVD±RW SuperMulti DL Drive(includes bezel, bracket, and screws)

768474-001 A DVD-ROM drive (includes bezel, bracket, and screws)

768475-001 A DVD±RW SuperMulti DL Drive (includes bezel, bracket, and screws)

768787-001 A Keyboard, no backlight, for use only in models in the United States

768787-031 A Keyboard, no backlight, for use only in models in the United Kingdom

768787-041 A Keyboard, no backlight, for use only in models in Germany

768787-051 A Keyboard, no backlight, for use only in models in France

768787-061 A Keyboard, no backlight, for use only in models in Italy

768787-071 A Keyboard, no backlight, for use only in models in Spain

768787-081 A Keyboard, no backlight, for use only in models in Denmark

768787-091 A Keyboard, no backlight, for use only in models in Norway

768787-131 A Keyboard, no backlight, for use only in models in Portugal

CSR flag Description

memory

768787-141 A Keyboard, no backlight, for use only in models in Turkey

768787-151 A Keyboard, no backlight, for use only in models in Greece

768787-171 A Keyboard, no backlight, for use only in models in Saudi Arabia

768787-211 A Keyboard, no backlight, for use only in models in Hungary

768787-251 A Keyboard, no backlight, for use only in models in Russia

768787-261 A Keyboard, no backlight, for use only in models in Bulgaria

768787-271 A Keyboard, no backlight, for use only in models in Romania

768787-281 A Keyboard, no backlight, for use only in models in Thailand

768787-291 A Keyboard, no backlight, for use only in models in Japan

768787-A41 A Keyboard, no backlight, for use only in models in Belgium

768787-AB1 A Keyboard, no backlight, for use only in models in Taiwan

768787-AD1 A Keyboard, no backlight, for use only in models in South Korea

768787-B31 A Keyboard, no backlight, for use only in models in the Netherlands and Europe

768787-B71 A Keyboard, no backlight, for use only in models in Sweden and Finland

768787-BA1 A Keyboard, no backlight, for use only in models in Slovenia

768787-BB1 A Keyboard, no backlight, for use only in models in Israel

768787-BG1 A Keyboard, no backlight, for use only in models in Switzerland

768787-D61 A Keyboard, no backlight, for use only in models in India

768787-DD1 A Keyboard, no backlight, for use only in models in Iceland

Sequential part number listing 27

Spare part
number

768787-DH1 A Keyboard, no backlight, for use only in models in the Netherlands

768787-FL1 A Keyboard, no backlight, for use only in models in the Czech Republic and Slovakia

768787-FP1 A Keyboard, no backlight, for use only in models in northern Africa

773069-001 A 128-GB Solid-state drive, M.2

773563-001 C Microphone module

778183-001 A 320-GB, 5400-rpm hard drive

778191-001 A 750-GB, 7200-rpm hard drive

CSR flag Description

28 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Flat-bladed screwdriver

●

Phillips P0 and P1 screwdrivers

●

Torx T8 screwdriver

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying

screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care

when handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.

Tools required 29

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the

reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or
seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases,
avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be
caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables
tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer
is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure
that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

30 Chapter 4 Removal and replacement procedures preliminary requirements

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some protection,
but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, and then degrade in the internal layers, reducing its
life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Service considerations 31

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.

●

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

32 Chapter 4 Removal and replacement procedures preliminary requirements

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.

●

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be effective, the conductive strips must be worn in contact with
the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tapes

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Service considerations 33

5 Removal and replacement procedures for

Customer Self-Repair parts

CAUTION: The Customer Self-Repair program is not available in all locations. Installing a part not

supported by the Customer Self-Repair program may void your warranty. Check your warranty to determine
if Customer Self-Repair is supported in your location.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to
follow the on-screen instructions.

Component replacement procedures

NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair

parts successfully.

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See

This chapter provides removal and replacement procedures for Customer Self-Repair parts.

There are as many as 13 screws that must be removed, replaced, or loosened when servicing Customer Self­Repair parts. Make special note of each screw size and location during removal and replacement.

http://partsurfer.hp.com, select your country or region, and then

Service tag and PCID label on page 13 for details.

34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Battery

Description Spare part number

6-cell, 51 WHr, 2.55 Ah Li-ion battery 757661-001

6-cell, 47 WHr, 2.2 Ah Li-ion battery 708457-001

Before removing the battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

To remove the battery:

CAUTION: Removing a battery that is the sole power source for the computer can cause loss of information.

To prevent loss of information, save your work and shut down the computer through Windows before
removing the battery.

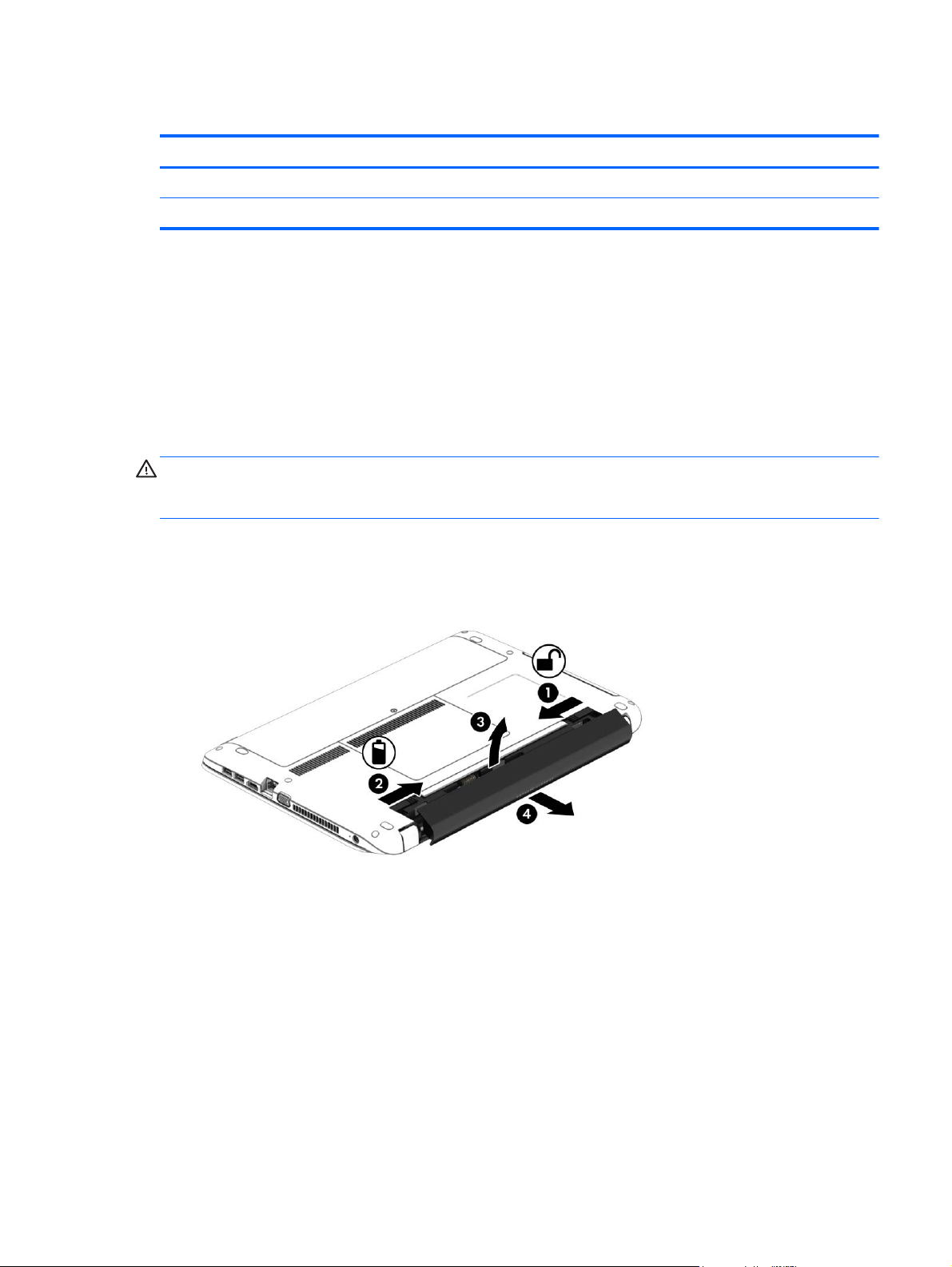

1. Turn the computer upside down on a flat surface.

2. Slide the battery lock latch (1), and then slide the battery release latch (2) to release the battery.

3. Tilt the battery upward (3) and remove it from the computer (4).

Component replacement procedures 35

Service door

Description Spare part number

Service doors (includes large and small service door) 768385-001

Before removing the service door, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

To remove the service door:

1. With the battery bay away from you, loosen the service door screw (1). The service door screw secures

both service doors.

2. Slide the larger service door away from the battery bay (2) to remove it.

NOTE: The larger service door provides access to the hard drive and memory modules.

36 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

3. Slide the smaller service door away from the battery bay (3) to release it, and then lift the service door

(4) to remove it.

NOTE: The smaller service door provides access to the wireless modules, optical drive security screw,

and keyboard screws. You must remove the large service door to remove the small service door.

Component replacement procedures 37

Hard drive

Description Spare part number

1.5-TB, 5400-rpm, 9.5 mm 747375-001

1-TB, 5400-rpm 676521-001

750-GB, 7200-rpm 778191-001

750-GB, 5400-rpm 634250-001

500-GB, 7200-rpm 703267-001

500-GB, 5400-rpm, 7 mm, hybrid (8-GB SSD) 732000-001

320-GB, 5400-rpm 778183-001

128-GB Solid-state drive, M.2 773069-001

Before removing the hard drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the large service door (see

Battery on page 35).

Service door on page 36).

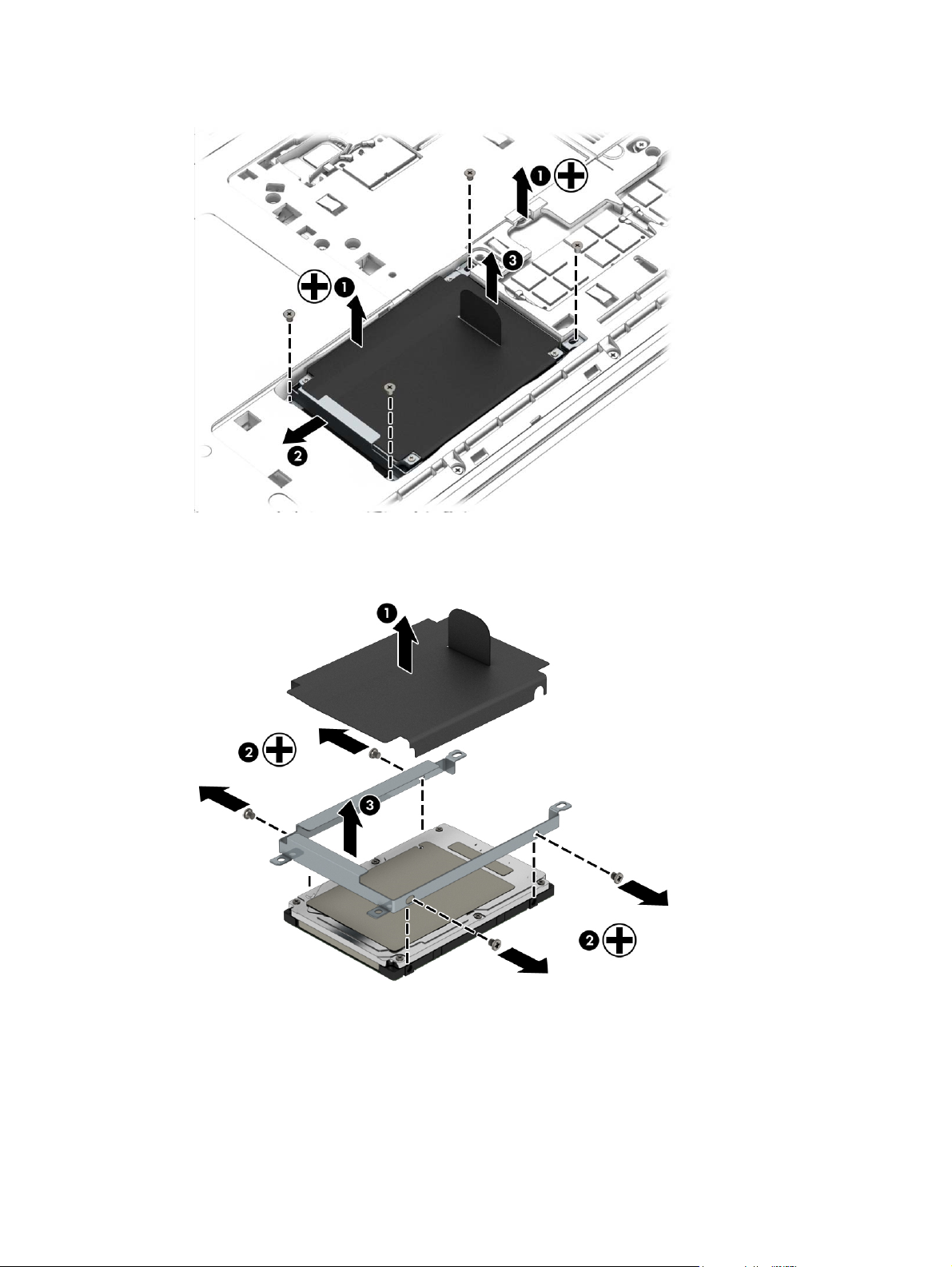

To remove a hard drive:

1. Remove the 4 Phillips PM2.5×4.0 screws (1) that secure the hard drive to the chassis.

2. Slide the hard drive (2) away from the center of the computer to disengage it from the connector.

38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

3. Pull the plastic tab (3) to remove the hard drive from the bay.

4. To remove the hard drive cover and bracket from the hard drive, lift the Mylar cover up off the drive (1),

remove the 4 Phillips PM3.0×3.0 screws (2) that secure the bracket to the drive, and then lift the
bracket up and off the hard drive (3).

Reverse this procedure to install a hard drive.

Component replacement procedures 39

Memory modules

NOTE: Primary and expansion memory is installed in a stacked configuration in the bottom of the

computer.

If only one memory module is installed, it must be installed in the bottom socket.

Description Spare part number

2-GB (PC3L-12800, 1600-MHz, DDR3L) 691739-001

4-GB (PC3L-12800, 1600-MHz, DDR3L) 691740-001

8-GB (PC3L-12800, 1600-MHz, DDR3L) 693374-001

Update BIOS before adding memory modules

Before adding new memory, make sure you update the computer to the latest BIOS.

CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in

various system problems.

To update BIOS:

1. Navigate to

www.hp.com.

2. Click Support & Drivers > click Drivers & Software.

3. In the Enter a product name/number box, type the computer model information, and then click Search.

4. Click the link for the computer model.

5. Select the operating system, and then click Next.

6. Under Step 2: Select a Download, click the BIOS link.

7. Click the link for the most recent BIOS.

8. Click the Download button, and then follow the on-screen instructions.

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the large service door (see

Battery on page 35).

Service door on page 36).

Remove the memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

2. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the memory

module slot.

NOTE: The computer uses two memory sockets. The top socket houses the expansion memory

module and the bottom socket houses the primary memory module. The removal procedure is the same
for both memory sockets.

Reverse this procedure to install a memory module.

Component replacement procedures 41

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel, bracket, and screws.

Description Spare part number

DVD-ROM drive 768474-001

Blu-ray ROM DVD±RW SuperMulti DL Drive 768473-001

DVD±RW SuperMulti DL Drive 768475-001

Before removing the optical drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove both service doors (see

Battery on page 35).

Service door on page 36).

Remove the optical drive:

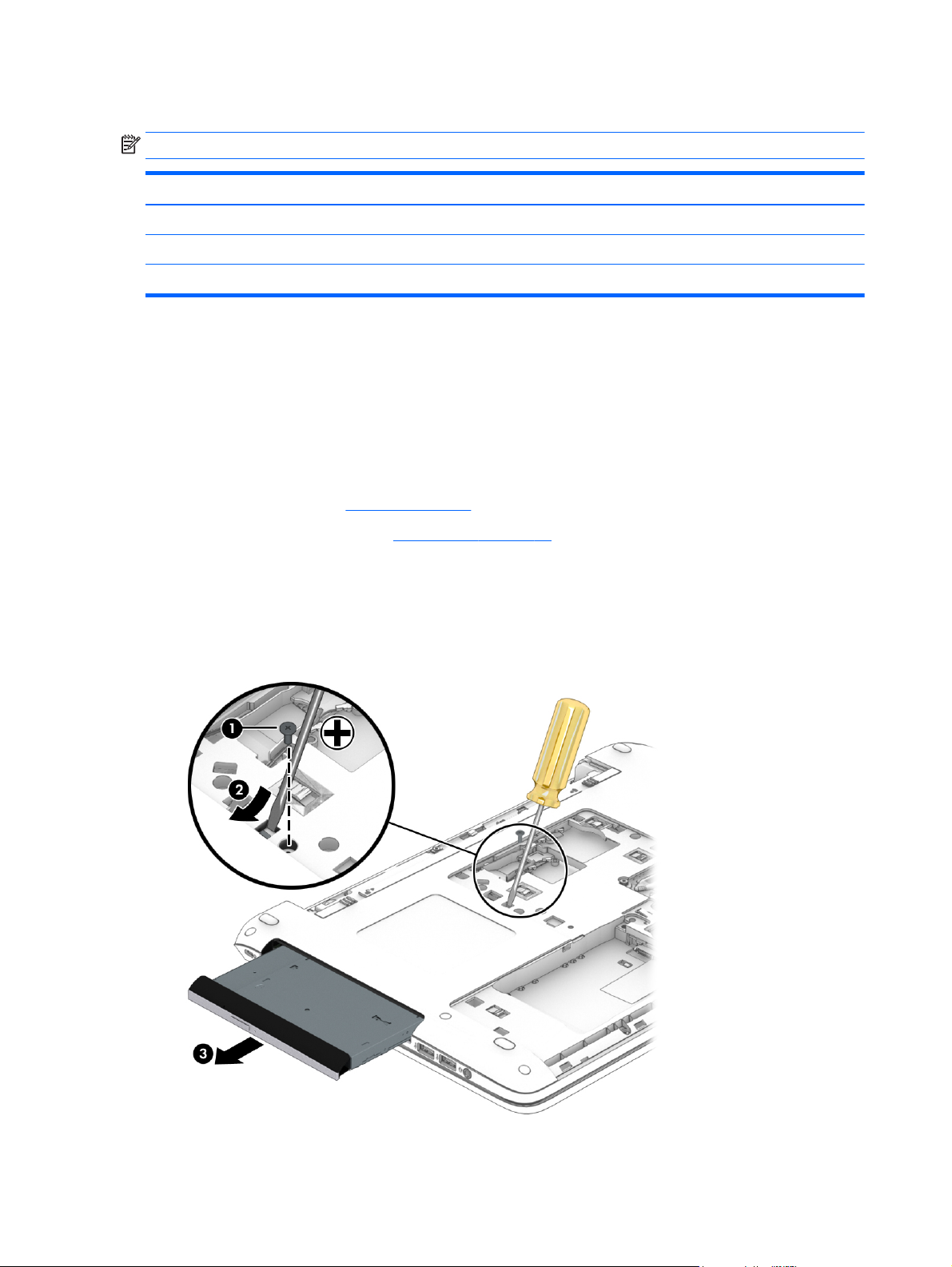

1. Remove the Phillips PM2.5×6.0 screw (1) that secures the optical drive to the computer.

2. Push the optical drive tab (2) to release the optical drive from the computer.

3. Remove the optical drive (3) from the computer.

42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

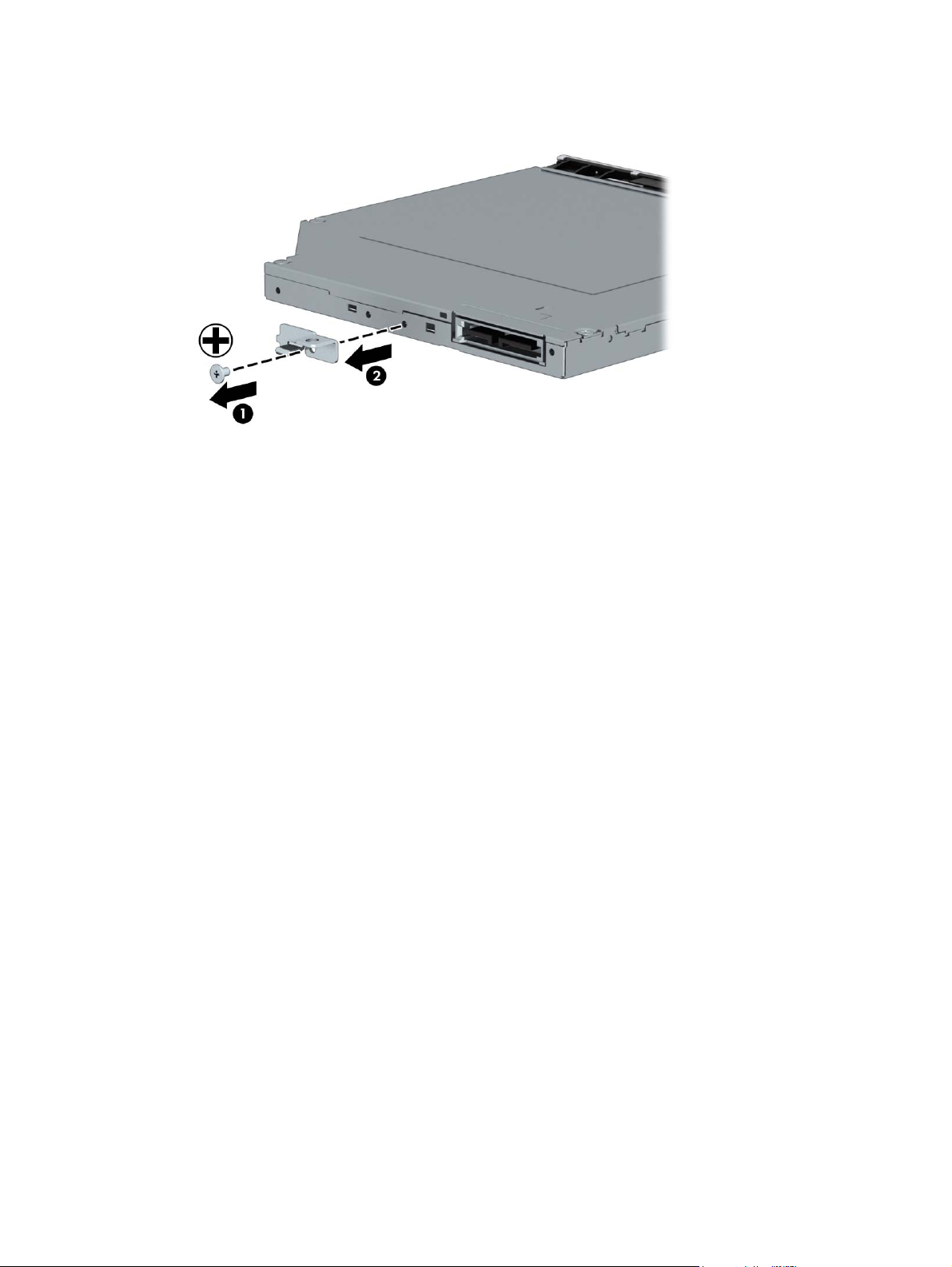

4. To remove the bracket from the optical drive, remove the Phillips PM2.0×3.0 screw (1) that secures the

bracket to the drive, and then remove the bracket from the drive (2).

Reverse this procedure to install an optical drive.

Component replacement procedures 43

WLAN/Bluetooth combo card

The computer uses a card that provides both WLAN and Bluetooth functionality.

Description Spare part number

Atheros AR9485 802.11b/g/n 1x1 WiFi Adapter 675794-001

Realtek RTL8188EE 802.11bgn Wi-Fi Adapter 709848-001

Intel Dual Band Wireless-AC 3160 802.11 ac 1x1 WiFi + BT 4.0 combo adapter 710662-001

Broadcom BCM943228HMB 802.11abgn 2x2 Wi-Fi Adapter + Broadcom Bluetooth 4.0 Adapter 730668-001

Broadcom BCM43142 802.11 bgn 1x1 Wi-Fi + BT4.0 HMC combo adapter 753076-001

Realtek RT8723BE 802.11 bgn 1x1 Wi-Fi + BT4.0 combo adapter 753077-001

Intel Dual Band Wireless-AC 7260 802.11 ac 2x2 WiFi + Intel Dual Band Wireless-AC 7260 BT 4.0 combo
adapter

756753-001

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove both service doors (see

Battery on page 35).

Service door on page 36).

Remove the WLAN module:

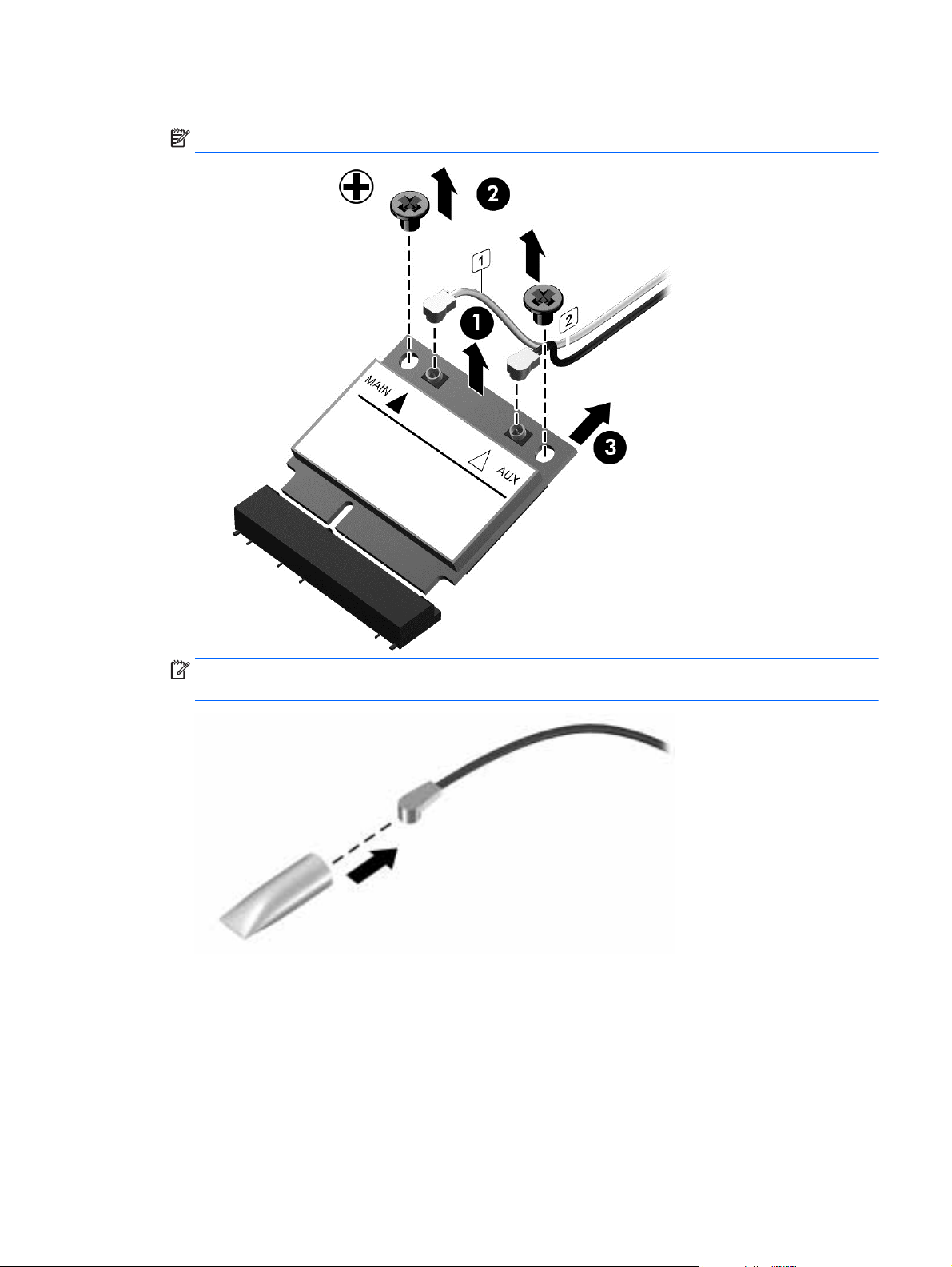

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled

“1”. The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”. If
the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable
connects to the middle terminal on the WLAN module.

2. Remove the two Phillips PM2.5×3.0 screws (2) that secure the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

44 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.

NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective

sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

Component replacement procedures 45

Keyboard

NOTE: For a detailed list of available keyboards, see Sequential part number listing on page 23.

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

Description Spare part number

Keyboard, backlit 768130-xxx

Keyboard, no backlight 768787-xx1

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove both service doors (see

Battery on page 35).

Service door on page 36).

Remove the keyboard:

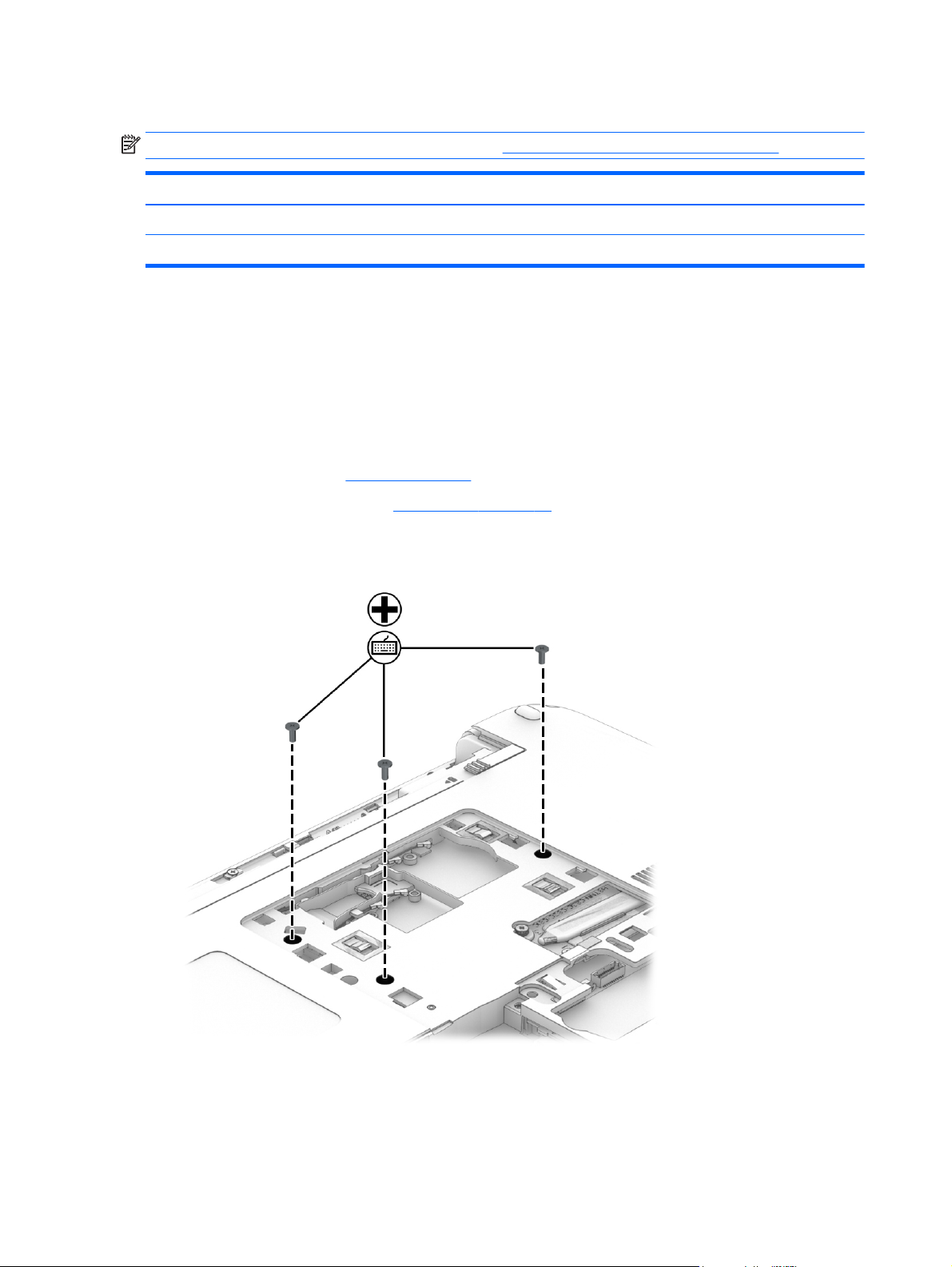

1. Remove the 3 Phillips PM2.5×6.0 screws that secure the keyboard to the computer.

2. Position the computer upright with the front toward you.

3. Open the computer as far as possible.

46 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

4. Slide the keyboard slightly downward toward the palm rest to disengage the top of the keyboard from

the top cover.

5. Rotate the top of the keyboard upward (1), and then lift the keyboard up at an angle (2) to disengage

the tabs at the bottom of the keyboard.

NOTE: A cable connects the bottom of the keyboard to the system board. Make sure not to

prematurely pull the keyboard cable out of the system board connector.

6. Rotate the keyboard until it rests on the palm rest (1).

Component replacement procedures 47

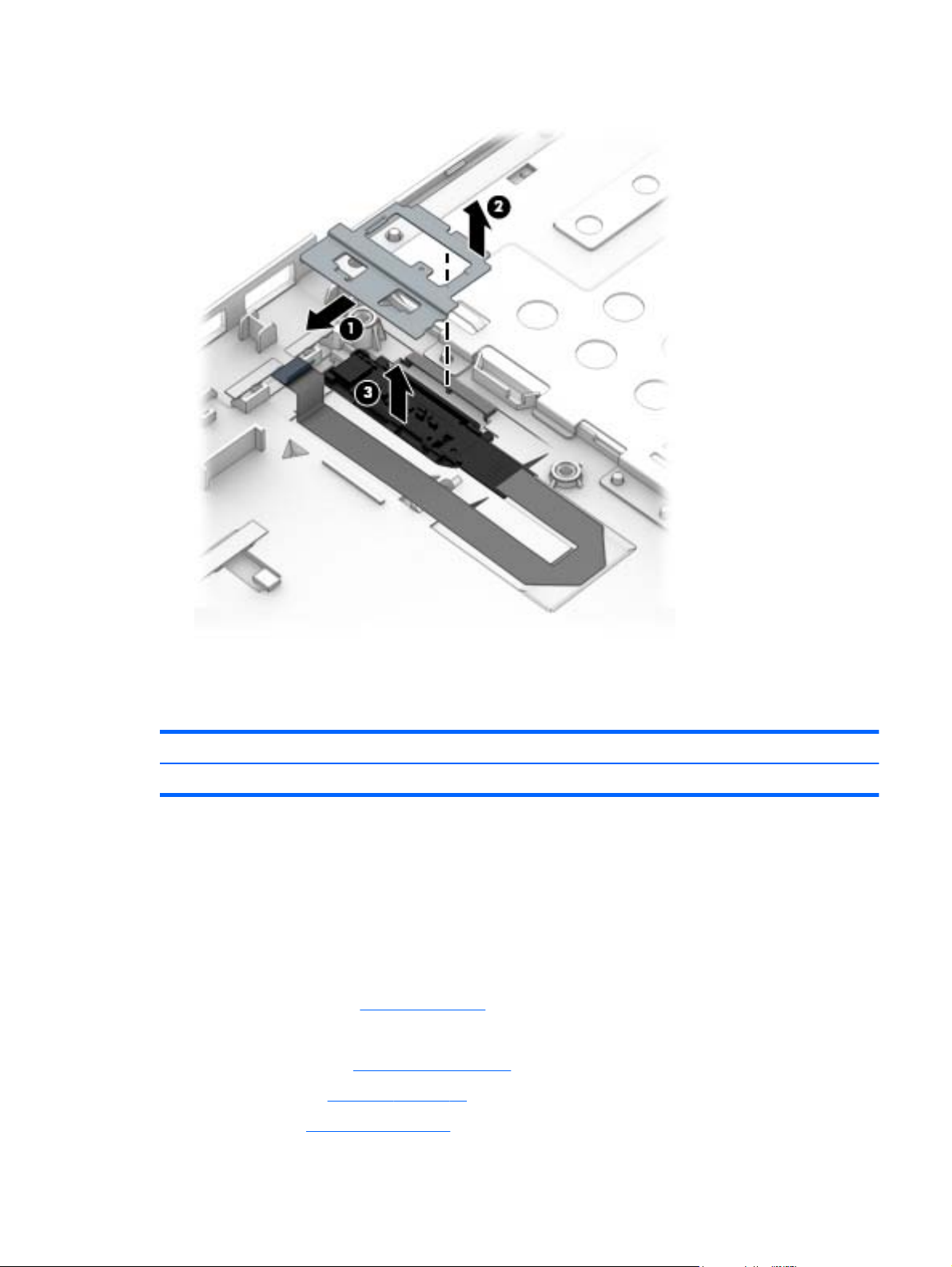

7. Disconnect the keyboard cable by lifting the keyboard connector latch (2), and then disconnect the

keyboard cable from the system board (3).

8. Remove the keyboard.

Reverse this procedure to install the keyboard.

48 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

6 Removal and replacement procedures for

Authorized Service Provider parts

CAUTION: Components described in this chapter should only be accessed by an authorized service provider.

Accessing these parts can damage the computer or void the warranty.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to
follow the on-screen instructions.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See

This chapter provides removal and replacement procedures for Authorized Service Provider only parts.

There are as many as 57 screws that must be removed, replaced, or loosened when servicing Authorized
Service Provider only parts. Make special note of each screw size and location during removal and
replacement.

http://partsurfer.hp.com, select your country or region, and then

Service tag and PCID label on page 13 for details.

Top cover

NOTE: Top cover spare part kits include the touchpad assembly.

Description Spare part number

Top cover (includes touchpad) 768390-001

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

4. Remove the following components:

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

a. Battery (see

b. Service doors (see

c. Hard drive (

d. Optical drive (

Battery on page 35).

Service door on page 36).

Hard drive on page 38)

Optical drive on page 42)

e. Keyboard (see

Remove the top cover:

Keyboard on page 46)

Component replacement procedures 49

1. Position the computer upside-down with the front toward you.

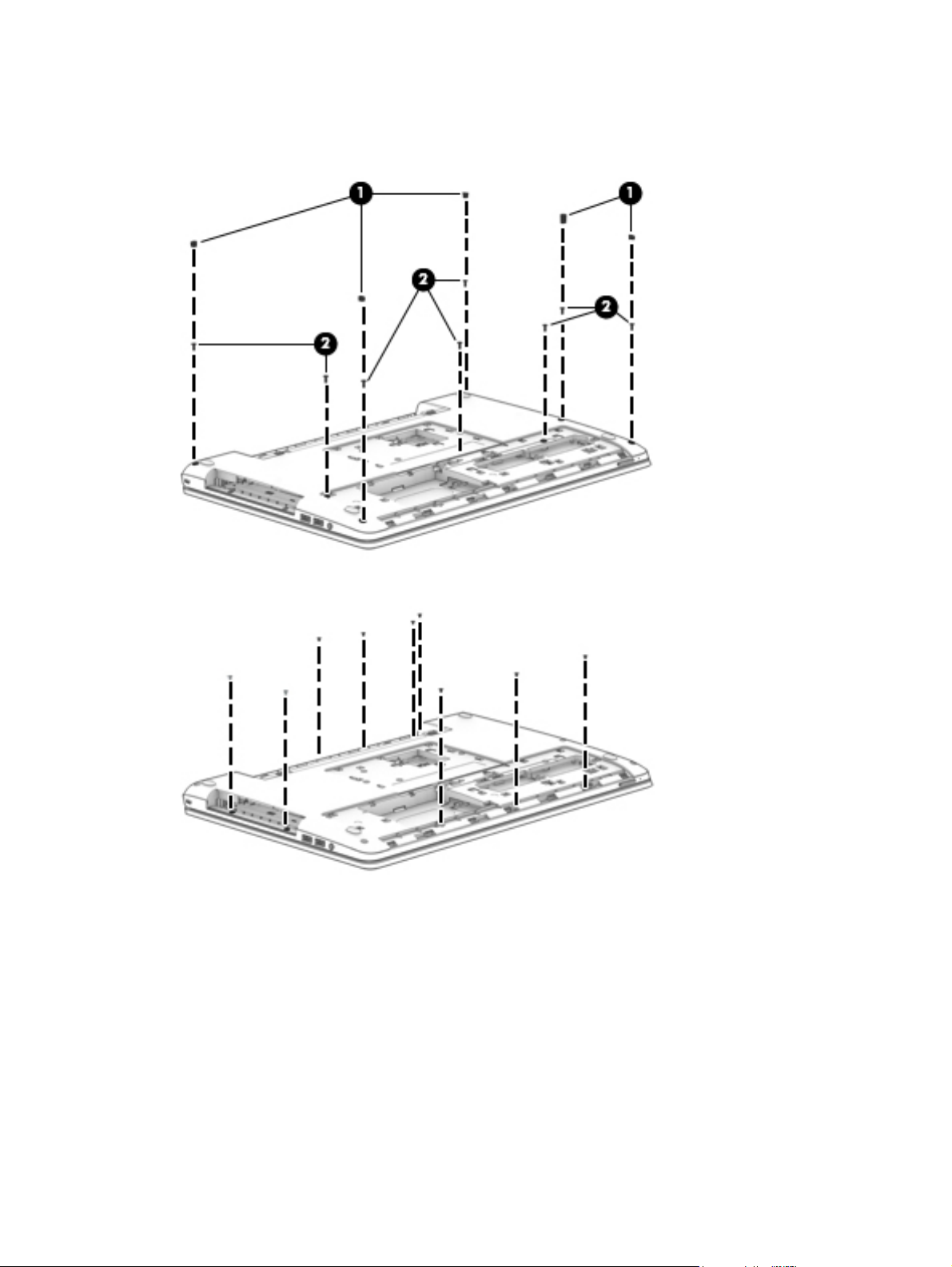

2. Remove the 5 rubber screw covers and 8 Torx T8M2.5×6.0 screws that secure the top cover to the

computer.

3. Remove the 9 Torx T8M2.5×3.0 screws that secure the top cover to the computer.

4. Position the computer upright and open it as far as possible.

5. Disconnect the following cables from the system board:

●

(1): Card reader board cable

●

(2): Power button board cable

●

(3): Function board cable

●

(4): Speaker cable

●

(5): USB board cable

50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

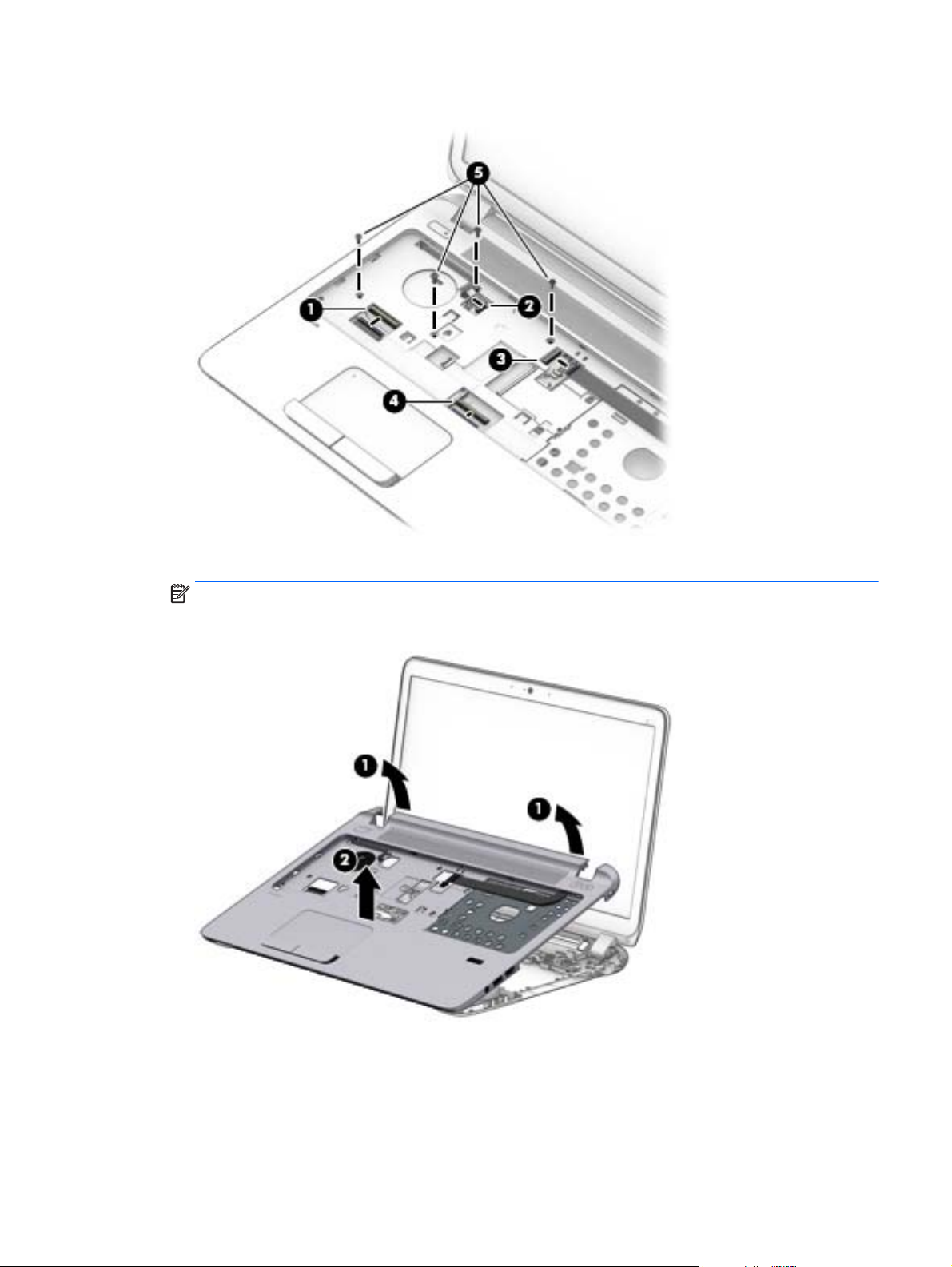

6. Remove the 4 Torx T8M2.5×6.0 screws (5) from the top of the computer.

7. Pry the top cover off the computer to disengage it.

NOTE: Begin by attempting to pry the top cover loose near the optical drive.

8. Lift the top of the top cover (1), and the lift the top cover up and remove it from the computer (2).

Reverse this procedure to install the top cover.

Component replacement procedures 51

Speaker assembly

Description Spare part number

Speaker assembly 768389-001

NOTE: You must remove the left speaker to remove to function board cable.

Before removing the speaker assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

d. Optical drive (

e. Top cover (see

Service door on page 36).

Keyboard on page 46)

Hard drive on page 38)

Optical drive on page 42)

Top cover on page 49)

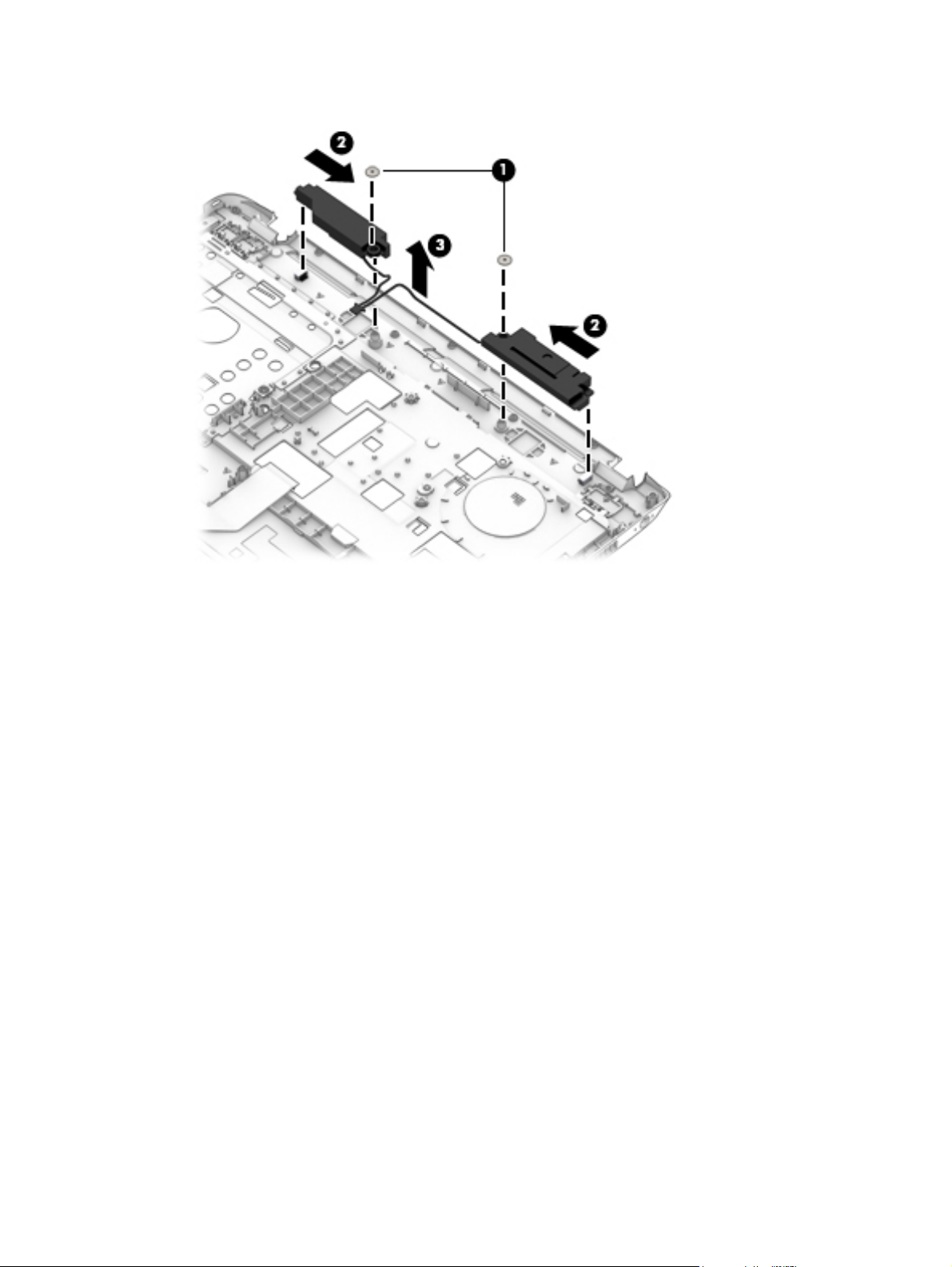

Remove the speaker assembly:

1. Position the top cover upside-down.

2. Remove the 2 Phillips PM2.0×3.0 broadhead screws (1) that secure the speakers to the computer.

3. Slide the speakers toward each other to disengage them from the top cover (2).

52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Remove the speakers from the top cover (3).

Reverse this procedure to install the speaker assembly.

Component replacement procedures 53

Fingerprint reader assembly

Description Spare part number

Fingerprint reader assembly (includes cable, bracket, and bezel) 768378-001

Before removing the fingerprint reader assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

d. Optical drive (

e. Top cover (see

Service door on page 36).

Keyboard on page 46)

Hard drive on page 38)

Optical drive on page 42)

Top cover on page 49)

Remove the fingerprint reader assembly:

1. Position the top cover upside-down.

2. Slide the bracket toward the bottom of the top cover (1), and then lift it off the top cover (2).

54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

3. Remove the fingerprint reader board and cable assembly from the top cover (3).

Reverse this procedure to install the fingerprint reader assembly.

Power button board

Description Spare part number

Power button board assembly 767442-001

Before removing the power button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

Battery on page 35).

Service door on page 36)

Keyboard on page 46)

Hard drive on page 38)

Component replacement procedures 55

d. Optical drive (Optical drive on page 42)

e. Top cover (see

Top cover on page 49)

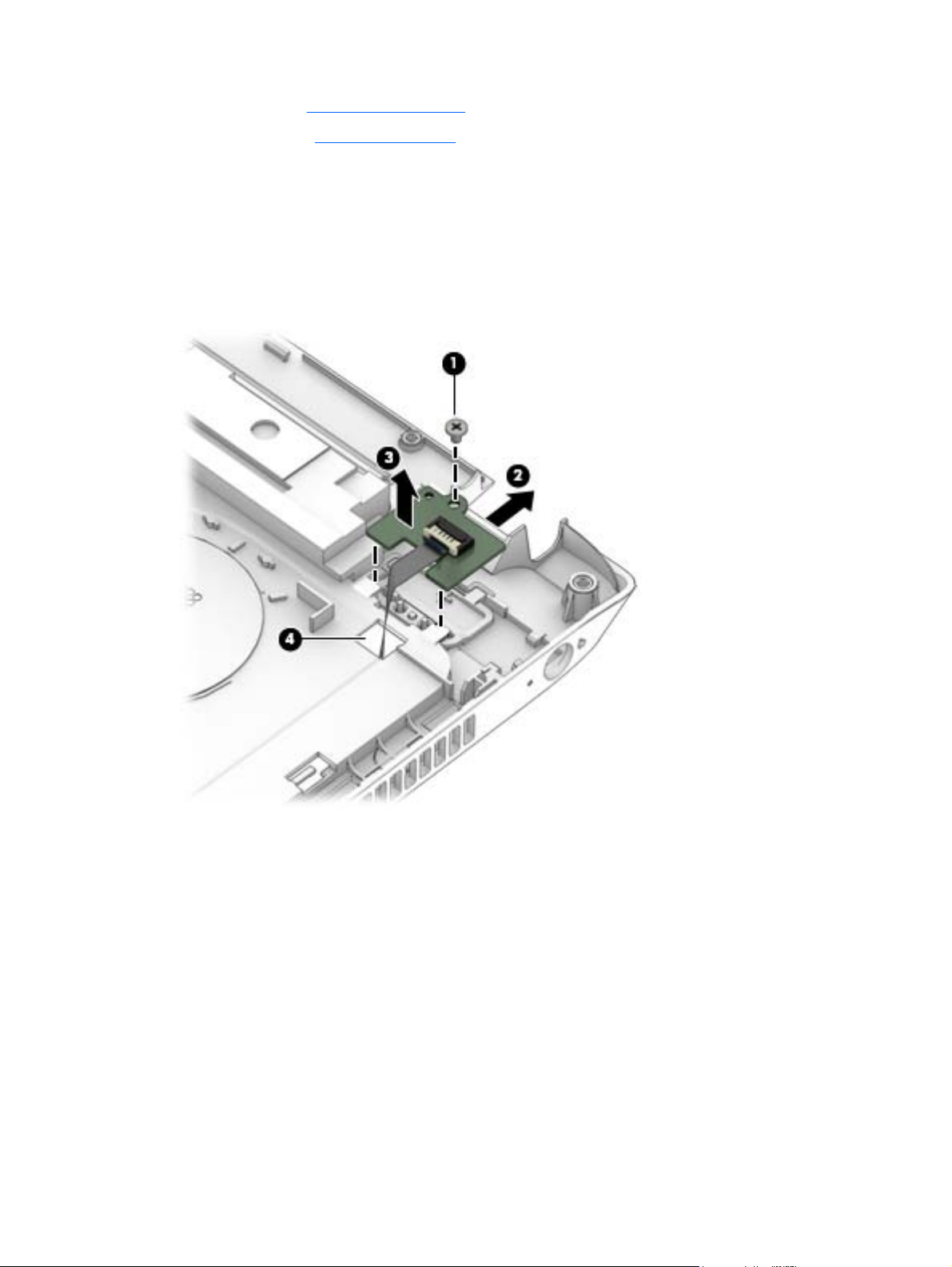

Remove the power button board:

1. Position the top cover upside-down.

2. Remove the Phillips PM2.0×3.0 screw (1) that secures the power button board to the top cover.

3. Slide the board upward to disengage it from the tabs (2).

4. Lift the board up to remove it from the top cover (3), while guiding the cable through the hole in the top

cover (4).

Reverse this procedure to install the power button board.

56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Function board

Description Spare part number

Function board 768380-001

Before removing the function board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

d. Optical drive (

e. Top cover (see

Service door on page 36)

Keyboard on page 46)

Hard drive on page 38)

Optical drive on page 42)

Top cover on page 49)

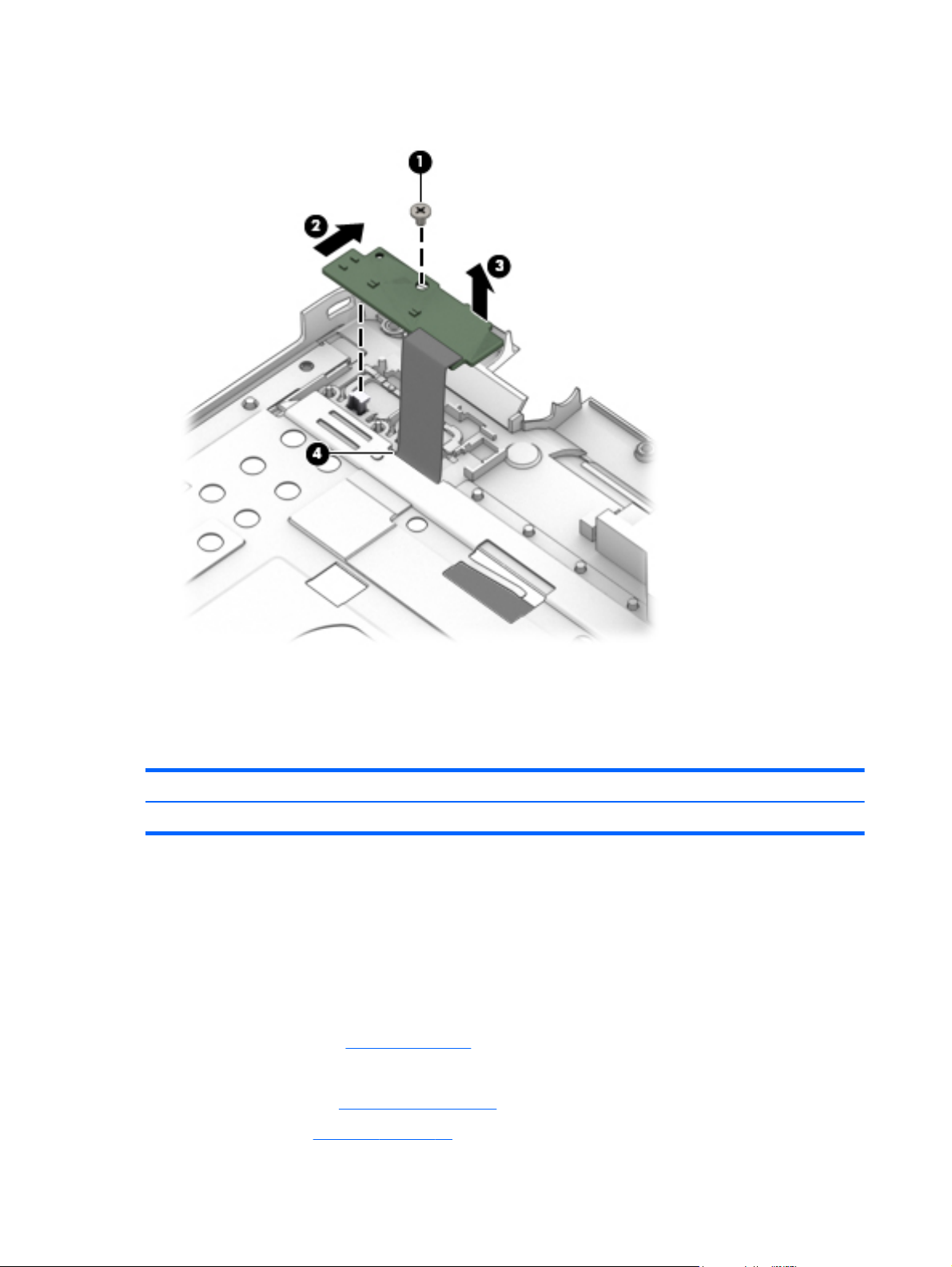

Remove the function board:

1. Position the top cover upside-down.

2. Remove the Phillips PM2.0×3.0 screw (1) that secures the function board to the top cover.

3. Slide the board toward the top of the top cover (2), and then lift it off the top cover (3).

Component replacement procedures 57

4. On the front of the top cover, pull the cable to disengage it from the adhesive that secures it, and then

pull the cable through the hole in the top cover (4).

5. Remove the function board from the top cover.

Reverse this procedure to install the function board.

Card reader board

Description Spare part number

Card reader board 768384-001

Before removing the card reader board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

Battery on page 35).

Service door on page 36).

Keyboard on page 46)

58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

c. Hard drive (Hard drive on page 38)

d. Optical drive (

e. Top cover (see

Optical drive on page 42)

Top cover on page 49)

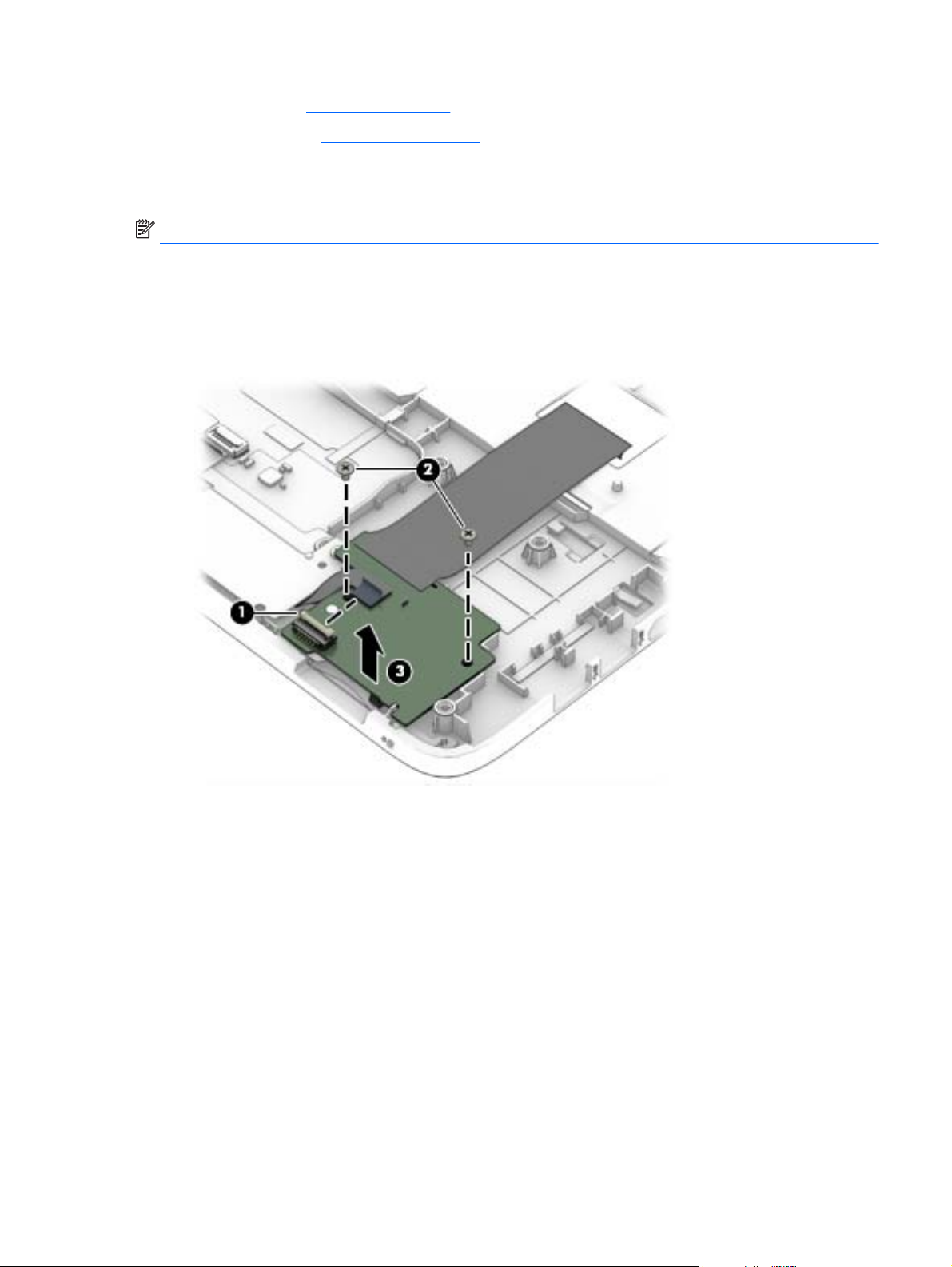

Remove the card reader board:

NOTE: Before you remove the card reader, make sure nothing (memory card or plastic insert) in installed.

1. Position the top cover upside-down.

2. Disconnect the cable from the board (1).

3. Remove the two Phillips PM2.5×4.0 screws (2) that secure the card reader board to the computer.

4. Remove the card reader board from the top cover (3).

Reverse this procedure to install the card reader board.

Component replacement procedures 59

USB/audio board

Description Spare part number

USB/audio board 768382-001

Before removing the USB/audio board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

d. Optical drive (

e. Top cover (see

Service door on page 36).

Keyboard on page 46)

Hard drive on page 38)

Optical drive on page 42)

Top cover on page 49)

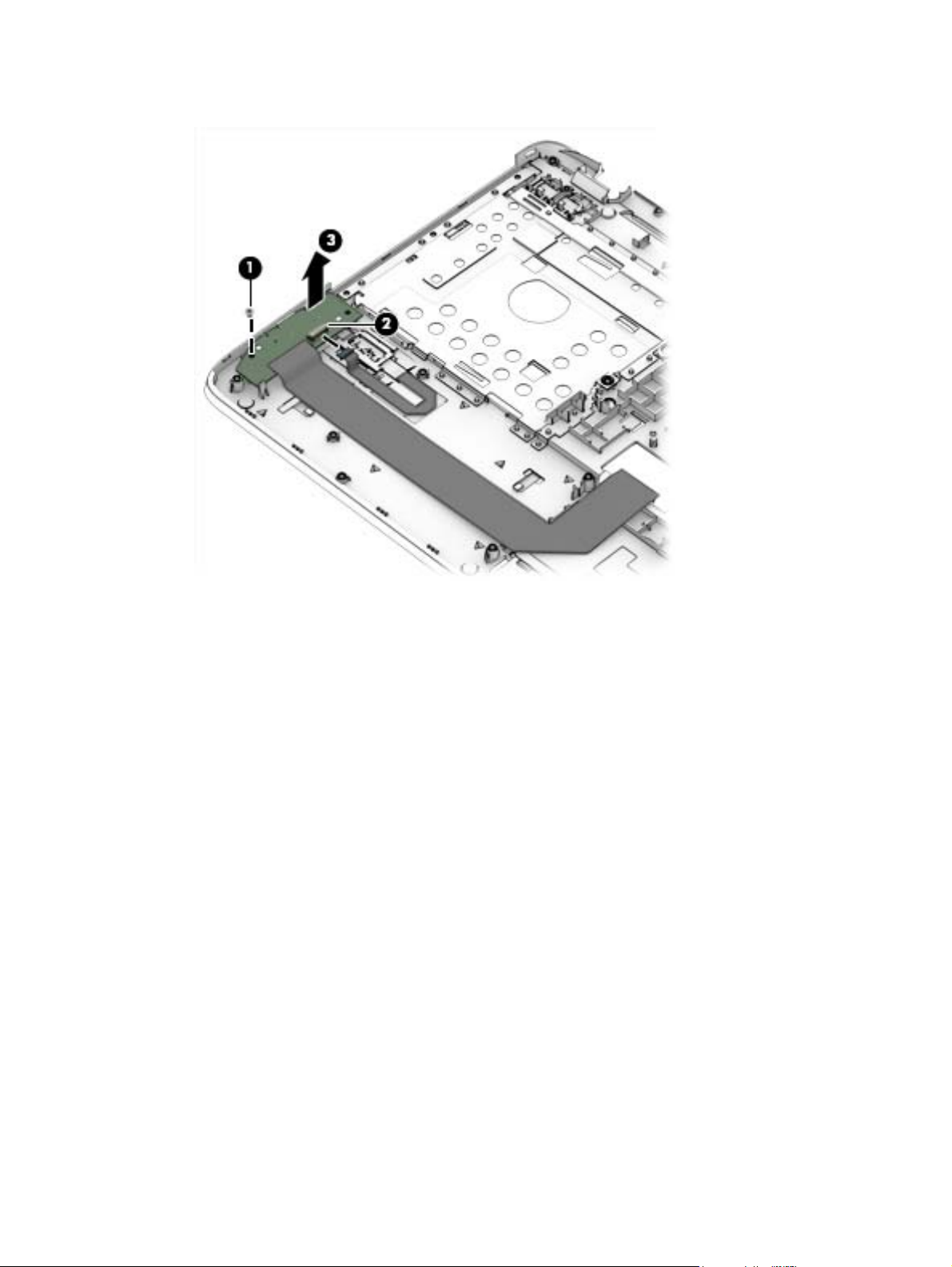

Remove the USB/audio board:

1. Position the top cover upside-down.

2. Remove the Phillips PM2.5×4.0 screw (1) that secures the USB/audio board to the computer.

3. Disconnect the cable from the board (2).

60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Lift the board off the top cover (3).

Reverse this procedure to install the USB/audio board.

Component replacement procedures 61

Touchpad button board

Description Spare part number

Touchpad button board 768140-001

Before removing the touchpad button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

d. Optical drive (

e. Top cover (see

Service door on page 36).

Keyboard on page 46)

Hard drive on page 38)

Optical drive on page 42)

Top cover on page 49)

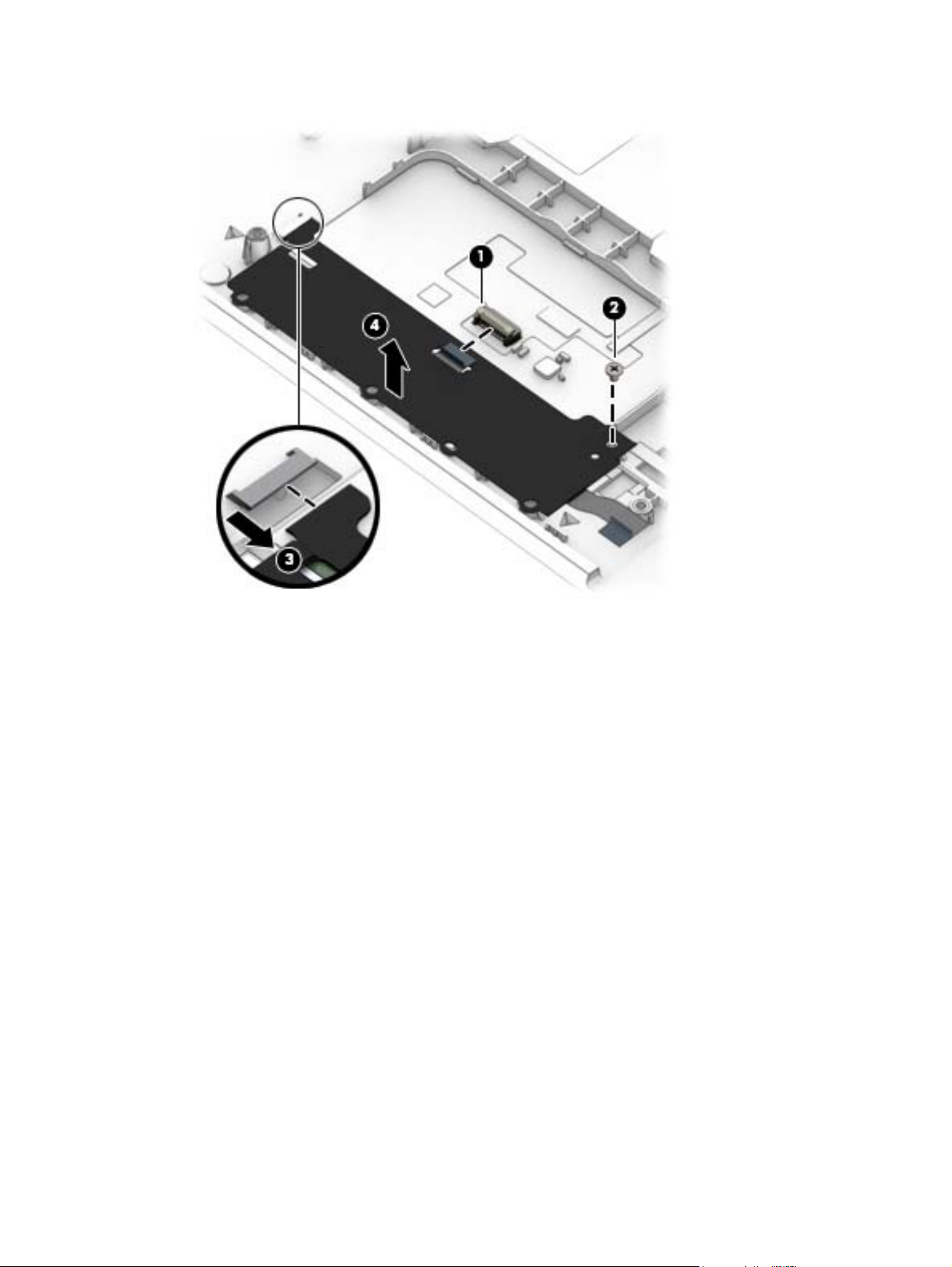

Remove the touchpad button board:

1. Position the top cover upside-down.

2. Disconnect the cable from the touchpad (1).

3. Disconnect the cable from the card reader board (2).

4. Remove the Phillips PM2.0×3.0 screw (3) that secures the button board to the top cover.

5. Lift the right side of the touchpad button board up, and then pull it to the right to remove it from the

slot (4).

62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

6. Lift the touchpad button board off the top cover (5).

Reverse this procedure to install the touchpad board.

Component replacement procedures 63

Fan

Description Spare part number

Fan 767433-001

NOTE: To properly ventilate the computer, allow at least 7.6 cm (3.0 in) of clearance on the left side of the

computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor
and is designed to turn on automatically when high temperature conditions exist. These conditions are
affected by high external temperatures, system power consumption, power management/battery
conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced
through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service doors (see

b. Hard drive (

Hard drive on page 38)

c. Optical drive (

d. Keyboard (see

e. Top cover (see

Battery on page 35), and then remove the following components:

Service door on page 36).

Optical drive on page 42)

Keyboard on page 46)

Top cover on page 49)

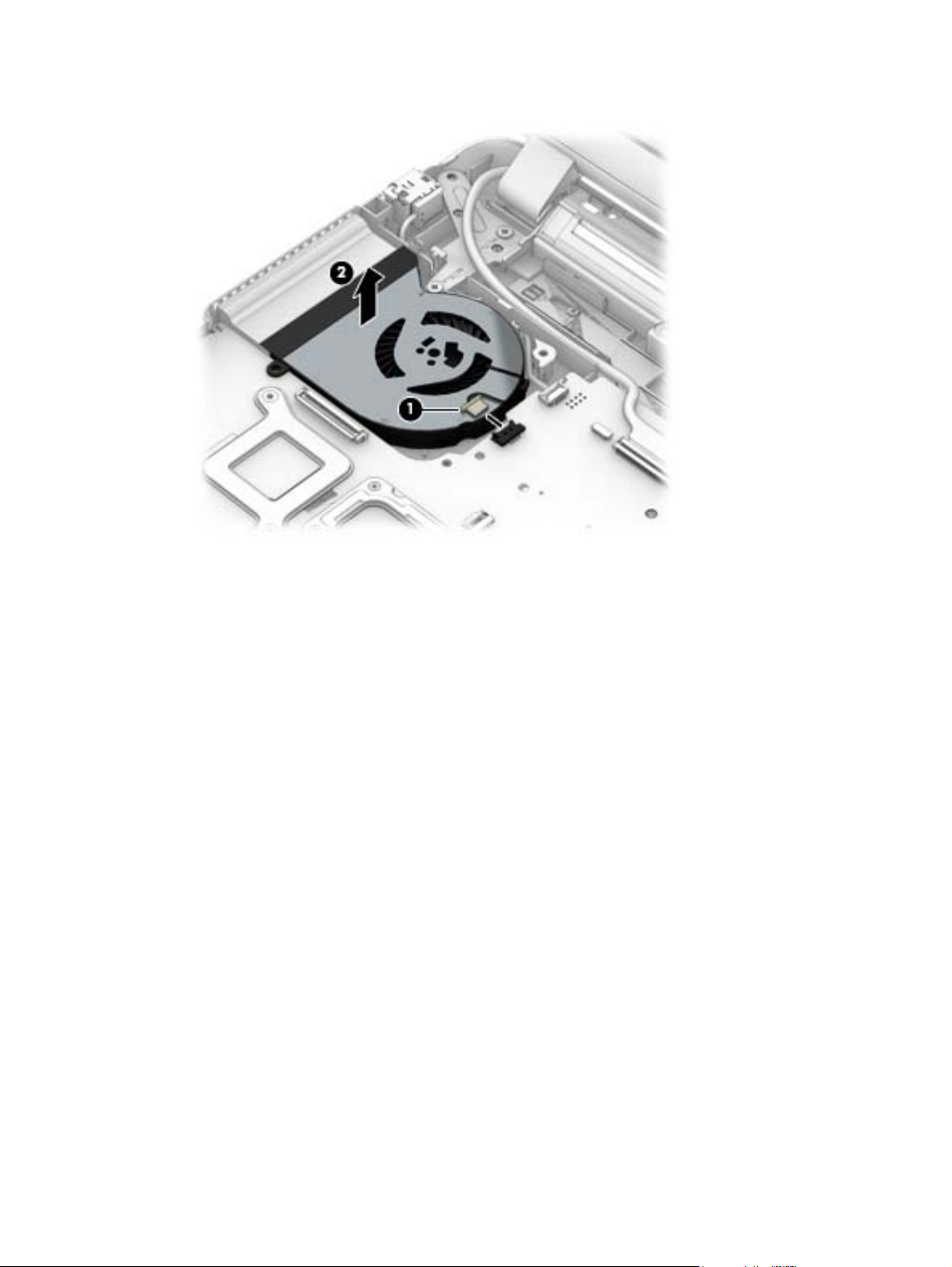

To remove the fan:

1. Disconnect the fan cable (1) from the system board.

64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

2. Lift the fan from the computer (2).

Reverse this procedure to install the fan.

Component replacement procedures 65

Battery connector cable

The battery connector cable is included in the Cable Kit, spare part number 768377-001.

Before removing the battery connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Service doors (see

b. Hard drive (

c. Optical drive (

d. Keyboard (see

e. Top cover (see

Remove the battery connector cable:

1. Disconnect the battery connector cable from the system board (1).

2. Remove the 2 Phillips PM2.5×4.0 screws that secure the battery connector cable to the computer (2).

3. Remove the battery connector cable from the computer (3).

Hard drive on page 38)

Battery on page 35).

Service door on page 36).

Optical drive on page 42)

Keyboard on page 46)

Top cover on page 49)

66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Reverse this procedure to install the battery connector cable.

System board

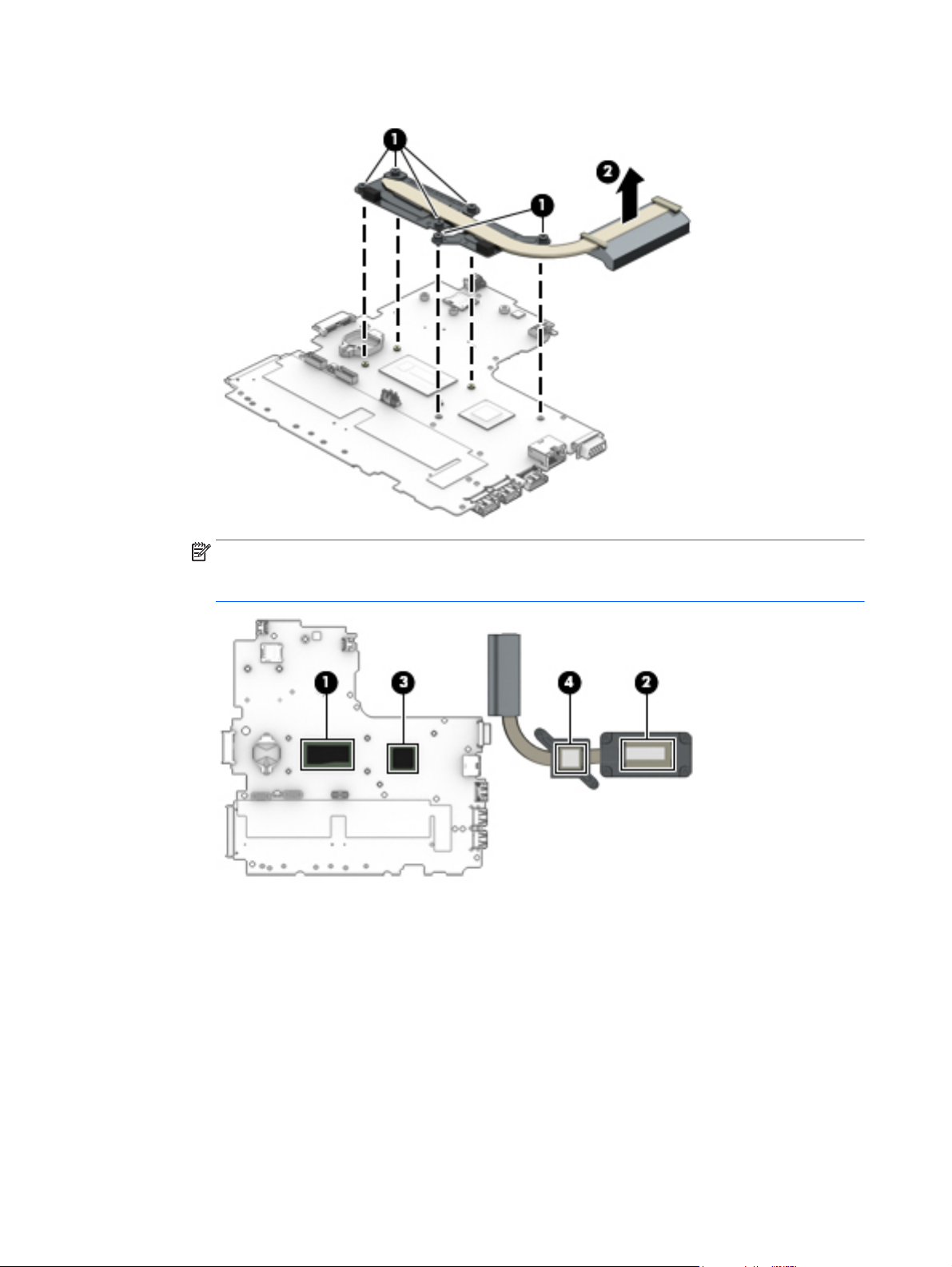

NOTE: All system board spare part kits include replacement thermal material.

Description Spare part number

Intel i7-4510U processor; 2-GB discrete graphics memory

●

Without Windows 8.1 768401-001

●

Windows 8.1 Professional 768401-501

●

Windows 8.1 Standard 768401-601

Intel i5-4210U processor; 2-GB discrete graphics memory

●

Without Windows 8.1 768399-001

●

Windows 8.1 Professional 768399-501

●

Windows 8.1 Standard 768399-601

Intel i3-4030U processor; 2-GB discrete graphics memory

●

Without Windows 8.1 768398-001

●

Windows 8.1 Professional 768398-501

●

Windows 8.1 Standard 768398-601

Intel i7-4558U processor; 1-GB discrete graphics memory

●

Without Windows 8.1 768395-001

●

Windows 8.1 Professional 768395-501

●

Windows 8.1 Standard 768395-601

Intel i5-4210U processor; 1-GB discrete graphics memory

●

Without Windows 8.1 768393-001

●

Windows 8.1 Professional 768393-501

●

Windows 8.1 Standard 768393-601

Intel i3-4030U processor; 1-GB discrete graphics memory

●

Without Windows 8.1 768392-001

●

Windows 8.1 Professional 768392-501

●

Windows 8.1 Standard 768392-601

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

Component replacement procedures 67

4. Remove the battery (see Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Hard drive (see

c. Optical drive (see

d. Keyboard (see

e. Top cover (see

Service door on page 36).

Hard drive on page 38)

Optical drive on page 42)

Keyboard on page 46)

Top cover on page 49)

When replacing the system board, be sure to remove the following components from the defective system
board and install on the replacement system board:

●

Memory modules (see Memory modules on page 40)

●

WLAN/Bluetooth module (see

WLAN/Bluetooth combo card on page 44)

Remove the system board:

1. Position the computer upright with the front toward you.

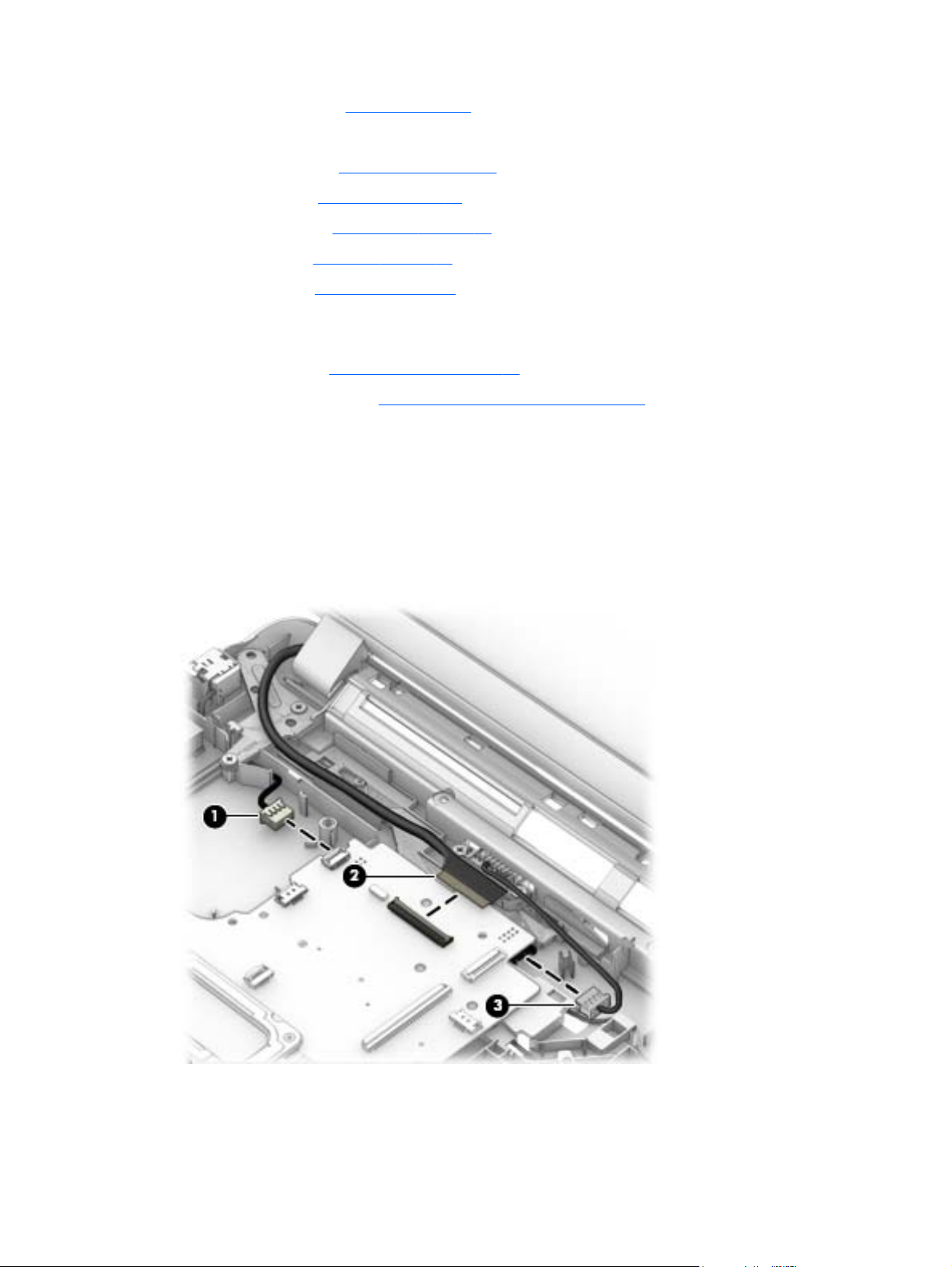

2. Disconnect the following cables from the system board:

(1) Power connector cable

(2) Display cable

(3) Battery connector cable

3. Remove the hillips PM2.5×4.0 screw (1) that secures the system board, the broadhead Phillips

PM2.0×3.0 screw (2) that secures the optical drive extension board, and the broadhead Phillips
PM2.0×3.0 screw (3) that secures the hard drive extension board to the computer.

68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Lift the right side of the system board up at an angle (4).

5. Pull the system board up and toward the right to remove it from the computer (5).

Reverse this procedure to install the system board.

Component replacement procedures 69

Optical drive and hard drive extension boards

You must remove the system board to remove the optical drive extension board.

Before removing the optical drive extension board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Service doors (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. Keyboard (see

f. Top cover (see

g. System board (see

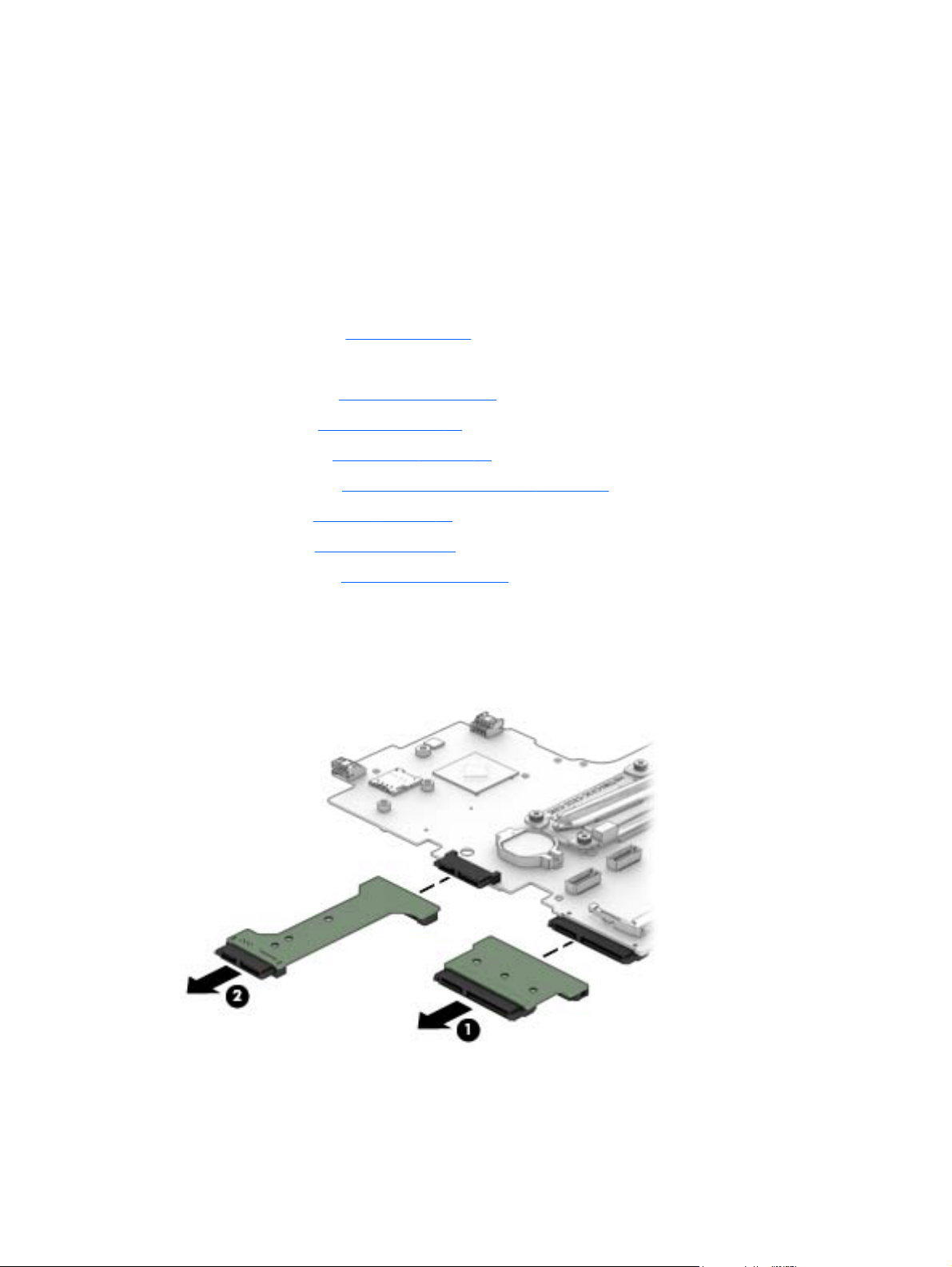

Remove the optical drive extension board:

1. Position the system board upright.

2. Pull the optical drive extension board (1) and/or the hard drive extension board (2) straight away from

the side of the system board.

Battery on page 35).

Service door on page 36).

Hard drive on page 38)

Optical drive on page 42)

WLAN/Bluetooth combo card on page 44)

Keyboard on page 46)

Top cover on page 49)

System board on page 67)

Reverse this procedure to install the drive extension boards.

70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

RTC battery

Description Spare part number

RTC battery 738824-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Hard drive (see

c. Optical drive (see

d. Keyboard (see

e. Top cover (see

f. System board (see

Service door on page 36).

Hard drive on page 38)

Optical drive on page 42)

Keyboard on page 46)

Top cover on page 49)

System board on page 67)

Remove the RTC battery:

1. Position the system board upside-down.

2. Using a flat tool, pry the battery out of the socket (1).

Component replacement procedures 71

3. Remove the battery from the socket (2).

Reverse this procedure to install the RTC battery.

72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Heat sink assembly

All heat sink assembly spare part kits include replacement thermal material.

Description Spare part number

Heat sink assembly:

For use in models with discrete graphics and all processors except for the Intel i7-4558U 768050-001

For use in models with discrete graphics and an Intel i7-4558U processor 768049-001

Before removing the heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. Keyboard (see

f. Top cover (see

g. System board (see

Service door on page 36).

Hard drive on page 38)

Optical drive on page 42)

WLAN/Bluetooth combo card on page 44)

Keyboard on page 46)

Top cover on page 49)

System board on page 67)

Remove the heat sink assembly:

1. Position the system board upside-down.

2. Models are available with discrete graphics.

Discrete models:

a. To remove the heat sink assembly, in the order indicated on the heat sink, loosen the 6 captive

Phillips screws (1) that secure the heat sink to the system board.

Component replacement procedures 73

b. Lift the heat sink from the system board (2).

NOTE: Thoroughly clean thermal material from the surfaces of the system board components

(1)(3) and the heat sink (2)(4) each time you remove the heat sink. All heat sink and processor

spare part kits include thermal material.

Reverse this procedure to install the heat sink assembly.

74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Display assembly

Entire display hinge-ups are not spared.

For a list of individual display spare parts, see

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Service doors (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. Keyboard (see

f. Top cover (see

Remove the display assembly:

1. Position the computer upside down.

Battery on page 35).

Service door on page 36).

Hard drive on page 38)

Optical drive on page 42)

WLAN/Bluetooth combo card on page 44)

Keyboard on page 46)

Top cover on page 49)

Display components on page 19.

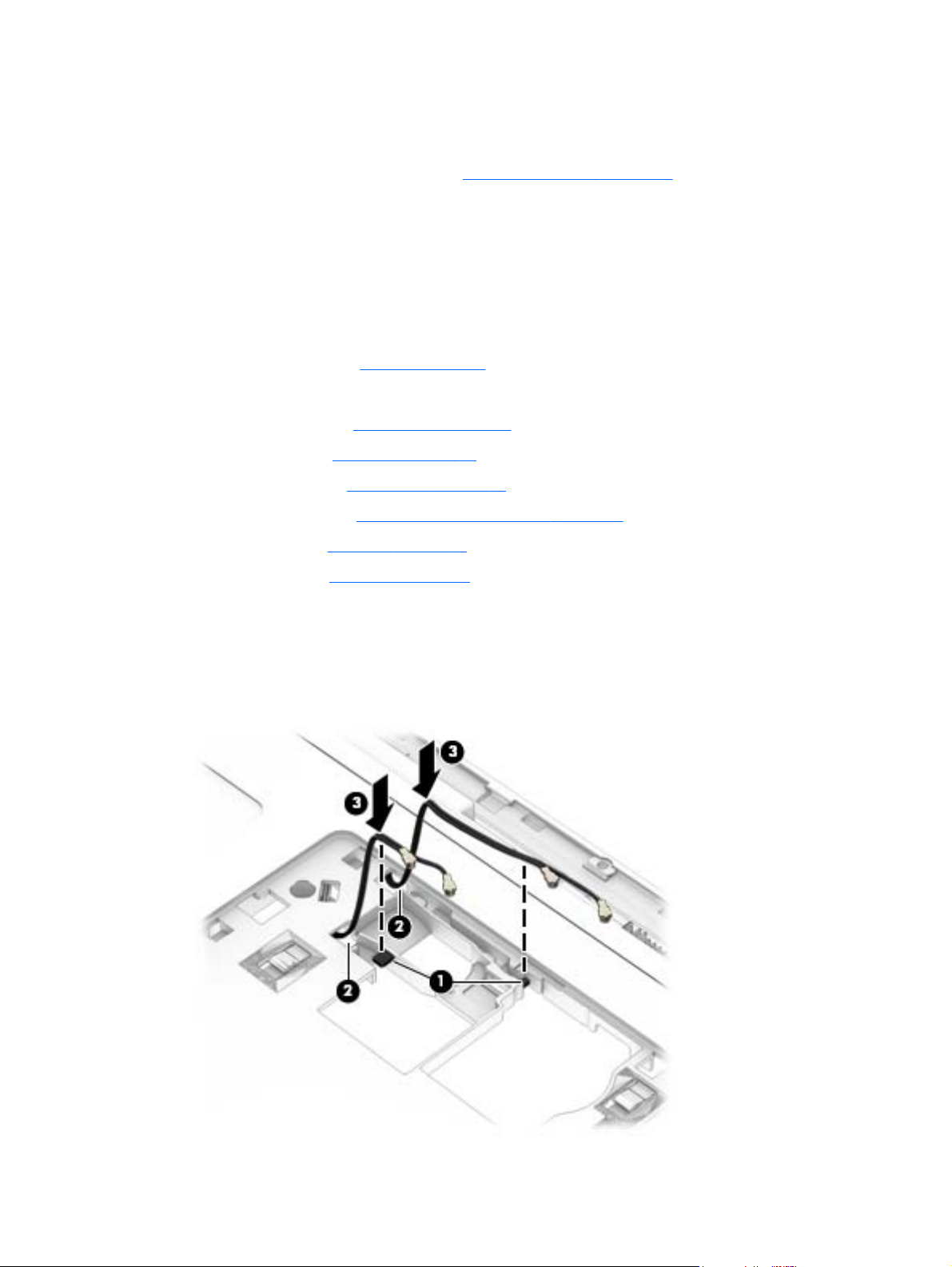

2. Pull the antenna cables through from the bottom of the computer. Position the computer upside down,

and then remove the cables from the clips near the wireless modules (1), pulling the cables (2) through
the holes (3) in the computer.

Component replacement procedures 75

3. Position the computer upright and open.

4. Disconnect the display cable from the system board (1).

5. Remove the WLAN antennas from the routing path along the base of the computer (2).

6. Place the computer upright and open as far as possible.

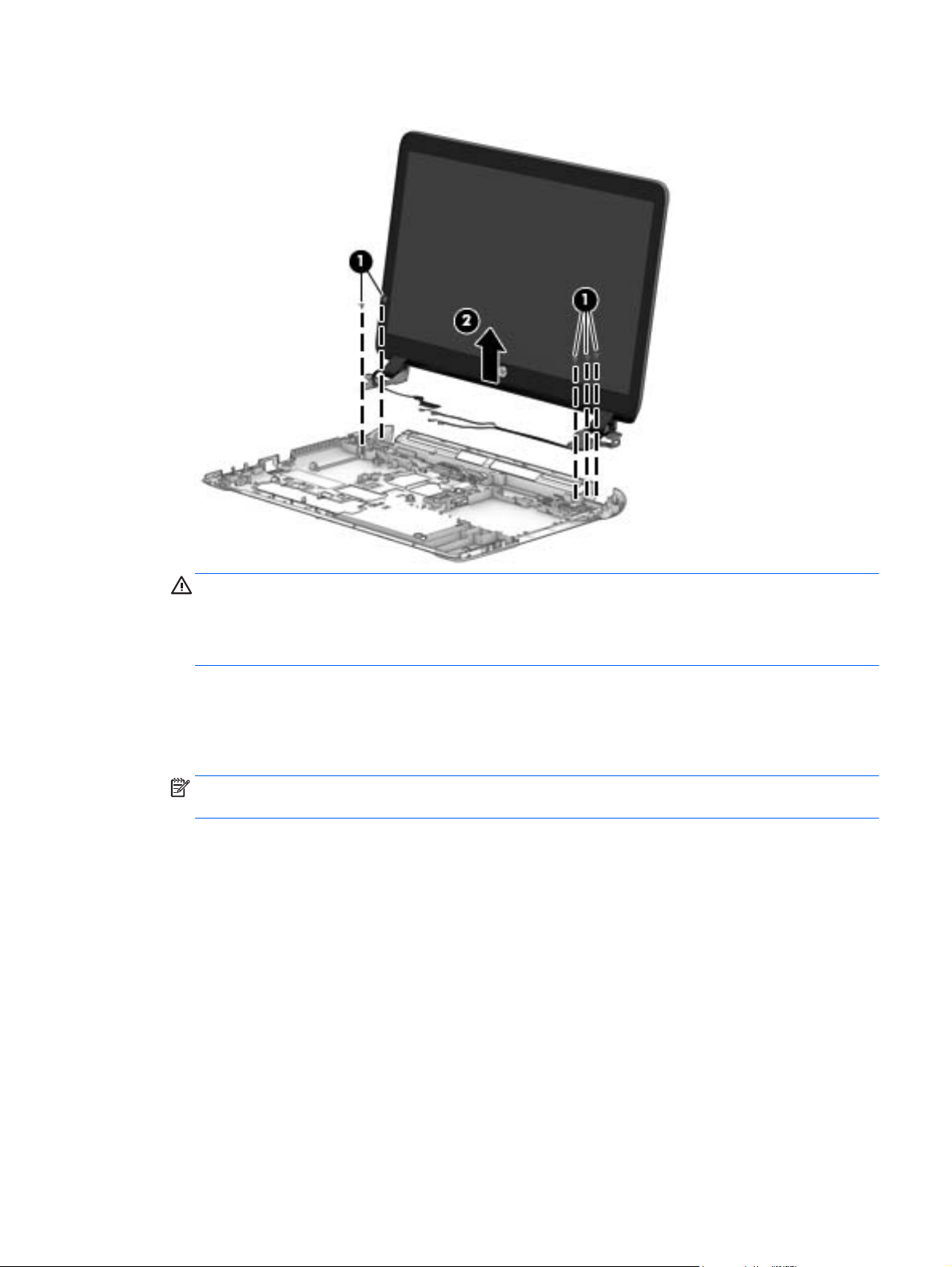

7. Remove the 5 Phillips PM2.5×4.0 screws (1) from the display hinges.

76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

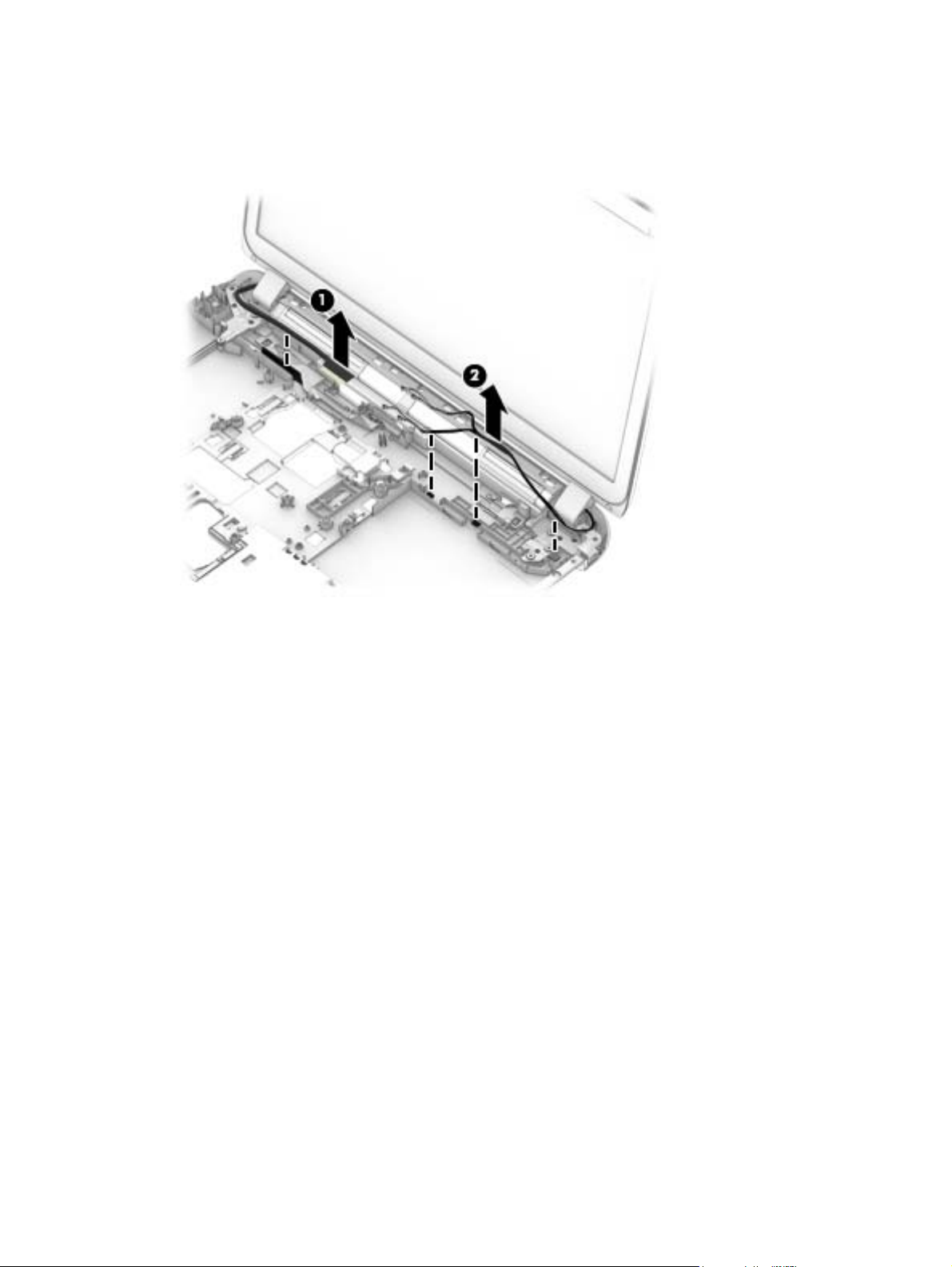

8. Lift the display assembly straight up and remove it (2).

CAUTION: When installing the display assembly, be sure that the wireless antenna cables are routed

and arranged properly.

Failure to properly route the antennas can result in degradation of the computer's wireless
performance.

9. If you need to remove the display bezel, remove the 2 mylar screw covers (1) and the 2 Phillips

PM2.0×3.0 screws (2) in the bottom corners of the display bezel.

10. Flex the top (3) of the bezel, the inside edges of the left and right sides (4), and then the bottom (5) of

the bezel until it disengages from the display enclosure.

NOTE: Make sure the hinges are not bent (see hinge position in following image) when you remove the

bezel.

Component replacement procedures 77

11. Remove the display bezel (6).

The display bezel is available using spare part number 768375-001 for models with a webcam and
768376-001 for models without a webcam. Display bezel mylar screw covers are available in the
Rubber Kit, spare part number 768387-001.

12. If it is necessary to replace the webcam or microphone module, gently pull the module away from the

double-sided tape on the display enclosure (1), and then disconnect the cable from the module (2).

The webcam module is available using spare part number 767457-001. The microphone module is
available using spare part number 773563-001.

78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

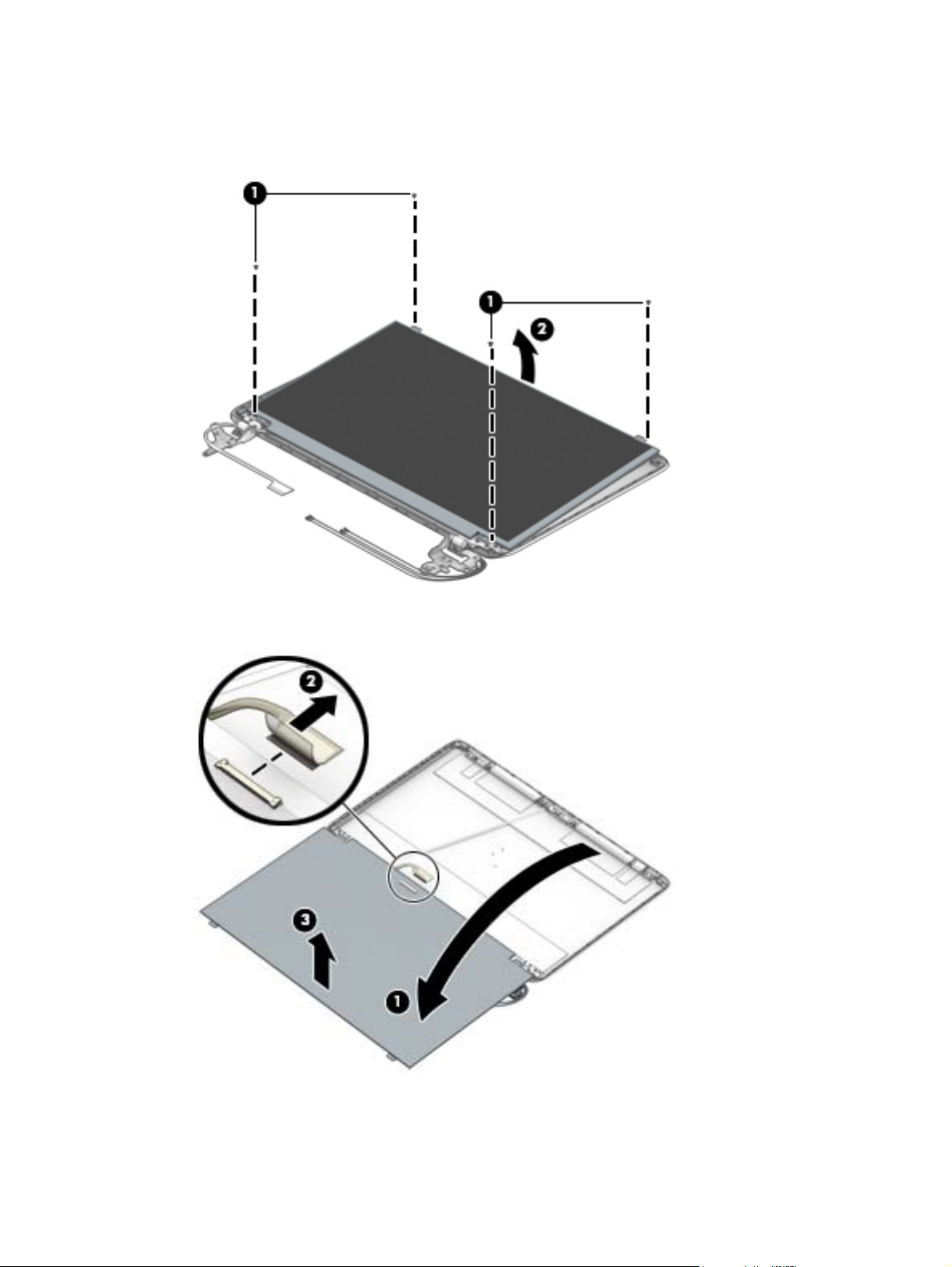

13. If it is necessary to remove the display panel from the enclosure, remove the 4 Phillips PM2.0×3.0

screws (1) that secure the panel to the display enclosure, and then lift the top of the panel upward (2).

The raw display panel is available using spare part number 768386-001.

14. Rotate the display panel all the way over (1), disconnect the display cable from the rear of the panel (2),

and then remove the display panel (3) from the enclosure.

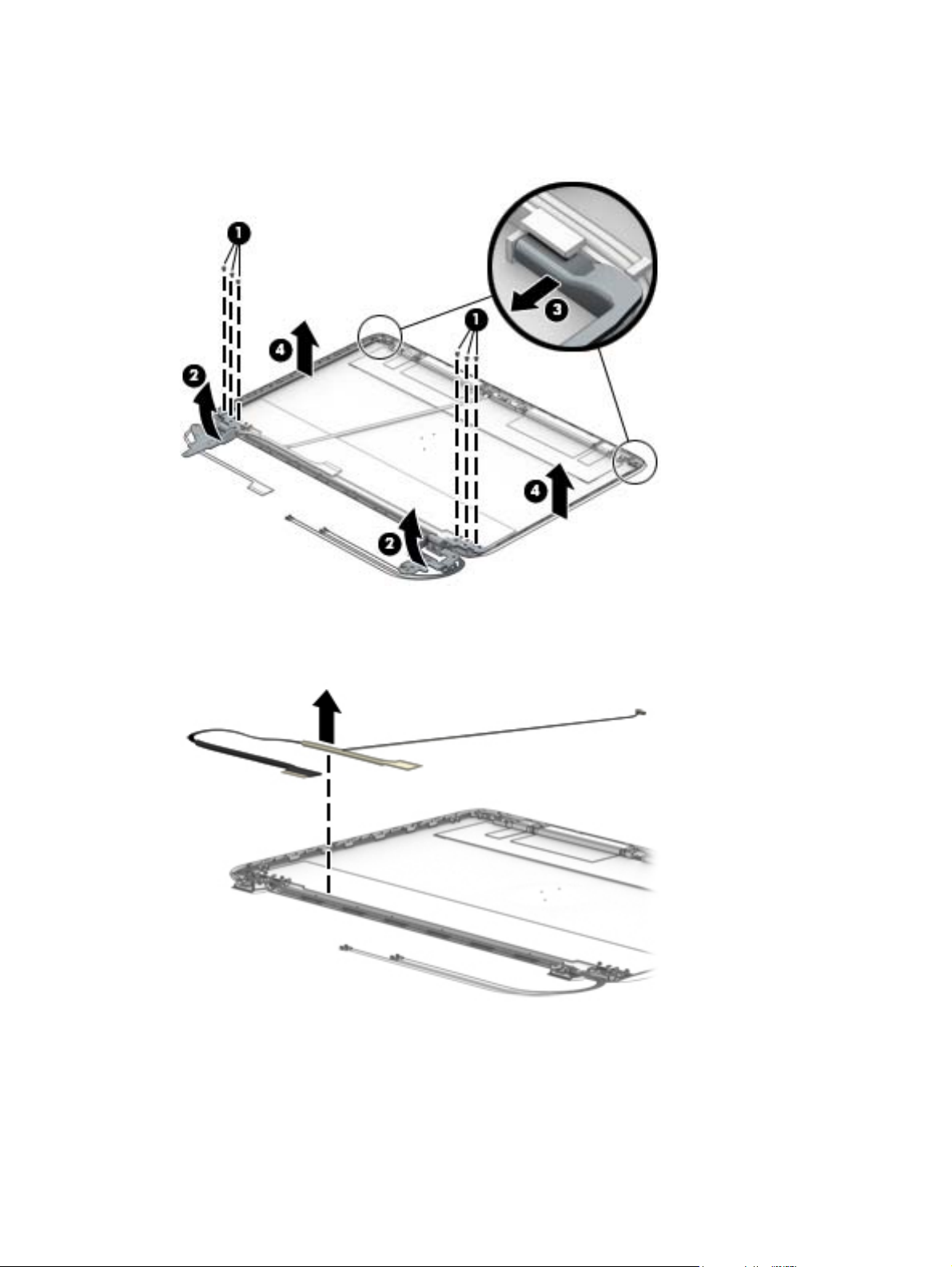

15. If it is necessary to replace the display hinges, remove the 6 Phillips PM2.0×3.0 screws (1) that secure

the display hinges to the display enclosure.

Component replacement procedures 79

16. Lift the bottom of the hinges upward (2), pull the top of the hinges out from under the tabs (3), and

then remove the display hinges from the display enclosure (4).

Display hinges are available in the Display Hinge Kit using spare part number 768379-001.

17. If it is necessary to replace the display/webcam cable, lift the display/webcam cable assembly straight

up and off the display panel.

The display cable is available in the Cable Kit using spare part number 768377-001.

80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

18. If it is necessary to replace the WLAN antenna cables, lift them straight up and out of the display panel,

noting their routing paths for reinstallation.

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures 81

Power connector and cable

Description Spare part number

Power connector and cable 767432-001

Before removing the power cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

5. Remove the following components:

a. Service doors (see

b. Keyboard (see

c. Hard drive (

d. Optical drive (

e. Top cover (see

f. Display assembly (see

Service door on page 36).

Keyboard on page 46)

Hard drive on page 38)

Optical drive on page 42)

Top cover on page 49)

Display assembly on page 75)

Remove the power cable:

1. Disconnect the cable from the bottom of the system board (1).

82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

2. Remove the cable from the clips built into the computer (2), and then lift the power cable from the

computer (3).

Reverse this procedure to install the power cable.

Component replacement procedures 83

7 Computer Setup (BIOS), MultiBoot, and HP

PC Hardware Diagnostics (UEFI) in Windows
8

Using Computer Setup

Computer Setup, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Computer Setup
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.

NOTE: Use extreme care when making changes in Computer Setup. Errors can prevent the computer from

operating properly.

Starting Computer Setup

NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup only if

USB legacy support is enabled.

To start Computer Setup, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

Navigating and selecting in Computer Setup

To navigate and select in Computer Setup, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the keyboard

to navigate and make selections in Computer Setup.

2. Press f10 to enter Computer Setup.

●

To select a menu or a menu item, use the tab key and the keyboard arrow keys and then press

enter, or use a pointing device to click the item.

●

To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
screen, or use the up arrow key or the down arrow key on the keyboard.

●

To close open dialog boxes and return to the main Computer Setup screen, press esc, and then
follow the on-screen instructions.

To exit Computer Setup menus, choose one of the following methods:

●

To exit Computer Setup menus without saving your changes:

Click the Exit icon in the lower-right corner of the screen, and then follow the on-screen instructions.

84 Chapter 7 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) in Windows 8

– or –

Use the arrow keys to select Main > Ignore Changes and Exit, and then press enter.

●

To save your changes and exit Computer Setup menus:

Click the Save icon in the lower-right corner of the screen, and then follow the on-screen instructions.

– or –

Use the arrow keys to select Main > Save Changes and Exit, and then press enter.

Your changes go into effect when the computer restarts.

Restoring factory settings in Computer Setup

NOTE: Restoring defaults will not change the hard drive mode.

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select Main > Restore Defaults.

4. Follow the on-screen instructions.

5. To save your changes and exit, click the Save icon in the lower-right corner of the screen, and then

follow the on-screen instructions.

– or –

Use the arrow keys to select Main > Save Changes and Exit, and then press enter.

Your changes go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory settings.

Updating the BIOS

Updated versions of the BIOS may be available on the HP website.

Most BIOS updates on the HP website are packaged in compressed files called SoftPaqs.

Some download packages contain a file named Readme.txt, which contains information regarding installing
and troubleshooting the file.

Determining the BIOS version

To determine whether available BIOS updates contain later BIOS versions than those currently installed on
the computer, you need to know the version of the system BIOS currently installed.

BIOS version information (also known as ROM date and System BIOS) can be revealed by pressing fn+esc (if
you are already in Windows) or by using Computer Setup.

Using Computer Setup 85

1. Start Computer Setup.

2. Use a pointing device or the arrow keys to select Main > System Information.

3. To exit Computer Setup without saving your changes, click the Exit icon in the lower-right corner of the

screen, and then follow the on-screen instructions.

– or –

Use the arrow keys to select Main > Ignore Changes and Exit, and then press enter.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and

install a BIOS update only when the computer is connected to reliable external power using the AC adapter.
Do not download or install a BIOS update while the computer is running on battery power, docked in an
optional USB docking device, or connected to an optional power source. During the download and
installation, follow these instructions:

Do not disconnect power on the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

1. From the Start screen, type hp support assistant, and then select the HP Support Assistant app.

2. Click Updates and tune-ups, and then click Check for HP updates now.

3. Follow the on-screen instructions.

4. At the download area, follow these steps:

a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on

your computer. Make a note of the date, name, or other identifier. You may need this information
to locate the update later, after it has been downloaded to your hard drive.

b. Follow the on-screen instructions to download your selection to the hard drive.

If the update is more recent than your BIOS, make a note of the path to the location on your hard
drive where the BIOS update is downloaded. You will need to access this path when you are ready
to install the update.

NOTE: If you connect your computer to a network, consult the network administrator before installing

any software updates, especially system BIOS updates.

BIOS installation procedures vary. Follow any instructions that are revealed on the screen after the download
is complete. If no instructions are revealed, follow these steps:

1. From the Start screen, type file, and then select File Explorer.

2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains the

update.

4. Double-click the file that has an .exe extension (for example, filename.exe).

The BIOS installation begins.

5. Complete the installation by following the on-screen instructions.

NOTE: After a message on the screen reports a successful installation, you can delete the downloaded file

from your hard drive.

86 Chapter 7 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) in Windows 8

Using MultiBoot

About the boot device order

As the computer starts, the system attempts to boot from enabled devices. The MultiBoot utility, which is
enabled at the factory, controls the order in which the system selects a boot device. Boot devices can include
optical drives, diskette drives, a network interface card (NIC), hard drives, and USB devices. Boot devices
contain bootable media or files that the computer needs to start and operate properly.

NOTE: Some boot devices must be enabled in Computer Setup before they can be included in the boot

order.

You can change the order in which the computer searches for a boot device by changing the boot order in
Computer Setup. You can also press esc while the “Press the ESC key for Startup Menu” message is displayed
at the bottom of the screen, and then press f9. Pressing f9 displays a menu that shows the current boot
devices and allows you to select a boot device. Or, you can use MultiBoot Express to set the computer to
prompt you for a boot location each time the computer turns on or restarts.

Choosing MultiBoot preferences

You can use MultiBoot in the following ways:

●

To set a new boot order that the computer uses each time it is turned on, by changing the boot order in
Computer Setup.

●

To dynamically choose the boot device, by pressing esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen, and then pressing f9 to enter the Boot Device Options
menu.

●

To use MultiBoot Express to set variable boot orders. This feature prompts you for a boot device each
time the computer is turned on or restarted.

Setting a new boot order in Computer Setup

To start Computer Setup and set a boot device order that the computer uses each time it is turned on or
restarted, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select one of the following options:

●

Advanced > Boot Options > UEFI Boot Order > UEFI Hybrid

●

Advanced > Boot Options > UEFI Boot Order > UEFI Native Boot mode

●

Advanced > Boot Options > Legacy Boot Order > Legacy Boot Mode

Press enter.

4. To move the device up in the boot order, use a pointing device to click the up arrow, or press the + key.

– or –

Using MultiBoot 87

To move the device down in the boot order, use a pointing device to click the down arrow, or press the -
key.

5. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of the

screen, and then follow the on-screen instructions.

– or –

Use the arrow keys to select Main > Save Changes and Exit, and then press enter.

Dynamically choosing a boot device using the f9 prompt

To dynamically choose a boot device for the current startup sequence, follow these steps:

1. Open the Select Boot Device menu by turning on or restarting the computer, and then pressing esc while

the “Press the ESC key for Startup Menu” message is displayed at the bottom of the screen.

2. Press f9.

3. Use a pointing device or the arrow keys to select a boot device, then press enter.

Setting a MultiBoot Express prompt

To start Computer Setup and set the computer to display the MultiBoot startup location menu each time the
computer is started or restarted, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select Advanced > Boot Options > MultiBoot Express Boot

Popup Delay (Sec), and then press enter.

4. In the MultiBoot Express Popup Delay (Sec) field, enter the length of time in seconds that you want the

computer to display the startup location menu before it defaults to the current MultiBoot setting.
(When 0 is selected, the Express Boot startup location menu is not displayed.)

5. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of the

screen, and then follow the on-screen instructions.

– or –

Use the arrow keys to select Main > Save Changes and Exit, and then press enter.

Your changes go into effect when the computer restarts.

Entering MultiBoot Express preferences

When the Express Boot menu is displayed during startup, you have the following choices:

●

To specify a boot device from the Express Boot menu, select your preference within the allotted time,
and then press enter.

●

To prevent the computer from defaulting to the current MultiBoot setting, press any key before the
allotted time expires. The computer will not start until you select a boot device and press enter.

●

To allow the computer to start according to the current MultiBoot settings, wait for the allotted time to
expire.

88 Chapter 7 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) in Windows 8
