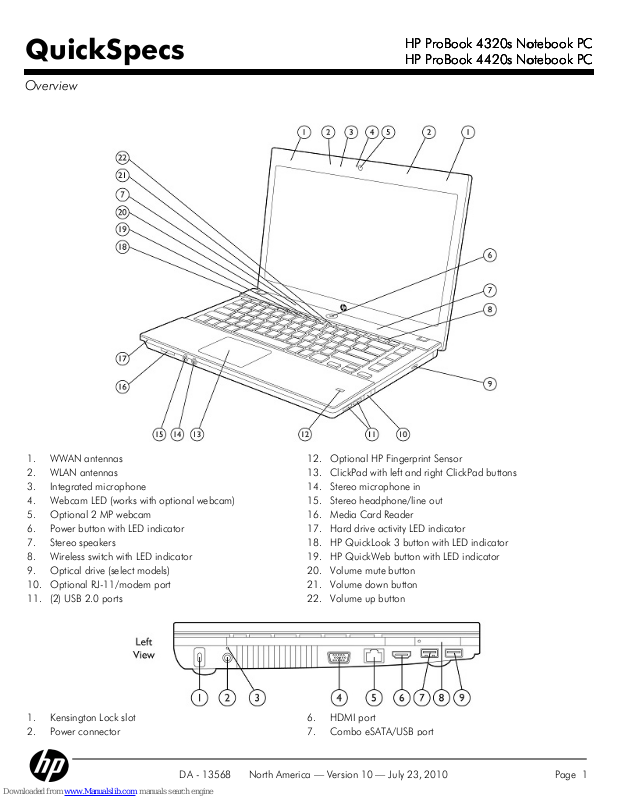

Page 1
1.
WWAN antennas
12.
Optional HP Fingerprint Sensor
2.
WLAN antennas
13.
ClickPad with left and right ClickPad buttons
3.
Integrated microphone
14.
Stereo microphone in
4.
Webcam LED (works with optional webcam)
15.
Stereo headphone/line out
5.
Optional 2 MP webcam
16.
Media Card Reader
6.
Power button with LED indicator
17.
Hard drive activity LED indicator
7.
Stereo speakers
18.
HP QuickLook 3 button with LED indicator
8.
Wireless switch with LED indicator
19.
HP QuickWeb button with LED indicator
9.
Optical drive (select models)
20.
Volume mute button
10.
Optional RJ-11/modem port
21.
Volume down button
11.
(2) USB 2.0 ports
22.
Volume up button
1.
Kensington Lock slot
6.
HDMI port
2.
Power connector
7.
Combo eSATA/USB port
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Overview
DA - 13568 North America — Version 10 — July 23, 2010
Page 1
Page 2
3.
Battery charging LED indicator
8.
ExpressCard/34 slot
4.
VGA connector (external monitor/projector)
9.
USB 2.0 port
5.
RJ-45/Ethernet port
1.
Battery release latches
3.
SIM card slot (select units, located inside battery bay)
2.
Battery bay
At A Glance
At A GlanceAt A Glance
At A Glance
Genuine Windows 7 versions, Genuine Windows XP Professional available through downgrade rights from Windows 7
Professional, SUSE Linux
Thin, lightweight design with brushed aluminum finish for durability and style
Color choice of caviar or bordeaux finish on 4320s only
Full-sized spill-resistant keyboard with better spaced keys
ATI Mobility Radeon HD 530v or HD 5470 discrete graphics, or integrated Intel HD Graphics
ArcSoft TotalMedia Suite for playing, creating, and editing video and audio files
New keyboard function keys for play, rewind, and fast-forward of video and audio files
Corel Home Office productivity suite for word processing, spreadsheets, and presentations
HDMI port for connecting to high-resolution displays; combo eSATA/USB port
Face Recognition for HP ProtectTools for easy logins using the optional integrated 2 MP webcam
Up to 500 GB 7200 rpm or 640 GB 5400 rpm hard drive with HP 3D DriveGuard protection
HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption
HP QuickLook 3 (quick access to e-mail, calendar, contacts and tasks), HP QuickWeb, and HP DayStarter
HP Connection Manager 3.1
Flexible wireless connectivity options:
Integrated HP un2420 EV-DO/HSDPA Mobile Broadband Module* provides worldwide Gobi mobile Internet
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Overview
DA - 13568 North America — Version 10 — July 23, 2010
Page 2
Page 3
technology with GPS
Integrated Intel Centrino® Advanced-N 6200 802.11 a/b/g/n, Atheros 802.11 b/g/n, wireless LAN module
802.11 b/g/n with Bluetooth v3.0 High Speed (HS) combo card**
Bluetooth® v2.1
Choice of 9-cell or 6-cell battery to customize weight and run-time to your needs
Integrated Media Card Reader and ExpressCard/34 slot
Widescreen LED-backlit HD display with 16:9 aspect ratio
HP ProBook 4320s: 13.3-inch diagonal
HP ProBook 4430s: 14.0-inch diagonal
Choice of an Intel® Core™ i7, Core i5, Core i3, or Celeron processor
Enhanced security features including HP ProtectTools, HP Face Recognition, Computrace LoJack Pro ready, HP SpareKey, HP
Disk Sanitizer, optional HP Fingerprint Sensor, and optional HP Privacy Filter
Optional optical drives include Blu-ray ROM DVD+/-RW SuperMulti DL Drive for high-definition playback and DVD+/-RW
SuperMulti DL LightScribe Drive for burning custom labels directly to your discs
* Only available with HP ProBook 4320s with Intel HD Graphics.
** Available on selected models.
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Overview
DA - 13568 North America — Version 10 — July 23, 2010
Page 3
Page 4
Processors
ProcessorsProcessors
Processors
Intel Core i7-620M Processor (2.66 GHz, 4 MB L3 cache)
*
Up to 3.33 GHz with Intel Turbo Boost Technology
Intel Core i5-520M Processor (2.4 GHz, 3 MB L3 cache)
*
Up to 2.93 GHz with Intel Turbo Boost Technology
Intel Core i5-450M Processor (2.4 GHz, 3 MB L3 cache)
*
Up to 2.66 GHz with Intel Turbo Boost Technology
Intel Core i5-430M Processor (2.26 GHz, 3 MB L3 cache)
*
Up to 2.53 GHz with Intel Turbo Boost Technology
Intel Core i3-370M Processor (2.4 GHz, 3 MB L3 cache)
*
Intel Core i3-350M Processor (2.26 GHz, 3 MB L3 cache)
*
Intel Core i3-330M Processor (2.13 GHz, 3 MB L3 cache)
*
Intel Celeron P4500 processor (1.86 GHz, 2 MB L3 cache)
*
NOTE:
NOTE:NOTE:
NOTE:
Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
* Intel's numbering is not a measurement of higher performance.
Operating System
Operating SystemOperating System
Operating System
Preinstalled
PreinstalledPreinstalled
Preinstalled
Genuine Windows 7 Professional Edition 32
*
Genuine Windows 7 Professional Edition 64
*
Genuine Windows XP Professional 32 available through downgrade
rights from Windows 7 Professional
*†
Genuine Windows 7 Home Premium Edition 32
*
Genuine Windows 7 Home Premium Edition 64
*
Genuine Windows 7 Home Basic Edition 32
*
Genuine Windows 7 Starter 32*††
SUSE Linux Enterprise Desktop 11
Certified
CertifiedCertified
Certified
SUSE Linux Enterprise Desktop 11
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality.
See:
http://www.microsoft.com/windows/windows-7/
for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
and
http://www.microsoft.com/windowsvista/getready/capable.mspx
for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit:
http://www.windowsvista.com/upgradeadvisor
.
† Windows XP Professional is preinstalled on this system and includes end user rights and media for
Windows 7 Professional. You may only use one version at a time. You must back up all data (files,
photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
†† Windows 7 Starter is available on select hardware configurations.
Chipset
ChipsetChipset
Chipset
Mobile Intel HM57 Express Chipset
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 4
Page 5
Graphics
GraphicsGraphics
Graphics
Integrated graphics:
Intel HD Graphics
Microsoft DirectX 10.1 capable
Discrete graphics:
ATI Mobility Radeon HD 530v graphics controller with 512 MB dedicated video memory
ATI Mobility Radeon HD 5470 graphics controller with 512 MB dedicated video memory
Microsoft DirectX 11 capable
Display
DisplayDisplay
Display
Internal
InternalInternal
Internal
HP ProBook 4320s:
13.3-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
HP ProBook 4420s:
14.0-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
Optional HP Privacy Filter
External
ExternalExternal
External
Up to 32-bit per pixel color depth
VGA
VGAVGA
VGA
port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz.
HDMI
HDMIHDMI
HDMI
port supports direct connection to high-definition displays with up to
1920 x 1080 resolution and 7-channel audio with one convenient cable (not
included).
NOTE:
NOTE:NOTE:
NOTE:
Resolutions are dependent upon monitor capability, and resolution
and color depth settings.
Memory
MemoryMemory
Memory
Standard
StandardStandard
Standard
DDR3 PC3-8500 (1066 MHz)* or PC3-10600 (1333 MHz)* SDRAM
Two SODIMM slots supporting dual-channel memory
1024 MB, 2048 MB, and 4096 SODIMMs
Maximum
MaximumMaximum
Maximum
Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Dual-channelDual-channel
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
* Memory speed is processor dependent.
NOTE:
NOTE:NOTE:
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we recommend
HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the
lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64bit or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon
your configuration, so that above 3 GB all memory may not be available due to system resource
requirements.
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 5
Page 6
Communications
CommunicationsCommunications
Communications
Realtek Ethernet (10/100/1000 NIC)
*
Optional 56K V.92 modem
**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
Wireless Devices
Wireless DevicesWireless Devices
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Mobile Broadband (WWAN) requires a Windows operating
system and is available in select countries as a factory configurable feature for the HP ProBook 4320s
only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of
the supported wireless LAN and wireless WAN options.
HP un2420
HP un2420HP un2420
HP un2420
EV-DO/HSPA Mobile
EV-DO/HSPA MobileEV-DO/HSPA Mobile
EV-DO/HSPA Mobile
Broadband Module
Broadband ModuleBroadband Module
Broadband Module
(available for HP ProBook
4320s with Intel HD
Graphics only)
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides connectivity to both CDMA (EVDO) and UMTS
(HSPA) networks. It also provides GPS functionality for various mapping
applications and security applications.
NOTE:
NOTE:NOTE:
NOTE:
Separately purchased mobile network operator service is required.
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top
of the display panel support current and future WWAN technologies.
All 802.11 integrated
All 802.11 integratedAll 802.11 integrated
All 802.11 integrated
wireless LAN options
wireless LAN optionswireless LAN options
wireless LAN options
Wi-Fi certified
*
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Intel Centrino Advanced-
Intel Centrino Advanced-Intel Centrino Advanced-
Intel Centrino AdvancedN 6200 (2x2)
N 6200 (2x2)N 6200 (2x2)
N 6200 (2x2)
Integrated support for 802.11a, b, g, and n
*
2 transmit, 2 receive antennas
Up to 300 mbps data rate
Atheros 9285G
Atheros 9285GAtheros 9285G
Atheros 9285G
802.11b/g/n (1x1)
802.11b/g/n (1x1)802.11b/g/n (1x1)
802.11b/g/n (1x1)
Integrated support for 802.11b, g, and n
Up to 300 mbps data rate
Ralink RT3090BC4
Ralink RT3090BC4Ralink RT3090BC4
Ralink RT3090BC4
802.11b/g/n WiFi and
802.11b/g/n WiFi and802.11b/g/n WiFi and
802.11b/g/n WiFi and
Bluetooth 3.0 HS
Bluetooth 3.0 HSBluetooth 3.0 HS
Bluetooth 3.0 HS
Combo Adapter
Combo AdapterCombo Adapter
Combo Adapter
Integrated support for 802.11 b, g, and n
Up to 150 mbps data rate
Bluetooth Specification 3.0 HS compliant
Works with a wide range of Bluetooth devices
HP Integrated Module
HP Integrated ModuleHP Integrated Module
HP Integrated Module
with Bluetooth 2.1+EDR
with Bluetooth 2.1+EDRwith Bluetooth 2.1+EDR
with Bluetooth 2.1+EDR
Wireless Technology
Wireless TechnologyWireless Technology
Wireless Technology
Bluetooth Specification v2.1+EDR compliant
Works with a wide range of Bluetooth devices
* In countries where 802.11n is not allowed, this capability is not enabled (Intel 802.11a/b/g only).
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 6
Page 7
Keyboard
KeyboardKeyboard
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a
drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of
damage to sensitive components underneath. The 101/102-key compatible keyboard features a fullpitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys,
editing keys, both left and right control and alt keys, and 12 function keys. US and International key
layouts are available. Other features include hotkeys for instant access to power conservation and
brightness, and 19.05 x 19.05 mm key pitch (center-to-center spacing).
Pointing device
Pointing devicePointing device
Pointing device
ClickPad with gestures support:
Two-finger scroll, zoom, pinch and pivot rotate
Expansion card slots
Expansion card slotsExpansion card slots
Expansion card slots
ExpressCard/34 slot
ExpressCard/34 slotExpressCard/34 slot
ExpressCard/34 slot
Supports ExpressCard/34 (34 mm x 75 mm x 5 mm) card sizes
Media Card Reader
Media Card ReaderMedia Card Reader
Media Card Reader
Supports SD (Secure Digital), MMC (MultiMedia Card), Memory Stick,
Memory Stick Pro, Memory Stick Duo*, xD-Picture card
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card
directly into your notebook could damage the memory card and/or notebook.
Storage
StorageStorage
Storage
Internal Storage Device
Internal Storage DeviceInternal Storage Device
Internal Storage Device
250/320/500 GB 7200 rpm SMART SATA II Hard Drive
640 GB 5400 rpm SMART SATA II Hard Drive
NOTE:
NOTE:NOTE:
NOTE:
Up to 15 GB is reserved for the system recovery software.
HP 3D DriveGuard
HP 3D DriveGuardHP 3D DriveGuard
HP 3D DriveGuard
(Windows models only)
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
Fixed optical drives
Fixed optical drivesFixed optical drives
Fixed optical drives
Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive
*
DVD+/-RW SuperMulti DL LightScribe Drive
* Support for the Blu-ray DVD drive on configurations with integrated
graphics requires Windows7 or Windows Vista; configurations with discrete
graphics support it with any offered Windows operating system.
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 7
Page 8
Interfaces
InterfacesInterfaces
Interfaces
VGA
VGAVGA
VGA
One
HDMI
HDMIHDMI
HDMI
One
Stereo microphone in
Stereo microphone inStereo microphone in
Stereo microphone in
One
Stereo headphone/line
Stereo headphone/lineStereo headphone/line
Stereo headphone/line
out
outout
out
One
Power connector
Power connectorPower connector
Power connector
One
RJ-11/modem (optional)
RJ-11/modem (optional)RJ-11/modem (optional)
RJ-11/modem (optional)
One
RJ-45/Ethernet
RJ-45/EthernetRJ-45/Ethernet
RJ-45/Ethernet
One
Combo eSATA/USB 2.0
Combo eSATA/USB 2.0Combo eSATA/USB 2.0
Combo eSATA/USB 2.0
One
USB 2.0
USB 2.0USB 2.0
USB 2.0
Three
LED status indicators
LED status indicatorsLED status indicators
LED status indicators
Eight
Audio/Visual
Audio/VisualAudio/Visual
Audio/Visual
High Definition Audio support
Integrated stereo speakers
Integrated digital microphone
Stereo headphone/line out
Stereo microphone in
Optional 2 MP webcam
Supports videoconferencing and still image capture
Improved quality for video streaming and still image capture (1600x1200 resolution)
Up to 30 frames/sec
Fixed focus lens
16-bit true color (camera sensor up to UXGA resolution)
Software
SoftwareSoftware
Software
Preinstalled software with
Preinstalled software withPreinstalled software with
Preinstalled software with
Windows Operating
Windows OperatingWindows Operating
Windows Operating
System
SystemSystem
System
HP Recovery Manager (available with Windows 7 only)
HP Support Assistant (available with Windows 7 only)
HP ProtectTools Security Manager
HP Face Recognition
HP QuickLaunch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager 3.1
HP Wireless Assistant
HP DayStarter
Corel Home Office productivity suite 60-day trial
Roxio Creator Business (select models)
ArcSoft Total Media Suite
Microsoft Office Professional 2007 60-day Convertible Trial
or Microsoft Office 2010 preloaded (purchase of a Product
Key required to activate a full Office 2010 suite)
**
McAfee Total Protection
*
Norton Online Backup trial
HP Webcam Software (select models)
Skype
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 8
Page 9
WinZip 12 trial
Additional software
Additional softwareAdditional software
Additional software
available from the web
available from the webavailable from the web
available from the web
HP SoftPaq Download Manager
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
** Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase
of Product Key required to activate full Office 2010 suite available at participating resellers/retailers and
http://www.office.com
.
HP Recovery Manager
HP Recovery ManagerHP Recovery Manager
HP Recovery Manager
Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast
recovery of the factory preinstalled image if the system becomes corrupted or if important system files are
accidentally deleted. Up to 15 GB of the hard drive is reserved for the system recovery software.
Security
SecuritySecurity
Security
Standard Features
Standard FeaturesStandard Features
Standard Features
HP ProtectTools Security Manager
Face Recognition for HP ProtectTools
One Step Login
Enhanced Pre-Boot Security
HP SpareKey
HP Disk Sanitizer
Setup Password
Kensington Lock Slot
Support for Computrace* LoJack Pro for HP ProtectTools
Optional Features
Optional FeaturesOptional Features
Optional Features
HP Fingerprint Sensor
HP Privacy Filter
* The Computrace agent is shipped turned off, and must be activated by customers when they purchase
a subscription with terms ranging from one to five years.
For more information on HP security solutions refer to:
http://www.hp.com/go/security
.
HP ProtectTools Security
HP ProtectTools SecurityHP ProtectTools Security
HP ProtectTools Security
Manager
ManagerManager
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. The following modules are available on the hard drive
(also downloadable from the web) and can be configured in Software Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
HP ProtectTools is now centrally manageable with the capability to manage notebooks from a single
point. Security is management ready out of the box, in partnership with Digital Persona. New features
address requirements that customers expect from a centrally managed security solution such as user
provisioning, credential reset, and credential revocation.
HP ProtectTools provides two separate management solutions, targeted at the enterprise and the SMB:
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 9
Page 10
Digital Persona Pro AD: Designed for the enterprise customer. Integrates with Active Directory and
gives IT Managers the ability to provision users, create login policies based on passwords,
biometrics or smartcards. Management features also include remote credential recovery in case
the user forgets the password, loses the smartcard or cannot use the fingerprint reader for any
reason. In addition, advanced auditing capabilities are also built in. Digital Persona Pro AD is
available now.
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features
similar to the Active Directory version, but for workgroups. Workgroup activation is built into HP
ProtectTools, and activation of up to 5 seats is completely free.
Power Supply
Power SupplyPower Supply
Power Supply
Models with integrated graphics: External 65-watt Smart AC adapter
External 90-watt Smart AC adapter
6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66
meter)
HP Fast Charge
*
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast
Charge does not apply to the HP 9-cell battery.
Battery
BatteryBattery
Battery
Primary battery
Primary batteryPrimary battery
Primary battery
HP 9-cell (93 WHr) Li-Ion battery
HP 6-cell (47 WHr) Li-Ion battery
Battery Life
Battery LifeBattery Life
Battery Life
Configurations with integrated graphics
Configurations with integrated graphicsConfigurations with integrated graphics
Configurations with integrated graphics
HP ProBook 4320s
HP ProBook 4320sHP ProBook 4320s
HP ProBook 4320s
9-cell battery
9-cell battery9-cell battery
9-cell battery
Up to 10 hours
6-cell battery
6-cell battery6-cell battery
6-cell battery
Up to 5 hours
HP ProBook 4420s
HP ProBook 4420sHP ProBook 4420s
HP ProBook 4420s
9-cell battery
9-cell battery9-cell battery
9-cell battery
Up to 10 hours
6-cell battery
6-cell battery6-cell battery
6-cell battery
Up to 4 hours and 30 minutes
NOTE:
NOTE:NOTE:
NOTE:
Battery life will vary depending on the product model, configuration, loaded applications,
features, use, wireless functionality and power management settings. The maximum capacity of the
battery will naturally decrease with time and usage. See MobileMark07 battery benchmark
www.bapco.com/products/mobilemark2007
for additional details.
System Standby Time
System Standby TimeSystem Standby Time
System Standby Time
Up to 1 week
Power Conservation
Power ConservationPower Conservation
Power Conservation
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance
Mode, or Automatic mode)
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 10
Page 11
Service and Support
Service and SupportService and Support
Service and Support
HP Services offers limited 1-year warranty.
1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack
Services extend service contracts beyond the standard warranties. To choose the right level of service for
your HP product, use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool
.
Additional HP Care Pack Services information by product is available at:
http://www.hp.com/hps/carepack
.
NOTE:
NOTE:NOTE:
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
.
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Standard Features (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 11
Page 12
Memory
MemoryMemory
Memory
HP 1 GB (DDR3 1333 MHz) SODIMM
AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
Storage
StorageStorage
Storage
HP 250 GB USB Pocket Media Hard Drive
FE477AA
HP External USB CD/DVD R/RW Drive
FS943AA
Communication
CommunicationCommunication
Communication
HP WLAN 802/11 a/b/g/draft-n Mini-card Kit
KM591AA#xxx
Expansion
ExpansionExpansion
Expansion
HP Basic Adjustable Stand
AL549AA
HP USB 2.0 Docking Station
FQ834AA
HP Essential USB 2.0 Port Replicator
AQ731AA
HP Dual Hinge Notebook Stand
AW661AA
HP Display & Notebook Stand
AW662AA
HP Adjustable Display Stand
AW663AA
HP Adjustable Dual Display Stand
AW664AA
Power
PowerPower
Power
65W Smart AC Adapter
ED494AA
90W Smart AC/Auto/Air Combo Adapter
AJ652AA
HP 65W Slim Adapter
AX727AA
HP Smart 65W Travel AC Adapter
AU155AA
90W Smart AC Adapter
ED495AA
HP 6-Cell Li-Ion Primary Battery
BQ350AA
Carrying Cases
Carrying CasesCarrying Cases
Carrying Cases
HP Deluxe Nylon Backpack
RR317AA
HP Value Nylon Case
RR314AA
HP Universal Nylon Case
RR315AA
HP Executive Leather Case
RR316AA
HP Deluxe Roller Case
GD405AA
HP Basic Backpack
AM863AA
HP Basic Messenger
AP355AA
HP Basic Carrying Case
AJ078AA
HP Professional Series Carrying Case
AT886AA
HP Professional Series Backpack
AT887AA
HP Professional Series Messenger
AT888AA
HP Professional Series Designer Tote
AT889AA
HP Professional Series Slip Case
AT890AA
HP Elite Series Quick Case
AT892AA
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Options (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 12
Page 13
Security
SecuritySecurity
Security
HP/Kensington MicroSaver Security Lock
PC766A
HP Notebook Cable Lock
AY475AA
HP Privacy Filter For 13.3 in
AU649AA
HP Privacy Filter For 14.0 in
AU100AA
Input/Output Devices
Input/Output DevicesInput/Output Devices
Input/Output Devices
HP USB/PS2 Optical 2-Button Scroll Mouse
DC369A
HP USB Keyboard & Mouse Bundle
RC465AA
HP USB Optical Travel Mouse
RH304AA
HP Wireless Mouse
AR085AA
HP BT Headset
AR084AA
HP Mobile Audio Speakers
FS944AA
HP Mobile Productivity Bundle
AQ729AA
HP Notebook Companion Projector
AX325AA
HP Special Edition Optical Mouse
AU094AA
HP Premium Autofocus Webcam
KQ245AA
Premium Digital Headset
KJ270AA
HP Promo USB Graphics Adapter
NL571AT
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Options (availability may vary by country)
DA - 13568 North America — Version 10 — July 23, 2010
Page 13
Page 14
DDR3 PC3--8500 (1066 MHz)* or DDR3 PC3-10600 (1333 MHz)* SDRAM
Two SODIMM slots supporting dual-channel memory
SODIMM sizes supported: 1024 MB, 2048 MB and 4096 MB
Standard Memory
Standard MemoryStandard Memory
Standard Memory
1024 MB (1024 MB x 1)
2048 MB (2048 MB x 1)
2048 MB (1024 MB x 2)
3072 MB (2048 MB + 1024 MB)
4096 MB (2048 MB x 2)
4096 MB (4096 MB x 1)
Optional Memory
Optional MemoryOptional Memory
Optional Memory
Upgrades
UpgradesUpgrades
Upgrades
Support for up to 8192 MB of memory with the installation of optional DDR3 SDRAM memory kits. Both
memory slots are user accessible. Please refer to the Hardware and Software Guide for installation
procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in
both memory slots.
Up to
Up toUp to
Up to
Slot 1
Slot 1Slot 1
Slot 1 Slot 2
Slot 2Slot 2
Slot 2
2048 MB 1024 MB 1024 MB
2048 MB 2048 MB
empty
3072 MB 2048 MB 1024 MB
4096 MB 2048 MB 2048 MB
4096 MB 4096 MB
empty
8192 MB 4096 MB 4096 MB
* Memory speed is processor dependent.
NOTE:
NOTE:NOTE:
NOTE:
This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some thirdparty memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory
speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business
64-bit or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource
requirements.
Memory Upgrades
Memory UpgradesMemory Upgrades
Memory Upgrades
HP 1 GB (DDR3 1333 MHz) SODIMM
AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Memory
DA - 13568 North America — Version 10 — July 23, 2010
Page 14
Page 15
Removable Media Drive Support
Removable Media Drive SupportRemovable Media Drive Support
Removable Media Drive Support
Quantity Supported
Quantity SupportedQuantity Supported
Quantity Supported
Drive Bay
Drive BayDrive Bay
Drive Bay
Blu-ray ROM DVD+/-RW
SuperMulti DL LightScribe
Drive
*
One
Fixed optical drive bay
DVD+/-RW SuperMulti DL
LightScribe Drive
One
Fixed optical drive bay
* Support for the Blu-ray DVD drive on configurations with integrated graphics requires Windows7 or Windows Vista; configurations
with discrete graphics support it with any offered Windows operating system.
Internal Storage Device
Internal Storage DeviceInternal Storage Device
Internal Storage Device
Quantity Supported
Quantity SupportedQuantity Supported
Quantity Supported
Drive Bay
Drive BayDrive Bay
Drive Bay
Hard Drives
Hard DrivesHard Drives
Hard Drives
500 GB 7200 rpm SMART
SATA II Hard Drive
One
Dedicated hard drive bay
320 GB 7200 rpm SMART
SATA II Hard Drive
One
Dedicated hard drive bay
250 GB 7200 rpm SMART
SATA II Hard Drive
One
Dedicated hard drive bay
640 GB 5400 rpm SMART
SATA II Hard Drive
One
Dedicated hard drive bay
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Storage
DA - 13568 North America — Version 10 — July 23, 2010
Page 15
Page 16
System Unit
System UnitSystem Unit
System Unit
Dimensions
DimensionsDimensions
Dimensions
(HxWxD)
HP ProBook 4320s:
1.07 in (at front) x 12.75 in x 8.98 in
27.0 mm (at front) x 324 mm x 228.0 mm
HP ProBook 4420s:
1.07 in (at front) x 13.23 in x 9.15 in
27.0 mm (at front) x 336 mm x 232.4 mm
Weight
WeightWeight
Weight
HP ProBook 4320s:
Starting at 4.45 lb (2.02 kg) without optical drive
or 4.74 lb (2.15 kg) with optical drive
HP ProBook 4420s:
Starting at 4.71 lb (2.14 kg) without optical drive
or 5.0 lb (2.27 kg) with optical drive
NOTE:
NOTE:NOTE:
NOTE:
Height varies depending upon where on the notebook the measurement is made. Weight varies
by configuration and components. Weight includes 6-cell battery, no optical drive. Weight varies by
configuration and components.
Stand-Alone Power
Stand-Alone PowerStand-Alone Power
Stand-Alone Power
Requirements
RequirementsRequirements
Requirements
(AC Power)
Nominal Operating
Voltage
18.5 V
Average Operating Power
with integrated graphics: 18 W
with discrete graphics: 21 W
Max Operating Power
< 90 W or < 65W
Temperature
TemperatureTemperature
Temperature
Operating
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet
bulb temperature
Shock
ShockShock
Shock
Operating
125 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Random VibrationRandom Vibration
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
AltitudeAltitude
Altitude
(unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Industry Standard
Industry StandardIndustry Standard
Industry Standard
Certifications
CertificationsCertifications
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models
*
EPEAT
Registered TBD in United States
**
ICES
Yes
Australia / NZ A-Tick
Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 16
Page 17
MIC
Yes
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian
Compliance (ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
* Configurations of the HP ProBook 4320s and HP Probook 4420s that are ENERGY STAR qualified are
identified as HP ProBook 4320s ENERGY STAR and HP Probook 4420s ENERGY STAR on HP websites
and on
www.energystar.gov
.
** EPEAT registration varies by country. See
www.epeat.net
for registration status by country.
EPEAT status listed above applies to U.S.
NOTE:
NOTE:NOTE:
NOTE:
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
HP 65W Smart AC
HP 65W Smart ACHP 65W Smart AC
HP 65W Smart AC
Adapter
AdapterAdapter
Adapter
Dimensions
DimensionsDimensions
Dimensions
4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)
Weight
WeightWeight
Weight
0.62 lb (280 g)
Input
InputInput
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC, 0.85 A at 180 VAC
Output
OutputOutput
Output
Output power
65W
DC output
18.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
ConnectorConnector
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Environmental DesignEnvironmental Design
Environmental Design
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
EMI and SafetyEMI and Safety
EMI and Safety
Certifications
CertificationsCertifications
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency
approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B,
CISPR22 Class B, CCC, NOM-1 NYCE; MTBF - over 200,000 hours at
25°C ambient condition.
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 17
Page 18
NOTE:
NOTE: NOTE:
NOTE:
Unless otherwise noted, temperature limits listed in the following component specifications relate to the internal temperatures
of these components and not to the environment in which the PC is operating.
Displays
DisplaysDisplays
Displays
14.0-inch LED HD (1366
14.0-inch LED HD (136614.0-inch LED HD (1366
14.0-inch LED HD (1366
x 768)
x 768)x 768)
x 768)
anti-glare
anti-glareanti-glare
anti-glare
Active Area
Active AreaActive Area
Active Area
(W x H)
12.74 x 7.56 in (32.4 x 19.2 cm)
Diagonal Size
Diagonal SizeDiagonal Size
Diagonal Size
14.0 in (35.6cm)
Surface Treatment
Surface TreatmentSurface Treatment
Surface Treatment
Anti-glare
Contrast Ratio
Contrast RatioContrast Ratio
Contrast Ratio
400:1 (typical)
Refresh Rate
Refresh RateRefresh Rate
Refresh Rate
60 Hz
Brightness
BrightnessBrightness
Brightness
200 nit (typical)
Pixel Resolution
Pixel ResolutionPixel Resolution
Pixel Resolution
Pitch
PitchPitch
Pitch
0.227 mm
Format
FormatFormat
Format
1366 x 768
Configuration
ConfigurationConfiguration
Configuration
RGB Stripe
Backlight
BacklightBacklight
Backlight
LED
PPI
PPIPPI
PPI
112 ppi
Viewing Angle
Viewing AngleViewing Angle
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
13.3-inch LED HD (1366
13.3-inch LED HD (136613.3-inch LED HD (1366
13.3-inch LED HD (1366
x 768)
x 768)x 768)
x 768)
anti-glare
anti-glareanti-glare
anti-glare
Active Area
Active AreaActive Area
Active Area
(W x H)
11.53 x 6.49 in (29.3 x 16.5 cm)
Diagonal Size
Diagonal SizeDiagonal Size
Diagonal Size
13.3 in (33.8cm)
Surface Treatment
Surface TreatmentSurface Treatment
Surface Treatment
Anti-glare
Contrast Ratio
Contrast RatioContrast Ratio
Contrast Ratio
400:1 (typical)
Refresh Rate
Refresh RateRefresh Rate
Refresh Rate
60 Hz
Brightness
BrightnessBrightness
Brightness
200 nit (typical)
Pixel Resolution
Pixel ResolutionPixel Resolution
Pixel Resolution
Pitch
PitchPitch
Pitch
0.215 mm
Format
FormatFormat
Format
1366 x 768
Configuration
ConfigurationConfiguration
Configuration
RGB Stripe
Backlight
BacklightBacklight
Backlight
LED
PPI
PPIPPI
PPI
118 ppi
Viewing Angle
Viewing AngleViewing Angle
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Internal Storage
Internal StorageInternal Storage
Internal Storage
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 18
Page 19
500 GB 7200 rpm SATA
500 GB 7200 rpm SATA500 GB 7200 rpm SATA
500 GB 7200 rpm SATA
Hard Drive
Hard DriveHard Drive
Hard Drive
Drive Weight
Drive WeightDrive Weight
Drive Weight
0.25 lbs (115g)
Capacity
CapacityCapacity
Capacity
500 GB
Height
HeightHeight
Height
0.37 in (9.5 mm)
Width
WidthWidth
Width
2.75 in (70 mm)
Interface
InterfaceInterface
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
SynchronousSynchronous
Synchronous
(maximum)
150 MB/s (Drive Capability)
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
Single TrackSingle Track
Single Track
1.5ms
Average
AverageAverage
Average
11ms
Maximum
MaximumMaximum
Maximum
22ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
976,773,168
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
FeaturesFeatures
Features
ATA Security
320 GB 7200 rpm SATA
320 GB 7200 rpm SATA320 GB 7200 rpm SATA
320 GB 7200 rpm SATA
Hard Drive
Hard DriveHard Drive
Hard Drive
Drive Weight
Drive WeightDrive Weight
Drive Weight
0.25 lbs (115g)
Capacity
CapacityCapacity
Capacity
250 GB
Height
HeightHeight
Height
0.37 in (9.5 mm)
Width
WidthWidth
Width
2.75 in (70 mm)
Interface
InterfaceInterface
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
SynchronousSynchronous
Synchronous
(maximum)
150 MB/s (Drive Capability)
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
Single TrackSingle Track
Single Track
1.5ms
Average
AverageAverage
Average
11ms
Maximum
MaximumMaximum
Maximum
22ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
625,142,448
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
FeaturesFeatures
Features
ATA Security
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 19
Page 20
250 GB 7200 rpm SATA
250 GB 7200 rpm SATA250 GB 7200 rpm SATA
250 GB 7200 rpm SATA
Hard Drive
Hard DriveHard Drive
Hard Drive
Drive Weight
Drive WeightDrive Weight
Drive Weight
0.25 lbs (115g)
Capacity
CapacityCapacity
Capacity
250 GB
Height
HeightHeight
Height
0.37 in (9.5 mm)
Width
WidthWidth
Width
2.75 in (70 mm)
Interface
InterfaceInterface
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
SynchronousSynchronous
Synchronous
(maximum)
150 MB/s (Drive Capability)
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
Single TrackSingle Track
Single Track
1.5ms
Average
AverageAverage
Average
11ms
Maximum
MaximumMaximum
Maximum
22ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
488,397,168
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
FeaturesFeatures
Features
ATA Security
Optical Drives
Optical DrivesOptical Drives
Optical Drives
DVD+/-RW SuperMulti
DVD+/-RW SuperMultiDVD+/-RW SuperMulti
DVD+/-RW SuperMulti
DL LightScribe Drive
DL LightScribe DriveDL LightScribe Drive
DL LightScribe Drive
Access Times
Access TimesAccess Times
Access Times
Random
< 150ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate
Max Data Transfer RateMax Data Transfer Rate
Max Data Transfer Rate
24X CD-ROM
Up to 3,600 KB/s
8X DVD
Up to 10,800 KB/s
24X CD-R
Up to 3,600 KB/s
16X CD-RW
Up to 2,400 KB/s
8X DVD+R
Up to 10,800 KB/s
8X DVD+RW
Up to 10,800 KB/s
8X DVD-R
Up to 10,800 KB/s
6X DVD-RW
Up to 8100KB/s
4X - DVD+R Dual Layer
Up to 5,400 KB/s
4X - DVD-R Dual Layer
Up to 5,400 KB/s
5X DVD-RAM
Up to 6,750 KB/s
Transfer Mode
Transfer ModeTransfer Mode
Transfer Mode
UDMA Mode 5
Interface
InterfaceInterface
Interface
Gen 1 SATA
Supported Media
Supported MediaSupported Media
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
Supported Media
Supported MediaSupported Media
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
LightScribe
Max Media Capacity
Max Media CapacityMax Media Capacity
Max Media Capacity
(read)
8.5 GB
Max Media Capacity
Max Media CapacityMax Media Capacity
Max Media Capacity
(write)
8.5 GB
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 20
Page 21
Transport
TransportTransport
Transport
Tray Loading
Blu-ray ROM DVD+/-RW
Blu-ray ROM DVD+/-RWBlu-ray ROM DVD+/-RW
Blu-ray ROM DVD+/-RW
SuperMulti DL LightScribe
SuperMulti DL LightScribeSuperMulti DL LightScribe
SuperMulti DL LightScribe
Drive
DriveDrive
Drive
Access Times
Access TimesAccess Times
Access Times
Random
<190 ms CD-ROM (typical)
< 190ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate
Max Data Transfer RateMax Data Transfer Rate
Max Data Transfer Rate
24X CD-ROM
Up to 3600KB/s
8X DVD-ROM
Up to 10800 KB/s
16X CD-R
Up to 1,200KB/s
10X CD-RW
Up to 1500 KB/s
8X DVD+R
Up to 10800 KB/s
8X DVD+RW
Up to 10,800KB/s
8X DVD-R
Up to 10800 KB/s
6X DVD-RW
Up to 8,100 KB/s
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
Up to 5400 KB/s
5X DVD-RAM
Up to 6750 KB/s
4X BD-ROM
Up to 18,000KB/s
Transfer Mode
Transfer ModeTransfer Mode
Transfer Mode
UDMA Mode 5
Interface
InterfaceInterface
Interface
Gen 1 SATA
Supported Media
Supported MediaSupported Media
Supported Media
(read)
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED
MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Supported Media
Supported MediaSupported Media
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9), DVDRW, DVD-RAM, LightScribe
Max Media Capacity
Max Media CapacityMax Media Capacity
Max Media Capacity
(read)
50.0 GB
Max Media Capacity
Max Media CapacityMax Media Capacity
Max Media Capacity
(write)
8.5GB
Transport
TransportTransport
Transport
Tray Loading
Security
SecuritySecurity
Security
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 21
Page 22
HP Fingerprint Sensor
HP Fingerprint SensorHP Fingerprint Sensor
HP Fingerprint Sensor
(optional)
Mobile Voltage
Mobile VoltageMobile Voltage
Mobile Voltage
Operation
OperationOperation
Operation
3.0V-3.6V Single Supply
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° - 158°F (0° - 70°C)
Current Consumption @
Current Consumption @Current Consumption @
Current Consumption @
3.3V
3.3V3.3V
3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture
High-Rate Image CaptureHigh-Rate Image Capture
High-Rate Image Capture
Up to 240 image frames /sec
ESD Resistance
ESD ResistanceESD Resistance
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
Detection MatrixDetection Matrix
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
Audio
AudioAudio
Audio
Hardware
HardwareHardware
Hardware
Implementation
ImplementationImplementation
Implementation
IDT 92HD80 High Definition CODEC
Keyboard hotkeys
Keyboard hotkeysKeyboard hotkeys
Keyboard hotkeys
Volume up, volume down, and mute
Play, rewind, and fast-forward
Full Duplex
Full DuplexFull Duplex
Full Duplex
Yes
Microphone In
Microphone InMicrophone In
Microphone In
Stereo
Headphone/Line Out
Headphone/Line OutHeadphone/Line Out
Headphone/Line Out
Stereo
Integrated Microphone
Integrated MicrophoneIntegrated Microphone
Integrated Microphone
Yes
Audio Output Quality
Audio Output QualityAudio Output Quality
Audio Output Quality
Frequency Response
Frequency ResponseFrequency Response
Frequency Response
20 Hz - 20 kHz
Signal to Noise Ratio
Signal to Noise RatioSignal to Noise Ratio
Signal to Noise Ratio
>85 dB
Total Harmonic Distortion
Total Harmonic DistortionTotal Harmonic Distortion
Total Harmonic Distortion
0.01%
Noise Floor
Noise FloorNoise Floor
Noise Floor
-110 dB
Play/Record Sampling
Play/Record SamplingPlay/Record Sampling
Play/Record Sampling
Rate
RateRate
Rate
(s)
8 kHz - 48kHz
DAC
DACDAC
DAC
16, 20 or 24-bit
ADC
ADCADC
ADC
16 or 20-bit
Integrated Stereo
Integrated StereoIntegrated Stereo
Integrated Stereo
Speakers
SpeakersSpeakers
Speakers
Power Rating
Power RatingPower Rating
Power Rating
1.5 Watts
Impedance
ImpedanceImpedance
Impedance
4 Ohms
Communications
CommunicationsCommunications
Communications
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 22
Page 23
Integrated Realtek
Integrated RealtekIntegrated Realtek
Integrated Realtek
RTL8151DH-GR
RTL8151DH-GRRTL8151DH-GR
RTL8151DH-GR
10/100/1000 NIC
10/100/1000 NIC10/100/1000 NIC
10/100/1000 NIC
Ethernet Features
Ethernet FeaturesEthernet Features
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-
30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
Power Management
Power ManagementPower Management
Power Management
ACPI compliant - multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power
consumption
Performance Features
Performance FeaturesPerformance Features
Performance Features
TCP/IP/UDP Checksum Offload (configurable)
Large send offload and Giant send offload
Receiving Side Scaling
Manageability
ManageabilityManageability
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Interface
InterfaceInterface
Interface
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ
NIC Device Driver Name
NIC Device Driver NameNIC Device Driver Name
NIC Device Driver Name
Realtek PCIe Gb Ethernet Family Controller
V.92 56K Data/Fax
V.92 56K Data/FaxV.92 56K Data/Fax
V.92 56K Data/Fax
Modem
ModemModem
Modem
Form Factor
Form FactorForm Factor
Form Factor
MDC 1.5 Daughtercard
Power Management
Power ManagementPower Management
Power Management
Support
SupportSupport
Support
APM Revision 1.2, ACPI
Approvals/
Approvals/Approvals/
Approvals/
Certifications
CertificationsCertifications
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part
15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE
Mark, Other Countries
Data Mode Capabilities
Data Mode CapabilitiesData Mode Capabilities
Data Mode Capabilities
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates
Optional symbol ratesOptional symbol rates
Optional symbol rates
:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates
Synchronous primary channel data signaling ratesSynchronous primary channel data signaling rates
Synchronous primary channel data signaling rates
:
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 23
Page 24
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode Capabilities
Fax Mode CapabilitiesFax Mode Capabilities
Fax Mode Capabilities
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set
Command SetCommand Set
Command Set
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
HP un2420
HP un2420HP un2420
HP un2420
EV-DO/HSPA Mobile
EV-DO/HSPA MobileEV-DO/HSPA Mobile
EV-DO/HSPA Mobile
Broadband Module
Broadband ModuleBroadband Module
Broadband Module
Technology/Operating
Technology/OperatingTechnology/Operating
Technology/Operating
Bands
BandsBands
Bands
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS),
1900MHz (PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),
1900MHz (UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850MHz
(UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell),
1900MHz (Band Class1-PCS)
Wireless Protocol
Wireless ProtocolWireless Protocol
Wireless Protocol
Standards
StandardsStandards
Standards
GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 –
CS4 and MSC1 – MSC9.
UMTS/WCDMA: Release 99 and Release 6
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000
Wireless Parametric
Wireless ParametricWireless Parametric
Wireless Parametric
Standards
StandardsStandards
Standards
Meets or exceeds TIA/EIA IS-98-D
Maximum Data Rates
Maximum Data RatesMaximum Data Rates
Maximum Data Rates
UMTS (HSPA) – 7.2 Mbps (Download ), 2.0 Mbps (Upload)
CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8 Mbps (Upload)
GPS
GPSGPS
GPS
Standalone GPS enabled
GPS Bands
GPS BandsGPS Bands
GPS Bands
L1 – 1575.42 MHz
Maximum Output Power
Maximum Output PowerMaximum Output Power
Maximum Output Power
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+/-1)
CDMA: 24dBm (+/-1)
Maximum Power
Maximum PowerMaximum Power
Maximum Power
Consumption
ConsumptionConsumption
Consumption
2500mA (peak); 1000mA (average)
Power Consumption,
Power Consumption,Power Consumption,
Power Consumption,
Sleep Mode
Sleep ModeSleep Mode
Sleep Mode
5 mA
Power Management
Power ManagementPower Management
Power Management
USB selective suspend
Integrated notebook wireless button
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 24
Page 25
Antenna Type
Antenna TypeAntenna Type
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
Form Factor
Form FactorForm Factor
Form Factor
PCI-Express MiniCard, USB 2.0 interface
Weight
WeightWeight
Weight
11.5 g
Dimensions
Dimensions Dimensions
Dimensions
(Length x
Width x Thickness)
2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
Voltage, Operating
Voltage, OperatingVoltage, Operating
Voltage, Operating
3.3v +/- 10%
Temperature, Operating
Temperature, OperatingTemperature, Operating
Temperature, Operating
(from TIA/EIA/IS-98-D)
–22° to 140° F (–30° to 60° C) (full RF performance)
–22° to 167° F (–30° to 75° C) (reduced RF performance)
Temperature, Non-
Temperature, Non-Temperature, Non-
Temperature, Nonoperating, 96 hours
operating, 96 hoursoperating, 96 hours
operating, 96 hours
(from
MIL-STD 202 Method
108)
–40° to 185° F (–40° to 85° C)
Humidity, Non-operating
Humidity, Non-operatingHumidity, Non-operating
Humidity, Non-operating
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
Configuration Utilities
Configuration UtilitiesConfiguration Utilities
Configuration Utilities
HP Connection Manager
LED Activity
LED ActivityLED Activity
LED Activity
LED Off – Radio Off;
Solid LED On – Radio On
Atheros 9285G
Atheros 9285GAtheros 9285G
Atheros 9285G
802.11b/g/n 1x1 WiFi
802.11b/g/n 1x1 WiFi802.11b/g/n 1x1 WiFi
802.11b/g/n 1x1 WiFi
Adapter
AdapterAdapter
Adapter
Wireless LAN Standards
Wireless LAN StandardsWireless LAN Standards
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
InteroperabilityInteroperability
Interoperability
Wi-Fi certified
Frequency Band
Frequency BandFrequency Band
Frequency Band
2.4 GHz
Data Rates
Data RatesData Rates
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: many possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding Scheme,
and Guard Interval used, as defined in IEEE 802.11n specification
Modulation
ModulationModulation
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM
Security
SecuritySecurity
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Sub-channels
Sub-channelsSub-channels
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
Media Access ProtocolMedia Access Protocol
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Network ArchitectureNetwork Architecture
Network Architecture
Models
ModelsModels
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
RoamingRoaming
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
Output PowerOutput Power
Output Power
(for CKK)217 dBm, nominal
Output Power
Output PowerOutput Power
Output Power
(for OFDM;
power varies by data
rate)
2
15 dBm, nominal
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 25
Page 26
1.
2.
3.
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
Transmit: 1.5 W (max)
Receive: 1.0 W (max)
Associated to Access Point, Idle: 300 mW nominal
Wireless Button Off: 75 mW nominal
Power Management
Power ManagementPower Management
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
Receiver SensitivityReceiver Sensitivity
Receiver Sensitivity
3
54 Mbps: -75 dBm, 11 Mbps: -88 dBm , 1 Mbps: -93 dBm
Antenna type
Antenna typeAntenna type
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Form Factor
Form FactorForm Factor
Form Factor
PCI-Express Half-MiniCard
Weight
WeightWeight
Weight
0.013 lb (6 g)
Dimensions
DimensionsDimensions
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
Operating VoltageOperating Voltage
Operating Voltage
3.3v +/- 9%
Temperature
TemperatureTemperature
Temperature
Operating
Non-operating
14° to 149° F (-10° to 65° C)
-40° to 176° F (-40° to 80° C)
Humidity
HumidityHumidity
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
AltitudeAltitude
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED ActivityLED Activity
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
Intel Centrino Advanced-
Intel Centrino Advanced-Intel Centrino Advanced-
Intel Centrino AdvancedN 6200
N 6200N 6200
N 6200
Wireless LAN Standards
Wireless LAN StandardsWireless LAN Standards
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
*
* In countries where 802.11n is not allowed, this capability is not enabled.
Interoperability
InteroperabilityInteroperability
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows
Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
Frequency BandFrequency Band
Frequency Band
2.4 GHz and 5GHz
Antenna Structure
Antenna StructureAntenna Structure
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
Data RatesData Rates
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding Scheme,
and Guard Interval used, as defined in IEEE 802.11n specification
Modulation
ModulationModulation
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
SecuritySecurity
Security
1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAPFAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 26
Page 27
1.
2.
3.
4.
5.
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Sub-channelsSub-channels
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
Media Access ProtocolMedia Access Protocol
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Network ArchitectureNetwork Architecture
Network Architecture
Models
ModelsModels
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
RoamingRoaming
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power
Output PowerOutput Power
Output Power
(for CCK
and OFDM)
2
17 dBm max
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
Transmit: 2.3 Watts (max, with two spatial streams)
Receive: 1 Watt (max with two spatial streams)
Idle mode3: 35 mW (average)
Radio off: 20 mW (max)
Power Management
Power ManagementPower Management
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
Receiver SensitivityReceiver Sensitivity
Receiver Sensitivity
4
54 Mbps: -76 dBm, 6 Mbps: -92 dBm
Antenna Connections
Antenna ConnectionsAntenna Connections
Antenna Connections
2 U.FL type connectors, 50 ohm nominal impedance
Form Factor
Form FactorForm Factor
Form Factor
PCI-Express Half-MiniCard
Weight
WeightWeight
Weight
0.0075 lb (3.4 g)
Dimensions
DimensionsDimensions
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
Operating VoltageOperating Voltage
Operating Voltage
3.3V +/- 9%
Temperature
TemperatureTemperature
Temperature
Operating
Non-operating
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
Humidity
HumidityHumidity
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
AltitudeAltitude
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED ActivityLED Activity
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Ralink RT3090BC4
Ralink RT3090BC4Ralink RT3090BC4
Ralink RT3090BC4
802.11b/g/n WiFi and
802.11b/g/n WiFi and802.11b/g/n WiFi and
802.11b/g/n WiFi and
Bluetooth 3.0 HS Combo
Bluetooth 3.0 HS ComboBluetooth 3.0 HS Combo
Bluetooth 3.0 HS Combo
Wireless LAN Standards
Wireless LAN StandardsWireless LAN Standards
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 27
Page 28
Adapter
AdapterAdapter
Adapter
Interoperability
InteroperabilityInteroperability
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliantwith Microsoft Windows
Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
Frequency BandFrequency Band
Frequency Band
2.4 GHz
Data Rates
Data RatesData Rates
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps
Modulation
ModulationModulation
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM
Security
SecuritySecurity
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows 7, Windows Vista and XP.
Sub-channels
Sub-channelsSub-channels
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
Media Access ProtocolMedia Access Protocol
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Network ArchitectureNetwork Architecture
Network Architecture
Models
ModelsModels
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
RoamingRoaming
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
Output PowerOutput Power
Output Power
(for CCK)217 dBm , nominal
Output Power
Output PowerOutput Power
Output Power
(for OFDM;
power varies by data
rate)
2
15 dBm , nominal
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
Idle associated: 250 mW
Idle unassociated: 150 mW
Transmit: 2.0 W (max)
Receive: 2.0 W (max)
Power Management
Power ManagementPower Management
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
Receiver SensitivityReceiver Sensitivity
Receiver Sensitivity
3
54 Mbps: -71 dBm, 11 Mbps: -81 dBm , 1 Mbps: -90 dBm
Antenna type
Antenna typeAntenna type
Antenna type
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
Form Factor
Form FactorForm Factor
Form Factor
PCI-Express Half-MiniCard
Weight
WeightWeight
Weight
0.013 lb (6 g)
Dimensions
DimensionsDimensions
Dimensions
0.22 x 1.06 x 1.18 in (4.1 x 26.8 x 30 mm)
Operating Voltage
Operating VoltageOperating Voltage
Operating Voltage
3.3v +/- 10%
Temperature
TemperatureTemperature
Temperature
Operating
Non-operating
14° to 149° F (-10° to 65° C)
-40° to 176° F (-40° to 80° C)
Humidity
HumidityHumidity
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
AltitudeAltitude
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 28
Page 29
1.
2.
3.
4.
Configuration Utility
Configuration UtilityConfiguration Utility
Configuration Utility
4
Microsoft Windows XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Microsoft Windows Vista & Windows 7 Wireless Network Connection
Manager
LED Activity
LED ActivityLED Activity
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g/n (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Bluetooth 3.0 + HS
Bluetooth 3.0 + HSBluetooth 3.0 + HS
Bluetooth 3.0 + HS
Wireless Technology
Wireless TechnologyWireless Technology
Wireless Technology
Bluetooth Specification
Bluetooth SpecificationBluetooth Specification
Bluetooth Specification
BT 3.0 + HS
Dimensions
DimensionsDimensions
Dimensions
0.22 x 1.06 x 1.18 in (4.1 x 26.8 x 30 mm)
Frequency Band
Frequency BandFrequency Band
Frequency Band
2402 to 2480 MHz
Number of Available
Number of AvailableNumber of Available
Number of Available
Channels
ChannelsChannels
Channels
79 (1 MHz) available channels
Data Rates and
Data Rates andData Rates and
Data Rates and
Throughput
ThroughputThroughput
Throughput
BT 2.1 + EDR
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
BT 3.0 + HS
Throughput up to 25 Mbps
Transmit Power
Transmit PowerTransmit Power
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Receiver SensitivityReceiver Sensitivity
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
Peak (Tx) 350 mW
Peak (Rx) 250 mW
Sleep <1 mW
Antenna
AntennaAntenna
Antenna
Internally integrated within module
Range
RangeRange
Range
Up 33 ft (10 m)
Electrical Interface
Electrical InterfaceElectrical Interface
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Bluetooth SoftwareBluetooth Software
Bluetooth Software
Supported
SupportedSupported
Supported
Motorola Bluetooth Profiles and Stack
Link Topology
Link TopologyLink Topology
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
SecuritySecurity
Security
Full support of Bluetooth Security Provisions
Power Management
Power ManagementPower Management
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 29
Page 30
1.
2.
Certifications
CertificationsCertifications
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
TemperatureTemperature
Temperature
Operating
Non-operating
-4° to 158° F (-20° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
HumidityHumidity
Humidity
Operating
Non-operating
10% to 90%
5% to 95%
Altitude
AltitudeAltitude
Altitude
Operating
Non-operating
15,000 ft (4,572 m)
40,000 ft (12,192 m)
Bluetooth Profiles
Bluetooth ProfilesBluetooth Profiles
Bluetooth Profiles
Supported
SupportedSupported
Supported
Serial Port Profile (SPP)
1
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)
1,2
Generic Object Exchange Profile (GOEP)
1,2
Object Push Profile (OPP)
1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
1,2
Personal Area Networking Profile (PAN)
1,2
Human Interface Device Profile (HID)
1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)
2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
indicates the profile is supported by Microsoft Windows XP SP2
indicates the profile is part of Windows Vista
HP Integrated Module
HP Integrated ModuleHP Integrated Module
HP Integrated Module
with Bluetooth 2.1
with Bluetooth 2.1with Bluetooth 2.1
with Bluetooth 2.1
Wireless Technology
Wireless TechnologyWireless Technology
Wireless Technology
Bluetooth Specification
Bluetooth SpecificationBluetooth Specification
Bluetooth Specification
2.1 Compliant
Dimensions
DimensionsDimensions
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
Frequency BandFrequency Band
Frequency Band
2402 to 2480 MHz
Number of Available
Number of AvailableNumber of Available
Number of Available
Channels
ChannelsChannels
Channels
79 (1 MHz) available channels
Data Rates and
Data Rates andData Rates and
Data Rates and
Throughput
ThroughputThroughput
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
Transmit Power
Transmit PowerTransmit Power
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Receiver SensitivityReceiver Sensitivity
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 30
Page 31
1.
2.
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
AntennaAntenna
Antenna
Internally integrated within module
Range
RangeRange
Range
Up 33 ft (10 m)
Electrical Interface
Electrical InterfaceElectrical Interface
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Bluetooth SoftwareBluetooth Software
Bluetooth Software
Supported
SupportedSupported
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Link Topology
Link TopologyLink Topology
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
SecuritySecurity
Security
Full support of Bluetooth Security Provisions
Power Management
Power ManagementPower Management
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
CertificationsCertifications
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
TemperatureTemperature
Temperature
Operating
-4° to 158° F (-20° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Humidity
HumidityHumidity
Humidity
Operating
10% to 90%
Non-operating
5% to 95%
Altitude
AltitudeAltitude
Altitude
Operating
15,000 ft (4,572 m)
Non-operating
40,000 ft (12,192 m)
Bluetooth Profiles
Bluetooth ProfilesBluetooth Profiles
Bluetooth Profiles
Supported
SupportedSupported
Supported
Serial Port Profile (SPP)
1
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)
1,2
Generic Object Exchange Profile (GOEP)
1,2
Object Push Profile (OPP)
1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
1,2
Personal Area Networking Profile (PAN)
1,2
Human Interface Device Profile (HID)
1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)
2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
indicates the profile is supported by Microsoft Windows XP SP2
indicates the profile is part of Windows Vista
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 31
Page 32
1.
2.
Environmental Data
Environmental DataEnvironmental Data
Environmental Data
Eco-Label Certifications
Eco-Label CertificationsEco-Label Certifications
Eco-Label Certifications
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:
US Energy Star
IT ECO declaration
EPEAT – Gold
System Configuration
System ConfigurationSystem Configuration
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data for the Convertible Mini tower Desktop model is based on a
"Typically Configured Notebook"
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
Energy Consumption
Energy ConsumptionEnergy Consumption
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
10.141 W 10.939 W 10.159 W
Sleep (Energy Star low
power mode)
0.55 W 0.67 W 0.51 W
Off
0.484 W
0.61 W 0.45 W
Heat Dissipation
Heat DissipationHeat Dissipation
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
35 BTU/hr 37 BTU/hr 35 BTU/hr
Sleep
2 BTU/hr 2 BTU/hr 2 BTU/hr
Off
2 BTU/hr 2 BTU/hr 2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Energy Consumption
Energy ConsumptionEnergy Consumption
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
8.436 W
8.58 W
8.373 W
Sleep (Energy Star low
power mode)
0.55 W 0.56 W 0.55 W
Off
0.37 W
0.348 W 0.319 W
Heat Dissipation
Heat DissipationHeat Dissipation
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
29 BTU/hr 29 BTU/hr 29 BTU/hr
Sleep
2 BTU/hr 2 BTU/hr 2 BTU/hr
Off
1 BTU/hr 1 BTU/hr 1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
HP ProBook 4320s Notebook PC and HP ProBook 4420s Notebook PC
HP ProBook 4320s Notebook PC and HP ProBook 4420s Notebook PCHP ProBook 4320s Notebook PC and HP ProBook 4420s Notebook PC
HP ProBook 4320s Notebook PC and HP ProBook 4420s Notebook PC
Declared Noise Emissions
Declared Noise EmissionsDeclared Noise Emissions
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
1.5
24.2
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 32
Page 33
Fixed Disk
(random writes)
2.2
25.4
System fan is usually off except when charging the battery
Batteries
BatteriesBatteries
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
The battery type and chemistry used in the product is:
CR2032 (coin cell), Li-ion
6-cell high capacity Li Metal battery (optional 8 cell available)
Additional
AdditionalAdditional
Additional
information
informationinformation
information
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Gold level, see:
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per
ISO 11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 90% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Corrugated Carton 412 g
Corrugated 326 g
Internal:
Molded Pulp 150 g
Polyethylene low density 20 g
The Polyethylene low density packaging material is made from 85%
recycled content.
The Corrugated Carton packaging material is made from 85%
recycled content.
The Corrugated packaging material is made from 85% recycled
content.
The Molded Pulp packaging material is made from 90% recycled
content.
HP follows these guidelines to decrease the environmental impact of product
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 33
Page 34
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
Material Usage
Material UsageMaterial Usage
Material Usage
This product does not contain any of the following substances in excess of
regulatory limits (for reference of these limits please refer to the HP General
Specification of the Environment:
(
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html
):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 micro-grams/cm^2/week,
measured according to EN 1811:1998, are not used on any product surface
designed to be frequently handled or touched by users.
End-of-life Management
End-of-life ManagementEnd-of-life Management
End-of-life Management
and Recycling
and Recyclingand Recycling
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 34
Page 35
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/recyclers
. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Hewlett-Packard
Hewlett-PackardHewlett-Packard
Hewlett-Packard
Corporate Environmental
Corporate EnvironmentalCorporate Environmental
Corporate Environmental
Information
InformationInformation
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or trademarks of
Microsoft Corporation in the U.S. and/or other countries. Intel, Core, and Celeron are registered trademarks or trademarks of Intel
Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other
countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PCHP ProBook 4320s Notebook PC
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PCHP ProBook 4420s Notebook PC
HP ProBook 4420s Notebook PC
Technical Specifications
DA - 13568 North America — Version 10 — July 23, 2010
Page 35
Loading...
