Page 1

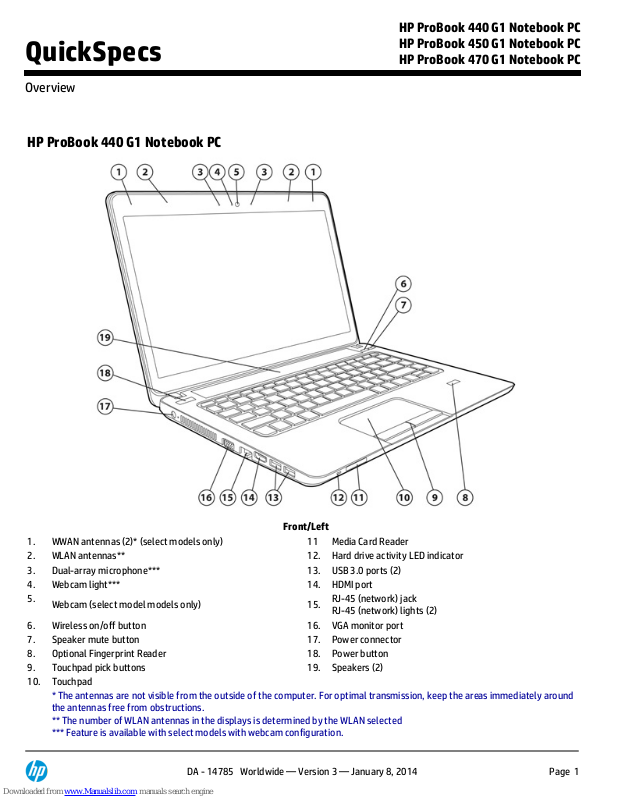

HP ProBook 440 G1 Notebook PC
Front/Left
1.
WWAN antennas (2)* (select models only)
11
Media Card Reader
2.
WLAN antennas**
12.
Hard drive activity LED indicator
3.
Dual-array microphone***
13.
USB 3.0 ports (2)
4.
Webcam light***
14.
HDMI port
5.
Webcam (select model models only)
15.
RJ-45 (network) jack
RJ-45 (network) lights (2)
6.
Wireless on/off button
16.
VGA monitor port
7.
Speaker mute button
17.
Power connector
8.
Optional Fingerprint Reader
18.
Power button
9.
Touchpad pick buttons
19.
Speakers (2)
10.
Touchpad
* The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions.
** The number of WLAN antennas in the displays is determined by the WLAN selected
*** Feature is available with select models with webcam configuration.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 1
Page 2
Right
1.
Audio-out (headphone) jack
4.
Optical drive (select models only)
2.
Audio-in (microphone) jack
5.
Optical drive eject button (select models only)
3.
USB 2.0 ports (2)
6.
Security lock slot
Bottom
1.
Battery and service door release latches
3.
Vents
2.
Battery bay
4.
Service door
HP ProBook 450 G1 Notebook PC
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 2
Page 3
Front/Left
1.
WWAN antennas (2)* (select models only)
11.
Media Card Reader
2.
WLAN antennas**
12.
Hard drive activity LED indicator
3.
Dual-array microphone ***
13.
USB 3.0 ports (2)
4.
Webcam light***
14.
HDMI port
5.
Webcam (select model models only)
15.
RJ-45 (network) jack
RJ-45 (network) lights (2)
6.
Wireless on/off button
16.
VGA monitor port
7.
Speaker mute button
17.
Power connector
8.
Optional Fingerprint Reader
18.
Power button
9.
Touchpad pick buttons
19.
Speakers (2)
10.
Touchpad
* The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions.
** The number of WLAN antennas in the displays is determined by the WLAN selected.
*** Feature is available with select models with webcam configuration.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 3
Page 4
Right
1.
Audio-out (headphone) jack
4.
Optical drive (select models only)
2.
Audio-in (microphone) jack
5.
Optical drive eject button (select models only)
3.
USB 2.0 ports (2)
6.
Security lock slot
Bottom
1.
Battery and service door release latches
3.
Vents
2.
Battery bay
4.
Service door
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 4
Page 5
HP ProBook 470 G1 Notebook PC
Front/Left
1.
WLAN antennas*
10.
Media Card Reader
2.
Dual-array microphone
11.
Hard drive activity LED indicator
3.
Webcam light
12.
USB 3.0 ports (2)
4.
Webcam (select models only)
13.
HDMI port
5.
Wireless on/off button
14.
RJ-45 (network) jack
RJ-45 (network) lights (2)
6.
Speaker mute button
15.
VGA monitor port
7.
Optional Fingerprint Reader
16.
Power connector
8.
Touchpad pick buttons
17.
Power button
9.
Touchpad
18.
Speakers (2)
* The number of WLAN antennas in the displays is determined by the WLAN selected.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 5
Page 6
Right
1.
Audio-out (headphone) jack
4.
Optical drive (select models only)
2.
Audio-in (microphone) jack
5.
Optical drive eject button (select models only)
3.
USB 2.0 ports (2)
6.
Security lock slot
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 6
Page 7
Bottom
1.
Battery and service door release latches
3.
Vents
2.
Battery bay
4.
Service door
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 7
Page 8
At A Glance
Windows 8 versions, Windows 7 versions, SUSE Linux, or FreeDOS
Aluminum reinforced chassis with multi-layer soft touch paint that keep system looking good longer
Full-sized spill-resistant keyboard; full separate numeric keypad (HP ProBook 450 and 470 only)
Larger Touchpad with gestures support, on/off button with LED indicator
Enhanced security features including HP Client Security and optional HP Fingerprint Reader
Optional HD webcam with dual-microphone array for video conferencing*
HDMI port for connecting to high-resolution displays; USB 3.0 ports
DTS Sound+ optimized for high fidelity audio
Widescreen LED-backlit HD display with 16:9 aspect ratio with available 17.3-inch diagonal HD+ (HP ProBook 470), 15.6-inch
diagonal HD, 15.6-inch diagonal HD with Touch option (HP ProBook 450), 14-inch diagonal HD (HP ProBook 440)
Choice of 4th generation Intel® Core™ i7, i5 and i3 processors, Intel Celeron and Pentium processor
Wireless on/off and speaker mute buttons for convenient management of the connectivity and speaker.
Flexible wireless connectivity options:
Integrated HP Mobile Broadband Module (HP ProBook 440 G1 and 450 G1 selective models)
Integrated 802.11 b/g/n wireless LAN module
Integrated 802.11 a/b/g/n/AC, a/b/g/n or b/g/n with Bluetooth 4.0 combo card
* Optional on models with integrated graphics only.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Overview
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 8
Page 9
PRODUCT NAMES
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
OPERATING SYSTEM
Preinstalled
Windows 8 Pro 64*
Windows 7 Professional (available through downgrade rights from Windows 8 Pro**
Windows 8 64*
Windows 7 Professional 64***
Windows 7 Home Premium 64***
Windows 7 Home Basic 64***
SUSE Linux Enterprise Desktop 11
FreeDOS
* Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8 functionality. See
http://www.microsoft.com
for details.
** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating
systems to avoid loss of your data.
*** Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/
for details.
PROCESSOR
4th Generation Intel® Core™ i7-4702MQ (2.2GHz, 6MB L3 cache, 4 cores)
Up to 3.2GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i5-4200M (2.5GHz, 3MB L3 cache, 2 cores)
Up to 3.1GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i3-4100M (2.5GHz, 3MB L3 cache, 2 cores)
4th Generation Intel® Core™ i3-4000M (2.4GHz, 3MB L3 cache, 2 cores)
Intel® Pentium 3550M (2.3GHz, 2MB L3 cache, 2 cores)
Intel® Celeron 2950M (2.0GHz, 2MB L3 cache, 2 cores)
* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a
processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will not
operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on your
hardware and software configurations. Intel's numbering is not a measurement of higher performance.
NOTE:
Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
CHIPSET
Mobile Intel® HM87 Express
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 9
Page 10
GRAPHICS
Integrated*:
Intel HD** Graphics 4600 (4th Generation Intel Quad-Core i7 and Dual-Core i5 and i3)
Intel HD** Graphics (Celeron and Pentium configurations)
Switchable Discrete:
AMD Radeon™ HD** 8750M, with 1 or 2 GB dedicated DDR3 video memory***
* HP ProBook 440 and 450 only. HP ProBook 470 supports switchable discrete graphics only.
** HD content required to view HD images.
*** AMD Dynamic Switchable Graphics technology requires either an AMD "A" series APU or an Intel processor, plus an AMD
Radeon™ discrete graphics configuration and is not available on FreeDOS and Linux OS. With AMD Dynamic Switchable Graphics
technology, full enablement of all discrete graphics video and display features may not be supported on all systems (e.g. OpenGL
applications will run on the integrated GPU or the APU as the case may be).
DISPLAY
HP ProBook 440 G1
Internal
14" diagonal LED-backlit HD anti-glare (1366 x 768)
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1080 external resolution @60 Hz
HDMI
Supports direct connection to high-definition displays with up to 1920 x 1200@60Hz resolution and 7-channel audio with one
convenient cable (not included)
NOTE:
HD content required to view HD images.
NOTE:
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
HP ProBook 450 G1
Internal
15.6" diagonal LED-backlit HD Touch Display is shatter, scratch, and smudge resistant (1366 x 768)
15.6" diagonal LED-backlit HD anti-glare (1366 x 768)
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1080 external resolution @60 Hz
HDMI
Supports direct connection to high-definition displays with up to 1920 x 1200@60Hz resolution and 7-channel audio with one
convenient cable (not included)
NOTE:
HD content required to view HD images.
NOTE:
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
HP ProBook 470 G1
Internal
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 10
Page 11
17.3" diagonal LED-backlit HD+ anti-glare (1600 x 900)
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1080 external resolution @60 Hz
HDMI
Supports direct connection to high-definition displays with up to 1920 x 1200@60Hz resolution and 7-channel audio with one
convenient cable (not included)
NOTE:
HD content required to view HD images.
NOTE:
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
STORAGE AND DRIVES
Primary Storage Bay
Hard Drives
320/500/750 GB**/1 TB** 5400 rpm SMART SATA II HDD;
500 GB** 7200 rpm SMART SATA II HDD
500 GB** 5400 rpm SMART SATA II Hybrid HDD/SSHD
Solid State Drive*
128 GB** 2.5" Solid State Drive
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive
* Available on 450G1 only
**For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) and 36 GB (for Windows 8) of system disk is reserved for the system recovery software.
OPTICAL DRIVES
Fixed 9.5 mm SATA optical drive
Blu-ray ROM DVD+/-RW SuperMulti DL Drive*†
DVD+/-RW SuperMulti DL Drive*
DVD-ROM Drive
No optical drive option
* Sold separately as an optional feature.
† For Blu-ray drives, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute
defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may
require an HDMI digital connection and your display may require HDCP support. HD-DVD disks cannot be played on this drive. Note
that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided - Version 1.0 media. Actual speeds may vary. Don't
copy copyright-protected materials. Double Layer discs can store more data than single layer discs; discs burned with this drive
may not be compatible with many existing single-layer DVD drives and players.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 11
Page 12
MEMORY
Standard
DDR3L 1.35V SDRAM (1600 MHz)
Two SODIMM slots supporting dual-channel memory
2 GB, 4 GB, and 8 GB SODIMMs*
Maximum
Upgradeable to 16384 MB with optional 8192 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With Windows Starter 32bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may
not be available due to system resource requirements.
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry
standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard,
factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any
of the supported wireless LAN and wireless WAN options.
Broadband Wireless (WWAN) (WWAN and LTE are not available on the HP ProBook 470 G1)
HP hs3110 HSPA+ Mobile Broadband Module*
HP lt4112 LTE/HSPA+ Gobi 4G Module*,**
Wireless LAN (WLAN)***
Realtek 802.11 b/g/n (1x1)***
Meditek 802.11 b/g/n (1x1) with Bluetooth v4.0 combo***
Intel Dual Band Wireless-AC 3160 802.11 a/b/g/n/ac (1x1) WiFi with Bluetooth 4.0 combo***, ****
Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi with Bluetooth 4.0 combo***
NOTE:
Supports Bluetooth® v2.1 on Linux operating systems
* WWAN is an optional feature sold separately or as an add on feature. WWAN connection requires wireless data service contract,
network support, and is not available in all areas. Contact service provider to determine the coverage area and availability.
Connection speeds will vary due to location, environment, network conditions, and other factors.
** 4G LTE not available on all products, in all regions and only available on products featuring Intel processors.
***Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.
**** The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the
draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.
Communications
Realtek 10/100/1000* Ethernet Controller
* The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does
not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 12
Page 13
AUDIO/MULTIMEDIA
Audio
DTS Sound+
Integrated stereo speakers
Integrated digital microphone (dual-microphone array when equipped with optional webcam)
Function keys for microphone mute, volume up, volume down
Stereo headphone/line out
Stereo microphone/line in
Webcam
Optional* 720p HD** webcam
HD format (widescreen)
Supports videoconferencing (non-HD) and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fp
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
Skype-ready**
* Sold separately as an optional feature.
** HD content required to view HD images.
*** Internet access required.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard. The 101/102-key compatible
keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt
keys, and function keys. US and International key layouts are available. Includes a separate numeric keypad (HP ProBook 450 and
470 only).
Pointing Devices
Touchpad with gestures support, on/off button with LED indicator, two-way scroll, two pick buttons
Buttons and Function Keys
Separate launch buttons provide easy access to wireless on/off and speaker mute. Function keys provide control of features
including: standby mode, display brightness, external display, microphone mute, volume down, and volume up.
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
HP Wireless Hotspot*
HP Mobile Connect (EMEA Only) (Win 8 Only)**
HP ePrint (HP Exclusive)***
HP Hotkey support
HP 3D Driveguard (Windows required)
PDF Complete Corporate Edition****
Skype ready *****
HP Recovery Manager
HP Support Assistant
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 13
Page 14
Buy Office
Intel Wireless Display******
NOTE:
HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if
important system files are accidentally deleted. Up to 16 GB (for Windows 7) and 36 GB (for Windows 8) of system disk is reserved
for the system recovery software.
* The wireless hotspot application requires an active internet connection and separately purchased data plan. While HP wireless
hotspot is active, on-device applications will continue to work and will use the same data plan as the wireless hotspot. Wireless
hotspot data usage may incur additional charges. Check with your service providerfor plan details. Requires Windows.
** Internet access required.
*** Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and
availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
**** PDF Complete Corporate Edition includes 50 PDF creations or six months, whichever comes first. Purchase license afterwards
for full functionality.
*****Skype-ready. Skype is not offered in China.
****** Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or
computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or computer
monitor via a standard HDMI cable, also sold separately.
Security
Standard
HP Client Security (Windows only)
HP Trust Circles Standard (Available in Fall 2013)
Microsoft Security Essentials(Windows 7)/Microsoft Defender (Windows 8)*
HP Drive Encryption**
HP BIOS Protection***
Security lock slot
Optional
Intel® Anti-Theft (requires a Computrace subscription)****
Intel Identity Protection*****
HP Fingerprint reader
NOTE:
The Absolute Persistence agent is shipped turned off, and must be activated by customers when they purchase a
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for
availability outside the U.S.
* Opt in and internet connection required for updates.
** Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive
Encryption and prevents data access. Drive encryption planned to be available in October 2013.
*** HP Tools partition with an HP BIOS required for automatic recovery.
**** Intel Anti-Theft security is supported on Intel Core i processors and requires a separately purchased Absolute Computrace
service subscription and must be activated and configured. Check with Absolute for availability in your country. Intel and HP
assume no liability for lost or stolen data and/or systems or any other damages resulting therefrom. See
http://www.intel.com/technology/anti-theft/
.
***** Intel Identity Protection feature is only available with Intel Core Processors. Intel® IPT security requires separate Symantec
VIP software service subscription and must be activated and configured. Requires a website that uses Symantec VIP
Authentication Service and Microsoft® Windows. Intel® and HP assume no liability for lost or stolen data and/or systems or any
other damages resulting therefrom.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 14
Page 15
For more information on HP security solutions refer to:
http://www.hp.com/go/security
.
POWER
Power Supply
HP ProBook 440 G1 Notebook PC
Models with discrete graphics:
External 90W HP Smart AC Adapter
Models with integrated graphics:
External 65W HP Smart AC Adapter
Power cord included is 3.28-foot (1 meter).
Total length including external AC adapter is 9.38 feet (2.86 meter).
HP Fast Charge*
HP ProBook 450 G1 Notebook PC
Models with discrete graphics:
External 90W HP Smart AC Adapter
Models with integrated graphics:
External 65W HP Smart AC Adapter
Power cord included is 3.28-foot (1 meter).
Total length including external AC adapter is 9.38 feet (2.86 meter).
HP Fast Charge*
HP ProBook 470 G1 Notebook PC
90W HP Smart AC Adapter
Power cord included is 3.28-foot (1 meter).
Total length including external AC adapter is 9.38 feet (2.86 meter).
HP Fast Charge*
Primary Battery
HP 9-cell Lithium-Ion Battery (93 WHr)
HP 6-cell Lithium-Ion Battery (47 WHr)
Battery Life with Windows 7
Configurations with integrated graphics
Configurations with discrete graphics
HP ProBook 440
9-cell (93 WHr) battery
Up to 17 hours 30 mins Up to 17 hours 30 mins
6-cell (47 WHr) battery
Up to 9 hours 15 mins
Up to 9 hours
HP ProBook 450
9-cell (93 WHr) battery
Up to 17 hours 15 mins
Up to 17 hours
6-cell (47 WHr) battery
Up to 9 hours 15 mins
Up to 9 hours
HP ProBook 470
9-cell (93 WHr) battery
N/A
Up to 15 hours 15 mins
6-cell (47 WHr) battery
N/A
Up to 8 hours 15 mins
System Standby Time
*
Up to 12 days
* Windows 7 battery life will vary depending on numerous factors including product model, configuration, loaded applications,
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 15
Page 16
features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally
decrease with time and usage. See www.bapco.com for additional details.
** Standby life will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum capacity of
the battery will naturally decrease with time and usage.
NOTE:
Fast Charge recharges your battery up to 90% within 90 minutes when the system is off (6-cell only).
Power Conservation
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic
mode)
AMD PowerPlay technology (discrete models)
Hibernation
Standby
ACPI compliance
WEIGHTS & DIMENSIONS
HP ProBook 440 G1 Notebook PC
Weight
Starting at 4.63 lb (2.10 kg) with optical drive (weight will vary by configuration)
Starting at 4.34 lb (1.97 kg) without optical drive (weight will vary by configuration)
Dimensions (w x d x h)
13.35 x 9.38 x 0.88 (front) -1.12 in (at rear)
33.92 x 23.85 x 2.24 (front) - 2.86 cm (at rear)
HP ProBook 450 G1 Notebook PC
Weight
Starting at 5.22 lb (2.37 kg) with optical drive without touch (weight will vary by configuration)
Starting at 4.98 lb (2.26 kg) without optical drive without touch (weight will vary by configuration)
Starting at 5.84 lb (2.65 kg) with optical drive with touch (weight will vary by configuration)
Starting at 5.6 lb (2.54 kg) without optical drive with touch (weight will vary by configuration)
Dimension (wxdxh)
14.76 x 10.09 x 0.9 (front) - 1.14 in (at rear) (non-Touch)
37.5 x 25.6 x 2.28 (front) - 2.9 cm (at rear) (non-Touch)
14.76 x 10.09 x 0.95 (front) - 1.20 in(at rear) (Touch)
37.5 x 25.6 x 2.42( front) - 3.0 4cm(at rear) (Touch)
HP ProBook 470 G1 Notebook PC
Weight
Starting at 6.61 lb (3.0 kg) with optical drive (weight will vary by configuration)
Starting at 6.33 lb (2.87 kg) without optical drive (weight will vary by configuration)
Dimensions (w x d x h)
16.29 x 11 x 1.00 (front) -1.24 in (at rear)
41.3 8 x 27.95 x 2.53 (front) - 3.15 cm (at rear)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 16
Page 17
PORTS/SLOTS
USB 3.0 – Two
USB 2.0 – Two
HDMI 1.4a – One
Stereo microphone input – One
Headphone/line out – One
RJ-45 (Ethernet) – One
Power connector – One
VGA – One
Digital Media Slots
Multi Media Reader Slot supporting SD, SDHC, SDXC, Memory Stick, MSXC
SERVICE AND SUPPORT
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country;
1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services
extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care
Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool
. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
.
NOTE:
Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on
date of hardware purchase. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/cpc
.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Features
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 17
Page 18
SYSTEM UNIT
Stand-Alone Power
Requirements
(AC Power)
Nominal Operating
Voltage
19 V
Average Operating Power
Windows 7 (64-bit) Windows 8 (64-bit)
ProBook 440 Integrated
graphics
8.81 W 9.08 W
ProBook 440 Discrete
graphics
9.38 W 9.65 W
ProBook 450 Integrated
graphics
8.8 W 8.7 W
ProBook 450 Discrete
graphics
9.68 W 9.22 W
ProBook 470 Discrete
graphics
9.55 W 9.88 W
Max Operating Power
Discrete < 90W
UMA < 65W
Temperature
Operating
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
(unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry
Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models
*
EPEAT
Registered Gold in United States**
ICES
Yes
Australia /
NZ A-Tick Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KC
Yes
BSMI
Yes
CE Marking Compliance
Yes
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 18
Page 19
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian Compliance
(ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
* Configurations of the HP ProBook 440 G1, HP ProBook 450 G1 and HP ProBook 470 G1that are ENERGY STAR® qualified are identified
as HP ProBook 440 G1 ENERGY STAR, HP ProBook 450 G1 ENERGY STAR and HP ProBook 470 G1 ENERGY STAR on HP websites and on
www.energystar.gov
.
** EPEAT® registration varies by country. See
www.epeat.net
for registration status by country.
EPEAT status listed above applies to U.S.
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
DISPLAYS
14.0-inch LED HD
(1366 x 768)
anti-glare
Dimensions
(W x H)
12.63 x 7.39 in (32.09 x 18.76 cm)
Weight
0.71 lb (320g) (max)
Diagonal Size
14.0 in (35.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (min)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.227 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
112 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 19
Page 20
15.6-inch LED HD
(1366 x 768) with Touch
Dimensions
(W x H)
13.54 x 7.64 in (34.39 x 19.41 cm)
Weight
500g max.
Diagonal Size
15.6 in (39.6cm)
Contrast Ratio
300:1 (min)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.252 x 0.252
Format
1366 x 768 (HD)
Configuration
1366 x 768
Backlight
LED
PPI
106 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
15.6-inch LED HD
(1366 x 768) anti-glare
Dimensions
(W x H)
14.17 x 8.83 in (36.0 x 22.43 cm)
Weight
500g max.
Diagonal Size
15.6 in (39.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (min)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.252 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
106 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 20
Page 21
17.3-inch LED HD+ antiglare
Active Area
(W x H)
15.0 x 8.5 in (38.2 x 21.5 cm)
Weight
570g max.
Diagonal Size
17.3 in (43.9 cm)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (min)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.23868 x 0.23868 mm
Format
1600 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
106
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
STORAGE AND DRIVES
Internal Storage
500 GB* 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115g)
Capacity
500 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 21
Page 22
320 GB* 5400 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115 g)
Capacity
320 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
500 GB* 5400 rpm SATA
Hard Drive
Drive Weight
0.22 lb (101 g)
Capacity
500 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
13 ms
Maximum
24 ms
Rotational Speed
5400 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 22
Page 23
750 GB* 5400 rpm
SATA Hard Drive
Drive Weight
0.22 lb (101 g)
Capacity
750 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
13 ms
Maximum
24 ms
Rotational Speed
5400 rpm
Logical Blocks
1,465,149,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
1 TB* 5400 rpm
SATA Hard Drive
Drive Weight
0.254 lb (115 g)
Capacity
1 TB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
13 ms
Maximum
24 ms
Rotational Speed
5400 rpm
Logical Blocks
1,953,525,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 23
Page 24
500 GB* 5400 rpm SMART
SATA II Hybrid HDD/SSHD
Drive Weight
0.209 lb (95 g)
Capacity
500 GB
Height
0.276 in (7 mm)
Width
2.76 in (70.1 mm)
Interface
ATA-8, SATA 2.6, 6.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
2 ms
Average
12 ms
Maximum
NIL ms
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
SATA 6 Gb/s 128 GB*, 2.5inch Solid State Drive
Drive Weight
73 Grams
Capacity
128 GB
Height
0.276 in (7 mm)
Width
2.76 in (70 mm)
Interface
SATA 3 (6 Gb/s)
Performance
Maximum Sequential Read
Maximum Sequential Write
415 MB/s 175 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-8; SATA 3.0; DIPM; TRIM
* For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) and 36 GB (for Windows 8) of system disk is reserved for the system recovery software.
Optical Drives
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 24
Page 25
DVD+/-RW SuperMulti DL
Drive
Access Times
Random
<140ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
6X - DVD+R Dual Layer
6X - DVD-R Dual Layer
5X DVD-RAM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW, DVD-RAM
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DVD+R DL, DVD-R
DL
Max Media Capacity
(read)
8.5 GB
Max Media Capacity
(write)
8.5 GB
Transport
Tray Loading
Blu-ray ROM DVD+/-RW
SuperMulti DL Drive
Access Times
Random
<190 ms CD-ROM (typical)
<180ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate
24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 25
Page 26
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW, DVDRAM
Max Media Capacity
(read)
50.0 GB
Max Media Capacity
(write)
8.5 GB
Transport
Tray Loading
SECURITY
HP Fingerprint Reader
(optional)
Mobile Voltage Operation
3.0V-3.6V Single Supply
Weight
TBD
Operating Temperature
32° - 158°F (0° - 70°C)
Current Consumption @
3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture
Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
NETWORKING/COMMUNICATIONS
Integrated Realtek
RTL8151FH-CG
10/100/1000 NIC
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
Weight
TBD
Power
Management
ACPI compliant - multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power consumption
Performance
Features
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload (ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 26
Page 27
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Interface
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ
NIC Device Driver Name
Realtek PCIe GBE Ethernet Family Controller
HP hs3110/3114 HSPA+
Mobile Broadband
Module*
Technology/Operating
Bands
Modes: WCDMA/HSDPA/HSUPA/HSPA+/AWS/GSM/EDGE/GPRS
Penta-band WCDMA/HSDPA/HSUPA/HSPA+/AWS: 850/900/1900/2100/AWS
MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and
MSC1 - MSC9.
UMTS/WCDMA: Release 99 and Release 7
Advanced Receiver Type 3i
GPS
GPS Standalone, A-GPS: L1 (Internet- and Network assisted)
Wireless Parametric
Standards
Complies with 3GPP specifications
Maximum Data Rates
GPRS/EDGE: Multi-slot Class 33, Class B
WCDMA PS: UL (384 kbps) / DL (384 kbps)
UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps)
UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps)
Maximum Output Power
WCDMA/HSPA/HSPA+ 2100/1900/900/850/AWS MHz:
+24dBm (Power Class 3)
GPRS 1900/1800 MHz: +30dBm (Power Class 1)
GPRS 900/850 MHz: +33dBm (Power Class 4)
EDGE 1900/1800 MHz: +26dBm (Power Class E2)
EDGE 900/850 MHz: +27dBm (Power Class E2)
Maximum Power
Consumption
2500mA (peak); 600mA (average)
Power Consumption,
Sleep Mode
3.6 mA
Power Management
USB selective suspend, Connected Standby
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
Form Factor
M.2 Socket 2, USB 2.0 interface high speed
Weight
<6 g
Dimensions
(Length x
Width x Thickness)
2.01 x 1.18 x 0.18 in (42 x 30 x 2.3 mm)
SIM card supply voltage
1.8 V/3.0 V UICC (SIM/UICC/USIM)
Voltage, Operating
3.135V~4.4V (3.3 V recommended)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 27
Page 28
Temperature, Operating
14° to 131° F (-10° to 55° C) (Normal operation)
-4° to 158° F (-20° to 70° C) (Extended operation)
Temperature, Storage
-40° to 185° F (-40° to 85° C)
Humidity
5% to 95%
Configuration utilities
HP Connection Manager
LED Activity
LED Off - Radio Off; Solid LED On - Radio On
* Mobile Broadband is an optional feature sold separately or as an add on feature. Connection requires
wireless data service contract, network support, and is not available in all areas. Contact service provider
to determine the coverage area and availability. Connection speeds will vary due to location, environment,
network conditions, and other factors.
HP lt4112 LTE/HSPA+
Gobi 4G Module
*
Technology/Operating
Bands
LTE FDD all bands with diversity: 2100 MHz (Band I), 1900 MHz (Band II), 1800
MHz (Band III), 850 MHz (Band V), 2600 MHz (Band VII), 900 MHz (Band VIII),
800 MHz (Band XX, DD800)
WCDMA/HSDPA/HSUPA/HSPA+ all bands with diversity: 2100 MHz (Band I),
1900 MHz (Band II), 800 MHz (Band V), 900 MHz (Band VIII)
GSM/GPRS/EDGE: 1900 MHz (Band II), 1800 MHz (Band III), 850 MHz (Band V),
900 MHz (Band VIII)
Wireless Protocol
Standards
3GPP Release 8 LTE Specification
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
Wireless Parametric
Standards
Complies with 3GPP specifications Release 8 for LTE
Maximum Data Rates
LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
GPS
Standalone
GPS Bands
1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz
Maximum Output Power
LTE: +23 dBm (+/- 2 dBm)
WCDMA: +23.5 dBm (+/- 1 dBm)
GPRS Band II, III: +29.5 dBm (+/- 1 dBm)
GPRS Band V, VIII: +32.5 dBm (+/- 1 dBm)
EGPRS Band II, III: +26.5 dBM (+/-1.5 dBm)
EGPRS Band V, VIII: +27.5 dBM (+/-1.5 dBm)
Maximum Power
Consumption
LTE: 1,200 mA (peak); <900 mA (average)
WCDMA: 1,100 mA (peak); <800 mA (average)
EGPRS: 2,800 mA (peak); <700 mA (average)
Power Consumption,
Sleep Mode
3 mA
Power Management
USB selective suspend, Integrated notebook wireless button
Antenna Type
Dual high efficiency multi-band antennae with spatial diversity
Form Factor
M.2, USB 2.0 interface
Weight
6 g
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 28
Page 29
Dimensions
(Length x
Width x Thickness)
42 mm × 30 mm × 2.3 mm
Voltage, Operating
3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)
Temperature, operating
(from TIA/EIA/IS-98-D)
14° to 131° F (-10° to 55° C)
Temperature, nonoperating, 96 hours
(from
MIL-STD 202 Method 108)
-40° to 185° F (-40° to 85° C)
Humidity, Non-operating
95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
LED Activity
LED Off - Radio Off; Solid LED On - Radio On
* 4G LTE not available on all products, in all regions and only available on products featuring Intel
processors. WWAN use requires separately purchased service contract. Check with service provider for
coverage and availability in your area. Connection speeds will vary due to location, environment, network
conditions, and other factors.
Realtek 802.11 b/g/n
(1x1)*
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
2.402 - 2.482 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: card will support rates for NSS=1 for RX and TX for 20 MHz channels.
Short and long guard interval will be supported.
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM
Security
1
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
AES-CCMP: 128 bit in hardware 802.1x authentication types WPA, WPA2:
802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
2
13.5 dBm, nominal
Power Consumption
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Associated to Access Point, Idle: 250 mW nominal
Wireless Button Off: 100 mW nominal
Radio disabled: 75 mW nominal
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 29
Page 30
(11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
802.11n:-70dBm (72.2 Mbps)
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Form Factor
PCI-Express Half-MiniCard
Weight
0.013 lb (6 g)
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
* Wireless access point and internet service required. Availability of public wireless access points limited.
Mediatek 802.11 b/g/n
(1x1) with Bluetooth®
v4.0 combo*
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
2.402 - 2.482 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: card will support rates for NSS=1 for RX and TX for 20 MHz channels.
Short and long guard interval shall be supported.
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM
Security
1
Support for WPA and WPA2
Support for CCX version up to and including CCXv5
Support for the following EAP types: EAP-TLS, EAP-PEAPv0, EAP-PEAPv1,
EAP-PEAPv2, EAP-FAST, EAP-SIM
Support for using both machine and user credentials in a single profile. The
same profile must be able to be used both before user login and after user
login
Support the use of Windows Domain credentials
IP provider shall have support for an auto-logon to Windows using a PLC and
LEAP via the IP provider UI
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 30
Page 31
(http://support.microsoft.com/default.aspx/kb/315231).
Must have Windows Single Sign On support so that customers can use the
WLAN as their primary domain network. With regard to SSO, network
association and authentication must occur and be successful before Windows
domain authentication is attempted
Support for use of the UI client in a user account with limited local security
privileges
Client service / profile manager must support the WiFi Alliance's WiFi
Protected Setup specification.
Any credentials saved in a profile must be done securely such that they cannot
be re-used by any other user or machine.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
2
2.4G:+13.5dBm, minimum
Power Consumption
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Associated to Access Point, Idle: 250 mW nominal (WLAN Associated)
Wireless Button Off: 100 mW nominal (WLAN unassociated)
Radio disabled: 75 mW nominal
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
802.11n:-70dBm (72.2 Mbps)
Antenna type
Two embedded single band 2.4 antennas
Form Factor
PCI-Express Half-MiniCard
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
Bluetooth Specification
V4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and 2.0
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 31
Page 32
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW
Antenna
Internally integrated within module
Range
Up 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Supported
Generic Access Profile (GAP)
Service Discovery Application Profile (SDAP)
Serial Port Profile (SPP)
Dial_Up Networking Profile (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Generic Audio/Video Distribution Profile (GAVDP)
Advanced Audio/Video Distribution Profile (A2DP)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Basic Printing Profile (BPP)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 32
Page 33
VDP (Video Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
* Wireless access point and internet service required. Availability of public wireless access points limited.
Intel Dual Band WirelessAC 3160 802.11 ac (1x1)
WiFi and Bluetooth 4.0
Combo Adaptor*
General
Dimensions
(H x W x D)
Standard: 26.80 mm x 30.00 mm x 2.4 mm Max
(Top Side) / 1.35 mm Max (Bottom Side)
Low profile: 22 mm x 30.00 mm x 1.5 mm Max
(Top Side) / 0.6 mm Max (Bottom Side)
NGFF: 22 mm x 30 mm, single sided
Weight
TBD
Diversity
No diversity support
Radio ON/OFF Control
Supported in both hardware and software
Connector interface
Half Mini Card form factor, based on PCIe
electrical interface
Next Generation Form Factor, A-SD electrical
interface definition support
LED Output
On/Off
Operating Temperature
(Adapter Shield)
0° to +80° C
Humidity Non-Operating
50% to 90% RH non-condensing (at temperatures
of 25°C to 35°C)
Operating Systems
Microsoft Windows 7, Microsoft Windows 8, Linux
Wi-Fi Alliance
Wi-Fi CERTIFIED for 802.11ac, Wi-Fi CERTIFIED
a/b/g, Wi-Fi CERTIFIED n, WMM, WPA, WPA2, and
WPS, WPS 2.0, Protected Management Frames,
Wi-Fi Direct for peer to peer device connections
Microsoft WHQL
Yes
IEEE WLAN Standard
IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e,
802.11i, 802.11h, 802.11w
Architecture
Infrastructure and SoftAP; Supports simultaneous
Client and SoftAP modes in 2.4 GHz or 5GHz
Roaming
1
ACPI and PCI Express compliant power
management
802.11 compliant power saving mode
Security
Authentication
WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP,
LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication Protocols
PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2
Encryption
64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct Encryption
and Authentication
WPA2, AES-CCMP
Product Safety
UL, C-UL, CB (IEC 60950-1)
Management Frame
Protection
802.11w (WFA- Protected Management Frames)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 33
Page 34
Compliance
Retail (Credit Card
Processing)
PCI, CISP
Government
FIPS2,FISMA
1. Roaming is supported only within each respective band and mode of access points.
2. Microsoft Windows 7 only.
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
Transmit Power
-1.5 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -20 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
Internally integrated within module
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
Operating
Non-operating
-14° to 158° F (-10° to 70° C)
-40° to 212° F (-40° to 100° C)
Humidity
Operating
Non-operating
0% to 90%
0% to 95%
Altitude
Operating
Non-operating
15,000 ft (4,572 m)
40,000 ft (12,192 m)
Bluetooth Profiles
Supported
Serial Port Profile (SPP)
1
Service Discovery Application Profile (SDAP)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 34
Page 35
Dial-Up Networking (DUN)
1,2
Generic Object Exchange Profile (GOEP)
1,2
Object Push Profile (OPP)
1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
1,2
Personal Area Networking Profile (PAN)
1,2
Human Interface Device Profile (HID)
1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)
2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1. indicates the profile is supported by Microsoft Windows XP SP2
2. indicates the profile is part of Windows Vista
* Wireless access point and internet service required. Availability of public wireless access points limited.
The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final
specifications differ from the draft specifications, it may affect the ability of the notebook to communicate
with other 802.11ac WLAN devices.
Intel Dual Band WirelessN 7260 802.11 a/b/g/n
(2x2) WiFi + Bluetooth 4.0
Combo Adaptor
*
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows 7,
Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
802.11b/g/n
2.402 - 2.482 GHz
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20
and 40 MHz channels. Short and long guard interval shall be supported.
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 35
Page 36
Cisco Certified Extensions, all versions through V5
WAPI
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power
2
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Power Consumption
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode3: 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)
802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)
Antenna Connections
2 U.FL type connectors (output impedance of 50 ± 2 ohms)
Form Factor
PCI-Express Half-MiniCard
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Weight
TBD
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode and on battery power.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 36
Page 37
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier
IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
Transmit Power
-1.5 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -20 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
Internally integrated within module
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Supported
Serial Port Profile (SPP)
1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)
1,2
Generic Object Exchange Profile (GOEP)
1,2
Object Push Profile (OPP)
1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
1,2
Personal Area Networking Profile (PAN)
1,2
Human Interface Device Profile (HID)
1,2
FAX Profile (FAX)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 37
Page 38
Basic Imaging Profile (BIP)
2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1. indicates the profile is supported by Microsoft Windows XP SP2
2. indicates the profile is part of Windows Vista
* Wireless access point and internet service required. Availability of public wireless access points limited.
AUDIO/MULTIMEDIA - DTS SOUND+
Hardware
Implementation
IDT 92HD91
Function Key
Volume Controls
Volume up, volume down, and mute
Full Duplex
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Microphone
Yes, dual digital microphone array when equipped with optional webcam
Audio Output Quality
Frequency Response
20 Hz - 20 kHz
Signal to Noise Ratio
>85 dB
Total Harmonic Distortion
0.01%
Noise Floor
-110 dB
Play/Record Sampling
Rate
(s)
8 kHz - 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Integrated Stereo
Speakers
Power Rating
2 Watts
Impedance
4 Ohms
POWER
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 38
Page 39
HP 90W Smart AC Adapter
(discrete configurations)
Dimensions
5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)
Weight
0.82 lb (370 g)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version
Output
Output power
90W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.
HP 65W Smart AC Adapter
(Configurations with
integrated graphics)
Dimensions
4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)
Weight
0.62 lb (280 g)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC, 0.85 A at 180 VAC
Output
Output power
65W
DC output
18.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 39
Page 40
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF - over 200,000 hours at 25°C ambient condition.
9-Cell (93 WHr) LithiumIon battery
Dimensions
(H x W x L)
1.57 x 1.85 x 10.59 in (4.0 x 4.7 x 26.9 cm)
Weight
(max)
1.07 lb (0.488 kg)
Cells/Type
9-cell Lithium-Ion
Energy
Watt-hour Capacity
93 WHr
Amp-hour capacity
8.4Ah
Watt-hour capacity
11.1V
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 140° F (-10° to 60° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
3 to 4 hours
System ON
4 to 6 hours (depending on system power
consumption)
6-Cell (47 WHr) LithiumIon battery
Dimensions
(H x W x L)
0.85 x 1.76 x 10.59 in (2.16 x 4.46 x 26.9 cm)
Weight
(max)
0.70lb, (0.312kg)
Cells/Type
6-cell Lithium-Ion
Energy
Watt-hour Capacity
10.8V
Amp-hour capacity
4.4Ah
Watt-hour capacity
47Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
2.5 hours
System ON
3 to 5 hours
Fuel Gauge LED
No
Warranty
1 year
Optional Travel Battery
Available
No
ENVIRONMENTAL
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 40
Page 41
Environmental Data
Eco-Label
Certifications
& Declarations
This product has received or is in the process of being certified to the following approvals and may
be labeled with one or more of these marks:
IT ECO declaration
US ENERGY STAR®
EPEAT <Gold> registered in the United States. See http://www.epeat.net for registration
status in your country.
HP ProBook 440 G1 Notebook PC
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a "Typically Configured Notebook".
Energy Consumption
(in accordance with US ENERGY
STAR® test method)
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
6.21 W 6.30 W 6.08 W
Sleep
0.79 W 0.85 W 0.80 W
Off
0.39 W 0.45 W 0.39 W
NOTE:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model
family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S.
Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
21 BTU/hr 22 BTU/hr 21 BTU/hr
Sleep
3 BTU/hr 3 BTU/hr 3 BTU/hr
Off
1 BTU/hr 2 BTU/hr 1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained
for one hour.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 41
Page 42
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Typically Configured - Idle
3.2
29
Fixed Disk - Random writes
3.2
29
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Battery type:
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the <gold> level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
This product contains 0% post-consumer recycled plastic (by wt.)
This product is 95.78% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Cardboard & misc 325 g
PAPER/Corrugated 51 g
Internal:
PLASTIC/EPE-Expanded Polyethylene 68 g
PLASTIC/Polyethylene low density 15 g
PLASTIC/PET 20 g
OTHER/OTHER 20 g
The PAPER/Cardboard & misc packaging material is made from 40 % recycled content.
The PAPER/Corrugated packaging material is made from 40 % recycled content.
The PLASTIC/EPE-Expanded Polyethylene packaging is made from 40 % recycled content.
The PLASTIC/Polyethylene low density packaging is made from 40 % recycled content.
The PLASTIC/PET packaging is made from 40 % recycled content.
The OTHER/OTHER packaging is made from 40 % recycled content.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 42
Page 43
HP ProBook 450 G1 Notebook PC
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a "Typically Configured Notebook".
Energy Consumption
(in accordance with US ENERGY
STAR® test method)
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
8.86 W 9.30 W 8.97 W
Sleep
0.48 W 0.56 W 0.46 W
Off
0.33 W 0.43 W 0.33 W
NOTE:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model
family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S.
Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
30 BTU/hr 32 BTU/hr 31 BTU/hr
Sleep
2 BTU/hr 2 BTU/hr 2 BTU/hr
Off
1 BTU/hr 1 BTU/hr 1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained
for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Typically Configured - Idle
3.2
27
Fixed Disk - Random writes
3.2
27
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Battery type:
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the <gold> level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 43
Page 44
ISO1043.
This product contains 0% post-consumer recycled plastic (by wt.)
This product is 96.08% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated 560.5 g
Internal:
PLASTIC/EPE-Expanded Polyethylene 37 g
PLASTIC/Polyethylene low density 24 g
PLASTIC/PET 2.5 g
OTHER/OTHER 20 g
The PAPER/Corrugated packaging material is made from 40 % recycled content.
The PLASTIC/EPE-Expanded Polyethylene packaging is made from 40 % recycled content.
The PLASTIC/Polyethylene low density packaging is made from 40 % recycled content.
The PLASTIC/PET packaging is made from 40 % recycled content.
The OTHER/OTHER packaging is made from 40 % recycled content.
HP ProBook 470 G1 Notebook PC
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a "Typically Configured Notebook".
Energy Consumption
(in accordance with US ENERGY
STAR® test method)
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
8.49 W 8.91 W 8.84 W
Sleep
0.48 W 0.57 W 0.46 W
Off
0.33 W 0.42 W 0.33 W
NOTE:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model
family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S.
Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
29 BTU/hr 30 BTU/hr 30 BTU/hr
Sleep
2 BTU/hr 2 BTU/hr 2 BTU/hr
Off
1 BTU/hr 1 BTU/hr 1 BTU/hr
*
NOTE:
Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 44
Page 45
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Typically Configured - Idle
3.2
29
Fixed Disk - Random writes
3.2
29
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Battery type:
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the <gold> level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
This product contains 0% post-consumer recycled plastic (by wt.)
This product is 96.08% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Cardboard & misc 481 g
Internal:
PLASTIC/EPE-Expanded Polyethylene 55 g
PLASTIC/Polyethylene low density 26 g
PLASTIC/PET 3 g
OTHER/OTHER 20 g
The PAPER/Cardboard & misc packaging material is made from 40 % recycled content.
The PLASTIC/EPE-Expanded Polyethylene packaging is made from 40 % recycled content.
The PLASTIC/Polyethylene low density packaging is made from 40 % recycled content.
The PLASTIC/PET packaging is made from 40 % recycled content.
The OTHER/OTHER packaging is made from 40 % recycled content.
ALL MODELS
MATERIAL USAGE
This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer
to the HP General Specification of the Environment
(
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html
):
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 45
Page 46
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most
applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 µgrams/cm2/week, measured according to EN 1811:1998, are not used on any
product surface designed to be frequently handled or touched by users.
END-OF-LIFE MANAGEMENT AND RECYCLING
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product,
please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales office. Products returned to HP will be recycled,
recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by
treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:
http://www.hp.com/go/recyclers
. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
HEWLETT-PACKARD CORPORATE ENVIRONMENTAL INFORMATION
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 46
Page 47
Country of Origin
China
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Technical Specifications
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 47
Page 48
Type
Description
Part #
Cases
HP Business Nylon Case
H5M92AA
HP Business 4 Wheel Roller Case
H5M93AA
HP Business Backpack (up to 17.3")
H5M90AA
Docking
HP LCD Monitor Stand
QM196AA
HP Dual Hinge Notebook Stand
AW661AA#xxx
HP USB 2.0 Port Replicator
H1L07AA#xxx
HP USB 3.0 Port Replicator
H1L08AA#xxx
Input/Output - Mice
HP Wireless Mobile Mouse
H2L63AA
HP X4000b Bluetooth Mouse
H3T50AA#xxx
Input/Output Keyboards
HP USB Essential Keyboard/Mouse
H6L29AA
HP Stylish Wireless KB/Mouse
H4B79AA
Memory
HP 2GB DDR3L-1600 1.35V SODIMM
H6Y73AA#XXX
HP 4GB DDR3L-1600 1.35V SODIMM
H6Y75AA#XXX
HP 8GB DDR3L-1600 1.35V SODIMM
H6Y77AA#XXX
Adapters
90W Slim Combo Adapter
H4A41AA#xxx
90W w/USB Universal Adapter
H4A43AA#ABA
90W Smart Auto/Truck Adapter
ED493AA
HP 65W Slim Adapter
AX727AA#XXX
Security
HP Notebook Combo Lock
AY475AA#XXX
HP UltraSlim Keyed Cable Lock
H4D73AA
Storage - External
Storage
HP Mobile USB DVDRW Non-LS
A2U57AA
Health and Education
HP EliteDisplay E271i 27-inch IPS LED Monitor
D7Z72AA/A8/AS/AT
HP EliteDisplay E231 23-inch LED Monitor
C9V75AA/A8/AS/AT
HP EliteDisplay E201 20-inch LED Monitor
C9V73AA/A8/AS/AT
HP ProDisplay P221 21.5" LED Monitor
C9E49AA/A8/AS/AT
HP ProDisplay P201 20" LED Monitor
C9F26AA/A8/AS/AT
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Options and Accessories (sold separately and availability may vary by country)
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 48
Page 49
Copyright © 2014 Hewlett-Packard Development Company, L.P.
Intel, Core, and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Microsoft and
Windows are U.S. registered trademarks of Microsoft Corporation. Adobe is a trademark of Adobe Systems Incorporated. Bluetooth is a
trademark owned by its proprietor and used by Hewlett-Packard Company under license. ENERGY STAR is a registered mark owned by
the U.S. government.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP ProBook 440 G1 Notebook PC
HP ProBook 450 G1 Notebook PC
HP ProBook 470 G1 Notebook PC
Options and Accessories (sold separately and availability may vary by country)
DA - 14785 Worldwide — Version 3 — January 8, 2014
Page 49
Loading...
