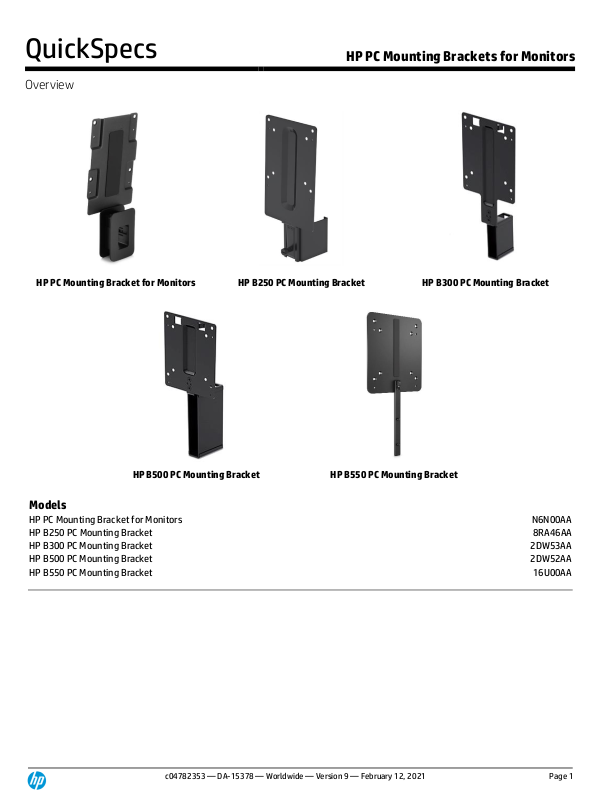

QuickSpecs
HP PC Mounting Brackets for Monitors
Overview
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 1
HP PC Mounting Bracket for Monitors
HP B250 PC Mounting Bracket
HP B300 PC Mounting Bracket
HP B500 PC Mounting Bracket
HP B550 PC Mounting Bracket
Models
HP PC Mounting Bracket for Monitors
N6N00AA
HP B250 PC Mounting Bracket
8RA46AA
HP B300 PC Mounting Bracket
2DW53AA
HP B500 PC Mounting Bracket
2DW52AA
HP B550 PC Mounting Bracket
16U00AA
QuickSpecs
HP PC Mounting Brackets for Monitors
Overview
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 2
Introduction
Customize an altogether better solution with the HP PC Mounting Bracket for Monitors, which lets you attach your HP Desktop
Mini, HP Chromebox, or select HP Thin Client directly behind select HP Z Displays, Elite Displays and Essential Displays.1
Key Benefits
• Maximize your available work area with a single-footprint solution. Simply attach the bracket to the back of your display,
and your PC platform to the bracket. It’s that easy!
• Retain the comfort features of your HP Essential Display, Elite Display or HP Z Display. The bracket doesn’t interfere with
the monitor’s height adjustment, tilt, swivel or pivot settings.
• Get the reassurance of a one-year limited warranty.
1. Sold separately. See product QuickSpecs for exact device compatibility.
QuickSpecs
HP PC Mounting Brackets for Monitors
Features
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 3
Stands
Displays Compatibility
HP PC Mounting Bracket for Monitors
(N6N00AA)
E202, E222, E232, E230t, E240, E240c, E240q, E242, E272q, Z22n, Z23n, Z24nf, Z24nq,
Z24n, Z24s, Z25n, Z27n, Z27q, Z32x, HC240, HC270.
HP B250 PC Mounting Bracket
(8RA46AA)
P27q G4, P22h G4, P24h G4, P24q G4, P27h G4.
HP B300 PC Mounting Bracket
(2DW53AA)
E223, E233, E243, E243i, E273, E273q, E243m, E273m, E24d G4, E27d G4, E22 G4, E23
G4, E24 G4, E24q G4, E24t G4, E24n G4, E24m G4, E24i G4, E27 G4, E27n G4, E324q,
E344c, HP Z22n G2, HP Z23n G2, HP Z24i G2, HP Z24n G2, HP Z24nf G2, HP Z27n.
HP B500 PC Mounting Bracket
(2DW52AA)
Z31x, Z38c, Z27x G2, Z32, Z43.
HP B550 Z Display PC Mounting Bracket
(16U00AA)
Z24f G3, Z24u G3, Z24n G3, Z27k G3, Z27q G3, Z27u G3, Z25xs G3, Z27xs G3.
Platform Compatibility
Desktop PCs:
Compatible with HP Desktop Mini Business PCs and HP Chromebox that have a 100 mm x 100 mm VESA mount.
Thin Clients:
Compatible with most HP Thin Clients that have a 100 mm x 100 mm VESA mount.
Workstations:
Compatible with HP Workstation Mini that have a 100mm x 100mm VESA mount (select displays only, not all displays can support
weight of Z2 Mini)
NOTE: Not all models are available in all regions.
Service and Support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as well as online support
forms.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
QuickSpecs
HP PC Mounting Brackets for Monitors
Change log
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 4
Technical Specifications
HP PC Mounting Bracket for
Monitors
Basic Product Specifications
Dimensions (H x W)
10.07 x 4.44 in
(255.86 x 113 mm)
Weight
13.1 oz (.82 lbs)
VESA Configuration
Compatible with 100 x 100 mm VESA mount
Quick Release Mechanism
None
Attachment
Easily and securely attaches the monitor and PC with one
thumb screw
Cable
Short DisplayPort cable to connect monitor with PC included
Security
Security lock to discourage PC theft
Product Finish
HP Black
What’s in the Box?
HP PC Mounting Bracket, 700 mm DisplayPort cable, 700mm
USB A to B cable, 4 x 6mm screws, 4 x 10 mm screws, and Quick
Installation Guide.
NOTE:
M4 x 10 mm screws – for mounting the HP Desktop Mini, Thin Client, or Chromebox (platforms
sold separately)
M4 x 6 mm screws – for mounting with the HP Desktop Mini Security/ Dual VESA Sleeve
(G1K22AA) (Dual VESA Sleeve sold separately)
HP B250 PC Mounting Bracket
Basic Product Specifications
Dimensions
(unpackaged)
4.52 x 7.14 x2.24 in
(115 x 181.3 x57.01mm)
Weight (unpackaged)
17.81 oz (505 g)
Dimensions
(packaged – L x W x H)
10.03 x 5.31 x 3.35 in
(255 x 135 x 85
mm)
Weight (packaged)
24.23 oz (687g)
VESA Configuration
Compatible with 100 x 100 mm VESA mount
Quick Release Mechanism
None
Attachment
Easily and securely attaches the PC to the monitor as the PC
slides into place with a click.
Cable
Short DisplayPort cable to connect monitor with PC included
Security
Security lock to discourage PC theft
Product Finish
HP Black
What’s in the Box?
HP B300 PC Mounting Bracket, 700 mm DisplayPort cable,
700mm USB A to B cable, 4 x 6mm screws, 4 x 10 mm screws,
and Quick Installation Guide.
NOTE:
M4 x 10 mm screws – for mounting the HP Desktop Mini, Thin Client, or Chromebox (platforms
sold separately)
M4 x 6 mm screws – for mounting with the HP Desktop Mini Security/ Dual VESA Sleeve
(G1K22AA) (Dual VESA Sleeve sold separately)
QuickSpecs
HP PC Mounting Brackets for Monitors
Change log
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 5
HP B300 PC Mounting Bracket
Basic Product Specifications
Dimensions
(unpackaged)
9.70 x 4.53 x 2.04 in
(246.3 x 115 x 51.9 mm)
Weight (unpackaged)
11.22 oz (318 g)
Dimensions
(packaged – L x W x H)
11.22 x 5.31 x 3.35 in
(285 x 135 x 85 mm)
Weight (packaged)
15.87 oz (450 g)
VESA Configuration
Compatible with 100 x 100 mm VESA mount
Quick Release Mechanism
None
Attachment
Easily and securely attaches the PC to the monitor as the PC
slides into place with a click.
Cable
Short DisplayPort cable to connect monitor with PC included
Security
Security lock to discourage PC theft
Product Finish
HP Black
What’s in the Box?
HP B300 PC Mounting Bracket, 700 mm DisplayPort cable,
700mm USB A to B cable, 4 x 6mm screws, 4 x 10 mm screws,
and Quick Installation Guide.
NOTE:
M4 x 10 mm screws – for mounting the HP Desktop Mini, Thin Client, or Chromebox (platforms
sold separately)
M4 x 6 mm screws – for mounting with the HP Desktop Mini Security/ Dual VESA Sleeve
(G1K22AA) (Dual VESA Sleeve sold separately)
HP B500 PC Mounting Bracket
Basic Product Specifications
Dimensions
(unpackaged)
10.12 x 4.53 x 2.56 in
(257 x 115 x 65 mm)
Weight (unpackaged)
339g
Dimensions
(packaged – L x W x H)
11.22 x 5.31 x 3.35 in
(285 x 135 x 85 mm)
Weight (packaged)
15.87 oz (450 g)
VESA Configuration
Compatible with 100 x 100 mm VESA mount
Quick Release Mechanism
None
Attachment
Easily and securely attaches the PC to the monitor as the PC
slides into place with a click.
Cable
Short DisplayPort cable to connect monitor with PC included
Security
Security lock to discourage PC theft
Product Finish
HP Black
What’s in the Box?
HP B500 PC Mounting Bracket, 700 mm DisplayPort cable,
700mm USB A to B cable, 4 x 6mm screws, 4 x 10 mm screws,
and Quick Installation Guide.
NOTE:
M4 x 10 mm screws – for mounting the HP Desktop Mini, Thin Client, or Chromebox (platforms
sold separately)
M4 x 6 mm screws – for mounting with the HP Desktop Mini Security/ Dual VESA Sleeve
(G1K22AA) (Dual VESA Sleeve sold separately)
QuickSpecs
HP PC Mounting Brackets for Monitors
Change log
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 6
HP B550 Z Display PC
Mounting Bracket
Basic Product Specifications
Dimensions
(unpackaged)
5.12 x 10.10 x 0.5 in
(130.0 x 256.5 x 12.7mm)
Weight (unpackaged)
11.22 oz (318 g)
Dimensions
(packaged – L x W x H)
11.65 x 6.02 x 1.12 in
(296 x 153 x 28.5 mm)
Weight (packaged)
24.34 oz (690 g)
VESA Configuration
Compatible with 100 x 100 mm and 75 x 75mmVESA mount
Quick Release Mechanism
None
Attachment
Easily and securely attaches the PC to the monitor as the PC
slides into place with a click.
Cable
Short DisplayPort cable to connect monitor with PC included
Product Finish
HP Black
What’s in the Box?
HP Z Display PC Mounting Bracket, 700 mm DisplayPort cable,
700mm USB A to B cable, 4 x 6mm screws, 4 x 10 mm screws,
TR screws, M4 x 8 mm thumb screws, M4 x 8 mm sunk screws
and Quick Installation Guide.
NOTE:
M4 x 10 mm screws – for mounting the HP Desktop Mini, Thin Client, or Chromebox (platforms
sold separately)
M4 x 6 mm screws – for mounting with the HP Desktop Mini Security/ Dual VESA Sleeve
(G1K22AA) (Dual VESA Sleeve sold separately)
QuickSpecs
HP PC Mounting Brackets for Monitors
Change log
c04782353 — DA-15378 — Worldwide — Version 9 — February 12, 2021
Page 7
© Copyright 2021 HP Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the
United States and other countries.
Date of change:
Version History:
Description of change:
November 19 2015
From v1 to v2
Changed What’s in the Box paragraph.
March 6, 2017
From v2 to v3
Changed What’s in the Box paragraph, Compatible Monitors added
March 31, 2017
From v3 to v4
QS name change. Adding in B300 and B500 brackets.
June 8, 2017
From V4 to V5
Corrected SKUs for brackets, clarified “notes” section
December 12, 2017
From V5 to V6
Updated List of Compatible Displays.
November 1, 2019
From V6 to V7
B300/B500 PC mounting brackets updated
February 1, 2020
From V7 to V8
B250 PC mounting bracket added
February 12, 2021
From V8 to V9
B550 PC mounting bracket added
