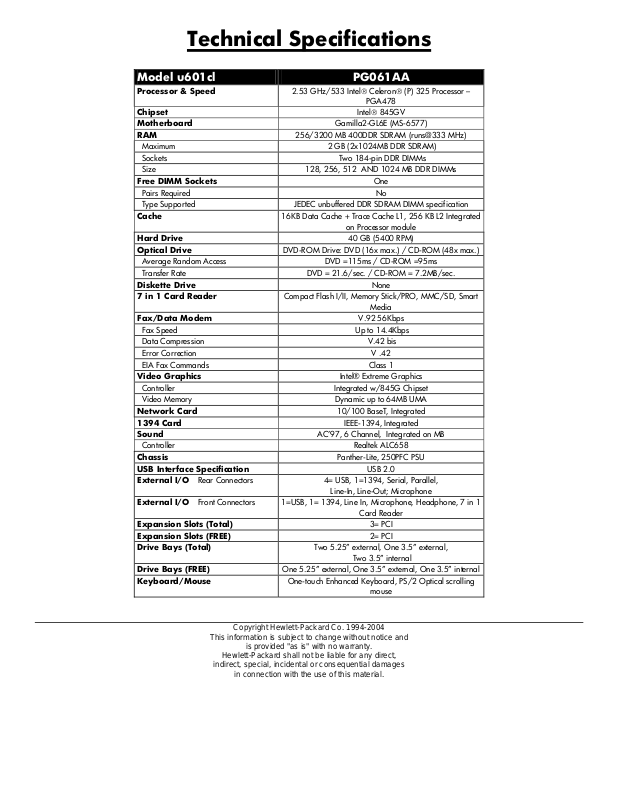

HP Pavilion u601cl Technical Specifications
Technical Specifications
Model u601cl PG061AA
Processor & Speed 2.53 GHz/533 Intel® Celeron® (P) 325 Processor –
PGA478
Chipset Intel® 845GV
Motherboard Gamilla2-GL6E (MS-6577)
RAM 256/3200 MB 400DDR SDRAM (runs@333 MHz)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 256 KB L2 Integrated
on Processor module
Hard Drive 40 GB (5400 RPM)
Optical Drive DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive None
7 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart
Media
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/845G Chipset
Video Memory Dynamic up to 64MB UMA
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Panther-Lite, 250PFC PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,
Line-In, Line-Out; Microphone
External I/O Front Connectors 1=USB, 1= 1394, Line In, Microphone, Headphone, 7 in 1
Card Reader
Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Two 3.5” internal
Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling
mouse
