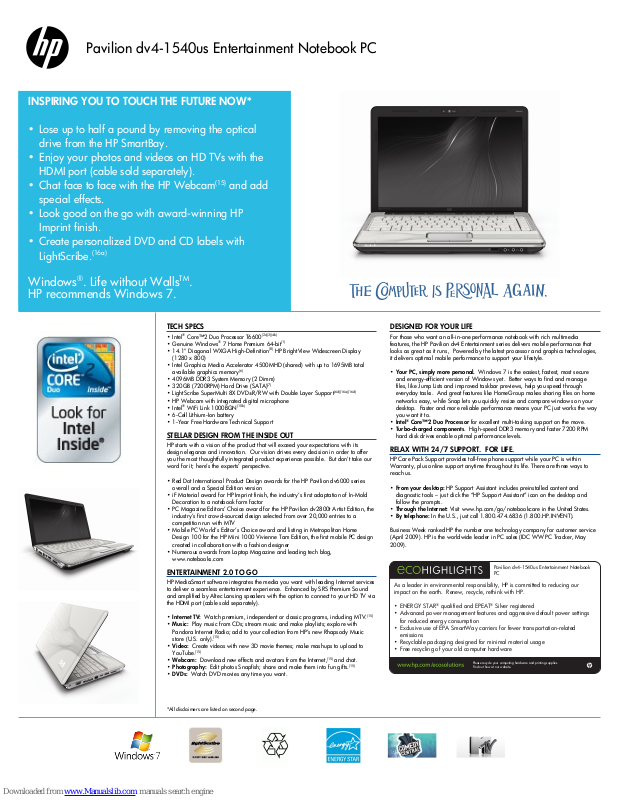

HP Pavilion dv4-1540us Specifications

Pavilion dv4-1540us Entertainment Notebook PC

INSPIRING YOU TO TOUCH THE FUTURE NOW*

•

Lose up to half a pound by removing the optical
drive from the HP SmartBay.

• Enjoy your photos and videos on HD TVs with the
HDMI port (cable sold separately).

• Chat face to face with the HP Webcam
special effects.

• Look good on the go with award-winning HP
Imprint finish.

• Create personalized DVD and CD labels with
LightScribe.

(16a)

Windows®. Life without WallsTM.
HP recommends Windows 7.

(15)

and add

TECH SPECS

• Intel® Core™2 Duo Processor T6600

• Genuine Windows® 7 Home Premium 64-bit

• 14.1" Diagonal WXGA High-Definition
(1280 x 800)

• Intel Graphics Media Accelerator 4500MHD (shared) with up to 1695MB total
available graphics memory

• 4096MB DDR3 System Memory (2 Dimm)

• 320GB (7200RPM) Hard Drive (SATA)

• LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support

• HP Webcam with integrated digital microphone

• Intel® WiFi Link 1000BGN

• 6-Cell Lithium-Ion battery

• 1-Year Free Hardware Technical Support

(2c)(3)(4b)

(1)

(8)

HP BrightView Widescreen Display

(6)

(7)

(10b)

(6d)(16a)(16d)

STELLAR DESIGN FROM THE INSIDE OUT

HP starts with a vision of the product that will exceed your expectations with its
design elegance and innovation. Our vision drives every decision in order to offer
you the most thoughtfully integrated product experience possible. But don't take our
word for it; here’s the experts’ perspective.

• Red Dot International Product Design awards for the HP Pavilion dv6000 series
overall and a Special Edition version

• iF Material award for HP Imprint finish, the industry’s first adaptation of In-Mold
Decoration to a notebook form factor

• PC Magazine Editors’ Choice award for the HP Pavilion dv2800t Artist Edition, the
industry’s first crowd-sourced design selected from over 20,000 entries to a
competition run with MTV

• Mobile PC World’s Editor’s Choice award and listing in Metropolitan Home
Design 100 for the HP Mini 1000 Vivienne Tam Edition, the first mobile PC design
created in collaboration with a fashion designer

• Numerous awards from Laptop Magazine and leading tech blog,
www.notebooks.com

ENTERTAINMENT 2.0 TO GO

HP MediaSmart software integrates the media you want with leading Internet services
to deliver a seamless entertainment experience. Enhanced by SRS Premium Sound
and amplified by Altec Lansing speakers with the option to connect to your HD TV via
the HDMI port (cable sold separately).

• Internet TV: Watch premium, independent or classic programs, including MTV.

• Music: Play music from CDs; stream music and make playlists; explore with
Pandora Internet Radio; add to your collection from HP’s new Rhapsody Music
store (U.S. only).

• Video: Create videos with new 3D movie themes; make mashups to upload to
YouTube.

• Webcam: Download new effects and avatars from the Internet,

• Photography: Edit photos Snapfish; share and make them into fun gifts.

• DVDs: Watch DVD movies any time you want.

(15)

(15)

(15)

and chat.

(15)

(15)

DESIGNED FOR YOUR LIFE

For those who want an all-in-one performance notebook with rich multimedia
features, the HP Pavilion dv4 Entertainment series delivers mobile performance that
looks as great as it runs, Powered by the latest processor and graphics technologies,
it delivers optimal mobile performance to support your lifestyle.

Your PC, simply more personal. Windows 7 is the easiest, fastest, most secure

•
and energy-efficient version of Windows yet. Better ways to find and manage
files, like Jump Lists and improved taskbar previews, help you speed through
everyday tasks. And great features like HomeGroup makes sharing files on home
networks easy, while Snap lets you quickly resize and compare windows on your
desktop. Faster and more reliable performance means your PC just works the way
you want it to.

• Intel® Core™2 Duo Processor for excellent multi-tasking support on the move.

• Turbo-charged components. High-speed DDR3 memory and faster 7200 RPM
hard disk drives enable optimal performance levels.

RELAX WITH 24/7 SUPPORT. FOR LIFE.

HP Care Pack Support provides toll-free phone support while your PC is within
Warranty, plus online support anytime throughout its life. There are three ways to
reach us.

• From your desktop: HP Support Assistant includes preinstalled content and
diagnostic tools – just click the “HP Support Assistant” icon on the desktop and
follow the prompts.

• Through the Internet: Visit www.hp.com/go/notebookcare in the United States.

• By telephone: In the U.S., just call 1.800.474.6836 (1.800.HP.INVENT).

Business Week ranked HP the number one technology company for customer service
(April 2009). HP is the worldwide leader in PC sales (IDC WW PC Tracker, May

2009).

Pavilion dv4-1540us Entertainment Notebook
PC

As a leader in environmental responsibility, HP is committed to reducing our
impact on the earth. Renew, recycle, rethink with HP.

• ENERGY STAR® qualified and EPEAT® Silver registered

• Advanced power management features and aggressive default power settings
for reduced energy consumption

• Exclusive use of EPA SmartWay carriers for fewer transportation-related
emissions

• Recyclable packaging designed for minimal material usage

• Free recycling of your old computer hardware

Please recycle your computing hardware and printing supplies.
Find out how at our website.

*All disclaimers are listed on second page.

Pavilion dv4-1540us Entertainment Notebook PC

Windows®. Life without WallsTM.
HP recommends Windows 7.

SPECIFICATIONS

OPERATING SYSTEM • Genuine Windows® 7 Home Premium 64-bit
PROCESSOR • Intel® Core™2 Duo Processor T6600
PROCESSOR SPEED • 2.20 GHz

(4)

PROCESSOR CACHE • 2MB L2 Cache
BUS SPEED • 800MHz FSB

(4a)

MEMORY • 4096MB DDR3 System Memory (2 Dimm)

• Max supported =8192MB

ACCESSIBLE

• 2

MEMORY SLOTS
VIDEO GRAPHICS • Intel Graphics Media Accelerator 4500MHD (shared) with up to

1695MB total available graphics memory

HARD DRIVE • 320GB (7200RPM) Hard Drive (SATA)
FINISH AND

FEATURES
MULTIMEDIA DRIVE • LightScribe SuperMulti 8X DVD±R/RW with Double Layer

• HP Moonlight Imprint finish & HP Webcam with integrated digital
microphone

Support

(15)

(6d)(16a)(16d)

DISPLAY • 14.1" Diagonal WXGA High-Definition

Widescreen Display (1280 x 800)

NETWORK CARD • Integrated 10/100BASE-T Ethernet LAN (RJ-45 connector)
WIRELESS OPTION • Intel® WiFi Link 1000BGN

(10b)

DIGITAL MEDIA • 5-in-1 integrated Digital Media Reader for Secure Digital cards,

MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture

(17a)

cards

FAX/MODEM • High speed 56k modem

(11)

AUDIO • Altec Lansing with SRS Premium Sound
KEYBOARD • 101-key compatible & 1 Quick Launch Button
POINTING DEVICE • Touch Pad with On/Off button and dedicated vertical scroll

Up/Down pad

PC CARD SLOTS • 1 ExpressCard/54 Slot (also supports ExpressCard/34)
EXTERNAL

NOTEBOOK PORTS

• 3 Universal Serial Bus (USB) 2.0, 3rd port shared with eSATA

• 2 Headphone out

• 1 microphone-in

• HDMI

• 1 VGA (15-pin)

• eSATA + USB 2.0

• 1 RJ-11 (modem)

• 1 RJ -45 (LAN)

• 1 notebook expansion port 3

• 1 Consumer IR (Remote Receiver)

DIMENSIONS • Unpackaged: 13.15 in (L) x 9.45 in (D) x 1.34 in (min H) / 1.57 in

(max H)

• Packaged: 17.9"(W) x 4.3"(D) x13.6"(H)

WEIGHT • Unpackaged: 5.03 lbs

(12)

• Packaged: 8.7 lbs

WHAT'S IN THE BOX • HP Mobile Remote Control

(1)

(2c)(3)(4b)

(6)

(7)

(8)

HP BrightView

(9)

SECURITY • Kensington® MicroSaver lock slot

• Power-on password

• Accepts 3rd party security lock devices

POWER • 65W AC Adapter

• 6-Cell Lithium-Ion battery

OPTIONAL
ACCESSORIES

• HP xb4 Media Docking Station - KG461AA#ABA

• HP Notebook QuickDock - KN744AA#ABA

• HP 6-cell Li-Ion Battery for dv4, dv5 - NC273AA

• HP 90W AC Adapter - KG298AA#ABA

• HP 90W Auto/Air/AC Adapter - KS474AA#ABA

WARRANTY AND
SUPPORT

• 1-Year Limited Hardware Warranty with Toll Free Support (NA)

• 1-Year Free Hardware Technical Support

• 30-Days Free Limited Software Support with 1-Year (from date of
purchase) Free Limited Software Support with Product Registration.

SOFTWARE

SECURITY AND
SUPPORT

PRODUCTIVITY AND
FINANCE

MULTIMEDIA • Cyberlink DVD Suite

INTERNET
SOLUTIONS

• Symantec® Norton Internet Security™ 2009 (including 60 days
complimentary live update)

(15)(19b)

• HP Help & Support

• HP PC Recovery

• HP Advisor

• HP ProtectSmart Hard Drive Protection

• Microsoft® Works

• Microsoft® Office 2007 Home and Student Edition: 60 Day Trial

(19)

Version

• Adobe® Acrobat Reader

• HP Games Powered by Wild Tangent

• HP MediaSmart

• HP Set Up

(15)

• Microsoft® Internet Explorer

ADDITIONAL INFORMATION

PRODUCT NUMBER • VM166UA#ABA
AD EMBARGO DATE • 10/18/2009
SALES AND

FULFILLMENT
EMBARGO

UPC CODE • 884962549049
COUNTRY OF

ORIGIN
TARIFF NUMBER • 8471300000
PALLET

INFORMATION

• 10/22/2009

• CHINA

• Dimensions: 47.2" (L) x 39.4" (W) x 46."(H) approx.

• Total weight: 608.2 lbs

• Layers: 3

• Products per layer: 22

VISIT WWW.HP.COM FOR MORE DETAILS!

(1)

This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.

(2c)

64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64
architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information. Dual Core is designed to improve performance of certain software products. Check with the software
provider to determine suitability. Not all customers or software applications will necessarily benefit from use of this technology.
speed may impact system and application performance.
advantage of the 64-bit processing capabilities of AMD technology. Dual/quad/triple-core processing available with AMD technology is designed to improve performance of this system. Given the wide range of software applications available, performance of a system
including a 64-bit operating system and a dual-core processor will vary.
this disclaimer affects system memory and graphics.
system recovery software.
achievable download speeds are currently unknown, may not reach 56Kbps and will vary with line conditions. Upload speeds are less and also will vary.
Don’t copy copyright-protected materials. Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives.

(17a)

separately.
purchased adapter.
Actual product may vary from image shown on datasheet.

©

2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing

shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. 09/08_r1 rk Product Number: VM166UA#ABA

(8)

High-Definition content is required to view high-definition images.

Digital Media Slot supports MS, MSP, MMC, SD, XD formats. To avoid damaging the card or computer do not insert any type of adapter, or mini format memory card, into the Digital Media Slot. Mini/Reduced flash memory cards require separately

(19)

The Microsoft® Office Student and Teacher Edition 2008 is a trial version; functionality is reduced after 60 days. The full version is sold separately.

(4a)

Actual bus speed is less. Listed bus speed represents the equivalent effective throughput for data.

(6)

(6d)

Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media

Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by other programs. Note:

(9)

Actual speeds may vary.

(3)

Intel's numbering is not a measurement of higher performance.

(10b)

Wireless access point and Internet service required and is not included. Availability of public wireless access points limited.

(4b)

This system requires a separately purchased 64-bit operating system and 64-bit software products to take

(7)

1 GB = 1 billion bytes. Actual formatted capacity is less. Up to 20GB of system disk is reserved for

(12)

Weight will vary by configuration.

(19b)

Internet access required. First 60 days included. Subscription required for live updates afterwards.

(4)

GHz refers to internal clock speed of the processor. Other factors besides clock

(15)

Internet access required and sold separately.

(16d)

LightScribe creates a monochrome image. LightScribe media required and sold

(16a)

(11)

Actual speeds may vary.

Maximum
