Maintenance and Service
Guide
HP Pavilion dv2000 Notebook PC
Document Part Number: 417981-002
April 2007
This guide is a troubleshooting reference used for maintaining
and servicing the computer. It provides comprehensive
information on identifying computer features, components, and
spare parts; troubleshooting computer problems; and performing
computer disassembly procedures.
© Copyright 2006, 2007 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows Vista are either trademarks or
registered trademarks of Microsoft Corporation in the United States and/or
other countries. Intel, Core, and Celeron are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the United States and
other countries. AMD, Sempron, Turion, and combinations thereof, are
trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark
owned by its proprietor and used by Hewlett-Packard Company under
license. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
Maintenance and Service Guide
HP Pavilion dv2000 Notebook PC
Second Edition: April 2007
First Edition: June 2006
Document Part Number: 417981-002
Safety warning notice
WARNING: To reduce the possibility of heat-related injuries or of
Å
overheating the computer, do not place the computer directly on your
lap or obstruct the computer air vents. Use the computer only on a hard,
flat surface. Do not allow another hard surface, such as an adjoining
optional printer, or a soft surface, such as pillows or rugs or clothing, to
block airflow. Also, do not allow the AC adapter to contact the skin or a
soft surface, such as pillows or rugs or clothing, during operation. The
computer and the AC adapter comply with the user-accessible surface
temperature limits defined by the International Standard for Safety of
Information Technology Equipment (IEC 60950).
Contents
1 Product Description
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Resetting the Computer. . . . . . . . . . . . . . . . . . . . . . . 1–4
1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6
1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–21
2Troubleshooting
2.1 Setup Utility in Windows XP . . . . . . . . . . . . . . . . . . 2–1
Using the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 2–2
Setup Utility Menus . . . . . . . . . . . . . . . . . . . . . . . . . 2–6
2.2 Setup Utility in Windows Vista . . . . . . . . . . . . . . . . 2–9
Using the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 2–9
Setup Utility Menus . . . . . . . . . . . . . . . . . . . . . . . . 2–13
2.3 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . 2–15
Maintenance and Service Guide iv
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1

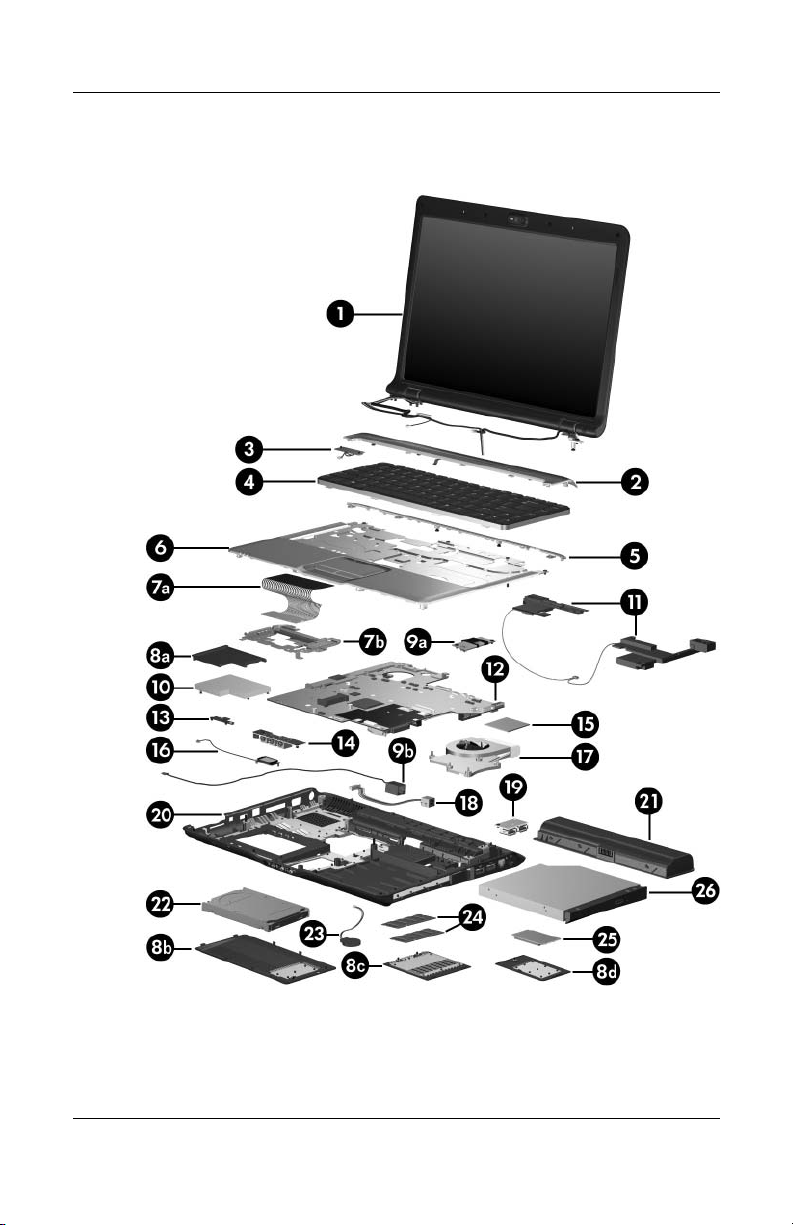

3.2 Computer Major Components. . . . . . . . . . . . . . . . . . 3–2
3.3 Display Assembly Components . . . . . . . . . . . . . . . 3–20
3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–22
3.5 Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–24
3.6 Cable Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–25
3.7 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–26
3.8 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–29
4 Removal and Replacement Preliminaries
4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–2
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . 4–5
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–6
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–7
v Maintenance and Service Guide
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Computer for Disassembly . . . . . . . . . 5–6
5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8
5.5 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12
5.6 Computer Feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13
5.7 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14
5.8 Mini Card Module. . . . . . . . . . . . . . . . . . . . . . . . . . 5–17
5.9 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–22
5.10 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–24
5.11 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–28
5.12 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–32
5.13 Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–45
5.14 TouchPad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–50
5.15 Wireless Switch Board . . . . . . . . . . . . . . . . . . . . . 5–54
5.16 Modem Module. . . . . . . . . . . . . . . . . . . . . . . . . . . 5–56
5.17 Audio/Infrared Board . . . . . . . . . . . . . . . . . . . . . . 5–58
5.18 Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . 5–60
5.19 USB Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–62
5.20 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–64
5.21 Display Lid Switch Module . . . . . . . . . . . . . . . . . 5–66
5.22 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–70
5.23 Power Connector Cable. . . . . . . . . . . . . . . . . . . . . 5–73
5.24 ExpressCard Assembly . . . . . . . . . . . . . . . . . . . . . 5–75
5.25 Fan/Heat Sink Assembly. . . . . . . . . . . . . . . . . . . . 5–78
5.26 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–86
Contents
Maintenance and Service Guide vi
Contents
6 Specifications
AScrew Listing
B Backup and Recovery in Windows XP
C Backup and Recovery in Windows Vista
D Display Component Recycling
E Connector Pin Assignments
F Power Cord Set Requirements
Index
vii Maintenance and Service Guide
1
Product Description
The HP Pavilion dv2000 Notebook PC offers advanced
modularity, Intel® Core™ Duo, Core Solo, and Celeron®
processors or AMD Turion™ 64 Mobile Technology and
Mobile AMD Sempron™ processors, and extensive multimedia
support.
HP Pavilion dv2000 Notebook PC
Maintenance and Service Guide 1–1
Product Description
1.1 Fe a t ur es
■ The following processors are available, varying by
computer model:
❏ Intel Core Duo T7200 (2.00-GHz)
❏ Intel Core Duo T5600 (1.83-GHz)
❏ Intel Core Duo T5500 (1.66-GHz)
❏ Intel Core Duo T5200 (1.60-GHz)
❏ Intel Core Duo T2600 (2.16-GHz)
❏ Intel Core Duo T2500 (2.00-GHz)
❏ Intel Core Duo T2400 (1.83-GHz)
❏ Intel Core Duo T2250 (1.73-GHz)
❏ Intel Core Duo T2060 (1.60-GHz)
❏ Intel Core Duo T2300 (1.66-GHz)
❏ Intel Core Duo T2350 (1.60-GHz)
❏ Intel Core Duo T2050 (1.60-GHz)
❏ Intel Core Solo T1350 (1.80-GHz)
❏ Intel Celeron M 440 (1.86-GHz)
❏ Intel Celeron M 430 (1.73-GHz)
❏ AMD Turion Dual Core, TL-60 (2.0-GHz)
❏ AMD Turion 64, MK-36 (2.00-GHz)
❏ AMD Turion TL-56 (1.80-GHz)
❏ AMD Turion ML-52 1.60-Ghz
❏ AMD Turion ML-50 1.60-GHz
❏ Mobile AMD Sempron 3500+ (1.80-GHz)
❏ Mobile AMD Sempron 3400+ (1.80-GHz)
❏ Mobile AMD Sempron 3200+ (1.60-GHz)
■ 14.1-inch WXGA (1280 × 768) TFT display with over
16.7 million colors, varying by computer model
1–2 Maintenance and Service Guide
Product Description
■ 160-, 120-, 100-, 80-, 60-, or 40-GB high-capacity hard drive,
varying by computer model
■ 256-MB DDR synchronous DRAM (SDRAM) at 667 MHz
and 533 MHz, expandable to 2.0 GB
■ Microsoft® Windows® XP Home Edition or Windows XP
Professional, or Free DOS, varying by computer model
■ Full-size Windows keyboard with embedded numeric keypad
■ TouchPad pointing device with on/off button and dedicated
two-way scroll zone
■ Integrated 10/100 BASE-T Ethernet local area network
(LAN) network interface card (NIC) with RJ-45 jack
■ Integrated high-speed 56K modem with RJ-11 jack
■ Integrated wireless support for Mini Card IEEE 802.11b and
802.11b/g WLAN device
■ Support for one ExpressCard
■ External 65-watt or 90-watt AC adapter with 3-wire power
cord
■ 6-cell or 12-cell Li-Ion battery
■ Stereo speakers with volume up and down buttons
■ Integrated Web camera (select models only)
■ Integrated microphone (select models only)
■ Support for the following optical drives:
❏ DVD/CD-RW Combo Drive
❏ DVD±RW/R and CD-RW Double-Layer Combo Drive
❏ DVD±RW/R and CD-RW Double-Layer Combo Drive
with LightScribe
■ Connectors:
❏ Audio-in (microphone)
❏ Audio-out (headphone)
❏ Consumer infrared lens
Maintenance and Service Guide 1–3
Product Description
❏ Docking (select models only)
❏ ExpressCard
❏ External monitor
❏ IEEE 1394 digital (select models only)
❏ Memory Reader Slot (select models only)
❏ Power
❏ RJ-11 (modem)
❏ RJ-45 (network)
❏ S-Video-out (select models only)
❏ Universal Serial Bus (USB) v. 2.0
1.2 Resetting the Computer
If the computer you are servicing has an unknown password,
follow these steps to clear the password. These steps also
clear CMOS:
1. Prepare the computer for disassembly (refer to Section 5.3,
“Preparing the Computer for Disassembly,” for more
information).
2. Remove the real-time clock (RTC) battery (refer to
Section 5.5, “RTC Battery,” for more information).
3. Wait approximately 5 minutes.
4. Replace the RTC battery and reassemble the computer.
5. Connect AC power to the computer. Do not reinsert any
batteries at this time.
6. Turn on the computer.
All passwords and all CMOS settings have been cleared.
1–4 Maintenance and Service Guide
1. 3 Powe r M a n a g e m e n t
The computer comes with power management features that
extend battery operating time and conserve power. The
computer supports the following power management features:
■ Standby
■ Hibernation
■ Setting customization by the user
■ Hotkeys for setting the level of performance
■ Battery calibration
■ Lid switch standby/resume
■ Power button
■ Advanced Configuration and Power Management (ACPM)
compliance
Product Description
Maintenance and Service Guide 1–5
Product Description
1.4 External Components
The external components on the front of the computer are shown
below and described in Table 1-1.
Front Components
Tabl e 1-1
Front Components
Item Component Function
1Power light ■ On: The computer is on.
■ Blinking: The computer is in standby.
■ Off: The computer is off.
2Battery light ■ On: A battery is charging.
■ Blinking: A battery that is the only
available power source has reached a
low battery condition or a critical
low-battery condition.
■ Off: If the computer is plugged into an
external power source, the light is turned
off when all batteries in the computer are
fully charged. If the computer is not
plugged into an external power source,
the light stays off until the battery
reaches a low-battery condition.
3 Drive light Blinking: The hard drive or optical drive is
being accessed.
1–6 Maintenance and Service Guide
Tabl e 1-1
Product Description
Front Components
Item Component Function
4 Wireless switch
(select models only)
Turns the wireless feature on or off, but
does not create a wireless connection.
✎
5 Wireless light Blue: An integrated wireless device, such
as a wireless local area network (LAN)
device and/or a Bluetooth® device, is
turned on.
Red: An integrated wireless device is
turned off.
6 Consumer infrared
lens
7Audio-in
(microphone) jack
8Audio-out
(headphone) jacks (2)
Links the computer to the HP Remote
Control.
Connects an optional computer headset
microphone, stereo array microphone, or
monaural microphone.
Produce sound when connected to optional
powered stereo speakers, headphones, ear
buds, a headset, or television audio.
✎
(Continued)
To establish a wireless connection, a
wireless network must already be set
up.
Depending on your computer model,
the computer may have 1 or 2
audio-out (headphone) jacks.
Maintenance and Service Guide 1–7
Product Description
The external components on the right side of the computer are
shown below and described in Table 1-2.
Right-Side Components
Tabl e 1-2
Right-Side Components
Item Component Function
1 Optical drive Reads an optical disc.
2 USB ports (2) Connect optional USB devices.
3 RJ-11 (modem) jack Connects a modem cable.
4 Power connector Connects an AC adapter.
1–8 Maintenance and Service Guide
Product Description
The external components on the left side of the computer are
shown below and described in Table 1-3.
Left-Side Components
Maintenance and Service Guide 1–9
Product Description
Tabl e 1-3
Left-Side Components
Item Component Function
1 Security cable slot Attaches an optional security cable to the
computer.
The security cable is designed to act
✎
as a deterrent, but it may not prevent
the computer from being mishandled
or stolen.
2 S-Video-out jack Connects an optional S-Video device such
as a television, VCR, camcorder, overhead
projector, or video capture card.
3 External monitor port Connects an external VGA monitor or
projector.
4 Expansion port 3 Connects the computer to an optional
expansion product.
The computer has only one
✎
expansion port. The term
describes the type of
port 3
expansion port.
expansion
5 RJ-45 (network) jack Connects a network cable.
6 USB port Connects an optional USB device.
7 1394 port Connects an optional IEEE 1394 or 1394a
device, such as a camcorder.
8 Digital Media Slot Supports the following optional digital card
formats: Secure Digital (SD) Memory Card,
MultiMediaCard (MMC), Secure Digital
Input/Output (SD I/O), Memory Stick (MS),
Memory Stick Pro (MSP), xD-Picture Card
(XD), xDPicture Card (XD) Type M.
9 Digital Media
Slot light
10 ExpressCard slot Supports optional ExpressCard/54 cards.
1–10 Maintenance and Service Guide
On: A digital card is being accessed.
Product Description
The keyboard components on the computer are shown below and
described in Table 1-4.
Keyboard Components
Maintenance and Service Guide 1–11
Product Description
Table 1-4
Keyboard Components
Item Component Function
1 f1 to f12 keys (12) Execute frequently used system functions
when pressed in combination with the
fn key.
2 caps lock key Enables caps lock and turns on the caps
lock light.
3 fn
4 Windows logo key Displays the Microsoft Windows Start
5Windows
6 Arrow keys Move the cursor around the screen.
7 Embedded numeric
8 num lock key Enables numeric lock, turns on the
key Executes frequently used system
functions when pressed in combination
with a function key or the esc key.
menu.
Displays a shortcut menu for items
applications key
keypad keys (15)
beneath the pointer.
Can be used like the keys on an external
numeric keypad.
embedded numeric keypad, and turns
on the num lock light.
1–12 Maintenance and Service Guide
Product Description
The top components on the computer are shown below and
described in Table 1-5.
Top Components, Part 1
Maintenance and Service Guide 1–13
Product Description
Tabl e 1-5
Top Components, Part 1
Item Component Function
1 Caps lock light On: Caps lock is on.
2 Power button When the computer is
■ Off, press to turn on the computer.
■ On, press to enter hibernation.
■ In standby, briefly press to exit standby.
■ In hibernation, briefly press to exit
hibernation.
If the computer has stopped responding
and Microsoft® Windows® shutdown
procedures cannot be used, press and hold
the power button for at least 5 seconds to
turn off the computer.
3 Speakers (2) Produce sound.
4 Internal microphones
(2, select models only)
5 Integrated camera Records video and captures still
6 Volume mute button Mutes and restores speaker volume.
7 Volume scroll zone Adjusts volume. Slide your finger to the left
8 Num lock light On: Num lock is on or the embedded
1–14 Maintenance and Service Guide
Record sound.
If there is a microphone icon next to each
microphone opening, your computer has
internal microphones.
photographs.
to decrease volume and to the right to
increase volume. Alternatively, you can tap
the left half of the scroll zone to decrease
volume, or you can tap the right half of the
scroll zone to increase volume.
numeric keypad is enabled.
Product Description
The top components on the computer are shown below and
described in Table 1-6.
Top Components, Part 2
Maintenance and Service Guide 1–15
Product Description
Tabl e 1-6
Top Components, Part 2
Item Component Function
1 Media button If QuickPlay is not installed and the
computer is
■ On, the media button opens the music
program or Media menu, allowing you to
select a multimedia program.
■ Off, the media button does not function.
■ In standby, the media button resumes
from standby into Windows.
If QuickPlay is installed and the computer is
■ On, the media button opens the music
program or Media menu, allowing you to
select a multimedia program.
■ Off, the media button opens the music
program or the Media menu, allowing
you to select a multimedia program.
■ In standby, the media button resumes
from standby into Windows.
The media button does not affect the
✎
hibernation file or the procedure for
restoring from hibernation.
2 DVD button When the computer is
■ On, the DVD button opens the default
DVD program to start a DVD in the
optical drive.
■ Off, the DVD button opens QuickPlay to
start a DVD in the optical drive. If the
QuickPlay software is not installed, the
computer starts in Windows.
■ In hibernation, opens QuickPlay to start a
DVD in the optical drive. If the QuickPlay
software is not installed, the computer
resumes from hibernation.
1–16 Maintenance and Service Guide
Product Description
The top components on the computer are shown below and
described in Table 1-7.
Top Components, Part 3
Tabl e 1-7
Top Components, Part 3
Item Component Function
1 Previous/Rewind
Button
2 Play/Pause button When a disc is in the optical drive and is
3Next/Fast Forward
button
4 Stop button When a disc is playing in the optical drive,
Maintenance and Service Guide 1–17
When a disc is playing in the optical drive:
■ Press to play the previous track or
chapter.
■ Press fn+ this button to rewind.
■ Not playing, press to play the disc.
■ Playing, press to pause the disc.
When a disc is playing in the optical drive:
■ Press once to play the next track or
chapter.
■ Press fn+ this button to fast forward.
press to stop the current disc activity.
Product Description
The TouchPad components are shown below and described in
Table 1-8.
TouchPad Components
Tabl e 1-8
TouchPad Components
Item Component Function
1 TouchPad on/off
button
2 TouchPad Moves the pointer and selects or activates
3 Left and right
TouchPad buttons
4 TouchPad scroll zone Scrolls upward or downward.
1–18 Maintenance and Service Guide
Enables/disables the TouchPad.
items on the screen.
Function like the left and right buttons on an
external mouse.
Product Description
The external components on the bottom of the computer are
shown below and described in Table 1-9.
Bottom Components
Table 1 - 9
Bottom Components
Item Component Function
1 Battery bay Holds the battery
2 Battery release latch Releases the battery from the battery
bay.
3 Optical drive Reads an optical disc.
4 Hard drive bay Holds the hard drive.
Maintenance and Service Guide 1–19
Product Description
Table 1 - 9
Bottom Components
Item Component Function
5 Vents (4) Enable airflow to cool internal
6 Memory module
compartment
7 Mini Card compartment Holds a wireless LAN device
(Continued)
components.
The computer fan starts up
✎
automatically to cool internal
components and prevent
overheating. It is normal for the
internal fan to cycle on and off
during routine operation.
Contains the memory module slots.
(select models only).
To prevent an unresponsive
✎
system and the display of a
warning message, replace only
with a Mini Card device
authorized for use in the
computer by the governmental
agency that regulates wireless
devices in your country or region.
If you replace the device and then
receive a warning message,
remove the device to restore
computer functionality. Then
contact technical support by
selecting Start > Help and
Support > Contact support.
1–20 Maintenance and Service Guide
1. 5 D e s i g n O v e r vi ew
This section presents a design overview of key parts and features
of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,”
to identify replacement parts, and Chapter 5, “Removal and
Replacement Procedures,” for disassembly steps.
The system board provides the following device connections:
■ AMD Turion and Mobile AMD Sempron processors or
Intel Core Duo, Core Solo, and Celeron processors
■ Audio
■ Display
■ ExpressCard
■ Fan
■ Hard drive
■ Keyboard and TouchPad
■ Memory module
■ Mini Card modules
Product Description
CAUTION: To properly ventilate the computer, allow at least a 7.6-cm
Ä
(3-inch) clearance on the left and right sides of the computer.
The computer uses an electric fan for ventilation. The fan is
controlled by a temperature sensor and is designed to turn on
automatically when high temperature conditions exist. These
conditions are affected by high external temperatures, system
power consumption, power management/battery conservation
configurations, battery fast charging, and software. Exhaust air is
displaced through the ventilation grill located on the left side of
the computer.
Maintenance and Service Guide 1–21
Troubleshooting
WARNING: Only authorized technicians trained by HP should repair
Å
this equipment. All troubleshooting and repair procedures are detailed
to allow only subassembly-/module-level repair. Because of the
complexity of the individual boards and subassemblies, do not attempt
to make repairs at the component level or modifications to any printed
wiring board. Improper repairs can create a safety hazard. Any
indication of component replacement or printed wiring board
modification may void any warranty or exchange allowances.
2.1 Setup Utility in Windows XP
The Setup Utility is a ROM-based information and customization
utility that can be used even when your Windows operating
system is not working or will not load.
The utility reports information about the computer and provides
settings for startup, security, and other preferences.
1. Turn on or restart the computer in Windows.
2
2. Before Windows opens and while the “Press <F10> to enter
setup” prompt is displayed in the lower-left corner of the
screen, press
Maintenance and Service Guide 2–1
f10.
Troubleshooting
Using the Setup Utility
Changing the Language of the Setup Utility
The following procedure explains how to change the language of
the Setup Utility. If the computer is not in the Setup Utility, begin
at step 1. If the computer is in the Setup Utility, begin at step 2.
1. To open the Setup Utility, turn on or restart the computer in
Windows, and then press
to enter setup,” is displayed in the lower-left corner of the
screen.
2. Use the arrow keys to select System Configuration >
Language, and then press
3. Press
f5 or f6 (or use the arrow keys) to select a language, and
then press
enter to select a language.
4. When a confirmation prompt with your preference selected
is displayed, press
f10 while the prompt, “Press <F10>
enter.
enter to save your preference.
5. To set your preferences and exit the Setup Utility, press
f10
and then follow the instructions on the screen.
Your preferences go into effect when the computer restarts in
Windows.
Navigating and Selecting in the Setup Utility
Because the Setup Utility is not Windows-based, it does not
support the TouchPad. Navigation and selection are by keystroke.
■ To choose a menu or a menu item, use the arrow keys.
■ To choose an item in a drop-down list or to toggle a field,
for example an Enable/Disable field, use either the arrow
keys or
■ To select an item, press enter.
■ To close a text box or return to the menu display, press f1.
■ To display additional navigation and selection information
while the Setup Utility is open, press
2–2 Maintenance and Service Guide
f5 or f6.
f1.
Troubleshooting
Displaying System Information
The following procedure explains how to display system
information in the Setup Utility. If the Setup Utility is not open,
begin at step 1. If the Setup Utility is open, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer in
Windows, and then press
to enter setup,” is displayed in the lower-left corner of the
screen.
2. Access the system information by using the Main menu.
3. To close the Setup Utility without changing any settings, use
the arrow keys to select Exit > Exit Discarding Changes,
and then press
enter. (The computer restarts in Windows.)
f10 while the prompt, “Press <F10>
Restoring Default Settings in the Setup Utility
The following procedure explains how to restore the Setup Utility
default settings. If the computer is not in the Setup Utility, begin
at step 1. If the computer is in the Setup Utility, begin at step 2.
1. To open the Setup Utility, turn on or restart the computer in
Windows, and then press
to enter setup,” is displayed in the lower-left corner of the
screen.
f10 while the prompt, “Press <F10>
2. Select Exit > Load Setup Defaults, and then press
3. When the Setup Confirmation is displayed, press
your preferences.
4. To set your preferences and exit the Setup Utility, press
and then follow the instructions on the screen.
The Setup Utility default settings are set when you exit the
Setup Utility and go into effect when the computer restarts.
Your password, security, and language settings are not changed
✎
when you restore the factory default settings.
Maintenance and Service Guide 2–3
f10.
enter to save
f10,
Troubleshooting
Using Advanced Setup Utility Features
This guide describes the Setup Utility features recommended for
all users. For more information about the Setup Utility features
recommended for advanced users only, refer to the Help and
Support Center, which is accessible only when the computer is in
Windows.
The Setup Utility features available for advanced users include a
hard drive self-test, a Network Service Boot, and settings for boot
order preferences.
The “<F12> to boot from LAN” message that is displayed in the
lower-left corner of the screen each time the computer is started
or restarted in Windows or restored from hibernation is the
prompt for a Network Service Boot.
The “Press <ESC> to change boot order” message that is
displayed in the lower-left corner of the screen each time the
computer is started or restarted in Windows or restored from
hibernation is the prompt to change the boot order.
2–4 Maintenance and Service Guide
Closing the Setup Utility
You can close the Setup Utility with or without saving changes.
■ To close the Setup Utility and save your changes from the
current session, use either of the following procedures:
❏ Press f10, and then follow the instructions on the screen.
– or –
❏ If the Setup Utility menus are not visible, press esc to
return to the menu display. Then use the arrow keys to
select Exit > Exit Saving Changes, and then press
Troubleshooting
enter.
When you use the
f10 procedure, you are offered an option
to return to the Setup Utility. When you use the Exit
Saving Changes procedure, the Setup Utility closes when
you press
■ To close the Setup Utility without saving your changes from
enter.
the current session:
If the Setup Utility menus are not visible, press
esc to return
to the menu display. Then use the arrow keys to select Exit >
Exit Discarding Changes, and then press
enter.
After the Setup Utility closes, the computer restarts in Windows.
Maintenance and Service Guide 2–5
Troubleshooting
Setup Utility Menus
The menu tables in this section provide an overview of Setup
Utility options.
Some of the Setup Utility menu listed in this chapter may not
✎
be supported by your computer.
Main Menu
Table 2 - 1
Main Menu
Select To Do This
System Information ■ View and change the system time and date.
■ View identification information about the
computer.
■ View specification information about the
processor, memory size, system BIOS, and
keyboard controller version (select models
only).
2–6 Maintenance and Service Guide
Troubleshooting
Security Menu
Table 2 - 2
Security Menu
Select To Do This
Administrator password Enter, change, or delete an administrator
password.
Power-on password Enter, change, or delete a power-on password.
System Configuration Menu
Table 2 - 3
System Configuration Menu
Select To Do This
Language Support Change the Setup Utility language.
Embedded WLAN Device
Radio
Enable/disable an embedded wireless LAN
device.
Embedded Bluetooth
Device (select models only)
Enhanced SATA support
(select models only)
Maintenance and Service Guide 2–7
Enable/disable an embedded Bluetooth device
(select models only).
Enable/disable enhanced SATA mode.
Troubleshooting
Table 2 - 3
System Configuration Menu
(Continued)
Select To Do This
Boot Options Set the following boot options:
■ f10 and f12 Delay (sec.)—Set the delay for the
f10 and f12 functions of the Setup Utility in
intervals of 5 seconds each (0, 5, 10, 15, 20).
■ CD-ROM boot—Enable/disable boot from
CD-ROM.
■ Floppy boot—Enable/disable boot from Floppy.
■ Internal Network Adapter boot—Enable/disable
boot from Internal Network Adapter.
■ Boot Order—Set the boot order for:
❐ USB Floppy
❐ ATAPI CD/DVD ROM Drive
❐ Hard drive
❐ USB Diskette on Key
❐ USB Hard drive
❐ Network adapter
Diagnostics Menu
Table 2 - 4
Diagnostics Menu
Select To Do This
Hard Disk Self Test Run a comprehensive self-test on the hard drive.
2–8 Maintenance and Service Guide
Troubleshooting
2.2 Setup Utility in Windows Vista
The Setup Utility is a ROM-based information and customization
utility that can be used even when your Windows® operating
system is not working or will not load.
The fingerprint reader (select models only) does not work
✎
when accessing the Setup Utility.
The utility reports information about the computer and provides
settings for startup, security, and other preferences.
To start the Setup Utility:
1. Turn on or restart the computer.
2. Before Windows opens and while “Press <F10> to enter
setup” is displayed in the lower-left corner of the screen,
f10.
press
Using the Setup Utility
Changing the Language of the Setup Utility
The following procedure explains how to change the language of
the Setup Utility. If the Setup Utility is not already running, begin
at step 1. If the Setup Utility is already running, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and
then press
in the lower-left corner of the screen.
2. Use the arrow keys to select System Configuration >
Language, and then press
3. Press
then press
Maintenance and Service Guide 2–9
f10 while “Press <F10> to enter setup” is displayed
enter.
f5 or f6 (or use the arrow keys) to select a language, and
enter to select a language.
Troubleshooting
4. When a confirmation prompt with your preference selected
is displayed, press
enter to save your preference.
5. To set your preferences and exit the Setup Utility, press
and then follow the instructions on the screen.
Your preferences go into effect when the computer restarts in
Windows.
Navigating and Selecting in the Setup Utility
Because the Setup Utility is not Windows-based, it does not
support the TouchPad. Navigation and selection are by keystroke.
■ To choose a menu or a menu item, use the arrow keys.
■ To choose an item in a drop-down list or to toggle a field,
for example an Enable/Disable field, use either the arrow
keys or
■ To select an item, press enter.
■ To close a text box or return to the menu display, press esc.
■ To display additional navigation and selection information
while the Setup Utility is open, press
f5 or f6.
f1.
Displaying System Information
The following procedure explains how to display system
information in the Setup Utility. If the Setup Utility is not open,
begin at step 1. If the Setup Utility is open, begin at step 2.
f10
1. To start the Setup Utility, turn on or restart the computer, and
then press
f10 while “Press <F10> to enter setup” is displayed
in the lower-left corner of the screen.
2. Access the system information by using the Main menu.
3. To exit the Setup Utility without changing any settings, use
the arrow keys to select Exit > Exit Discarding Changes,
and then press
2–10 Maintenance and Service Guide
enter. (The computer restarts in Windows.)
Troubleshooting
Restoring Default Settings in the Setup Utility
The following procedure explains how to restore the Setup Utility
default settings. If the Setup Utility is not already running, begin
at step 1. If the Setup Utility is already running, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and
then press
in the lower-left corner of the screen.
f10 while “Press <F10> to enter setup” is displayed
2. Select Exit > Load Setup Defaults, and then press
3. When the Setup Confirmation is displayed, press
your preferences.
4. To set your preferences and exit the Setup Utility, press
and then follow the instructions on the screen.
The Setup Utility default settings are set when you exit the
Setup Utility and go into effect when the computer restarts.
Your password, security, and language settings are not changed
✎
when you restore the factory default settings.
Using Advanced Setup Utility Features
This guide describes the Setup Utility features recommended for
all users. For more information about the Setup Utility features
recommended for advanced users only, refer to Help and Support,
which is accessible only when the computer is in Windows.
The Setup Utility features available for advanced users include a
hard drive self-test, a Network Service Boot, and settings for boot
order preferences.
enter.
enter to save
f10,
Maintenance and Service Guide 2–11
Troubleshooting
The “<F12> to boot from LAN” message that is displayed in the
lower-left corner of the screen each time the computer is started
or restarted in Windows is the prompt for a Network Service
Boot.
The “Press <ESC> to change boot order” message that is
displayed in the lower-left corner of the screen each time the
computer is started or restarted in Windows is the prompt to
change the boot order.
Closing the Setup Utility
You can close the Setup Utility with or without saving changes.
■ To close the Setup Utility and save your changes from the
current session, use either of the following procedures:
❏ Press f10, and then follow the instructions on the screen.
– or –
❏ If the Setup Utility menus are not visible, press esc to
return to the menu display. Then use the arrow keys to
select Exit > Exit Saving Changes, and then press
enter.
When you use the
f10 procedure, you are offered an option
to return to the Setup Utility. When you use the Exit
Saving Changes procedure, the Setup Utility closes when
you press
■ To close the Setup Utility without saving your changes from
enter.
the current session:
If the Setup Utility menus are not visible, press
esc to return
to the menu display. Then use the arrow keys to select Exit >
Exit Discarding Changes, and then press
enter.
After the Setup Utility closes, the computer restarts in Windows.
2–12 Maintenance and Service Guide
Troubleshooting
Setup Utility Menus
The menu tables in this section provide an overview of Setup
Utility options.
Some of the Setup Utility menu listed in this chapter may not
✎
be supported by your computer.
Main Menu
Tabl e 2-5
Main Menu
Select To Do This
System Information ■ View and change the system time and date.
■ View identification information about the
computer.
■ View specification information about the
processor, memory size, system BIOS, and
keyboard controller version (select models only).
Security Menu
Table 2 - 6
Security Menu
Select To Do This
Administrator password Enter, change, or delete an administrator
password.
Power-on password Enter, change, or delete a power-on password.
Maintenance and Service Guide 2–13
Troubleshooting
System Configuration Menu
Table 2 - 7
System Configuration Menu
Select To Do This
Language Support Change the Setup Utility language.
Enhanced SATA support
Enable/disable enhanced SATA mode.
(select models only)
Boot Options Set the following boot options:
■ f10 and f12 Delay (sec.)—Set the delay for the
f10 and f12 functions of the Setup Utility in
intervals of 5 seconds each (0, 5, 10, 15, 20).
■ CD-ROM boot—Enable/disable boot from
CD-ROM.
■ Floppy boot—Enable/disable boot from Floppy.
■ Internal Network Adapter boot—Enable/disable
boot from Internal Network Adapter.
■ Boot Order—Set the boot order for:
❐ USB Floppy
❐ ATAPI CD/DVD ROM Drive
❐ Hard drive
❐ USB Diskette on Key
❐ USB Hard drive
❐ Network adapter
Button Sound (select
models only)
Video memory up to (select
Enable/disable the Quick Launch Button tapping
sound.
Select the amount of video memory.
models only)
2–14 Maintenance and Service Guide
Troubleshooting
Diagnostics Menu
Table 2 - 8
Diagnostics Menu
Select To Do This
Hard Disk Self Test Run a comprehensive self-test on the hard drive.
On models with two hard drives, this
✎
menu option is called the Primary Hard
Disk Self Test.
Secondary Hard Disk Self
Test (select models only)
Run a comprehensive self-test on a secondary
hard drive.
2.3 Troubleshooting Flowcharts
Tabl e 2-9
Troubleshooting Flowcharts Overview
Flowchart Description
2.1 “Flowchart 2.1—Initial Troubleshooting”
2.2 “Flowchart 2.2—No Power, Part 1”
2.3 “Flowchart 2.3—No Power, Part 2”
2.4 “Flowchart 2.4—No Power, Part 3”
2.5 “Flowchart 2.5—No Power, Part 4”
2.6 “Flowchart 2.6—No Video, Part 1”
2.7 “Flowchart 2.7—No Video, Part 2”
2.8 “Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”
2.9 “Flowchart 2.9—No Operating System (OS) Loading”
2.10 “Flowchart 2.10—No OS Loading, Hard Drive, Part 1”
Maintenance and Service Guide 2–15
Troubleshooting
Tabl e 2-9
Troubleshooting Flowcharts Overview
Flowchart Description
2.11 “Flowchart 2.11—No OS Loading, Hard Drive, Part 2”
2.12 “Flowchart 2.12—No OS Loading, Hard Drive, Part 3”
2.13 “Flowchart 2.13—No OS Loading, Diskette Drive”
2.14 “Flowchart 2.14—No OS Loading, Optical Drive”
2.15 “Flowchart 2.15—No Audio, Part 1”
2.16 “Flowchart 2.16—No Audio, Part 2”
2.17 “Flowchart 2.17—Nonfunctioning Device”
2.18 “Flowchart 2.18—Nonfunctioning Keyboard”
2.19 “Flowchart 2.19—Nonfunctioning Pointing Device”
2.20 “Flowchart 2.20—No Network/Modem Connection”
(Continued)
2–16 Maintenance and Service Guide
Flowchart 2.1—Initial Troubleshooting
Begin
troubleshooting.
N
Go to
Is there
power?
Y
N
Beeps,
LEDs, or error
messages?
Y
N
Is there video?
(no boot)
Y
N
Is the OS
loading?
Y
N
Is there
sound?
Y
“Flowchart
2.2—No Power,
Par t 1.”
Check
LED board,
speaker
connections.
Go to
“Flowchart
2.6—No Video,
Part 1.”
Go to
“Flowchart
2.9—No Operating
System (OS)
Loading.”
Go to
“Flowchart
2.15—No Audio,
Par t 1.”
N
All drives
working?
Y
N
Keyboard/
pointing
device
working?
Y
N
Connecting
to network
or modem?
Y
End
Troubleshooting
Go to
“Flowchart
2.17—Nonfunctioning Device.”
Go to
“Flowchart
2.18—Nonfunc-
tioning Keyboard”
or “Flowchart
2.19—Nonfunctioning Pointing
Device.”
Go to
“Flowchart
2.20—No
Network/Modem
Connection.”
Maintenance and Service Guide 2–17
Troubleshooting
N
Flowchart 2.2—No Power, Part 1
No power
(power LED
is off).
Remove from
docking device
(if applicable).
Y
Y
Power up
on battery
power?
Power up
on AC
power?
N
Reset
power.*
Power up
on battery
power?
Y
N
Reset
power.*
Power up
on AC power?
Y
N
Go to
“Flowchart
2.3—No Power,
Par t 2.”
N
Go to
“Flowchart
2.4—No Power,
Part 3.”
Y
Power up in
docking
device?
1. Reseat the power cables in the docking
device and at the AC outlet.
2. Ensure the AC power source is active.
3. Ensure that the power strip is working.
Done
YN
Done
Power up
in docking
device?
*NOTES
1. On select models, there is a separate
reset button.
2. On select models, the computer can be
reset using the standby switch and either
the lid switch or the main power switch.
Go to
“Flowchart
2.8—Nonfunctioning
Docking Device (if
applicable).”
2–18 Maintenance and Service Guide
Flowchart 2.3—No Power, Part 2
N
Continued from
“Flowchart
2.2—No Power,
Par t 1.”
Visually check for
debris in battery
socket and clean
if necessary.
Y
Troubleshooting
Power on?
Check battery by
recharging it,
moving it to
another computer,
or replacing it.
Done
N
Power on?
Replace
power supply
(if applicable).
Y
N
Go to
Done
Power on?
“Flowchart
2.4—No Power,
Part 3.”
Y
Done
Maintenance and Service Guide 2–19
Troubleshooting
Flowchart 2.4—No Power, Part 3
Continued from
“Flowchart
2.3—No Power,
Part 2.”
Plug directly
into AC outlet.
Y
Power LED
on?
N
Reseat AC adapter
in computer and
at power source.
Power on?
N
Power outlet
active?
Y
Replace
power cord.
Power on?
Done
Y
Done
External
N
Try different
outlet.
Internal or
external AC
adapter?
Internal
Go to
“Flowchart
2.5—No Power,
Part 4.”
Replace external
AC adapter.
N
Power on?
Y
Y
Done
Done
N
2–20 Maintenance and Service Guide
Flowchart 2.5—No Power, Part 4
Continued from
“Flowchart
2.4—No Power,
Par t 3.”
Open
computer.
Troubleshooting
N
Y
Loose or
damaged
parts?
Close
computer and
retest.
Power on?
Done
Y
Reseat loose
components and
boards and
replace damaged
items.
N
Replace the following items (if applicable). Check
computer operation after each replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*NOTE: Replace these items as a set to prevent
shorting out among components.
Maintenance and Service Guide 2–21
Troubleshooting
Flowchart 2.6—No Video, Part 1
No video.
Docking Device
Stand-alone
or docking
device?
Go to
“Flowchart
2.7—No Video,
Part 2.”
*NOTE: To change from internal to
external display, use the hotkey
combination.
Stand-alone
Internal or
external
display*?
External
Adjust
brightness.
Internal
Y
Video OK? Done
N
Check for bent
pins on cable.
N
Video OK?
Adjust
brightness.
Video OK? Done
N
A
Press lid
switch to ensure
operation.
Video OK? Done
N
Replace the following one at a time. Test after each replacement.
1. Cable between computer and computer display (if applicable)
2. Display
3. System board
Try
another
display.
Internal and
external
video OK?
Y
Y
N
Replace
system
board.
YY
Done
Done
2–22 Maintenance and Service Guide
Flowchart 2.7—No Video, Part 2
Continued from
“Flowchart
2.6—No Video,
Part 1.”
Remove
computer from
docking device,
if connected.
Troubleshooting
Adjust
display
brightness.
N
Video OK?
Y
Check that computer is properly
seated in docking device,
for bent pins on cable,
and for monitor connection.
Y
Video OK?
N
Adjust external
monitor display.
Go to “A” in
“Flowchart
2.6—No Video,
Part 1.”
Done
Check brightness
of external
monitor.
Video OK?
N
Try another
external
monitor.
Internal
and external
video OK?
N
Go to
“Flowchart
2.8—Nonfunctioning
Docking Device (if
applicable).”
Y
Done
Y
Done
Maintenance and Service Guide 2–23
Troubleshooting
Flowchart 2.8—Nonfunctioning Docking Device
(if applicable)
Nonfunctioning
docking device.
Reseat power
cord in docking
device and
power outlet.
Check voltage
setting on docking
device.
Reset monitor
cable connector at
docking device.
Docking
device
operating?
N
Remove computer,
replace docking
device.
Reinstall
computer into
docking device.
Y
Docking
device
operating?
Y
Done
N
Test replacement
docking device with
new computer.
Done
2–24 Maintenance and Service Guide
Troubleshooting
Flowchart 2.9—No Operating System (OS)
Loading
No OS
loading.*
Reseat power
cord in docking
device and
power outlet.
No OS loading from hard drive,
“Flowchart 2.10—No OS Loading,
go to
go to
Hard Drive, Part 1.”
No OS loading from diskette drive,
“Flowchart 2.13—No OS Loading,
Diskette Drive.”
No OS loading from optical drive,
“Flowchart 2.14—No OS Loading,
go to
“Flowchart 2.20—No Network/Modem
go to
*NOTE: Before beginning troubleshooting, always
check cable connections, cable ends, and drives
for bent or damaged pins.
Optical Drive.”
No OS loading from network,
Connection.”
Maintenance and Service Guide 2–25
Troubleshooting
Flowchart 2.10—No OS Loading, Hard Drive,
Part 1
OS not
loading from
hard drive.
Nonsystem
disk message?
N
Reseat
external
hard drive.
OS loading?
N
Boot
from
CD?
Y
Check the Setup
utility for correct
booting order.
Boot
from
hard drive?
Y
Done
Y
Go to
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
Y
Done
N
N
Boot
from
diskette?
Y
N
Change boot
priority through
the Setup Utility
and reboot.
Go to
“Flowchart
2.13—No OS
Loading,
Diskette Drive.”
N
Boot
from
hard drive?
2.17—Nonfunctioning
Go to
“Flowchart
Device.”
Y
2–26 Maintenance and Service Guide
Troubleshooting
Flowchart 2.11—No OS Loading, Hard Drive,
Part 2
Continued from
“Flowchart
2.10—No OS
Loading,
Hard Drive, Part 1.”
Disc or
diskette in
drive?
Y
Remove disc or
diskette and
reboot.
N
1. Replace
hard drive.
2. Replace system
board.
N
Reseat
hard drive.
Hard drive
accessible?
Run FDISK.
Y
Done
N
from diskette
Y
Boot
from
hard drive?
Boot
drive?
Y
N
Diskette Drive.”
Done
Go to
“Flowchart
2.13—No OS
Loading,
Hard drive
partitioned?
Y
Hard drive
formatted?
Y
N
Create partition,
and then format
hard drive to
bootable
C:\ prompt.
N
Format hard drive
and bring to
abootable
C:\ prompt.
N
Y
Computer
booted?
Load OS using
Operating System disc
(if applicable).
Y
Hard drive
accessible?
Done
N
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
Maintenance and Service Guide 2–27
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
Troubleshooting
Flowchart 2.12—No OS Loading, Hard Drive,
Part 3
Continued from
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
N
System
files on hard
drive?
Y
Install OS
and reboot.
Virus
on
hard drive?
N
Run SCANDISK and
check for
bad sectors.
Can bad
sectors
be fixed?
Y
Fix bad
sectors.
Y
OS
Clean virus.
loading from
hard drive?
Y
Done
N
Y
Diagnostics on
disc or diskette?
Replace
hard drive.
N
N
Replace
hard drive.
Run diagnostics
and follow
recommendations.
N
Boot from
hard drive?
Replace
hard drive.
Y
Done
2–28 Maintenance and Service Guide
Troubleshooting
N
N
Flowchart 2.13—No OS Loading, Diskette Drive
Y
OS not loading
from
diskette drive.
Reseat
diskette drive.
OS
loading?
Done
N
Nonsystem
disk message?
Y
Bootable
diskette
in drive?
N
Install bootable
diskette and
reboot computer.
Y
N
Boot
from another
device?
Y
Go to
“Flowchart
2.17—Nonfunctioning Device.”
N
Diskette
drive enabled
in the Setup
utility?
Enable drive
and cold boot
computer.
Y
Y
Reset the computer.
Is diskette
drive boot
order
correct?
Refer to
Section 1.2,
“Resetting the
Computer,”
instructions.
for
Check diskette
for system files.
Try d iff ere nt
diskette.
Nonsystem
disk error?
N
loading?
N
OS
Y
Replace the following
components
individually, retesting
after each
replacement:
■ Diskette drive
■ System board
Y
Done
Change boot
priority using
the Setup Utility.
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Maintenance and Service Guide 2–29
Troubleshooting
Flowchart 2.14—No OS Loading, Optical Drive
loading from
CD-ROM or
DVD-ROM drive.
Boots from
CD or DVD?
N
Reseat
No OS
drive.
N
bootable disc.
Disc
in drive?
Install
Y
Bootable
disc in
drive?
Y
Try another
bootable disc.
N
Install bootable
disc and
reboot
computer.
Y
Done
Y
Boots from
CD or DVD?
Done
N
N
Go to
“Flowchart
Device.”
Y
Booting
from another
device?
2.17—Nonfunctioning
Reset the computer.
Booting
correct?
N
Correct boot
order using
the Setup Utility.
order
Y
Refer to
Section 1.2,
“Resetting the
Computer,”
instructions.
for
2.17—Nonfunctioning
Go to
“Flowchart
Device.”
2–30 Maintenance and Service Guide
Flowchart 2.15—No Audio, Part 1
N
Turn up audio
No audio.
internally or
externally.
Audio? Done
N
Troubleshooting
Y
Computer in
docking device
(if applicable)?
Y
Undock
Internal
audio?
N
Go to
“Flowchart
2.16—No Audio,
Par t 2.”
Y
Go to
“Flowchart
2.16—No Audio,
Par t 2.”
Replace the
docking device.
Y
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Audio? Done
N
Maintenance and Service Guide 2–31
Troubleshooting
Flowchart 2.16—No Audio, Part 2
Continued from
“Flowchart
2.15—No Audio,
Part 1.”
N
Audio
driver in OS
configured?
Y
N
Correct
drivers for
application?
Y
Connect to
external
speaker.
Reload
audio drivers.
Load drivers and
set configuration
in OS.
Replace audio
board and
Audio?
YN
speaker
connections
in computer
(if applicable).
Audio? Done
Replace the following components
individually, retesting after each
replacement:
■ Internal speakers
■ Audio board (if applicable)
YN
2–32 Maintenance and Service Guide
Flowchart 2.17—Nonfunctioning Device
Nonfunctioning
device.
Reseat
device.
Unplug the nonfunctioning device from the computer
and inspect cables and plugs for bent or broken pins
Clear
CMOS.
Reattach device.
Close computer,
plug in power,
and reboot.
or other damage.
Any physical
device detected?
N
Replace hard drive.
Y
Operating System
Troubleshooting
Fix or
replace
broken item.
Go to
“Flowchart
2.9—No
(OS) Loading.”
N
Device
boots
properly?
Y
Done
Replace NIC.
If integrated NIC,
replace system
board.
Y
Replace diskette
drive.
Maintenance and Service Guide 2–33
Device
boots
properly?
Done
N
Troubleshooting
Flowchart 2.18—Nonfunctioning Keyboard
Keyboard
not operating
properly.
Connect computer
to good external
keyboard.
N
Y
Reseat internal
connector
(if applicable).
Y
External
device
works?
keyboard
Replace
system
board.
N
Keyboard
operating
properly?
Replace internal
keyboard or
cable.
Y
Keyboard
Done Done
operating
properly?
N
Replace
system
board.
2–34 Maintenance and Service Guide
Troubleshooting
Flowchart 2.19—Nonfunctioning Pointing Device
Pointing device
not operating
properly.
Connect computer
to good external
pointing device.
N
External
device
works?
Y
Reseat internal
pointing device
connector
(if applicable).
Replace
system
board.
N
Pointing device
operating
properly?
Replace internal
pointing device
or cable.
Y
Y
Done Done
Pointing device
operating
properly?
N
Replace
system
board.
Maintenance and Service Guide 2–35
Troubleshooting
Flowchart 2.20—No Network/Modem
Connection
No network
or modem
connection.
N
Network
or modem jack
active?
Y
Digital
line?
N
Replace jack
or have jack
activated.
Y
Connect
to nondigital
line.
Y
Done
Y
Disconnect all
the computer
NIC/modem
configured
in OS?
power from
and open.
N
Reload
drivers and
reconfigure.
Network
or modem
connection
working?
N
Replace
NIC/modem
(if applicable).
Y
Reseat NIC/modem
(if applicable).
Network
or modem
connection
working?
Done
N
Replace
system
board.
2–36 Maintenance and Service Guide
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a
reference for spare part numbers and option part numbers.
3.1 Serial Number Location
When ordering parts or requesting information, provide the
computer serial number and model number located on the bottom
of the computer.
3
Serial Number Location
Maintenance and Service Guide 3–1
Illustrated Parts Catalog
3.2 Computer Major Components
Computer Major Components
3–2 Maintenance and Service Guide
Spare Parts: Computer Major Components
Item Description
Illustrated Parts Catalog
Table 3 - 1
Spare Part
Number
1 14.0-inch, WXGA display assembly (includes
wireless antenna transceivers and cables)
14.0-inch, WXGA display assembly (includes Web
cam and microphone)
14.0-inch, WXGA display assembly (includes
microphone)
Refer to Section 3.3, “Display Assembly Components,” for
✎
display assembly internal component spare part number
information.
2 Switch covers (include wireless button and light)
For use with full-featured computer models
For use with defeatured computer models
3 Power button board (includes power button
board cable)
4 Keyboards
For use only with computer models using Intel processors:
Belgium
European
Greece
Israel
Japan
Korea
Latin America
Nordic
441317-A41
441317-021
441317-DJ1
441317-BB1
441317-291
441317-AD1
441317-161
441317-DH1
Portugal
Russia
Saudi Arabia
Switzerland
Ta i wa n
Thailand
Tu r ke y
417048-001
435853-001
435854-001
417079-001
417080-001
417084-001
441317-131
441317-251
441317-171
441317-111
441317-AB1
441317-281
441317-141
Maintenance and Service Guide 3–3
Illustrated Parts Catalog
Computer Major Components
3–4 Maintenance and Service Guide
Table 3 - 1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
Item Description
4 Keyboards (Continued)
For use with all computer models:
Brazil
Denmark
France
French Canada
Germany
International
Italy
5 Top cover rear strips
For use with full-featured computer models
For use with defeatured computer models
6 Top covers (include TouchPad)
For use with full-featured computer models
For use with defeatured computer models
7a
7b
TouchPad
TouchPad bracket
TouchPad cable (not illustrated) 417082-001
441317-201
441317-081
441317-051
441317-121
441317-041
441317-B31
441317-061
Norway
Spain
Sweden/Finland
The United
Kingdom
The United States
(Continued)
Spare Part
Number
441317-091
441317-071
441317-101
441317-031
441317-001
430466-001
417088-001
430467-001
417090-001
430464-001
Plastics Kit 417073-001
Includes:
8a
8b
8c
8d
Maintenance and Service Guide 3–5
ExpressCard slot bezel
Hard drive cover (includes 2 captive screws, secured by C-clips)
Memory module compartment cover (includes 2 captive screws,
secured by C-clips)
Mini Card compartment cover (includes 1 captive screws, secured by
a C-clip)
Illustrated Parts Catalog
Computer Major Components
3–6 Maintenance and Service Guide
Table 3 - 1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
(Continued)
Spare Part
Item Description
9a Modem modules (include modem module cable)
For use with computer models using Intel processors
For use with computer models using AMD
9b
10 ExpressCard assembly 417112-001
11 Speaker assembly 417089-001
12 System boards
processors
Modem module cable
For use with computer models using Intel processors:
■ PM/G72M-V for use with full-featured computer
models
■ GM for use with full-featured computer models
■ GMZ for use with defeatured computer models
■ PM/G72M-Z system board for use with full-featured
computer models
■ GM system board
■ dv2100 system board for use with full-featured
computer models
Number
417083-001
431852-001
417035-001
417036-001
417037-001
440777-001
440778-001
440768-001
For use with computer models using AMD processors:
■ For use with full-featured computer models
■ For use with defeatured computer models
13 Wireless switch board (includes wireless switch
board cable)
14 Audio/infrared board (includes audio/infrared
board cable)
Maintenance and Service Guide 3–7
431483-001
431844-001
417092-001
417086-001
Illustrated Parts Catalog
Computer Major Components
3–8 Maintenance and Service Guide
Table 3-1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
Item Description
15 Processors (include thermal pad)
Intel Core Duo T7200 (2.00-GHz), dv2200 models only
Intel Core Duo T5600 (1.83-GHz), dv2200 models only
Intel Core Duo T5500 (1.66-GHz), dv2200 models only
Intel Core Duo T5200 (1.60-GHz), dv2200 models only
Intel Core Duo T2600 (2.16-GHz)
Intel Core Duo T2500 (2.00-GHz)
Intel Core Duo T2400 (1.83-GHz)
Intel Core Duo T2250 (1.73-GHz)
Intel Core Duo T2300 (1.66-GHz)
Intel Core Duo T2050 (1.60-GHz)
Intel Core Duo T2350 (1.60-GHz), dv2200 models only
Intel Core Duo T2060 (1.60-GHz), dv2200 models only
Intel Core Solo T1350 (1.80-GHz)
Intel Celeron M 440 (1.86-GHz), dv2200 models only
Intel Celeron M 430 (1.73-GHz), dv2200 models only
AMD Turion Dual Core, TL-60, 2.0-GHz, dv2200
models only
AMD Turion 64, MK-36, 2.00-GHz, dv2200 models
only
AMD Turion TL-56, 1.80-GHz, dv2200 models only
AMD Turion ML-52 1.60-GHz
AMD Turion ML-50 1.60-GHz
(Continued)
Spare Part
Number
435849-001
435848-001
437780-001
437781-001
417044-001
417043-001
417042-001
430455-001
417041-001
430454-001
440781-001
441610-001
430456-001
440780-001
435851-001
440771-001
438210-001
435837-001
431846-001
431845-001
Mobile AMD Sempron 3500+ (1.80-GHz), dv2200
models only
Mobile AMD Sempron 3400+ (1.80-GHz)
Mobile AMD Sempron 3200+ (1.60-GHz)
Maintenance and Service Guide 3–9
435838-001
431849-001
431484-001
Illustrated Parts Catalog
Computer Major Components
3–10 Maintenance and Service Guide
Table 3 - 1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
(Continued)
Spare Part
Item Description
16 Bluetooth® module (includes Bluetooth
module cable)
17 Fan/heat sink assemblies (include thermal pads)
For use with computer models using Intel processors:
■ For use on UMA system boards
■ For use on discrete system boards
For use with computer models using AMD
processors
Fan/heat sink assembly mounting bracket
(not illustrated)
18 Power connector cables
For use with UMA system boards
For use only with computer models using Intel
processors
19 USB board (includes USB board cable) 417085-001
20 Base enclosures
For use with full-featured computer models
For use with defeatured computer models
Number
397923-001
430463-001
417081-001
431851-001
417114-001
430462-001
430461-001
417093-001
430469-001
Rubber Feet Kit (includes computer feet; not
illustrated)
Maintenance and Service Guide 3–11
417095-001
Illustrated Parts Catalog
Computer Major Components
3–12 Maintenance and Service Guide
Tabl e 3-1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
(Continued)
Spare Part
Item Description
21 Batteries
12-cell, 8.8-Ah
6-cell, 4.0-Ah
6-cell, 2.55-Ah
6-cell, 2.2-Ah
22 Hard drives (include frame and connector)
For use only with computer models using Intel processors:
5400-rpm, 120-GB 417059-001
For use with all computer models:
5400-rpm, 160-GB
5400-rpm, 100-GB
5400-rpm, 80-GB
5400-rpm, 60-GB
5400-rpm, 40-GB
23 RTC battery 417076-001
24 Memory modules, 1-DIMM, DDR2
PC2-5300, 667-MHz
1024 MB
512 MB
256 MB
Number
417067-001
417066-001
441611-001
440772-001
442171-001
417058-001
417057-001
417056-001
430460-001
417055-001
417054-001
417053-001
PC2-4200, 533-MHz
1024 MB
512 MB
256 MB
Maintenance and Service Guide 3–13
417052-001
417051-001
417050-001
Illustrated Parts Catalog
Computer Major Components
3–14 Maintenance and Service Guide
Table 3 - 1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
Item Description
25 Mini Card modules
For use with computer models using Intel processors:
■ 802.11b/g WLAN module for use in the countries or
regions listed below. These countries or regions are
categorized as most of the world (MOW 1).
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
■ 802.11b/g WLAN module for use in the countries or
regions listed below. These countries or regions are
categorized as most of the world (MOW 2).
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman
Islands
Columbia
Croatia
Cyprus
The Czech
Republic
Denmark
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
The Philippines
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
(Continued)
Spare Part
Number
409407-001
Paraguay
Saudi Arabia
Ta i wa n
The United
States
Vietnam
409407-002
The
Netherlan
ds
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Tu r ke y
The United
Kingdom
Uzbekistan
Maintenance and Service Guide 3–15
Illustrated Parts Catalog
Computer Major Components
3–16 Maintenance and Service Guide
Table 3 - 1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
Item Description
25 Mini Card modules
■ 802.11a/b/g WLAN module for use in the countries
or regions listed below. These countries are
categorized as the rest of the world (ROW).
China
Ecuador
Haiti
For use with computer models using AMD processors:
■ 802.11a/b/g LJ WLAN module for use in
the United States and Canada
■ 802.11a/b/g LJ WLAN module for use in the ROW
countries or regions listed below:
China
Ecuador
Haiti
■ 802.11b/g WLAN Mini Card module for use in Costa
Rica, Israel, Kuwait, Thailand, United Arab
Emirates, Ukraine.
■ 802.11b/g WLAN Mini Card module for use in the
countries or regions listed below. These countries
or regions are categorized as most of the world
(MOW 1)
, dv2200 models only
(Continued)
Honduras
Pakistan
Peru
Honduras
Pakistan
Peru
Qatar
South Korea
Qatar
South Korea
(Continued)
Spare Part
Number
409497-001
Uruguay
Venezuela
417377-001
417377-002
Uruguay
Venezuela
430453-001
440770-001
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
Maintenance and Service Guide 3–17
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
Paraguay
Saudi Arabia
Ta i wa n
The United
States
Vietnam
Illustrated Parts Catalog
Computer Major Components
3–18 Maintenance and Service Guide
Table 3 - 1
Illustrated Parts Catalog
Spare Parts: Computer Major Components
Item Description
25 Mini Card modules
■ 802.11b/g WLAN module for use in the countries or
regions listed below. These countries or regions are
categorized as most of the world (MOW 2)
models only.
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman Isl
Columbia
Croatia
Cyprus
Czech Rep
Denmark
■ 802.11b/g WLAN module for use in Japan
models only.
■ 802.11b/g HS WLAN module for use in
the United States and Canada.
■ 802.11b/g HS WLAN module for use in the ROW
countries or regions listed below:
(Continued)
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
Philippines
Poland
Portugal
Romania
Russia
Serbia & Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
(Continued)
, dv2200
, dv2200
Spare Part
Number
440770-002
Monaco
Netherlands
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Tu r ke y
United King.
Uzbekistan
440770-291
416376-001
416376-002
China
Ecuador
Haiti
26 Optical drives (include bezel)
DVD/CD-RW Combo Drive
DVD±RW/R and CD-RW Double-Layer Combo Drive
DVD±RW/R and CD-RW Double-Layer Combo Drive
with LightScribe
Maintenance and Service Guide 3–19
Honduras
Pakistan
Peru
Qatar
South Korea
Uruguay
Venezuela
417060-001
417061-001
417062-001
Illustrated Parts Catalog
3.3 Display Assembly Components
Display Assembly Components
3–20 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-2
Display Assembly Components
Spare Part Number Information
Spare Part
Item Description
Display Plastics Kit
For use with full-featured computer models
For use with defeatured computer models
1a
1b
1c
2 Display inverter 417097-001
3 Web camera (includes Web camera bracket) 417113-001
4 Display panels
■ Display bezel
■ Microphone
■ Display enclosure
For use with full-featured computer models
For use with defeatured computer models
For use with dv2200 models, BV panel
For use with dv2200 models, AG panel
Number
430471-001
417100-001
430457-001
430458-001
435842-001
435843-001
5 Wireless antenna transceivers and cables 417106-001
6 Display Hinge Kit (includes left and right
display hinges)
For use with full-featured computer models
For use with defeatured computer models
7 Display Cable Kit (includes the Web camera cable 417099-001
Display lid switch module (for use only with
computer models using Intel processors;
not illustrated)
Display Label Kit (for use with dv2200 models; not
illustrated),
Display Screw Kit (includes screws and rubber screw
covers; not illustrated)
Maintenance and Service Guide 3–21
430473-001
417102-001
417087-001
410935-001
417104-001
Illustrated Parts Catalog
3.4 Mass Storage Devices
Mass Storage Devices
3–22 Maintenance and Service Guide
Table 3-3
Mass Storage Devices
Spare Part Number Information
Item Description
1 Hard drives (include frame and connector)
Illustrated Parts Catalog
Spare Part
Number
5400-rpm, 160-GB
5400-rpm, 120-GB
5400-rpm, 100-GB
5400-rpm, 80-GB
5400-rpm, 60-GB
5400-rpm, 40-GB
2 Optical drives
DVD/CD-RW Combo Drive
DVD±RW/R and CD-RW Double-Layer Combo
Drive
DVD±RW/R and CD-RW Double-Layer Combo
Drive with LightScribe
USB digital drive (not illustrated) 364727-001
442171-001
417059-001
417058-001
417057-001
417056-001
430460-001
417060-001
417061-001
417062-001
Maintenance and Service Guide 3–23
Illustrated Parts Catalog
3.5 Plastics Kit
Plastics Kit Contents
Table 3-4
Plastics Kit
Spare Part Number Information
Spare Part
Item Description
Plastics Kit 417073-001
Includes:
1
2
3
4
3–24 Maintenance and Service Guide
Mini Card compartment cover (includes 1 captive screws, secured by
a C-clip)
Hard drive cover (includes 2 captive screws, secured by C-clips)
Memory module compartment cover (includes 2 captive screws,
secured by C-clips)
ExpressCard slot bezel
Number
3.6 Cable Kit
Cable Kit Contents
Illustrated Parts Catalog
Table 3-5
Cable Kit
Spare Part Number Information
Spare Part
Item Description
Cable Kit 417075-001
Includes:
1
2
3
4
Maintenance and Service Guide 3–25
LED board cable
TouchPad cable
USB board cable (includes num lock light cable)
Bluetooth module cable
Number
Illustrated Parts Catalog
3.7 Miscellaneous
Tabl e 3-6
Spare Parts: Miscellaneous (not illustrated)
Spare Part
Description
Analog TV tuner 407941-001
Composite S-Video and audio input cable 407939-001
DVB-T TV tuner 412175-001
DVB-T TV tuner antenna 412176-001
Earbud headset 371693-003
HP 65-W AC Adapter 409843-001
HP 90-W AC adapter, for use with dv2200 models 409515-001
HP Remote Control 407313-001
RF cable 408485-001
Number
RF input adapter cable 407940-001
USB infrared receiver 408483-001
USB travel mouse 309674-001
Optical wired mouse 436238-001
Expansion hub 430326-001
HP xb3000 Expansion Base 417330-001
USB travel mouse 435836-001
Backpack 405527-001
Remote control, ExpressCard 439128-001
Infrared emitter 439129-001
TV tuner, ExpressCard 439130-001
TV tuner antenna 439131-001
3–26 Maintenance and Service Guide
Tabl e 3-6
Illustrated Parts Catalog
Spare Parts: Miscellaneous (not illustrated)
Description
Remote control - ExpressCard (EMEA) 439254-001
Carrying case 418162-001
HP Remote Control II Plus 435743-001
Wireless laser mouse 430958-001
Screw Kit (includes the following screws; refer to
Appendix A, “Screw Listing,” for more information on screw
specifications and usage)
■ Phillips PM3.0×3.0 screw
■ Phillips PM2.5×9.0 screw
■ Phillips PM2.5×7.0 screw
■ Black Phillips PM2.5×5.0 screw
■ Silver Phillips PM2.5×5.0 screw
■ Phillips PM2.0×5.0 captive screw
■ Phillips PM2.0×13.0 spring-loaded
shoulder screw
■ Phillips PM2.0×9.0 spring-loaded
shoulder screw
■ Phillips PM2.0×8.0 screw
■ Phillips PM2.0×4.0 screw
■ Phillips PM2.0×3.0 screw
■ Phillips PM2.0×2.0 screw
(Continued)
Spare Part
Number
417108-001
Maintenance and Service Guide 3–27
Illustrated Parts Catalog
Tabl e 3-6
Spare Parts: Miscellaneous (not illustrated)
Description
Power cords for use in:
Australia and New Zealand 383496-011
Belgium, Europe, Finland, France, Germany, Greece,
the Netherlands, Norway, Portugal, Spain, and Sweden
Brazil 383496-201
Canada, French Canada, Latin America, Thailand, and the
United States
Denmark 383496-081
Hong Kong and the United Kingdom 383496-031
India 383496-D61
Israel 383496-BB1
Italy 383496-061
Japan 383496-291
Korea 383496-AD1
People’s Republic of China 383496-AA1
Switzerland 383496-111
(Continued)
Spare Part
Number
383496-021
383496-001
Taiwan 383496-AB1
3–28 Maintenance and Service Guide
Illustrated Parts Catalog
3.8 Sequential Part Number Listing
Table 3-7
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
364727-001 USB digital drive (not illustrated)
371693-003 Earbud headset (glossy black)
383496-001 Power cord for use in Canada, French Canada, Latin America,
Thailand, and the United States
383496-011 Power cord for use in Australia and New Zealand
383496-021 Power cord for use in Belgium, Europe, Finland, France,
Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
383496-031 Power cord for use in Hong Kong and the United Kingdom
383496-061 Power cord for use in Italy
383496-081 Power cord for use in Denmark
383496-111 Power cord for use in Switzerland
383496-201 Power cord for use in Brazil
383496-291 Power cord for use in Japan
383496-AA1 Power cord for use in the People’s Republic of China
383496-AB1 Power cord for use in Taiwan
383496-AD1 Power cord for use in Korea
383496-BB1 Power cord for use in Israel
383496-D61 Power cord for use in India
397923-002 Bluetooth® module (includes Bluetooth module cable)
405527-001 Backpack
407313-001 HP Remote Control
Maintenance and Service Guide 3–29
Illustrated Parts Catalog
Table 3-7
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
407939-001 Composite S-Video and audio input cable
407940-001 RF input adapter cable
407941-001 Analog TV tuner
408483-001 USB infrared receiver
408485-001 RF cable
409407-001 802.11b/g WLAN Mini Card module for use only with
computer models using Intel processors in the MOW1
countries or regions listed below:
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
(Continued)
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
3–30 Maintenance and Service Guide
Table 3-7
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
409407-002 802.11b/g WLAN Mini Card module for use only with
computer models using Intel processors in the MOW2
countries or regions listed below:
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman Islands
Columbia
Croatia
Cyprus
The Czech
Republic
Denmark
409497-001 802.11a/b/g WLAN Mini Card module for use only with
computer models using Intel processors in the ROW countries
or regions listed below:
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
(Continued)
The Philippines
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
China
Ecuador
Haiti
409515-001 HP 90-W AC adapter, for use with dv2200 models
409843-001 HP 65-W AC Adapter
410935-001 Display label kit, for use with dv2200 models
412175-001 DVB-T TV tuner
412176-001 DVB-T TV tuner antenna
Maintenance and Service Guide 3–31
Honduras
Pakistan
Peru
Qatar
South Korea
Illustrated Parts Catalog
Table 3-7
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
416376-001 802.11b/g HS WLAN Mini Card module for use only with
computer models using AMD processors in the United States
and Canada
416376-002 802.11b/g HS WLAN Mini Card module for use only with
computer models using AMD processors in the ROW
countries or regions listed below:
China
Ecuador
Haiti
416377-001 802.11a/b/g LJ WLAN Mini Card module for use only with
computer models using AMD processors in the United States
and Canada
416377-002 802.11a/b/g LJ WLAN Mini Card module for use with
computer models using AMD processors in the ROW
countries or regions listed below:
China
Ecuador
Haiti
417035-001 PM/G72M-V system board for use only with full-featured
computer models using Intel processors
417036-001 GM system board for use only with full-featured computer
models using Intel processors
Honduras
Pakistan
Peru
Honduras
Pakistan
Peru
(Continued)
Qatar
South Korea
Qatar
South Korea
417037-001 GMZ system board for use only with defeatured computer
models using Intel processors
417041-001 Intel Core Duo T2300 (1.66-GHz) processor (includes
thermal pad)
417042-001 Intel Core Duo T2400 (1.83-GHz) processor (includes
thermal pad)
3–32 Maintenance and Service Guide
Table 3-7
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
417043-001 Intel Core Duo T2500 (2.00-GHz) processor (includes
thermal pad)
417044-001 Intel Core Duo T2600 (2.16-GHz) processor (includes
thermal pad)
417048-001 14.0-inch, WXGA display assembly (includes wireless
antenna transceivers and cables)
417050-001 1-DIMM, DDR2, PC2-4200, 533-MHz, 256-MB
memory module
417051-001 1-DIMM, DDR2, PC2-4200, 533-MHz, 512-MB
memory module
417052-001 1-DIMM, DDR2, PC2-4200, 533-MHz, 1024-MB
memory module
417053-001 1-DIMM, DDR2, PC2-5300, 667-MHz, 256-MB
memory module
417054-001 1-DIMM, DDR2, PC2-5300, 667-MHz, 512-MB
memory module
417055-001 1-DIMM, DDR2, PC2-5300, 667-MHz, 1024-MB
memory module
(Continued)
417056-001 5400-rpm, 60-GB hard drive (includes frame and connector)
417057-001 5400-rpm, 80-GB hard drive (includes frame and connector)
417058-001 5400-rpm, 100-GB hard drive (includes frame and connector)
417059-001 5400-rpm, 120-GB hard drive for use only with computer
models using Intel processors (includes frame and connector)
417060-001 DVD/CD-RW Combo Drive
417061-001 DVD±RW/R and CD-RW Double-Layer Combo Drive
417062-001 DVD±RW/R and CD-RW Double-Layer Combo Drive with
LightScribe
Maintenance and Service Guide 3–33
Illustrated Parts Catalog
Table 3-7
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
417066-001 6-cell, 4.0-Ah battery
417067-001 12-cell, 8.8-Ah battery
417073-001 Plastics Kit
417075-001 Cable Kit
417076-001 RTC battery
417079-001 Switch cover for use with full-featured computer models
(include wireless button and light)
417080-001 Switch cover for use with defeatured computer models
(includes wireless button and light)
417081-001 Fan/heat sink assembly (include thermal pads) for use only on
computer models using Intel processors
417082-001 TouchPad cable
417083-001 Modem module for use only on computer models using
Intel processors
417084-001 Power button board (includes power button board cable)
417085-001 USB board (includes USB board cable)
(Continued)
417086-001 Audio/infrared board (includes audio/infrared board cable)
417087-001 Display lid switch module
417088-001 Top cover rear strip for use with defeatured computer models
417089-001 Speaker assembly
417090-001 Top cover for use with defeatured computer models (includes
TouchPad)
417092-001 Wireless switch board (includes wireless switch board cable)
3–34 Maintenance and Service Guide
Table 3-7
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
417093-001 Base enclosure for use with defeatured computer models
417095-001 Rubber Feet Kit (includes computer feet])
417097-001 Display inverter
417099-001 Display Cable Kit (includes the Web camera cable)
417100-001 Display Plastics Kit for use with defeatured computer models
(includes display bezel, microphone, and display enclosure)
417102-001 Display Hinge Kit (includes left and right display hinges) for
use with defeatured computer models
417104-001 Display Screw Kit (includes screws and rubber screw covers)
417106-001 Wireless antenna transceivers and cables
417108-001 Screw Kit
417110-001 Display Label Kit
417112-001 ExpressCard assembly
417113-001 Web camera (includes bracket)
417114-001 Fan/heat sink assembly mounting bracket
417330-001 HP xb3000 Expansion Base
(Continued)
418162-001 Carrying case
430326-001 Expansion hub
430453-001 802.11b/g WLAN Mini Card module for use in Costa Rica,
Israel, Kuwait, Thailand, United Arab Emirates, Ukraine.
430454-001 Intel Core Duo T2050 (1.60-GHz) processor (includes
thermal pad)
430455-001 Intel Core Duo T2250 (1.73-GHz) processor (includes
thermal pad)
Maintenance and Service Guide 3–35
Illustrated Parts Catalog
Table 3-7
Spare Parts: Sequential Part Number Listing
430456-001 Intel Core Solo T1350 (1.80-GHz) processor (includes
thermal pad)
430457-001 Display panels for use with full-featured computer models
430458-001 Display panels for use with defeatured computer models
430460-001 5400-rpm, 40-GB hard drive (includes frame and connector)
430461-001 Power connector cable for use only on computer models using
Intel processors
430462-001 Power connector cable for use with UMA system boards
Fan/heat sink assembly (include thermal pads) for use on
430463-001
430464-001 TouchPad
430466-001 Top cover rear strip for use with full-featured computer models
430467-001 Top cover for use with full-featured computer models
430469-001 Base enclosure for use with defeatured computer models
430471-001 Display Plastics Kit for use with full-featured computer models
430473-001 Display Hinge Kit (includes left and right display hinges) for
UMA system boards
(includes TouchPad)
(includes display bezel, microphone, and display enclosure)
use with full-featured computer models
(Continued)
430958-001 Wireless laser mouse
431843-001 System board for use only with full-featured computer models
using AMD processors
431844-001 System board for use with defeatured computer models using
AMD processors
431845-001 AMD Turion ML-50 1.60-GHz processor (includes
thermal pad)
431846-001 AMD Turion ML-52 1.60-GHz processor (includes
thermal pad)
3–36 Maintenance and Service Guide
Loading...
