HP Pavilion a718l Technical Specifications

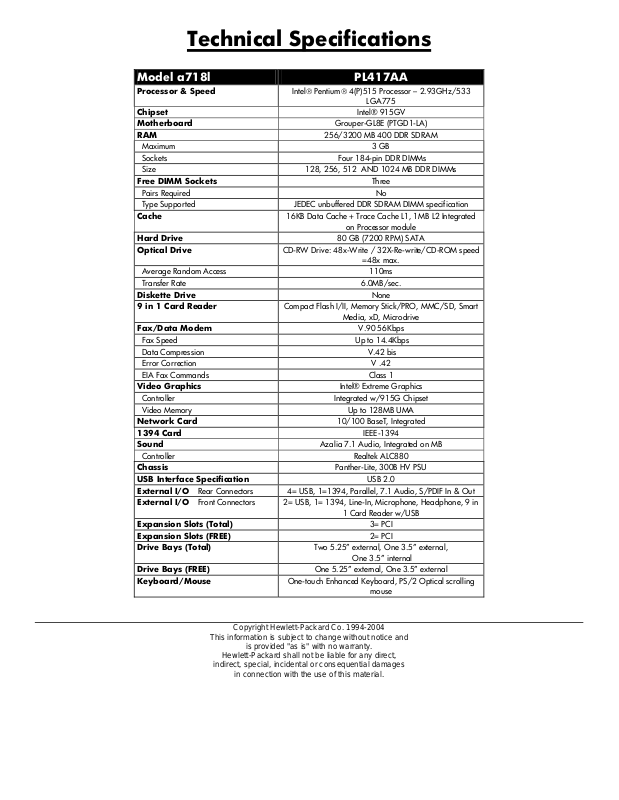

Technical Specifications

Model a718l PL417AA

Processor & Speed Intel® Pentium® 4(P)515 Processor – 2.93GHz/533

LGA775

Chipset Intel® 915GV
Motherboard Grouper-GL8E (PTGD1-LA)
RAM 256/3200 MB 400 DDR SDRAM

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 80 GB (7200 RPM) SATA
Optical Drive CD-RW Drive: 48x-Write / 32X-Re-write/CD-ROM speed

=48x max.
Average Random Access 110ms
Transfer Rate 6.0MB/sec.

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive
Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/915G Chipset
Video Memory Up to 128MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Panther-Lite, 300B HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel, 7.1 Audio, S/PDIF In & Out
External I/O Front Connectors 2= USB, 1= 1394, Line-In, Microphone, Headphone, 9 in

1 Card Reader w/USB

Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

indirect, special, incidental or consequential damages

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

in connection with the use of this material.
