1 Product Features

The HP Compaq 6000 Pro All-In One Business PC offers the following features:

● Processors: Intel® Pentium™ Dual Core, Core™ 2 Duo, and Celeron Core 2 Duo processors up

to 65w

● Chipset: Intel G41

● Display panel: 20” 16:9 1600x900 TN CCFL non glare

Memory: DDR3-1333; 2 SODIMMs, 4 GB maximum

●

Optical drive: 1 SlimTray DVDRW

●

Graphics: UMA graphics only, GMA X4500

●

Power supply: 150W

●

● Connectivity: Gigabit; b/g/n (1x1 with 1 internal antenna)

● Keyboard: wired

Mouse: wired

●

Webcam: VGA low light, single mic

●

Audio: AMD (Realtek ALC269)

●

Preinstalled operating systems:

●

◦ Windows 7 Professional Edition 32 with optional XP Mode (Americas)

◦ Windows 7 Professional Edition 64 with optional XP Mode (Americas)

Windows 7 Starter Edition 32 (Latin America only)

◦

Windows 7 Home Basic 64 (Latin America only)

◦

FreeDOS (Latin America only)

◦

Red Flag Linux (Latin America only)

◦

● Card reader: 6-in-1 using ALCOR Micro AU6433

● SATA drives: 2 total: 1x 3.5" HDD + 1x slim slot ODD @ 3Gb/s

Side I/O: Card reader, 2x USB-2, Mic-In and Headphone

●

Rear I/O: Power-In, RJ45, Audio-Out, 4x USB-2

●

Expansion slot: 1x half-size – for WLAN only

●

Ethernet LAN: Realtek RL8111E 10/100/1000

●

Front Components

Component Component

(1) Webcam LED indicator (optional) (8) Brightness decrease button

(2) Webcam (optional) (9) Drive activity LED

(3) Integrated microphone (optional along w/

webcam)

(4) 20-inch diagonal 16:9 widescreen 1600 x

900 LCD display

(5) Optical drive (12) Adjustable tilt stand

(6) Optical drive eject button (13) HP optical mouse

(7) Brightness increase button (14) HP low-profile keyboard with numeric keypad

(10) Power button and LED

(11) High-performance stereo speakers

2 Chapter 1 Product Features

Rear and Side Components

Component Component

(1) Media Card Reader LED (9) Memory access

(2) HP 6-in-1 Media Card Reader (10) (4) USB 2.0 ports

(3) (2) USB 2.0 ports (11) Stereo audio line out

(4) Microphone jack (12) RJ-45 Gigabit Ethernet port

(5) Headphone jack (13) Power connector with LED indicator

(6) Hard drive access (must remove panel) (14) Adjustable tilt stand

(7) Optical drive access (must remove panel) (15) Access cover panel

(8) Removable access panels (must remove

panel)

(16) Lock slot

Rear and Side Components 3

2 Installing and Customizing the

Software

If your computer was not shipped with a Microsoft operating system, some portions of this documentation do not apply. Additional information is available in online help after you install the operating system.

CAUTION: Do not add optional hardware or third-party devices to the computer until the operating

system is successfully installed. Doing so may cause errors and prevent the operating system from installing properly.

NOTE: Be sure there is a 10.2-cm (4-inch) clearance at the back of the unit and above the monitor

to permit the required airflow.

Installing the Operating System

The first time you turn on the computer, the operating system is installed automatically. This process takes about 5 to 10 minutes, depending on which operating system is being installed. Carefully read and follow the instructions on the screen to complete the installation.

CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER

UNTIL THE PROCESS IS COMPLETE. Turning off the computer during the installation process may damage the software that runs the computer or prevent its proper installation.

NOTE: If the computer shipped with more than one operating system language on the hard drive,

the installation process could take up to 60 minutes.

Downloading Microsoft Windows Updates

1. To set up your Internet connection, click Start > Internet Explorer and follow the instructions on

the screen.

2. Once an Internet connection has been established, click the Start button.

3. Select the All Programs menu.

4 Chapter 2 Installing and Customizing the Software

4. Click on the Windows Update link.

In Windows 7, the Windows Update screen appears. Click view available updates and make sure all critical updates are selected. Click the Install button and follow the instructions on the screen.

It is recommended that you install all of the critical updates and service packs.

5. After the updates have been installed, Windows will prompt you to reboot the machine. Be sure

to save any files or documents that you may have open before rebooting. Then select Yes to reboot the machine.

Installing or Upgrading Device Drivers (Windows systems)

When installing optional hardware devices after the operating system installation is complete, you must also install the drivers for each of the devices.

If prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse button in the dialog box to locate the i386 folder. This action points the operating system to the appropriate drivers.

Obtain the latest support software, including support software for the operating system from

http://www.hp.com/support. Select your country and language, select Download drivers and

software (and firmware), enter the model number of the computer, and press Enter.

Protecting the Software

To protect the software from loss or damage, keep a backup copy of all system software, applications, and related files stored on the hard drive. Refer to the operating system or backup utility documentation for instructions on making backup copies of your data files.

Installing or Upgrading Device Drivers (Windows systems) 5

3 Computer Setup (F10) Utility

Computer Setup (F10) Utilities

Use Computer Setup (F10) Utility to do the following:

Change factory default settings.

●

Set the system date and time.

●

● Set, view, change, or verify the system configuration, including settings for graphics, audio,

storage, communications, and input devices.

View settings for processor and memory.

●

● Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash

media devices.

Run hard drive self-tests.

●

● Establish a supervisor password that controls access to Computer Setup (F10) Utility and the

settings described in this section.

Using Computer Setup (F10) Utilities

Computer Setup can be accessed only by turning the computer on or restarting the system. To access the Computer Setup Utilities menu, complete the following steps:

1. Turn on or restart the computer.

2. Press either Esc or F10 while the “Press the ESC key for Startup Menu” message is displayed at

the bottom of the screen.

Pressing Esc displays a menu that allows you to access different options available at startup.

NOTE: If you do not press Esc or F10 at the appropriate time, you must restart the computer

and again press Esc or F10 when the monitor light turns green to access the utility.

3. If you pressed Esc, press F10 to enter Computer Setup.

4. The Computer Setup Utility screen is divided into menu headings and actions.

Five menu headings appear on the Computer Setup Utility screen:

Main

●

Advanced

●

6 Chapter 3 Computer Setup (F10) Utility

Power

●

Boot

●

Exit

●

Use the arrow keys to select the appropriate heading, then press Enter. Use the arrow (up and down) keys to select the option you want, then press Enter. To return to the previous screen, press Esc.

CAUTION: Do NOT turn the computer power OFF while the ROM is saving the Computer Setup

(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only after exiting the F10 Setup screen.

Computer Setup—Main

NOTE: Support for specific Computer Setup options may vary depending on the hardware

configuration.

Table 3-1 Computer Setup—Main

Option Description

System Time Allows you to set system time.

System Date Allows you to set system date.

System IDs (view only)

Product Name

Serial Number

UUID

SKU Number

Family Name

Asset Tag

Feature Byte

Build ID

Language Allows you to select language.

Floppy Diskette A Specifies the capacity and physical size, if installed.

Computer Setup (F10) Utilities 7

Table 3-1 Computer Setup—Main (continued)

1st Drive

2nd Drive

System Information (view only)

For each, allows you to set:

● Port Configuration - enable/disable (default is enabled)

Capacity (Size - HDD only; view only)

Transfer mode (view only)

● Smart Support - run HDD self-test for selected channel:

◦

◦ SMART Extended Self-Test

● Installed Memory

Memory Bank 1

●

Memory Bank 2

●

● BIOS Revision

● Core Version

SMART Status Check

SMART Short Self-Test

8 Chapter 3 Computer Setup (F10) Utility

Computer Setup—Advanced

NOTE: Support for specific Computer Setup options may vary depending on the hardware

configuration.

WARNING! Setting items on this menu to incorrect values may cause your system to malfunction.

Table 3-2 Computer Setup—Advanced

Option Description

CPU Type (view only)

CPU Speed (view only)

Cache RAM (view only)

Supervisor Password Allows you to establish, disable, or change the supervisor password.

User Password Allows you to establish, disable, or change the user password.

NOTE: Only displays if a Supervisor password is set.

Onboard LAN Allows you to disable/enable onboard LAN controller. Default is enabled.

Onboard WLAN Allows you to disable/enable onboard WLAN controller. Default is enabled.

Onboard LAN Boot ROM

Onboard 1394 Allows you to enable/disable all 1394 ports. Default is enabled.

Primary Video Adapter Allows you to select the boot display device when more than 2 video options are offered by the

SATA Controller Allows you to disable/enable the SATA controller. Default is enabled.

SATA Controller Mode If SATA Controller is enabled, allows you to set the mode to:

Onboard Audio Allows you to set the onboard audio to:

USB Ports Allows you to individually disable/enable USB ports. Default is enabled.

Change Supervisor Password

Allows you to disable/enable the boot ROM of the onboard LAN chip. Default is enabled.

system:

Integrated (Onboard)

●

PCI-E

●

● IDE

● AHCI (default)

● Auto (default)

Disabled

●

Enabled

●

Allows you to change the supervisor password. Press Enter to change the password. Press Enter again to disable the password.

Computer Setup—Power

NOTE: Support for specific Computer Setup options may vary depending on the hardware

configuration.

Computer Setup (F10) Utilities 9

Table 3-3 Computer Setup—Power

Option Description

After AC Power Failure

XD(Execute Disable) Disables/enables XD bit. Default is enabled.

Virtualization Technology

WOL in S5 Allows you to enable/disable limited (normal shutdown) WOL from S5 support. Default is disabled.

Allows you to select system restart behavior after power loss:

● Stay Off (default)

●

Allows you to enable/disable the virtualization features of the processor. Changing this setting requires turning the computer off and then back on. Default is disabled.

Computer Setup—Boot

NOTE: Support for specific Computer Setup options may vary depending on the hardware

configuration.

Table 3-4 Computer Setup—Boot

Option Description

Boot-time Diagnostic Screen

ESC: Boot Menu Enables/disables the ability to press the Esc key to access the boot menu during boot.

Disables/enables POST diagnostic messages display. Default is disabled.

Power On

Auto

F9: Diagnostics Enables/disables the ability to press the F9 key to access the Diagnostics menu during boot.

F10: Setup Enables/disables the ability to press the F10 key to access the Setup menu during boot.

F11: Recovery Enables/disables the ability to press the F11 key to access the recovery menu during boot.

F12: Boot from LAN Enables/disables the ability to press the F12 key to boot from LAN.

Boot Device Priority

1st Boot Device

2nd Boot Device

3rd Boot Device

4th Boot Device

Floppy Group Boot Priority

CD-ROM Group Boot Priority

Allows you to specify which device groups will boot first, second, third, and fourth or to disable any of the four:

Floppy Group

●

CD-ROM Group

●

Hard Drive Group

●

Network Boot Group

●

NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating

system has started.

Specifies boot device priority within removable devices.

Press Enter to select the device, up or down arrow to move the selected device, Enter to select the device, Esc to abort.

Specifies boot device priority within CD/DVD drives.

10 Chapter 3 Computer Setup (F10) Utility

Table 3-4 Computer Setup—Boot (continued)

Hard Drive Group Boot Priority

Network Group Boot Priority

Computer Setup—Exit

NOTE: Support for specific Computer Setup options may vary depending on the hardware

configuration.

Table 3-5 Computer Setup—Exit

Option Description

Exit Saving Changes Press Enter to exit saving changes.

Exit Discarding Changes

Load Setup Defaults Press Enter to load setup defaults.

Discard Changes Press Enter to discard changes.

Save Changes Press Enter to save changes.

Specifies boot device priority within hard drives.

Specifies boot device priority within bootable network devices.

Press Enter to exit discarding changes.

Recovering the Configuration Settings

To reset all BIOS Setup options to their default values (including options for Ctrl+F10), you must enter F10 Setup mode and press F5.

This does not include updates to system date, system time, supervisor password, user password, and CPU frequency multiplier.

Recovering the Configuration Settings 11

4 Serial ATA (SATA) Drive Guidelines

and Features

NOTE: HP only supports the use of SATA hard drives on these models of computer. No Parallel

ATA (PATA) drives are supported.

SATA Hard Drives

Serial ATA Hard Drive Characteristics

Number of pins/conductors in data cable 7/7

Number of pins in power cable 15

Maximum data cable length 39.37 in (100 cm)

Data interface voltage differential 400-700 mV

Drive voltages 3.3 V, 5 V, 12 V

Jumpers for configuring drive N/A

Data transfer rate 3.0 Gb/s

SATA Hard Drive Cables

SATA Data Cable

Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA

1.5 Gb/s drives.

Current HP desktop products ship with SATA 3.0 Gb/s hard drives.

SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never bend it tighter than a 30 mm (1.18 in) radius.

The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.

12 Chapter 4 Serial ATA (SATA) Drive Guidelines and Features

SMART ATA Drives

The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers have built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is imminent, it generates a fault alert.

Hard Drive Capacities

The combination of the file system and the operating system used in the computer determines the maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may be properly accessed by the operating system. A single hard drive may therefore be subdivided into a number of unique drive partitions in order to make use of all of its space.

Because of the differences in the way that drive sizes are calculated, the size reported by the operating system may differ from that marked on the hard drive or listed in the computer specification. Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by Microsoft are bytes to the base 2.

Maximum Size

File System Controller Type Operating System Partition Drive

Drive/Partition Capacity Limits

FAT 32 ATA Windows XP/Vista/Windows 7 32 GB 2 TB

NTFS ATA Windows XP/Vista/Windows 7 2 TB 2 TB

SMART ATA Drives 13

5 Identifying the Chassis, Routine Care,

and Disassembly Preparation

This chapter provides general service information for the computer. Adherence to the procedures and precautions described in this chapter is essential for proper service.

CAUTION: When the computer is plugged into an AC power source, voltage is always applied to

the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

Chassis Designation

An all-in one form factor is available.

All-in One

14 Chapter 5 Identifying the Chassis, Routine Care, and Disassembly Preparation

Electrostatic Discharge Information

A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal cycle. The device may function normally for a while, but it has been degraded in the internal layers, reducing its life expectancy.

Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

Generating Static

The following table shows that:

Different activities generate different amounts of static electricity.

●

● Static electricity increases as humidity decreases.

Relative Humidity

Event 55% 40% 10%

Walking across carpet

Walking across vinyl floor

Motions of bench worker

Removing DIPs* from plastic tube

Removing DIPs* from vinyl tray

Removing DIPs* from Styrofoam

Removing bubble pack from PCB

Packing PCBs in foam-lined box

*DIPs are Dual in-line packages, used for packaging integrated circuits.

DIPs are multi-packaged inside plastic tubes, trays, or Styrofoam.

7,500 V

3,000 V

400 V

2,000 V

3,500 V

7,000 V

5,000 V

NOTE: 700 volts can degrade a product.

Preventing Electrostatic Damage to Equipment

Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric components and accessories.

15,000 V

5,000 V

800 V

700 V

4,000 V

5,000 V

20,000 V

11,000 V

35,000 V

12,000 V

6,000 V

2,000 V

11,500 V

14,500 V

26,500 V

21,000 V

To avoid hand contact, transport products in static-safe containers such as tubes, bags, or

●

boxes.

Protect all electrostatic parts and assemblies with conductive or approved containers or

●

packaging.

Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.

●

Electrostatic Discharge Information 15

Place items on a grounded surface before removing them from their container.

●

Always be properly grounded when touching a sensitive component or assembly.

●

Avoid contact with pins, leads, or circuitry.

●

Place reusable electrostatic-sensitive parts from assemblies in protective packaging or

●

conductive foam.

Personal Grounding Methods and Equipment

Use the following equipment to prevent static electricity damage to equipment:

● Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground

cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord must be connected and fit snugly into the banana plug connector on the grounding mat or workstation.

● Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible

with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.

Static Shielding Protection Levels

Method Voltage

Antistatic plastic

Carbon-loaded plastic

Metallized laminate

Grounding the Work Area

To prevent static damage at the work area, use the following precautions:

Cover the work surface with approved static-dissipative material. Provide a wrist strap connected

●

to the work surface and properly grounded tools and equipment.

Use static-dissipative mats, foot straps, or air ionizers to give added protection.

●

Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.

●

Handle them only at static-free work areas.

Turn off power and input signals before inserting and removing connectors or test equipment.

●

Use fixtures made of static-safe materials when fixtures must directly contact dissipative

●

surfaces.

Keep work area free of nonconductive materials such as ordinary plastic assembly aids and

●

Styrofoam.

Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.

●

1,500

7,500

15,000

16 Chapter 5 Identifying the Chassis, Routine Care, and Disassembly Preparation

Recommended Materials and Equipment

Materials and equipment that are recommended for use in preventing static electricity include:

● Antistatic tape

Antistatic smocks, aprons, or sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Conductive foam

●

Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance

●

● Static-dissipative table or floor mats with hard tie to ground

● Field service kits

Static awareness labels

●

Wrist straps and footwear straps providing one-megohm +/- 10% resistance

●

Material handling packages

●

Conductive plastic bags

●

● Conductive plastic tubes

● Conductive tote boxes

Opaque shielding bags

●

Transparent metallized shielding bags

●

Transparent shielding tubes

●

Operating Guidelines

To prevent overheating and to help prolong the life of the computer:

● Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and

cold.

Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all

●

vented sides of the computer and above the monitor to permit the required airflow.

Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the

●

keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also restricts airflow.

● Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign

matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning the air vents.

Never operate the computer with the cover removed.

●

Do not place computers so near each other that they are subject to each other’s re-circulated or

●

preheated air.

Keep liquids away from the computer and keyboard.

●

Operating Guidelines 17

Never cover the ventilation slots on the monitor with any type of material.

●

Install or enable power management functions of the operating system or other software,

●

including sleep states.

Routine Care

General Cleaning Safety Precautions

1. Never use solvents or flammable solutions to clean the computer.

2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and

then use the cloth on the component.

3. Always unplug the computer when cleaning with liquids or damp cloths.

4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.

5. Disconnect the keyboard before cleaning it.

6. Wear safety glasses equipped with side shields when cleaning the keyboard.

Cleaning the Computer Case

Follow all safety precautions in General Cleaning Safety Precautions on page 18 before cleaning the computer.

To clean the computer case, follow the procedures described below:

● To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.

● For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with

a cloth or swab dampened with clear water.

● For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will

evaporate quickly and not leave a residue.

After cleaning, always wipe the unit with a clean, lint-free cloth.

●

● Occasionally clean the air vents on the computer. Lint and other foreign matter can block the

vents and limit the airflow.

Cleaning the Keyboard

Follow all safety precautions in General Cleaning Safety Precautions on page 18 before cleaning the keyboard.

To clean the tops of the keys or the keyboard body, follow the procedures described in

Computer Case on page 18.

When cleaning debris from under the keys, review all rules in

on page 18 before following these procedures:

Cleaning the

General Cleaning Safety Precautions

18 Chapter 5 Identifying the Chassis, Routine Care, and Disassembly Preparation

CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from

under the keys.

Visible debris underneath or between the keys may be removed by vacuuming or shaking.

●

Canned, pressurized air may be used to clean debris from under the keys. Caution should be

●

used as too much air pressure can dislodge lubricants applied under the wide keys.

If you remove a key, use a specially designed key puller to prevent damage to the keys. This

●

tool is available through many electronic supply outlets.

CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these

keys are improperly removed or installed, the keyboard may not function properly.

Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed

●

out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.

Cleaning the Monitor

Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for

●

cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into the housing and damage a component. Never use solvents or flammable liquids on the monitor.

To clean the monitor body follow the procedures in

●

Cleaning the Mouse

Before cleaning the mouse, ensure that the power to the computer is turned off.

Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out

●

any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.

To clean the mouse body, follow the procedures in

●

Service Considerations

Listed below are some of the considerations that you should keep in mind during the disassembly and assembly of the computer.

Tools and Software Requirements

To service the computer, you need the following:

Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)

●

Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)

●

Phillips #2 screwdriver

●

Cleaning the Computer Case on page 18.

● Diagnostics software

● HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamper-

resistant bits (Smart Cover FailSafe Key, PN 166527-002)

Service Considerations 19

Screws

The screws used in the computer are not interchangeable. They may have standard or metric threads and may be of different lengths. If an incorrect screw is used during the reassembly process, it can damage the unit. HP strongly recommends that all screws removed during disassembly be kept with the part that was removed, then returned to their proper locations.

CAUTION: As each subassembly is removed from the computer, it should be placed away from the

work area to prevent damage.

Cables and Connectors

Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced.

CAUTION: When servicing this computer, ensure that cables are placed in their proper location

during the reassembly process. Improper cable placement can damage the computer.

Hard Drives

Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies to failed drives as well as replacement spares.

If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective

●

packaging and label the package “Fragile: Handle With Care.”

Do not remove hard drives from the shipping package for storage. Keep hard drives in their

●

protective packaging until they are actually mounted in the CPU.

Avoid dropping drives from any height onto any surface.

●

If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive

●

while the computer is on or in standby mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a

●

drive, avoid touching the connector. For more information about preventing electrostatic damage, refer to

Do not use excessive force when inserting a drive.

●

● Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic

fields such as monitors or speakers.

Electrostatic Discharge Information on page 15

Lithium Coin Cell Battery

The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime of about three years.

See the appropriate removal and replacement chapter for the chassis you are working on in this guide for instructions on the replacement procedures.

20 Chapter 5 Identifying the Chassis, Routine Care, and Disassembly Preparation

WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the

battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the battery.

NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the

general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP, their authorized partners, or their agents.

Service Considerations 21

6 Illustrated parts catalog

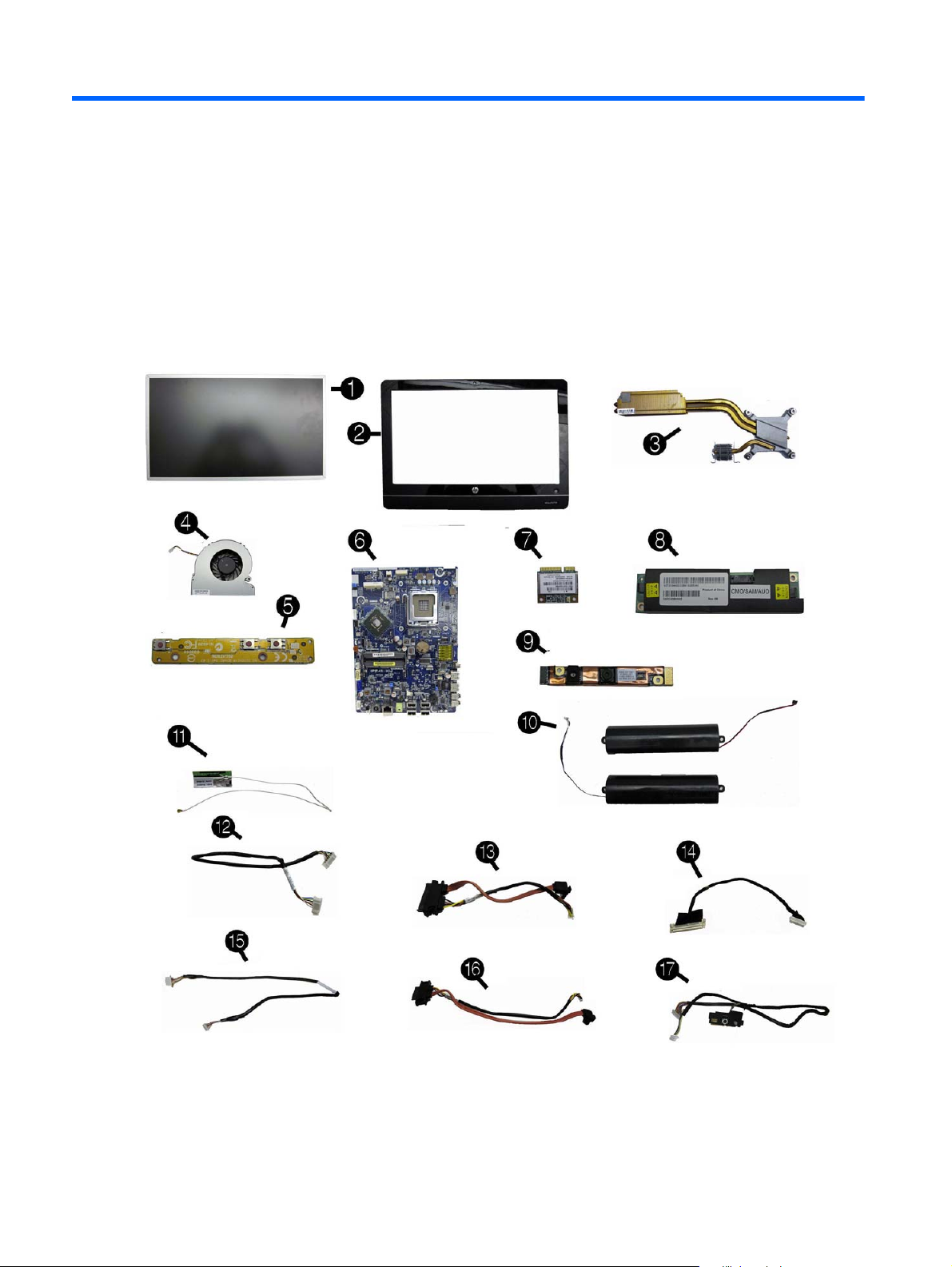

Computer major components

22 Chapter 6 Illustrated parts catalog

Item Description Spare part number

(1) Display panel, 20-inch, non-glare 646794-001

(2) Front bezel kit 704214-001

Memory modules (PC3-10600, 1333-MHz; not illustrated)

2-GB 651609-001

1-GB 651608-001

(3) Heat sink assembly (thermal module) (includes replacement thermal material) 651607-001

(4) Fan 651606-001

(5) Power button board 651585-001

(6) System board 648965-001

Thermal pads (installed under system board; not illustrated)

DIMM thermal pad (20mm x 50mm x 2.5mm) 651595-001

VRM thermal pad (15mm x 40mm x 4mm) 651596-001

(7) WLAN module (802.11b/g/n) (1x1 mini card) 634906-001

(8) Inverter board 651601-001

(9) Webcam module 651586-001

(10) Speakers

Right speaker 651597-001

Left speaker 651598-001

(11) WLAN antenna cable 651594-001

(12) Inverter cable 651588-001

(13) Optical drive cable 651590-001

(14) LVDS cable 651589-001

(15) Webcam cable 651591-001

(16) Hard drive cable 651592-001

(17) Power button/LED cable 651593-001

Processor (includes replacement thermal material; not illustrated))

Intel Core2 Duo processors

● E8400 (3.00-GHz, 6-MB L2 cache, 1333-MHz FSB) 509554-001

E8500 (3.16-GHz, 6-MB L2 cache, 1333-MHz FSB) 466170-001

●

E7600 (3.06-GHz, 3-MB L2 cache, 1066-MHz FSB) 573954-001

●

E7500 (2.93-GHz, 3-MB L2 cache, 1066-MHz FSB) 586745-001

●

Intel Pentium processors

E6800 (3.33-GHz, 2-MB L2 cache, 1066-MHz FSB) 631758-001

●

E6700 (3.20-GHz, 2-MB L2 cache, 1066-MHz FSB) 617840-001

●

Computer major components 23

Item Description Spare part number

● E5500 (2.80-GHz, 2-MB L2 cache, 800-MHz FSB) 613035-001

Intel Celeron processor

AC adapter, 150W (external; not illustrated) 651587-001

Hard drive (not illustrated)

1000-GB 621418-001

750-GB 632938-001

500-GB 621421-001

320-GB 621420-001

250-GB 621419-001

Optical drive (does not include bezel; not illustrated) 597927-001

Optical drive bezel 651599-001

Mouse, USB, optical, Portia (not illustrated) 621416-001

E5800 (3.20-GHz, 2-MB L2 cache, 800-MHz FSB) 646376-001

●

E5700 (3.00-GHz, 2-MB L2 cache, 800-MHz FSB) 631759-001

●

E3500 (2.70-GHz, 1-MB L2 cache, 800-MHz FSB) 633219-001

●

Mass storage devices

Description Spare part number

8X DVD±RW SuperMulti DL Drive with LightScribe 597927-001

Optical drive bracket (not illustrated) 651600-001

Optical drive bezel 651599-001

Hard drive

1000-GB 621418-001

750-GB 632938-001

500-GB 621421-001

320-GB 621420-001

250-GB 621419-001

Sequential part number listing

Spare part number

Description

466170-001 Intel Core2 Duo E8500 processor (3.16-GHz, 6-MB L2 cache, 1333-MHz FSB)

509554-001 Intel Core2 Duo E8400 processor (3.00-GHz, 6-MB L2 cache, 1333-MHz FSB)

24 Chapter 6 Illustrated parts catalog

Spare part number

573954-001 Intel Core2 Duo E7600 processor (3.06-GHz, 3-MB L2 cache, 1066-MHz FSB)

586745-001 Intel Core2 Duo E7500 processor (2.93-GHz, 3-MB L2 cache, 1066-MHz FSB)

597927-001 8X DVD±RW SuperMulti DL Drive with LightScribe

613035-001 Intel Core2 Duo E5500 processor (2.80-GHz, 2-MB L2 cache, 800-MHz FSB)

617840-001 Intel Core2 Duo E6700 processor (3.20-GHz, 2-MB L2 cache, 1066-MHz FSB)

621416-001 Mouse, USB, optical, Portia

621418-001 Hard drive, 1000 GB

621419-001 Hard drive, 250 GB

621420-001 Hard drive, 320 GB

621421-001 Hard drive, 500 GB

625256-001 Heat sink assembly, UMA graphic interface (thermal module) (includes replacement thermal material)

631758-001 Intel Pentium E6800 processor (3.33-GHz, 2-MB L2 cache, 1066-MHz FSB)

631759-001 Intel Pentium E5700 processor (3.00-GHz, 2-MB L2 cache, 800-MHz FSB)

632938-001 Hard drive, 750 GB

633219-001 Intel Core2 Duo E3500 processor (2.70-GHz, 1-MB L2 cache, 800-MHz FSB)

Description

634906-001 WLAN module (802.11b/g/n) (1x1 mini card)

646376-001 Intel Pentium E5800 processor (3.20-GHz, 2-MB L2 cache, 800-MHz FSB)

646794-001 Display, 20-inch, non-glare

648965-001 System board

651585-001 Power button board

651586-001 Webcam module

651587-001 AC adapter, 150W (external)

651588-001 Inverter cable

651589-001 LVDS cable

651590-001 Webcam

651591-001 Webcam cable

651592-001 Power button/LED cable

651593-001 Power button/LED cable

651594-001 WLAN antenna cable

651595-001 Thermal pad, DIMM (20mm x 50mm x 2.5mm)

651596-001 Thermal pad, VRM (15mm x 40mm x 4mm)

651597-001 Speaker, right

651598-001 Speaker, left

651599-001 Optical drive bezel

Sequential part number listing 25

Spare part number

651600-001 Optical drive bracket

651601-001 Inverter board

651606-001 Fan

651607-001 Heat sink assembly (thermal module) (includes replacement thermal material)

651608-001 1-GB memory module (PC3-10600, 1333-MHz)

651609-001 2-GB memory module (PC3-10600, 1333-MHz)

704214-001 Front bezel kit

Description

26 Chapter 6 Illustrated parts catalog

7 Removal and Replacement Procedures

All-in One (AIO) Chassis

The following sections provide information about disassembling various components of the HP Pro All-in-One.

Preparing to Disassemble the Computer

To avoid injury and equipment damage, always complete the following steps in order, when opening the HP Pro All-in-One.

1. Remove all media (CD, DVD, etc.) from the computer.

2. Shut down the computer.

3. After the system has completely shut down, disconnect the power adapter from the back of the

HP Pro All-in-One.

4. Disconnect all other attached cables from the back of the computer.

5. Place the computer face down on a soft flat surface. HP recommends that you set down a

blanket, towel, or other soft cloth to protect the touch screen surface from scratches or other damage.

WARNING! Beware of sharp edges inside the chassis.

Preparing to Disassemble the Computer 27

Small Rear Cover

The small rear cover is located above the stand. You must remove it to remove the stand.

To remove the small rear cover:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Pry the cover loose using the slot in the top of the cover (1), and then lift it off the computer (2).

Figure 7-1 Removing the small rear cover

Preparing to Disassemble the Computer

To replace the cover, reverse the removal procedures.

28 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Stand

The stand is secured with three screws.

To remove the stand:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the three Torx screws (1) that secure the stand to the computer.

5. Slide the stand toward the top of the computer (2), and then lift it off the computer.

Figure 7-2 Removing the stand

Small Rear Cover on page 28).

Preparing to Disassemble the Computer

To replace the stand, reverse the removal procedures.

Stand 29

Left Rear Cover

The left rear cover is located on the left, rear of the computer. You must remove it to access the optical drive and the hard drive.

To remove the left rear cover:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Slide the cover toward the left and off the computer.

Figure 7-3 Removing the left rear cover

Stand on page 29).

Small Rear Cover on page 28).

Preparing to Disassemble the Computer

To replace the left rear cover, reverse the removal procedures.

30 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Optical Drive

Description Spare part number

8X DVD±RW SuperMulti DL Drive with LightScribe 597927-001

Optical drive bracket 651600-001

Optical drive bezel 651599-001

The optical drive is located under the left rear cover. It is secured with one screw.

To remove the optical drive:

1. Prepare the computer for disassembly (see

Preparing to Disassemble the Computer

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

Stand on page 29).

5. Remove the left rear cover (see

Small Rear Cover on page 28).

Left Rear Cover on page 30).

6. Remove the screw (1) that secures the drive to the computer.

7. Insert a flat blade screwdriver into the slot and push (2) to disengage the drive, and then slide

the drive out of the computer (3).

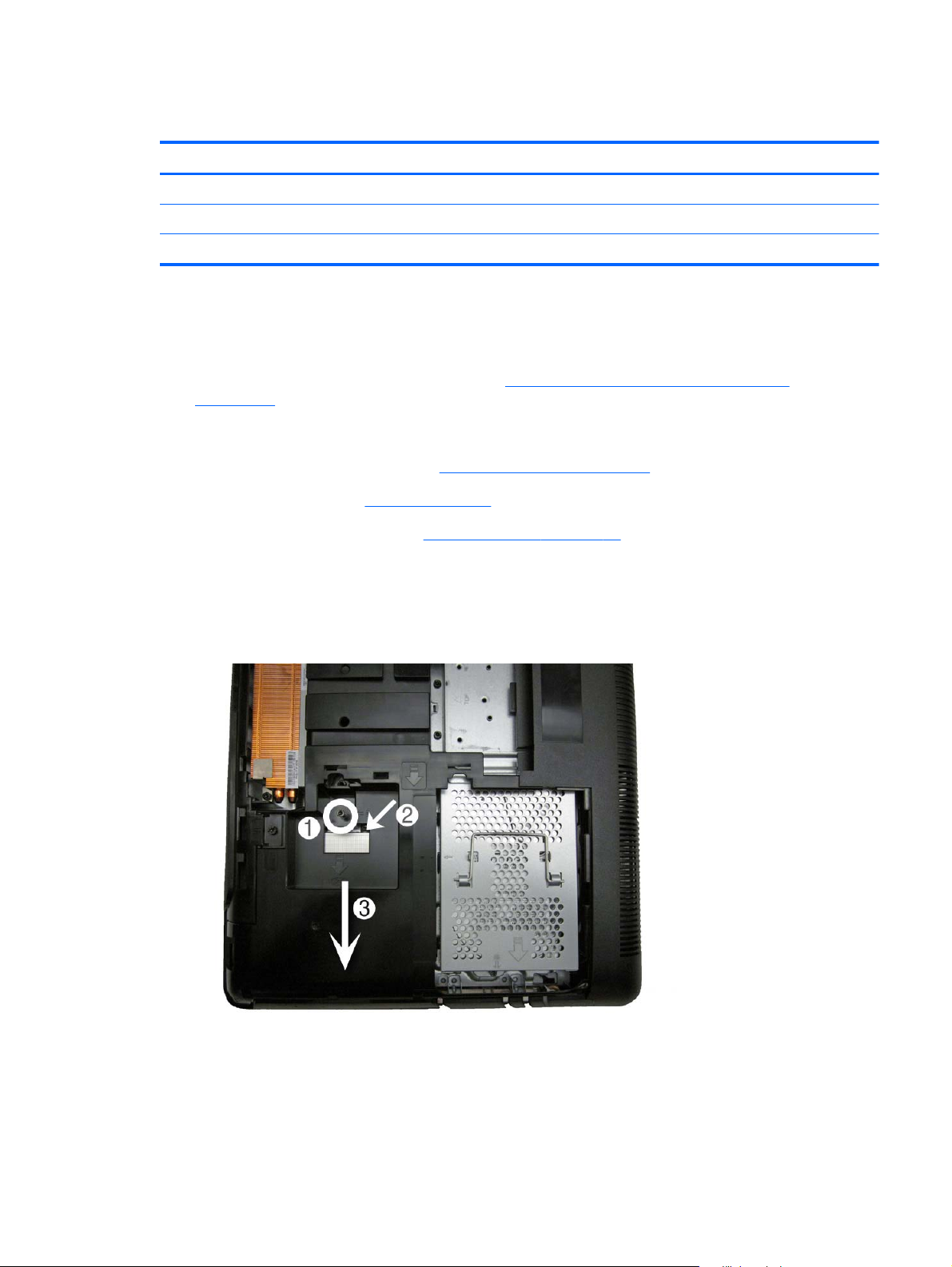

Figure 7-4 Removing the optical drive

Optical Drive 31

If you need to remove the optical drive bracket from the rear of the optical drive:

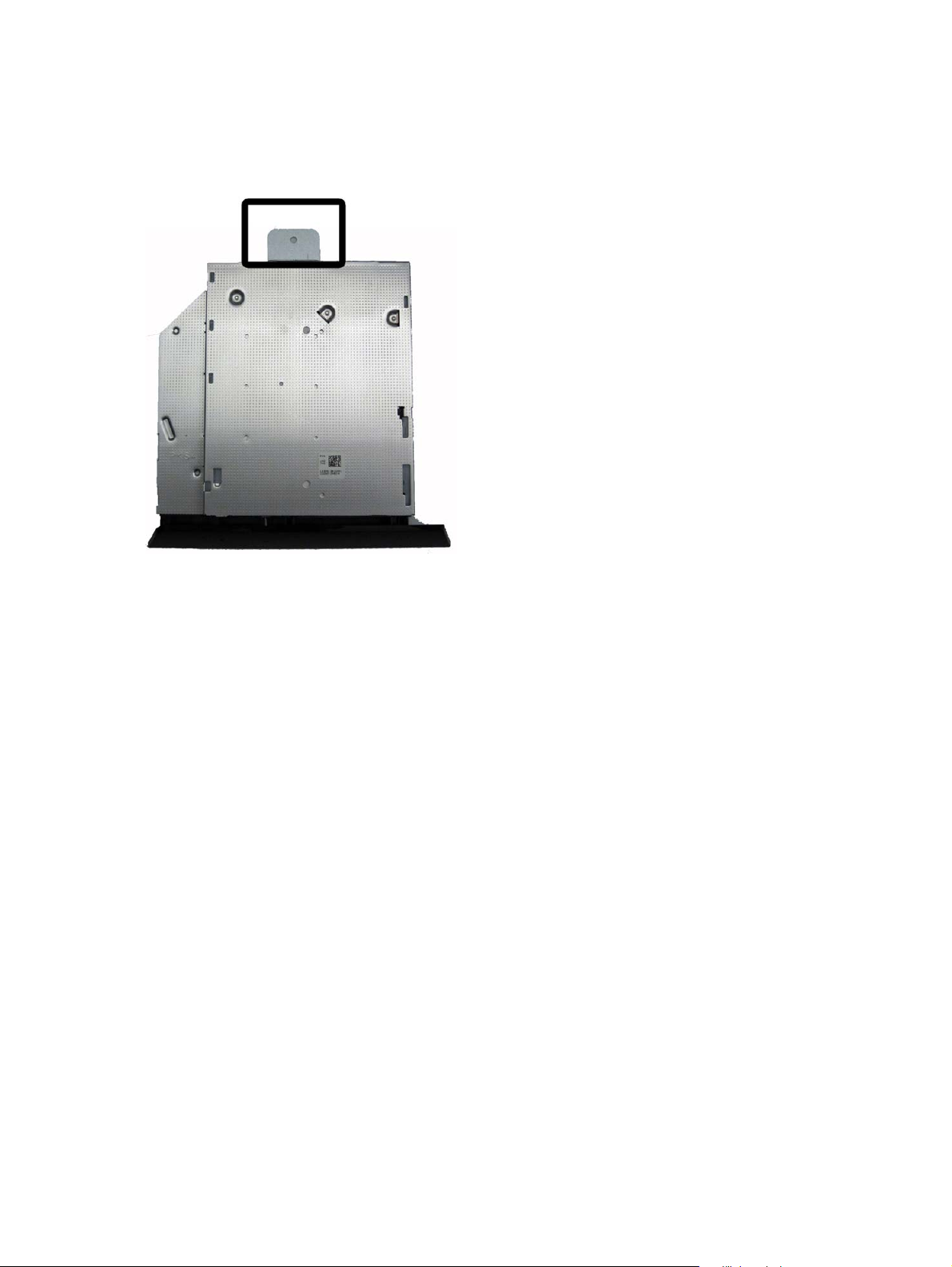

Figure 7-5 Optical drive bracket

1. Remove the two screws that secure the bracket to the drive.

2. Remove the bracket from the drive.

To install an optical drive, reverse the removal procedures.

32 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Hard Drive

Description Spare part number

1000-GB 621418-001

750-GB 632938-001

500-GB 621421-001

320-GB 621420-001

250-GB 621419-001

The hard drive is located under the left rear cover next to the optical drive. The hard drive is secured with one captive screw and is housed in a removable cage.

To remove the hard drive:

1. Prepare the computer for disassembly (see

Preparing to Disassemble the Computer

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

Stand on page 29).

5. Remove the left rear cover (see

Small Rear Cover on page 28).

Left Rear Cover on page 30).

6. Loosen the captive screw (1) that secures the drive to the computer.

7. Using the drive cage handle (2), slide the cage toward the side of the computer to disengage it

from the connector, and then lift the drive out of the computer (3).

Figure 7-6 Removing the hard drive

Hard Drive 33

8. To remove the hard drive from the hard drive cage, remove the four Phillips screws that secure

the drive to the cage, and then slide the drive out of the cage.

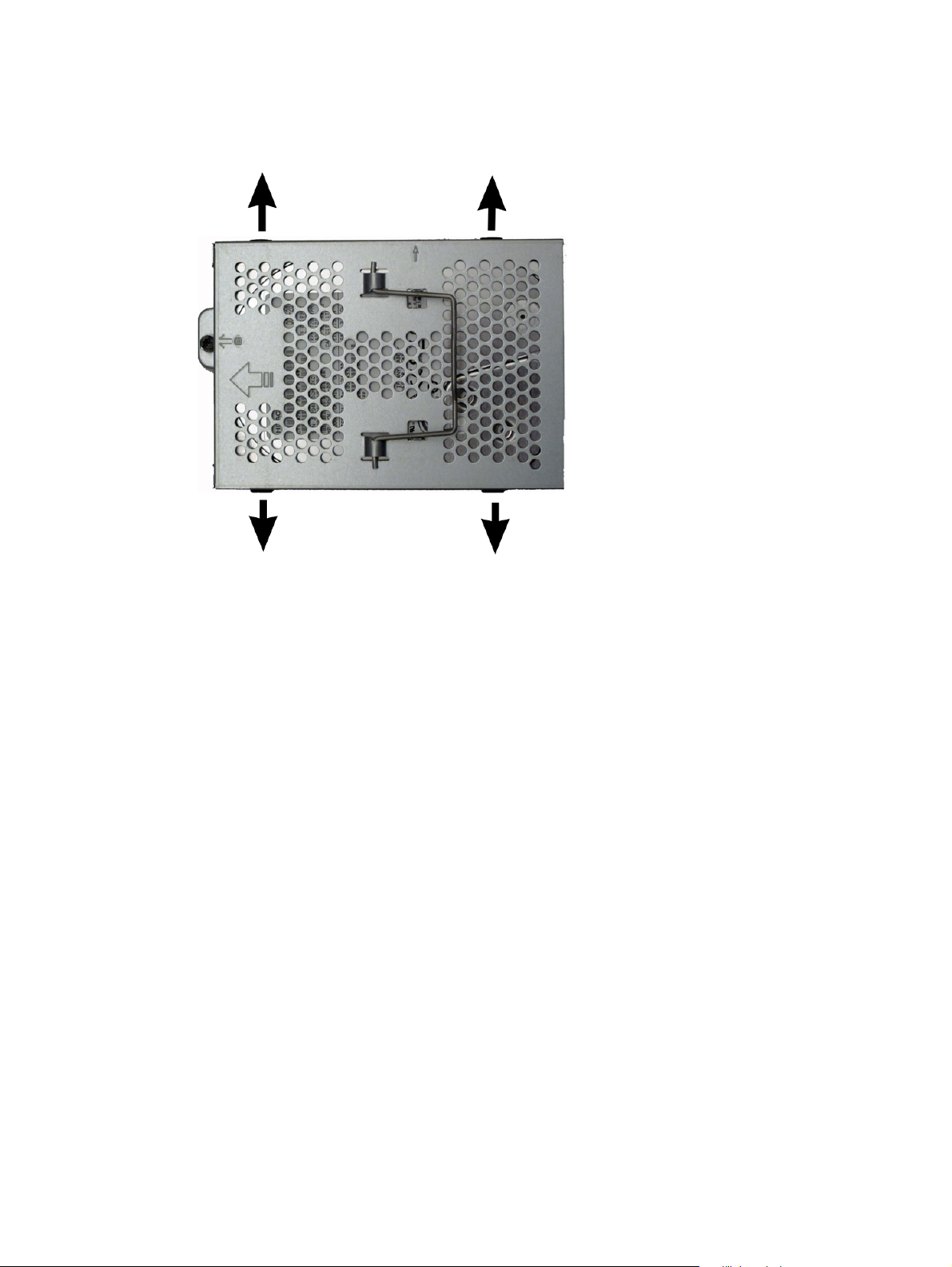

Figure 7-7 Removing the hard drive from the hard drive cage

To replace the hard drive, reverse the removal procedures.

34 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Right Rear Cover

The right rear cover is located on the right, rear of the computer. You must remove it to access memory and system board components.

To remove the right rear cover:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Slide the cover toward the right and off the computer.

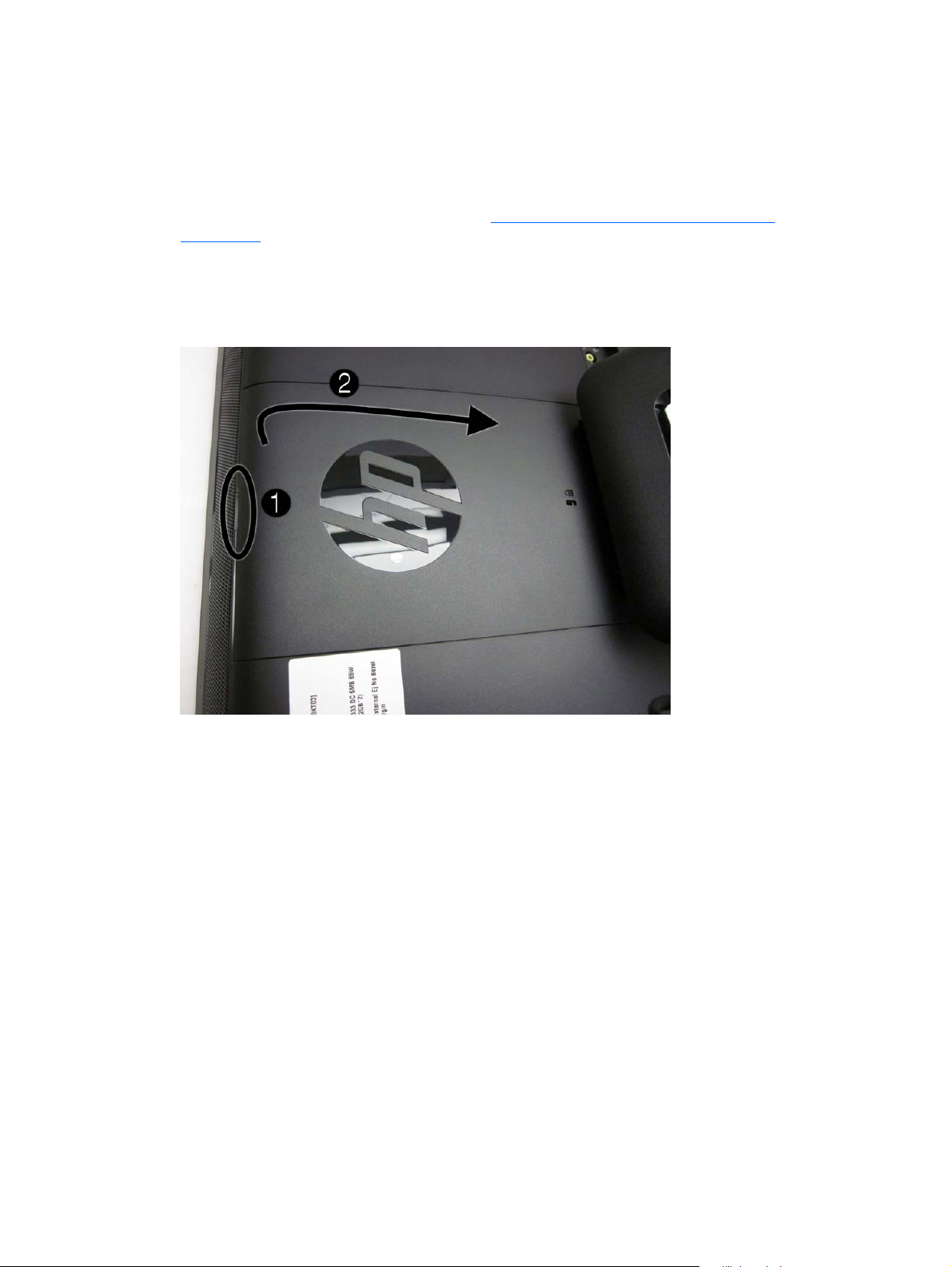

Figure 7-8 Removing the right rear cover

Stand on page 29).

Small Rear Cover on page 28).

Preparing to Disassemble the Computer

To replace the right rear cover, reverse the removal procedures.

Right Rear Cover 35

Memory

Description Spare part number

2 GB (PC3-10600, 1333-MHz) 651609-001

1 GB (PC3-10600, 1333-MHz) 651608-001

Memory modules are located on the right side of the computer under the memory cover. The computer has two stacked memory slots.

To remove a memory module:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Remove the right rear cover (see

6. Lift the memory cover off the computer.

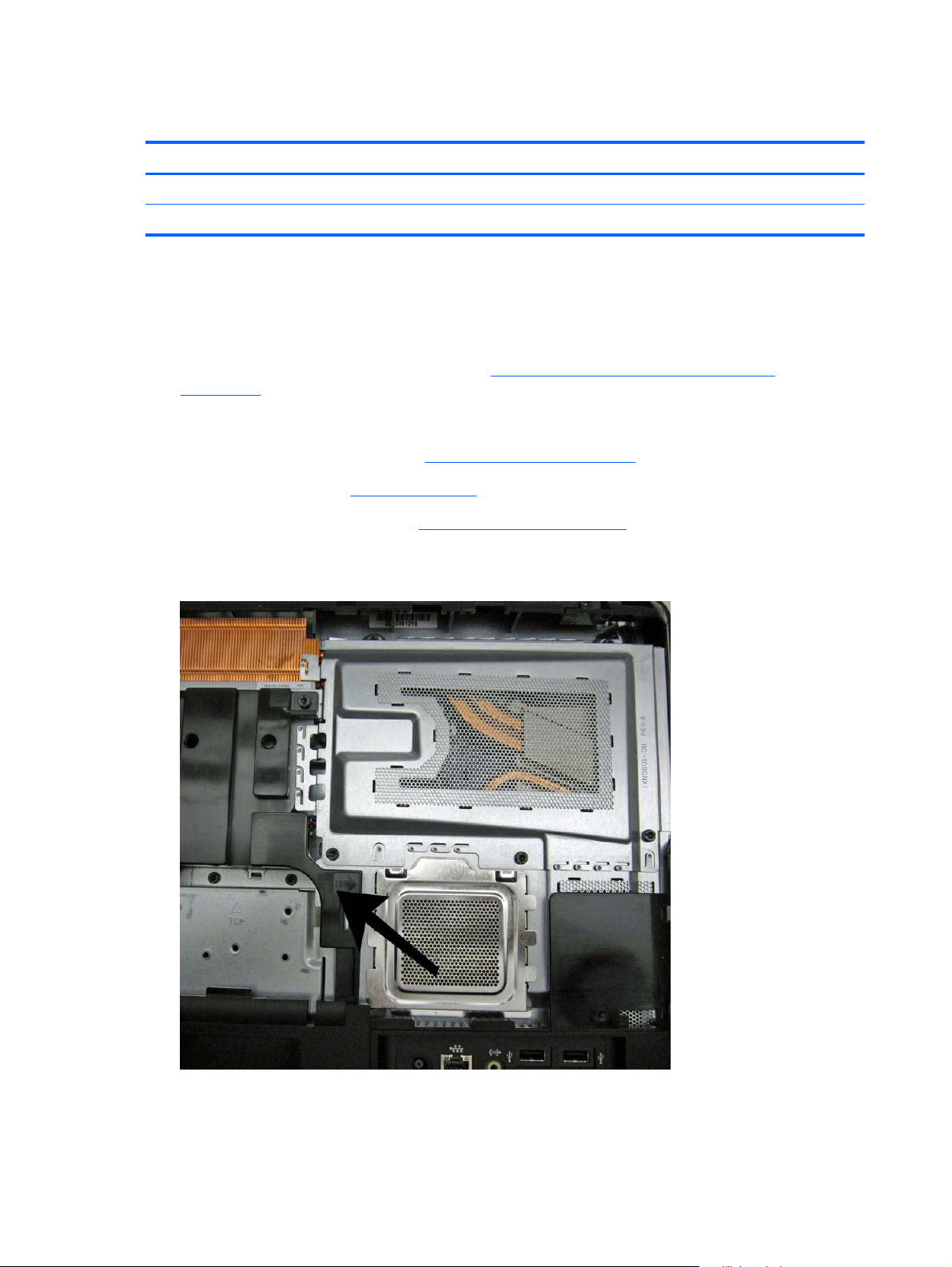

Figure 7-9 Removing the memory cover

Stand on page 29).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Preparing to Disassemble the Computer

36 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

7. Open both latches of the memory module socket (1), and remove the memory module from the

socket (2).

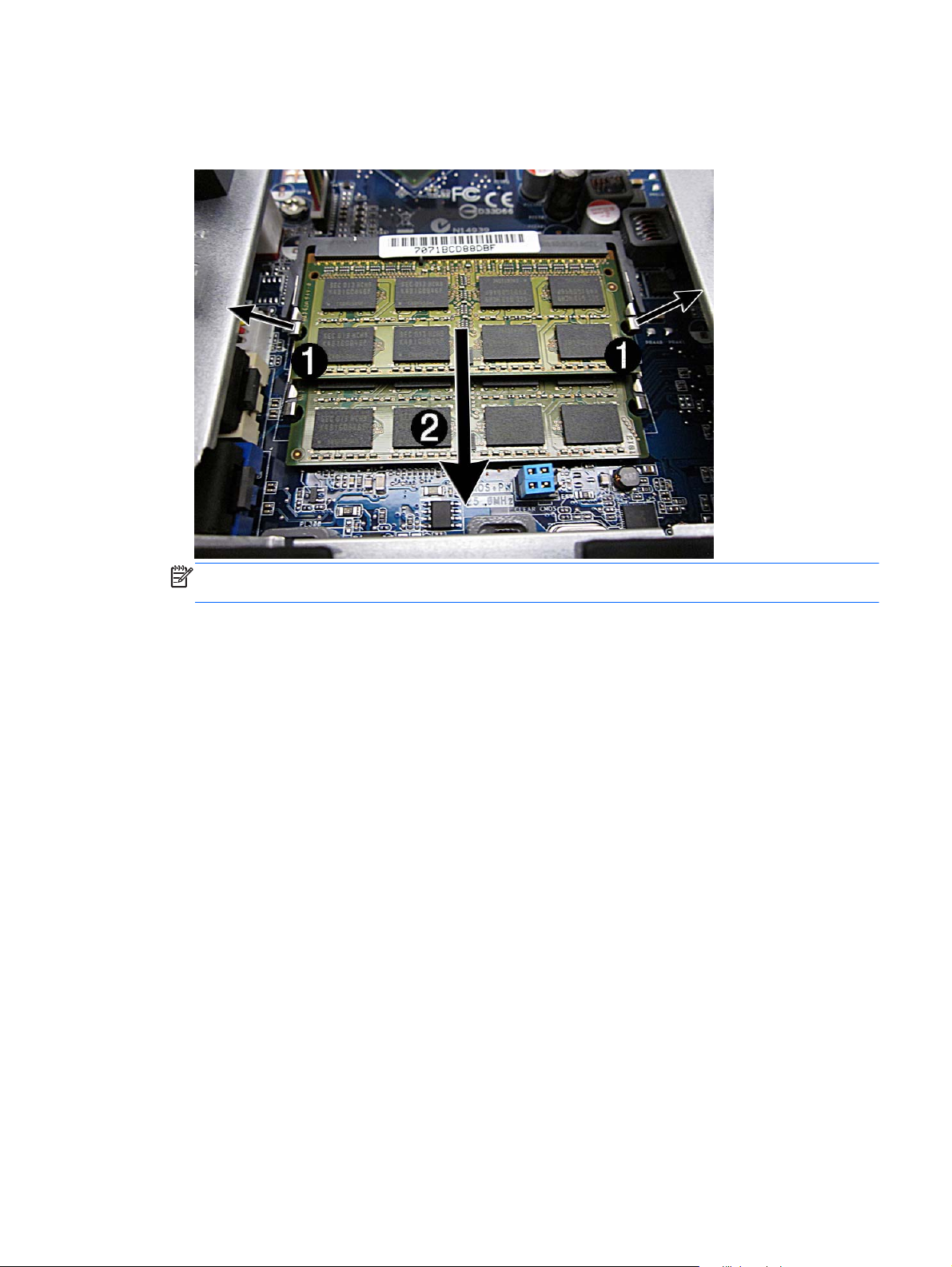

Figure 7-10 Removing the memory module

NOTE: If you are removing both cards, you must remove the upper one before removing the

lower one.

To install a memory module, reverse the removal procedures.

Memory 37

Heat Sink (Thermal Module)

Description Spare part number

Heat sink (thermal module) 651607-001

The heat sink is secured with five screws and four clips. You have to remove the heat sink cover to access the heat sink.

To remove the heat sink:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Remove the right rear cover (see

6. Remove the heat sink cover by removing the five screws that secure it to the computer (1), and

then lifting the cover off the computer (2).

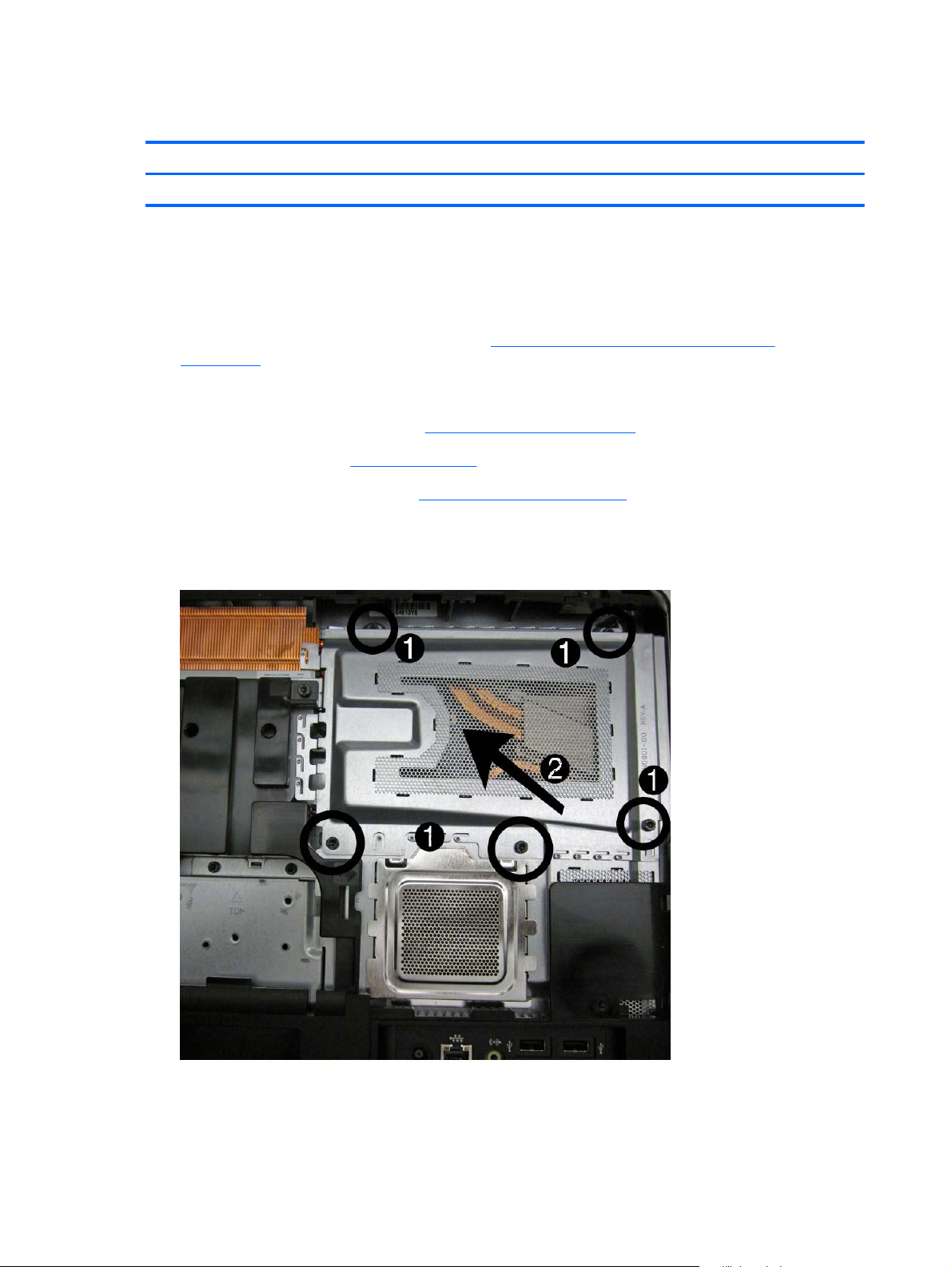

Figure 7-11 Removing the heat sink cover

Stand on page 29).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Preparing to Disassemble the Computer

7. Remove the screw at the top of the heat sink (1).

38 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

8. In the order indicated by the numbers stamped into the heat sink, remove the four screws (2)

that secure the heat sink to the system board.

9. Remove the four clips (3) that secure the bottom part of the heat sink over the graphics

processor.

NOTE: See the second image below for a closer view of the graphics heat sink levers and

hooks.

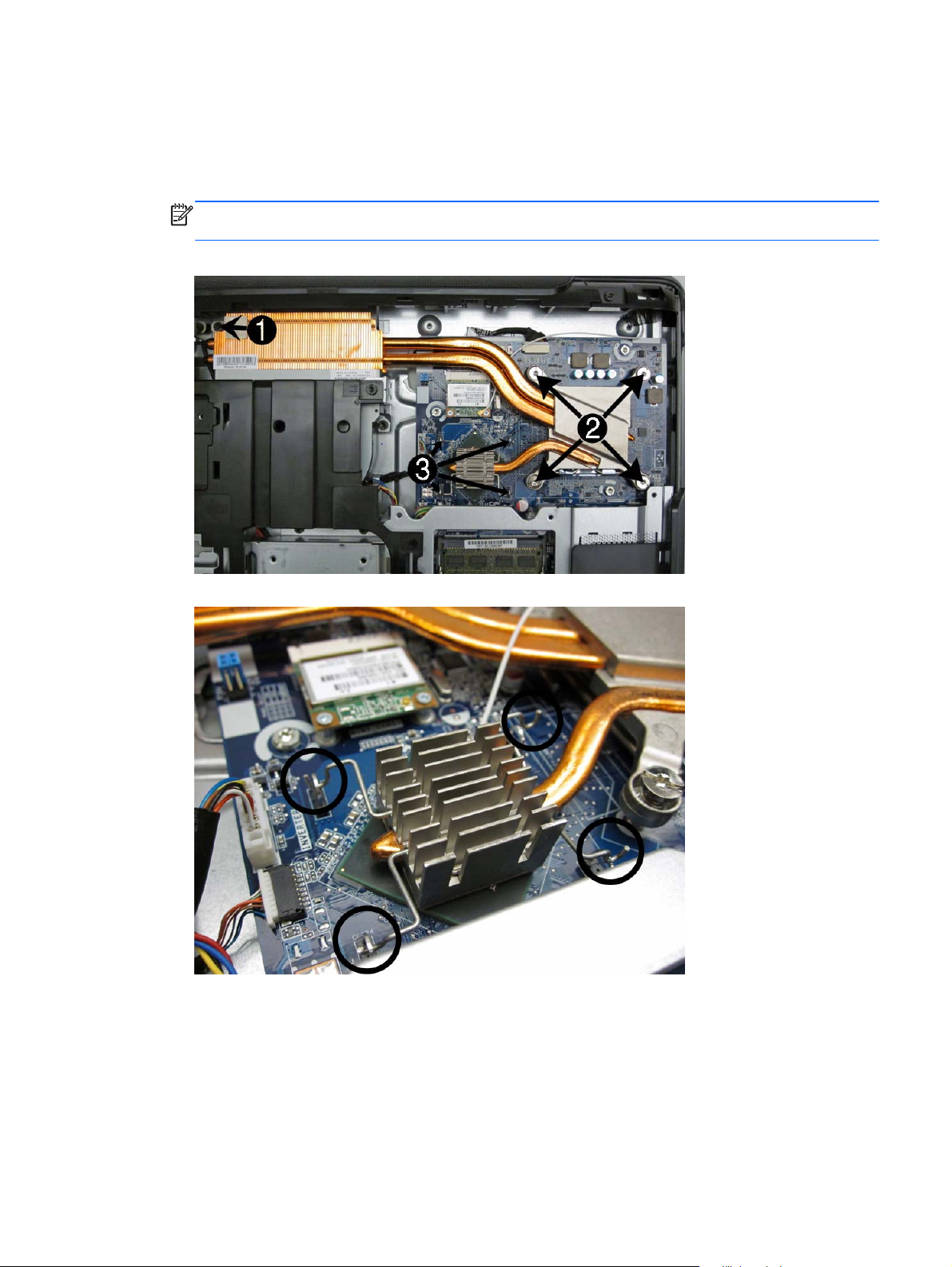

Figure 7-12 Removing the heat sink

Figure 7-13 Graphics heat sink levers and hooks

10. Lift the heat sink off the system board.

To replace the heat sink, reverse the removal procedures.

Heat Sink (Thermal Module) 39

Processor

Description Spare part number

Intel Core2 Duo processors (include replacement thermal material)

E8500, 6-MB cache, 3.16 GHz 466170-001

E8400, 6-MB cache, 3.00 GHz 509554-001

E7600, 3-MB cache, 3.06 GHz 573954-001

E7500, 3-MB cache, 2.93 GHz 586745-001

Intel Pentium processors (include replacement thermal material)

E6800, 2-MB cache, 3.33 GHz 631758-001

E6700, 2-MB cache, 3.20 GHz 617840-001

E5800, 2-MB cache, 3.20 GHz 646376-001

E5700, 2-MB cache, 3.00 GHz 631759-001

E5500, 2-MB cache, 2.80 GHz 613035-001

Intel Celeron processor (include replacement thermal material)

E3500, 1-MB cache, 2.70 GHz 633219-001

To remove the processor:

1. Prepare the computer for disassembly (see

Preparing to Disassemble the Computer

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

Stand on page 29).

5. Remove the right rear cover (see

6. Remove the heat sink (see

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

7. Rotate the locking lever to its full open position (1).

8. Lift the processor cover (2).

40 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

9. Carefully lift the processor from the socket (3).

CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and

handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

CAUTION: The heat sink must be installed within 24 hours of installing the processor to

prevent damage to the processor’s solder connections.

To install a new processor:

1. Place the processor in its socket and close the retainer.

2. Secure the locking lever.

If reusing the existing heat sink, go to step 3.

If using a new heat sink, go to step 5.

3. If reusing the existing heat sink, clean the bottom of the heat sink with the alcohol pad provided

in the spares kit.

4. Apply the thermal material provided in the spares kit to the top of the processor and install the

heat sink atop the processor.

5. If using a new heat sink, remove the protective covering from the bottom of the heat sink and

place it in position atop the processor.

Processor 41

WLAN Module

Description Spare part number

WLAN module (802.11b/g/n) (1x1 mini card) 634906-001

The WLAN module is connected to the system board. The module is secured with two screws and has one connected antenna.

To remove the WLAN module:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Remove the right rear cover (see

6. Remove the heat sink (see

7. Disconnect the antenna cable from the module, and then remove the screws that secure the

module to the computer.

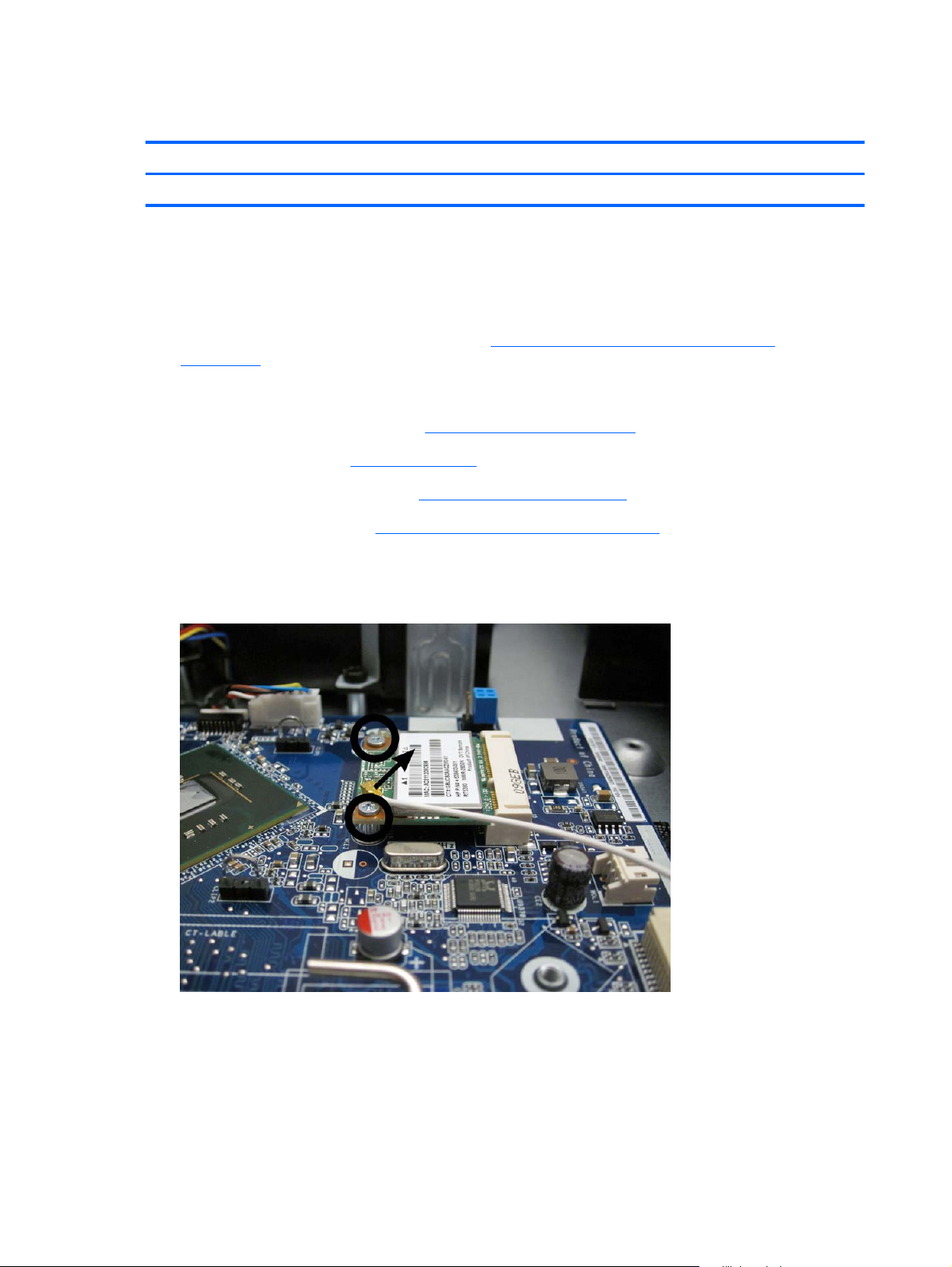

Figure 7-14 Removing the WLAN module screws and antenna

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Preparing to Disassemble the Computer

42 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

8. Lift the module to a 45-degree angle, and then remove it from the system board.

Figure 7-15 Removing the WLAN module

To install the WLAN module, reverse the removal procedures.

NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.

WLAN Module 43

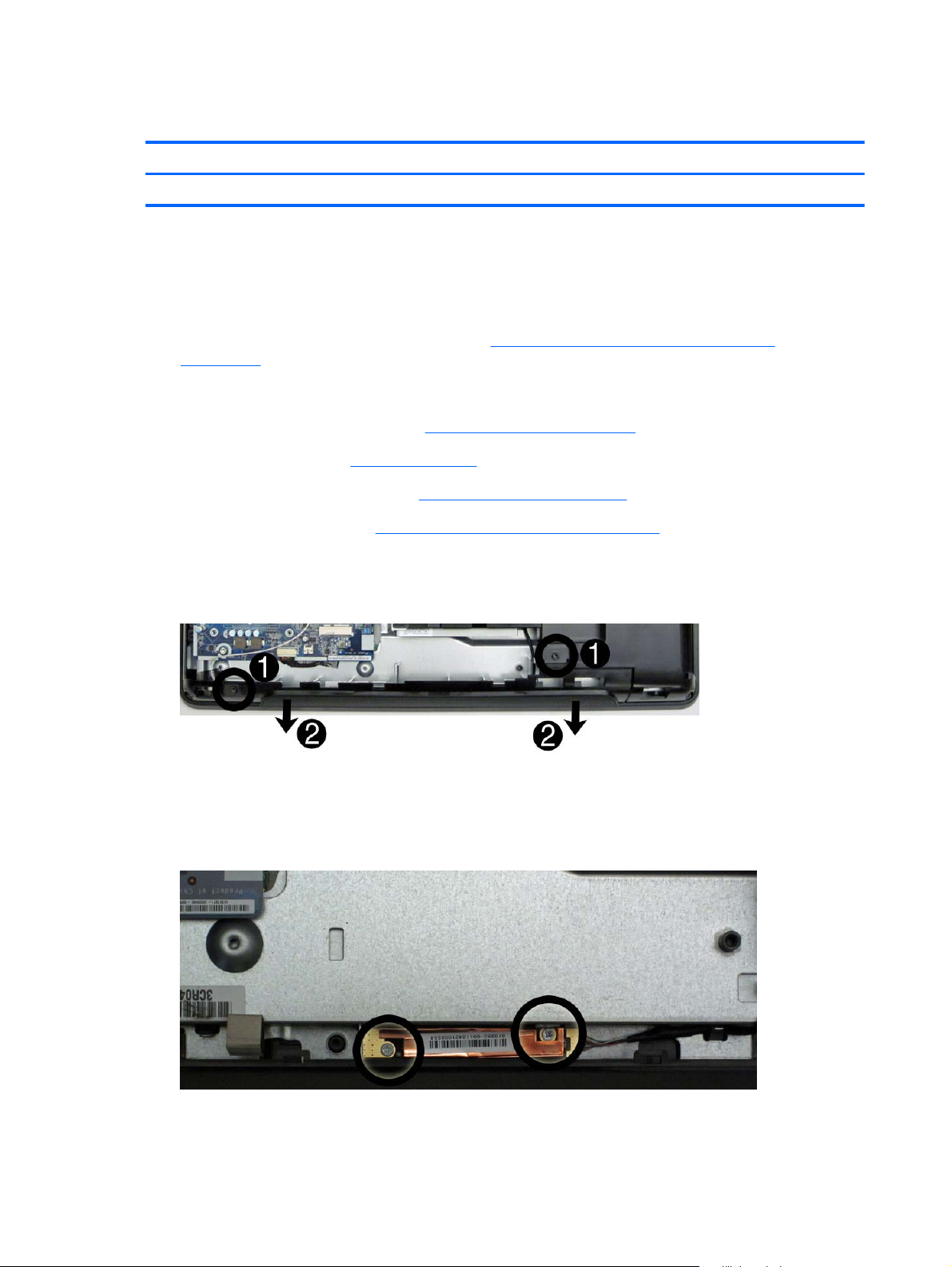

Webcam Module

Description Spare part number

Webcam module 651586-001

The webcam module is located at the top of the computer. It is located below an upper cover, is secured with two screws, and has one connector.

To remove the webcam module:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the top rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Remove the right rear cover (see

6. Remove the heat sink (see

7. To remove the upper cover that allows access to the webcam, remove the two screws (1) that

secure the cover to the computer, and then rotate the cover up and off the computer (2).

Figure 7-16 Removing the upper cover

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Preparing to Disassemble the Computer

8. Remove the two screws that secure the webcam module to the computer.

Figure 7-17 Removing the webcam module screws

44 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

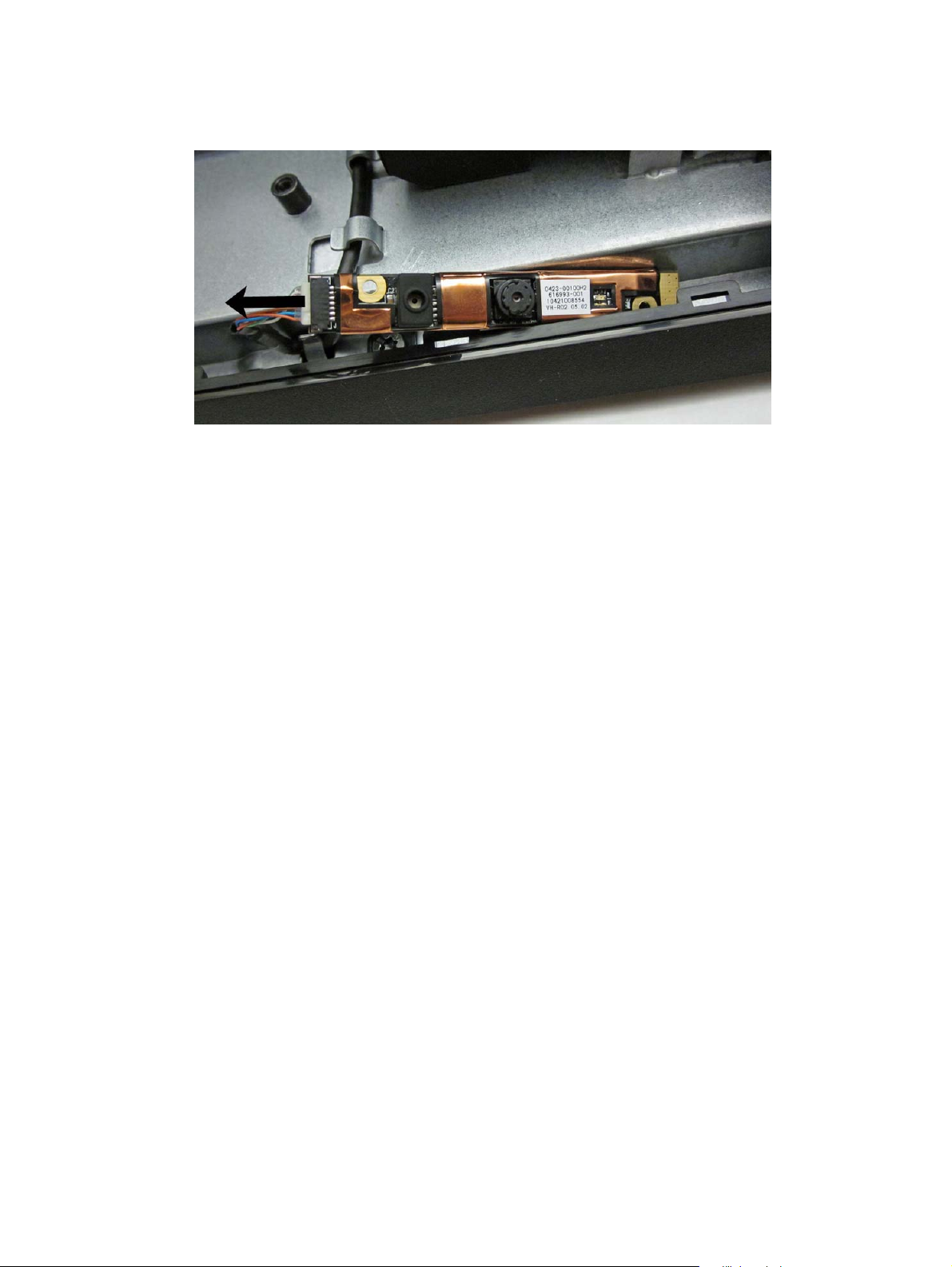

9. Disconnect the webcam cable from the module.

Figure 7-18 Disconnecting the webcam module cable

10. Remove the module from the computer.

To install a webcam module, reverse the removal procedures.

Webcam Module 45

Rear Cover

The rear cover is secured with five screws. You must pry it off at the seams around the edges of the computer, starting at the bottom.

To remove the rear coverl:

1. Prepare the computer for disassembly (see

on page 27).

2. Position the computer with the top rear facing you.

3. Remove the small rear cover (see

4. Remove the stand (see

5. Remove the right rear cover (see

6. Remove the heat sink (see

7. Remove the upper cover (if not yet removed) by removing the two screws (1) that secure the

cover to the computer, and then rotating the cover up and off the computer (2).

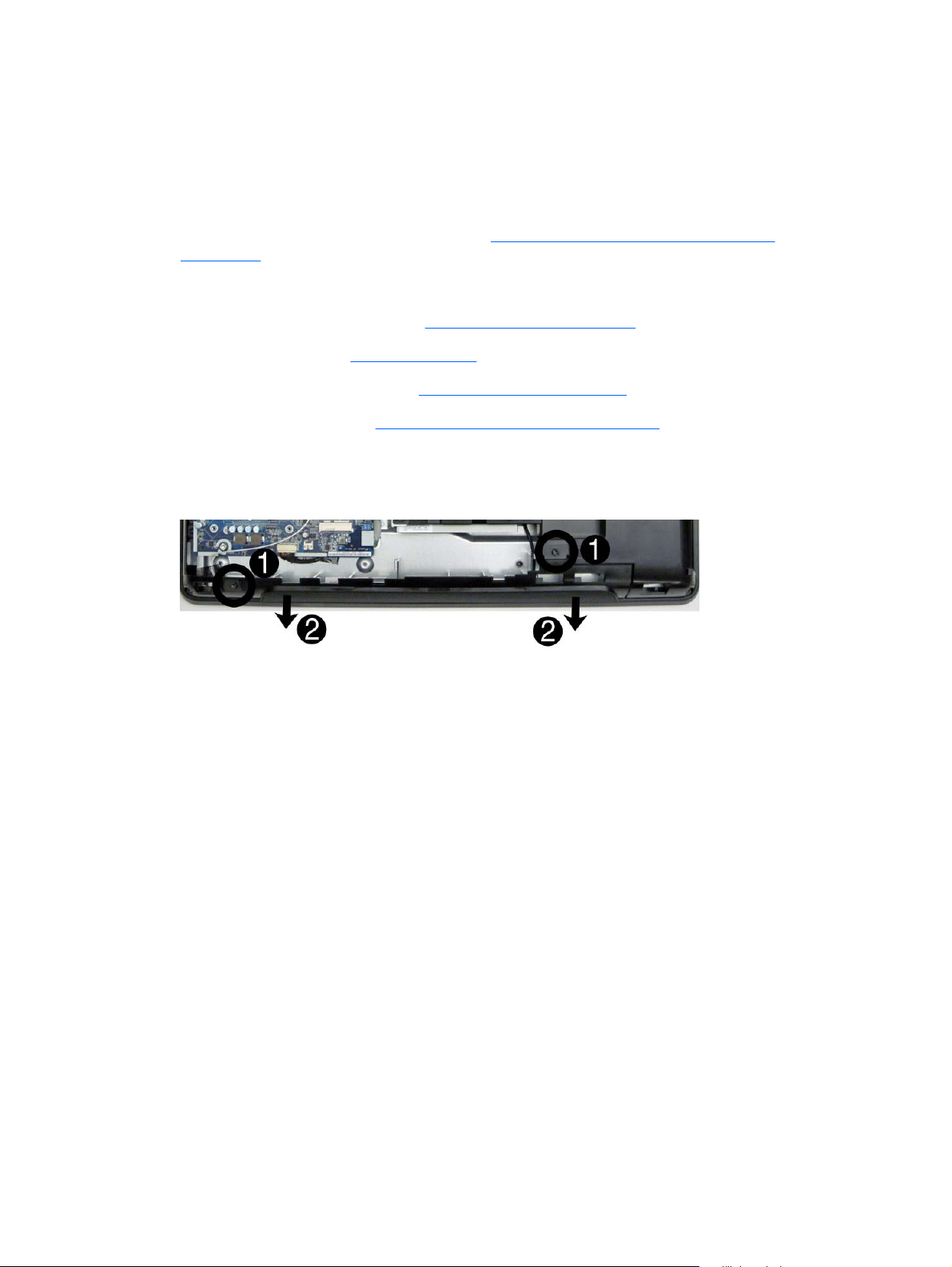

Figure 7-19 Removing the upper cover

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Preparing to Disassemble the Computer

8. Remove the five screws(1) that secure the rear cover to the computer.

46 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

9. Pry the cover off at the top covers (2), and then work around the remainder of the computer

prying the cover off (3).

Figure 7-20 Removing the rear cover

10. Remove the rear cover from the computer.

To replace the rear cover, reverse the removal procedures.

Rear Cover 47

Inverter Board

Description Spare part number

Inverter board 651601-001

The inverter board is located on the left side of the computer under the rear cover. It is secured with two screws and has three connectors.

To remove the inverter board:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Disconnect the three cables from the board (1).

NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not

pull on the wires.

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Preparing to Disassemble the Computer

48 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

8. Remove the two screws (2) that secure the board to the computer.

Figure 7-21 Removing the inverter board

9. Remove the inverter board from the computer.

To install the inverter board, reverse the removal procedures.

Inverter Board 49

Power Button Board

Description Spare part number

Power button board 651585-001

The power button board is mounted on the left side of the computer. It is secured with two screws and has one connector.

To remove the power button board:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the two screws (1) that secure the board to the computer.

8. Disconnect the cables from the board (2).

NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull

on the wires.

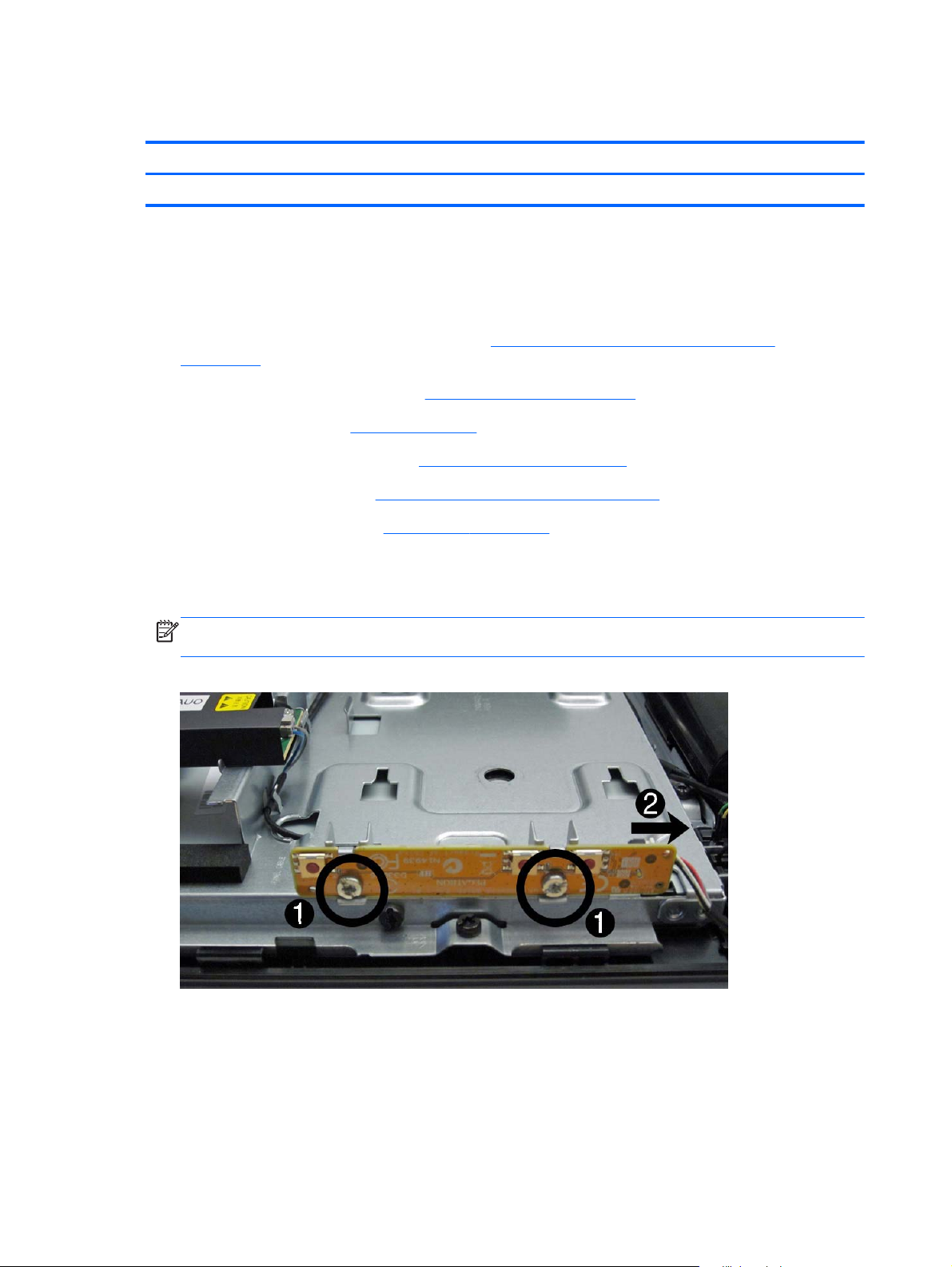

Figure 7-22 Removing the power button board

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Preparing to Disassemble the Computer

9. Remove the board from the computer.

To install the power button board, reverse the removal procedures.

50 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

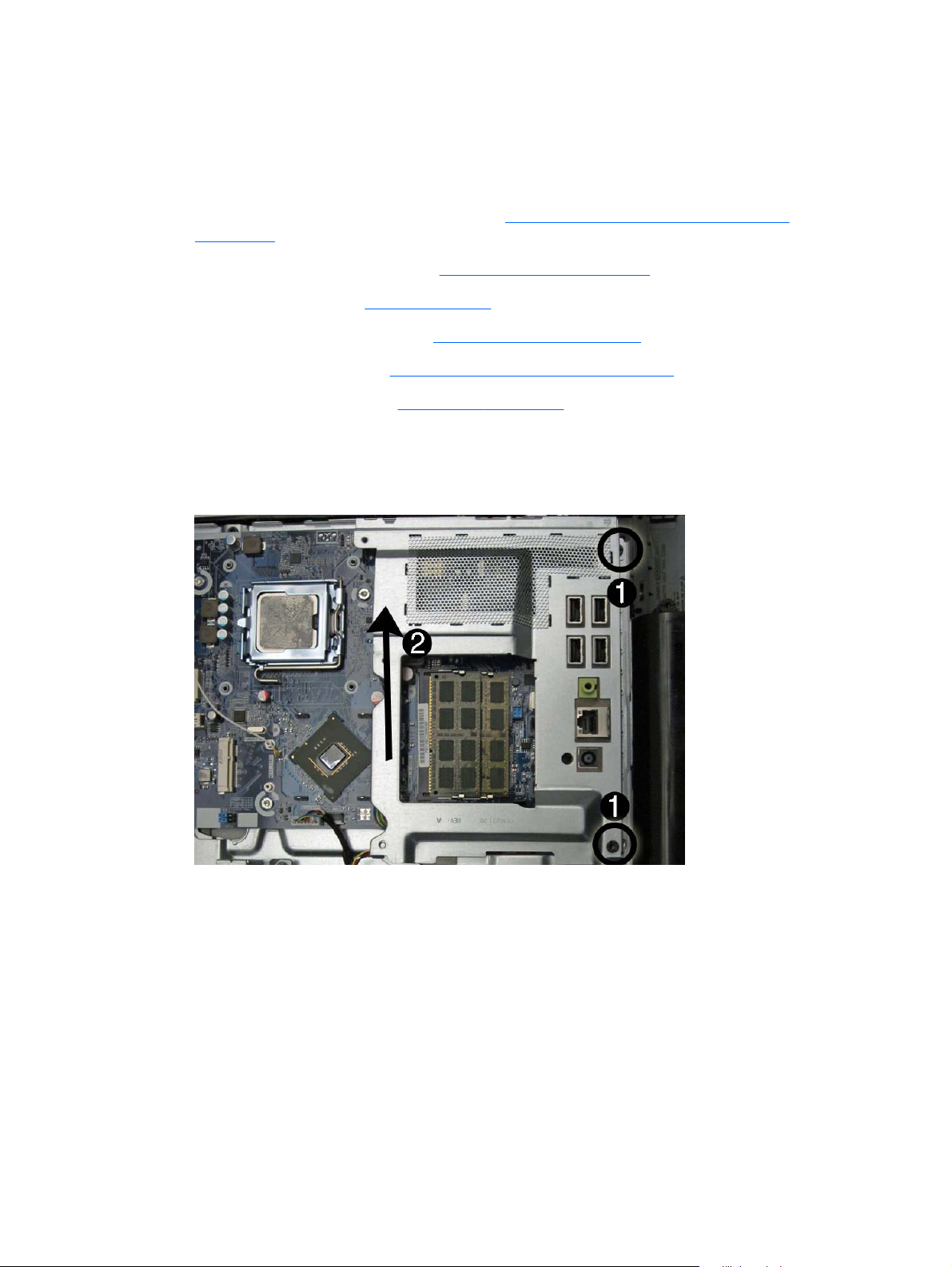

System Board Shield

The system board shield sits above the system board. It is secured with two screws.

To remove the system board shield:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the two screws (1) that secure the shield to the computer.

8. Rotate the shield from left to right to remove it from the computer (2).

Figure 7-23 Removing the system board shield

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Preparing to Disassemble the Computer

To install the system board shield, reverse the removal procedures.

System Board Shield 51

Fan

Description Spare part number

Fan 651606-001

The fan is located near the top of the computer. It is secured with three screws.

To remove the fan:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the system board shield (see

8. Remove the three screws (1) that secure the fan to the computer.

9. Disconnect the fan cable (2) from the system board connector.

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Preparing to Disassemble the Computer

System Board Shield on page 51).

52 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

10. Lift the fan from the computer (3).

Figure 7-24 Removing the fan

To install the fan, reverse the removal procedures.

Fan 53

Speakers

Description Spare part number

Speaker, right 651597-001

Speaker, left 651598-001

The speakers are located at the bottom of the computer. Two separate speakers are each secured by two screws. The left speaker connects to the right speaker, and the right speaker connects to the system board.

To remove the speakers:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the system board shield (see

8. Remove two screws that secure each speaker to the computer.

Figure 7-25 Removing the speakers

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Preparing to Disassemble the Computer

System Board Shield on page 51).

54 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

9. Disconnect the speaker cables from the system board connectors. The right speaker cable

connector is black, the left speaker cable connector is white.

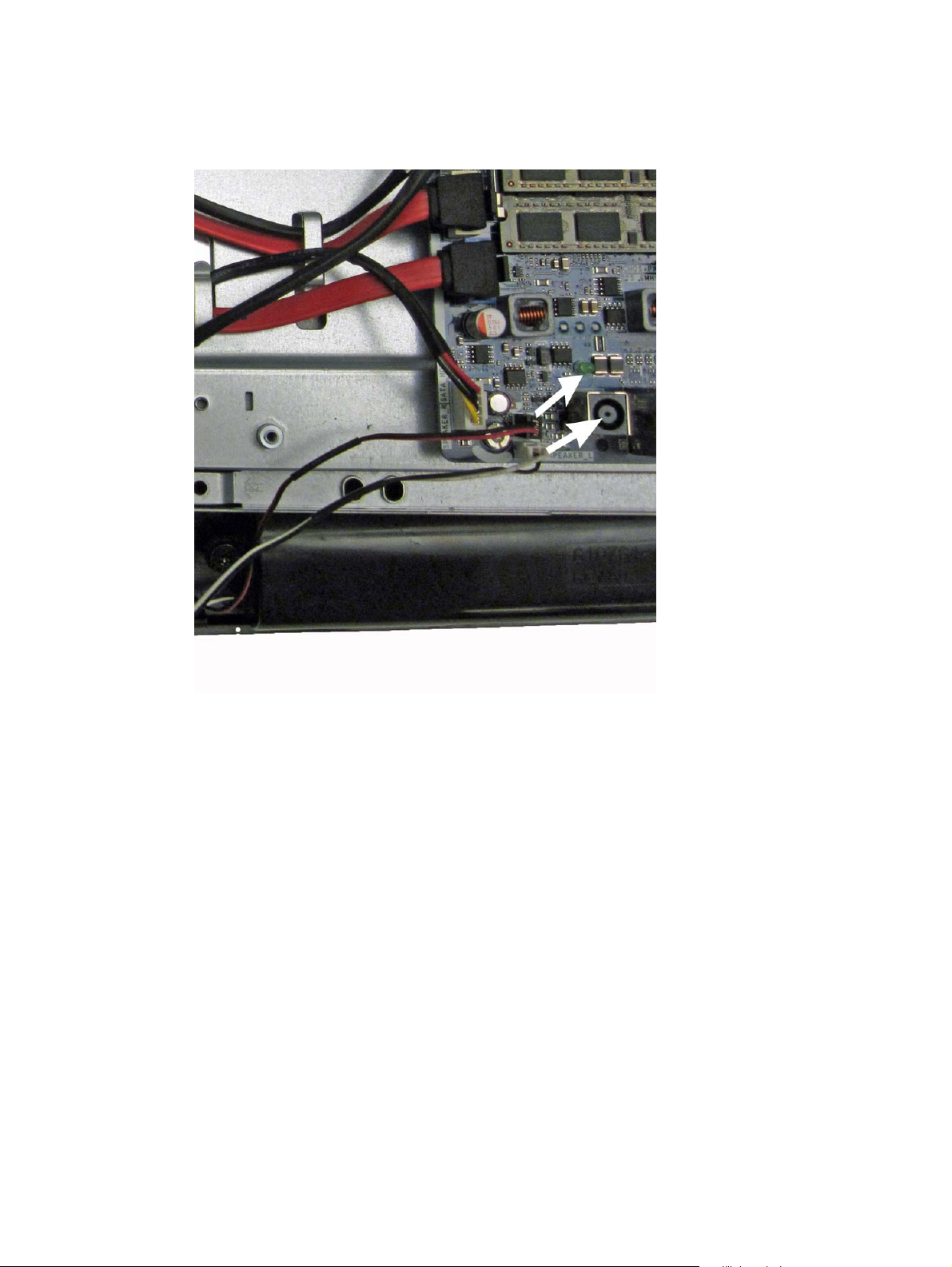

Figure 7-26 Removing the speakers

To install the speakers, reverse the removal procedures.

Speakers 55

System Board

Description Spare part number

System board 648965-001

Thermal pad, DIMM (20mm x 50mm x 2.5mm) 651595-001

Thermal pad, VRM (15mm x 40mm x 4mm) 651596-001

To remove the system board:

1. Prepare the computer for disassembly (see

Preparing to Disassemble the Computer

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

Stand on page 29).

4. Remove the right rear cover (see

5. Remove the heat sink (see

Heat Sink (Thermal Module) on page 38).

6. Remove the rear cover (see

7. Remove the system board shield (see

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

System Board Shield on page 51).

8. Disconnect all cables from the system board, noting their location for reinstallation.

9. Remove the six screws (1) that secure the system board to the computer.

10. Disconnect any cables still connected to the system board, noting their location for re-

connection.

56 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

11. Lift the system board straight up and out of the computer (2).

Figure 7-27 Removing the system board

To install the system board, reverse the removal procedures.

When replacing the system board, note that there are three thermal pads under the board. Use the following image to determine thermal pad locations and spare part numbers.

System Board 57

Stand Bracket

The stand bracket is secured with four screws. Removing it allows access to the fans, heat sink, processor, and optional TV tuner.

To remove the stand bracket:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the four screws (1) that secure the bracket to the computer.

8. Lift the bracket from the computer (2).

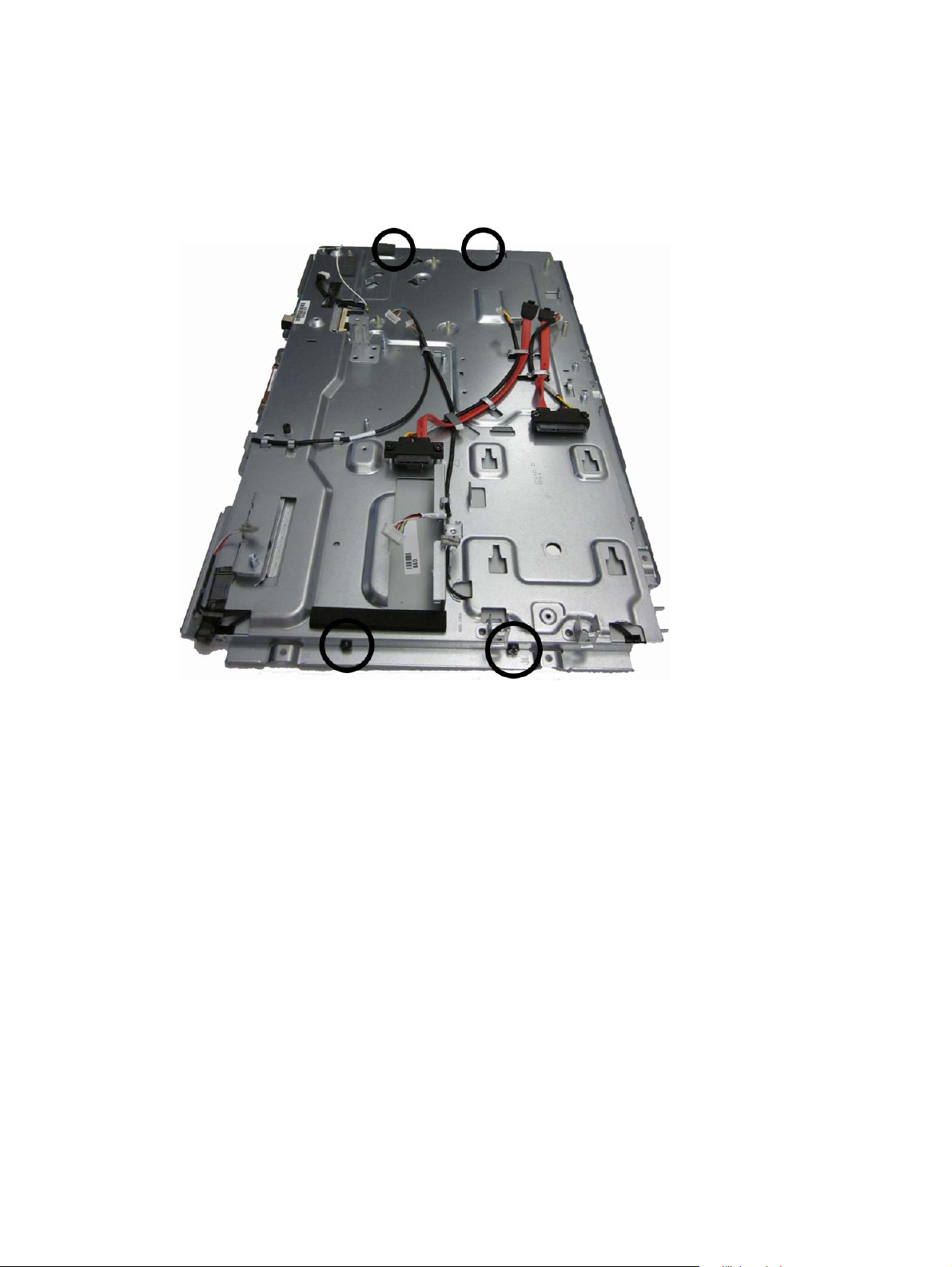

Figure 7-28 Removing the stand bracket

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Preparing to Disassemble the Computer

To replace the stand bracket, reverse the removal procedures.

58 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Drive Connectors

The drive connectors are located near the middle of the computer, below the fan. They are secured with two screws and each has two connectors. You must remove the shield to remove the drive connectors.

This section provides instructions for removing both drive connectors. You can remove either connector; you do not have to remove both.

To remove the drive connectors:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the stand bracket (see

8. Determine which drive connector you need to remove. The optical drive connector is located

above the hard drive connector.

9. Remove two screws (1) that secure the drive connector to the computer.

10. Disconnect the cables from the system board (2).

NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull

on the cables.

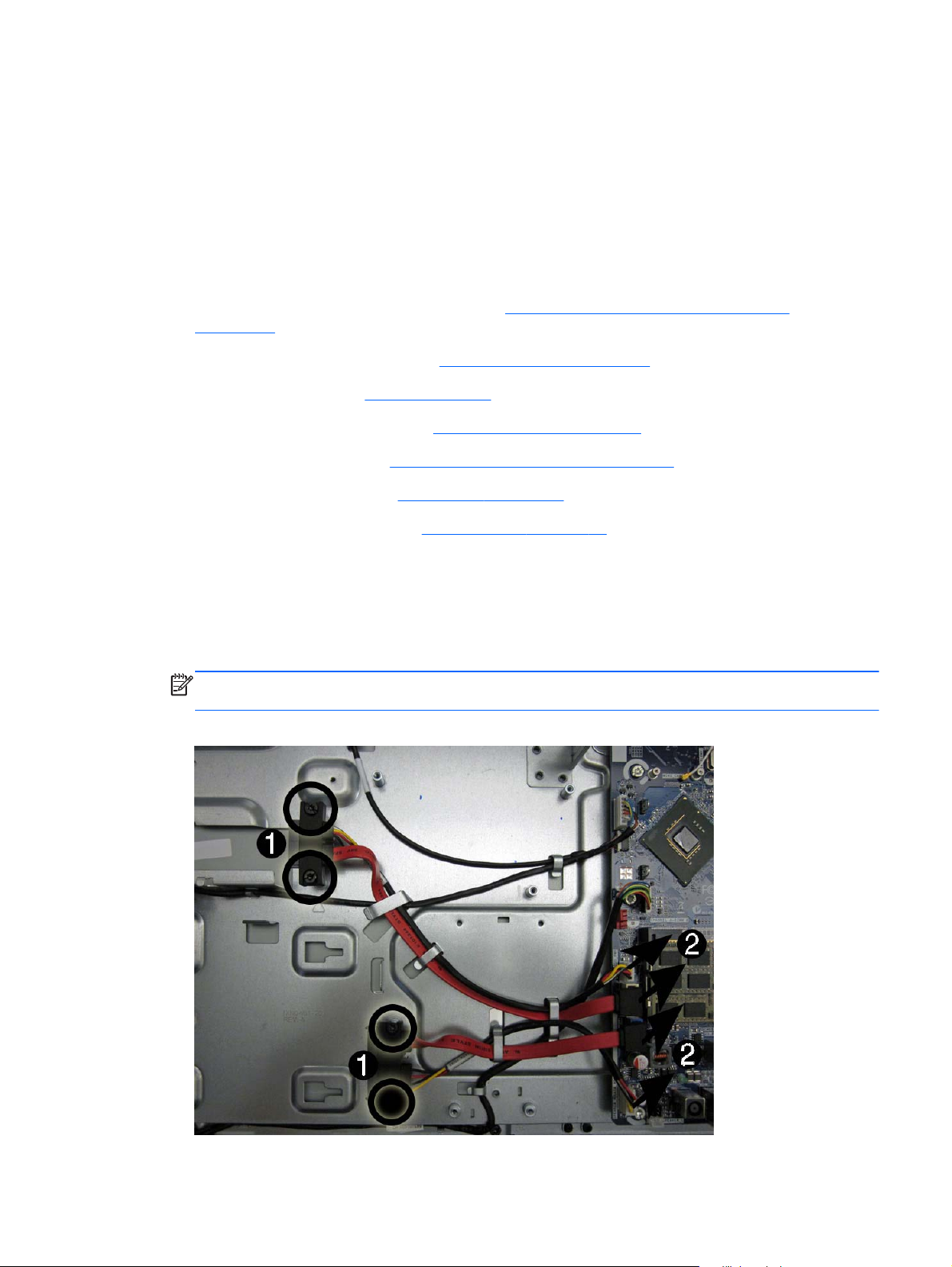

Figure 7-29 Removing the drive connectors

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

Stand Bracket on page 58).

Preparing to Disassemble the Computer

Drive Connectors 59

11. Remove the cables from the clips built into the computer.

12. Remove the drive connector from the computer.

To install the hard drive connector, reverse the removal procedures.

Front Bezel

Description Spare part number

Front bezel kit 704214-001

The front bezel is located on the front of the computer and secured with 6 screws and tabs on each side. You must remove the power button assembly from the bezel to remove the bezel from the computer.

To remove the front bezel:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the system board shield (see

8. Remove the system board (see

9. Remove the stand bracket (see

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

System Board Shield on page 51).

System Board on page 56).

Stand Bracket on page 58).

Preparing to Disassemble the Computer

60 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

10. Remove the six screws that secure the bezel to the computer.

Figure 7-30 Removing the front bezel

11. Disconnect the power button assembly from the bezel by flexing the tabs (1) that secure it to the

bezel and lifting it off the bezel (2).

Figure 7-31 Removing the power button assembly from the bezel

Front Bezel 61

12. Press the tabs that secure the bezel to the display assembly, and separate the bezel from the

display assembly.

Figure 7-32 Removing the bezel from the display assembly

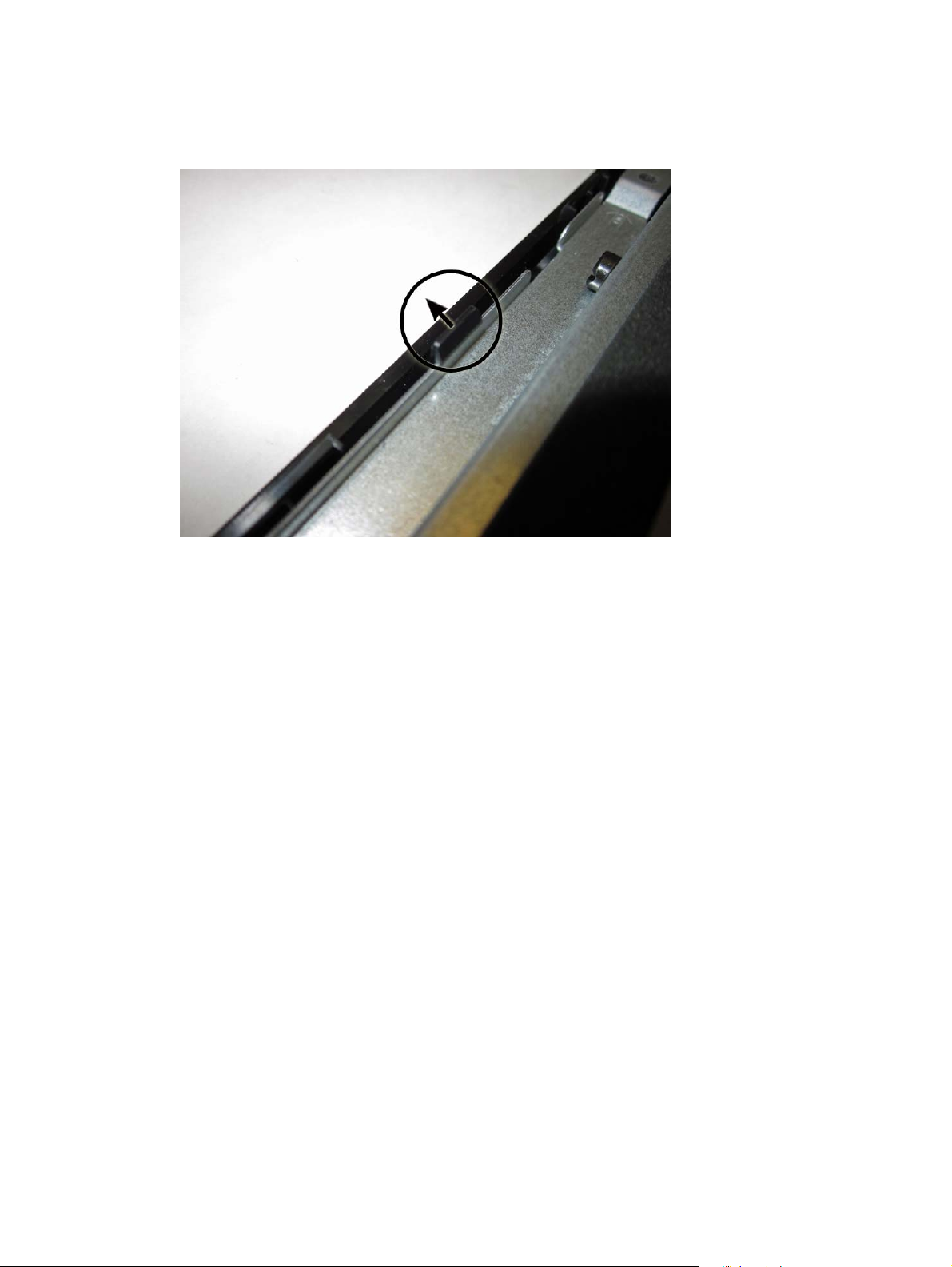

13. Lift the tabs to disengage the computer from the bezel

14. Remove the bezel from the computer.

To install a front bezel, reverse the removal procedures.

62 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Display Panel

Description Spare part number

Display, 20-inch, non-glare 646794-001

The display panel is secured with 4 screws.

To remove the display panel:

1. Prepare the computer for disassembly (see

on page 27).

2. Remove the small rear cover (see

3. Remove the stand (see

4. Remove the right rear cover (see

5. Remove the heat sink (see

6. Remove the rear cover (see

7. Remove the system board shield (see

8. Remove the system board (see

9. Remove the stand bracket (see

10. Remove the drive connectors (see

11. Remove the front bezel (see

Stand on page 29).

Heat Sink (Thermal Module) on page 38).

Small Rear Cover on page 28).

Right Rear Cover on page 35).

Rear Cover on page 46).

System Board Shield on page 51).

System Board on page 56).

Stand Bracket on page 58).

Drive Connectors on page 59).

Front Bezel on page 60).

Preparing to Disassemble the Computer

Display Panel 63

12. Remove the four screws that secure the display panel.

Figure 7-33 Removing the display panel

13. Lift the display panel from the remaining assembly.

To install a display panel, reverse the removal procedures.

64 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

A POST Error Messages

This appendix lists the error codes, error messages, and the various indicator light and audible sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable source of the problem, and steps you can take to resolve the error condition.

POST Message Disabled suppresses most system messages during POST, such as memory count and non-error text messages. If a POST error occurs, the screen will display the error message. To manually switch to the POST Messages Enabled mode during POST, press any key (except F10,

F11, or F12). The default mode is POST Message Disabled.

The speed at which the computer loads the operating system and the extent to which it is tested are determined by the POST mode selection.

Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory test. Full Boot runs all of the ROM-based system tests and takes longer to complete.

Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.

POST Numeric Codes and Text Messages

This section covers those POST errors that have numeric codes associated with them. The section also includes some text messages that may be encountered during POST.

NOTE: The computer will beep once after a POST text message is displayed on the screen.

Table A-1 Numeric Codes and Text Messages

Control panel message Description Recommended action

101-Option ROM Checksum Error System ROM or expansion board option

ROM checksum.

103-System Board Failure DMA or timers. 1. Clear CMOS.

110-Out of Memory Space for Option ROMs Recently added PCI expansion card

contains an option ROM too large to download during POST.

1. Verify the correct ROM.

2. Flash the ROM if needed.

3. If an expansion board was recently

added, remove it to see if the problem remains.

4. Clear CMOS.

5. If the message disappears, there may

be a problem with the expansion card.

6. Replace the system board.

2. Remove expansion boards.

3. Replace the system board.

1. If a PCI expansion card was recently

added, remove it to see if the problem remains.

2. In Computer Setup, set Advanced >

Device Options > NIC PXE Option ROM Download to DISABLE to

prevent PXE option ROM for the internal NIC from being downloaded during POST to free more memory for an expansion card's option ROM. Internal PXE option ROM is used for booting from the NIC to a PXE server.

162-System Options Not Set Configuration incorrect.

RTC (real-time clock) battery may need to be replaced.

163-Time & Date Not Set Invalid time or date in configuration

memory.

RTC (real-time clock) battery may need to be replaced.

66 Appendix A POST Error Messages

Run Computer Setup and check the configuration in Advanced > Device Options.

Reset the date and time under Control Panel. If the problem persists, replace the RTC battery. See the Hardware Reference Guide for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

Reset the date and time under Control Panel (Computer Setup can also be used). If the problem persists, replace the RTC battery. See the Hardware Reference Guide for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

Table A-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

164-MemorySize Error Memory amount has changed since the last

164-MemorySize Error Memory configuration incorrect. 1. Run Computer Setup or Windows

201-Memory Error RAM failure. 1. Ensure memory modules are correctly

213-Incompatible Memory Module in Memory Socket(s) X, X, ...

boot (memory added or removed).

A memory module in memory socket identified in the error message is missing critical SPD information, or is incompatible with the chipset.

Press the F1 key to save the memory changes.

utilities.

2. Make sure the memory module(s) are

installed properly.

3. If third-party memory has been added,

test using HP-only memory.

4. Verify proper memory module type.

installed.

2. Verify proper memory module type.

3. Remove and replace the identified

faulty memory module(s).

4. If the error persists after replacing

memory modules, replace the system board.

1. Verify proper memory module type.

2. Try another memory socket.

3. Replace DIMM with a module

conforming to the SPD standard.

214-DIMM Configuration Warning Populated DIMM Configuration is not

219-ECC Memory Module Detected ECC Modules not supported on this Platform

301-Keyboard Error Keyboard failure. 1. Reconnect keyboard with computer

303-Keyboard Controller Error I/O board keyboard controller. 1. Reconnect keyboard with computer

optimized.

Recently added memory module(s) support ECC memory error correction.

Rearrange the DIMMs so that each channel has the same amount of memory.

1. If additional memory was recently

added, remove it to see if the problem remains.

2. Check product documentation for

memory support information.

turned off.

2. Check connector for bent or missing

pins.

3. Ensure that none of the keys are

depressed.

4. Replace keyboard.

turned off.

2. Replace the system board.

POST Numeric Codes and Text Messages 67

Table A-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

304-Keyboard or System Unit Error Keyboard failure. 1. Reconnect the keyboard with computer

510-Flash Screen Image Corrupted Flash Screen image has errors. Reflash the system ROM with the latest

511-CPU Fan not Detected CPU fan is not connected or may have

malfunctioned.

512-Rear Chassis Fan not Detected Rear chassis fan is not connected or may

have malfunctioned.

513-Front Chassis fan not detected Front chassis fan is not connected or may

have malfunctioned.

turned off.

2. Ensure that none of the keys are

depressed.

3. Replace the keyboard.

4. Replace the system board.

BIOS image.

1. Reseat CPU fan.

2. Reseat fan cable.

3. Replace CPU fan.

1. Reseat rear chassis fan.

2. Reseat fan cable.

3. Replace rear chassis fan.

1. Reseat front chassis fan.

2. Reseat fan cable.

3. Replace front chassis fan.

912-Computer Cover Has Been Removed Since Last System Startup

917-Front Audio Not Connected Front audio harness has been detached or

921-Device in PCI Express slot failed to initialize

1720-SMART Hard Drive Detects Imminent Failure

1801-Microcode Patch Error Processor is not supported by ROM BIOS. 1. Upgrade BIOS to proper version.

1802-Processor Not Supported Recently installed processor is not

Computer cover was removed since last system startup.

unseated from motherboard.

There is an incompatibility/problem with this device and the system or PCI Express Link could not be retrained to an x1.

Hard drive is about to fail. (Some hard drives have a hard drive firmware patch that will fix an erroneous error message.)

supported by the system.

No action required.

Reconnect or replace front audio harness.

Try rebooting the system. If the error reoccurs, the device may not work with this system

1. Determine if hard drive is giving correct

error message. Enter Computer Setup and run the Drive Protection System test under Storage > DPS Self-test.

2. Apply hard drive firmware patch

if applicable. (Available at

http://www.hp.com/support.)

3. Back up contents and replace hard

drive.

2. Change the processor.

Install a processor supported by your system.

68 Appendix A POST Error Messages

Table A-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

1805-Ambient Temperature Previously Over Limit

2200-PMM Allocation Error during MEBx Download

This system was placed in a low power state to prevent damage due to excessive environmental temperature.

Memory error during POST execution of the Management Engine (ME) BIOS Extensions option ROM.

Make sure the system meets the HP enclosure guidelines as listed in the QuickSpecs, including the following:

1. Clean the air vents on the front, back,

or any other vented side of the computer.

2. Ensure that there is a 10.2 cm (4 in)

clearance on all vented sides of the computer to permit the required airflow.

3. Ensure that computers are not so near

each other that they are subject to each other's re-circulated or preheated air.

4. If the computer is within an enclosure,

ensure that there is proper intake and exhaust ventilation for the enclosure.

1. Reboot the computer.

2. Unplug the power cord, re-seat the

memory modules, and reboot the computer.

3. If the memory configuration was

recently changed, unplug the computer, restore the original memory configuration, and reboot the computer.

2201-MEBx Module did not checksum correctly

Memory error during POST execution of the Management Engine (ME) BIOS Extensions option ROM.

4. If the error persists, replace the system

board.

1. Reboot the computer.

2. Unplug the power cord, re-seat the

memory modules, and reboot the computer.

3. If the memory configuration was

recently changed, unplug the power cord, restore the original memory configuration, and reboot the computer.

4. If the error persists, replace the system

board.

POST Numeric Codes and Text Messages 69

Table A-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

2202-PMM Deallocation Error during MEBx cleanup

2211-Memory not configured correctly for proper MEBx execution

2212-USB Key Provisioning failure writing to device

2217-ME Firmware Version request failure ME firmware is not properly responding to

Memory error during POST execution of the Management Engine (ME) BIOS Extensions option ROM.

SODIMM1 is not installed. Make sure there is a memory module in the

USB device used for USB key provisioning will not allow BIOS to update provision file properly.

BIOS query for version information.

1. Reboot the computer.

2. Unplug the power cord, re-seat the

memory modules, and reboot the computer.

3. If the memory configuration was

recently changed, unplug the power cord, restore the original memory configuration, and reboot the computer.

4. If the error persists, replace the system

board.

SODIMM1 socket and that it is properly seated.

1. Try a different USB key device for

provisioning.

2. If the error persists, update to the latest

BIOS version and ME firmware version.

3. If the error still persists, replace the

system board.

1. Reboot the computer.

2. If the error persists, update to the latest

BIOS version and ME firmware version.

2218-ME Firmware Version should be updated

2219-USB Key Provisioning file has invalid header identifier

ME firmware must be updated to match current functionality contained in the system BIOS.

Provisioning file contained on the USB key has been corrupted or is not a valid version for the current ME firmware.

3. If the error still persists, replace the

system board.

1. Update to the latest ME firmware

version.

2. If the error persists and system BIOS

has been recently updated, restore previous system BIOS version.

3. If the error still persists, replace the

system board.

1. Recreate the provisioning file using

third party management console software.

2. If the error persists and system BIOS

has been recently updated, restore previous system BIOS version. Otherwise, update the ME firmware version.

3. If the error still persists, replace the

system board.

70 Appendix A POST Error Messages

Table A-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

2220-USB Key Provisioning file has mismatch version

2230-General error during MEBx execution Error occurred during MEBx execution

2231-ME error during MEBx execution Error occurred during MEBx execution

2232-AMT error during MEBx execution Error occurred during MEBx execution

Provisioning file contained on the USB key is not a valid version for the current ME firmware.

which fails into the “General” grouping. Status information displayed along with the error provides further clarity into the failure. MEBx handles transference of information between the system BIOS and ME firmware.

which fails into “ME” grouping.

which fails into “AMT” grouping.

1. Reboot the computer.

2. If the error persists and system BIOS

has been recently updated, restore previous system BIOS version. Otherwise, update the ME firmware version.

3. If the error still persists, replace the

system board.

1. Reboot the computer.

2. If the error persists, update to the latest

BIOS version and ME firmware version.

3. If the error still persists, replace the

system board.

1. Reboot the computer.

2. If the error persists, update to the latest

BIOS version and ME firmware version.

3. If the error still persists, replace the

system board.

1. Reboot the computer.

2. If the error persists, update to the latest

BIOS version and ME firmware version.

3. If the error still persists, replace the

system board.

2233-HECI error during MEBx execution Error occurred during MEBx execution

which fails into “MEI or HECI” grouping.

Invalid Electronic Serial Number Electronic serial number is missing. Enter the correct serial number in Computer

1. Reboot the computer.

2. If the error persists, update to the latest

BIOS version and ME firmware version.

3. If the error still persists, replace the

system board.

Setup.

POST Numeric Codes and Text Messages 71

Table A-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

Network Server Mode Active and No Keyboard Attached

Parity Check 2 Parity RAM failure or a PCI/PCIe device is

Keyboard failure while Network Server Mode enabled.

asserting a SERR#.

1. Reconnect keyboard with computer

turned off.

2. Check connector for bent or missing

pins.

3. Ensure that none of the keys are

depressed.

4. Replace keyboard.

Run Computer Setup and Diagnostic utilities. To disable a PCI/PCIe device from asserting a SERR#, run the Computer Setup utility and select Advanced > Bus Options > SERR# Generation > Disable.

72 Appendix A POST Error Messages

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.

WARNING! When the computer is plugged into an AC power source, voltage is always applied to

the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

NOTE: If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of

the computer and refer to the following table to determine the front panel LED codes.

Recommended actions in the following table are listed in the order in which they should be performed.

Not all diagnostic lights and audible codes are available on all models.

Table A-2 Diagnostic Front Panel LEDs and Audible Codes

Activity Beeps Possible Cause Recommended Action

Green Power LED On. None Computer on. None

Green Power LED flashes every two seconds.

Red Power LED flashes two times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

Red Power LED flashes three times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

None Computer in Suspend to

RAM mode (some models only) or normal Suspend mode.

2 Thermal protection

activated:

Air flow is restricted, a fan may not be functioning, or the heatsink is not properly attached.

3 Processor not installed

(not an indicator of bad processor).

None required. Press any key or move the mouse to wake the computer.

1. Clean the air vents on the front, back, or

any other vented side of the computer.

2. Ensure that there is a 10.2 cm (4 in)

clearance on all vented sides of the computer to permit the required airflow.

3. Ensure that computers are not so near

each other that they are subject to each other's re-circulated or preheated air.

4. If the computer is within an enclosure,

ensure that there is proper intake and exhaust ventilation for the enclosure.

5. If a message appears on the screen

indicating that a fan is not working, replace the fan.

6. Ensure that the heat sink is properly

attached.

1. Check to see that the processor is present.

2. Reseat the processor.

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 73

Table A-2 Diagnostic Front Panel LEDs and Audible Codes (continued)

Activity Beeps Possible Cause Recommended Action

Red Power LED flashes four times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

Red Power LED flashes five times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

4 Power failure (power

supply is overloaded).

5 Pre-video memory error. CAUTION: To avoid damage to the DIMMs or

1. Open the hood and ensure the 4 or 6-wire

power supply cable is seated into the connector on the system board.

2. Check if a device is causing the problem by

removing ALL attached devices (such as hard, diskette, or optical drives, and expansion cards). Power on the system. If the system enters the POST, then power off and replace one device at a time and repeat this procedure until failure occurs. Replace the device that is causing the failure. Continue adding devices one at a time to ensure all devices are functioning properly.

3. Replace the power supply.

4. Replace the system board.

the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.

1. Reseat DIMMs.

2. Replace DIMMs one at a time to isolate the

faulty module.

Red Power LED flashes six times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

Red Power LED flashes seven times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

Red Power LED flashes eight times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

3. Replace third-party memory with HP

memory.

4. Replace the system board.

6 Pre-video graphics error. For systems with a graphics card:

1. Reseat the graphics card.

2. Replace the graphics card.

3. Replace the system board.

For systems with integrated graphics, replace the system board.

7 System board failure

(ROM detected failure prior to video).

8 Invalid ROM based on

bad checksum.

Replace the system board.

1. Reflash the system ROM with the latest

BIOS image.

2. Replace the system board.

74 Appendix A POST Error Messages

Table A-2 Diagnostic Front Panel LEDs and Audible Codes (continued)

Activity Beeps Possible Cause Recommended Action

Red Power LED flashes nine times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

Red Power LED flashes ten times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

Red Power LED flashes eleven times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

System does not power on and LEDs are not flashing.

9 System powers on but is

unable to boot.

10 Bad option card. 1. Check each option card by removing the

11 The current processor

does not support a feature previously enabled on this system.

None System unable to power

on.

1. Unplug the AC power cord from the

computer, wait 30 seconds, then plug the power cord back in to the computer.

2. Replace the system board.

3. Replace the processor.

card (one at a time if multiple cards), then power on the system to see if fault goes away.

2. Once a bad card is identified, remove and

replace the bad option card.

3. Replace the system board.

1. Install a Trusted Execution Technology

(TXT) capable processor.

2. Disable TXT in the Computer Setup (F10)

utility.

3. Reinstall the original processor.

Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, the power button is working correctly and the system board needs to be replaced.

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

1. Check that the unit is plugged into a

working AC outlet.

2. Open hood and check that the power button

harness is properly connected to the system board.

3. Check that both power supply cables are

properly connected to the system board.

4. Check to see if the 5V_aux light on the

system board is turned on. If it is turned on, then replace the power button harness. If the problem persists, replace the system board.

5. If the 5V_aux light on the system board is

not turned on, remove the expansion cards one at a time until the 5V_aux light on the system board turns on. It the problem persists, replace the power supply.

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 75

Resetting the CMOS Jumper

1. Turn off the computer and any external devices, and disconnect the power cord from the power

outlet. The power must be disconnected from the system to clear CMOS.

2. Disconnect all external equipment connected to the computer.

WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be

sure to disconnect the power cord from the wall outlet, and allow the internal system components to cool before touching.

CAUTION: Static electricity can damage the electronic components of the computer or optional

equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See the Hardware Reference Guide for more information.

3. Disassemble the computer until you can gain access to the system board.

CAUTION: Resetting CMOS will restore the computer to factory defaults and will erase any

customized information including passwords, asset numbers, and special settings.

4. Locate the header and jumper labeled CMOS+PW.

NOTE: Be sure you have disconnected the AC power cord from the wall outlet. The CMOS will

not clear if the power cord is connected.

NOTE: For assistance locating the CMOS jumper and other system board components, see

the Illustrated Parts & Service Map (IPSM). You can download the IPSM from

http://www.hp.com/support.

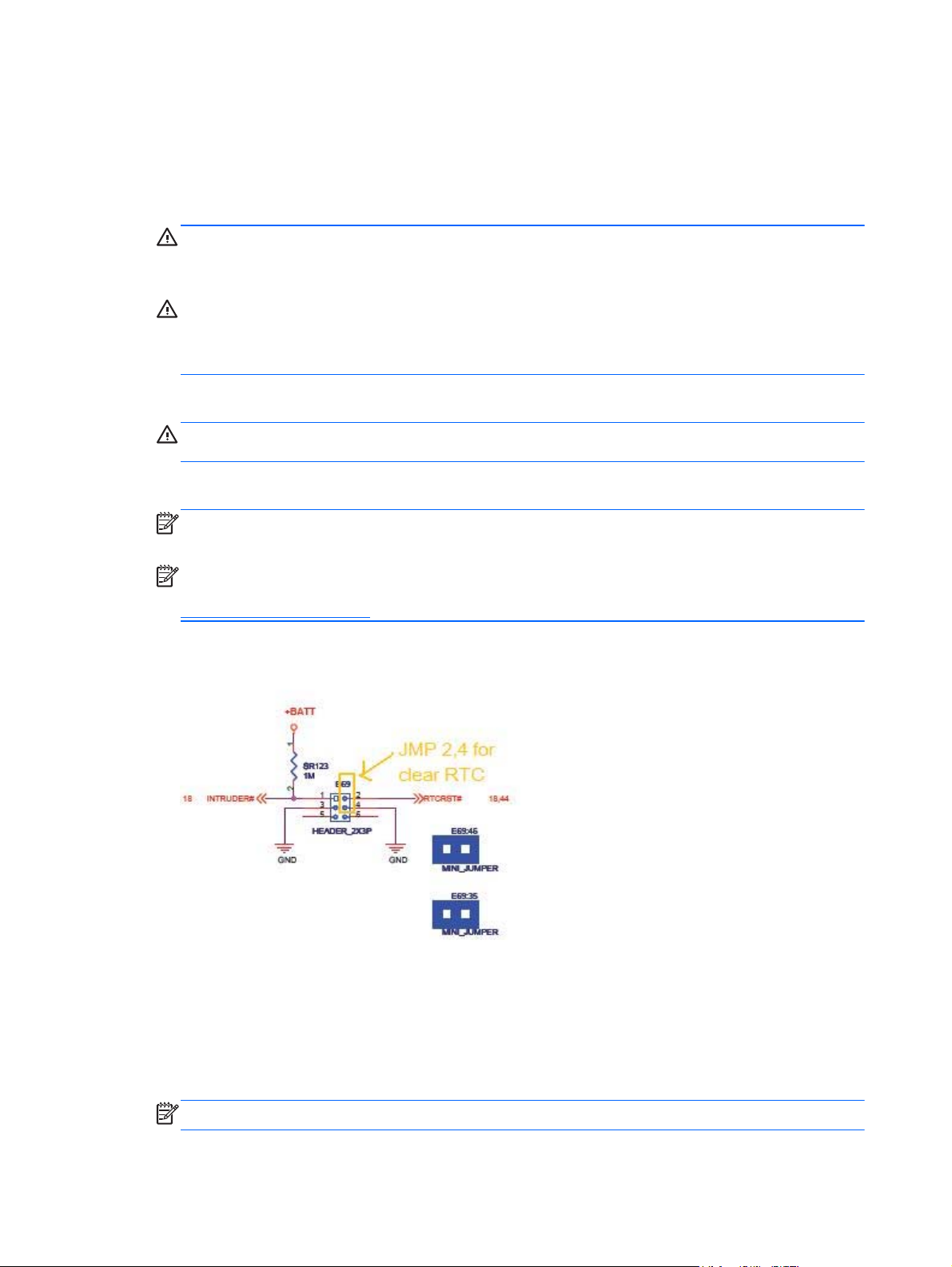

5. Put the jumper on pins 2 and 4. This clears CMOS.

6. Put the jumper back on the original pins.

7. Replace the access panel.

8. Reconnect the external devices.

9. Plug in the computer and turn on power.

NOTE: Use Computer Setup to reset any special system setups along with the date and time.

76 Appendix A POST Error Messages

For instructions on Computer Setup, see the Computer Setup (F10) Utility Guide.

Resetting the CMOS Jumper 77

B Connector Pin Assignments

This appendix contains the pin assignments for many computer and workstation connectors. Some of these connectors may not be used on the product being serviced.

Ethernet BNC

Connector and Icon Pin Signal

USB

Connector and Icon Pin Signal

Microphone

Connector and Icon (1/8” miniphone) Pin Signal

1 (Tip)

Data

Ground

+5 VDC

- Data

+ Data

Ground

Audio_left

78 Appendix B Connector Pin Assignments

2 (Ring)

3 (Shield)

Audio_Right

Ground

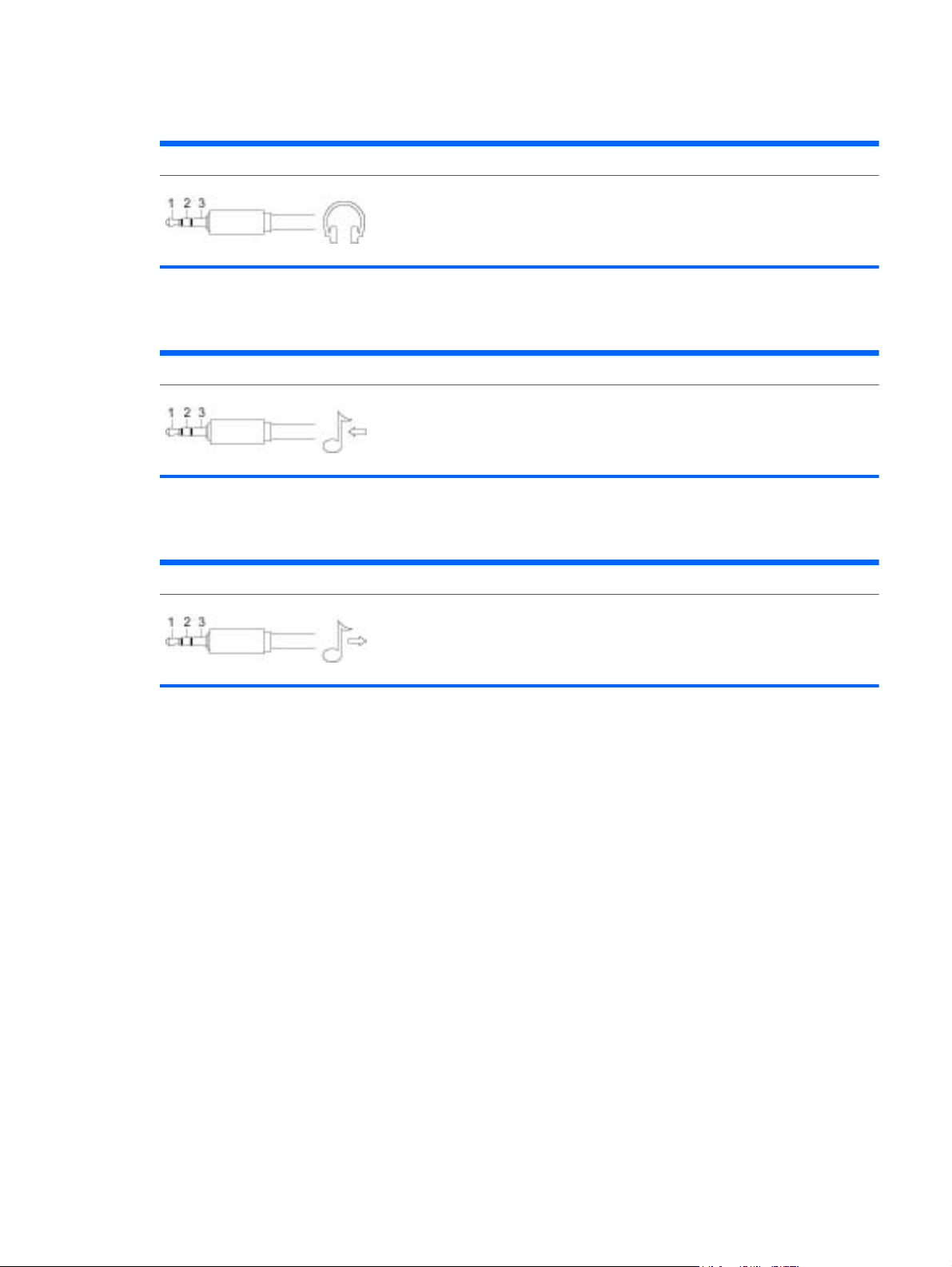

Headphone

Connector and Icon (1/8” miniphone) Pin Signal

Line-in Audio

Connector and Icon (1/8” miniphone) Pin Signal

Line-out Audio

Connector and Icon (1/8” miniphone) Pin Signal

1 (Tip)

2 (Ring)

3 (Shield)

1 (Tip)

2 (Ring)

3 (Shield)

1 (Tip)

2 (Ring)

Audio_left

Power_Right

Ground

Audio_In_Left

Audio_In_Right

Ground

Audio_Out_Left

Audio_Out_Right

3 (Shield)

Ground

Headphone 79

C Power Cord Set Requirements

The power supplies on some computers have external power switches. The voltage select switch feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC. Power supplies on those computers that do not have external power switches are equipped with internal switches that sense the incoming voltage and automatically switch to the proper voltage.

The power cord set received with the computer meets the requirements for use in the country where you purchased the equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer.

General Requirements

The requirements listed below are applicable to all countries:

1. The power cord must be approved by an acceptable accredited agency responsible for

evaluation in the country where the power cord set will be installed.

2. The power cord set must have a minimum current capacity of 10A (7A Japan only) and a

nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.

3. The diameter of the wire must be a minimum of 0.75 mm

must be between 1.8 m (6 feet) and 3.6 m (12 feet).

The power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

WARNING! Do not operate this product with a damaged power cord set. If the power cord set is

damaged in any manner, replace it immediately.

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.

CAUTION: Do not use the power cord received with this product on any other products.

or 18AWG, and the length of the cord

80 Appendix C Power Cord Set Requirements

Country-Specific Requirements

Additional requirements specific to a country are shown in parentheses and explained below.

Country Accrediting Agency Country Accrediting Agency

Australia (1)

Austria (1)

Belgium (1)

Canada (2)

Denmark (1)

Finland (1)

France (1)

Germany (1)

1. The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm

coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.

2. The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole

grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.

3. Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the

Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.

EANSW

OVE

CEBC

CSA

DEMKO

SETI

UTE

VDE

Italy (1)

Japan (3)

Norway (1)

Sweden (1)

Switzerland (1)

United Kingdom (1)

United States (2)

conductor size. Power cord set fittings (appliance

IMQ

METI

NEMKO

SEMKO

SEV

BSI

conductor size. Wall plug

Country-Specific Requirements 81

D Specifications

All-in One Models

Table D-1 Specifications

Desktop Dimensions

Height

Width

Depth

Approximate Weight (including stand) 16.8 lb 7.6 kg

Temperature Range

Operating

Nonoperating

Relative Humidity (noncondensing)

Operating

Maximum Altitude (unpressurized)

Operating

Nonoperating

Power Supply

Rated Voltage Range

Rated Line Frequency

16.0 in

20.0 in

8.6 in

41° to 95°F

-22° to 149°F

15-80% at 79°F 15-80% at 26°C

0 - 6,562 ft

0 - 15,000 ft

100-240 V

50-60 Hz

2.0 A

47.0 cm

50.8 cm

22.0 cm

5° to 35°C

-30° to 66°C

0 - 2000 m

4,572 m

100-240 V

50-60 Hz

2.0 A

Max Operating Power <150 W <150 W

Idle Operating Power Integrated graphics: 30 W Integrated graphics: 30 W

82 Appendix D Specifications

Index

AC adapter

spare part numbers 24, 25

audible codes 73

battery

disposal 21 beep codes 73 bezel

removing 60

spare part numbers 23, 60 bezel (front)

spare part numbers 26 bezel (optical drive)

spare part numbers 24, 25, 31 booting options

Full Boot 65

Quick Boot 65

cable pinouts

SATA data 12 cautions

AC power 14

cables 20

electrostatic discharge 15

keyboard cleaning 19

keyboard keys 19 cleaning

computer 18

mouse 19

safety precautions 18 CMOS

resetting jumper 76 components

front 2

rear 3

side 3

computer cleaning 18 connector pin assignments 78 country power cord set

requirements 81

display bezel

spare part number 60 spare part numbers 23

display panel

removing 63 spare part numbers 23, 25, 63

drive connectors

removing 59

electrostatic discharge (ESD) 15

preventing damage 15

error

codes 65, 73 messages 66

ethernet

BNC pin assignments 78

fan

removing 52 spare part number 23, 52

spare part numbers 26 flashing LEDs 73 front bezel

removing 60

spare part number 26 front components 2

grounding methods 16

hard drive

proper handling 20 removing 33 SATA characteristics 12 spare part numbers 24

hard drive cable

spare part number 23, 25

hard drive connector

removing 59 headphone pin assignments 79 heat sink

removing 38 heat sink assembly

spare part number 23, 25, 26

inverter

spare part numbers 23, 26 inverter board

removing 48 inverter cable

spare part number 23, 25

jumper

CMOS 76

keyboard

cleaning 18

LEDs

blinking power 73

blinking PS/2 keyboard 73 left rear cover

removing 30 line-in audio pin assignments 79

Index 83

line-out audio pin assignments

LVDS cable

spare part number 23, 25

mass storage devices, spare part

numbers 24

memory module

removing 36

spare part numbers 23, 26 microphone pin assignments 78 mouse

cleaning 19

spare part numbers 24

numeric error codes 66

opening the computer 27 operating guidelines 17 optical drive

removing 31

spare part numbers 24 optical drive bezel

spare part numbers 24, 25, 31 optical drive bracket

spare part numbers 24, 26, 31 optical drive cable

spare part number 23, 25 optical drive connector

removing 59 overheating, prevention 17

POST error messages 65 power button board

removing 50

spare part number 23, 25 power button/LED

spare part number 23, 25 power cord set requirements

country specific 81 power supply 82 processor

removal and replacement

procedures 40

spare part numbers 23

rear components 3 rear cover

removing 46

removal and replacement

processor 40

removal and replacement

procedures

All-in One chassis 27 bezel 60 display panel 63 drive connectors 59 fan 52 front bezel 60 hard drive 33 hard drive connector 59 heat sink 38 inverter board 48 left rear cover 30 memory 36 optical drive 31 optical drive connector 59 power button board 50 preparing to disassemble the

computer 27 rear cover 46 right rear cover 35 small rear cover 28 speakers 54 stand 29 stand bracket 58 system board 56 system board shield 51 thermal module 38 webcam module 44 WLAN module 42

right rear cover

removing 35

safety precautions

cleaning 18

SATA

connectors on system board

12 data cable pinouts 12 hard drive characteristics 12

screws, correct size 20 service considerations 19 side components 3

small rear cover

removing 28

software

servicing computer 19

spare part number

tamper-resistent wrench 19 Torx T-15 screwdriver 19

speaker

spare part number 25, 54 spare part numbers 23

speakers

removing 54

specifications

computer 82

stand

removing 29

stand bracket

removing 58 static electricity 15 system board

removing 56

SATA connectors 12

spare part numbers 23, 25 system board shield

removing 51

tamper-proof screws

tool 19 temperature control 17 thermal module

removing 38 thermal module, spare part

number 23, 25, 26

thermal pad, DIMM

spare part number 25 thermal pad, VRM

spare part number 25 tools, servicing 19 Torx T15 screwdriver 19

USB pin assignments 78

ventilation, proper 17

webcam cable

spare part number 23, 25

84 Index

webcam module

removing 44 spare part number 23, 25

WLAN antenna cable

spare part number 23, 25

WLAN module

removing 42 spare part number 23, 25

Index 85

Hp Omni PRO 110 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product Features

Front Components

Rear and Side Components

Installing the Operating System

Downloading Microsoft Windows Updates

Installing or Upgrading Device Drivers (Windows systems)

Protecting the Software

3 Computer Setup (F10) Utility

Computer Setup (F10) Utilities

Using Computer Setup (F10) Utilities

Computer Setup—Main

Computer Setup—Advanced

Computer Setup—Power

Computer Setup—Boot

Computer Setup—Exit

Recovering the Configuration Settings

SATA Hard Drives

SATA Hard Drive Cables

SATA Data Cable

SMART ATA Drives

Hard Drive Capacities

Chassis Designation

All-in One

Electrostatic Discharge Information

Generating Static

Preventing Electrostatic Damage to Equipment

Personal Grounding Methods and Equipment

Grounding the Work Area

Recommended Materials and Equipment

Operating Guidelines

Routine Care

General Cleaning Safety Precautions

Cleaning the Computer Case

Cleaning the Keyboard

Cleaning the Monitor

Cleaning the Mouse

Service Considerations

Tools and Software Requirements

Screws

Cables and Connectors

Hard Drives

Lithium Coin Cell Battery

6 Illustrated parts catalog

Computer major components

Mass storage devices

Sequential part number listing

Preparing to Disassemble the Computer

Small Rear Cover

Stand

Left Rear Cover

Optical Drive

Hard Drive

Right Rear Cover

Memory

Heat Sink (Thermal Module)

Processor

WLAN Module

Webcam Module

Rear Cover

Inverter Board

Power Button Board

System Board Shield

Speakers

System Board

Stand Bracket

Drive Connectors

Front Bezel

Display Panel

A POST Error Messages

POST Numeric Codes and Text Messages

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes

Resetting the CMOS Jumper

B Connector Pin Assignments

Ethernet BNC

Microphone

Headphone
