HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

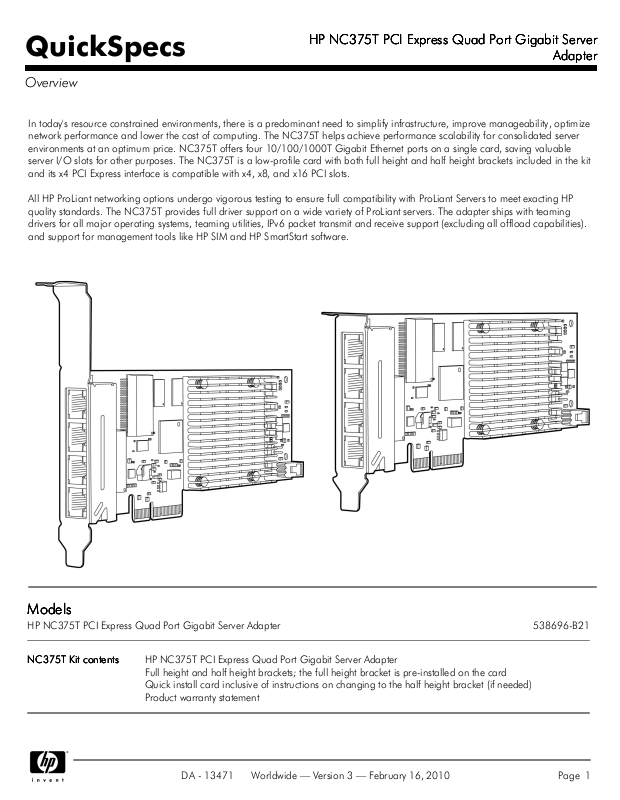

QuickSpecs

Adapter

AdapterAdapter

Overview

In today's resource constrained environments, there is a predominant need to simplify infrastructure, improve manageability, optimize network performance and lower the cost of computing. The NC375T helps achieve performance scalability for consolidated server environments at an optimum price. NC375T offers four 10/100/1000T Gigabit Ethernet ports on a single card, saving valuable server I/O slots for other purposes. The NC375T is a low-profile card with both full height and half height brackets included in the kit and its x4 PCI Express interface is compatible with x4, x8, and x16 PCI slots.

All HP ProLiant networking options undergo vigorous testing to ensure full compatibility with ProLiant Servers to meet exacting HP quality standards. The NC375T provides full driver support on a wide variety of ProLiant servers. The adapter ships with teaming drivers for all major operating systems, teaming utilities, IPv6 packet transmit and receive support (excluding all offload capabilities). and support for management tools like HP SIM and HP SmartStart software.

Models

ModelsModels

HP NC375T PCI Express Quad Port Gigabit Server Adapter

NC375T Kit contents

NC375T Kit contentsNC375T Kit contents

HP NC375T PCI Express Quad Port Gigabit Server Adapter Full height and half height brackets; the full height bracket is pre-installed on the card Quick install card inclusive of instructions on changing to the half height bracket (if needed) Product warranty statement

DA - 13471 Worldwide — Version 3 — February 16, 2010

538696-B21

Page 1

QuickSpecs

Overview

Standard Features

Standard FeaturesStandard Features

Server Support

Server SupportServer Support

ProLiant DL (rack-optimized)

ProLiant DL (rack-optimized)ProLiant DL (rack-optimized)

HP ProLiant DL160 G6 HP ProLiant DL160se G6 HP ProLiant DL165 G6 HP ProLiant DL170h G6 HP ProLiant DL180 G6 HP ProLiant DL320 G6 HP ProLiant DL360 G6 HP ProLiant DL370 G6 HP ProLiant DL380 G6 HP ProLiant DL385 G6 HP ProLiant DL585 G6 HP ProLiant DL785 G6

ProLiant ML (expansion-optimized)

ProLiant ML (expansion-optimized)ProLiant ML (expansion-optimized)

HP ProLiant ML330 G6 HP ProLiant ML350 G6 HP ProLiant ML370 G6

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

ProLiant SL (scalable line)

ProLiant SL (scalable line)ProLiant SL (scalable line)

HP ProLiant SL160z G6 HP ProLiant SL165ze G6 HP ProLiant SL170z G6 HP ProLiant SL2x170z G6

NOTE:

This is a list of supported servers. Some servers may be discontinued.

NOTE:NOTE:

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 2

QuickSpecs

Performance

Quad-port Gigabit

Quad-port GigabitQuad-port Gigabit Ethernet Throughput

Ethernet Throughput

Ethernet ThroughputEthernet Throughput

Jumbo Frames

Jumbo FramesJumbo Frames

802.1Q VLANs with

802.1Q VLANs with802.1Q VLANs with

802.1p QoS Tagging

802.1p QoS Tagging802.1p QoS Tagging

With a theoretical throughput of 10 Gbps each direction, the x4 PCI Express bus is more than capable of supporting the NC375T's four gigabit ports. Up to 1000 Mbps Ethernet transfer rate per port (4000 Mbps combined) delivers optimum network performance designed to improve response time and remove bottlenecks across the entire network. Four ports on a single adapter are ideal for high density, I/O slot constrained servers, virtualization and security, applications, server consolidation, and increased network segmentation. The total aggregate throughput of 4Gbps also meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.

NOTE:

Port enumeration on the NC375T is from the top down, i.e. the port near the top of the adapter

NOTE:NOTE: is port #1 and the port closest to the gold teeth is port #4

Jumbo frames (also known as extended frames) permit a 9K byte transmission unit (MTU), which is six times the size of standard 1500 byte Ethernet frame. The NC375T supports jumbo frames as a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups.

IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC375T to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance. VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to within the same VLAN domain also improves performance. IEEE quality of service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-aware network for improved traffic flow.

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

TCP/IP Stateless

TCP/IP StatelessTCP/IP Stateless Offloading

Offloading

OffloadingOffloading

Interrupt Coalescence

Interrupt CoalescenceInterrupt Coalescence

Dual Address Cycles

Dual Address CyclesDual Address Cycles

For overall improved system response, the NC375T supports standard TCP/IP offloading techniques including:

TCP/IP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network adapter. Large send offload (LSO) or TCP segmentation offload (TSO) allows the TCP segmentation to be handled by the adapter rather than the CPU.

Interrupt coalescing (interrupt moderation) groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties.

Dual address cycles (DAC) provide the ability to address memory above 4 GB and improve system performance by preventing the server operating system from performing a buffer copy from below 4 GB to above 4 GB.

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 3

QuickSpecs

Versatility

10/100/1000T Twisted

10/100/1000T Twisted10/100/1000T Twisted Pair Networks

Pair Networks

Pair NetworksPair Networks

Full and Half Height

Full and Half HeightFull and Half Height Brackets

Brackets

BracketsBrackets

x4/x8/x16 PCI Express

x4/x8/x16 PCI Expressx4/x8/x16 PCI Express Compatibility

Compatibility

CompatibilityCompatibility

In addition to Gigabit Ethernet, the NC375T adapter supports both 10Mbps and 100Mbps providing compatibility with Ethernet and Fast Ethernet twisted pair networks.

The NC375T is a low-profile card supporting both full height and half height PCI Express slots. A full height bracket is pre-installed on the card with the half height bracket in the box. The quick install card includes instructions on how to change brackets if needed.

The x4 PCI Express interface on the NC375T is compatible with x4, x8, and x16 PCI slots. If installed in a x8 or x16 slot, the adapter will operate at the x4 speed.

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 4

QuickSpecs

High Availability

Network Adapter

Network AdapterNetwork Adapter Teaming

Teaming

TeamingTeaming

ProLiant Network Adapter Teaming provides fault tolerance and load balancing across a team of two or more network adapters. The team of adapters works together as a single virtual adapter. Support for several different types of teaming is included. Optional advanced teaming capabilities are further supported through the ProLiant Essentials Intelligent Networking Pack.

The teaming options offer IT professionals an easy, efficient, and cost-effective way to provide network fault tolerance and increased network bandwidth. For more information, refer to the ProLiant Network Adapter Teaming Whitepaper available at:

http://bizsupport.austin.hp.com/bc/docs/support/SupportManual/c01415139/c01415139.pdf

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 5

QuickSpecs

Network Management

Auto-negotiation

Auto-negotiationAuto-negotiation

Management Support

Management SupportManagement Support

Server Integration

Server IntegrationServer Integration

The NC375T automatically senses the speed of the device to which it is attached. It also automatically configures for half or full duplex, depending on the duplex mode of the switch, hub, or router connected to the adapter.

Like all HP server adapters, the NC375T ships with drivers and agents that can be managed from HP Systems Insight Manager, as well as using any other management application that supports SNMP. HP Systems Insight Manager can recognize the NC375T individually or in teams, and can collect and report SNMP statistics on the adapter events.

The NC375T is a completely integrated, tested, and qualified solution that is optimized for HP servers. HP validates a wide variety of major operating systems drivers with the full suite of web-based enterprise management utilities and ProLiant Essentials (including SmartStart and HP Systems Insight Manager) that simplify network management. Integrated Management Log (IML) support is provided by the NC375T for critical event logging on HP servers.

This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters.

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

Configuration Utilities

Configuration UtilitiesConfiguration Utilities

LED Indicators

LED IndicatorsLED Indicators

PXE

PXEPXE

Each NC375T ships with a suite of operating system-tailored configuration utilities that allow the user to enable initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for Microsoft Windows operating systems. Additionally, support for scripted installations of teams in a Microsoft Windows environment allow for unattended OS installations.

Per port bracket LED indicators show link integrity, network activity, and network speed for easy troubleshooting.

Support for pre-boot execution environment (PXE) enables automatic deployment of computing resources remotely from anywhere. It allows a new or existing server to boot over the network and download software, including the operating system, from a management/ deployment server at another location on the network. Additionally, PXE enables decentralized software distribution and remote troubleshooting and repairs.

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 6

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Warranty

WarrantyWarranty

Support Services

Support ServicesSupport Services

Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

Installation and start up Education courses Extended onsite hardware coverage hours from same business day 13 ours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call-To-Repair. Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials, and VMware-based IT solutions helping to deliver high level of application availability. Response times ranging from 30 minutes for critical problems to 2 hours. System Management, Performance Services and Mission Critical Support Solution

NOTE:

NOTE: NOTE: resellers or visit our worldwide Web site on the internet at: NOTE:

NOTE:

NOTE: NOTE: at: NOTE:

NOTE:

NOTE: NOTE: at:

For more information on HP Care Pack services, contact any of our worldwide sales offices or

For more complete information on HP Services offerings, customers and resellers, please visit us

http://www.hp.com/hps

Additional information regarding worldwide limited warranty and technical support is available

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

http://www.hp.com/hps/carepack

Adapter

AdapterAdapter

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 7

QuickSpecs

Related Options

Gigabit Server Adapters

Gigabit Server AdaptersGigabit Server Adapters

10 Gigabit Server

10 Gigabit Server10 Gigabit Server Adapters

Adapters

AdaptersAdapters

HP NC110T PCI Express Gigabit Server Adapter HP NC112T PCIe Gigabit Server Adapter HP NC360T PCI Express Dual Port Gigabit Server Adapter HP NC364T PCI Express Quad Port Gigabit Server Adapter HP NC373F PCI Express Multifunction Gigabit Server Adapter HP NC373T PCI Express Multifunction Gigabit Server Adapter HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

HP NC522SFP Dual Port 10GbE Server Adapter

NOTE:

A minimum of two Gigabyte (2 GB) of server memory is required per each

NOTE:NOTE: NC522SFP adapter. NOTE:

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and

NOTE:NOTE: cables for fiber-optic environments must be purchased separately.

HP NC524SFP Dual Port 10GbE Server Adapter

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each

NOTE:NOTE: NC524SFP module. NOTE:

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and

NOTE:NOTE: cables for fiber-optic environments must be purchased separately. NOTE:

NOTE:

NC524SFP is available only on DL370 G6 and ML370 G6.

NOTE:NOTE:

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

434905-B21 503746-B21 412648-B21 435508-B21 394793-B21 394791-B21 458492-B21

468332-B21

489892-B21

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 8

QuickSpecs

Technical Specifications

General Specifications

General SpecificationsGeneral Specifications

IEEE Compliance

IEEE ComplianceIEEE Compliance Power and Environmental

Power and Environmental

Power and EnvironmentalPower and Environmental Specifications

Specifications

SpecificationsSpecifications

Operating System Support

Operating System SupportOperating System Support

Communications

CommunicationsCommunications Processor

Processor

ProcessorProcessor Data rate

Data rate

Data rateData rate Data path

Data path

Data pathData path

On-board memory

On-board memoryOn-board memory Bus type

Bus type

Bus typeBus type Bus speed

Bus speed

Bus speedBus speed Interrupt levels

Interrupt levels

Interrupt levelsInterrupt levels Connector

Connector

ConnectorConnector Cable distance

Cable distance

Cable distanceCable distance Wiring

Wiring

WiringWiring Dimensions

Dimensions

DimensionsDimensions Form factor

Form factor

Form factorForm factor

802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.3p, 802.1Q Operating

Operating

OperatingOperating

Non-operating

Non-operatingNon-operating

Power requirement

Power requirementPower requirement Emissions classification

Emissions classification

Emissions classificationEmissions classification Agency approvals

Agency approvals

Agency approvalsAgency approvals

RoHS Compliance

RoHS ComplianceRoHS Compliance Safety

Safety

SafetySafety

Microsoft Windows Server 2008 (32/64), Enterprise, SBS, Web, Embedded, and R2 Microsoft Windows HPC Server 2008 Microsoft Windows Server 2003 and R2 SP2 Microsoft Windows Server 2003 Web Edition Microsoft certified miniport and teaming drivers Microsoft Windows 2003 Standard (32 and x64) Microsoft Windows 2003 Enterprise (32 and x64) RH4 x86

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

Adapter

AdapterAdapter

NetXen NX3031

10/100/1000 Mbps, Half- and full-duplex Four lane (x4) PCI Express compatible with x1, x4, x8, and x16 PCI Express

slots 128 MB for PCA PCI-Express v2.0 & v1.1 10 Gbps uni-directional; 20 Gbps bi-directional (x4 PCIe, encoded rate) Automatically configured RJ-45 (Four) Up to 328 ft (100 m) Category 5 (CAT-5) or better twisted-pair cabling

16.76 cm x 6.86 cm [6.6 in x 2.7 in (L x W)] (without bracket) Low profile card with both full height (pre-installed) and half height brackets

included in kit

Temperature

TemperatureTemperature Humidity

Humidity

HumidityHumidity Temperature

Temperature

TemperatureTemperature Humidity

Humidity

HumidityHumidity 14 W @ 3.3V maximum Class B USA

USA

USAUSA Canada

Canada

CanadaCanada Japan

Japan

JapanJapan Taiwan

Taiwan

TaiwanTaiwan Korea

Korea

KoreaKorea Australia

Australia

AustraliaAustralia

European Union

European UnionEuropean Union

6 of 6 UL Mark (USA and Canada) CE Mark EN 60590

32° to 131° F (0° to 55° C) 10% to 90% non-condensing

-85° to 185° F (-65° to 85° C) 5% to 95% non-condensing

FCC (CFR 47 part 15) and UL 60950 ICES-003 and CSA60950 VCCI BSMI MIC (RRL), EMC Registration ACA, AS/NZS3548/EN55022:1998,

EN55024:1998 EN55022:1998 (CISPR 22), EN55024:1998,

and IEC60950:1999 (EN60950:2000)

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 9

QuickSpecs

Technical Specifications

RH4 AMD 64 & EM 64T RH5 x86 RH5 AMD 64 & EM 64T SLES10: x86 and AMD 64 & EM 64T SLES 11: x86 and AMD 64 & EM64T Solaris 10, 11 VMWare ESX 3.5.0 U5 & ESX 4.0 U1 Citrix HyperV (Windows 2008 32 and 64)

NOTE:

For more Linux OS support & certification information, please visit the ProLiant & Bladesystem

NOTE:NOTE: Server Linux matrix:

Environment-friendly

Environment-friendlyEnvironment-friendly Products and Approach

Products and Approach

Products and ApproachProducts and Approach

End-of-life Management

End-of-life ManagementEnd-of-life Management and Recycling

and Recycling

and Recyclingand Recycling

HP NC375T PCI Express Quad Port Gigabit Server

HP NC375T PCI Express Quad Port Gigabit ServerHP NC375T PCI Express Quad Port Gigabit Server

http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to

http://www.hp.com/go/green http://www.hp.com/go/green

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

. To recycle your product, please go to: or contact your nearest HP sales office.

Adapter

AdapterAdapter

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice.

Windows is a US registered trademark of Microsoft Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

http://www.hp.com/go/green

. These instructions may

DA - 13471 Worldwide — Version 3 — February 16, 2010

Page 10

HP NC375T Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Performance

Versatility

High Availability

Network Management

Service and Support, HP Care Pack, and Warranty Information

Related Options

Technical Specifications
